HP Pavilion t588hk Technical Data

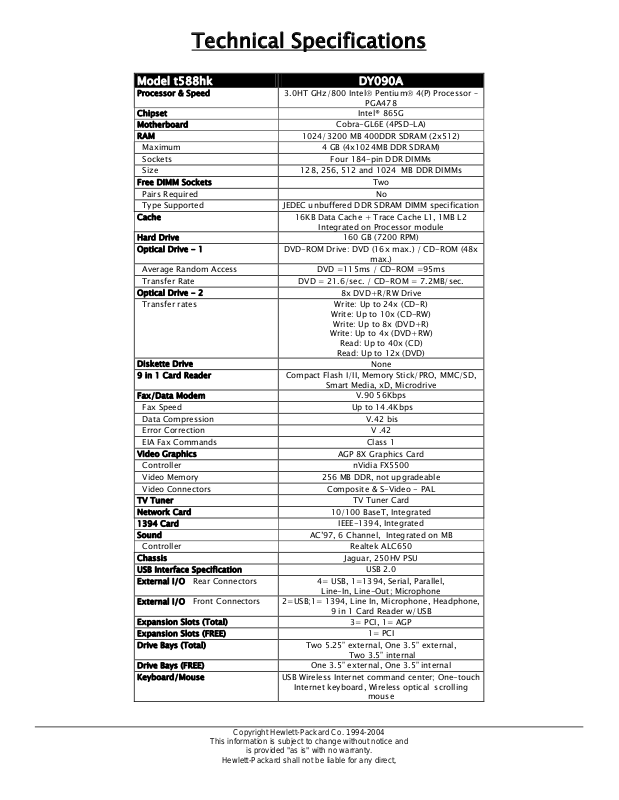

Technical Specifications

Model t588hk DY090A

Processor & Speed

Chipset Intel® 865G
Motherboard Cobra-GL6E (4PSD-LA)
RAM 1024/3200 MB 400DDR SDRAM (2x512)
Maximum 4 GB (4x1024MB DDR SDRAM)
Sockets Four 184-pin DDR DIMMs
Size 128, 256, 512 and 1024 MB DDR DIMMs
Free DIMM Sockets Two
Pairs Required No
Type Supported JEDEC unbuffered DDR SDRAM DIMM specification
Cache 16KB Data Cache + Trace Cache L1, 1MB L2

Hard Drive 160 GB (7200 RPM)
Optical Drive - 1 DVD-ROM Drive: DVD (16x max.) / CD-ROM (48x

Average Random Access DVD =115ms / CD-ROM =95ms
Transfer Rate DVD = 21.6/sec. / CD-ROM = 7.2MB/sec.
Optical Drive - 2 8x DVD+R/RW Drive
Transfer rates

Diskette Drive None
9 in 1 Card Reader Compact Flash I/II, Memory Stick/PRO, MMC/SD,

Fax/Data Modem V.90 56Kbps
Fax Speed Up to 14.4Kbps
Data Compression V.42 bis
Error Correction V .42
EIA Fax Commands Class 1
Video Graphics AGP 8X Graphics Card
Controller nVidia FX5500
Video Memory 256 MB DDR, not upgradeable
Video Connectors Composite & S-Video - PAL
TV Tuner TV Tuner Card
Network Card 10/100 BaseT, Integrated
1394 Card IEEE-1394, Integrated
Sound AC’97, 6 Channel, Integrated on MB
Controller Realtek ALC650
Chassis Jaguar, 250HV PSU
USB Interface Specification USB 2.0
External I/O Rear Connectors 4= USB, 1=1394, Serial, Parallel,

External I/O Front Connectors 2=USB;1= 1394, Line In, Microphone, Headphone,

Expansion Slots (Total) 3= PCI, 1= AGP
Expansion Slots (FREE) 1= PCI
Drive Bays (Total) Two 5.25” external, One 3.5” external,

Drive Bays (FREE) One 3.5” external, One 3.5” internal
Keyboard/Mouse USB Wireless Internet command center; One-touch

Copyright Hewlett-Packard Co. 1994-2004

This information is subject to change without notice and

is provided "as is" with no warranty.

Hewlett-Packard shall not be liable for any direct,

3.0HT GHz/800 Intel® Pentium® 4(P) Processor –
PGA478

Integrated on Processor module

max.)

Write: Up to 24x (CD-R)

Write: Up to 10x (CD-RW)

Write: Up to 8x (DVD+R)

Write: Up to 4x (DVD+RW)

Read: Up to 40x (CD)

Read: Up to 12x (DVD)

Smart Media, xD, Microdrive

Line-In, Line-Out; Microphone

9 in 1 Card Reader w/USB

Two 3.5” internal

Internet keyboard, Wireless optical scrolling

mouse

indirect, special, incidental or consequential damages

in connection with the use of this material.
