Hp PAVILION t560i Technical Specifications

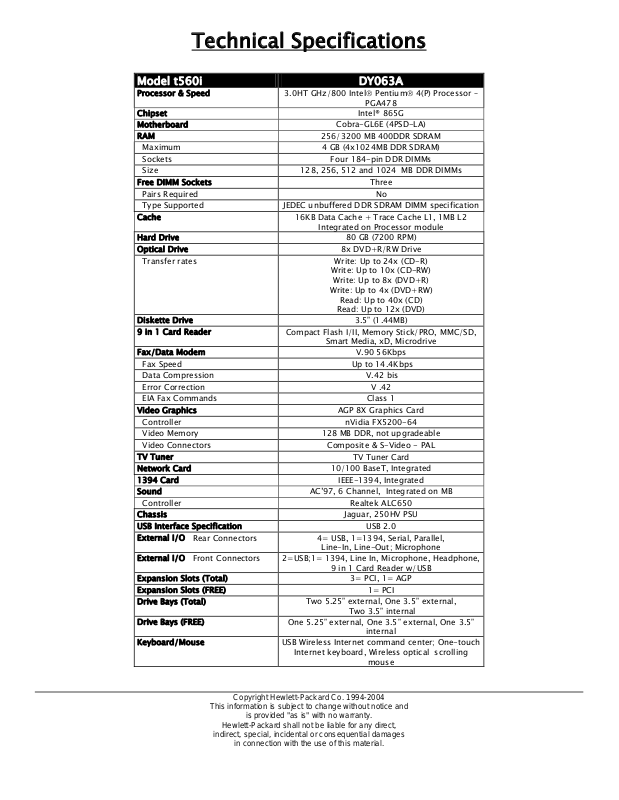

Technical Specifications

Model t560i DY063A

Processor & Speed

Chipset Intel® 865G
Motherboard Cobra-GL6E (4PSD-LA)
RAM 256/3200 MB 400DDR SDRAM
Maximum 4 GB (4x1024MB DDR SDRAM)
Sockets Four 184-pin DDR DIMMs
Size 128, 256, 512 and 1024 MB DDR DIMMs
Free DIMM Sockets Three
Pairs Required No
Type Supported JEDEC unbuffered DDR SDRAM DIMM specification
Cache 16KB Data Cache + Trace Cache L1, 1MB L2

Hard Drive 80 GB (7200 RPM)
Optical Drive 8x DVD+R/RW Drive
Transfer rates

Diskette Drive 3.5” (1.44MB)
9 in 1 Card Reader Compact Flash I/II, Memory Stick/PRO, MMC/SD,

Fax/Data Modem V.90 56Kbps
Fax Speed Up to 14.4Kbps
Data Compression V.42 bis
Error Correction V .42
EIA Fax Commands Class 1
Video Graphics AGP 8X Graphics Card
Controller nVidia FX5200-64
Video Memory 128 MB DDR, not upgradeable
Video Connectors Composite & S-Video - PAL
TV Tuner TV Tuner Card
Network Card 10/100 BaseT, Integrated
1394 Card IEEE-1394, Integrated
Sound AC’97, 6 Channel, Integrated on MB
Controller Realtek ALC650
Chassis Jaguar, 250HV PSU
USB Interface Specification USB 2.0
External I/O Rear Connectors 4= USB, 1=1394, Serial, Parallel,

External I/O Front Connectors 2=USB;1= 1394, Line In, Microphone, Headphone,

Expansion Slots (Total) 3= PCI, 1= AGP
Expansion Slots (FREE) 1= PCI
Drive Bays (Total) Two 5.25” external, One 3.5” external,

Drive Bays (FREE) One 5.25” external, One 3.5” external, One 3.5”

Keyboard/Mouse USB Wireless Internet command center; One-touch

Copyright Hewlett-Packard Co. 1994-2004

This information is subject to change without notice and

is provided "as is" with no warranty.

Hewlett-Packard shall not be liable for any direct,

indirect, special, incidental or consequential damages

in connection with the use of this material.

3.0HT GHz/800 Intel® Pentium® 4(P) Processor –
PGA478

Integrated on Processor module

Write: Up to 24x (CD-R)

Write: Up to 10x (CD-RW)

Write: Up to 8x (DVD+R)

Write: Up to 4x (DVD+RW)

Read: Up to 40x (CD)

Read: Up to 12x (DVD)

Smart Media, xD, Microdrive

Line-In, Line-Out; Microphone

9 in 1 Card Reader w/USB

Two 3.5” internal

internal

Internet keyboard, Wireless optical scrolling

mouse
