HP Pavilion t557k Technical Specifications

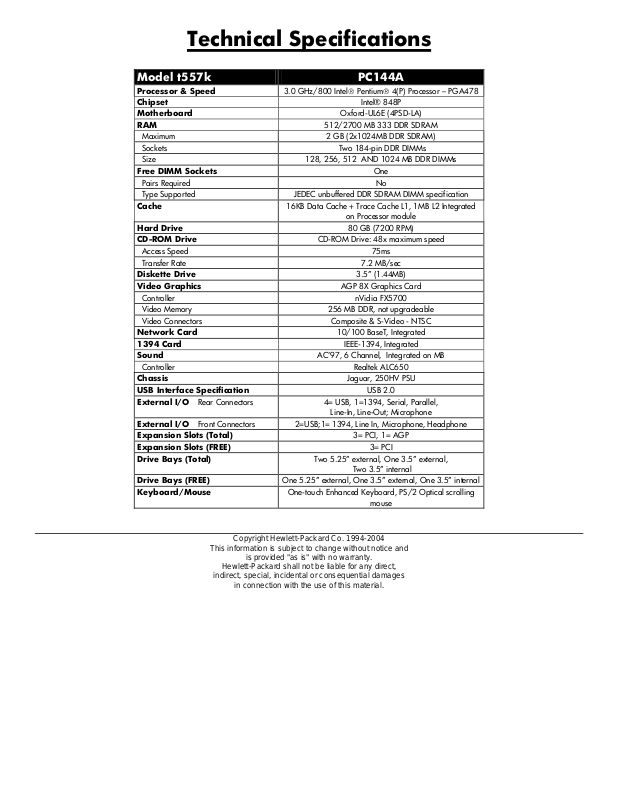

Technical Specifications

Model t557k PC144A

Processor & Speed 3.0 GHz/800 Intel® Pentium® 4(P) Processor – PGA478 Chipset Intel® 848P Motherboard Oxford-UL6E (4PSD-LA) RAM 512/2700 MB 333 DDR SDRAM

Maximum 2 GB (2x1024MB DDR SDRAM) Sockets Two 184-pin DDR DIMMs Size 128, 256, 512 AND 1024 MB DDR DIMMs Free DIMM Sockets One Pairs Required No Type Supported JEDEC unbuffered DDR SDRAM DIMM specification Cache 16KB Data Cache + Trace Cache L1, 1MB L2 Integrated

on Processor module

Hard Drive 80 GB (7200 RPM) CD-ROM Drive CD-ROM Drive: 48x maximum speed

Access Speed 75ms Transfer Rate 7.2 MB/sec

Diskette Drive 3.5” (1.44MB) Video Graphics AGP 8X Graphics Card

Controller nVidia FX5700 Video Memory 256 MB DDR, not upgradeable Video Connectors Composite & S-Video - NTSC

Network Card 10/100 BaseT, Integrated 1394 Card IEEE-1394, Integrated Sound AC’97, 6 Channel, Integrated on MB Controller Realtek ALC650 Chassis Jaguar, 250HV PSU USB Interface Specification USB 2.0 External I/O Rear Connectors 4= USB, 1=1394, Serial, Parallel,

Line-In, Line-Out; Microphone

External I/O Front Connectors 2=USB;1= 1394, Line In, Microphone, Headphone Expansion Slots (Total) 3= PCI, 1= AGP Expansion Slots (FREE) 3= PCI Drive Bays (Total) Two 5.25” external, One 3.5” external,

Two 3.5” internal

Drive Bays (FREE) One 5.25” external, One 3.5” external, One 3.5” internal Keyboard/Mouse One-touch Enhanced Keyboard, PS/2 Optical scrolling

mouse
