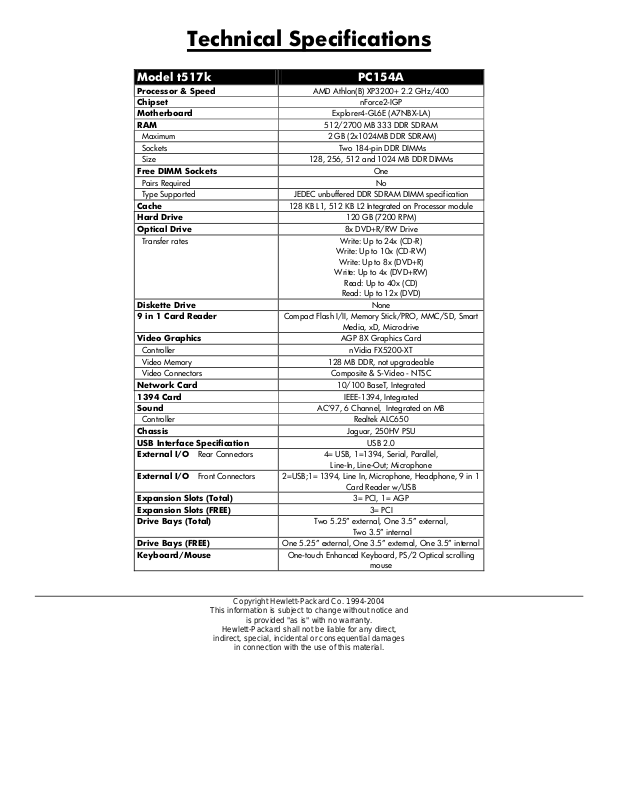

Technical Specifications
Model t517k |
PC154A |
|
Processor & Speed |
AMD Athlon(B) XP3200+ 2.2 GHz/400 |
|
Chipset |
|
nForce2-IGP |
Motherboard |
|
Explorer4-GL6E (A7NBX-LA) |
RAM |
|
512/2700 MB 333 DDR SDRAM |
Maximum |
|
2 GB (2x1024MB DDR SDRAM) |
Sockets |
|
Two 184-pin DDR DIMMs |
Size |
|
128, 256, 512 and 1024 MB DDR DIMMs |
Free DIMM Sockets |
One |
|
Pairs Required |
|
No |
Type Supported |
|
JEDEC unbuffered DDR SDRAM DIMM specification |
Cache |
|
128 KB L1, 512 KB L2 Integrated on Processor module |
Hard Drive |
|
120 GB (7200 RPM) |
Optical Drive |
|
8x DVD+R/RW Drive |
Transfer rates |
|
Write: Up to 24x (CD-R) |
|
|
Write: Up to 10x (CD-RW) |
|
|
Write: Up to 8x (DVD+R) |
|
|
Write: Up to 4x (DVD+RW) |
|
|
Read: Up to 40x (CD) |
|
|
Read: Up to 12x (DVD) |
Diskette Drive |
|
None |
9 in 1 Card Reader |
Compact Flash I/II, Memory Stick/PRO, MMC/SD, Smart |
|
|
|
Media, xD, Microdrive |
Video Graphics |
AGP 8X Graphics Card |
|
Controller |
|
nVidia FX5200-XT |
Video Memory |
|
128 MB DDR, not upgradeable |
Video Connectors |
Composite & S-Video - NTSC |
|
Network Card |
|
10/100 BaseT, Integrated |
1394 Card |
|
IEEE-1394, Integrated |
Sound |
|
AC’97, 6 Channel, Integrated on MB |
Controller |
|
Realtek ALC650 |
Chassis |
|
Jaguar, 250HV PSU |
USB Interface Specification |
USB 2.0 |
|
External I/O |
Rear Connectors |
4= USB, 1=1394, Serial, Parallel, |
|
|
Line-In, Line-Out; Microphone |
External I/O |
Front Connectors |
2=USB;1= 1394, Line In, Microphone, Headphone, 9 in 1 |
|
|
Card Reader w/USB |
Expansion Slots (Total) |
3= PCI, 1= AGP |
|
Expansion Slots (FREE) |
3= PCI |
|
Drive Bays (Total) |
Two 5.25” external, One 3.5” external, |
|
|
|
Two 3.5” internal |
Drive Bays (FREE) |
One 5.25” external, One 3.5” external, One 3.5” internal |
|
Keyboard/Mouse |
One-touch Enhanced Keyboard, PS/2 Optical scrolling |
|
|
|
mouse |
