HP Pavilion t488hk Technical Specifications

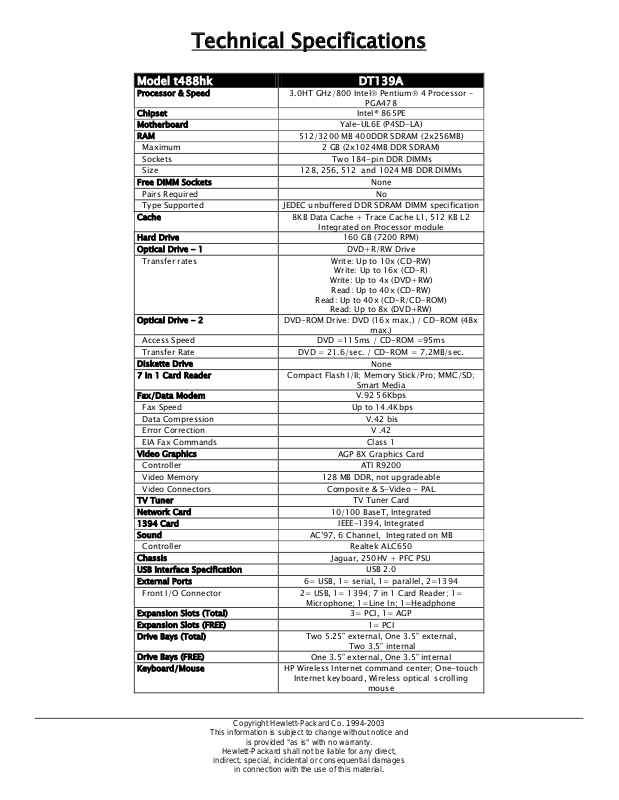

Technical Specifications
Model t488hk DT139A
Processor & Speed
Chipset Intel® 865PE
Motherboard Yale-UL6E (P4SD-LA)
RAM 512/3200 MB 400DDR SDRAM (2x256MB)
Maximum 2 GB (2x1024MB DDR SDRAM)
Sockets Two 184-pin DDR DIMMs
Size 128, 256, 512 and 1024 MB DDR DIMMs
Free DIMM Sockets None
Pairs Required No
Type Supported JEDEC unbuffered DDR SDRAM DIMM specification
Cache 8KB Data Cache + Trace Cache L1, 512 KB L2
Hard Drive 160 GB (7200 RPM)
Optical Drive - 1 DVD+R/RW Drive
Transfer rates
Optical Drive - 2 DVD-ROM Drive: DVD (16x max.) / CD-ROM (48x
Access Speed DVD =115ms / CD-ROM =95ms
Transfer Rate DVD = 21.6/sec. / CD-ROM = 7.2MB/sec.
Diskette Drive None
7 in 1 Card Reader Compact Flash I/II; Memory Stick/Pro; MMC/SD;
Fax/Data Modem V.92 56Kbps
Fax Speed Up to 14.4Kbps
Data Compression V.42 bis
Error Correction V .42
EIA Fax Commands Class 1
Video Graphics AGP 8X Graphics Card
Controller ATI R9200
Video Memory 128 MB DDR, not upgradeable
Video Connectors Composite & S-Video - PAL
TV Tuner TV Tuner Card
Network Card 10/100 BaseT, Integrated
1394 Card IEEE-1394, Integrated
Sound AC’97, 6 Channel, Integrated on MB
Controller Realtek ALC650
Chassis Jaguar, 250HV + PFC PSU
USB Interface Specification USB 2.0
External Ports 6= USB, 1= serial, 1= parallel, 2=1394
Front I/O Connector 2= USB, 1= 1394; 7 in 1 Card Reader; 1=
Expansion Slots (Total) 3= PCI, 1= AGP
Expansion Slots (FREE) 1= PCI
Drive Bays (Total) Two 5.25” external, One 3.5” external,
Drive Bays (FREE) One 3.5” external, One 3.5” internal
Keyboard/Mouse HP Wireless Internet command center; One-touch
Copyright Hewlett-Packard Co. 1994-2003
This information is subject to change without notice and
is provided "as is" with no warranty.
Hewlett-Packard shall not be liable for any direct,
indirect, special, incidental or consequential damages
in connection with the use of this material.
3.0HT GHz/800 Intel® Pentium® 4 Processor –
PGA478
Integrated on Processor module
Write: Up to 10x (CD-RW)
Write: Up to 16x (CD-R)
Write: Up to 4x (DVD+RW)
Read: Up to 40x (CD-RW)
Read: Up to 40x (CD-R/CD-ROM)
Read: Up to 8x (DVD+RW)
max.)
Smart Media
Microphone; 1=Line In; 1=Headphone
Two 3.5” internal
Internet keyboard, Wireless optical scrolling
mouse
