Hp PAVILION t480d Technical Specifications

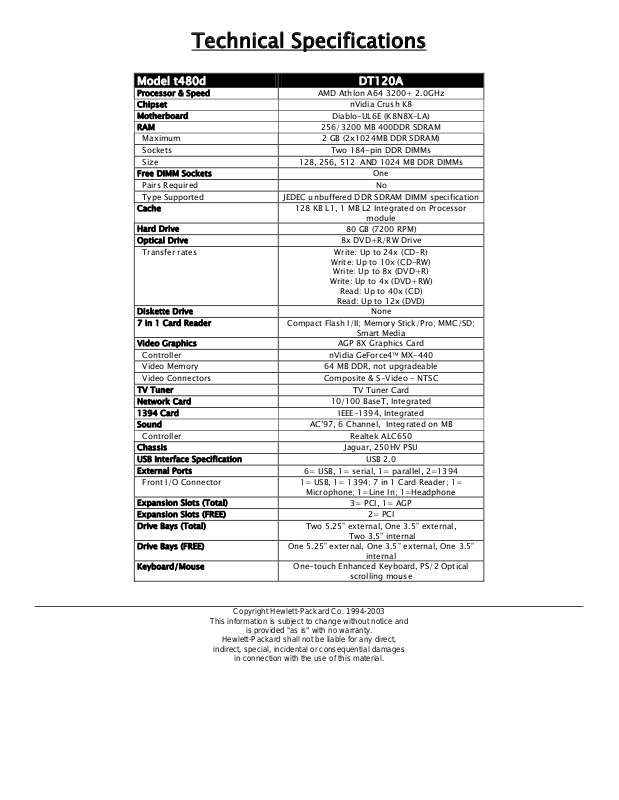

Technical Specifications

Model t480d DT120A

Processor & Speed AMD Athlon A64 3200+ 2.0GHz
Chipset nVidia Crush K8
Motherboard Diablo-UL6E (K8N8X-LA)
RAM 256/3200 MB 400DDR SDRAM
Maximum 2 GB (2x1024MB DDR SDRAM)
Sockets Two 184-pin DDR DIMMs
Size 128, 256, 512 AND 1024 MB DDR DIMMs
Free DIMM Sockets One
Pairs Required No
Type Supported JEDEC unbuffered DDR SDRAM DIMM specification
Cache 128 KB L1, 1 MB L2 Integrated on Processor

Hard Drive 80 GB (7200 RPM)
Optical Drive 8x DVD+R/RW Drive
Transfer rates

Diskette Drive None
7 in 1 Card Reader Compact Flash I/II; Memory Stick/Pro; MMC/SD;

Video Graphics AGP 8X Graphics Card
Controller
Video Memory 64 MB DDR, not upgradeable
Video Connectors Composite & S-Video - NTSC
TV Tuner TV Tuner Card
Network Card 10/100 BaseT, Integrated
1394 Card IEEE-1394, Integrated
Sound AC’97, 6 Channel, Integrated on MB
Controller Realtek ALC650
Chassis Jaguar, 250HV PSU
USB Interface Specification USB 2.0
External Ports 6= USB, 1= serial, 1= parallel, 2=1394
Front I/O Connector 1= USB, 1= 1394; 7 in 1 Card Reader; 1=

Expansion Slots (Total) 3= PCI, 1= AGP
Expansion Slots (FREE) 2= PCI
Drive Bays (Total) Two 5.25” external, One 3.5” external,

Drive Bays (FREE) One 5.25” external, One 3.5” external, One 3.5”

Keyboard/Mouse One-touch Enhanced Keyboard, PS/2 Optical

Write: Up to 24x (CD-R)

Write: Up to 10x (CD-RW)

Write: Up to 8x (DVD+R)

Write: Up to 4x (DVD+RW)

nVidia GeForce4™ MX-440

Microphone; 1=Line In; 1=Headphone

Copyright Hewlett-Packard Co. 1994-2003

This information is subject to change without notice and

indirect, special, incidental or consequential damages

is provided "as is" with no warranty.

Hewlett-Packard shall not be liable for any direct,

in connection with the use of this material.

module

Read: Up to 40x (CD)

Read: Up to 12x (DVD)

Smart Media

Two 3.5” internal

internal

scrolling mouse
