Hp PAVILION t478d Technical Specifications

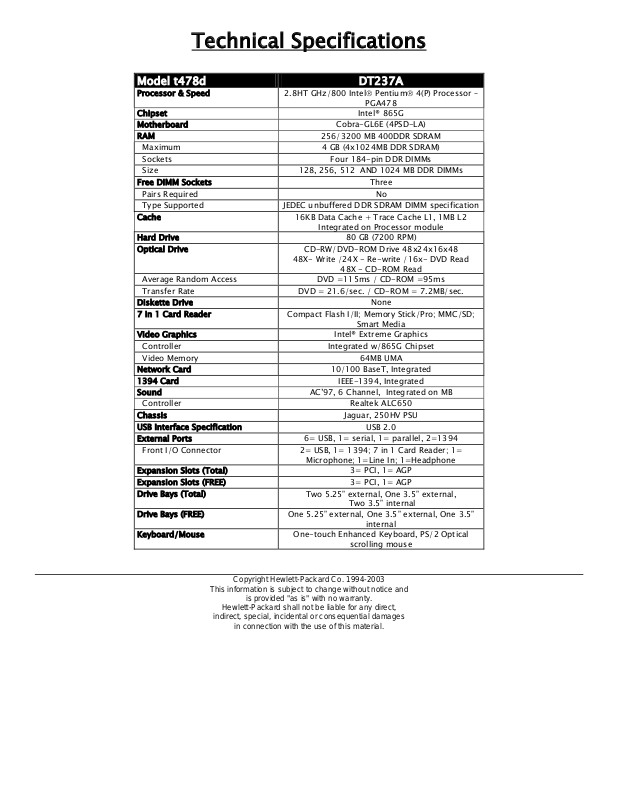

Technical Specifications

Model t478d DT237A

Processor & Speed

Chipset Intel® 865G
Motherboard Cobra-GL6E (4PSD-LA)
RAM 256/3200 MB 400DDR SDRAM
Maximum 4 GB (4x1024MB DDR SDRAM)
Sockets Four 184-pin DDR DIMMs
Size 128, 256, 512 AND 1024 MB DDR DIMMs
Free DIMM Sockets Three
Pairs Required No
Type Supported JEDEC unbuffered DDR SDRAM DIMM specification
Cache 16KB Data Cache + Trace Cache L1, 1MB L2

Hard Drive 80 GB (7200 RPM)
Optical Drive CD-RW/DVD-ROM Drive 48x24x16x48

Average Random Access DVD =115ms / CD-ROM =95ms
Transfer Rate DVD = 21.6/sec. / CD-ROM = 7.2MB/sec.
Diskette Drive None
7 in 1 Card Reader Compact Flash I/II; Memory Stick/Pro; MMC/SD;

Video Graphics Intel® Extreme Graphics
Controller Integrated w/865G Chipset
Video Memory 64MB UMA
Network Card 10/100 BaseT, Integrated
1394 Card IEEE-1394, Integrated
Sound AC’97, 6 Channel, Integrated on MB
Controller Realtek ALC650
Chassis Jaguar, 250HV PSU
USB Interface Specification USB 2.0
External Ports 6= USB, 1= serial, 1= parallel, 2=1394
Front I/O Connector 2= USB, 1= 1394; 7 in 1 Card Reader; 1=

Expansion Slots (Total) 3= PCI, 1= AGP
Expansion Slots (FREE) 3= PCI, 1= AGP
Drive Bays (Total) Two 5.25” external, One 3.5” external,

Drive Bays (FREE) One 5.25” external, One 3.5” external, One 3.5”

Keyboard/Mouse One-touch Enhanced Keyboard, PS/2 Optical

Copyright Hewlett-Packard Co. 1994-2003

This information is subject to change without notice and

is provided "as is" with no warranty.

Hewlett-Packard shall not be liable for any direct,

indirect, special, incidental or consequential damages

in connection with the use of this material.

2.8HT GHz/800 Intel® Pentium® 4(P) Processor –
PGA478

Integrated on Processor module

48X- Write /24X - Re-write /16x- DVD Read

48X - CD-ROM Read

Smart Media

Microphone; 1=Line In; 1=Headphone

Two 3.5” internal

internal

scrolling mouse
