HP Pavilion t468d Technical Specifications

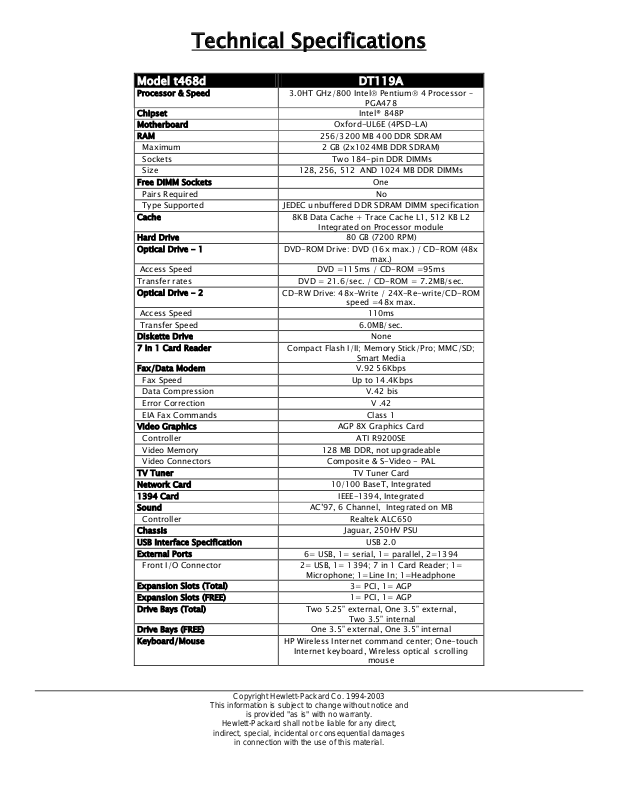

Technical Specifications

Model t468d DT119A

Processor & Speed

Chipset Intel® 848P
Motherboard Oxford-UL6E (4PSD-LA)
RAM 256/3200 MB 400 DDR SDRAM
Maximum 2 GB (2x1024MB DDR SDRAM)
Sockets Two 184-pin DDR DIMMs
Size 128, 256, 512 AND 1024 MB DDR DIMMs
Free DIMM Sockets One
Pairs Required No
Type Supported JEDEC unbuffered DDR SDRAM DIMM specification
Cache 8KB Data Cache + Trace Cache L1, 512 KB L2

Hard Drive 80 GB (7200 RPM)
Optical Drive - 1 DVD-ROM Drive: DVD (16x max.) / CD-ROM (48x

Access Speed DVD =115ms / CD-ROM =95ms
Transfer rates DVD = 21.6/sec. / CD-ROM = 7.2MB/sec.
Optical Drive - 2 CD-RW Drive: 48x-Write / 24X-Re-write/CD-ROM

Access Speed 110ms
Transfer Speed 6.0MB/sec.
Diskette Drive None
7 in 1 Card Reader Compact Flash I/II; Memory Stick/Pro; MMC/SD;

Fax/Data Modem V.92 56Kbps
Fax Speed Up to 14.4Kbps
Data Compression V.42 bis
Error Correction V .42
EIA Fax Commands Class 1
Video Graphics AGP 8X Graphics Card
Controller ATI R9200SE
Video Memory 128 MB DDR, not upgradeable
Video Connectors Composite & S-Video - PAL
TV Tuner TV Tuner Card
Network Card 10/100 BaseT, Integrated
1394 Card IEEE-1394, Integrated
Sound AC’97, 6 Channel, Integrated on MB
Controller Realtek ALC650
Chassis Jaguar, 250HV PSU
USB Interface Specification USB 2.0
External Ports 6= USB, 1= serial, 1= parallel, 2=1394
Front I/O Connector 2= USB, 1= 1394; 7 in 1 Card Reader; 1=

Expansion Slots (Total) 3= PCI, 1= AGP
Expansion Slots (FREE) 1= PCI, 1= AGP
Drive Bays (Total) Two 5.25” external, One 3.5” external,

Drive Bays (FREE) One 3.5” external, One 3.5” internal
Keyboard/Mouse HP Wireless Internet command center; One-touch

Copyright Hewlett-Packard Co. 1994-2003

This information is subject to change without notice and

is provided "as is" with no warranty.

Hewlett-Packard shall not be liable for any direct,

indirect, special, incidental or consequential damages

in connection with the use of this material.

3.0HT GHz/800 Intel® Pentium® 4 Processor –
PGA478

Integrated on Processor module

max.)

speed =48x max.

Smart Media

Microphone; 1=Line In; 1=Headphone

Two 3.5” internal

Internet keyboard, Wireless optical scrolling

mouse
