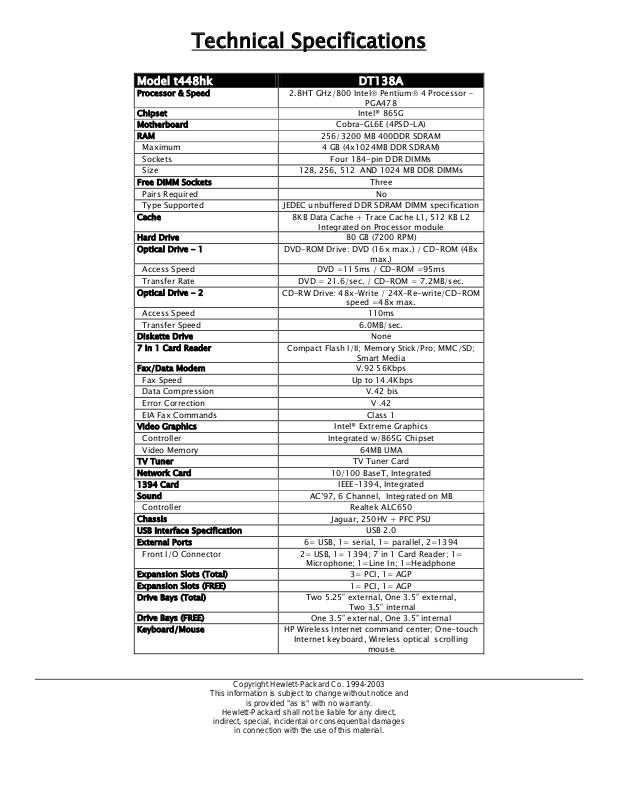

Technical Specifications
|
Model t448hk |
|
DT138A |
|
|
Processor & Speed |
|
2.8HT GHz/800 Intel® Pentium® 4 Processor – |
|
|
|
|
PGA478 |
|
|
Chipset |
|
Intel® 865G |
|
|
Motherboard |
Cobra-GL6E (4PSD-LA) |
|
|
|
RAM |
256/3200 MB 400DDR SDRAM |
|
|
|
Maximum |
4 GB (4x1024MB DDR SDRAM) |
|
|
|
Sockets |
Four 184-pin DDR DIMMs |
|
|
|
Size |
128, 256, 512 AND 1024 MB DDR DIMMs |
|
|
|
Free DIMM Sockets |
Three |
|
|
|
Pairs Required |
No |
|
|
|
Type Supported |
JEDEC unbuffered DDR SDRAM DIMM specification |
|
|
|
Cache |
8KB Data Cache + Trace Cache L1, 512 KB L2 |
|
|
|
|
|
Integrated on Processor module |
|
|
Hard Drive |
80 GB (7200 RPM) |
|
|
|
Optical Drive - 1 |
DVD-ROM Drive: DVD (16x max.) / CD-ROM (48x |
|
|
|
|
|
max.) |
|
|
Access Speed |
DVD =115ms / CD-ROM =95ms |
|
|
|
Transfer Rate |
DVD = 21.6/sec. / CD-ROM = 7.2MB/sec. |
|
|
|
Optical Drive - 2 |
CD-RW Drive: 48x-Write / 24X-Re-write/CD-ROM |
|
|
|
|
|
speed =48x max. |
|
|
Access Speed |
110ms |
|
|
|
Transfer Speed |
6.0MB/sec. |
|
|
|
Diskette Drive |
None |
|
|
|
7 in 1 Card Reader |
Compact Flash I/II; Memory Stick/Pro; MMC/SD; |
|
|
|
|
|
Smart Media |
|
|
Fax/Data Modem |
V.92 56Kbps |
|
|
|
Fax Speed |
Up to 14.4Kbps |
|
|
|
Data Compression |
V.42 bis |
|
|
|
Error Correction |
V .42 |
|
|
|
EIA Fax Commands |
Class 1 |
|
|
|
Video Graphics |
Intel® Extreme Graphics |
|
|
|
Controller |
Integrated w/865G Chipset |
|
|
|
Video Memory |
64MB UMA |
|
|
|
TV Tuner |
TV Tuner Card |
|
|
|
Network Card |
10/100 BaseT, Integrated |
|
|
|
1394 Card |
IEEE-1394, Integrated |
|
|
|
Sound |
AC’97, 6 Channel, Integrated on MB |
|
|
|
Controller |
Realtek ALC650 |
|
|
|
Chassis |
|
Jaguar, 250HV + PFC PSU |
|
|
USB Interface Specification |
|
USB 2.0 |
|
|
External Ports |
|
6= USB, 1= serial, 1= parallel, 2=1394 |
|
|
Front I/O Connector |
|
2= USB, 1= 1394; 7 in 1 Card Reader; 1= |
|
|
|
|
Microphone; 1=Line In; 1=Headphone |
|
|
Expansion Slots (Total) |
|
3= PCI, 1= AGP |
|
|
Expansion Slots (FREE) |
|
1= PCI, 1= AGP |
|
|
Drive Bays (Total) |
|
Two 5.25” external, One 3.5” external, |
|
|
|
|
Two 3.5” internal |
|
|
Drive Bays (FREE) |
|
One 3.5” external, One 3.5” internal |
|
|
Keyboard/Mouse |
|
HP Wireless Internet command center; One-touch |
|
|
|
|
Internet keyboard, Wireless optical scrolling |
|
|
|
|
mouse |
|
