HP PAVILION T432K Technical Specifications

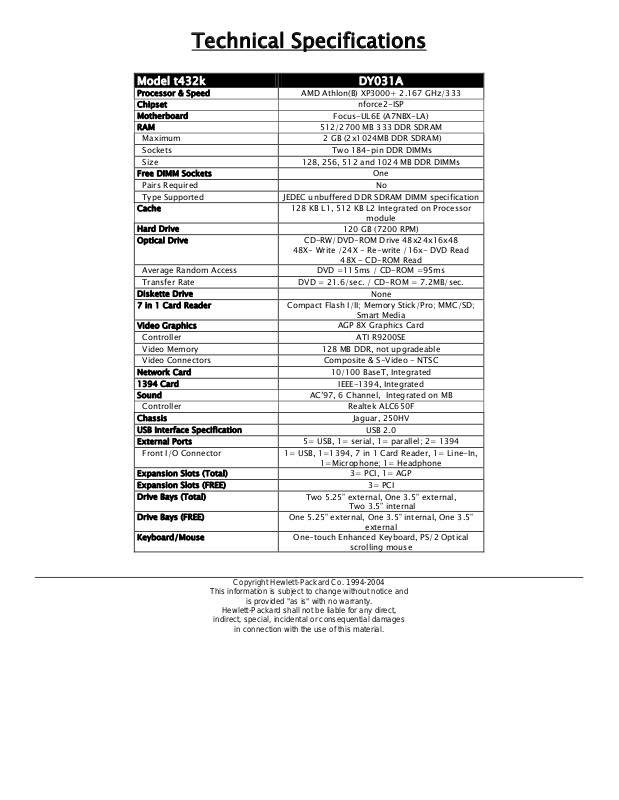

Technical Specifications
|
Model t432k |
|
DY031A |
|
|
Processor & Speed |
|
AMD Athlon(B) XP3000+ 2.167 GHz/333 |
|
|
Chipset |
|
nforce2-ISP |
|
|
Motherboard |
Focus-UL6E (A7NBX-LA) |
|
|
|
RAM |
512/2700 MB 333 DDR SDRAM |
|
|
|
Maximum |
2 GB (2x1024MB DDR SDRAM) |
|
|
|
Sockets |
Two 184-pin DDR DIMMs |
|
|
|
Size |
128, 256, 512 and 1024 MB DDR DIMMs |
|
|
|
Free DIMM Sockets |
One |
|
|
|
Pairs Required |
No |
|
|
|
Type Supported |
JEDEC unbuffered DDR SDRAM DIMM specification |
|
|
|
Cache |
128 KB L1, 512 KB L2 Integrated on Processor |
|
|
|
|
|
module |
|
|
Hard Drive |
120 GB (7200 RPM) |
|
|
|
Optical Drive |
CD-RW/DVD-ROM Drive 48x24x16x48 |
|
|
|
|
|
48XWrite /24X - Re-write /16x- DVD Read |
|
|
|
|
48X - CD-ROM Read |
|
|
Average Random Access |
DVD =115ms / CD-ROM =95ms |
|
|
|
Transfer Rate |
DVD = 21.6/sec. / CD-ROM = 7.2MB/sec. |
|
|
|
Diskette Drive |
None |
|
|
|
7 in 1 Card Reader |
Compact Flash I/II; Memory Stick/Pro; MMC/SD; |
|
|
|
|
|
Smart Media |
|
|
Video Graphics |
AGP 8X Graphics Card |
|
|
|
Controller |
ATI R9200SE |
|
|
|
Video Memory |
128 MB DDR, not upgradeable |
|
|
|
Video Connectors |
Composite & S-Video - NTSC |
|
|
|
Network Card |
10/100 BaseT, Integrated |
|
|
|
1394 Card |
IEEE-1394, Integrated |
|
|
|
Sound |
AC’97, 6 Channel, Integrated on MB |
|
|
|
Controller |
Realtek ALC650F |
|
|
|
Chassis |
Jaguar, 250HV |
|
|
|
USB Interface Specification |
USB 2.0 |
|
|
|
External Ports |
5= USB, 1= serial, 1= parallel; 2= 1394 |
|
|
|
Front I/O Connector |
1= USB, 1=1394, 7 in 1 Card Reader, 1= Line-In, |
|
|
|
|
|
1=Microphone; 1= Headphone |
|
|
Expansion Slots (Total) |
3= PCI, 1= AGP |
|
|
|
Expansion Slots (FREE) |
3= PCI |
|
|
|
Drive Bays (Total) |
Two 5.25” external, One 3.5” external, |
|
|
|
|
|
Two 3.5” internal |
|
|
Drive Bays (FREE) |
One 5.25” external, One 3.5” internal, One 3.5” |
|
|
|
|
|
external |
|
|
Keyboard/Mouse |
One-touch Enhanced Keyboard, PS/2 Optical |
|
|
|
|
|
scrolling mouse |
|
Copyright Hewlett-Packard Co. 1994-2004
This information is subject to change without notice and is provided "as is" with no warranty.
Hewlett-Packard shall not be liable for any direct, indirect, special, incidental or consequential damages in connection with the use of this material.
