HP Pavilion t422k Technical Specifications

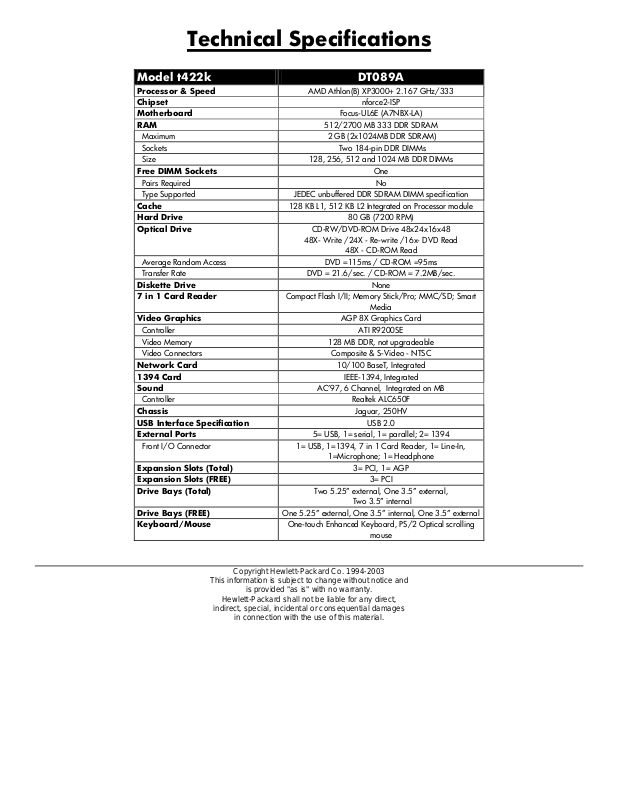

Technical Specifications

Model t422k DT089A

Processor & Speed AMD Athlon(B) XP3000+ 2.167 GHz/333 Chipset nforce2-ISP Motherboard Focus-UL6E (A7NBX-LA) RAM 512/2700 MB 333 DDR SDRAM

Maximum 2 GB (2x1024MB DDR SDRAM) Sockets Two 184-pin DDR DIMMs Size 128, 256, 512 and 1024 MB DDR DIMMs Free DIMM Sockets One Pairs Required No Type Supported JEDEC unbuffered DDR SDRAM DIMM specification

Cache 128 KB L1, 512 KB L2 Integrated on Processor module Hard Drive 80 GB (7200 RPM) Optical Drive CD-RW/DVD-ROM Drive 48x24x16x48

48X- Write /24X - Re-write /16x- DVD Read

48X - CD-ROM Read Average Random Access DVD =115ms / CD-ROM =95ms Transfer Rate DVD = 21.6/sec. / CD-ROM = 7.2MB/sec.

Diskette Drive None 7 in 1 Card Reader Compact Flash I/II; Memory Stick/Pro; MMC/SD; Smart

Media Video Graphics AGP 8X Graphics Card Controller ATI R9200SE Video Memory 128 MB DDR, not upgradeable Video Connectors Composite & S-Video - NTSC

Network Card 10/100 BaseT, Integrated 1394 Card IEEE-1394, Integrated Sound AC’97, 6 Channel, Integrated on MB Controller Realtek ALC650F Chassis Jaguar, 250HV USB Interface Specification USB 2.0 External Ports 5= USB, 1= serial, 1= parallel; 2= 1394

Front I/O Connector 1= USB, 1=1394, 7 in 1 Card Reader, 1= Line-In,

1=Microphone; 1= Headphone

Expansion Slots (Total) 3= PCI, 1= AGP Expansion Slots (FREE) 3= PCI Drive Bays (Total) Two 5.25” external, One 3.5” external,

Two 3.5” internal

Drive Bays (FREE) One 5.25” external, One 3.5” internal, One 3.5” external Keyboard/Mouse One-touch Enhanced Keyboard, PS/2 Optical scrolling

mouse
