Hp PAVILION t410i Technical Specifications

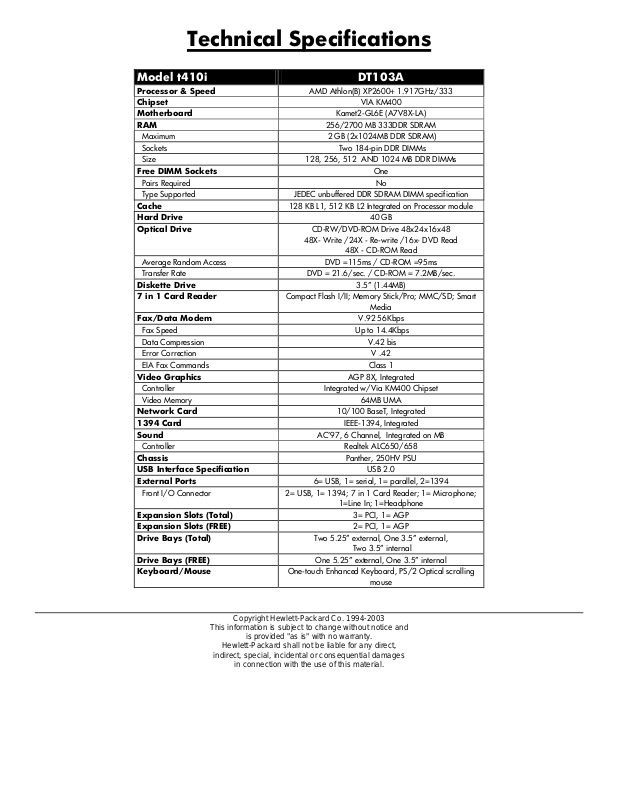

Technical Specifications

Model t410i DT103A

Processor & Speed AMD Athlon(B) XP2600+ 1.917GHz/333
Chipset VIA KM400
Motherboard Kamet2-GL6E (A7V8X-LA)
RAM 256/2700 MB 333DDR SDRAM

Maximum 2 GB (2x1024MB DDR SDRAM)
Sockets Two 184-pin DDR DIMMs
Size 128, 256, 512 AND 1024 MB DDR DIMMs
Free DIMM Sockets One
Pairs Required No
Type Supported JEDEC unbuffered DDR SDRAM DIMM specification

Cache 128 KB L1, 512 KB L2 Integrated on Processor module
Hard Drive 40 GB
Optical Drive CD-RW/DVD-ROM Drive 48x24x16x48

48X- Write /24X - Re-write /16x- DVD Read

48X - CD-ROM Read
Average Random Access DVD =115ms / CD-ROM =95ms
Transfer Rate DVD = 21.6/sec. / CD-ROM = 7.2MB/sec.

Diskette Drive 3.5” (1.44MB)
7 in 1 Card Reader Compact Flash I/II; Memory Stick/Pro; MMC/SD; Smart

Media
Fax/Data Modem V.92 56Kbps
Fax Speed Up to 14.4Kbps
Data Compression V.42 bis
Error Correction V .42
EIA Fax Commands Class 1
Video Graphics AGP 8X, Integrated
Controller Integrated w/Via KM400 Chipset
Video Memory 64MB UMA

Network Card 10/100 BaseT, Integrated
1394 Card IEEE-1394, Integrated
Sound AC’97, 6 Channel, Integrated on MB
Controller Realtek ALC650/658
Chassis Panther, 250HV PSU
USB Interface Specification USB 2.0
External Ports 6= USB, 1= serial, 1= parallel, 2=1394

Front I/O Connector 2= USB, 1= 1394; 7 in 1 Card Reader; 1= Microphone;

1=Line In; 1=Headphone

Expansion Slots (Total) 3= PCI, 1= AGP
Expansion Slots (FREE) 2= PCI, 1= AGP
Drive Bays (Total) Two 5.25” external, One 3.5” external,

Two 3.5” internal

Drive Bays (FREE) One 5.25” external, One 3.5” internal
Keyboard/Mouse One-touch Enhanced Keyboard, PS/2 Optical scrolling

mouse
