HP Pavilion t402k Technical Specifications

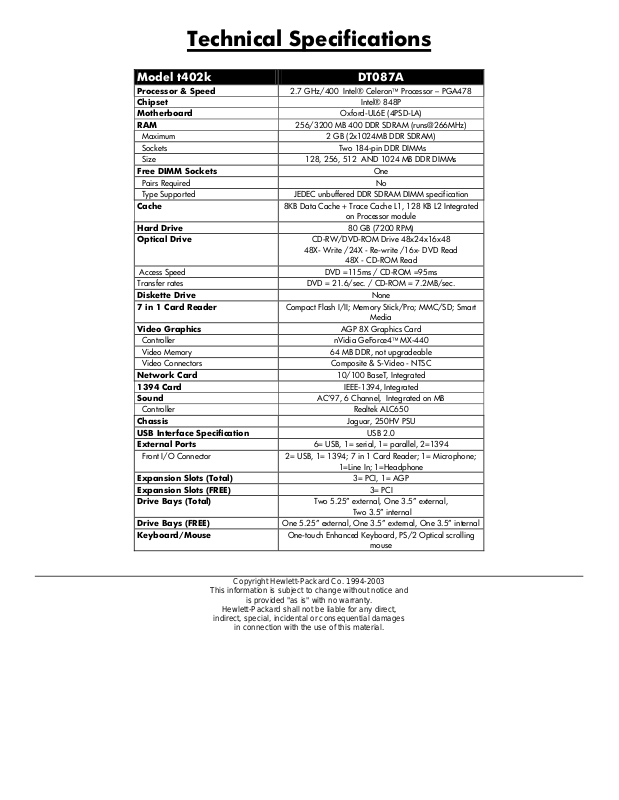

Technical Specifications

Model t402k DT087A

Processor & Speed 2.7 GHz/400 Intel® Celeron™ Processor – PGA478 Chipset Intel® 848P Motherboard Oxford-UL6E (4PSD-LA) RAM 256/3200 MB 400 DDR SDRAM (runs@266MHz)

Maximum 2 GB (2x1024MB DDR SDRAM) Sockets Two 184-pin DDR DIMMs Size 128, 256, 512 AND 1024 MB DDR DIMMs Free DIMM Sockets One Pairs Required No Type Supported JEDEC unbuffered DDR SDRAM DIMM specification Cache 8KB Data Cache + Trace Cache L1, 128 KB L2 Integrated

on Processor module

Hard Drive 80 GB (7200 RPM) Optical Drive CD-RW/DVD-ROM Drive 48x24x16x48

48X- Write /24X - Re-write /16x- DVD Read

48X - CD-ROM Read Access Speed DVD =115ms / CD-ROM =95ms Transfer rates DVD = 21.6/sec. / CD-ROM = 7.2MB/sec.

Diskette Drive None 7 in 1 Card Reader Compact Flash I/II; Memory Stick/Pro; MMC/SD; Smart

Media Video Graphics AGP 8X Graphics Card Controller nVidia GeForce4™ MX-440 Video Memory 64 MB DDR, not upgradeable Video Connectors Composite & S-Video - NTSC

Network Card 10/100 BaseT, Integrated 1394 Card IEEE-1394, Integrated Sound AC’97, 6 Channel, Integrated on MB Controller Realtek ALC650 Chassis Jaguar, 250HV PSU USB Interface Specification USB 2.0 External Ports 6= USB, 1= serial, 1= parallel, 2=1394

Front I/O Connector 2= USB, 1= 1394; 7 in 1 Card Reader; 1= Microphone;

1=Line In; 1=Headphone

Expansion Slots (Total) 3= PCI, 1= AGP Expansion Slots (FREE) 3= PCI Drive Bays (Total) Two 5.25” external, One 3.5” external,

Two 3.5” internal

Drive Bays (FREE) One 5.25” external, One 3.5” external, One 3.5” internal Keyboard/Mouse One-touch Enhanced Keyboard, PS/2 Optical scrolling

mouse
