HP Pavilion t380hk Datasheet

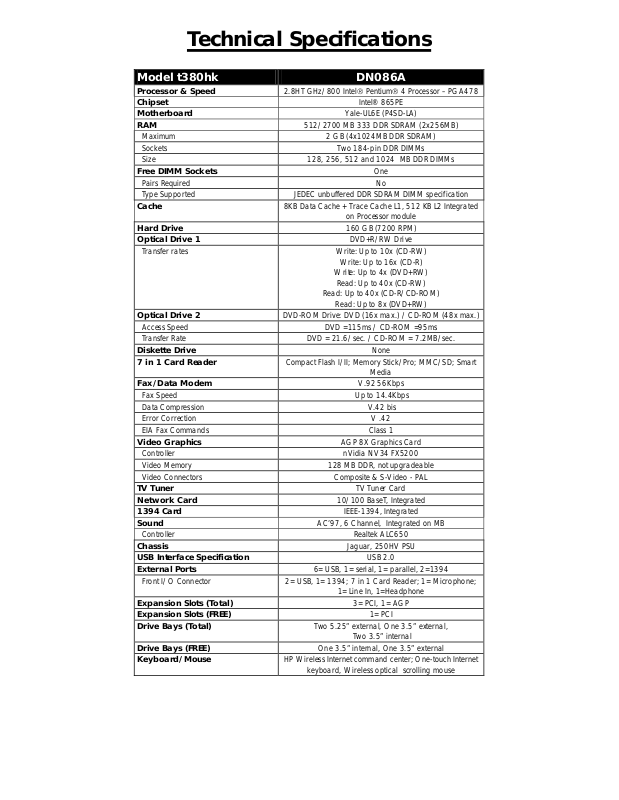

Technical Specifications

Model t380hk DN086A

Processor & Speed 2.8HT GHz/800 Intel Pentium 4 Processor – PGA478
Chipset Intel® 865PE
Motherboard Yale-UL6E (P4SD-LA)
RAM 512/2700 MB 333 DDR SDRAM (2x256MB)

Maximum 2 GB (4x1024MB DDR SDRAM)
Sockets Two 184-pin DDR DIMMs
Size 128, 256, 512 and 1024 MB DDR DIMMs
Free DIMM Sockets One
Pairs Required No
Type Supported JEDEC unbuffered DDR SDRAM DIMM specification
Cache 8KB Data Cache + Trace Cache L1, 512 KB L2 Integrated

on Processor module

Hard Drive 160 GB (7200 RPM)
Optical Drive 1 DVD+R/RW Drive

Transfer rates

Optical Drive 2 DVD-ROM Drive: DVD (16x max.) / CD-ROM (48x max.)
Access Speed DVD =115ms / CD-ROM =95ms
Transfer Rate DVD = 21.6/sec. / CD-ROM = 7.2MB/sec.

Diskette Drive None
7 in 1 Card Reader Compact Flash I/II; Memory Stick/Pro; MMC/SD; Smart

Fax/Data Modem V.92 56Kbps

Fax Speed Up to 14.4Kbps
Data Compression V.42 bis
Error Correction V .42
EIA Fax Commands Class 1
Video Graphics AGP 8X Graphics Card
Controller nVidia NV34 FX5200
Video Memory 128 MB DDR, not upgradeable
Video Connectors Composite & S-Video - PAL

TV Tuner TV Tuner Card
Network Card 10/100 BaseT, Integrated
1394 Card IEEE-1394, Integrated
Sound AC’97, 6 Channel, Integrated on MB
Controller Realtek ALC650
Chassis Jaguar, 250HV PSU
USB Interface Specification USB 2.0
External Ports 6= USB, 1= serial, 1= parallel, 2=1394

Front I/O Connector 2= USB, 1= 1394; 7 in 1 Card Reader; 1= Microphone;

Expansion Slots (Total) 3= PCI, 1= AGP
Expansion Slots (FREE) 1= PCI
Drive Bays (Total) Two 5.25” external, One 3.5” external,

Drive Bays (FREE) One 3.5” internal, One 3.5” external
Keyboard/Mouse HP Wireless Internet command center; One-touch Internet

Write: Up to 10x (CD-RW)

Write: Up to 16x (CD-R)

Write: Up to 4x (DVD+RW)

Read: Up to 40x (CD-RW)

Read: Up to 40x (CD-R/CD-ROM)

Read: Up to 8x (DVD+RW)

Media

1= Line In, 1=Headphone

Two 3.5” internal

keyboard, Wireless optical scrolling mouse
