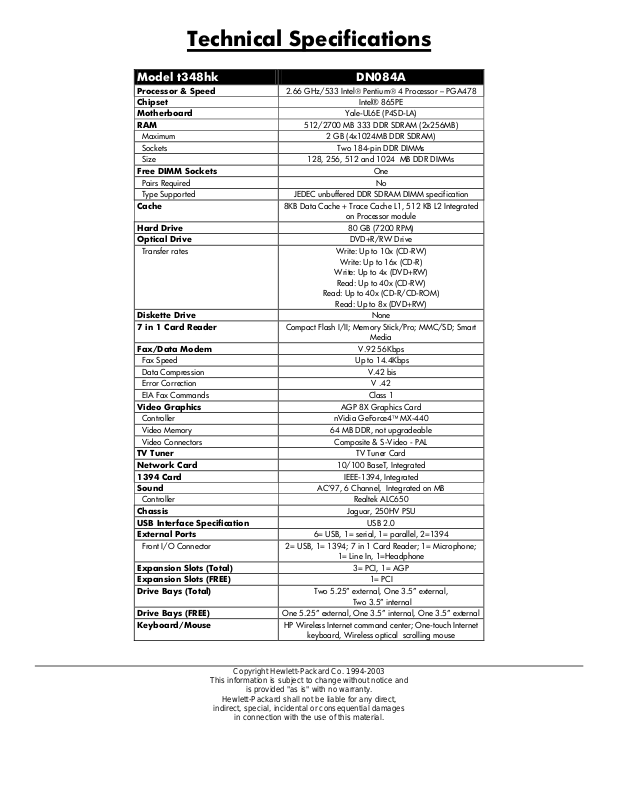

Technical Specifications
Model t348hk DN084A
Processor & Speed 2.66 GHz/533 Intel® Pentium® 4 Processor – PGA478
Chipset Intel® 865PE
Motherboard Yale-UL6E (P4SD-LA)
RAM 512/2700 MB 333 DDR SDRAM (2x256MB)
Maximum 2 GB (4x1024MB DDR SDRAM)
Sockets Two 184-pin DDR DIMMs
Size 128, 256, 512 and 1024 MB DDR DIMMs
Free DIMM Sockets One
Pairs Required No
Type Supported JEDEC unbuffered DDR SDRAM DIMM specification
Cache 8KB Data Cache + Trace Cache L1, 512 KB L2 Integrated
on Processor module
Hard Drive 80 GB (7200 RPM)
Optical Drive DVD+R/RW Drive
Transfer rates
Diskette Drive None
7 in 1 Card Reader Compact Flash I/II; Memory Stick/Pro; MMC/SD; Smart
Fax/Data Modem V.92 56Kbps
Fax Speed Up to 14.4Kbps
Data Compression V.42 bis
Error Correction V .42
EIA Fax Commands Class 1
Video Graphics AGP 8X Graphics Card
Controller nVidia GeForce4™ MX-440
Video Memory 64 MB DDR, not upgradeable
Video Connectors Composite & S-Video - PAL
TV Tuner TV Tuner Card
Network Card 10/100 BaseT, Integrated
1394 Card IEEE-1394, Integrated
Sound AC’97, 6 Channel, Integrated on MB
Controller Realtek ALC650
Chassis Jaguar, 250HV PSU
USB Interface Specification USB 2.0
External Ports 6= USB, 1= serial, 1= parallel, 2=1394
Front I/O Connector 2= USB, 1= 1394; 7 in 1 Card Reader; 1= Microphone;
Expansion Slots (Total) 3= PCI, 1= AGP
Expansion Slots (FREE) 1= PCI
Drive Bays (Total) Two 5.25” external, One 3.5” external,
Drive Bays (FREE) One 5.25” external, One 3.5” internal, One 3.5” external
Keyboard/Mouse HP Wireless Internet command center; One-touch Internet
Copyright Hewlett-Packard Co. 1994-2003
This information is subject to change without notice and
is provided "as is" with no warranty.
Hewlett-Packard shall not be liable for any direct,
indirect, special, incidental or consequential damages
in connection with the use of this material.
Write: Up to 10x (CD-RW)
Write: Up to 16x (CD-R)
Write: Up to 4x (DVD+RW)
Read: Up to 40x (CD-RW)
Read: Up to 40x (CD-R/CD-ROM)
Read: Up to 8x (DVD+RW)
Media
1= Line In, 1=Headphone
Two 3.5” internal
keyboard, Wireless optical scrolling mouse
