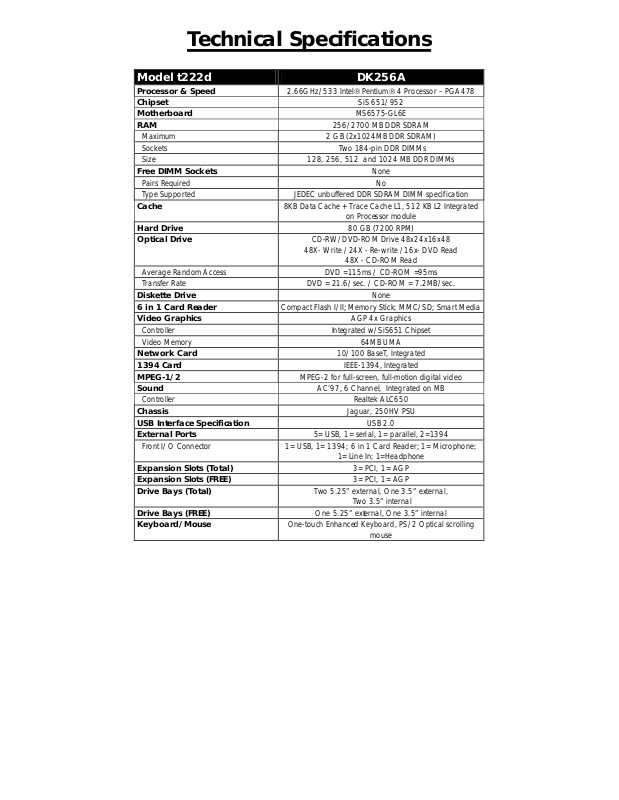

Technical Specifications
Model t222d DK256A
Processor & Speed 2.66GHz/533 Intel Pentium 4 Processor – PGA478
Chipset SiS 651/952
Motherboard MS6575-GL6E
RAM 256/2700 MB DDR SDRAM
Maximum 2 GB (2x1024MB DDR SDRAM)
Sockets Two 184-pin DDR DIMMs
Size 128, 256, 512 and 1024 MB DDR DIMMs
Free DIMM Sockets None
Pairs Required No
Type Supported JEDEC unbuffered DDR SDRAM DIMM specification
Cache 8KB Data Cache + Trace Cache L1, 512 KB L2 Integrated
on Processor module
Hard Drive 80 GB (7200 RPM)
Optical Drive CD-RW/DVD-ROM Drive 48x24x16x48
48X- Write /24X - Re-write /16x- DVD Read
48X - CD-ROM Read
Average Random Access DVD =115ms / CD-ROM =95ms
Transfer Rate DVD = 21.6/sec. / CD-ROM = 7.2MB/sec.
Diskette Drive None
6 in 1 Card Reader Compact Flash I/II; Memory Stick; MMC/SD; Smart Media
Video Graphics AGP 4x Graphics
Controller Integrated w/SiS651 Chipset
Video Memory 64MB UMA
Network Card 10/100 BaseT, Integrated
1394 Card IEEE-1394, Integrated
MPEG-1/2 MPEG-2 for full-screen, full-motion digital video
Sound AC’97, 6 Channel, Integrated on MB
Controller Realtek ALC650
Chassis Jaguar, 250HV PSU
USB Interface Specification USB 2.0
External Ports 5= USB, 1= serial, 1= parallel, 2=1394
Front I/O Connector 1= USB, 1= 1394; 6 in 1 Card Reader; 1= Microphone;
1= Line In; 1=Headphone
Expansion Slots (Total) 3= PCI, 1= AGP
Expansion Slots (FREE) 3= PCI, 1= AGP
Drive Bays (Total) Two 5.25” external, One 3.5” external,
Two 3.5” internal
Drive Bays (FREE) One 5.25” external, One 3.5” internal
Keyboard/Mouse One-touch Enhanced Keyboard, PS/2 Optical scrolling
mouse
