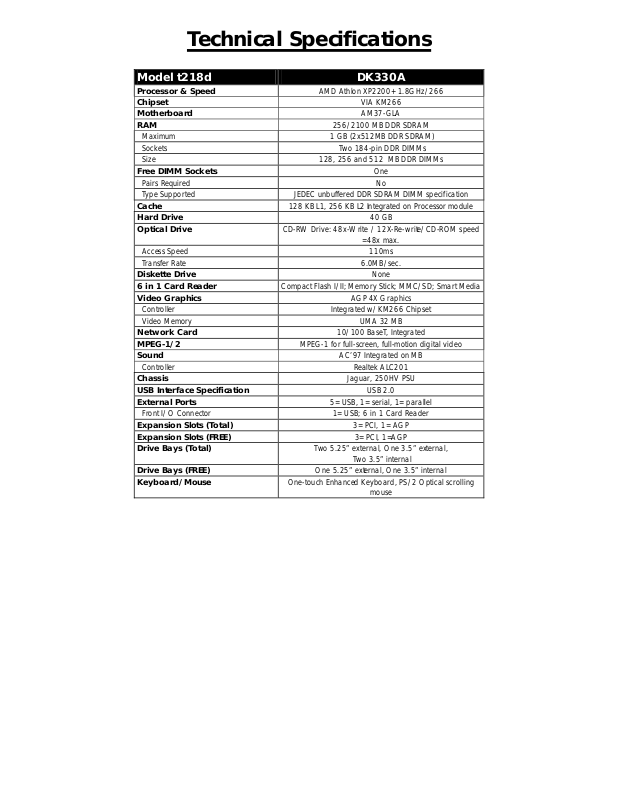

Technical Specifications
Model t218d DK330A
Processor & Speed AMD Athlon XP2200+ 1.8GHz/266
Chipset VIA KM266
Motherboard AM37-GLA
RAM 256/2100 MB DDR SDRAM
Maximum 1 GB (2x512MB DDR SDRAM)
Sockets Two 184-pin DDR DIMMs
Size 128, 256 and 512 MB DDR DIMMs
Free DIMM Sockets One
Pairs Required No
Type Supported JEDEC unbuffered DDR SDRAM DIMM specification
Cache 128 KB L1, 256 KB L2 Integrated on Processor module
Hard Drive 40 GB
Optical Drive CD-RW Drive: 48x-Write / 12X-Re-write/CD-ROM speed
=48x max.
Access Speed 110ms
Transfer Rate 6.0MB/sec.
Diskette Drive None
6 in 1 Card Reader Compact Flash I/II; Memory Stick; MMC/SD; Smart Media
Video Graphics AGP 4X Graphics
Controller Integrated w/KM266 Chipset
Video Memory UMA 32 MB
Network Card 10/100 BaseT, Integrated
MPEG-1/2 MPEG-1 for full-screen, full-motion digital video
Sound AC’97 Integrated on MB
Controller Realtek ALC201
Chassis Jaguar, 250HV PSU
USB Interface Specification USB 2.0
External Ports 5= USB, 1= serial, 1= parallel
Front I/O Connector 1= USB; 6 in 1 Card Reader
Expansion Slots (Total) 3= PCI, 1= AGP
Expansion Slots (FREE) 3= PCI, 1=AGP
Drive Bays (Total) Two 5.25” external, One 3.5” external,
Two 3.5” internal
Drive Bays (FREE) One 5.25” external, One 3.5” internal
Keyboard/Mouse One-touch Enhanced Keyboard, PS/2 Optical scrolling
mouse
