HP Pavilion t152d Technical Specifications

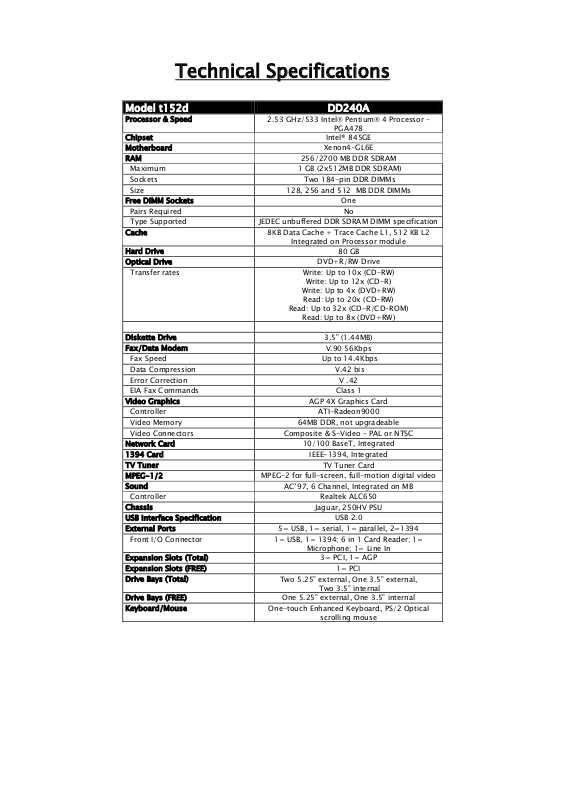

Technical Specifications

	Model t152d		DD240A
	Processor & Speed		2.53 GHz/533 Intel® Pentium® 4 Processor –
			PGA478
	Chipset		Intel® 845GE
	Motherboard		Xenon4-GL6E
	RAM		256/2700 MB DDR SDRAM
	Maximum		1 GB (2x512MB DDR SDRAM)
	Sockets		Two 184-pin DDR DIMMs
	Size		128, 256 and 512 MB DDR DIMMs
	Free DIMM Sockets		One
	Pairs Required		No
	Type Supported		JEDEC unbuffered DDR SDRAM DIMM specification
	Cache		8KB Data Cache + Trace Cache L1, 512 KB L2
			Integrated on Processor module
	Hard Drive		80 GB
	Optical Drive		DVD+R/RW Drive
	Transfer rates		Write: Up to 10x (CD-RW)
			Write: Up to 12x (CD-R)
			Write: Up to 4x (DVD+RW)
			Read: Up to 20x (CD-RW)
			Read: Up to 32x (CD-R/CD-ROM)
			Read: Up to 8x (DVD+RW)
	Diskette Drive		3.5” (1.44MB)
	Fax/Data Modem		V.90 56Kbps
	Fax Speed		Up to 14.4Kbps
	Data Compression		V.42 bis
	Error Correction		V .42
	EIA Fax Commands		Class 1
	Video Graphics		AGP 4X Graphics Card
	Controller		ATI-Radeon9000
	Video Memory		64MB DDR, not upgradeable
	Video Connectors		Composite & S-Video – PAL or NTSC
	Network Card		10/100 BaseT, Integrated
	1394 Card		IEEE-1394, Integrated
	TV Tuner		TV Tuner Card
	MPEG-1/2		MPEG-2 for full-screen, full-motion digital video
	Sound		AC’97, 6 Channel, Integrated on MB
	Controller		Realtek ALC650
	Chassis		Jaguar, 250HV PSU
	USB Interface Specification		USB 2.0
	External Ports		5= USB, 1= serial, 1= parallel, 2=1394
	Front I/O Connector		1= USB, 1= 1394; 6 in 1 Card Reader; 1=
			Microphone; 1= Line In
	Expansion Slots (Total)		3= PCI, 1= AGP
	Expansion Slots (FREE)		1= PCI
	Drive Bays (Total)		Two 5.25” external, One 3.5” external,
			Two 3.5” internal
	Drive Bays (FREE)		One 5.25” external, One 3.5” internal
	Keyboard/Mouse		One-touch Enhanced Keyboard, PS/2 Optical
			scrolling mouse
