HP Pavilion t132d Specification

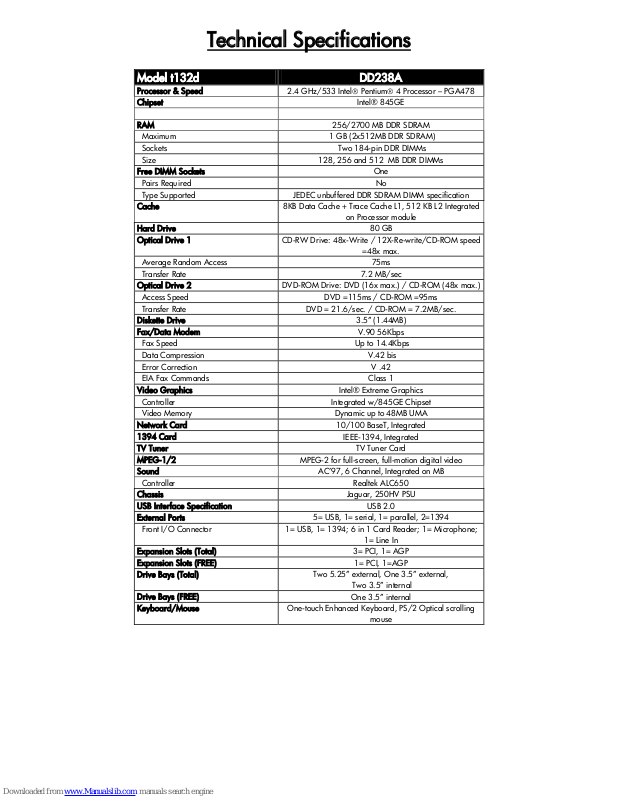

Technical Specifications

Model t132d DD238A

Processor & Speed 2.4 GHz/533 Intelâ Pentiumâ 4 Processor – PGA478
Chipset Intel® 845GE

RAM 256/2700 MB DDR SDRAM
Maximum 1 GB (2x512MB DDR SDRAM)
Sockets Two 184-pin DDR DIMMs
Size 128, 256 and 512 MB DDR DIMMs
Free DIMM Sockets One
Pairs Required No
Type Supported JEDEC unbuffered DDR SDRAM DIMM specification
Cache 8KB Data Cache + Trace Cache L1, 512 KB L2 Integrated

on Processor module
Hard Drive 80 GB
Optical Drive 1 CD-RW Drive: 48x-Write / 12X-Re-write/CD-ROM speed

=48x max.
Average Random Access 75ms
Transfer Rate 7.2 MB/sec
Optical Drive 2 DVD-ROM Drive: DVD (16x max.) / CD-ROM (48x max.)
Access Speed DVD =115ms / CD-ROM =95ms
Transfer Rate DVD = 21.6/sec. / CD-ROM = 7.2MB/sec.
Diskette Drive 3.5” (1.44MB)
Fax/Data Modem V.90 56Kbps
Fax Speed Up to 14.4Kbps
Data Compression V.42 bis
Error Correction V .42
EIA Fax Commands Class 1
Video Graphics Intel® Extreme Graphics
Controller Integrated w/845GE Chipset
Video Memory Dynamic up to 48MB UMA
Network Card 10/100 BaseT, Integrated
1394 Card IEEE-1394, Integrated
TV Tuner TV Tuner Card
MPEG-1/2 MPEG-2 for full-screen, full-motion digital video
Sound AC’97, 6 Channel, Integrated on MB
Controller Realtek ALC650
Chassis Jaguar, 250HV PSU
USB Interface Specification USB 2.0
External Ports 5= USB, 1= serial, 1= parallel, 2=1394
Front I/O Connector 1= USB, 1= 1394; 6 in 1 Card Reader; 1= Microphone;

1= Line In
Expansion Slots (Total) 3= PCI, 1= AGP
Expansion Slots (FREE) 1= PCI, 1=AGP
Drive Bays (Total) Two 5.25” external, One 3.5” external,

Two 3.5” internal
Drive Bays (FREE) One 3.5” internal
Keyboard/Mouse One-touch Enhanced Keyboard, PS/2 Optical scrolling

mouse
