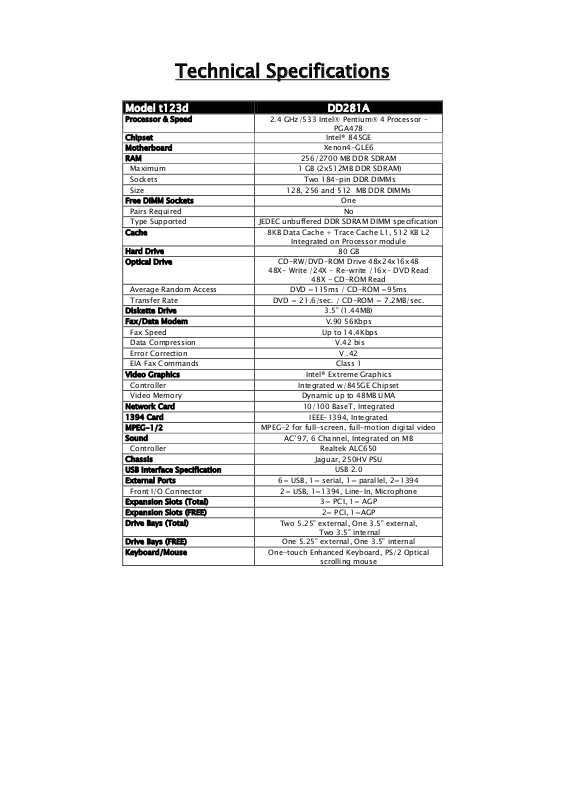

Technical Specifications
|
Model t123d |
|
DD281A |
|
|
Processor & Speed |
|
2.4 GHz/533 Intel® Pentium® 4 Processor – |
|
|
|
|
PGA478 |
|
|
Chipset |
|
Intel® 845GE |
|
|
Motherboard |
Xenon4-GLE6 |
||
|
RAM |
256/2700 MB DDR SDRAM |
||
|
Maximum |
1 GB (2x512MB DDR SDRAM) |
|
|
|
Sockets |
Two 184-pin DDR DIMMs |
|
|
|
Size |
128, 256 and 512 MB DDR DIMMs |
|
|
|
Free DIMM Sockets |
One |
|
|
|
Pairs Required |
No |
|
|
|
Type Supported |
JEDEC unbuffered DDR SDRAM DIMM specification |
|
|
|
Cache |
8KB Data Cache + Trace Cache L1, 512 KB L2 |
||
|
|
|
Integrated on Processor module |
|
|
Hard Drive |
80 GB |
|
|
|
Optical Drive |
CD-RW/DVD-ROM Drive 48x24x16x48 |
|
|
|
|
|
48XWrite /24X - Re-write /16x- DVD Read |
|
|
|
|
48X - CD-ROM Read |
|
|
Average Random Access |
DVD =115ms / CD-ROM =95ms |
|
|
|
Transfer Rate |
DVD = 21.6/sec. / CD-ROM = 7.2MB/sec. |
|
|
|
Diskette Drive |
3.5” (1.44MB) |
|
|
|
Fax/Data Modem |
V.90 56Kbps |
|
|
|
Fax Speed |
Up to 14.4Kbps |
|
|
|
Data Compression |
V.42 bis |
|
|
|
Error Correction |
V .42 |
|
|
|
EIA Fax Commands |
Class 1 |
|
|
|
Video Graphics |
Intel® Extreme Graphics |
|
|
|
Controller |
Integrated w/845GE Chipset |
|
|
|
Video Memory |
Dynamic up to 48MB UMA |
|
|
|
Network Card |
10/100 BaseT, Integrated |
|
|
|
1394 Card |
IEEE-1394, Integrated |
|
|
|
MPEG-1/2 |
MPEG-2 for full-screen, full-motion digital video |
|
|
|
Sound |
AC’97, 6 Channel, Integrated on MB |
|
|
|
Controller |
Realtek ALC650 |
||
|
Chassis |
|
Jaguar, 250HV PSU |
|
|
USB Interface Specification |
|
USB 2.0 |
|
|
External Ports |
|
6= USB, 1= serial, 1= parallel, 2=1394 |
|
|
Front I/O Connector |
|
2= USB, 1=1394, Line-In, Microphone |
|
|
Expansion Slots (Total) |
|
3= PCI, 1= AGP |
|
|
Expansion Slots (FREE) |
|
2= PCI, 1=AGP |
|
|
Drive Bays (Total) |
|
Two 5.25” external, One 3.5” external, |
|
|
|
|
Two 3.5” internal |
|
|
Drive Bays (FREE) |
|
One 5.25” external, One 3.5” internal |
|
|
Keyboard/Mouse |
|
One-touch Enhanced Keyboard, PS/2 Optical |
|
|
|
|
scrolling mouse |
|
