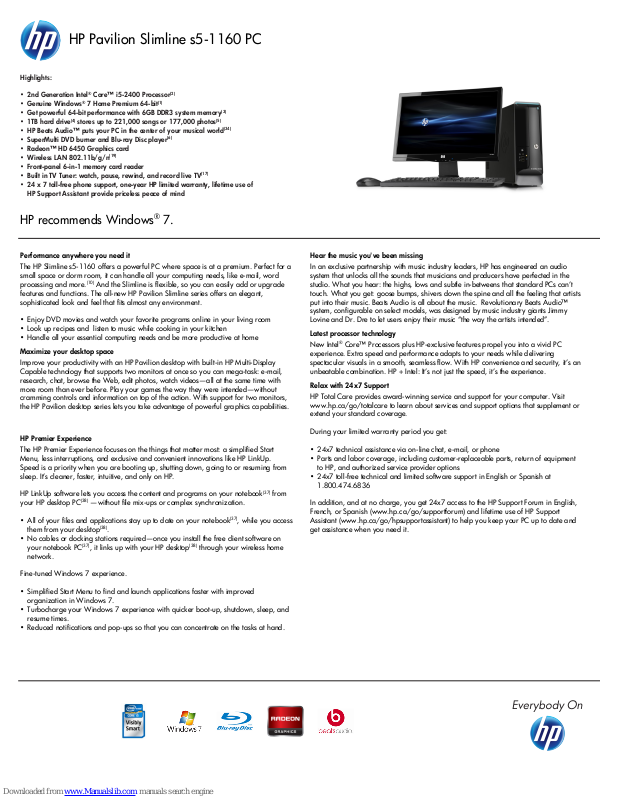

HP Pavilion Slimline s5-1160 Specifications

HP Pavilion Slimline s5-1160 PC

Highlights:

2nd Generation Intel® Core™ i5-2400 Processor

•

• Genuine Windows® 7 Home Premium 64-bit

• Get powerful 64-bit performance with 6GB DDR3 system memory

• 1TB hard drive

• HP Beats Audio™ puts your PC in the center of your musical world

• SuperMulti DVD burner and Blu-ray Disc player

• Radeon™ HD 6450 Graphics card

• Wireless LAN 802.11b/g/n

• Front-panel 6-in-1 memory card reader

• Built in TV Tuner: watch, pause, rewind, and record live TV

• 24 x 7 toll-free phone support, one-year HP limited warranty, lifetime use of

HP Support Assistant provide priceless peace of mind

(4)

stores up to 221,000 songs or 177,000 photos

(19)

HP recommends Windows® 7.

(2)

(1)

(6)

(3)

(5)

(34)

(17)

Performance anywhere you need it

The HP Slimline s5-1160 offers a powerful PC where space is at a premium. Perfect for a
small space or dorm room, it can handle all your computing needs, like e-mail, word
processing and more.

(10)

And the Slimline is flexible, so you can easily add or upgrade
features and functions. The all-new HP Pavilion Slimline series offers an elegant,
sophisticated look and feel that fits almost any environment.

• Enjoy DVD movies and watch your favorite programs online in your living room

• Look up recipes and listen to music while cooking in your kitchen

• Handle all your essential computing needs and be more productive at home

Maximize your desktop space

Improve your productivity with an HP Pavilion desktop with built-in HP Multi-Display
Capable technology that supports two monitors at once so you can mega-task: e-mail,
research, chat, browse the Web, edit photos, watch videos—all at the same time with
more room than ever before. Play your games the way they were intended—without
cramming controls and information on top of the action. With support for two monitors,
the HP Pavilion desktop series lets you take advantage of powerful graphics capabilities.

HP Premier Experience

The HP Premier Experience focuses on the things that matter most: a simplified Start
Menu, less interruptions, and exclusive and convenient innovations like HP LinkUp.
Speed is a priority when you are booting up, shutting down, going to or resuming from
sleep. It’s cleaner, faster, intuitive, and only on HP.

HP LinkUp software lets you access the content and programs on your notebook
your HP desktop PC

• All of your files and applications stay up to date on your notebook

them from your desktop

• No cables or docking stations required—once you install the free client software on

your notebook PC

(38)

—without file mix-ups or complex synchronization.

(38)

.

(37)

, it links up with your HP desktop

(38)

through your wireless home

(37)

(37)

from

, while you access

network.

Fine-tuned Windows 7 experience.

• Simplified Start Menu to find and launch applications faster with improved

organization in Windows 7.

• Turbocharge your Windows 7 experience with quicker boot-up, shutdown, sleep, and

resume times.

• Reduced notifications and pop-ups so that you can concentrate on the tasks at hand.

Hear the music you've been missing

In an exclusive partnership with music industry leaders, HP has engineered an audio
system that unlocks all the sounds that musicians and producers have perfected in the
studio. What you hear: the highs, lows and subtle in-betweens that standard PCs can’t
touch. What you get: goose bumps, shivers down the spine and all the feeling that artists
put into their music. Beats Audio is all about the music. Revolutionary Beats Audio™
system, configurable on select models, was designed by music industry giants Jimmy
Lovine and Dr. Dre to let users enjoy their music “the way the artists intended”.

Latest processor technology

New Intel® Core™ Processors plus HP-exclusive features propel you into a vivid PC
experience. Extra speed and performance adapts to your needs while delivering
spectacular visuals in a smooth, seamless flow. With HP convenience and security, it’s an
unbeatable combination. HP + Intel: It’s not just the speed, it’s the experience.

Relax with 24x7 Support

HP Total Care provides award-winning service and support for your computer. Visit
www.hp.ca/go/totalcare to learn about services and support options that supplement or
extend your standard coverage.

During your limited warranty period you get:

• 24x7 technical assistance via on-line chat, e-mail, or phone

• Parts and labor coverage, including customer-replaceable parts, return of equipment
to HP, and authorized service provider options

• 24x7 toll-free technical and limited software support in English or Spanish at

1.800.474.6836

In addition, and at no charge, you get 24x7 access to the HP Support Forum in English,
French, or Spanish (www.hp.ca/go/supportforum) and lifetime use of HP Support
Assistant (www.hp.ca/go/hpsupportassistant) to help you keep your PC up to date and
get assistance when you need it.

HP Pavilion Slimline s5-1160 PC

HP recommends Windows® 7.

SPECIFICATIONS

OPERATING SYSTEM • Genuine Windows® 7 Home Premium 64-bit
PROCESSOR • 2nd Generation Intel® Core™ i5-2400 Processor
PROCESSOR SPEED • 3.10GHz

(2)

CACHE • 6MB Cache
BUS SPEED • DMI 5.0 GT/s
CHIPSET • Intel® H67 PCH Chipset
MEMORY • 6GB PC3-10600 DDR3 SDRAM memory

(expandable to 16GB)

HARD DRIVE • 1TB (Terabyte) 7200RPM Serial ATA hard drive
OPTICAL DRIVE(S) • Blu-ray player & SuperMulti DVD Burner

Write: 16x max DVD±R, 4x max DVD±R DL, 8x max DVD+RW, 6x

max DVD-RW, 5x max DVD-RAM, 40x max CD-R, 24x max
CD-RW
Read: 8x max BD-ROM, 16x max DVD-ROM, 40x max CD-ROM
Data transfer rates up to 6,000 KB/s (CD read/write), 21,600
KB/s (DVD read/write) and 36,000 KB/s (BD read)

VIDEO GRAPHICS • Radeon™ HD 6450 Graphics card with 512MB DDR3 dedicated

memory, DVI, (VGA via dongle), and HDMI capabilities and
support for one or two monitors, Blu-ray and
Microsoft® DirectX® 11

• Up to 3327MB Total Available Graphics Memory as
allocated by Windows® 7

NETWORK

• 10/100/1000Base-T network interface

INTERFACE
WIRELESS

• Wireless LAN 802.11b/g/n

(19)

CONNECTIVITY
SOUND • Beats AudioTM Studio Quality Sound. Hear music the way the artist

intended

(34)

TV TUNER • Built in TV Tuner: watch, pause, rewind, and record live TV
REMOTE CONTROL • HP Media Center remote control
MEMORY SLOTS • 4 DIMM (240-pin, DDR3) (two available)
EXPANSION SLOTS • 1 PCI Express x16 (occupied)

• 3 PCI Express x1 (two available)

• 1 MiniCard (occupied)

EXPANSION BAYS • 1 external 5.25" (occupied)

• 1 internal 3.5" (occupied)

EXTERNAL PORTS • Front panel 6-in-1 memory card reader supports xD, MMC, Secure

Digital (SD, SDHC), Memory Stick, Memory Stick Pro, MMC+

• Headphone (Front)

• 2 USB 3.0 ports (Front)

• 4 USB 2.0 ports (Back)

• Microphone/Line-in/Line-out; Rear speaker-out; Side speaker out;
Center (subwoofer) (Back)

• 10/100/1000Mbps (Gigabit) Ethernet Support (Back)

• Optical Audio Out (SP-DIF)

MULTI-DISPLAY
CAPABLE

MOUSE AND

• DVI, (VGA via dongle), and HDMI capabilities and support for one
or two monitors, Blu-ray and Microsoft® DirectX® 11

• HP wireless keyboard and wireless optical mouse

KEYBOARD
DIMENSIONS • Unpackaged: 15.43"(L) x 3.94"(W) x 12.28"(H/D) approx.

• Packaged: 19.41"(L) x 15.67"(W) x 9.57"(H/D) approx.

(1)

(2)

(3)

(1x2GB and 1x4GB)

(4)

(6)

(17)

WEIGHT • Unpackaged: 17.00 lbs. approx

• Packaged: 21.60 lbs. approx

WARRANTY AND
SUPPORT

• Warranty:

- 1 year limited hardware warranty and 1 year software support

- 24x7 technical assistance available online

(10)

or toll-free by phone

- Lifetime use of HP Support Assistant

• Service:

- For information on Authorized support providers, replacement
parts, and other service related information, visit
www.hp.ca/support

• Support:

- Click the HP Support Assistant icon in your taskbar or desktop for
easy access to automated maintenance, built-in diagnostic tools,
and a choice of assistance options. Learn more at
www.hp.ca/go/hpsupportassistant.

- Visit our Consumer Support Forum, available 24 x 7 in English,
French or Spanish at www.hp.ca/go/supportforum

- Contact technical support (available 24 x 7, toll-free phone, chat,
or email) at http://welcome.hp.ca/country/us/en/wwcontact.html

SOFTWARE

PRODUCTIVITY &
LIFESTYLE

SECURITY &
PROTECTION

SUPPORT • HP Support Assistant: Keep your PC up to date and get assistance

• HP LinkUp lets you access, edit, and save content on your notebook

(37)

PC

while using your desktop PC

(38)

• Windows Live™ Essentials - Create, connect and share with the
Cloud

• Office 2010 preloaded (purchase of a Product Key required to
activate a full Office 2010 suite)

• Norton Internet Security 2012: Free 60-day subscription helps keep
your PC, identity and personal information safe online

(14)

(11)

when you need it.

• HP Setup Manager: Learn about your new PC and explore key
activities that can help you transition smoothly and easily from your
old PC.

ADDITIONAL INFORMATION

PRODUCT NUMBER • QP780AA#ABC
UPC CODE • 886111851126
COUNTRY OF

ORIGIN
TARIFF NUMBER • 8471500085
PALLET

INFORMATION

• Mexico

• Dimensions: 47.24"(L) x 40.16"(W) x 10.13"(H/D) approx.

• Total weight: 1311.80 lbs. approx

• Layers: 10

• Products per layer: 6

• Total products per pallet: 60

VISIT WWW.HP.CA FOR MORE DETAILS!

(1)

This system may require upgraded and/or separately purchased hardware and/or a DVD drive to install the Windows® 7 software and take full advantage of Windows® 7 functionality. See http://www.microsoft.com/windows/windows-7/ for details.

(2)

Processor speed 3.10GHz, 6MB cache, Bus Interface DMI 5.0 GT/s. Intel’s numbering is not a measurement of higher performance.
formatted capacity is less. Up to 14GB of storage space is reserved for the system recovery software.
a new format containing new technologies, certain disc, digital connection, compatibility and/or performance issues may arise, and do not constitute defects in the product. Flawless playback on all systems is not guaranteed. In order for some Blu-ray titles to play, they may
require a DVI or HDMI digital connection and your display may require HDCP support. HD-DVD movies cannot be played on this Desktop PC
updates afterwards.
varies and will depend on broadcast signal, antenna, geographic location and other factors. An external over-the-air antenna that receives UHF and VHF signals is required for ATSC reception. Viewing HD content will require a compatible high-definition display. Ability to
record, edit, or transfer broadcast content such as TV programming may be limited depending on the type of content. Performance issues may arise, and do not constitute defects in the product.
and Line output required.
Monitor and speakers sold separately. Actual product may vary from image shown on datasheet. ©2011 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are
set forth in the express warranty statements accompanying such products and services. Nothing shall be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
Microsoft® and Windows® are registered trademarks of Microsoft Corporation. 08/12_r2 kc Product Number: QP780AA#ABC

(14)

Includes reduced functionality versions of Word and Excel. Purchase of Product Key required to activate full Office 2010 suite available at participating resellers/retailers and www.office.com

(37)

Compatible with any notebook or desktop PC running Windows XP, Vista, or Windows 7

(5)

Capacity based on average compressed .jpg size of 5MB/image. Capacity based on standard NTSC recording format. Actual recording times may vary.

(38)

(3)

Up to 256MB of main system memory may be allocated to support video graphics.

(10)

Internet access required and sold separately.

Internet connection and home network required

(4)

For hard drives, GB = 1 billion bytes. Actual

(11)

Internet access required. First 60 days included; subscription required for live

(19)

Wireless access point and Internet service sold separately.

(17)

ATSC high-definition (HD) and NTSC source content

(34)

(6)

As Blu-Ray is

Headphone
