Page 1

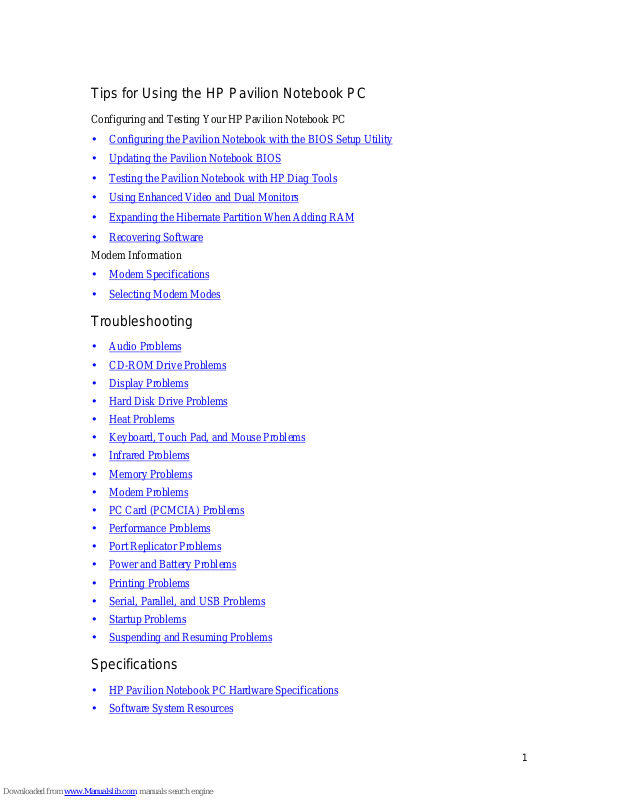

Tips for Using the HP Pavilion Notebook PC

Configuring and Testing Your HP Pavilion Notebook PC

• Configuring the Pavilion Notebook with the BIOS Setup Utility

• Updating the Pavilion Notebook BIOS

• Testing the Pavilion Notebook with HP Diag Tools

• Using Enhanced Video and Dual Monitors

• Expanding the Hibernate Partition When Adding RAM

• Recovering Software

Modem Information

• Modem Specifications

• Selecting Modem Modes

Troubleshooting

• Audio Problems

• CD-ROM Drive Problems

• Display Problems

• Hard Disk Drive Problems

• Heat Problems

• Keyboard, Touch Pad, and Mouse Problems

• Infrared Problems

• Memory Problems

• Modem Problems

• PC Card (PCMCIA) Problems

• Performance Problems

• Port Replicator Problems

• Power and Battery Problems

• Printing Problems

• Serial, Parallel, and USB Problems

• Startup Problems

• Suspending and Resuming Problems

Specifications

• HP Pavilion Notebook PC Hardware Specifications

• Software System Resources

Page 2

Configuring the Pavilion Notebook with the BIOS Setup Utility

The BIOS (Basic Input and Output System) Setup utility is a menu-driven utility that enables you to make changes to the system configuration and tailor the operation of your notebook to your individual work needs.

The settings made in the BIOS Setup utility control the hardware and therefore have a fundamental effect on how the Pavilion Notebook operates.

This page describes the BIOS Setup utility menus and options in detail.

To run the BIOS Setup utility

1. Close all applications, then shut down Windows and restart the computer.

2. When you see the HP logo, press F2 to enter the BIOS Setup utility.

3. The pointing devices are not active in the BIOS Setup utility. Press the RIGHT and LEFT arrow keys to move among menus. Press the DOWN and UP arrow keys to move among options in a menu. Press F5 or F6 to move through values for the current option or press ENTER to display a list of choices. See the tables below for more information.

4. After you select the options you want, press F10 or use the Exit menu to exit the BIOS Setup utility. If the settings cause a conflict between devices during reboot, the system prompts you to run BIOS Setup, and the conflicting settings are marked.

Main Menu Default

BIOS Revision Shows the current BIOS version. Detected

automatically.

System Time Sets the time using 24-hour format. Values set

take effect immediately. System Date Sets the date using mm/dd/yyyy format. Diskette A Sets the floppy drive type. Floppy disk drive

type detected and set automatically.

Primary Master Sets the hard disk drive type and various

parameters.

Secondary Master Sets the CD-ROM drive type and various

parameters.

Display Device Switches between the built-in display (LCD), an

external display (CRT) if attached, and both. PS/2 Mouse Enables or disables the pointing devices. Enabled ZV Port Sets whether zoomed video function is enabled,

to connect from a PC card to a VGA controller.

Hard disk drive detected and set automatically.

CD-ROM drive detected and set automatically.

LCD/CRT

Enabled

Page 3

Quiet Boot When enabled, hides summary of

power-on self-test and messages during boot. System Memory Shows the system memory size. 640KB Extended Memory Shows the extended memory size. Detected

Enabled

automatically.

Advanced Menu Default

Serial port Sets how the serial port is configured by the

BIOS (specified or automatic). Base I/O address Sets the I/O address and interrupt. 3F8 IRQ4

Enabled

IrDA port Sets how the infrared port is configured by the

BIOS (specified or automatic). Mode When IrDA port is enabled, sets the hardware to

support SIR (Standard IR) or FIR (Fast IR) infrared

communications. (Driver installation is required.) Base I/O address When IrDA port is enabled, sets the I/O address

and interrupt. DMA channel When Fast IR mode is enabled, sets the DMA

channel. Parallel Port Sets how the parallel port is configured by the

BIOS (specified or automatic). Mode Sets the port to output only, bi-directional, ECP

mode, or EPP mode. Base I/O address Sets the I/O address. 378 IRQ7 DMA channel When ECP mode is enabled, sets the DMA

channel. Local Bus IDE Adapter Enables the primary (hard drive) and secondary

(CD-ROM drive) controllers. Floppy disk controller Enables the floppy disk drive. Enabled

Disabled

SIR

2F8 IRQ3

DMA 3

Enabled

Bi-directional

DMA 0

Both

Security Menu Default

User Password Is Shows if a user password is set. Clear Supervisor Password Is Shows if a supervisor password is set. Clear Set User Password Press ENTER to set, change, or clear user

password. Password length can be no longer

than 8 characters, 0-9, A-Z. Set Supervisor

Password

Password on boot Sets whether a user password is required when

Press ENTER to set, change, or clear supervisor

password. This password protects BIOS Setup

settings.

the computer boots.

Power (APM) Menu*

PM Control Disables power management, or enables it Battery Powered

Enabled

Default

Page 4

either always or when on battery power only. Only

When Battery Exists

Only

Power Savings Sets the combination of power management

features for your usage. (Choose Customize if

you want to set any of the Timeout options.) Standby Timeout Sets the period of inactivity after which the

computer goes from On to Standby power mode. Suspend Timeout Sets the period of inactivity after which the

computer goes from Standby to Suspend power

mode. Hibernate Timeout Sets whether the computer goes from Suspend

to Hibernate power mode after the indicated

period of inactivity. Hard Disk Timeout Sets the period of inactivity after which the hard

disk stops spinning. Video Timeout Sets the period of hard disk inactivity after which

the screen is turned off. Power Button Mode Sets the action (Suspend or Off) of the blue

power button when pressed for less than 4

seconds. Resume on Modem Ring Sets whether the system resumes from Suspend

if a ring signal is received. Resume on Time Sets whether the system resumes from Suspend

at a defined time of day.

Maximum Battery Life

2 minutes

2 hours

1 minute

Off

Suspend

Off

Resume Time Sets the 24-hour time when the system resumes

from Suspend if enabled. Cooling Control Sets mode for reduction of CPU temperature to

Silence (less cooling) or Performance (more

cooling).

Performance

Boot Menu Default

Removable Devices Hard Drive ATAPI CD-ROM Drive

Shows the order of boot devices. Move the entries to change the order. Removable Devices include the floppy disk drive.

1. Removable Devices

2. Hard Drive

3. ATAPI CD-ROM Drive

Exit Menu

Exit Saving Changes Saves Setup changes to CMOS, exits, and

reboots.

Exit Discarding Changes Discards Setup changes since last save, exits,

and reboots. Does not affect security, date, or time changes.

Load Setup Defaults Restores default settings, stays in Setup. Does

not affect security, date, or time changes.

Discard Changes Discards Setup changes since last save, stays in

Setup. Does not affect security, date, or time

Page 5

changes.

Save Changes Saves Setup changes to CMOS and stays in

Setup. Security settings are saved when changed.

Page 6

Updating the Pavilion Notebook BIOS

Hewlett-Packard may provide updates to the BIOS to enhance the capabilities of the Pavilion Notebook. Updates will be available from HP Customer Care. Visit the support area of the HP notebook PC Web site at http://www.hp.com/notebook. Download the BIOS update and follow the instructions in the README.TXT file on how to create the BIOS update floppy disk.

CAUTION: Because a BIOS update replaces the previous version, it is important you follow these instructions exactly. Otherwise, the Pavilion Notebook may be damaged. The BIOS update process resets the configuration settings in the BIOS Setup utility, and it erases any BIOS passwords.

To update the BIOS

1. Remove any PC Cards.

2. If the notebook is docked, undock it.

3. Connect the AC adapter to the notebook.

4. Insert the BIOS update disk in the floppy disk drive.

5. Restart the computer.

6. Follow the onscreen instructions. This starts a process that takes approximately 1 minute.

Once the update process begins, do not interrupt it.

7. When the process is completed, reboot the computer by pressing the system-off button on the

bottom of the notebook.

Page 7

Testing the Pavilion Notebook with HP Diag Tools

The HP Diag Tools provide two levels of system hardware testing:

• Automated testing using the basic hardware test.

• Advanced testing using the individual hardware tests.

The tests are designed to run after the system reboots. This ensures that the computer will be in a predictable state, so the diagnostic program can properly test the hardware components. The tests are non-destructive and are designed to preserve the state of the computer. The notebook reboots when you exit the program so drivers can be loaded.

To create a diagnostic floppy disk

NOTE: You do not need to run the diagnostics from a floppy disk; however, it’s

a good idea to create a diagnostic disk in case something happens to your hard drive.

To create a diagnostic floppy disk, download the diagnostic software package from the HP notebook PC Web site (http://www.hp.com/notebook). First run the downloaded file to unpack the files, then run diaginst to create the diagnostic disk. Note that you can create this diagnostic disk on any computer with Internet access.

To run the diagnostic test

1. Insert the diagnostic disk in the floppy drive and restart the computer.

or Restart the computer; when you see the HP logo, press F10 to start the diagnostics utility.

2. When you see the initial diagnostics screen, press F2 twice to continue.

In case the initial diagnostics screen does not appear:

• If you ran the diagnostics from a floppy disk, run scandisk on the floppy disk. If you

discover errors on the disk, create a new diagnostic disk, using a different floppy disk, before running the test again.

• If you ran the diagnostics from the hard disk, create a diagnostics floppy disk (according

to the procedure above) and then follow step 1 above.

3. When the hardware detection finishes, check the list of detected hardware.

If a device is not detected or fails its test below, it may be configured incorrectly in the BIOS Setup utility. You can confirm the problem by running BIOS Setup and checking the settings.

4. Run the basic test. Press F2 twice to start the basic hardware test.

5. Wait until the test has finished.

6. If you intend to exit without running advanced tests, press F4 twice to save system and test

information in the Support Ticket log file, HPSUPPT.TXT. Then remove the diagnostic disk (if you used one) and press F3 twice to exit.

7. Optional: Run the advanced tests. Press F2 twice to open the advanced test screen.

Page 8

8. Select and run the appropriate tests. Tests are not listed if no such hardware is detected. Press

the following keys to run tests:

ENTER Runs the highlighted test. F5 or SPACE Marks or unmarks the highlighted test. F6 Marks or unmarks all tests in the current menu. F7 Marks or unmarks all tests in all menus. F10 Runs all marked tests.

9. When you have finished running tests, press ESC to exit the advanced tests.

10. Optional: Save system and test information. Press F4 to create the Support Ticket log file,

HPSUPPT.TXT.

NOTE: If you ran the diagnostics from a floppy disk, the log file is stored on the

diskette. If you ran the diagnostics from the hard disk (by pressing F10), the log file is stored on a hidden partition on the hard disk.

11. To exit, remove the diagnostic disk (if you used one), and press F3 twice to exit and reboot.

12. Optional: Check the Support Ticket log. The Support Ticket log file contains a list of all

test results and errors. If you ran the diagnostics from a floppy disk, you can open the HPSUPPT.TXT file with a text editor, such as Notepad. To open a log file that was stored on your hard disk, go to the C:\DMI\HPDIAGS directory and double-click HPSUPPT.EXE; this displays the log file in Notepad.

Page 9

Using Enhanced Video and Dual Monitors

Standard video drivers are installed on your Pavilion Notebook for various settings of screen area and colors, as well as for screen zoom capabilities. If you wish to use additional video features such as Stretch and Rotate, you can install a supplemental video driver.

To install the supplemental video driver

1. In Windows Explorer, open the folder c:\notebook\drivers\video\control.

2. Double-click the Setup.exe file, and follow the onscreen instructions.

3. Click Start, Settings, Control Panel.

4. Double-click Display.

5. Select the Settings tab, choose either High Color (16 bit) or True Color (24 bit), and click

OK.

Do not select 256 colors, since the background is sometimes distorted.

To use the video control panel

After you have installed the supplemental video driver, a video control panel is available.

1. Click Start, Settings, Control Panel.

2. Double-click Display.

3. Select the LynxE tab and use the controls available there for additional features, such as

Stretch and Rotation, turning LCD (built-in display) and CRT (external monitor) on and off, and enabling video hot keys.

To use two monitors in dual mode

You can use two monitors with your Pavilion Notebook, either in dual mode, effectively expanding your screen real estate, or in simultaneous mode, displaying the same screen twice.

The LCD monitor that is part of the Pavilion Notebook is the primary display (Monitor 1), and a second CRT monitor attached to the rear video port is the secondary display (Monitor 2). You can also switch from one monitor to the other (using only one at a time) by pressing Fn+F12.

To enable the dual monitor display:

1. Click Start, Settings, Control Panel.

2. Double-click Display.

3. Select the Settings tab.

4. Position the second monitor to the right or left of your notebook display to match your

monitor location.

5. Select each monitor and set the colors and screen area to the desired values. The following

settings support dual display mode:

• Set a 12.1-inch display to 256 colors or High Color (16 Bit) with an 800

• Set a 13.3-inch display to 256 colors with a 1024

×600 screen area.

×768 screen area.

Page 10

6. Make sure that the Settings box “Extend my Windows desktop onto this monitor” is checked. Here are some other limitations to be aware of as you choose your monitor settings:

• The sum of the video memory used by both monitors must be less than the total video

memory size. Your HP Pavilion Notebook PC comes with 2 MB memory installed.

• Monitor 1 has to be in the same resolution as the panel size. For example, if the panel is

800

×600, the resolution selected for the Monitor1 must be exactly 800×600 in order to enable

dual display mode.

• Monitor 1 can be set to 256 colors or High Color (16 Bit), not True Color (24 bit), since

Virtual Refresh can be supported only in 256 color and High Color (16 Bit) modes. Monitor 2 can be set to 256 colors or High Color (16 Bit) only.

• Monitor 1 and Monitor 2 cannot both be in 256 color mode.

• Settings cannot be changed on Monitor 2 if DirectDraw is enabled—for example, if video is

playing—since the display driver cannot reallocate the display memory for dual display support.

• Under dual display mode, only the software cursor can be used. There is no hardware cursor

available under Virtual Refresh mode.

• Dual display mode is not available if you are currently in a special mode from the LynxE

video control panel settings, such as Rotation or Stretch.

• Games that use the DirectDraw API cannot run in dual display mode. You will be prompted

to disable Monitor 2 before running the game.

Page 11

Expanding the Hibernate Partition When Adding RAM

The HP Pavilion Notebook PC comes with either 32 or 64 megabytes (MB) of random access memory (RAM) installed, and the size of the Hibernate partition is set appropriately. However, if you add RAM so that your total RAM is greater than 256 MB, you must change the size of the Hibernate partition. This partition is automatically used to save your current session from RAM when battery level is low. As a result, you must provide a sufficiently large Hibernate partition to accommodate all the information stored in RAM; otherwise, you risk losing work in progress.

You can create the Hibernate partition by booting from the Recovery CD. The partitioning and recovery process takes approximately 20 minutes—do not interrupt the process or unplug the AC

adapter until the process is completed.

CAUTION: This procedure will format the hard disk drive and erase all data on the disk. Be sure to back up all data from your hard disk before you begin this procedure. After the hard disk drive is formatted, you’ll need to reinstall any applications.

To expand the hibernate partition

1. Back up all data from your hard disk.

2. If you wish to install additional RAM, do so now.

3. Connect the AC adapter to the notebook.

4. Insert the Recovery CD in the CD-ROM drive. (If your system came with two Recovery CDs,

insert Disc 1.)

5. Restart the computer, and when you see the HP logo, press ESC twice.

6. Select the CD-ROM drive as the boot device, and press ENTER.

7. Choose Continue.

8. Choose Advanced.

9. Select a size from the Hibernate Partition Size drop-down list.

10. If you want to create a hibernate partition without recovering the operating system, select the

“Do not load operating system” checkbox and select one of the partition options.

11. Choose Continue.

12. Click OK to begin.

NOTE: If your system came with two Recovery CDs, you may be prompted to

insert the other Recovery CD during the partitioning process.

13. When you are prompted to reboot your computer, remove the Recovery CD and press

Ctrl+Alt+Delete.

14. Follow the onscreen instructions for setting up Windows.

15. When Windows setup is complete, reinstall any applications and restore backed up data.

Page 12

Recovering Software

If you’ve deleted or lost files on the HP Pavilion Notebook PC, causing the system to work improperly, you may need to recover the original Windows 98 operating system.

You can use the Recovery CD(s) to

• Recover the software that was factory-installed on your HP Pavilion Notebook PC.

• Expand the Hibernate partition

Page 13

Recovering Software

The Recovery CDs provide the Pavilion-specific device drivers to configure your custom system. The drivers are located on the CD in Notebook\Drivers\W98. The README file in Notebook\Drivers\W98 contains complete installation instructions. The drivers are also located in these places:

• On the Pavilion Notebook hard drive under C:\Notebook\Drivers.

• On the HP notebook PC Web site at http://www.hp.com/notebook. This Web site contains the

latest updates of software drivers.

Detailed instructions are located in the README files.

To recover the factory-installed software

The following procedure describes how to recover the original Windows 98 operating system and pre-installed software that came with your HP Pavilion Notebook PC. The entire recovery process takes approximately 20 minutes—do not interrupt the process or unplug the AC adapter until the

process is completed.

1. Back up all data from your hard disk.

2. Connect the AC adapter to the notebook.

3. Insert the Recovery CD in the CD-ROM drive. (If your system came with two Recovery CDs,

insert Disc 1.)

4. Reboot and, when you see the HP logo, press ESC twice.

5. Select the CD-ROM drive as the boot device, and press ENTER.

6. Choose Continue.

7. Choose Recover Operating System.

8. Click OK to begin.

NOTE: If your system came with two Recovery CDs, you may be prompted to

insert the other Recovery CD during the recovery process.

9. When you are prompted to reboot your computer, remove the Recovery CD and press

Ctrl+Alt+Delete.

10. Follow the onscreen instructions for setting up Windows.

11. When Windows setup is complete, reinstall any applications and restore backed up data. You can find more details about recovering the factory installation of Windows on the Recovery

CD; the file README.TXT is in the CD’s root directory.

Page 14

Modem Specifications

The internal modem that comes with your HP Pavilion Notebook PC supports the following international and de facto standards:

Modulation: v.21, v.22, v.22bis, v.23, v.32, v.32bis, v.34, v.90, X2, Bell 103 Compression: v.42, v.42bis, MNP5 Fax: v.17, v.27ter, v.29 For standards that are not listed, please contact your service provider for information about

alternative methods of accessing or using its service.

Page 15

Selecting Modem Modes

If you have trouble connecting to certain modems, you can try forcing the internal modem to certain modulations and connect rates. To select a modulation, use the +MS command. In addition to selecting the modulation, this command allows you to enable or disable automode and specify the lowest and highest connection rate. The format of the command is as follows:

+MS= <mode>,<automode>,<min_rate>,<max_rate> The +MS command should be used as part of the modem initialization sequence in your

communications program. The following table indicates the mode value to use for each supported modulation as well as the

possible rates that can be used for each modulation.

<mode> Modulation Possible Rate (bps)

0 v.21 300 1 v.22 1200 2 v.22bis 2400, 1200 3 v.23 1200, 300 9 v.32 9600, 4800 10 v.32bis 14400, 12000, 9600, 7200,

4800

11 v.34 33600, 31200, 28800, 26400,

24000, 21600, 19200, 16800, 14400, 12000, 9600, 7200,

4800, 2400 17 X2, v.90 57,333–33,333 64 Bell 103 300

For example, to force the internal modem to connect with the V.34 modulation:

1. Click Start, Settings, Control Panel.

2. Double-click Modems.

3. Click Properties.

4. Click the Connection tab.

5. Click Advanced.

6. In the “Extra settings” field, type AT+MS=11 and click OK.

Most Windows modem applications use the modulation command in the “Extra settings” field as part of the modem initialization.

The following table lists the other +MS parameters along with the acceptable values for each parameter.

Page 16

Parameter Acceptable Values

<automode> 0 (Automode Disabled)

1 (Automode Enabled) <min_rate> 300 to 33600 <max_rate> 300 to 33600

To force a maximum rate, set the minimum rate to the same value as the maximum value.

Page 17

Audio Problems

If sound is not audible

• Press Fn+Up Arrow several times.

• Click the speaker icon on the taskbar to ensure that Mute is not checked.

• When you are operating your Pavilion Notebook in MS-DOS mode (for example, when

running MS-DOS games), you may find that the sound does not operate properly. Use Windows applications for full use of sound capabilities.

If sound does not record

• Check software controls for recording sound: Start, Programs, Accessories, Multimedia (or

Entertainment), Sound Recorder.

You may also want to test the audio with diagnostics. See Testing the Pavilion Notebook with

Diag Tools.

Page 18

CD-ROM Drive Problems

If you can’t boot from a CD in the CD-ROM drive

• Make sure the CD is a bootable CD, such as the HP Pavilion Notebook PC Recovery CD.

• Press ESC twice during bootup to see if the CD-ROM drive is the first boot device.

• If you always want to boot from a CD when one is present, change the boot order in BIOS

Setup.

1. From the Start menu, shut down, then restart the computer.

2. When you see the HP logo, press F2 to enter the BIOS Setup utility.

3. Open the Boot menu. The default boot order is

• Removable devices

• Hard drive

• ATAPI CD-ROM drive

4. Use the arrow keys to select the ATAPI CD-ROM drive.

5. Press F6 to move up (or F5 to move down) in the list.

6. Press F10 to Save and Exit the BIOS Setup utility.

• Reboot the computer. You may also want to test the CD-ROM drive with diagnostics. See Testing the Pavilion

Notebook with Diag Tools.

Page 19

Display Problems

If the notebook is on, but the screen is blank

• Try pressing Fn+F1 to increase the contrast or Fn+F2 to decrease the contrast. (On TFT

displays, contrast control is not necessary and therefore is not available.)

• Press Fn+F12 in case the internal display was disabled. (Do this three times to return to the

state you started from.)

• If the notebook is cold, allow it to warm up.

If the screen is difficult to read

• Check whether the display resolution is set to its default setting—800 × 600 for 12.1" display

or 1024 × 768 for larger displays. Check this in Start, Settings, Control Panel, Display, Settings.

• Try pressing Fn+F1 to increase contrast.

If part of the Windows desktop is not visible and you have to scroll down to see the taskbar

• Your display resolution may be set to 1024 x 768 on a 12.1" display, instead of 800 x 600.

You need to set the monitor type to Laptop Display Panel (800 x 600).

1. Click Start, Settings, Control Panel.

2. Double-click Display.

3. Click the Settings tab.

4. Click Advanced.

5. Click the Monitor tab.

6. Click Change.

7. Click Next.

8. Choose “Display a list of all drivers…” and click Next.

9. For the model, select Laptop Display Panel (800 x 600) and click Next.

10. Click Next and then Finish.

11. Click Close.

12. Reduce the resolution to 800 x 600 pixels and click OK.

If an external display does not work

• Check the connections.

• Press Fn+F12 in case the external monitor was disabled. (Do this three times to return to the

state you started from.)

• The external monitor may not be detected. In the BIOS Setup utility, try setting Video

Display Device to LCD/CRT in the Main menu. See Configuring the Pavilion Notebook with

the BIOS Setup Utility.

You may also want to test the display with diagnostics. See Testing the Pavilion Notebook with

Diag Tools.

Page 20

Hard Disk Drive Problems

If the notebook’s hard drive doesn’t spin

• Make sure the notebook has power. If necessary, connect the AC adapter, making sure it is

plugged into a power source and into the rear of the Pavilion notebook.

If the hard disk makes a buzzing or whining noise

• Back up the drive immediately.

• Check for alternate noise sources, such as the fan or a PC Card drive.

If files are corrupted

• Run the VirusScan program.

• Run the ScanDisk surface scan to check the platter. From the Start menu, click Programs,

Accessories, System Tools, ScanDisk.

You may also want to test the hard disk drive with diagnostics. See Testing the Pavilion

Notebook with Diag Tools.

Page 21

Heat Problems

If the notebook gets hot

• Make sure the air vents are clear.

• Note that it is normal for the computer to get warm. DOS games and other programs that

drive CPU usage toward 100% can contribute to a temperature increase.

Page 22

Keyboard, Touch Pad, and Mouse Problems

If the touch pad is difficult to control

• Customize the touch pad by using the Mouse applet in Control Panel (Start, Settings, Control

Panel).

If the pointing devices don’t work

• Don’t touch the touch pad while booting or resuming.

• Make sure the pointing devices are enabled in the BIOS Setup utility.

1. From the Start menu, shut down, then restart the computer.

2. When you see the HP logo, press F2 to enter the BIOS Setup utility.

3. From the Main menu, check PS/2 Mouse.

4. Set to Enabled.

5. Press F10 to Save and Exit the BIOS Setup utility.

• Reset the computer.

If a scroll mouse doesn’t work

• Scroll mice do not work when the PS/2 Mouse setting is set to Enabled in the BIOS; you must

use the External First setting. (Note that the touch pad will not work simultaneously with the scroll mouse.) To choose the External First setting:

1. From the Start menu, shut down, then restart the computer.

2. When you see the HP logo, press F2 to enter the BIOS Setup utility.

3. From the Main menu, go to PS/2 Mouse.

4. Set to External First.

5. Press F10 to Save and Exit the BIOS Setup utility.

• To ensure that the external mouse will be detected properly, the notebook must be suspended

or shut down before you attach the scroll mouse.

Note: If you want to go back to using the touch pad, you must suspend or shut

down the computer before you detach the scroll mouse.

If the embedded numeric keypad doesn’t work

• Make sure Num Lock is on.

• Don’t touch the touch pad while booting or resuming.

If a special feature on the PS/2 mouse doesn’t work

• Make sure you installed any drivers included with the mouse.

• Suspend and resume the computer, so that the system will detect the PS/2 mouse.

You may also want to test the keyboard and pointing devices with diagnostics. See Testing the

Pavilion Notebook with Diag Tools.

Page 23

Infrared Problems

Note: Certain HP Pavilion Notebook PC models do not support infrared.

If you have problems with infrared communications

• Make sure the infrared light path is not blocked.

• Line up the Pavilion Notebook’s infrared port and the other infrared port in as straight a line

as possible. The two ports should be no more than 1 meter apart, with no obstructions in between.

• Check that only one application is using the infrared port.

• Remove any PC Cards. An infrared IRQ conflict is possible if two PC Cards are plugged in at

the same time.

• Reboot the computer.

• Follow these steps to make sure the port is enabled:

1. Reboot your computer.

2. When you see the HP logo, press F2 to enter the BIOS Setup utility.

3. Select Advanced.

4. Set IrDA port setting to Enabled.

5. Set Mode to FIR.

6. If DMA channel conflicts with Parallel port DMA channel, change Parallel Port Mode to EPP.

7. Select F10 to save the changed values and continue reboot.

You may also want to test infrared communications with diagnostics. See Testing the Pavilion

Notebook with Diag Tools.

Page 24

Memory Problems

If a message says you are out of memory

• In Windows Help, search for Memory Troubleshooter.

• If you are having memory problems running MS-DOS programs, in Windows Help search for

MS-DOS Troubleshooter.

You may also want to test memory with the diagnostics. See Testing the Pavilion Notebook with

Diag Tools.

Page 25

Modem Problems

If the modem will not connect at 56K speed

• The host modem may not support a 56K (V.90) connection speed.

• The speed at which you connect depends on several factors, such as the current condition of

the telephone line. If you try connecting at another time, it’s possible you may be able to connect at 56K.

If the modem will not connect at any speed

• Make sure the telephone line goes from the modem phone jack on the right side of the

computer to the telephone jack on the wall.

• If you have a single telephone line for voice and modem use, make sure no one else is using

the line and that the phone is not off the hook.

• Contact your Internet Service Provider (ISP). It's possible that service may be unavailable

temporarily or that your settings are incorrect.

• Try restarting your computer and attempt another connection.

• Try an alternative dial-in number.

• Download the latest modem driver from the software updates area of the HP notebook PC

Web site (http://www.hp.com/notebook).

• Run the modem diagnostics:

1. Click Start, Settings, Control Panel.

2. Double-click Modems.

3. Click the Diagnostics tab.

4. Click the port to which your modem is attached.

5. Click More Info.

• In Windows Help, use the Modem Troubleshooter.

If the modem connection is dropped when transferring large files

• There may be static or interference on the phone line. Try connecting later.

If a serial or PC card modem is not working

• Disable the internal modem:

1. Click Start, Settings, Control Panel.

2. Double-click System.

3. Click the Device Manager tab.

4. Double-click Modem to list the current modem devices.

5. Double-click the internal modem.

6. Select the checkbox “Disable in this hardware profile.”

Page 26

PC Card (PCMCIA) Problems

If the Pavilion Notebook doesn’t recognize a PC Card

• Remove and reinsert the PC card.

• If the card requires an IRQ, check that there is one available. Look in Device Manager,

Properties, Interrupt Request (IRQ).

• Check the HP notebook PC Web site for information about supported PC Cards.

• Try the card in another computer.

• Reboot the computer.

You may also want to test the PC card with diagnostics. See Testing the Pavilion Notebook with

Diag Tools.

If a zoomed video card is not working

• Only the lower PC Card slot supports zoomed video.

If an I/O card stops communicating properly

• The card may have been reset if the notebook is suspended or turned off. Exit any

applications, then remove and reinsert the card.

If a PC card modem is not working

• Disable the internal modem:

1. Click Start, Settings, Control Panel.

2. Double-click System.

3. Click the Device Manager tab.

4. Double-click Modem to list the current modem devices.

5. Double-click the internal modem.

6. Select the checkbox “Disable in this hardware profile.”

Page 27

Performance Problems

If the notebook pauses or runs sluggishly

• Press CTRL+ALT+DEL to see if an application is not responding.

• Reboot the computer.

• Delete temporary and unneeded files.

• Certain background operations (such as VirusScan) can affect performance while they’re

running.

• Check the BIOS Setup settings.

1. From the Start menu, shut down, then restart the computer.

2. When you see the HP logo, press F2 to enter the BIOS Setup utility.

3. From the Power menu, set Cooling Control to Performance.

4. Press F10 to Save and Exit the BIOS Setup utility.

• Some file browsers may be unresponsive while they’re processing a graphic image or waiting

for broken network connections to time out.

• Install additional memory if Windows is spending a lot of time swapping to disk.

• Check amount of available free disk space.

Page 28

Port Replicator Problems

If a port on a port replicator isn’t working

• Check that AC power is connected.

• Try using the corresponding Pavilion Notebook port, while undocked.

• See the manual for the port replicator.

Page 29

Power and Battery Problems

If the notebook turns off immediately after it turns on

• Battery power is probably extremely low. Plug in the AC adapter or insert a newly charged

battery.

If the notebook keeps beeping

• The Pavilion Notebook beeps for 15 seconds when the battery is low. Save your work, shut

down Windows immediately, and insert a charged battery or plug in the AC adapter.

If the notebook has a short operating time

• Try conserving power by setting power timeouts to shorter periods. You can adjust these

settings in the Power Management applet in Control Panel.

• If you are running any applications with an automatic save feature, such as MS Word for

Windows, you can extend the save time or disable this feature to reduce hard disk access.

• If the operating time has become shorter and the battery is more than a year or two old, you

may need to replace the battery.

• Set the display brightness to the lowest comfortable level.

• Heavy modem use can affect battery operating time.

• PC card use can affect battery operating time.

• Check the Power Management settings in BIOS Setup.

1. From the Start menu, shut down, then restart the computer.

2. When you see the HP logo, press F2 to enter the BIOS Setup utility.

3. From the Power menu, make sure Power Savings is set to Maximum Battery Life.

4. Press F10 to Save and Exit the BIOS Setup utility.

If the battery doesn’t charge

• Make sure the AC adapter is plugged into the power source and that the light on the adapter is

on.

• If you're using a power strip, remove the AC adapter from the power strip and plug it directly

into a wall outlet.

• Check that the battery is fully installed and locked in place.

• Turn off the Pavilion Notebook, then check that the battery contacts are clean and that the AC

adapter cables are fully plugged in.

• Move the notebook away from any nearby heat source. Unplug the AC adapter and allow the

battery to cool down. An elevated battery temperature prevents charging.

• If available, try another battery and AC adapter.

If the notebook stops responding

• Press CTRL+ALT+DEL to end the application that is not responding.

Page 30

• Press the blue power button for at least 4 seconds to turn off the computer. Then press the

blue button again to turn the notebook back on.

• If nothing happens, insert a paper clip into the system-off button on the bottom of the Pavilion

Notebook. Then press the blue button to turn the notebook on.

If the notebook doesn’t suspend as expected

• If you have a connection to another computer, the Pavilion Notebook doesn’t suspend if the

connection is actively in use.

• If the Pavilion Notebook is performing an operation, it normally waits for the operation to

finish.

You may also want to test the power management system with diagnostics. See Testing the

Pavilion Notebook with Diag Tools.

Page 31

Printing Problems

For most printing problems, use the Print Troubleshooter in Windows Help.

If a serial or parallel printer doesn’t print

• Check that you are using a proper cable or cable adapter, and that the printer is on.

• Check for paper in the printer or other printer errors.

• Make sure the printer cable is secure at both ends.

If an infrared printer doesn’t print

• Make sure the infrared light path is not blocked.

• Check for paper in the printer or other printer errors.

• Make sure Windows is running—infrared printing is supported only while Windows is

running.

• An infrared driver must be installed and the BIOS Setup setting must be enabled. For details,

see Infrared Problems.

• In Windows Help, use the Print Troubleshooter.

If the left edge of printed output is missing

• If the printer you are using is a 600-dpi (dots per inch) printer, try selecting a compatible

printer driver for a 300-dpi printer. For example, for a 600-dpi HP LaserJet printer, try using the HP LaserJet IIIsi driver (300-dpi). Certain applications may not work properly with 600-dpi printers.

Page 32

Serial, Parallel, and USB Problems

If a serial mouse doesn’t work

• First, make certain you completely followed the manufacturer’s installation instructions to

install the mouse properly.

• Check the port connection to see if it’s loose.

• Check settings in BIOS Setup.

1. From the Start menu, shut down, then restart the computer.

2. When you see the HP logo, press F2 to enter the BIOS Setup utility.

3. From the Advanced menu, check that Serial is Enabled.

• If you suspend and resume, reboot the computer to reenable the mouse.

If a serial modem doesn’t work properly

• In Windows Help use the Modem Troubleshooter.

• Check the port connection (it may be loose).

• Check settings in BIOS Setup.

1. From the Start menu, shut down, then restart the computer.

2. When you see the HP logo, press F2 to enter the BIOS Setup utility.

3. From the Advanced menu, check that Serial is Enabled.

• Disable the internal modem:

1. Click Start, Settings, Control Panel.

2. Double-click System.

3. Click the Device Manager tab.

4. Double-click Modem to list the current modem devices.

5. Double-click the internal modem.

6. Select the checkbox “Disable in this hardware profile.”

If the serial or parallel port is not working

• Check the port connection (it may be loose).

• Check settings in BIOS Setup.

1. From the Start menu, shut down, then restart the computer.

2. When you see the HP logo, press F2 to enter the BIOS Setup utility.

3. From the Advanced menu, check that Parallel or Serial is Enabled.

If the USB port is not working

• Contact the vendor of the peripheral device, as well as Hewlett-Packard, for the latest

versions of the USB drivers.

Page 33

You may also want to test the ports with diagnostics. See Testing the Pavilion Notebook with

Diag Tools.

Page 34

Startup Problems

If the notebook doesn’t respond at turn-on

• Connect the AC adapter.

• Press the blue power button to try turning on the unit.

• Use the system-off button to reset the computer.

• If you get no response, remove the battery and AC adapter, remove any PC cards, and undock

the computer—then plug in the AC adapter and try resetting.

• If you still get no response, call HP for assistance.

If the notebook doesn’t boot from battery power

• Make sure the battery is properly inserted and fully charged.

• Check battery contacts. If available, try another battery.

If the notebook doesn’t boot from the floppy disk drive

Check the boot order in the BIOS Setup utility.

1. From the Start menu, shut down, then restart the computer.

2. When you see the HP logo, press F2 to enter the BIOS Setup utility.

3. Open the Boot menu. The default boot order is

• Removable devices

• Hard drive

• ATAPI CD-ROM drive

4. If Removable Devices is not option 1, use the arrow keys to select Removable Devices.

5. Press F6 to move up (or F5 to move down) in the list.

6. Press F10 to Save and Exit the BIOS Setup utility.

Page 35

Suspending and Resuming Problems

If the notebook takes a long time to resume after being suspended

• The Pavilion Notebook can take a minute or longer to resume when a network card is

installed. While the operating system is loading drivers and checking hardware and network connections, you will see a blinking cursor on your display. As soon as the hardware has been re-initialized, the Windows desktop will appear.

If the operating system hangs after you have suspended or resumed

• Your system may hang if you dock or undock your notebook while you are in the process of

suspending or resuming the computer. Make sure your computer has completely suspended or resumed before you dock or undock it.

Page 36

HP Pavilion Notebook PC Hardware Specifications

Physical

PhysicalPhysical Attributes

Attributes

AttributesAttributes Processor

Processor

ProcessorProcessor and Bus

and Bus

and Busand Bus Architecture

Architecture

ArchitectureArchitecture

Graphics

GraphicsGraphics

Power

PowerPower

Storage

StorageStorage

RAM

RAMRAM Audio System

Audio System

Audio SystemAudio System

Keyboard and

Keyboard andKeyboard and Pointing Device

Pointing Device

Pointing DevicePointing Device

Modem

ModemModem

Input/Output

Input/OutputInput/Output

Expandability

ExpandabilityExpandability

Size: 311mm×249mm×42mm (12.24”×9.80”×1.64”) closed. Weight: 3.0 kg (6.6 lb.).

300-MHz, 333-MHz, or 366-MHz Intel Pentium II processor

300-MHz, 333-MHz, or 366-MHz Celeron processor.

MMX technology.

2.5-V low-power processor.

128-KB 32-bit PCI bus.

12.1-inch HPA display (800×600×64K colors)

OR OR

SMI LynxE SM811 graphics controller with 2-MB 135-MHz SGRAM. Zoomed Video support for lower PC Card slot (Windows 95 and Windows 98 only). Dual-monitor support.

Rechargeable 8-cell lithium ion battery (14.4 Vdc, 3.2 AH, 46 watt-hours) 3.12 hours battery life time, or NiMH (9.6Vdc 4.0 AH, 38.4 watt-hours) 2.22 hours battery life. Fast battery recharge: 80% in 1.6 hours, 100% in 2.1 hours. Low-battery warning. Suspend/resume capability. 60-watt AC adapter: 115 to 230 Vac (47 to 63 Hz) input, 19 Vdc, 3.16 A output.

24X CD-ROM drive.

1.44MB floppy disk drive.

4.0-GB 32-MB SDRAM OR 64-MB SDRAM preinstalled.

Two slots for RAM expansion up to 256 MB maximum. 16-bit, Sound Blaster Pro-compatible. ESS M-2EM PCI audio. 64-voice wavetable synthesizer. Stereo sound via two built-in speakers. Built-in microphone. Stereo line-in and monophonic microphone-in jacks. ZV port audio interface.

87/88-key touch-type keyboard with 101/102 key emulation. Embedded numeric keypad. 12 function (Fn) keys. Touch pad pointing device.

56Kbps (V.90) data speed maximum.

14.4Kbps fax speed, Class 1 and 2. Universal serial bus (USB).

9-pin, 115,200-bps serial (16550 UART). 25-pin bi-directional ECP/EPP parallel. Video out: 800×600×16M or 1024x768x64K colors at 75-Hz refresh rate. PS/2 keyboard/mouse port. IrDA 1.1 (Fast IR) infrared port.

One Type III or two Type II 16-/32-bit PC Card slots (3.3- and 5-V support). CardBus enabled. Lower slot supports Zoomed Video. Optional port replicator.

256-KB built-in L2 cache.

12.1-inch SVGA active-matrix (TFT) display (800×600×64K colors)

13.3-inch XGA active-matrix (TFT) display (1024×768×64K colors).

6.0-GB hard disk drive.

Page 37

Software

SoftwareSoftware

Security Features

Security FeaturesSecurity Features

Environmental

EnvironmentalEnvironmental Limits

Limits

LimitsLimits

Major ICs

Major ICsMajor ICs

Microsoft Windows 98. Windows-compatible Plug-and-Play. Power management. Microsoft Works (including CD). Microsoft Encarta (including CD). Microsoft Money. Intuit Quicken Basic. Rand McNally Route Planner. eFax. VirusScan. Adobe Acrobat Reader. My Yahoo! HP diagnostic tests. Online documentation. Electronic registration. HP Pavilion Notebook PC Recovery CD(s) included. Centralized worldwide BIOS and driver update service.

User and supervisor passwords. Kensington Microsaver lock slot.

Operating temperature: 5 to 35 ºC (41 to 95 ºF). Operating humidity: 20 to 80 percent RH. Storage temperature: –20 to 60 ºC (–4 to 140 ºF). Storage humidity: 8 to 90 percent RH.

CPU: Intel Pentium II OR Celeron. North Bridge: 443DX South Bridge: PIIX4e. Video: SMI LynxE SM811. Audio: ESS M-2EM. CardBus: TI PCI1225. Keyboard controller: National PC87570. Super I/O: National 97338.

443BX.

Page 38

Software System Resources

The tables on this page show typical resource usage as set up by the Pavilion Notebook BIOS. Plug-and-play operating systems, drivers, and BIOS setup settings may change some of the entries. To see other, nondefault possibilities, refer to the BIOS Setup utility, which lists port and audio device configurations in the Advanced menu.

System Interrupts

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

System timer Keyboard Cascade from secondary interrupt controller Free (or COM2, IrDA port, if enabled) COM1 (serial port) Audio Floppy disk drive LPT1 (ECP parallel port) Real-time clock Free in APM mode (SCI in ACPI mode) PCI IRQ (shared by all PCI devices) Free (or MIDI, if enabled). Touch pad, PS/2 mouse Numeric coprocessor Internal hard disk drive (primary IDE controller) Internal CD-ROM drive (secondary IDE controller)

System Memory

00000 - 9FFFF A0000 – BFFFF C0000 - CFFFF D0000 - DBFFF DC000 - FFFFF

System memory Video Video BIOS Free (valid uses: upper memory blocks (UMBs) or PC Card memory windows) System BIOS

System Input/Output Addresses (100-3FF)

170-177 1F0-1F7 220-22F 376 378-37F 388-38B 398-399 3B0-3BB 3C0-3DF 3E0-3E1 3E8-3EF 3F0-3F5 3F6 3F7 3F8-3FF

Internal CD-ROM drive (secondary IDE controller) Internal hard disk drive (primary IDE controller) DOS games (FM decoding) Internal CD-ROM drive (secondary IDE controller) LPT1 (printer port) DOS games (FM decoding) Motherboard resources VGA adapter VGA adapter PCMCIA controller Modem Floppy disk drive controller Internal hard disk drive (primary IDE controller) Floppy disk drive controller COM1 (serial port)

DMA Channels

ECP parallel port (if enabled)

Page 39

1 2 3 4 5 6 7

DOS games (FM decoding) Floppy disk drive Fast IR (if enabled) Cascade from secondary PMA controller Free Free Free
