HP Pavilion Media Center m428, Media Center m400 Specification

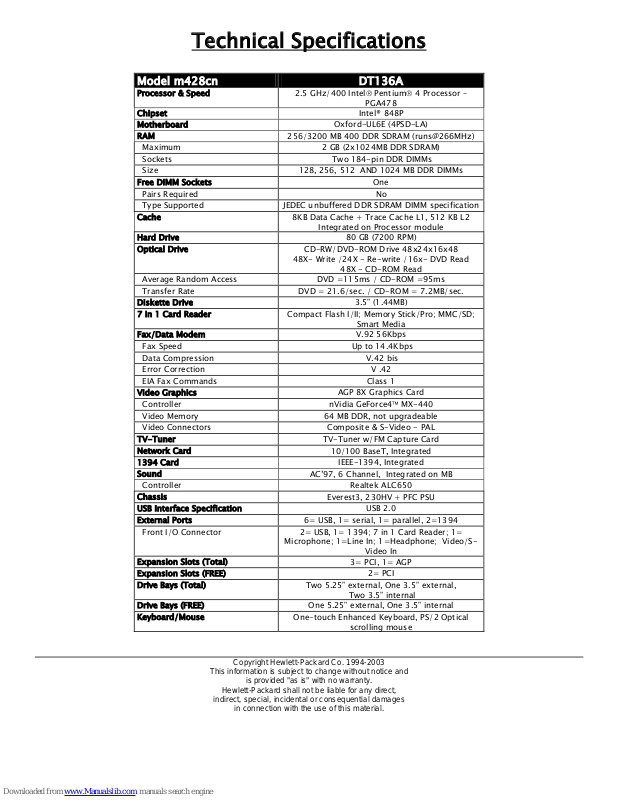

Technical Specifications

Model m428cn DT136A

Processor & Speed

Chipset Intel® 848P
Motherboard Oxford-UL6E (4PSD-LA)
RAM 256/3200 MB 400 DDR SDRAM (runs@266MHz)
Maximum 2 GB (2x1024MB DDR SDRAM)
Sockets Two 184-pin DDR DIMMs
Size 128, 256, 512 AND 1024 MB DDR DIMMs
Free DIMM Sockets One
Pairs Required No
Type Supported JEDEC unbuffered DDR SDRAM DIMM specification
Cache 8KB Data Cache + Trace Cache L1, 512 KB L2

Hard Drive 80 GB (7200 RPM)
Optical Drive CD-RW/DVD-ROM Drive 48x24x16x48

Average Random Access DVD =115ms / CD-ROM =95ms
Transfer Rate DVD = 21.6/sec. / CD-ROM = 7.2MB/sec.
Diskette Drive 3.5” (1.44MB)
7 in 1 Card Reader Compact Flash I/II; Memory Stick/Pro; MMC/SD;

Fax/Data Modem V.92 56Kbps
Fax Speed Up to 14.4Kbps
Data Compression V.42 bis
Error Correction V .42
EIA Fax Commands Class 1
Video Graphics AGP 8X Graphics Card
Controller
Video Memory 64 MB DDR, not upgradeable
Video Connectors Composite & S-Video - PAL
TV-Tuner TV-Tuner w/FM Capture Card
Network Card 10/100 BaseT, Integrated
1394 Card IEEE-1394, Integrated
Sound AC’97, 6 Channel, Integrated on MB
Controller Realtek ALC650
Chassis Everest3, 230HV + PFC PSU
USB Interface Specification USB 2.0
External Ports 6= USB, 1= serial, 1= parallel, 2=1394
Front I/O Connector 2= USB, 1= 1394; 7 in 1 Card Reader; 1=

Expansion Slots (Total) 3= PCI, 1= AGP
Expansion Slots (FREE) 2= PCI
Drive Bays (Total) Two 5.25” external, One 3.5” external,

Drive Bays (FREE) One 5.25” external, One 3.5” internal
Keyboard/Mouse One-touch Enhanced Keyboard, PS/2 Optical

Copyright Hewlett-Packard Co. 1994-2003

This information is subject to change without notice and

is provided "as is" with no warranty.

Hewlett-Packard shall not be liable for any direct,

indirect, special, incidental or consequential damages

in connection with the use of this material.

2.5 GHz/400 Intel® Pentium® 4 Processor –
PGA478

Integrated on Processor module

48X- Write /24X - Re-write /16x- DVD Read

48X - CD-ROM Read

Smart Media

nVidia GeForce4™ MX-440

Microphone; 1=Line In; 1=Headphone; Video/S-

Video In

Two 3.5” internal

scrolling mouse
