HP Pavilion j318cn Datasheet

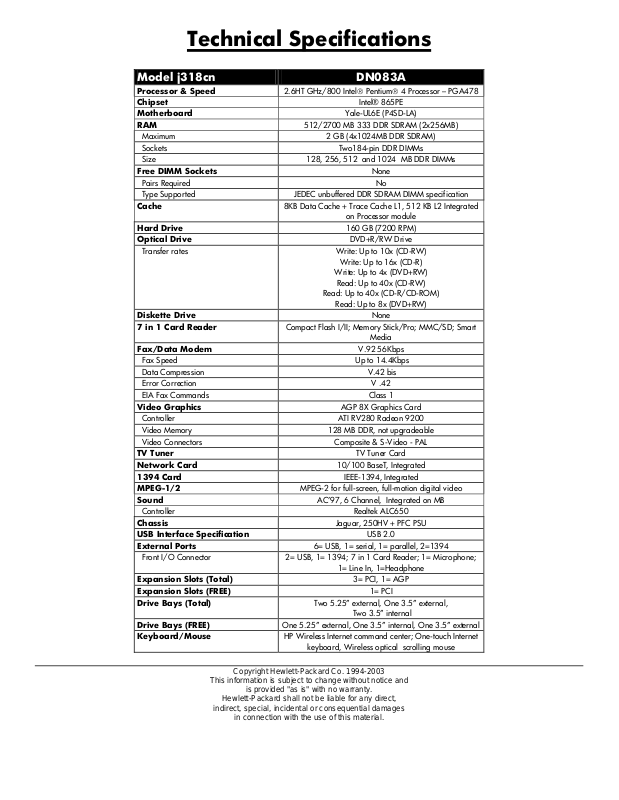

Technical Specifications

Model j318cn DN083A

Processor & Speed 2.6HT GHz/800 Intel® Pentium® 4 Processor – PGA478
Chipset Intel® 865PE
Motherboard Yale-UL6E (P4SD-LA)
RAM 512/2700 MB 333 DDR SDRAM (2x256MB)

Maximum 2 GB (4x1024MB DDR SDRAM)
Sockets Two184-pin DDR DIMMs
Size 128, 256, 512 and 1024 MB DDR DIMMs
Free DIMM Sockets None
Pairs Required No
Type Supported JEDEC unbuffered DDR SDRAM DIMM specification
Cache 8KB Data Cache + Trace Cache L1, 512 KB L2 Integrated

on Processor module

Hard Drive 160 GB (7200 RPM)
Optical Drive DVD+R/RW Drive

Transfer rates

Diskette Drive None
7 in 1 Card Reader Compact Flash I/II; Memory Stick/Pro; MMC/SD; Smart

Fax/Data Modem V.92 56Kbps

Fax Speed Up to 14.4Kbps
Data Compression V.42 bis
Error Correction V .42
EIA Fax Commands Class 1
Video Graphics AGP 8X Graphics Card
Controller ATI RV280 Radeon 9200
Video Memory 128 MB DDR, not upgradeable
Video Connectors Composite & S-Video - PAL

TV Tuner TV Tuner Card
Network Card 10/100 BaseT, Integrated
1394 Card IEEE-1394, Integrated
MPEG-1/2 MPEG-2 for full-screen, full-motion digital video
Sound AC’97, 6 Channel, Integrated on MB
Controller Realtek ALC650
Chassis Jaguar, 250HV + PFC PSU
USB Interface Specification USB 2.0
External Ports 6= USB, 1= serial, 1= parallel, 2=1394

Front I/O Connector 2= USB, 1= 1394; 7 in 1 Card Reader; 1= Microphone;

Expansion Slots (Total) 3= PCI, 1= AGP
Expansion Slots (FREE) 1= PCI
Drive Bays (Total) Two 5.25” external, One 3.5” external,

Drive Bays (FREE) One 5.25” external, One 3.5” internal, One 3.5” external
Keyboard/Mouse HP Wireless Internet command center; One-touch Internet

Copyright Hewlett-Packard Co. 1994-2003

This information is subject to change without notice and

is provided "as is" with no warranty.

Hewlett-Packard shall not be liable for any direct,

indirect, special, incidental or consequential damages

in connection with the use of this material.

Write: Up to 10x (CD-RW)

Write: Up to 16x (CD-R)

Write: Up to 4x (DVD+RW)

Read: Up to 40x (CD-RW)

Read: Up to 40x (CD-R/CD-ROM)

Read: Up to 8x (DVD+RW)

Media

1= Line In, 1=Headphone

Two 3.5” internal

keyboard, Wireless optical scrolling mouse
