Page 1
Notebook Tour
User Guide
Page 2
© Copyright 2007 Hewlett-Packard
Development Company, L.P.
Microsoft and Windows are U.S. registered
trademarks of Microsoft Corporation.
Bluetooth is a trademark owned by its
proprietor and used by Hewlett-Packard
Company under license. SD Logo is a
trademark of its proprietor.
The information contained herein is subject
to change without notice. The only
warranties for HP products and services are
set forth in the express warranty statements
accompanying such products and services.
Nothing herein should be construed as
constituting an additional warranty. HP shall
not be liable for technical or editorial errors
or omissions contained herein.
First Edition: June 2007
Document Part Number: 443052-001
Page 3
Safety warning notice
WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not
place the computer directly on your lap or obstruct the computer air vents. Use the computer only on a
hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft
surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to contact
the skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer and the
AC adapter comply with the user-accessible surface temperature limits defined by the International
Standard for Safety of Information Technology Equipment (IEC 60950).
iii
Page 4
iv Safety warning notice
Page 5
Table of contents
1 Identifying hardware
2 Components
Product notice ...................................................................................................................................... 3
Display components ............................................................................................................................. 3
Top components ................................................................................................................................... 4
Top-left buttons and lights ................................................................................................... 4
Top-right buttons, lights, and fingerprint reader ................................................................... 5
HP Dockable Media Center remote control ......................................................................... 6

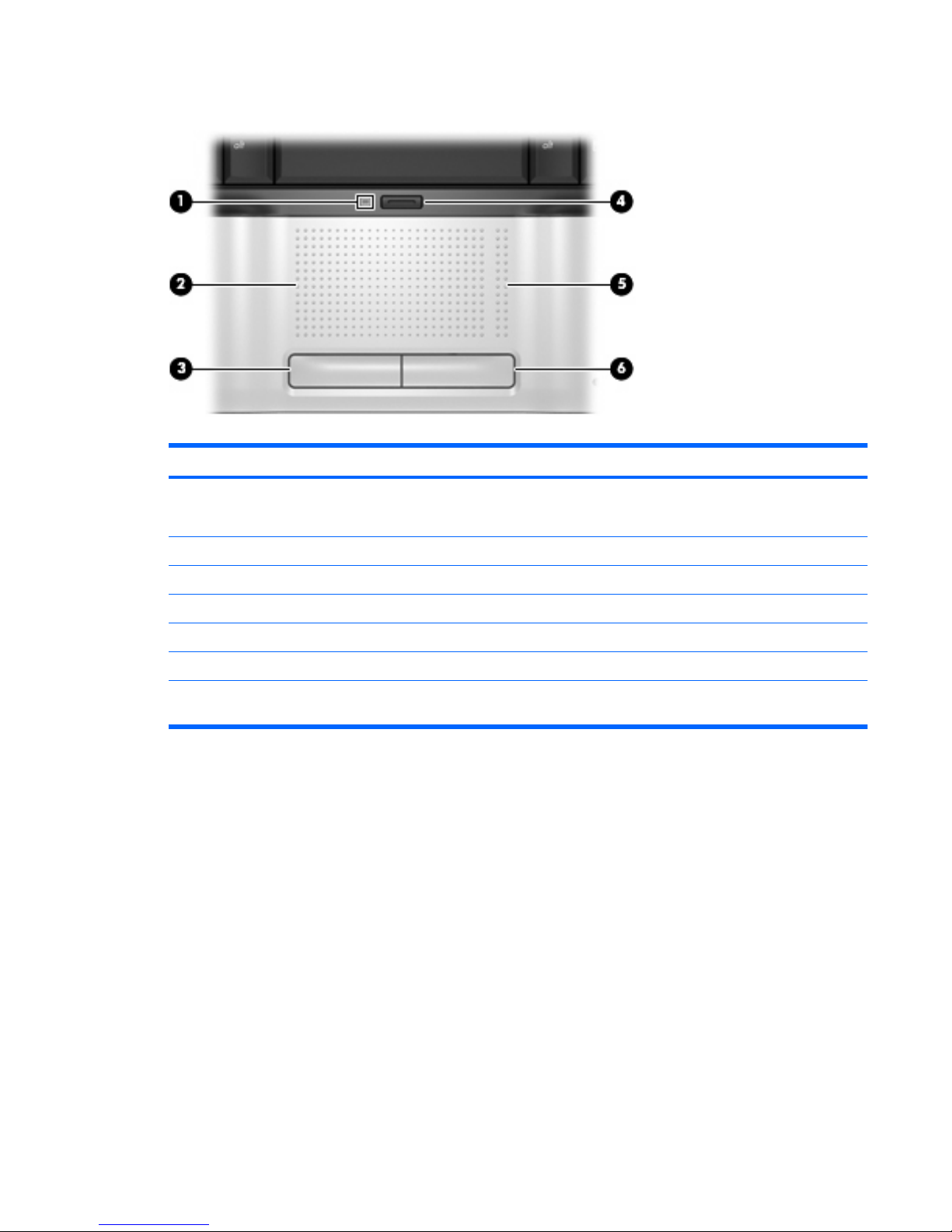

TouchPad .......................................................................................................................... 13

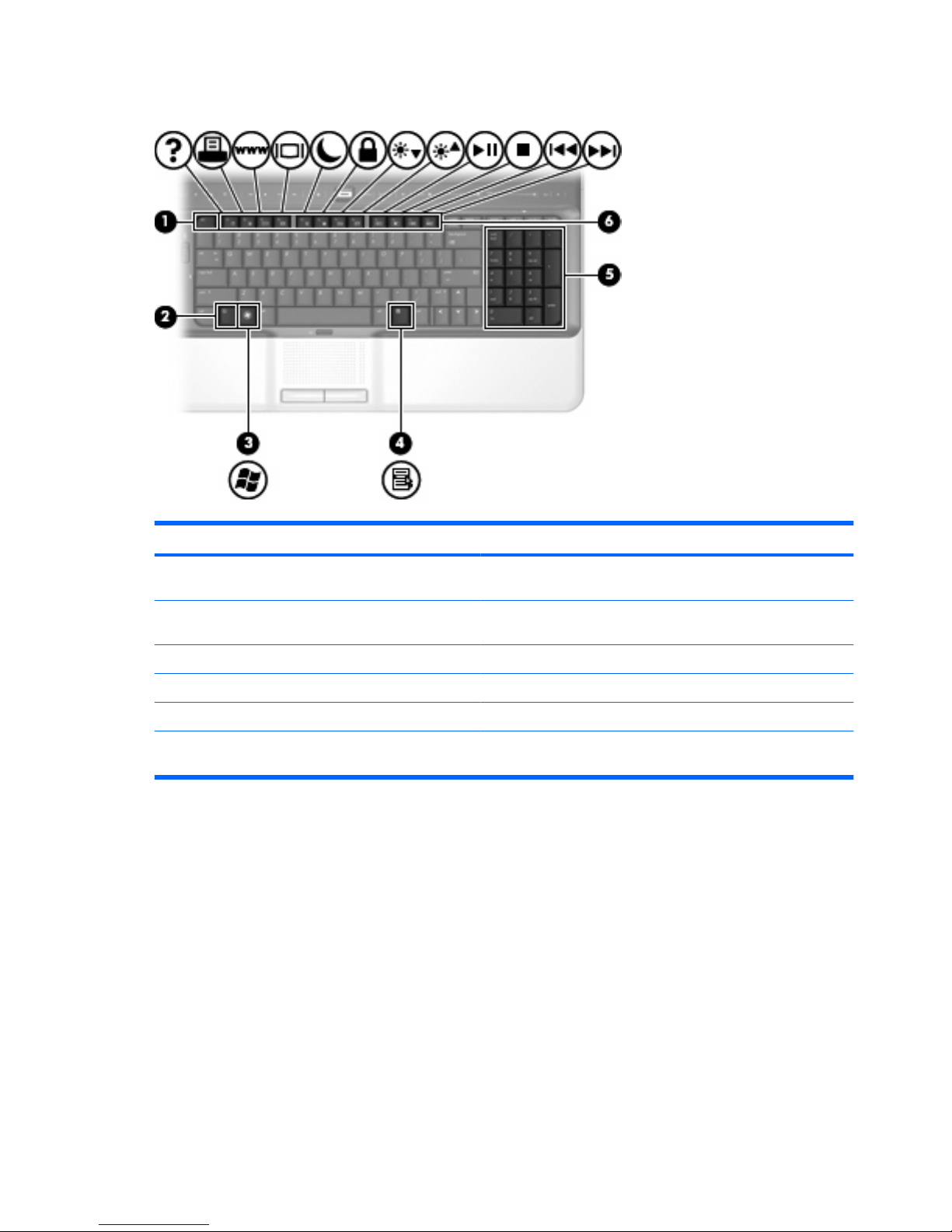

Keys ................................................................................................................................... 14

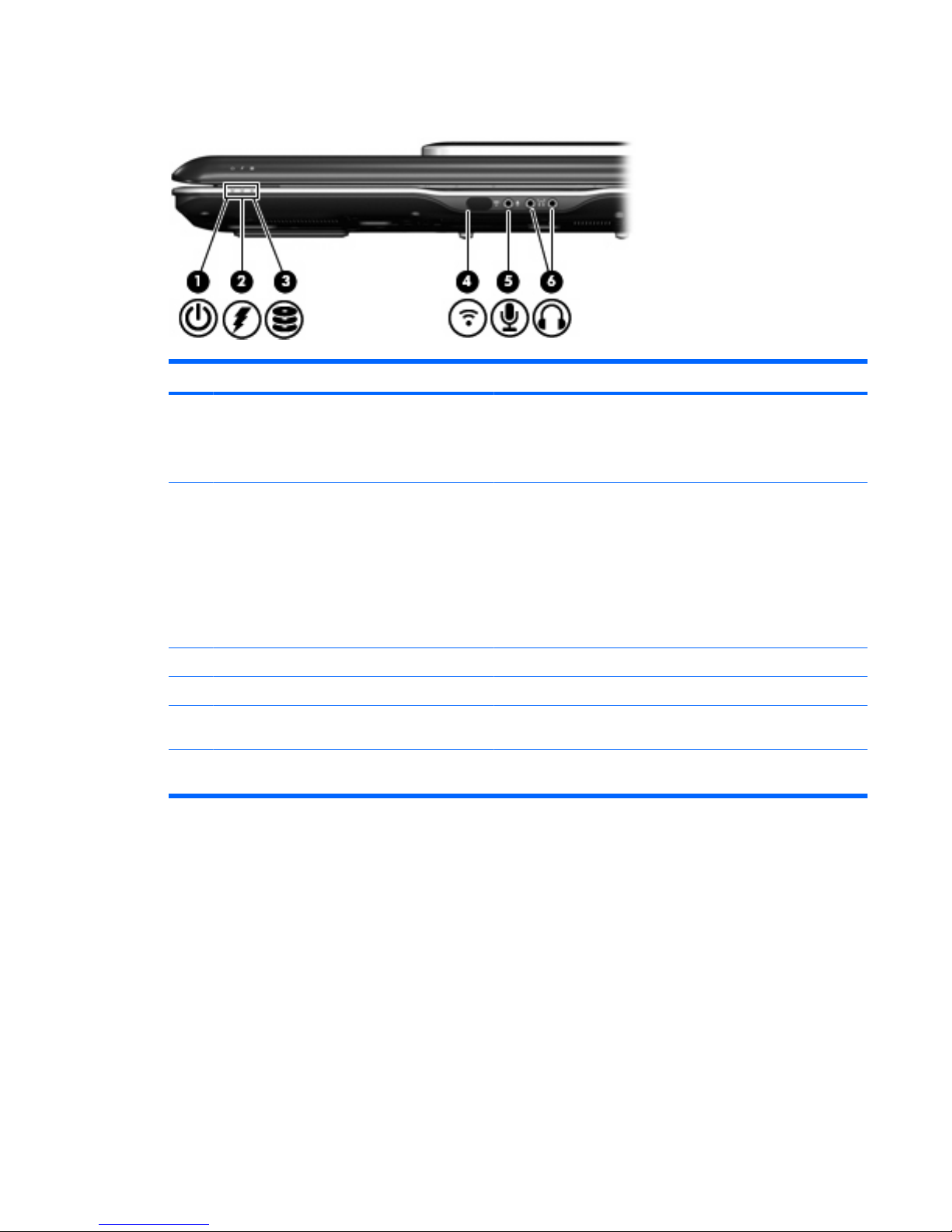

Front components .............................................................................................................................. 15
Rear components ............................................................................................................................... 16

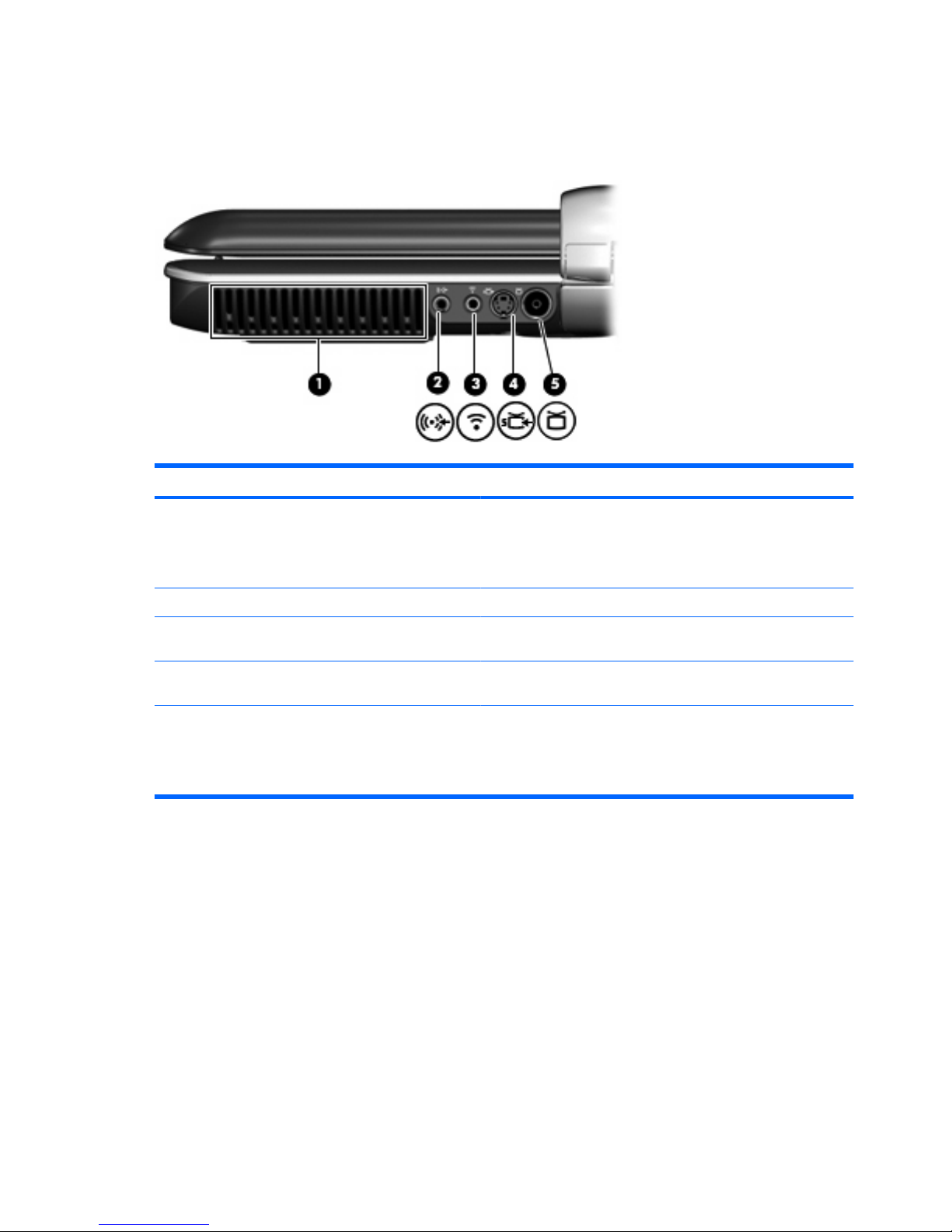

Rear left-side components ................................................................................................. 16

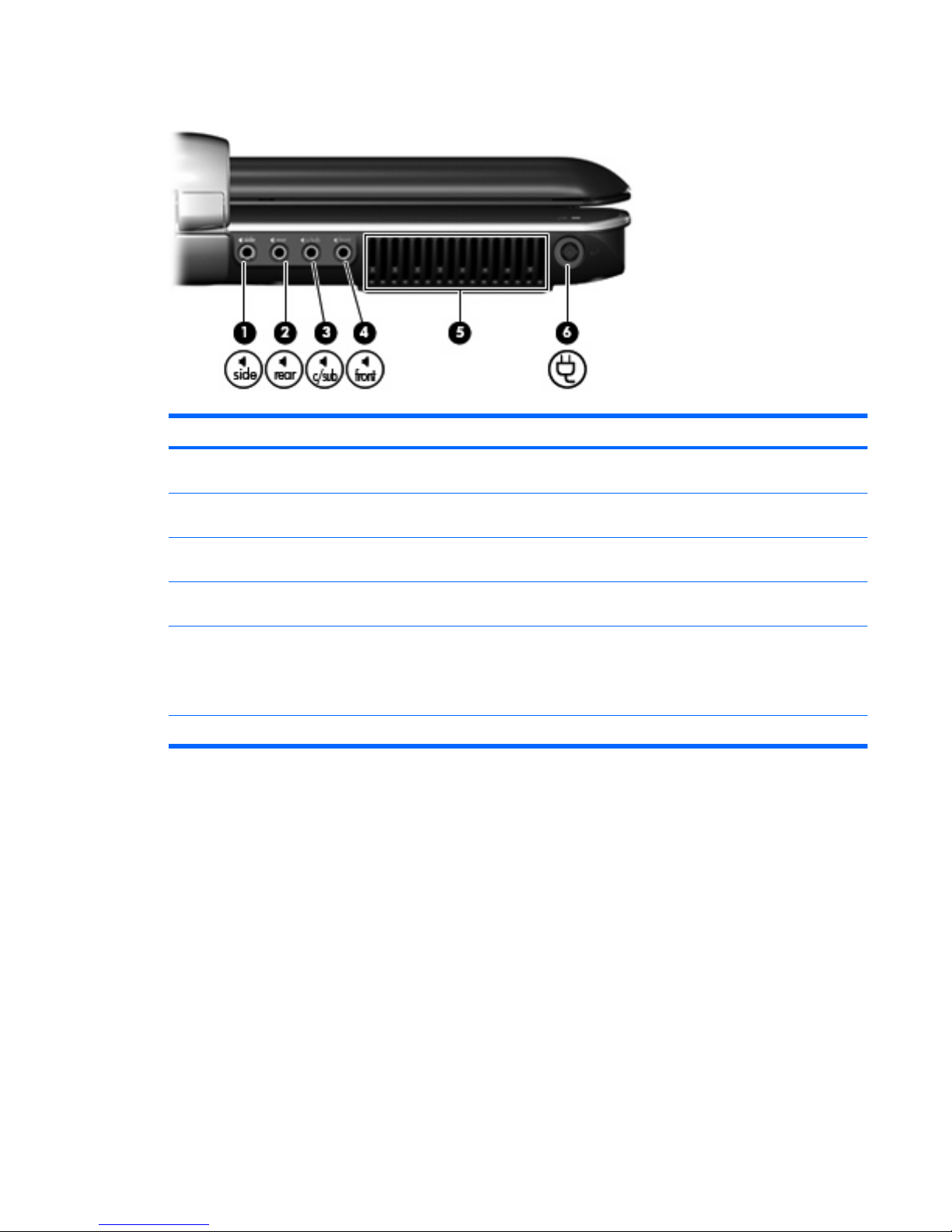

Rear right-side components ............................................................................................... 17

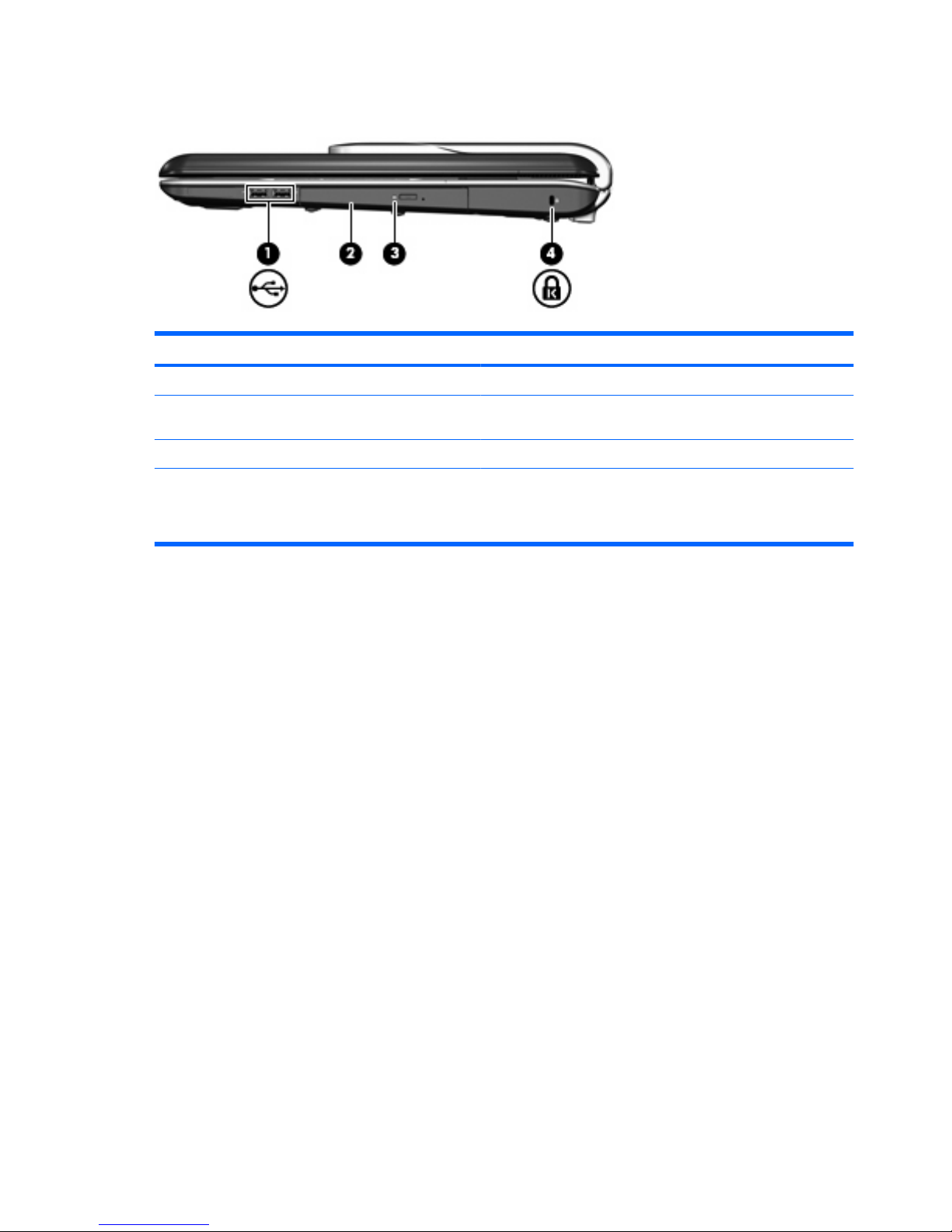

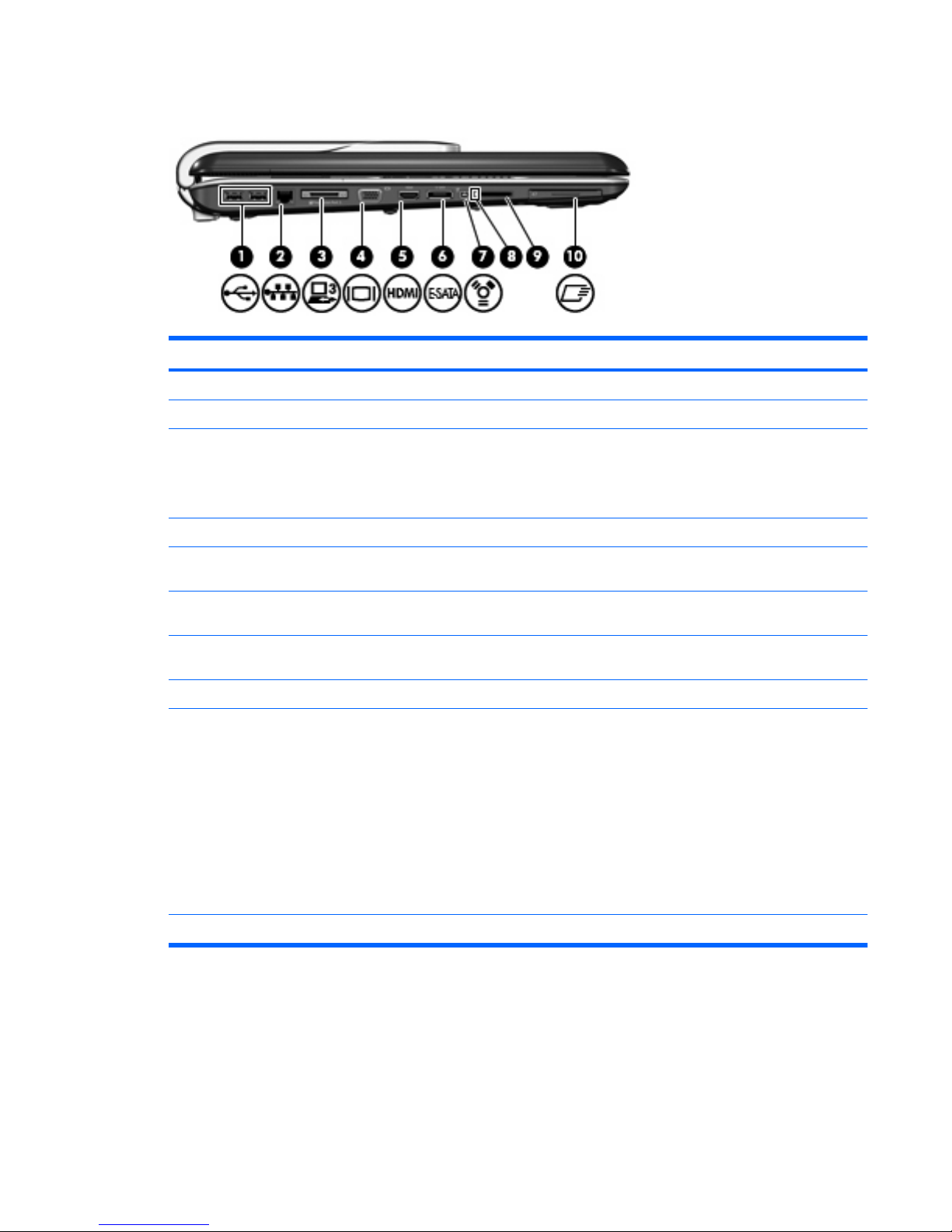

Right-side components ....................................................................................................................... 18
Left-side components ......................................................................................................................... 19

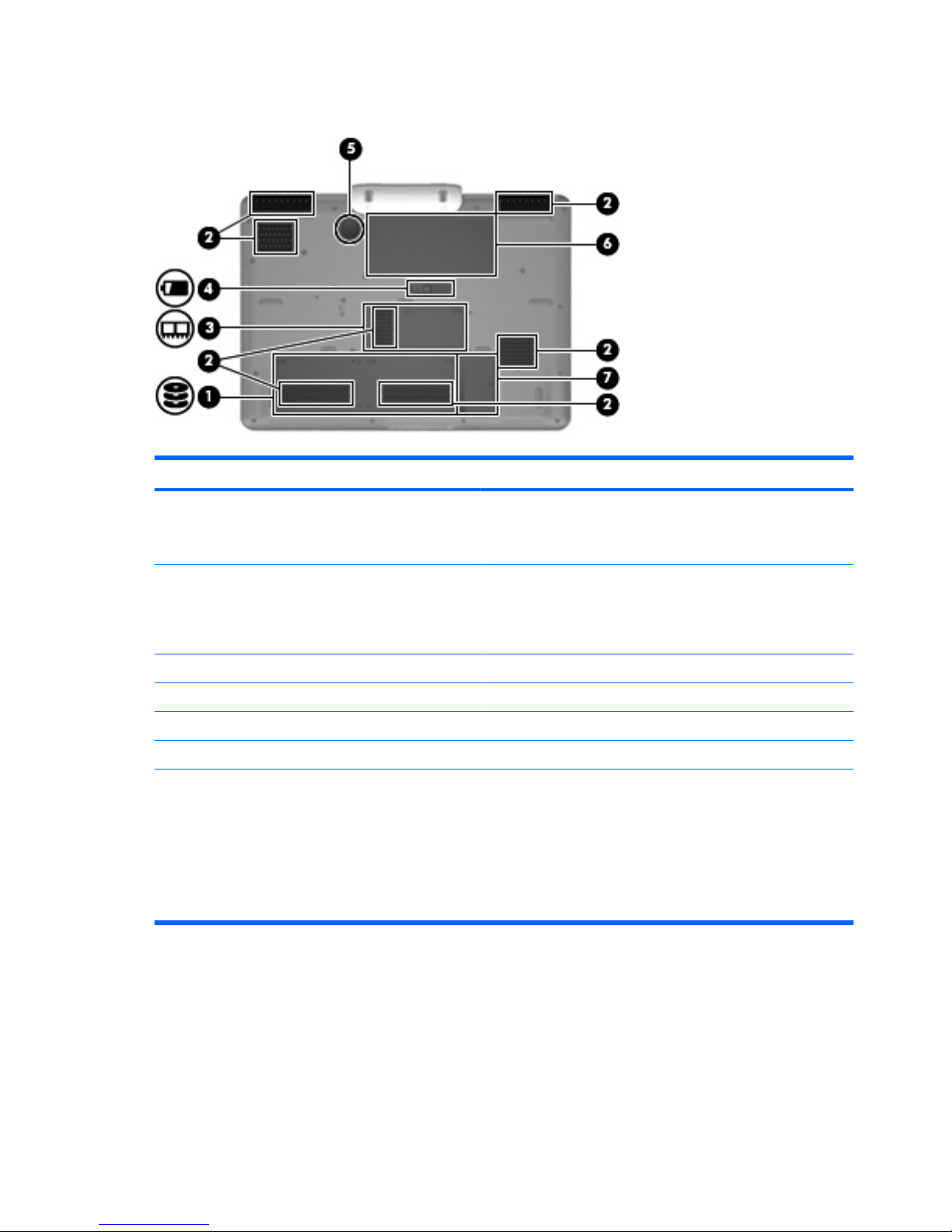

Bottom components ........................................................................................................................... 20
Wireless antennae .............................................................................................................................. 21

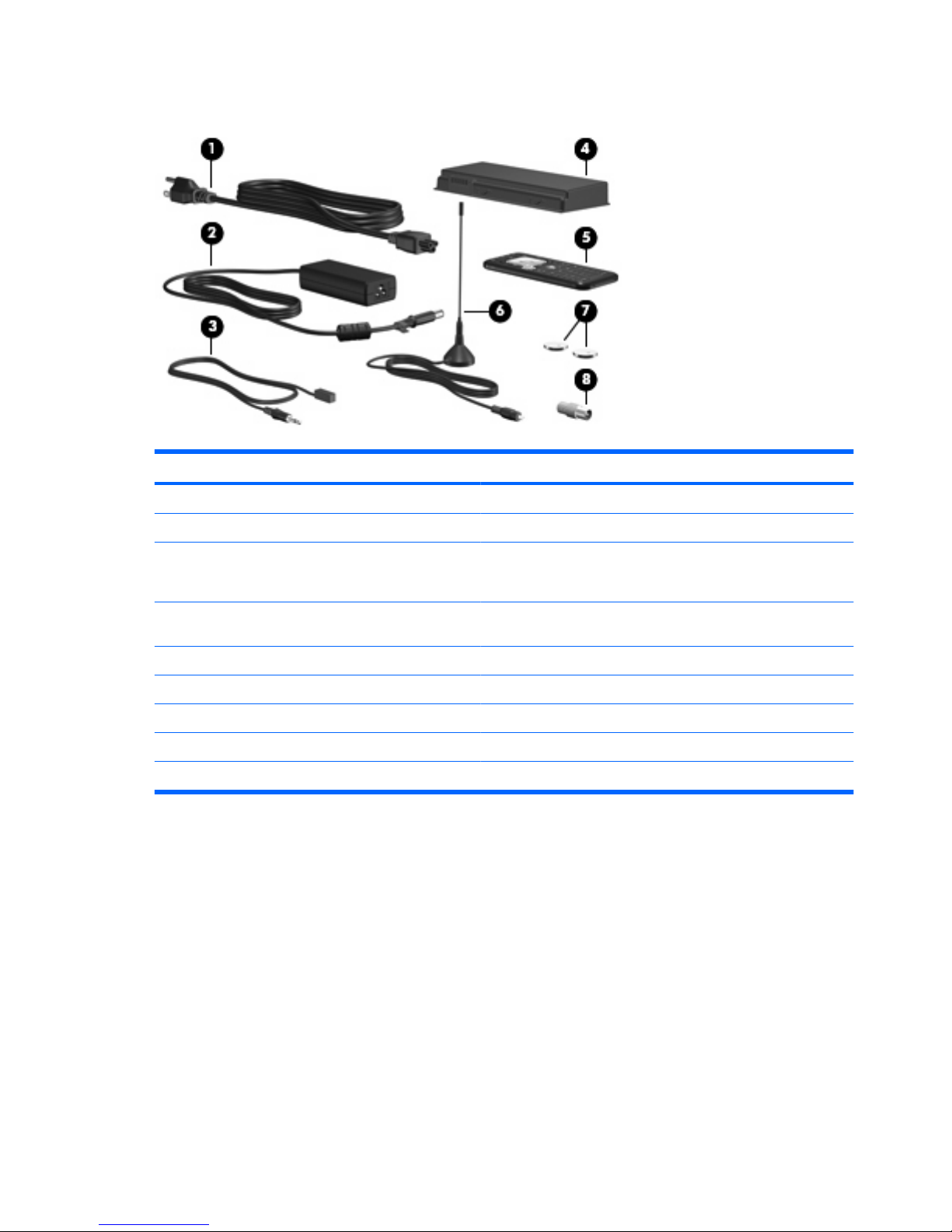

Additional hardware components ....................................................................................................... 22
3 Labels
Index ................................................................................................................................................................... 24
v
Page 6
vi
Page 7
1 Identifying hardware
To see a list of hardware installed in the computer, follow these steps:
1. Select Start > Computer > System properties.
2. In the left pane, click Device Manager.
You can also add hardware or modify device configurations using Device Manager.
NOTE: Windows® includes the User Account Control feature to improve the security of your computer.
You may be prompted for your permission or password for tasks such as installing applications, running
utilities, or changing Windows settings. Refer to Windows Help for more information.
1
Page 8
2 Components
2 Chapter 2 Components
Page 9
Product notice
This user guide describes features that are common to most models. Some features may not be
available on your computer.

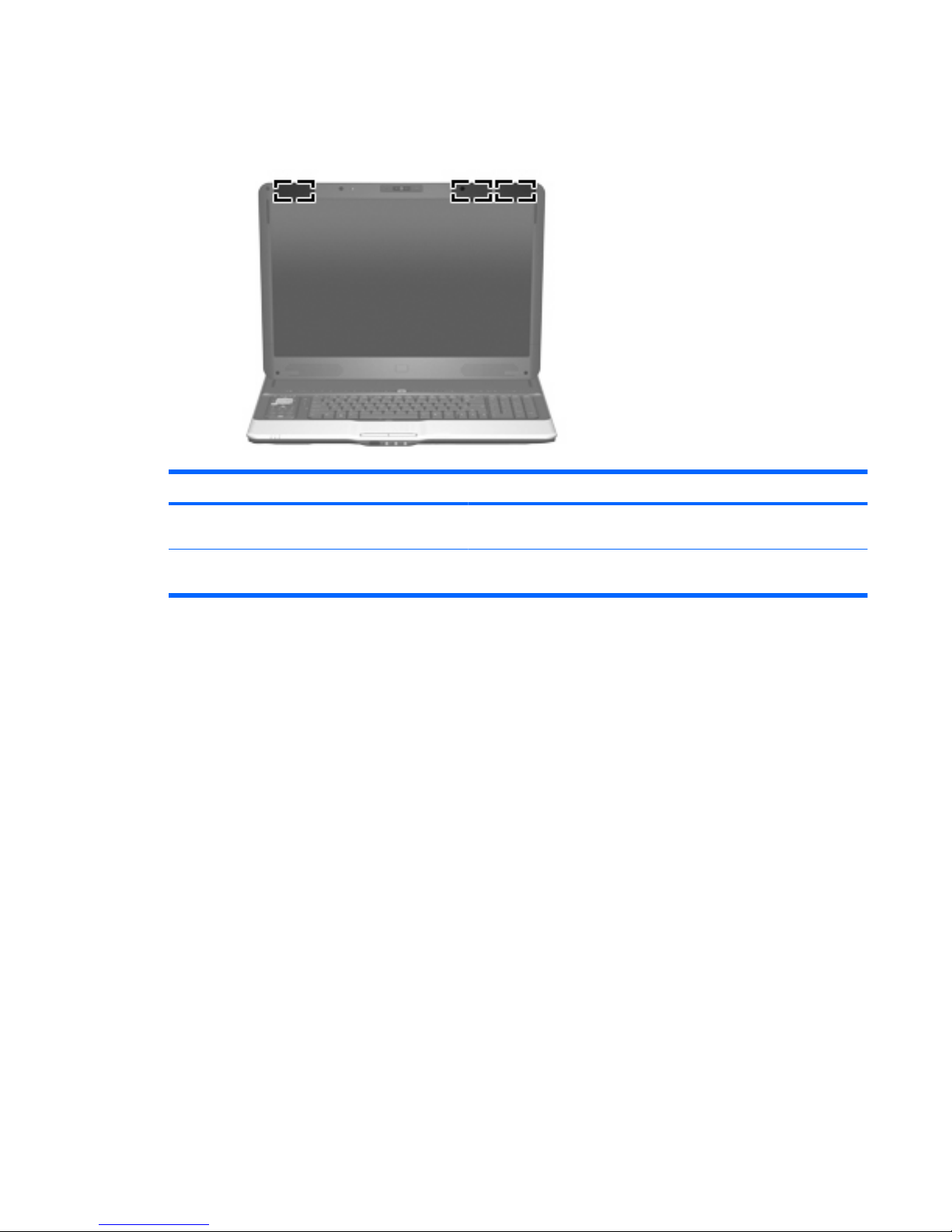

Display components
Component Description
(1) Speakers (4) Produce sound.
(2) Internal microphones (2) Record sound.
NOTE: If there is a microphone icon next to each microphone
opening, your computer has internal microphones.
(3) HP Webcam light On: The integrated camera is in use.
(4) HP Webcam Records video and captures still photographs.
(5) HP Webcam rotator Tilts the camera vertically.
(6) Internal display switch Turns off the display if the display is closed while the computer is
on.
Product notice 3
Page 10
Top components
Top-left buttons and lights
Component Description
(1) Power button*
●
When the computer is off, press the button to turn on the
computer.
●
When the computer is on, press the button to initiate Sleep.
●
When the computer is in the Sleep state, press the button
briefly to exit Sleep.
●
When the computer is in Hibernation, press the button briefly
to exit Hibernation.
If the computer has stopped responding and Windows® shutdown
procedures are ineffective, press and hold the power button for at
least 5 seconds to turn off the computer.
To learn more about your power settings, select Start > Control
Panel > System and Maintenance > Power Options.
(2) Power light
●
On: The computer is on.
●
Blinking: The computer is in the Sleep state.
●
Off: The computer is off or in Hibernation.
(3) Media button
●
Opens the QuickPlay program (for models with QuickPlay
preinstalled).
●
Opens the DVDPlay program (for models with DVDPlay
preinstalled).
NOTE: If the computer has been set up to require a logon
password, you may be asked to log on to Windows. QuickPlay or
DVDPlay opens after you log on. Refer to the QuickPlay or
DVDPlay software Help for more information.
4 Chapter 2 Components
Page 11
Component Description
(4) DVD button Opens the DVD playback feature of the QuickPlay program.
NOTE: If the computer has been set up to require a logon
password, you may be asked to log on to Windows. QuickPlay
opens after you log on. Refer to the QuickPlay software Help for
more information.
(5) TV play button Opens the TV module within the QuickPlay program.
(6) Previous/rewind button
●
Plays the previous track or chapter when the button is pressed
once.
●
Rewinds media when the button is pressed simultaneously
with the fn key.
(7) Stop button Stops playback.
(8) Play/pause button Plays or pauses media.
(9) Next/fast forward button
●
Plays the next track or chapter when the button is pressed
once.
●
Fast forwards media when the button is pressed
simultaneously with the fn key.
(10) Theater mode button Dims the lights on the computer.
(11) Remote control eject button Ejects the remote control.
(12) Caps lock light On: Caps lock is on.
*This table describes factory settings. For information about changing factory settings, refer to the user guides located in Help
and Support.

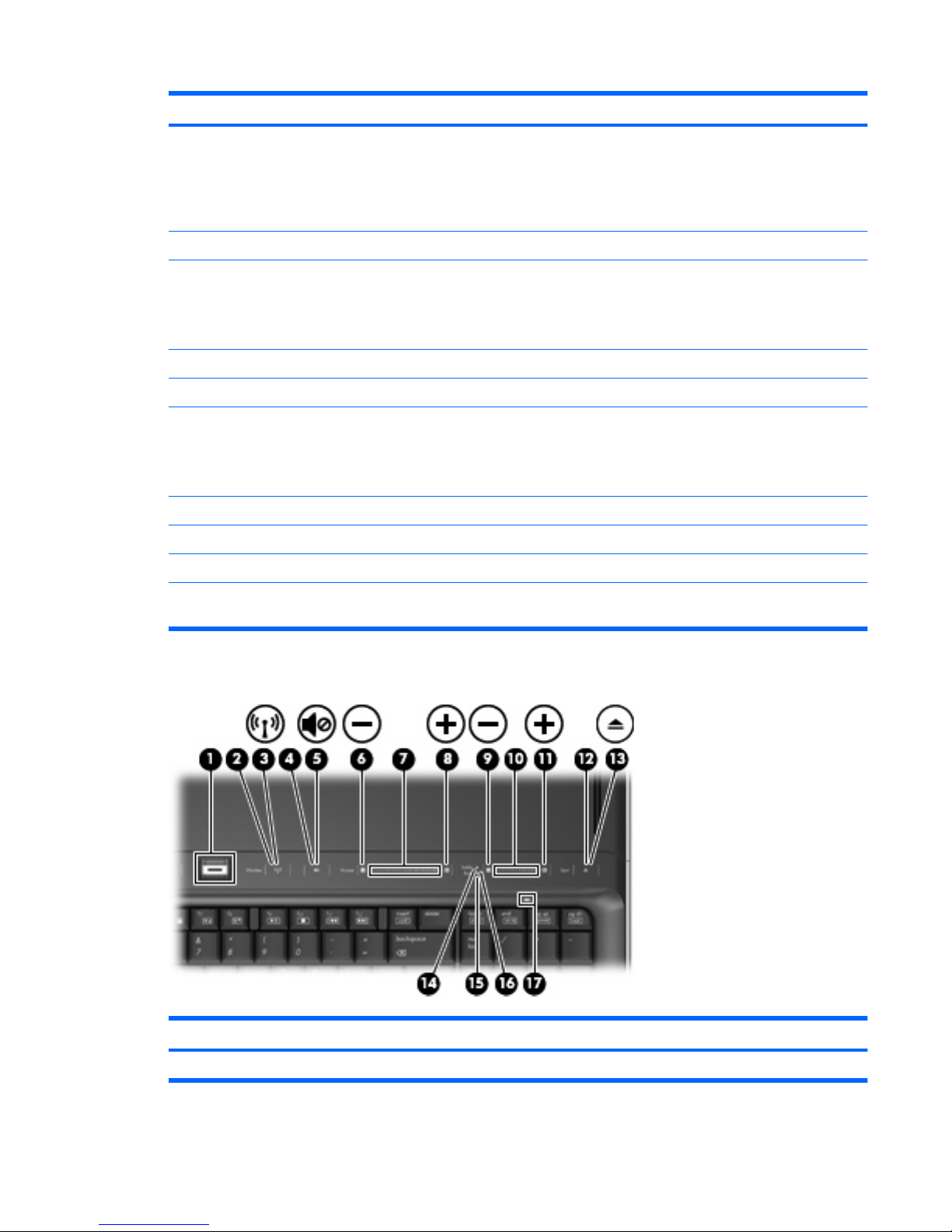

Top-right buttons, lights, and fingerprint reader
Component Description
(1) Fingerprint reader Allows a fingerprint logon to Windows, instead of a password logon.
Top components 5
Page 12
Component Description
(2) Wireless button Turns the wireless feature on or off, but does not create a wireless
connection.
NOTE: To establish a wireless connection, a wireless network
must already be set up.
(3) Wireless light
●
Blue: An integrated wireless device, such as a wireless local
area network (LAN) device and/or a Bluetooth® device, is
turned on.
●
Amber: An integrated wireless device is turned off.
(4) Volume mute button Mutes and restores speaker sound.
(5) Volume mute light
●
Blue: Computer sound is turned on.
●
Amber: Computer sound is turned off.
(6) Volume down light Blinking: The volume scroll zone is being used to decrease speaker
volume.
(7) Volume scroll zone Adjusts speaker volume. Slide your finger to the left to decrease
volume and to the right to increase volume. You can also tap the
minus sign on the scroll zone to decrease volume, or tap the plus
sign on the scroll zone to increase volume.
(8) Volume up light Blinking: The volume scroll zone is being used to increase speaker
volume.
(9) Treble or bass volume down light (select models
only)
Blinking: The volume scroll zone is being used to decrease treble
or bass volume.
(10) Treble or bass volume scroll zone (select models
only)
Adjusts treble or bass volume. Slide your finger to the left to
decrease volume and to the right to increase volume. You can also
tap the minus sign on the scroll zone to decrease volume, or tap
the plus sign on the scroll zone to increase volume.
(11) Treble or bass volume up light (select models
only)
Blinking: The volume scroll zone is being used to increase treble
or bass volume.
(12) Optical drive button Releases the media tray.
(13) Optical drive light Blinking: The optical drive is being accessed.
(14) Treble light (select models only) On: The treble volume function is on.
(15) Bass light (select models only) On: The bass volume function is on.
(16) Treble/bass button (select models only) Alternates between treble and bass volume controls.
(17) Num lock light On: Num lock is on or the embedded numeric keypad is enabled.

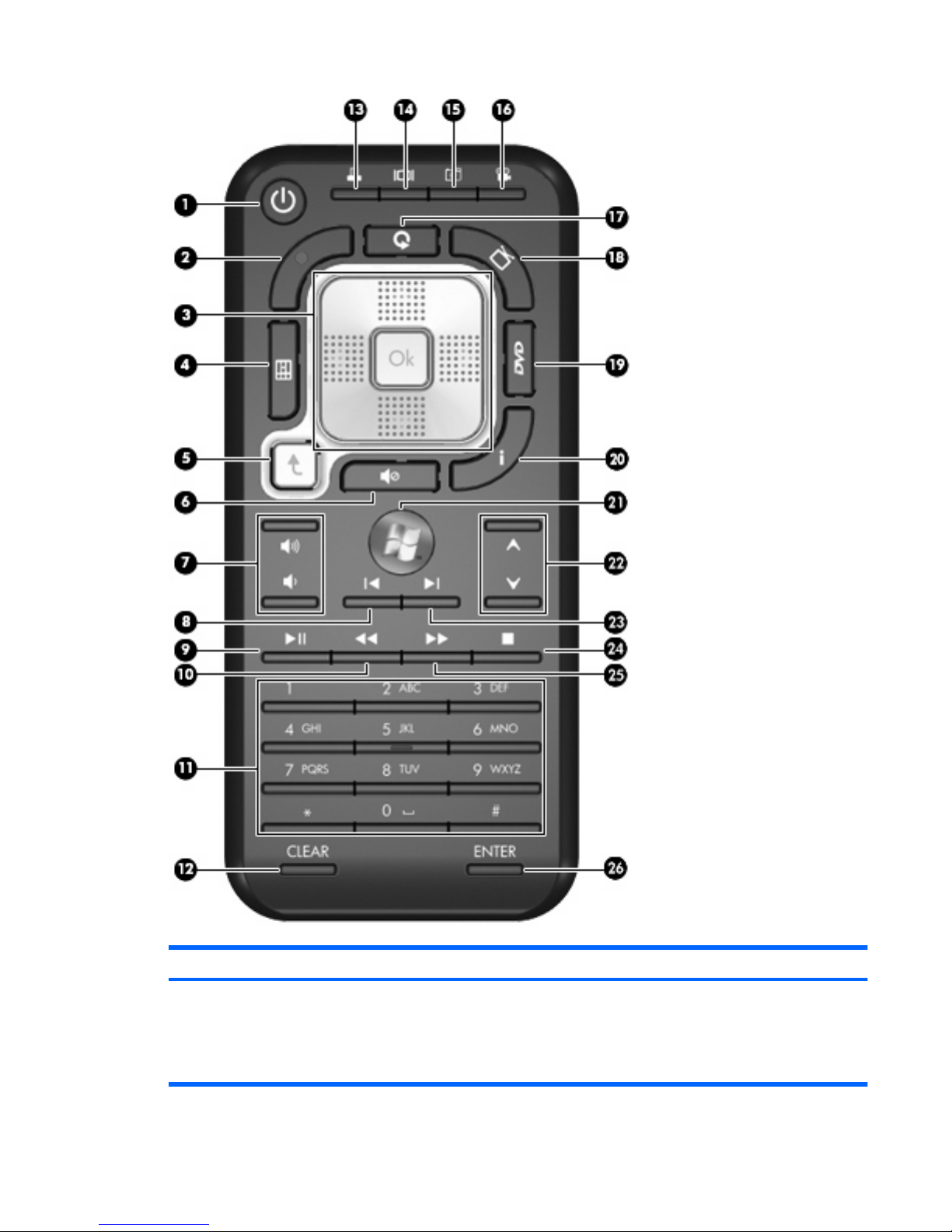

HP Dockable Media Center remote control

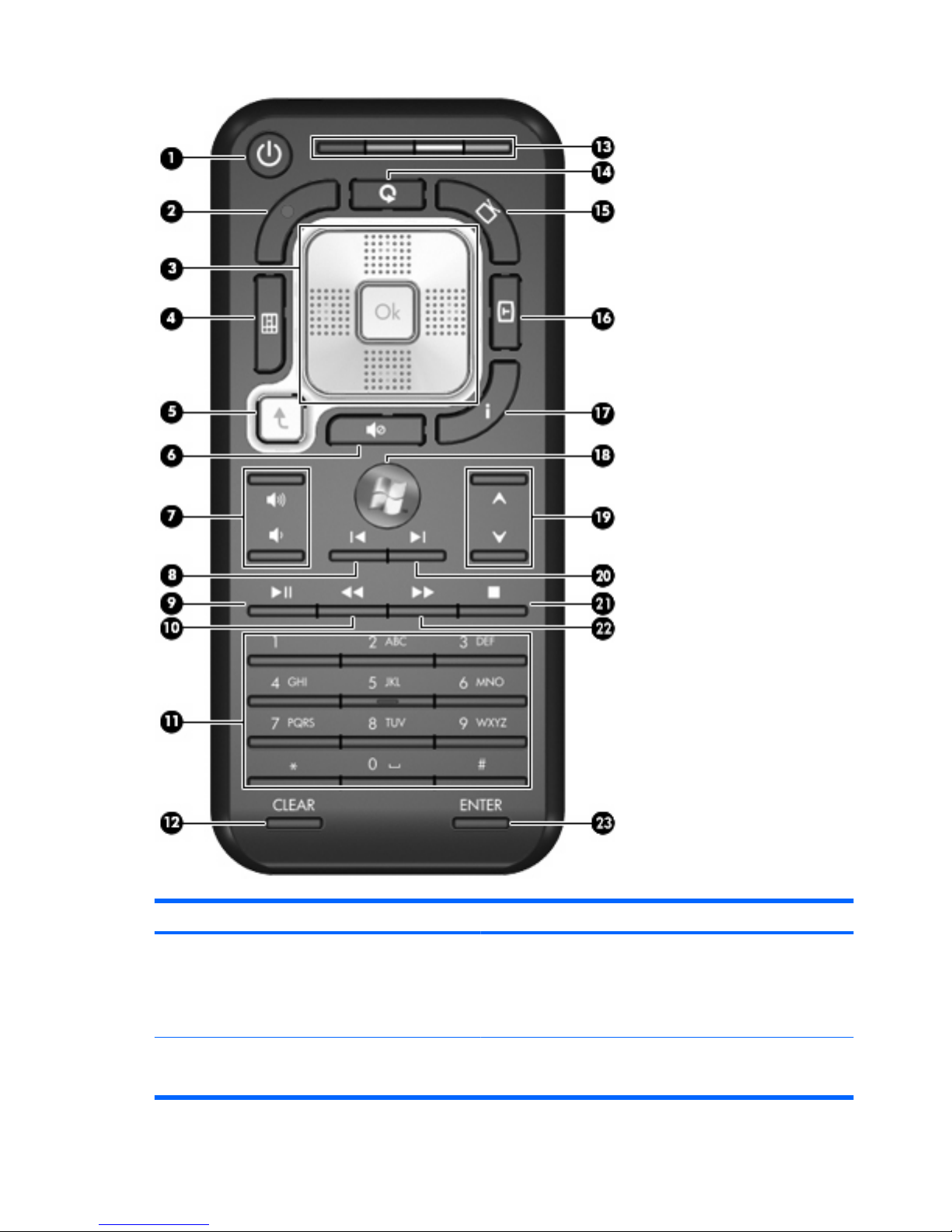

NOTE: Refer to the illustration that most closely matches your remote control.
6 Chapter 2 Components
Page 13
Button Description
(1) Power
●
If the computer is off, press the Power button to turn the
computer on.
●
If the computer is on, press the Power button to initiate Sleep.
NOTE: Press the Sleep button again to exit the Sleep state.
Top components 7
Page 14
Button Description
(2) Recorded TV Opens the Recorded TV window where all your recorded TV
programs are stored. From this window, you can search for and
play back a recorded program.
(3) Arrow, OK
●
Press an arrow to move between menus, windows, or
activities. Pressing an arrow button also moves the pointer to
select actions within the Windows Media Center windows.
●
Press the OK button to select a desired action. The OK button
functions like the Enter button. If you are watching live TV,
press the OK button to go to the previous channel. Press the
OK button again to switch back to the original channel you
were watching.
(4) Guide Opens the electronic television Program Guide. Internet access
may be required.
(5) Enter Enters or selects the desired action, menu, or window option.
(6) Mute Turns off computer sound. The word “Mute” is displayed on the
screen when Mute is turned on.
(7) Volume Increases and decreases computer sound.
(8) Replay
●
Moves backward 7 seconds in live TV.
●
Moves backward 12 hours in the Program Guide.
(9) Play Plays the selected media.
(10) Rewind
●
Rewinds the selected media. To increase the rewinding
speed, press the button again.
NOTE: The Rewind button does not work with MP3 files and
may not work with some video files.
●
Moves the video backward.
●
Moves a live TV program to the beginning of the 30-minute
pause buffer.
●
Moves the television Program Guide back 3 hours.
●
When you press the Rewind button and then press the Play
button, instant replay is deactivated.
(11) Keypad Changes channels or enters text into a text box.
NOTE: Each time you press a number button, a different
character (letter) is displayed. Press the Enter button to select a
character.
(12) Clear Clears or deletes the last character entered.
(13) Print Prints pictures that you select in the My Pictures window. This
button does not print files from Windows Explorer.
(14) Switch screens Switches the computer image between the computer display and
an external display.
(15) Snapshot Captures a picture of the computer screen and saves it to the
clipboard.
(16) Theater mode Dims the lights on the computer.
(17) QuickPlay Opens QuickPlay.
8 Chapter 2 Components
Page 15
Button Description
(18) Live TV
●
Moves a TV program forward to the end of the pause buffer
and resumes playing live TV. When you pause a TV program,
press the button to move forward to live TV.
●
Opens the media software and then begins playing live TV in
full-screen mode.
(19) DVD menu Opens the main menu on a DVD movie, if available.
(20) Information
●
Displays available information about a selected media file,
such as a TV program summary or music artist information.
●
Displays options to rotate or print your pictures.
NOTE: You may need to be connected to the Internet to receive
some media information.
NOTE: Some media may not include this information.
(21) Start Opens the Windows Media Center main menu.
(22) Change/page
●
Changes TV channels or moves pages up (+) and down (–),
depending on the available options.
●
Moves to the next DVD chapter.
(23) Skip
●
Advances 30 seconds in live TV or in a recorded program.
●
Advances one music track in a CD.
●
Advances 12 hours in the television Program Guide.
(24) Stop Stops the selected media. When you press the button while you
are watching TV, the Windows Media Center pause buffer
continues to record in the background.
(25) Forward
●
Moves the selected video media forward. To increase the fast
forwarding speed, press the Forward button up to 3 times.
NOTE: The Forward button may not work with some video
files.
●
Moves MP3 music files forward.
●
Moves a video forward.
●
Moves the television Program Guide forward 3 hours.
(26) Enter Enters or selects the desired action, menu, or window option.
Top components 9
Page 16
Button Description
(1) Power
●
If the computer is off, press the Power button to turn the
computer on.
●
If the computer is on, press the Power button to initiate Sleep.
NOTE: Press the Sleep button again to exit the Sleep state.
(2) Recorded TV Opens the Recorded TV window where all your recorded TV
programs are stored. From this window, you can search for and
play back a recorded program.
10 Chapter 2 Components
Page 17
Button Description
(3) Arrow, OK
●
Press an arrow to move between menus, windows, or
activities. Pressing an arrow button also moves the pointer to
select actions within the Windows Media Center windows.
●
Press the OK button to select a desired action. The OK button
functions like the Enter button. If you are watching live TV,
press the OK button to go to the previous channel. Press the
OK button again to switch back to the original channel you
were watching.
(4) Guide Opens the electronic television Program Guide. Internet access
may be required.
(5) Enter Enters or selects the desired action, menu, or window option.
(6) Mute Turns off computer sound. The word “Mute” is displayed on the
screen when Mute is turned on.
(7) Volume Increases and decreases computer sound.
(8) Replay
●
Moves backward 7 seconds in live TV.
●
Moves backward 12 hours in the Program Guide.
(9) Play Plays the selected media.
(10) Rewind
●
Rewinds the selected media. To increase the rewinding
speed, press the button again.
NOTE: The Rewind button does not work with MP3 files and
may not work with some video files.
●
Moves the video backward.
●
Moves a live TV program to the beginning of the 30-minute
pause buffer.
●
Moves the television Program Guide back 3 hours.
●
When you press the Rewind button and then press the Play
button, instant replay is deactivated.
(11) Keypad Changes channels or enter text into a text box.
NOTE: Each time you press a number button, a different
character (letter) is displayed. Press the Enter button to select a
character.
(12) Clear Clears or deletes the last character entered.
(13) Teletext buttons Shortcut buttons that allow retrieval of information.
(14) QuickPlay Opens QuickPlay.
(15) Live TV
●
Moves a TV program forward to the end of the pause buffer
and resumes playing live TV. When you pause a TV program,
press the button to move forward to live TV.
●
Opens the media software, and then begins playing live TV in
full-screen mode.
(16) Teletext Displays the teletext menu.
Top components 11
Page 18
Button Description
(17) Information
●
Displays available information about a selected media file,
such as a TV program summary or music artist information.
●
Displays options to rotate or print your pictures.
NOTE: You may need to be connected to the Internet to receive
some media information.
NOTE: Some media may not include this information.
(18) Start Opens the Windows Media Center main menu.
(19) Change/page
●
Changes TV channels or moves pages up (+) and down (–),
depending on the available options.
●
Moves to the next DVD chapter.
(20) Skip
●
Advances 30 seconds in live TV or in a recorded program.
●
Advances one music track in a CD.
●
Advances 12 hours in the television Program Guide.
(21) Stop Stops the selected media. When you press the button while you
are watching TV, the Windows Media Center pause buffer
continues to record in the background.
(22) Forward
●
Moves the selected video media forward. To increase the fast
forwarding speed, press the Forward button up to 3 times.
NOTE: The Forward button may not work with some video
files.
●
Moves MP3 music files forward.
●
Moves a video forward.
●
Moves the television Program Guide forward 3 hours.
(23) Enter Enters or selects the desired action, menu, or window option.
12 Chapter 2 Components
Page 19
TouchPad
Component Description
(1) TouchPad light
●
Blue: TouchPad is enabled.
●
Amber: TouchPad is disabled.
(2) TouchPad* Moves the pointer and selects or activates items on the screen.
(3) Left TouchPad button* Functions like the left button on an external mouse.
(4) TouchPad on/off button Enables/disables the TouchPad.
(5) TouchPad scroll zone* Scrolls up or down.
(6) Right TouchPad button* Functions like the right button on an external mouse.
*This table describes factory settings. To view and change pointing device preferences, select Start > Control Panel >
Hardware and Sound > Mouse.
Top components 13
Page 20
Keys
Component Description
(1) esc key Displays system information when pressed in combination with the
fn key.
(2) fn key Executes frequently used system functions when pressed in
combination with a function key or the esc key.
(3) Windows logo key Displays the Windows Start menu.
(4) Windows applications key Displays a shortcut menu for items beneath the pointer.
(5) Integrated numeric keypad keys Can be used like the keys on an external numeric keypad.
(6) Function keys Execute frequently used system functions when pressed in
combination with the fn key.
14 Chapter 2 Components
Page 21
Front components
Component Description
(1) Power light
●
On: The computer is on.
●
Blinking: The computer is in the Sleep state.
●
Off: The computer is off or in Hibernation.
(2) Battery light
●
On: A battery is charging.
●
Blinking: A battery that is the only available power source has
reached a low battery level or a critical battery level.
●
Off: If the computer is plugged into an external power source,
the light is turned off when all batteries in the computer are
fully charged. If the computer is not plugged into an external
power source, the light stays off until the battery reaches a low
battery level.
(3) Drive light Blinking: The hard drive or optical drive is being accessed.
(4) Consumer infrared lens Receives a signal from the remote control.
(5) Audio-in (microphone) jack Connects an optional computer headset microphone, stereo array
microphone, or monaural microphone.
(6) Audio-out (headphone) jacks (2) Produce sound when connected to optional powered stereo
speakers, headphones, ear buds, a headset, or television audio.
Front components 15
Page 22
Rear components
Rear left-side components
Component Description
(1) Vent Enables airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool internal
components and prevent overheating. It is normal for the internal
fan to cycle on and off during routine operation.
(2) Infrared (IR) emitter jack Connects the computer to your cable or satellite set-top box.
(3) TV audio line-in jack Connects a cable or satellite set-top box to the TV tuner for high-
quality audio.
(4) S-Video-in jack Connects a cable or satellite set-top box to the TV tuner for high-
quality video.
(5) RF coaxial cable jack Connects a coaxial cable or TV antenna.
NOTE: The computer is shipped with an RF coaxial cable
adapter. Depending on your computer model, the adapter may be
required for proper setup.
16 Chapter 2 Components
Page 23
Rear right-side components
Component Description
(1) Left- and right-side analog channel output jack Connects optional audio speakers for left- and right-side audio
output.
(2) Rear left- and right-side analog channel output
jack
Connects optional audio speakers for rear left- and right-side audio
output.
(3) Center channel and subwoofer analog channel
output jack
Connects an optional audio speaker for center channel and
subwoofer audio output.
(4) Front left- and right-side analog channel output
jack
Connects optional audio speakers for front left- and right-side audio
output.
(5) Vent Enables airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool internal
components and prevent overheating. It is normal for the internal
fan to cycle on and off during routine operation.
(6) Power connector Connects an AC adapter.
Rear components 17
Page 24
Right-side components
Component Description
(1) USB ports (2) Connect optional USB devices.
(2) Optical drive Reads optical discs and, on select models, also writes to optical
discs.
(3) Optical drive light Blinking: The optical drive is being accessed.
(4) Security cable slot Attaches an optional security cable to the computer.
NOTE: The security cable is designed to act as a deterrent, but
it may not prevent the computer from being mishandled or stolen.
18 Chapter 2 Components
Page 25
Left-side components
Component Description
(1) USB ports (2) Connect optional USB devices.
(2) RJ-45 (network) jack Connects a network cable.
(3) Expansion port 3 Connects the computer to an optional docking device or expansion
product.
NOTE: The computer has only one expansion port. The term
expansion port 3 describes the type of expansion port.
(4) External monitor port Connects an external VGA monitor or projector.
(5) HDMI port Connects an optional video or audio device, such as a high-
definition television, or any compatible digital or audio component.
(6) eSATA port Connects high-performance eSATA components, such as an
eSATA external hard drive.
(7) 1394 port Connects an optional IEEE 1394 or 1394a device, such as a
camcorder.
(8) Digital Media Slot light On: A digital card is being accessed.
(9) Digital Media Slot Supports the following optional digital card formats:
●
Memory Stick (MS)
●
Memory Stick Pro (MSP)
●
MultiMediaCard (MMC)
●
Secure Digital Input/Output (SD I/O)
●
Secure Digital (SD) Memory Card
●
xD-Picture Card (XD)
(10) ExpressCard slot Supports optional ExpressCard cards.
Left-side components 19
Page 26
Bottom components
Component Description
(1) Hard drive bay Holds the hard drives.
NOTE: Depending on your computer model, the computer may
have 1 or 2 hard drives.
(2) Vents (7) Enable airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool internal
components and prevent overheating. It is normal for the internal
fan to cycle on and off during routine operation.
(3) Memory module compartment Contains the memory module slots.
(4) Battery release latch Releases the battery from the battery bay.
(5) Subwoofer Contains the subwoofer speaker.
(6) Battery bay Holds the battery.
(7) Mini Card compartment (select models only) Holds a wireless LAN device.
NOTE: To prevent an unresponsive system and the display of a
warning message, replace with only a Mini Card device authorized
for use in the computer by the governmental agency that regulates
wireless devices in your country. If you replace the device and then
receive a warning message, remove the device to restore computer
functionality. Then contact technical support by selecting Start >
Help and Support > Contact support.
20 Chapter 2 Components
Page 27
Wireless antennae
Depending on the computer model, there may be 2 or 3 wireless antennae.
Component Description
WLAN antennae (2 or 3)* Send and receive wireless signals to communicate with wireless local
area networks (WLAN).
*The antennae are not visible from the outside of the computer. For optimal transmission, keep the areas immediately around
the antennae free from obstructions.
To see wireless regulatory notices, refer to the section of the Regulatory, Safety and Environmental
Notices that applies to your country or region. These notices are located in Help and Support.
Wireless antennae 21
Page 28
Additional hardware components
Component Description
(1) Power cord* Connects an AC adapter to an AC outlet.
(2) AC adapter Converts AC power to DC power.
(3) IR emitter cable Connects the computer to your cable or satellite set-top box. When
connected, you can change channels on the set-top box using the
remote control.
(4) Battery* Powers the computer when the computer is not plugged into
external power.
(5) Remote control* Used to change channels and navigate.
(6) TV tuner antenna* Receives digital and analog broadcast signals.
(7) Remote control batteries Power the remote control.
(8) RF coaxial cable adapter Connects the RF coaxial cable to the computer.
*Batteries, power cords, antennae, and remote controls vary in appearance by region and country.
22 Chapter 2 Components
Page 29
3 Labels
The labels affixed to the computer provide information you may need when you troubleshoot system
problems or travel internationally with the computer:
●
Service tag—Provides the product brand and series name, serial number (s/n), and product
number (p/n) of your computer. Have this information available when you contact technical support.
The service tag label is affixed to the bottom of the computer.
●
Microsoft® Certificate of Authenticity—Contains the Windows® Product Key. You may need the
Product Key to update or troubleshoot the operating system. This certificate is affixed to the bottom
of the computer.
●
Regulatory label—Provides regulatory information about the computer. The regulatory label is
affixed inside the battery bay.
●
Wireless certification label(s) (select models only)—Provide information about optional wireless
devices and the approval markings of some of the countries in which the devices have been
approved for use. An optional device may be a wireless local area network (WLAN) device or an
optional Bluetooth® device. If your computer model includes one or more wireless devices, one or
more certification labels are included with your computer. You may need this information when
traveling internationally. Wireless certification labels are affixed inside the memory module
compartment.
23
Page 30
Index
Symbols/Numerics
1394 port, identifying 19
A
AC adapter, identifying 22
analog channel output jacks,
identifying 17
antennae
TV tuner 22
wireless 21
applications key, Windows 14
audio-in (microphone) jack,
identifying 15
audio-out (headphone) jacks,
identifying 15
B
bass light, identifying 6
bass volume down light,
identifying 6
bass volume up light,
identifying 6
batteries
computer 22
remote control 22
battery bay 23
battery bay, identifying 20
battery light, identifying 15
battery release latch,
identifying 20
bays
battery 20, 23
hard drive 20
Bluetooth label 23
buttons
DVD 5
eject, remote control 5
media 4
next/fast forward 5
optical drive 6
play/pause 5
power 4
previous/rewind 5
remote control eject 5
stop 5
theater mode 5
TouchPad 13
TouchPad on/off 13
treble 6
TV play 5
volume mute 6
wireless 6
C
cables, IR emitter cable 22
camera light, identifying 3
camera rotator, identifying 3
camera, identifying 3
caps lock light, identifying 5
Certificate of Authenticity label 23
compartments
memory module 20
Mini Card 20
components
additional hardware 22
bottom 20
display 3
front 15
left-side 19
rear 16
right-side 18
top 4
connector, power 17
cord, power 22
D
Digital Media Slot light,
identifying 19
Digital Media Slot, identifying 19
display switch, identifying 3
drive light, identifying 15
DVD button, identifying 5
E
eject button, remote control,
identifying 5
eSATA port, identifying 19
esc key, identifying 14
expansion port, identifying 19
ExpressCard slot, identifying 19
external monitor port,
identifying 19
F
fingerprint reader, identifying 5
fn key, identifying 14
function keys, identifying 14
H
hard drive bay, identifying 20
HDMI port, identifying 19
headphone (audio-out) jacks 15
HP Dockable Media Center remote
control, identifying 6
HP Webcam light, identifying 3
HP Webcam rotator, identifying 3
HP Webcam, identifying 3
I
IEEE 1394 port, identifying 19
infrared emitter jack,
identifying 16
infrared lens, identifying 15
internal display switch,
identifying 3
internal microphones,
identifying 3
IR emitter cable, identifying 22
IR emitter jack, identifying 16
24 Index
Page 31
J
jacks
analog channel output
jacks 17
audio-in (microphone) 15
audio-out (headphone) 15
IR emitter 16
RF coaxial cable 16
RJ-45 (network 19
S-Video-in 16
TV audio line-in 16
K
keypad keys, identifying 14
keys
esc 14
fn 14
function 14
keypad 14
Windows applications 14
Windows logo 14
L
labels
Bluetooth 23
Microsoft Certificate of
Authenticity 23
regulatory 23
service tag 23
wireless certification 23
WLAN 23
latch, battery release 20
lights
bass 6
bass volume down 6
bass volume up 6
battery 15
caps lock 5
Digital Media Slot 19
drive 15
HP Webcam 3
mute 6
num lock 6
optical drive 6, 18
power 4, 15
TouchPad 13
treble 6
treble volume down 6
treble volume up 6
volume down 6
volume mute 6
volume up 6
wireless 6
M
media activity buttons,
identifying 5
media button, identifying 4
memory module compartment,
identifying 20
microphone (audio-in) jack 15
microphones, internal,
identifying 3
Microsoft Certificate of Authenticity
label 23
Mini Card compartment,
identifying 20
monitor port, external 19
mute button, identifying 6
mute light, identifying 6
N
next/fast forward button,
identifying 5
num lock light, identifying 6
O
operating system
Microsoft Certificate of
Authenticity label 23
Product Key 23
optical drive button, identifying 6
optical drive light, identifying 6,
18
optical drive, identifying 18
P
play/pause button, identifying 5
ports
1394 19
eSATA 19
expansion 19
external monitor 19
HDMI 19
USB 18, 19
power button, identifying 4
power connector, identifying 17
power cord, identifying 22
power lights, identifying 4, 15
previous/rewind button,
identifying 5
Product Key 23
product name and number,
computer 23
R
regulatory information
regulatory label 23
wireless certification labels 23
remote control batteries,
identifying 22
remote control buttons,
identifying 6
remote control eject button,
identifying 5
remote control, identifying 22
RF coaxial cable adapter,
identifying 22
RF coaxial cable jack,
identifying 16
RJ-45 (network) jack,
identifying 19
rotator, HP Webcam,
identifying 3
S
S-Video-in jack, identifying 16
scrolling regions, TouchPad 13
security cable slot, identifying 18
serial number, computer 23
service tag 23
slots
Digital Media 19
ExpressCard 19
memory module 20
security cable 18
speakers, identifying 3
stop button, identifying 5
subwoofer, identifying 20
T
theater mode button,
identifying 5
TouchPad buttons, identifying 13
TouchPad light, identifying 13
TouchPad on/off button 13
TouchPad scrolling regions,
identifying 13
TouchPad, identifying 13
traveling with the computer
wireless certification labels 23
treble button, identifying 6
Index 25
Page 32
treble light, identifying 6
treble volume down light,
identifying 6
treble volume up light,
identifying 6
TV audio line-in jack,
identifying 16
TV play button, identifying 5
TV tuner antenna, identifying 22
U
USB ports, identifying 18, 19
V
vents, identifying 16, 17, 20
volume down light, identifying 6
volume mute button, identifying 6
volume mute light, identifying 6
volume scroll zone,
identifying 6
volume up light, identifying 6
W
webcam light, identifying 3
webcam rotator, identifying 3
webcam, identifying 3
Windows applications key,
identifying 14
Windows logo key, identifying 14
wireless antennae 21
wireless button, identifying 6
wireless certification label 23
wireless light, identifying 6
WLAN device 23
WLAN label 23
26 Index
Page 33
Loading...
