HP Pavilion G6 Notebook PC

Maintenance and Service Guide

SUMMARY

This guide is a troubleshooting reference used for maintaining and servicing the computer. It provides
comprehensive information on identifying computer features, components, and spare parts;
troubleshooting computer problems; and performing computer disassembly procedures.

© Copyright 2011 Hewlett-Packard
Development Company, L.P.

ATI and ATI Mobility Radeon are
trademarks of Advanced Micro Devices,
Inc. Bluetooth is a trademark owned by its
proprietor and used by Hewlett-Packard
Company under license. Intel, Arrandale,
and Core are trademarks of Intel
corporation in the U.S. and other countries.
Microsoft and Windows are U.S. registered
trademarks of Microsoft Corporation. SD
Logo is a trademark of its proprietor.

The information contained herein is subject
to change without notice. The only
warranties for HP products and services are
set forth in the express warranty statements
accompanying such products and services.
Nothing herein should be construed as
constituting an additional warranty. HP shall
not be liable for technical or editorial errors
or omissions contained herein.

Fourth Edition: May 2011

Document Part Number: 649111-004

Safety warning notice

WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not

place the computer directly on your lap or obstruct the computer air vents. Use the computer only on
a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft
surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to
contact the skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer
and the AC adapter comply with the user-accessible surface temperature limits defined by the
International Standard for Safety of Information Technology Equipment (IEC 60950).

ENWW iii

iv Safety warning notice ENWW

Table of contents

1 Product description ........................................................................................................................................ 1

2 External component identification ................................................................................................................ 7

Top ....................................................................................................................................................... 7

TouchPad ............................................................................................................................ 7

Lights ................................................................................................................................... 8

Button .................................................................................................................................. 9

Keys ................................................................................................................................... 10

Front ................................................................................................................................................... 11

Right side ........................................................................................................................................... 12

Left side .............................................................................................................................................. 13

Display ................................................................................................................................................ 15

Bottom ................................................................................................................................................ 16

3 Illustrated parts catalog ............................................................................................................................... 17

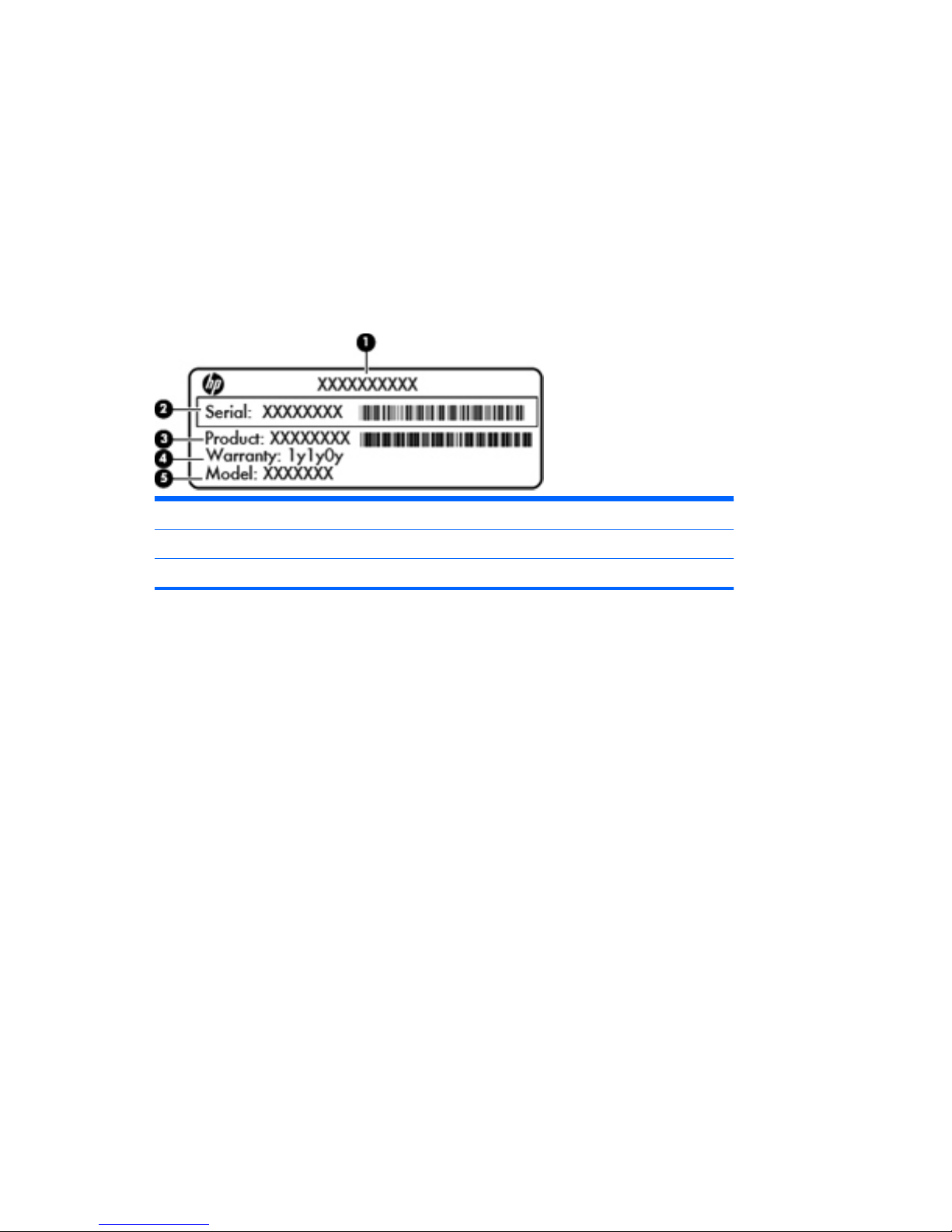

Serial number location ........................................................................................................................ 17

Computer major components ............................................................................................................. 18

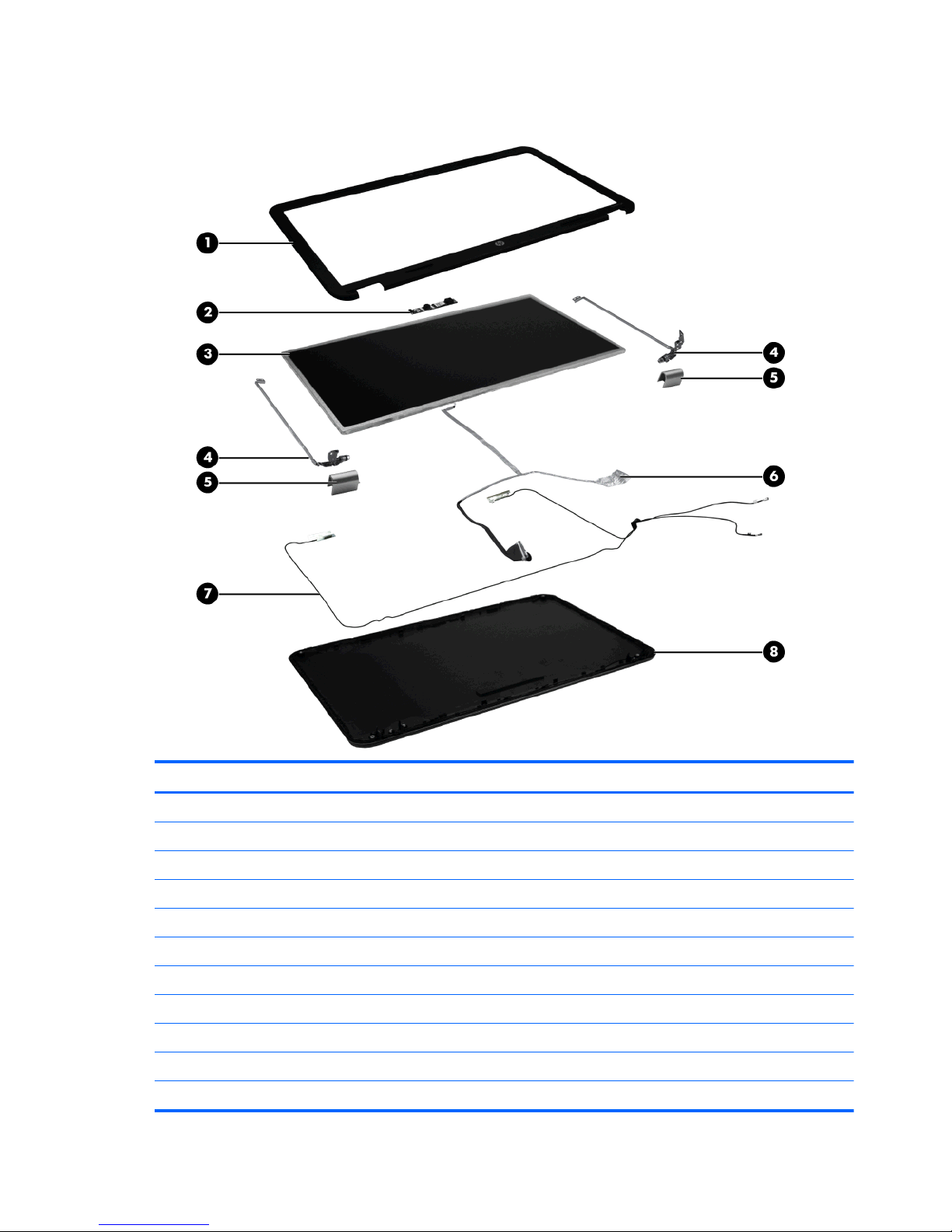

Display assembly components ........................................................................................................... 24

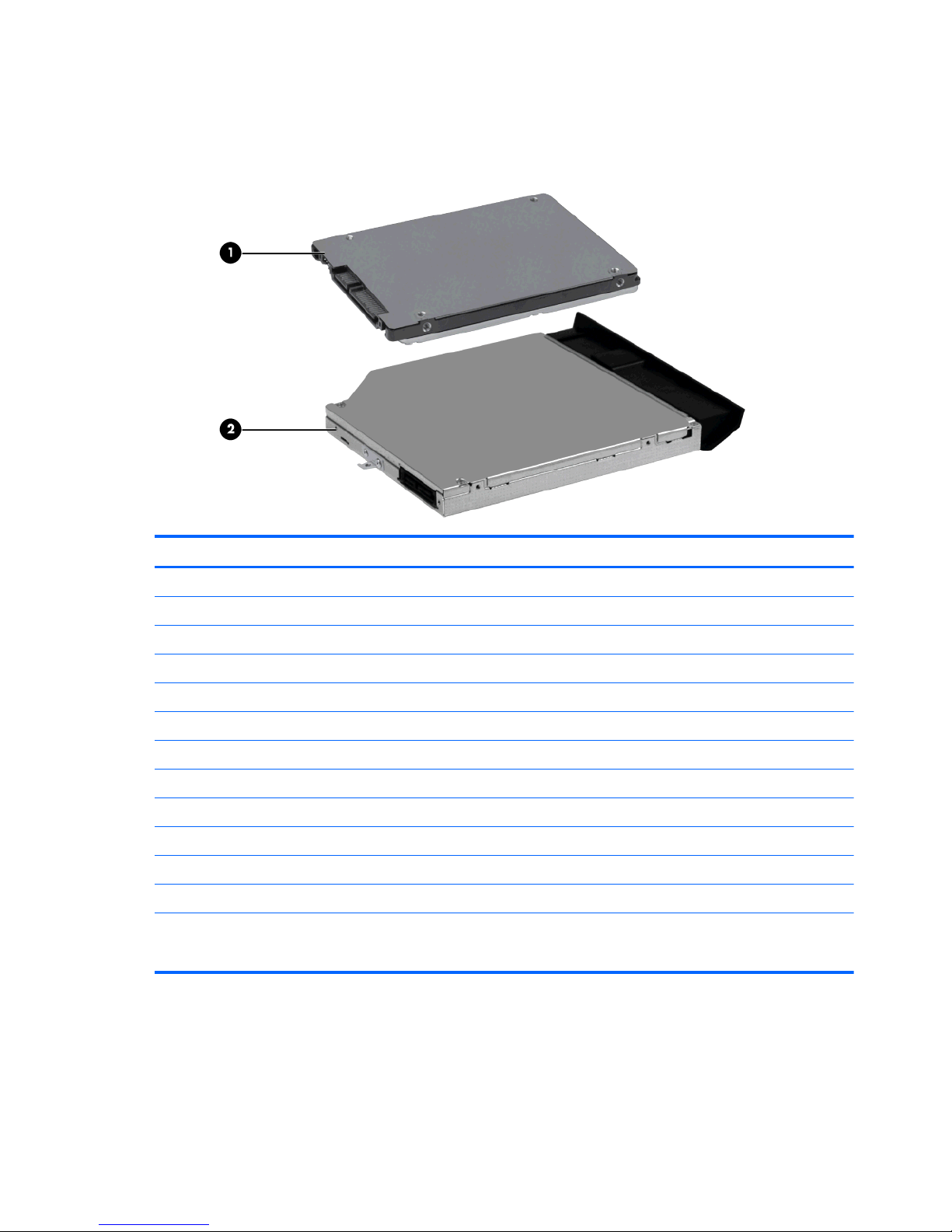

Mass storage devices ......................................................................................................................... 26

Miscellaneous parts ............................................................................................................................ 27

Sequential part number listing ............................................................................................................ 29

4 Removal and replacement procedures ....................................................................................................... 37

Preliminary replacement requirements ............................................................................................... 37

Tools required .................................................................................................................... 37

Service considerations ....................................................................................................... 37

Plastic parts ....................................................................................................... 37

Cables and connectors ..................................................................................... 38

Drive handling ................................................................................................... 38

Grounding guidelines ......................................................................................................... 39

Electrostatic discharge damage ........................................................................ 39

ENWW v

Packaging and transporting guidelines ............................................. 40

Workstation guidelines ..................................................................... 40

Equipment guidelines ....................................................................... 41

Component replacement procedures ................................................................................................. 42

Serial number .................................................................................................................... 42

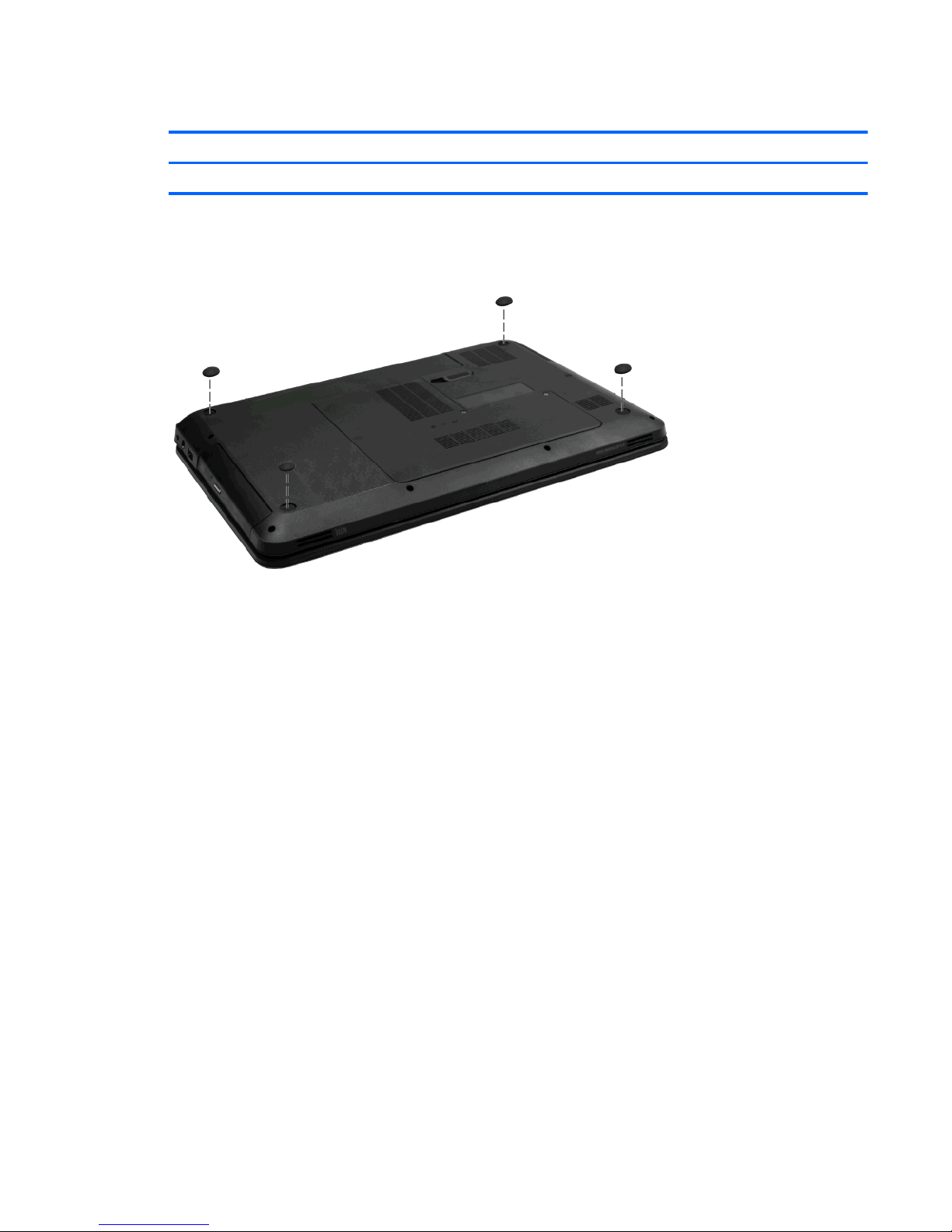

Computer feet .................................................................................................................... 43

Battery ............................................................................................................................... 44

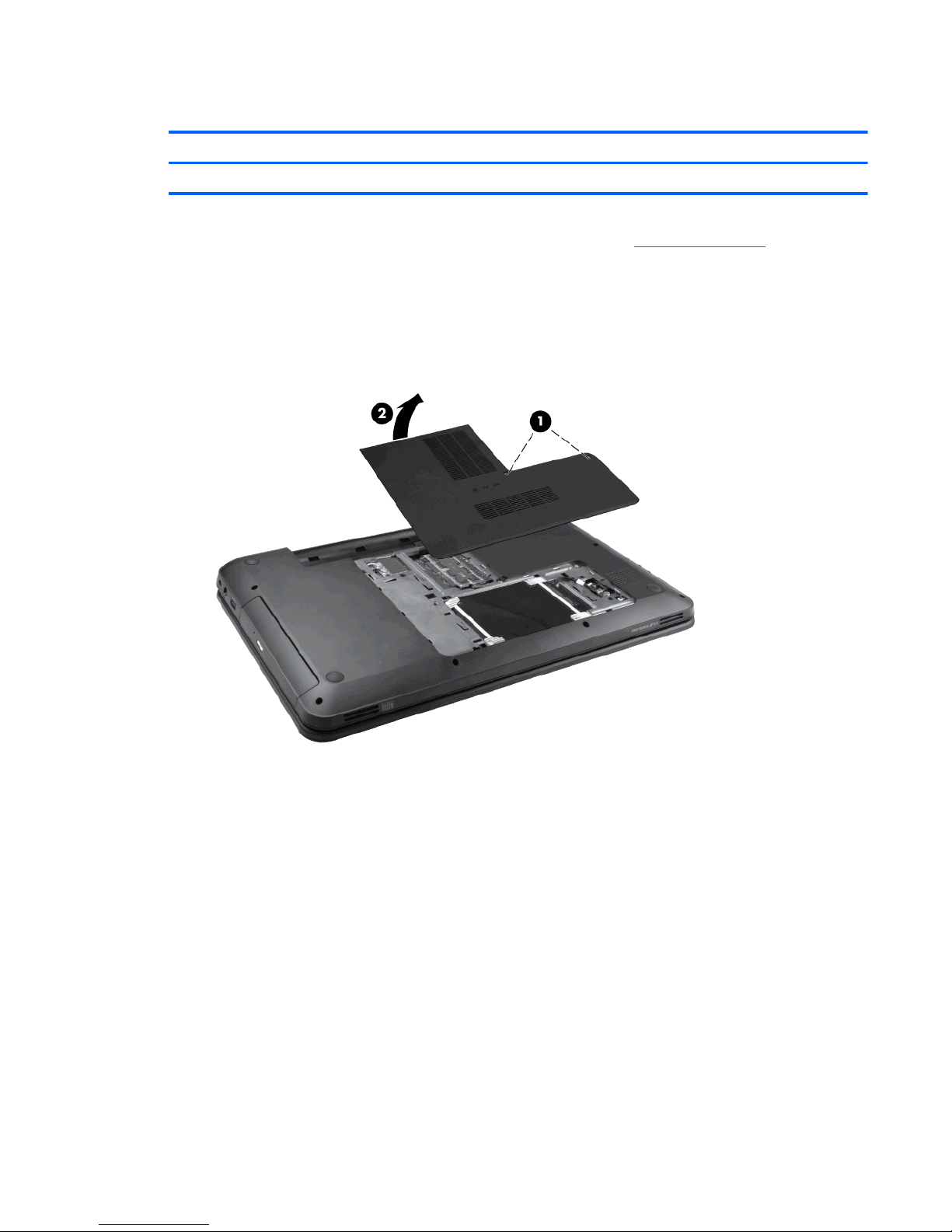

Service access cover ......................................................................................................... 45

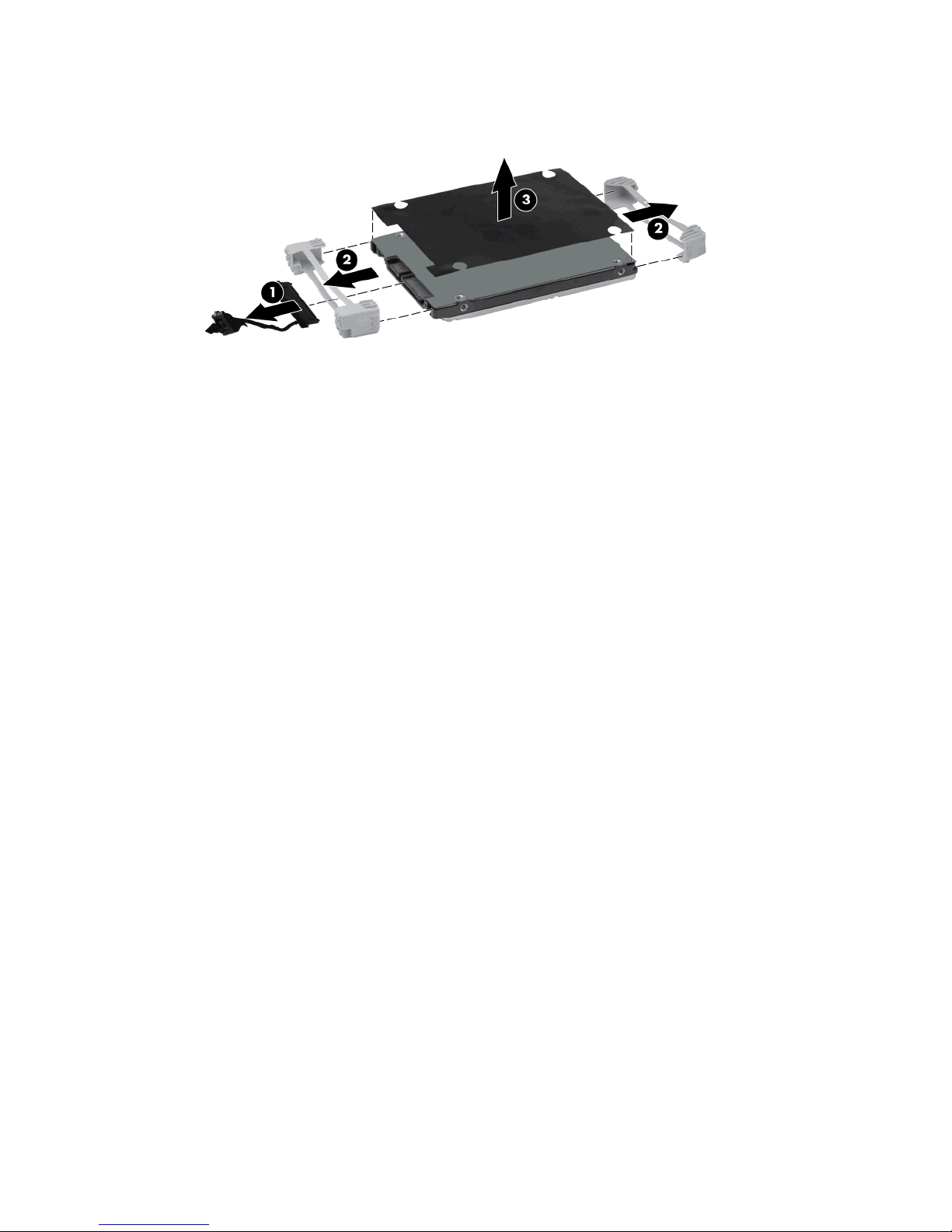

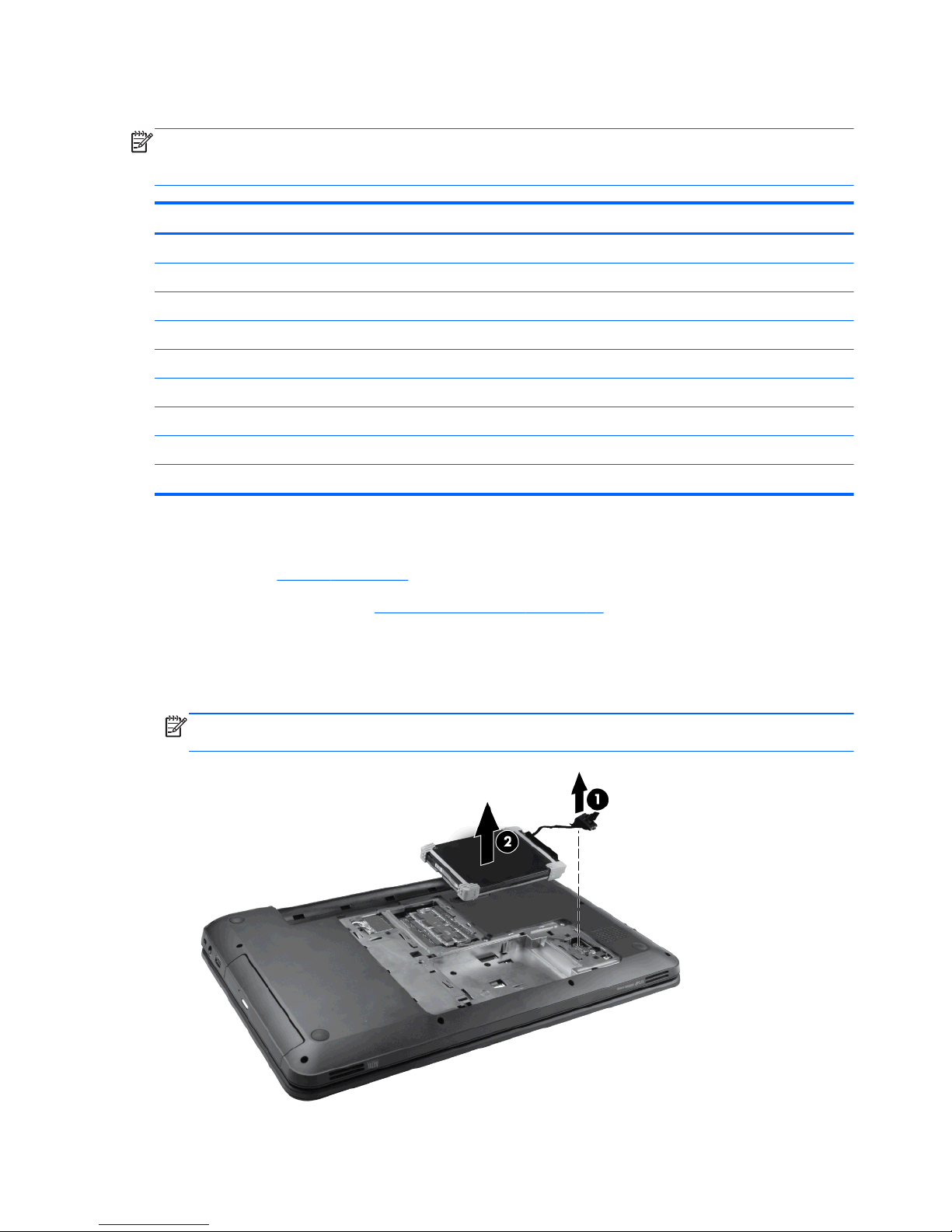

Hard drive .......................................................................................................................... 46

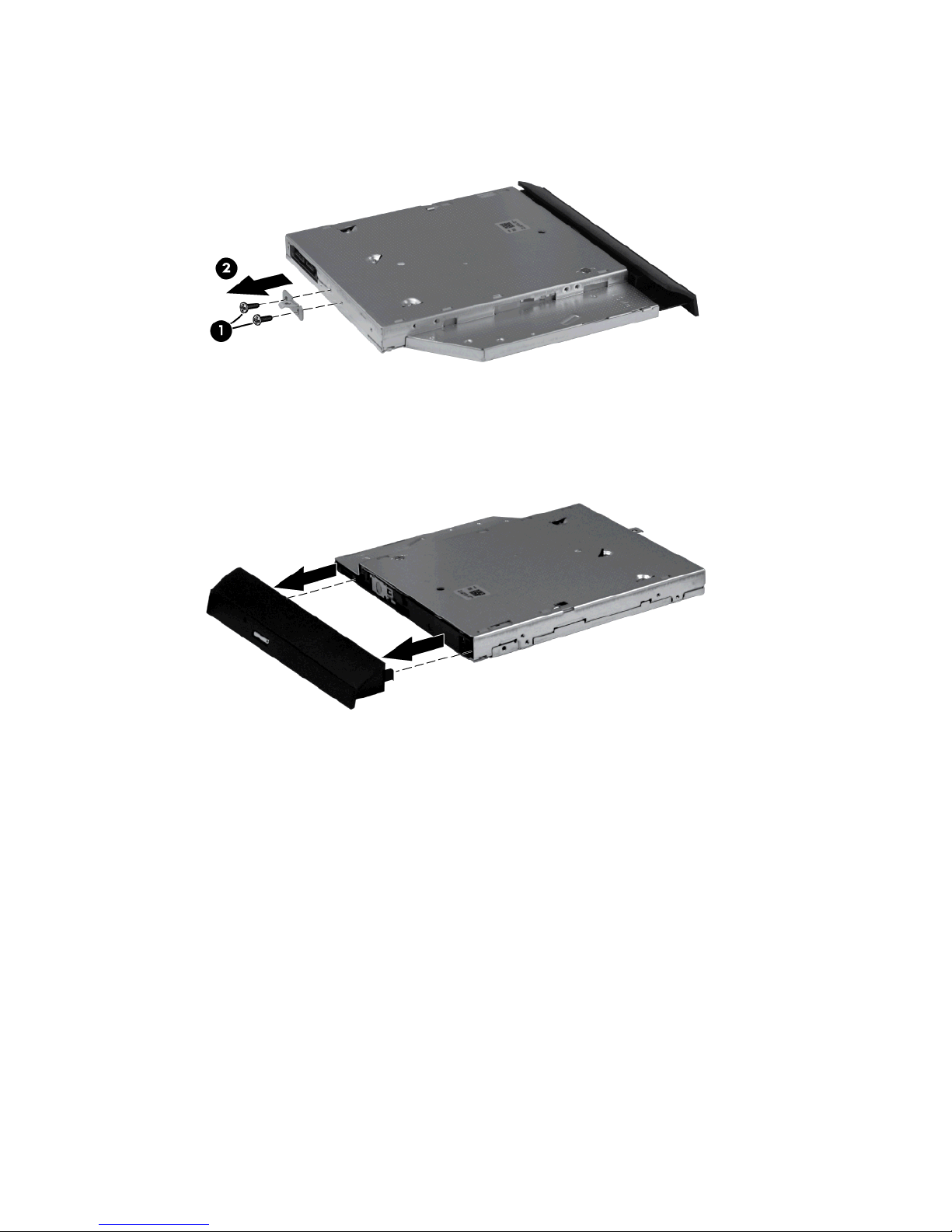

Optical drive ....................................................................................................................... 48

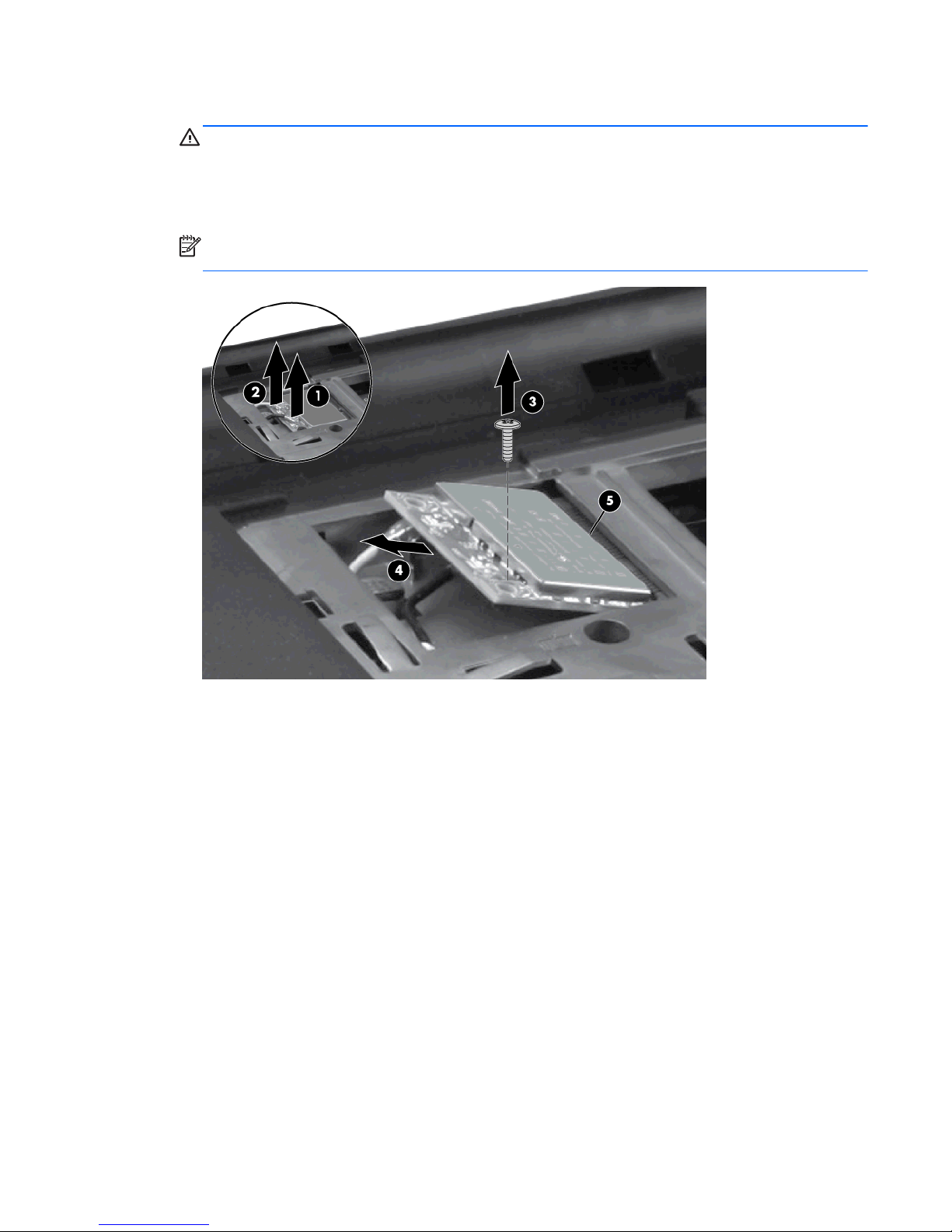

WLAN module .................................................................................................................... 50

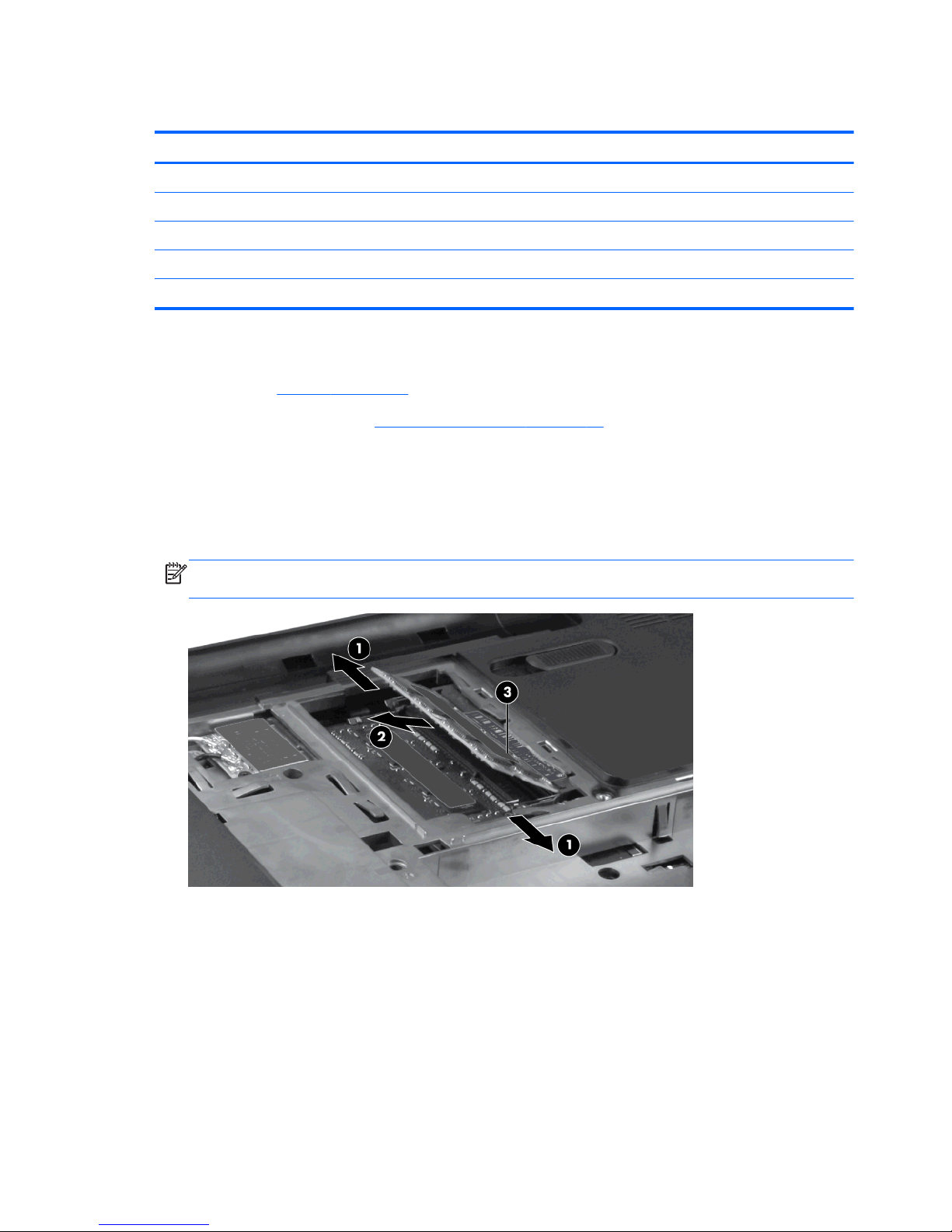

Memory module ................................................................................................................. 52

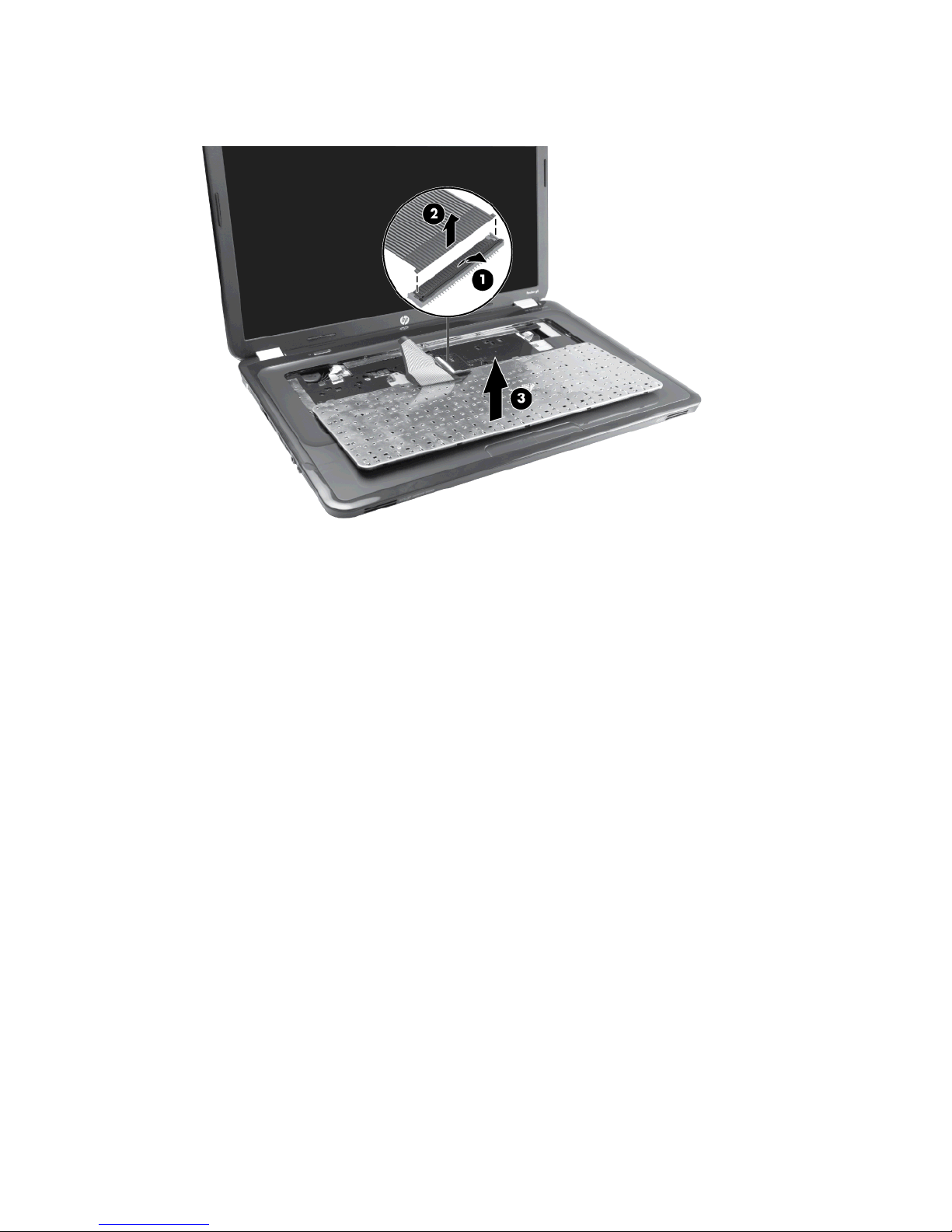

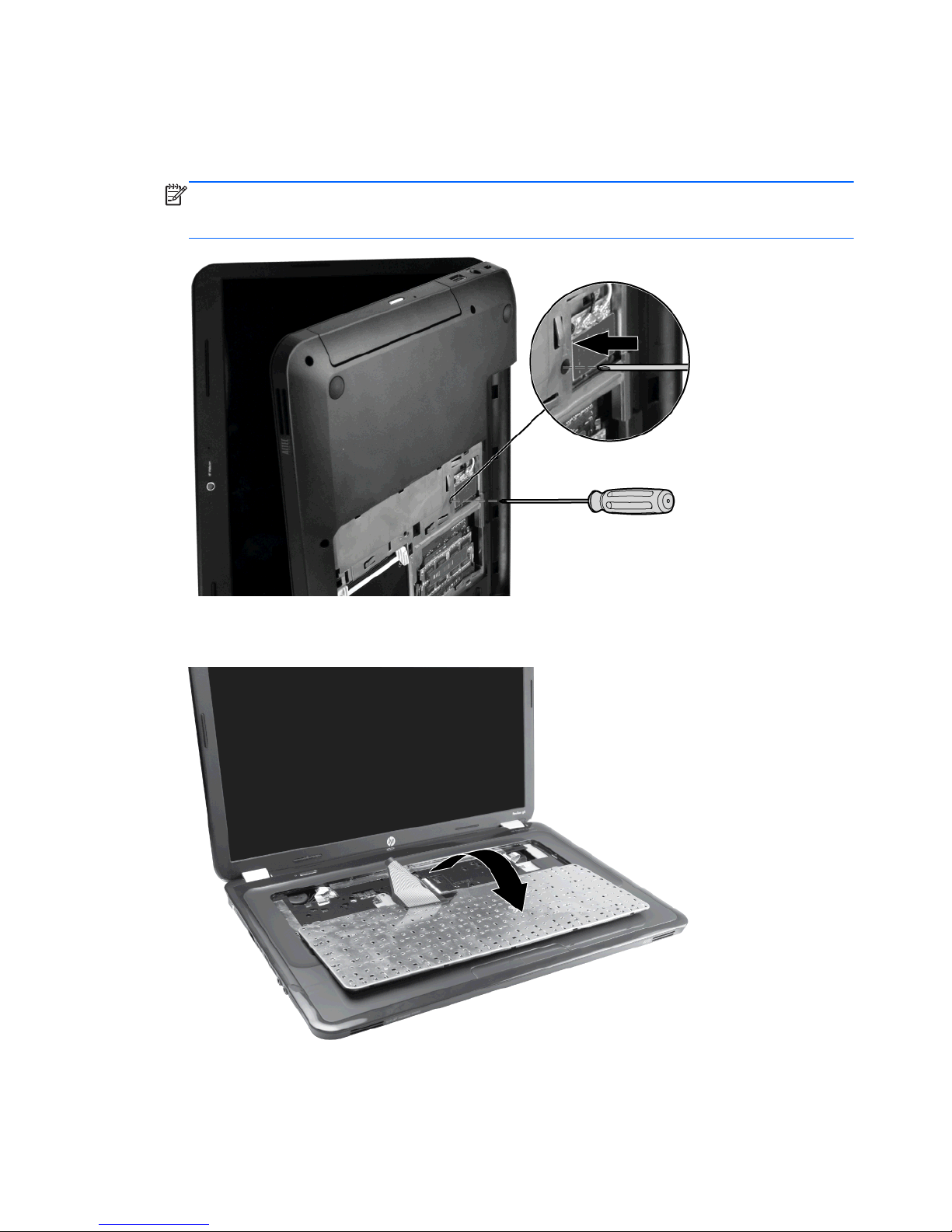

Keyboard ........................................................................................................................... 53

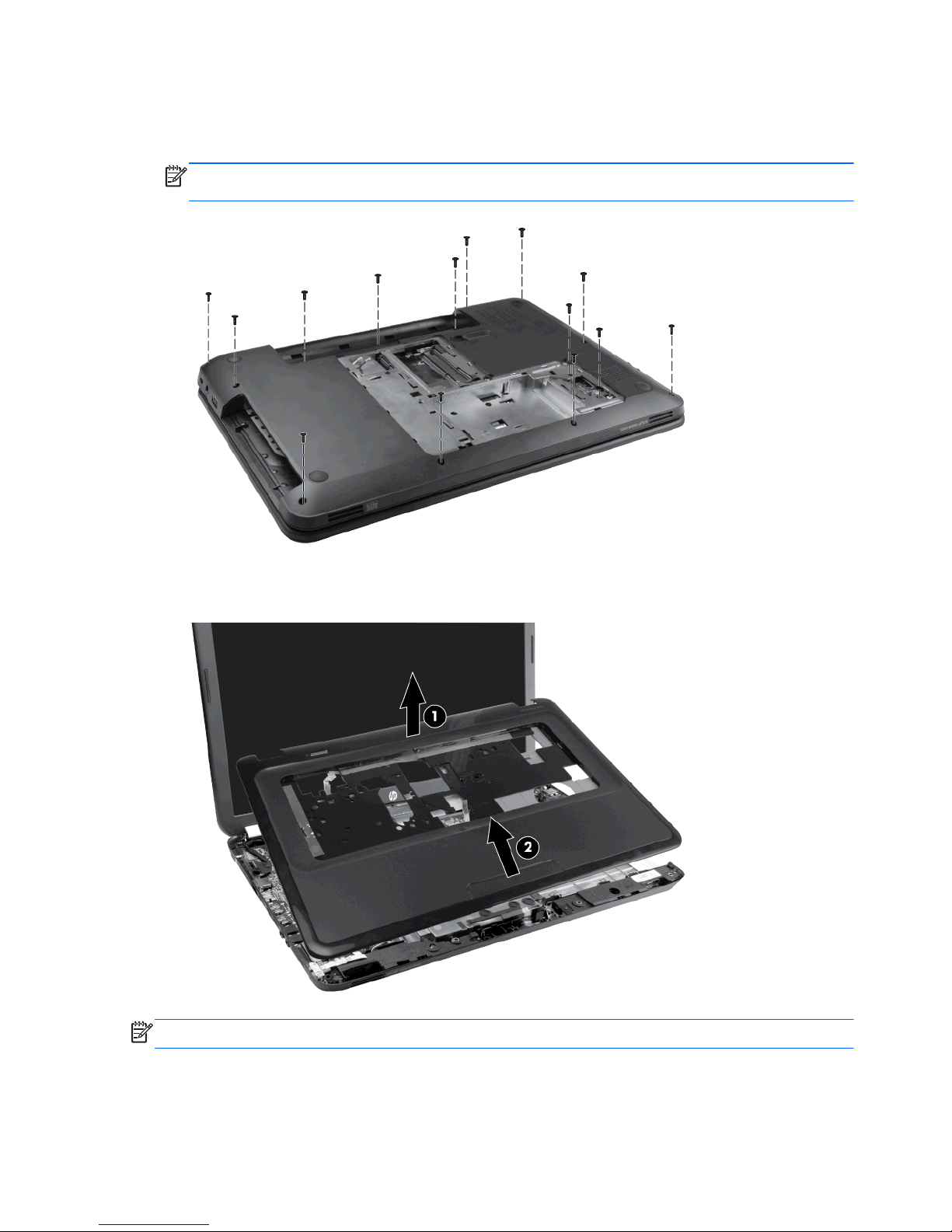

Top cover ........................................................................................................................... 56

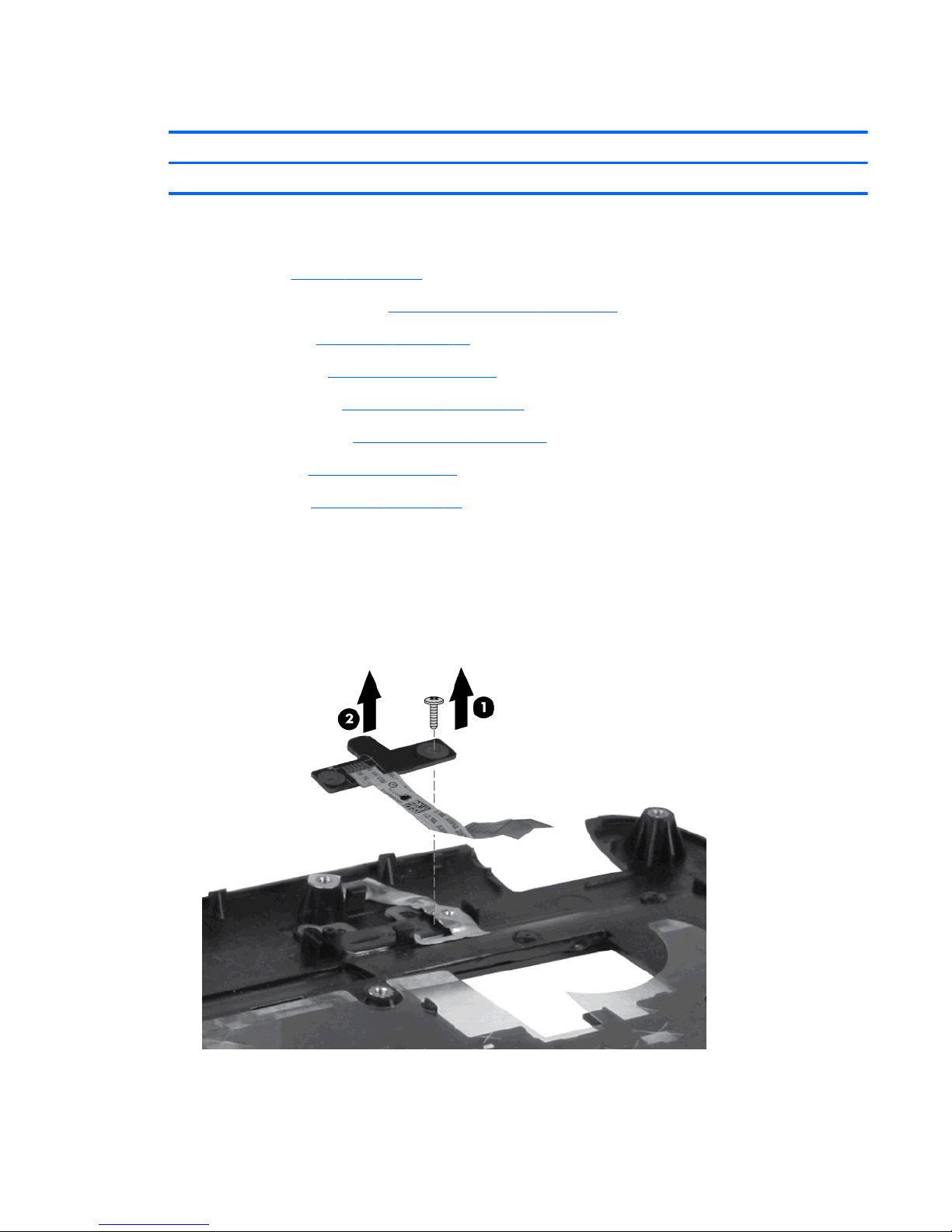

Power button board ........................................................................................................... 59

TouchPad button board ..................................................................................................... 60

TouchPad LED board ........................................................................................................ 61

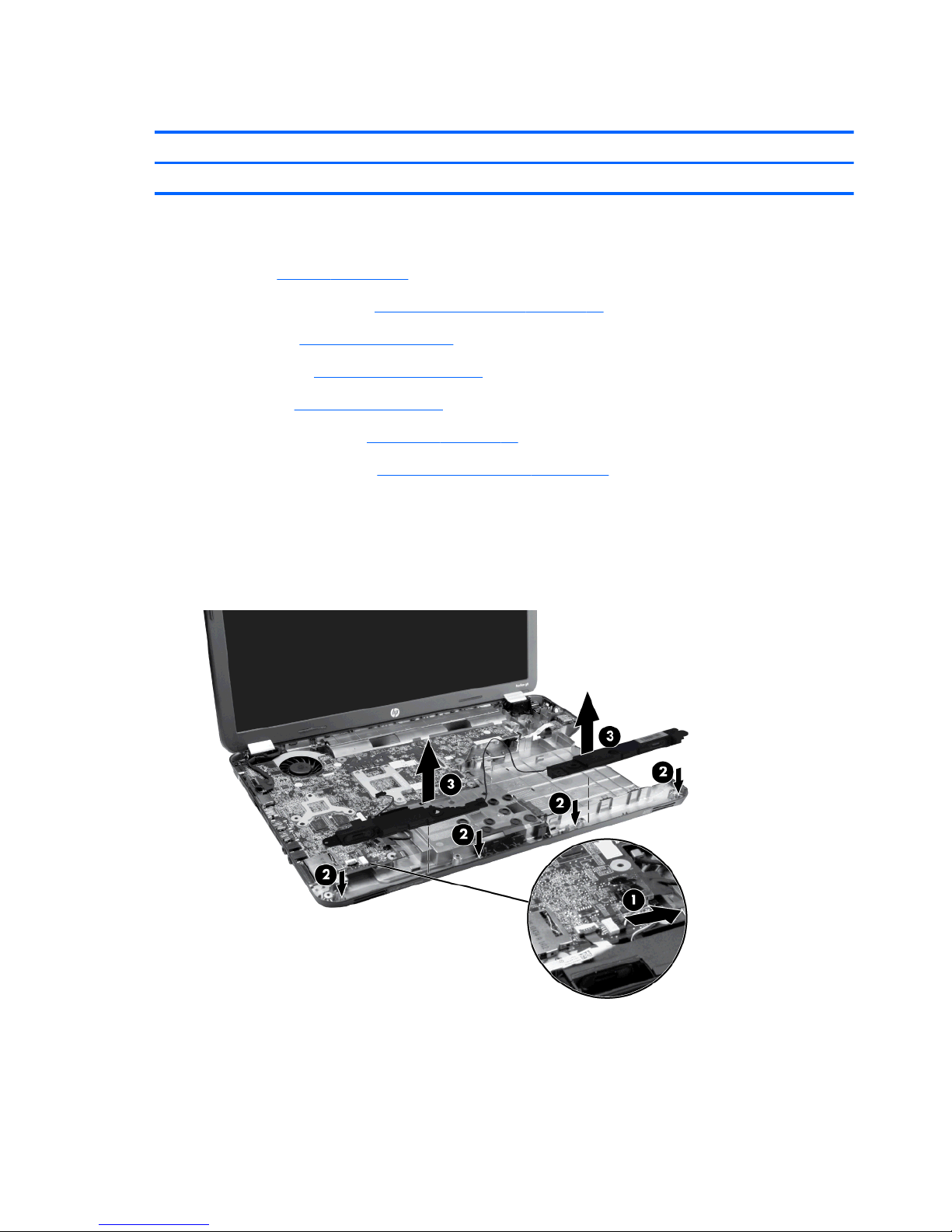

Speaker assembly ............................................................................................................. 62

USB board ......................................................................................................................... 63

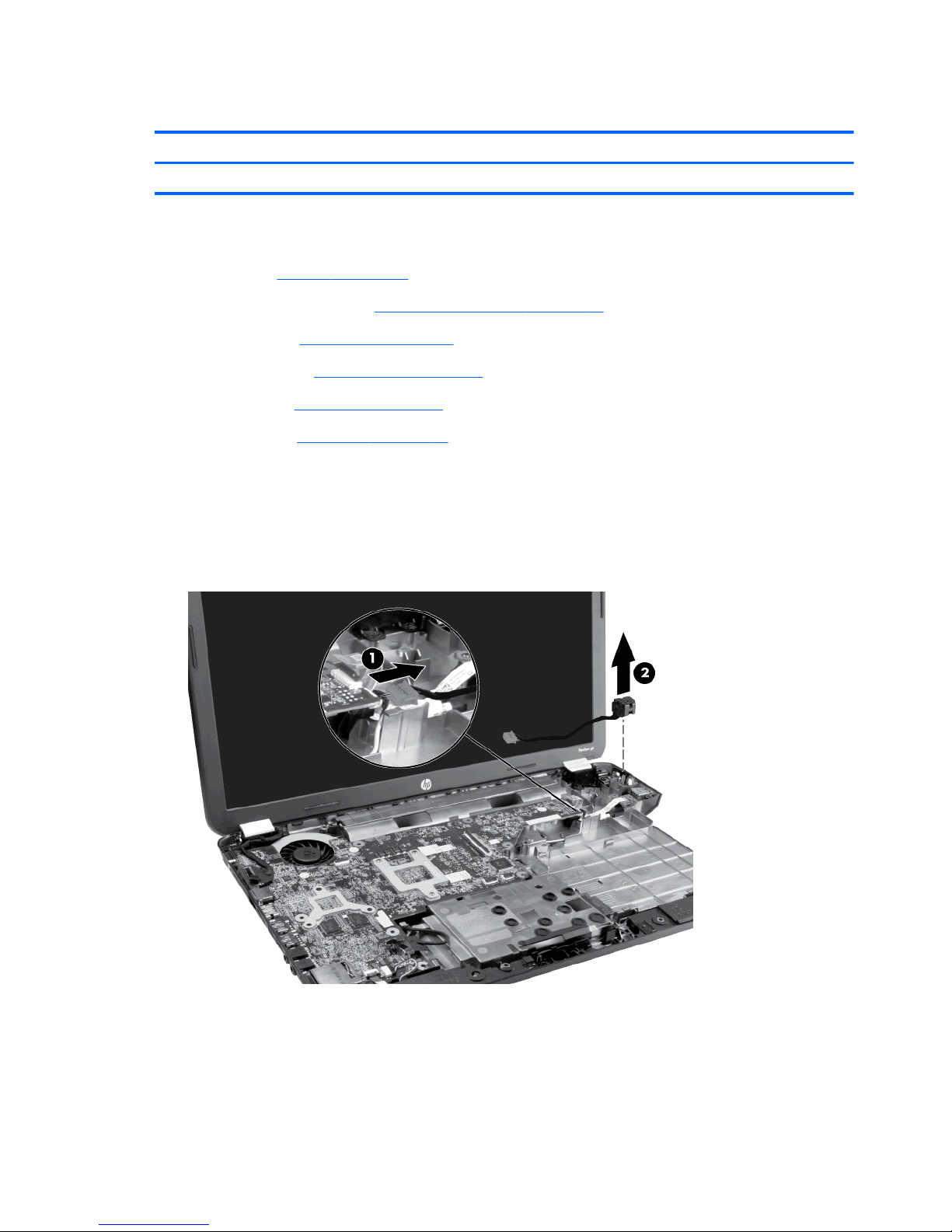

Power connector ................................................................................................................ 64

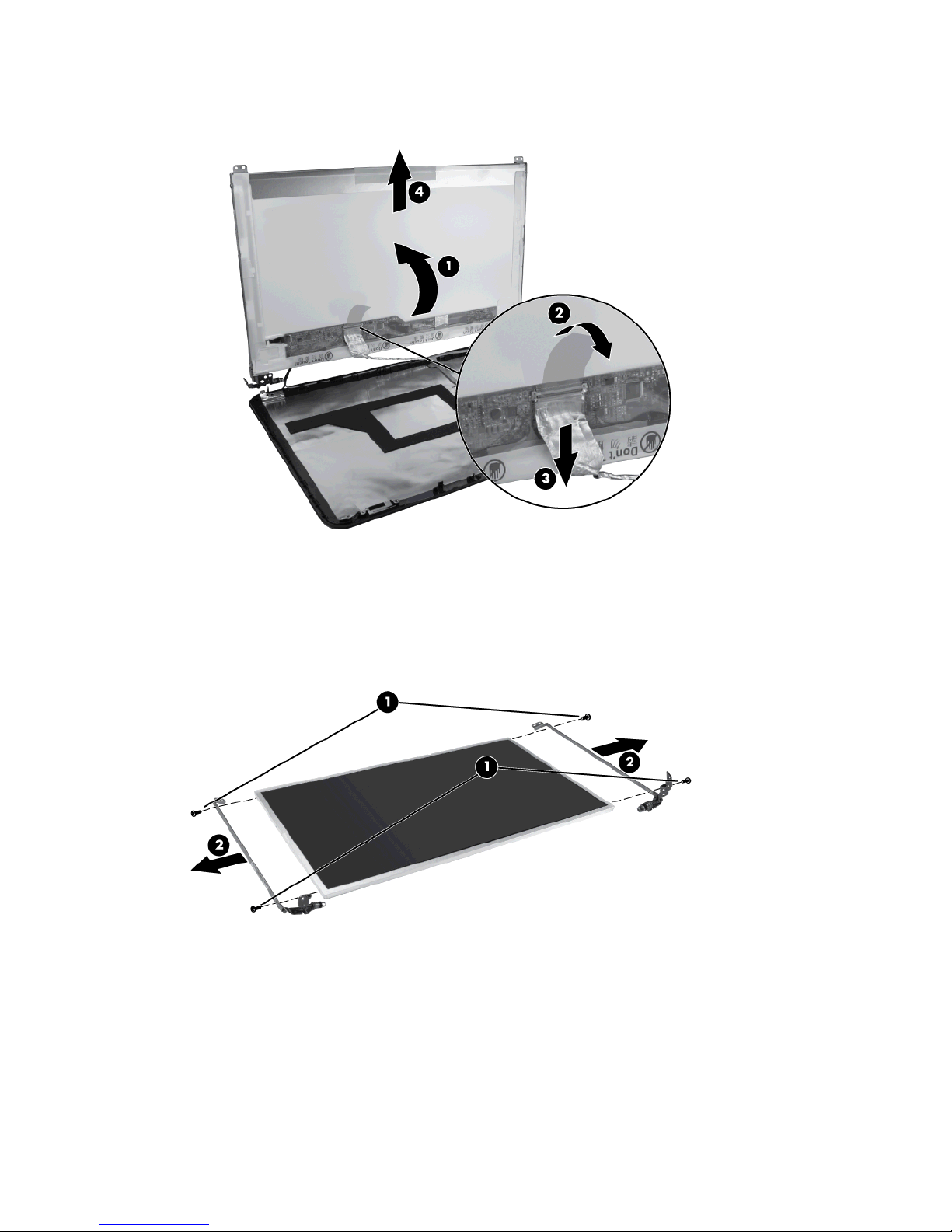

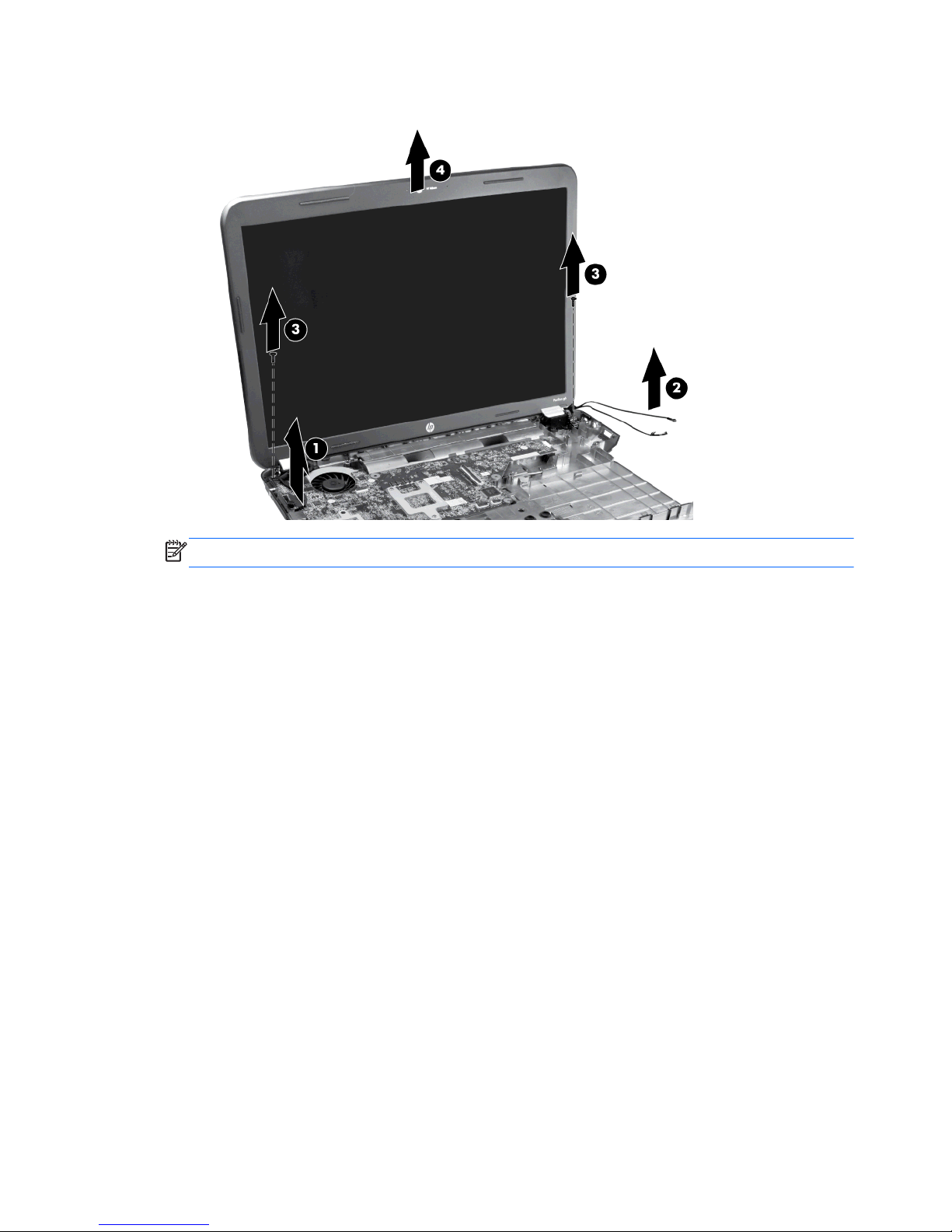

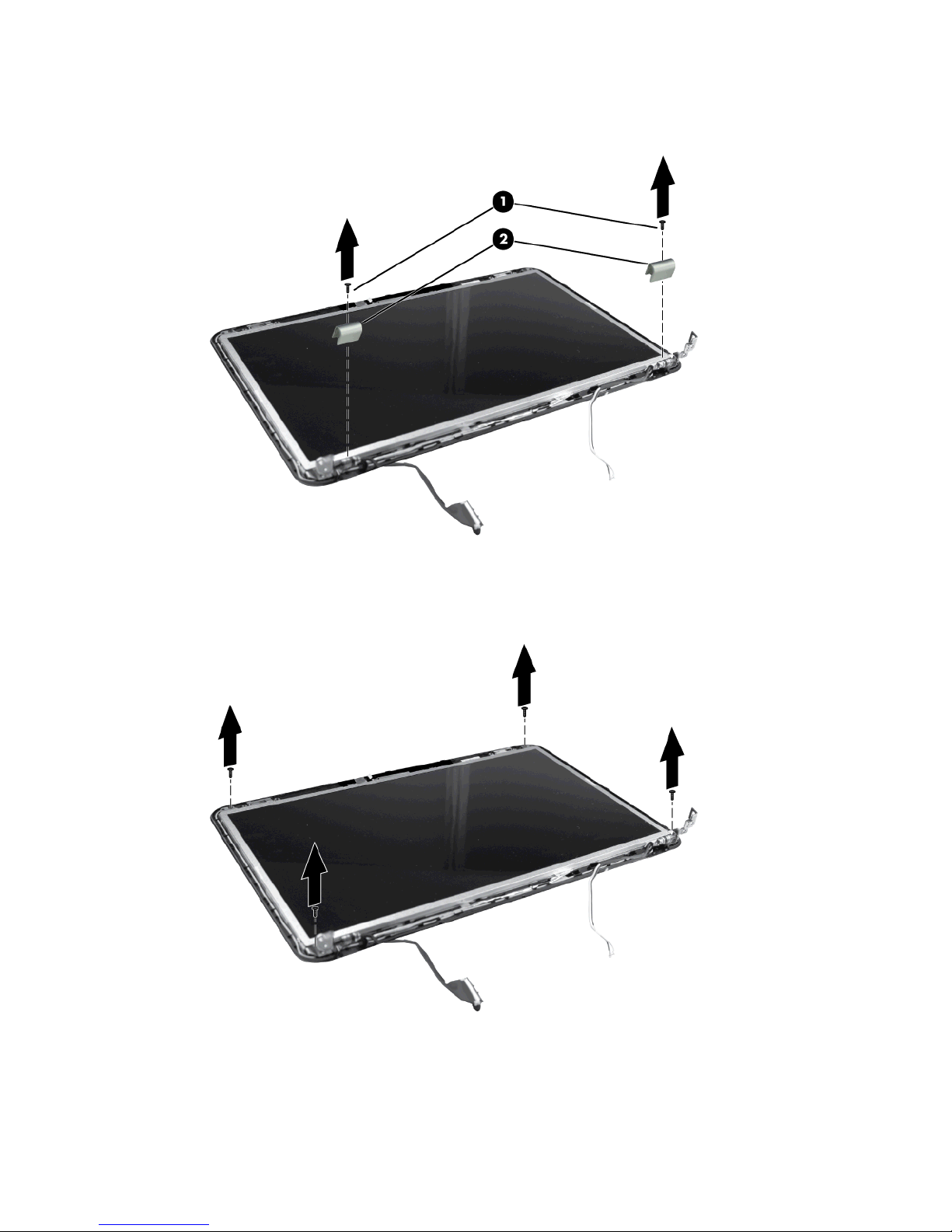

Display assembly ............................................................................................................... 65

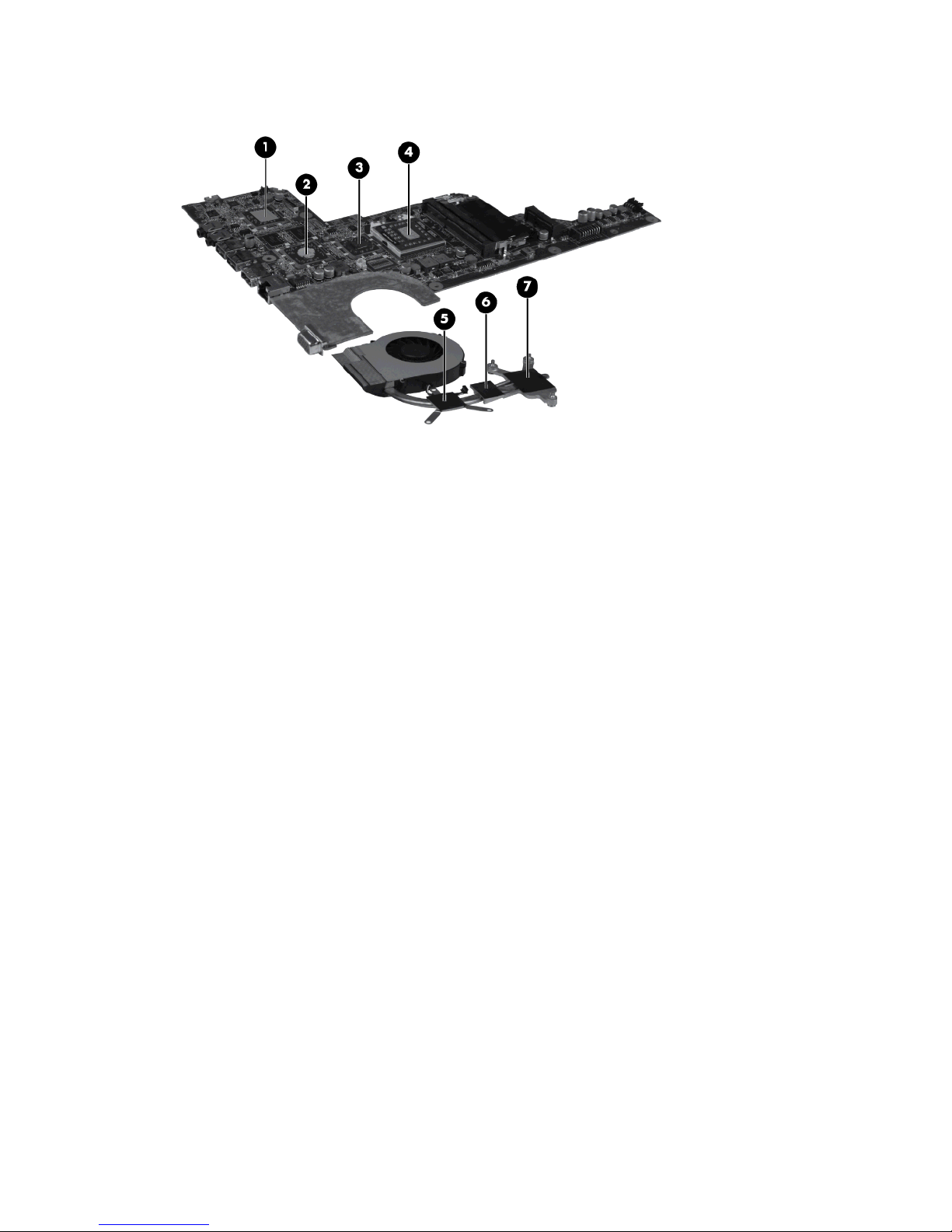

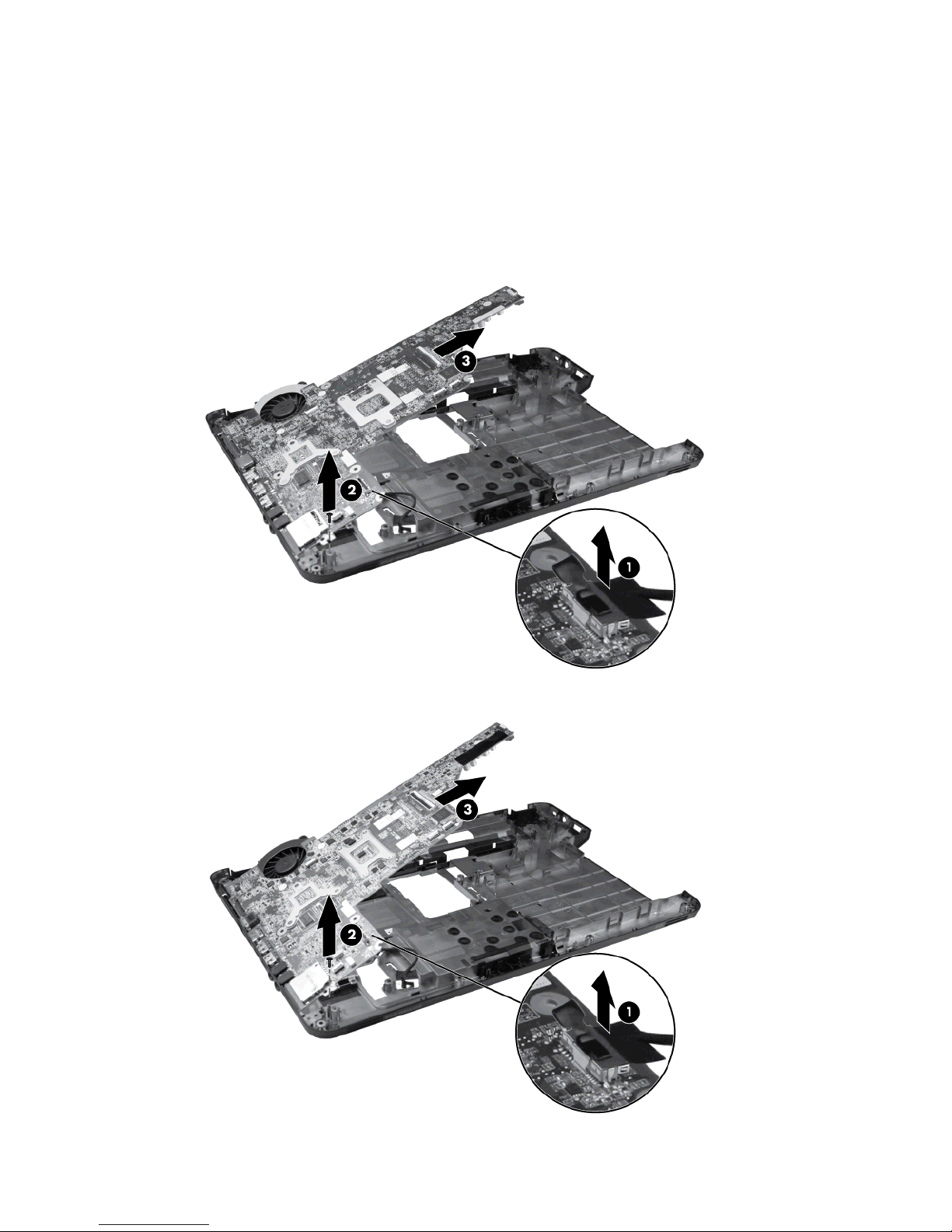

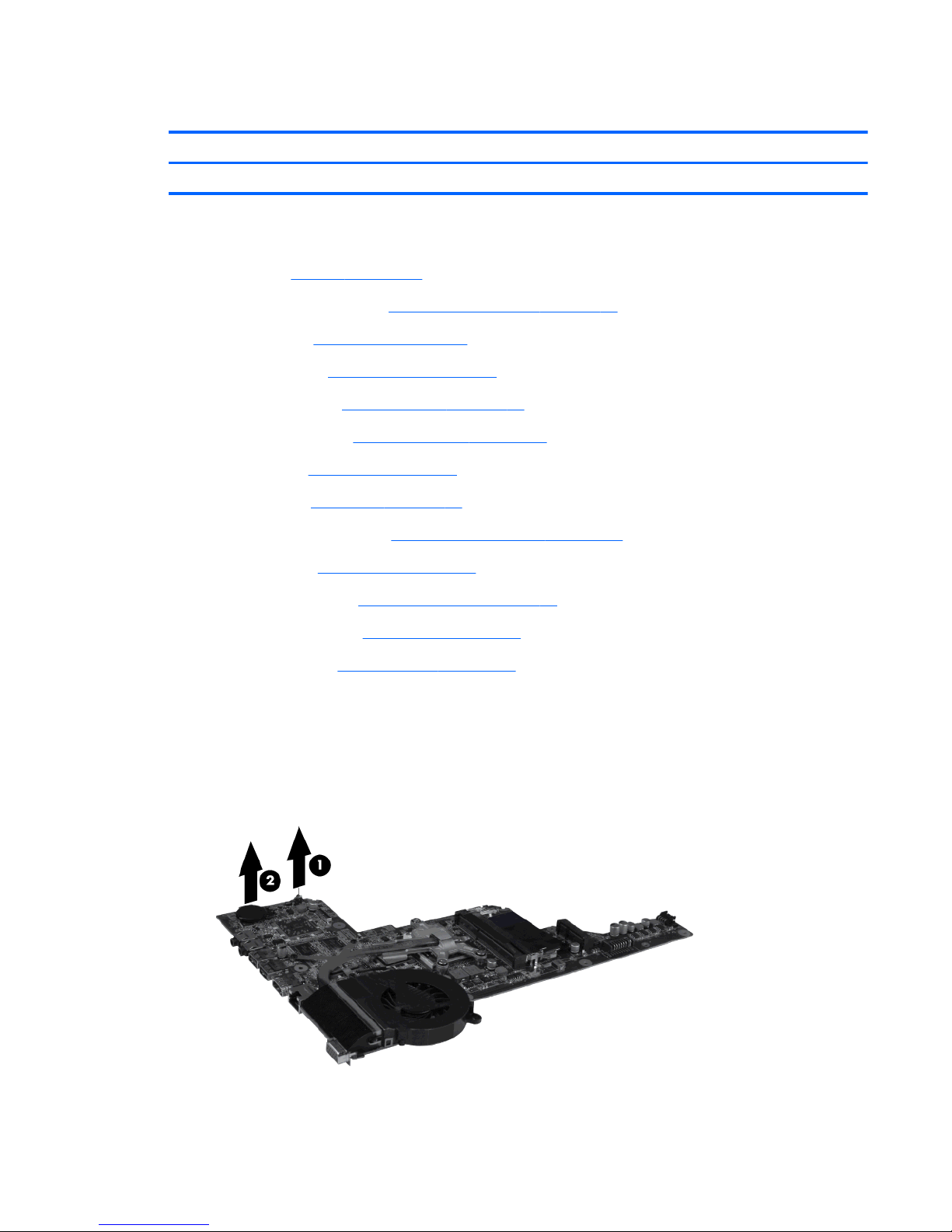

System board ..................................................................................................................... 72

RTC battery ....................................................................................................................... 75

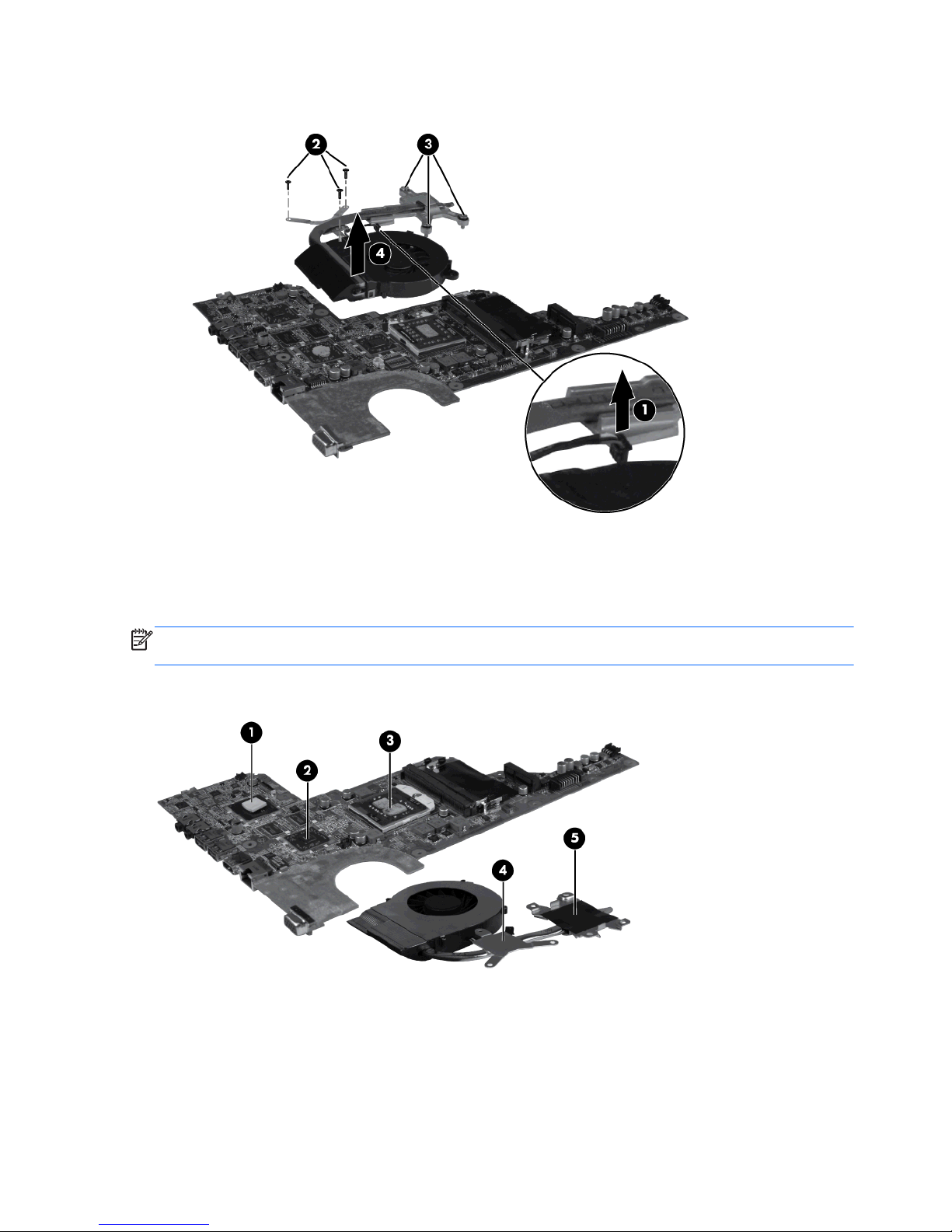

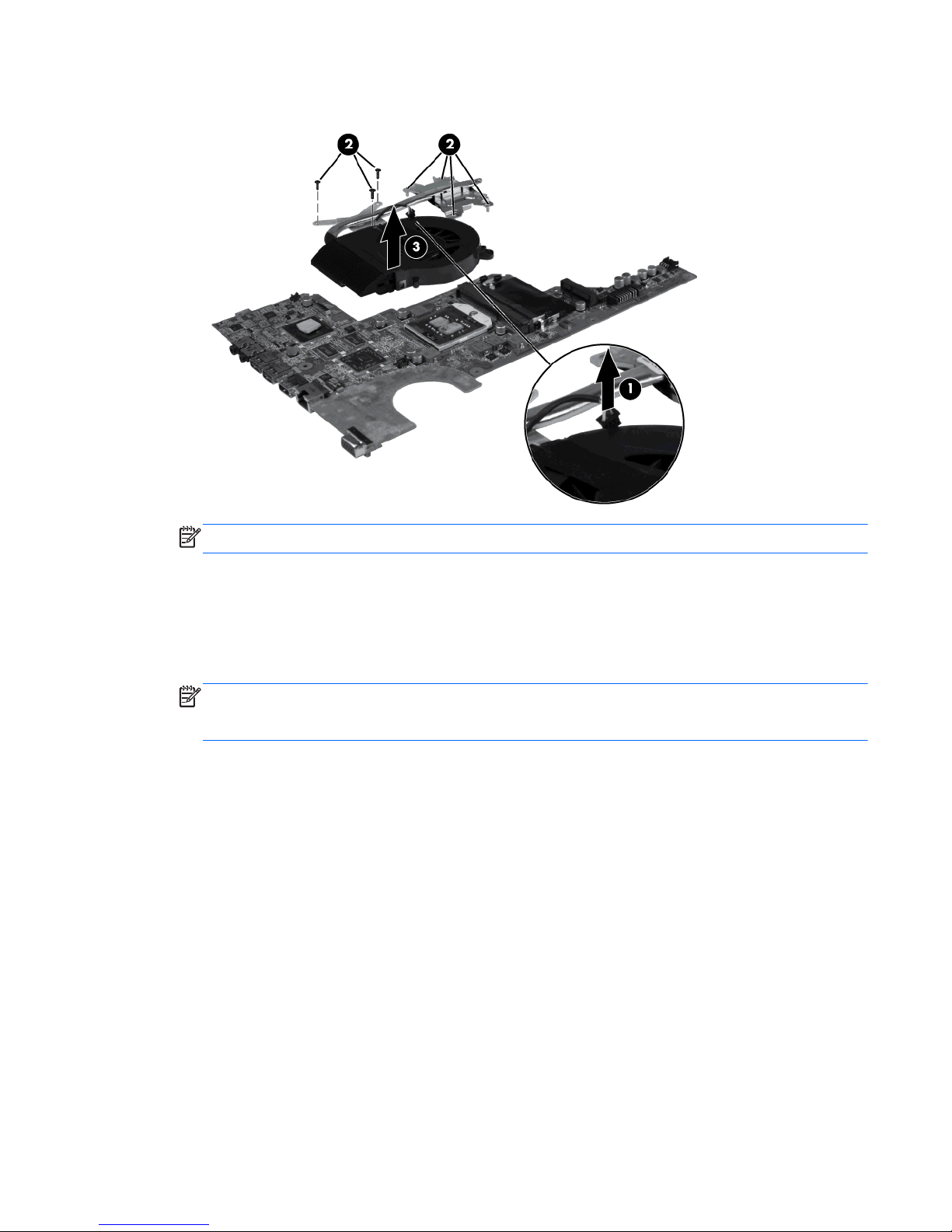

Heat sink assembly ............................................................................................................ 76

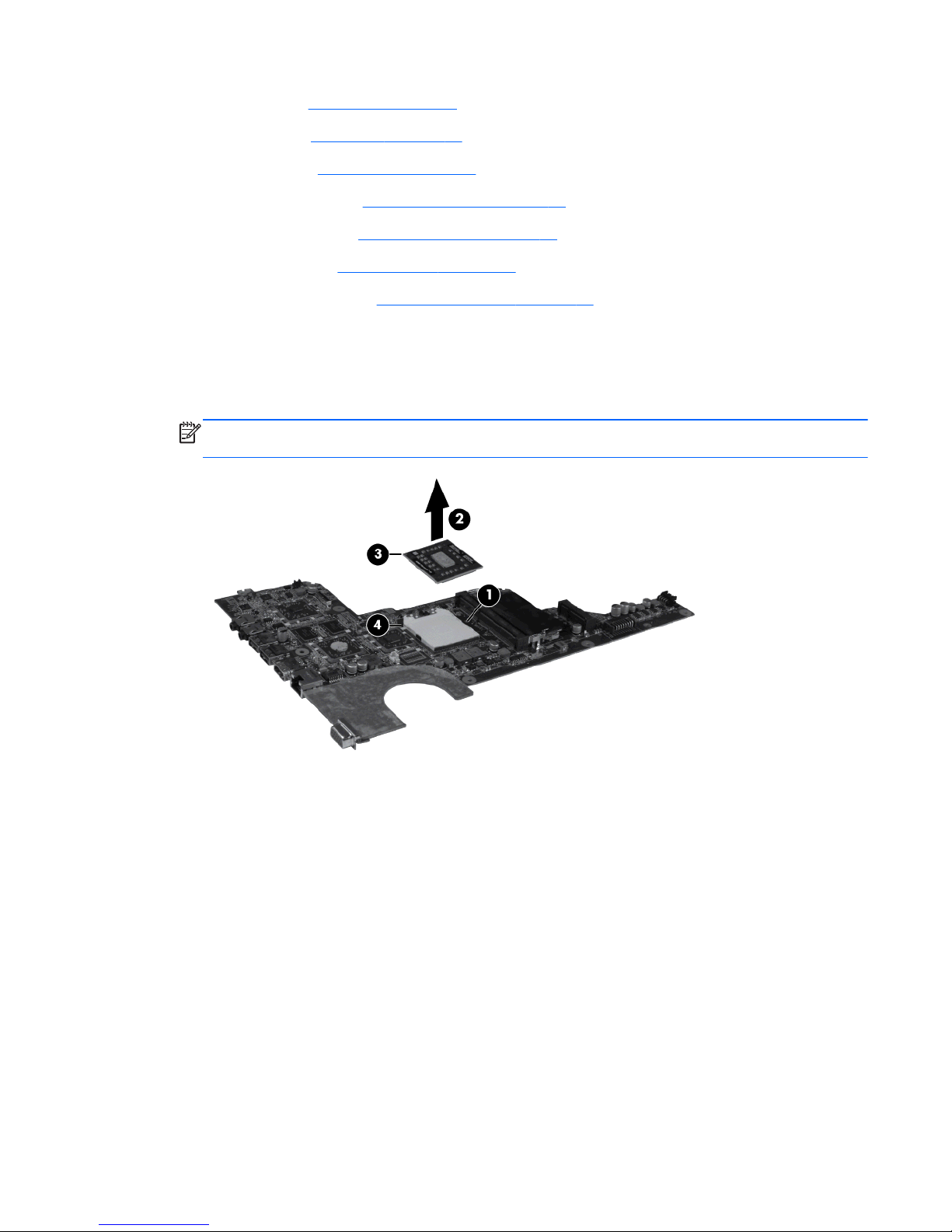

Processor ........................................................................................................................... 80

5 Specifications ................................................................................................................................................ 83

Computer specifications ..................................................................................................................... 83

39.6-cm (15.6-in) display specifications ............................................................................................. 84

Hard drive specifications .................................................................................................................... 85

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive specifications .................................. 86

Blu-ray Disc ROM and DVD±R/RW SuperMulti Double-Layer Drive specifications ........................... 87

6 Setup Utility (BIOS) ....................................................................................................................................... 89

Starting Setup Utility ........................................................................................................................... 89

Using Setup Utility .............................................................................................................................. 89

Changing the language of Setup Utility ............................................................................. 89

Navigating and selecting in Setup Utility ............................................................................ 90

Displaying system information ........................................................................................... 90

Restoring factory default settings in Setup Utility .............................................................. 90

Exiting Setup Utility ............................................................................................................ 90

vi ENWW

Updating the BIOS ............................................................................................................................. 91

Determining the BIOS version ........................................................................................... 91

Downloading a BIOS update ............................................................................................. 91

7 Backup and recovery .................................................................................................................................... 93

Restore ............................................................................................................................................... 94

Creating restore media ....................................................................................................................... 94

Performing a system restore .............................................................................................................. 95

Restoring using the dedicated recovery partition (select models only) .............................. 95

Restoring using the restore media ..................................................................................... 95

Changing the computer boot order .................................................................................... 97

Backing up and recovering your information ...................................................................................... 97

Using Windows Backup and Restore ................................................................................ 98

Using Windows system restore points ............................................................................... 99

When to create restore points ........................................................................... 99

Create a system restore point ........................................................................... 99

Restore to a previous date and time ................................................................. 99

8 Power cord set requirements .................................................................................................................... 101

Requirements for all countries or regions ......................................................................................... 101

Requirements for specific countries or regions ................................................................................ 102

9 Recycling ..................................................................................................................................................... 103

Battery .............................................................................................................................................. 103

Display .............................................................................................................................................. 103

Index ................................................................................................................................................................. 109

ENWW vii

viii ENWW

1 Product description

Category Description Intel® 2nd

Generation

Intel® Previous

Generation

AMD AMD

Discrete UMA Discrete UMA Discrete UMA

HP Pavilion G6 Notebook PC √√√ √ √ √

Processors Intel® Core™ i7-2620M processor

(2.7 GHz, SC turbo up to 3.40 GHz, 4
MB L3), Dual 35 W

√√

Intel Core i5-2540M processor (2.6

GHz, SC turbo up to 3.3 GHz, 3 MB
L3), Dual 35 W

√√

Intel Core i5-2520M processor (2.5

GHz, SC turbo up to 3.2 GHz, 3 MB
L3), Dual 35 W

√√

Intel Core i5-2410M processor (2.3

GHz, SC turbo up to 2.9 GHz, 3 MB
L3), Dual 35 W

√√

Intel Core i3 2310M (2.1 GHz, 3 MB

L3) Dual 35 W

√√

Intel Core i5-480M processor (2.66

GHz, SC turbo up to 2.93 GHz, 3 MB
L3), Dual 35 W

√√

Intel Core i3-390M processor (2.66

GHz, 3 MB L3), Dual 35 W

√√

Intel Core i3-380M processor (2.53

GHz, 3 MB L3), Dual 35 W

√√

Intel Pentium® P6300 (2.26 GHz, 3

MB L3), Dual 35 W

√√

Intel Pentium P6200 (2.13 GHz, 3 MB

L3), Dual 35 W

√√

AMD Phenom™ II N970 (2.2 GHz, 2

MB L2, 1333 MHz, 3.6 GT/s – Quad
35 W

√√

AMD Phenom II P960 (1.8 GHz, 2 MB

L2, 1066 MHz, 3.6 GT/s – Quad 25 W

√√

AMD Phenom II N870 (2.3 GHz, 1.5

MB L2, 1333 MHz, 3.6 GT/s – Triple
35 W

√√

ENWW 1

Category Description Intel® 2nd

Generation

Intel® Previous

Generation

AMD AMD

Discrete UMA Discrete UMA Discrete UMA

AMD Phenom II P860 (2.0 GHz, 1.5

MB L2, 1066 MHz, 3.6 GT/s – Triple
25 W

√√

AMD Phenom II N850 (2.2 GHz, 1.5

MB L2, 1333 MHz, 3.6GT/s – Triple
35 W

√√

AMD Radeon HD 6620 M √√

AMD Radeon HD 6520 M √√

AMD Radeon HD 6480 M √√

AMD Phenom II N660 (3.0 GHz, 2 MB

L2, 1333 MHz, 3.6 GT/s – Dual 35 W

√√

AMD Phenom II P650 (2.6 GHz, 2 MB

L2, 1066 MHz, 3.6 GT/s – Dual 25 W

√√

AMD Turion™ II P560 (2.5 GHz, 2 MB

L2, 1066 MHz, 3.6 GT/s– Dual 25 W

√√

AMD Athlon™ II P360 (2.3 GHz, 1 MB

L2, 1066 MHz, 3.6 GT/s– Dual 25 W

√√

AMD Athlon II P340 (2.2 GHz, 1 MB

L2, 1066 MHz, 3.2 GT/s– Dual 25 W

√√

AMD Brazos E350 (1.6GHz, 1MB L2,

1066MHz) – Dual 18W

AMD V160™ (2.4 GHz, 512 KB L2,

1066 MHz, 3.2 GT/s) - SC 25 W

√√

A8-3500M (2.4GHz/1.5GHz, 4MB L2),

Quad 35W

√

AMD Sabine A6-3400M (2.3GHz/

1.4GHz, 4MB L2) Quad 35W

√

AMD Sabine A4-330M (2.5GHz/

1.9GHz, 4MB L2) Dual 35W

√

AMD V140™ (2.3 GHz, 512 KB L2,

1066 MHz, 3.2 GT/s) - SC 25 W

√√

Chipset Intel HMˋ65 Express Chipset √√

Intel HMˋ55 Express Chipset √√

AMD RS880M + SB820M √√

Graphics Intel HD Graphics 3000 √

Intel HD Graphics √√

ATI Radeon™ HD 6470M with 512

MB of dedicated video memory
(64Mx16 DDR3, 900 MHz×4 PCs)

√ √ √

2 Chapter 1 Product description ENWW

Category Description Intel® 2nd

Generation

Intel® Previous

Generation

AMD AMD

Discrete UMA Discrete UMA Discrete UMA

ATI Radeon HD 6470M with 1 GB of

dedicated video memory (128Mx16
DDR3, 900 MHz×4 PCs)

√ √ √

ATI Mobility Radeon™ HD 4250

Graphics

√√√

nVidia N12P-GV (NVIDIA® GeForce®

GT 520M

Support for HD-DVD playback with

HD decoder and DX11 and HDMI

√√√ √

Support for DX11 √√

Panel 39.6-cm (15.6-in) HD LED BrightView

(1366×768)

√√√ √ √ √

16:9 wide aspect ratio √√√ √ √ √

Memory 2 customer-accessible/upgradable

SODIMM slots:

●

DDR3-1333 MHz Dual Channel
Support

√√ √√

●

DDR3-1066 MHz Dual Channel
Support (DDR3-1333
downgraded to DDR3-1066)

√√

Supports up to 8 GB of system

memory in the following
configurations:

● 6144 MB (4096 MB × 1 +

2048×1)

√√√ √ √ √

● 4096 MB (4096 MB × 1) √√√ √ √ √

●

4096 MB (2048 MB × 2) √√√ √ √ √

●

3072 MB (1024 MB × 1 + 2048
MB × 1)

√√√ √ √ √

●

2048 MB (2048 MB × 1) √√√ √ √ √

● 2048 MB (1024 MB × 2) √√√ √ √ √

Hard drives Supports the following 9.5 mm, 6.35-

cm (2.5 in) SATA hard drives:

●

750 GB, 5400 rpm √√√ √ √ √

●

640 GB, 5400 rpm √√√ √ √ √

● 500 GB, 7200 rpm √√√ √ √ √

●

500 GB, 5400 rpm √√√ √ √ √

●

320 GB, 5400 rpm √√√ √ √ √

Supports the following 7 mm, 6.3-cm

(2.5 in) SATA hard drives:

ENWW 3

Category Description Intel® 2nd

Generation

Intel® Previous

Generation

AMD AMD

Discrete UMA Discrete UMA Discrete UMA

●

320 GB, 7200 rpm √√√√√√

●

250 GB, 7200 rpm √√√√√√

● 250 GB, 5400 rpm √√

Optical drives 12.7 mm (0.50-in) fixed SATA tray

load

√√√√√√

DVD±RW and CD-RW SuperMulti

Double-Layer Combo Drive with
LightScribe*

NOTE: *Select models only.

√√√√√√

DVD±RW and CD-RW SuperMulti

Double-Layer Combo (by means of
SW Control) Drive

√√√√√√

Blu-ray Disc ROM with DVD±R/RW

SuperMulti Double-Layer Drive with
LightScribe*

NOTE: *Select models only.

√√√√√√

Blu-ray Disc ROM with DVD±R/RW

SuperMulti Double-Layer (by means
of SW Control) Drive

√√√√√√

Webcam VGA camera (640x480 by 24 frames

per second), fixed angle, with activity
light and single digital microphone

√√√√√√

Audio High-definition audio supports:

Microsoft® premium requirements
with HP Altec Lansing speakers

SRS Premium Sound technology

√√√√√√

Ethernet Integrated 10/100 network interface

card (NIC)

√√√√√√

Integrated wireless local area network

(WLAN) options by way of wireless
module and 2 wireless antennas built
into display assembly

√√√√√√

Supports the following WLAN formats:

Intel Centrino® Wireless-N 1000

(802.11b/g/n)

√√√ √

Intel Centrino® Wireless-N 1000

(802.11b/g/n) with WiDi

√√√ √

Atheros AR9285 802.11b/g/n 1x1

WiFi Adapter

√√√√√√

Ralink 5390GN 802.11b/g/n 1x1 WiFi

Adapter

√√√ √

4 Chapter 1 Product description ENWW

Category Description Intel® 2nd

Generation

Intel® Previous

Generation

AMD AMD

Discrete UMA Discrete UMA Discrete UMA

Broadcom 4313 802.11b/g/n 1x1 WiFi

and 2070 Bluetooth 2.1+EDR Combo
adapter (BT3.0+HS ready)

√√√ √ √ √

Broadcom 4313GN 802.11b/g/n 1x1

WiFi Adapter

√√

Ralink 5390BC8 802.11b/g/n 1x1 WiFi

and Bluetooth 3.0+HS Combo
Adapter

√√√ √

External
media card

Digital Media Slot supporting SD,
SDHC, SDXC (UHS104 compliant),
and MMC

√√√ √ √ √

Internal card One half-size Mini Card slot for WLAN √√√ √ √ √

Ports Audio-in (digital microphone) √√√ √ √ √

Audio-out (stereo headphone) √√√ √ √ √

High-Definition Multimedia Interface

(HDMI) version 1.4 supporting up to
1920x1200 @ 60Hz

√√√ √ √ √

Hot plug/unplug with auto-detect for

correct output to wide-aspect vs.
standard aspect video

√√√ √ √ √

RJ-45 (Ethernet) √√√ √ √ √

Three USB 2.0 ports √√√ √ √ √

VGA (Dsub 15-pin) supporting the

following:

●

2048×1056 external resolution
@ 75Hz

● 1920×1200 external resolution

@ 60Hz

●

HDMI v1.4 supporting: up to
1080p, 1920x1200 @ 60Hz and
1920x1200 @ 60Hz DVI Mode

√√√ √ √ √

AC Smart Pin adapter √√√ √ √ √

Keyboard/
pointing
devices

39.62-cm (15.6-in), full-size keyboard √√√ √ √ √

TouchPad with 2 buttons (multitouch

gestures, 2-finger scrolling, pinch
zoom, and taps enabled as default)

√√√ √ √ √

Power
requirements

6-cell, 2.22 Ah, 47 Wh battery √√√ √ √ √

6-cell, 2.55 Ah, 55 Wh battery √√√ √

Batteries support fast charge √√√ √ √ √

ENWW 5

Category Description Intel® 2nd

Generation

Intel® Previous

Generation

AMD AMD

Discrete UMA Discrete UMA Discrete UMA

65-W AC Smart adapter with localized

cable plug support

√ √ √

90-W AC Smart adapter with localized

cable plug support

√ √

Security Kensington Security Lock

Intel AT-p Ready

√√√√√√

Operating
system

Preinstalled:

Windows 7® Home Premium (64 bit) √√√√√√

Windows 7 Home Basic (64 bit) √√√√√√

Windows 7 Starter (32-bit) √√√√√√

FreeDOS √√√√√√

Serviceability End-user replaceable parts:

AC adapter √√√√√√

Battery (system) √√√√√√

Hard drive √√√√√√

Memory module √√√√√√

Optical drive √√√√√√

WLAN cards √√√√√√

6 Chapter 1 Product description ENWW

2 External component identification

Top

TouchPad

Component Description

(1)

TouchPad light

●

Off: The TouchPad is on.

● Amber: The TouchPad is off.

(2) TouchPad on/off button Turns the TouchPad on and off. Quickly double-tap the

TouchPad button to turn the TouchPad on and off.

(3) Left TouchPad button Functions like the left button on an external mouse

(4) TouchPad zone Moves the pointer and selects or activates items on the

screen

(5) Right TouchPad button Functions like the right button on an external mouse

ENWW Top 7

Lights

Component Description

(1) TouchPad light ● Off: The TouchPad is on.

●

Amber: The TouchPad is off.

(2) Caps lock light ● White: Caps lock is on.

●

Off: Caps lock is off.

(3)

Power light ● On: The computer is on.

●

Blinking: The computer is in Sleep mode.

●

Off: The computer is off or in Hibernation mode.

(4)

Wireless light

●

White: An integrated wireless device, such as a
wireless local area network (WLAN) device and/or a
Bluetooth® device, is on.

● Amber: All wireless devices are off.

8 Chapter 2 External component identification ENWW

Button

Component Description

Power button

●

When the computer is off, press the power button to
turn on the computer.

● When the computer is on, press the power button

briefly to initiate Sleep mode.

●

When the computer is in Sleep mode, press the power
button briefly to exit Sleep mode.

●

When the computer is in Hibernation mode, press the
power button briefly to exit Hibernation mode.

If the computer has stopped responding and Windows®
shutdown procedures are ineffective, press and hold the
power button for at least 5 seconds to turn off the computer.

To learn more about your power settings, select Start >
Control Panel > System and Security > Power Options,
or refer to the HP Notebook Reference Guide.

ENWW Top 9

Keys

Component Description

(1) esc key Displays system information when pressed in combination

with the fn key

(2) fn key Displays system information when pressed in combination

with the esc key

(3)

Windows logo key Displays the Windows Start menu

(4)

Windows applications key Displays a shortcut menu for items beneath the pointer

(5) Action keys Execute frequently used system functions

10 Chapter 2 External component identification ENWW

Front

Component Description

Speakers (2) Produce sound

ENWW Front 11

Right side

Component Description

(1) Optical drive Plays optical discs, such as CDs, DVDs, and Blu-ray discs

(2) Optical drive light Green: The optical drive is being accessed.

(3)

USB port Connects an optional USB device

(4) AC adapter light

●

Blinking white: The battery is low.

● Solid white: The computer is connected to external

power.

●

Amber: The computer is charging the battery.

●

Off: The computer is not connected to external power.

(5)

Power connector Connects an AC adapter

(6)

Security cable slot Attaches an optional security cable to the computer

NOTE: The security cable is designed to act as a

deterrent, but it may not prevent the computer from being
mishandled or stolen.

12 Chapter 2 External component identification ENWW

Left side

Component Description

(1)

External monitor port Connects an external VGA monitor or projector

(2) Vents (2) Enable airflow to cool internal components

NOTE: The computer fan starts up automatically to cool

internal components and prevent overheating. It is normal
for the internal fan to cycle on and off during routine
operation.

(3)

RJ-45 (network) jack Connects a network cable

(4)

HDMI port Connects an optional video or audio device, such as a

high-definition television, or any compatible digital or audio
component

(5)

USB ports (2) Connect optional USB devices

(6)

Audio-in (microphone) jack Connects an optional computer headset microphone,

stereo array microphone, or monaural microphone

(7)

Audio-out (headphone) jack Produces sound when connected to optional powered

stereo speakers, headphones, earbuds, a headset, or
television audio

WARNING! To reduce the risk of personal injury, adjust

the volume before putting on headphones, earbuds, or a
headset. For additional safety information, refer to the
Regulatory, Safety and Environmental Notices.

NOTE: When a device is connected to the jack, the

computer speakers are disabled.

ENWW Left side 13

Component Description

(8) Digital Media Slot Supports the following optional digital card formats:

● MultiMedia Card (MMC)

●

Secure Digital (SD) Memory Card

●

Secure Digital High Capacity (SDHC) Memory Card

● Secure Digital Extended Capacity (SDXC) Memory

Card

(9)

Hard drive light ● White: The hard drive is being accessed.

(10)

Power light

●

White: The computer is on.

● Blinking white: The computer is in Sleep mode.

14 Chapter 2 External component identification ENWW

Display

Component Description

(1) WLAN antennas (2)* Send and receive wireless signals to communicate with wireless

local area networks (WLANs)

(2) Webcam light On: The webcam is in use.

(3) Webcam Records video and captures still photographs

To use the webcam, select Start > All Programs > Cyberlink
YouCam.

(4) Internal microphone Records sound

*The antennas are not visible from the outside of the computer. For optimal transmission, keep the areas immediately
around the antennas free from obstructions. To see wireless regulatory notices, refer to the section of the Regulatory, Safety
and Environmental Notices that applies to your country or region. These notices are located in Help and Support.

ENWW Display 15

Bottom

Component Description

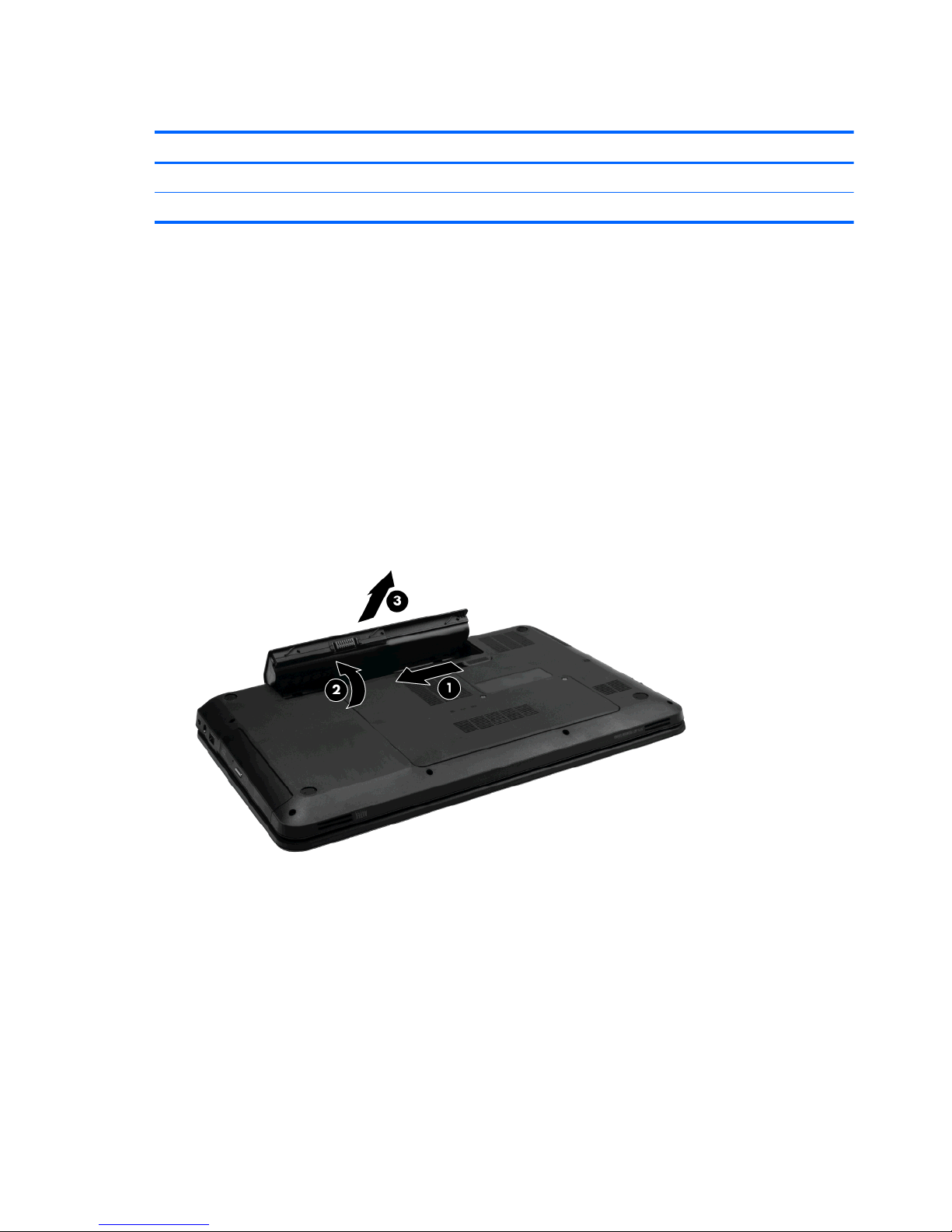

(1) Battery bay Holds the battery

(2) Vents (5) Enable airflow to cool internal components

NOTE: The computer fan starts up automatically to cool

internal components and prevent overheating. It is normal
for the internal fan to cycle on and off during routine
operation.

(3)

Battery release latch Releases the battery from the battery bay

(4)

Service cover Provides access to the hard drive, wireless modules, and

memory modules

16 Chapter 2 External component identification ENWW

3 Illustrated parts catalog

Serial number location

When ordering parts or requesting information, provide the computer serial number and model
number located in the battery bay of the computer.

Component Description

(1) Product name The name affixed to the front of the computer.

(2) Serial number (s/n) An alphanumeric identifier that is unique to each product.

(3) Part number/Product number (p/n) This number provides specific information about the product’s

hardware components. The part number helps a service technician
to determine what components and parts are needed.

(4) Warranty period The duration of the warranty period for the computer.

(5) Model description An alphanumeric identifier used to locate documents, drivers, and

support for the computer.

ENWW Serial number location 17

Computer major components

18 Chapter 3 Illustrated parts catalog ENWW

Item Description Spare part number

(1) 39.6-cm (15.6-in) High Definition (HD), light-emitting diode (LED), BrightView

(1366×768) display assembly:

NOTE: For more information on the display assembly internal component spare part

information, See

Display assembly components on page 24.

● For use in Charcoal Grey computer models 645523-001

●

For use in Ocean Drive computer models 636378-001

●

For use in Sonoma Red computer models 645521-001

● For use in Luminous Rose computer models 645522-001

●

For use in Pewter computer models 645524-001

●

For use in Pacific Blue computer models 645525-001

● For use in Pearl Pink computer models 645526-001

●

For use in Sweet Purple computer models 645527-001

●

For use in Butter Gold computer models 645528-001

(2) Keyboard (includes keyboard cable):

●

For use in the United States, Black 636376-001

●

For use in French Canada, Black 636376-121

● For use in the United Kingdom, Black 636376-031

●

For use in Germany, Black 636376-041

●

For use in France, Black 636376-051

● For use in Italy, Black 636376-061

●

For use in Spain, Black 636376-071

●

For use in Portugal, Black 636376-131

● For use in Turkey, Black 636376-141

●

For use in Saudi Arabia, Black 636376-171

●

For use in Hungary, Black 636376-211

● For use in Czechoslovakia, Black 636376-221

●

For use in Russia, Black 636376-251

●

For use in Europe, Black 636376-A41

● For International use, Black 636376-B31

●

For use in the Adriatics, Black 636376-BA1

●

For use in Israel, Black 636376-BB1

● For use in Switzerland, Black 636376-BG1

●

For use in the Netherlands, Black 636376-DH1

●

For use in Greece, Black 636376-DJ1

● For use in the United States, Pink 645893-001

ENWW Computer major components 19

Item Description Spare part number

●

For use in French Canada, Pink 645893-121

●

For use in the United Kingdom, Pink 645893-031 645893-031

● For use in Germany, Pink 645893-041

●

For use in France, Pink 645893-051

●

For use in Italy, Pink 645893-061

● For use in Spain, Pink 645893-071

●

For use in Portugal, Pink 645893-131

●

For use in Turkey, Pink 645893-141

● For use in Saudi Arabia, Pink 645893-171

●

For use in Hungary, Pink 645893-211

●

For use in Czechoslovakia, Pink 645893-221 645893-221

● For use in Czechoslovakia, Pink 645893-221

●

For use in Russia, Pink 645893-251

●

For use in Europe, Pink 645893-A41

● For International use, Pink 645893-B31

●

For use in the Adriatics, Pink 645893-BA1

●

For use in Switzerland, Pink 645893-BG1

● For use in the Netherlands, Pink 645893-DH1

●

For use in Greece, Pink 645893-DJ1

(3) Top cover (includes TouchPad board):

● For use in Ocean Drive computer models 637196-001

●

For use in Luminous Rose computer models 641287-001

●

For use in Sweet Purple computer models 641297-001

● For use in Butter Gold computer models 641299-001

●

For use in Pewter computer models 641291-001

●

For use in Charcoal Grey computer models 641289-001

● For use in Sonoma Red computer models 641285-001

●

For use in Pacific Blue computer models 641293-001

●

For use in Pearl Pink computer models 641295-001

(4) Power connector (includes cable) 641137-001

(5) USB board (includes cable) 641145-001

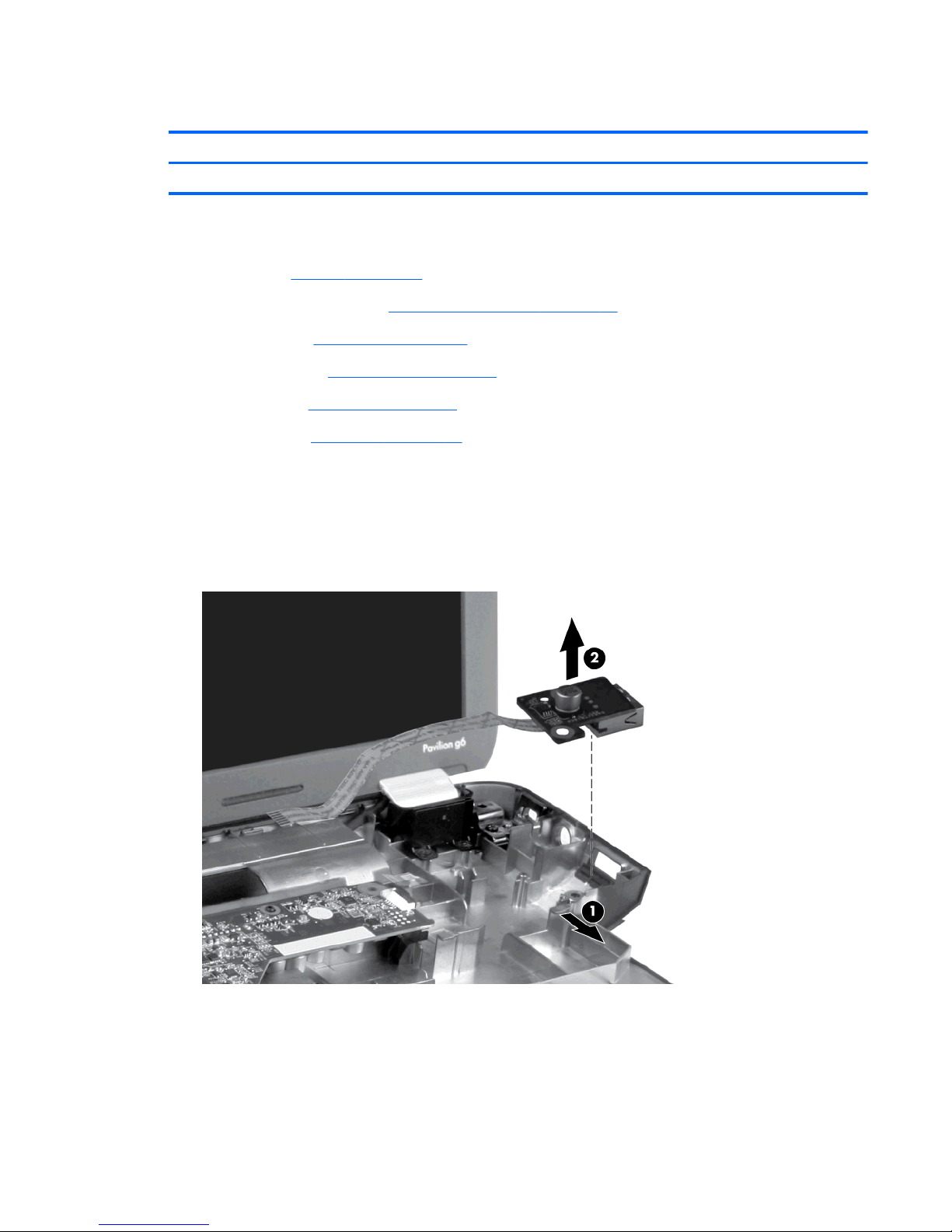

(6) Power button board (includes cable) 641144-001

(7 &

10)

System board

(includes replacement thermal material):

● For use in Intel HM55 UMA computer models 636373-001

20 Chapter 3 Illustrated parts catalog ENWW

Item Description Spare part number

●

For use in Intel HM65 UMA computer models 639522-001

●

For use in Intel HM55 discrete, 512 M, computer models 636371-001

● For use in Intel HM55 discrete, 1 GB, computer models 636372-001

●

For use in Intel HM65 discrete, 512 M, computer models 636374-001

●

For use in Intel HM65 discrete, 6470M 512M BACO, computer models 650198-001

● For use in Intel HM65 discrete, 6470M 1G BACO, computer models 650199-001

●

For use in Intel HM65 discrete, 1 GB, computer models 636375-001

●

For use in AMD UMA computer models 638856-001

● For use in AMD discrete, 6470M 512M computer models 638854-001

●

For use in AMD discrete, 6470M 1G computer models 638855-001

For use in AMD UMA E-350 645529-001

For use in BACO discrete 880MD 6470/512MB 647626-001

For use in BACO discrete 880MD 6470/1GB 647627-001

For use in AMD UMA A60M 649948-001

For use in AMD discrete A60M HD 6470/512M 649949-001

For use in AMD discrete A60M DSC HD 6470/1G 649950-001

(8 &

11)

Processor (includes replacement thermal material)

●

Intel Core i7-2620M processor (2.7 GHz, SC turbo up to 3.40 GHz, 4 MB L3), Dual
35 W

631252-001

●

Intel Core i5-2540M processor (2.6 GHz,SC turbo up to 3.3 GHz, 3 MB L3), Dual 35W631255-001

●

Intel Core i5-2520M processor (2.5 GHz, SC turbo up to 3.2 GHz, 3 MB L3), Dual 35W631253-001

●

Intel Core i5-2410M processor (2.3 GHz, SC turbo up to 2.9 GHz, 3 MB L3), Dual 35W638039-001

●

Intel Core i3 2310M (2.1 GHz, 3 MB L3) Dual 35 W 638037-001

● Intel Core i5-480M processor (2.66 GHz, SC turbo up to 2.93 GHz, 3 MB L3), Dual

35 W

634693-001

● Intel Core i3-390M processor (2.66 GHz, 3 MB L3), Dual 35 W 634692-001

●

Intel Core i3-380M processor (2.53 GHz, 3 MB L3), Dual 35 W 625823-001

●

Intel Pentium P6300 (2.26 GHz, 3 MB L3), Dual 35 W 635500-001

● Intel Pentium P6200 (2.13 GHz, 3 MB L3), Dual 35 W 625831-001

●

Phenom II N970 (2.2 GHz, 2 MB L2, 1333 MHz, 3.6GT/s –Quad 35 W 635496-001

●

Phenom II P960 (1.8 GHz, 2 MB L2, 1066 MHz, 3.6GT/s – Quad 25 W 634689-001

● Phenom II N870 (2.3 GHz, 1.5 MB L2, 1333 MHz, 3.6GT/s –Triple 35 W 635495-001

●

Phenom II P860 (2.0 GHz, 1.5 MB L2, 1066 MHz, 3.6GT/s –Triple 25 W 634688-001

ENWW Computer major components 21

Item Description Spare part number

●

Phenom II N850 (2.2 GHz, 1.5 MB L2, 1333 MHz, 3.6GT/s –Triple 35 W 616345-001

●

Phenom II N660 (3.0 GHz, 2 MB L2, 1333 MHz, 3.6GT/s –Dual 35 W 635494-001

● Phenom II P650 (2.6 GHz, 2 MB L2, 1066 MHz, 3.6GT/s – Dual 25 W 634687-001

●

Turion II P560 (2.5 GHz, 2 MB L2, 1066 MHz, 3.6GT/s–Dual 25 W 634691-001

●

Athlon II P360 (2.3 GHz, 1 MB L2, 1066 MHz, 3.6GT/s–Dual 25 W 636635-001

● Athlon II P340 (2.2 GHz, 1 MB L2, 1066 MHz, 3.2GT/s–Dual 25 W 616343-001

●

V160 (2.4 GHz, 512 KB L2, 1066 MHz, 3.2 GT/s) – SC 25 W 636634-001

●

V140 (2.3 GHz, 512 KB L2, 1066 MHz, 3.2 GT/s) – SC 25 W 616333-001

(9 &

12)

Heat sink assembly (includes replacement thermal material):

● For use in AMD UMA computer models 639463-001

●

For use in AMD discrete computer models 639462-001

●

For use in Intel UMA HM55 computer models 637189-001

● For use in Intel discrete HM55 computer models 637190-001

●

For use in Intel UMA HM65 computer models 641140-001

●

For use in Intel discrete HM65 computer models 641141-001

● For use in Intel discrete HM55 computer models 637190-001

●

For use in Intel discrete BGA computer models 654119-001

●

For use in Intel UMA BGA computer models 654120-001

Fan (available separately) 639460-001

(13) Speaker assembly (includes cable) 641396-001

(14) RTC battery (includes mounting adhesive) 637193-001

(15) Drive activity light board 640215-001

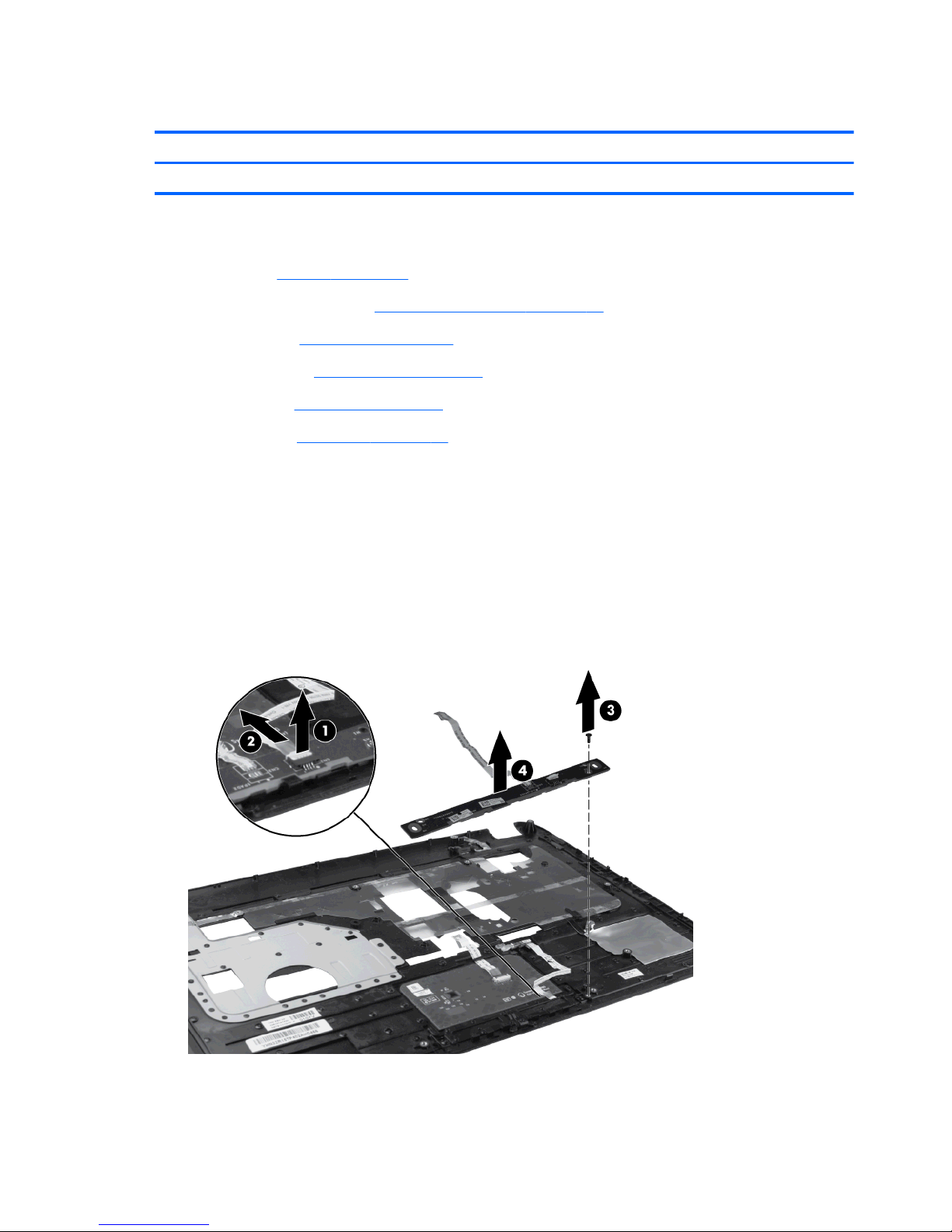

(16) TouchPad button board 641143-001

(17) Base enclosure 637187-001

(18) Wireless (WLAN) module

●

Atheros AR9285 802.11a/b/g/n 2x2 WiFi adapter for use in Canada, the Cayman
Islands, Guam, Puerto Rico, the United States, and the US Virgin Islands

580101-001

●

Broadcom 4313 802.11b/g/n 1x1 WiFi and 2070 Bluetooth 2.1+EDR Combo adapter
(BT3.0+HS ready)

600370–001

●

Broadcom 4313GN 802.11b/g/n 1x1 WiFi Adapter 593836-001

●

Intel Centrino® Wireless-N 1030 + Bluetooth (802.11b/g/n) 631956-001

● Intel Centrino® Wireless-N 1000 (802.11b/g/n) 593530-001

●

Ralink 5390GN 802.11b/g/n 1x1 WiFi Adapter 630703-001

●

Ralink 5390BC8 802.11b/g/n 1x1 WiFi and Bluetooth 3.0+HS Combo Adapter 630705-001

22 Chapter 3 Illustrated parts catalog ENWW

Item Description Spare part number

●

Realtek RTL8191SE 802.11b/g/n 1x1 WiFi Adapter 640926-001

●

Realtek 8188BC8 802.11a/b/g/n 2x2 WiFi and Bluetooth 3.0+HS Combo Adapter 602993-001

● Atheros AR9285 802.11b/g/n WiFi + Bluetooth Adapter 593127-001

(19) Memory modules (1066 MHz, DDR3)

●

4 GB PC3 10600 1333 MHz shared 621569-001

● 2 GB PC3 10600 1333 MHz shared 621566-001

●

2 GB PC3 10600 1333 MHz shared 621565-001

●

1 GB PC3 10600 1333 MHz shared 639736-001

● 1 GB PC3 10600 1333 MHz shared 621559-001

(20) Hard drive connector board 644525-001

(21) Hard drive

Supports the following 9.5 mm, 6.35 cm (2.5 in) SATA hard drives:

●

750 GB, 5400 rpm 644351-001

●

640 GB, 5400 rpm 637312-001

● 500 GB, 7200 rpm 644685-001

●

320 GB, 5400 rpm 645086-001

Supports the following 7.0 mm, 6.35 cm (2.5 in) SATA hard drives:

● 320 GB, 7200 rpm 645089-001

●

250 GB, 7200 rpm 645091-001

●

Hard Drive Hardware Kit (not illustrated, includes bracket and screws) 639444-001

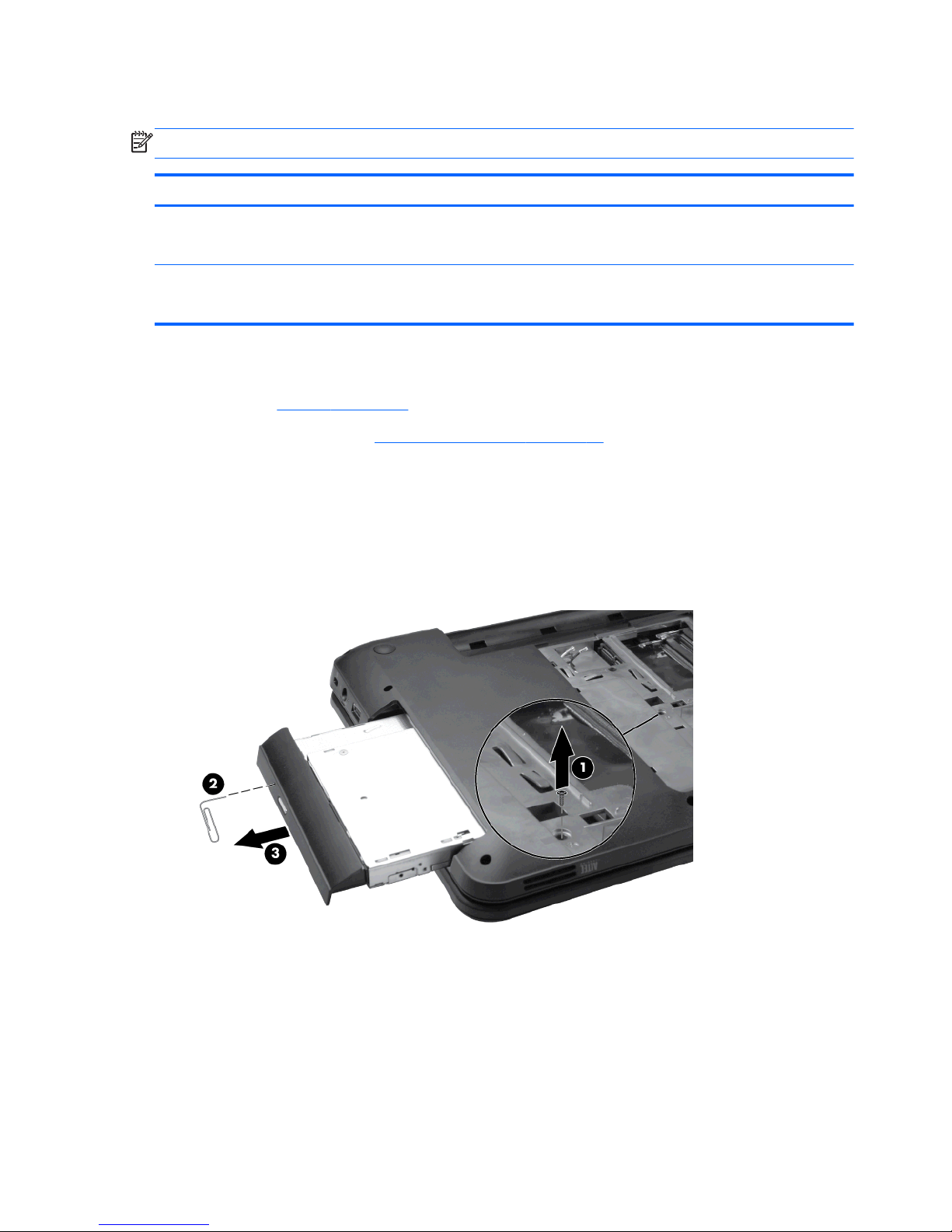

(22) Optical drive (includes optical drive bezel and bracket)

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe* 636380-001

Blu-ray Disc ROM with LightScribe* DVD±R/RW SuperMulti Double-Layer Drive 636379-001

Weight Saver optical drive 659621-001

NOTE: *Select models only.

(23) Battery

● 6-cell Li-lon, 2.20 Ah, 47 Wh 593553-001

●

6-cell Li-lon, 2.55 Ah, 55 Wh 593554-001

Rubber Kit (not illustrated, includes rubber feet) 639455-001

(24) Plastics Kit (includes service access cover) 637192-001

ENWW Computer major components 23

Display assembly components

Item Description Spare part number

(1) Display bezel 637188-001

(2) Webcam module 637197-001

(3) 39.6-cm (15.6-in) high-definition, BrightView LED display panel 647623-001

(4) Display bracket (with hinges) 637191-001

(5) Display hinge covers 641142-001

(6) Display cable (included in the Display Cable Kit) 641136-001

(7) Wireless antenna (includes wireless antenna transceivers and cable) 637185-001

(8) Display back cover (includes logo):

●

For use in Ocean Drive computer models 637186-001

● For use in Sonoma Red computer models 641284-001

● For use in Luminous Rose computer models 641286-001

24 Chapter 3 Illustrated parts catalog ENWW

Item Description Spare part number

●

For use in Charcoal Grey computer models 641288-001

●

For use in Pewter computer models 641290-001

● For use in Pacific Blue computer models 641292-001

●

For use in Pearl Pink computer models 641294-001

●

For use in Sweet Purple computer models 641296-001

● For use in Butter Gold computer models 641298-001

ENWW Display assembly components 25

Mass storage devices

Item Description Spare part number

(1) Hard drive

Supports the following 9.5 mm, 6.3 cm (2.5 in) SATA hard drives:

●

750 GB, 5400 rpm 644351-001

● 640 GB, 5400 rpm 637312-001

●

500 GB, 7200 rpm 644685-001

●

320 GB, 5400 rpm 645086-001

Supports the following 7 mm, 6.3 cm (2.5 in) SATA hard drives:

●

320 GB, 7200 rpm 645089-001

●

250 GB, 7200 rpm 645091-001

Hard Drive Hardware Kit (not illustrated, includes bracket and screws) 639444-001

(2) Optical drive (12.7 mm, SATA, fixed, includes bezel and bracket)

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive 636380-001

Blu-ray Disc ROM with LightScribe* DVD±R/RW Combo Drive

NOTE: *Select models only.

636379-001

26 Chapter 3 Illustrated parts catalog ENWW

Miscellaneous parts

Description Spare part number

AC adapters

● 65-W AC adapter 609939-001

●

90-W AC adapter 609940-001

●

65-W AC adapter (EM) 609948-001

● 90-W AC adapter (EM) 609947-001

Power cord, AC, 3 wire, black, 1.83-m

●

For use in North America 490371-001

● For use in Australia 490371-011

●

For use in Europe 490371-021

●

For use in the United Kingdom and Singapore 490371-031

● For use in Italy 490371-061

●

For use in Switzerland 490371-111

●

For use in Denmark 490371-081 490371-081

● For use in Thailand 490371-201

●

For use in Japan 490371-291

●

For use in the People's Republic of China 490371-AA1

● For use in Taiwan 490371-AB1

●

For use in South Korea 490371-AD1

●

For use in South Africa 490371-AR1

● For use in Israel 490371-BB1

●

For use in India 490371-D61

Bluetooth cable 602822-001

Bluetooth module 537921-001

Cable Kit (includes optical drive cable, hard drive cable, and TouchPad cable) 641139-001

Drive activity light board 640215-001

Thermal pad 634433-001

ENWW Miscellaneous parts 27

Description Spare part number

TouchPad LED board 647622-001

Screw kit

● Phillips 2.5x3.0 screw

● Phillips 2.5x5 nylon screw

● Phillips 3.0x2.0 screw

●

Phillips 2.5x6.5 screw

●

Phillips 2.5x10.3 screw

●

Phillips 4.0×2.5 screw

637194-001

28 Chapter 3 Illustrated parts catalog ENWW

Sequential part number listing

Spare part number Description

490371-001 Power cord, AC, 3 wire, black, 1.83 m for use in North America

490371-021 Power cord, AC, 3 wire, black, 1.83 m for use in Europe

490371-031 Power cord, AC, 3 wire, black, 1.83 m for use in the United Kingdom and Singapore

490371-061 Power cord, AC, 3 wire, black, 1.83 m for use in Italy

490371-081 Power cord, AC, 3 wire, black, 1.83 m for use in Denmark

490371-111 Power cord, AC, 3 wire, black, 1.83 m for use in Switzerland

490371-201 Power cord, AC, 3 wire, black, 1.83 m for use in Thailand

490371-291 Power cord, AC, 3 wire, black, 1.83 m for use in Japan

490371-AA1 Power cord, AC, 3 wire, black, 1.83 m for use in the People's Republic of China

490371-AB1 Power cord, AC, 3 wire, black, 1.83 m for use in Taiwan

490371-AD1 Power cord, AC, 3 wire, black, 1.83 m for use in Korea

490371-AR1 Power cord, AC, 3 wire, black, 1.83 m for use in South Africa

490371-BB1 Power cord, AC, 3 wire, black, 1.83 m for use in Israel

490371-D61 Power cord, AC, 3 wire, black, 1.83 m for use in India

537921-001 Bluetooth module

580101-002 Atheros AR9285 802.11a/b/g/n 2x2 WiFi adapter for use in Canada, the Cayman Islands,

Guam, Puerto Rico, the United States, and the US Virgin Islands

593127-001 Atheros AR9285 802.11b/g/n WiFi + Bluetooth Adapter

593530-001 Intel WiFi Link 5100 802.11/b/g/n WLAN module for use in Afghanistan, Albania, Algeria,

Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria,
Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin,
Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands,
Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon, Canada, Cape Verde, the Cayman Islands,
the Central African Republic, Chad, Chile, Colombia, Comoros, the Congo, Costa Rica, Croatia,
Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor,
Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France,
French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada,
Guadeloupe, Guatemala, Guam, Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong,
Hungary, Iceland, India, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan,
Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania,
Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the
Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia,
Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the
Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Palau, Panama, Papua
New Guinea, Paraguay, the People's Republic of China, Peru, the Philippines, Poland,
Portugal, Puerto Rico, the Republic of Moldova, Romania, Rwanda, Samoa, San Marino, Sao
Tome and Principe, Saudi Arabia, Senegal, Serbia and Montenegro, the Seychelles, Sierra
Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South
Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia, St. Vincent and the Grenadines,
Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo, Tonga,
Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, the United Arab
Emirates, the United Kingdom, Uruguay, the U.S. Virgin Islands, the United States, Uzbekistan,
Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

593553–001 Battery, 6-cell, 2.20 Ah, 47 Wh

ENWW Sequential part number listing 29

Spare part number Description

593554-001 Battery, 6-cell, 2.55 Ah, 55 Wh

593836-001 Broadcom 4313GN 802.11b/g/n 1x1 WiFi Adapter

600370-001 Broadcom 4313 802.11b/g/n 1x1 WiFi and 2070 Bluetooth 2.1+EDR Combo adapter

(BT3.0+HS ready)

602822-001 Bluetooth cable

605560-005 Atheros AR9285 802.11 a/b/g/n 2x2 WiFi adapter

602993-001 Realtek 8188BC8 802.11a/b/g/n 2x2 WiFi and Bluetooth 3.0+HS Combo Adapter

609939-001 65 W AC adapter

609940-001 90 W AC adapter

609947-001 90-W AC adapter (EM)

609948-001 65-W AC adapter (EM)

616333-001 V140 processor (2.3GHz, 512K L2, 1066MHz, 3.2GT/s), SC 25W

616343-001 Athlon II P340 processor (2.2GHz, 1MB L2, 1066MHz, 3.2GT/s), Dual 25W

616345-001 Phenom II N850 processor (2.2GHz, 1.5MB L2, 1333MHz, 3.6GT/s), Triple 35W

621559-001 1 GB memory module, 10600 1333 MHz shared

621565-001 2 GB memory module, 10600 1333 MHz shared

621566-001 2 GB memory module, 10600 1333 MHz shared

621569-001 4 GB memory module, 10600 1333 MHz shared

625823-001 Intel Core™ i3-380M processor (2.53 GHz, 3 MB L3), Dual 35 W

625831-001 Intel Pentium P6200 processor (2.13 GHz, 3 MB L3), Dual 35 W

630703-001 Ralink 5390GN 802.11b/g/n 1x1 WiFi Adapter

630705-001 Ralink 5390BC8 802.11b/g/n 1x1 WiFi and Bluetooth 3.0+HS Combo Adapter

631252-001 Intel Core™ i7-2620M processor (2.7 GHz, SC turbo up to 3.40 GHz, 4 MB L3), Dual 35 W

631253-001 Intel Core™ i5-2520M processor (2.5 GHz, SC turbo up to 3.2 GHz, 3 MB L3), Dual 35 W

631255-001 Intel Core™ i5-2540M processor (2.6 GHz,SC turbo up to 3.3 GHz, 3 MB L3), Dual 35 W

631956-001 Intel Centrino® Wireless-N 1030 + Bluetooth 802.11 b/g/n adapter

634638-001 500 GB, 5400 rpm 9.5 mm, 6.35 cm (2.5 in) SATA hard drive

634433-001 Thermal pad

634687-001 Phenom II P650 processor (2.6GHz, 2MB L2, 1066MHz, 3.6GT/s), Dual 25W

634688-001 Phenom II P860 processor (2.0GHz, 1.5MB L2, 1066MHz, 3.6GT/s), Triple 25W

634689-001 Phenom II P960 processor (1.8GHz, 2MB L2, 1066MHz, 3.6GT/s), Quad 25W

634691-001 Turion II P560 (2.5GHz, 2MB) 35W processor

634692-001 i3-390M (2.66 GHz, 3MB) 35W processor

634693-001 i5-480M (2.66GHz, 3MB) 35W processor

634691-001 Turion II P560 (2.5GHz, 2MB) 35W processor

30 Chapter 3 Illustrated parts catalog ENWW

Spare part number Description

635494-001 Phenom II N660 (3.0GHz, 2MB)

635495-001 Phenom II N870 processor (2.3GHz, 1.5MB L2, 1333MHz, 3.6GT/s), Triple 35W

635496-001 Phenom II N970 processor (2.2GHz, 2MB L2, 1333MHz, 3.6GT/s), Quad 35W

635500-001 Intel Pentium P6300 processor (2.26 GHz, 3 MB L3), Dual 35 W

636370-001 System board for use in Intel HM55 UMA computer models

636371-001 System board (includes replacement thermal material) for use in Intel HM55 discrete, 512 M,

computer models

636372-001 System board (includes replacement thermal material) for use in Intel HM55 discrete, 1 GB,

computer models

636373-001 System board (includes replacement thermal material) for use in Intel HM55 UMA computer

models

636374-001 System board (includes replacement thermal material) for use in Intel HM65 discrete, 512 M,

computer models

636375-001 System board (includes replacement thermal material) for use in Intel HM65 discrete, 1 GB,

computer models

636376-001 Keyboard, black (includes keyboard cable) for use in the United States, Black

636376-031 Keyboard, black (includes keyboard cable) for use in the United Kingdom

636376-041 Keyboard, black (includes keyboard cable) for use in Germany

636376-051 Keyboard, black (includes keyboard cable) for use in France

636376-061 Keyboard, black (includes keyboard cable) for use in Italy

636376-071 Keyboard, black (includes keyboard cable) for use in Spain

636376-121 Keyboard, black (includes keyboard cable) for use in French Canada, Black

636376-131 Keyboard, black (includes keyboard cable) for use in Portugal

636376-141 Keyboard, black (includes keyboard cable) for use in Turkey

636376-171 Keyboard, black (includes keyboard cable) for use in Saudi Arabia

636376-211 Keyboard, black (includes keyboard cable) for use in Hungary

636376-221 Keyboard, black (includes keyboard cable) for use in Czechoslovakia

636376-251 Keyboard, black (includes keyboard cable) for use in Russia

636376-281 Keyboard, black (includes keyboard cable) for use in Thailand

636376-291 Keyboard, black (includes keyboard cable) for use in Japan

636376-A41 Keyboard, black (includes keyboard cable) for use in Europe

636376-AB1 Keyboard, black (includes keyboard cable) for use in Taiwan

636376-AD1 Keyboard, black (includes keyboard cable) for use in Korea

636376-B31 Keyboard, black (includes keyboard cable) for international use

636376-BA1 Keyboard, black (includes keyboard cable) for use in the Adriatics

636376-BB1 Keyboard, black (includes keyboard cable) for use in Israel

ENWW Sequential part number listing 31

Spare part number Description

636376-BG1 Keyboard, black (includes keyboard cable) for use in Switzerland

636376-DH1 Keyboard, black (includes keyboard cable) for use in the Netherlands

636376-DJ1 Keyboard, black (includes keyboard cable) for use in Greece

636378-001 39.6 cm (15.6 in) HD LED BrightView (1366×768) display assembly for use in Ocean Drive

computer models

636379-001 Blu-ray Disc ROM with LightScribe* DVD±R/RW SuperMulti Double-Layer Drive

NOTE: *Select models only.

636380-001 DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe*

NOTE: *Select models only.

636634-001 V160 processor (2.4GHz, 512K L2, 1066MHz, 3.2GT/s), SC 25W

636635-001 Athlon II P360 processor (2.3GHz, 1MB L2, 1066MHz, 3.6GT/s), Dual 25W

637185-001 Wireless antenna (includes wireless antenna transceivers and cable)

637186-001 Display back cover (includes logo) for use in Ocean Drive computer models

637187-001 Base enclosure

637188-001 Display bezel

637189-001 Heat sink assembly (includes replacement thermal material) for use in Intel UMA HM55

computer models

637190-001 Heat sink assembly (includes replacement thermal material) for use in Intel discrete HM55

computer models

637191-001 Display bracket (with hinges)

637192-001 Plastics Kit (includes service access cover)

637193-001 RTC battery

637194-001 Screw Kit

637196-001 Top cover for use in Ocean Drive computer models

637197-001 Webcam module

637312-001 640 GB, 5400 rpm 9.5 mm, 6.35 cm (2.5 in) SATA hard drive

638037-001 Intel Core i3 2310M processor (2.1 GHz, 3 MB L3), Dual 35 W

638039-001 Intel Core™ i5-2410M processor (2.3 GHz, SC turbo up to 2.9 GHz, 3 MB L3), Dual 35 W

638854-001 System board (includes replacement thermal material) for use in AMD discrete 6470 512 MB

computer models

638855-001 System board (includes replacement thermal material) for use in AMD discrete 6470 1 GB

computer models

638856-001 System board (includes replacement thermal material) for use in AMD UMA computer models

639444-001 Hard Drive Hardware Kit (includes bracket and screws)

639455-001 Rubber Kit (includes rubber feet)

639460-001 Heat sink fan

32 Chapter 3 Illustrated parts catalog ENWW

Spare part number Description

639462-001 Heat sink assembly (includes replacement thermal material) for use in AMD discrete computer

models

639463-001 Heat sink assembly (includes replacement thermal material) for use in AMD UMA computer

models

639736-001 1 GB PC3 10600 1333 MHz shared [AMD ONLY??]

639511-001 Display hinges

639522-001 System board (includes replacement thermal material) for use in Intel HM65 UMA computer

models

639527-001 Top cover (includes TouchPad board) for use in Ocean Drive computer models

640215-001 Drive activity light board

640926-001 Realtek RTL8191SE 802.11b/g/n 1x1 WiFi Adapter

641136-001 Display cable (included in the Display Cable Kit)

641137-001 Power connector (includes cable)

641139-001 Cable Kit (includes optical drive cable, hard drive cable, and TouchPad cable)

641140-001 Heat sink for use in Intel UMA HM65 computer models

641141-001 Heat sink for use in Intel discrete HM65 computer models

641142-001 Display hinge covers

641143-001 TouchPad button board (includes bracket and cable)

641144-001 Power button board (includes cable)

641145-001 USB board (includes cable)

641284-001 Display back cover (includes logo) for use in Sonoma Red computer models

641285-001 Top cover (includes TouchPad board) for use in Sonoma Red computer models

641286-001 Display back cover (includes logo) for use in Luminous Rose computer models

641287-001 Top cover (includes TouchPad board) for use in Luminous Rose computer models

641288-001 Display back cover (includes logo) for use in Charcoal Grey computer models

641289-001 Top cover (includes TouchPad board) for use in Charcoal Grey computer models

641290-001 Display back cover (includes logo) for use in Pewter computer models

641291-001 Top cover (includes TouchPad board) for use in Pewter computer models

641292-001 Display back cover (includes logo) for use in Pacific Blue computer models

641293-001 Top cover (includes TouchPad board) for use in Pacific Blue computer models

641294-001 Display back cover (includes logo) for use in Pearl Pink computer models

641295-001 Top cover (includes TouchPad board) for use in Pearl Pink computer models

641296-001 Display back cover (includes logo) for use in Sweet Purple computer models

641297-001 Top cover (includes TouchPad board) for use in Sweet Purple computer models

641298-001 Display back cover (includes logo) for use in Butter Gold computer models

ENWW Sequential part number listing 33

Spare part number Description

641299-001 Top cover (includes TouchPad board) for use in Butter Gold computer models

641396-001 Speaker assembly (includes cable)

644351-001 750 GB, 5400 rpm 9.5 mm, 6.35 cm (2.5 in) SATA hard drive

644685-001 500 GB, 7200 rpm 9.5 mm, 6.35 cm (2.5 in) SATA hard drive

645086-001 320 GB, 5400 rpm 9.5 mm, 6.35 cm (2.5 in) SATA hard drive

645089-001 320 GB, 7200 rpm, 7.0 mm, 6.35 cm (2.5 in) SATA hard drive

645091-001 250 GB, 7200 rpm, 7.0 mm, 6.35 cm (2.5 in) SATA hard drive

645521-001 39.6 cm (15.6 in) HD LED BrightView (1366×768) display assembly for use in Sonoma Red

computer models

645522-001 39.6 cm (15.6 in) HD LED BrightView (1366×768) display assembly for use in Luminous Rose

computer models

645523-001 39.6 cm (15.6 in) HD LED BrightView (1366×768) display assembly for use in Charcoal Grey

computer models

645524-001 39.6 cm (15.6 in) HD LED BrightView (1366×768) display assembly for use in Pewter computer

models

645525-001 39.6 cm (15.6 in) HD LED BrightView (1366×768) display assembly for use in Pacific Blue

computer models

645526-001 39.6 cm (15.6 in) HD LED BrightView (1366×768) display assembly for use in Pearl Pink

computer models

645527-001 39.6 cm (15.6 in) HD LED BrightView (1366×768) display assembly for use in Sweet Purple

computer models

645528-001 39.6 cm (15.6 in) HD LED BrightView (1366×768) display assembly for use in Butter Gold

computer models

645529-001 System board (includes replacement thermal material) for use in AMD E350 UMA computer

models

645893-001 Keyboard for use in the United States, Pink

645893-031 Keyboard for use in the United Kingdom, Pink

645893-041 Keyboard for use in Germany, Pink

645893-051 Keyboard for use in France, Pink

645893-061 Keyboard for use in Italy, Pink

645893-071 Keyboard for use in Spain, Pink

645893-121 Keyboard for use in French Canada, Pink

645893-131 Keyboard for use in Portugal, Pink

645893-141 Keyboard for use in Turkey, Pink

645893-171 Keyboard for use in Saudi Arabia, Pink

645893-211 Keyboard for use in Hungary, Pink

645893-221 Keyboard for use in Czechoslovakia, Pink

645893-251 Keyboard for use in Russia, Pink

34 Chapter 3 Illustrated parts catalog ENWW

Spare part number Description

645893-A41 Keyboard for use in Europe, Pink

645893-B31 Keyboard for international use, Pink

645893-BA1 Keyboard for use in the Adriatics, Pink

645893-BB1 Keyboard for use in Israel, Pink

645893-BG1 Keyboard for use in Switzerland, Pink

645893-DH1 Keyboard for use in the Netherlands, Pink

645893-DJ1 Keyboard for use in Greece, Pink

647622-001 TouchPad LED board

647623-001 39.6-cm (15.6-in) high-definition, BrightView LED display panel

647626-001 System board (includes replacement thermal material) for use in BACO discrete, 6470M 512M

computer models

647627-001 System board (includes replacement thermal material) for use in BACO discrete, 6470M 1GB

computer models

649948-001 System board (includes replacement thermal material) for use in AMD UMA computer models

649949-001 System board (includes replacement thermal material) for use in AMD discrete, 6470M 512M

computer models

649950-001 System board (includes replacement thermal material) for use in AMD discrete, 6470M 1G

computer models

650198-001 System board (includes replacement thermal material) for use in Intel HM65 discrete, 6470M

512M BACO, computer models -

650199-001 System board (includes replacement thermal material) for use in Intel HM65 discrete, 6470M

1G BACO, computer models -

653337-001 Pentium B940, 2GHz processor

653338-001 Pentium B950, 2.1GHz processor

653339-001 Pentium i3-2330M 2.2GHz processor

653340-001 Pentium i3-2350M, 2.3GHz processor

653348-001 Llano A4-3300M, 2.5GHz/1.9GHz processor

653349-001 Llano A6-3400M, 2.3/1.4GHz processor

653350-001 Llano A8-3500M, 2.4/1.5GHz processor

654119-001 For use in Intel BGA discrete computer models

654120-001 For use in Intel BGA UMA computer models

659621-001 Weight saver optical drive

ENWW Sequential part number listing 35

36 Chapter 3 Illustrated parts catalog ENWW

4 Removal and replacement procedures

Preliminary replacement requirements

Tools required

The following tools are needed to complete the removal and replacement procedures:

● Flat-bladed screwdriver

● Magnetic screwdriver

●

Phillips P0 and P1 screwdrivers

Service considerations

Before disassembly or assembly procedures, review and adhere to all service considerations.

NOTE: As you remove each subassembly from the computer, place the subassembly (and all

accompanying screws) away from the work area to prevent damage.

Plastic parts

Using excessive force during disassembly and reassembly can damage plastic parts. Use care when
handling the plastic parts. Apply pressure only at the points designated in the maintenance
instructions.

ENWW Preliminary replacement requirements 37

Cables and connectors

CAUTION: When servicing the computer, be sure that cables are placed in their proper locations

during the reassembly process. Improper cable placement can damage the computer.

Cables must be handled with extreme care to avoid damage. Apply only the tension required to
unseat or seat the cables during removal and insertion. Handle cables by the connector whenever
possible. In all cases, avoid bending, twisting, or tearing cables. Be sure that cables are routed in
such a way that they cannot be caught or snagged by parts being removed or replaced. Handle flex
cables with extreme care; these cables tear easily.

Drive handling

CAUTION: Drives are fragile components that must be handled with care. To prevent damage to

the computer, damage to a drive, or loss of information, observe these precautions:

Before removing or inserting a hard drive, shut down the computer. If you are unsure whether the
computer is off or in Hibernation, turn the computer on, and then shut it down through the operating
system.

Before handling a drive, be sure that you are discharged of static electricity. While handling a drive,
avoid touching the connector.

Before removing a diskette drive or optical drive, be sure that a diskette or disc is not in the drive and
be sure that the optical drive tray is closed.

Handle drives on surfaces covered with at least one inch of shock-proof foam.

Avoid dropping drives from any height onto any surface.

After removing a hard drive, an optical drive, or a diskette drive, place it in a static-proof bag.

Avoid exposing a hard drive to products that have magnetic fields, such as monitors or speakers.

Avoid exposing a drive to temperature extremes or liquids.

If a drive must be mailed, place the drive in a bubble pack mailer or other suitable form of protective
packaging and label the package “FRAGILE.”

38 Chapter 4 Removal and replacement procedures ENWW

Grounding guidelines

Electrostatic discharge damage

Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure
determine the degree of sensitivity. Networks built into many integrated circuits provide some
protection, but in many cases, ESD contains enough power to alter device parameters or melt
silicon junctions.

A discharge of static electricity from a finger or other conductor can destroy static-sensitive devices or
microcircuitry. Even if the spark is neither felt nor heard, damage might have occurred.

An electronic device exposed to ESD might not be affected at all and can work perfectly throughout a
normal cycle. Or the device might function normally for a while, then degrade in the internal layers,
reducing its life expectancy.

CAUTION: To prevent damage to the computer when removing or installing internal components,

observe these precautions:

Keep components in their electrostatic-safe containers until you are ready to install them.

Use nonmagnetic tools.

Before touching an electronic component, discharge static electricity by using the guidelines
described in this section.

Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.

If you remove a component, place it in an electrostatic-safe container.

The following table shows how humidity affects the electrostatic voltage levels generated by different
activities.

CAUTION: A product can be degraded by as little as 700 V.

Typical electrostatic voltage levels

Relative humidity

Event 10% 40% 55%

Walking across carpet 35,000 V 15,000 V 7,500 V

Walking across vinyl floor 12,000 V 5,000 V 3,000 V

Motions of bench worker 6,000 V 800 V 400 V

Removing DIPS from plastic tube 2,000 V 700 V 400 V

Removing DIPS from vinyl tray 11,500 V 4,000 V 2,000 V

Removing DIPS from Styrofoam 14,500 V 5,000 V 3,500 V

Removing bubble pack from PCB 26,500 V 20,000 V 7,000 V

Packing PCBs in foam-lined box 21,000 V 11,000 V 5,000 V

ENWW Preliminary replacement requirements 39

Packaging and transporting guidelines

Follow these grounding guidelines when packaging and transporting equipment:

● To avoid hand contact, transport products in static-safe tubes, bags, or boxes.

●

Protect ESD-sensitive parts and assemblies with conductive or approved containers or
packaging.

● Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.

●

Place items on a grounded surface before removing items from their containers.

●

Always be properly grounded when touching a component or assembly.

●

Store reusable ESD-sensitive parts from assemblies in protective packaging or nonconductive
foam.

●

Use transporters and conveyors made of antistatic belts and roller bushings. Be sure that
mechanized equipment used for moving materials is wired to ground and that proper materials
are selected to avoid static charging. When grounding is not possible, use an ionizer to dissipate
electric charges.

Workstation guidelines

Follow these grounding workstation guidelines:

● Cover the workstation with approved static-shielding material.

●

Use a wrist strap connected to a properly grounded work surface and use properly grounded
tools and equipment.

● Use conductive field service tools, such as cutters, screwdrivers, and vacuums.

●

When fixtures must directly contact dissipative surfaces, use fixtures made only of static-safe
materials.

● Keep the work area free of nonconductive materials, such as ordinary plastic assembly aids and

Styrofoam.

● Handle ESD-sensitive components, parts, and assemblies by the case or PCM laminate. Handle

these items only at static-free workstations.

●

Avoid contact with pins, leads, or circuitry.

● Turn off power and input signals before inserting or removing connectors or test equipment.

40 Chapter 4 Removal and replacement procedures ENWW

Equipment guidelines

Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation.

● When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible

straps with a minimum of one megohm ±10% resistance in the ground cords. To provide proper
ground, wear a strap snugly against the skin at all times. On grounded mats with banana-plug
connectors, use alligator clips to connect a wrist strap.

●

When standing, use foot straps and a grounded floor mat. Foot straps (heel, toe, or boot straps)
can be used at standing workstations and are compatible with most types of shoes or boots. On
conductive floors or dissipative floor mats, use foot straps on both feet with a minimum of one
megohm resistance between the operator and ground. To be effective, the conductive strips
must be worn in contact with the skin.

The following grounding equipment is recommended to prevent electrostatic damage:

●

Antistatic tape

●

Antistatic smocks, aprons, and sleeve protectors

●

Conductive bins and other assembly or soldering aids

●

Nonconductive foam

● Conductive tabletop workstations with ground cords of one megohm resistance

● Static-dissipative tables or floor mats with hard ties to the ground

●

Field service kits

●

Static awareness labels

●

Material-handling packages

●

Nonconductive plastic bags, tubes, or boxes

● Metal tote boxes

● Electrostatic voltage levels and protective materials

The following table lists the shielding protection provided by antistatic bags and floor mats.

Material Use Voltage protection level

Antistatic plastic Bags 1,500 V

Carbon-loaded plastic Floor mats 7,500 V

Metallized laminate Floor mats 5,000 V

ENWW Preliminary replacement requirements 41

Component replacement procedures

This chapter provides removal and replacement procedures.

There are as many as 78 screws, in 8 different sizes, that must be removed, replaced, or loosened
when servicing the computer. Make special note of each screw size and location during removal and
replacement.

Serial number

The serial number label, located in the battery bay of the computer, provides important information
that you may need when contacting technical support.

(1) Product name (4) Warranty period

(2) Serial number (5) Model description (select models)

(3) Product number

42 Chapter 4 Removal and replacement procedures ENWW

Computer feet

Description Spare part number

Rubber Feet Kit 639455-001

The computer feet are adhesive-backed rubber pads. The feet attach to the base enclosure in the
locations illustrated below.

ENWW Component replacement procedures 43

Battery

Description Spare part number

6 cell, 2.20 Ah, 47 Wh 593553-001

6 cell, 2.55 Ah, 55 Wh 593554-001

Before disassembling the computer:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn on

the computer, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first disconnecting the power cord from the AC

outlet and then disconnecting the AC adapter from the computer.

Remove the battery:

1. Position the computer upside down on a flat surface.

2. Slide the battery release latch (1) to release the battery.

3. Pivot the battery (2) upward and lift it out of the computer (3).

To insert the battery, insert the rear edge of the battery into the battery bay and pivot the front edge
downward until the battery is seated. The battery release latch automatically locks the battery into
place.

44 Chapter 4 Removal and replacement procedures ENWW

Service access cover

Description Spare part number

Plastics Kit (contains only the service access cover) 637192-001

Before removing the service access cover, remove the battery (see Battery on page 44)

1. Position the computer upside down, with the front toward you.

2. Loosen the two Phillips 4.0×2.0 captive screws (1) that secure the service access cover to the

computer.

3. Remove the service access cover (2).

Reverse this procedure to install the service access cover.

ENWW Component replacement procedures 45

Hard drive

NOTE: The hard drive spare part kit includes a hard drive bracket and hard drive connector. The

hard drive bracket and hard drive connector, as well as the hard drive bracket screws, are also
available in the Hard Drive Hardware Kit.

Description Spare part number

Supports the following 9.50 mm, 6.35 cm (2.50 in) SATA hard drives:

750 GB, 5400 rpm 644351-001

640 GB, 5400 rpm 603785–001

500 GB, 7200 rpm 644685-001

320 GB, 5400 rpm 645086

Supports the following 7.00 mm, 6.35 cm (2.50 in) SATA hard drives:

320 GB, 7200 rpm 645089-001

250 GB, 7200 rpm 645091-001

Hard Drive Hardware Kit (not illustrated, includes connector, bracket, and screws) 639444-001

Before removing the hard drive, remove the following components:

1. Battery (see

Battery on page 44)

2. Service access cover (see

Service access cover on page 45)

Remove the hard drive:

1. Disconnect the hard drive adapter cable from the system board (1) and then pull up on the Mylar

tab (2) to remove the drive from the hard drive bay.

NOTE: If the rubber hard drive bracket is wedged into the hard drive bay snugly, you may need

to gently pry up the hard drive using a thin nonconductive tool.

46 Chapter 4 Removal and replacement procedures ENWW

2. Disconnect the hard drive adapter (1). Then remove the hard drive bumpers (2), and the Mylar

cover (3).

Reverse this procedure to install the hard drive.

ENWW Component replacement procedures 47

Optical drive

NOTE: The optical drive spare part kit includes an optical drive bezel and optical drive bracket.

Description Spare part number

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe*

NOTE: *Select models only.

636380-001

Blu-ray Disc ROM with LightScribe* DVD±R/RW SuperMulti Double-Layer Drive

NOTE: *Select models only.

636379-001

Before removing the optical drive:

1. Battery (see

Battery on page 44)

2. Service access cover (see

Service access cover on page 45)

Remove the optical drive:

1. Remove the Phillips 3.0×2.5 screw (1) that secures the optical drive to the computer.

2. Insert a thin tool, such as a screw driver (2), into the release access slot next to the hard drive

bay.

3. Grasp the bezel and slide the optical drive out of the computer (3).

4. To replace the optical drive bracket, position the optical drive with the optical drive bracket

toward you.

5. Remove the two Phillips 3.0×2.0 screws (1) that secure the optical drive bracket to the optical

drive.

48 Chapter 4 Removal and replacement procedures ENWW

6. Remove the optical drive bracket (2).

7. To replace the optical drive bezel, disconnect it from the optical drive.

Reverse this procedure to reassemble and install the optical drive.

ENWW Component replacement procedures 49

WLAN module

Description Spare part

number

Atheros AR9285 802.11 a/b/g/n 2x2 WiFi adapter for use in Canada, the Cayman Islands, Guam,
Puerto Rico, the United States, and the US Virgin Islands

580101-001

Atheros AR9285 802.11 a/b/g/n 2x2 WiFi adapter for use in Afghanistan, Albania, Algeria, Andorra,
Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas,
Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia
and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi,
Cameroon, Canada, Cape Verde, the Cayman Islands, the Central African Republic, Chad, Chile,
Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti,
Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea,
Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana,
Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guam, Guinea, Guinea-Bissau, Guyana, Haiti,
Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan,
Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein,
Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the
Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia,
Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New
Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Palau, Panama, Papua New Guinea, Paraguay,
the People's Republic of China, Peru, the Philippines, Poland, Portugal, Puerto Rico, the Republic of
Moldova, Romania, Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal,
Serbia and Montenegro, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon
Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia, St. Vincent
and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo,
Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, the United Arab
Emirates, the United Kingdom, Uruguay, the U.S. Virgin Islands, the United States, Uzbekistan,
Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

605560-005

Broadcom 4313 802.11b/g/n 1x1 WiFi and 2070 Bluetooth 2.1+EDR Combo adapter (BT3.0+HS ready) 600370-001

Broadcom 4313GN 802.11b/g/n 1x1 WiFi Adapter 593836-001

Intel Centrino® Wireless-N 1030 + Bluetooth (802.11 b/g/n) 631956-001

Intel Centrino® Wireless-N 1000 (802.11 b/g/n) 593530-001

Ralink 5390GN 802.11b/g/n 1x1 WiFi Adapter 630703-001

Ralink 5390BC8 802.11b/g/n 1x1 WiFi and Bluetooth 3.0+HS Combo Adapter 630705-001

Realtek RTL8191SE 802.11b/g/n 1x1 WiFi Adapter 640926-001

Realtek 8188BC8 802.11a/b/g/n 2x2 WiFi and Bluetooth 3.0+HS Combo Adapter 602993-001

Atheros AR9285 802.11b/g/n WiFi + Bluetooth Adapter 593127-001

Before removing the WLAN module, remove the following components:

1. Battery (see

Battery on page 44)

2. Service access cover (see

Service access cover on page 45)

Remove the WLAN module:

1. Disconnect the main antenna cable (1) and the auxiliary antenna cable (2) from the wireless

module.

2. Remove the Phillips 3.0×2.0 screw (3) that secures the WLAN module to the computer. (The

edge of the module opposite the slot rises away from the computer.)

50 Chapter 4 Removal and replacement procedures ENWW

3. Remove the WLAN module (4) by pulling it away from the slot at an angle.

CAUTION: To prevent an unresponsive system, replace the wireless module only with a

wireless module authorized for use in the computer by the governmental agency that regulates
wireless devices in your country or region. If you replace the module and then receive a warning
message, remove the module to restore computer functionality, and then contact technical
support through Help and Support.

NOTE: WLAN modules are designed with a notch (5) to prevent incorrect insertion into the

WLAN module slot.

Reverse this procedure to install a WLAN module.

ENWW Component replacement procedures 51

Memory module

Description Spare part number

4 GB PC3 10600 1333 MHz shared 621569-001

2 GB PC3 10600 MHz 621566–001

2 GB PC3 10600 MHz 621565–001

1 GB PC3 10600 1333 MHz shared 621559-001

1 GB PC3 10600 1333 MHz shared 639736-001

Before removing the memory module, remove the following components:

1. Battery (see

Battery on page 44)

2. Service access cover (see

Service access cover on page 45)

Remove the memory module:

1. Spread the retaining tabs (1) on each side of the memory module slot to release the memory

module. (The edge of the module opposite the slot rises away from the computer.)

2. Remove the module (2) by pulling it away from the slot at an angle.

NOTE: Memory modules are designed with a notch (3) to prevent incorrect insertion into the

memory module slot.

Reverse this procedure to install a memory module.

52 Chapter 4 Removal and replacement procedures ENWW

Keyboard

Description Spare part number

See

Computer major components on page 18 for complete list of available

keyboards.

Before removing the keyboard, remove the following components:

1. Battery (see

Battery on page 44)

2. Service access cover (see

Service access cover on page 45)

Remove the keyboard:

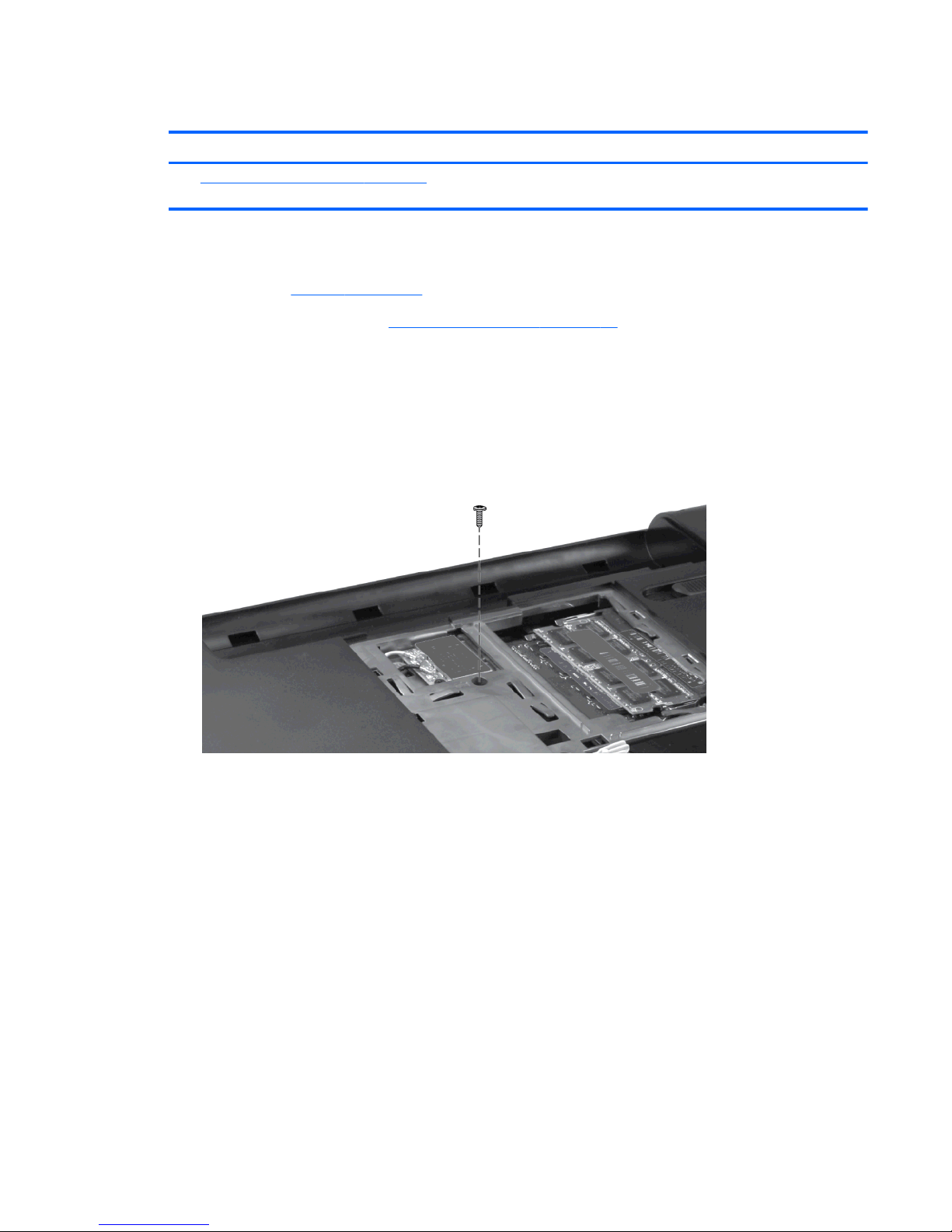

1. Remove the Phillips 5.0×2.5 screw that secures the keyboard to the computer.

ENWW Component replacement procedures 53

2. Open the display and stand the computer on its side. Insert a small screwdriver through the

keyboard access hole in the bottom of the computer. (The keyboard access hole is the same
hole from which the keyboard screw was removed.) Push firmly on the bottom of the keyboard
until it is disengaged.

NOTE: When the computer is standing on its side, the hard drive assembly may come out of

its bay still cabled to the computer. After disengaging the keyboard, reseat the hard drive
assembly as necessary prior to the next step.

3. Position the computer display-side up, with the front toward you, and open the computer as far

as possible. Lift the rear edge of the keyboard and tilt the keyboard forward onto the palm rest.

54 Chapter 4 Removal and replacement procedures ENWW

4. Release the zero insertion force (ZIF) connector (1) to which the keyboard cable is attached, and

then disconnect the keyboard cable (2). Remove the keyboard (3).

Reverse this procedure to install the keyboard.

ENWW Component replacement procedures 55

Top cover

Description Spare part number

For use in Ocean Drive computer models 637196-001

For use in Luminous Rose computer models 641287-001

For use in Sweet Purple computer models 641297-001

For use in Butter Gold computer models 641299-001

For use in Pewter computer models 641291-001

For use in Charcoal Grey computer models 641289-001

For use in Sonoma Red computer models 641285-001

For use in Pacific Blue computer models 641293-001

For use in Pearl Pink computer models 641295-001

Before removing the top cover, remove the following components:

1. Battery (see

Battery on page 44)

2. Service access cover (see

Service access cover on page 45)

3. Hard drive (See

Hard drive on page 46).

4. Optical drive (see

Optical drive on page 48).

5. WLAN module (see

WLAN module on page 50).

6. Memory module (see

Memory module on page 52).

7. Keyboard (see

Keyboard on page 53).

Remove the top cover:

1. Position the computer display-side up, with the front toward you, and open the computer as far

as possible.

56 Chapter 4 Removal and replacement procedures ENWW

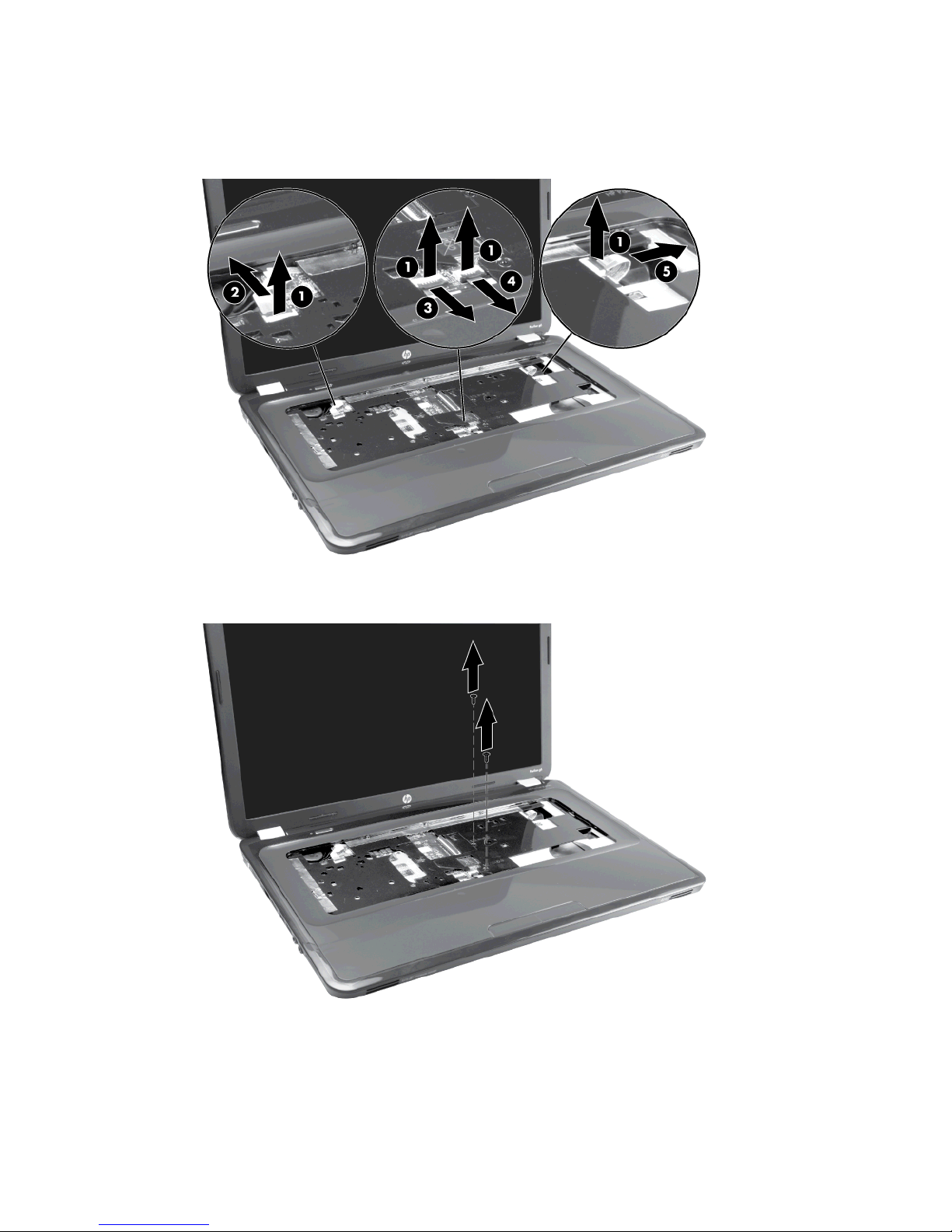

2. Release the three zero insertion force (ZIF) connectors (1) to which the ZIF cables are attached.

Then disconnect the power button cable (2), the TouchPad cable (3), the TouchPad button cable
(4), and USB board cable (5) from the system board.

3. Remove the two Phillips 5.0×2.5 screws that secure the top cover to the computer.

4. Turn the computer upside down, with the front toward you.

ENWW Component replacement procedures 57

5. Remove the three Phillips 5.0×2.5 screws in the battery bay, the two Phillips 5.0×2.5 screws

near the hard drive connector, and the nine Phillips 6.0×2.5 screws along the edges of the base
enclosure.

NOTE: The four screws along the front edge also serve to secure the speakers inside the base

enclosure.

6. Lift the rear edge of the top cover (1) until the top cover disengages from the base enclosure.

Remove the top cover (2).

NOTE: The TouchPad is glued to the top cover and is included with the top cover spare part.

Reverse this procedure to install the top cover.

58 Chapter 4 Removal and replacement procedures ENWW

Power button board

Description Spare part number

Power button board (includes cable) 641144-001

Before removing the power button board, remove the following components:

1. Battery (see

Battery on page 44)

2. Service access cover (see

Service access cover on page 45)

3. Hard drive (See

Hard drive on page 46)

4. Optical drive (see

Optical drive on page 48)

5. WLAN module (see

WLAN module on page 50).

6. Memory module (see

Memory module on page 52)

7. Keyboard (see

Keyboard on page 53)

8. Top cover (see

Top cover on page 56)

Remove the power button board:

1. Position the top cover upside down, with the rear edge toward you.

2. Remove the Phillips 3.0×2.0 screw (1) that secures the power button board to the top cover.

3. Lift up and remove the power button board (2).

Reverse this procedure to install the power button board.

ENWW Component replacement procedures 59

TouchPad button board

Description Spare part number

TouchPad button board (includes bracket and cable) 641143-001

Before removing the TouchPad button board, remove the following components:

1. Battery (see

Battery on page 44)

2. Service access cover (see

Service access cover on page 45)

3. Hard drive (see

Hard drive on page 46)

4. Optical drive (see

Optical drive on page 48)

5. Keyboard (see

Keyboard on page 53)

6. Top cover (see

Top cover on page 56)

Remove the TouchPad button board:

1. Position the top cover upside down, with the front toward you.

2. Release the ZIF connector (1), and then disconnect the TouchPad LED ZIF cable (2) from the

TouchPad button.board.

3. Remove the Phillips PM2.0×3.0 screw (3) that secures the TouchPad bracket to the top cover.

4. Lift up and remove the TouchPad button board bracket (4). The TouchPad button is fused onto

the TouchPad button board bracket.

Reverse the above procedure to reassemble and install the TouchPad button board.

60 Chapter 4 Removal and replacement procedures ENWW

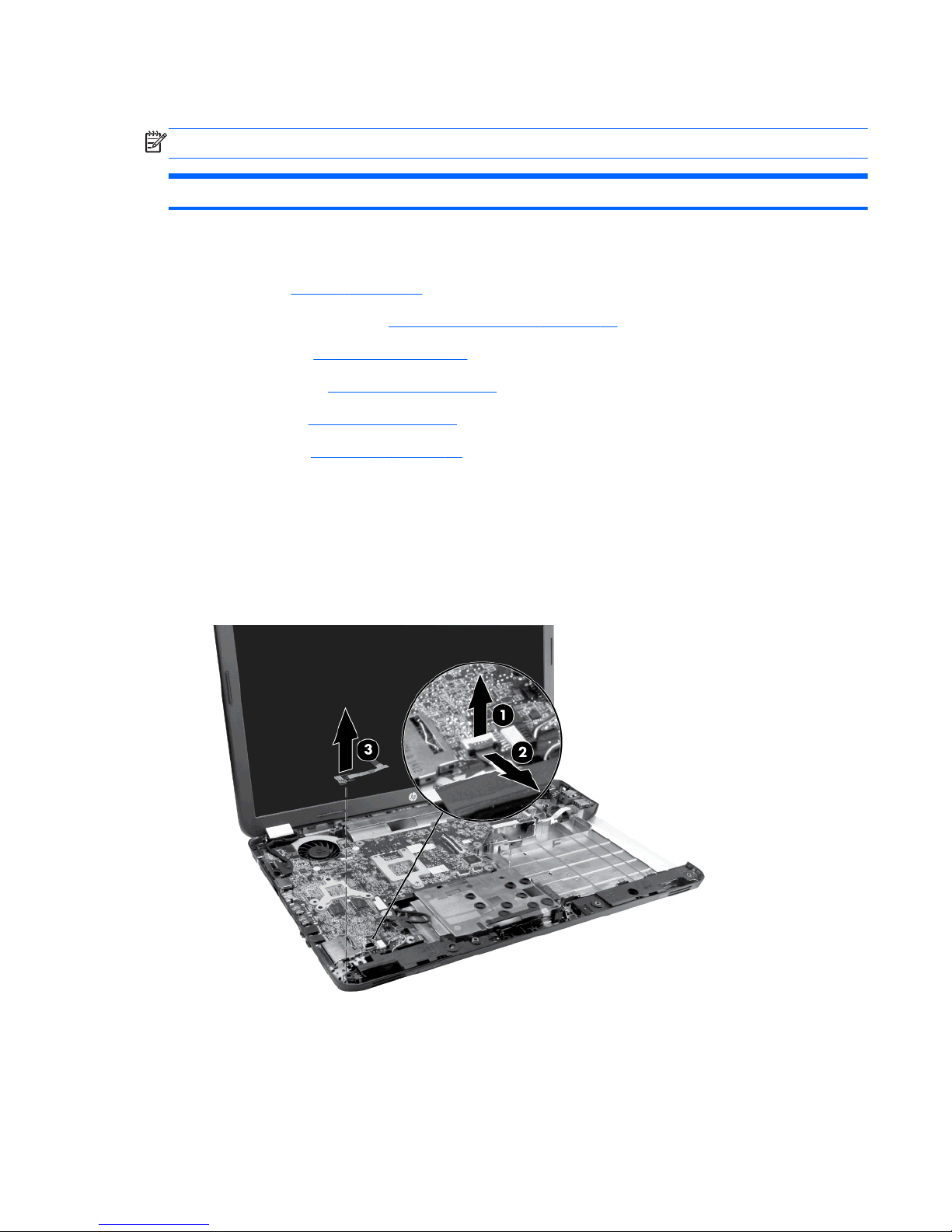

TouchPad LED board

NOTE: The security cable lock is included with the base enclosure, spare part number 637187-001.

TouchPad LED board 647622-001

Before removing the TouchPad LED board, remove the following components:

1. Battery (see

Battery on page 44)

2. Service access cover (see

Service access cover on page 45)

3. Hard drive (see

Hard drive on page 46)

4. Optical drive (see

Optical drive on page 48)

5. Keyboard (see

Keyboard on page 53)

6. Top cover (see

Top cover on page 56)

Remove the TouchPad LED board:

1. Position the computer right-side up.

2. Release the zero insertion force (ZIF) connector (1), and disconnect the LED ZIF cable (2) from

the system board.

3. Remove the LED board (3).

Reverse this procedure to install the TouchPad LED board.

ENWW Component replacement procedures 61

Speaker assembly

Description Spare part number

Speaker assembly (includes cable) 641396-001

Before removing the speaker assembly, remove the following components:

1. Battery (see

Battery on page 44)

2. Service access cover (see

Service access cover on page 45)

3. Hard drive (see

Hard drive on page 46)

4. Optical drive (see

Optical drive on page 48)

5. Keyboard (see

Keyboard on page 53)

6. TouchPad top cover (see

Top cover on page 56)

7. TouchPad LED board (see

TouchPad LED board on page 61)

Remove the speaker assembly:

1. Disconnect the speaker cable (1) from the system board.

2. Gently pry back the tabs on the base enclosure (2) to release the speakers, and then lift up to

remove the speakers (3).

Reverse this procedure to install the speaker assembly.

62 Chapter 4 Removal and replacement procedures ENWW

USB board

Description Spare part number

USB board (includes cable) 641145-001

Before removing the USB board, remove the following components:

1. Battery (see

Battery on page 44)

2. Service access cover (see

Service access cover on page 45)

3. Hard drive (see

Hard drive on page 46)

4. Optical drive (see

Optical drive on page 48)

5. Keyboard (see

Keyboard on page 53)

6. Top cover (see

Top cover on page 56)

Remove the USB board:

1. Position the computer right-side up.

2. Release the clips (1) that secure the USB board to the base enclosure.

3. Lift the USB board (2) straight up and remove it from the computer.

Reverse this procedure to install the USB board.

ENWW Component replacement procedures 63

Power connector

Description Spare part number

Power connector 641137-001

Before removing the power connector cable, remove the following components:

1. Battery (see

Battery on page 44)

2. Service access cover (see

Service access cover on page 45)

3. Hard drive (see

Hard drive on page 46)

4. Optical drive (see

Optical drive on page 48)

5. Keyboard (see

Keyboard on page 53)

6. Top cover (see

Top cover on page 56)

Remove the power connector:

1. Position the computer right-side up.

2. Disconnect the power connector cable (1) from the system board.

3. Lift the power connector (2) away from the clips built into the base enclosure.

Reverse this procedure to install the power connector.

64 Chapter 4 Removal and replacement procedures ENWW

Display assembly

Description Spare part number

39.6-cm (15.6-in) High Definition (HD), light-emitting diode (LED) BrightView display assembly:

●

For use in Charcoal Grey computer models 645523-001

●

For use in Ocean Drive computer models 636378-001

● For use in Sonoma Red computer models 645521-001

●

For use in Luminous Rose computer models 645522-001

●

For use in Pewter computer models 645524-001

● For use in Pacific Blue computer models 645525-001

●

For use in Pearl Pink computer models 645526-001

●

For use in Sweet Purple computer models 645527-001

● For use in Butter Gold computer models 645528-001

Before removing the display assembly, remove the following components:

1. Battery (see

Battery on page 44)

2. Service access cover (see

Service access cover on page 45)

3. Optical drive (see

Optical drive on page 48)

4. WLAN module (see

WLAN module on page 50)

5. Keyboard (see

Keyboard on page 53)

6. Top cover (see

Top cover on page 56)

7. USB board (see

USB board on page 63)

8. Power connector (see

Power connector on page 64)

Remove the display assembly:

1. Position the computer display-side up, with the front toward you.

2. Open the display as far as possible.

3. Disconnect the display panel cable (1) from the system board.

4. Pull the antenna cables through the opening in the base enclosure (2), and then disengage the

cables from the clip in the routing channel leading to the display hinge.

CAUTION: Support the display assembly when removing the display screws in the following

steps. Failure to support the display assembly can result in damage to the assembly and other
components.

5. Remove the two Phillips 6.0×2.5 screws (3) that secure the display assembly to the computer.

ENWW Component replacement procedures 65

6. Lift the display panel (4) straight up to remove it.

NOTE: The security bracket is part of the right hinge.

Reverse this procedure to install the display assembly.

66 Chapter 4 Removal and replacement procedures ENWW

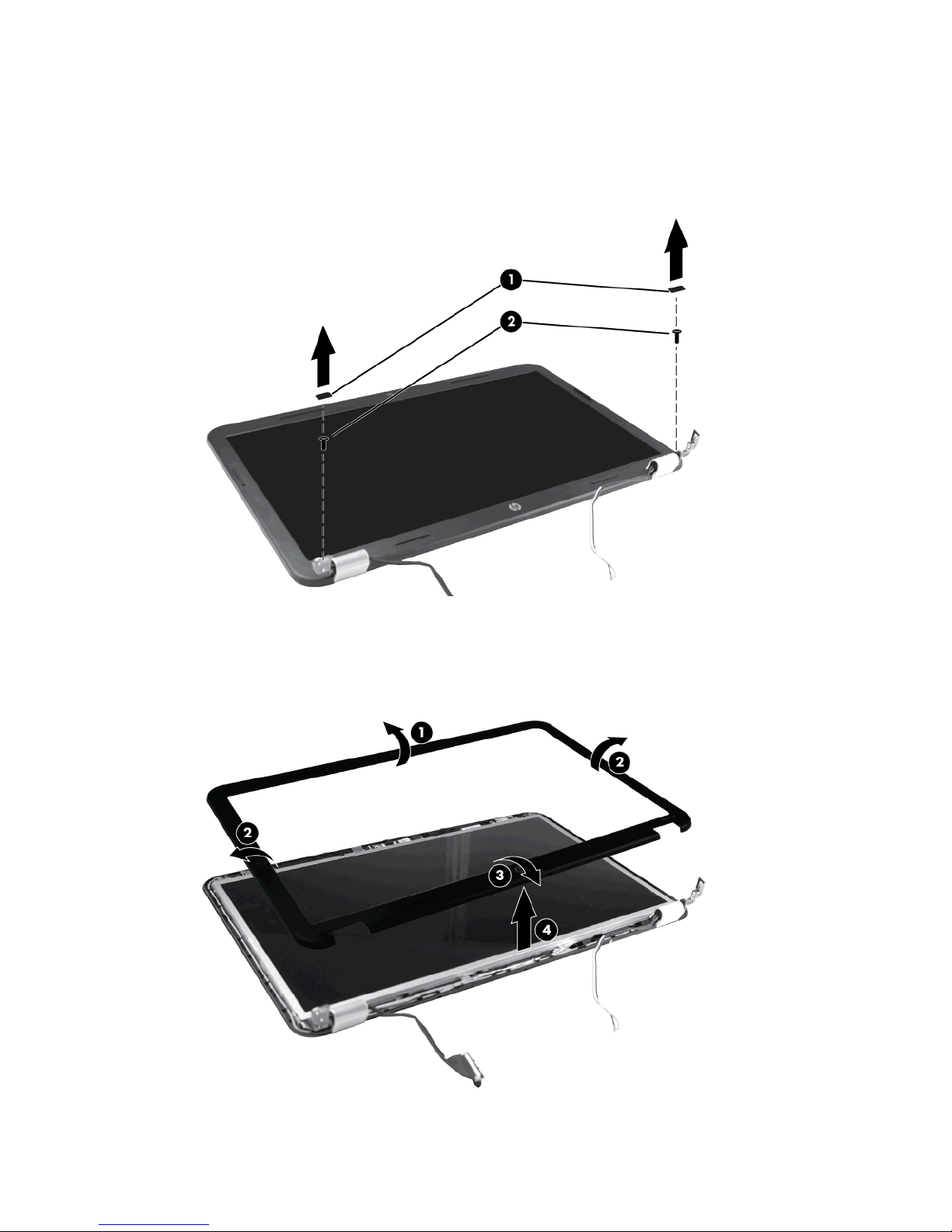

7. To replace any of the display assembly internal components, remove the following screw covers

and screws:

(1) Two Mylar screw covers on the display bezel bottom edge

(2) Two Phillips 5.0×2.5 screws

8. Flex the inside edge of the left side (1), the top and bottom sides (2), and the right side (3) of the

display bezel until the bezel disengages from the display back cover.

9. Remove the display bezel (4).

Reverse this procedure to install the display bezel.

ENWW Component replacement procedures 67

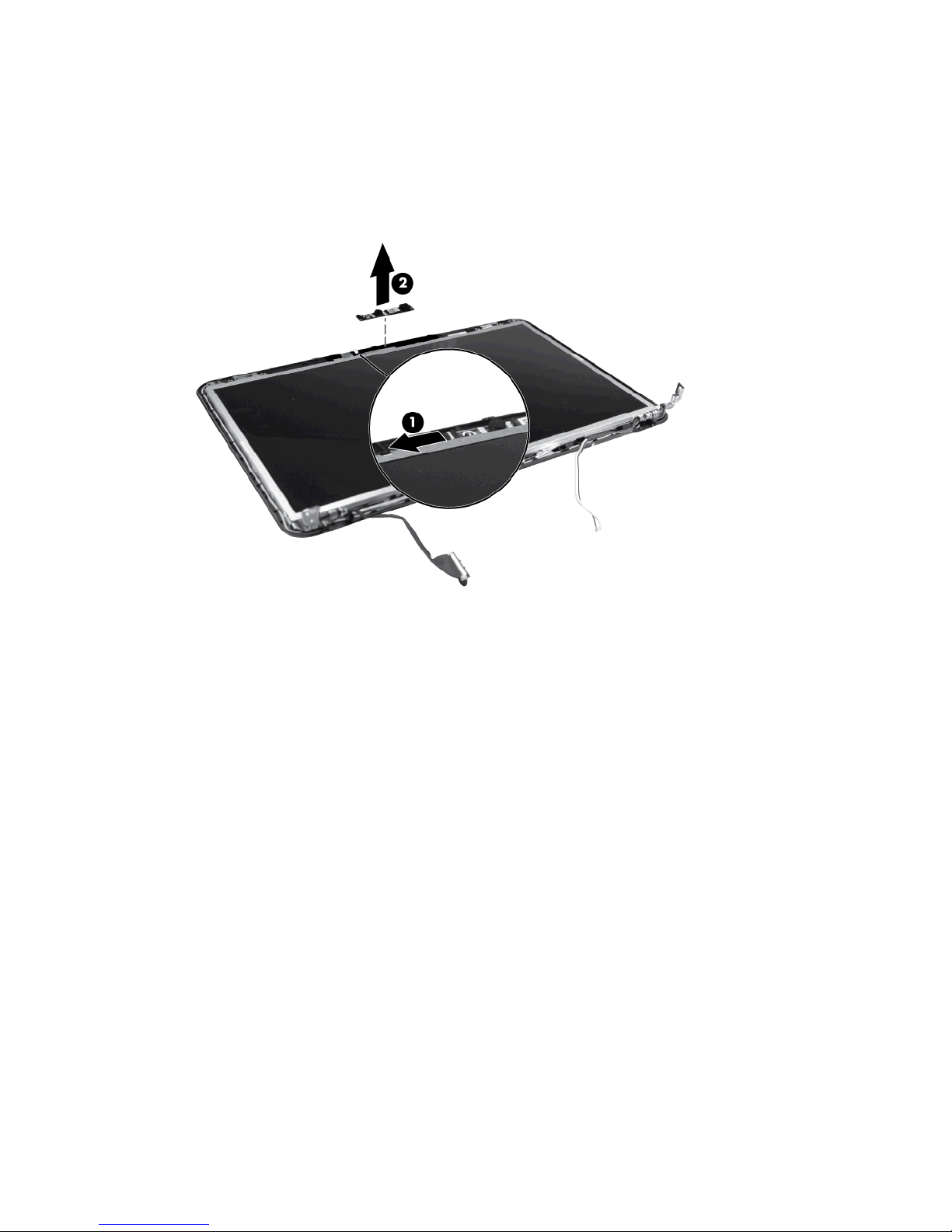

10. To replace the webcam module, lift the webcam module as far from the display enclosure as the

webcam module cable allows.

11. Disconnect the webcam module cable (1) from the webcam module, and then remove the

webcam module (2). The webcam module is available using spare part number 637197-001.

Reverse this procedure to install the webcam module.

12. To replace the display hinge covers, remove the two Phillips 3.0×2.5 screws (1) that secure the

covers to the display enclosure.

68 Chapter 4 Removal and replacement procedures ENWW

13. Remove the display hinge covers (2). The display hinge covers are available using spare part

number 641142-001.

Reverse this procedure to install the display hinge covers.

14. To replace the display panel, remove four Phillips 4.0×2.5 screws that secure the display panel

to the display enclosure.

15. Tilt the display (1) up, release the tape (2) holding the display cable to the display panel, and

then disconnect the cable (3).

ENWW Component replacement procedures 69

16. Remove the display panel (4) from the display enclosure. The display panel is available using

spare part number 647623-001 .

Reverse this procedure to install the display panel.

17. To replace the display panel brackets, remove the two Phillips PM 3.0×2.0 screws (1) that

secure each bracket to the display panel.

18. Remove the display brackets (2) from the display panel. The display brackets are available using

spare part number 637191-001.

Reverse this procedure to install the display hinges.

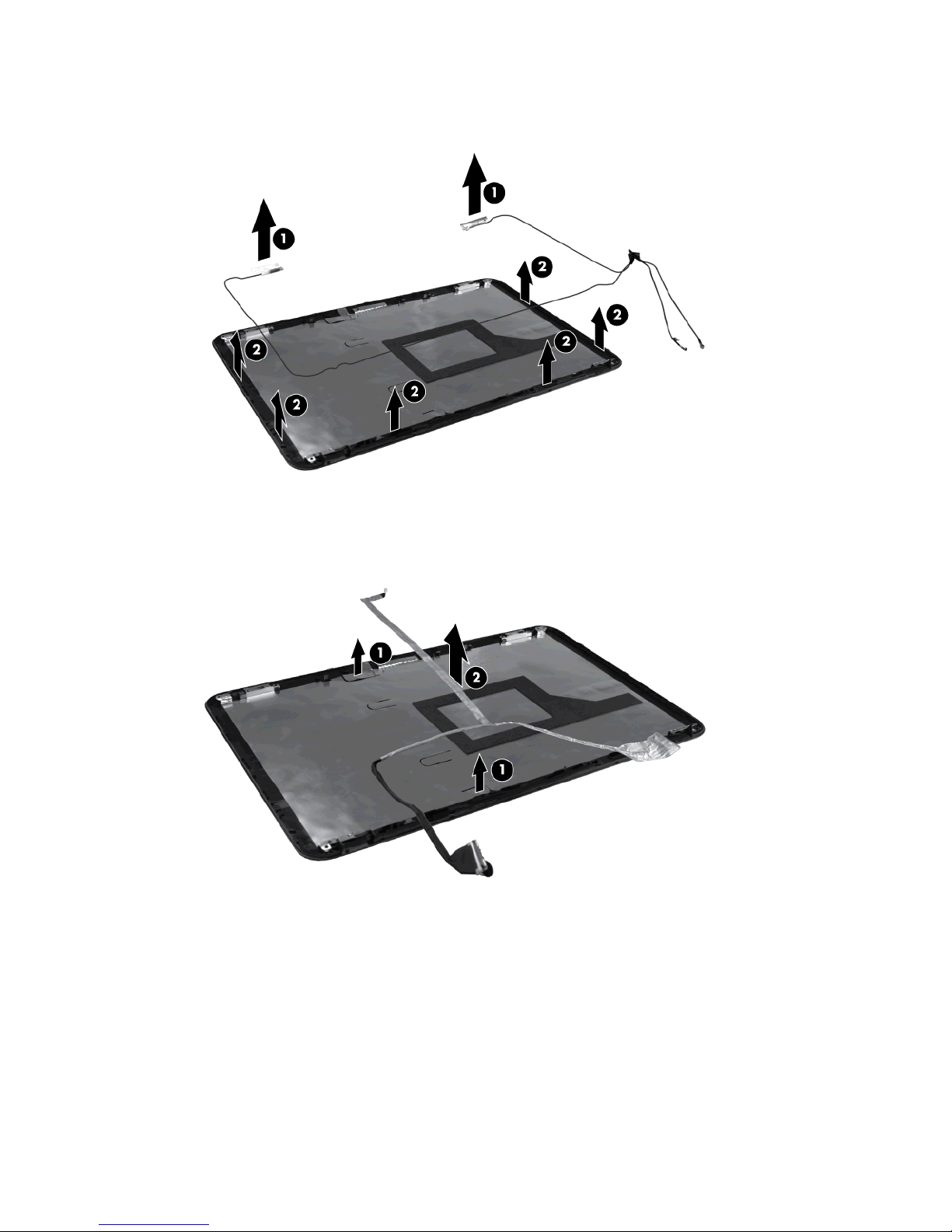

19. To replace the wireless transceivers, lift up on the silver transceivers (1), and then release the

adhesive material from the display cover.

70 Chapter 4 Removal and replacement procedures ENWW

20. Lift up to remove the transceiver cable(2). The wireless antenna transceivers and cable are

available using spare part number 637185-001.

Reverse this procedure to install the display wireless antenna transceivers.

21. To remove the display cable from the display enclosure, lift the adhesive tabs (1) that hold the

display cable to the display enclosure. Gently peel the display cable (2) away from the adhesive
that holds the cable to the display panel.

Reverse this procedure to install the display panel.

ENWW Component replacement procedures 71

System board

NOTE: The system board spare part kit includes UMA or discrete graphics subsystem memory and

replacement thermal material.

Description Spare part number

For use in Intel HM55 UMA computer models 636370-001

For use in Intel HM65 UMA computer models 636373-001

For use in Intel HM55 discrete, 512 MB computer models 636371-001

For use in Intel HM55 discrete, 1 GB computer models 636372-001

For use in Intel HM65 discrete, 512 MB computer models 636374-001

For use in Intel HM65 discrete, 1 GB computer models 636375-001

For use in AMD UMA computer models 638856-001

For use in AMD discrete, 6470M, 512 MB computer models 638854-001

For use in AMD discrete, 6470M, 1 GB computer models 638855-001

When replacing the system board, be sure that the following components are removed from the
defective system board and installed on the replacement system board:

●

Memory modules (see

Memory module on page 52)

●

WLAN module (see

WLAN module on page 50)

Before removing the system board, remove the following components:

1. Battery (see

Battery on page 44)

2. Service access cover (see

Service access cover on page 45)

3. Hard drive (see

Hard drive on page 46)

4. Optical drive (see

Optical drive on page 48)

5. WLAN module (see

WLAN module on page 50)

6. Memory module (see

Memory module on page 52)

7. Keyboard (see

Keyboard on page 53)

8. Top cover (see

Top cover on page 56)

9. USB board (see

USB board on page 63)

10. Display assembly (see

Display assembly on page 65)

11. Power connector (see

Power connector on page 64)

12. TouchPad LED board (see

TouchPad LED board on page 61)

72 Chapter 4 Removal and replacement procedures ENWW

Remove the system board:

1. Disconnect the optical drive connector from the system board (1) .

2. Remove the Phillips 5.0×2.0 screw (2) that secures the system board to the base enclosure.

3. Lift the system board (3) from the right edge and pull it away from the base enclosure at an

angle.

For AMD computer models, see the following image.

For Intel computer models, see the following image.

ENWW Component replacement procedures 73

When replacing the system board, be sure that the following components are removed from the
defective system board and installed on the replacement system board:

●

Heat sink assembly (see

Heat sink assembly on page 76)

●

Processor (see

Processor on page 80)

Reverse this procedure to install the system board.

74 Chapter 4 Removal and replacement procedures ENWW

RTC battery

Description Spare part number

RTC battery (includes mounting adhesive) 637193-001

Before removing the RTC battery, remove the following components:

1. Battery (see

Battery on page 44)

2. Service access cover (see

Service access cover on page 45)

3. Hard drive (see

Hard drive on page 46)

4. Optical drive (see

Optical drive on page 48)

5. WLAN module (see

WLAN module on page 50)

6. Memory module (see

Memory module on page 52)

7. Keyboard (see

Keyboard on page 53)

8. Top cover (see

Top cover on page 56)

9. TouchPad LED board (see

TouchPad LED board on page 61)

10. USB board (see

USB board on page 63)

11. Power connector (see

Power connector on page 64)

12. Display assembly (see

USB board on page 63)

13. System board (see

System board on page 72)

Remove the RTC battery:

1. Position the system board face up, with the front toward you.

2. Disconnect the RTC battery connector from the system board (1).

3. Remove the RTC battery (2).

Reverse this procedure to install the RTC battery.

ENWW Component replacement procedures 75

Heat sink assembly

NOTE: The heat sink assembly includes replacement thermal material. The heat sink fan is

available separately, using spare part number 639460-001.

Description Spare part number

For use in AMD UMA computer models 639463-001

For use in Intel UMA HM55 computer models 637189-001

For use in Intel discrete HM55 computer models 637190-001

For use in AMD discrete computer models 639462-001

Before removing the heat sink assembly, remove the following components:

1. Battery (see

Battery on page 44)

2. Service access cover (see

Service access cover on page 45)

3. Hard drive (See

Hard drive on page 46)

4. Optical drive (see

Optical drive on page 48)

5. WLAN module (see

WLAN module on page 50)

6. Memory module (see

Memory module on page 52)

7. Keyboard (see

Keyboard on page 53)

8. Top cover (see

Top cover on page 56)

9. USB board (see

USB board on page 63)

10. Display assembly (see

Display assembly on page 65)

11. Power connector (see

Power connector on page 64)

12. System board (see

System board on page 72)

Remove the heat sink assembly (heat sink appearance may vary):

NOTE: Steps 1 through 5 apply only to computer models equipped with Intel processors.

1. Position the system board right-side up, with the front toward you.

2. Disconnect the fan cable from the system board (1).

3. Follow the sequence embossed on heat sink to loosen the seven Phillips 10.0×2.0 captive

screws (2) that secure the heat sink assembly to the system board.

NOTE: Due to the adhesive quality of the thermal material located between the heat sink

assembly and system board components, it might be necessary to move the heat sink assembly
from side to side to detach the assembly.

76 Chapter 4 Removal and replacement procedures ENWW

4. Remove the heat sink assembly (3) by lifting it straight up.

NOTE: Steps 6 through 10 apply only to computer models equipped with AMD processors.

5. Position the system board right-side up, with the front toward you.

6. Disconnect the fan cable from the system board (1).

7. Remove the three Phillips 3.0×2.0 screws (2) that secure the heat sink assembly to the system

board.

NOTE: Due to the adhesive quality of the thermal material located between the heat sink

assembly and system board components, it might be necessary to move the heat sink assembly
from side to side to detach the assembly.

8. Follow the sequence embossed on the heat sink to loosen the three Phillips 10.0×2.0 captive

screws (3) that secure the heat sink assembly to the system board.

ENWW Component replacement procedures 77

9. Remove the heat sink assembly (4) by lifting straight up.

Each time the heat sink assembly is removed, the thermal material must be thoroughly cleaned from
the system board at locations (1) and (2), from the heat sink assembly at locations (4) and (5), and
from the processor (3). Thermal pads and thermal paste must be installed on all surfaces before the
heat sink assembly is reinstalled.

NOTE: Thermal pads and thermal paste are included with all heat sink assembly, system board,

and processor spare part kits.

The following illustration shows the locations for thermal material on systems with Intel processors.

Each time the heat sink assembly is removed, the thermal material must be thoroughly cleaned from
the system board at locations (1), (2), and (3), from the heat sink assembly at locations (5), (6), and
(7), and from the processor (4). Thermal pads and thermal paste must be installed on all surfaces
before the heat sink assembly is reinstalled.

78 Chapter 4 Removal and replacement procedures ENWW

The following illustration shows the locations for thermal material on systems with AMD processors.

After applying fresh thermal paste to the components, reverse the above procedure to install the heat
sink assembly.

ENWW Component replacement procedures 79

Processor

NOTE: All processor spare part kits include thermal material.

Description Spare part number

Intel Core™ i7-2620M processor (2.7 GHz, SC turbo up to 3.40 GHz, 4 MB L3), Dual 35 W 631252-001

Intel Core™ i5-2540M processor (2.6 GHz,SC turbo up to 3.3 GHz, 3 MB L3), Dual 35 W 631255-001

Intel Core™ i5-2520M processor (2.5 GHz, SC turbo up to 3.2 GHz, 3 MB L3), Dual 35 W 631253-001

Intel Core™ i5-2410M processor (2.3 GHz, SC turbo up to 2.9 GHz, 3 MB L3), Dual 35 W 638039-001

Intel Core i3 2310M (2.1 GHz, 3 MB L3) Dual 35 W 638037-001

Intel Core™ i5-480M processor (2.66 GHz, SC turbo up to 2.93 GHz, 3 MB L3), Dual 35 W 634693-001

Intel Core™ i3-390M processor (2.66 GHz, 3 MB L3), Dual 35 W 634692-001

Intel Core™ i3-380M processor (2.53 GHz, 3 MB L3), Dual 35 W 625823-001

Intel Pentium P6300 (2.26 GHz, 3 MB L3), Dual 35 W 635500-001

Intel Pentium P6200 (2.13 GHz, 3 MB L3), Dual 35 W 625831-001

Phenom II N970 (2.2GHz, 2MB L2, 1333MHz, 3.6GT/s –Quad 35W 635496-001

Phenom II P960 (1.8GHz, 2MB L2, 1066MHz, 3.6GT/s – Quad 25W 634689-001

Phenom II N870 (2.3GHz, 1.5MB L2, 1333MHz, 3.6GT/s –Triple 35W 635495-001

Phenom II P860 (2.0GHz, 1.5MB L2, 1066MHz, 3.6GT/s –Triple 25W 634688-001

Phenom II N850 (2.2GHz, 1.5MB L2, 1333MHz, 3.6GT/s –Triple 35W 616345-001

Phenom II N660 (3.0GHz, 2MB L2, 1333MHz, 3.6GT/s –Dual 35W 635494-001

Phenom II P650 (2.6GHz, 2MB L2, 1066MHz, 3.6GT/s – Dual 25W 634687-001

Turion II P560 (2.5GHz, 2MB L2, 1066MHz, 3.6GT/s–Dual 25W 634691-001

Athlon II P360 (2.3GHz, 1MB L2, 1066MHz, 3.6GT/s–Dual 25W 636635-001

Athlon II P340 (2.2GHz, 1MB L2, 1066MHz, 3.2GT/s–Dual 25W 616343-001

V160 (2.4GHz, 512K L2, 1066MHz, 3.2GT/s) – SC 25W 636634-001

V140 (2.3GHz, 512K L2, 1066MHz, 3.2GT/s) – SC 25W 616333-001

Before removing the processor, remove the following components:

1. Battery (see

Battery on page 44)

2. Service access cover (see

Service access cover on page 45)

3. Hard drive (See

Hard drive on page 46)

4. Optical drive (see

Optical drive on page 48)

5. WLAN module (see

WLAN module on page 50)

6. Memory module (see

Memory module on page 52)

80 Chapter 4 Removal and replacement procedures ENWW

7. Keyboard (see Keyboard on page 53)

8. Top cover (see

Top cover on page 56)

9. USB board (see

USB board on page 63)

10. Display assembly (see

Display assembly on page 65)

11. Power connector (see

Power connector on page 64)

12. System board (see

System board on page 72)

13. Heat sink assembly (see

Heat sink assembly on page 76)

Remove the processor:

1. Turn the processor locking screw (1) one half-turn counterclockwise until you hear a click.

2. Lift the processor (2) straight up and remove it.

NOTE: The gold triangle (3) on the processor must be aligned with the triangle icon (4)

embossed on the processor socket when you install the processor.

Reverse this procedure to install the processor.

ENWW Component replacement procedures 81

82 Chapter 4 Removal and replacement procedures ENWW

5 Specifications

Computer specifications

Dimensions

Depth 24.5 cm (9.6 in)

Width 37.4 cm (14.7 in)

Height (front to rear) 3.1 to 3.6 cm (1.2 to 1.4 in)

Weight (lowest weight configuration) < 2.5 kg (5.5 lbs)

Input power

Operating voltage 18.5 V dc @ 3.5 A - 65W

Operating current 3.5 A

Temperature

Operating (not writing to optical disc) 0°C to 35°C (32°F to 95°F)

Operating (writing to optical disc) 5°C to 35°C (41°F to 95°F)

Nonoperating -20°C to 60°C (-4°F to 140°F)

Relative humidity

Operating 10% to 90%

Nonoperating 5% to 95%

Maximum altitude (unpressurized)

Operating -15 m to 3,048 m (-50 ft to 10,000 ft)

Nonoperating -15 m to 12,192 m (-50 ft to 40,000 ft)

NOTE: Applicable product safety standards specify thermal limits for plastic surfaces. The computer operates well within

this range of temperatures.

ENWW Computer specifications 83

39.6-cm (15.6-in) display specifications

Dimensions

Height 21.0 cm (8.27 in)

Width 35.9 cm (14.1 in)

Diagonal 39.6 cm (15.6)

Number of colors Up to 16.8 million

Contrast ratio 300:1 (typical)

Brightness 200 nits (typical)

Pixel resolution

Pitch 0.259 × 0.259 mm

Format 1280 × 800; HD: 1366 × 768

Configuration RGB vertical stripe

Backlight LED

Character display 80 × 25

Total power consumption 4.0 W

Viewing angle ±40° horizontal, +120/-40° vertical (typical)

84 Chapter 5 Specifications ENWW

Hard drive specifications

750 GB* 640 GB* 500 GB* 320 GB* 250 GB*

Dimensions

Height 9.5 mm 9.5 mm 9.5 mm 9.5 mm 9.5 mm

Width 70 mm 70 mm 70 mm 70 mm 70 mm

Weight 101 g 101 g 101 g 101 g 101 g

Interface type SATA SATA SATA SATA SATA

Transfer rate 100 MB/sec 106 MB/sec 100 MB/sec 100 MB/sec 100 MB/sec

Security ATA security ATA security ATA security ATA security ATA security

Seek times (typical read, including setting)

Single track 1.5 ms 1.0 ms 1.0 ms 1.5 ms 2.0 ms

Average 11.0 ms 14.0 ms 14.0 ms 12.0 ms 12.0 ms

Maximum 22.0 ms 24.0 ms 22.0 ms 22.0 ms 22.0 ms

Logical blocks 312,581,808 1,250,26

3,728

976,773,168 625,142,448 488,397,168

Disc rotational speed 7200 rpm 5400 rpm 5400 and

7200 rpm

7200 rpm 7200 rpm

Operating temperature 5°C to 55°C (41°F to 131°F)

*1 GB = 1 billion bytes when referring to hard drive storage capacity. Actual accessible capacity is less. Actual drive
specifications may differ slightly.

NOTE: Certain restrictions and exclusions apply. Contact technical support for details.

ENWW Hard drive specifications 85

DVD±RW and CD-RW SuperMulti Double-Layer Combo
Drive specifications

Applicable disc

Read CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED

MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD
(Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD­ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD
+RW, DVD-RAM

Write CD-R and CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RW, DVD-RAM

Random access time

DVD < 230 ms

CD < 175 ms

Cache buffer 2 MB

Data transfer rate

24X CD-ROM 3,600 KB/sec

8X DVD-ROM 10,800 KB/sec

24X CD-R 3,600 KB/sec

16X CD-RW 2,400 KB/sec

8X DVD+R 10,800 KB/sec

4X DVD+RW 5,400 KB/sec

8X DVD-R 10,800 KB/sec

4X DVD-RW 5,400 KB/sec

2.4X DVD+R(9) 2,700 KB/sec

5X DVD-RAM 6,750 KB/sec

Transfer mode Multiword DMA Mode

86 Chapter 5 Specifications ENWW

Blu-ray Disc ROM and DVD±R/RW SuperMulti Double­Layer Drive specifications

Applicable disc

Read BD-ROM, BD-ROM-DL, BD-R, BD-R-DL, BD-RE, BD-RE-DL, DVD-ROM,

DVD+R, DVD+R-DL, DVD+RW, DVD-R, DVD-R-DL, DVD-RW, DVD-RAM
(Ver.2), CD-DA, CD-ROM (mode 1 and mode 2), CD-ROM XA (mode 2,
form 1 and form 2), Photo CD (single and multiple sessions), CD Extra,
CD-R, CD-RW, and CD-TEXT

Write DVD-RAM (Ver.2), DVD+R, DVD-R, CD-R, and CD-ROM

Random access time

BD < 230 ms

DVD < 180 ms

CD < 180 ms

Cache buffer 4.5 MB

Data transfer rate

24X CD-ROM 3,600 KB/sec

8X DVD-ROM 10,800 KB/sec

4X BD 18,000 KB/sec

24X CD-R 3,600 KB/sec

16X CD-RW 2,400 KB/sec

8X DVD+R 10,800 KB/sec

4X DVD+RW 5,400 KB/sec

8X DVD-R 10,800 KB/sec

4X DVD-RW 5,400 KB/sec

2.4X DVD+R(9) 2,700 KB/sec

5X DVD-RAM 6,750 KB/sec

1X BD-ROM 4,500 KB/sec

1X BD-R read 4,500 KB/sec

1X BD-RE read 4,500 KB/sec

Transfer mode Multiword DMA Mode

ENWW Blu-ray Disc ROM and DVD±R/RW SuperMulti Double-Layer Drive specifications 87

88 Chapter 5 Specifications ENWW

6 Setup Utility (BIOS)

Setup Utility, or Basic Input/Output System (BIOS), controls communication between all the input and
output devices on the system (such as disk drives, display, keyboard, mouse, and printer). Setup
Utility includes settings for the types of peripherals installed, the startup sequence of the computer,
and the amount of system and extended memory.

CAUTION: Use extreme care when making changes in Setup Utility. Errors can prevent the

computer from operating properly.

Starting Setup Utility

NOTE: The fingerprint reader (select models only) cannot be used to access Setup Utility.

▲

Turn on or restart the computer. While the “Press the ESC key for Startup Menu” message is
displayed in the lower-left corner of the screen, press esc. When the Startup Menu is displayed,
press f10.

Using Setup Utility

Changing the language of Setup Utility

1. Start Setup Utility.

2. Use the arrow keys to select System Configuration > Language, and then press enter.

3. Use the arrow keys to select a language, and then press enter.

4. When a confirmation prompt with your language selected is displayed, press enter.

5. To save your change and exit Setup Utility, use the arrow keys to select Exit > Exit Saving

Changes, and then press enter.

Your change takes effect immediately.

ENWW Starting Setup Utility 89

Navigating and selecting in Setup Utility

Because Setup Utility is not Windows based, it does not support the TouchPad. Navigation and
selection are by keystroke.

●

To choose a menu or a menu item, use the arrow keys.

● To choose an item in a list or to toggle a field—for example an Enable/Disable field—use either

the arrow keys or f5 and f6.

●

To select an item, press enter.

● To close a text box or return to the menu display, press esc.

● To display additional navigation and selection information while Setup Utility is open, press f1.

Displaying system information

1. Start Setup Utility.

2. Select the Main menu. System information such as the system time and date, and identification

information about the computer is displayed.

3. To exit Setup Utility without changing any settings, use the arrow keys to select Exit > Exit

Discarding Changes, and then press enter.

Restoring factory default settings in Setup Utility

1. Start Setup Utility.

2. Use the arrow keys to select Exit > Load Setup Defaults, and then press enter.

3. When the Setup Confirmation is displayed, press enter.

4. To save your change and exit Setup Utility, use the arrow keys to select Exit > Exit Saving

Changes, and then press enter.

The Setup Utility factory settings take effect when the computer restarts.

NOTE: Your password, security, and language settings are not changed when you restore the

factory settings.

Exiting Setup Utility

●

To exit Setup Utility and save your changes from the current session:

If the Setup Utility menus are not visible, press esc to return to the menu display. Then use the
arrow keys to select Exit > Exit Saving Changes, and then press enter.

●

To exit Setup Utility without saving your changes from the current session:

If the Setup Utility menus are not visible, press esc to return to the menu display. Then use the
arrow keys to select Exit > Exit Discarding Changes, and then press enter.

90 Chapter 6 Setup Utility (BIOS) ENWW

Updating the BIOS

Updated versions of the BIOS may be available on the HP Web site.

Most BIOS updates on the HP Web site are packaged in compressed files called SoftPaqs.

Some download packages contain a file named Readme.txt, which contains information regarding
installing and troubleshooting the file.

Determining the BIOS version

To determine whether available BIOS updates contain later BIOS versions than those currently
installed on the computer, you need to know the version of the system BIOS currently installed.

BIOS version information (also known as ROM date and System BIOS) can be displayed by pressing

fn+esc (if you are already in Windows) or by using Setup Utility.

1. Start Setup Utility.

2. If the system information is not displayed, use the arrow keys to select the Main menu.

BIOS and other system information is displayed.

3. To exit Setup Utility, use the arrow keys to select Exit > Exit Discarding Changes, and then

press enter.

Downloading a BIOS update

CAUTION: To reduce the risk of damage to the computer or an unsuccessful installation, download

and install a BIOS update only when the computer is connected to reliable external power using the
AC adapter. Do not download or install a BIOS update while the computer is running on battery
power, docked in an optional docking device, or connected to an optional power source. During the
download and installation, follow these instructions:

Do not disconnect power from the computer by unplugging the power cord from the AC outlet.

Do not shut down the computer or initiate Sleep or Hibernation.

Do not insert, remove, connect, or disconnect any device, cable, or cord.

1. Access the page on the HP Web site that provides software for your computer:

Windows 7—Select Start > Help and Support > Maintain.

Windows XP—Select Start > Help and Support, and then select the software and drivers

update.

2. Follow the on-screen instructions to identify your computer and access the BIOS update you

want to download.

3. At the download area, follow these steps:

a. Identify the BIOS update that is later than the BIOS version currently installed on your

computer. Make a note of the date, name, or other identifier. You may need this information
to locate the update later, after it has been downloaded to your hard drive.

b. Follow the on-screen instructions to download your selection to the hard drive.

ENWW Updating the BIOS 91

Make a note of the path to the location on your hard drive where the BIOS update is
downloaded. You will need to access this path when you are ready to install the update.

NOTE: If you connect your computer to a network, consult the network administrator before

installing any software updates, especially system BIOS updates.

BIOS installation procedures vary. Follow any instructions that are displayed on the screen after the
download is complete. If no instructions are displayed, follow these steps:

1. Windows 7—Open Windows Explorer by selecting Start > Computer.

Windows XP—Open Windows Explorer by selecting Start > My Computer.

2. Double-click your hard drive designation. The hard drive designation is typically Local Disk (C:).

3. Using the hard drive path you recorded earlier, open the folder on your hard drive that contains

the update.

4. Double-click the file that has an .exe extension (for example, filename.exe).

The BIOS installation begins.

5. Complete the installation by following the on-screen instructions.

NOTE: After a message on the screen reports a successful installation, you can delete the

downloaded file from your hard drive.

92 Chapter 6 Setup Utility (BIOS) ENWW
