Upgrading and Servicing Guide
Page 2
The only warranties for Hewlett-Packard products and services are set forth in the express
statements accompanying such products and services. Nothing herein should be construed as
constituting an additional warranty. HP shall not be liable for technical or editorial errors or
omissions contained herein.
HP assumes no responsibility for the use or reliability of its software on equipment that is not
furnished by HP.
This document contains proprietary information that is protected by copyright. No part of this
document may be photocopied, reproduced, or translated to another language without the prior
written consent of HP.
Hewlett-Packard Company
P.O. Box 4010
Cupertino, CA 95015-4010
USA
Copyright © 2008 Hewlett-Packard Development Company, L.P.
May be licensed in the United States by one or both of U.S. Patents Nos. 4,930,158 and
4,930,160 until August 28, 2008.
HP supports lawful use of technology and does not endorse or encourage the use of our products
for purposes other than those permitted by copyright law.
The information in this document is subject to change without notice.
Page 3
Table of Contents iii
Table of Contents
Upgrading and Servicing Guide ...............................................................1
Why Read This?.......................................................................................1
Safety Information...................................................................................2
Prerequisites............................................................................................2
Components—Front View .........................................................................3
Opening the Computer.............................................................................4
Preparing the Computer .....................................................................................4
Removing the Side Computer Cover.....................................................................5
Locating Components Inside the Computer............................................................ 6
Closing the Computer...............................................................................7
Replacing the Computer Cover............................................................................7
After Replacing the Cover...................................................................................8
Adding or Replacing an Optical Disc Drive ...............................................9
Removing an Optical Disc Drive .......................................................................... 9

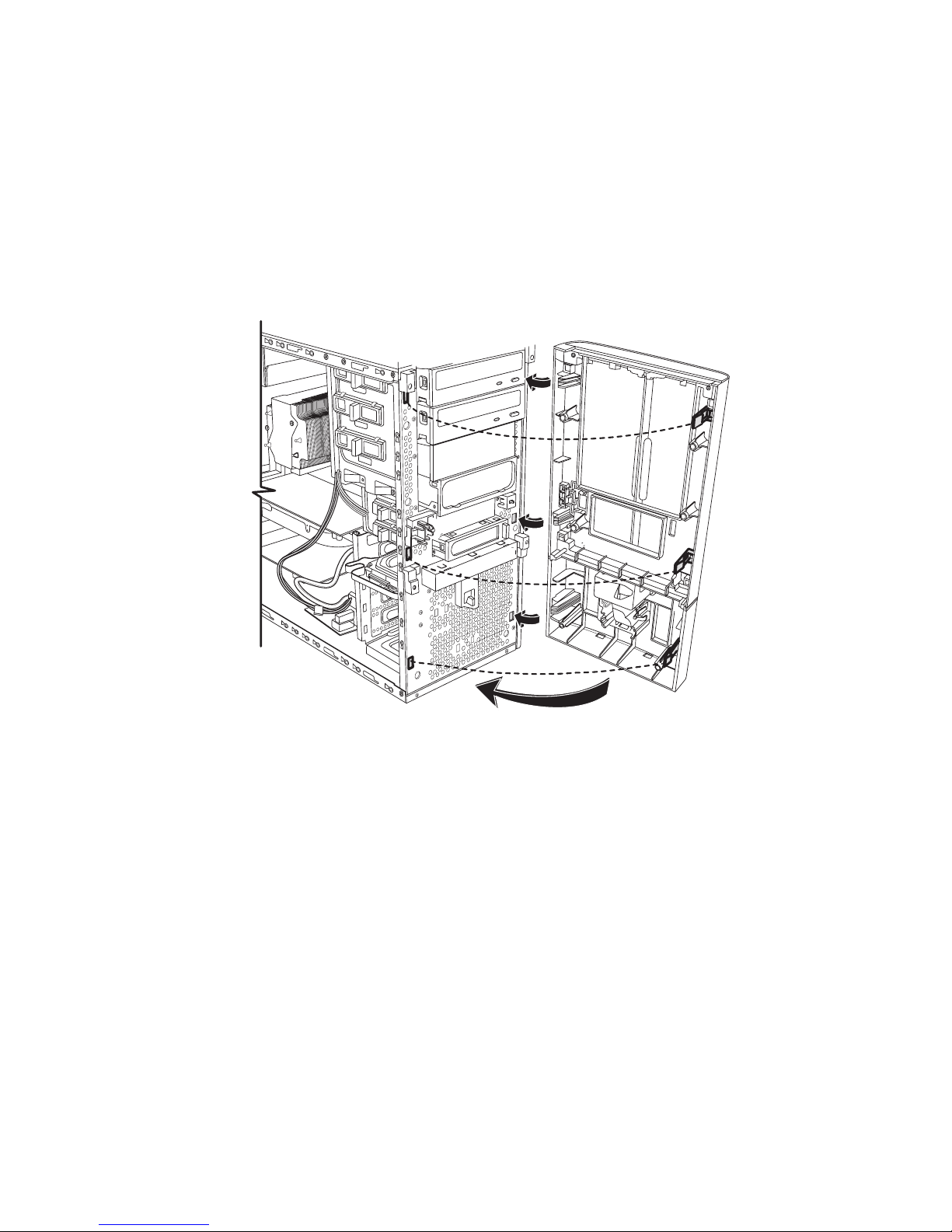

Removing the Front Bezel..................................................................................11
Replacing or Adding an Optical Disc Drive ........................................................12
Replacing the Front Bezel .................................................................................15
Adding or Replacing a Hard Disk Drive ..................................................16
Before You Begin.............................................................................................16

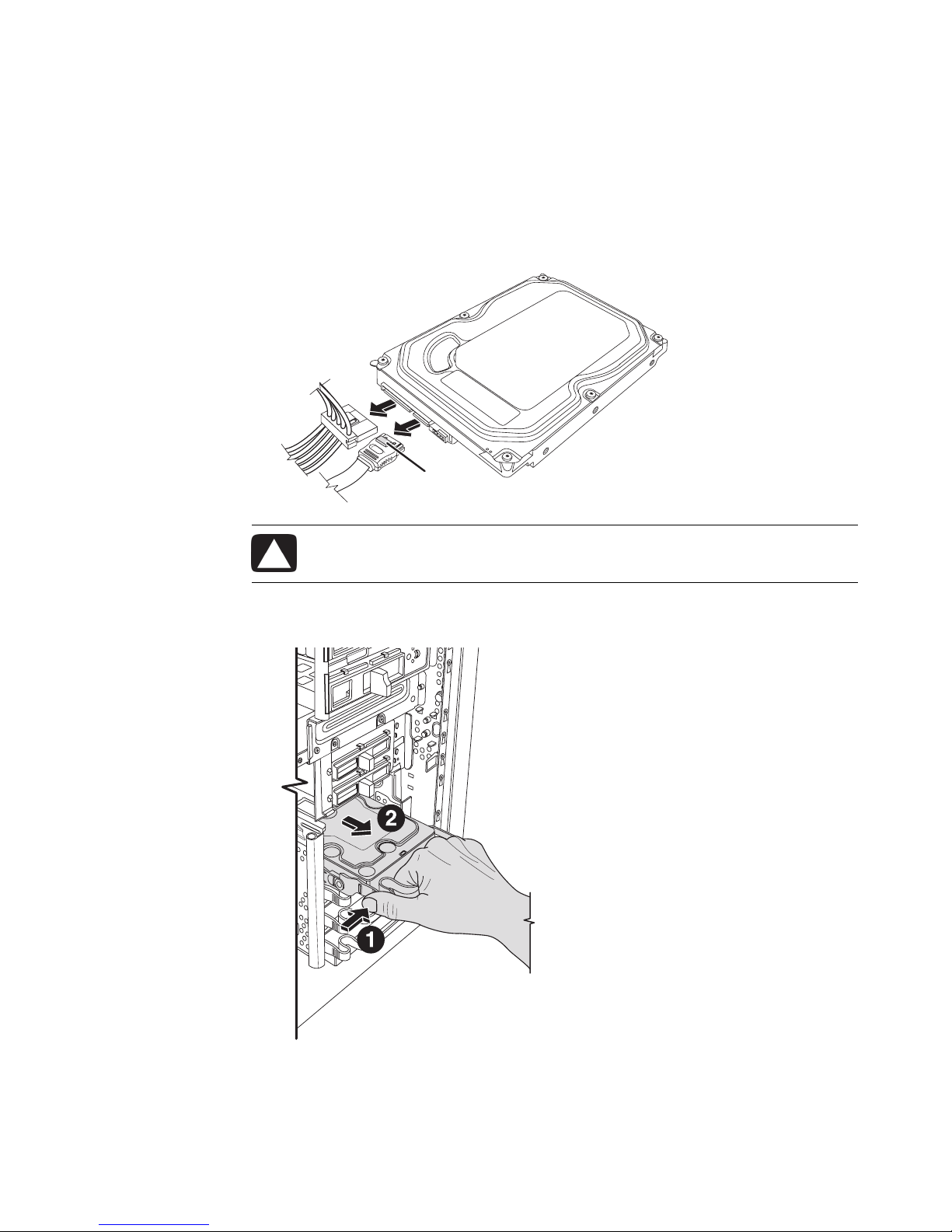

Removing a Hard Disk Drive ............................................................................. 17
Adding or Replacing a Hard Disk Drive .............................................................19

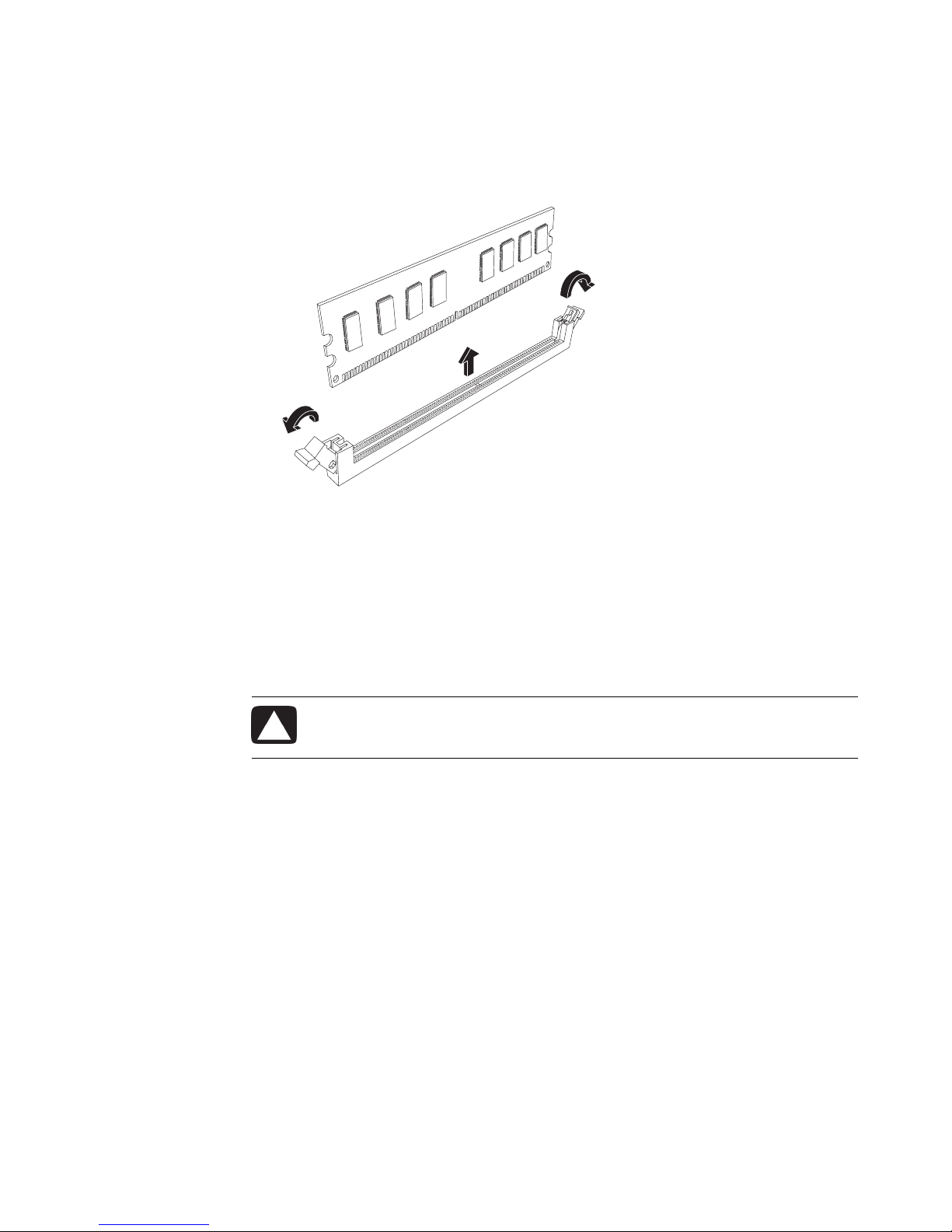

Removing and Replacing Memory..........................................................20
Before You Begin.............................................................................................20
Removing a Memory Module ............................................................................21
Replacing a Memory Module............................................................................22

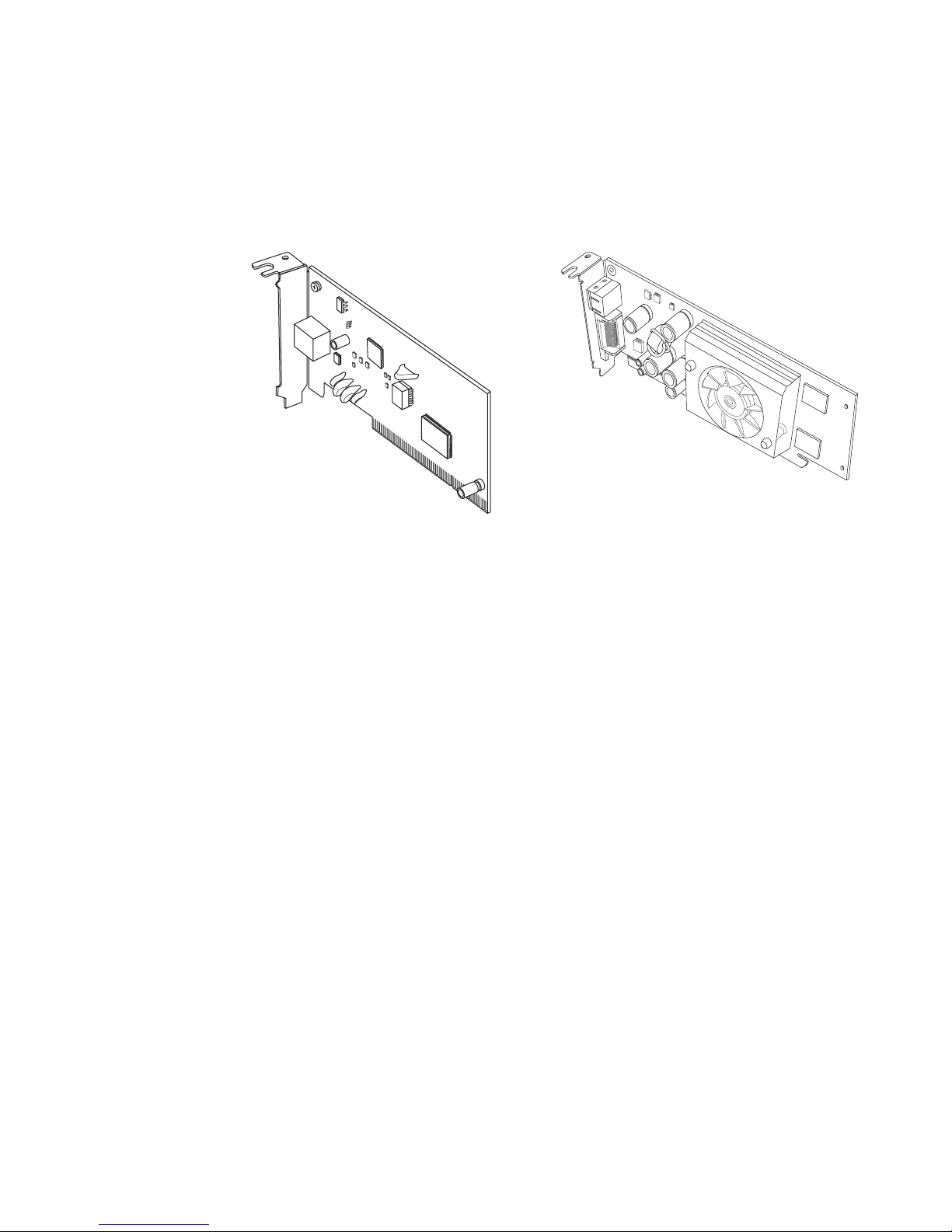

Adding or Replacing an Add-in or a Graphics Card ................................24

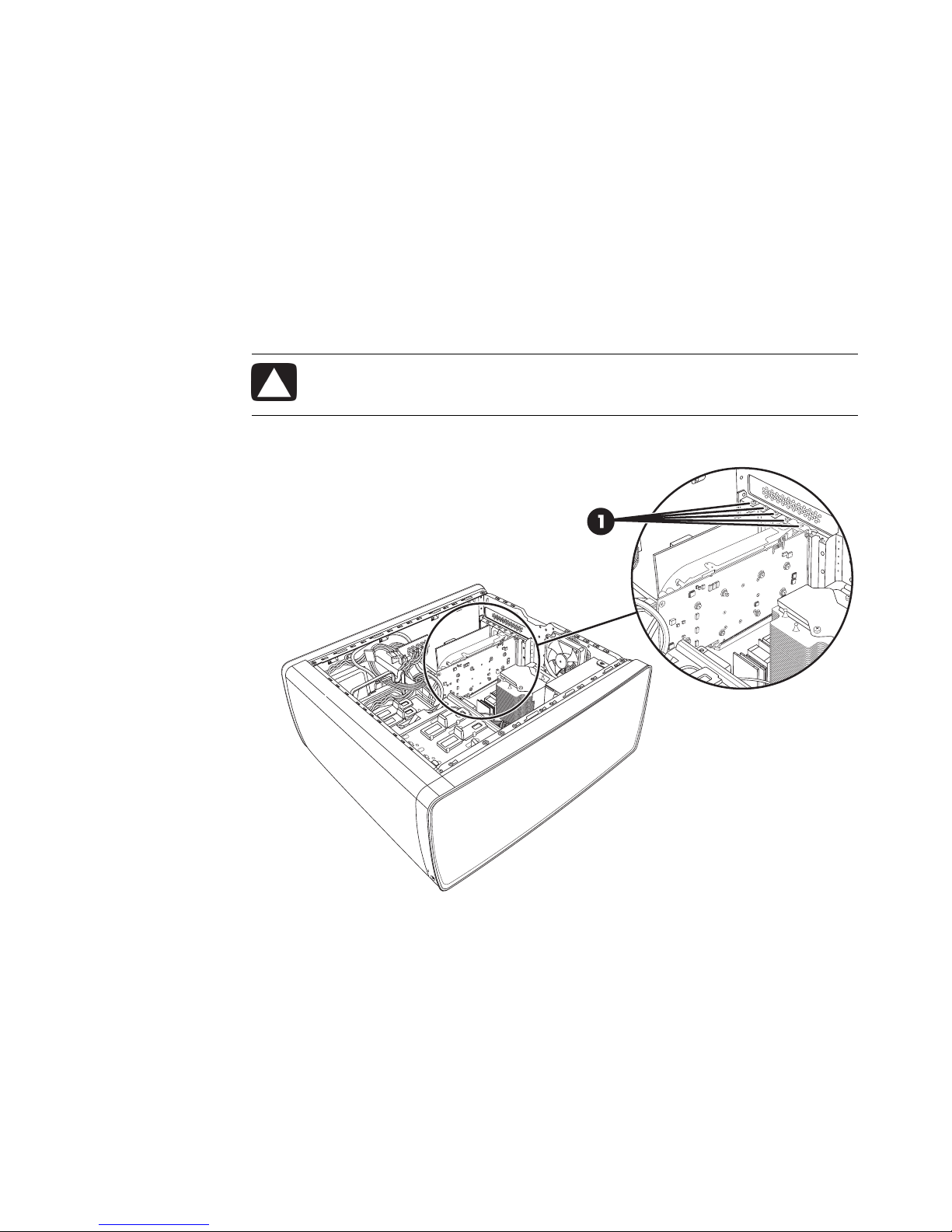

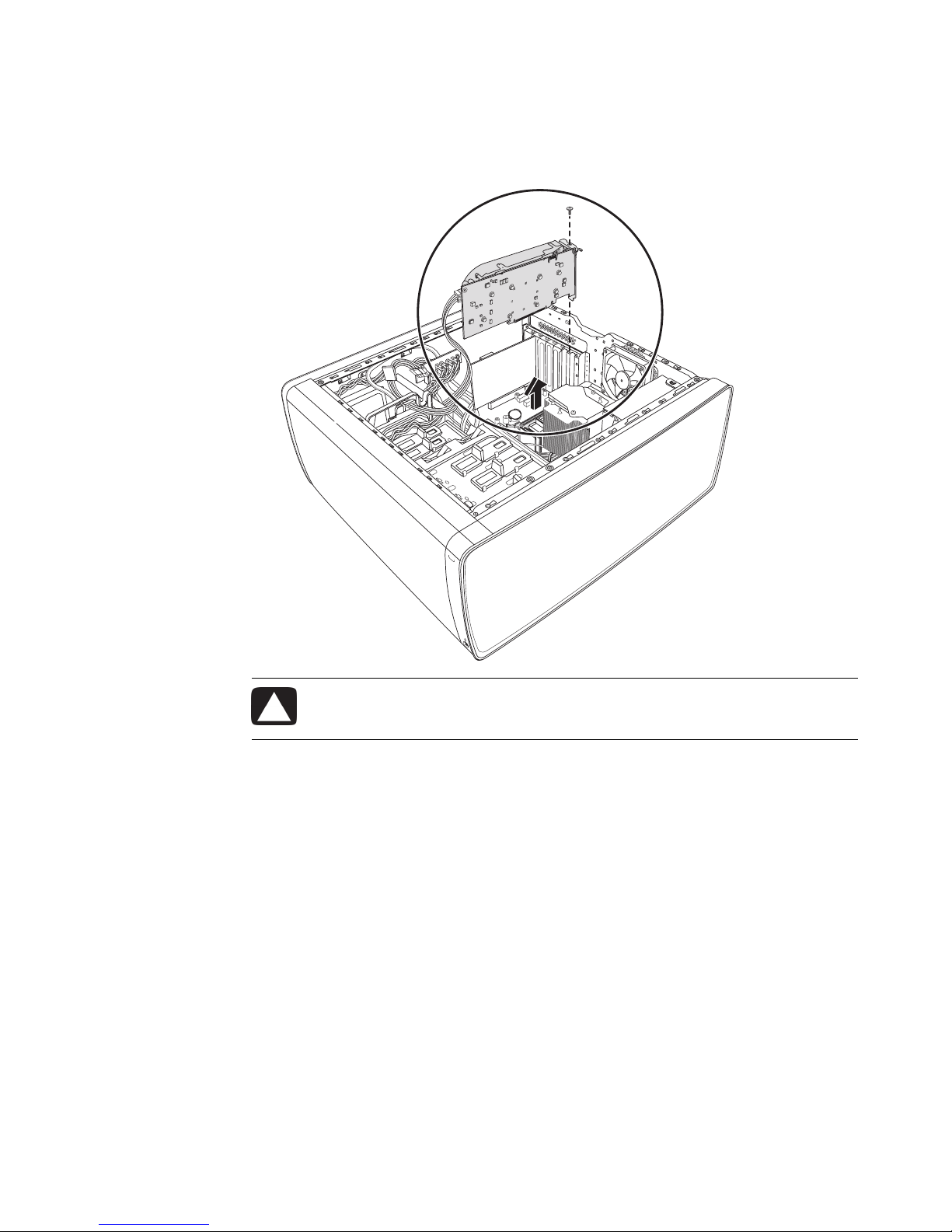

Removing a Graphics Card ..............................................................................25
Removing an Add-in Card ................................................................................28

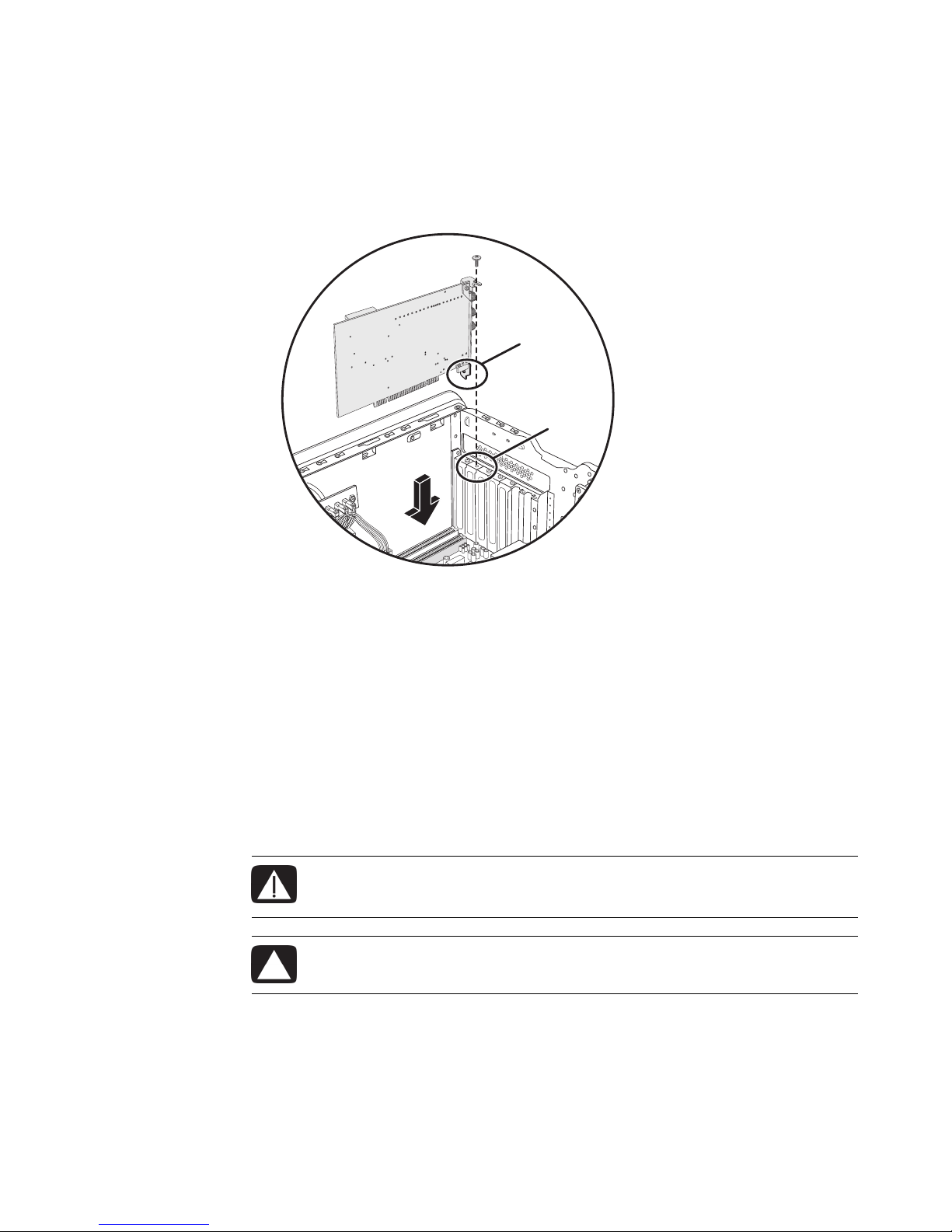

Replacing a Graphics or Add-in Card ................................................................29
Page 4
iv Upgrading and Servicing Guide

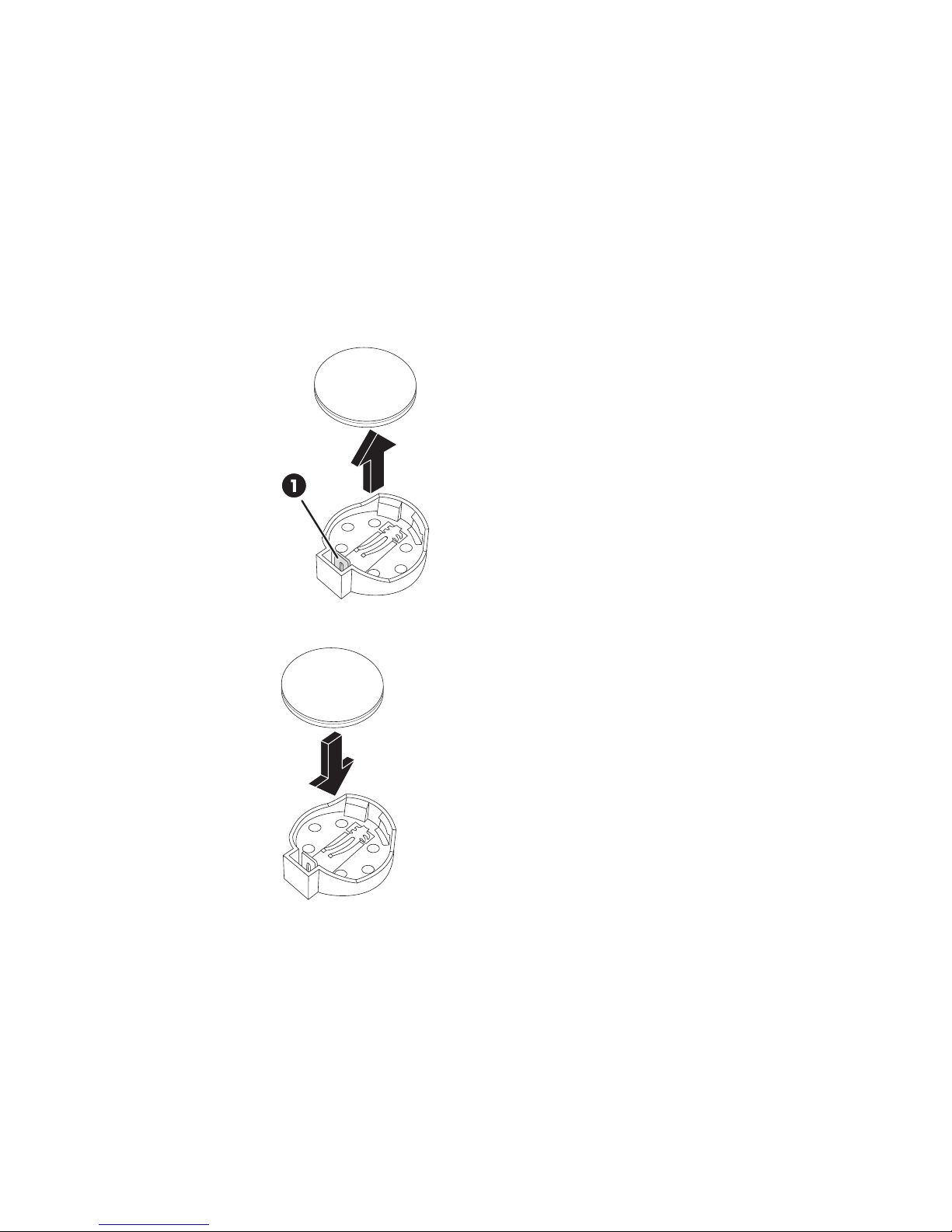

Removing and Replacing the Battery......................................................30
Before You Begin.............................................................................................30

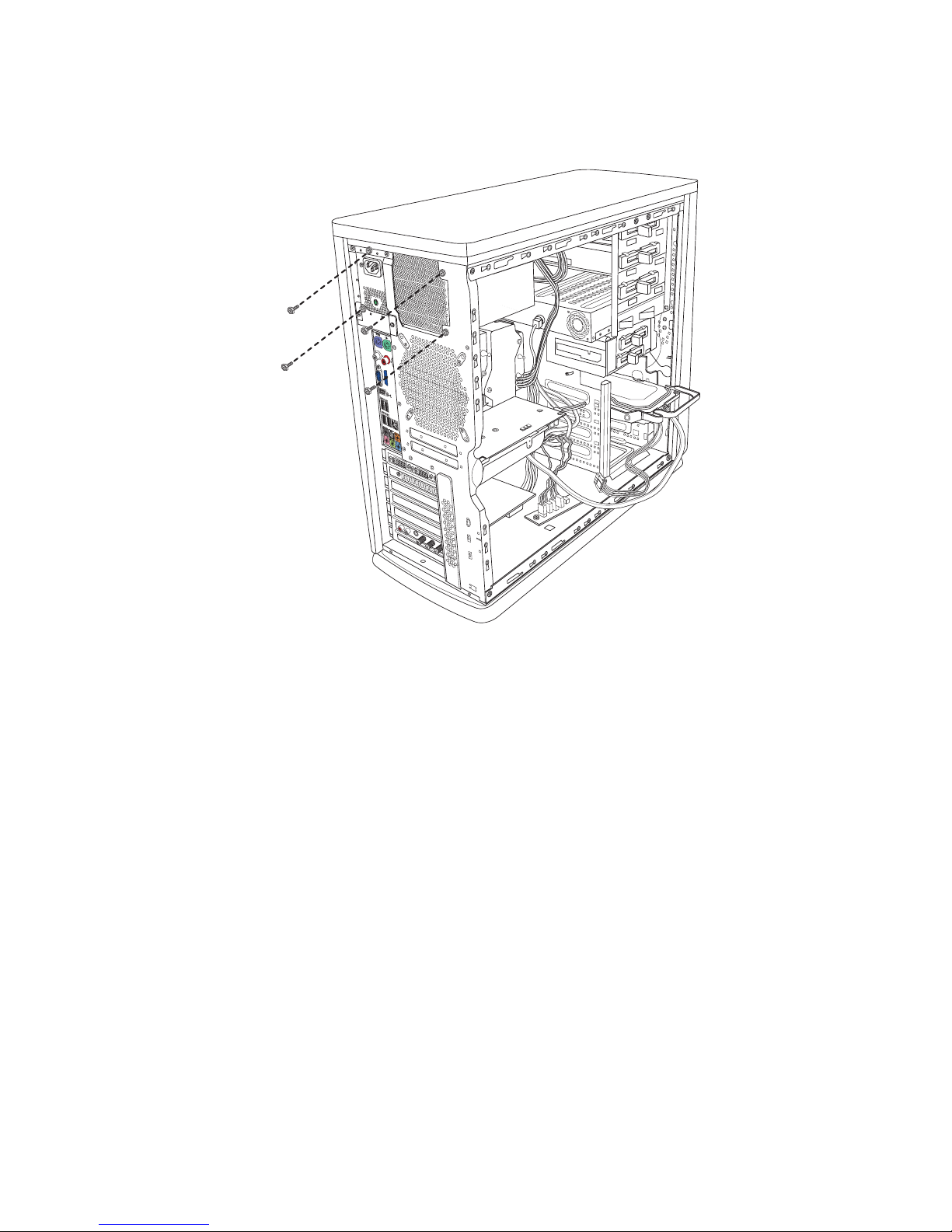

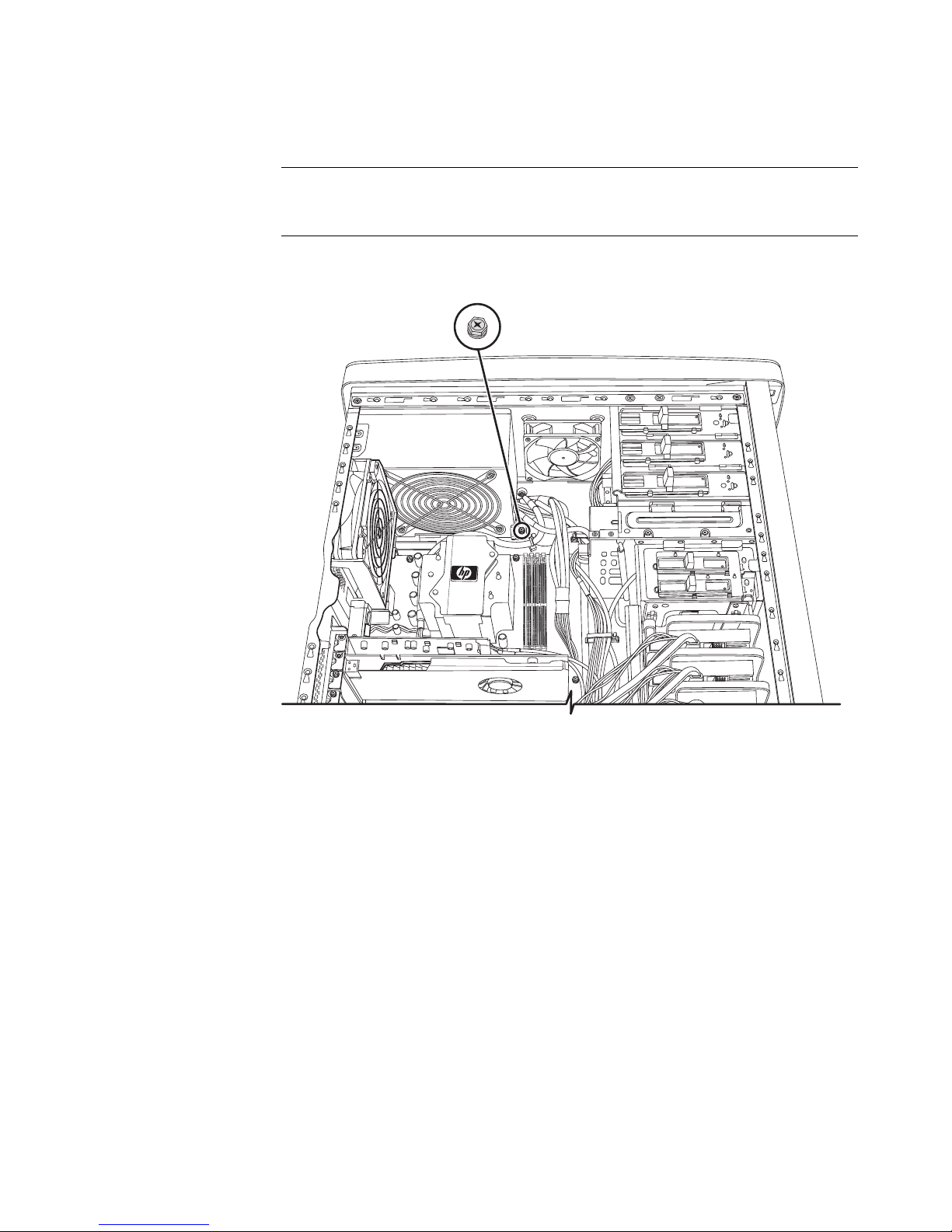

Removing and Replacing the Power Supply ...........................................32
Replacing the Power Supply..............................................................................35
Page 5
Upgrading and Servicing Guide 1
Upgrading and Servicing Guide
Why Read This?
The Upgrading and Servicing Guide provides instructions on how to remove and replace
the following hardware components in your computer:
Optical disc drives
Hard disk drives
Memory modules
Add-in cards
Battery
Power supply
Page 6
2 Upgrading and Servicing Guide
Safety Information
Please read the following important safety information before performing any procedure.
This product has not been evaluated for connection to an “IT” power system (an AC
distribution system with no direct connection to earth, according to IEC 60950).
Prerequisites
Following is what you need to know before you add or replace components.

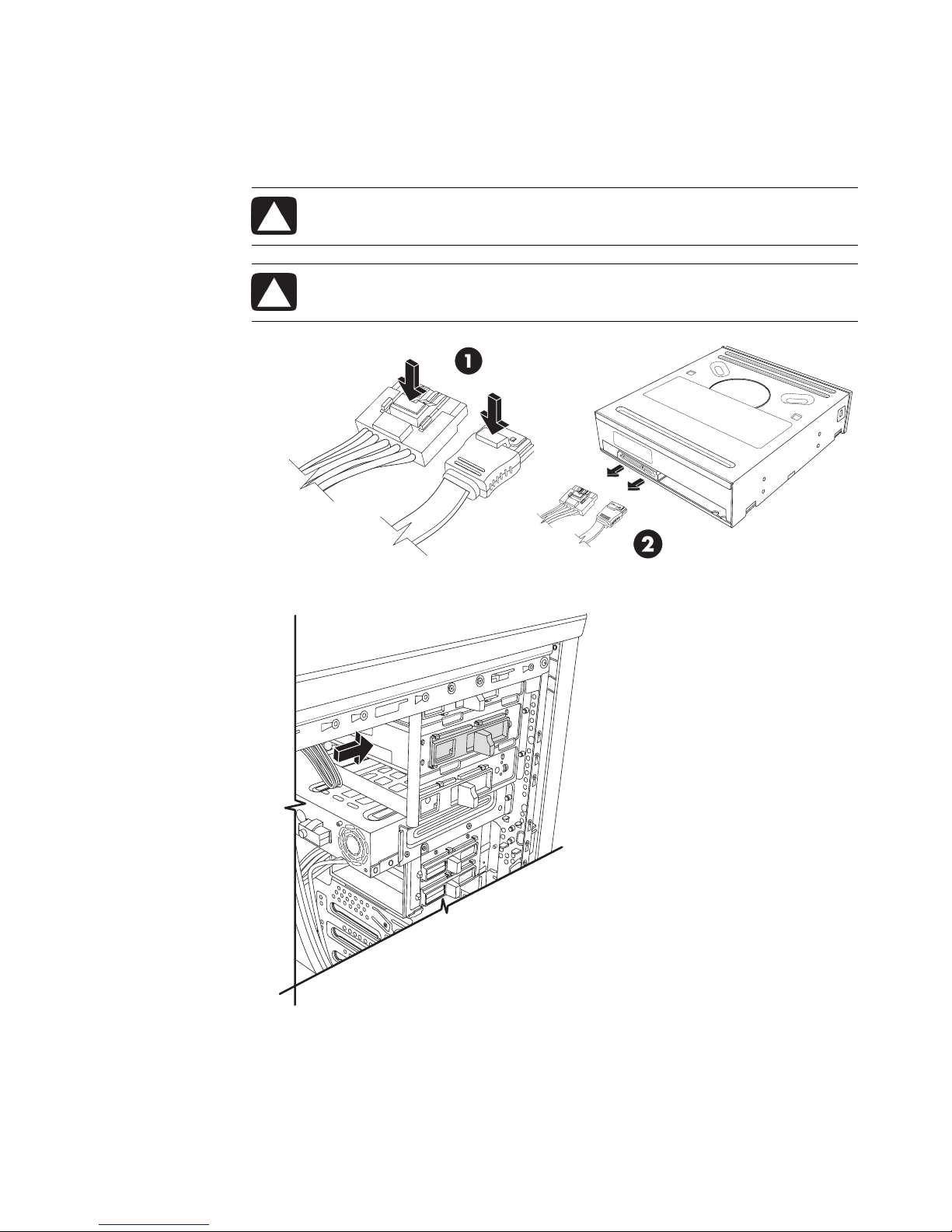

Disconnecting and connecting cables — Never force a cable out of or into its
connector. Many cables have locks that release by pressing down on a top tab, or by
squeezing side tabs. Do not force it; If the tabs break, the cable cannot be replaced
securely. The illustration here shows two kinds of release tabs; there are other types.
All connectors are keyed to fit in one orientation. If it connects, you can be confident it
is the right connection.
WARNING: Please read “Additional Safety Information” in your Limited
Warranty and Support Guide before installing and connecting your system to
the electrical power system.
WARNING: Keep your hands away from the moving fan. Keep
fingers and tools clear of the fan when power is applied. Never
open the cover with the power cord attached or power applied.
You may damage your computer or be injured from the spinning
fan blades.
WARNING: Avoid touching sharp edges inside the computer.
Page 7
Upgrading and Servicing Guide 3

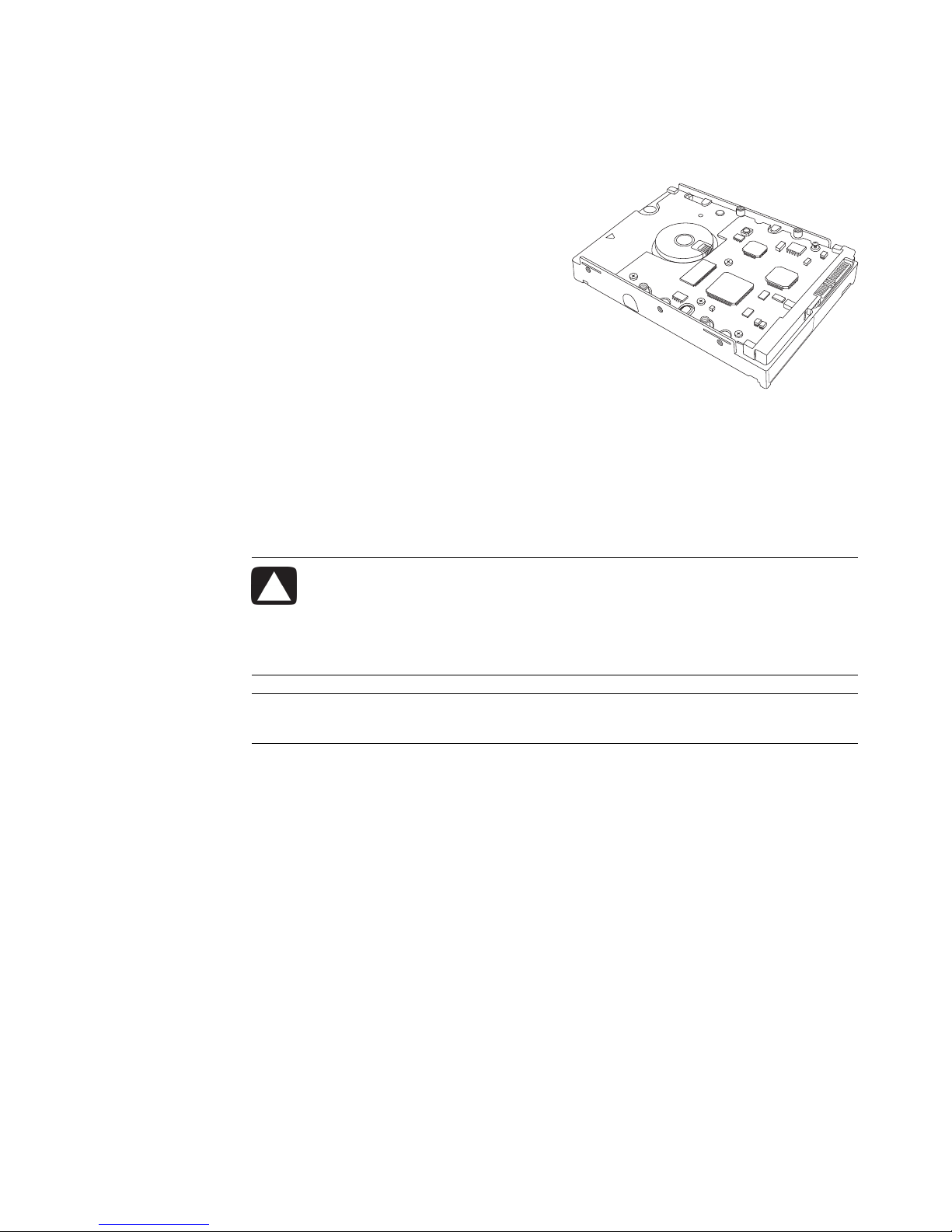

Hard drives — A hard drive is very sensitive to shock or mishandling. It is delicate
and must be treated with care when you handle it, because it holds all your files and
data. Handle hard drives according to the manufacturing guide lines. Do not drop or
bang the drive. It is shock-sensitive and electrostatic-sensitive. Do not touch the circuit
board.
Phillips and flathead screwdrivers — Various screws within the
chassis require a Phillips or a flathead screwdriver. Hewlett-Packard
recommends using a magnetic-tipped screwdriver. A flathead
screwdriver can be used with the screw seen here.

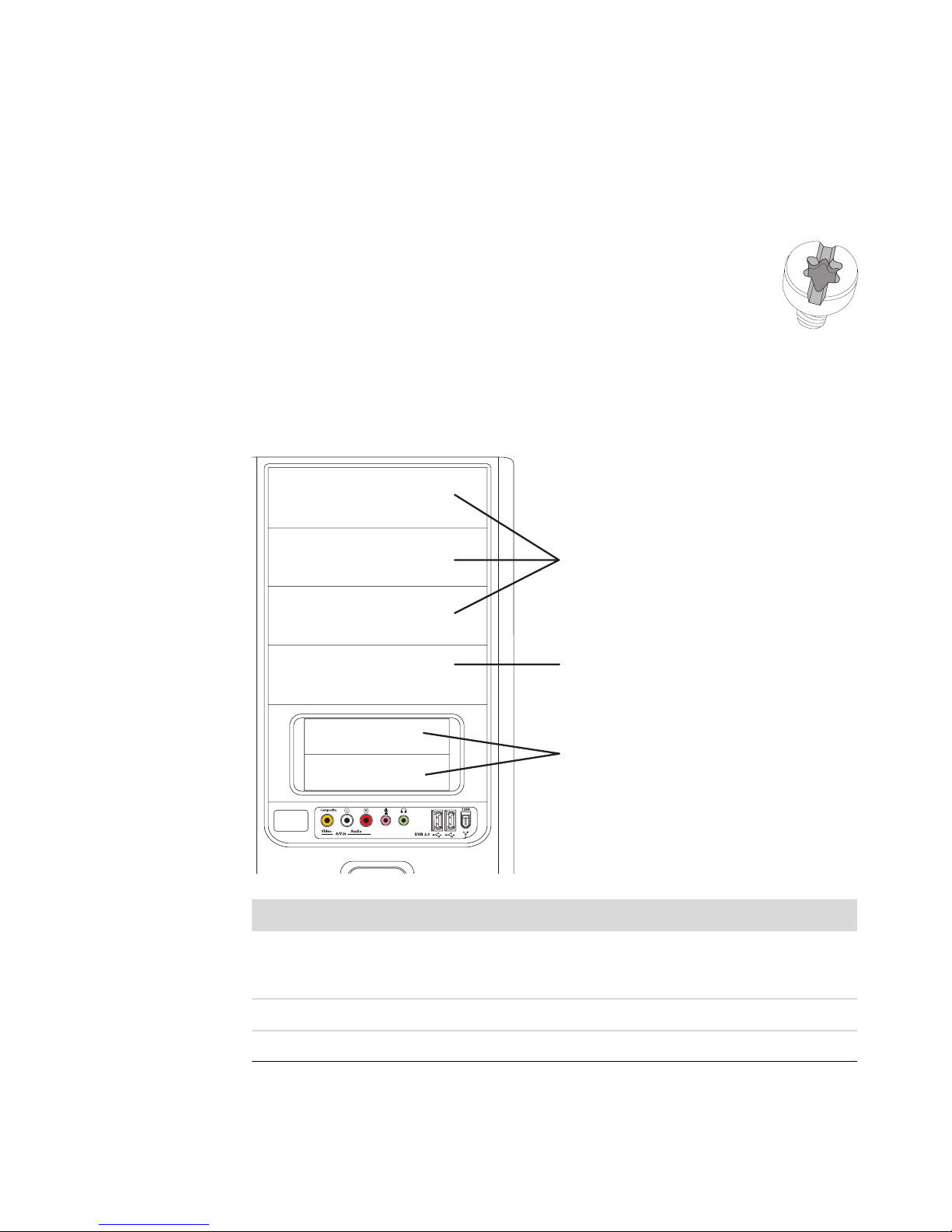

Components—Front View
The following shows locations of parts from the front, with the doors open. These are
available bays and components; not all drive bays are populated necessarily.
Component
A Optical disc drive bays (3). The top slot holds an optical drive with a maximum
depth of 17.15 centimeters (6 3/4 inches). The other two bays do not have this
limitation.
B Personal media drive bay
C 3 1/2 inch and pocket media bays
A
B
C
Page 8
4 Upgrading and Servicing Guide
Opening the Computer
Before you upgrade any component in your computer, prepare the computer so you can
safely handle it and its components.
Read the following before attempting to upgrade or service the computer:
Print out this document before attempting any removal/replacement procedures.
These procedures assume familiarity with the general terminology associated with
computers and with safety practices and regulatory compliance required for using
and modifying electronic equipment.
Write down and save the system model number and serial number, all installed
options, and other information about the system. If you need this information later, you
will not need to open and examine the computer.
HP recommends that you use an antistatic wrist strap and a conductive foam pad
when working on system electronic components.
Have a Phillips and flathead screwdriver on hand (magnetic-tipped head is optimal).
Preparing the Computer
To avoid injury and equipment damage, always follow this procedure before opening the
computer:
1 Remove any of the following:
Memory card from the memory card reader
Optical disc (CD or DVD) from the optical drive
Personal Media Drive
Pocket Media Drive from the Pocket Media Drive bay
2 Turn off the computer. Click the Windows Vista start
button
™
, click the Arrow button next to the Lock button, and
then click Shut Down.
3 Disconnect the modem/telephone cable, if present.
CAUTION: Static electricity can damage the electronic components of the
computer or optional equipment. Ensure that you are discharged of static
electricity by briefly touching a grounded metal object.
CAUTION: Always disconnect the modem cord from the telephone system
before opening the cover.
Page 9
Upgrading and Servicing Guide 5
4 Disconnect the power cord from the electrical outlet and then from the computer.
5 Disconnect all other attached cables (such as the keyboard, mouse, Ethernet, and
monitor).
6 Disconnect all external devices.

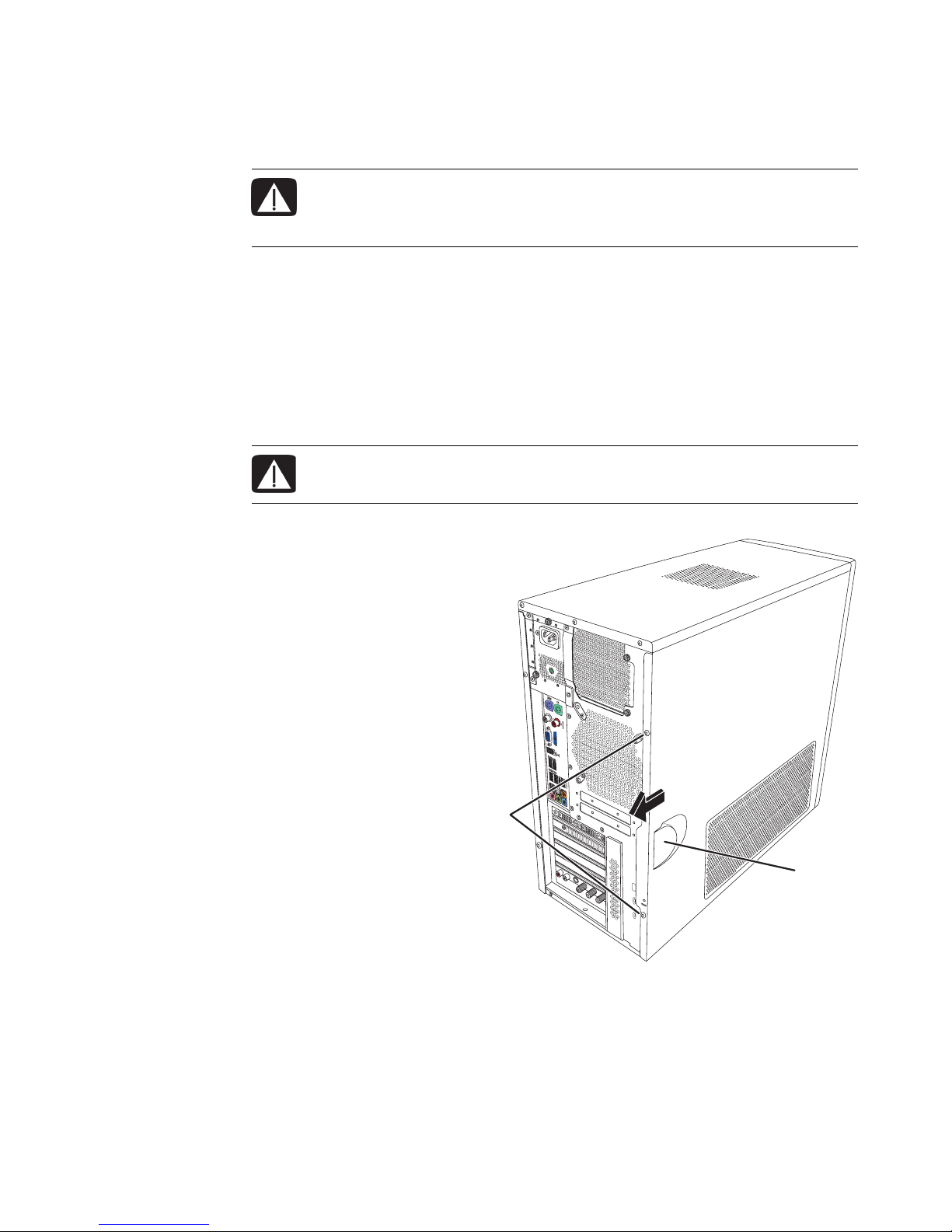

Removing the Side Computer Cover
This procedure applies to every upgrading and servicing section in this guide. Whenever
you remove, replace, add, or upgrade a part, start by removing the side cover.
1 Complete the procedure
“Preparing the Computer”
on page 4.
2 Use a screwdriver to remove
the two shipping screws (A)
on the back cover.
These screws are for
shipping only.
3 Pull the handle (B) on the
side panel, and slide the
side cover toward the rear
until if falls open. Set the
cover aside.
The cover slides only about
2.5 centimeters (1 inch).
WARNING: To reduce the risk of personal injury from electrical shock or hot
surfaces, disconnect the power cord from the electrical outlet, and then
disconnect from the computer. Failure to do so before you open the computer
or do any procedures can result in personal injury or equipment damage.
WARNING: Turn off power before opening the computer cover. Allow the
internal system components to cool before touching.
A
B
Page 10
6 Upgrading and Servicing Guide
Locating Components Inside the Computer
Computer component configurations vary by model:
The following illustration shows component locations:
Component See:
A Optical disc drives for
CD or DVD drives
“Adding or Replacing an Optical Disc Drive” on page 9.
B Personal media
drive bay
“Adding or Replacing an Optical Disc Drive” on page 9.
C 3 1/2 inch drive bays “Adding or Replacing an Optical Disc Drive” on page 9.
D Hard disk drive bays “Adding or Replacing a Hard Disk Drive” on page 16.

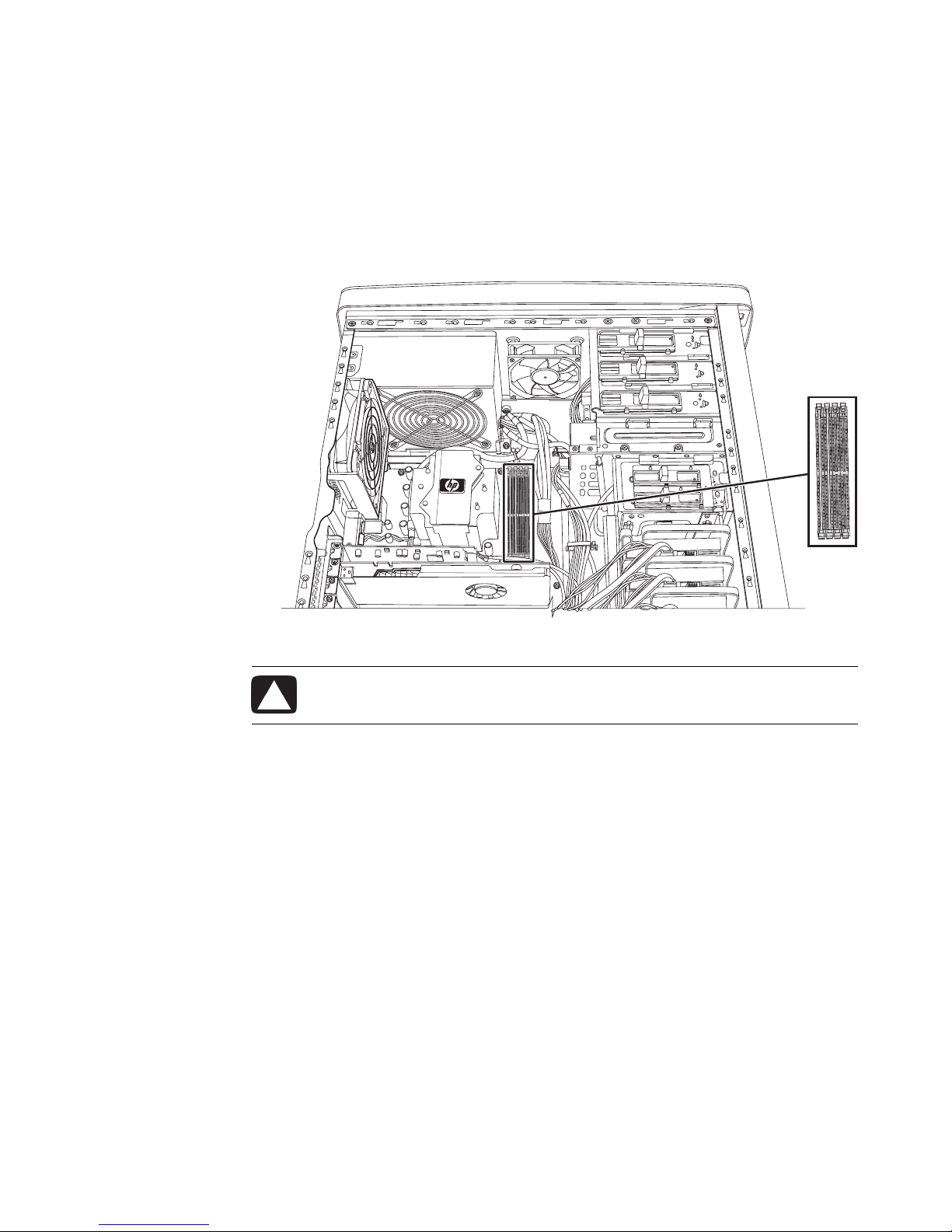

E Memory (RAM) “Removing and Replacing Memory” on page 20.
F Motherboard battery “Removing and Replacing the Battery” on page 30.
G, H Add-in cards “Adding or Replacing an Add-in or a Graphics Card” on
page 24.
I Power supply “Removing and Replacing the Power Supply” on page 32.
A
B
C
D
I
G
E
F
H
Page 11
Upgrading and Servicing Guide 7
Closing the Computer
Replacing the Computer Cover
In this procedure, you start by positioning the side panel on the computer frame so that you
still need to slide it forward about 2.5 centimeters (1 inch) toward the front of the
computer.

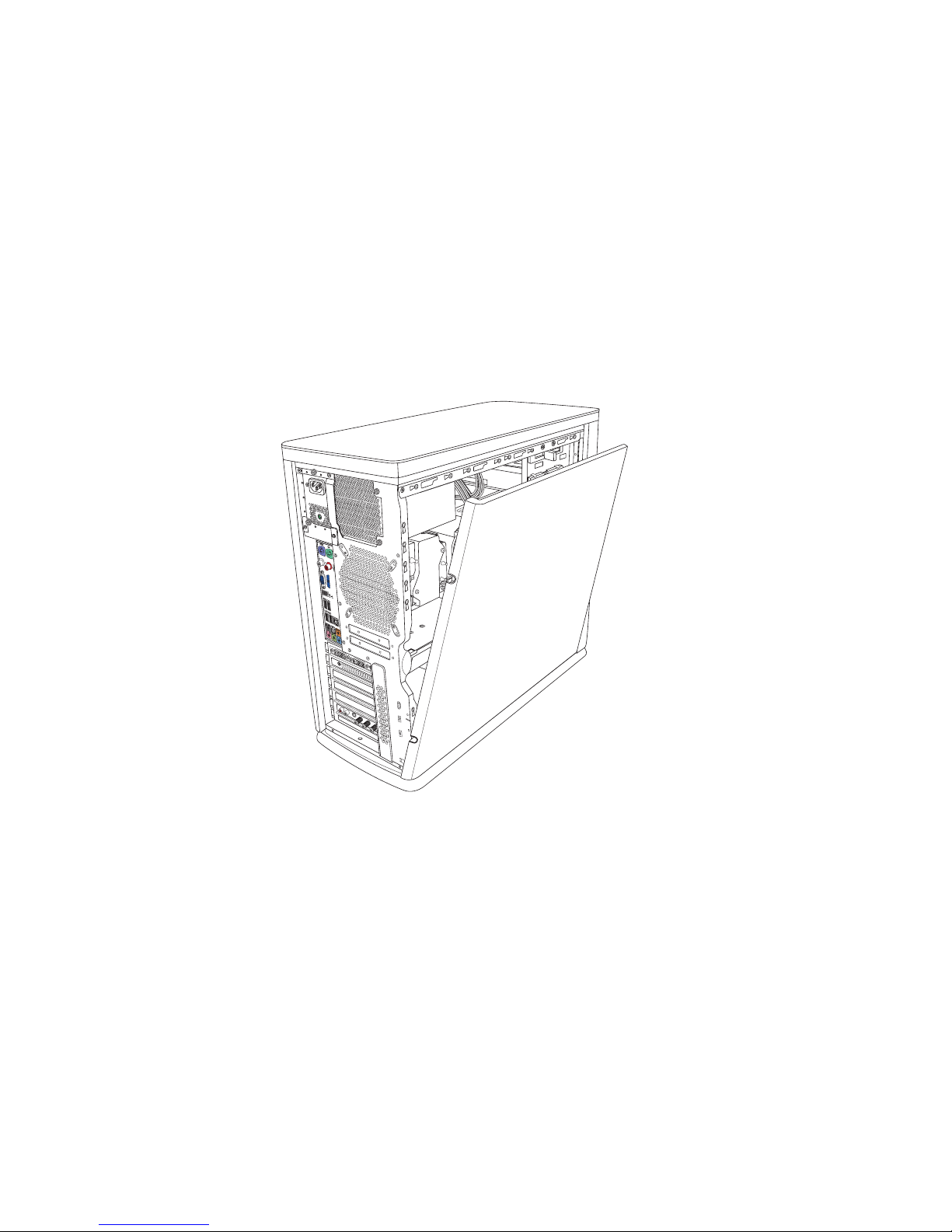

1 Holding the side panel, place the lower edge of the panel onto the computer frame at
an angle, as shown.
Tabs on the lower part of the side panel fit into grooves on the frame, and lock into
place as the door slides forward and shut.
2 With the panel tabs aligned in the computer slots, move the rest of the panel toward
the computer frame until it shuts.
Page 12
8 Upgrading and Servicing Guide

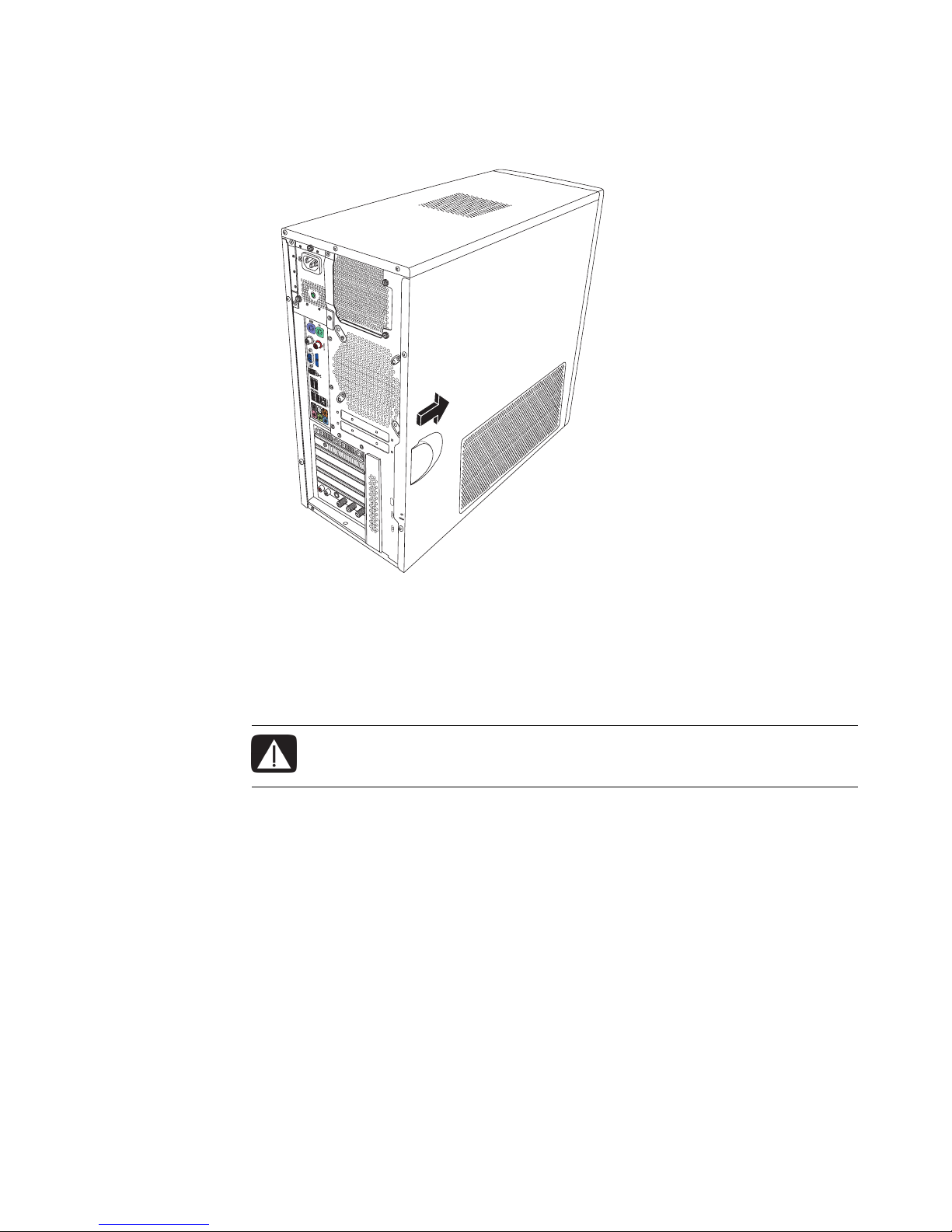

3 Slide the side panel toward the front of the computer until it snaps closed with a click.
4 Complete the following procedure “After Replacing the Cover.”
After Replacing the Cover
To avoid injury and equipment damage, always follow this procedure in this order after
closing the computer:
1 Reconnect the modem/telephone cable and all other attached cables, such as the
keyboard, mouse, Ethernet, and monitor cables.
2 Reconnect external devices, such as a printer.
3 Reconnect the power cord.
4 Turn on the computer and all peripherals, such as the monitor.
WARNING: To reduce the risk of electrical shock, fire, or damage to the
equipment, do not plug telecommunications or telephone connectors into the
Ethernet network interface connector.
Page 13
Upgrading and Servicing Guide 9

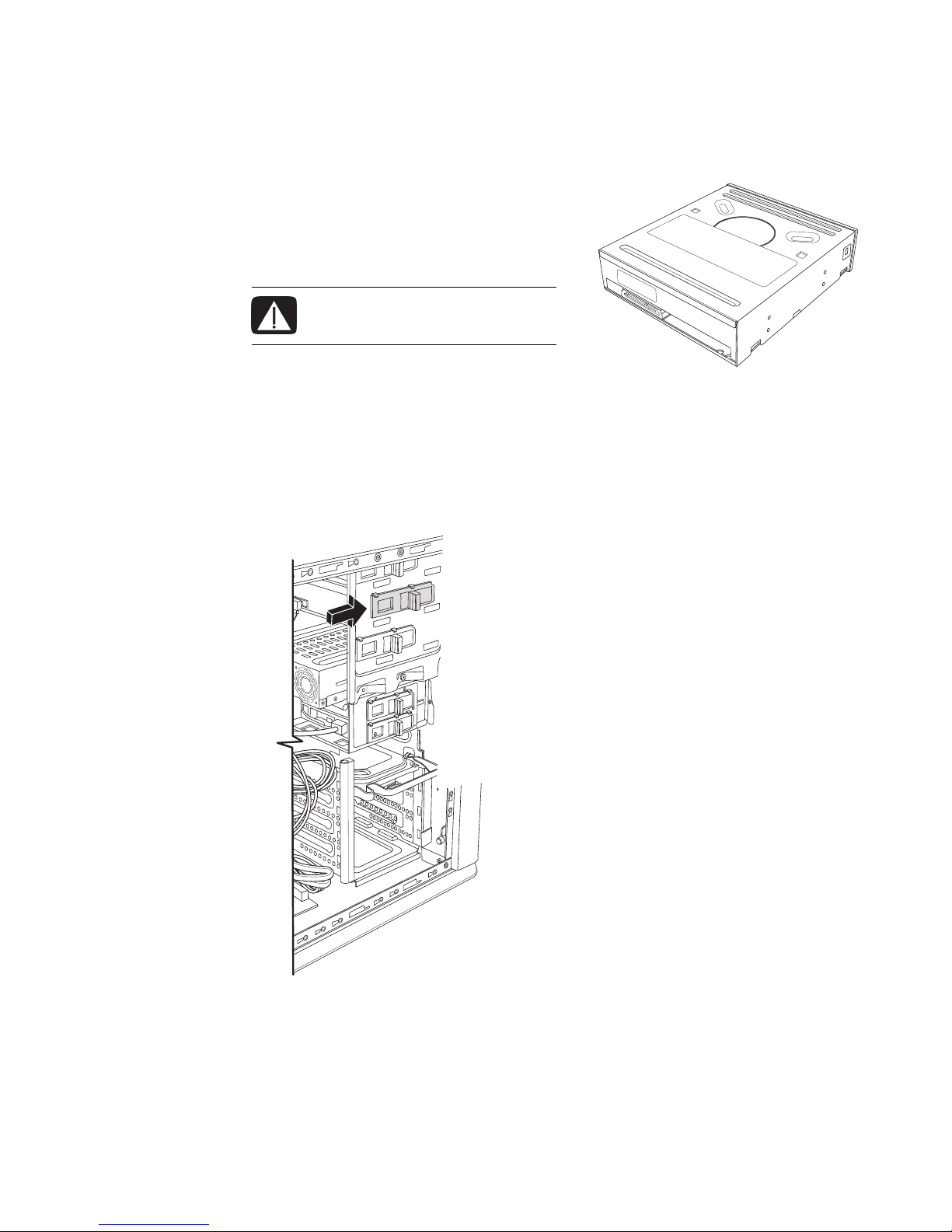

Adding or Replacing an Optical Disc Drive
Your computer has three optical drive bays for
replacing or adding disc drives. The connections
will vary depending on the optical drive. See
“Locating Components Inside the Computer” on
page 6.

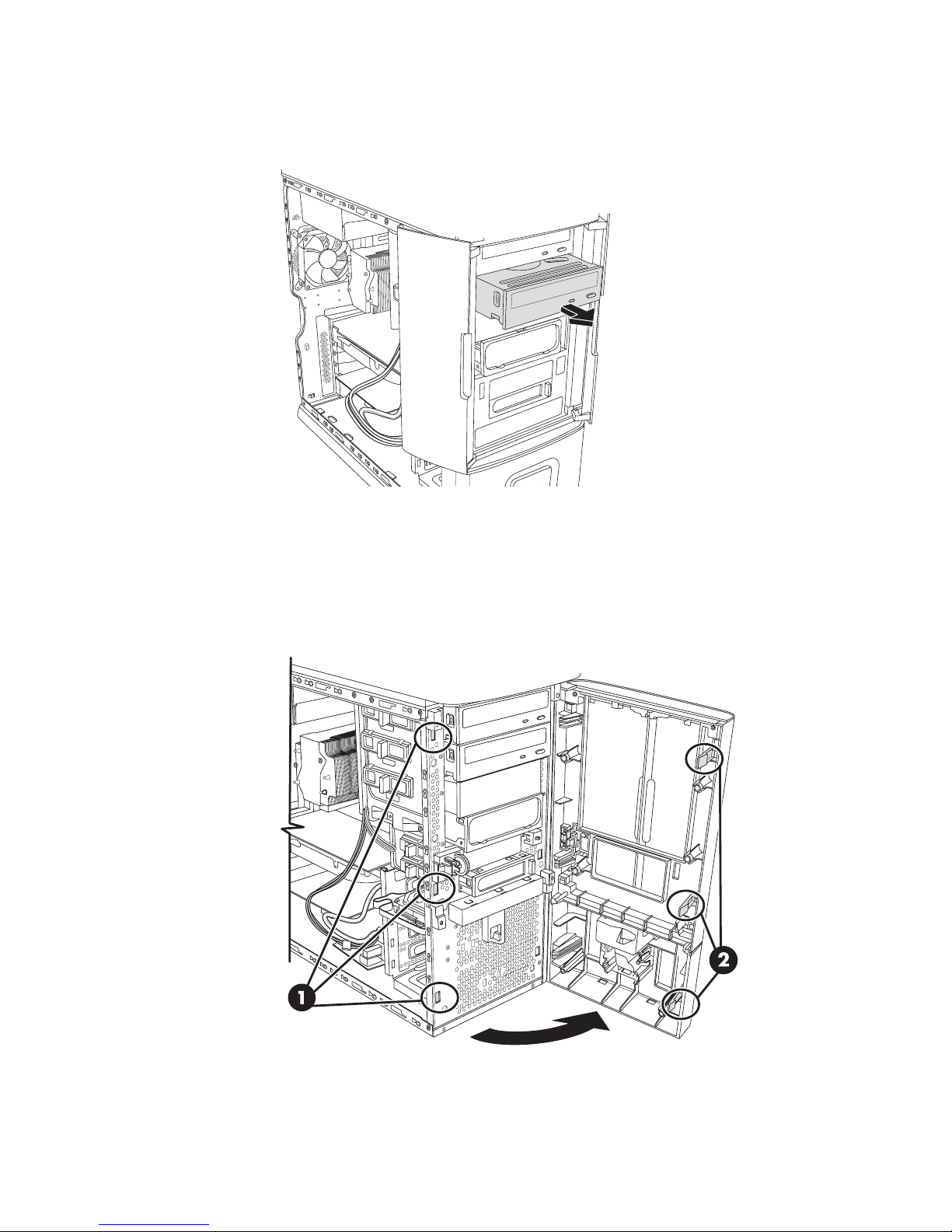

Removing an Optical Disc Drive
1 Prepare the computer, and remove the side cover. Complete the “Opening
the Computer” on page 4.
2 From the side of the computer, slide the green plastic drive lock toward the front of the
computer to unlock the drive (lock and unlock positions are marked).
WARNING: Avoid touching sharp
edges inside the computer.
Page 14
10 Upgrading and Servicing Guide
3 Disconnect the power and data cables. Press down on the cable release tabs (1), if
present. The cables should disconnect easily (2).
4 From the inside of the computer, push the drive toward the front of the computer.
CAUTION: Never force a connector. Do not push or pull too hard. Many
connectors have release tabs that must be pressed before disconnecting.
CAUTION: Pull the connector by the handle (cable housing) only.
Page 15
Upgrading and Servicing Guide 11
5 From the front of the computer, continue pulling out the disc drive the rest of the way.
Removing the Front Bezel
This procedure is required only when you are adding an optical disc drive or a 3 1/2 inch
floppy or pocket media drive. Otherwise, the front bezel can be left intact.
1 First, remove the side cover. See “Removing the Side Computer Cover” on page 5.
2 From the inside of the chassis, release the three tabs (2) forward through the slots (1).
Page 16
12 Upgrading and Servicing Guide
3 Swing open the front bezel, and lift it off the chassis.
Replacing or Adding an Optical Disc Drive
1 If you are replacing a drive, first complete the procedure “Removing an Optical Disc
Drive” on page 9.
2 If you are adding a new, or upgrading an existing, optical drive:
a Complete the procedure “Removing the Front Bezel” on page 11.
b Remove the blank plate from the front bezel by holding it so the back side of the
bezel is toward you. Then squeeze the two tabs on either side of the plate you
want to remove, and push the plate forward, away from you, until it snaps out of
the bezel.
c Remove the metal shield from the chassis bay by prying it out of the chassis. If
necessary, insert the tip of a flat screwdriver between the chassis and the shield,
and pry the shield free.
Page 17
Upgrading and Servicing Guide 13
3 Ensure the orientation of the disc drive is correct (see the illustration; the top of the disc
drive should look similar).
4 From the front of the chassis, gently push the optical disc drive into one of the three top
bays on the front of the chassis, until it is flush with the other bay fronts.
NOTE: The top optical bay holds an optical drive with a maximum depth of
17.15 centimeters (6 3/4 inches). The other two bays do not have this limitation.
Page 18
14 Upgrading and Servicing Guide
5 From the side of the chassis, be sure the drive is in its proper position. The two small
holes in the bay align with holes on the side of the drive as shown in the following
illustration.
6 Slide the plastic drive lock toward the back of the computer until it is firmly locked and
the optical drive cannot be pushed forward.
The lock travels over two raised bumps on the chassis and all the way back. It does
not go into position properly if the drive is not aligned.
7 Connect the power and data cables gently but firmly into the back of the optical drive.
Some drive models may have a sound cable. If so, connect the sound cable.
Page 19
Upgrading and Servicing Guide 15
8 If you removed it, replace the front bezel; see “Replacing the Front Bezel” on page 15.
9 Replace the computer side cover as described in “Replacing the Computer Cover” on
page 7.
Replacing the Front Bezel
1 Align the hooks on the right side of the front panel with the slots on the right side of the
chassis front, and press the right side of the front panel into place.
2 Swing the front panel closed, and then press the left side of the front panel to latch it
into place.
Page 20
16 Upgrading and Servicing Guide
Adding or Replacing a Hard Disk Drive
Your computer includes one or more hard
disk drives that can be upgraded. There is
room for up to four hard disk drives. See
“Locating Components Inside the Computer”
on page 6.
The original hard disk drive is preloaded with
the computer system recovery partition. If you
remove this hard disk drive, store it in a
properly sealed antistatic bag.
This is very important: treat a hard disk drive
with extreme care. It is easy to damage it
even before you insert it into the computer. A hard disk drive is not like other removable
parts. It is extremely sensitive to shock impact. Do not bang or drop it. Do not touch the
circuit board. Static electricity can damage the drive. Be gentle and attentive.
Before You Begin
Observe the following requirements before removing and replacing a hard drive:
CAUTION: Before you remove the hard disk drive, back up your personal files
on the hard disk drive to an external storage device, such as a DVD, CD, or
USB drive. Failure to do so will result in data loss.
After you replace the hard disk drive, perform the System Recovery procedure.
Use the recovery discs to load the factory-installed files. Refer to the
Troubleshooting and Maintenance Guide for detailed System Recovery steps.
IMPORTANT: Before upgrading a hard disk drive, make sure a recovery disc is
available.
Page 21
Upgrading and Servicing Guide 17
Removing a Hard Disk Drive
1 Prepare the computer and remove the side computer cover. See “Opening
the Computer” on page 4.
2 Carefully disconnect the power and data cables. Press down on the latch (A) on the
top of the data cable before you disconnect it.
3 Using your thumb, squeeze the tab on the green hard drive carrier (1) and pull the
hard drive out of the bay (2).
CAUTION: Pull the connectors straight out so as not to bend or damage the
pins or connector.
A
Page 22
18 Upgrading and Servicing Guide
4 Pop the hard drive from its flexible carrier by twisting one of the carrier ends outward
(circled) until it peels away from the drive.
CAUTION: Handle hard disk drives with care. Dropping or banging the hard
disk drive can result in data loss.
Page 23
Upgrading and Servicing Guide 19
Adding or Replacing a Hard Disk Drive
During this procedure, handle the hard disk drive gently. It is sensitive to shock impact and
easily damaged. Do not drop or bang it. Do not touch the circuit board.
1 If you are replacing a hard drive, complete the procedure “Removing a Hard Disk
Drive” on page 17.
2 Place the hard drive into its carrier by aligning the four pins and holes, first on one
side, and then on the other. Ensure the drive is oriented correctly, so the cable
connectors are toward the green handle.
3 Now that the hard drive is in its carrier, align the carrier with the correct bay. Slide the
carrier all the way back until it is seated and clicks into place.
4 Ensuring the cables are aiming straight into the connections so as not to bend or
damage pins, reconnect the power and data cables.
The cables click into place. Never force the connection; they should connect easily.
5 Complete the procedures to replace the computer cover and close the computer. See
“Replacing the Computer Cover” on page 7.
6 Perform a System Recovery, as required. Use the recovery discs to replace the
factory-installed files. Refer to the Troubleshooting and Maintenance Guide for
detailed System Recovery procedures.
The other bays can be used for adding more hard drives. Follow this same procedure.
Page 24
20 Upgrading and Servicing Guide
Removing and Replacing Memory
The motherboard contains memory module sockets for DDR DIMMs (double data rate dual
in-line memory modules).
Before You Begin
Observe the following requirements before
removing and replacing the component:
To determine which type and speed of memory
module your computer uses, and for specific
memory module information and specifications:
1 Go to http://www.hp.com/support in
your Web browser.
2 Select your country/region and language.
3 From the Support and Drivers page, click See
support and troubleshooting
information, enter the model number of your
computer, and then click Search.
CAUTION: Using the wrong type of memory module could damage the system.
CAUTION: Handle the memory module by its edges only. Be careful to not
touch any memory module contacts. Touching the gold contacts may damage
the module. Avoid touching the memory chips.
Page 25
Upgrading and Servicing Guide 21
Removing a Memory Module
1 Prepare the computer and remove the side computer cover. See “Opening
the Computer” on page 4.
2 Remove the optical disc drive. See “Removing an Optical Disc Drive” on page 9.
3 Locate the memory socket on the motherboard.
4 Without disconnecting any cables, move any cabling out of the way, if necessary.
CAUTION: Do not pull the memory module out of the socket. Use the retaining
clips to eject the module.
Page 26
22 Upgrading and Servicing Guide
5 Push down the two retaining clips on the ends of the socket until the memory module
pops out of the socket. Push down one at a time if it is easier. Hold the memory
module by its edges only, as you lift it away from the socket.
6 Store the memory module in antistatic packaging.
Replacing a Memory Module
Upgrade the memory in your computer with memory of the same type and speed as the
memory originally installed in your computer.
1 Complete the procedure “Replacing a Memory Module” on page 22.
2 Open both latches of the memory module socket.
CAUTION: Handle the memory module by its edges only. Be careful to not
touch any memory module contacts. Touching the gold contacts may damage
the module. Avoid touching the memory chips.
Page 27
Upgrading and Servicing Guide 23
3 Remove the new memory module from the antistatic packaging. Hold it by its
edges only.
4 You can install the memory module in only one orientation. Match the notch (A) on the
memory module with the tab (B) on the memory socket. Push the module carefully and
firmly into the slot, ensuring that the latches on both ends snap into place.
5 Repeat steps 1 to 4 for the second memory slot, as required.
6 Replace any cabling that was moved.
7 Complete the procedures to replace the computer side cover. See “Replacing the
Computer Cover” on page 7.
Page 28
24 Upgrading and Servicing Guide
Adding or Replacing an Add-in or a Graphics Card
Your computer contains several graphics or add-in card slots that can be used to add
components to your computer, such as a TV tuner (select models only). You can also
replace these cards with new cards.
Graphics card
Modem card
Page 29
Upgrading and Servicing Guide 25
Removing a Graphics Card
This procedure requires a screwdriver.
1 Prepare the computer and remove the computer cover. Complete the procedure
“Opening the Computer” on page 4.
2 Inside the computer, locate the card slot to be replaced.
3 Make a note of any internal cables attached to the card, and then disconnect them.
You may have to pull out the card first to get access to the cables, and then disconnect
them. In this case, follow the next steps to pull out the card.
4 Remove the screw or screws that hold the card to the frame (1).
CAUTION: Familiarize yourself with how the cables disconnect. Some cables
have metal tabs that have to be pressed to unlock the cable. Other cables have
side tabs that need to be squeezed before you pull. Do not force a cable.
2
Page 30
26 Upgrading and Servicing Guide

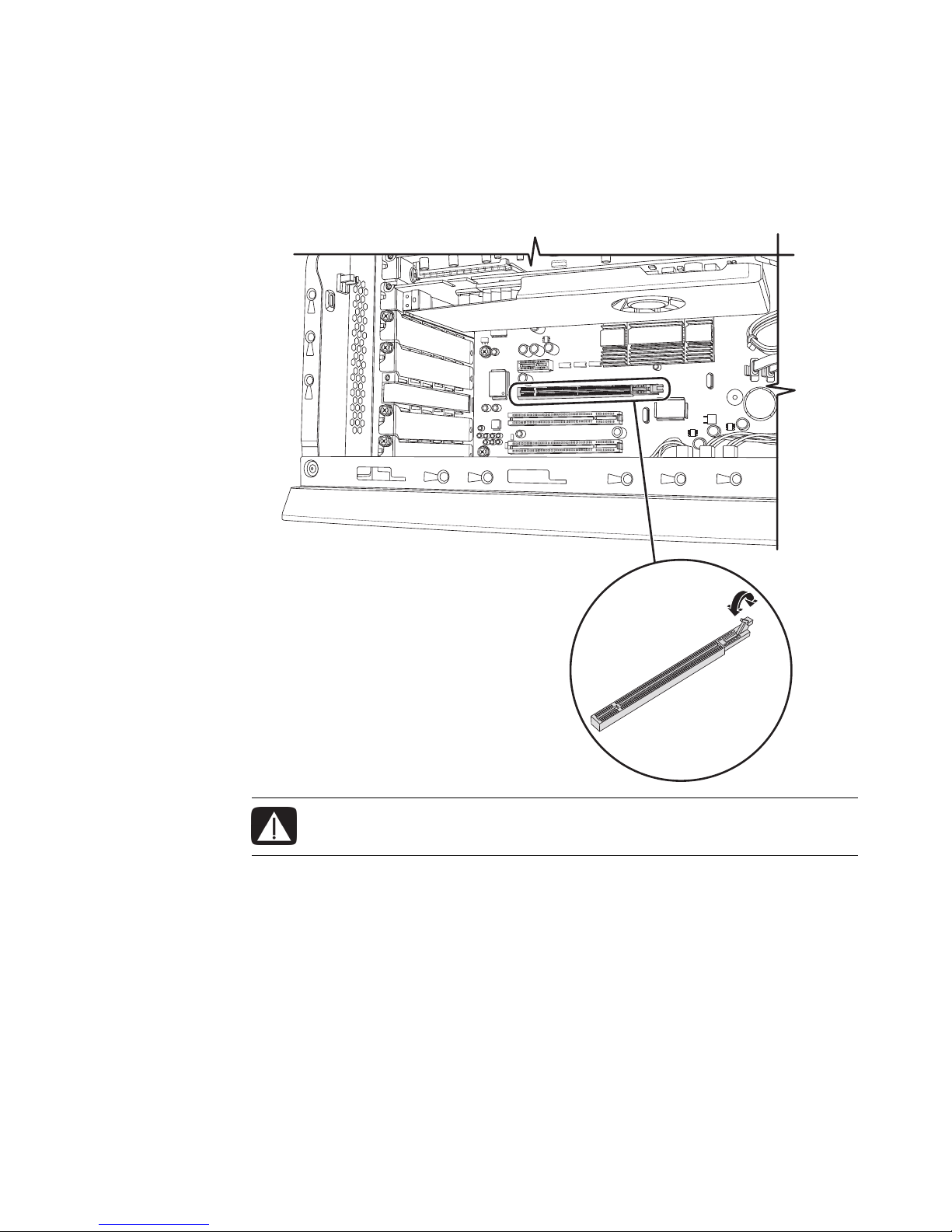

5 If it is a graphics card, unlock it by releasing the latch connecting the card to the
motherboard.
The latch may be hidden behind the card. The following illustration shows an
example tab.
WARNING: Take care with sharp edges around the graphics card slots.
Page 31
Upgrading and Servicing Guide 27
6 While pressing the plastic tab down, grasp the card at the top, and carefully pull it
straight out of the slot.
CAUTION: Handle the graphics card by its edges only. Be careful to not touch
any memory module contacts. Touching the gold contacts may damage the
module. Avoid touching the memory chips.
Page 32
28 Upgrading and Servicing Guide
Removing an Add-in Card
The procedure for removing other add-in cards is the same as for the graphics card, but
there is no release tab.
1 Remove the screw or screws that hold the card to the frame.
2 Make a note of any internal cables attached to the card, and then disconnect them.
3 Hold the top of the card, and carefully pull it straight out of the card slot.
Page 33
Upgrading and Servicing Guide 29
Replacing a Graphics or Add-in Card
When adding a card, you first have to force out the blank PCI faceplate. Be careful not to
bend the EMI shields. The following figure shows a bent shield.
CAUTION: A bent EMI shield could cause an electrical short.
Page 34
30 Upgrading and Servicing Guide
1 Align the card tab (A) with the slot on the chassis (B), and gently but firmly press the
card straight down into the card slot. The whole card should be properly seated in
the slot.
With the graphics card, the locking tab will click as the card seats properly.
2 Replace the screw on the card slot.
Removing and Replacing the Battery
A lithium battery on the motherboard provides backup power for the computer’s
timekeeping capability.
When the battery starts to weaken, the date and time may be incorrect. If the battery fails,
replace it with a CR2032 lithium battery (3-volt, 220 mAh rating) or its equivalent.
Before You Begin
Observe the following requirements before removing and replacing the battery:
A
B
WARNING: There is danger of explosion if the battery is incorrectly replaced.
Replace only with the same or equivalent type of battery. Discard used
batteries according to the manufacturer’s instructions.
CAUTION: Never use metal objects, such as pliers, to remove or replace the
battery. Metal contact may cause a battery short and damage the battery.
Page 35
Upgrading and Servicing Guide 31
Procedure
1 Prepare the computer, and remove the computer cover. Complete the procedure
“Opening the Computer” on page 4.
2 Gently lay the computer on its side on a soft, protective surface.
3 If an add-in or graphics card is in the way of the battery, remove the graphics card
first. See “Removing a Graphics Card” on page 25.
4 Remove any cabling, if necessary, to reach the battery.
5 Move the retaining tab (1) away from the battery. Lift the battery from the socket.
6 Install the new CR2032 battery in the socket, with the positive (+) side facing up.
Page 36
32 Upgrading and Servicing Guide
7 Replace any cables that you removed.
8 If necessary, complete the procedure “Replacing a Graphics or Add-in Card” on
page 29.
9 Complete the procedures to replace the computer cover and close the computer. See
“Replacing the Computer Cover” on page 7.
Removing and Replacing the Power Supply
Your computer comes with a 460W or 700W power supply. You can replace the power
supply with an equivalent one.
1 Prepare the computer, and remove the computer cover. Complete the procedure
“Opening the Computer” on page 4.
2 Make note of all cables plugged into the power supply, and where they are connected
within the chassis, to ensure everything will be reconnected.
3 Methodically release the cables from the cable organizers.
NOTE: You may have to manually set the time and date on the computer after startup.
Page 37
Upgrading and Servicing Guide 33
4 Disconnect the cables at the point they attach to the computer, one by one.
5 If it is a 700W power supply, remove the additional shipping screw as shown in the
figure.
NOTE: Do not cut cable rings. The cables are routed in reusable cable rings, which
can be opened to remove the cables, and closed to secure the cables in their
routing path.
placeholder:illustration of screw placement
inside the chassis, for the 700W power supply
Page 38
34 Upgrading and Servicing Guide
6 Remove the four screws holding the power supply to the back panel of the computer.
7 Pull out the power supply carefully:
a Move it to the right (toward the front of the chassis) until it clears its left-most
brackets.
b Move it up to clear the bottom brackets.
c Angle the power supply by rotating the right side down as far as you can.
d Move the whole component to the right.
e Lift the power supply out of the chassis.
Page 39
Upgrading and Servicing Guide 35
Replacing the Power Supply
After the power supply is in place, take time to organize cables, using the cable
organizers.
1 Replace the new power supply into the same placement it was originally.
2 Reinsert the four screws that hold the power supply in place.
3 Reconnect each cable to its component.
It can be difficult to see where some cables reconnect, if other components or cables
are in the way. Do not force connections.
WARNING: Be careful of sharp edges inside the chassis. It can be difficult to
see where some cables reconnect, if other components or cables are in
the way.
Page 40
Printed in
Loading...
