HP Pavilion dv6 Entertainment PC
Maintenance and Service Guide
© Copyright 2008, 2009 Hewlett-Packard
Development Company, L.P.
ATI Mobility Radeon is a registered
trademark of Advanced Micro Devices, Inc.
Bluetooth is a trademark owned by its
proprietor and used by HewlettPackard Company under license. Intel,
Celeron, Core, and Pentium are trademarks
of Intel Corporation in the U.S. and
other countries. Microsoft, Windows, and
Windows Vista are U.S. registered
trademarks of Microsoft Corporation.
SD Logo is a trademark of its proprietor.
The information contained herein is subject
to change without notice. The only
warranties for HP products and services are
set forth in the express warranty statements
accompanying such products and services.
Nothing herein should be construed as
constituting an additional warranty. HP shall
not be liable for technical or editorial errors
or omissions contained herein.
Third Edition: May 2009
First Edition: December 2008
Document Part Number: 505495-003
Safety warning notice
WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not
place the computer directly on your lap or obstruct the computer air vents. Use the computer only on a
hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft
surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to contact
the skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer and the
AC adapter comply with the user-accessible surface temperature limits defined by the International
Standard for Safety of Information Technology Equipment (IEC 60950).
iii
iv Safety warning notice
Table of contents
1 Product description
2 External component identification
Top components ................................................................................................................................... 8
TouchPad ............................................................................................................................ 8
Lights ................................................................................................................................... 9
Buttons, speakers and fingerprint reader ........................................................................... 11
Keys ................................................................................................................................... 13
Front components .............................................................................................................................. 14
Rear component ................................................................................................................................. 15
Right-side components ....................................................................................................................... 15
Left-side components ......................................................................................................................... 16
Bottom components ........................................................................................................................... 17
Display components ........................................................................................................................... 18
Wireless antennas (select models only) ............................................................................................. 19
3 Illustrated parts catalog
Service tag ......................................................................................................................................... 20
Computer major components ............................................................................................................. 21
Display assembly components ........................................................................................................... 33
AntiGlare display assembly spare parts ............................................................................ 33
BrightView display assembly spare parts .......................................................................... 35
Plastics Kit .......................................................................................................................................... 37
Cable Kit ............................................................................................................................................. 38
Miscellaneous parts ............................................................................................................................ 39
Sequential part number listing ............................................................................................................ 40
4 Removal and replacement procedures
Preliminary replacement requirements ............................................................................................... 52
Tools required .................................................................................................................... 52
Service considerations ....................................................................................................... 52
Plastic parts ....................................................................................................... 52
Cables and connectors ..................................................................................... 53
v
Drive handling ................................................................................................... 53
Grounding guidelines ......................................................................................................... 54
Electrostatic discharge damage ........................................................................ 54
Packaging and transporting guidelines ............................................. 55
Workstation guidelines ..................................................................... 55
Equipment guidelines ....................................................................... 56
Component replacement procedures ................................................................................................. 57

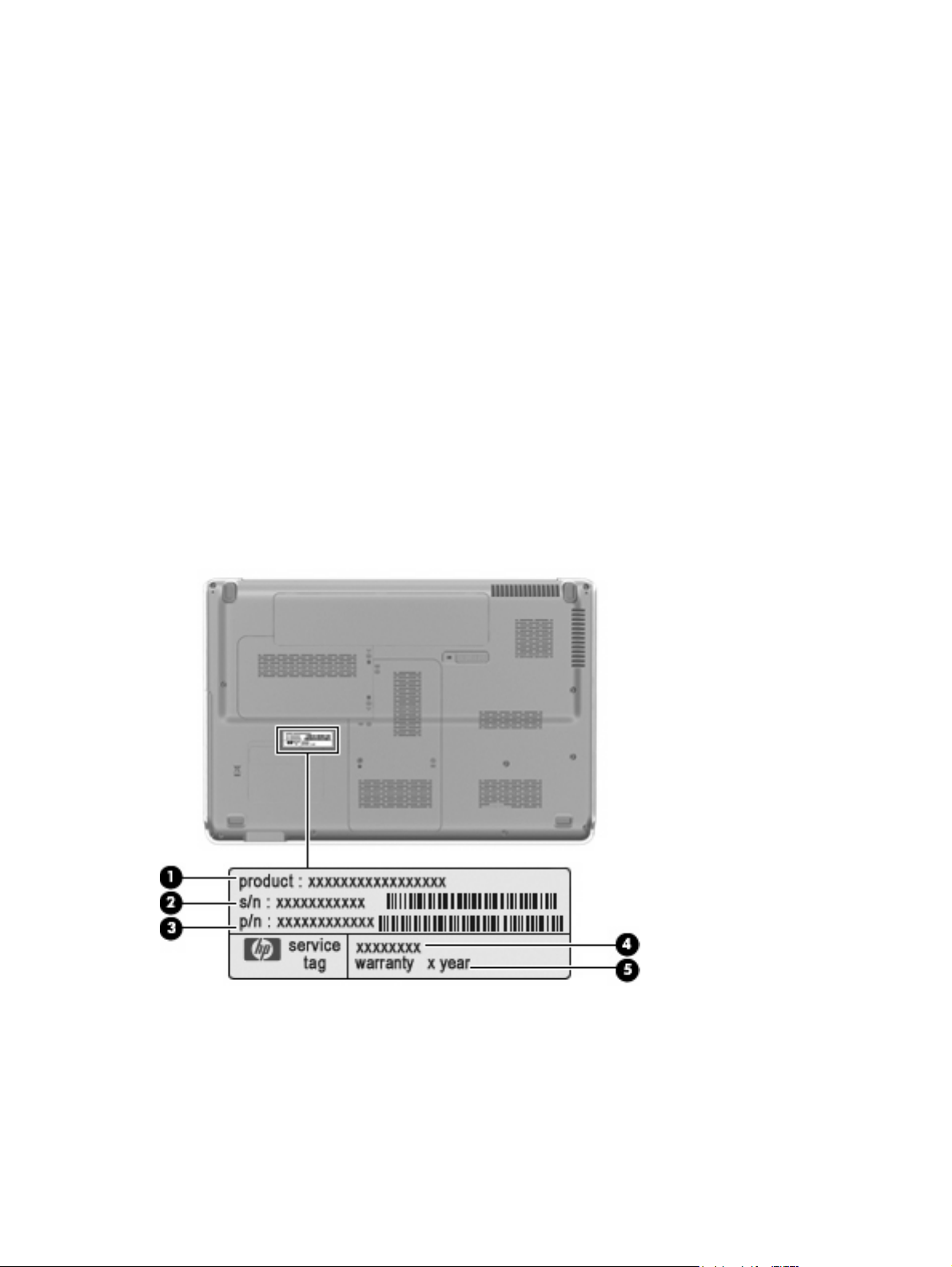

Service tag ......................................................................................................................... 57
Computer feet .................................................................................................................... 58
Battery ............................................................................................................................... 59
Webcam/microphone module ............................................................................................ 60
Optical drive ....................................................................................................................... 62
Memory module ................................................................................................................. 64
TV tuner module ................................................................................................................ 66
RTC battery ....................................................................................................................... 67
Hard drive .......................................................................................................................... 69
WLAN module .................................................................................................................... 72
Switch cover and keyboard ................................................................................................ 76
Power button board ........................................................................................................... 80

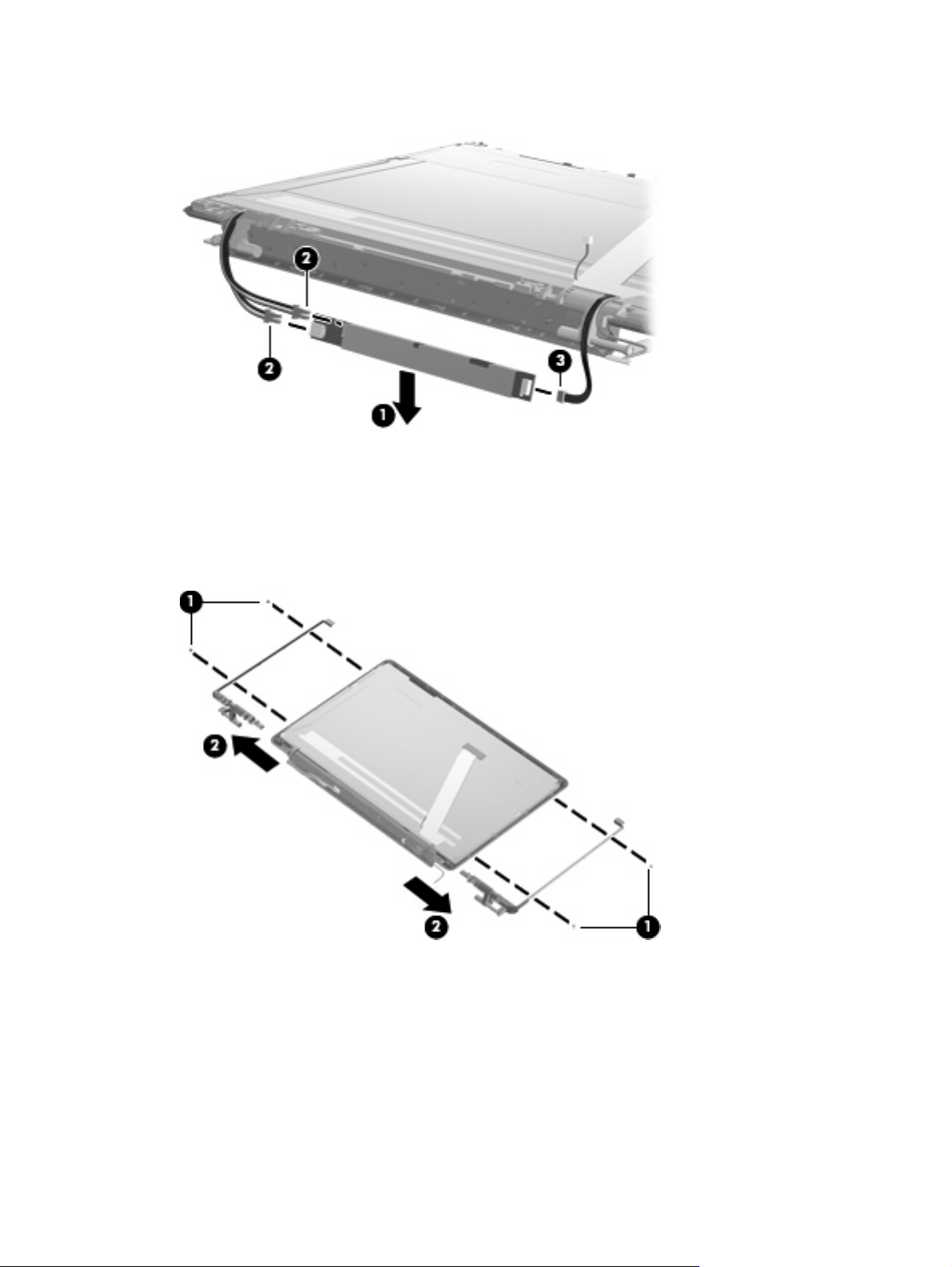

Display assembly ............................................................................................................... 81
Top cover ........................................................................................................................... 91
Bluetooth module ............................................................................................................... 94
Modem module .................................................................................................................. 95
Audio/infrared board .......................................................................................................... 97
USB board ......................................................................................................................... 98
Power connector cable ...................................................................................................... 99
System board ................................................................................................................... 101
TV tuner module cable ..................................................................................................... 103
Modem module cable ...................................................................................................... 104
Fan/heat sink assembly ................................................................................................... 105
Processor ......................................................................................................................... 107
5 Setup Utility
Starting the Setup Utility ................................................................................................................... 109
Using the Setup Utility ...................................................................................................................... 110
Setup Utility menus .......................................................................................................................... 112
vi
Changing the language of the Setup Utility ..................................................................... 110
Navigating and selecting in the Setup Utility .................................................................... 110
Displaying system information ......................................................................................... 111
Restoring default settings in the Setup Utility .................................................................. 111
Exiting the Setup Utility .................................................................................................... 111
Main menu ....................................................................................................................... 112
Security menu .................................................................................................................. 11 2
6 Specifications
Computer specifications ................................................................................................................... 114
15.6-inch, WXGA BrightView display specifications ......................................................................... 115
16.0-inch WXGA BrightView display specifications .......................................................................... 116
15.6-inch WXGA AntiGlare display specifications ............................................................................ 117
16.0-inch WXGA AntiGlare display specifications ............................................................................ 118
Hard drive specifications .................................................................................................................. 119
Blu-ray ROM DVD±R/RW SuperMulti Double-Layer Drive specifications ........................................ 120
DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive specifications ................................ 121
System DMA specifications .............................................................................................................. 122
System interrupt specifications ......................................................................................................... 123
System I/O address specifications ................................................................................................... 124
System memory map specifications ................................................................................................. 127
7 Screw listing
Phillips PM2.0×3.0 screw ................................................................................................................. 129
Phillips PM2.0×3.0 screw ................................................................................................................. 131
Phillips PM2.0×14.0 captive screw ................................................................................................... 133
Phillips PM2.5×3.0 screw ................................................................................................................. 134
Phillips PM2.5×4.0 screw ................................................................................................................. 135
Phillips PM2.5×5.0 screw ................................................................................................................. 137
Phillips PM2.5×5.0 captive screw ..................................................................................................... 139
Phillips PM2.5×5.5 captive screw ..................................................................................................... 140
Phillips PM2.5×6.5 screw ................................................................................................................. 141
Phillips PM3.0×3.5 screw ................................................................................................................. 144
System Configuration menu ............................................................................................ 112
Diagnostics menu ............................................................................................................ 113
8 Backup and Recovery
Recovering system information ........................................................................................................ 145
Creating recovery discs ................................................................................................... 146
Backing up your information ............................................................................................................. 147
When to back up .............................................................................................................. 147
Backup suggestions ......................................................................................................... 147
Using system restore points ............................................................................................ 147
Performing a recovery ...................................................................................................................... 149
Recovering from the recovery discs ................................................................................ 149
Recovering from the dedicated recovery partition (select models only) .......................... 149
When to create restore points ......................................................................... 148
Create a system restore point ......................................................................... 148
Restore to a previous date and time ............................................................... 148
vii
9 Connector pin assignments
1394 ................................................................................................................................................. 150
Audio-in (microphone) ...................................................................................................................... 150
Audio-out (headphone) ..................................................................................................................... 151
External monitor ............................................................................................................................... 151
HDMI ................................................................................................................................................ 152
RJ-11 (modem) ................................................................................................................................ 153
RJ-45 (network) ................................................................................................................................ 153
Universal Serial Bus ......................................................................................................................... 154
10 Power cord set requirements
Requirements for all countries or regions ......................................................................................... 155
Requirements for specific countries or regions ................................................................................ 156
11 Recycling
Battery .............................................................................................................................................. 157
Display .............................................................................................................................................. 157
Index ................................................................................................................................................................. 163
viii
1 Product description
Category Description Computer models
equipped with
graphics subsystems
with discrete memory
Product Name HP Pavilion dv6 Entertainment PC √ √
Processors Intel® Core™2 Duo T9900 3.06-GHz with 6-MB
L2 cache and 1066-MHz front side bus (FSB)
Intel® Core™2 Duo T9800 2.93-GHz with 6-MB
L2 cache and 1066-MHz front side bus (FSB)
Intel Core2 Duo T9600 2.80-GHz with 6-MB L2
cache and 1066-MHz FSB
Intel Core2 Duo T9550 2.66-GHz with 6-MB L2
cache and 1066-MHz FSB
Intel Core2 Duo T9400 2.53-GHz with 6-MB L2
cache and 1066-MHz FSB
Intel Core2 Duo T6600 2.20-GHz with 2-MB L2
cache and 800-MHz FSB
Intel Core2 Duo T6500 2.10-GHz with 2-MB L2
cache and 800-MHz FSB
Intel Core2 Duo T6400 2.00-GHz with 2-MB L2
cache and 800-MHz FSB
√ √
√ √
√ √
√ √
√ √
√ √
√ √
√ √
Computer models
equipped with
graphics subsystems
with UMA memory
Intel Core2 Duo T5800 2.00-GHz with 2-MB L2
cache and 800-MHz FSB
Intel Pentium® Dual-Core T4300 2.10-GHz with
1-MB L2 cache and 800-MHz FSB
Intel Pentium® Dual-Core T4200 2.00-GHz with
1-MB L2 cache and 800-MHz FSB
Intel Pentium Dual-Core T3400 2.16-GHz with 1-
MB L2 cache and 667-MHz FSB
Intel Core2 Duo P8800 2.66-GHz with 3-MB L2
cache and 1066-MHz FSB
Intel Core2 Duo P8700 2.53-GHz with 3-MB L2
cache and 1066-MHz FSB
Intel Core Duo P8600 2.40-GHz with 3-MB L2
cache and 1066-MHz FSB
√ √
√ √
√ √
√ √
√ √
√ √
√√
1
Category Description Computer models
equipped with
graphics subsystems
with discrete memory
Computer models
equipped with
graphics subsystems
with UMA memory
Intel Core Duo P8400 2.26-GHz with 3-MB L2
√ √
cache and 1066-MHz FSB
Intel Core Duo P7550 2.26-GHz with 3-MB L2
√ √
cache and 1066-MHz FSB
Intel Core Duo P7450 2.13-GHz with 3-MB L2
√ √
cache and 1066-MHz FSB
Intel Celeron® 900 2.20-GHz with 1-MB L2 cache
√
and 667-MHz FSB
Intel Celeron® T1600 1.66-GHz with 1-MB L2
√
cache and 667-MHz FSB
Chipset Northbridge: Intel PM45 √
Northbridge: Intel GM45 √
Southbridge: Intel ICH9M √ √
Graphics nVIDIA GeForce 9200M GS with 512 MB of
√
dedicated video memory (64 MB × 16 DDR2 × 4
PCs)
Up to 767 MB video memory on computer
●
models equipped with 1 GB of main system
memory
Up to 1279 MB video memory on computer
●
models equipped with 2 GB of main system
memory
Up to 1791 MB video memory on computer
●
models equipped with 3 GB of main system
memory
Up to 1791 MB video memory on computer
●
models equipped with 4 GB of main system
memory (32-bit OS)
Up to 2303 MB video memory on computer
●
models equipped with 4 GB of main system
memory (64-bit OS)
ATI Discrete PCI Express x 16 Graphics
ATI Mobility Radeon
●
TM
HD 4650 (M96) with
√
1 GB dedicated video memory (64MBx16
DDR3 x 8 PCs)
ATI Mobility Radeon HD 4530 (M92) with
●
512 MB dedicated video memory (64MBx16
DDR3 x 4 PCs)
Intel Extreme Graphics - Intel GMA 4700MHD √
2 Chapter 1 Product description
Category Description Computer models
equipped with
graphics subsystems
with discrete memory
Computer models
equipped with
graphics subsystems
with UMA memory
Unified memory architecture (UMA) with shared
video memory:
Up to 270 MB of graphics subsystem
●
memory on computer models equipped with
1024 MB of main system memory
Up to 782 MB of graphics subsystem
●
memory on computer models equipped with
2048 MB of main system memory
Up to 1294 MB of graphics subsystem
●
memory on computer models equipped with
3072 MB of main system memory
Up to 1294 MB of graphics subsystem
●
memory on computer models equipped with
4096 MB of main system memory (32-bit
OS)
Up to 1759 MB of graphics subsystem
●
memory on computer models equipped with
4096 MB of main system memory (64-bit
OS)
Memory size is dynamic change
●
Panels
15.6-inch, WXGA (1366 × 768) BrightView
●
16.0-inch, WXGA (1366 × 768) BrightView
●
√
√ √
√ √
Memory 2 SODIMM slots √ √
Customer-accessible/upgradable √ √
PC2-6400, 800-MHz, DDR2 √ √
Dual-channel support √√
15.6-inch WXGA (1366 × 768) AntiGlare
●
16.0-inch, WXGA (1366 × 768) AntiGlare
●
AntiGlare glass panel cover support
●
Support for lighted logo on display enclosure
●
Typical brightness 200 nits
●
√ √
√ √
√ √
√ √
√ √
3
Category Description Computer models
equipped with
graphics subsystems
with discrete memory
Computer models
equipped with
graphics subsystems
with UMA memory
Supports up to 8 GB system memory
1024-MB total system memory (1024 MB ×
●
1, dual-channel)
2048-MB total system memory (1024 MB ×
●
2, dual-channel)
2048-MB total system memory (2048 MB ×
●
1, dual-channel)
3072-MB total system memory (2048 MB +
●
1024 MB)
4096-MB total system memory (2048 MB ×
●
2, dual-channel)
6144-MB total system memory (2048 MB +
●
4096 MB)
8192-MB total system memory (4096 MB ×
●
2, dual-channel)
Hard drives Supports all Serial ATA (SATA) 9.5 mm, 6.35-cm
(2.5-inch) hard drives
Supports one hard drive √ √
Support for HP ProtectSmart Hard
Drive Protection
√ √
√ √
√ √
Single hard drive configurations:
160 GB (5400 rpm)
●
250 GB (7200 rpm) (select models only)
●
250 GB (5400 rpm)
●
320 GB (7200 rpm) (select models only)
●
320 GB (5400 rpm)
●
400 GB (5400 rpm)
●
500 GB (5400 rpm) (select models only)
●
Optical drives 12.7-mm tray load √ √
Serial ATA √ √
Fixed (removal of 1 screw required) √ √
Supports the following optical drives:
DVD±RW and D-RW SuperMulti Double-
●
Layer Combo Drive with
Blu-ray ROM DVD±R/RW SuperMulti
●
Double-Layer Drive
Blu-ray ROM with LightScribe DVD±R/RW
●
SuperMulti Double-Layer Drive
√ √
√√
4 Chapter 1 Product description
Category Description Computer models
equipped with
graphics subsystems
with discrete memory
Webcam VGA camera √ √
Fixed (no tilt) √ √
Activity LED √ √
640 × 480 by 24 frames per second √ √
Computer models
equipped with
graphics subsystems
with UMA memory
Microphone 2 omnidirectional microphones, dual-array with
appropriate software (supports beam forming,
echo cancellation, and noise suppression)
Audio HD Audio (IDT) √ √
Supports Microsoft® Premium Requirements √ √
Pavilion-branded Altec Lansing speakers √ √
Modem 56K V.92 data/fax modem (select models only) √ √
Supports all worldwide certification requirements √ √
Ethernet Integrated Realtek 10/100/1000 network
interface card (NIC)
Integrated Realtek 10/100 NIC √
Wireless Integrated wireless local area network (WLAN) options by way of wireless module:
Broadcom BCM4312 802.11b/g + Bluetooth®
Broadcom 4322 802.11a/b/g/n WLAN √ √
Broadcom 4322 802.11a/b/g/n WLAN +
Broadcom BCM4312 802.11b/g √ √
with two antennas
Bluetooth
√ √
√
√ √
√ √
Intel Wi-Fi Link 5100 802.11a/b/g/n
WLAN module with two antennas
Intel Wi-Fi Link 5100 802.11a/b/g/n
WLAN module + Bluetooth with two antennas
Intel Wi-Fi Link 5100 802.11a/b/g WLAN module
with two antennas
Intel Wi-Fi Link 5100 802.11a/b/g WLAN module
+ Bluetooth with two antennas
TV tuner Integrated NTSC/ATSC/ANG hybrid
TV tuner module (select models only)
Integrated worldwide analog DVB-T/ANG
TV tuner module (select models only)
Integrated DVB-T TV tuner module (select
models only)
Support for TV tuner antennas for both DVB-T
and NTSC/ATSC (select models only)
√ √
√ √
√ √
√ √
√ √
√ √
√
√√
5
Category Description Computer models
equipped with
graphics subsystems
with discrete memory
External media card One ExpressCard 54 slot √ √
Computer models
equipped with
graphics subsystems
with UMA memory
Digital Media Slot, supports Secure Digital (SD )
Memory Card, MultiMediaCard (MMC), Memory
Stick (MS, Memory Stick Pro (MSP), xD-Picture
Card (XD)
Internal card
expansion
Ports VGA, 15-pin supporting 1920 × 1200 resolution
VGA, 15-pin supporting 1600 × 1200 resolution
High-Definition Multimedia Interface (HDMI)
eSATA port combo with fourth USB port √ √
Four USB 2.0 ports √ √
IEEE 1394a √
RJ-11 modem (select models only) √ √
RJ-45 Ethernet √ √
Consumer infrared √ √
Two Mini Card slots
One slot for WLAN
●
One slot for TV tuner or other technologies
●
at 75Hz
at 75Hz
v1.3b supporting 1080p with HDCP key
√ √
√ √
√
√
√ √
MCX connector for TV antennas (select models
Two stereo headphone jacks (audio-out) √ √
Microphone input (audio-in) √ √
2-pin AC power for 90-W AC adapter √ √
Docking Expansion port 3 supports the HP xb3000
Keyboard/pointing
devices
Standard IMR keyboard with molded keyboard
EspressoTextured Keyboard (select models
TouchPad supports 2-way scrolling √ √
Taps enabled as default √ √
Power requirements 6-cell, 47-Wh, 2.55-Ah Li-ion battery √
only)
Notebook Expansion Base and HP Notebook
QuickDock
16-inch full-size keyboard with numeric keypad √ √
characters
only)
√ √
√ √
√ √
√ √
6 Chapter 1 Product description
Category Description Computer models
equipped with
graphics subsystems
with discrete memory
Computer models
equipped with
graphics subsystems
with UMA memory
6-cell, 55-Wh, 2.55-Ah Li-ion battery (Germany
only)
6-cell, 55-Wh, 2.55-Ah Li-ion battery √
12-cell, 95-Wh, 8.8-Ah Li-ion battery √
90-W AC adapter with localized cable plug
support (2-wire plug with ground pin, supports 2pin DC connector)
65-W AC adapter with localized cable plug
Security Security cable slot √ √
Fingerprint reader (select models only) √ √
Operating system Preinstalled:
Windows Vista Home Basic (32 bit) √ √
Windows Vista Premium (32 bit and 64 bit) √ √
Windows Vista Ultimate (64 bit) √ √
Serviceability AC adapter √ √
support (2-wire plug with ground pin, supports 2pin DC connector)
Windows Vista® Business (32 bit) √ √
√
√
√
Battery (system) √ √
Hard drive √ √
Memory module √ √
Optical drive √ √
Mini Card components √ √
WLAN module √√
7
2 External component identification
Top components
TouchPad
Item Component Description
(1) TouchPad light
(2) TouchPad* Moves the pointer and selects or activates items on the screen.
(3) Left TouchPad button* Functions like the left button on an external mouse.
(4) TouchPad on/off button Enables/disables the TouchPad.
(5) TouchPad vertical scroll zone Scrolls up or down.
(6) Right TouchPad button* Functions like the right button on an external mouse.
*This table describes factory settings. To view and change TouchPad preferences, select Start > Control Panel > Hardware
and Sound > Mouse.
White: TouchPad is enabled.
●
Amber: TouchPad is disabled.
●
8 Chapter 2 External component identification
Lights
Item Component Description
(1) Power lights* (2)
(2) Battery light
(3) Drive light
(4) Caps lock light On: Caps lock is on.
(5) Volume mute light
(6) Volume down light On: The volume scroll zone is being used to decrease speaker
On: The computer is on.
●
Blinking: The computer is in the Sleep state.
●
Off: The computer is off or in Hibernation.
●
On: A battery is charging.
●
Blinking: A battery that is the only available power source has
●
reached a low battery level. When the battery reaches a
critical battery level, the battery light begins blinking rapidly.
Off: If the computer is plugged into an external power source,
●
the light is turned off when all batteries in the computer are
fully charged. If the computer is not plugged into an external
power source, the light stays off until the battery reaches a
low battery level.
Blinking: The hard drive or optical drive is being accessed.
●
Amber: HP ProtectSmart Hard Drive Protection has
●
temporarily parked the hard drive.
White: Computer sound is turned on.
●
Amber: Computer sound is turned off.
●
volume.
(7) Volume up light On: The volume scroll zone is being used to increase speaker
volume.
(8) Previous/rewind light On: The previous/rewind button has been pressed.
(9) Play/pause light On: The play/pause button has been pressed.
(10) Next/fast forward light On: The next/fast forward button has been pressed.
Top components 9
Item Component Description
(11) Stop light On: The stop button has been pressed.
(12) Wireless light
(13) Num lock light On: The integrated numeric keypad is enabled, or num lock is
*The 2 power lights display the same information. The light on the power button is visible only when the computer is open. The
power light on the front of the computer is visible whether the computer is open or closed.
Blue: An integrated wireless device, such as a wireless local
●
area network (WLAN) device and/or a Bluetooth device, is
turned on.
Amber: All wireless devices are turned off.
●
enabled on a connected optional keypad.
10 Chapter 2 External component identification
Buttons, speakers and fingerprint reader
Item Component Description
(1) Speakers (2) Produce sound.
(2) Power button*
(3) Volume mute button Mutes and restores speaker sound.
(4) Volume scroll zone Adjusts speaker volume. Slide your finger to the left to decrease
(5) Previous/rewind button
When the computer is off, press the button to turn on the
●
computer.
When the computer is on, press the button briefly to initiate
●
Sleep.
When the computer is in the Sleep state, press the button
●
briefly to exit Sleep.
When the computer is in Hibernation, press the button briefly
●
to exit Hibernation.
If the computer has stopped responding and Windows® shutdown
procedures are ineffective, press and hold the power button for at
least 5 seconds to turn off the computer.
To learn more about your power settings, select Start > Control
Panel > System and Maintenance > Power Options.
volume and to the right to increase volume. You can also tap the
minus sign (-) on the scroll zone to decrease volume, or tap the
plus sign (+) on the scroll zone to increase volume.
Plays the previous track or chapter when the button is pressed
●
once.
Rewinds media when the button is pressed simultaneously
●
with the fn key.
(6) Play/pause button Plays or pauses media.
Top components 11
Item Component Description
(7) Next/fast forward button
(8) Stop button Stops playback.
(9) Wireless button Turns the wireless feature on or off, but does not create a wireless
(10) Fingerprint reader (select models only) Allows a fingerprint logon to Windows, instead of a password logon.
*This table describes factory settings. For information about changing factory settings, refer to the user guides located in Help
and Support.
Plays the next track or chapter when the button is pressed
●
once.
Fast forwards media when pressed simultaneously with the
●
fn key.
connection.
NOTE: A wireless network must be set up in order to establish a
wireless connection.
12 Chapter 2 External component identification
Keys
Item Component Description
(1) esc key Displays system information about your computer when pressed in
combination with the fn key.
(2) fn key Executes frequently used system functions when pressed in
combination with a function key or the esc key.
(3) Windows logo key Displays the Windows Start menu.
(4) Windows applications key Displays a shortcut menu for items beneath the pointer.
(5) Integrated numeric keypad keys Can be used like the keys on an external numeric keypad.
(6) Function keys Execute frequently used system functions when pressed in
combination with the fn key.
Top components 13
Front components
Item Component Description
(1) Power light
(2) Battery light
(3) Drive light
(4) Consumer infrared lens Receives a signal from the remote control.
(5) Audio-in (microphone) jack Connects an optional computer headset microphone, stereo array
(6) Audio-out (headphone) jacks (2) Produce sound when connected to optional powered stereo
On: The computer is on.
●
Blinking: The computer is in the Sleep state.
●
Off: The computer is off or in Hibernation.
●
On: A battery is charging.
●
Blinking: A battery that is the only available power source has
●
reached a low battery level. When the battery reaches a
critical battery level, the battery light begins blinking rapidly.
Off: If the computer is plugged into an external power source,
●
the light is turned off when all batteries in the computer are
fully charged. If the computer is not plugged into an external
power source, the light stays off until the battery reaches a low
battery level.
Blinking: The hard drive or optical drive is being accessed.
●
Amber: HP ProtectSmart Hard Drive Protection has
●
temporarily parked the hard drive.
microphone, or monaural microphone.
speakers, headphones, ear buds, a headset, or television audio.
NOTE: This table describes factory settings. For information about changing factory settings, refer to the user guides located
in Help and Support.
14 Chapter 2 External component identification
Rear component
Component Description
Vent Enables airflow to cool internal components.
Right-side components
NOTE: The computer fan starts up automatically to cool internal
components and prevent overheating. It is normal for the internal
fan to cycle on and off during routine operation.
Item Component Description
(1) Optical drive Reads optical discs and, on select models, also writes to optical
discs.
(2) Optical drive light Blinking: The optical drive is being accessed.
(3) USB ports (2) Connect optional USB devices.
(4) TV antenna/cable jack (select models only) Connects a TV antenna, a digital cable device, or a satellite device
that receives standard or high-definition TV broadcasts.
(5) RJ-11 (modem) jack (select models only) Connects a modem cable.
(6) Security cable slot Attaches an optional security cable to the computer.
NOTE: The security cable is designed to act as a deterrent, but
it may not prevent the computer from being mishandled or stolen.
(7) Activity light for the power connector Indicates that the power is on.
(8) Power connector Connects an AC adapter.
Rear component 15
Left-side components
Item Component Description
(1) External monitor port Connects an external VGA monitor or projector.
(2) Expansion port 3 Connects the computer to an optional docking device or an optional
(3) RJ-45 (network) jack Connects a network cable.
expansion product.
NOTE: The computer has only one expansion port. The term
expansion port 3 describes the type of expansion port.
(4) HDMI port Connects an optional video or audio device, such as a high-
(5) eSATA/USB port (select models only) Connects an optional high-performance eSATA component, such
(6) USB port Connects an optional USB device.
(7) 1394 port (select models only) Connects an optional IEEE 1394 or 1394a device, such as a
(8) Activity light for the Digital Media Slot Indicates that the component installed in the Digital Media Slot is
(9) Digital Media Slot Supports the following optional digital card formats:
definition television, or any compatible digital or audio component.
as an eSATA external hard drive, or connects an optional USB
device.
NOTE: Depending on your computer model, the computer may
include a USB port only.
camcorder.
operating.
Memory Stick (MS)
●
Memory Stick Pro (MSP)
●
MultiMediaCard (MMC)
●
Secure Digital (SD) Memory Card
●
Secure Digital High Capacity (SDHC) Memory Card
●
xD-Picture Card (XD) Type H
●
(10) ExpressCard slot Supports optional ExpressCard/54 cards.
16 Chapter 2 External component identification
xD-Picture Card (XD)Type M
●
Bottom components
Item Component Description
(1) Hard drive bay Holds the hard drive.
(2) Vents (8) Enable airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool internal
components and prevent overheating. It is normal for the internal
fan to cycle on and off during routine operation.
(3) Battery bay Holds the battery.
(4) Memory module compartment Contains the memory module slots.
Also holds the WLAN module, TV tuner card (select models only),
and the Intel Turbo Memory card (select models only).
CAUTION: To prevent an unresponsive system, replace the
wireless module only with a wireless module authorized for use in
the computer by the governmental agency that regulates wireless
devices in your country or region. If you replace the module and
then receive a warning message, remove the module to restore
computer functionality, and then contact technical support through
Help and Support.
(5) Battery release latch Releases the battery from the battery bay.
Bottom components 17
Display components
Item Component Description
(1) Internal display switch Turns off the display and initiates Sleep if the display is closed while
the power is on.
(2) Internal microphones (2) Record sound.
(3) Integrated webcam light On: The integrated webcam is in use.
(4) Integrated webcam Records audio and video and captures still photographs.
18 Chapter 2 External component identification
Wireless antennas (select models only)
On select computer models, at least 2 antennas send and receive signals from one or more wireless
devices.
NOTE: The antennas are not visible from the outside of the computer. For optimal transmission, keep
the areas immediately around the antennas free from obstructions.
To see wireless regulatory notices, refer to the section of the Regulatory, Safety and Environmental
Notices that applies to your country or region. These notices are located in Help and Support.
Wireless antennas (select models only) 19
3 Illustrated parts catalog
Service tag
When ordering parts or requesting information, provide the computer serial number and model
description provided on the service tag.
(1) Product name: This is the product name affixed to the front of the computer.
(2) Serial number (s/n): This is an alphanumeric identifier that is unique to each product.
(3) Part number/Product number (p/n): This number provides specific information about the product's
hardware components. The part number helps a service technician to determine what components and
parts are needed.
(4) Model description: This is the alphanumeric identifier used to locate documents, drivers, and support
for the computer.
(5) Warranty period: This number describes the duration of the warranty period for the computer.
20 Chapter 3 Illustrated parts catalog
Computer major components
Item Description Spare part number
(1) Display assembly (includes wireless antenna transceivers and cables)
15.6-inch WXGA BrightView display assembly with low light VGA webcam and 2
microphones, Onyx
511867-001
Computer major components 21
Item Description Spare part number
15.6-inch WXGA BrightView display assembly with low light VGA webcam and 2
microphones, Moonlight White (replaced by 571743–001)
15.6-inch WXGA BrightView display assembly with standard VGA webcam and 2
microphones, Moonlight White (replaces 517862–001)
15.6-inch WXGA BrightView display assembly with low light VGA webcam and 2
microphones, Espresso Black (replaced by 571745-001)
15.6-inch WXGA BrightView display assembly with standard VGA webcam and 2
microphones, Espresso Black (replaces 518776–001)
15.6-inch WXGA AntiGlare display assembly with low light VGA webcam and 2
microphones, Moonlight White (replaced by 571744–001)
15.6-inch WXGA AntiGlare display assembly with standard VGA webcam and 2
microphones, Moonlight White (replaces 518775–001)
15.6-inch WXGA AntiGlare display assembly with low light VGA webcam and 2
microphones, Espresso Black (replaced by 571746-001)
15.6-inch WXGA AntiGlare display assembly with standard VGA webcam and 2
microphones, Espresso Black (replaces 518777–001)
16.0-inch WXGA BrightView display assembly with low light VGA webcam and 2
microphones, Onyx
16.0-inch WXGA BrightView display assembly with low light VGA webcam and 2
microphones, Moonlight White (replaced by 571738-001)
16.0-inch WXGA BrightView display assembly with standard VGA webcam and 2
microphones, Moonlight White (replaces 512357–001)
517862-001
571743–001
518776-001
571745-001
518775-001
571744–001
518777-001
571746-001
511865-001
512357-001
571738-001
16.0-inch WXGA BrightView display assembly with low light VGA webcam and 2
microphones, Espresso Black (replaced by 571740-001)
16.0-inch WXGA BrightView display assembly with low light VGA webcam and 2
microphones, Espresso Black (replaces 518771–001)
16.0-inch WXGA AntiGlare display assembly with low light VGA webcam and 2
microphones, Onyx
16.0-inch WXGA AntiGlare display assembly with low light VGA webcam and 2
microphones, Moonlight White (replaced by 571739-001)
16.0-inch WXGA AntiGlare display assembly with standard VGA webcam and 2
microphones, Moonlight White (replaces 512358–001)
16.0-inch WXGA AntiGlare display assembly with low light VGA webcam and 2
microphones, Espresso Black (replaced by 571741-001)
16.0-inch WXGA AntiGlare display assembly with standard VGA webcam and 2
microphones, Espresso Black (replaces 518772–001)
NOTE: See Display assembly componentson page 33 for more information on display assembly spare part
numbers.
(2)
Onyx 512829-001
Moonlight White (replaced by 571747-001 on select models) 518110-001
Moonlight White (replaces 518110–001 on select models) 571747-001
Switch cover (includes LED board and cable)
518771-001
571740-001
511866-001
512358-001
571739-001
518772-001
571741-001
Espresso Black (replaced by 571757-001 on select models) 518790-001
22 Chapter 3 Illustrated parts catalog
Item Description Spare part number
Espresso Black (replaces 518790–001 on select models) 571757-001
(3) Power button board for computers with discrete graphics subsystem memory
(includes cable)
Power button board for computers with UMA graphics subsystem memory (includes
cable)
(4) Keyboard, Onyx, IMR, molded keyboard characters (includes keyboard cable)
For use in the Czech Republic 511885-221
For use in France 511885-051
For use in Germany 511885-041
For use in Greece 511885-DJ1
For use in Hungary 511885-211
For International use 511885-B31
For use in Israel 511885-BB1
For use in Italy 511885-061
For use in Latin America 511885-161
For use in Portugal 511885-131
For use in Russia 511885-251
For use in Belgium 511885-A41
512835-001
512834-001
For use in Spain 511885-071
For use in Switzerland 511885-BG1
For use in Taiwan 511885-AB1
For use in Turkey 511885-141
For use in the United Kingdom 511885-031
For use in the United States 511885-001
Espresso Textured Keyboard, Onyx, (includes keyboard cable)
For use in French Canada 514115-121
For use in Japan 514115-291
For use in Saudi Arabia 514115-171
For use in South Korea 514115-AD1
For use in Thailand 514115-281
Espresso Textured Keyboard, Moonlight White, (replaced by 517863–xx1) (includes keyboard cable)
For use in the Czech Republic 517864-221
For use in Denmark, Norway, and Sweden 514115-DH1
For use in Belgium 517864-A41
For use in Denmark, Norway, and Sweden 517864-DH1
Computer major components 23
Item Description Spare part number
For use in France 517864-051
For use in French Canada 517864-121
For use in Germany 517864-041
For use in Greece 517864-DJ1
For use in Hungary 517864-211
For international use 517864-B31
For use in Israel 517864-BB1
For use in Italy 517864-061
For use in Japan 517864-291
For use in Latin America 517864-161
For use in Portugal 517864-131
For use in Russia 517864-251
For use in Saudi Arabia 517864-171
For use in South Korea 517864-AD1
For use in Spain 517864-071
For use in Switzerland 517864-111
For use in Taiwan 517864-AB1
For use in Thailand 517864-281
For use in Turkey 517864-141
For use in the United Kingdom 517864-031
For use in the United States 517864-001
Keyboard, Moonlight White, IMR, molded keyboard characters (replaces 517864-xx1) (includes keyboard cable)
For use in the Czech Republic 517683-221
For use in France 517683-051
For use in Germany 517683-041
For use in Greece 517683-DJ1
For use in Hungary 517683–211
For international use 517683-B31
For use in Israel 517683-BB1
For use in Italy 517683-061
For use in Belgium 517683-A41
For use in Latin America 517683-161
For use in Portugal 517683-131
For use in Russia 517683-251
24 Chapter 3 Illustrated parts catalog
Item Description Spare part number
For use in Spain 517683-071
For use in Switzerland 517683-BG1
For use in Taiwan 517683-AB1
For use in Turkey 517683-141
For use in the United Kingdom 517683-031
For use in the United States 517683-001
Keyboard, Espresso Black, IMR, molded keyboard characters (includes keyboard cable)
For use in the Czech Republic 518965-221
For use in France 518965-051
For use in Germany 518965-041
For use in Greece 518965-DJ1
For use in Hungary 518965-211
For international use 518965-B31
For use in Israel 518965-BB1
For use in Italy 518965-061
For use in Latin America 518965-161
For use in Portugal 518965-131
For use in Russia 518965-251
For use in Saudi Arabia 518966-171
For use in Spain 518965-071
For use in Switzerland 518965-111
For use in Taiwan 518965-AB1
For use in Belgium 518965-A41
For use in Turkey 518965-141
For use in the United Kingdom 518965-031
For use in the United States 518965-001
Espresso Textured Keyboard, Espresso Black, IMR, (includes keyboard cable)
For use in the Czech Republic 518966-221
For use in Denmark, Norway, and Sweden 518966-DH1
For use in France 518966-051
For use in French Canada 518966-121
For use in Germany 518966-041
For use in Greece 518966-DJ1
For use in Belgium 518966-A41
Computer major components 25
Item Description Spare part number
For use in Hungary 518966-211
For international use 518966-B31
For use in Israel 518966-BB1
For use in Italy 518966-061
For use in Japan 518966-291
For use in Latin America 518966-161
For use in Portugal 518966-131
For use in Russia 518966-251
For use in Saudi Arabia 518966-171
For use in South Korea 518966-AD1
For use in Spain 518966-071
For use in Switzerland 518966-
For use in Taiwan 518966-AB1
For use in Thailand 518966-281
For use in Turkey 518966-141
For use in the United Kingdom 518966-031
For use in the United States 518966—001
Espresso Textured Keyboard, Espresso Black, (includes keyboard cable)
For use in the Czech Republic 570228-221
For use in Denmark, Norway, and Sweden 570228-DH1
For use in France 570228-051
For use in French Canada 570228-121
For use in Germany 570228-041
For use in Greece 570228-DJ1
For use in Hungary 570228-211
For international use 570228-B31
For use in Israel 570228-BB1
For use in Italy 570228-061
For use in Japan 570228-291
For use in Latin America 570228-161
For use in Belgium 570228-A41
For use in Portugal 570228-131
For use in Russia 570228-251
For use in Saudi Arabia 570228-171
26 Chapter 3 Illustrated parts catalog
Item Description Spare part number
For use in South Korea 570228-AD1
For use in Spain 570228-071
For use in Switzerland 570228–111
For use in Taiwan 570228-AB1
For use in Thailand 570228-281
For use in Turkey 570228-141
TFor use in the United Kingdom 570228-031
(5) Top cover (includes TouchPad and TouchPad buttons, and speaker assembly):
For use only with computer models not equipped with a fingerprint reader, Onyx 511888-001
For use only with computer models equipped with a fingerprint reader, Moonlight White 518108-001
For use only with computer models not equipped with a fingerprint reader, Moonlight
For use only with computer models equipped with a fingerprint reader, Espresso Black 518788-001
For use only with computer models not equipped with a fingerprint reader, Espresso
(6) Fingerprint reader board (select models only) Included with the top cover
Plastics Kit, includes:
(8) System board (includes replacement thermal material):
For use only with computer models equipped with a fingerprint reader, Onyx 512828-001
518109-001
White
518789-001
Black
511890-001
(7a) Express card slot bezel
●
(7b) Memory module cover
●
(7c) Hard drive bay cover
●
NOTE: See
For use with computer models equipped with UMA graphics subsystem memory
●
For use with computer models equipped with discrete graphics subsystem
●
memory
Plastics Kit on page 37 for more information.
511863-001
511864-001
(9) Modem module:
For use only in Australia and New Zealand 461749-011
(10) Processor (includes replacement thermal material):
For use with computer models equipped with ATI Mobility Radeon HD4650
●
graphics with 1-GB memory
For use with computer models equipped with ATI Mobility Radeon HD4530
●
graphics with 512-MB memory
For use with computer models equipped with UMA graphics and GM47 chipset
●
NOTE: The modem module spare part kit does not include a modem module cable. The modem module cable is
included in the Cable Kit, spare part number 512832-001. For more information, see
For use in all countries and regions except Australia and New Zealand 461749-001
518431-001
518432-001
518433-001
Cable Kit on page 38.
Computer major components 27
Item Description Spare part number
Intel Core2 Duo T9900 3.06-GHz with 6-MB L2 cache and 1066-MHz FSB 570434-001
Intel Core2 Duo T9800 2.93-GHz with 6-MB L2 cache and 1066-MHz FSB 507951-001
Intel Core2 Duo T9600 2.80-GHz with 6-MB L2 cache and 1066-MHz FSB 507955-001
Intel Core2 Duo T9550 2.66-GHz with 6-MB L2 cache and 1066-MHz FSB 507953-001
Intel Core2 Duo T9400 2.53-GHz with 6-MB L2 cache and 1066-MHz FSB 507954-001
Intel Core2 Duo T6600 2.20-GHz with 2-MB L2 cache and 800-MHz FSB 513593-001
Intel Core2 Duo T6500 2.10-GHz with 2-MB L2 cache and 800-MHz FSB 572928-001
Intel Core2 Duo T6400 2.00-GHz with 2-MB L2 cache and 800-MHz FSB 513592-001
Intel Core2 Duo T5800 2.00-GHz with 2-MB L2 cache and 800-MHz FSB 515040-001
Intel Pentium Dual-Core T4300 2.10-GHz with 1-MB L2 cache and 800-MHz FSB 572929-001
Intel Pentium Dual-Core T4200 2.00-GHz with 1-MB L2 cache and 800-MHz FSB 513599-001
Intel Pentium Dual-Core T3400 2.16-GHz with 1-MB L2 cache and 667-MHz FSB 509549-001
Intel Core Duo P8800 2.66-GHz with 3-MB L2 cache and 1066-MHz FSB 570036-001
Intel Core Duo P8700 2.53-GHz with 3-MB L2 cache and 1066-MHz FSB 507960-001
Intel Core Duo P8600 2.40-GHz with 3-MB L2 cache and 1066-MHz FSB 507961-001
Intel Core Duo P8400 2.26-GHz with 3-MB L2 cache and 1066-MHz FSB 507962-001
Intel Core Duo P7550 2.26-GHz with 3-MB L2 cache and 1066-MHz FSB 573076-001
Intel Core Duo P7450 2.13-GHz with 3-MB L2 cache and 1066-MHz FSB 507122-001
Intel Celeron 900 2.20-GHz with 1-MB L2 cache and 667-MHz FSB 534419–001
Intel Celeron T1600 1.66-GHz with 1-MB L2 cache and 667-MHz FSB (for use only
(11) WLAN module: (Bluetooth supported)
Intel Wi-Fi Link 5100 802.11a/b/g WLAN module for use with computer models in all
Broadcom 4322 802.11a/b/g/n WLAN module for use only with computer models in
with computers equipped with UMA graphics memory subsystems)
Intel Wi-Fi Link 5100 802.11a/b/g/n WLAN module for use with computer models in all
countries and regions
countries and regions
Antigua and Barbuda, Barbados, Belize, Canada, the Cayman Islands, Guam,
Puerto Rico, Trinidad and Tobago, the U.S. Virgin Islands, and the United States
501894-001
480985-001
482957-001
487330-001
28 Chapter 3 Illustrated parts catalog
Item Description Spare part number
Broadcom 4322 802.11a/b/g/n WLAN module for use only with computer models in
Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda, Argentina,
Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh,
Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia,
Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria,
Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad,
Chile, the People's Republic of China, Colombia, Comoros, the Congo, Costa Rica,
Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica,
the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea,
Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia,
Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala,
Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India,
Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati,
Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania,
Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta,
the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco,
Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal,
the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway,
Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, Peru, the Philippines,
Poland, Portugal, the Republic of Moldova, Romania, Russia, Rwanda, Samoa,
San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia, the Seychelles,
Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia,
South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia,
St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan,
Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey,
Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates,
the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen,
Zaire, Zambia, and Zimbabwe
Broadcom BCM4312 802.11b/g WLAN module for use only with computer models in
Antigua and Barbuda, Barbados, Belize, Canada, the Cayman Islands, Guam,
Puerto Rico, Trinidad and Tobago, the U.S. Virgin Islands, and the United States
487330-002
459263-001
Broadcom BCM4312 802.11b/g WLAN module for use only with computer models in
Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda, Argentina,
Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh,
Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia,
Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria,
Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad,
Chile, the People's Republic of China, Colombia, Comoros, the Congo, Costa Rica,
Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica,
the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea,
Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia,
Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala,
Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India,
Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati,
Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania,
Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta,
the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco,
Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal,
the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway,
Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, Peru, the Philippines,
Poland, Portugal, the Republic of Moldova, Romania, Russia, Rwanda, Samoa,
San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia, the Seychelles,
Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia,
South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia,
St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan,
Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey,
Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates,
the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen,
Zaire, Zambia, and Zimbabwe
459263-002
Computer major components 29
Item Description Spare part number
Broadcom BCM4312 802.11b/g WLAN module for use only with computer models in
Antigua and Barbuda, Barbados, Belize, Canada, the Cayman Islands, Guam,
Puerto Rico, Trinidad and Tobago, the U.S. Virgin Islands, and the United States
Broadcom BCM4312 802.11b/g WLAN module for use only with computer models in
Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda, Argentina,
Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh,
Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia,
Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria,
Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad,
Chile, the People's Republic of China, Colombia, Comoros, the Congo, Costa Rica,
Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica,
the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea,
Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia,
Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala,
Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India,
Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati,
Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania,
Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta,
the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco,
Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal,
the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway,
Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, Peru, the Philippines,
Poland, Portugal, the Republic of Moldova, Romania, Russia, Rwanda, Samoa,
San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia, the Seychelles,
Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia,
South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia,
St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan,
Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey,
Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates,
the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen,
Zaire, Zambia, and Zimbabwe
504593-001
504593-002
Broadcom BCM4312 802.11b/g WLAN module for use only with computer models in
Antigua and Barbuda, Barbados, Belize, Canada, the Cayman Islands, Guam,
Puerto Rico, Trinidad and Tobago, the U.S. Virgin Islands, and the United States
504664-001
30 Chapter 3 Illustrated parts catalog
Item Description Spare part number
Broadcom BCM4312 802.11b/g WLAN module for use only with computer models in
Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda, Argentina,
Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh,
Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia,
Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria,
Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad,
Chile, the People's Republic of China, Colombia, Comoros, the Congo, Costa Rica,
Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica,
the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea,
Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia,
Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala,
Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India,
Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati,
Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania,
Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta,
the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco,
Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal,
the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway,
Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, Peru, the Philippines,
Poland, Portugal, the Republic of Moldova, Romania, Russia, Rwanda, Samoa,
San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia, the Seychelles,
Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia,
South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia,
St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan,
Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey,
Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates,
the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen,
Zaire, Zambia, and Zimbabwe
(12) Fan/heat sink assembly (includes replacement thermal material):
504664-002
For use only with computer models equipped with graphics subsystems with discrete
For use only with computer models equipped with graphics subsystems with UMA
(13) USB board
For use with computer models equipped with graphics subsystems with UMA graphics
For use with computer models equipped with graphics subsystems with discrete
(14) Bluetooth module 483113-001
Bluetooth cable (not illustrated) 489822-001
(15) Audio/infrared board (includes cable):
For use with computer models equipped with UMA graphics subsystem memory 511892-001
For use with computer models equipped with discrete graphics subsystem memory 512836-001
(16) Power connector cable
For use only with computer models equipped with ATI Mobility Radeon HD4650
graphics subsystems
graphics memory
graphics memory
memory
graphics memory
NOTE: The power connector cable is available in the Cable Kit, spare part number
512832-001. For more information, see
Cable Kit on page 38.
518435-001
512837-001
512830-001
516497-001
516855-001
(17) Battery
Computer major components 31
Item Description Spare part number
12-cell, 95-Wh, 8.8-Ah Li-ion battery for use with all computer models 511884-001
6-cell, 55-Wh, 2.55-Ah Li-ion battery for use with all computer models 511872-001
6-cell, 55-Wh, 2.55-Ah Li-ion battery for use only with computers for Germany 511872-002
6-cell, 47-Wh, 2.55-Ah Li-ion battery for use with all computer models 511883-001
(18) Base enclosure (includes rubber feet) 511887-001
Rubber Feet Kit (not illustrated, includes 4 base enclosure rubber feet) 516499-001
(19) RTC battery 449729-001
TV tuner module (not illustrated):
NOTE: The TV tuner module spare part kits do not include a TV tuner module cable. The TV tuner module cable
is included in the Cable Kit, spare part number 512832-001.
DVB-T/ANG TV tuner module 482899-002
DVB-T TV tuner module (for use only with computers equipped with discrete graphics
TV tuner external antenna cable (not illustrated):
With PAL jack 482900-002
(20) Optical drive (includes bezel and bracket):
Blu-ray ROM DVD±R/RW SuperMulti Double-Layer Drive 511881-001
Blu-ray ROM with LightScribe DVD±R/RW SuperMulti Double-Layer Drive 511882-001
(21) Memory module (DDR2, 800-MHz, PC2-6400, 1-DIMM):
2 GB 511870-001
1 GB 511869-001
(22) Hard drive (includes left and right bracket rails, connector cable, Mylar cover with tab, and four rubber isolators):
NTSC/ATSC/ANG hybrid TV tuner module 482899-001
482899-003
memory)
With F-PAL jack 482900-001
DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive 511880-001
4 GB 511871-001
160 GB, 5400 rpm 511873-001
250 GB, 7200 rpm (select models only) 511874-001
250 GB, 5400 rpm 511875-001
320 GB, 7200 rpm (select models only) 511876-001
320 GB, 5400 rpm 511877-001
400 GB, 5400 rpm 511878-001
500 GB, 5400 rpm 511879-001
Hard Drive Hardware Kit (not illustrated, includes left and right bracket rails, connector
cable, Mylar cover with tab, and 4 rubber isolators)
32 Chapter 3 Illustrated parts catalog
483862-001
Display assembly components
The HP Pavilion dv6 Entertainment PC offers two types of display assemblies. Component spare parts
are listed in this section for AntiGlare display assemblies and BrightView display assemblies.
AntiGlare display assembly spare parts
Item Description Spare part number
(1) Display enclosure, Onyx (for 16-inch only) (includes wireless antenna transceivers
and cables)
Display enclosure, Moonlight White (for 16-inch only) (includes wireless antenna
transceivers and cables)
Display enclosure, Espresso Black (for 16-inch only) (includes wireless antenna
transceivers and cables)
Display enclosure, Moonlight White (for 15.6-inch only) (includes wireless antenna
transceivers and cables) (replaced by 571744–001)
Display enclosure, Moonlight White (for 15.6-inch only) (includes wireless antenna
transceivers and cables) (replaces 518775–001)
Display enclosure, Espresso Black (for 15.6-inch only) (includes wireless antenna
transceivers and cables) (replaced by 571746–001)
Display enclosure, Espresso Black (for 15.6-inch only) (includes wireless antenna
transceivers and cables) (replaces 518777–001)
(2) Display inverter 488317-001
(3) Webcam/microphone module, low light VGA (includes cable) 512827-001
Webcam/microphone , standard VGA (includes cable) 571742–001
(4) Display Hinge Kit (for 16-inch only) (includes left and right hinges) 513477-001
Display Hinge Kit (for 15.6-inch only) (includes left and right hinges) 519209-001
513478-001
517861-001
518774-001
518775-001
571744–001
518777-001
571746–001
Display Rubber Kit, (for 16-inch only) (not illustrated, includes display bezel rubber
screw covers)
Display Rubber Kit, (for 15.6-inch only) (not illustrated, includes display bezel rubber
screw covers)
Display assembly components 33
512361-001
513479-001
Item Description Spare part number
Display Screw Kit (not illustrated) 512362-001
Display LCD cable (not illustrated) 512825-001
34 Chapter 3 Illustrated parts catalog
BrightView display assembly spare parts
Item Description Spare part number
(1) Display bezel (includes logo and display lid switch actuator magnet)
For use with computer models equipped with 16-inch displays 512359-001
For use with computer models equipped with 15.6-inch displays 512364-001
(2) Webcam/microphone module, low light VGA (includes cable) (replaced by
571742-001)
Webcam/microphone module, standard VGA (includes cable) (replaces 512827–
001)
(3) BrightView display panel (includes display panel cable):
For use with computer models equipped with 15.6-inch display panels 512363-001
(4) Display Hinge Kit (includes left and right hinges)
For use with computer models equipped with 16-inch display panels 512360-001
For use with computer models equipped with 15.6-inch display panels 512365-001
(5) Display inverter 488317-001
(6a) Display cable 512825-001
(6b) Wireless antenna cable (included in Cable Kit 512832-001)
For use with computer models equipped with 16-inch display panels 511868-001
512827-001
571742-001
(6c) Webcam/microphone cable (includes module) 512827-001
Webcam/microphone cable (includes module) (replaces 512827–001) 571742-001
Display assembly components 35
Item Description Spare part number
(7) Display enclosure, Onyx (includes wireless antenna transceivers and cables and
logo LED board and cable) 16-inch
DIsplay enclosure, Moonlight White (includes wireless antenna transceivers and
cables and logo LED board and cable) 15.6-inch
DIsplay enclosure, Espresso Black (includes wireless antenna transceivers and
cables and logo LED board and cable) 16-inch
Display Rubber Kit (not illustrated, includes display bezel rubber screw covers) 15.6-
inch
Display Rubber Kit (not illustrated, includes display bezel rubber screw covers) 16-
inch
Display Screw Kit (not illustrated) 512362-001
512824-001
517860-001
518773-001
513479-001
512361-001
36 Chapter 3 Illustrated parts catalog
Plastics Kit
Item Description Spare part number
Plastics Kit 511890-001
(1) ExpressCard slot bezel
(2) Hard drive bay cover (includes 2 captive screws, secured by C-clips)
(3) Memory module compartment cover (includes 1 captive screw, secured by a C-clip)
Plastics Kit 37
Cable Kit
Item Description Spare part number
Cable Kit 512832-001
(1) Fingerprint reader cable
(2) Audio/Infrared module cable
(3) Modem module cable (includes RJ-11 jack)
(4) USB cable
(5) Power connector cable
TV tuner module cable (not illustrated)
38 Chapter 3 Illustrated parts catalog
Miscellaneous parts
Description Spare part number
AC adapters
65-W AC adapter
90-W AC adapter, PFC 463955-001
90-W AC adapter for use only in Germany 510485-005
Power cords, Black:
Argentina 490371-D01
Australia and New Zealand 490371-011
Belgium, Europe, Finland, France, Germany, Greece, the Netherlands, Norway, Portugal, Spain,
and Sweden
Brazil 490371-201
Canada, French Canada, Latin America, Thailand, and the United States 490371-001
Denmark 490371-081
India 490371-D61
Israel 490371-BB1
Italy 490371-061
Japan 490371-291
The People's Republic of China 490371-AA1
South Africa 490371-AR1
463958-001
490371-021
South Korea 490371-AD1
Switzerland 490371-111
Taiwan 490371-AB1
The United Kingdom and Hong Kong 490371-031
Bluetooth cable 489822–001
Remote controls
Full-function remote control
Full-function remote control with teletext 465541-001
Rubber Kit 516499–001
465540-001
Miscellaneous parts 39
Description Spare part number
Headphone, black, with volume control and stereo/mono switch 371693–001
Screw Kit
Phillips PM2.0×3.0 screw
●
Phillips PM2.0×14.0 captive screw
●
Phillips PM2.5×3.0 screw
●
Phillips PM2.5×4.0 screw
●
Phillips PM2.5×5.0 screw
●
Phillips PM2.5×5.0 captive screw
●
Phillips PM2.5×5.5 captive screw
●
Phillips PM2.5×6.5 screw
●
Phillips PM3.0×3.5 screw
●
Sequential part number listing
Spare part
number
371693-001 Headphone, black, with volume control and stereo/mono switch
Description
516498-001
449729-001 RTC battery
459263-001 Broadcom BCM4312 802.11b/g WLAN module for use only with computer models in
Antigua and Barbuda, Barbados, Belize, Canada, the Cayman Islands, Guam, Puerto Rico,
Trinidad and Tobago, the U.S. Virgin Islands, and the United States
459263-002 Broadcom BCM4312 802.11b/g WLAN module for use only with computer models in Afghanistan, Albania,
Algeria, Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria,
Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda,
Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria,
Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad, Chile,
the People's Republic of China, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus,
the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt,
El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon,
Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea,
Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy,
the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon,
Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia,
the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia,
Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles,
the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama,
Papua New Guinea, Paraguay, Peru, the Philippines, Poland, Portugal, the Republic of Moldova,
Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia,
the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa,
South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia, St. Vincent and the Grenadines, Suriname,
Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago,
Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom,
Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe
461749-001 Modem module for use in all countries and regions except Australia and New Zealand
461749-011 Modem module for use only in Australia and New Zealand
40 Chapter 3 Illustrated parts catalog
Spare part
number
463955-001 90-W AC adapter, PFC
463958-001 65-W AC adapter
465540-001 Full-function remote control
465541-001 Full-function remote control with teletext
480985-001 Intel Wi-Fi Link 5100 802.11a/b/g/n WLAN module for use with computer models in all countries and
482899-001 NTSC/ATSC/ANG hybrid TV tuner module
482899-002 DVB-T/ANG TV tuner module
482899-003 DVB-T TV tuner module (for use only with computers equipped with discrete graphics memory)
482900-001 TV tuner external antenna cable with F-PAL jack
482900-002 TV tuner external antenna cable with PAL jack
Description
regions
482957-001 Intel Wi-Fi Link 5100 802.11a/b/g WLAN module for use with computer models in all countries and
483113-001 Bluetooth module
483862-001 Hard Drive Hardware Kit (includes left and right bracket rails, connector cable, Mylar cover with tab, and
487330-001 Broadcom 4322 802.11a/b/g/n WLAN module for use only with computer models in Antigua and Barbuda,
487330-002 Broadcom 4322 802.11a/b/g/n WLAN module for use only with computer models in Afghanistan, Albania,
regions
4 rubber isolators
Barbados, Belize, Canada, the Cayman Islands, Guam, Puerto Rico, Trinidad and Tobago,
the U.S. Virgin Islands, and the United States
Algeria, Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria,
Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda,
Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria,
Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad, Chile,
the People's Republic of China, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus,
the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt,
El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon,
Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea,
Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy,
the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon,
Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia,
the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia,
Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles,
the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama,
Papua New Guinea, Paraguay, Peru, the Philippines, Poland, Portugal, the Republic of Moldova,
Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia,
the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa,
South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia, St. Vincent and the Grenadines, Suriname,
Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago,
Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom,
Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe
488317-001 Display inverter
489822-001 Bluetooth cable
490371-001 Power cord for use in Canada, French Canada, Latin America, Thailand, and the United States
490371-011 Power cord for use in Australia and New Zealand
Sequential part number listing 41
Spare part
number
Description
490371-021 Power cord for use in Belgium, Europe, Finland, France, Germany, Greece, the Netherlands, Norway,
490371-031 Power cord for use in the United Kingdom and Hong Kong
490371-061 Power cord for use in Italy
490371-081 Power cord for use in Denmark
490371-111 Power cord for use in Switzerland
490371-201 Power cord for use in Brazil
490371–291 Power cord for use in Japan
490371-AA1 Power cord for use in the People's Republic of China
490371-AB1 Power cord for use in Taiwan
490371-AD1 Power cord for use in South Korea
490371-AR1 Power cord for use in South Africa
490371-BB1 Power cord for use in Israel
490371-D01 Power cord for use in Argentina
490371-D61 Power cord for use in India
501894-001 Intel Celeron T1600 1.66-GHz processor with 1-MB L2 cache and 667-MHz FSB (for use only with
Portugal, Spain, and Sweden
computers equipped with UMA graphics memory subsystems)
504593-001 Broadcom BCM4312 802.11b/g WLAN module for use only with computer models in
Antigua and Barbuda, Barbados, Belize, Canada, the Cayman Islands, Guam, Puerto Rico,
Trinidad and Tobago, the U.S. Virgin Islands, and the United States
504593-002 Broadcom BCM4312 802.11b/g WLAN module for use only with computer models in Afghanistan, Albania,
Algeria, Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria,
Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda,
Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria,
Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad, Chile,
the People's Republic of China, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus,
the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt,
El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon,
Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea,
Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy,
the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon,
Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia,
the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia,
Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles,
the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama,
Papua New Guinea, Paraguay, Peru, the Philippines, Poland, Portugal, the Republic of Moldova,
Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia,
the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa,
South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia, St. Vincent and the Grenadines, Suriname,
Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago,
Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom,
Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe
504664-001 Broadcom BCM4312 802.11b/g WLAN module for use only with computer models in
Antigua and Barbuda, Barbados, Belize, Canada, the Cayman Islands, Guam, Puerto Rico,
Trinidad and Tobago, the U.S. Virgin Islands, and the United States
42 Chapter 3 Illustrated parts catalog
Spare part
number
Description
504664-002 Broadcom BCM4312 802.11b/g WLAN module for use only with computer models in Afghanistan, Albania,
507122-001 Intel Core Duo P7450 2.13-GHz processor with 3-MB L2 cache and 1066-MHz FSB
507951-001 Intel Core2 Duo T9800 2.93-GHz processor with 6-MB L2 cache and 1066-MHz FSB
507953-001 Intel Core2 Duo T9550 2.66-GHz processor with 6-MB L2 cache and 1066-MHz FSB
507954-001 Intel Core2 Duo T9400 2.53-GHz processor with 6-MB L2 cache and 1066-MHz FSB
Algeria, Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria,
Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda,
Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria,
Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad, Chile,
the People's Republic of China, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus,
the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt,
El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon,
Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea,
Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy,
the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon,
Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia,
the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia,
Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles,
the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama,
Papua New Guinea, Paraguay, Peru, the Philippines, Poland, Portugal, the Republic of Moldova,
Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia,
the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa,
South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia, St. Vincent and the Grenadines, Suriname,
Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago,
Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom,
Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe
507955-001 Intel Core2 Duo T9600 2.80-GHz processor with 6-MB L2 cache and 1066-MHz FSB
507960-001 Intel Core2 Duo P8700 2.53-GHz processor with 3-MB L2 cache and 1066-MHz FSB
507961-001 Intel Core2 Duo P8600 2.40-GHz processor with 3-MB L2 cache and 1066-MHz FSB
507962-001 Intel Core2 Duo P8400 2.26-GHz processor with 3-MB L2 cache and 1066-MHz FSB
509549-001 Intel Pentium Dual-Core T3400 2.16-GHz processor with 1-MB L2 cache and 667-MHz FSB
510485-005 90-W AC adapter for use only in Germany
511863-001 System board for use with computer models equipped with UMA graphics subsystem memory (includes
511864-001 System board for use with computer models equipped with discrete graphics subsystem memory (includes
511865-001 16.0-inch WXGA BrightView display assembly with low light VGA webcam and 2 microphones, Onyx
511866-001 16.0-inch WXGA AntiGlare display assembly with low light VGA webcam and 2 microphones, Onyx
511867-001 15.6-inch WXGA BrightView display assembly with low light VGA webcam and 2 microphones, Onyx
511868-001 BrightView display panel for use only with computer models equipped with 16-inch display panels
511869-001 1 GB memory module (DDR2, 800-MHz, PC2-6400, 1-DIMM)
511870-001 2 GB memory module (DDR2, 800-MHz, PC2-6400, 1-DIMM)
511871-001 4 GB memory module (DDR2, 800-MHz, PC2-6400, 1-DIMM)
replacement thermal material)
replacement thermal material)
(includes display panel cable)
511872-001 6-cell, 55-Wh, 2.55-Ah Li-ion battery for use with all computer models
Sequential part number listing 43
Spare part
number
511872-002 6-cell, 55-Wh, 2.55-Ah Li-ion battery for use only with computers for Germany
511873-001 160 GB, 5400 rpm hard drive (includes left and right bracket rails, connector cable, Mylar cover with tab,
511874-001 250 GB, 7200 rpm hard drive (includes left and right bracket rails, connector cable, Mylar cover with tab,
511875-001 250 GB, 5400 rpm hard drive (includes left and right bracket rails, connector cable, Mylar cover with tab,
511876-001 320 GB, 7200 rpm hard drive (includes left and right bracket rails, connector cable, Mylar cover with tab,
511877-001 320 GB, 5400 rpm hard drive (includes left and right bracket rails, connector cable, Mylar cover with tab,
511878-001 400 GB, 5400 rpm hard drive (includes left and right bracket rails, connector cable, Mylar cover with tab,
511879-001 500 GB, 5400 rpm hard drive (includes left and right bracket rails, connector cable, Mylar cover with tab,
511880-001 DVD±RW and CD-ROM Super Multi Double-Layer Combo Drive
511881-001 Blu-ray ROM DVD±R/RW SuperMulti Double-Layer Drive
511882-001 Blu-ray ROM with LightScribe DVD±R/RW SuperMulti Double-Layer Drive
Description
and four rubber isolators)
and four rubber isolators) (select models only)
and four rubber isolators)
and four rubber isolators) (select models only)
and four rubber isolators)
and four rubber isolators)
and four rubber isolators) (select models only)
511883-001 6-cell, 47-Wh, 2.55-Ah Li-ion battery for use with all computer models
511884-001 12-cell, 95-Wh, 8.8-Ah Li-ion battery for use with all computer models
511885-001 Keyboard for use in the United States, Onyx, molded keyboard characters
511885-031 Keyboard for use in the United Kingdom, Onyx, molded keyboard characters
511885-041 Keyboard for use in Germany, Onyx, molded keyboard characters
511885-051 Keyboard for use in France, Onyx, molded keyboard characters
511885-061 Keyboard for use in Italy, Onyx, molded keyboard characters
511885-071 Keyboard for use in Spain, Onyx, molded keyboard characters
511885-131 Keyboard for use in Portugal, Onyx, molded keyboard characters
511885-141 Keyboard for use in Turkey, Onyx, molded keyboard characters
511885-161 Keyboard for use in Latin America, Onyx, molded keyboard characters
511885-211 Keyboard for use in Hungary, Onyx, molded keyboard characters
511885-221 Keyboard for use in the Czech Republic, Onyx, molded keyboard characters
511885-251 Keyboard for use in Russia, Onyx, molded keyboard characters
511885-A41 Keyboard for use in Belgium, Onyx, molded keyboard characters
511885-AB1 Keyboard for use in Taiwan, Onyx, molded keyboard characters
511885-B31 Keyboard for use Internationally, Onyx, molded keyboard characters
511885-BB1 Keyboard for use in Israel, Onyx, molded keyboard characters
511885-BG1 Keyboard for use in Switzerland, Onyx, molded keyboard characters
44 Chapter 3 Illustrated parts catalog
Spare part
number
511885-DJ1 Keyboard for use in Greece, Onyx, molded keyboard characters
511887-001 Base enclosure (includes rubber feet)
511888-001 Top cover for use only with computer models not equipped with a fingerprint reader, Onyx (includes
511890-001 Plastics Kit (see Plastics Kit on page 37)
511892-001 Audio/infrared board (for use with computer models equipped with UMA graphics subsystem memory)
512357-001 16.0-inch WXGA BrightView display assembly with low light VGA webcam and 2 microphones, Moonlight
512358-001 16.0-inch WXGA AntiGlare display assembly with low light VGA webcam and 2 microphones, Moonlight
512359-001 Display bezel for use with computer models equipped with 16-inch BrightView displays (includes logo and
512360-001 Display Hinge Kit for use only with computer models equipped with 16-inch BrightView display panels
512361-001 Display Rubber Kit for BrightView displays (includes display bezel rubber screw covers)
512362-001 Display Screw Kit
Description
TouchPad and TouchPad buttons, and speaker assembly)
White (replaced with 571738–001)
White (replaced with 571739–001)
display lid switch actuator magnet)
(includes left and right hinges)
512363-001 BrightView display panel for use only with computer models equipped with 15.6-inch display panels
512364-001 Display bezel for use with computer models equipped with 15.6-inch BrightView displays (includes logo
512365-001 Display Hinge Kit for use only with computer models equipped with 15.6-inch BrightView display panels
512824-001 Display enclosure for 16-inch BrightView displays (includes wireless antenna transceivers and cables),
512825-001 Display Cable for use with computers models equipped with BrightView display panels
512827-001 Webcam/microphone module, low light VGA (includes cable) (replaced with 571742–001)
512828-001 Top cover for use only with computer models equipped with a fingerprint reader, Onyx (includes TouchPad
512829-001 Switch cover (includes LED board and cable)
512830-001 Fan/heat sink assembly for use only with computer models equipped with graphics subsystems with UMA
512832-001 Cable Kit (see Cable Kit on page 38)
512834-001 Power button board for computer models equipped with UMA graphics subsystem memory (includes
512835-001 Power button board for computers with discrete graphics subsystem memory (includes cable)
(includes display panel cable)
and display lid switch actuator magnet)
(includes left and right hinges)
Onyx
and TouchPad buttons, and speaker assembly)
graphics memory (includes replacement thermal material)
cable)
512836-001 Audio infrared board for use with computer models equipped with graphics subsystems with discrete
graphics memory
512837-001 Fan/heat sink assembly for use only with computer models equipped with graphics subsystems with
513477-001 Display Hinge Kit for 16-inch AntiGlare displays (includes left and right hinges)
discrete graphics memory (includes replacement thermal material)
Sequential part number listing 45
Spare part
number
Description
513478-001 Display enclosure for 16-inch AntiGlare displays (includes wireless antenna transceivers and cables),
513479-001 Display Rubber Kit for 15.6-inch AntiGlare displays (includes display bezel rubber screw covers)
513592-001 Intel Core2 Duo T6400 2.00-GHz with 2-MB L2 cache and 800-MHz FSB
513593-001 Intel Core2 Duo T6600 2.20-GHz processor with 2-MB L2 cache and 800-MHz FSB
513599-001 Intel Pentium Dual-Core T4200 2.00-GHz processor with 1-MB L2 cache and 800-MHz FSB
514115-121 Espresso Textured Keyboard for use in French Canada, Onyx
514115-171 Espresso Textured Keyboard for use in Saudi Arabia, Onyx
514115-281 Espresso Textured Keyboard for use in Thailand, Onyx
514115-291 Espresso Textured Keyboard for use in Japan, Onxy
514115-AD1 Espresso Textured Keyboard for use in South Korea
514115-DH1 Espresso Textured Keyboard for use in Denmark, Norway, and Sweden, Onyx
515040-001 Intel Core2 Duo T5800 2.00-GHz processor with 2-MB L2 cache and 800-MHz FSB
516497-001 USB board for computer models equipped with graphics subsystems with UMA graphics memory
516498-001 Screw Kit
516499-001 Rubber Feet Kit
516855-001 USB board for computer models equipped with graphics subsystems with discrete graphics memory
Onyx
517860-001 Display enclosure for 15.6-inch BrightView displays (includes wireless antenna transceivers and cables
517861-001 Display enclosure for 16-inch AntiGlare displays (includes wireless antenna transceivers and cables),
517862-001 15.6-inch WXGA BrightView display assembly with low light VGA webcam and 2 microphones, Moonlight
517863-001 Keyboard, Moonlight White, IMR, molded keyboard characters (includes keyboard cable), for use in the
517863-031 Keyboard, Moonlight White, IMR, molded keyboard characters (includes keyboard cable), for use in the
517863-041 Keyboard, Moonlight White, IMR, molded keyboard characters (includes keyboard cable), for use in
517863-051 Keyboard, Moonlight White, IMR, molded keyboard characters (includes keyboard cable), for use in
517863-061 Keyboard, Moonlight White, IMR, molded keyboard characters (includes keyboard cable), for use in Italy
517863-071 Keyboard, Moonlight White, IMR, molded keyboard characters (includes keyboard cable), for use in Spain
517863-111 Keyboard, Moonlight White, IMR, molded keyboard characters (includes keyboard cable), for use in
517863-131 Keyboard, Moonlight White, IMR, molded keyboard characters (includes keyboard cable), for use in
and logo LED board and cable), Moonlight White
Moonlight White
White (includes wireless antenna transceiver cables) (replaced with 571743–001)
United States
United Kingdom
Germany
France
Switzerland
Portugal
517863-141 Keyboard, Moonlight White, IMR, molded keyboard characters (includes keyboard cable), for use in
Turkey
46 Chapter 3 Illustrated parts catalog
Spare part
number
Description
517863-161 Keyboard, Moonlight White, IMR, molded keyboard characters (includes keyboard cable), for use in Latin
517863-211 Keyboard, Moonlight White, IMR, molded keyboard characters (includes keyboard cable), for use in
517863-221 Keyboard, Moonlight White, IMR, molded keyboard characters (includes keyboard cable), for use in the
517863-251 Keyboard, Moonlight White, IMR, molded keyboard characters (includes keyboard cable), for use in
517863-A41 Keyboard, Moonlight White, IMR, molded keyboard characters (includes keyboard cable), for use in
517863-AB1 Keyboard, Moonlight White, IMR, molded keyboard characters (includes keyboard cable), for use in
517863-B31 Keyboard, Moonlight White, IMR, molded keyboard characters (includes keyboard cable), for use
517863-BB1 Keyboard, Moonlight White, IMR, molded keyboard characters (includes keyboard cable), for use in Israel
517863-DJ1 Keyboard, Moonlight White, IMR, molded keyboard characters (includes keyboard cable), for use in
517864-001 Keyboard for use in the United States, Moonlight White, painted keyboard characters
517864-031 Keyboard for use in the United Kingdom, Moonlight White, painted keyboard characters
517864-041 Keyboard for use in Germany, Moonlight White, painted keyboard characters
America
Hungary
Czech Republic
Russia
Belgium
Taiwan
International use
Denmark, Norway, and Sweden
517864-051 Keyboard for use in France, Moonlight White, painted keyboard characters
517864-061 Keyboard for use in Italy, Moonlight White, painted keyboard characters
517864-071 Keyboard for use in Spain, Moonlight White, painted keyboard characters
517864-111 Keyboard for use in Switzerland, Moonlight White, painted keyboard characters
517864-121 Keyboard for use in French Canada, Moonlight White, painted keyboard characters
517864-131 Keyboard for use in Portugal, Moonlight White, painted keyboard characters
517864-141 Keyboard for use in Turkey, Moonlight White, painted keyboard characters
517864-161 Keyboard for use in Latin America, Moonlight White, painted keyboard characters
517864-171 Keyboard for use in Saudi Arabia, Moonlight White, painted keyboard characters
517864-211 Keyboard for use in Hungary, Moonlight White, painted keyboard characters
517864-221 Keyboard for use in the Czech Republic, Moonlight White, painted keyboard characters
517864-251 Keyboard for use in Russia, Moonlight White, painted keyboard characters
517864-281 Keyboard for use in Thailand, Moonlight White, painted keyboard characters
517864-291 Keyboard for use in Japan, Moonlight White, painted keyboard characters
517864-A41 Keyboard for use in Belgium, Moonlight White, painted keyboard characters
517864-AB1 Keyboard for use in Taiwan, Moonlight White
517864-AD1 Keyboard for use in South Korea, Moonlight White, painted keyboard characters
Sequential part number listing 47
Spare part
number
518764-B31 Keyboard for international use, Moonlight White, painted keyboard characters
517864-BB1 Keyboard for use in Israel, Moonlight White, painted keyboard characters
517864-DH1 Keyboard for use in Denmark, Norway, and Sweden, Moonlight White, painted keyboard characters
517864-DJ1 Keyboard for use in Greece, Moonlight White, painted keyboard characters
518108-001 Top cover for use with computer models equipped with fingerprint reader, Moonlight White (includes
518109-001 Top cover for use with computer models not equipped with fingerprint reader, Moonlight White (includes
518110-001 Switch cover (includes LED board and cable), Moonlight White (replaced with 571747–001 on select
518431-001 System board for use with computer models equipped with ATI Mobility Radeon HD 4650 graphics with
518432-001 System board for use with computer models equipped with ATI Mobility Radeon HD 4530 graphics with
518433-001 System board for use with computer models equipped with UMA graphics and GM47 chipset (includes
518435-001 Fan/heat sink assembly for use only with computer models equipped with ATI Mobility Radeon HD4650
Description
TouchPad and TouchPad buttons, and speaker assembly)
TouchPad and TouchPad buttons, and speaker assembly)
models)
1 GB memory (includes replacement thermal material)
512 MB memory (includes replacement thermal material)
replacement thermal material)
graphics (includes replacement thermal material)
518771-001 16.0-inch WXGA BrightView display assembly with low light VGA webcam and 2 microphones, Espresso
Black (replaced with 571740–001)
518772-001 16.0-inch WXGA AntiGlare display assembly with low light VGA webcam and 2 microphones, Espresso
Black (replaced with 571741–001)
518773-001 Display enclosure for 16-inch BrightView displays (includes wireless antenna transceivers and cables and
logo LED board and cable), Espresso Black
518774-001 Display enclosure for 16-inch AntiGlare displays (includes wireless antenna transceivers and cables),
Espresso Black
518775-001 15.6-inch WXGA AntiGlare display assembly with webcam and 2 microphones, Moonlight White (replaced
with 517774–001)
518776-001 15.6-inch WXGA AntiGlare display assembly with webcam and 2 microphones, Espresso Black (replaced
with 571745–001)
518777-001 15.6-inch WXGA BrightView display assembly with webcam and 2 microphones, Espresso Black
(replaced with 571746–001)
518778-001 Top cover for use only with computer models not equipped with a fingerprint reader (includes TouchPad
and TouchPad buttons and speaker assembly), Espresso Black
518788-001 Top cover for use only with computer models equipped with a fingerprint reader (includes TouchPad and
TouchPad buttons and speaker assembly), Espresso Black
518790-001 Switch cover (includes LED board and cable), Espresso Black (replaced with 571757–001 on select
models)
518965-001 Keyboard for use in the United States, Espresso Black, molded keyboard characters
518965-031 Keyboard for use in the United Kingdom, Espresso Black, molded keyboard characters
518965-041 Keyboard for use in Germany, Espresso Black, molded keyboard characters
48 Chapter 3 Illustrated parts catalog
Spare part
number
518965-051 Keyboard for use in France, Espresso Black, molded keyboard characters
518965-061 Keyboard for use in Italy, Espresso Black, molded keyboard characters
518965-071 Keyboard for use in Spain, Espresso Black, molded keyboard characters
518965-111 Keyboard for use in Switzerland, Espresso Black, molded keyboard characters
518965-131 Keyboard for use in Portugal, Espresso Black, molded keyboard characters
518965-141 Keyboard for use in Turkey, Espresso Black, molded keyboard characters
518965-161 Keyboard for use in Latin America, Espresso Black, molded keyboard characters
518965-211 Keyboard for use in Hungary, Espresso Black, molded keyboard characters
518965-221 Keyboard for use in the Czech Republic, Espresso Black, molded keyboard characters
518965-251 Keyboard for use in Russia, Espresso Black, molded keyboard characters
518965-A41 Keyboard for use in Belgium, Espresso Black, molded keyboard characters
518965-AB1 Keyboard for use in Taiwan, Espresso Black, molded keyboard characters
518965-B31 Keyboard for use Internationally, Espresso Black, molded keyboard characters
518965–BB1 Keyboard for use in Israel, Espresso Black, molded keyboard characters
518965-DJ1 Keyboard for use in Greece, Espresso Black, molded keyboard characters
Description
518966-121 Keyboard for use in French Canada, Espresso Black, painted keyboard characters
518966-171 Keyboard for use in Saudi Arabia, Espresso Black, painted keyboard characters
518966-281 Keyboard for use in Thailand, Espresso Black, painted keyboard characters
518966-291 Keyboard for use in Japan, Espresso Black, painted keyboard characters
518966-AD1 Keyboard for use in South Korea, Espresso Black, painted keyboard characters
518966-DH1 Keyboard for use in Denmark, Norway, and Sweden, Espresso Black, painted keyboard characters
519209-001 Display Hinge Kit for use only with computer models equipped with 15.6-inch AntiGlare display panels
(includes left and right hinges)
534419-001 Intel Celeron 900 2.20-GHz with 1-MB L2 cache and 667-MHz FSB
570036-001 Intel Core Duo P8800 2.66-GHz with 3-MB L2 cache and 1066-MHz FSB
570228-001 Espresso Textured Keyboard, Espresso Black (includes keyboard cable), for use in the United States
570228-031 Espresso Textured Keyboard, Espresso Black (includes keyboard cable), for use in the United Kingdom
570228-041 Espresso Textured Keyboard, Espresso Black (includes keyboard cable), for use in Germany
570228-051 Espresso Textured Keyboard, Espresso Black (includes keyboard cable), for use in France
570228-061 Espresso Textured Keyboard, Espresso Black (includes keyboard cable), for use in Italy
570228-071 Espresso Textured Keyboard, Espresso Black (includes keyboard cable), for use in Spain
570228-111 Espresso Textured Keyboard, Espresso Black (includes keyboard cable), for use in Switzerland
570228-121 Espresso Textured Keyboard, Espresso Black (includes keyboard cable), for use in French Canada
570228-131 Espresso Textured Keyboard, Espresso Black (includes keyboard cable), for use in Portugal
Sequential part number listing 49
Spare part
number
570228-141 Espresso Textured Keyboard, Espresso Black (includes keyboard cable), for use in Turkey
570228-161 Espresso Textured Keyboard, Espresso Black (includes keyboard cable), for use in Latin America
570228-171 Keyboard, Espresso Black (includes keyboard cable), for use in Saudi Arabia
570228-211 Espresso Textured Keyboard, Espresso Black (includes keyboard cable), for use in Hungary
570228-221 Espresso Textured Keyboard, Espresso Black (includes keyboard cable), for use in the Czech Republic
570228-251 Espresso Textured Keyboard, Espresso Black (includes keyboard cable), for use in Russia
570228-281 Espresso Textured Keyboard, Espresso Black (includes keyboard cable), for use in Thailand
570228-291 Espresso Textured Keyboard, Espresso Black (includes keyboard cable), for use in Japan
570228-A41 Espresso Textured Keyboard, Espresso Black (includes keyboard cable), for use in Belgium
570228-AB1 Espresso Textured Keyboard, Espresso Black (includes keyboard cable), for use in Taiwan
570228-AD1 Espresso Textured Keyboard, Espresso Black (includes keyboard cable), for use in South Korea
570228-B31 Espresso Textured Keyboard, Espresso Black (includes keyboard cable), for International use
570228-BB1 Espresso Textured Keyboard, Espresso Black (includes keyboard cable), for use in Israel
570228-DH1 Espresso Textured Keyboard, Espresso Black (includes keyboard cable), for use in Denmark, Norway,
Description
and Sweden
570228-DJ1 Espresso Textured Keyboard, Espresso Black (includes keyboard cable), for use in Greece
570434-001 Intel Core2 Duo T9900 3.06-GHz with 6-MB L2 cache and 1066-MHz FSB
571738-001 16.0-inch WXGA BrightView display assembly with standard VGA webcam and 2 microphones, Moonlight
571739-001 16.0-inch WXGA AntiGlare display assembly with standard VGA webcam and 2 microphones, Moonlight
571740-001 16.0-inch WXGA BrightView display assembly with standard VGA webcam and 2 microphones, Espresso
571741-001 16.0-inch WXGA AntiGlare display assembly with standard VGA webcam and 2 microphones, Espresso
571742-001 Webcam/microphone module, standard VGA (includes cable) (replaces 518727–001)
571743-001 15.6-inch WXGA BrightView display assembly with standard VGA webcam and 2 microphones, Moonlight
571744-001 15.6-inch WXGA AntiGlare display assembly with standard VGA webcam and 2 microphones, Moonlight
571745-001 15.6-inch WXGA BrightView display assembly with standard VGA webcam and 2 microphones, Espresso
571746-001 15.6-inch WXGA AntiGlare display assembly with standard VGA webcam and 2 microphones, Espresso
571747-001 Switch cover, Moonlight White (includes LED board and cable) (replaces 518110–001 for select models
White (replaces 512357–001)
White (replaces 512358–001)
Black (replaces 518771–001)
Black (replaces 518772–001)
White (replaces 518762–001)
White (replaces 518775–001)
Black (replaces 518776–001)
Black (replaces 518777–001)
only)
571757-001 Switch cover, Espresso Black (includes LED board and cable) (replaces 518790–001 for select models
only)
572928-001 Intel Core2 Duo T6500 2.10-GHz with 2-MB L2 cache and 800-MHz FSB
50 Chapter 3 Illustrated parts catalog
Spare part
number
572929-001 Intel Pentium Dual-Core T4300 2.10-GHz with 1-MB L2 cache and 800-MHz FSB
573076-001 Intel Core Duo P7550 2.13-GHz with 3-MB L2 cache and 1066-MHz FSB
Description
Sequential part number listing 51
4 Removal and replacement procedures
Preliminary replacement requirements
Tools required
You will need the following tools to complete the removal and replacement procedures:
Non-magnetic screwdriver
●
Phillips P0 and P1 screwdrivers
●
Flat-bladed screwdriver
●
Service considerations
The following sections include some of the considerations that you must keep in mind during
disassembly and assembly procedures.
NOTE: As you remove each subassembly from the computer, place the subassembly (and all
accompanying screws) away from the work area to prevent damage.
Plastic parts
CAUTION: Using excessive force during disassembly and reassembly can damage plastic parts. Use
care when handling the plastic parts. Apply pressure only at the points designated in the maintenance
instructions.
52 Chapter 4 Removal and replacement procedures
Cables and connectors
CAUTION: When servicing the computer, be sure that cables are placed in their proper locations
during the reassembly process. Improper cable placement can damage the computer.
Cables must be handled with extreme care to avoid damage. Apply only the tension required to unseat
or seat the cables during removal and insertion. Handle cables by the connector whenever possible. In
all cases, avoid bending, twisting, or tearing cables. Be sure that cables are routed in such a way that
they cannot be caught or snagged by parts being removed or replaced. Handle flex cables with extreme
care; these cables tear easily.
Drive handling
CAUTION: Drives are fragile components that must be handled with care. To prevent damage to the
computer, damage to a drive, or loss of information, observe these precautions:
Before removing or inserting a hard drive, shut down the computer. If you are unsure whether the
computer is off or in Hibernation, turn the computer on, and then shut it down through the operating
system.
Before handling a drive, be sure that you are discharged of static electricity. While handling a drive,
avoid touching the connector.
Before removing a diskette drive or optical drive, be sure that a diskette or disc is not in the drive and
be sure that the optical drive tray is closed.
Handle drives on surfaces covered with at least one inch of shock-proof foam.
Avoid dropping drives from any height onto any surface.
After removing a hard drive, an optical drive, or a diskette drive, place it in a static-proof bag.
Avoid exposing a hard drive to products that have magnetic fields, such as monitors or speakers.
Avoid exposing a drive to temperature extremes or liquids.
If a drive must be mailed, place the drive in a bubble pack mailer or other suitable form of protective
packaging and label the package “FRAGILE.”
Preliminary replacement requirements 53
Grounding guidelines
Electrostatic discharge damage
Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure
determine the degree of sensitivity. Networks built into many integrated circuits provide some protection,
but in many cases, ESD contains enough power to alter device parameters or melt silicon junctions.
A discharge of static electricity from a finger or other conductor can destroy static-sensitive devices or
microcircuitry. Even if the spark is neither felt nor heard, damage may have occurred.
An electronic device exposed to ESD may not be affected at all and can work perfectly throughout a
normal cycle. Or the device may function normally for a while, then degrade in the internal layers,
reducing its life expectancy.
CAUTION: To prevent damage to the computer when you are removing or installing internal
components, observe these precautions:
Keep components in their electrostatic-safe containers until you are ready to install them.
Use nonmagnetic tools.
Before touching an electronic component, discharge static electricity by using the guidelines described
in this section.
Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.
If you remove a component, place it in an electrostatic-safe container.
The following table shows how humidity affects the electrostatic voltage levels generated by different
activities.
CAUTION: A product can be degraded by as little as 700 V.
Typical electrostatic voltage levels
Relative humidity
Event 10% 40% 55%
Walking across carpet 35,000 V 15,000 V 7,500 V
Walking across vinyl floor 12,000 V 5,000 V 3,000 V
Motions of bench worker 6,000 V 800 V 400 V
Removing DIPS from plastic tube 2,000 V 700 V 400 V
Removing DIPS from vinyl tray 11,500 V 4,000 V 2,000 V
Removing DIPS from Styrofoam 14,500 V 5,000 V 3,500 V
Removing bubble pack from PCB 26,500 V 20,000 V 7,000 V
Packing PCBs in foam-lined box 21,000 V 11,000 V 5,000 V
54 Chapter 4 Removal and replacement procedures
Packaging and transporting guidelines
Follow these grounding guidelines when packaging and transporting equipment:
To avoid hand contact, transport products in static-safe tubes, bags, or boxes.
●
Protect ESD-sensitive parts and assemblies with conductive or approved containers or packaging.
●
Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.
●
Place items on a grounded surface before removing items from their containers.
●
Always be properly grounded when touching a component or assembly.
●
Store reusable ESD-sensitive parts from assemblies in protective packaging or nonconductive
●
foam.
Use transporters and conveyors made of antistatic belts and roller bushings. Be sure that
●
mechanized equipment used for moving materials is wired to ground and that proper materials are
selected to avoid static charging. When grounding is not possible, use an ionizer to dissipate
electric charges.
Workstation guidelines
Follow these grounding workstation guidelines:
Cover the workstation with approved static-shielding material.
●
Use a wrist strap connected to a properly grounded work surface and use properly grounded tools
●
and equipment.
Use conductive field service tools, such as cutters, screwdrivers, and vacuums.
●
When fixtures must directly contact dissipative surfaces, use fixtures made only of static-safe
●
materials.
Keep the work area free of nonconductive materials, such as ordinary plastic assembly aids and
●
Styrofoam.
Handle ESD-sensitive components, parts, and assemblies by the case or PCM laminate. Handle
●
these items only at static-free workstations.
Avoid contact with pins, leads, or circuitry.
●
Turn off power and input signals before inserting or removing connectors or test equipment.
●
Preliminary replacement requirements 55
Equipment guidelines
Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation.
When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible straps
●
with a minimum of one megohm ±10% resistance in the ground cords. To provide proper ground,
wear a strap snugly against the skin at all times. On grounded mats with banana-plug connectors,
use alligator clips to connect a wrist strap.
When standing, use foot straps and a grounded floor mat. Foot straps (heel, toe, or boot straps)
●
can be used at standing workstations and are compatible with most types of shoes or boots. On
conductive floors or dissipative floor mats, use foot straps on both feet with a minimum of one
megohm resistance between the operator and ground. To be effective, the conductive strips must
be worn in contact with the skin.
The following grounding equipment is recommended to prevent electrostatic damage:
Antistatic tape
●
Antistatic smocks, aprons, and sleeve protectors
●
Conductive bins and other assembly or soldering aids
●
Nonconductive foam
●
Conductive tabletop workstations with ground cords of one megohm resistance
●
Static-dissipative tables or floor mats with hard ties to the ground
●
Field service kits
●
Static awareness labels
●
Material-handling packages
●
Nonconductive plastic bags, tubes, or boxes
●
Metal tote boxes
●
Electrostatic voltage levels and protective materials
●
The following table lists the shielding protection provided by antistatic bags and floor mats.
Material Use Voltage protection level
Antistatic plastic Bags 1,500 V
Carbon-loaded plastic Floor mats 7,500 V
Metallized laminate Floor mats 5,000 V
56 Chapter 4 Removal and replacement procedures
Component replacement procedures
This chapter provides removal and replacement procedures.
There are as many as 90 screws, in 10 different sizes, that must be removed, replaced, or loosened
when servicing the computer. Make special note of each screw size and location during removal and
replacement.
Service tag
When ordering parts or requesting information, provide the computer serial number and model
description provided on the service tag.
(1) Product name: This is the product name affixed to the front of the computer.
(2) Serial number (s/n): This is an alphanumeric identifier that is unique to each product.
(3) Part number/Product number (p/n): This number provides specific information about the product's
hardware components. The part number helps a service technician to determine what components and
parts are needed.
(4) Model description: This is the alphanumeric identifier needed to locate documents, drivers, and
support for the computer.
(5) Warranty period: This number describes the duration of the warranty period for the computer.
Component replacement procedures 57
Computer feet
The computer feet are adhesive-backed rubber pads. The feet are included in the Rubber Feet Kit, spare
part number 516499-001. There are 4 rubber feet that attach to the base enclosure in the locations
illustrated below.
58 Chapter 4 Removal and replacement procedures
Battery
Description Spare part number
12-cell, 95-Wh, 8.8-Ah Li-ion battery for use with all computer models 511884-001
6-cell, 55-Wh, 2.55-Ah Li-ion battery for use with all computer models 511872-001
6-cell, 55-Wh, 2.55-Ah Li-ion battery for use only with computer for Germany 511872-002
6-cell, 47-Wh, 2.55-Ah Li-ion battery for use with all computer models 511883-001
Before disassembling the computer, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
Remove the battery:
1. Turn the computer upside down on a flat surface.
2. Slide the battery release latch (1) to release the battery.
3. Pivot the battery (2) upward and remove it from the computer (3).
To insert the battery, insert the rear edge of the battery into the battery bay and pivot the front edge of
the battery downward until it is seated. The battery release latch automatically locks the battery into
place.
Component replacement procedures 59
Webcam/microphone module
NOTE: This section applies only to computer models equipped with BrightView display assemblies.
Display assemblyon page 81 for webcam/microphone module removal instructions for computer
See
models equipped with AntiGlare display assemblies.
NOTE: If it has been determined that the webcam/microphone module is the component that must be
replaced to complete the computer repair, the display assembly does not have to be removed. Follow
the procedures in this section to replace the webcam/microphone module. For information on replacing
the display assembly and other display assembly internal components, see
on page 81.
Description Spare part number
Display assembly
Webcam/microphone module for use only with computer models equipped with BrightView display
assemblies (includes double-sided tape) (replaced by 571742–001)
Webcam/microphone module for use only with computer models equipped with BrightView display
assemblies (includes double-sided tape) (replaces 512827-001)
512827-001
571742–001
Before removing the webcam/microphone module, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 59).
Remove the webcam/microphone module:
1. Turn the computer display-side up, with the front toward you.
2. Open the computer as far as possible.
3. Flex the inside edges of the top edge (1) and the left and right upper corners (2) of the display bezel
until the bezel disengages from the display enclosure.
60 Chapter 4 Removal and replacement procedures
4. Release the display bezel top edge (3) from the display enclosure.
5. Release the webcam/microphone module (1) from the display enclosure as far as the webcam/
microphone module cable allows.
6. Disconnect the webcam/microphone module cable (2) from the webcam/microphone module.
7. Remove the webcam/microphone module.
Reverse this procedure to install the webcam/microphone module.
Component replacement procedures 61
Optical drive
NOTE: The optical drive spare part kit includes an optical drive bezel and bracket.
Description Spare part number
Blu-ray ROM DVD±R/RW SuperMulti Double-Layer Drive 511881-001
Blu-ray ROM with LightScribe DVD±R/RW SuperMulti Double-Layer Drive 511882-001
DVD±RW SuperMulti Double-Layer Combo Drive 511880-001
Before removing the optical drive, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 59).
Remove the optical drive:
1. Position the computer with the front toward you.
2. Remove the Phillips PM2.5×6.5 screw (1) that secures the optical drive to the computer.
3. Insert a thin tool, such as a paper clip, into the disc tray release access hole (2). (The optical drive
disc tray is partially ejected from the optical drive.)
4. Use the disc tray frame to slide the optical drive (3) out of the computer.
5. Remove the optical drive.
6. If it is necessary to replace the optical drive bracket, position the optical drive with the optical drive
bracket toward you.
62 Chapter 4 Removal and replacement procedures
7. Remove the two Phillips PM2.0×3.0 screws (1) that secure the optical drive bracket to the optical
drive.
8. Remove the optical drive bracket (2).
Reverse this procedure to reassemble and install the optical drive.
Component replacement procedures 63
Memory module
Description Spare part number
DDR2, 800-MHz, PC2-6400, 1-DIMM:
4 GB
2 GB 511870-001
1 GB 511869-001
511871-001
Before removing the memory module, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 59).
Remove the memory module:
1. Position the computer with the front toward you.
2. Loosen the four Phillips PM2.5×5.5 captive screws (1) that secure the memory module
compartment cover to the computer.
3. Lift the rear edge (2) of the cover, swing it up and to the front, and remove the cover (3). The
memory module compartment cover is included in the Plastics Kit, spare part number
511890-001.
4. Spread the retaining tabs (1) on each side of the memory module slot to release the memory
module. (The edge of the module opposite the slot rises away from the computer.)
64 Chapter 4 Removal and replacement procedures
NOTE: If necessary, use a non-conductive pointed tool to spread the retaining tabs.
5. Remove the module (2) by pulling it away from the slot at an angle.
NOTE: Memory modules are designed with a notch (3) to prevent incorrect insertion into the
memory module slot.
Reverse this procedure to install a memory module.
Component replacement procedures 65
TV tuner module
NOTE: The TV tuner module spare part kit does not include a TV tuner module cable. The TV tuner
module cable is included in the Cable Kit, spare part number 512832-001.
NOTE: The TV tuner external antenna cables are available using spare part numbers 482900-001
(with F-PAL jack) and 482900-002 (with PAL jack).
Description Spare part number
DVB-T TV tuner module (for use only with computers equipped with discrete graphics memory) 482899-003
DVB-T/ANG TV tuner module 482899-002
NTSC/ATSC/ANG hybrid TV tuner module 482899-001
TV tuner external antenna cable with F-PAL jack 482900–001
TV tuner external antenna cable with PAL jack 482900–002
Before removing the TV tuner module, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC Adapter from the computer.
4. Remove the battery (see
5. Remove the memory module compartment cover (see
Battery on page 59).
Memory module on page 64).
Remove the TV tuner module:
1. Disconnect the TV tuner module antenna cable (1) from the terminal on the TV tuner module.
2. Remove the Phillips PM2.0×3.0 screw (2) that secures the TV tuner module to the computer.
66 Chapter 4 Removal and replacement procedures
3. Lift the edge of the TV tuner module (3), and pull the module away from the slot at an angle.
NOTE: The TV tuner module is designed with a notch (4) to prevent incorrect insertion into the
TV tuner module slot.
Reverse this procedure to install the TV tuner module.
RTC battery
Description Spare part number
RTC battery 449729-001
Before removing the RTC battery, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Remove the battery (see
5. Remove the memory module compartment cover (see
Battery on page 59).
Memory module on page 64).
Remove the RTC battery:
Component replacement procedures 67
Use a non-conductive pointed tool to pry the RTC battery from the socket on the system board.
Reverse this procedure to install the RTC battery. Be sure that the RTC battery is installed with the “+”
sign facing up.
68 Chapter 4 Removal and replacement procedures
Hard drive
NOTE: The hard drive spare part kit includes left and right bracket rails, a connector cable, Mylar cover
with tab, and 4 rubber isolators.
Description Spare part number
160 GB, 5400 rpm 511873-001
250 GB, 7200 rpm (select models only) 511874-001
250 GB, 5400 rpm 511875-001
320 GB, 7200 rpm (select models only) 511876-001
320 GB, 5400 rpm 511877-001
400 GB, 5400 rpm 511878-001
500 GB, 5400 rpm (select models only) 511879-001
Hard Drive Hardware Kit (includes left and right bracket rails, connector cable, Mylar cover with
tab, and 4 rubber isolators)
483862-001
Before removing the hard drive, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 59).
Remove the hard drive:
1. Position the computer with the front toward you.
2. Loosen the two Phillips PM2.5×5.5 captive screws (1) that secure the hard drive bay cover to the
computer.
Component replacement procedures 69
3. Lift the right side (2) of the hard drive bay cover, swing it up and to the left, and remove the
cover (3). The hard drive bay cover is included in the Plastics Kit, spare part number
511890-001.
4. Use the Mylar tab (1) to lift the hard drive up, and then slide it to the left (2) to release it from the
hard drive bay.
5. Disconnect the hard drive cable (3) from the system board.
6. Remove the hard drive from the hard drive bay.
70 Chapter 4 Removal and replacement procedures
7. If it is necessary to replace the hard drive bracket or any of the hard drive bracket components,
remove the following:
(1) Hard drive connector cable
(2) Four rubber isolators
(3) Four Phillips PM3.0×3.5 screws that secure the hard drive bracket rails and Mylar cover to the
hard drive
(4) Left and right hard drive bracket rails with mylar cover tabs
Reverse this procedure to reassemble and install the hard drive.
Component replacement procedures 71
WLAN module
Description Spare part number
Intel Wi-Fi Link 5100 802.11a/b/g/n WLAN module for use with computer models in all countries
and regions (Bluetooth supported)
Intel Wi-Fi Link 5100 802.11a/b/g WLAN module for use with computer models in all countries and
regions (Bluetooth supported)
Broadcom 4322 802.11a/b/g/n WLAN module for use only with computer models in
Antigua and Barbuda, Barbados, Belize, Canada, the Cayman Islands, Guam, Puerto Rico,
Trinidad and Tobago, the U.S. Virgin Islands, and the United States (Bluetooth supported)
Broadcom 4322 802.11a/b/g/n WLAN module for use only with computer models in Afghanistan,
Albania, Algeria, Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia,
Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize,
Benin, Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil,
the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon, Cape Verde,
the Central African Republic, Chad, Chile, the People's Republic of China, Colombia, Comoros,
the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica,
the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea,
Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany,
Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissau, Guyana,
Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy, the Ivory Coast,
Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho,
Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia,
the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico,
Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal,
the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman,
Pakistan, Palau, Panama, Papua New Guinea, Paraguay, Peru, the Philippines, Poland, Portugal,
the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe,
Saudi Arabia, Senegal, Serbia, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia,
the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis,
St. Lucia, St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan,
Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu,
Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu,
Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe (Bluetooth supported)
480985-001
482957-001
487330-001
487330-002
Broadcom BCM4312 802.11b/g WLAN module for use only with computer models in
Antigua and Barbuda, Barbados, Belize, Canada, the Cayman Islands, Guam, Puerto Rico,
Trinidad and Tobago, the U.S. Virgin Islands, and the United States (Bluetooth supported)
459263-001
72 Chapter 4 Removal and replacement procedures
Description Spare part number
Broadcom BCM4312 802.11b/g WLAN module for use only with computer models in Afghanistan,
Albania, Algeria, Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia,
Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize,
Benin, Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil,
the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon, Cape Verde,
the Central African Republic, Chad, Chile, the People's Republic of China, Colombia, Comoros,
the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica,
the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea,
Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany,
Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissau, Guyana,
Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy, the Ivory Coast,
Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho,
Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia,
the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico,
Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal,
the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman,
Pakistan, Palau, Panama, Papua New Guinea, Paraguay, Peru, the Philippines, Poland, Portugal,
the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe,
Saudi Arabia, Senegal, Serbia, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia,
the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis,
St. Lucia, St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan,
Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu,
Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu,
Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe (Bluetooth supported)
Broadcom BCM4312 802.11b/g WLAN module for use only with computer models in
Antigua and Barbuda, Barbados, Belize, Canada, the Cayman Islands, Guam, Puerto Rico,
Trinidad and Tobago, the U.S. Virgin Islands, and the United States (Bluetooth supported)
Broadcom BCM4312 802.11b/g WLAN module for use only with computer models in Afghanistan,
Albania, Algeria, Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia,
Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize,
Benin, Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil,
the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon, Cape Verde,
the Central African Republic, Chad, Chile, the People's Republic of China, Colombia, Comoros,
the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica,
the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea,
Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany,
Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissau, Guyana,
Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy, the Ivory Coast,
Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho,
Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia,
the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico,
Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal,
the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman,
Pakistan, Palau, Panama, Papua New Guinea, Paraguay, Peru, the Philippines, Poland, Portugal,
the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe,
Saudi Arabia, Senegal, Serbia, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia,
the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis,
St. Lucia, St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan,
Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu,
Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu,
Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe (Bluetooth supported)
459263-002
504593-001
504593-002
Component replacement procedures 73
Description Spare part number
Broadcom BCM4312 802.11b/g WLAN module for use only with computer models in
Antigua and Barbuda, Barbados, Belize, Canada, the Cayman Islands, Guam, Puerto Rico,
Trinidad and Tobago, the U.S. Virgin Islands, and the United States (Bluetooth supported)
Broadcom BCM4312 802.11b/g WLAN module for use only with computer models in Afghanistan,
Albania, Algeria, Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia,
Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize,
Benin, Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil,
the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon, Cape Verde,
the Central African Republic, Chad, Chile, the People's Republic of China, Colombia, Comoros,
the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica,
the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea,
Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany,
Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissau, Guyana,
Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy, the Ivory Coast,
Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho,
Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia,
the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico,
Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal,
the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman,
Pakistan, Palau, Panama, Papua New Guinea, Paraguay, Peru, the Philippines, Poland, Portugal,
the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe,
Saudi Arabia, Senegal, Serbia, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia,
the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis,
St. Lucia, St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan,
Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu,
Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu,
Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe (Bluetooth supported)
504664-001
504664-002
Before removing the WLAN module, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Remove the battery (see
5. Remove the hard drive (see
Battery on page 59).
Hard drive on page 69).
Remove the WLAN module:
CAUTION: To prevent an unresponsive system, replace the wireless module only with a wireless
module authorized for use in the computer by the governmental agency that regulates wireless devices
in your country or region. If you replace the module and then receive a warning message, remove the
module to restore computer functionality, and then contact technical support through Help and Support.
1. Disconnect the WLAN antenna cables (1) from the WLAN module.
NOTE: The black WLAN antenna cable is connected to the WLAN module “Main” terminal. The
white WLAN antenna cable is connected to the WLAN module “Aux” terminal.
2. Remove the Phillips PM2.0×3.0 screw (2) that secures the WLAN module to the computer. (The
edge of the module opposite the slot rises away from the computer.)
74 Chapter 4 Removal and replacement procedures
3. Remove the WLAN module (3) by pulling it away from the slot at an angle.
NOTE: WLAN modules are designed with a notch (4) to prevent incorrect insertion into the WLAN
module slot.
Reverse this procedure to install a WLAN module.
Component replacement procedures 75
Switch cover and keyboard
Description Spare part number
Switch cover (includes LED board and cable), Onyx 512829-001
Switch cover (includes LED board and cable), Moonlight White (replaced by 571747–001 on select
models)
Switch cover (includes LED board and cable), Moonlight White (replaces 571747–001 for select
models only)
Switch cover (includes LED board and cable), Espresso Black (replaced by 571957–001 on select
models)
Switch cover (includes LED board and cable), Espresso Black (replaces 5718790–001 for select
models only)
Keyboards
For a list of all keyboards available for your country or region, see pages 23 to 26.
518110-001
571747–001
518790-001
571957–001
Before removing the switch cover and keyboard, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 59).
Remove the switch cover and keyboard:
1. Position the computer upside down with the front toward you.
76 Chapter 4 Removal and replacement procedures
2. Remove the following screws:
(1) Two Phillips PM2.5×6.5 screws that secure the switch cover to the computer
(2) Three Phillips PM2.5×4.0 screws that secure the switch cover to the computer (these are inside
the battery bay)
(3) Four Phillips PM2.5×6.5 screws that secure the keyboard to the computer
3. Turn the computer display-side up, with the front toward you.
4. Open the computer as far as possible.
5. Lift the rear edge of the switch cover until it detaches from the computer.
Component replacement procedures 77
6. Move the switch cover back so it rests on the display.
7. Remove the three Phillips PM2.0×3.0 screws that secure the keyboard to the computer.
8. Lift the rear edge (1) of the keyboard .
9. Slide the keyboard (2) back until the keyboard connector on the system board is accessible.
78 Chapter 4 Removal and replacement procedures
10. Release the zero insertion force (ZIF) connector (1) to which the keyboard cable is connected and
disconnect the cable (2) from the system board.
11. Remove the keyboard.
12. Disconnect the power button board cable (1) from the low insertion force (LIF) connector on the
system board.
13. Disconnect the LED board cable (2) from the LIF connector on the system board.
14. Remove the switch cover.
Reverse this procedure to install the switch cover and keyboard.
Component replacement procedures 79
Power button board
Description Spare part number
Power button board for computers with discrete graphics subsystem memory (includes cable) 512835–001
Power button board for computers with UMA graphics subsystem memory (includes cable) 512834-001
Before removing the power button board, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC Adapter from the computer.
4. Remove the battery (see
5. Remove the switch cover and keyboard (see
Battery on page 59).
Switch cover and keyboard on page 76).
Remove the power button board:
1. Turn the switch cover upside down with the front toward you.
2. Remove the Phillips PM2.5×4.0 screw (1) that secures the power button board to the switch cover.
3. Remove the power button board (2) and cable.
Reverse this procedure to install the power button board.
80 Chapter 4 Removal and replacement procedures
Display assembly
NOTE: The display assembly includes a webcam, 2 microphones, and 2 wireless antenna transceivers
and cables.
Description Spare part number
15.6-inch WXGA BrightView display assembly, Onyx 511867-001
15.6-inch WXGA BrightView display assembly with low light VGA webcam, Moonlight White
(replaced by 571743-001)
15.6-inch WXGA BrightView display assembly with standard VGA webcam and 2 microphones,
Moonlight White (replaces 517862-001)
15.6-inch WXGA BrightView display assembly with low light VGA webcam, Espresso Black
(replaced by 571745-001)
15.6-inch WXGA BrightView display assembly with webcam and 2 microphones, Espresso Black
(replaces 518776-001)
15.6-inch WXGA AntiGlare display assembly, Moonlight White (replaced by 571744–001) 518775-001
15.6-inch WXGA AntiGlare display assembly, Moonlight White (replaces 518775-001) 571744–001
15.6-inch WXGA AntiGlare display assembly with low light VGA webcam, Espresso Black (replaced
by 571746-001)
15.6-inch WXGA AntiGlare display assembly with standard VGA webcam, Espresso Black (replaces
518777–001)
16.0-inch WXGA BrightView display assembly, Onyx 511865–001
16.0-inch WXGA BrightView display assembly with low light VGA webcam , Moonlight White
(replaced by 571738–001)
16.0-inch WXGA BrightView display assembly with standard VGA webcam, Moonlight White
(replaces 512357-001)
16.0-inch WXGA BrightView display assembly with low light VGA webcam, Espresso Black
(replaced by 571740–001)
517862-001
571743-001
518776-001
571745-001
518777–001
571746-001
512357-001
571738–001
518771–001
16.0-inch WXGA BrightView display assembly with standard VGA webcam, Espresso Black
(replaces 518771–001)
16.0-inch WXGA AntiGlare display assembly, Onyx 511866–001
16.0-inch WXGA AntiGlare display assembly with low light VGA webcam, Moonlight White (replaced
by 571739–001)
16.0-inch WXGA AntiGlare display assembly with standard VGA webcam, Moonlight White
(replaces 512358-001)
16.0-inch WXGA AntiGlare display assembly with low light VGA webcam, Espresso Black (replaced
by 571741–001)
16.0-inch WXGA AntiGlare display assembly with standard VGA webcam, Espresso Black (replaces
518772–001)
571740–001
512358-001
571739–001
518772–001
571741–001
Component replacement procedures 81
Before removing the display assembly, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Remove the battery (see
5. Disconnect the wireless antenna cables from the WLAN module (see
6. Remove the switch cover and keyboard (see
Remove the display assembly:
1. Disconnect the display panel cable (1) and the webcam/microphone cable (2) from the system
board.
2. Remove the WLAN antenna cables from the clip (3) built into the top cover.
Battery on page 59).
WLAN module on page 72).
Switch cover and keyboard on page 76).
CAUTION: Support the display assembly when removing the following screws. Failure to support
the display assembly can result in damage to the display assembly and other computer
components.
3. Remove the four Phillips PM2.5×6.5 screws (1) that secure the display assembly to the computer.
82 Chapter 4 Removal and replacement procedures
4. Remove the display assembly (2).
NOTE: Steps 5 through 22 provide display assembly internal component removal information for
computer models equipped with AntiGlare display assemblies. See steps 23 through 33 for display
assembly internal component removal information for computer models equipped with BrightView
display assemblies.
NOTE: See Webcam/microphone moduleon page 60 for webcam/microphone module
replacement instructions for computer models equipped with BrightView display assemblies.
5. If it is necessary to replace the display enclosure or any of the display assembly internal
components, remove the following screw covers and screws:
a. (1) Four rubber screw covers on the display bezel bottom edge. The display rubber screw
covers are included in the Display Rubber Kit, spare part number 513479-001 (15.6-inch
displays) or 512361-001 (16.0-inch displays).
b. (2) Four Phillips PM2.5×5.0 screws.
6. Turn the display assembly upside down, with the bottom edge toward you.
7. Release the display enclosure by sliding the enclosure (1) toward the top of the display assembly.
8. Lift the display enclosure (2) as far as the display logo cable allows.
Component replacement procedures 83
9. Disconnect the display logo cable (3) from the display panel cable.
10. If it is necessary to replace the display inverter, remove the four Phillips PM2.5×5.0 screws (1) that
secure the display inverter cover to the display bezel.
11. Remove the display inverter cover (2) by lifting it straight up.
NOTE: You must remove the display inverter cover to free the antenna cables.
12. Remove the display enclosure. The display enclosure table below identifies the correct part to use
for each computer model.
Description Spare part number
BrightView display enclosure, Onyx (includes wireless antenna transceivers and cables
and logo LED board and cable) 16-inch
BrightView display enclosure, Moonlight White (includes wireless antenna transceivers
and cables and logo LED board and cable) 15.6-inch
84 Chapter 4 Removal and replacement procedures
512824-001
517860-001
BrightView display enclosure, Espresso Black (includes wireless antenna transceivers
and cables and logo LED board and cable) 16-inch
518773-001
AntiGlare display enclosure, Onyx (includes wireless antenna transceivers and cables)
16-inch
AntiGlare display enclosure, Moonlight White (includes wireless antenna transceivers
and cables) 16-inch
AntiGlare display enclosure, Espreso Black (includes wireless antenna transceivers and
cables) 16-inch
AntiGlare display enclosure, Moonlight White (includes wireless antenna transceivers
and cables) 15.6-inch (replaced by 571744–001)
AntiGlare display enclosure, Moonlight White (includes wireless antenna transceivers
and cables) 15.6-inch (replaces 518775-001)
AntiGlare display enclosure, Espreso Black (includes wireless antenna transceivers and
cables) 15.6-inch
513478-001
517861-001
518774-001
518775-001
571744–001
518777-001
13. If it is necessary to replace the webcam/microphone module, release the webcam/microphone
module (1) as far as the webcam/microphone module cable allows.
14. Disconnect the webcam/microphone module cable (2) from the webcam/microphone module.
15. Remove the webcam/microphone module. The webcam/microphone module is available using
spare part number 512827-001.
16. Release the display inverter (1) as far from the display bezel as the display panel cable and
backlight cable allow.
Component replacement procedures 85
17. Disconnect the backlight cables (2) and display panel cable (3) from the display bezel.
18. Remove the display inverter. The display inverter is available using spare part number
488317-001.
19. If it is necessary to replace the display hinges, remove the four Phillips PM2.5×5.0 screws (1) that
secure the display hinge brackets to the display panel.
20. Remove the display hinge brackets (2).
21. Remove the two Phillips PM2.5×5.0 screws (1) that secure the display hinge to the display panel.
86 Chapter 4 Removal and replacement procedures
22. Remove the display hinge (2). The display hinge is available in the Display Hinge Kit, spare part
number 513477-001 (16-inch display) or 519209-001 (15.6-inch display).
NOTE: Steps 23 through 33 provide display assembly internal component removal information
for computer models equipped with BrightView display assemblies. See steps 5 through 22 for
display assembly internal component removal information for computer models equipped with
AntiGlare display assemblies.
NOTE: See Webcam/microphone moduleon page 60 for webcam/microphone module
replacement instructions for computer models equipped with BrightView display assemblies.
23. If it is necessary to replace the display bezel or any of the display assembly internal components,
remove the following screw covers and screws: Two rubber screw covers on the display bezel
bottom edge (1). Two Phillips PM2.5×6.5 screws (2). The display rubber screw covers are included
in the Display Rubber Kit, spare part number 512361-001.
24. Flex the inside edges of the top edge (1), the left and right sides (2), and the bottom edge (3) of
the display bezel until the bezel disengages from the display enclosure.
Component replacement procedures 87
25. Remove the display bezel (4). The display bezel is available using spare part number 512359-001
(16-inch display) or 512364-001 (15.6-inch display).
26. If it is necessary to replace the display inverter, release the display inverter (1) as far from the
display enclosure as the display panel cable and backlight cable allow.
27. Disconnect the display panel cable (2) and the backlight cable (3) from the display inverter.
28. Remove the display inverter. The display inverter is available using spare part number
488317-001.
88 Chapter 4 Removal and replacement procedures
29. If it is necessary to replace the display panel, remove the two Phillips PM2.5×5.0 screws (1) from
the top corners and the six Phillips PM2.5×5.0 screws (2) from the display hinges.
30. Flex the bottom (1) of the display panel back and release the display hinges. Disconnect the display
LED cable (2) from the display panel cable. Remove the display panel (3). Display panels are
available using spare part number 511868-001 (16-inch WXGA BrightView display panel) or
512363-001 (15.6-inch WXGA BrightView display panel).
31. If it is necessary to replace the display hinges, remove the two Phillips PM2.0×3.0 screws (1) that
secure each display hinge to the display panel.
Component replacement procedures 89
32. Remove the display hinges (2). The display hinges are available in the Display Hinge Kit, spare
part 512360-001 (16-inch display) or 512365-001 (15.6-inch display). The display hinge screws
are available in the Display Screw Kit, spare part number 512362-001.
33. If it is necessary to remove the display panel cable, remove the adhesive reinforcement strip (1)
from the display panel cable, and disconnect the display panel cable from the top of the display
panel (2). Remove the tape (3) that secures the cable to the display panel. The display panel cable
is available using spare part number 512825-001.
Reverse this procedure to reassemble and install the display assembly.
90 Chapter 4 Removal and replacement procedures
Top cover
NOTE: The top cover spare part kit includes TouchPad and TouchPad buttons, and speaker assembly.
Description Spare part number
Top cover for use only with computer models equipped with a fingerprint reader, Onyx 512828-001
Top cover for use only with computer models not equipped with a fingerprint reader, Onyx 511888-001
Top cover for or use only with computer models equipped with a fingerprint reader, Moonlight White 518108-001
Top cover for use only with computer models not equipped with a fingerprint reader, Moonlight White 518109-001
For use only with computer models equipped with a fingerprint reader, Espresso Black 518788-001
For use only with computer models not equipped with a fingerprint reader, Espresso Black 518789-001
Before removing the top cover, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
computer on, and then shut it down through the operating system.
then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 59).
5. Remove the following components:
a. Hard drive (see
b. Optical drive (see
c. Switch cover and keyboard (see
d. Display assembly (see
Hard drive on page 69)
Optical drive on page 62)
Switch cover and keyboard on page 76)
Display assembly on page 81)
Remove the top cover:
1. Turn the computer upside down, with the front toward you.
2. Remove the 9 Phillips PM2.5×6.5 screws (1) that secure the top cover to the computer.
Component replacement procedures 91
3. Remove one Phillips PM2.5×4.0 screw (2) that secures the top cover to the computer. This screw
is in the battery bay.
4. Turn the computer right-side up, with the front toward you.
5. Disconnect the following cables from the system board:
(1) TouchPad cable
NOTE: On computer models equipped with a standard display assembly, this cable connects to
a ZIF connector on the system board. On computer models equipped with a Flush Glass display
assembly, this cable connects to a LIF connector on the system board.
(2) Fingerprint reader board cable
NOTE: This cable connects to a LIF connector on the system board.
(3) Speaker cable
NOTE: Step 6 applies only to computer models equipped with standard display assemblies.
92 Chapter 4 Removal and replacement procedures
Loading...
