Page 1
Notebook Tour
User Guide
Page 2
© Copyright 2008 Hewlett-Packard
Development Company, L.P.
Microsoft and Windows are U.S. registered
trademarks of Microsoft Corporation.
Bluetooth is a trademark owned by its
proprietor and used by Hewlett-Packard
Company under license. SD Logo is a
trademark of its proprietor.
The information contained herein is subject
to change without notice. The only
warranties for HP products and services are
set forth in the express warranty statements
accompanying such products and services.
Nothing herein should be construed as
constituting an additional warranty. HP shall
not be liable for technical or editorial errors
or omissions contained herein.
First Edition: November 2008
Document Part Number: 501559-001
Product notice
This user guide describes features that are
common to most models. Some features
may not be available on your computer.
Page 3
Safety warning notice
WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not
place the computer directly on your lap or obstruct the computer air vents. Use the computer only on a
hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft
surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to contact
the skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer and the
AC adapter comply with the user-accessible surface temperature limits defined by the International
Standard for Safety of Information Technology Equipment (IEC 60950).
iii
Page 4
iv Safety warning notice
Page 5
Table of contents
1 Identifying hardware
2 Components
Top components ................................................................................................................................... 2
TouchPad ............................................................................................................................ 2
Lights ................................................................................................................................... 3
Buttons and fingerprint reader (select models only) ............................................................ 5
Keys ..................................................................................................................................... 7
Front components ................................................................................................................................ 8
Right-side components ......................................................................................................................... 9
Left-side components ......................................................................................................................... 10
Bottom components ........................................................................................................................... 11
Display components ........................................................................................................................... 12
Wireless antennae (select models only) ............................................................................................. 13
Additional hardware components ....................................................................................................... 14
3 Labels
Index ................................................................................................................................................................... 16
v
Page 6
vi
Page 7
1 Identifying hardware
To see a list of hardware installed in the computer, follow these steps:
1. Select Start > Computer > System properties.
2. In the left pane, click Device Manager.
You can also add hardware or modify device configurations using Device Manager.
NOTE: Windows® includes the User Account Control feature to improve the security of your computer.
You may be prompted for your permission or password for tasks such as installing software, running
utilities, or changing Windows settings. Refer to Help and Support for more information.
1
Page 8
2 Components
Top components

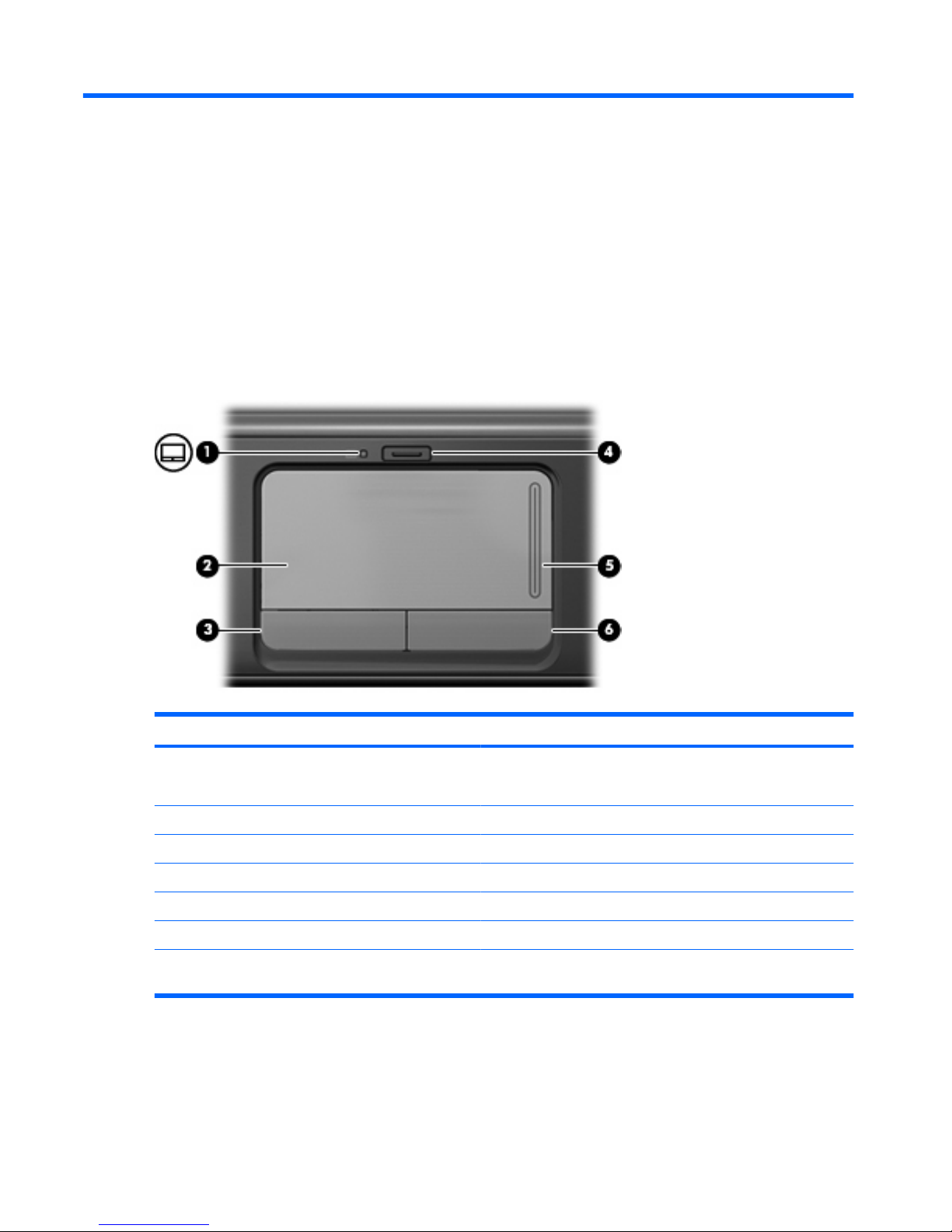

TouchPad
Component Description
(1) TouchPad light
●
White: TouchPad is enabled.
●
Amber: TouchPad is disabled.
(2) TouchPad* Moves the pointer and selects or activates items on the screen.
(3) Left TouchPad button* Functions like the left button on an external mouse.
(4) TouchPad on/off button Enables/disables the TouchPad.
(5) TouchPad scroll zone Scrolls up or down.
(6) Right TouchPad button* Functions like the right button on an external mouse.
*This table describes factory settings. To view and change pointing device preferences, select Start > Control Panel >
Hardware and Sound > Mouse.
2 Chapter 2 Components
Page 9

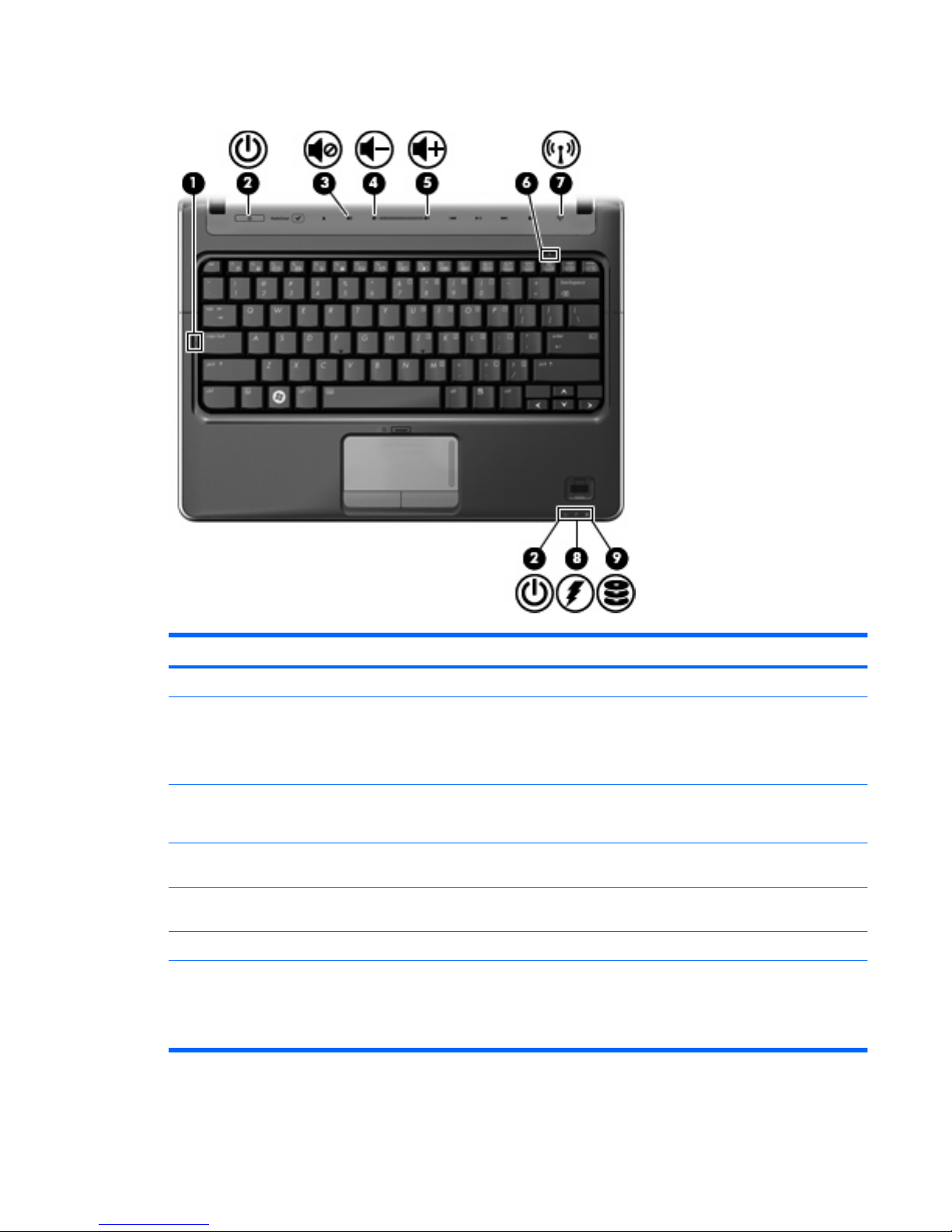

Lights
Component Description
(1) Caps lock light On: Caps lock is on.
(2) Power lights (2)*
●
On: The computer is on.
●
Blinking: The computer is in the Sleep state.
●
Off: The computer is off or in Hibernation.
(3) Volume mute light
●
White: Computer sound is on.
●
Amber: Computer sound is off.
(4) Volume down light On: The volume scroll zone is being used to decrease speaker
volume.
(5) Volume up light On: The volume scroll zone is being used to increase speaker
volume.
(6) Num lock light On: Num lock is on or the embedded numeric keypad is enabled.
(7) Wireless light
●
On: An integrated wireless device, such as a wireless local
area network (WLAN) device and/or a Bluetooth® device, is
on.
●
Off: All wireless devices are off.
Top components 3
Page 10
Component Description
(8) Battery light
●
On: A battery is charging.
●
Blinking: A battery that is the only available power source has
reached a low battery level. When the battery reaches a
critical battery level, the battery light begins blinking rapidly.
●
Off: If the computer is plugged into an external power source,
the light is turned off when all batteries in the computer are
fully charged. If the computer is not plugged into an external
power source, the light stays off until the battery reaches a
low battery level.
(9) Drive light Blinking: The hard drive or optical drive is being accessed.
*The 2 power lights display the same information. The light on the power button is visible only when the computer is open. The
power light on the front of the computer is visible whether the computer is open or closed.
4 Chapter 2 Components
Page 11

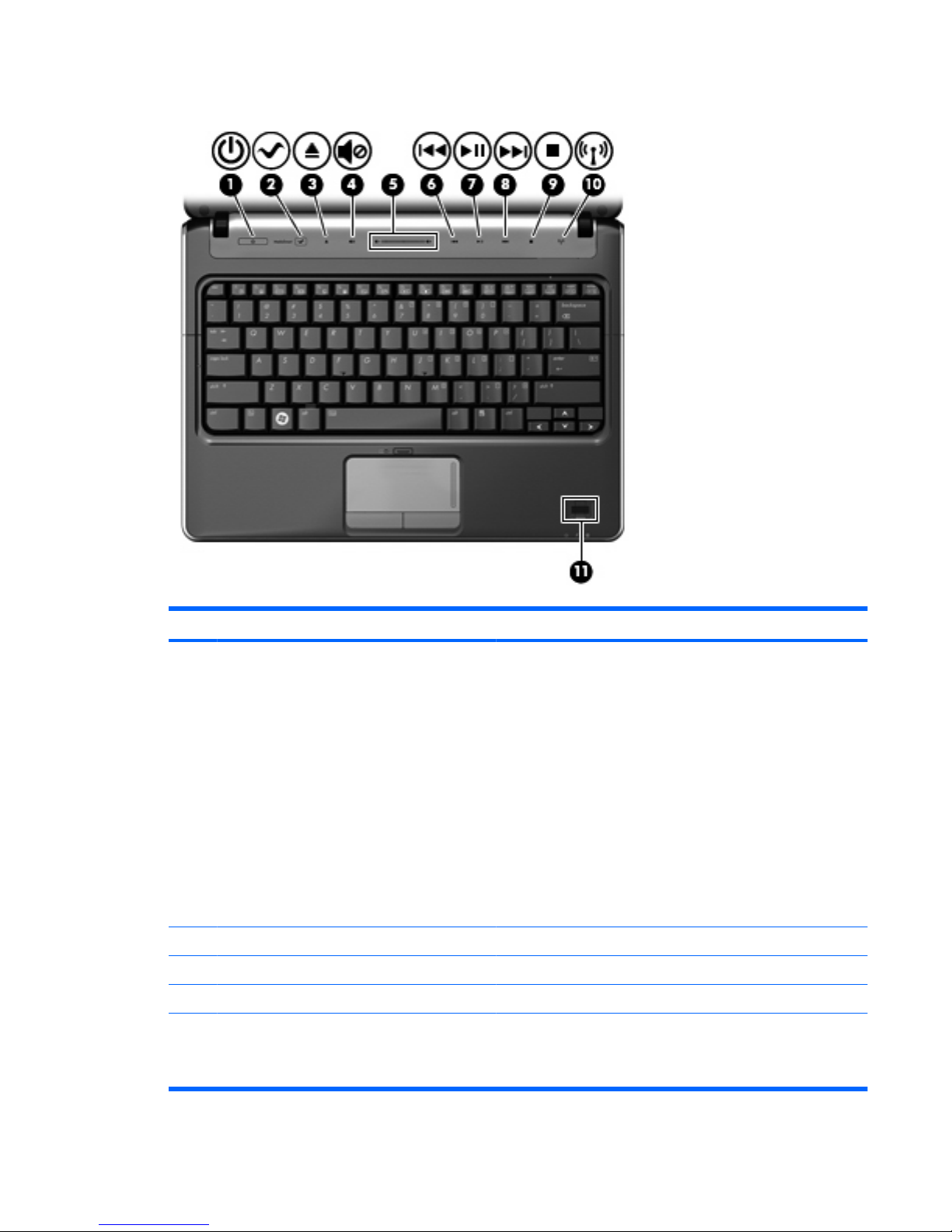

Buttons and fingerprint reader (select models only)
Component Description
(1) Power button*
●
When the computer is off, press the button to turn on the
computer.
●
When the computer is on, press the button briefly to initiate
Sleep.
●
When the computer is in the Sleep state, press the button
briefly to exit Sleep.
●
When the computer is in Hibernation, press the button briefly
to exit Hibernation.
If the computer has stopped responding and Windows® shutdown
procedures are ineffective, press and hold the power button for at
least 5 seconds to turn off the computer.
To learn more about your power settings, select Start > Control
Panel > System and Maintenance > Power Options.
(2) MediaSmart button Launches HP MediaSmart when the computer is on.
(3) Eject button Ejects the CD, DVD, or BD.
(4) Volume mute button Mutes and restores speaker sound.
(5) Volume scroll zone Adjusts speaker volume. Slide your finger to the left to decrease
volume and to the right to increase volume. You can also tap the
minus (-) sign on the scroll zone to decrease volume, or tap the
plus (+) sign on the scroll zone to increase volume.
Top components 5
Page 12
Component Description
(6) Previous/rewind button
●
Plays the previous track or chapter when the button is
pressed once.
●
Rewinds media when the button is pressed in combination
with the fn key.
(7) Play/pause button Plays or pauses media.
(8) Next/fast forward button
●
Plays the next track or chapter when the button is pressed
once.
●
Fast forwards media when pressed in combination with the
fn key.
(9) Stop button Stops playback.
(10) Wireless button Turns the wireless feature on or off but does not create a wireless
connection.
NOTE: To establish a wireless connection, a wireless network
must already be set up.
(11) Fingerprint reader (select models only) Allows a fingerprint logon to Windows, instead of a password
logon.
*This table describes factory settings. For information about changing factory settings, refer to the user guides located in Help
and Support.
6 Chapter 2 Components
Page 13

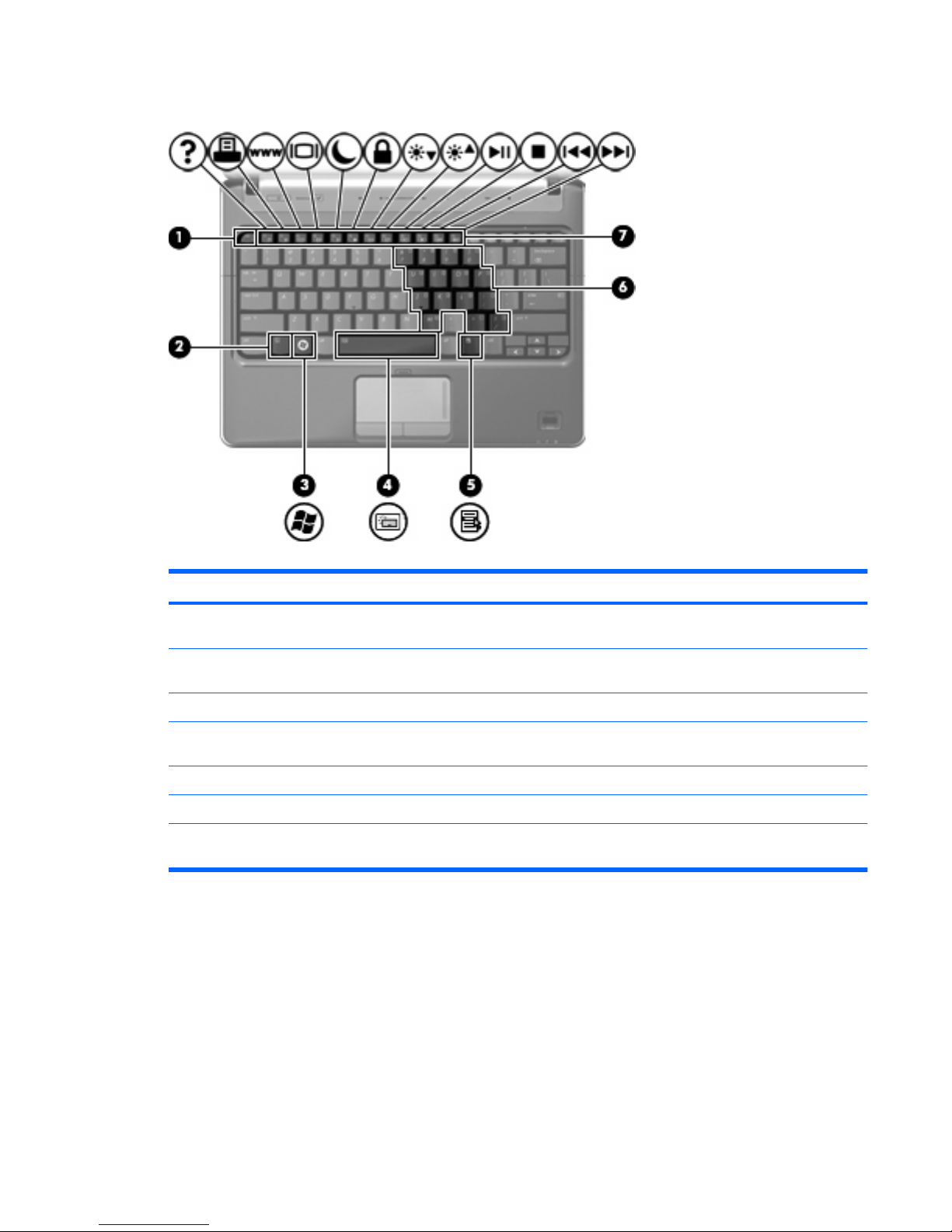

Keys
Component Description
(1) esc key Displays system information when pressed in combination with the
fn key.
(2) fn key Executes frequently used system functions when pressed in
combination with a function key or the esc key.
(3) Windows logo key Displays the Windows Start menu.
(4) Spacebar Turns the keyboard lights on and off when pressed in combination
with the fn key (select models only).
(5) Windows applications key Displays a shortcut menu for items beneath the pointer.
(6) Embedded numeric keypad keys Can be used like the keys on an external numeric keypad.
(7) Function keys Execute frequently used system functions when pressed in
combination with the fn key.
Top components 7
Page 14

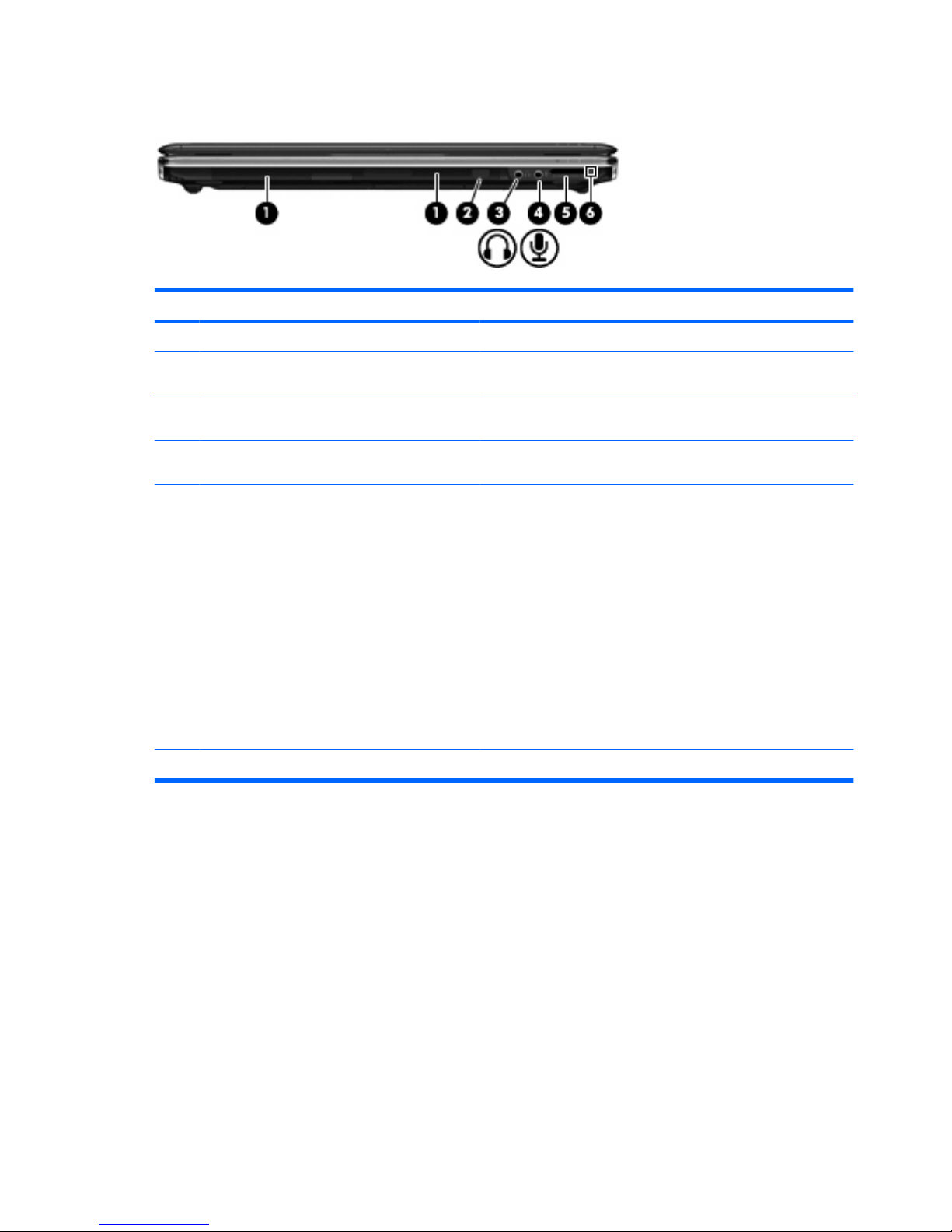

Front components
Component Description
(1) Speakers (2) Produce sound.
(2) Consumer infrared lens Receives a signal from the remote control (provided with select
models only).
(3) Audio-out (headphone) jack Produce sound when connected to optional powered stereo
speakers, headphones, ear buds, a headset, or television audio.
(4) Audio-in (microphone) jack Connects an optional computer headset microphone, stereo array
microphone, or monaural microphone.
(5) Digital Media Slot Supports the following digital card formats:
●
Memory Stick (MS)
●
Memory Stick Pro (MSP)
●
MultiMediaCard (MMC)
●
Secure Digital (SD) Memory Card
●
Secure Digital High Capacity (SDHC) Memory Card
●
xD-Picture Card (XD)
●
xD-Picture Card (XD) Type H
●
xD-Picture Card (XD) Type M
(6) Digital Media Slot light On: The Digital Media Slot is in use.
8 Chapter 2 Components
Page 15

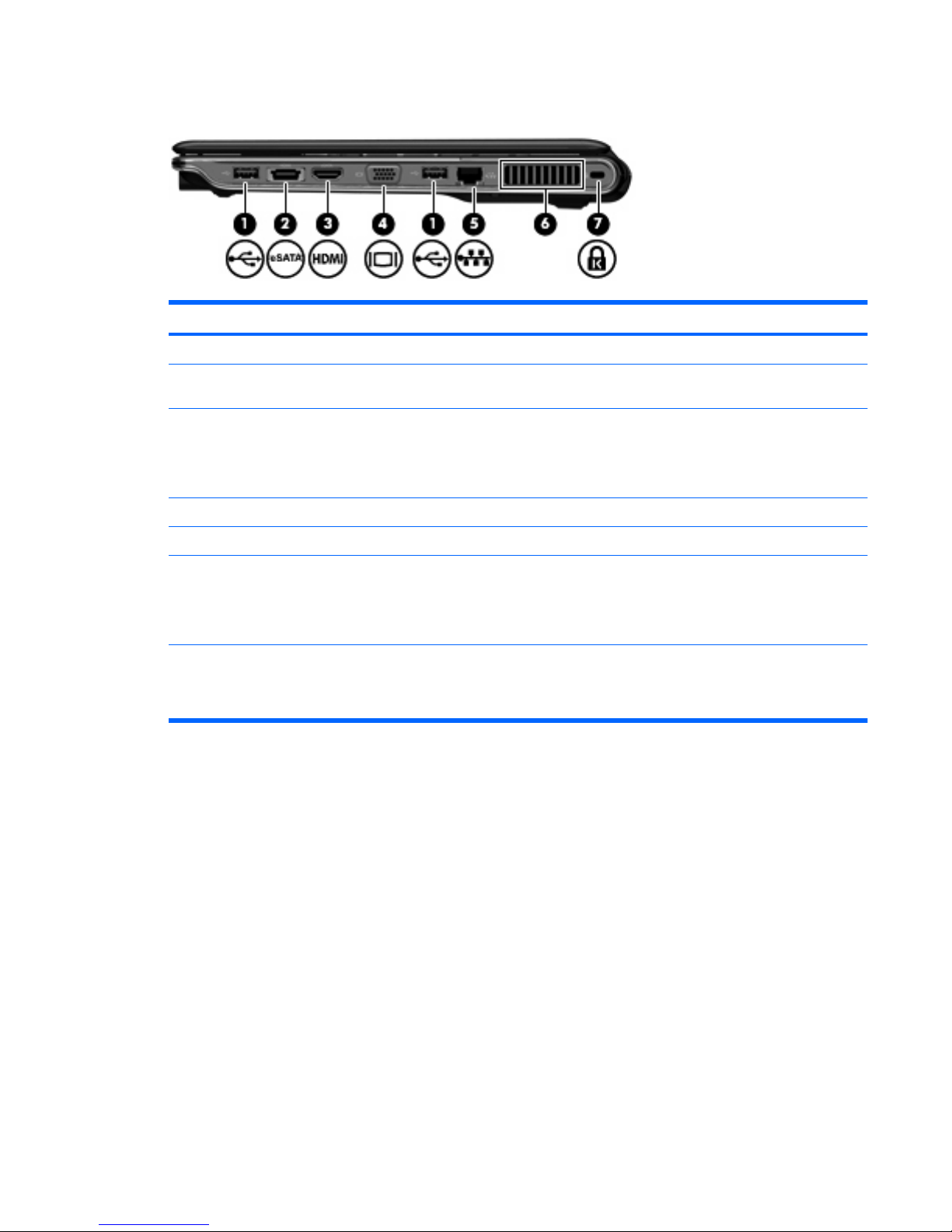

Right-side components
Component Description
(1) USB ports (2) Connect optional USB devices.
(2) eSATA/USB port Connects a high-performance eSATA component, such as an
eSATA external hard drive, or connects an optional USB device.
(3) HDMI port (select models only) Connects an optional video or audio device, such as a high-
definition television, or any compatible digital or audio component.
NOTE: Depending on your computer model, the computer may
include an HDMI port or a USB port at this location.
(4) External monitor port Connects an external VGA monitor or projector.
(5) RJ-45 (network) jack Connects a network cable.
(6) Vent Enables airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool internal
components and prevent overheating. It is normal for the internal
fan to cycle on and off during routine operation.
(7) Security cable slot Attaches an optional security cable to the computer.
NOTE: The security cable is designed to act as a deterrent, but
it may not prevent the computer from being mishandled or stolen.
Right-side components 9
Page 16

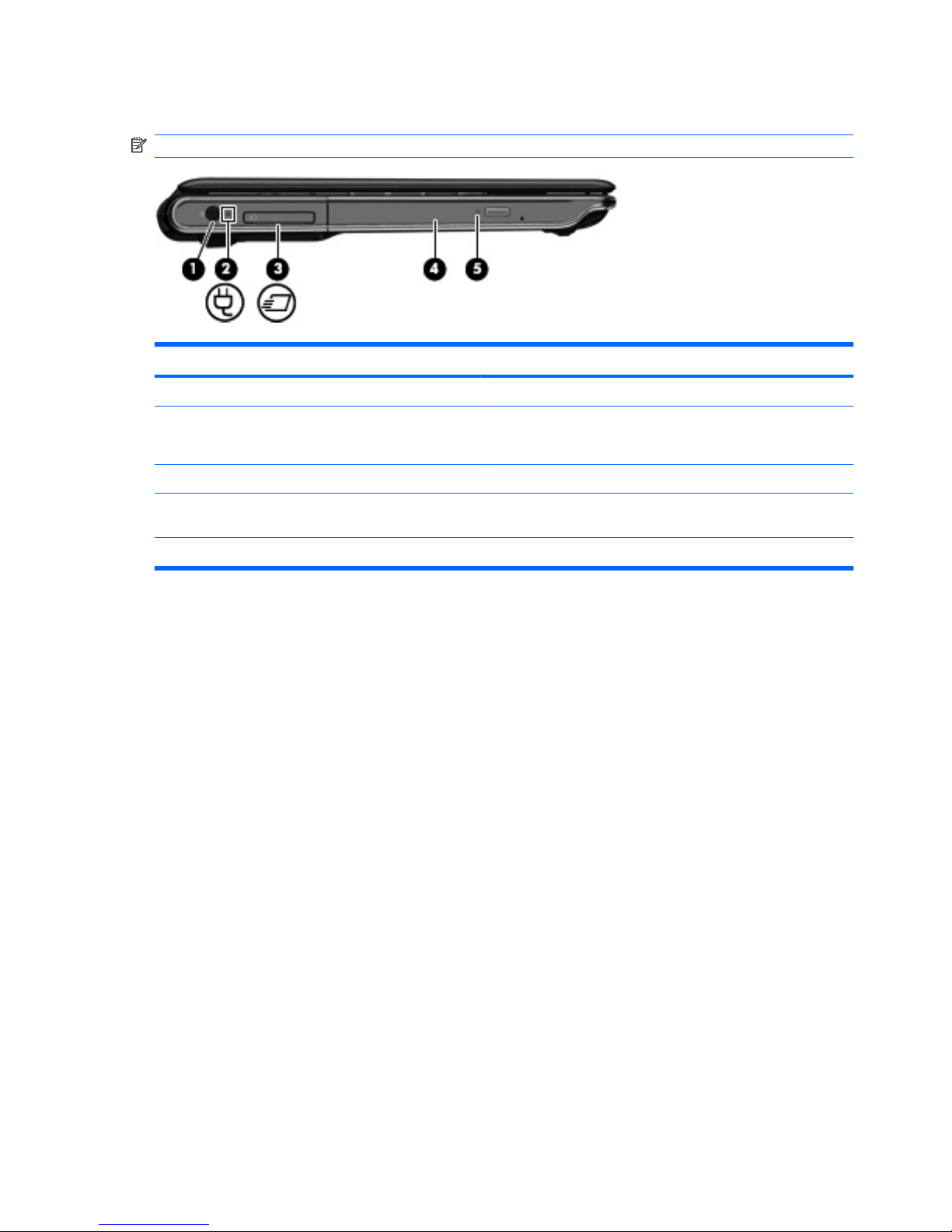

Left-side components
NOTE: Your computer may look slightly different from the illustration in this section.
Component Description
(1) Power connector Connects an AC adapter.
(2) AC adapter light
●
On: The computer is connected to external power.
●
Off: The computer is not connected to external power.
(3) ExpressCard slot Supports an optional ExpressCard/34 module.
(4) Optical drive Reads optical discs and, on select models, also writes to optical
discs.
(5) Optical drive light Blinking: The optical drive is being accessed.
10 Chapter 2 Components
Page 17

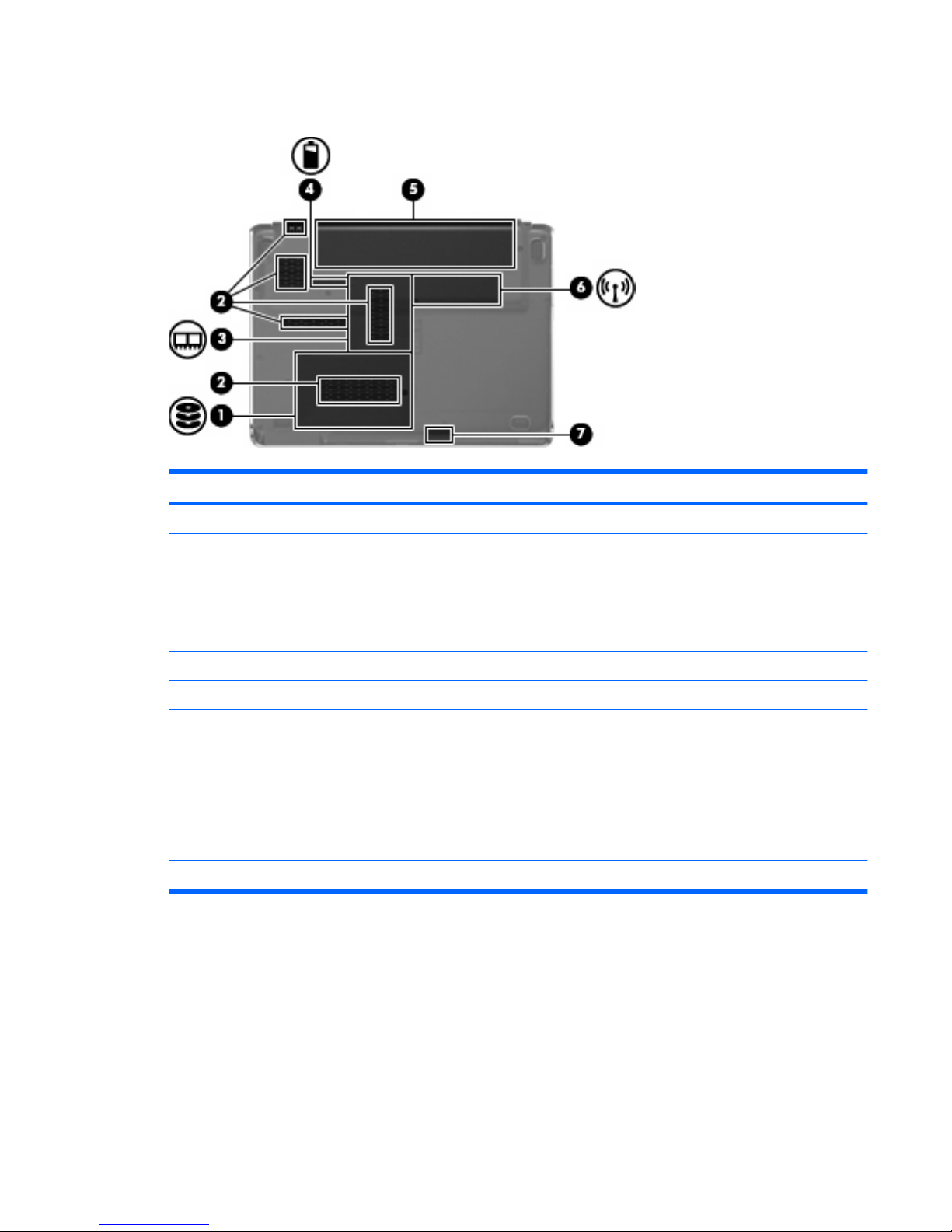

Bottom components
Component Description
(1) Hard drive bay Holds the hard drive.
(2) Vents (5) Enable airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool internal
components and prevent overheating. It is normal for the internal
fan to cycle on and off during routine operation.
(3) Memory module compartment Contains the memory module slots.
(4) Battery release latch Releases the battery from the battery bay.
(5) Battery bay Holds the battery.
(6) Wireless module compartment Holds a wireless LAN module.
NOTE: To prevent an unresponsive system, replace the wireless
module only with a wireless module authorized for use in the
computer by the governmental agency that regulates wireless
devices in your country or region. If you replace the module and
then receive a warning message, remove the module to restore
computer functionality, and then contact technical support through
Help and Support.
(7) Bluetooth compartment Contains a Bluetooth device.
Bottom components 11
Page 18

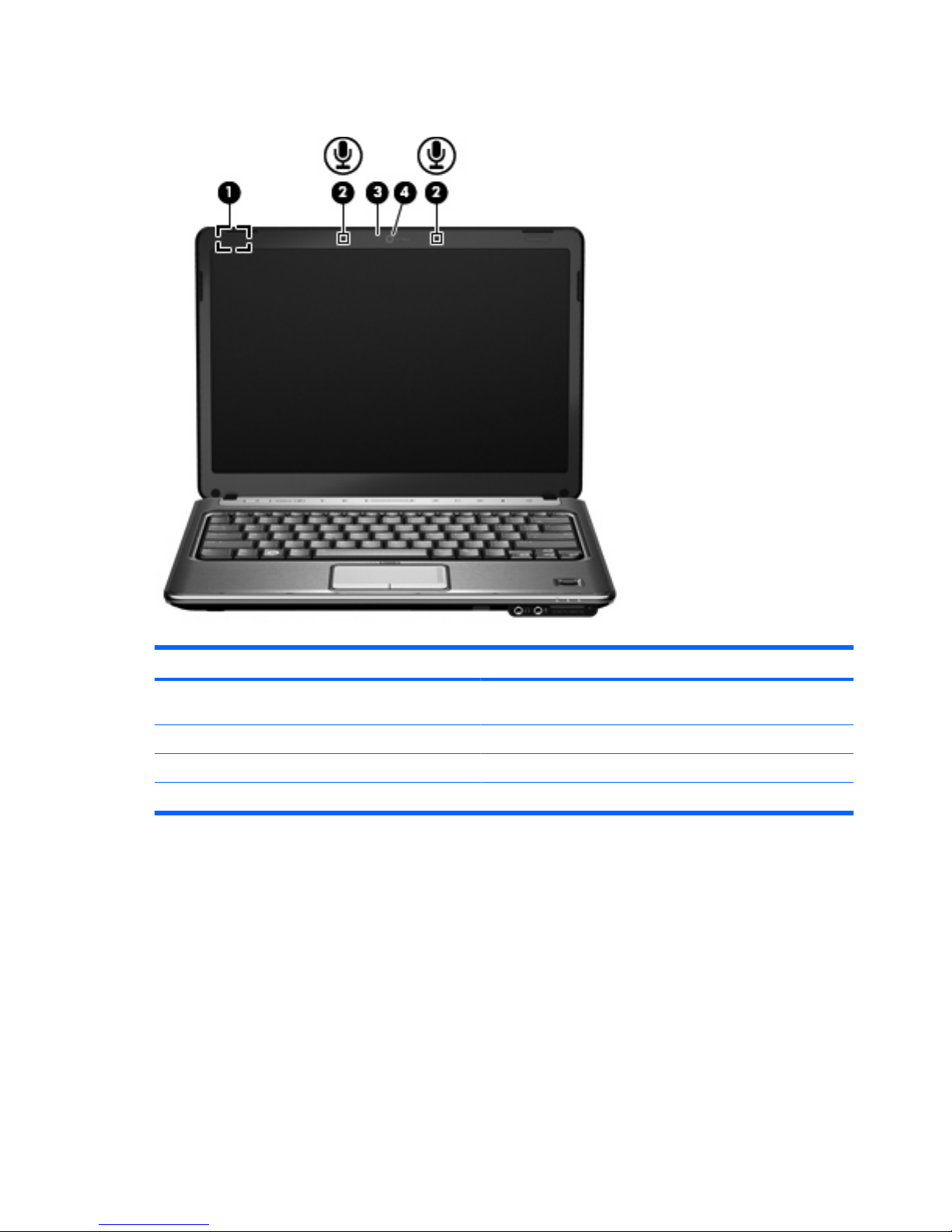

Display components
Component Description
(1) Internal display switch Turns off the display and initiates Sleep if the display is closed while
the power is on.
(2) Internal microphones (2) Record sound.
(3) Webcam light On: The webcam is in use.
(4) Webcam Records audio and video and captures still photographs.
12 Chapter 2 Components
Page 19

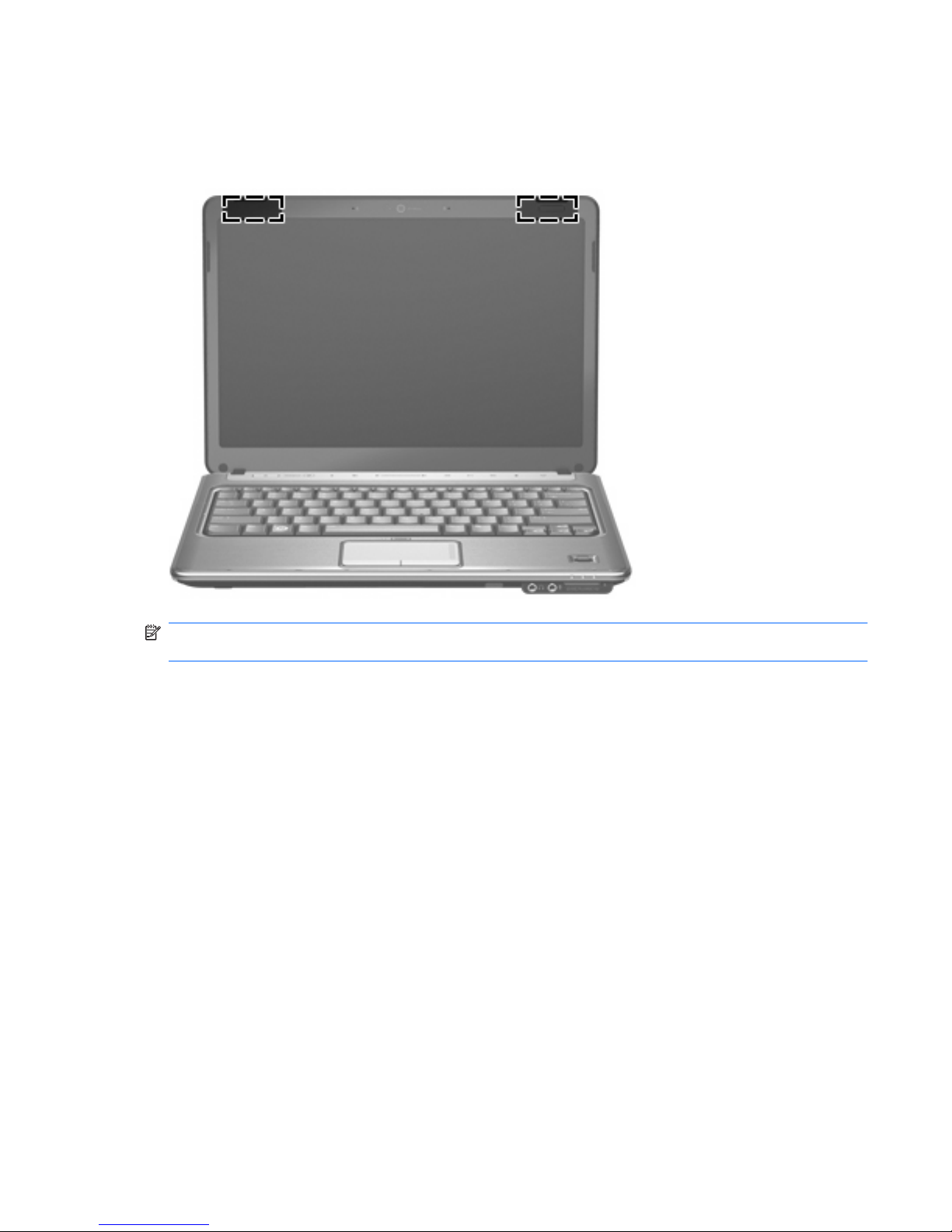

Wireless antennae (select models only)
On select computer models, at least 2 antennae send and receive signals from one or more wireless
devices. These antennae are not visible from the outside of the computer.
NOTE: For optimal transmission, keep the areas immediately around the antennae free from
obstructions.
To see wireless regulatory notices, refer to the section of the Regulatory, Safety and Environmental
Notices that applies to your country or region. These notices are located in Help and Support.
Wireless antennae (select models only) 13
Page 20

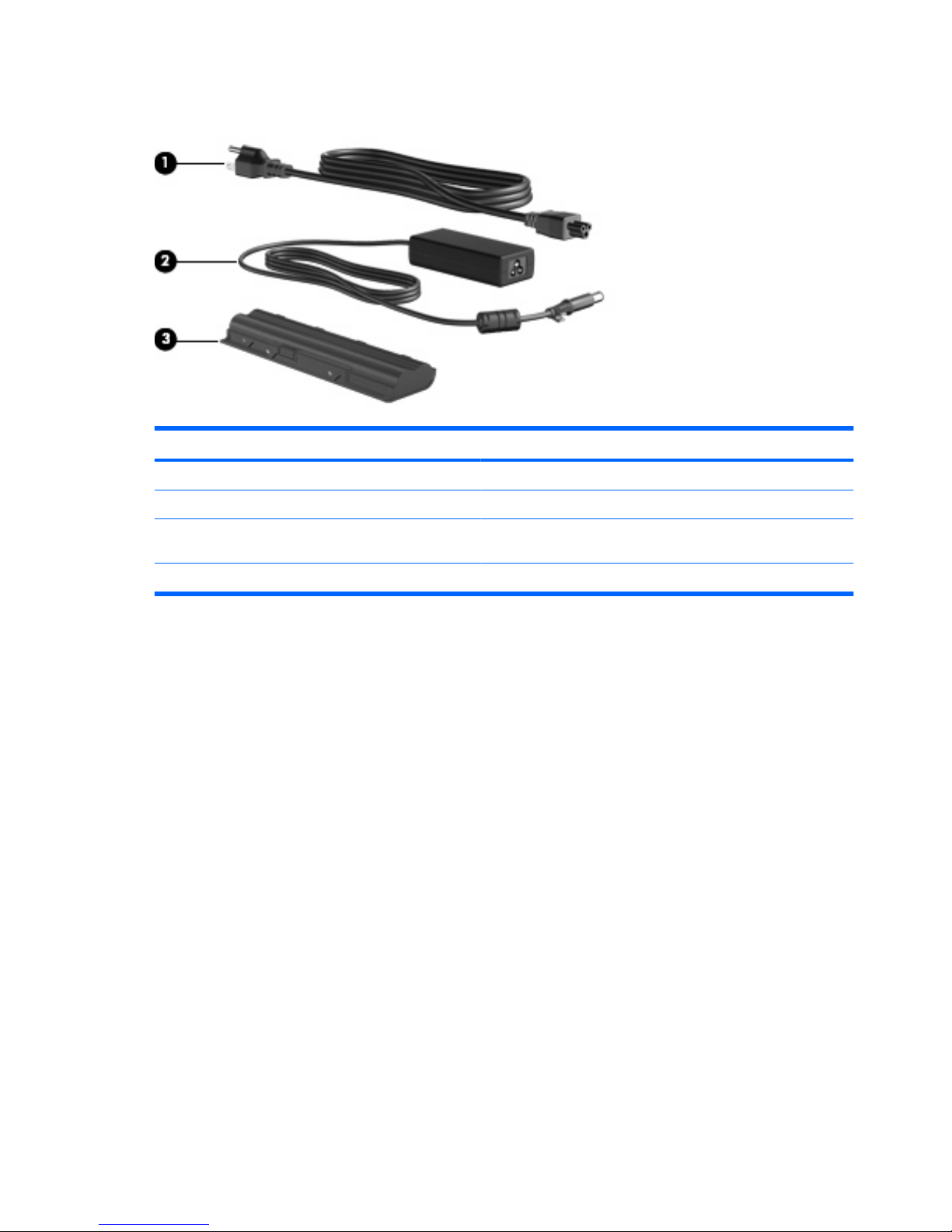

Additional hardware components
Component Description
(1) Power cord* Connects an AC adapter to an AC outlet.
(2) AC adapter Converts AC power to DC power.
(3) Battery* Powers the computer when the computer is not plugged into
external power.
*Batteries and power cords vary in appearance by region and country.
14 Chapter 2 Components
Page 21
3 Labels
The labels affixed to the computer provide information you may need when you troubleshoot system
problems or travel internationally with the computer.
●

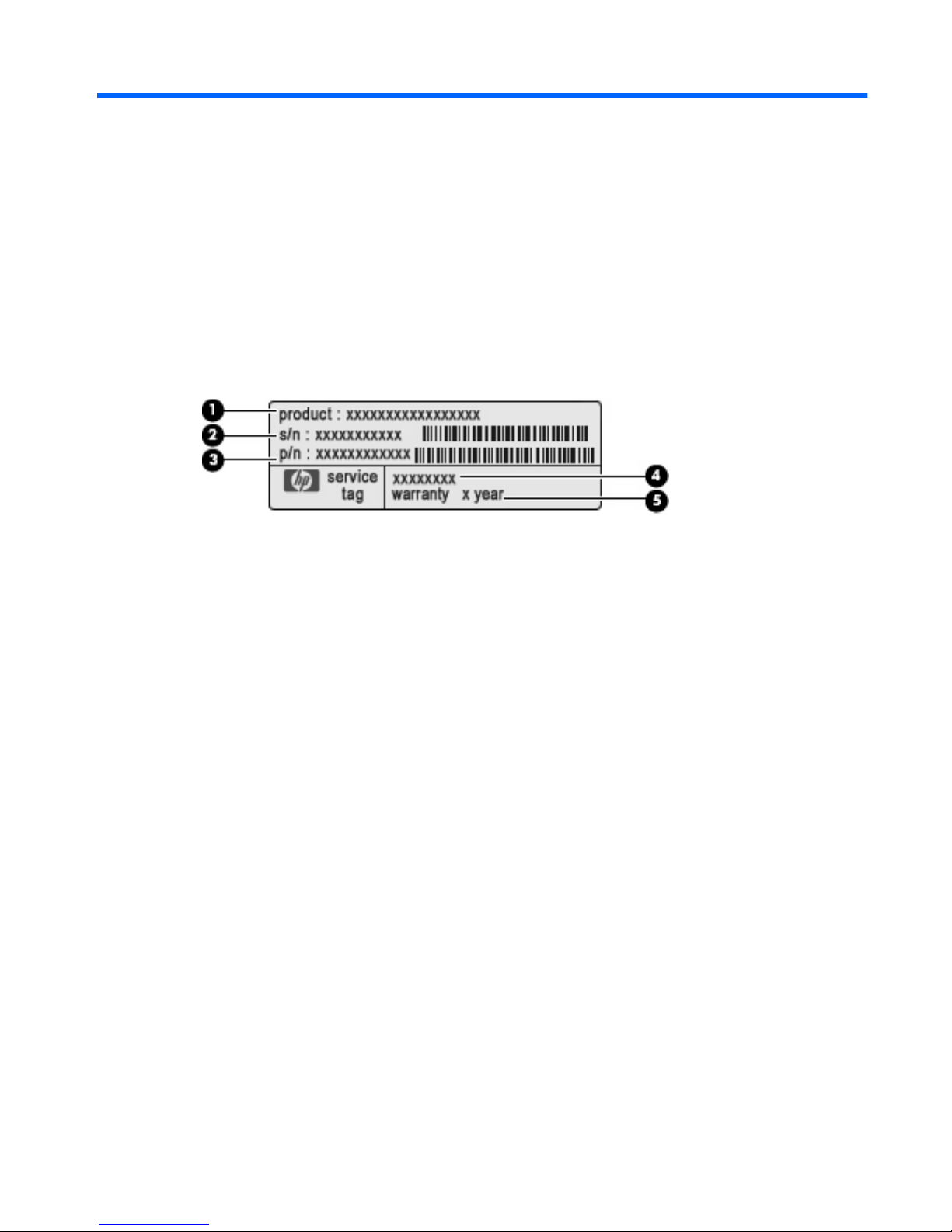

Service tag—Provides important information including the following:
◦
Product name (1). This is the product name affixed to the front of your notebook.
◦
Serial number (s/n) (2). This is an alphanumeric identifier that is unique to each product.
◦
Part number/Product number (p/n) (3). This number provides specific information about the
product's hardware components. The part number helps a service technician to determine
what components and parts are needed.
◦
Model description (4). This is the number you use to locate documents, drivers, and support
for your notebook.
◦
Warranty period (5). This number describes the duration (in years) of the warranty period for
this computer.
Have this information available when you contact technical support. The service tag label is affixed
to the bottom of the computer.
●
Microsoft® Certificate of Authenticity—Contains the Windows® Product Key. You may need the
Product Key to update or troubleshoot the operating system. This certificate is affixed to the bottom
of the computer.
●
Regulatory label—Provides regulatory information about the computer. The regulatory label is
affixed inside the battery bay.
●
Wireless certification label(s) (select models only)—Provide information about optional wireless
devices and the approval markings of some of the countries or regions in which the devices have
been approved for use. An optional device may be a wireless local area network (WLAN) device
or an optional Bluetooth® device. If your computer model includes one or more wireless devices,
one or more certification labels are included with your computer. You may need this information
when traveling internationally. Wireless certification labels are affixed inside the Mini Card
compartment.
15
Page 22
Index
A
AC adapter light, identifying 10
AC adapter, identifying 14
antennae 13
applications key, Windows 7
audio-in (microphone) jack,
identifying 8
audio-out (headphone) jack,
identifying 8
B
battery bay 15
battery bay, identifying 11
battery light, identifying 4
battery release latch,
identifying 11
battery, identifying 14
bays
battery 11, 15
hard drive 11
Bluetooth label 15
buttons
MediaSmart 5
next/fast forward 6
play/pause 6
power 5
previous/rewind 6
stop 6
TouchPad 2
TouchPad on/off 2
volume mute 5
wireless 6
C
caps lock light, identifying 3
Certificate of Authenticity label 15
compartments
memory module 11
wireless module 11
components
additional hardware 14
bottom 11
display 12
front 8
left-side 10
right-side 9
top 2
connector, power 10
cord, power 14
D
Digital Media Slot, identifying 8
drive light, identifying 4
E
eSATA/USB port, identifying 9
esc key, identifying 7
ExpressCard slot, identifying 10
external monitor port,
identifying 9
F
fingerprint reader, identifying 6
fn key, identifying 7
function keys, identifying 7
H
hard drive bay, identifying 11
HDMI port, identifying 9
headphone (audio-out) jack 8
I
infrared lens, identifying 8
integrated webcam light,
identifying 12
internal microphones,
identifying 12
J
jacks
audio-in (microphone) 8
audio-out (headphone) 8
RJ-45 (network) 9
K
keypad keys, identifying 7
keys
esc 7
fn 7
function 7
keypad 7
Windows applications 7
Windows logo 7
L
labels
Bluetooth 15
Microsoft Certificate of
Authenticity 15
regulatory 15
service tag 15
wireless certification 15
WLAN 15
latch, battery release 11
lights
battery 4
caps lock 3
drive 4
mute 3
num lock 3
optical drive 10
power 3, 10
TouchPad 2
volume down 3
volume mute 3
volume up 3
webcam 12
wireless 3
16 Index
Page 23
M
media activity buttons,
identifying 6
MediaSmart button, identifying 5
memory module compartment,
identifying 11
microphone (audio-in) jack 8
Microsoft Certificate of Authenticity
label 15
monitor port, external 9
mute button, identifying 5
mute light, identifying 3
N
next/fast forward button,
identifying 6
num lock light, identifying 3
O
operating system
Microsoft Certificate of
Authenticity label 15
Product Key 15
optical drive light, identifying 10
optical drive, identifying 10
P
play/pause button, identifying 6
ports
eSATA/USB 9
external monitor 9
HDMI 9
USB 9
power button, identifying 5
power connector, identifying 10
power cord, identifying 14
power lights, identifying 3
previous/rewind button,
identifying 6
Product Key 15
product name and number,
computer 15
R
regulatory information
regulatory label 15
wireless certification labels 15
RJ-45 (network) jack,
identifying 9
S
scrolling regions, TouchPad 2
security cable slot, identifying 9
serial number, computer 15
service tag 15
slots
Digital Media 8
ExpressCard 10
memory module 11
security cable 9
speakers, identifying 8
stop button, identifying 6
T
TouchPad
buttons 2
identifying 2
scrolling regions 2
TouchPad light, identifying 2
TouchPad on/off button 2
traveling with the computer
wireless certification labels 15
U
USB ports, identifying 9
V
vents, identifying 9, 11
volume down light, identifying 3
volume mute button, identifying 5
volume mute light, identifying 3
volume scroll zone, identifying 5
volume up light, identifying 3
W
webcam, identifying 12
Windows applications key,
identifying 7
Windows logo key, identifying 7
wireless antennae 13
wireless button, identifying 6
wireless certification label 15
wireless light, identifying 3
wireless module compartment,
identifying 11
WLAN device 15
WLAN label 15
Index 17
Page 24
Loading...
