HP Pavilion a710cl Technical Specifications

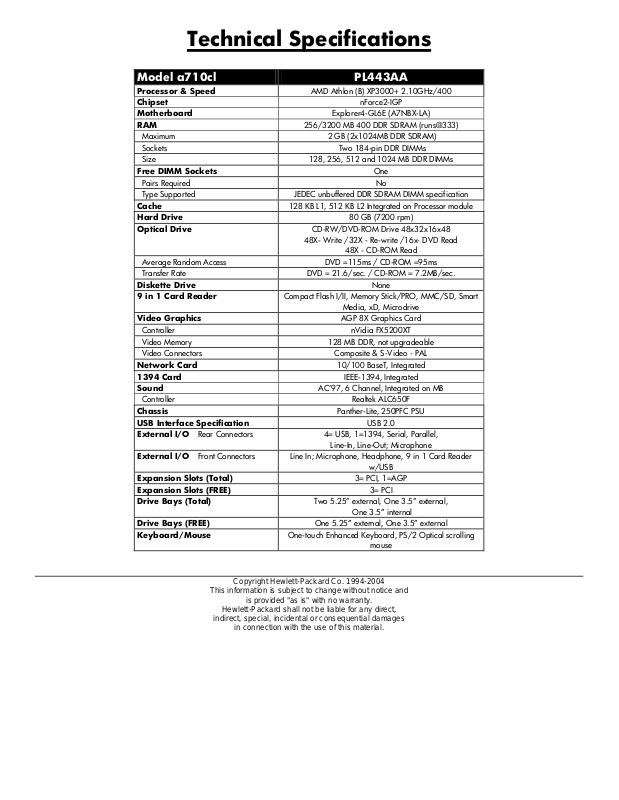

Technical Specifications

Model a710cl PL443AA

Processor & Speed AMD Athlon (B) XP3000+ 2.10GHz/400 Chipset nForce2-IGP Motherboard Explorer4-GL6E (A7NBX-LA) RAM 256/3200 MB 400 DDR SDRAM (runs@333)

Maximum 2 GB (2x1024MB DDR SDRAM) Sockets Two 184-pin DDR DIMMs Size 128, 256, 512 and 1024 MB DDR DIMMs Free DIMM Sockets One Pairs Required No Type Supported JEDEC unbuffered DDR SDRAM DIMM specification

Cache 128 KB L1, 512 KB L2 Integrated on Processor module Hard Drive 80 GB (7200 rpm) Optical Drive CD-RW/DVD-ROM Drive 48x32x16x48

48X- Write /32X - Re-write /16x- DVD Read

48X - CD-ROM Read Average Random Access DVD =115ms / CD-ROM =95ms Transfer Rate DVD = 21.6/sec. / CD-ROM = 7.2MB/sec.

Diskette Drive None 9 in 1 Card Reader Compact Flash I/II, Memory Stick/PRO, MMC/SD, Smart

Media, xD, Microdrive Video Graphics AGP 8X Graphics Card Controller nVidia FX5200XT Video Memory 128 MB DDR, not upgradeable Video Connectors Composite & S-Video - PAL

Network Card 10/100 BaseT, Integrated 1394 Card IEEE-1394, Integrated Sound AC’97, 6 Channel, Integrated on MB Controller Realtek ALC650F Chassis Panther-Lite, 250PFC PSU USB Interface Specification USB 2.0 External I/O Rear Connectors 4= USB, 1=1394, Serial, Parallel,

Line-In, Line-Out; Microphone

External I/O Front Connectors Line In; Microphone, Headphone, 9 in 1 Card Reader

w/USB

Expansion Slots (Total) 3= PCI, 1=AGP Expansion Slots (FREE) 3= PCI Drive Bays (Total) Two 5.25” external, One 3.5” external,

One 3.5” internal

Drive Bays (FREE) One 5.25” external, One 3.5” external Keyboard/Mouse One-touch Enhanced Keyboard, PS/2 Optical scrolling

mouse
