HP Pavilion a708hk Technical Specifications

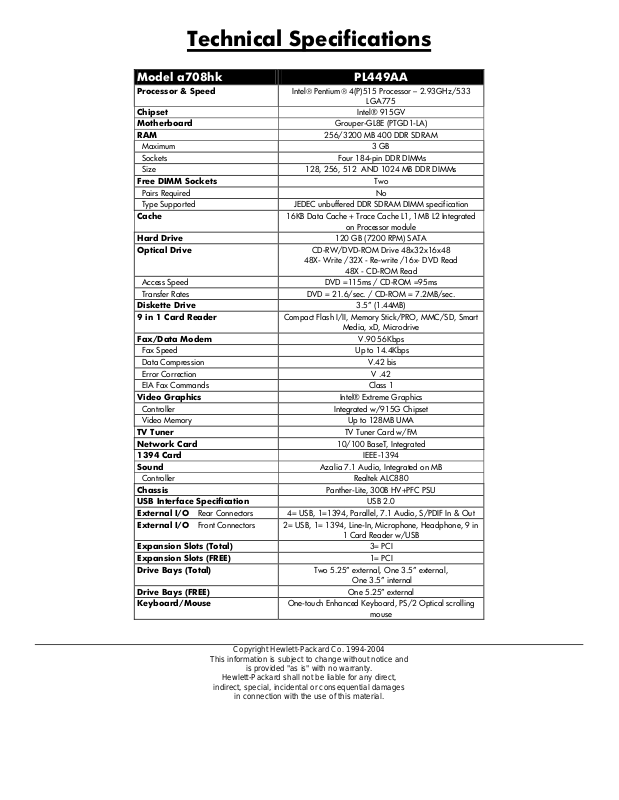

Technical Specifications

Model a708hk PL449AA

Processor & Speed Intel® Pentium® 4(P)515 Processor – 2.93GHz/533

LGA775

Chipset Intel® 915GV Motherboard Grouper-GL8E (PTGD1-LA) RAM 256/3200 MB 400 DDR SDRAM

Maximum 3 GB Sockets Four 184-pin DDR DIMMs Size 128, 256, 512 AND 1024 MB DDR DIMMs Free DIMM Sockets Two Pairs Required No Type Supported JEDEC unbuffered DDR SDRAM DIMM specification Cache 16KB Data Cache + Trace Cache L1, 1MB L2 Integrated

on Processor module

Hard Drive 120 GB (7200 RPM) SATA Optical Drive CD-RW/DVD-ROM Drive 48x32x16x48

48X- Write /32X - Re-write /16x- DVD Read

48X - CD-ROM Read Access Speed DVD =115ms / CD-ROM =95ms Transfer Rates DVD = 21.6/sec. / CD-ROM = 7.2MB/sec.

Diskette Drive 3.5” (1.44MB) 9 in 1 Card Reader Compact Flash I/II, Memory Stick/PRO, MMC/SD, Smart

Media, xD, Microdrive Fax/Data Modem V.90 56Kbps Fax Speed Up to 14.4Kbps Data Compression V.42 bis Error Correction V .42 EIA Fax Commands Class 1 Video Graphics Intel® Extreme Graphics Controller Integrated w/915G Chipset Video Memory Up to 128MB UMA

TV Tuner TV Tuner Card w/FM Network Card 10/100 BaseT, Integrated 1394 Card IEEE-1394 Sound Azalia 7.1 Audio, Integrated on MB Controller Realtek ALC880 Chassis Panther-Lite, 300B HV+PFC PSU USB Interface Specification USB 2.0 External I/O Rear Connectors 4= USB, 1=1394, Parallel, 7.1 Audio, S/PDIF In & Out External I/O Front Connectors 2= USB, 1= 1394, Line-In, Microphone, Headphone, 9 in

1 Card Reader w/USB

Expansion Slots (Total) 3= PCI Expansion Slots (FREE) 1= PCI Drive Bays (Total) Two 5.25” external, One 3.5” external,

One 3.5” internal

Drive Bays (FREE) One 5.25” external Keyboard/Mouse One-touch Enhanced Keyboard, PS/2 Optical scrolling

mouse
