HP Pavilion a707l Technical Specifications

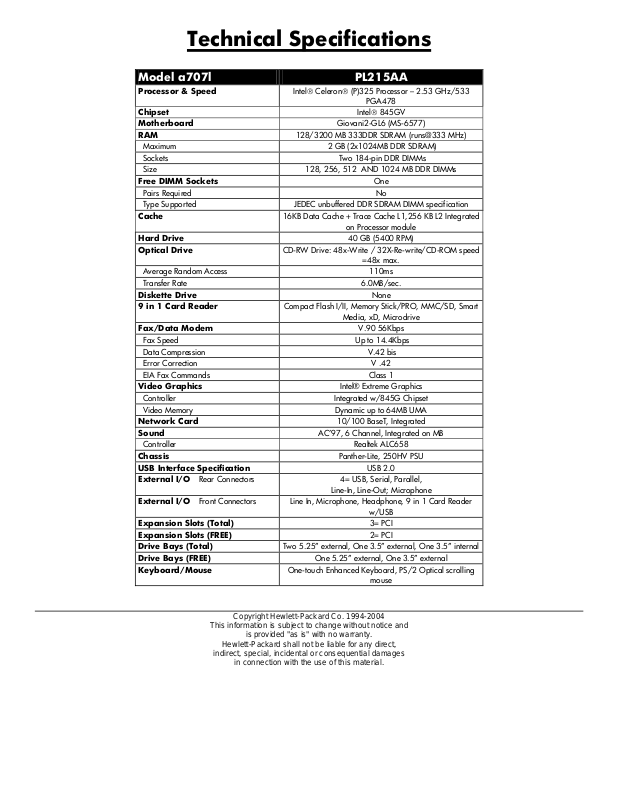

Technical Specifications
Model a707l PL215AA
Processor & Speed Intel® Celeron® (P)325 Processor – 2.53 GHz/533
PGA478
Chipset Intel® 845GV
Motherboard Giovani2-GL6 (MS-6577)
RAM 128/3200 MB 333DDR SDRAM (runs@333 MHz)
Maximum 2 GB (2x1024MB DDR SDRAM)
Sockets Two 184-pin DDR DIMMs
Size 128, 256, 512 AND 1024 MB DDR DIMMs
Free DIMM Sockets One
Pairs Required No
Type Supported JEDEC unbuffered DDR SDRAM DIMM specification
Cache 16KB Data Cache + Trace Cache L1,256 KB L2 Integrated
on Processor module
Hard Drive 40 GB (5400 RPM)
Optical Drive CD-RW Drive: 48x-Write / 32X-Re-write/CD-ROM speed
=48x max.
Average Random Access 110ms
Transfer Rate 6.0MB/sec.
Diskette Drive None
9 in 1 Card Reader Compact Flash I/II, Memory Stick/PRO, MMC/SD, Smart
Media, xD, Microdrive
Fax/Data Modem V.90 56Kbps
Fax Speed Up to 14.4Kbps
Data Compression V.42 bis
Error Correction V .42
EIA Fax Commands Class 1
Video Graphics Intel® Extreme Graphics
Controller Integrated w/845G Chipset
Video Memory Dynamic up to 64MB UMA
Network Card 10/100 BaseT, Integrated
Sound AC’97, 6 Channel, Integrated on MB
Controller Realtek ALC658
Chassis Panther-Lite, 250HV PSU
USB Interface Specification USB 2.0
External I/O Rear Connectors 4= USB, Serial, Parallel,
Line-In, Line-Out; Microphone
External I/O Front Connectors Line In, Microphone, Headphone, 9 in 1 Card Reader
w/USB
Expansion Slots (Total) 3= PCI
Expansion Slots (FREE) 2= PCI
Drive Bays (Total) Two 5.25” external, One 3.5” external, One 3.5” internal
Drive Bays (FREE) One 5.25” external, One 3.5” external
Keyboard/Mouse One-touch Enhanced Keyboard, PS/2 Optical scrolling
mouse
