HP Pavilion a700l Technical Specifications

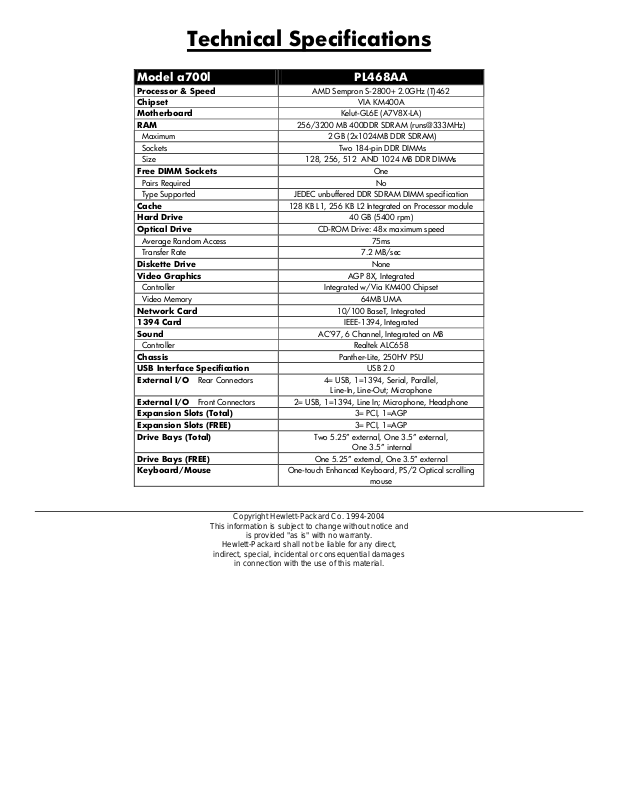

Technical Specifications

Model a700l PL468AA

Processor & Speed AMD Sempron S-2800+ 2.0GHz (T)462 Chipset VIA KM400A Motherboard Kelut-GL6E (A7V8X-LA) RAM 256/3200 MB 400DDR SDRAM (runs@333MHz)

Maximum 2 GB (2x1024MB DDR SDRAM) Sockets Two 184-pin DDR DIMMs Size 128, 256, 512 AND 1024 MB DDR DIMMs Free DIMM Sockets One Pairs Required No Type Supported JEDEC unbuffered DDR SDRAM DIMM specification

Cache 128 KB L1, 256 KB L2 Integrated on Processor module Hard Drive 40 GB (5400 rpm) Optical Drive CD-ROM Drive: 48x maximum speed

Average Random Access 75ms Transfer Rate 7.2 MB/sec

Diskette Drive None Video Graphics AGP 8X, Integrated

Controller Integrated w/Via KM400 Chipset Video Memory 64MB UMA

Network Card 10/100 BaseT, Integrated 1394 Card IEEE-1394, Integrated Sound AC’97, 6 Channel, Integrated on MB Controller Realtek ALC658 Chassis Panther-Lite, 250HV PSU USB Interface Specification USB 2.0 External I/O Rear Connectors 4= USB, 1=1394, Serial, Parallel,

Line-In, Line-Out; Microphone

External I/O Front Connectors 2= USB, 1=1394, Line In; Microphone, Headphone Expansion Slots (Total) 3= PCI, 1=AGP Expansion Slots (FREE) 3= PCI, 1=AGP Drive Bays (Total) Two 5.25” external, One 3.5” external,

One 3.5” internal

Drive Bays (FREE) One 5.25” external, One 3.5” external Keyboard/Mouse One-touch Enhanced Keyboard, PS/2 Optical scrolling

mouse
