Hp PAVILION a625d Technical Specifications

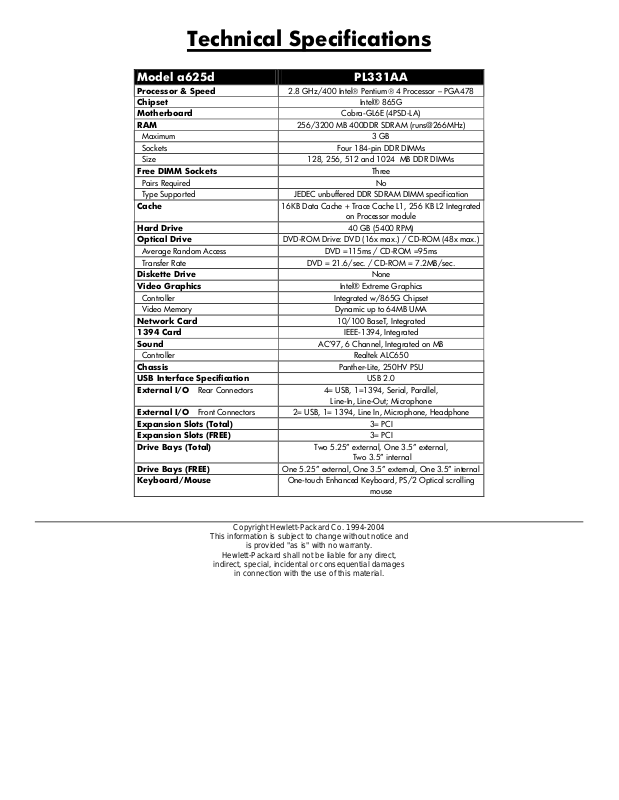

Technical Specifications

Model a625d PL331AA

Processor & Speed 2.8 GHz/400 Intel® Pentium® 4 Processor – PGA478
Chipset Intel® 865G
Motherboard Cobra-GL6E (4PSD-LA)
RAM 256/3200 MB 400DDR SDRAM (runs@266MHz)

Maximum 3 GB
Sockets Four 184-pin DDR DIMMs
Size 128, 256, 512 and 1024 MB DDR DIMMs
Free DIMM Sockets Three
Pairs Required No
Type Supported JEDEC unbuffered DDR SDRAM DIMM specification
Cache 16KB Data Cache + Trace Cache L1, 256 KB L2 Integrated

on Processor module

Hard Drive 40 GB (5400 RPM)
Optical Drive DVD-ROM Drive: DVD (16x max.) / CD-ROM (48x max.)

Average Random Access DVD =115ms / CD-ROM =95ms
Transfer Rate DVD = 21.6/sec. / CD-ROM = 7.2MB/sec.

Diskette Drive None
Video Graphics Intel® Extreme Graphics

Controller Integrated w/865G Chipset
Video Memory Dynamic up to 64MB UMA

Network Card 10/100 BaseT, Integrated
1394 Card IEEE-1394, Integrated
Sound AC’97, 6 Channel, Integrated on MB
Controller Realtek ALC650
Chassis Panther-Lite, 250HV PSU
USB Interface Specification USB 2.0
External I/O Rear Connectors 4= USB, 1=1394, Serial, Parallel,

Line-In, Line-Out; Microphone

External I/O Front Connectors 2= USB, 1= 1394, Line In, Microphone, Headphone
Expansion Slots (Total) 3= PCI
Expansion Slots (FREE) 3= PCI
Drive Bays (Total) Two 5.25” external, One 3.5” external,

Two 3.5” internal

Drive Bays (FREE) One 5.25” external, One 3.5” external, One 3.5” internal
Keyboard/Mouse One-touch Enhanced Keyboard, PS/2 Optical scrolling

mouse
