HP Pavilion a1005uk, Pavilion a1020a, Pavilion a1020d, Pavilion a1020in, Pavilion a1029.uk Getting Started Guide

...

Getting Started Guide

The only warranties for HP products and services are set forth in the express statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

HP assumes no responsibility for the use or reliability of its software on equipment that is not furnished by HP.

This document contains proprietary information that is protected by copyright. No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of HP.

Hewlett-Packard Company P.O. Box 4010 Cupertino, CA 95015-4010 USA

of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright-protection technology must be authorized by Macrovision Corporation and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, 4,819,098, and 4,907,093 licensed for limited viewing uses only.

Microsoft and Windows are U.S. registered trademarks of Microsoft Corporation. Apple, iTunes, FireWire, the FireWire symbol, and iPod are trademarks of Apple Computer,

Inc., registered in the U.S. and other countries. HP supports lawful use of technology and does not endorse or encourage the use of our

products for purposes other than those permitted by copyright law. The information in this document is subject to change without notice.

Setting Up Your PC ......................................................................... 1

Putting Your PC Together............................................................................... 1

Connecting to the PC ...............................................................................2

Turning On Your PC for the First Time .............................................................3

Setting Up and Connecting to Your Internet Account ......................................... 4

Using HP products ................................................................................... 5

Transferring your old PC information and files to your new PC ......................5

Using Desktop Icons...................................................................................... 6

Using HP Organize software..................................................................... 6

Using the Keyboard ....................................................................... 7

Customizing the keyboard buttons ............................................................. 9

Setting Up Sound ......................................................................... 11

Using Speakers .......................................................................................... 11

Setting up 3-connector sound ....................................................................... 12

Configuring multi-channel audio output for the DVD player ......................... 13

Setting up 6-connector sound ....................................................................... 14

Configuring the Sound Effect Manager (6-connector) ................................. 15

Configuring sound for recording with the

Sound Effect Manager (6-connector) ........................................................16

Using the Sound Effect Manager (6-connector) .......................................... 17

Using Your PC Top ........................................................................ 19

Using Your Docking Bay.............................................................................. 19

Using Your Multistorage Bay........................................................................ 22

Storing CDs, DVDs, or memory cards....................................................... 23

Docking a peripheral device ................................................................... 23

Placing a peripheral device on the multistorage bay (top)........................... 24

Using the optional camera station PC top ................................................. 25

Removing cables from the multistorage bay cable tunnel ............................ 28

Table of Contents iii

Using the Memory Card Reader ................................................... 29

Working with the Safely Remove Hardware utility .......................................... 30

Using the memory card reader..................................................................... 30

Using a TV as a Monitor............................................................... 33

Identifying Cables You May Need ............................................................... 33

Connecting to a TV Set ............................................................................... 33

Viewing the PC Image on Your TV Screen ..................................................... 34

nView tab............................................................................................. 35

Displays tab.......................................................................................... 36

Disabling the TV Option.............................................................................. 36

nView tab (disabling)............................................................................. 37

Ge Force tab (disabling) ........................................................................ 37

Displays tab (disabling).......................................................................... 37

Disconnecting the TV .................................................................................. 38

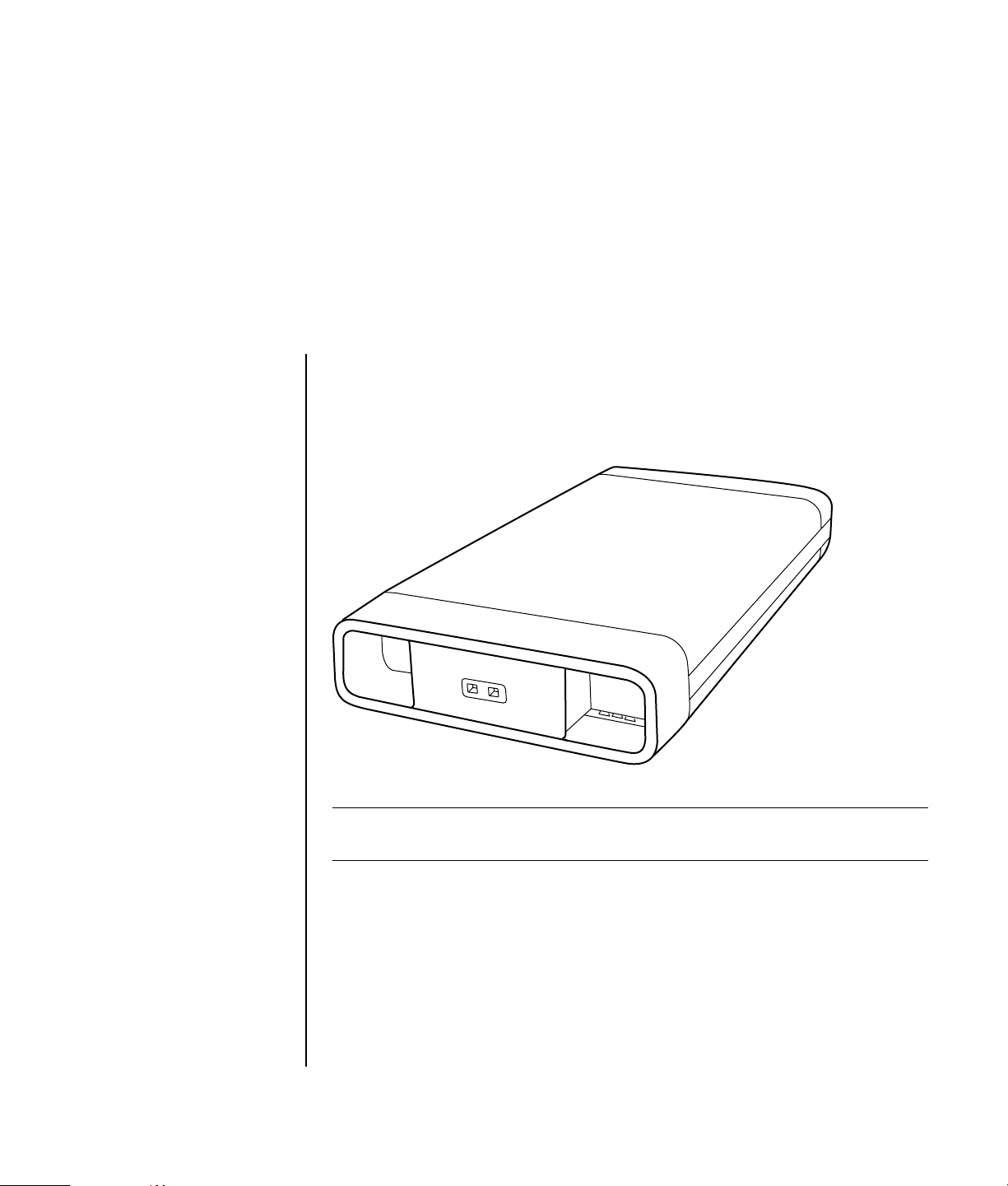

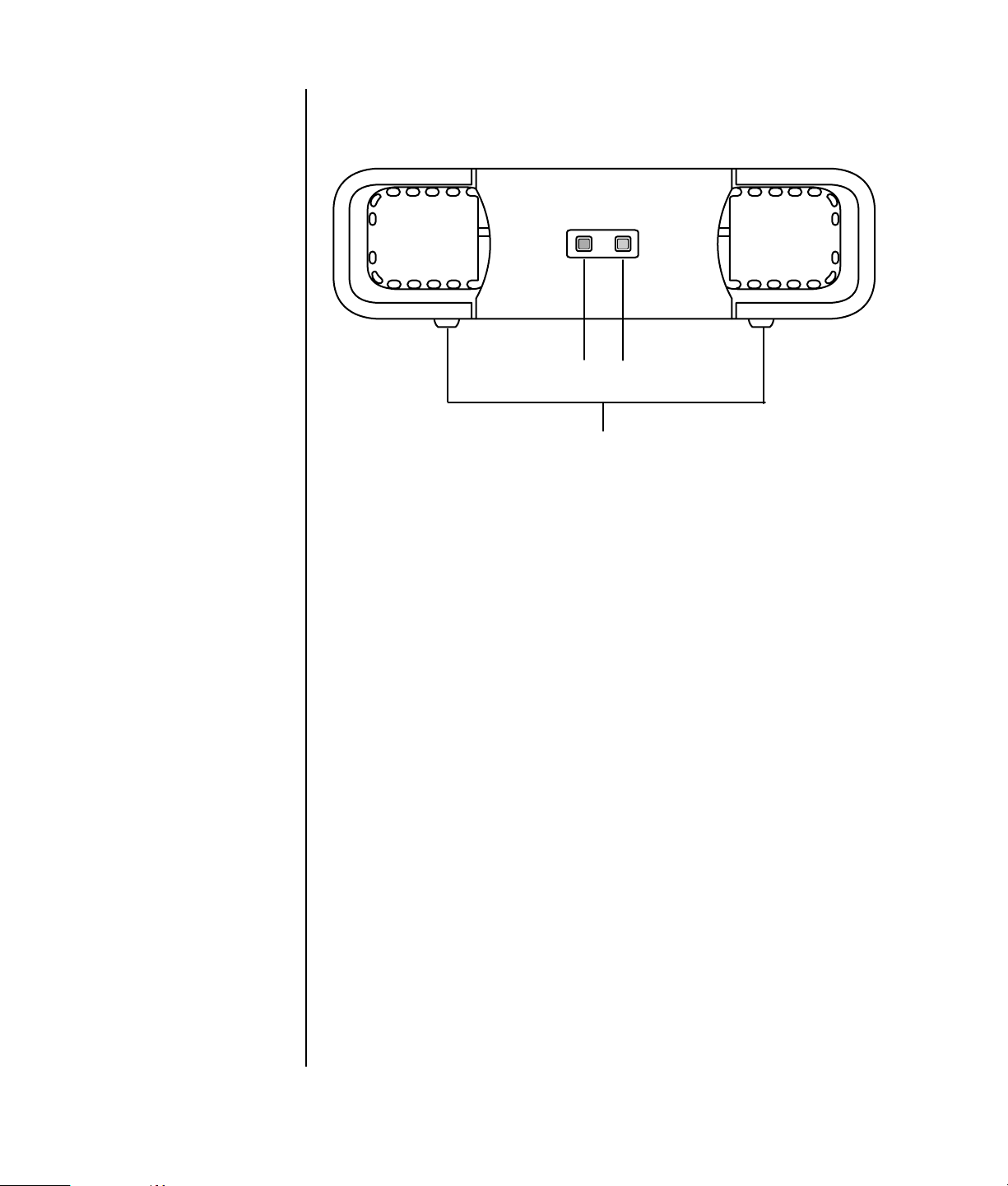

Using the HP Personal Media Drive .............................................. 39

Connecting the Drive .................................................................................. 39

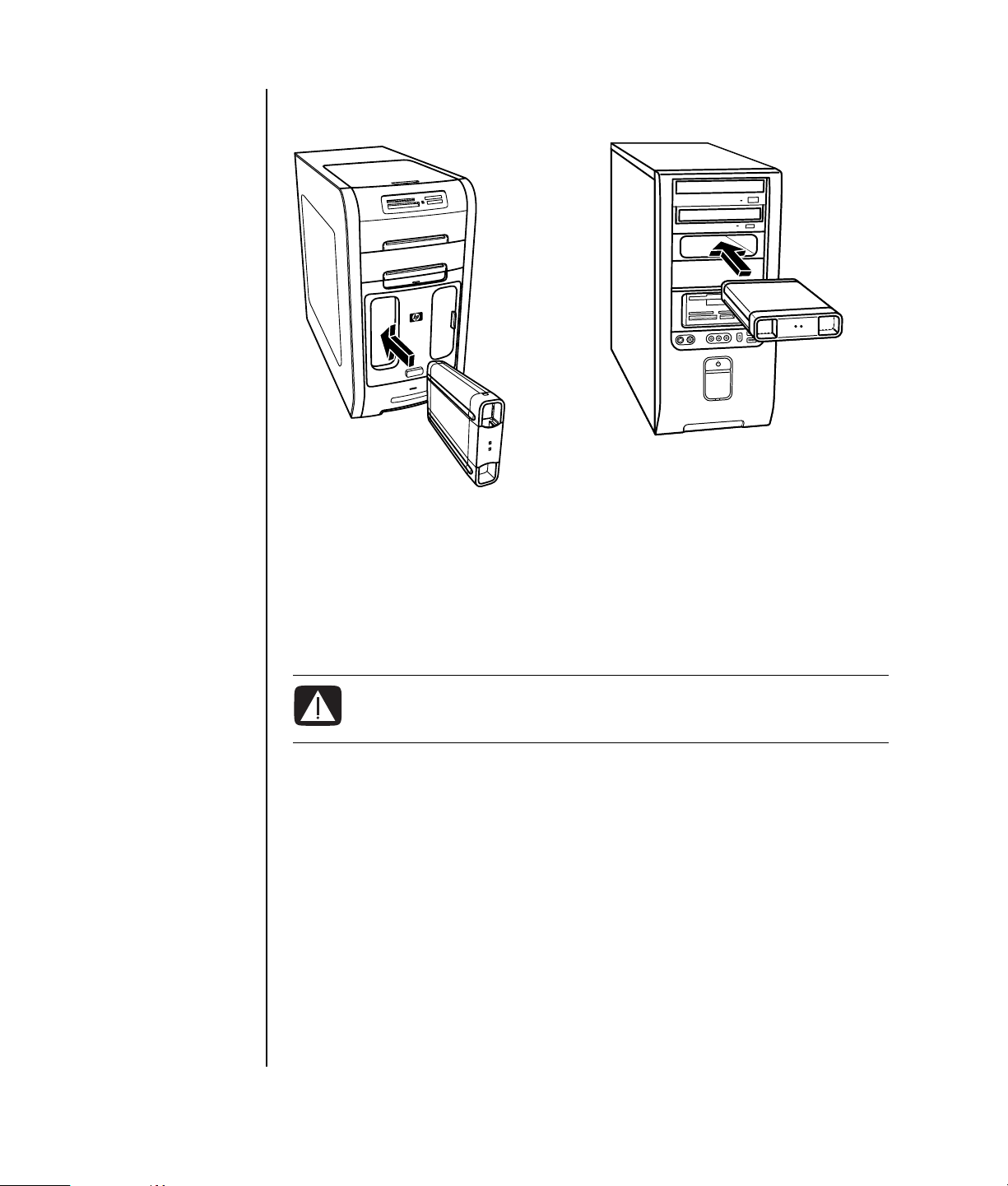

Inserting the Drive ...................................................................................... 40

Locating the Drive and Assigning a Drive Letter.............................................. 41

Using the Drive .......................................................................................... 42

Disconnecting the Drive............................................................................... 43

Working with Digital Images........................................................ 45

Working with Digital Images ....................................................................... 45

Using HP Image Zone Plus........................................................................... 45

Burning a label on a LightScribe media disc ............................................. 47

Creating disc labels with HP Image Zone Plus........................................... 47

Playing CDs and DVDs ................................................................. 51

Playing Music CDs with iTunes..................................................................... 51

Playing CDs and DVDs with Windows Media Player ...................................... 52

Playing DVD Movies with InterVideo WinDVD ............................................... 52

Using country/region codes ................................................................... 54

Playing Video CDs (VCD) with InterVideo WinDVD ........................................ 54

Playing Video CDs (VCD) with Windows Media Player 9................................ 55

Creating CDs and DVDs ................................................................ 57

Using the Software Quick Reference Table .................................................... 58

Creating Music CDs with iTunes................................................................... 60

Creating Music CDs with Windows Media Player .......................................... 61

Creating Data CDs Using Windows XP......................................................... 61

Creating CDs with RecordNow! ................................................................... 62

Creating Music CDs with RecordNow!.......................................................... 62

Tips .......................................................................................................... 62

iv Getting Started Guide

Creating CDs to Play in Your Car or Home CD Players with RecordNow!.......... 63

Creating CDs to Play on Your PC .................................................................64

Storing Files on a DVD or CD....................................................................... 65

Storing Data Files on Disc............................................................................ 66

Copying a DVD or CD ................................................................................ 66

Erasing a DVD or CD.................................................................................. 67

Removing Files in RecordNow!..................................................................... 67

Removing Files from a Recorded Data Disc.................................................... 67

Archiving Files on a DVD or CD ................................................................... 68

Creating an Image File................................................................................ 68

Saving an Image........................................................................................ 69

Burning an Image.......................................................................................69

Using Disc Labels .......................................................................................69

Disc Labeling with LightScribe ...................................................................... 70

Lightscribe requirements .........................................................................70

Burning a label on a LightScribe media disc ............................................. 70

Creating a LightScribe label after burning a disc with iTunes....................... 72

Setting Automatic Recording Options............................................................ 72

Using Compatibility Information ...................................................................74

Identifying Compatible File Formats .............................................................. 74

Using the Disc Quick Reference Tables.......................................................... 75

Using double-layer DVD+R discs.............................................................. 75

Using DVD+R and DVD-R discs................................................................ 75

Using DVD+RW and DVD-RW discs......................................................... 75

Using CD-R discs ................................................................................... 76

Using CD-RW discs................................................................................ 76

Creating Movies Using WinDVD Creator ....................................... 79

Getting started ...................................................................................... 79

Using the Preview window......................................................................80

Using the Media Library ......................................................................... 80

Using the Storyboard ............................................................................. 80

Identifying requirements for capturing video.............................................. 80

Capturing digital camcorder video ..........................................................81

Capturing analog video ......................................................................... 82

Capturing a still image........................................................................... 82

Editing video files in WinDVD Creator .....................................................82

Adding images ..................................................................................... 83

Adding audio effects.............................................................................. 83

Adding transition effects ......................................................................... 84

Adding title effects................................................................................. 84

Adding video filters ............................................................................... 84

Table of Contents v

Adding a menu..................................................................................... 84

Making a movie.................................................................................... 85

Recording VHS analog video direct to DVD (select models only).................. 86

Converting recorded TV to MPEG-2 format (Europe only) ........................... 86

Getting Help ................................................................................ 87

Finding Onscreen Guides............................................................................ 87

Finding Guides on the Web ........................................................................ 87

Using the Onscreen Help and Support Center................................................ 88

Using Instant Support.................................................................................. 88

Using Updates from HP............................................................................... 88

Getting messages.................................................................................. 89

Turning off messages ............................................................................. 89

Re-enabling messages............................................................................ 89

Using PC Help & Tools................................................................................ 90

Index........................................................................................... 91

vi Getting Started Guide

Setting Up Your PC

WARNING: Please read “Safety Information” in the Warranty and Support Guide before installing and connecting your PC to the electrical power system.

WARNING: The power supply is preset for the country/region in which you purchased your PC. If you move, please check the voltage requirements before plugging your PC into an AC power outlet.

Putting Your PC Together

Follow the steps on the quick setup poster to set up your PC.

Look in the PC box for printed details or updates regarding your model PC.

After assembling your PC, but before you begin using it, arrange the PC and your work area to maintain your comfort and productivity. Refer to the Safety & Comfort Guide for important ergonomic information.

WARNING: To reduce the risk of serious injury, read the Safety & Comfort Guide. It describes proper workstation setup, posture, and health and work habits for computer users. It also provides important electrical and mechanical safety information.

To view the Safety & Comfort Guide:

• Click Start, choose All Programs, choose Documentation, and then click Safety & Comfort Guide.

• Type

http://www.hp.com/ergo/

into your Web browser address box, and then press Enter on the keyboard.

Setting Up Your PC 1

Connecting to the PC

Your PC features and location, availability, and number of connectors may vary.

Connect your main hardware devices like the monitor, keyboard, and mouse to the back of the PC. Other peripheral devices like a printer, scanner, camera, or other equipment also plug into connectors on the back of your computer. Some PC models also have connectors on the front of the PC. The table does not show all connectors.

Connector Connector

symbol

Description

Mouse (PS/2 connector)

Keyboard (PS/2 connector)

Universal Serial Bus (USB) for mouse, keyboard, digital cameras, or other devices with USB connectors

2 Getting Started Guide

Printer (parallel)

Monitor

Serial port for some digital cameras or other serial devices

Serial

Connector Connector

symbol

OUT

Description

Audio Line Out (powered speakers)

Audio Line In

Headphones

Microphone

FireWire

(IEEE 1394) for video cameras

or other devices with very fast transfer rates

Turning On Your PC for the First Time

After you have completed the steps on the quick setup poster, you are ready to turn on your PC.

1 Press the Power button on the monitor. 2 Press the On button on the front of the PC. 3 Turn on the speakers, if they are present. 4 Click an option to select your language (if applicable for your model). Click

OK, and then confirm your selection by clicking Yes. Wait until the PC makes

preparations. (It may take up to 30 minutes for this one-time language setup on the PC.)

5 Set up Microsoft

Windows® by following the onscreen instructions.

Setting Up Your PC 3

6 Double-click the large Internet Access icon, if it is present on your desktop.

Wait until the PC displays the Easy Internet Sign-up window, and then follow the onscreen instructions.

7 Register your PC.

Setting Up and Connecting to Your Internet Account

Before you can connect to the Internet, you must sign up with an Internet service provider (ISP). HP has made arrangements with leading ISPs to help you sign up for Internet service using Easy Internet Sign-up (available on select models only).

NOTE: You may use any other ISP of your choice, or transfer your existing ISP

account to this PC.

Use Easy Internet Sign-up to sign up for a new or transfer an existing ISP account (select ISPs only). The software programs for available ISPs are part of your PC. If you decide to subscribe to high-speed broadband, cable or digital subscriber line (DSL), contact your ISP for any specific software and hardware you may need.

1 Make sure the modem or other Internet access cable is connected.

NOTE: Easy Internet Sign-up finds and obtains updated information about ISP

services by temporarily connecting to the Internet. The PC uses either the PC modem connected to an active telephone service line or an active broadband (cable or DSL) connection.

2 Choose an ISP using Easy Internet Sign-up. To open Easy Internet Sign-up:

a Double-click the Easy Internet Sign-up icon on the desktop.

Click Start on the taskbar, choose All Programs, choose Online Services, and then click Easy Internet Sign-up.

b Follow the onscreen instructions.

NOTE: The folder called Online Services includes icons for accessing various

online services, but they may not be present in all countries/regions.

3 Connect to your ISP and the Internet (after you established your ISP account on

this PC). Use one of these methods:

• Double-click the ISP-provided icon on the desktop.

• Press the Connect (or Internet) button on the keyboard (select

models only).

4 Getting Started Guide

• If your PC is always connected to your ISP, open your browser program,

such as Internet Explorer: Click Start, choose All Programs, choose

Online Services, and click Internet Explorer.

NOTE: If you are using MSN, AOL, or others and have questions, contact the ISP

directly.

Installing Software and Hardware Devices

After you turn on the PC the first time, you can install any software programs that came on CDs or DVDs included in the PC box (select models only).

You may wish to install additional software programs or hardware devices on your PC. Before installation, make a restore point using the Microsoft System Restore program, and then restart the PC after installation. By using System Restore, you insure you have a point to return to before an issue occurred. For information about System Restore, refer to the Microsoft Web site at:

http://www.microsoft.com/worldwide/

Choose software that is compatible with your PC — check the operating system, memory, and other requirements listed for the new software for compatibility with your PC.

NOTE: Only use original licensed software. Installing copied software may be

illegal or may infect your PC with a virus.

Install the new software according to the directions provided by the software manufacturer. Check the manufacturer’s documentation or customer service information for help if you need it.

For antivirus software, uninstall the existing software program before reinstalling it or installing a new antivirus program.

Using HP products

HP computers include preloaded software for select HP All-In-One, camera, scanner, and printer peripheral products. Preloaded software simplifies and speeds product setup for HP peripherals. Simply connect the HP peripheral product, turn it on, and your HP PC automatically configures it so it is ready to use.

Transferring your old PC information and files to your new PC

See the built-in Microsoft Windows Help and Support Center; search for transfer wizard, and select the overview article, “Files and Settings Transfer Wizard

overview.” This information describes a Microsoft solution for moving your files onto your new PC.

Setting Up Your PC 5

Using Desktop Icons

The desktop has shortcut icons that make it easy to find the things you need.

Icon Opens Use it to

Help and Support (select models only)

Easy Internet Sign-up Set up a new or an existing Internet

HP Image Zone Plus Manage and protect your still photos,

HP Organize (select models only)

View onscreen Help information about your PC.

account.

scanned images, and video clips.

Organize your PC shortcuts and your favorite Internet destination links.

Using HP Organize software

HP Organize software (select models only) is a desktop tool you use to organize both your PC shortcuts and your favorite Internet destination links. You use it to organize the important things you do on the PC and the Internet and to arrange them the way you want. HP Organize makes all your information available with just a few mouse clicks.

HP Organize looks like a window with multiple category frames. Each category has links to Internet destinations or shortcuts to software programs or files on your PC. Use the player area for viewing pictures, for listening to your MP3 music files stored on your computer, or for watching video clips. For searching, there is a search bar at the top of HP Organize where you can select the search engine you want to use.

6 Getting Started Guide

To open HP Organize:

Double-click the desktop icon.

1 Click Start on the taskbar. 2 Choose All Programs. 3 Choose HP. 4 Click HP Organize.

Using the Keyboard

Your keyboard has an arrangement of standard keys, indicator lights, and special buttons (select models only).

Identifying Special Keyboard Buttons

There are special buttons (select models only) at the top of the keyboard. (Some models have some of these special buttons on the left side of the main keys.) These buttons operate a CD or DVD player, connect you to the Internet, or provide quick access to specific functions.

NOTE: The number, location, and labeling of buttons vary by keyboard model.

Icon Feature Description

Standby Puts PC into power-saving mode (screen is

blank but PC is still on). To make screen reappear, press the Esc key, or press Standby again. May take 10–30 seconds before screen reappears.

hp or

User Switches between the PC users.

HP Links to an HP Web site.

Help Opens the Help and Support Center.

Pictures (Photos)

Music Starts iTunes or Windows Media Player.

Opens an imaging software program. Can be reconfigured.

Can be reconfigured.

Using the Keyboard 7

Icon Feature Description

Video Opens video software program. Can be

reconfigured.

Shopping

Sports

Finance

Goes to popular Web sites. Can be reconfigured to open a site or software program.

Connect, Internet

Chat

E-Mail

B or

Burn CD/DVD

Media controls (CD/ DVD/MP3)

Operates a disc player.

A Open and close disc tray B Record C Play or pause D Stop

E Skip to the previous track F Skip to the next track

Volume control (Volume knob or Volume Up and Volume Down buttons)

Volume knob: Increases speaker volume when turned clockwise and decreases volume when turned counterclockwise. It can be turned indefinitely, even after maximum sound has been reached.

Volume Up and Down buttons: Press the Volume Up button to increase volume and the Volume Down button to

decrease volume.

Mute Turns speaker sound on and off.

8 Getting Started Guide

NOTE: The number, location, and labeling of buttons vary by keyboard model.

Customizing the keyboard buttons

You can customize some of the special buttons on the keyboard (select models only) to open different programs or files or to connect to favorite Web sites:

1 Click Start on the taskbar. 2 Choose Control Panel. 3 Click Printers and Other Hardware, if it is present. 4 Double-click Keyboard. 5 On the Buttons tab, double-click the button you want to change. 6 For the Button configuration, click the Down arrow to the right of the list and

choose the button capability, such as Simple web page with label.

7 Enter a display label and the address information. For a Web page, enter

the URL.

8 Click OK.

9 On the Buttons tab, click Apply. 10 Repeat steps 5 through 9 for each button you want to customize. 11 Click OK to finish.

NOTE: Clicking the Restore Defaults button on the Button tab restores all of the

Internet buttons to the factory settings.

Using the Keyboard 9

10 Getting Started Guide

Setting Up Sound

Using Speakers

Speakers are included with the monitor (select models only) or are sold separately. Your PC supports only an active (powered) speaker system; the speaker system must have its own power cord.

NOTE: A stereo speaker set is a left-right, two-channel speaker system. A multi-

channel audio speaker system is a system with more than two channels, and it may

include a subwoofer. For example, 7.1 channels, referred to as an eight-speaker mode, uses two front speakers (left-right), two side speakers (left-right), two rear speakers (left-right), a center speaker, and a subwoofer.

The PC supports a variety of sound options and speaker configurations. You may set

NOTE: If your PC includes a sound card (select models only), refer to the documentation that came with the sound card.

up your PC for two stereo speakers or for multi-channel audio speaker systems. Connect your speaker system to the PC, and then configure the audio software for sound output. For details on connecting stereo speakers to the PC, see the quick setup poster. Location, availability, and number of connectors may vary.

• If your PC model includes three sound connectors (select models only) on the

back of the PC, see “Setting up 3-connector sound” on page 12.

OUT

• If your PC model includes six sound connectors (select models only) on the back

of the PC, see “Setting up 6-connector sound” on page 14.

Setting Up Sound 11

Setting up 3-connector sound

PC models that include three sound connectors (select models only) on the back of the PC support up to six channels of sound (5.1 speaker output) and use the Multi-channel Sound Manager to configure the software settings.

Connecting the speaker system to the PC (3-connector)

The 3-connector audio speaker system uses the Audio In, Audio Out, and Mic connectors on the back or front of the PC. Refer to the quick setup poster for the location of the connectors.

1 With the speaker system off, assemble the speakers and, if used, the subwoofer.

Refer to the speaker documentation.

2 Turn off the PC. 3 Connect the three audio cable plugs from the speaker system to the connectors

on the back of the PC. (See the following table.)

Connect speaker plugs for:

4/4.1 2 Speaker Mode

Front speakers

Not used for speakers

4 Turn on the PC. 5 Turn on the speaker system. 6 Configure the audio output for this 3-connector multi-channel speaker system by

performing the following procedure.

Speaker

Mode

Front

speakers

Rear speakers Rear speakers Audio In

Not used for

speakers

6/5.1 Speaker Mode

Front speakers

Center/ subwoofer speakers

To PC connector

Audio Out (lime green)

(blue)

Mic-1 (pink)

Connector icon

OUT

Configuring the Multi-Channel Sound Manager (3-connector)

1 Click Start on the taskbar. 2 Choose All Programs.

12 Getting Started Guide

3 Click Multi-channel Sound Manager. The Multi-channel Audio

Configuration window opens.

NOTE: If you do not see the Speaker Configuration tab, your PC does not have

the multi-channel capability. However, it still has two-channel (stereo) output.

4 Click the Speaker Configuration tab. 5 Select the option describing the number of speakers in your system, for

example, 6/5.1 speaker mode. You can click the Speaker Test tab and then click a speaker icon to test it.

6 Click OK.

To use a microphone for recording, see “Using the microphone with the MultiChannel Sound Manager (3-connector)” on page 13.

To hear DVD movies recorded with multi-channel audio from all speakers, change the audio properties for WinDVD to match your speaker configuration (if your InterVideo WinDVD program supports more than two channels). Refer to “Configuring multi-channel audio output for the DVD player” on page 13.

Using the microphone with the Multi-Channel Sound Manager (3-connector)

The 3-connector multi-channel speaker system (select models only) connects to the PC using the Microphone, Audio (Line) In, and Audio (Line) Out connectors on the back of the PC. Your PC may have a second microphone connector on the front of the PC. If present, this microphone connector is ready to use and does not affect the use of the multi-channel audio speaker system.

To use the microphone connector on the back of the PC with a 3-connector multichannel audio speaker system, you must disconnect the cables for the multi-channel speakers and change the audio configuration to a two-channel audio system. Refer to “Configuring the Multi-Channel Sound Manager (3-connector)” on page 12 to set the audio configuration.

Configuring multi-channel audio output for the DVD player

The InterVideo WinDVD program (select models only) is set up for two-speaker (stereo) output. To hear all speakers from DVD movies recorded with multi-channel audio, change the audio properties for WinDVD to match your speaker configuration (if your InterVideo WinDVD program supports more than two channels):

1 Insert a DVD, or start InterVideo WinDVD. (Click Start, choose All

Programs, choose InterVideo WinDVD, select InterVideo WinDVD Player, and then click InterVideo WinDVD.) The WinDVD video window

opens.

2 Right-click anywhere in the WinDVD video window, and then click Setup. The

Setup window opens.

Setting Up Sound 13

3 Click the Audio tab.

4 Click the option for the number of speakers to match your multi-channel speaker

system.

NOTE: When using the digital out connector for sound (6-connector, select

models only), select Digital (S/PDIF) out to External Processor.

5 Click Apply.

NOTE: To test the speakers (multi-channel speakers only), click the Test button.

The WinDVD control panel shows the speaker number being used. Click Stop.

6 Click OK.

NOTE: If you want to play a stereo DVD, change the audio properties of WinDVD to

match the recorded DVD audio output.

Setting up 6-connector sound

PC models that include six sound connectors (select models only) on the back of the PC, support up to eight channels of sound (7.1 speaker output) and use the Sound Effect Manager to configure the software settings.

Identifying the audio connectors (6-connector)

The PC supports a maximum of eight speakers in a multi-channel speaker system by using four of the six audio connectors on the back of the PC.

This PC also has digital audio out and digital audio in connectors for digital sound devices such as a DVD recorder or a digital stereo receiver/amplifier.

The four connectors (A, B, C, and E) for the 6-connector multi-channel speaker

Side speaker port (side)

B Rear speaker port

(rear)

C Center speaker/

subwoofer port (c/sub)

D Microphone (mic) E Audio line out (out) for

front speakers

F Audio line in (in)

system are on the back of the PC.

B C

E F

14 Getting Started Guide

The previous figure shows the six audio connectors arranged on the back of the PC: the four connectors (A, B, C, and E) used for eight-channel audio and the connectors for the microphone (D, mic) and the audio line in (F, in).

Connecting the speaker system to the PC (6-connector)

1 With the speaker system off, assemble the speakers and, if used, the subwoofer.

Refer to the speaker documentation.

2 Turn off the PC. 3 Connect the audio cable plugs from the speaker system subwoofer to the

connectors on the back of the PC. (See the following table.)

Connect speaker cable (plug) for: To PC port (label, name,

color):

Front speakers (or two stereo speakers) Audio line out (E, out, lime green)

Side speakers Side speaker (A, side, gray)

Rear speakers Rear speaker (B, rear, black)

Center speaker/subwoofer Center speaker/subwoofer

(C, c/sub, gold)

4 Turn on the PC. 5 Turn on the speaker system. 6 Configure the audio output for this 6-connector multi-channel speaker system by

performing the following procedure.

Configuring the Sound Effect Manager (6-connector)

1 Click Start on the taskbar. 2 Choose Control Panel. 3 If it is present, click Sounds, Speech, and Audio Devices. 4 Click Sound Effect Manager. The window opens. 5 Click the Speaker Configuration button. 6 Select the option describing the number of speakers in your system, for

example, 7.1 speakers. A connector with no descriptive text in the Connection Guide indicates that the

connector is not used for the selected speaker configuration.

NOTE: You can click the Speaker Test button to test the speakers.

7 Click OK.

Setting Up Sound 15

To use a microphone or set up the PC for recording, see “Configuring sound for recording with the Sound Effect Manager (6-connector)” on page 16.

To use the other features of the Sound Effect Manager, see “Using the Sound Effect Manager (6-connector)” on page 17.

Configuring sound for recording with the Sound Effect Manager (6-connector)

The microphone connector on the front of the 6-connector audio PC is ready to use for recording sound. If you want to use another connector for recording, such as the digital audio in connector, use these steps to select it.

NOTE: The pink and green connectors on the front of a PC with 6-connector

sound can be retasked to perform other audio functions; refer to “Using the Audio Wizard in the Sound Effect Manager (6-connector)” on page 18.

1 Click Start on the taskbar. 2 Choose Control Panel. 3 If it is present, click Sounds, Speech, and Audio Devices. 4 Click Sounds and Audio Devices. 5 Click the Audio tab. 6 In Sound recording select the default device from the drop-down list. Choose:

• RealTek HD Front Pink Jack to use the microphone connector on the

front of the PC.

• RealTek HD Digital Input to use the digital audio in connector on the

back of the PC.

• RealTek HD Front Green Jack to use the green connector on the front

of the PC.

• Back Line in/Mic, Front Line in to use the audio line in (in) or the

microphone (mic) connectors on the back of the PC, or to use the audio line in connector on the front of the PC.

16 Getting Started Guide

NOTE: For this selection, the audio line in connector is ready to use. To use

the back mic connector, follow the steps in “Selecting the Back Line in/Mic, Front Line in connectors for recording (6-connector)” that follows this procedure.

7 Click Apply, and then click OK to close the window.

Selecting the Back Line in/Mic, Front Line in connectors for recording (6-connector)

Perform these steps when you select Back Line in/Mic, Front Line in for the sound recording in step 6 of the previous procedure.

NOTE: If you want to record from the mic connector on the back of the PC, you must

perform these steps.

1 Click Start on the taskbar. 2 Choose Control Panel. 3 If it is present, click Sounds, Speech, and Audio Devices. 4 Click Sounds and Audio Devices. 5 On the Volume tab, in the Device volume area click the Advanced button. The

Master Volume window opens.

6 Click Options and choose Properties. 7 In the Mixer device area, select Back Line in/Mic, Front Line in from the

drop-down list. Click OK.

8 The recording control window opens and shows Line In 1 or 2 selected. The line

in connector you plug into is used. However, to use the mic connector on the back of the PC, click the Select check box under Microphone so a check mark appears in the box.

Using the Sound Effect Manager (6-connector)

The Sound Effect Manager has four buttons that display its control screens.

To open the Sound Effect Manager:

1 Click Start on the taskbar. 2 Choose Control Panel. 3 If it is present, click Sounds, Speech, and Audio Devices. 4 Click Sound Effect Manager. The window opens. 5 Click a button near the top of the window to see that control screen.

The Sound Effect Manager control screens:

• Sound Effect — selects the Environment and the Equalizer settings. You can

select an Environment, such as Under Water or Auditorium. To use the Equalizer, click the Power button in the center of the circular equalizer control to turn on the Equalizer. You can click a preset button, such as Pop or Live, or manually adjust the settings and then save them for easy selection later.

• Speaker Configuration — selects the number of speakers, shows the

Connection Guide, and has the Speaker Test button to test the speakers. A connector with no descriptive text in the Connector Guide indicates that the connector is not used for the selected speaker configuration.

Setting Up Sound 17

• Digital Audio — selects the digital audio output and digital audio frequency

for the digital audio connectors on the PC.

•Audio Wizard — opens a window that shows the connector panel on the front of the PC. To close the window without enabling the wizard, click OK.

To enable the Audio Wizard:

Make sure the Enable auto detection check box is selected to enable the wizard. Click OK to close the window.

Using the Audio Wizard in the Sound Effect Manager (6-connector)

When you click the Audio Wizard button, a window opens that shows the three audio connectors on the front of the PC.

NOTE: The connectors on the front of your PC may be of a different type or may be

in a different arrangement; look for the connector icon and color. Location, availability, and number of connectors may vary.

A B C

Connector Name Icon Color

A Audio Line In Light blue

B Microphone Pink

C Headphones

Or Audio Line Out

OUT

Lime green

Retasking using the Audio Wizard (6-connector)

With the Audio Wizard enabled, both the microphone connector (B) and the headphones connector (C) on the front of the PC can be retasked to perform a different audio function. These two connectors are universal audio jacks. When you plug in a cable, the Wizard asks you to select the function for the cable from a list, and then it sets the universal audio jack to perform as the selected function. The functions are:

18 Getting Started Guide

• Stereo speaker (out)

• Microphone (in)

• Headphone (out)

• Audio line in

Using Your PC Top

Your PC may have a storage area (select models only) on the top of the PC chassis. For more information:

• See “Using Your Docking Bay” on page 19.

• See “Using Your Multistorage Bay” on page 22.

Using Your Docking Bay

Your PC may have a docking bay (select models only) on the top of the PC chassis.

You can use the docking bay to:

• Store CDs, DVDs, or memory cards.

• Dock a peripheral device in the bay, such as a digital camera docking station.

• Install a special cover (optional) and an HP camera and HP camera docking

station. (Both the camera and the docking station are sold separately.)

• Install a special cover (optional) and an iPod Dock for use with an iPod, a

portable music player. (Both iPod and iPod Dock are sold separately.)

Using Your PC Top 19

The bay design allows you to place a device and thread the USB or FireWire (IEEE 1394) data cable and the power cord underneath the rear top cover to the connectors on the back of the PC.

Your PC may look different from the ones shown here. Components and location, availability, and number of connectors may vary.

To store CDs, DVDs, or memory cards:

Gently press down on the bay lid and slide it open.

To install a peripheral device, an iPod Dock, or an HP camera and HP camera docking station:

1 Gently press down on the bay lid and slide it open. 2 Place the peripheral device, the iPod Dock (H), or the camera docking station

(A) on the top of the PC.

3 For a camera, place the camera cradle (B) that came with the digital camera

on the camera docking station. The cradle clips onto the camera docking station.

20 Getting Started Guide

4 Thread the cables that came with your peripheral device, iPod Dock (K) or

camera docking station (C) through the cable tunnel; starting from the back of the PC, thread them to the front of the PC. Pull the cables to the center and connect them to the peripheral or the docking station.

5 Connect the cables to the back of the PC or to a power outlet.

For a peripheral, refer to the instructions that came with your peripheral device. For an iPod Dock, connect the iPod cable to the USB. Refer to the

documentation that came with your iPod.

Using Your PC Top 21

For an HP camera docking station:

• Plug the USB cable into the back of the PC.

• Plug the power cord into a power outlet.

Optionally, if you want to view the camera images on a TV, plug the red and yellow connectors (not shown) into the TV.

Refer to the instructions that came with the HP camera docking station.

6 Place the iPod Dock lid (L) or the correct camera docking station lid (D) on top

of the PC. Gently guide the edge of the lid into the top of the PC.

7 When you want to use it, place the iPod (M) or the HP digital camera (E) into

the docking station.

8 Follow the instructions that came with your peripheral or docking station.

22 Getting Started Guide

Using Your Multistorage Bay

Your PC may have a multistorage bay (select models only) on the top of the PC chassis. You can use the multistorage bay to:

• Store CDs, DVDs, or memory cards.

• Dock a peripheral device in the bay, such as a digital camera docking station.

• Place a peripheral on the top of the chassis.

• Install the special cover and an HP camera and HP camera docking station

(both sold separately).

The bay design allows you to place a device and thread the USB or FireWire (IEEE 1394) data cable and the power cord underneath the rear top cover to the connectors on the back of the PC. If you have problems inserting or removing cables in the cable tunnel, remove the rear top cover as described at the end of this section.

Your PC may look different from the one shown here. Components and location, availability, and number of connectors may vary.

Multistorage bay chassis figure 1

Storing CDs, DVDs, or memory cards

To store CDs and DVDs, open the bay cover (A in multistorage bay chassis figure 1) and gently lift the two sections to form the spindle (B in figure 1). You can store up to ten discs.

To store memory cards, open the top cover and, if necessary, lower the two spindle sections (A in figure 1).

Docking a peripheral device

To use the multistorage bay for a peripheral device, do the following:

1 Open the bay cover (A in figure 1). Hold the cover on each side near the

hinges, and then lift the cover and slide it toward the back of the chassis (C in figure 2). Gently lift it off.

Using Your PC Top 23

Multistorage bay chassis figure 2

2 Thread the cables through the cable tunnel opening at the back of the bay

(D in figure 2). Connect data and power cables to the peripheral device, and place the peripheral in the bay.

3 Connect the data cable to the USB or FireWire (IEEE 1394) connector on the

back of the PC. Plug the power cord for the peripheral device into a power outlet.

Placing a peripheral device on the multistorage bay (top)

To use the chassis top to place a peripheral device, do the following:

1 Open the bay cover (A in figure 1). Hold the cover on each side near the

hinges, then lift the cover and slide it toward the back of the chassis (C in figure 2). Gently lift it off.

2 Grasp the tab (T in figure 3) and pull it out toward the front of the chassis

(E in figure 3). Put the tab in its storage area in the bay near the spindle (F in figure 3).

3 Thread the data and power cables for the device through the cable tunnel

opening at the back of the bay. Place the cables in the tab opening and replace the bay cover. Close the cover.

24 Getting Started Guide
