HP Mini 210-1020EH PC User Manual

Mini User Guide

© Copyright 2010 Hewlett-Packard
Development Company, L.P.

Bluetooth is a trademark owned by its
proprietor and used by Hewlett-Packard
Company under license. SD Logo is a
trademark of its proprietor. Microsoft and
Windows are U.S. registered trademarks of
Microsoft Corporation.

The information contained herein is subject
to change without notice. The only
warranties for HP products and services are
set forth in the express warranty statements
accompanying such products and services.
Nothing herein should be construed as
constituting an additional warranty. HP shall
not be liable for technical or editorial errors
or omissions contained herein.

Second Edition: May 2010

First Edition: December 2009

Document Part Number: 584528-002

Product notice

This user guide describes features that are
common to most models. Some features
may not be available on your computer.

To obtain the latest information in the Mini
User Guide, go to the HP Web site at

http://www.hp.com/support.

Safety warning notice

WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not

place the computer directly on your lap or obstruct the computer air vents. Use the computer only on a
hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft
surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to contact
the skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer and the
AC adapter comply with the user-accessible surface temperature limits defined by the International
Standard for Safety of Information Technology Equipment (IEC 60950).

iii

iv Safety warning notice

Table of contents

1 Getting started

Using HP QuickWeb (select models only) ............................................................................................ 2

2 Knowing the parts

Identifying the hardware ....................................................................................................................... 3

Top components .................................................................................................................. 3

TouchPad ............................................................................................................ 3

Lights ................................................................................................................... 4

Keys .................................................................................................................... 5

Front components ................................................................................................................ 5

Right-side components ........................................................................................................ 6

Left-side components .......................................................................................................... 7

Display components ............................................................................................................ 8

Bottom components ............................................................................................................. 9

Removing the vanity cover ................................................................................................. 9

Replacing the vanity cover ................................................................................................ 11

Wireless antennas ............................................................................................................. 12

Additional hardware components ...................................................................................... 13

Identifying the labels ........................................................................................................................... 13

3 Power management

Setting power options ......................................................................................................................... 15

Using power-saving states ................................................................................................. 15

Using power plans ............................................................................................................. 16

Setting password protection upon exiting Sleep or Hibernation ........................................ 17

Using external AC power .................................................................................................................... 17

Connecting the AC adapter ............................................................................................... 18

Using battery power ........................................................................................................................... 18

Displaying the remaining battery charge ........................................................................... 19

Finding battery information in Help and Support ............................................................... 19

Using Battery Check .......................................................................................................... 19

Inserting or removing the battery ....................................................................................... 19

Charging a battery ............................................................................................................. 20

Maximizing battery discharge time .................................................................................... 21

Initiating and exiting Sleep ................................................................................ 15

Initiating and exiting Hibernation ....................................................................... 16

Viewing the current power plan ......................................................................... 16

Selecting a different power plan ........................................................................ 16

Customizing power plans .................................................................................. 17

v

4 Internet

Managing low battery levels .............................................................................................. 21

Identifying low battery levels ............................................................................. 21

Resolving a low battery level ............................................................................. 22

Resolving a low battery level when external power is available ....... 22

Resolving a low battery level when a charged battery is

available ........................................................................................... 22

Resolving a low battery level when no power source is

available ........................................................................................... 22

Resolving a low battery level when the computer cannot exit

Hibernation ....................................................................................... 22

Calibrating a battery ........................................................................................................... 22

Step 1: Fully charge the battery ........................................................................ 22

Step 2: Disable Hibernation and Sleep ............................................................. 23

Step 3: Discharge the battery ............................................................................ 23

Step 4: Fully recharge the battery ..................................................................... 24

Step 5: Reenable Hibernation and Sleep .......................................................... 24

Conserving battery power .................................................................................................. 24

Storing a battery ................................................................................................................ 25

Disposing of a used battery ............................................................................................... 25

Shutting down the computer ............................................................................................................... 25

Connecting to a wired network ........................................................................................................... 28

Connecting to a wireless network ....................................................................................................... 29

Using wireless devices ...................................................................................................... 29

Identifying wireless and network icons .............................................................. 29

Using the wireless controls ............................................................................... 30

Using the wireless action key ........................................................................... 30

Using HP Connection Manager (select models only) ........................................ 30

Using Wireless Assistant software .................................................................... 31

Using operating system controls ....................................................................... 31

Using a WLAN ................................................................................................................... 31

Setting up a WLAN ............................................................................................ 32

Protecting your WLAN ....................................................................................... 32

Connecting to a WLAN ...................................................................................... 33

Roaming to another network ............................................................................. 34

Using HP Mobile Broadband (select models only) ............................................................................. 35

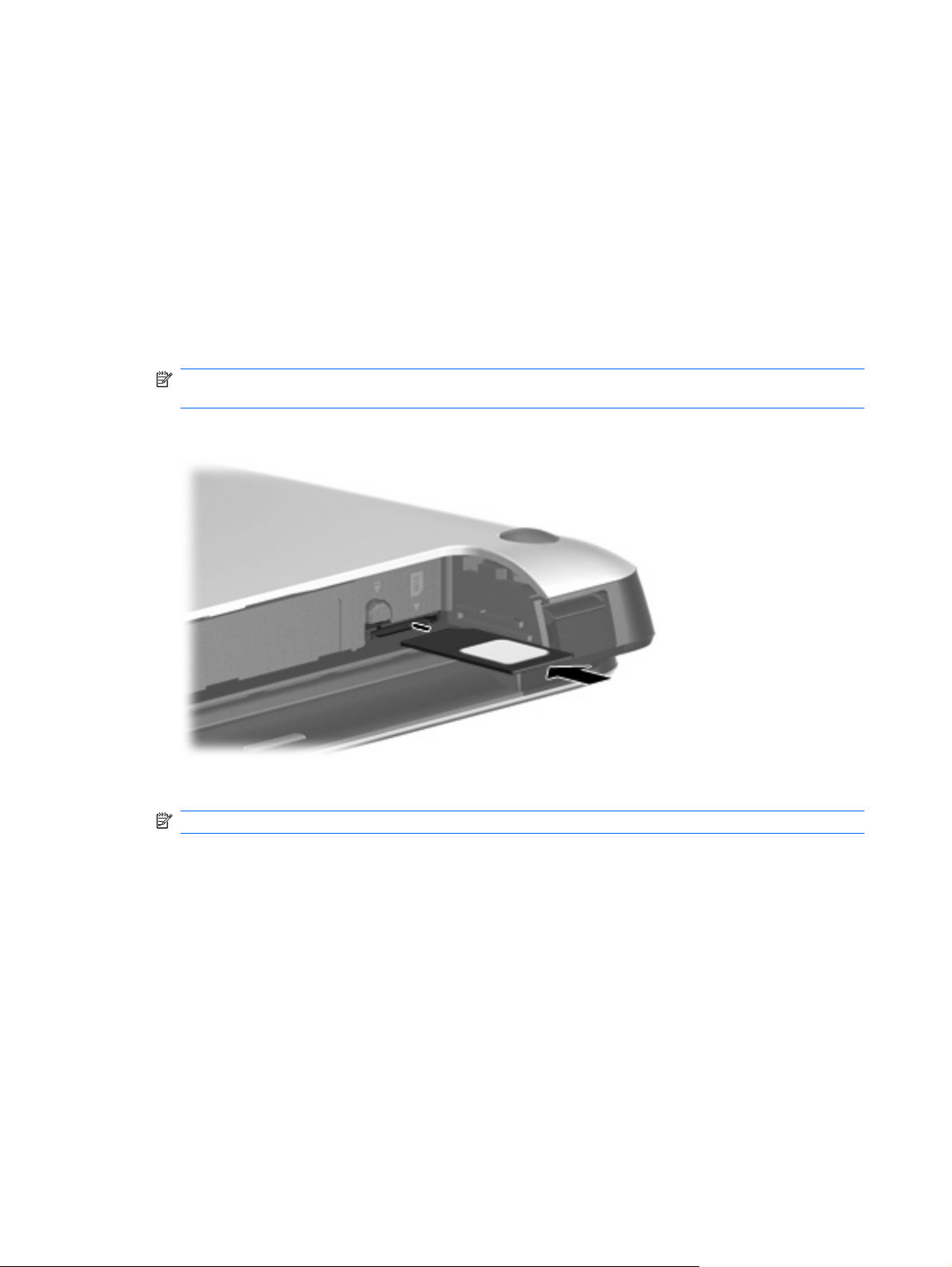

Inserting a SIM ................................................................................................................... 35

Removing a SIM ................................................................................................................ 36

Using Bluetooth wireless devices ....................................................................................................... 38

Bluetooth and Internet Connection Sharing (ICS) ............................................................. 38

5 Multimedia

Multimedia features ............................................................................................................................ 39

Using the media activity action keys .................................................................................................. 43

Multimedia software ........................................................................................................................... 43

vi

Identifying your multimedia components ........................................................................... 39

Adjusting the volume ......................................................................................................... 41

Using preinstalled multimedia software ............................................................................. 44

Installing multimedia software from the Internet ................................................................ 44

6 Security

Audio .................................................................................................................................................. 45

Connecting external audio devices .................................................................................... 45

Checking your audio functions ........................................................................................... 45

Video .................................................................................................................................................. 46

Connecting an external monitor or projector ...................................................................... 46

Webcam ............................................................................................................................................. 47

Protecting the computer ..................................................................................................................... 48

Using passwords ................................................................................................................................ 48

Setting passwords in Windows .......................................................................................... 49

Setting passwords in Setup Utility ..................................................................................... 49

Administrator password ..................................................................................... 50

Managing an administrator password ............................................... 50

Entering an administrator password ................................................. 50

Power-on password .......................................................................................... 50

Managing a power-on password ...................................................... 51

Entering a power-on password ......................................................... 51

Using antivirus software ..................................................................................................................... 52

Using firewall software ....................................................................................................................... 53

Installing critical updates .................................................................................................................... 54

7 Digital cards

Inserting a digital card ........................................................................................................................ 55

Removing a digital card ...................................................................................................................... 56

8 USB devices

Using a USB device ........................................................................................................................... 57

Connecting a USB device .................................................................................................. 57

Removing a USB device .................................................................................................... 57

9 Pointing devices and keyboard

Setting pointing device preferences ................................................................................................... 59

Using the TouchPad ........................................................................................................................... 59

Scrolling ............................................................................................................................. 59

Pinching ............................................................................................................................. 60

Rotating ............................................................................................................................. 60

Connecting an external mouse .......................................................................................... 61

Using the keyboard ............................................................................................................................ 61

Using the action keys ......................................................................................................... 61

Using hotkeys .................................................................................................................... 62

Using the touch screen (select models only) ...................................................................................... 64

Tapping (or clicking) .......................................................................................................... 64

Flicking ............................................................................................................................... 64

Dragging ............................................................................................................................ 64

Scrolling ............................................................................................................................. 64

Rotating ............................................................................................................................. 65

Pinching ............................................................................................................................. 65

Setting touch screen preferences ....................................................................................................... 66

vii

10 Drives

Identifying installed drives .................................................................................................................. 67

Handling drives ................................................................................................................................... 67

Using external drives .......................................................................................................................... 68

Using optional external devices ......................................................................................... 69

11 Memory modules

12 Updating software

Updating the BIOS ............................................................................................................................. 74

Determining the BIOS version ........................................................................................... 74

Downloading a BIOS update ............................................................................................. 74

Updating programs and drivers .......................................................................................................... 76

13 Changing QuickWeb settings

Disabling and enabling QuickWeb ..................................................................................................... 77

14 Setup Utility

Starting Setup Utility ........................................................................................................................... 78

Using Setup Utility .............................................................................................................................. 78

Changing the language of Setup Utility ............................................................................. 78

Navigating and selecting in Setup Utility ............................................................................ 78

Displaying system information ........................................................................................... 79

Restoring default settings in Setup Utility .......................................................................... 79

Exiting Setup Utility ............................................................................................................ 79

Setup Utility menus ............................................................................................................................ 80

Main menu ......................................................................................................................... 80

Security menu .................................................................................................................... 80

System Configuration menu .............................................................................................. 80

Diagnostics menu .............................................................................................................. 81

Index ................................................................................................................................................................... 82

viii

1 Getting started

Your computer's main operating system is Microsoft® Windows®. Your computer may also feature HP
QuickWeb (select models only).

The Microsoft Windows operating system displays the desktop on the display and controls your

●

computer's hardware, peripherals, and software programs.

If your computer includes QuickWeb, it allows you to quickly browse the Internet, view digital

●

photos, listen to music, or keep in touch using e-mail, instant messages, or Skype (select models
only), without having to start your main operating system. QuickWeb is also referred to as Instant­On Software (IOS).

NOTE: To disable or reenable QuickWeb, refer to the “Changing QuickWeb settings" chapter. You

can access the software Help when you are in QuickWeb by clicking the Help icon in the notification
area.

1

Using HP QuickWeb (select models only)

To start QuickWeb:

1. Turn on your computer. The HP QuickWeb Home screen appears.

2. Click an icon on the QuickWeb Home screen to launch a program.

To start QuickWeb from Microsoft Windows:

Select Start, click the arrow next to the Shut down button, and then click Restart. Your computer

▲

restarts and displays the HP QuickWeb Home screen.

NOTE: To learn more about HP QuickWeb, refer to the software Help included with QuickWeb.

2 Chapter 1 Getting started

2 Knowing the parts

Identifying the hardware

Components included with the computer may vary by region and model. The illustrations in this chapter
identify the standard features on most computer models.

To see a list of hardware installed in the computer:

Select Start > Control Panel > System and Security. Click System, and then click Device

▲

Manager.

You can also add hardware or modify computer configurations using Device Manager.

Top components

TouchPad

Component Description

(1) TouchPad on/off button Turns the TouchPad on and off. Quickly double-tap the

button to turn the TouchPad on and off.

(2) TouchPad* Moves the pointer and selects or activates items on the

screen.

Identifying the hardware 3

Lights

Component Description

(3) Left TouchPad button* Functions like the left button on an external mouse.

(4) Right TouchPad button* Functions like the right button on an external mouse.

*This table describes factory settings. To view or change pointing device preferences, select Start > Devices and Printers.
Then, right-click the icon representing your device, and select Mouse settings.

Component Description

(1) TouchPad light

(2) Caps lock light On: Caps lock is on.

(3) Mute light On: Speaker sound is off.

(4) Wireless light

On: The TouchPad is disabled.

●

Off: The TouchPad is enabled.

●

White: An integrated wireless device, such as a

●

wireless local area network (WLAN) device and/
or a Bluetooth® device, is on.

NOTE: Wireless devices are enabled at the

factory.

Off: All wireless devices are off.

●

4 Chapter 2 Knowing the parts

Keys

Component Description

(1) Action keys Execute frequently used system functions.

(2) fn key Executes frequently used system functions when

(3) Windows® logo key Displays the Windows Start menu.

(4) Windows applications key Displays a shortcut menu for items beneath the

Front components

Component Description

Speakers (2) Produce sound.

pressed in combination with a function key or the

esc key.

pointer.

Identifying the hardware 5

Right-side components

Component Description

(1) Digital Media Slot Supports the following optional digital card formats:

Memory Stick (MS)

●

MS/Pro

●

MultiMediaCard (MMC)

●

Secure Digital High Capacity (SDHC) Memory

●

Card (standard and large size)

xD-Picture card

●

(2) Power light

(3) Power switch

(4) Vent Enables airflow to cool internal components.

White: The computer is on.

●

Blinking white: The computer is in the Sleep state.

●

Off: The computer is off or in Hibernation.

●

When the computer is off, slide the switch to turn

●

on the computer.

When the computer is on, briefly slide the switch

●

to initiate Sleep.

When the computer is in the Sleep state, briefly

●

slide the switch to exit Sleep.

When the computer is in Hibernation, briefly slide

●

the switch to exit Hibernation.

If the computer has stopped responding and Windows
shutdown procedures are ineffective, slide and hold the
power switch for at least five seconds to turn off the
computer.

To learn more about your power settings, select Start
> Control Panel > System and Security > Power

Options.

NOTE: The computer fan starts up automatically to

cool internal components and prevent overheating. It is
normal for the internal fan to cycle on and off during
routine operation.

(5) USB ports (2) Connect optional USB devices.

6 Chapter 2 Knowing the parts

Component Description

(6) RJ-45 (network) jack and cover Connects a network cable.

(7) Security cable slot Attaches an optional security cable to the computer.

Left-side components

Component Description

NOTE: The security cable is designed to act as a

deterrent, but it may not prevent the computer from
being mishandled or stolen.

(1) Power connector Connects an AC adapter.

(2) Battery light

(3) External monitor port Connects an optional external display, such as a

(4) Vent Enables airflow to cool internal components.

(5) Drive light

Off: The computer is running on battery power.

●

Blinking white: The battery has reached a low

●

battery level, a critical battery level, or there is a
battery error. When the battery reaches a critical
battery level, the battery light begins blinking
rapidly.

Amber: A battery is charging.

●

White: The computer is connected to external

●

power and the battery is fully charged.

monitor or projector, to the computer.

NOTE: The computer fan starts up automatically to

cool internal components and prevent overheating. It
is normal for the internal fan to cycle on and off during
routine operation.

Blinking white: The hard drive is being accessed.

●

Amber (select models only): HP ProtectSmart

●

Hard Drive Protection has temporarily parked the
hard drive.

Identifying the hardware 7

Component Description

(6) USB port Connects an optional USB device.

(7) Audio-out (headphone) jack/Audio-in (microphone)

jack

Display components

Produces sound when connected to optional powered
stereo speakers, headphones, earbuds, a headset, or
television audio. Also connects an optional headset
microphone.

NOTE: When an audio component is connected to

the jack, the computer speakers are disabled.

The audio component cable must have a 4-conductor
connector.

Component Description

(1) Internal display switch Initiates Sleep if the display is closed while the power

(2) Webcam light On: The webcam is in use.

8 Chapter 2 Knowing the parts

is on.

NOTE: The display switch is not visible from the

outside of the computer.

Component Description

(3) Webcam Records video and captures still photographs.

(4) Internal microphone Records sound.

Bottom components

NOTE: To capture and edit videos, you can use the

preinstalled Arcsoft WebCam Companion 3 software.

Component Description

(1) Battery release latches (2) Release the battery from the battery bay and locks the

(2) Battery bay Holds the battery.

Removing the vanity cover

Removing the vanity cover allows access to the memory module compartment, SIM card insertion slot,
regulatory label, and other important components. To remove the vanity cover:

1. Disconnect the computer from AC power.

2. Remove the battery.

NOTE: For more information, refer to the section “Inserting or removing the battery,” later in this

guide.

battery in the battery bay.

Identifying the hardware 9

3. Press the right release button (1).

4. Release the right side of the vanity cover (2) by lifting it slightly away from the base.

NOTE: It is normal for the vanity cover to flex slightly, and you may also hear some popping

noises when the vanity cover tabs disengage from the base.

5. Press the left release button (1).

6. Release the left side of the vanity cover (2) by lifting it slightly away from the base.

10 Chapter 2 Knowing the parts

7. Lift the bottom edge of the vanity cover (1) at an angle, and then lift the vanity cover away from the

base (2).

Replacing the vanity cover

Replace the vanity cover after accessing the memory module compartment, SIM card insertion slot,
regulatory label, and other important components. To replace the vanity cover:

1. Place the vanity cover (1) above the computer at an angle, with the front edge toward the front of

the computer.

2. Seat the back edge of the vanity cover in the back edge of the computer by aligning the six tabs

on the vanity cover over the slots in the base, and then inserting the tabs into the slots (2).

Identifying the hardware 11

3. Rotate the front edge (1) of the vanity cover down, and then firmly press the vanity cover onto the

base of the computer until it snaps into place (2).

4. Replace the battery.

NOTE: For more information, refer to the section “Inserting or removing the battery,” later in this

guide.

Wireless antennas

Component Description

(1) WWAN antennas (2) (select models only)* Send and receive wireless signals to communicate with

(2) WLAN antennas (2)* Send and receive wireless signals to communicate with

*The antennas are not visible from the outside of the computer. For optimal transmission, keep the areas immediately

around the antennas free from obstructions.

12 Chapter 2 Knowing the parts

wireless wide-area networks (WWANs).

wireless local-area networks (WLANs).

To see wireless regulatory notices, refer to the section of the Regulatory, Safety and Environmental
Notices that applies to your country or region. These notices are located in Help and Support.

Additional hardware components

Component Description

(1) Power cord* Connects an AC adapter to an AC outlet.

(2) AC adapter Converts AC power to DC power.

(3) Battery* Powers the computer when the computer is not plugged into

*Batteries and power cords vary in appearance by region and country.

Identifying the labels

The labels affixed to the computer provide information you may need when you troubleshoot system
problems or travel internationally with the computer.

Serial number label—Provides important information that you may need when contacting technical

●

support. The serial number label is affixed inside the battery bay.

external power.

Component

(1)

Product name

Identifying the labels 13

Component

(2) Serial number

(3) Product number

(4) Warranty period

(5) Model description (select models)

Microsoft® Certificate of Authenticity—Contains the Windows® Product Key. You may need the

●

Product Key to update or troubleshoot the operating system. This certificate is located under the
vanity cover of the computer. To access the regulatory label in the computer, refer to the section
“Removing the vanity cover,” earlier in this guide.

Regulatory label—Provides regulatory information about the computer, including the following:

●

Information about optional wireless devices and the approval markings of some of the

◦

countries or regions in which the devices have been approved for use. An optional device may
be a wireless local area network (WLAN) device. You may need this information when
traveling internationally.

The serial number of your HP Mobile Broadband Module (select models only).

◦

The regulatory label is located under the vanity cover of the computer. To access the regulatory
label in the computer, refer to the section “Removing the vanity cover,” earlier in this guide.

14 Chapter 2 Knowing the parts

3 Power management

Setting power options

Using power-saving states

The computer has two power-saving states enabled at the factory: Sleep and Hibernation.

When Sleep is initiated, the power light blinks and the screen clears. Your work is saved to memory,
letting you exit the Sleep state faster than exiting Hibernation. If the computer is in the Sleep state for
an extended period or if the battery reaches a critical battery level while in the Sleep state, the computer
initiates Hibernation.

When Hibernation is initiated, your work is saved to a hibernation file on the hard drive and the computer
turns off.

CAUTION: To prevent possible audio and video degradation, loss of audio or video playback

functionality, or loss of information, do not initiate Sleep or Hibernation while reading from or writing to
a disc or an external media card.

NOTE: You cannot initiate any type of networking connection or perform any computer functions while

the computer is in the Sleep state or in Hibernation.

Initiating and exiting Sleep

The system is set at the factory to initiate Sleep after 15 minutes of inactivity when running on battery
power and 30 minutes of inactivity when running on external power.

Power settings and timeouts can be changed using Power Options in Windows Control Panel.

With the computer on, you can initiate Sleep in any of the following ways:

Briefly slide the power switch.

●

Close the display.

●

Click Start, click the arrow next to the Shut down button, and then click Sleep.

●

You can exit Sleep in any of the following ways:

Briefly slide the power switch.

●

If the display is closed, open the display and activate the TouchPad.

●

Press a key on the keyboard.

●

When the computer exits Sleep, the power light turns on and your work returns to the screen where you
stopped working.

Setting power options 15

NOTE: If you have set a password to be required when the computer exits Sleep, you must enter your

Windows password before your work returns to the screen.

Initiating and exiting Hibernation

Power settings and timeouts can be changed using Power Options in Windows Control Panel.

To initiate Hibernation:

Click Start, click the arrow next to the Shut down button, and then click Hibernate.

▲

To exit Hibernation:

Briefly slide the power switch.

▲

When the computer exits Hibernation, the power light turns on and your work returns to the screen where
you stopped working.

NOTE: If you have set a password to be required when the computer exits Hibernation, you must enter

your Windows password before your work returns to the screen.

Using power plans

A power plan is a collection of system settings that manages how the computer uses power. Power
plans can help you conserve power and maximize computer performance.

The following power plans are available:

HP recommended

●

High performance

●

Power saver

●

You can change the settings of these power plans through Power Options.

Viewing the current power plan

Click the Battery Meter icon in the notification area, at the far right of the taskbar.

▲

– or –

Select Start > Control Panel > System and Security > Power Options.

Selecting a different power plan

Click the Battery Meter icon in the notification area, and then select a power plan from the list.

▲

– or –

Select Start > Control Panel > System and Security > Power Options, and then select a power
plan from the list.

16 Chapter 3 Power management

Customizing power plans

1. Click the Battery Meter icon in the notification area and then click Power options.

– or –

Select Start > Control Panel > System and Security > Power Options.

2. Select a power plan, and then click Change plan settings.

3. Change the settings as needed.

4. To change additional settings, click Change advanced power settings and make your changes.

Setting password protection upon exiting Sleep or Hibernation

To set the computer to prompt for a password when the computer exits Sleep or Hibernation, follow
these steps:

1. Select Start > Control Panel > System and Security > Power Options.

2. In the left pane, click Require a password on wakeup.

3. Click Change Settings that are currently unavailable.

4. Click Require a password (recommended).

5. Click Save changes.

Using external AC power

External AC power is supplied through an approved AC adapter.

WARNING! To reduce potential safety issues, use only the AC adapter provided with the computer,

a replacement AC adapter provided by HP, or a compatible AC adapter purchased from HP.

Connect the computer to external AC power under any of the following conditions:

WARNING! Do not charge the battery while you are onboard aircraft.

When you are charging or calibrating a battery

●

When you are installing or modifying system software

●

When you are writing information to a CD or DVD

●

When you connect the computer to external AC power, the following events occur:

The battery begins to charge.

●

If the computer is turned on, the Battery Meter icon in the notification area changes appearance.

●

When you disconnect external AC power, the following events occur:

The computer switches to battery power.

●

The display brightness is automatically decreased to save battery life. Press the f3 action key to

●

increase brightness or reconnect the AC adapter.

Using external AC power 17

Connecting the AC adapter

WARNING! To reduce the risk of electric shock or damage to the equipment:

Plug the power cord into an AC outlet that is easily accessible at all times.

Disconnect power from the computer by unplugging the power cord from the AC outlet (not by
unplugging the power cord from the computer).

If provided with a 3-pin attachment plug on the power cord, plug the cord into a grounded (earthed) 3­pin outlet. Do not disable the power cord grounding pin, for example, by attaching a 2-pin adapter. The
grounding pin is an important safety feature.

To connect the computer to external AC power, follow these steps:

1. Plug the AC adapter into the power connector (1) on the computer.

2. Plug the power cord into the AC adapter (2).

3. Plug the other end of the power cord into an AC outlet (3).

Using battery power

When a charged battery is in the computer and the computer is not plugged into external power, the
computer runs on battery power. When the computer is plugged into external AC power, the computer
runs on AC power.

If the computer contains a charged battery and is running on external AC power supplied through the
AC adapter, the computer switches to battery power if the AC adapter is disconnected from the
computer.

NOTE: The display brightness is decreased to save battery life when you disconnect AC power. To

increase brightness, use the f3 action key or reconnect the AC adapter.

You can keep a battery in the computer or in storage, depending on how you work. Keeping the battery
in the computer whenever the computer is plugged into AC power charges the battery and also protects
your work in case of a power outage. However, a battery in the computer slowly discharges when the
computer is off and unplugged from external power.

18 Chapter 3 Power management

WARNING! To reduce potential safety issues, use only the battery provided with the computer, a

replacement battery provided by HP, or a compatible battery purchased from HP.

Battery life varies, depending on power management settings, programs running on the computer,
display brightness, external devices connected to the computer, and other factors.

Displaying the remaining battery charge

Move the pointer over the Battery Meter icon in the notification area, at the far right of the taskbar.

▲

Finding battery information in Help and Support

Help and Support provides the following tools and information about the battery:

Battery Check tool to test battery performance

●

Information on calibration, power management, and proper care and storage to maximize battery

●

life

Information on battery types, specifications, life cycles, and capacity

●

To access battery information:

Select Start > Control Panel > Hardware and Sound > Power Options > Tell me more about

▲

power plans.

Using Battery Check

Help and Support provides information on the status of the battery installed in the computer.

To run Battery Check:

1. Connect the AC adapter to the computer.

NOTE: The computer must be connected to external power for Battery Check to function properly.

2. Select Start > Help and Support > Troubleshoot > Power, Thermal and Mechanical.

3. Click the Power tab, and then click Battery Check.

Battery Check examines the battery and its cells to see if they are functioning properly, and then reports
the results of the examination.

Inserting or removing the battery

CAUTION: Removing a battery that is the sole power source may cause loss of information. To prevent

loss of information, save your work and initiate Hibernation or shut down the computer through Windows
before removing the battery.

To insert the battery:

1. Turn the computer upside down on a flat surface.

Using battery power 19

2. Align the tabs on the battery with the notches on the computer, and then insert the battery into the

battery bay. The battery release latches automatically lock the battery into place.

To remove the battery:

1. Turn the computer upside down on a flat surface.

2. Slide the battery release latches (1) to release the battery, and then remove the battery (2).

Charging a battery

WARNING! Do not charge the computer battery while you are onboard aircraft.

The battery charges whenever the computer is plugged into external power through an AC adapter.

The battery charges whether the computer is off or in use, but it charges faster when the computer is
off.

20 Chapter 3 Power management

Charging may take longer if a battery is new, has been unused for 2 weeks or more, or is much warmer
or cooler than room temperature.

To prolong battery life and optimize the accuracy of battery charge displays, follow these
recommendations:

If you are charging a new battery, charge it fully before turning on the computer.

●

Charge the battery until the battery light turns white.

●

NOTE: If the computer is on while the battery is charging, the Battery Meter icon in the notification

area may show 100 percent charge before the battery is fully charged.

Allow the battery to discharge below 5 percent of a full charge through normal use before charging

●

it.

If the battery has been unused for one month or more, calibrate the battery instead of simply

●

charging it.

The battery light displays charge status:

Off: The computer is running on battery power.

●

Blinking white: The battery has reached a low battery level, a critical battery level, or there is a

●

battery error. When the battery reaches a critical battery level, the battery light begins blinking
rapidly.

Amber: A battery is charging.

●

White: The computer is connected to external power and the battery is fully charged,

●

Maximizing battery discharge time

Battery discharge time varies depending on the features you use while on battery power. Maximum
discharge time gradually shortens, as the battery storage capacity naturally degrades.

Tips for maximizing battery discharge time:

Decrease the brightness on the display.

●

Remove the battery from the computer when it is not being used or charged.

●

Store the battery in a cool, dry location.

●

Managing low battery levels

The information in this section describes the alerts and system responses set at the factory. Some low­battery alerts and system responses can be changed using Power Options in Windows Control Panel.
Preferences set using Power Options do not affect lights.

Identifying low battery levels

When a battery that is the sole power source for the computer reaches a low battery level, the battery
light blinks.

If a low battery level is not resolved, the computer enters a critical battery level, and the battery light
blinks rapidly.

Using battery power 21

The computer takes the following actions for a critical battery level:

If Hibernation is enabled and the computer is on or in Sleep, the computer initiates Hibernation.

●

If Hibernation is disabled and the computer is on or in Sleep, the computer remains briefly in Sleep,

●

and then shuts down and loses any unsaved information.

Resolving a low battery level

CAUTION: To reduce the risk of losing information when the computer reaches a critical battery level

and has initiated Hibernation, do not restore power until the power light turns off.

Resolving a low battery level when external power is available

Connect to an approved AC adapter.

▲

Resolving a low battery level when a charged battery is available

1. Turn off the computer or initiate Hibernation.

2. Remove the discharged battery, and then insert a charged battery.

3. Turn on the computer.

Resolving a low battery level when no power source is available

Initiate Hibernation.

▲

– or –

Save your work and shut down the computer.

Resolving a low battery level when the computer cannot exit Hibernation

When the computer lacks sufficient power to exit Hibernation, follow these steps:

1. Insert a charged battery or plug the computer into external power.

2. Exit Hibernation by briefly sliding the power switch.

Calibrating a battery

Calibrate a battery under the following conditions:

When battery charge displays seem inaccurate

●

When you observe a significant change in battery run time

●

Even if a battery is heavily used, it should not need to be calibrated more than once a month. It is also
not necessary to calibrate a new battery.

Step 1: Fully charge the battery

WARNING! Do not charge the computer battery while you are onboard aircraft.

NOTE: The battery charges whether the computer is off or in use, but it charges faster when the

computer is off.

22 Chapter 3 Power management

To fully charge the battery:

1. Insert the battery into the computer.

2. Connect the computer to an AC adapter and then plug the adapter into external power.

The battery light on the computer turns amber.

3. Leave the computer plugged into external power until the battery is fully charged.

The battery light on the computer turns white.

Step 2: Disable Hibernation and Sleep

1. Click the Battery Meter icon in the notification area, and then click Power options.

– or –

Select Start > Control Panel > System and Security > Power Options.

2. Under the current power plan, click Change plan settings.

3. Record the Turn off the display settings listed in the On battery column so that you can reset

them after the calibration.

4. Change the Turn off the display settings to Never.

5. Click Change advanced power settings.

6. Click the plus sign next to Sleep, and then click the plus sign next to Hibernate after.

7. Record the On battery setting under Hibernate after so that you can reset it after the calibration.

8. Change the On battery setting to Never.

9. Click OK.

10. Click Save changes.

Step 3: Discharge the battery

The computer must remain on while the battery is being discharged. The battery can discharge whether
or not you are using the computer, but the battery discharges faster while you are using it.

If you plan to leave the computer unattended during the discharge, save your information before

●

beginning the discharge procedure.

If you use the computer occasionally during the discharge procedure and have set energy-saving

●

timeouts, expect the following performance from the system during the discharge process:

The monitor does not turn off automatically.

◦

Hard drive speed does not decrease automatically when the computer is idle.

◦

System-initiated Hibernation does not occur.

◦

Using battery power 23

To discharge a battery:

1. Unplug the computer from its external power source, but do not turn off the computer.

2. Run the computer on battery power until the battery is discharged. The battery light begins to blink

white when the battery has discharged to a low battery level. When the battery is discharged, the
battery light turns off and the computer shuts down.

Step 4: Fully recharge the battery

To recharge the battery:

1. Plug the computer into external power and maintain external power until the battery is fully

recharged. When the battery is recharged, the battery light on the computer turns white.

You can use the computer while the battery is recharging, but the battery charges faster if the
computer is off.

2. If the computer is off, turn it on when the battery is fully charged and the battery light has turned

white.

Step 5: Reenable Hibernation and Sleep

CAUTION: Failure to reenable Hibernation after calibration may result in a full battery discharge and

information loss if the computer reaches a critical battery level.

1. Click the Battery Meter icon in the notification area, and then click Power options.

– or –

Select Start > Control Panel > System and Security > Power Options.

2. Under the current power plan, click Change plan settings.

3. Reenter the settings that you recorded for the items in the On battery column.

4. Click Change advanced power settings.

5. Click the plus sign next to Sleep, and then click the plus sign next to Hibernate after.

6. Reenter the setting that you recorded for On battery.

7. Click OK.

8. Click Save changes.

Conserving battery power

Select the Power saver power plan through Power Options under System and Security in Windows

●

Control Panel.

Turn off wireless and local area network (LAN) connections and exit modem applications when you

●

are not using them.

Disconnect external devices that are not plugged into an external power source, when you are not

●

using them.

Stop, disable, or remove any external media cards that you are not using.

●

24 Chapter 3 Power management

Use the f2 and f3 action keys to adjust screen brightness as needed.

●

If you leave your work, initiate Sleep or Hibernation, or shut down the computer.

●

Storing a battery

CAUTION: To prevent damage to a battery, do not expose it to high temperatures for extended periods

of time.

If a computer is unused and unplugged from external power for more than 2 weeks, remove the battery
and store it separately.

To prolong the charge of a stored battery, place it in a cool, dry place.

NOTE: A stored battery should be checked every 6 months. If the capacity is less than 50 percent,

recharge the battery before returning it to storage.

Calibrate a battery before using it if it has been stored for one month or more.

Disposing of a used battery

WARNING! To reduce the risk of fire or burns, do not disassemble, crush, or puncture; do not short

external contacts; do not dispose of in fire or water.

Refer to the Regulatory, Safety and Environmental Notices for battery disposal information.

Shutting down the computer

CAUTION: Unsaved information will be lost when the computer is shut down.

The Shut down command closes all open programs, including the operating system, and then turns off
the display and computer.

Shut down the computer under any of the following conditions:

When you need to replace the battery or access components inside the computer

●

When you are connecting an external hardware device that does not connect to a USB port

●

When the computer is unused and disconnected from external power for an extended period

●

Although you can shut down the computer with the power switch, the recommended procedure is to use
the Windows Shut down command.

To shut down the computer, follow these steps:

NOTE: If the computer is in the Sleep state or in Hibernation, you must first exit Sleep or Hibernation

before shut down is possible.

1. Save your work and close all open programs.

2. Click Start.

3. Click Shut down.

Shutting down the computer 25

If the computer is unresponsive and you are unable to use the preceding shut down procedures, try the
following emergency procedures in the sequence provided:

Press ctrl+alt+delete, and then click the Power button.

●

Slide and hold the power switch for at least 5 seconds.

●

Disconnect the computer from external power and remove the battery.

●

26 Chapter 3 Power management

4Internet

Your computer supports the following types of Internet access:

Wired—You can access the Internet by connecting to a broadband network using the RJ-45

●

(network) jack.

Wireless—For mobile Internet access, you can use a wireless connection. To learn about setting

●

up a wireless network or adding your computer to an existing network, refer to the “Connecting to
a wireless network” section.

27

Connecting to a wired network

Connecting to a local area network (LAN) requires an 8-pin, RJ-45 network cable (purchased
separately). If the network cable contains noise suppression circuitry (1), which prevents interference
from TV and radio reception, orient the circuitry end of the cable (2) toward the computer.

To connect the network cable:

WARNING! To reduce the risk of electric shock, fire, or damage to the equipment, do not plug a modem

cable or telephone cable into an RJ-45 (network) jack.

1. Plug the network cable into the network jack (1) on the computer.

2. Plug the other end of the cable into a network wall jack (2).

28 Chapter 4 Internet

Connecting to a wireless network

Using wireless devices

Wireless technology transfers data across radio waves instead of wires. Your computer may be
equipped with one or more of the following wireless devices:

Wireless local area network (WLAN) device—Connects the computer to wireless local area

●

networks (commonly referred to as Wi-Fi networks, wireless LANs, or WLANs) in corporate offices,
your home, and public places such as airports, restaurants, coffee shops, hotels, and universities.
In a WLAN, each mobile wireless device communicates with a wireless router or a wireless access
point.

HP Mobile Broadband Module (select models only)—A wireless wide area network (WWAN) device

●

that provides access to information wherever mobile network operator service is available. In a
WWAN, each mobile device communicates to a mobile network operator’s base station. Mobile
network operators install networks of base stations (similar to cell phone towers) throughout large
geographic areas, effectively providing coverage across entire states, regions, or even countries.

Bluetooth® device—Creates a personal area network (PAN) to connect to other Bluetooth-enabled

●

devices such as computers, phones, printers, headsets, speakers, and cameras. In a PAN, each
device communicates directly with other devices, and devices must be relatively close together—
typically within 10 meters (approximately 33 feet) of each other.

The computer supports the following IEEE industry standards:

802.11b, the first popular standard, supports data rates of up to 11 Mbps and operates at a

●

frequency of 2.4 GHz.

802.11g supports data rates of up to 54 Mbps and operates at a frequency of 2.4 GHz. An 802.11g

●

WLAN device is backward compatible with 802.11b devices, so they can operate on the same
network.

For more information on wireless technology, refer to the information and Web site links provided in
Help and Support.

Identifying wireless and network icons

Icon Name Description

Wireless (connected) Identifies the location of the wireless light and the wireless action key

Wireless
(disconnected)

HP Connection
Manager

on the computer. Also identifies the Wireless Assistant software on the
computer and indicates that one or more of the wireless devices are
on.

Identifies the Wireless Assistant software on the computer and
indicates that all of the wireless devices are off.

Opens HP Connection Manager, which enables you to create a
connection with an HP Mobile Broadband device (select models only).

Wireless network
connection
(connected)

Indicates that one or more of your WLAN devices are connected to the
network.

Connecting to a wireless network 29

Icon Name Description

Using the wireless controls

You can control the wireless devices in your computer using these features:

The f12 wireless action key

●

HP Connection Manager software (select models only)

●

Wireless Assistant software (select models only)

●

Operating system controls

●

Wireless network
connection
(disconnected)

Network status
(connected)

Network status
(disconnected)

Indicates that one or more of your WLAN devices are not connected to
a network.

Indicates that one or more of your LAN drivers are installed and one or
more LAN devices are connected to the network.

Indicates that one or more of your LAN drivers are installed but no LAN
devices are connected to the network.

Using the wireless action key

The computer has a wireless action key (f12), one or more wireless devices, and one wireless light. All
of the wireless devices on your computer are enabled at the factory.

The wireless light indicates the overall power state of your wireless devices, not the status of individual
devices. If the wireless light is white, at least one wireless device is on. If the wireless light is off, all
wireless devices are off.

Because the wireless devices are enabled at the factory, you can use the wireless action key (f12) to
turn on or turn off all of the wireless devices simultaneously.

Using HP Connection Manager (select models only)

You can use HP Connection Manager to connect to WWANs using the HP Mobile Broadband device in
your computer (select models only).

To start Connection Manager, click the Connection Manager icon in the notification area, at the

▲

far right of the taskbar.

– or –

Select Start > All Programs > HP Connection Manager > HP Connection Manager.

For more details about using Connection Manager, refer to the Connection Manager software Help.

30 Chapter 4 Internet

Using Wireless Assistant software

A wireless device can be turned on or off using the Wireless Assistant software. If a wireless device is
disabled by Setup Utility, it must be reenabled by Setup Utility before it can be turned on or off using
Wireless Assistant.

NOTE: Enabling or turning on a wireless device does not automatically connect the computer to a

network or a Bluetooth-enabled device.

To view the state of the wireless devices, click the Show hidden icons icon, the arrow at the left of the
notification area, and position the mouse pointer over the wireless icon.

If the wireless icon is not displayed in the notification area, complete the following steps to change
Wireless Assistant properties:

1. Select Start > Control Panel > Network and Internet > HP Wireless Assistant.

2. Click Properties.

3. Select the check box next to HP Wireless Assistant icon in notification area.

4. Click Apply.

5. Click Close.

For more information, refer to the Wireless Assistant software Help:

1. Open Wireless Assistant by double-clicking the icon in the notification area.

2. Click the Help button.

You can use the properties dialog box in Wireless Assistant to show the on/off controls for each installed
wireless device and control the devices separately. To show the on/off controls:

1. Double-click the Wireless Assistant icon in the notification area, at the far right of the taskbar.

2. Click Properties.

3. Select the Independent controls for installed wireless devices check box, and then click

Apply.

4. Click Turn off or Turn on to control each wireless device separately.

Using operating system controls

Some operating systems also offer a way to manage integrated wireless devices and the wireless
connection. For example, Windows provides the Network and Sharing Center that allows you to set up
a connection or network, connect to a network, manage wireless networks, and diagnose and repair
network problems.

To access the Network and Sharing Center, select Start > Control Panel > Network and Sharing

▲

Center.

For more information, select Start > Help and Support.

Using a WLAN

With a WLAN device, you can access a wireless local area network (WLAN), which is composed of other
devices and accessories that are linked by a wireless router or a wireless access point.

Connecting to a wireless network 31

NOTE: The terms wireless router and wireless access point are often used interchangeably.

A large-scale WLAN, such as a corporate or public WLAN, typically uses wireless access points

●

that can accommodate a large number of devices and accessories and can separate critical
network functions.

A home or small office WLAN typically uses a wireless router, which allows several wireless and

●

wired devices to share an Internet connection, a printer, and files without requiring additional pieces
of hardware or software.

To use the WLAN device in your computer, you must connect to a WLAN infrastructure (provided through
a service provider or a public or corporate network).

Setting up a WLAN

To set up a WLAN and connect to the Internet, you need the following equipment:

A broadband modem (either DSL or cable) (1) and high-speed Internet service purchased from an

●

Internet service provider (ISP)

A wireless router (purchased separately) (2)

●

Computer equipped with a wireless device (3)

●

The illustration below shows an example of a wireless network installation that is connected to the
Internet.

As your network grows, additional wireless and wired devices can be connected to the network to access
the Internet.

For help in setting up your WLAN, refer to the information provided by your router manufacturer or your
ISP.

Protecting your WLAN

It is essential to understand that because the WLAN standard was designed with only limited security
capabilities—basically to foil casual eavesdropping rather than more powerful forms of attack—WLANs
are vulnerable to well-known and well-documented security weaknesses.

WLANs in public areas, or “hotspots,” like coffee shops and airports may not provide any security. New
technologies are being developed by wireless manufacturers and hotspot service providers that make
the public environment more secure and anonymous. If you are concerned about the security of your
computer in a hotspot, limit your network activities to noncritical e-mail and basic Internet surfing.

When you set up a WLAN or access an existing WLAN, always enable security features to protect your
network from unauthorized access. The common security levels are Wi-Fi Protected Access (WPA)­Personal and Wired Equivalent Privacy (WEP). Because wireless radio signals travel outside the
network, other WLAN devices can pick up unprotected signals and either connect to your network

32 Chapter 4 Internet

(uninvited) or capture information being sent across it. However, you can take precautions to protect
your WLAN:

Use a wireless transmitter with built-in security

●

Many wireless base stations, gateways, or routers provide built-in security features such as
wireless security protocols and firewalls. With the correct wireless transmitter, you can protect your
network from the most common wireless security risks.

Work behind a firewall

●

A firewall is a barrier that checks both data and requests for data that are sent to your network,
and discards any suspicious items. Firewalls are available in many varieties, both software and
hardware. Some networks use a combination of both types.

Use wireless encryption

●

A variety of sophisticated encryption protocols is available for your WLAN. Find the solution that
works best for your network security:

Wired Equivalent Privacy (WEP) is a wireless security protocol that encodes or encrypts all

◦

network data before it is transmitted using a WEP key. Usually, you can allow the network to
assign the WEP key. Alternatively, you can set up your own key, generate a different key, or
choose other advanced options. Without the correct key, others will not be able to use the
WLAN.

WPA (Wi-Fi Protected Access), like WEP, uses security settings to encrypt and decrypt data

◦

that is transmitted over the network. However, instead of using one static security key for
encryptions as WEP does, WPA uses “temporal key integrity protocol” (TKIP) to dynamically
generate a new key for every packet. It also generates different sets of keys for each device
on the network.

Connecting to a WLAN

To connect to the WLAN, follow these steps:

1. Be sure that the WLAN device is on. If it is on, the wireless light is white. If the wireless light is off,

press the f12 action key to turn on the wireless connection.

2. Click the network icon in the notification area, at the far right of the taskbar.

3. Select your WLAN from the list.

4. Click Connect.

If the network is a security-enabled WLAN, you are prompted to enter a network security key, which
is a security code. Type the code, and then click OK to complete the connection.

NOTE: If no WLANs are listed, you are out of range of a wireless router or access point.

NOTE: If you do not see the network you want to connect to, click Open Network and Sharing

Center, and then click Set up a new connection or network. A list of options is displayed. You

can choose to manually search for and connect to a network or to set up a new network connection.

After the connection is made, place the mouse pointer over the network icon in the notification area, at
the far right of the taskbar, to verify the name and status of the connection.

Connecting to a wireless network 33

NOTE: The functional range (how far your wireless signals travel) depends on WLAN implementation,

router manufacturer, and interference from other electronic devices or structural barriers such as walls
and floors.

More information about using a WLAN is available through the following resources:

Information from your ISP and the manufacturer's instructions included with your wireless router

●

and other WLAN equipment

Information and Web site links provided in Help and Support

●

For a list of public WLANs near you, contact your ISP or search the Web. Web sites that list public
WLANs include Cisco Internet Mobile Office Wireless Locations, Hotspotlist, and Geektools. Check with
each public WLAN location for cost and connection requirements.

For additional information on connecting your computer to a corporate WLAN, contact your network
administrator or IT department.

Roaming to another network

When you move your computer within range of another WLAN, Windows attempts to connect to that
network. If the attempt is successful, your computer is automatically connected to the new network. If
Windows does not recognize the new network, follow the same procedure you used initially to connect
to your WLAN.

34 Chapter 4 Internet

Using HP Mobile Broadband (select models only)

HP Mobile Broadband enables your computer to use wireless wide area networks (WWANs) to access
the Internet from more places and over larger areas than it can by using WLANs. Using HP Mobile
Broadband requires a network service provider (called a mobile network operator), which in most cases
is a mobile phone network operator. Coverage for HP Mobile Broadband is similar to mobile phone voice
coverage.

When used with mobile network operator service, HP Mobile Broadband gives you the freedom to stay
connected to the Internet, send e-mail, or connect to your corporate network whether you are on the
road or outside the range of Wi-Fi hotspots.

The activation requirements for Code Division Multiple Access (CDMA) and Global System for Mobile
Communications (GSM) are different as CDMA requires an MEID and GSM requires a SIM plus the
SIM information.

HP Mobile Broadband supports the following technologies:

HSPA (High Speed Packet Access), which provides access to networks based on the GSM

●

telecommunications standard.

For HSPA service activation, you may need the HP Mobile Broadband Module International Mobile
Equipment Identity (IMEI) number to activate mobile broadband service. The IMEI number is
printed on a label inside the battery bay of your computer.

HSPA mobile network operators require the use of a subscriber identity module (SIM). A SIM
contains basic information about you, such as a personal identification number (PIN), as well as
network information.

Some computers include a SIM that is preinstalled in the battery bay. If the SIM is not preinstalled,
it may be provided in the packet of HP Mobile Broadband information provided with your computer,
or the mobile network operator may provide it separately from the computer.

For information on inserting and removing the SIM, refer to the “Inserting a SIM” and “Removing a
SIM” sections in this chapter.

EV-DO (Evolution Data Optimized), which provides access to networks based on the CDMA

●

telecommunications standard.

You may need the HP Mobile Broadband Module Mobile Equipment Identifier (MEID) to activate mobile
broadband service. The MEID is printed on a label inside the battery bay of your computer.

For information on HP Mobile Broadband and how to activate service with a preferred mobile network
operator, refer to the HP Mobile Broadband information included with your computer. For additional
information, see the HP Web site at

Inserting a SIM

CAUTION: When inserting a SIM, position the card with the slanted corner as shown in the illustration.

If a SIM is inserted backwards or upside down, the battery may not snap into place properly and could
damage the SIM and the SIM connector.

To prevent damage to the connectors, use minimal force when inserting a SIM.

http://www.hp.com/go/mobilebroadband (U.S. only).

Using HP Mobile Broadband (select models only) 35

To insert a SIM:

1. Shut down the computer. If you are not sure whether the computer is off or in Hibernation, turn the

computer on by sliding the power switch. Then shut down the computer through the operating
system.

2. Close the display.

3. Disconnect all external devices connected to the computer.

4. Unplug the power cord from the AC outlet.

5. Turn the computer upside down on a flat surface, with the battery bay toward you.

6. Remove the battery.

NOTE: For more information, refer to the section “Inserting or removing the battery,” earlier in

this guide.

7. Insert the SIM into the SIM slot, and gently push the SIM into the slot until it is firmly seated.

8. Replace the battery.

NOTE: If the battery is not replaced, HP Mobile Broadband is disabled.

9. Turn the computer right-side up, and then reconnect external power and external devices.

10. Turn on the computer.

Removing a SIM

To remove a SIM:

1. Shut down the computer. If you are not sure whether the computer is off or in Hibernation, turn the

computer on by sliding the power switch. Then shut down the computer through the operating
system.

2. Close the display.

3. Disconnect all external devices connected to the computer.

36 Chapter 4 Internet

4. Unplug the power cord from the AC outlet.

5. Turn the computer upside down on a flat surface, with the battery bay toward you.

6. Remove the battery.

7. Press in on the SIM, and then remove it from the slot.

8. Replace the battery.

NOTE: For more information, refer to the section “Inserting or removing the battery,” earlier in

this guide.

9. Turn the computer right-side up, and then reconnect external power and external devices.

10. Turn on the computer.

Using HP Mobile Broadband (select models only) 37

Using Bluetooth wireless devices

A Bluetooth device provides short-range wireless communications that replace the physical cable
connections that traditionally link electronic devices such as the following:

Computers (desktop, notebook, PDA)

●

Phones (cellular, smart phone)

●

Imaging devices (printer, camera)

●

Audio devices (headset, speakers)

●

Bluetooth devices provide peer-to-peer capability that allows you to set up a personal area network
(PAN) of Bluetooth devices. For information on configuring and using Bluetooth devices, refer to the
Bluetooth software Help.

Bluetooth and Internet Connection Sharing (ICS)

HP does not recommend setting up one computer with Bluetooth as a host and using it as a gateway
through which other computers may connect to the Internet. When two or more computers are connected
using Bluetooth, and Internet Connection Sharing (ICS) is enabled on one of the computers, the other
computers may not be able to connect to the Internet using the Bluetooth network.

The strength of Bluetooth is in synchronizing information transfers between your Mini and wireless
devices including cellular phones, printers, cameras, and PDAs. The inability to consistently connect
two or more computers to share the Internet through Bluetooth is a limitation of Bluetooth and the
Windows operating system.

38 Chapter 4 Internet

5Multimedia

Multimedia features

Your computer includes multimedia features that allow you to listen to music, watch movies, and view
pictures. Your computer may include the following multimedia components:

Integrated speakers for listening to music

●

Integrated webcam that allows you to capture photographs and videos

●

Preinstalled multimedia software that allows you to play and manage your music, movies, and

●

pictures

The following sections explain how to identify and use the multimedia components included with your
computer.

Identifying your multimedia components

The following illustration and table describe the multimedia features of the computer.

Multimedia features 39

Component Description

(1) Webcam light On: The webcam is in use.

(2) Webcam Records video and captures still photographs.

NOTE: To capture and edit videos, you can use the

preinstalled Arcsoft WebCam Companion 3 software

(3) Internal microphone Records sound.

(4) Speakers (2) Produce sound.

(5) Volume mute action key (f11) Mutes or restores speaker sound.

(6) Volume up action key (f10) Increases speaker volume.

(7) Volume down action key (f9) Decreases speaker volume.

(8) Audio-out (headphone) jack/Audio-in

(microphone) jack

40 Chapter 5 Multimedia

Produces sound when connected to optional powered stereo
speakers, headphones, earbuds, a headset, or television
audio. Also connects an optional headset microphone.

WARNING! To reduce the risk of personal injury, adjust the

volume before putting on headphones, earbuds, or a headset.
For additional safety information, refer to the Regulatory,

Safety and Environmental Notices.

Component Description

Adjusting the volume

You can adjust the volume using the following computer volume action keys:

To decrease volume, press the volume down action key (f9) (1).

●

To increase volume, press the volume up action key (f10) (2).

●

To mute or restore volume, press the volume mute action key (f11) (3).

●

NOTE: When a device is connected to the jack, the

computer speakers are disabled.

The audio component must have a 4-conductor connector.

Windows® volume control:

●

a. Click the Speakers icon in the notification area, at the far right of the taskbar.

b. Increase or decrease the volume by moving the slider up or down. Click the Mute

Speakers icon to mute the volume.

– or –

a. Right-click the Speakers icon in the notification area, and then click Open Volume Mixer.

b. In the Speakers column, increase or decrease the volume by moving the slider up or down.

You can also mute the volume by clicking the Mute Speakers icon.

If the Speakers icon is not displayed in the notification area, follow these steps to add it:

a. Right-click the Show hidden icons icon (the arrow at far left of the notification area).

b. Click Customize notification icons.

Multimedia features 41

c. Under Behaviors, select Show icon and notifications for the Speakers icon.

d. Click OK.

Program volume control:

●

Volume can also be adjusted within some programs.

42 Chapter 5 Multimedia

Using the media activity action keys

The media activity action keys control the play of an audio CD or a DVD or BD that is inserted into an
external optical drive (purchased separately).

NOTE: The external optical drive must be connected to a USB port on the computer, not to a USB

port on another external device, such as a hub.

When an audio CD or a DVD or BD is not playing, press the play/pause action key (f6) (2) to play

●

the disc.

When an audio CD or a DVD or BD is playing, use the following keys:

●

To play the previous track of an audio CD or the previous chapter of a DVD or BD, press the

◦

previous track action key (f5) (1).

To pause or resume playing the disc, press the play/pause action key (f6) (2).

◦

To stop the disc, press the stop action key (f7) (3).

◦

To play the next track of an audio CD or the next chapter of a DVD or BD, press the next

◦

track action key (f8) (4).

Multimedia software

Your computer includes preinstalled multimedia software. Depending on the hardware and software
included with the computer, the following multimedia tasks may be supported:

Playing digital media, including audio and video CDs, audio and video DVDs, and Internet radio

●

Creating or copying data CDs

●

Creating, editing, and burning audio CDs

●

Creating, editing, and burning a video or movie to a DVD or video CD

●

Using the media activity action keys 43

Using preinstalled multimedia software

To locate preinstalled multimedia software:

Select Start > All Programs, and then open the multimedia program you want to use. For example,

▲

if you want to use Windows Media Player (select models only), click Windows Media Player.

NOTE: Some programs may be located in subfolders.

Installing multimedia software from the Internet

To install multimedia software from the Internet, go to the software manufacturer’s Web site and

▲

follow the instructions.

NOTE: Software downloaded from the Internet may contain viruses. Refer to the “Security” chapter

for more information.

44 Chapter 5 Multimedia

Audio

Your computer has a variety of audio features that allow you to:

Play music using your computer speakers and/or connected external speakers.

●

Record sound using the internal microphone or an optional external headset microphone.

●

Download music from the Internet.

●

Create multimedia presentations using audio and images.

●

Transmit sound and images with instant messaging programs.

●

Connecting external audio devices

WARNING! To reduce the risk of personal injury, adjust the volume before putting on headphones,

earbuds, or a headset. For additional safety information, refer to the Regulatory, Safety and
Environmental Notices.

To connect external devices such as external speakers, headphones, or a headset microphone, refer
to the information provided with the device. For best results, remember the following tips:

Be sure that the device cable has a 4-conductor connector that supports both audio-out

●

(headphone) and audio-in (microphone).

Be sure that the external device cable is securely connected to the jack on your computer.

●

Be sure to install any drivers required by the external device.

●

NOTE: A driver is a required program that acts like a translator between the device and the

programs that use the device.

Checking your audio functions

To check the system sound on your computer, follow these steps:

1. Select Start > Control Panel.

2. Click Hardware and Sound.

3. Click Sound.

4. When the Sound window opens, click the Sounds tab. Under Program Events, select any sound

event, such as a beep or alarm, and click the Test button.

You should hear sound through the speakers or through connected headphones.

To check the record functions of the computer, follow these steps:

1. Select Start > All Programs > Accessories > Sound Recorder.

2. Click Start Recording and speak into the microphone. Save the file to your desktop.

3. Open Windows Media Player or TouchSmart and play back the sound.

NOTE: For best results when recording, speak directly into the microphone and record sound in a

setting free of background noise.

Audio 45

To confirm or change the audio settings on your computer, select Start > Control Panel > Hardware

and Sound > Sound.

Video

Your computer enables you to use a variety of video features:

Watch movies

●

Play games over the Internet

●

Edit pictures and video to create presentations

●

Connect external video devices

●

Connecting an external monitor or projector

Use a VGA cable (purchased separately) to connect an external display, such as a monitor or projector,
to the external monitor port on the computer.

To connect an external monitor or projector:

1. Connect the optional VGA cable to the external monitor port on the computer.

2. Connect the external monitor or projector to the other end of the cable.

NOTE: If a properly connected external monitor or projector does not display a screen image, press

the f4 action key to transfer the image to the external display. Repeatedly pressing f4 alternates the
screen image between the external display and the computer.

46 Chapter 5 Multimedia

Webcam

Your computer includes an integrated webcam, located at the top of the display. The webcam is an input
device that allows you to record video and capture still photographs.

NOTE: To record and edit videos, you can use the preinstalled Arcsoft WebCam Companion 3

To access the webcam using Arcsoft WebCam Companion 3 software:

1. Select Start > All Programs > Arcsoft WebCam Companion 3.

2. You may choose Capture or Edit from the dialog box.

NOTE: For more information, refer to Arcsoft WebCam Companion 3 software Help.

Webcam 47

6Security

Protecting the computer

Standard security features provided by the Windows operating system and the non-Windows Setup
Utility can protect your personal settings and data from a variety of risks.

Follow the procedures in this chapter to use the following features:

Passwords

●

Firewall software

●

Antivirus support (Norton Internet Security)

●

Critical security updates

●

NOTE: Security solutions are designed to act as deterrents, but they may not deter software attacks

or prevent the computer from being mishandled or stolen.

NOTE: Before you send your computer for service, remove all password settings.

Computer risk Security feature

Unauthorized use of the computer Power-on password

Unauthorized access to data

Unauthorized access to Setup Utility, BIOS settings, and other
system identification information

Ongoing or future threats to the computer Critical security updates from Microsoft

Unauthorized access to a Windows user account User password

Using passwords

A password is a group of characters that you choose to secure your computer information. Several types
of passwords can be set, depending on how you want to control access to your information. Passwords
can be set in Windows or in the non-Windows Setup Utility preinstalled on the computer.

CAUTION: To prevent being locked out of the computer, record each password you set. Because

most passwords are not displayed as they are set, changed, or deleted, it is essential to record each
password immediately and store it in a secure place.

Firewall software

●

Windows updates

●

Administrator password

48 Chapter 6 Security

You can use the same password for a Setup Utility feature and for a Windows security feature. You can
also use the same password for more than one Setup Utility feature.

Use the following guidelines when setting a password in Setup Utility:

A password can be any combination of up to 8 letters and numbers and is case sensitive.

●

A password set in Setup Utility must be entered at a Setup Utility prompt. A password set

●

in Windows must be entered at a Windows prompt.

Use the following tips for creating and saving passwords:

When creating passwords, follow requirements set by the program.

●

Write down your passwords and store them in a secure place away from the computer.

●

Do not store passwords in a file on the computer.

●

Do not use your name or other personal information that could be easily discovered by an outsider.

●

The following sections list Windows and Setup Utility passwords and describe their functions. For
additional information about Windows passwords, such as screen-saver passwords, select Start > Help

and Support.

Setting passwords in Windows

Password Function

Administrator password Protects administrator-level access to computer contents.

User password Protects access to a Windows user account. It also protects

Setting passwords in Setup Utility

Password Function

Administrator password*

Power-on password*

NOTE: This password cannot be used to access Setup Utility

contents.

access to the computer contents and must be entered when
you exit Sleep or Hibernation.

Protects access to Setup Utility.

●

After this password is set, it must be entered each time

●

you access Setup Utility.

CAUTION: If you forget your administrator password, you

cannot access Setup Utility.

Protects access to the computer contents.

●

After this password is set, it must be entered each time

●

you turn on or restart the computer, or exit Hibernation.

CAUTION: If you forget your power-on password, you

cannot turn on or restart the computer, or exit Hibernation.

*For details about each of these passwords, refer to the following topics.

Using passwords 49

Administrator password

Your administrator password protects the configuration settings and system identification information in
Setup Utility. After this password is set, you must enter it each time you access Setup Utility.

Your administrator password is not interchangeable with an administrator password set in Windows,
nor is it displayed as it is set, entered, changed, or deleted. Be sure that you record your password and
store it in a safe place.

Managing an administrator password

To set, change, or delete this password, follow these steps:

1. Open Setup Utility by turning on or restarting the computer, and then pressing f10 while the “F10

= BIOS Setup Options” message is displayed in the lower-left corner of the screen.

2. Use the arrow keys to select Security > Set Administrator Password, and then press enter.

To set an administrator password, type your password in the Enter New Password and

●

Confirm New Password fields, and then press enter.

To change an administrator password, type your current password in the Enter Current

●

Password field, type a new password in the Enter New Password and Confirm New
Password fields, and then press enter.

To delete an administrator password, type your current password in the Enter Password field,

●

and then press enter 4 times.

3. To save your changes and exit Setup Utility, use the arrow keys to select Exit > Exit Saving

Changes.

Your changes go into effect when the computer restarts.

Entering an administrator password

At the Enter Password prompt, type your administrator password, and then press enter. After 3
unsuccessful attempts to enter the administrator password, you must restart the computer and try again.

Power-on password

Your power-on password prevents unauthorized use of the computer. After this password is set, it must
be entered each time you turn on or restart the computer, or exit Hibernation. A power-on password is
not displayed as it is set, entered, changed, or deleted.

50 Chapter 6 Security

Managing a power-on password

To set, change, or delete this password, follow these steps:

1. Open Setup Utility by turning on or restarting the computer, and then pressing f10 while the “F10

= BIOS Setup Options” message is displayed in the lower-left corner of the screen.

2. Use the arrow keys to select Security > Set Power-On Password, and then press enter.

To set a power-on password, type your password in the Enter New Password and Confirm

●

New Password fields, and then press enter.

To change a power-on password, type your current password in the Enter Current

●

Password field, type a new password in the Enter New Password and Confirm New
Password fields, and then press enter.

To delete a power-on password, type your current password in the Enter Current

●

Password field, and then press enter 4 times.

3. To save your changes and exit Setup Utility, use the arrow keys to select Exit > Exit Saving

Changes.

Your changes go into effect when the computer restarts.

Entering a power-on password

At the Enter Password prompt, type your password, and then press enter. After 3 unsuccessful attempts
to enter the password, you must restart the computer and try again.

Using passwords 51

Using antivirus software

When you use the computer for e-mail or Internet access, you expose it to computer viruses that can
disable the operating system, programs, or utilities or cause them to function abnormally.

Antivirus software can detect most viruses, destroy them, and in most cases, repair damage they have
caused. To provide ongoing protection against newly discovered viruses, antivirus software must be
kept up to date.

Norton Internet Security, an antivirus program, is preinstalled on the computer.

Your version of Norton Internet Security includes 60 days of free updates. It is strongly

●

recommended that you protect the computer against new viruses beyond 60 days by purchasing
extended update service. Instructions for using and updating Norton Internet Security software and
for purchasing extended update service are provided within the program.

To access Norton Internet Security, or to get more information about it, select Start > All

●

Programs > Norton Internet Security.

NOTE: HP recommends that you always update the antivirus software to help protect your computer.

NOTE: For more information about computer viruses, type viruses in the Search box in Help and

Support.

52 Chapter 6 Security

Using firewall software

When you use the computer for e-mail, network, or Internet access, unauthorized persons may be able
to gain access to the computer, your personal files, and information about you. Use the firewall software
preinstalled on the computer to protect your privacy.

Firewall features include logging and reporting of network activity, and automatic monitoring of all
incoming and outgoing traffic. Refer to the firewall user guide or contact your firewall manufacturer for
more information.

NOTE: Under some circumstances a firewall can block access to Internet games, interfere with printer

or file sharing on a network, or block authorized e-mail attachments. To temporarily resolve the problem,
disable the firewall, perform the task that you want to perform, and then reenable the firewall. To
permanently resolve the problem, reconfigure the firewall.

Using firewall software 53

Installing critical updates

CAUTION: Microsoft sends alerts regarding critical updates. To protect the computer from security

breaches and computer viruses, install all critical updates from Microsoft as soon as you receive an
alert.

Updates to the operating system and other software may have become available after the computer
was shipped. To be sure that all available updates are installed on the computer, observe these
guidelines:

Run Windows Update as soon as possible after you set up your computer. Use the update link at

●

Start > All Programs > Windows Update.

Run Windows Update at regular intervals, such as once a month.

●

Obtain updates to Windows and other Microsoft programs, as they are released, from the Microsoft

●

Web site and through the updates link in Help and Support.

54 Chapter 6 Security

7 Digital cards

Optional digital cards provide secure data storage and convenient data sharing. These cards are often
used with digital media–equipped cameras and PDAs as well as with other devices.

The Digital Media Slot supports the following formats:

Memory Stick (MS)

●

MS/Pro

●

MultiMediaCard (MMC)

●

Secure Digital High Capacity (SDHC) Memory Card (standard and large size)

●

xD-Picture card

●

Inserting a digital card

CAUTION: To avoid damaging the digital card or the computer, do not insert any type of adapter into

the Digital Media Slot.

CAUTION: To prevent damage to the digital card connectors, use minimal force to insert a digital card.

1. Hold the digital card label-side up, with the connectors toward the computer.

2. Insert the card into the Digital Media Slot, and then push in on the card until it is firmly seated.

You will hear a sound when the device has been detected, and a menu of options may be displayed.

Inserting a digital card 55

Removing a digital card

CAUTION: To prevent loss of information or an unresponsive system, use the following procedure to

safely remove the digital card.

1. Save your information and close all programs associated with the digital card.

NOTE: To stop a data transfer, click Cancel in the operating system Copying window.

2. To remove a digital card:

a. Click the Safely Remove Hardware and Eject Media icon in the notification area, at the far

right of the taskbar.

NOTE: To display the Safely Remove Hardware and Eject Media icon, click the Show

hidden icons icon (the arrow at the left side of the notification area).

b. Click the name of the digital card in the list.

NOTE: You are prompted that it is safe to remove the hardware device.

c. Press in on the digital card and then remove the digital card from the slot.

56 Chapter 7 Digital cards

8USB devices

Using a USB device

Universal Serial Bus (USB) is a hardware interface that can be used to connect an optional external
device, such as a USB keyboard, mouse, drive, printer, scanner, or hub. Devices can be connected to
the system.

Some USB devices may require additional support software, which is usually included with the device.
For more information about device-specific software, refer to the manufacturer's instructions.

The computer has 3 USB ports, which support USB 1.0, USB 1.1, and USB 2.0 devices. An optional
USB hub provides additional USB ports that can be used with the computer.

Connecting a USB device

CAUTION: To prevent damage to a USB connector, use minimal force to connect a USB device.

To connect a USB device, connect the USB cable for the computer to the USB port.

▲

You will hear a sound when the device has been detected.

NOTE: When you connect a USB device, you may see a message in the notification area to let you

know that the device is recognized by the system.

Removing a USB device

CAUTION: To prevent loss of information or an unresponsive system, use the following procedure to

safely remove a USB device.

Using a USB device 57

CAUTION: To prevent damage to a USB connector, do not pull on the cable to remove the USB device.

To remove a USB device:

1. Click the Safely Remove Hardware and Eject Media icon in the notification area, at the far right

of the taskbar.

NOTE: To display the Safely Remove Hardware and Eject Media icon, click the Show hidden

icons icon (the arrow at the left of the notification area).

2. Click the name of the device in the list.

NOTE: You are informed that it is safe to remove the device.

3. Remove the device.

58 Chapter 8 USB devices

9 Pointing devices and keyboard

Setting pointing device preferences

Use Mouse Properties in Windows® to customize settings for pointing devices, such as button
configuration, click speed, and pointer options.

To access Mouse Properties, select Start > Devices and Printers. Then, right-click the device
representing your device, and select Mouse settings.

Using the TouchPad

To move the pointer, slide your finger across the TouchPad surface in the direction you want the pointer
to go. Use the TouchPad buttons like the corresponding buttons on an external mouse. To scroll up and
down using the TouchPad vertical scroll zone, slide your finger up or down over the lines.

NOTE: For more information on identifying the TouchPad components, refer to the “Touchpad” section

earlier in this guide

The TouchPad supports a variety of TouchPad gestures. To activate the TouchPad gestures, place two
fingers on the TouchPad as described in the following sections.

The TouchPad gestures described in this section are enabled at the factory. To disable or reenable
these gestures:

1. Double-click the Synaptics icon in the notification area, at the far right of the taskbar, and then

2. Select the device, and then click Settings.

3. Select the check box to disable or reenable the TouchPad gesture.

4. Click Apply and then click OK.

Scrolling

Scrolling is useful for moving up or down on a page or image. To scroll, place two fingers on the
TouchPad and drag them across the TouchPad in an up, down, left, or right motion.

NOTE: Scrolling speed is controlled by finger speed.

click the Device Settings tab.

Setting pointing device preferences 59

Pinching

Pinching allows you to zoom in or out on items such as PDFs, images, and photos.

To pinch:

●

●

Zoom in by holding two fingers together on the TouchPad, and then pull the fingers apart to increase
an object's size.

Zoom out by holding two fingers apart on the TouchPad, and then pull the fingers together to
decrease an object's size.

Rotating

Rotating allows you to rotate items such as photos and pages. To rotate, anchor your thumb on the
TouchPad, and then move your forefinger in a semicircular motion around your thumb.

60 Chapter 9 Pointing devices and keyboard

Connecting an external mouse

You can connect an external USB mouse to the computer using one of the USB ports on the
computer.

Using the keyboard

Using the action keys

Action keys are customized actions that are assigned to specific keys at the top of the keyboard.

To use an action key, press and hold this key to activate the assigned function.

NOTE: Depending on the program you are using, pressing fn and one of the action keys opens a

specific shortcut menu within that program.

NOTE: The action key feature is enabled at the factory. You can disable this feature in Setup Utility

to require pressing the fn key and one of the action keys to activate the assigned function. Refer to the
“Setup Utility” chapter for additional information.

Icon Description

Opens Help and Support, which provides information about your Windows
operating system and computer, answers to questions and tutorials, and updates
to your computer.

Help and Support also provides automated troubleshooting and links to support
specialists.

Using the keyboard 61

Icon Description

Decreases the screen brightness level incrementally when you hold down this key.

Increases the screen brightness level incrementally when you hold down this key.

Switches the screen image among display devices connected to the system. For
example, if a monitor is connected to the computer, pressing this key alternates the
screen image from computer display to monitor display to simultaneous display on
both the computer and the monitor.

Most external monitors receive video information from the computer using the
external VGA video standard. The switch screen image key can also alternate
images among other devices that are receiving video information from the
computer.

Plays the previous track of a CD or the previous section of a DVD or a BD.

Plays a track of an audio CD or a section of a DVD or a BD.

Stops audio playback of a CD, a DVD, or a BD.

Plays the next track of an audio CD or the next section of a DVD or a BD.

Decreases speaker volume incrementally when you hold down this key.

prt sc Takes a snapshot or picture of your computer screen and copies it to the clipboard.

Using hotkeys

Hotkeys are combinations of the fn key (1) and the esc key (2).

Increases speaker volume incrementally when you hold down this key.

Mutes or restores speaker sound.

Turns the wireless feature on or off.

NOTE: This key does not establish a wireless connection. To establish a wireless

connection, a wireless network must also be set up.

62 Chapter 9 Pointing devices and keyboard

Function Hotkey Description

Display system information. fn+esc Displays information about system hardware

components and the system BIOS version
number.

To use a hotkey command on the computer keyboard, follow either of these steps:

Briefly press the fn key, and then briefly press the second key of the hotkey command.

●

– or –

Press and hold down the fn key, briefly press the second key of the hotkey command, and then

●

release both keys at the same time.

Using the keyboard 63

Using the touch screen (select models only)

Some computer models allow you to use your fingers to perform certain actions on the touch screen.

NOTE: The instructions in this section are based on the preferences set at the factory. To modify

settings for recognized clicks and flicks, select Start > Control Panel > Hardware and Sound > Pen
and Touch.

Tapping (or clicking)

Tap or double-tap an item on the screen as you would click or double-click with the TouchPad or an
external mouse. Tap and hold an item to see the context menu as you would with the right TouchPad
button.

NOTE: You must tap and hold your finger until the operating system draws a circle around the area

you are touching, and then the context menu appears.

Flicking

Touch the screen in a light, quick flicking motion up, down, left, or right to navigate through screens or
quickly scroll through documents.

NOTE: For the flick movement to work, a scrollbar must be present and in the active window.

Dragging

Press your finger on an item on the screen, and then move your finger to drag the item to a new location.
You can also use this motion to slowly scroll through documents.

Scrolling

Scrolling is useful for moving up or down on a page or image. To scroll, place two fingers on the screen,
and then drag them across the screen in an up, down, left, or right motion.

NOTE: Scrolling speed is controlled by finger speed.

64 Chapter 9 Pointing devices and keyboard

Rotating

Rotating allows you to rotate items such as photos and pages. To rotate, anchor your thumb on the
screen, and then move your forefinger in a semicircular motion around your thumb.

Pinching

Pinching allows you to zoom in or out on items such as PDFs, images, and photos.

To pinch:

●

●

Zoom out by holding two fingers apart on the screen, and then pull the fingers together to decrease
an object's size.

Zoom in by holding two fingers together on the screen, and then pull the fingers apart to increase
an object's size.

Using the touch screen (select models only) 65

Setting touch screen preferences

To set preferences for visual feedback, select Start > Control Panel > Hardware and Sound >

▲

Pen and Touch. These preferences are specific to the touch screen and the computer.

To set preferences for left-handed or right-handed users, select Start > Control Panel > Hardware

▲

and Sound > Tablet PC Settings > Other tab. These preferences are specific to the touch screen
and the computer.

To set pointing device preferences such as pointer speed, click speed, and mouse trails, select

▲

Start > Devices and Printers. Then, right-click the device representing your computer, and select
Mouse settings. These preferences apply to any pointing device in the system.

To change or test click settings:

1. Select Start > Control Panel > Hardware and Sound > Pen and Touch > Pen Options tab.

2. Under Pen Actions, select the action, and then click Settings.

3. After making any changes or testing the settings, click OK.

To change or create flick assignments:

1. Select Start > Control Panel > Hardware and Sound > Pen and Touch > Flicks tab.

2. Click

3. Follow the on-screen instructions to change or create a flick assignment.

4. Click OK.

Navigational flicks and editing flicks and then click Customize.

66 Chapter 9 Pointing devices and keyboard

10 Drives

Identifying installed drives

To view the drives installed on the computer, select Start > Computer.

Handling drives

Drives are fragile computer components that must be handled with care. Refer to the following cautions
before handling drives. Additional cautions are included with the procedures to which they apply.

Identifying installed drives 67

CAUTION: To reduce the risk of damage to the computer, damage to a drive, or loss of information,

observe these precautions:

Before you move a computer that is connected to an external hard drive, initiate Sleep and allow the
screen to clear, or properly disconnect the external hard drive.

Before handling a drive, discharge static electricity by touching the unpainted metal surface of the drive.

Do not touch the connector pins on a removable drive or on the computer.

Handle a drive carefully; do not drop a drive or place items on it.

Before removing or inserting a drive, shut down the computer. If you are unsure whether the computer
is off, in the Sleep state, or in Hibernation, turn the computer on and then shut it down through the
operating system.

Do not use excessive force when inserting a drive into a drive bay.

Do not type on the keyboard or move the computer while an optional optical drive is writing to a disc.
The write process is sensitive to vibration. The external optical drive must be connected to a USB port
on the computer, not to a USB port on another external device, such as a hub.

When the battery is the only source of power, be sure that the battery is sufficiently charged before
writing to media.

Avoid exposing a drive to temperature or humidity extremes.

Avoid exposing a drive to liquids. Do not spray the drive with cleaning products.

Remove media from a drive before removing the drive from the drive bay, or traveling with, shipping, or
storing a drive.

If a drive must be mailed, place the drive in a bubble-pack mailer or other suitable protective packaging
and label the package “FRAGILE.”

Avoid exposing a drive to magnetic fields. Security devices with magnetic fields include airport walk­through devices and security wands. The airport security devices that check carry-on luggage, such as
conveyor belts, use X-rays instead of magnetism and will not damage a drive.

Using external drives

Removable external drives expand your options for storing and accessing information.

USB drives include the following types:

1.44-megabyte diskette drive

●

Hard drive module (a hard drive with an adapter attached)

●

DVD-ROM Drive

●

DVD/CD-RW Combo Drive

●

DVD+RW/R and CD-RW Combo Drive

●

DVD±RW/R and CD-RW Combo Drive

●

68 Chapter 10 Drives

Using optional external devices

NOTE: For more information about required software and drivers, or to learn which device port to use,

refer to the manufacturer's instructions.

To connect an external device:

CAUTION: To reduce the risk of damage to the equipment when connecting a powered device, be

sure that the computer is turned off and the AC power cord is unplugged.

1. Connect the device.

2. If you are connecting a powered device, plug the device power cord into a grounded AC outlet.

3. Turn on the computer.

To disconnect an unpowered external device, turn off the computer, and then disconnect it. To
disconnect a powered external device, turn off the computer, disconnect it, and then unplug the AC
power cord.

Using external drives 69

11 Memory modules

The computer has one memory module compartment, which is located on the bottom of the computer,
beneath the vanity cover. The memory capacity of the computer can be upgraded by replacing the
existing memory module in the memory module slot.

WARNING! To reduce the risk of electric shock and damage to the equipment, unplug the power cord

and remove all batteries before installing a memory module.

CAUTION: Electrostatic discharge (ESD) can damage electronic components. Before beginning any

procedure, ensure that you are discharged of static electricity by touching a grounded metal object.

To add or replace a memory module:

1. Save your work.

2. Shut down the computer and close the display.

If you are not sure whether the computer is off or in Hibernation, turn the computer on by sliding
the power switch. Then shut down the computer through the operating system.

3. Disconnect all external devices connected to the computer.

4. Follow the instructions in the section “Removing the vanity cover,” earlier in this guide.

5. Remove the existing memory module:

a. Pull away the retention clips (1) on each side of the memory module.

The memory module tilts up.

CAUTION: To prevent damage to the memory module, hold the memory module by the

edges only. Do not touch the components on the memory module.

70 Chapter 11 Memory modules

b. Grasp the edge of the memory module (2), and gently pull the module out of the memory

module slot.

To protect a memory module after removal, place it in an electrostatic-safe container.

6. Insert a new memory module:

CAUTION: To prevent damage to the memory module, hold the memory module by the edges

only. Do not touch the components on the memory module, and do not bend the memory module.

a. Align the notch (1) in the memory module with the tab in the memory module slot.

b. With the memory module at a 45–degree angle from the surface of the memory module

compartment, press the module (2) into the memory module slot until it is seated.

c. Gently press the memory module (3) down, applying pressure to both the left and right edges

of the memory module, until the retention clips snap into place.

CAUTION: To prevent damage to the memory module, be sure that you do not bend the

memory module.

7. Follow the instructions in the section “Replacing the vanity cover,” earlier in this guide.

71

8. Turn the computer right-side up, and then reconnect external power and external devices.

9. Turn on the computer.

72 Chapter 11 Memory modules

12 Updating software

Updated versions of the software provided with your computer may be available on the HP Web site.

Most software and BIOS updates on the HP Web site are packaged in compressed files called
SoftPaqs.

Some download packages contain a file named Readme.txt, which contains information regarding
installing and troubleshooting the file.

To update the software, follow these steps, which are explained in the remainder of this guide:

1. Identify your computer model, product category, and series or family. Prepare for a system BIOS

update by identifying the BIOS version currently installed on the computer.

If your computer is connected to a network, consult the network administrator before installing any
software updates, especially system BIOS updates.

NOTE: The computer system BIOS is stored on the system ROM. The BIOS initializes the

operating system, determines how the computer will interact with the hardware devices, and
provides for data transfer among hardware devices, including the time and date.

2. Access the updates on the HP Web site at http://www.hp.com.

3. Install the updates.

73

Updating the BIOS

To update the BIOS, first determine what BIOS version you currently have and then download and install
the new BIOS.

Determining the BIOS version

To determine whether available BIOS updates contain later BIOS versions than those currently installed
on the computer, you need to know the version of the system BIOS currently installed.

BIOS version information (also known as ROM date and System BIOS) can be displayed by opening
Setup Utility.

To display the BIOS information:

1. Open Setup Utility by turning on or restarting the computer, and then pressing f10 while the “F10

= BIOS Setup Options” message is displayed in the lower-left corner of the screen.

2. If Setup Utility does not open with the system information displayed, use the arrow keys to select

the Main menu.

When the Main menu is selected, BIOS and other system information is displayed.

3. To exit Setup Utility, use the arrow keys to select Exit > Exit Discarding Changes, and then press

enter.

Downloading a BIOS update

CAUTION: To prevent damage to the computer or an unsuccessful installation, download and install

a BIOS update only when the computer is connected to reliable external power using the AC adapter.
Do not download or install a BIOS update while the computer is running on battery power or connected
to an optional power source. During the download and installation, follow these instructions:

Do not disconnect power from the computer by unplugging the power cord from the AC outlet.

Do not shut down the computer or initiate Sleep or Hibernation.

Do not insert, remove, connect, or disconnect any device, cable, or cord.

To download a BIOS update:

1. Access the page on the HP Web site that provides software for your computer:

Select Start > Help and Support, and then select the software and drivers update.

2. Follow the instructions on the screen to identify your computer and access the BIOS update you

want to download.

3. At the download area, follow these steps:

a. Identify the BIOS update that is later than the BIOS version currently installed on your

computer. Make a note of the date, name, or other identifier. You may need this information
to locate the update later, after it has been downloaded to your hard drive.

b. Follow the instructions on the screen to download your selection to the hard drive.

Make a note of the path to the location on your hard drive where the BIOS update is to be
downloaded. You will need to access this path when you are ready to install the update.

74 Chapter 12 Updating software

NOTE: If you connect your computer to a network, consult the network administrator before

installing any software updates, especially system BIOS updates.

BIOS installation procedures vary. Follow any instructions that are displayed on the screen after the
download is complete. If no instructions are displayed, follow these steps:

1. Open Windows Explorer by selecting Start > Computer.

2. Double-click your hard drive designation. The hard drive designation is typically Local Disk (C:).

3. Using the hard drive path you recorded earlier, open the folder on your hard drive that contains the

update.

4. Double-click the file that has an .exe extension (for example, filename.exe).

The BIOS installation begins.

5. Complete the installation by following the instructions on the screen.

NOTE: After a message on the screen reports a successful installation, you can delete the downloaded

file from your hard drive.

Updating the BIOS 75

Updating programs and drivers

To download and install software other than a BIOS update, follow these steps:

1. Access the page on the HP Web site that provides software for your computer:

Select Start > Help and Support, and then select the software and drivers update.

2. Follow the instructions on the screen to find the software you want to update.

3. At the download area, select the software you want to download and follow the instructions on the

screen.

NOTE: Make a note of the path to the location on your hard drive where the software is to be

downloaded. You will need to access this path when you are ready to install the software.

4. When the download is complete, open Windows Explorer by selecting Start > Computer.

5. Double-click your hard drive designation. The hard drive designation is typically Local Disk (C:).

6. Using the hard drive path you recorded earlier, open the folder on your hard drive that contains the

update.

7. Double-click the file that has an .exe extension (for example, filename.exe).

The installation begins.

8. Complete the installation by following the instructions on the screen.

NOTE: After a message on the screen reports a successful installation, you can delete the downloaded

file from your hard drive.

76 Chapter 12 Updating software

13 Changing QuickWeb settings

Disabling and enabling QuickWeb

To disable or reenable QuickWeb from within the Windows operating system:

1. Select Start > All Programs > HP QuickWeb. The HP QuickWeb Installer folder is displayed.

Click HP QuickWeb Configuration Tool.

2. Select the Enable QuickWeb check box.

3. Click OK.

NOTE: The HP QuickWeb Configuration Tool can also be accessed by selecting Start > Control

Panel, and then clicking the View by arrow. Select Large icons or Small icons to locate the HP

QuickWeb Configuration Tool.

Disabling and enabling QuickWeb 77

14 Setup Utility

Starting Setup Utility

Setup Utility is a ROM-based information and customization utility that can be used even when your
Windows operating system is not working.

The utility reports information about the computer and provides settings for startup, security, and other
preferences.

To start Setup Utility:

Open Setup Utility by turning on or restarting the computer, and then pressing f10 while the “F10

▲

= BIOS Setup Options” message is displayed in the lower-left corner of the screen.

Using Setup Utility

Changing the language of Setup Utility

The following procedure explains how to change the language of Setup Utility. If Setup Utility is not
already running, begin at step 1. If Setup Utility is already running, begin at step 2.

1. Open Setup Utility by turning on or restarting the computer, and then pressing f10 while the “F10

= BIOS Setup Options” message is displayed in the lower-left corner of the screen.

2. Use the arrow keys to select System Configuration > Language, and then press enter.

3. Use the arrow keys to select a language, and then press enter.

4. When a confirmation prompt with your language selected is displayed, press enter.

5. To save your change and exit Setup Utility, use the arrow keys to select Exit > Exit Saving

Changes, and then press enter.

Your change goes into effect immediately.

Navigating and selecting in Setup Utility

Because Setup Utility is not Windows based, it does not support the TouchPad. Navigation and selection
are by keystroke.

To choose a menu or a menu item, use the arrow keys.

●

To choose an item in a list or to toggle a field, for example an Enable/Disable field, use either the

●

arrow keys or f5 or f6.

78 Chapter 14 Setup Utility

To select an item, press enter.

●

To close a text box or return to the menu display, press esc.

●

To display additional navigation and selection information while Setup Utility is open, press f1.

●

Displaying system information

The following procedure explains how to display system information in Setup Utility. If Setup Utility is
not open, begin at step 1. If Setup Utility is open, begin at step 2.

1. Open Setup Utility by turning on or restarting the computer, and then pressing f10 while the “F10

= BIOS Setup Options” message is displayed in the lower-left corner of the screen.

2. Select the Main menu. System information such as the system time and date, and identification

information about the computer is displayed.

3. To exit Setup Utility without changing any settings, use the arrow keys to select Exit > Exit

Discarding Changes, and then press enter.

Restoring default settings in Setup Utility

The following procedure explains how to restore the Setup Utility default settings. If Setup Utility is not
already running, begin at step 1. If Setup Utility is already running, begin at step 2.

1. Open Setup Utility by turning on or restarting the computer, and then pressing f10 while the “F10

= BIOS Setup Options” message is displayed in the lower-left corner of the screen.

2. Use the arrow keys to select Exit > Load Setup Defaults, and then press enter.

3. When the Setup Confirmation is displayed, press enter.

4. To save your change and exit Setup Utility, use the arrow keys to select Exit > Exit Saving

Changes, and then press enter.

The Setup Utility default settings go into effect when the computer restarts.

NOTE: Your password, security, and language settings are not changed when you restore the factory

default settings.

Exiting Setup Utility

You can exit Setup Utility with or without saving changes.

To exit Setup Utility and save your changes from the current session:

●

If the Setup Utility menus are not visible, press esc to return to the menu display. Then use the
arrow keys to select Exit > Exit Saving Changes, and then press enter.

To exit Setup Utility without saving your changes from the current session:

●

If the Setup Utility menus are not visible, press esc to return to the menu display. Then use the
arrow keys to select Exit > Exit Discarding Changes, and then press enter.

After either choice, the computer restarts in Windows.

Using Setup Utility 79

Setup Utility menus

The menu tables in this section provide an overview of the Setup Utility options.

NOTE: Some of the Setup Utility menu items listed in this chapter may not be supported by your

computer.

Main menu

Select To do this

System information

Security menu

Select To do this

Administrator password Enter, change, or delete an administrator password.

Power-On Password Enter, change, or delete a power-on password.

System Configuration menu

Select To do this

Language Support Change the Setup Utility language.

Processor C4 State Enable/disable the processor C4 sleep state.

Boot Options Set the following boot options:

View and change the system time and date.

●

View identification information about the computer.

●

View specification information about the processor, memory size,

●

and system BIOS.

80 Chapter 14 Setup Utility

f10 and f12 Delay (sec.)―Set the delay for the f10 and f12 functions

●

of Setup Utility in intervals of 5 seconds each (0, 5, 10, 15, 20).

HP QuickWeb—Enable/disable the QuickWeb Boot menu in Setup

●

Utility.

Internal Network Adapter boot―Enable/disable boot from Internal

●

Network Adapter.

Boot Device Priority―Set the boot device priority for:

●

Internal hard drive (select models only)

◦

USB Floppy

◦

USB CD/DVD ROM Drive

◦

USB flash drive

◦

USB Hard drive

◦

Select To do this

Diagnostics menu

Select To do this

Hard Disk Self Test (select models only) Run a comprehensive self-test on the hard drive.

Memory Test Run a diagnostic test on the system memory.

USB Card Reader

◦

Network adapter

◦

NOTE: Only the devices attached to the system appear in the

boot order menu.

Setup Utility menus 81

Index

A

AC adapter

connecting 18

identifying 13
action keys 5
administrator password

creating 50

entering 50

managing 50
airport security devices 68
antennas 12
applications key, Windows 5
audio devices, connecting

external 45
audio functions, checking 45
audio-in (microphone) jack 8, 40
audio-out (headphone) jack 8,

40

B

battery

calibrating 22
charging 20, 22
discharging 21
disposing 25
identifying 13
inserting 19
low battery levels 21
recharging 24
removing 19

storing 25
battery bay, identifying 9
battery light 20, 21
battery power 18
battery release latches 9, 19
battery temperature 25
bay, battery 9
BIOS, updating 74
Bluetooth device 29
boot options 80

boot order 80
buttons

left TouchPad 4
right TouchPad 4
TouchPad, on/off button 3

C

cables

LAN 28
USB 57

VGA 46
calibrating battery 22
caps lock light, identifying 4
CD drive 68
changing Setup Utility

language 78
charging batteries 20, 22
checking audio functions 45
components

additional hardware 13
bottom 9
display 8
front 5
left-side 7
right-side 6

TouchPad 3
connecting to a WLAN 33
Connection Manager icon 29
connection, external power 18
cord, power 13
corporate WLAN connection 33
critical battery level 22

D

Diagnostics menu 81
digital card

inserting 55

removing 56
Digital Media Slot, identifying 6
diskette drive 68

display switch, identifying 8
displaying system information 79
drive media 15
drives

diskette 68
external 68
hard 68

optical 68
drives, boot order 80
DVD drive 68

E

earbuds 8, 40
encryption 33
entering a power-on

password 51

entering an administrator

password 50
exiting Setup Utility 79
external audio devices,

connecting 45
external drive 68
external monitor port 46
external monitor port,

identifying 7

F

firewall 33
fn key 5, 62
function keys 62

H

hard drive self test 81
hard drive, external 68
hardware, identifying 3
headphone (audio-out) jack 8,

40
headphones 8, 40
Hibernation

exiting 16

82 Index

initiated during critical battery

level 22

initiating 16

hotkeys

description 62
using 63

HP Connection Manager

software 30
HP Mobile Broadband Module 35
HP Mobile Broadband,

disabled 35
hubs 57

I

icons

Connection Manager 29
network 29
wired network 29
wireless 29

internal display switch,

identifying 8
internal microphone,

identifying 9, 40
Internet connection setup 32

J

jacks

audio-in (microphone) 8, 40
audio-out (headphone) 8, 40
RJ-45 (network) 7

K

keyboard hotkeys, identifying 62
keys

action 5
fn 5
Windows applications 5
Windows logo 5

TouchPad 4
webcam 8

local area network (LAN)

cable required 28
connecting cable 28

low battery level 21

M

Main menu 80
managing a power-on

password 51

managing an administrator

password 50

memory module

inserting 71

removing 70
memory test 81
microphone (audio-in) jack 8, 40
monitor, connecting 46
mouse, external

connecting 61

setting preferences 59
multimedia components,

identifying 39

multimedia software

installing 44

using 44
mute action key, identifying 40

N

navigating in Setup Utility 78
network cable

connecting 28

noise suppression circuitry 28
network icon 29
network jack, identifying 7
noise suppression circuitry, network

cable 28

ports

external monitor 46
USB 6, 8, 57

power

connecting 18
power connector, identifying 7
power cord, identifying 13
power-on password

creating 51

entering 51

managing 51
Processor C4 State 80
product name and number,

computer 13
programs, updating 76
projector, connecting 46
public WLAN connection 33

Q

QuickWeb

disabling 77
enabling 77
Setup Utility 80

R

readable media 15
regulatory information

HP Mobile Broadband Module

serial number 14
regulatory label 14
wireless 14

release latches

battery 9, 20

restoring default settings 79
right TouchPad button,

identifying 4

RJ-45 (network) jack,

identifying 7

L

labels

Microsoft Certificate of

Authenticity 14
regulatory 14
serial number 13

language support 80
latches, battery release 9
Left TouchPad button,

identifying 4

lights

caps lock 4

O

operating system 25
optical drive 68

P

passwords

administrator 50
power-on 50
set in Setup Utility 49
set in Windows 49

S

security cable slot 7
Security menu 80
security, wireless 32
selecting in Setup Utility 78
serial number, computer 13
setup of WLAN 32
Setup Utility, passwords set in 49
setup, computer 3
shut down 25

Index 83

SIM

inserting 35
removing 36

Sleep

exiting 15
initiating 15

software

HP Connection Manager 30
installing 44
multimedia 44

Windows Media Player 44
speakers 5
speakers, identifying 40
storing battery 25
System Configuration menu 80
system information 80

T

temperature 25
TouchPad

buttons 3

identifying 3
TouchPad light, identifying 4
TouchPad on/off button,

identifying 3

TouchPad scroll zone,

identifying 4
traveling with the computer 25
turning off the computer 25

W

webcam light, identifying 8, 40
webcam, identifying 9, 40
Windows applications key,

identifying 5
Windows logo key, identifying 5
Windows, passwords set in 49
wired network icon 29
wireless action key, identifying 30
wireless antennas 12
wireless controls

button 30

operating system 30
wireless icon 29
wireless light, identifying 30
wireless network (WLAN)

connecting 33

corporate WLAN

connection 33
equipment needed 32
functional range 34
public WLAN connection 33
security 32

wireless network, connecting 29
WLAN antennas, identifying 12
WLAN device 29
writable media 15
WWAN antennas, identifying 12

U

unresponsive system 25
USB cable, connecting 57
USB devices

connecting 57
description 57

removing 57
USB hubs 57
USB ports, identifying 6, 8, 57

V

vanity cover

removing 9

replacing 11
vents, identifying 7
volume down action key,

identifying 40

volume up action key,

identifying 40

volume, adjusting 41

84 Index
