HP Mini 210 Maintenance and Service Guide (Consumer Models Only)

HP Mini 210

Maintenance and Service Guide

© Copyright 2010 Hewlett-Packard
Development Company, L.P.

Bluetooth is a trademark owned by its
proprietor and used by Hewlett-Packard
Company under license. Intel and Atom are
trademarks of Intel Corporation in the U.S.
and other countries. Windows is a U.S.
registered trademark of Microsoft
Corporation. SD Logo is a trademark of its
proprietor.

The information contained herein is subject
to change without notice. The only
warranties for HP products and services are
set forth in the express warranty statements
accompanying such products and services.
Nothing herein should be construed as
constituting an additional warranty. HP shall
not be liable for technical or editorial errors
or omissions contained herein.

First Edition: August 2010

Document Part Number: 618049-001

MSG revision history

Revision Publication date Description

A October 2010 Display panels have been added in the following locations:

components on page 15, Sequential part number listing on page 22, Display
assembly on page 57.

A new part number for the top cover with Touchpad and Touchpad cable was
added in the following locations: Computer major components on page 15,

Sequential part number listing on page 22, Top cover on page 51.

System boards have been added in the following locations:

on page 1, Computer major components on page 15, Sequential part number
listing on page 22, System board on page 63.

The 6-cell 2.55-Ah, 55-hr Lithium-ion battery was added in the following locations:

Product description on page 1, Computer major components on page 15,
Sequential part number listing on page 22, Battery on page 33.

The DC bracket has been added to the following locations:

on page 21, Sequential part number listing on page 22; Power connector cable
and DC bracket on page 66

Service access covers have been added in the following locations:

major components on page 15, Sequential part number listing on page 22,
Service access cover on page 36.

An HP Mini sleeve was added in the following location:

listing on page 22.

Sequential part number

Computer major

Product description

Miscellaneous parts

Computer

iii

iv MSG revision history

Safety warning notice

WARNING! To reduce the possibility of heat-related injuries or of overheating the device, do not

place the device directly on your lap or obstruct the device air vents. Use the device only on a hard,
flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft
surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to
contact the skin or a soft surface, such as pillows or rugs or clothing, during operation. The device
and the AC adapter comply with the user-accessible surface temperature limits defined by the
International Standard for Safety of Information Technology Equipment (IEC 60950).

v

vi Safety warning notice

Table of contents

1 Product description ........................................................................................................................................ 1

2 External component identification ................................................................................................................ 5

Identifying the hardware ....................................................................................................................... 5

Top ....................................................................................................................................................... 6

TouchPad ............................................................................................................................ 6

Lights ................................................................................................................................... 7

Keys ..................................................................................................................................... 8

Front ..................................................................................................................................................... 8

Right side ............................................................................................................................................. 9

Left side .............................................................................................................................................. 10

Display ................................................................................................................................................ 11

Bottom ................................................................................................................................................ 13

3 Illustrated parts catalog ............................................................................................................................... 14

Service tag ......................................................................................................................................... 14

Computer major components ............................................................................................................. 15

Mass storage device .......................................................................................................................... 20

Miscellaneous parts ............................................................................................................................ 21

Sequential part number listing ............................................................................................................ 22

4 Removal and replacement procedures ....................................................................................................... 27

Preliminary replacement requirements ............................................................................................... 27

Tools required .................................................................................................................... 27

Service considerations ....................................................................................................... 27

Plastic parts ....................................................................................................... 27

Cables and connectors ..................................................................................... 28

Drive handling ................................................................................................... 28

Grounding guidelines ......................................................................................................... 29

Electrostatic discharge damage ........................................................................ 29

Packaging and transporting guidelines ............................................. 30

Workstation guidelines ..................................................................... 30

Equipment guidelines ....................................................................... 31

vii

Component replacement procedures ................................................................................................. 32

Computer feet .................................................................................................................... 32

Battery ............................................................................................................................... 33

SIM .................................................................................................................................... 35

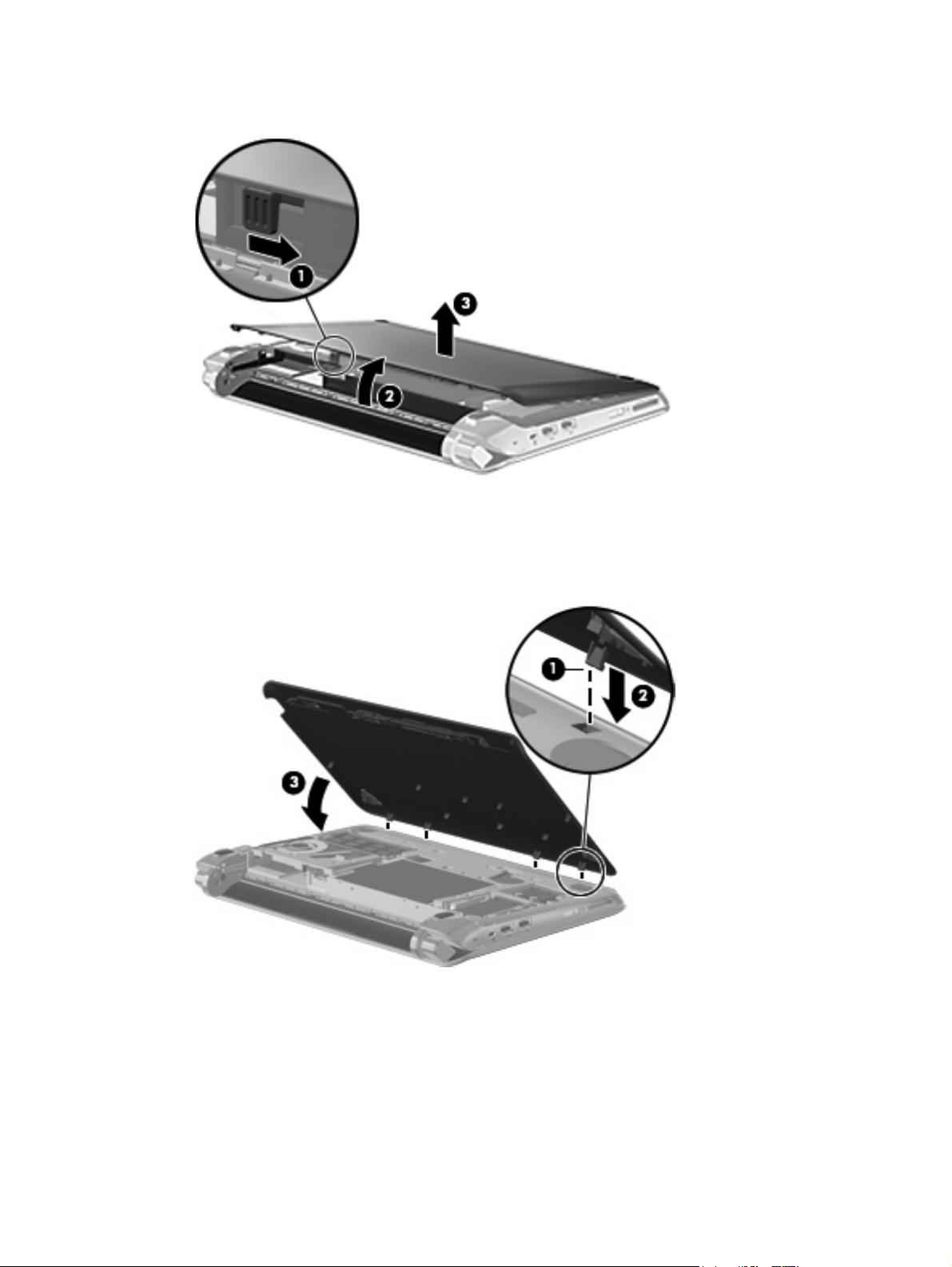

Service access cover ......................................................................................................... 36

Hard drive .......................................................................................................................... 39

WWAN and GPS modules (select models only) ................................................................ 42

WLAN module .................................................................................................................... 44

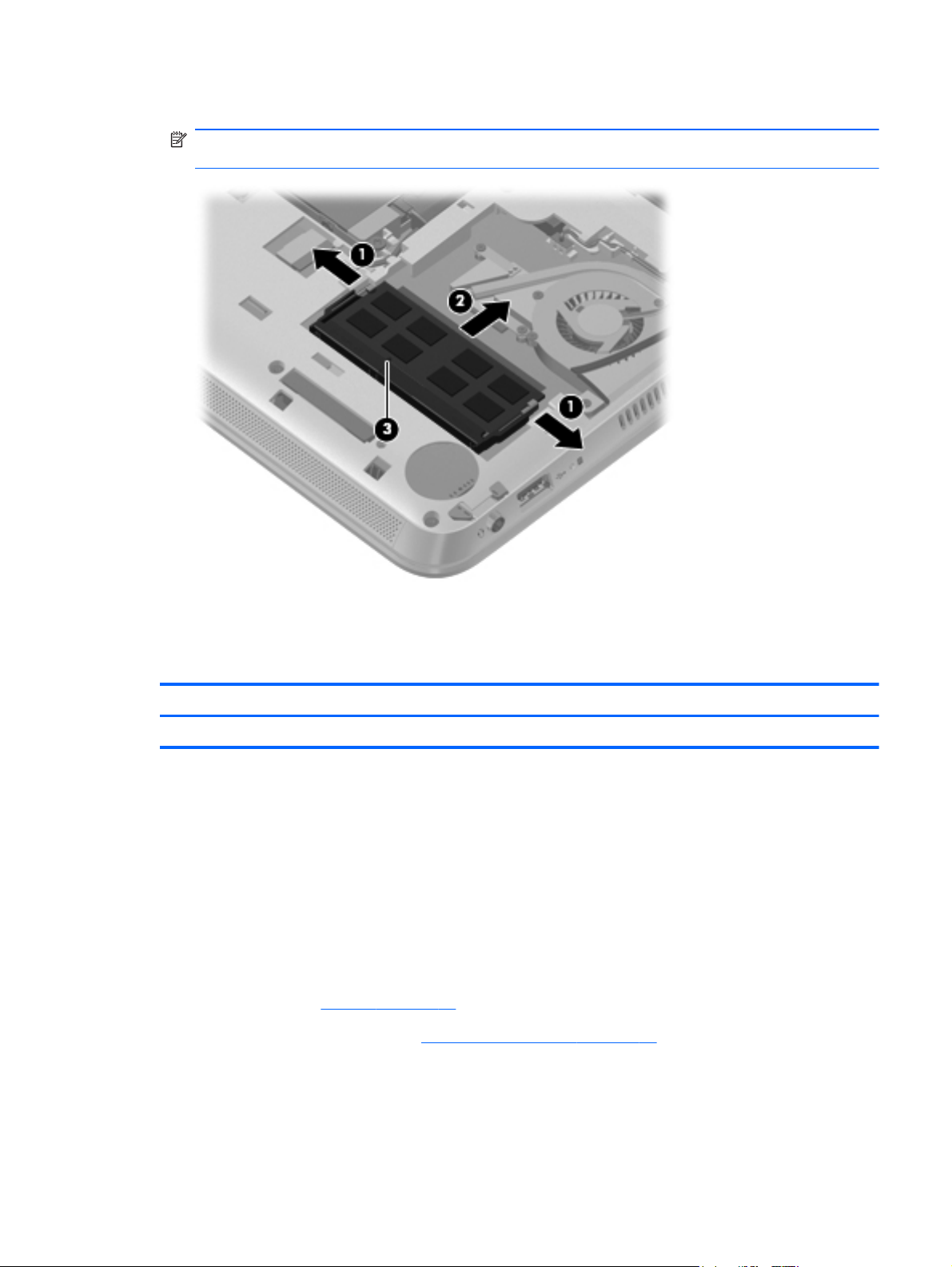

Memory module ................................................................................................................. 46

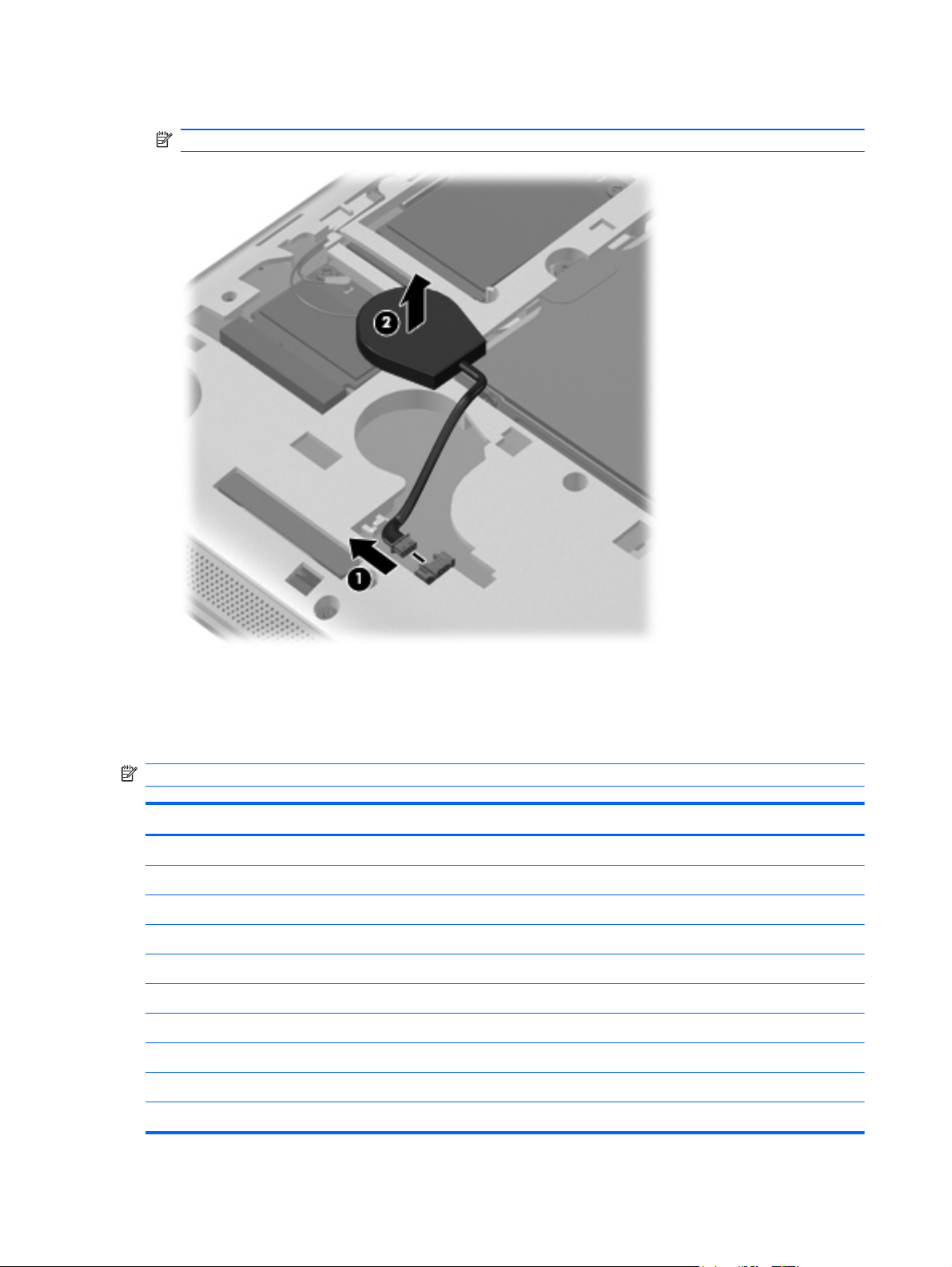

RTC battery ....................................................................................................................... 47

Keyboard ........................................................................................................................... 48

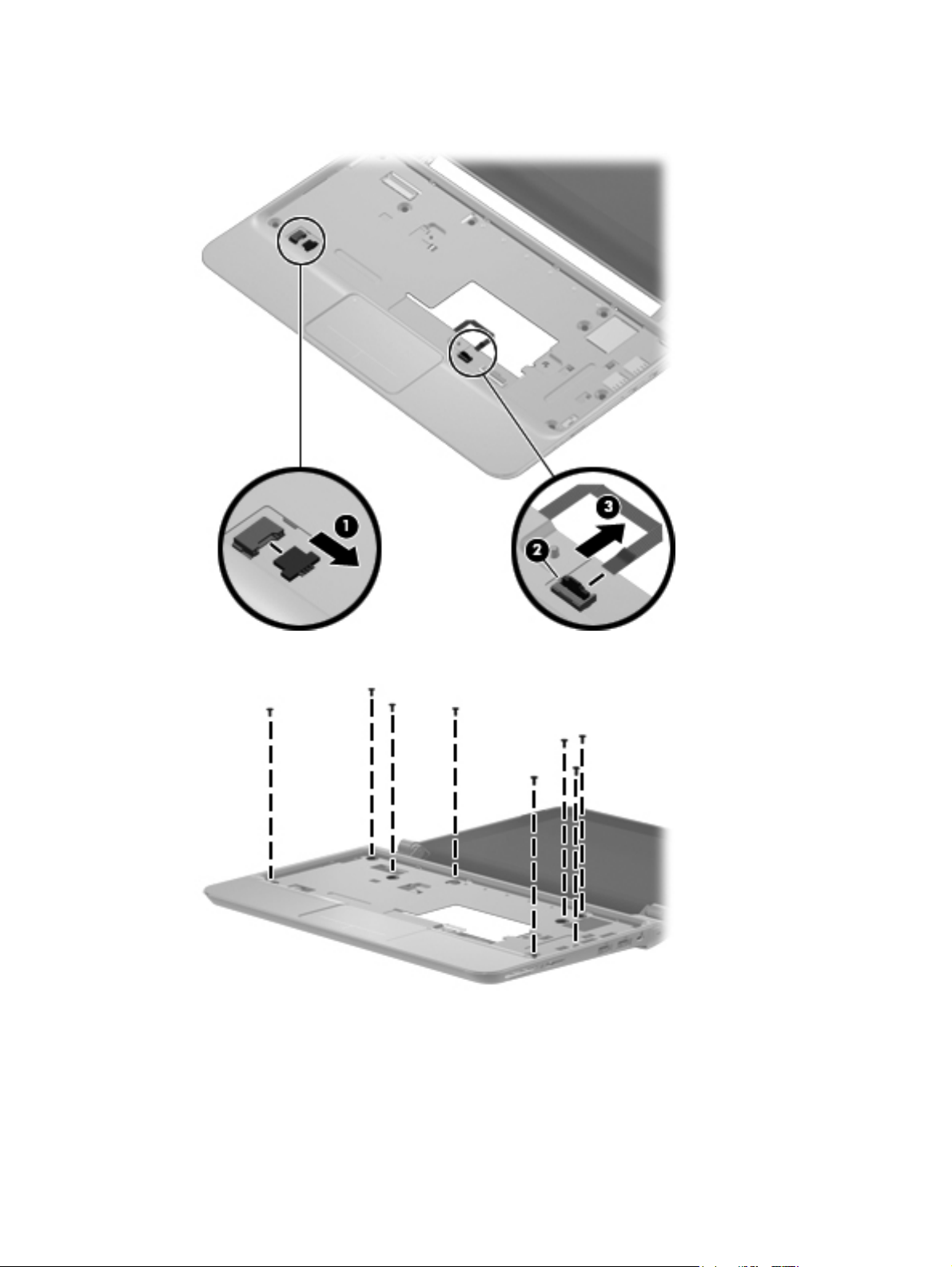

Top cover ........................................................................................................................... 51

Speakers ............................................................................................................................ 55

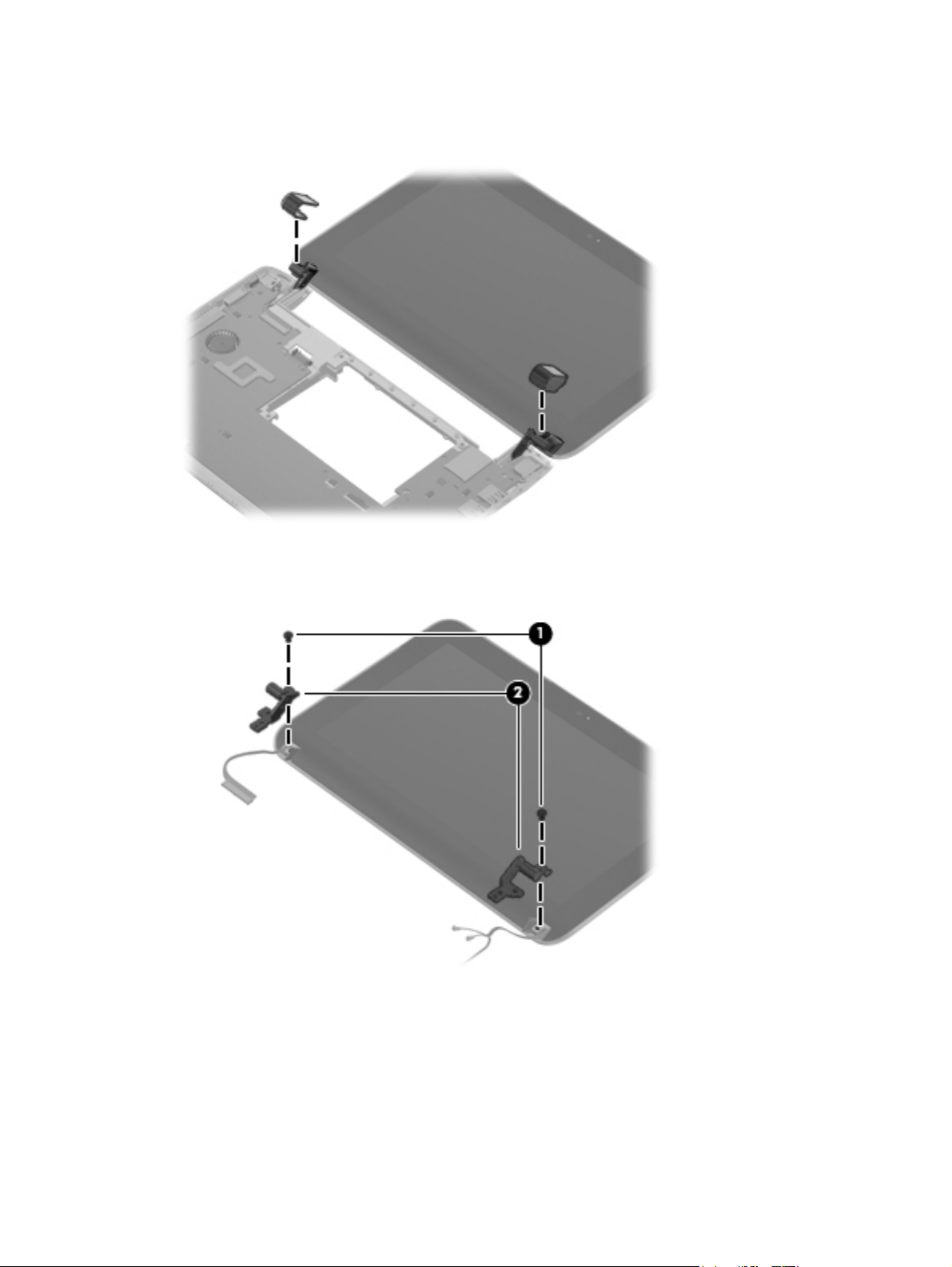

Display assembly ............................................................................................................... 57

Fan/heat sink assembly ..................................................................................................... 61

System board ..................................................................................................................... 63

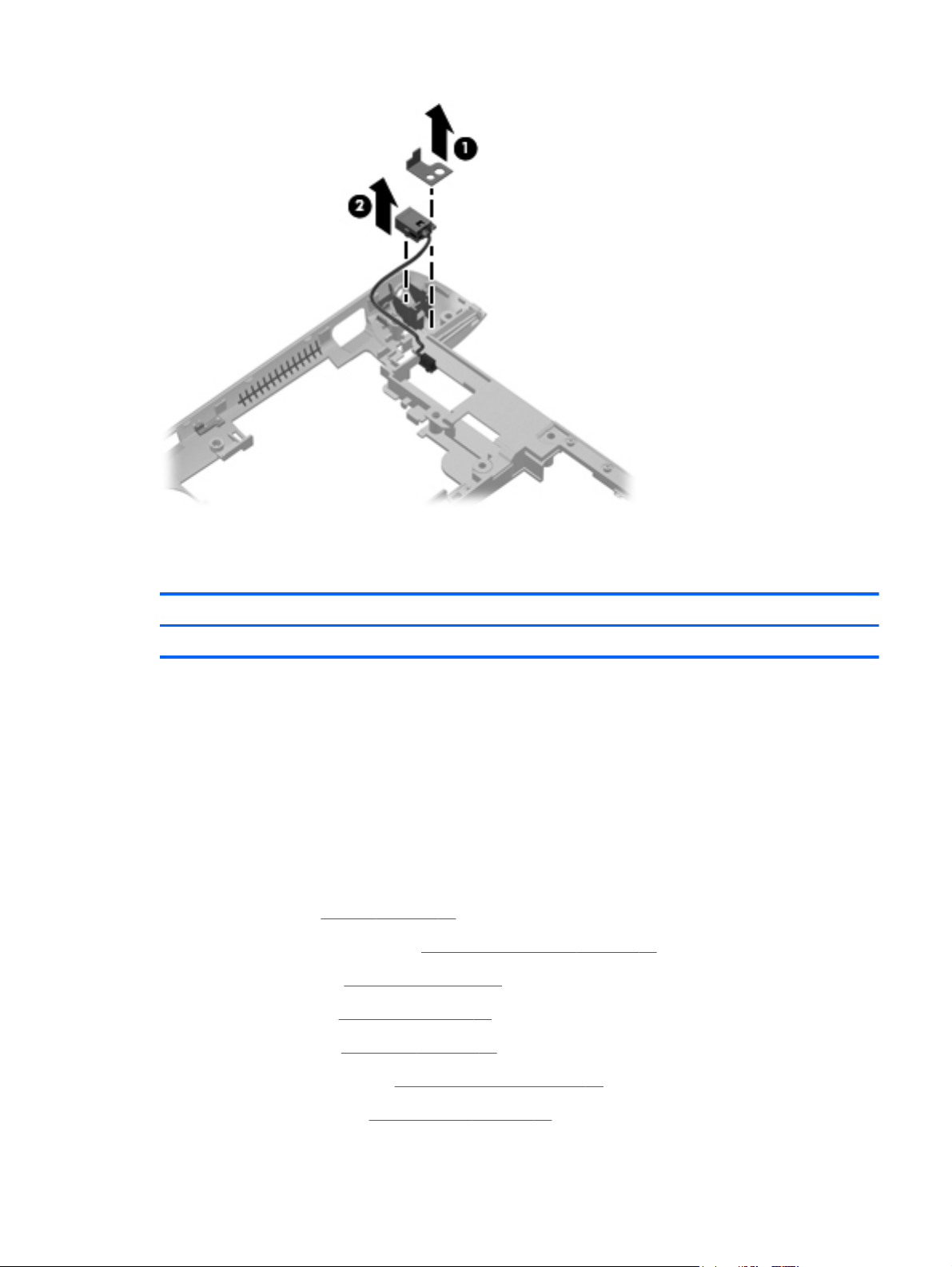

Power connector cable and DC bracket ............................................................................ 66

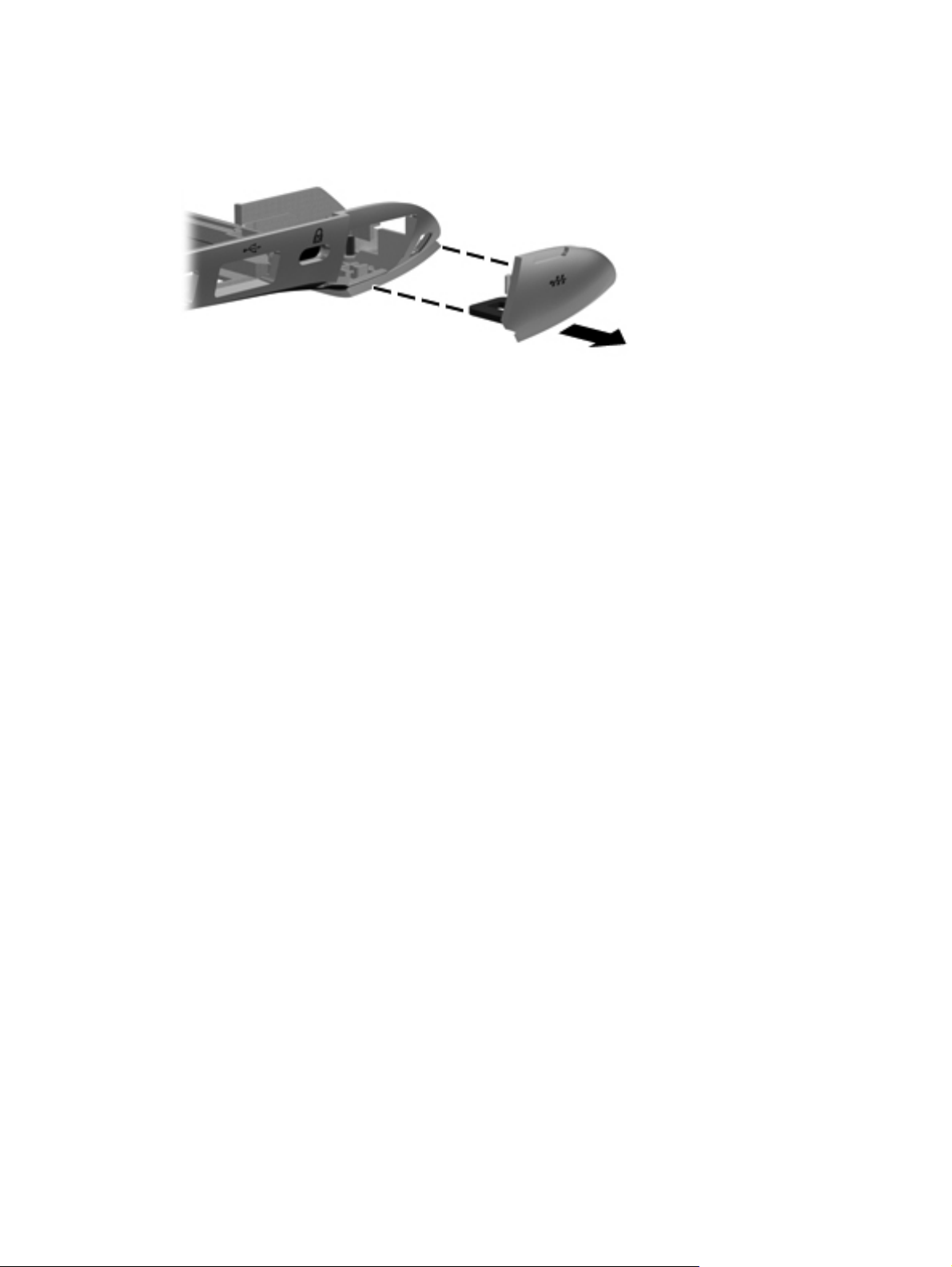

RJ-45 cover ....................................................................................................................... 67

5 Setup Utility ................................................................................................................................................... 69

Starting Setup Utility ........................................................................................................................... 69

Using Setup Utility .............................................................................................................................. 70

Changing the language of Setup Utility ............................................................................. 70

Navigating and selecting in Setup Utility ............................................................................ 71

Displaying system information ............................................................................................................ 72

Restoring default settings in Setup Utility ........................................................................................... 73

Exiting Setup Utility ............................................................................................................................ 74

Setup Utility Menus ............................................................................................................................ 75

Main Menu ......................................................................................................................... 75

Security Menu .................................................................................................................... 75

System Configuration Menu .............................................................................................. 76

Diagnostics Menu .............................................................................................................. 76

Updating the BIOS ............................................................................................................................. 77

Determining the BIOS version ........................................................................................... 78

Downloading a BIOS update ............................................................................................. 78

6 Specifications ................................................................................................................................................ 79

Device specifications .......................................................................................................................... 79

25.7-cm (10.1-in) high-definition AntiGlare display specifications ...................................................... 80

25.7-cm (10.1-in) WSVGA AntiGlare display specifications ............................................................... 81

Hard drive specifications .................................................................................................................... 82

viii

7 Backup and recovery .................................................................................................................................... 83

Using Windows Backup and Restore ................................................................................................. 83

Using system restore points ............................................................................................................... 84

When to create restore points ............................................................................................ 84

Creating a system restore point ......................................................................................... 84

Restoring to a previous date and time ............................................................................... 84

Backing up and recovering using HP Recovery Manager .................................................................. 85

Backing up your information .............................................................................................. 85

Creating a set of recovery discs ........................................................................................ 86

Performing a recovery ........................................................................................................................ 87

Recovering using the recovery discs ................................................................................. 87

Recovering using the partition on the hard drive (select models only) .............................. 88

8 Power cord set requirements ...................................................................................................................... 89

Requirements for all countries ............................................................................................................ 89

Requirements for specific countries and regions ............................................................................... 90

9 Recycling ....................................................................................................................................................... 91

Battery ................................................................................................................................................ 91

Display ................................................................................................................................................ 91

Index ................................................................................................................................................................... 97

ix

x

1 Product description

Category Description

Product name HP Mini 210 Netbook PC

Processor Intel® Atom™ N455 single-core, 1.66-GHz processor, 512-KB level 2 cache, 667-MHz

front-side bus (FSB), 6.5 W, UMA/UMA HD discrete/UMA, XSLOT, HD discrete

Intel Atom N475 single-core, 1.83-GHz processor, 512-KB level 2 cache, 667-MHz FSB,

6.5 W, UMA, XSLOT/UMA, HD discrete/UMA, XSLOT, HD discrete

Intel Atom N550 dual-core, 1.5-GHz processor, 512-KB level 2 cache, 667-MHz FSB, 8.5
W, UMA XSLOT/UMA HD discrete

Chipset Intel NM10 Express

Graphics Intel Graphics Media Accelerator 3150 Unified Memory Architecture (UMA) graphics

subsystem with Broadcom Crystal High Definition (HD) Enhanced Video Accelerator
hardware decoder (select models only) and support for DVD playback from external drive
or Flash streaming and playback of locally-stored downloaded media files

Display The display assembly includes 1 webcam, 1 microphone, 1 speaker box, and 2 wireless

local-area network (WLAN) antenna transceivers/cables; wireless wide-area network
(WWAN) (select models only).

Wide-aspect 16:9 ratio panels, typical brightness: 200 nits

25.7-cm (10.1-in) (1024×600) Wide Super Video Graphics Adapter (WSVGA), AntiGlare
(AG) with optical polymethyl methacrylate (PMMA)

25.7-cm (10.1-in) (1366×768) HD AG with PMMA

Memory One customer-accessible/upgradable memory module slot

PC3-1333, 667-MHz, DDR3

Supports the following configurations:

1-GB total system memory

●

NOTE: Supported on all operating systems.

2-GB total system memory

●

NOTE: Supported only on computers with Windows® 7 Premium, Windows 7

Professional, Windows 7 Starter with Notebook Certificate of Authenticity (COA) for
China, and Windows 7 Starter with Notebook COA Emerging Markets.

1

Category Description

Hard drives Supports the following 9.5-mm (0.37-in) × 6.35-cm (2.5-inch), parallel SATA, 7200-rpm or

5400-rpm hard drives:

320-GB

●

NOTE: Supported only on computers with Windows 7 Starter with Notebook COA

Emerging Markets, Windows 7 Basic with Notebook COA for China, Windows 7
Premium, and Windows 7 Professional.

250-GB

●

160-GB

●

NOTE: Supported on all operating systems

Optical drive Supports external USB optical drives only

Audio/Visual HD audio

Supports Dolby advanced audio

Integrated 1.5-W speakers (2)

Fixed integrated, digital microphone

Fixed integrated VGA webcam, 640×480 resolution, F/2.8 lens, up to 30 frames per
second

Modem Supports external USB modems only

Ethernet Integrated Realtek RTL8105EL 10/100 network interface card (NIC)

Wireless Integrated WLAN by way of:

Broadcom 802.11b/g/n (1x1) and Bluetooth™ 3.0 combination

●

Broadcom 4313 802.11b/g/n 1x1 WiFi and 2070 Bluetooth 2.1+Enhanced Data Rate

●

(EDR) Combo Adapter (Bluetooth 3.0 and high-speed ready)

Ralink RT3090BC4 802.11b/g/n 1x1 WiFi and Bluetooth 2.1+EDR Combo Adapter

●

(Bluetooth 3.0 and high-speed ready)

Atheros AR9285 802.11.b/g/n 1x1 WiFi Adapter

●

2 WWAN antennas built into display assembly (select models only)

2 WLAN antennas built into display assembly

WWAN by way of:

Ericcson F3307 HSPA Mini Card (select models only)

●

Qualcomm Gobi 2000 3G module (select models only)

●

GPS by way of Broadcom GPS Mini Card (select models only)

Subscriber identity module (SIM) security

2 Chapter 1 Product description

Category Description

External media cards Digital Media Slot with push-push technology, supporting:

Memory Stick (MS)

●

Memory Stick Pro (MSP)

●

MultiMediaCard (MMC)

●

Secure Digital (SD) Memory Card

●

Secure Digital High Capacity (SDHC) Memory Card

●

Secure Digital Extended Capacity (SDxC) Memory Card

●

NOTE: SDxC supported for capacity; not speed

Internal media cards Two Mini Card slots:

Full-size Mini Card slot with support for WWAN, GPS

●

Half-size Mini Card slot with support for WLAN or WLAN+Bluetooth combo

●

Ports Audio-in/out combo

RJ-45 (Ethernet; includes link and activity lights)

USB 2.0 (3)

VGA, supporting up to 1600x900 external resolution @ 60 Hz, hot plug/unplug, and auto
detection for correct output to wide-aspect vs. standard-aspect video

3-pin AC power

External monitor

Keyboard/pointing
device

Power requirements 40-W UMA AC adapter (non-Smart) with localized cable plug support

Security Supports security cable

93% island-style keyboard

HP TouchPad with multi-touch/gesture and left and right buttons support

Supports external numeric keypad only

TouchPad on/off button with LED indicator

AC adapter connector on cable

1.0-m (3.3-ft) power cord

3-cell Lithium-ion (Li-ion) battery (2.55-Ah, 28-Wh)

6-cell Li-ion high-capacity battery (3.0-Ah, 66-Wh)

6-cell Li-ion high-capacity battery (2.55-Ah, 55-Wh)

3

Category Description

Operating system Windows 7 Home Basic

Windows 7 Home Premium (select countries)

Windows 7 Starter

Windows 7 Professional (select countries)

Support for HP QuickWeb (Windows 7 only) (select models only)

USB Key Recovery support (for Service, refurbish centers, and repair centers)

Serviceability End-user replaceable parts:

AC adapter

Battery (system)

Hard drive

Memory module

WLAN module or WLAN+Bluetooth module

WWAN module (select models only)

GPS module (select models only)

4 Chapter 1 Product description

2 External component identification

Identifying the hardware

Components included with the computer may vary by country or region and by model. The
illustrations in this chapter identify the standard features on most computer models.

To see a list of hardware installed in the computer, follow these steps:

1. Select Start > My Computer.

2. In the left pane of the System Tasks window, select View system information.

3. Select Hardware tab > Device Manager.

You can also add hardware or modify computer configurations using Device Manager.

Identifying the hardware 5

Top

TouchPad

Component Description

(1)

(2) Left TouchPad button Functions like the left button on an external mouse.

(3) Right TouchPad button Functions like the right button on an external mouse.

(4) TouchPad zone Moves the pointer and selects or activates items on the

TouchPad light Turns the TouchPad on and off. Quickly double-tap the

TouchPad light to turn the TouchPad on and off.

screen.

6 Chapter 2 External component identification

Lights

Component Description

(1)

(2) Caps lock light

(3)

(4)

TouchPad light

Mute light

Wireless light

Amber: The TouchPad is off.

●

Off: The TouchPad is on.

●

On: Caps lock is on.

●

Off: Caps lock is off.

●

Amber: Computer sound is off.

●

Off: Computer sound is on.

●

White: An integrated wireless device, such as a

●

wireless local area network (WLAN) device and/or a
Bluetooth® device, is on.

Amber: All wireless devices are off.

●

Top 7

Keys

Component Description

Front

(1) esc key Displays system information when pressed in combination

with the fn key.

(2) fn key Displays system information when pressed in combination

with the esc key.

(3)

(4)

(5) Action keys Execute frequently used system functions.

Component Description

Speakers (2) Produce sound.

Windows® logo key Displays the Windows Start menu.

Windows applications key Displays a shortcut menu for items beneath the pointer.

8 Chapter 2 External component identification

Right side

Component Description

(1) Digital Media Slot Supports the following digital card formats:

Memory Stick (MS)

●

Memory Stick Pro (MSP)

●

MultiMediaCard (MMC)

●

Secure Digital (SD) Card

●

Secure Digital High Capacity (SDHC) Memory Card

●

Secure Digital Extended Capacity (SDxC) Memory

●

Card

(2)

(3) Power switch

(4)

Power light

USB ports (2) Connect optional USB devices.

On: The computer is on.

●

Blinking: The computer is in the Sleep state.

●

Off: The computer is off or in Hibernation.

●

When the computer is off, slide the switch to turn on

●

the computer.

When the computer is on, slide the switch briefly to

●

initiate Sleep.

When the computer is in the Sleep state, slide the

●

switch briefly to exit Sleep.

When the computer is in Hibernation, slide the switch

●

briefly to exit Hibernation.

If the computer has stopped responding and operating
system shutdown procedures are ineffective, slide and hold
the power switch for at least 5 seconds to turn off the
computer.

To learn more about your power settings, select Start >
Control Panel > System and Security > Power Options,
or refer to the HP Notebook Reference Guide.

Right side 9

Component Description

(5)

(6)

Left side

Component Description

(1) Power connector Connects an AC adapter.

Security cable slot Attaches an optional security cable to the computer.

NOTE: The security cable is designed to act as a

deterrent, but it may not prevent the computer from being
mishandled or stolen.

RJ-45 (network) jack Connects a network cable.

(2) Battery light

(3)

(4) Vent Enables airflow to cool internal components.

(5)

External monitor port Connects an external VGA monitor or projector.

Drive light Blinking: The hard drive is being accessed.

Off: The computer is running on battery power.

●

Blinking white: The battery has reached a low or

●

critical battery level.

Amber: A battery is charging.

●

White: The computer is connected to external power

●

and the battery is fully charged.

NOTE: The computer fan starts up automatically to cool

internal components and prevent overheating. It is normal
for the internal fan to cycle on and off during routine
operation.

10 Chapter 2 External component identification

Component Description

(6)

(7)

Display

USB port Connects an optional USB device.

Audio-out (headphone) jack/Audio-in
(microphone) jack

Connects optional powered stereo speakers, headphones,
earbuds, a headset, or television audio. Also connects an
optional headset microphone.

WARNING! To reduce the risk of personal injury, adjust

the volume before putting on headphones, earbuds, or a
headset. For additional safety information, refer to the
Regulatory, Safety, and Environmental Notices.

NOTE: When a device is connected to the jack, the

computer speakers are disabled.

Component Description

(1) WLAN antennas (2)* Send and receive wireless signals to communicate with wireless

local area networks (WLAN).

(2) WWAN antennas (2)* (select models only) Send and receive wireless signals to communicate with wireless

wide-area networks (WWAN).

(3) Internal microphone Records sound.

(4) Webcam Records video and captures still photographs.

To use the webcam, select Start > All Programs > HP > HP
MediaSmart > HP MediaSmart Webcam.

Display 11

Component Description

(5) Webcam light On: The webcam is in use.

*The antennas are not visible from the outside of the computer. For optimal transmission, keep the areas immediately
around the antennas free from obstructions. To see wireless regulatory notices, refer to the section of the Regulatory, Safety,
and Environmental Notices that applies to your country or region. These notices are located in Help and Support.

12 Chapter 2 External component identification

Bottom

Component Description

(1)

(2) Battery bay Holds the battery.

(3)

Battery locking latch Locks the battery into the battery bay.

Battery release latch Releases the battery from the battery bay.

Bottom 13

3 Illustrated parts catalog

Service tag

When ordering parts or requesting information, provide the computer serial number and model
description provided on the service tag.

Component

(1) Product name

(2) Serial number (s/n)

(3) Part number/Product number (p/n)

(4) Warranty period

(5) Model description

14 Chapter 3 Illustrated parts catalog

Computer major components

Computer major components 15

Item Description Spare part number

(1) Display assembly, 25.7-cm (10.1-in) (includes display panel cable, 2 WLAN transceivers and cables,

2 WWAN transceivers and cables (select models only), and webcam/microphone module and
cable):

WSVGA, flush glass display assembly in charcoal 622334-001

●

WSVGA, flush glass display assembly in crimson red 622335-001

●

WSVGA, flush glass display assembly in luminous rose 622336-001

●

WSVGA, flush glass display assembly in ocean drive blue 622337-001

●

WSVGA, flush glass display assembly in lavender frost 622338-001

●

WSVGA, flush glass display assembly in leaf green 622332-001

●

WSVGA, flush glass display assembly in icy berry 635289-001

●

WSVGA, flush glass display assembly in raspberry 635291-001

●

HD, flush glass display assembly in charcoal 622339-001

●

HD, flush glass display assembly in crimson red 622340-001

●

HD, flush glass display assembly in luminous rose 622341-001

●

HD, flush glass display assembly in ocean drive blue 622342-001

●

HD, flush glass display assembly in lavender frost 622343-001

●

HD, flush glass display assembly in leaf green 622333-001

●

HD, flush glass display assembly in icy berry 635286-001

●

HD, flush glass display assembly in raspberry 635288-001

●

(2) Display hinges 626591-001

(3a) (3b) Display hinge covers (internal and external) 626590-001

(4) Keyboard (includes cable)

For use in Belgium 622344-A41

●

For use in Brazil 622344-201

●

For use in the Czech Republic 622344-221

●

For use in Denmark, Finland, and Norway 622344-DH1

●

For use in France 622344-051

●

For use in French Canada 622344-121

●

For use in Germany 622344-041

●

For use in Greece 622344-DJ1

●

For use in Hungary 622344-211

●

For use in Israel 622344-BB1

●

For use in Italy 622344-061

●

For use in Japan 622344-291

●

For use in Latin America 622344-161

●

16 Chapter 3 Illustrated parts catalog

Item Description Spare part number

(5) Top cover (includes TouchPad and TouchPad cable) 635012-001

(6) Speakers (include cable) 622354-001

(7) Hard drive (includes bracket and screws)

For use in the Netherlands 622344-B31

●

For use in Portugal 622344-131

●

For use in Russia 622344-251

●

For use in Saudi Arabia 622344-171

●

For use in Slovenia 622344-BA1

●

For use in South Korea 622344-AD1

●

For use in Spain 622344-071

●

For use in Switzerland 622344-BG1

●

For use in Taiwan 622344-AB1

●

For use in Thailand 622344-281

●

For use in Turkey 622344-141

●

For use in the United Kingdom and Singapore 622343-031

●

For use in the United States 622344-001

●

Hard Drive Hardware Kit (not illustrated; includes hard drive bracket and

(8) System board (includes processor and replacement thermal material):

N455 processors:

Intel® Atom™ N455 1.66-GHz processor, 512-KB level 2 cache, 667-MHz front-

Intel Atom N455 1.66-GHz processor, 512-KB level 2 cache, 667-MHz FSB, 6.5

Intel Atom N455 1.66-GHz processor, 512-KB level 2 cache, 667-MHz FSB, 6.5

Intel Atom N455 1.66-GHz processor, 512-KB level 2 cache, 667-MHz FSB, 6.5

N475 processors:

Intel Atom N475 1.83-GHz processor, 512-KB level 2 cache, 667-MHz FSB, 6.5

Intel Atom N475 1.83-GHz processor, 512-KB level 2 cache, 667-MHz FSB,

320-GB, 7200-rpm 627731-001

●

250-GB, 7200-rpm 613047-001

●

160-GB, 7200-rpm 622655-001

●

screws)

side bus (FSB), 6.5 W, single-core (SC), UMA, XSLOT

W, SC, HD discrete, XSLOT

W, SC, UMA

W, SC, HD discrete

W, SC, UMA, XSLOT

6.5W, SC, XSLOT, HD discrete

626589-001

622355-001

622358-001

627756-001

627759-001

622356-001

622359-001

Intel Atom N475 1.83-GHz processor, 512-KB level 2 cache, 667-MHz FSB, 6.5

W, SC, UMA

Computer major components 17

627757-001

Item Description Spare part number

Intel Atom N475 1.83-GHz processor, 512-KB level 2 cache, 667-MHz FSB, 6.5

W, SC, HD discrete

N550 processors:

Intel Atom N550 1.5-GHz processor, 1-MB level 2 cache, 667-MHz FSB, 8.5 W,

dual-core (DC) UMA, XSLOT

Intel Atom N550 1.5-GHz processor, 1-MB level 2 cache, 667-MHz FSB, 8.5 W,

DC, XSLOT, HD discrete

Intel Atom N550 1.5-GHz processor, 1-MB level 2 cache, 667-MHz FSB, 8.5 W,

DC, UMA

Intel Atom N550 1.5-GHz processor, 1-MB level 2 cache, 667-MHz FSB, 8.5 W,

DC, HD discrete

(9) Fan/heat sink assembly (includes replacement thermal material) 622330-001

(10) Memory module (667-MHz, DDR3):

1-GB 621563-001

2-GB 621567-001

(11) Power connector cable 622329-001

(12) WWAN or GPS module (select models only)

Ericsson F3307 HSPA 900-MHz Broadband module 612600-001

627760-001

622357-001

622360-001

627758-001

627761-001

Broadcom GPS Mini Card 621754-001

Qualcomm Gobi 2000 3G module 531993-001

(13) RTC battery 622351-001

(14) WLAN module

Atheros AR9285G 802.11b/g/n 1x1 WiFi Adapter 605560-005

Broadcom 4313/2070 802.11b/g/n (1x1) WiFi Mini Card 593836-001

Broadcom 4313/2070 802.11b/g/n (1x1) and Bluetooth high-speed Half Mini

Card

Ralink RT3090BC4 802.11b/g/n 1x1 WiFi and Bluetooth 2.1+EDR Combo

Adapter (Bluetooth 3.0+high-speed ready)

(15) Base enclosure (includes 4 rubber feet and power connector bracket) 622328-001

(16) Battery

6-cell Li-ion high-capacity (66-WHr 3.0-Ah) 614875-001

6-cell Li-ion high-capacity (55-WHr 2.5-Ah) 614874–001

3-cell Li-ion (28-WHr 2.55-Ah) 614873-001

(17) Network jack (RJ-45) cover 626580-001

(18) Service access cover

600370-001

602992-001

Charcoal (for use in all countries and regions except Brazil) 626028-001

Charcoal (for use only in Brazil) 626574-001

18 Chapter 3 Illustrated parts catalog

Item Description Spare part number

Crimson red (for use in all countries and regions except Brazil) 626029-001

Leaf green (for use in all countries and regions except Brazil) 626033-001

Crimson red (for use only in Brazil) 626575-001

Luminous rose (for use in all countries and regions except Brazil) 626030-001

Ocean drive blue (for use in all countries and regions except Brazil) 626031-001

Lavender frost (for use in all countries and regions except Brazil) 626032-001

Lavender frost (for use only in Brazil) 626578-001

Icy berry (for use in all countries and regions except Brazil) 635298-001

Raspberry (for use in all countries and regions except Brazil) 635300-001

Rubber Kit (not illustrated; includes 4 rubber feet) 622352-001

Computer major components 19

Mass storage device

NOTE: The hard drive spare part kit includes a bracket and screws.

Description Spare part number

Hard drive

320-GB, 7200-rpm 627731-001

250-GB, 7200-rpm 613047-001

160-GB, 7200-rpm 622655-001

Hard Drive Hardware Kit (not illustrated; includes hard drive bracket and screws) 626589-001

20 Chapter 3 Illustrated parts catalog

Miscellaneous parts

Description Spare part number

Power cord:

For use in Argentina 490371-D01

For use in Australia 490371-011

For use in Brazil 490371-202

For use in Denmark 490371-081

For use in Europe 490371-021

For use in India 490371-D61

For use in Israel 490371-BB1

For use in Italy 490371-061

For use in Japan 490371-291

For use in the People's Republic of China 490371-AA1

For use in Singapore and the United Kingdom 490371-031

For use in South Africa 490371-AR1

For use in South Korea 490371-AD1

For use in Switzerland 490371-111

For use in Taiwan 490371-AB1

For use in Thailand 490371-201

Screw Kit 622353-001

AC adapter (40-W , non-smart RC/V 2W) 624502-001

HP Mini sleeve

Luminous rose 628344-001

Leaf green 628345-001

Ocean drive blue 628346-001

Lavender frost 628347-001

Crimson red 628348-001

DC Bracket 635873-001

Miscellaneous parts 21

Sequential part number listing

Spare part number Description

490371-001 Power cord for use in North America

490371-011 Power cord for use in Australia

490371-021 Power cord for use in Europe, the Middle East, and Africa

490371-031 Power cord for use in Singapore and the United Kingdom

490371-061 Power cord for use in Italy

490371-081 Power cord for use in Denmark

490371-111 Power cord for use in Switzerland

490371-201 Power cord for use in Thailand

490371-202 Power cord for use in Brazil

490371-291 Power cord for use in Japan

490371-AA1 Power cord for use in the People's Republic of China

490371-AB1 Power cord for use in Taiwan

490371-AD1 Power cord for use in South Korea

490371-AR1 Power cord for use in South Africa

490371-BB1 Power cord for use in Israel

490371-D01 Power cord for use in Argentina

490371-D61 Power cord for use in India

531993-001 Qualcomm Gobi 2000 3G WWAN module (select models only)

584383-001 External DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe (select

models only)

593836-001 Broadcom 4313/2070 802.11b/g/n (1x1) WiFi Mini Card

600370-001 Broadcom 4313/2070 802.11b/g/n (1x1) and Bluetooth high-speed Half Mini Card

602992-001 Ralink RT3090BC4 802.11b/g/n 1x1 WiFi and Bluetooth 2.1+EDR Combo Adapter (Bluetooth

3.0+high-speed ready)

605560-005 Atheros AR9285G 802.11b/g/n 1x1 WiFi Adapter

612600-001 Ericsson F3307 HSPA 900-MHz Broadband WWAN module (select models only)

613047-001 250-GB, 7200-rpm hard drive (includes bracket and screws)

614873-001 3-cell Li-ion battery (28-WHr 2.55-Ah)

614874-001 6-cell Li-ion high-capacity (55-WHr 2.5-Ah)

614875-001 6-cell Li-ion high-capacity battery (66-WHr 3.0-Ah)

626590-001 Display Hinge Cover Kit (includes internal and external display hinge covers)

621563-001 1-GB memory module (667-MHz, DDR3)

621567-001 2-GB memory module (667-MHz, DDR3)

22 Chapter 3 Illustrated parts catalog

Spare part number Description

621754-001 Broadcom GPS Mini Card (select models only)

622328-001 Base enclosure (includes 4 rubber feet and power connector bracket)

622329-001 Power connector cable

622330-001 Fan/heat sink assembly (includes replacement thermal material)

622332-001 25.7-cm (10.1-in) WSVGA, flush glass display assembly in leaf green (includes display panel

cable, 2 WLAN transceivers and cables, 2 WWAN transceivers and cables (select models only),
and webcam/microphone module and cable)

622333-001 25.7-cm (10.1-in) HD, flush glass display assembly in leaf green (includes display panel cable, 2

WLAN transceivers and cables, 2 WWAN transceivers and cables (select models only), and
webcam/microphone module and cable)

622334-001 25.7-cm (10.1-in) WSVGA, flush glass display assembly in charcoal (includes display panel cable,

2 WLAN transceivers and cables, 2 WWAN transceivers and cables (select models only), and
webcam/microphone module and cable)

622335-001 25.7-cm (10.1-in) WSVGA, flush glass display assembly in crimson red (includes display panel

cable, 2 WLAN transceivers and cables, 2 WWAN transceivers and cables (select models only),
and webcam/microphone module and cable)

622336-001 25.7-cm (10.1-in) WSVGA, flush glass display assembly in luminous rose (includes display panel

cable, 2 WLAN transceivers and cables, 2 WWAN transceivers and cables (select models only),
and webcam/microphone module and cable)

622337-001 25.7-cm (10.1-in) WSVGA, flush glass display assembly in ocean drive blue (includes display

panel cable, 2 WLAN transceivers and cables, 2 WWAN transceivers and cables (select models
only), and webcam/microphone module and cable)

622338-001 25.7-cm (10.1-in) WSVGA, flush glass display assembly in lavender frost (includes display panel

cable, 2 WLAN transceivers and cables, 2 WWAN transceivers and cables (select models only),
and webcam/microphone module and cable)

622339-001 25.7-cm (10.1-in) HD, flush glass display assembly in charcoal (includes display panel cable, 2

WLAN transceivers and cables, 2 WWAN transceivers and cables (select models only), and
webcam/microphone module and cable)

622340-001 25.7-cm (10.1-in) HD, flush glass display assembly in crimson red (includes display panel cable, 2

WLAN transceivers and cables, 2 WWAN transceivers and cables (select models only), and
webcam/microphone module and cable)

622341-001 25.7-cm (10.1-in) HD, flush glass display assembly in luminous rose (includes display panel cable,

2 WLAN transceivers and cables, 2 WWAN transceivers and cables (select models only), and
webcam/microphone module and cable)

622342-001 25.7-cm (10.1-in) HD, flush glass display assembly in ocean drive blue (includes display panel

cable, 2 WLAN transceivers and cables, 2 WWAN transceivers and cables (select models only),
and webcam/microphone module and cable)

622343-001 25.7-cm (10.1-in) HD, flush glass display assembly in lavender frost (includes display panel cable,

2 WLAN transceivers and cables, 2 WWAN transceivers and cables (select models only), and
webcam/microphone module and cable)

622344-001 Keyboard for use in the United States (includes cable)

622344-031 Keyboard for use in the United Kingdom and Singapore (includes cable)

622344-041 Keyboard for use in Germany (includes cable)

622344-051 Keyboard for use in France (includes cable)

622344-061 Keyboard for use in Italy (includes cable)

Sequential part number listing 23

Spare part number Description

622344-071 Keyboard for use in Spain (includes cable)

622344-121 Keyboard for use in French Canada (includes cable)

622344-131 Keyboard for use in Portugal (includes cable)

622344-141 Keyboard for use in Turkey (includes cable)

622344-161 Keyboard for use in Latin America (includes cable)

622344-171 Keyboard for use in Saudi Arabia (includes cable)

622344-201 Keyboard for use in Brazil (includes cable)

622344-211 Keyboard for use in Hungary (includes cable)

622344-221 Keyboard for use in the Czech Republic (includes cable)

622344-251 Keyboard for use in Russia (includes cable)

622344-281 Keyboard for use in Thailand (includes cable)

622344-291 Keyboard for use in Japan (includes cable)

622344-A41 Keyboard for use in Belgium (includes cable)

622344-AB1 Keyboard for use in Taiwan (includes cable)

622344-AD1 Keyboard for use in South Korea (includes cable)

622344-B31 Keyboard for use in the Netherlands (includes cable)

622344-BA1 Keyboard for use in Slovenia (includes cable)

622344-BB1 Keyboard for use in Israel (includes cable)

622344-BG1 Keyboard for use in Switzerland (includes cable)

622344-DH1 Keyboard for use in Denmark, Finland, and Norway (includes cable)

622344-DJ1 Keyboard for use in Greece (includes cable)

635012-001 Top cover (includes TouchPad and TouchPad cable)

622351-001 RTC battery

622352-001 Rubber Kit (includes 4 rubber feet)

622353-001 Screw Kit

622354-001 Speakers (include cable)

622355-001 System board with Intel Atom N455 1.66-GHz processor, 512-KB level 2 cache, 667-MHz FSB, 6.5

W, SC, UMA, XSLOT

622356-001 System board with Intel Atom N475 1.83-GHz processor, 512-KB level 2 cache, 667-MHz FSB, 6.5

W, SC, UMA, XSLOT

622357-001 System board with Intel Atom N550 1.5-GHz processor, 1-MB level 2 cache, 667-MHz FSB, 8.5 W,

DC UMA, XSLOT

622358-001 System board with Intel Atom N455 1.66-GHz processor, 512-KB level 2 cache, 667-MHz FSB, 6.5

W, SC, HD discrete, XSLOT

622359-001 System board with Intel Atom N475 1.83-GHz processor, 512-KB level 2 cache, 667-MHz FSB,

6.5W, SC, XSLOT, HD discrete

24 Chapter 3 Illustrated parts catalog

Spare part number Description

622360-001 System board with Intel Atom N550 1.5-GHz processor, 1-MB level 2 cache, 667-MHz FSB, 8.5 W,

DC, XSLOT, HD discrete

622655-001 160-GB, 7200-rpm hard drive (includes bracket and screws)

624502-001 40-W AC adapter, non-Smart RC/V 2W

626028-001 Service access cover, charcoal (for use in all countries and regions except Brazil)

626029-001 Service access cover, crimson red (for use in all countries and regions except Brazil)

626030-001 Service access cover, luminous rose (for use in all countries and regions except Brazil)

626031-001 Service access cover, ocean drive blue (for use in all countries and regions except Brazil)

626032-001 Service access cover, lavender frost (for use in all countries and regions except Brazil)

626574-001 Service access cover, charcoal (for use only in Brazil)

626575-001 Service access cover, crimson red (for use only in Brazil)

626578-001 Service access cover, lavender frost (for use only in Brazil)

626580-001 Network jack (RJ-45) cover

626589-001 Hard Drive Hardware Kit (includes hard drive bracket and screws)

626590-001 Display hinge covers (includes internal and external display hinge covers)

626591-001 Display Hinge Kit

627731-001 320-GB, 7200-rpm hard drive (includes bracket and screws)

627756-001 System board with Intel Atom N455 1.66-GHz processor, 512-KB level 2 cache, 667-MHz FSB, 6.5

W, SC, UMA

627757-001 System board with Intel Atom N475 1.83-GHz processor, 512-KB level 2 cache, 667-MHz FSB, 6.5

W, SC, UMA

627758-001 System board with Intel Atom N550 1.5-GHz processor, 1-MB level 2 cache, 667-MHz FSB, 8.5 W,

DC, UMA

627759-001 System board with Intel Atom N455 1.66-GHz processor, 512-KB level 2 cache, 667-MHz FSB, 6.5

W, SC, HD discrete

627760-001 System board with Intel Atom N475 1.83-GHz processor, 512-KB level 2 cache, 667-MHz FSB, 6.5

W, SC, HD discrete

627761-001 System board with Intel Atom N550 1.5-GHz processor, 1-MB level 2 cache, 667-MHz FSB, 8.5 W,

DC, HD discrete

628344-001 HP Mini sleeve, luminous rose

628345–001 HP Mini sleeve, leaf green

628346-001 HP Mini sleeve, ocean drive blue

628347-001 HP Mini sleeve, lavender frost

628348-001 HP Mini sleeve, crimson red

630966-001 System board with Intel Atom N455 1.66-GHz processor, 512-KB level 2 cache, 667-MHz FSB, 6.5

W, SC, UMA

630967-001 System board with Intel Atom N455 1.66-GHz processor, 512-KB level 2 cache, 667-MHz FSB, 6.5

W, SC, UMA

Sequential part number listing 25

Spare part number Description

630968-001 System board with Intel Atom N550 1.5-GHz processor, 1-MB level 2 cache, 667-MHz FSB, 8.5 W,

DC UMA, XSLOT

630969-001 System board with Intel Atom N455 1.66-GHz processor, 512-KB level 2 cache, 667-MHz FSB, 6.5

W, SC, UMA, XSLOT

630970-001: System board with Intel Atom N475 1.83-GHz processor, 512-KB level 2 cache, 667-MHz FSB, 6.5

W, SC, UMA, XSLOT

630971-001 System board with Intel Atom N550 1.5-GHz processor, 1-MB level 2 cache, 667-MHz FSB, 8.5 W,

DC UMA, XSLOT

630972-001 System board with Intel Atom N455 1.66-GHz processor, 512-KB level 2 cache, 667-MHz FSB, 6.5

W, SC, UMA, HD Discrete

630973-001 System board with Intel Atom N475 1.83-GHz processor, 512-KB level 2 cache, 667-MHz FSB, 6.5

W, SC, UMA, HD Discrete

630974-001 System board with Intel Atom N550 1.5-GHz processor, 1-MB level 2 cache, 667-MHz FSB, 8.5 W,

DC UMA, HD Discrete

630975–001 System board with Intel Atom N455 1.66-GHz processor, 512-KB level 2 cache, 667-MHz FSB, 6.5

W, SC, UMA, XSLOT, HD Discrete

630976-001 System board with Intel Atom N475 1.83-GHz processor, 512-KB level 2 cache, 667-MHz FSB, 6.5

W, SC, UMA, XSLOT, HD Discrete

630977-001 System board with Intel Atom N550 1.5-GHz processor, 1-MB level 2 cache, 667-MHz FSB, 8.5 W,

DC UMA, XSLOT

634873-001 DC bracket

635286-001 25.7-cm (10.1-in) HD, flush glass display assembly in icy berry (includes display panel cable, 2

WLAN transceivers and cables, 2 WWAN transceivers and cables (select models only), and
webcam/microphone module and cable)

635288-001 25.7-cm (10.1-in) HD, flush glass display assembly in raspberry (includes display panel cable, 2

WLAN transceivers and cables, 2 WWAN transceivers and cables (select models only), and
webcam/microphone module and cable)

635289-001 25.7-cm (10.1-in) WSVGA, flush glass display assembly in icy berry (includes display panel cable,

2 WLAN transceivers and cables, 2 WWAN transceivers and cables (select models only), and
webcam/microphone module and cable)

635291-001 25.7-cm (10.1-in) WSVGA, flush glass display assembly in raspberry (includes display panel

cable, 2 WLAN transceivers and cables, 2 WWAN transceivers and cables (select models only),
and webcam/microphone module and cable)

635298-001 Service access cover, icy berry (for use in all countries and regions except Brazil)

635300-001 Service access cover, raspberry (for use in all countries and regions except Brazil)

26 Chapter 3 Illustrated parts catalog

4 Removal and replacement procedures

Preliminary replacement requirements

Tools required

You will need the following tools to complete the removal and replacement procedures:

Flat-bladed screwdriver

●

Magnetic screwdriver

●

Phillips P0 and P1 screwdrivers

●

Service considerations

The following sections include some of the considerations that you must keep in mind during
disassembly and assembly procedures.

NOTE: As you remove each subassembly from the computer, place the subassembly (and all

accompanying screws) away from the work area to prevent damage.

Plastic parts

CAUTION: Using excessive force during disassembly and reassembly can damage plastic parts.

Use care when handling the plastic parts. Apply pressure only at the points designated in the
maintenance instructions.

Preliminary replacement requirements 27

Cables and connectors

CAUTION: When servicing the device, be sure that cables are placed in their proper locations

during the reassembly process. Improper cable placement can damage the device.

Cables must be handled with extreme care to avoid damage. Apply only the tension required to
unseat or seat the cables during removal and insertion. Handle cables by the connector whenever
possible. In all cases, avoid bending, twisting, or tearing cables. Be sure that cables are routed in
such a way that they cannot be caught or snagged by parts being removed or replaced. Handle flex
cables with extreme care; these cables tear easily.

Drive handling

CAUTION: Drives are fragile components that must be handled with care. To prevent damage to

the device, damage to a drive, or loss of information, observe these precautions:

Before removing or inserting a hard drive, shut down the device. If you are unsure whether the device
is off or in Hibernation, turn the device on, and then shut it down through the operating system.

Before handling a drive, be sure that you are discharged of static electricity. While handling a drive,
avoid touching the connector.

Handle drives on surfaces covered with at least one inch of shock-proof foam.

Avoid dropping drives from any height onto any surface.

After removing a hard drive, an optical drive, or a diskette drive, place it in a static-proof bag.

Avoid exposing a hard drive to products that have magnetic fields, such as monitors or speakers.

Avoid exposing a drive to temperature extremes or liquids.

If a drive must be mailed, place the drive in a bubble pack mailer or other suitable form of protective
packaging and label the package “FRAGILE.”

28 Chapter 4 Removal and replacement procedures

Grounding guidelines

Electrostatic discharge damage

Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure
determine the degree of sensitivity. Networks built into many integrated circuits provide some
protection, but in many cases, ESD contains enough power to alter device parameters or melt
silicon junctions.

A discharge of static electricity from a finger or other conductor can destroy static-sensitive devices or
microcircuitry. Even if the spark is neither felt nor heard, damage may have occurred.

An electronic device exposed to ESD may not be affected at all and can work perfectly throughout a
normal cycle. Or the device may function normally for a while, then degrade in the internal layers,
reducing its life expectancy.

CAUTION: To prevent damage to the device when you are removing or installing internal

components, observe these precautions:

Keep components in their electrostatic-safe containers until you are ready to install them.

Use nonmagnetic tools.

Before touching an electronic component, discharge static electricity by using the guidelines
described in this section.

Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.

If you remove a component, place it in an electrostatic-safe container.

The following table shows how humidity affects the electrostatic voltage levels generated by different
activities.

CAUTION: A product can be degraded by as little as 700 V.

Typical electrostatic voltage levels

Relative humidity

Event 10% 40% 55%

Walking across carpet 35,000 V 15,000 V 7,500 V

Walking across vinyl floor 12,000 V 5,000 V 3,000 V

Motions of bench worker 6,000 V 800 V 400 V

Removing DIPS from plastic tube 2,000 V 700 V 400 V

Removing DIPS from vinyl tray 11,500 V 4,000 V 2,000 V

Removing DIPS from Styrofoam 14,500 V 5,000 V 3,500 V

Removing bubble pack from PCB 26,500 V 20,000 V 7,000 V

Packing PCBs in foam-lined box 21,000 V 11,000 V 5,000 V

Preliminary replacement requirements 29

Packaging and transporting guidelines

Follow these grounding guidelines when packaging and transporting equipment:

To avoid hand contact, transport products in static-safe tubes, bags, or boxes.

●

Protect ESD-sensitive parts and assemblies with conductive or approved containers or

●

packaging.

Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.

●

Place items on a grounded surface before removing items from their containers.

●

Always be properly grounded when touching a component or assembly.

●

Store reusable ESD-sensitive parts from assemblies in protective packaging or nonconductive

●

foam.

Use transporters and conveyors made of antistatic belts and roller bushings. Be sure that

●

mechanized equipment used for moving materials is wired to ground and that proper materials
are selected to avoid static charging. When grounding is not possible, use an ionizer to dissipate
electric charges.

Workstation guidelines

Follow these grounding workstation guidelines:

Cover the workstation with approved static-shielding material.

●

Use a wrist strap connected to a properly grounded work surface and use properly grounded

●

tools and equipment.

Use conductive field service tools, such as cutters, screwdrivers, and vacuums.

●

When fixtures must directly contact dissipative surfaces, use fixtures made only of static-safe

●

materials.

Keep the work area free of nonconductive materials, such as ordinary plastic assembly aids and

●

Styrofoam.

Handle ESD-sensitive components, parts, and assemblies by the case or PCM laminate. Handle

●

these items only at static-free workstations.

Avoid contact with pins, leads, or circuitry.

●

Turn off power and input signals before inserting or removing connectors or test equipment.

●

30 Chapter 4 Removal and replacement procedures

Equipment guidelines

Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation.

When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible

●

straps with a minimum of one megohm ±10% resistance in the ground cords. To provide proper
ground, wear a strap snugly against the skin at all times. On grounded mats with banana-plug
connectors, use alligator clips to connect a wrist strap.

When standing, use foot straps and a grounded floor mat. Foot straps (heel, toe, or boot straps)

●

can be used at standing workstations and are compatible with most types of shoes or boots. On
conductive floors or dissipative floor mats, use foot straps on both feet with a minimum of one
megohm resistance between the operator and ground. To be effective, the conductive strips
must be worn in contact with the skin.

The following grounding equipment is recommended to prevent electrostatic damage:

Antistatic tape

●

Antistatic smocks, aprons, and sleeve protectors

●

Conductive bins and other assembly or soldering aids

●

Nonconductive foam

●

Conductive tabletop workstations with ground cords of one megohm resistance

●

Static-dissipative tables or floor mats with hard ties to the ground

●

Field service kits

●

Static awareness labels

●

Material-handling packages

●

Nonconductive plastic bags, tubes, or boxes

●

Metal tote boxes

●

Electrostatic voltage levels and protective materials

●

The following table lists the shielding protection provided by antistatic bags and floor mats.

Material Use Voltage protection level

Antistatic plastic Bags 1,500 V

Carbon-loaded plastic Floor mats 7,500 V

Metallized laminate Floor mats 5,000 V

Preliminary replacement requirements 31

Component replacement procedures

This chapter provides removal and replacement procedures.

There are as many as 33 screws, in 5 different sizes, that must be removed, replaced, or loosened
when servicing the computer. Make special note of each screw size and location during removal and
replacement.

Computer feet

The computer feet are adhesive-backed rubber pads. The feet are included in the Rubber Feet Kit,
spare part number 622352-001. There are 4 rubber feet that attach to the base enclosure in the
locations shown in the following illustration.

32 Chapter 4 Removal and replacement procedures

Battery

Description Spare part number

6-cell Li-ion high-capacity (66-WHr 3.0-Ah) 614875-001

6-cell Li-ion high-capacity (55-WHr 2.5-Ah) 614874-001

3-cell Li-ion (28-WHr 2.55-Ah) 614873-001

Remove the battery:

CAUTION: Removing a battery that is the sole power source for the computer can cause loss of

information. To prevent loss of information, save your work and initiate Hibernation or shut down the
computer through Windows before removing the battery.

1. Save your work and shut down the computer.

2. Disconnect all external devices connected to the computer.

3. Unplug the power cord from the AC outlet.

4. With the display closed, position the computer upside down on a flat surface with the battery bay

toward you.

5. Slide the battery locking latch (1) inward to unlock the battery.

NOTE: You can identify when the battery locking latch is unlocked by the red icon that appears

inside the latch.

6. Slide and hold the battery release latch (2) while removing the battery (3) from the battery bay.

To insert the battery:

1. Insert the battery (1) into the battery bay until the battery release latch (2) clicks.

Component replacement procedures 33

2. Slide the battery locking latch (3) to the right to lock the battery into the battery bay.

34 Chapter 4 Removal and replacement procedures

SIM

NOTE: This section applies only to models with WWAN capability.

NOTE: If there is a SIM inserted in the SIM slot, it must be removed before disassembling the

computer. Be sure that the SIM is reinserted in the SIM slot after reassembling the computer.

Before removing the SIM, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

Remove the SIM:

1. Press in on the SIM (1) to release it from the SIM slot.

2. Remove the SIM (2) from the SIM slot.

Battery on page 33).

Install the SIM by inserting it into the SIM slot until you hear a click.

Component replacement procedures 35

Service access cover

Description Spare part number

Service access cover, charcoal (for use in all countries and regions except Brazil) 626028-001

Service access cover, charcoal (for use only in Brazil) 626574-001

Service access cover, crimson red (for use in all countries and regions except Brazil) 626029-001

Service access cover, crimson red (for use only in Brazil) 626575-001

Service access cover, luminous rose (for use in all countries and regions except Brazil) 626030-001

Service access cover, ocean drive blue (for use in all countries and regions except Brazil) 626031-001

Service access cover, lavender frost (for use in all countries and regions except Brazil) 626032-001

Service access cover, lavender frost (for use only in Brazil) 626578-001

Service access cover, Icy Berry (for use in all countries and regions except Brazil) 635298-001

Service access cover, Raspberry (for use in all countries and regions except Brazil) 635300-001

Service access cover, Leaf green (for use in all countries and regions except Brazil) 626033-001

Before removing the service access cover, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

Battery on page 33).

Remove the service access cover:

1. Slide the service access cover release lever (1) to the right.

2. Lift up the edge (2) of the service access cover until the tabs on the opposite side of the cover

are clear of the slots in the base enclosure.

36 Chapter 4 Removal and replacement procedures

3. Remove the cover (3).

Install the service access cover:

1. Align the tabs (1) on the service access cover with the slots in the base enclosure.

2. Insert the tabs into the slots (2), and swing the cover (3) down.

Component replacement procedures 37

3. Press down firmly on the cover until it clicks into place.

38 Chapter 4 Removal and replacement procedures

Hard drive

NOTE: The hard drive spare part kit includes a bracket and screws.

Description Spare part number

Hard drive:

320-GB, 7200-rpm 627731-001

250-GB, 7200-rpm 613047-001

160-GB, 7200-rpm 622655-001

Hard Drive Hardware Kit (includes hard drive bracket and screws) 626589-001

Before removing the hard drive, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

the computer on, and then shut it down through the operating system.

and then unplugging the AC adapter from the computer.

4. Remove the following components:

a. Battery (see

b. Service access cover (see

Battery on page 33).

Service access cover on page 36).

Remove the hard drive:

1. Disconnect the hard drive cable (1) from the system board.

2. Remove the 3 Phillips 2.0x4.0 screws (2) that secure the hard drive to the computer.

Component replacement procedures 39

3. Use the Mylar tab (3) to remove the hard drive from the computer.

4. If it is necessary to replace the hard drive bracket, follow these steps:

a. Disconnect the cable adapter from the hard drive.

b. Remove the 4 Phillips 3.0×3.0 screws (1) that secure the hard drive bracket to the drive.

c. Remove the hard drive bracket (2).

40 Chapter 4 Removal and replacement procedures

Reverse this procedure to reassemble and install the hard drive.

Component replacement procedures 41

WWAN and GPS modules (select models only)

NOTE: The WWAN module and the GPS module are very similar. Either of them can populate the

WWAN slot.

Description Spare part number

Ericsson F3307 HSPA 900-MHz Broadband WWAN module (select models only) 612600-001

Broadcom GPS Mini Card (select models only) 621754-001

Qualcomm Gobi 2000 3G WWAN module (select models only) 531993-001

CAUTION: The WWAN module and the WLAN module are not interchangeable.

CAUTION: To prevent an unresponsive system, replace the wireless module only with a wireless

module authorized for use in the computer by the governmental agency that regulates wireless
devices in your country or region. If you replace the module and then receive a warning message,
remove the module to restore device functionality, and then contact technical support.

Before removing the WWAN or GPS module, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the following components:

a. Battery (see

b. Service access cover (see

Battery on page 33).

Service access cover on page 36).

Remove the WWAN or GPS module:

1. Disconnect the antenna cable or cables (1) from the WWAN or GPS module.

NOTE: The antenna cable with the red label is connected to the WWAN module “Main”

terminal. The antenna cable with the blue label is connected to the WWAN or GPS module “Aux”
terminal.

NOTE: The GPS module does not use the Main cable, therefore the Main cable is not

connected. When you work with the GPS module, it is important to keep the plastic tubing that
covers the Main cable in place.

2. Remove the 2 Phillips 2.0×3.0 screws (2) that secure the WWAN or GPS module to the system

board. (The module tilts up.)

42 Chapter 4 Removal and replacement procedures

3. Remove the WWAN or GPS module (3) by pulling the module away from the slot at an angle.

NOTE: WWAN and GPS modules are designed with a notch (4) to prevent incorrect insertion

of the module into the slot.

Reverse this procedure to install the WWAN or GPS module.

Component replacement procedures 43

WLAN module

Description Spare part number

Atheros AR9285G 802.11b/g/n 1x1 WiFi Adapter 605560-005

Broadcom 4313/2070 802.11b/g/n (1x1) and Bluetooth high-speed Half Mini Card 600370-001

Broadcom 4313/2070 802.11b/g/n (1x1) WiFi Mini Card 593836-001

Ralink RT3090BC4 802.11b/g/n 1x1 WiFi and Bluetooth 2.1+EDR Combo Adapter (Bluetooth

3.0+high-speed ready)

602992-001

CAUTION: The WLAN module and the WWAN module are not interchangeable.

CAUTION: To prevent an unresponsive system, replace the wireless module only with a wireless

module authorized for use in the computer by the governmental agency that regulates wireless
devices in your country or region. If you replace the module and then receive a warning message,
remove the module to restore computer functionality, and then contact technical support through Help
and Support.

Before removing the WLAN module, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the device by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

4. Remove the following components:

a. Battery (see

Battery on page 33).

b. Service access cover (see

Service access cover on page 36).

Remove the WLAN module:

1. Disconnect the WLAN antenna cables (1) from the terminals on the WLAN module.

NOTE: The WLAN antenna cable with the black label is connected to the WLAN module

“Main” terminal. The WLAN antenna cable with the white label is connected to the WLAN
module “Aux” terminal.

2. Remove the 2 Phillips 2.0×3.0 screws (2) that secure the WLAN module to the system board.

(The WLAN module tilts up.)

44 Chapter 4 Removal and replacement procedures

3. Remove the WLAN module (3) by pulling the module away from the slot at an angle.

NOTE: WLAN modules are designed with a notch (4) to prevent incorrect insertion of the

WLAN module into the WLAN module slot.

Reverse this procedure to install the WLAN module.

Component replacement procedures 45

Memory module

Description Spare part number

1-GB memory module (667-MHz, DDR3) 615862-001

2-GB memory module (667-MHz, DDR3) 615863-001

Before removing the memory module, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the following components:

a. Battery (see

b. Service access cover (see

Battery on page 33).

Service access cover on page 36).

Remove the memory module:

1. Pull away the retention clips (1) on each side of the memory module to release the memory

module. (The memory module tilts up.)

CAUTION: To prevent damage to the memory module, hold it by the edges only. Do not touch

the components on the memory module.

46 Chapter 4 Removal and replacement procedures

2. Grasp the edge of the memory module (2), and then pull it out of the memory module slot.

NOTE: Memory modules are designed with a notch (3) to prevent incorrect insertion into the

memory module slot.

Reverse this procedure to install the memory module.

RTC battery

Description Spare part number

RTC battery 622351-001

Before removing the real-time clock (RTC) battery, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the following components:

a. Battery (see

b. Service access cover (see

Remove the RTC battery:

Battery on page 33).

Service access cover on page 36).

1. Disconnect the RTC battery cable (1) from the system board.

Component replacement procedures 47

2. Remove the RTC battery (2) from the computer.

NOTE: The RTC battery is attached with double-sided tape.

Reverse this procedure to install the RTC battery. When installing the RTC battery, be sure the plus
sign (+) faces up.

Keyboard

NOTE: The keyboard spare part kit includes a keyboard cable.

For use in: Spare part number For use in: Spare part number

Belgium 622344-A41 The Netherlands 622344-B31

Brazil 622344-201 Portugal 622344-131

The Czech Republic 622344-221 Russia 622344-251

Denmark, Finland, and Norway 622344-DH1 Saudi Arabia 622344-171

France 622344-051 Slovenia 622344-BA1

French Canada 622344-121 South Korea 622344-AD1

Germany 622344-041 Spain 622344-071

Greece 622344-DJ1 Switzerland 622344-BG1

Hungary 622344-211 Taiwan 622344-AB1

Israel 622344-BB1 Thailand 622344-281

48 Chapter 4 Removal and replacement procedures

For use in: Spare part number For use in: Spare part number

Italy 622344-061 Turkey 622344-141

Japan 622344-291 For use in the United Kingdom and

Singapore

Latin America 622344-161 The United States 622344-001

622344-031

Before removing the keyboard, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the following components:

a. Battery (see

b. Service access cover (see

Battery on page 33).

Service access cover on page 36).

Remove the keyboard:

1. Remove the 3 Phillips 2.0×5.0 screws that secure the keyboard to the computer.

2. Turn the computer right-side up, with the front toward you.

Component replacement procedures 49

3. Open the computer as far as possible.

4. Lift the rear edge of the keyboard until it rests at an angle.

5. Release the zero insertion force (ZIF) connector (1) to which the keyboard cable is attached, and

then disconnect the keyboard cable (2)

6. Remove the keyboard.

Reverse this procedure to install the keyboard.

50 Chapter 4 Removal and replacement procedures

Top cover

NOTE: The top cover includes the TouchPad and TouchPad cable.

Description Spare part number

Top cover 635012-001

Before removing the top cover, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

4. Remove the following components:

the computer on, and then shut it down through the operating system.

and then unplugging the AC adapter from the computer.

a. Battery (see

b. Service access cover (see

c. Keyboard (see

Battery on page 33).

Service access cover on page 36).

Keyboard on page 48).

Remove the top cover.

1. Open the computer as far as possible.

2. Remove the 2 Phillips 2.0×2.5 screws (1) that secure the interior hinge covers to the display

hinges.

NOTE: The screws used for these hinge covers require a Phillips 00 screwdriver.

3. Remove the interior hinge covers (2).

Component replacement procedures 51

4. Turn the computer upside down, with the front toward you.

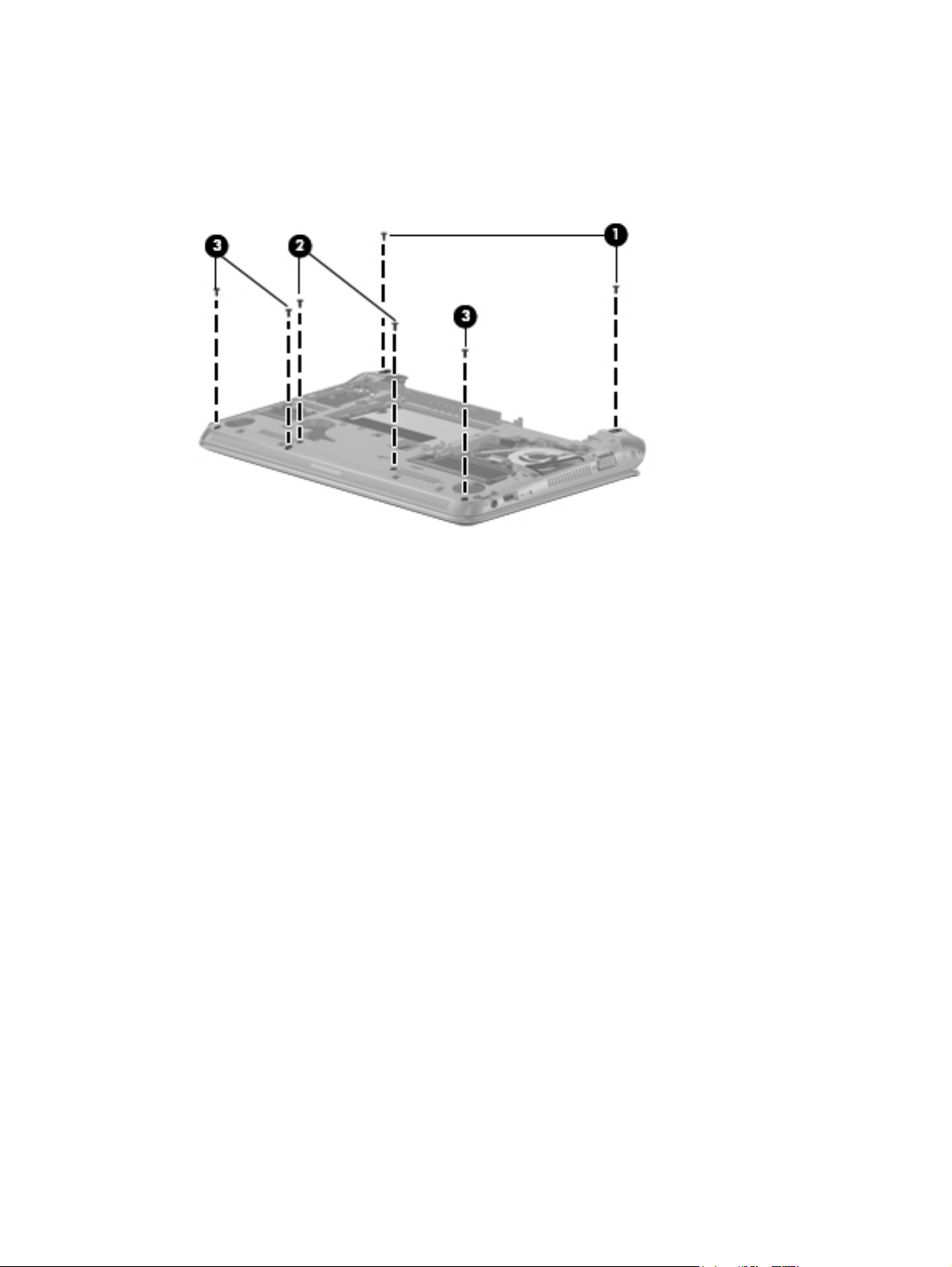

5. Remove the rear rubber feet, and then the 2 Phillips 2.5x5.0 screws (1) under the feet.

6. Remove the 2 Phillips 2.0x5.0 screws (2) and the 3 Phillips 2.0x4.0 screws (3) that secure the

top cover to the base enclosure.

7. Turn the computer right-side up, with the front toward you.

8. Open the computer as far as possible.

9. Disconnect the speaker cable (1) from the system board.

52 Chapter 4 Removal and replacement procedures

10. Release the ZIF connector (2) to which the TouchPad cable is connected, and then disconnect

the TouchPad cable (3) from the system board.

11. Remove the 8 Phillips 2.0x4.0 screws that secure the top cover to the base enclosure.

Component replacement procedures 53

12. Release the top cover by lifting the front edge until it disengages from the base enclosure.

Reverse this procedure to install the top cover.

54 Chapter 4 Removal and replacement procedures

Speakers

Description Spare part number

Speakers (include cables) 622354-001

Before removing the speakers, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

4. Remove the following components:

the computer on, and then shut it down through the operating system.

and then unplugging the AC adapter from the computer.

a. Battery (see

b. Service access cover (see

c. Keyboard (see

d. Top cover (see

Battery on page 33).

Service access cover on page 36).

Keyboard on page 48).

Top cover on page 51).

Remove the speakers:

1. Turn the top cover upside down, with the front toward you.

Component replacement procedures 55

2. Release the ZIF connector (1) for the TouchPad cable and remove the cable (2) from the top

cover. (The TouchPad cable is attached to the top cover with double-sided tape).

3. Remove the 2 Phillips 2.0×3.0 screws (1) that secure the speakers to the top cover.

4. Remove the speakers (2).

Reverse this procedure to install the speakers.

56 Chapter 4 Removal and replacement procedures

Display assembly

Description Spare part number

25.7-cm (10.1-in) display assembly (includes display panel cable, 2 WLAN transceivers and cables, 2 WWAN transceivers

and cables (select models only), and webcam/microphone module and cable):

HD, flush glass display assembly in charcoal 622339-001

●

HD, flush glass display assembly in leaf green 622333-001

●

HD, flush glass display assembly in crimson red 622340-001

●

HD, flush glass display assembly in luminous rose 622341-001

●

HD, flush glass display assembly in ocean drive blue 622342-001

●

HD, flush glass display assembly in lavender frost 622343-001

●

HD, flush glass display assembly in icy berry 635286-001

●

HD, flush glass display assembly in raspberry 635288-001

●

WSVGA, flush glass display assembly in leaf green 622332-001

●

WSVGA, flush glass display assembly in charcoal 622334-001

●

WSVGA, flush glass display assembly in crimson red 622335-001

●

WSVGA, flush glass display assembly in luminous rose 622336-001

●

WSVGA, flush glass display assembly in ocean drive blue 622337-001

●

WSVGA, flush glass display assembly in lavender frost 622338-001

●

WSVGA, flush glass display assembly in icy berry 635289-001

●

WSVGA, flush glass display assembly in raspberry 635291-001

●

Before removing the display assembly, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the following components:

a. Battery (see

b. Service access cover (see

c. Keyboard (see

d. Top cover (see

Battery on page 33).

Service access cover on page 36).

Keyboard on page 48).

Top cover on page 51).

5. Disconnect the WWAN antenna cables from the WWAN module (see

(select models only) on page 42).

6. Disconnect the WLAN antenna cables from the WLAN module (see

Component replacement procedures 57

WWAN and GPS modules

WLAN module on page 44).

Remove the display assembly:

1. Close the computer.

2. Turn the computer upside down, with the front toward you.

3. Release the WLAN antenna cables (1) from the clips (2) built into the base enclosure.

4. Turn the computer right-side up, with the front toward you.

5. Open the computer as far as possible.

6. Disconnect the display panel cable (1) from the system board.

58 Chapter 4 Removal and replacement procedures

7. Release the wireless antenna cables (2) from the clip built into the base enclosure.

CAUTION: Support the display assembly when removing the following screws. Failure to

support the display assembly can result in damage to the display assembly and other device
components.

8. Remove the 2 Phillips 2.5×5.0 screws (1) that secure the display assembly to the base

enclosure.

9. Remove the display assembly (2).

Component replacement procedures 59

Remove the display assembly hinges:

1. Remove the hinge covers from the hinges.

2. Remove the 2 Phillips 2.0x5.0 screws (1) that secure the hinges to the display assembly.

3. Remove the display hinges (2).

Reverse this procedure to reassemble and install the display assembly.

60 Chapter 4 Removal and replacement procedures

Fan/heat sink assembly

Description Spare part number

Fan/heat sink assembly (includes replacement thermal material) 622330-001

NOTE: To properly ventilate the computer, allow at least a 7.6-cm (3-in) clearance on the left side of

the computer. The computer uses an electric fan for ventilation. The fan is controlled by a
temperature sensor and is designed to turn on automatically when high temperature conditions exist.
These conditions are affected by high external temperatures, system power consumption, power
management/battery conservation configurations, battery fast charging, and software requirements.
Exhaust air is displaced through the ventilation grill located on the left side of the computer.

Before removing the fan/heat sink assembly, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the following components:

a. Battery (see

b. Service access cover (see

Battery on page 33).

Service access cover on page 36).

Remove the fan/heat sink assembly:

1. Turn the system board upside down.

2. Disconnect the fan cable (1) from the system board.

3. Remove the 2 Phillips 2.0x3.0 screws (2) and loosen the 2 Phillips 2.0x4.0 captive screws (3)

that secure the fan/heat sink assembly to the system board.

Component replacement procedures 61

4. Remove the fan/heat sink assembly (4).

NOTE: Due to the adhesive quality of the thermal material located between the fan/heat sink

assembly and system board components, it may be necessary to move the fan/heat sink
assembly from side to side to detach it from the system board.

NOTE: The thermal material must be thoroughly cleaned from the surfaces of the fan/heat sink

assembly and the system board each time the fan/heat sink assembly is removed: Thermal
paste is used on the processor (1) and the fan/heat sink assembly section (2) that services it.

Reverse this procedure to install the fan/heat sink assembly.

62 Chapter 4 Removal and replacement procedures

System board

NOTE: The system board spare part kit includes replacement thermal material.

Description Spare part number

Intel Atom N455 1.66-GHz processor, 512-KB level 2 cache, 667-MHz FSB, 6.5 W, SC, UMA,
XSLOT

Intel Atom N455 1.66-GHz processor, 512-KB level 2 cache, 667-MHz FSB, 6.5 W, SC, HD
discrete, XSLOT

Intel Atom N455 1.66-GHz processor, 512-KB level 2 cache, 667-MHz FSB, 6.5 W, SC, UMA 627756-001

Intel Atom N455 1.66-GHz processor, 512-KB level 2 cache, 667-MHz FSB, 6.5 W, SC, HD
discrete

Intel Atom N475 1.83-GHz processor, 512-KB level 2 cache, 667-MHz FSB, 6.5 W, SC, UMA,
XSLOT

Intel Atom N475 1.83-GHz processor, 512-KB level 2 cache, 667-MHz FSB, 6.5W, SC, XSLOT, HD
discrete

Intel Atom N475 1.83-GHz processor, 512-KB level 2 cache, 667-MHz FSB, 6.5 W, SC, UMA 627757-001

Intel Atom N475 1.83-GHz processor, 512-KB level 2 cache, 667-MHz FSB, 6.5 W, SC, HD
discrete

Intel Atom N550 1.5-GHz processor, 1-MB level 2 cache, 667-MHz FSB, 8.5 W, DC UMA, XSLOT 622357-001

Intel Atom N550 1.5-GHz processor, 1-MB level 2 cache, 667-MHz FSB, 8.5 W, DC, XSLOT, HD
discrete

Intel Atom N550 1.5-GHz processor, 1-MB level 2 cache, 667-MHz FSB, 8.5 W, DC, UMA 627758-001

Intel Atom N550 1.5-GHz processor, 1-MB level 2 cache, 667-MHz FSB, 8.5 W, DC, HD discrete 627761-001

622355-001

622358-001

627759-001

622356-001

622359-001

627760-001

622360-001

Intel Atom N455 1.66-GHz processor, 512-KB level 2 cache, 667-MHz FSB, 6.5 W, SC,UMA 630966-001

Intel Atom N455 1.66-GHz processor, 512-KB level 2 cache, 667-MHz FSB, 6.5 W, SC, UMA 630967-001

Intel Atom N550 1.5-GHz processor, 1-MB level 2 cache, 667-MHz FSB, 8.5 W, DC, UMA, XSLOT 630968-001

Intel Atom N455 1.66-GHz processor, 512-KB level 2 cache, 667-MHz FSB, 6.5 W, SC, UMA,
XSLOT

Intel Atom N475 1.83-GHz processor, 512-KB level 2 cache, 667-MHz FSB, 6.5 W, DC, UMA,
XSLOT

Intel Atom N550 1.5-GHz processor, 1-MB level 2 cache, 667-MHz FSB, 8.5 W, DC, UMA, XSLOT 630971-001

Intel Atom N455 1.66-GHz processor, 512-KB level 2 cache, 667-MHz FSB, 6.5 W, DC, UMA, HD
discrete

Intel Atom N475 1.83-GHz processor, 512-KB level 2 cache, 667-MHz FSB, 6.5 W, SC, UMA, HD
discrete

Intel Atom N550 1.5-GHz processor, 1-MB level 2 cache, 667-MHz FSB, 8.5 W, DC, UMA, HD
discrete

Intel Atom N455 1.66-GHz processor, 512-KB level 2 cache, 667-MHz FSB, 6.5 W,SC, UMA,
XSLOT, HD discrete

Intel Atom N475 1.83-GHz processor, 512-KB level 2 cache, 667-MHz FSB, 6.5 W, SC, UMA,
XSLOT, HD discrete

Intel Atom N550 1.5-GHz processor, 1-MB level 2 cache, 667-MHz FSB, 8.5 W, DC, UMA, XSLOT 630977-001

630969-001

630970-001

630972–001

630973-001

630974-001

630975-001

630976-001

Component replacement procedures 63

Before removing the system board, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the following components:

a. Battery (see

b. Service access cover (see

c. Hard drive (see

d. Keyboard (see

e. Display assembly (see

5. Disconnect the WWAN antenna cables from the WWAN module (see

(select models only) on page 42).

6. Disconnect the WLAN antenna cables from the WLAN module (see

When replacing the system board, be sure that the following components are removed from the
defective system board and installed on the replacement system board:

SIM (see

●

WWAN module (see

●

WLAN module (see

●

Memory module (see

●

RTC battery (see

●

SIM on page 35)

Battery on page 33).

Service access cover on page 36).

Hard drive on page 39).

Keyboard on page 48).

Display assembly on page 57).

WWAN and GPS modules

WLAN module on page 44).

WWAN and GPS modules (select models only) on page 42)

WLAN module on page 44)

Memory module on page 46)

RTC battery on page 47)

Fan/heat sink assembly (see

●

64 Chapter 4 Removal and replacement procedures

Fan/heat sink assembly on page 61)

Remove the system board:

1. Disconnect the power connector cable from the system board.

2. Remove the 2 Phillips 2.0×4.0 screws (1) that secure the system board to the base enclosure.

3. Lift the right side of the system board (2) until it rests at an angle.

4. Remove the system board (3) by sliding it up and away from the base enclosure.

Reverse the procedure to install the system board.

Component replacement procedures 65

Power connector cable and DC bracket

Description Spare part number

Power connector cable 622329-001

DC bracket 634873-001

Before removing the power connector cable, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the following components:

a. Battery (see

b. Service access cover (see

c. Hard drive (see

d. Keyboard (see

e. Top cover (see

f. Display assembly (see

g. System board (see

Battery on page 33).

Service access cover on page 36).

Hard drive on page 39).

Keyboard on page 48).

Top cover on page 51).

Display assembly on page 57).

System board on page 63).

Remove the DC bracket and power connector cable:

1. Grasp the DC bracket (1), and then pull it up off the base enclosure.

2. Grasp the power connector (2), and then pull it up off the base enclosure.

66 Chapter 4 Removal and replacement procedures

Reverse this procedure to install the power connector cable and DC bracket.

RJ-45 cover

Description Spare part number

RJ-45 cover 626580-001

Before removing the RJ45 cover, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the following components:

a. Battery (see

Battery on page 33).

b. Service access cover (see

c. Hard drive (see

d. Keyboard (see

e. Top cover (see

f. Display assembly (see

g. System board (see

Hard drive on page 39).

Keyboard on page 48).

Top cover on page 51).

Display assembly on page 57).

System board on page 63).

Service access cover on page 36).

Component replacement procedures 67

Remove the RJ-45 cover:

Remove the RJ-45 cover by grasping the cover and pulling it away from the base enclosure.



Reverse this procedure to install the RJ-45 cover.

68 Chapter 4 Removal and replacement procedures

5 Setup Utility

Starting Setup Utility

Setup Utility is a ROM-based information and customization utility that can be used even when your
operating system is not working.

The utility reports information about the computer and provides settings for startup, security, and
other preferences.

To start Setup Utility:

Open Setup Utility by turning on or restarting the computer and then pressing f10 while the



“Press ESC key for startup menu” message is displayed in the lower-left corner of the screen.

Starting Setup Utility 69

Using Setup Utility

Changing the language of Setup Utility

The following procedure explains how to change the language of Setup Utility. If Setup Utility is not
already running, begin at step 1. If Setup Utility is already running, begin at step 2.

1. Open Setup Utility by turning on or restarting the computer and then pressing f10 while the

“Press ESC key for startup menu” message is displayed in the lower-left corner of the screen.

2. Use the arrow keys to select System Configuration > Language, and then press enter.

3. Use the arrow keys to select a language, and then press enter.

4. When a confirmation prompt with your language selected is displayed, press enter.

5. To save your change and exit Setup Utility, use the arrow keys to select Exit > Exit Saving

Changes, and then press enter. Your change goes into effect immediately.

Your change goes into effect immediately.

70 Chapter 5 Setup Utility

Navigating and selecting in Setup Utility

Setup Utility does not support the TouchPad. Navigation and selection are by keystroke.

To choose a menu or a menu item, use the arrow keys.

●

To choose an item in a list or to toggle a field, for example an Enable/Disable field, use either the

●

arrow keys or f5 or f6.

To select an item, press enter.

●

To close a text box or return to the menu display, press esc.

●

To display additional navigation and selection information while Setup Utility is open, press f1.

●

Using Setup Utility 71

Displaying system information

The following procedure explains how to display system information in Setup Utility. If Setup Utility is
not open, begin at step 1. If Setup Utility is open, begin at step 2.

1. Open Setup Utility by turning on or restarting the computer and then pressing f10 while the

“Press ESC key for startup menu” message is displayed in the lower-left corner of the screen.

2. Select the Main menu. System information such as the system time and date, and identification

information about the computer is displayed.

3. To exit Setup Utility without changing any settings, use the arrow keys to select Exit > Exit

Discarding Changes, and then press enter.

72 Chapter 5 Setup Utility

Restoring default settings in Setup Utility

The following procedure explains how to restore the Setup Utility default settings. If Setup Utility is not
already running, begin at step 1. If Setup Utility is already running, begin at step 2.

1. Open Setup Utility by turning on or restarting the computer and then pressing f10 while the

“Press ESC key for startup menu” message is displayed in the lower-left corner of the screen.

2. Use the arrow keys to select Exit > Load Setup Defaults, and then press enter.

3. When the Setup Confirmation is displayed, press enter.

4. To save your change and exit Setup Utility, use the arrow keys to select Exit > Exit Saving

Changes, and then press enter.

The Setup Utility default settings go into effect when the computer restarts.

NOTE: Your password, security, and language settings are not changed when you restore the

factory default settings.

Restoring default settings in Setup Utility 73

Exiting Setup Utility

You can exit Setup Utility with or without saving changes.

To exit Setup Utility and save your changes from the current session:

●

If the Setup Utility menus are not visible, press esc to return to the menu display. Then use the
arrow keys to select Exit > Exit Saving Changes, and then press enter.

To exit Setup Utility without saving your changes from the current session:

●

If the Setup Utility menus are not visible, press esc to return to the menu display. Then use the
arrow keys to select Exit > Exit Discarding Changes, and then press enter. After either choice,
the computer restarts.

74 Chapter 5 Setup Utility

Setup Utility Menus

Main Menu

The menu tables in this section provide an overview of the Setup Utility options

NOTE: Some of the Setup Utility menu items listed in this chapter may not be supported by your

computer.

Select To do this

System information

Security Menu

Select To do this

Administrator password Enter, change, or delete an administrator password.

Power-On password Enter, change, or delete a power-on password.

View and change the system time and date.

●

View identification information about the computer.

●

View specification information about the processor,

●

memory size, and system BIOS.

Setup Utility Menus 75

System Configuration Menu

Select To do this

Language Support Select the display language for the Setup Utility.

Fan always on Enable/disable fan always on.

Action keys mode Enable/disable action keys.

Boot Options Set boot order, device boot capability, and accessibility

options:

POST Hotkey Delay (sec)―Set the delay for the f10

●

and f12 functions of Setup Utility in intervals of 5
seconds each (0, 5, 10, 15, 20).

HP QuickWeb (select models only) ―Enable/disable

●

the QuickWeb Boot menu in Setup Utility.

Delay to boot Windows―Disable, or set delay to 5, 10,

●

15, or 30 seconds.

Floppy boot―Enable/disable during boot time.

●

Internal Network Adapter boot―Enable/disable internal

●

network adapter boot.

Boot order―Set the order in which the system searches

●

for a boot disk:

Diagnostics Menu

Select To do this

Hard Disk Self Test (select models only) Run a comprehensive self-test on the hard drive.

Memory Test Run a diagnostic test on the system memory.

Notebook hard drive

◦

USB diskette-on-key/lUSB hard drive

◦

USB CD/DVD ROM drive

◦

USB Floppy

◦

Network adapter

◦

NOTE: Only devices connected to the system

will appear in the boot order menu.

To change the order of boot devices, press the Up
or Down arrow to select a device. Then press f5 to
move the device up in the list or f6 to move the
device down in the list.

76 Chapter 5 Setup Utility

Updating the BIOS

Updated versions of the BIOS may be available on the HP Web site.

Most BIOS updates on the HP Web site are packaged in compressed files called SoftPaqs.

Some download packages contain a file named Readme.txt, which contains information regarding
installing and troubleshooting the file.

Updating the BIOS 77

Determining the BIOS version

To determine whether available BIOS updates contain later BIOS versions than those currently
installed on the computer, you need to know the version of the system BIOS currently installed.

BIOS version information (also known as ROM date and System BIOS) can be displayed using Setup
Utility.

1. Start Setup Utility.

2. If the system information is not displayed, use the arrow keys to select the Main menu.

BIOS and other system information is displayed.

3. To exit Setup Utility, use the arrow keys to select Exit > Exit Discarding Changes, and then

press enter.

Downloading a BIOS update

CAUTION: To reduce the risk of damage to the computer or an unsuccessful installation, download

and install a BIOS update only when the computer is connected to reliable external power using the
AC adapter. Do not download or install a BIOS update while the computer is running on battery
power, docked in an optional docking device, or connected to an optional power source. During the
download and installation, follow these instructions:

Do not disconnect power from the computer by unplugging the power cord from the AC outlet.

Do not shut down the computer or initiate Sleep.

Do not insert, remove, connect, or disconnect any device, cable, or cord.

1. Access the page on the HP Web site that provides software for your computer.

2. Follow the on-screen instructions to identify your computer and access the BIOS update you

want to download.

3. At the download area, follow these steps:

a. Identify the BIOS update that is later than the BIOS version currently installed on your

computer. Make a note of the date, name, or other identifier. You may need this information
to locate the update later, after it has been downloaded to your hard drive.

b. Follow the on-screen instructions to download your selection to the hard drive.

Make a note of the path to the location on your hard drive where the BIOS update is
downloaded. You will need to access this path when you are ready to install the update.

NOTE: If you connect your computer to a network, consult the network administrator before

installing any software updates, especially system BIOS updates.

BIOS installation procedures vary. Follow any instructions that are displayed on the screen after the
download is complete.

NOTE: After a message on the screen reports a successful installation, you can delete the

downloaded file from your hard drive.

78 Chapter 5 Setup Utility

6 Specifications

Device specifications

Metric U.S.

Dimensions

Depth 19 cm 7.5 in

Width 27 cm 11 in

Height 2.3-3.2 cm 0.91-0.93 in

Weight

25.7-cm (10.1-in) LCD, equipped with a 3-cell battery, hard

drive, 1-GB memory, WLAN module, and 2 wireless
antennas

25.7-cm (10.1-in). LCD, equipped with a 6-cell battery, hard
drive, 1-GB memory, WLAN module, and 2 wireless
antennas

Input power

Operating voltage 19.5 V dc @ 2.05A – 40 W

Operating current 2.05 A

Temperature

Operating 5°C to 35°C 41°F to 95°F

Nonoperating -20°C to 65°C -4°F to 149°F

Relative humidity (noncondensing)

Operating 10% to 90%

Nonoperating 0% to 95%

Maximum altitude (unpressurized)

1.2 kg 2.71 lb

1.5 kg 3.22 lb

Operating -15 m to 3,048 m -50 ft to 10,000 ft

Nonoperating -15 m to 12,192 m -50 ft to 40,000 ft

NOTE: Applicable product safety standards specify thermal limits for plastic surfaces. The device operates well within this

range of temperatures.

Device specifications 79

25.7-cm (10.1-in) high-definition AntiGlare display
specifications

Metric U.S.

Dimensions

Height 23.45 cm 9.23 in

Width 14.3 cm 5.62 in

Diagonal 25.7 cm 10.1 in

Number of colors 262,144

Contrast ratio 400:1 (typical)

Brightness 200 nits (typical)

Pixel resolution

Pitch 0.16305 × 016305 mm

Format High-definition: 1366 × 768

Configuration RGB vertical stripe

Backlight LED

Character display 80 × 25

Total power consumption 3.46 W

Viewing angle +/-30° horizontal, +10/-20° vertical (typical)

80 Chapter 6 Specifications

25.7-cm (10.1-in) WSVGA AntiGlare display
specifications

Metric U.S.

Dimensions

Height 23.5 cm 9.3 in

Width 14.3 cm 5.6 in

Diagonal 25.7 cm 10.1 in

Number of colors 262,144

Contrast ratio 500:1 (typical)

Brightness 200 nits (typical)

Pixel resolution

Pitch 0.2175 × 0.2088 mm

Format 1024 × 600

Configuration RGB vertical stripe

Backlight LED

Character display 80 × 25

Total power consumption (varies by display) 3.46 W

Viewing angle +/-45° horizontal, +15/-35° vertical (typical)

25.7-cm (10.1-in) WSVGA AntiGlare display specifications 81

Hard drive specifications

320-GB* 250-GB* 160-GB*

Dimensions

Height 9.5 mm 9.5 mm 9.5 mm

Length 100.2 mm 100.2 mm 100.2 mm

Width 70 mm 70 mm 70 mm

Weight 105-115 g 105-115 g 105-115 g

Interface type SATA SATA SATA

I/O data transfer rate (maximum) 100 Gbits/sec 100 Gbits/sec 100 Gbits/sec

Security ATA security ATA security ATA security

Seek times (typical read, including setting)

Single track 1.5 ms 1.5 ms 1.5 ms

Average (read/write) 11.0/12.0 ms 11.0/12.0 ms 11.0/12.0 ms

Maximum 21.0 ms 21.0 ms 21.0 ms

Logical blocks 625,142,448 488,397,168 312,581,808

Disc rotational speed 7200 rpm 7200 rpm 7200 rpm

Operating temperature 0°C to 60°C (32°F to

140°F)

*1 GB = 1 billion bytes when referring to hard drive storage capacity. Actual accessible capacity is less. Actual drive
specifications may differ slightly.

NOTE: Certain restrictions and exclusions apply. Contact technical support for details.

0°C to 60°C (32°F to

140°F)

0°C to 60°C (32°F to
140°F)

82 Chapter 6 Specifications

7 Backup and recovery

Recovery after a system failure is as good as your most recent backup. HP recommends that you
regularly back up your files to ensure you have the latest data.

To protect your information, back up your files and folders. In case of system failure, you can use the
backup files to restore your computer.

CAUTION: In the event of a hard drive failure, you cannot use your computer to access the Disaster

Recovery utility. Therefore, HP recommends that you download the Disaster Recovery utility SoftPaq,
and then extract it to a USB flash drive as soon as possible after software setup. For details, refer to
“Downloading and extracting the Disaster Recovery utility” later in this section.

You may have HP Recovery Manager on your computer.

NOTE: For detailed information, search for HP Recovery Manager in Help and Support.

Using Windows Backup and Restore

To create a backup using Windows Backup and Restore, follow these steps:

NOTE: Be sure that the computer is connected to AC power before you start the backup process.

NOTE: The backup process may take over an hour, depending on file size and the speed of the

computer.

1. Click Start, click All Programs, click Maintenance, and then click Backup and Restore.

2. Follow the on-screen instructions to set up and create a backup.

NOTE: Windows includes the User Account Control feature to improve the security of your

computer. You may be prompted for your permission or password for tasks such as installing
software, running utilities, or changing Windows settings. Refer to Help and Support for more
information.

Using Windows Backup and Restore 83

Using system restore points

When you back up your system, you are creating a system restore point. A system restore point
allows you to save and name a snapshot of your hard drive at a specific point in time. You can then
revert back to that point if you want to reverse subsequent changes made to your system.

NOTE: Recovering to an earlier restore point does not affect data files saved or e-mails created

since the last restore point.

You also can create additional restore points to provide increased protection for your system files and
settings.

When to create restore points

Before you add or extensively modify software or hardware.

●

Periodically, whenever the system is performing optimally.

●

NOTE: If you revert to a restore point and then change your mind, you can reverse the restoration.

Creating a system restore point

1. Click Start, click Control Panel, click System and Security, and then click System.

2. In the left pane, click System protection.

3. Click the System Protection tab.

4. Under Protection Settings, select the disk for which you want to create a restore point.

5. Click Create.

6. Follow the on-screen instructions.

Restoring to a previous date and time

To revert to a restore point (created at a previous date and time) when the computer was functioning
optimally, follow these steps:

1. Click Start, click Control Panel, click System and Security, and then click System.

2. In the left pane, click System protection.

3. Click the System Protection tab.

4. Click System Restore.

5. Follow the on-screen instructions.

84 Chapter 7 Backup and recovery

Backing up and recovering using HP Recovery Manager

If your computer includes HP Recovery Manager, tools provided by the operating system and by HP
Recovery Manager software are designed to help you with the following tasks for safeguarding your
information and restoring it in case of a system failure:

Backing up your information

●

Creating a set of recovery discs

●

Creating system restore points

●

Recovering a program or driver

●

Performing a full system recovery

●

Backing up your information

As you add new software and data files, you should back up your system on a regular basis to
maintain a reasonably current backup. Back up your system at the following times:

At regularly scheduled times

●

NOTE: Set reminders to back up your information periodically.

Before the computer is repaired or restored

●

Before you add or modify hardware or software

●

Note the following when backing up:

Create system restore points using the Windows System Restore feature, and periodically copy

●

them to a disc.

Store personal files in the Documents library, and periodically back up this folder.

●

Back up templates stored in their associated programs.

●

Save the customized settings in a window, toolbar, or menu bar by taking a screen shot of the

●

settings. The screen shot can be a time-saver if you have to reset your preferences.

To copy the screen and paste the image into a word-processing document:

1. Display the screen.

2. Copy the screen:

To copy only the active window, press alt+prt sc.

To copy the entire screen, press prt sc.

3. Open a word-processing document, click Edit, and then click Paste.

4. Save the document.

You can back up your information to an optional external hard drive, a network drive, or discs.

●

When backing up to discs, use any of the following types of discs (purchased separately): CD-R,

●

CD-RW, DVD+R, DVD-R, or DVD±RW. The discs you use depend on the type of optical drive
you are using.

Backing up and recovering using HP Recovery Manager 85

NOTE: The external optical drive must be connected to the USB port on the computer, not to a

USB port on another external device, such as a hub or docking station.

NOTE: DVDs store more information than CDs, so using them for backup reduces the number

of recovery discs required.

When backing up to discs, number each disc before inserting it into an optical drive.

●

Creating a set of recovery discs

HP recommends that you create recovery discs to be sure that you can restore your system to its
original factory state if you experience serious system failure or instability. Create these discs after
setting up the computer for the first time.

NOTE: This task will require an optional external optical drive. The external optical drive must be

connected to the USB port on the computer, not to a USB port on another external device, such as a
hub or docking station.

Handle these discs carefully and keep them in a safe place. The software allows the creation of only
one set of recovery discs.

Note the following guidelines before creating recovery discs:

You will need high-quality DVD-R, DVD+R, BD-R (writable Blu-ray), or CD-R discs. All these

●

discs are purchased separately. DVDs have a larger storage capacity than CDs. If you use CDs,
up to 20 discs may be required, whereas only a few DVDs are required.

NOTE: Double-layer discs and read-write discs—such as CD-RW, DVD±RW, and BD-RE

(rewritable Blu-ray) discs—are not compatible with the Recovery Manager software.

The computer must be connected to AC power during this process.

●

Only one set of recovery discs can be created per computer.

●

Number each disc before inserting it into an optical drive.

●

If necessary, you can exit the program before you have finished creating the recovery discs. The

●

next time you open Recovery Manager, you will be prompted to continue the disc creation
process.

To create a set of recovery discs:

1. Click Start, click All Programs, and then click Recovery Media Creation.

2. Click Yes when prompted.

86 Chapter 7 Backup and recovery

Performing a recovery

NOTE: You can recover only files that you have previously backed up. HP recommends that you

use Recovery Manager to create a set of recovery discs (entire drive backup) as soon as you set up
your computer.

Recovery Manager software allows you to repair or restore the system if you experience system
failure or instability. Recovery Manager works from recovery discs that you create or from a dedicated
recovery partition (select models only) on the hard drive. However, computers that include a solid­state drive (SSD) may not have a recovery partition. If that is the case, recovery discs have been
included with your computer. Use these discs to recover your operating system and software.

NOTE: Windows has its own built-in repair features, such as System Restore. If you have not

already tried these features, try them before using Recovery Manager. For more information on these
built-in repair features, click Start, and then click Help and Support.

NOTE: Recovery Manager recovers only the software that was preinstalled at the factory. Software

not provided with this computer must be downloaded from the manufacturer’s Web site or reinstalled
from the disc provided by the manufacturer.

Recovering using the recovery discs

To restore the system files from the recovery discs:

1. Back up all personal files.

2. Insert the first recovery disc into an optional optical drive, and restart the computer.

NOTE: The external optical drive must be connected to the USB port on the computer, not to a

USB port on another external device, such as a hub or docking station.

3. Follow the on-screen instructions.

Performing a recovery 87

Recovering using the partition on the hard drive (select models only)

On some models, you can perform a recovery from the partition on the hard drive, which is accessed
by pressing either the Start button or f11. This restores the computer to its factory condition.

NOTE: This method of recovery is also an HP Recovery Manager solution.

NOTE: Computers with an SSD may not have a recovery partition. If the computer does not have a

recovery partition, you will not be able to recover using this procedure. Recovery discs have been
included for computers that do not have a partition. Use these discs to recover your operating system
and software.

To restore the system from the partition, follow these steps:

1. Access Recovery Manager in either of the following ways:

Click Start, click All Programs, click Recovery Manager, and then click Recovery

●

Manager.

– or –

a. Turn on or restart the computer.

b. Press f11 while the “Press <F11> for recovery” message is displayed on the screen.

NOTE: It may take several minutes for Recovery Manager to load.

2. Click Yes when prompted.

3. In the Recovery Manager window, click System Recovery.

4. Follow the on-screen instructions.

88 Chapter 7 Backup and recovery

8 Power cord set requirements

The wide-range input feature of the computer permits it to operate from any line voltage from 100 to
120 volts AC, or from 220 to 240 volts AC

The 3-conductor power cord set included with the computer meets the requirements for use in the
country or region where the equipment is purchased.

Power cord sets for use in other countries and regions must meet the requirements of the country or
region where the computer is used.

Requirements for all countries

The following requirements are applicable to all countries and regions:

The length of the power cord set must be at least 1.5 m (5.0 ft) and no more than 2.0 m (6.5 ft).

●

All power cord sets must be approved by an acceptable accredited agency responsible for

●

evaluation in the country or region where the power cord set will be used.

The power cord sets must have a minimum current capacity of 10 amps and a nominal voltage

●

rating of 125 or 250 V AC, as required by the power system of each country or region.

The appliance coupler must meet the mechanical configuration of an EN 60 320/IEC 320

●

Standard Sheet C13 connector for mating with the appliance inlet on the back of the computer.

Requirements for all countries 89

Requirements for specific countries and regions

Country/region Accredited agency Applicable note number

Australia EANSW 1

Austria OVE 1

Belgium CEBC 1

Canada CSA 2

Denmark DEMKO 1

Finland FIMKO 1

France UTE 1

Germany VDE 1

Italy IMQ 1

Japan METI 3

The Netherlands KEMA 1

Norway NEMKO 1

The People's Republic of China COC 5

South Korea EK 4

Sweden SEMKO 1

Switzlerland SEV 1

Taiwan BSMI 4

The United Kingdom BSI 1

The United States UL 2

1. The flexible cord must be Type HO5VV-F, 3-conductor, 1.0-mm² conductor size. Power cord set fittings (appliance

coupler and wall plug) must bear the certification mark of the agency responsible for evaluation in the country or region
where it will be used.

2. The flexible cord must be Type SPT-3 or equivalent, No. 18 AWG, 3-conductor. The wall plug must be a two-pole

grounding type with a NEMA 5-15P (15 A, 125 V) or NEMA 6-15P (15 A, 250 V) configuration.

3. The appliance coupler, flexible cord, and wall plug must bear a “T” mark and registration number in accordance with the

Japanese Dentori Law. The flexible cord must be Type VCT or VCTF, 3-conductor, 1.00-mm² conductor size. The wall
plug must be a two-pole grounding type with a Japanese Industrial Standard C8303 (7 A, 125 V) configuration.

4. The flexible cord must be Type RVV, 3-conductor, 0.75-mm² conductor size. Power cord set fittings (appliance coupler

and wall plug) must bear the certification mark of the agency responsible for evaluation in the country or region where it
will be used.

5. The flexible cord must be Type VCTF, 3-conductor, 0.75-mm² conductor size. Power cord set fittings (appliance coupler

and wall plug) must bear the certification mark of the agency responsible for evaluation in the country or region where it
will be used.

90 Chapter 8 Power cord set requirements
