Hp Mini 1103, Mini 110 User Manual

HP Mini 110 Compaq Mini CQ10 HP Mini 1103

Maintenance and Service Guide

Bluetooth is a trademark owned by its proprietor and used by Hewlett-Packard Company under license. Intel and Atom are trademarks of Intel Corporation in the U.S. and other countries. Windows is a U.S. registered trademark of Microsoft Corporation. SD Logo is a trademark of its proprietor.

The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

First Edition: November 2010

Document Part Number: 634047-001

Safety warning notice

WARNING! To reduce the possibility of heat-related injuries or of overheating the device, do not

place the device directly on your lap or obstruct the device air vents. Use the device only on a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to contact the skin or a soft surface, such as pillows or rugs or clothing, during operation. The device and the AC adapter comply with the user-accessible surface temperature limits defined by the International Standard for Safety of Information Technology Equipment (IEC 60950).

iii

iv Safety warning notice

Table of contents

1 Product description ........................................................................................................................................ 1

2 External component identification ................................................................................................................ 6

Identifying the hardware ....................................................................................................................... 6

Top components ................................................................................................................................... 7

TouchPad ............................................................................................................................ 7

Lights ................................................................................................................................... 8

Keys ..................................................................................................................................... 9

Front components ................................................................................................................................ 9

Right-side components ....................................................................................................................... 10

Left-side components ......................................................................................................................... 11

Display components ........................................................................................................................... 13

Bottom components ........................................................................................................................... 14

Wireless antennas .............................................................................................................................. 15

Additional hardware components ....................................................................................................... 16

3 Illustrated parts catalog ............................................................................................................................... 17

Service tag ......................................................................................................................................... 17

Computer major components ............................................................................................................. 18

Display components ........................................................................................................................... 22

Mass storage device .......................................................................................................................... 23

Miscellaneous parts ............................................................................................................................ 24

Sequential part number listing ............................................................................................................ 25

4 Removal and replacement procedures ....................................................................................................... 29

Preliminary replacement requirements ............................................................................................... 29

Tools required .................................................................................................................... 29

Service considerations ....................................................................................................... 29

Plastic parts ....................................................................................................... 29

Cables and connectors ..................................................................................... 30

Drive handling ................................................................................................... 30

Grounding guidelines ......................................................................................................... 31

Electrostatic discharge damage ........................................................................ 31

Packaging and transporting guidelines ............................................. 32

Workstation guidelines ..................................................................... 32

Equipment guidelines ....................................................................... 33

Component replacement procedures ................................................................................................. 34

Computer feet .................................................................................................................... 34

Battery ............................................................................................................................... 35

SIM .................................................................................................................................... 37

Service access cover ......................................................................................................... 38

Hard drive .......................................................................................................................... 40

WWAN and GPS modules (select models only) ................................................................ 43

WLAN module .................................................................................................................... 45

Memory module ................................................................................................................. 47

RTC battery ....................................................................................................................... 48

Keyboard ........................................................................................................................... 50

Top cover ........................................................................................................................... 53

Display assembly ............................................................................................................... 56

Fan/heat sink assembly ..................................................................................................... 64

System board ..................................................................................................................... 66

Power connector cable ...................................................................................................... 69

5 Setup Utility ................................................................................................................................................... 71

Starting Setup Utility ........................................................................................................................... 71

Using Setup Utility .............................................................................................................................. 71

Changing the language of Setup Utility ............................................................................. 71

Navigating and selecting in Setup Utility ............................................................................ 72

Displaying system information ........................................................................................... 72

Restoring default settings in Setup Utility .......................................................................... 72

Exiting Setup Utility ............................................................................................................ 73

Setup Utility menus ............................................................................................................................ 73

Main menu ......................................................................................................................... 73

Security menu .................................................................................................................... 73

System Configuration menu .............................................................................................. 73

Diagnostics menu .............................................................................................................. 74

6 Specifications ................................................................................................................................................ 75

Device specifications .......................................................................................................................... 75

25.7-cm (10.1-in) WSVGA AntiGlare display specifications ............................................................... 76

Hard drive specifications .................................................................................................................... 77

7 Backup and recovery .................................................................................................................................... 78

Recovery discs ................................................................................................................................... 78

Performing a system recovery ............................................................................................................ 79

Recovering using the dedicated recovery partition (select models only) ........................... 80

Recovering using the recovery discs ................................................................................. 81

Backing up your information ............................................................................................................... 81

Using Windows Backup and Restore ................................................................................ 81

Using system restore points .............................................................................................. 82

When to create restore points ........................................................................... 82

Create a system restore point ........................................................................... 82

Restore to a previous date and time ................................................................. 82

8 Power cord set requirements ...................................................................................................................... 83

Requirements for all countries ............................................................................................................ 83

Requirements for specific countries and regions ............................................................................... 84

9 Recycling ....................................................................................................................................................... 85

Battery ................................................................................................................................................ 85

Display ................................................................................................................................................ 85

Index ................................................................................................................................................................... 91

vii

viii

1 Product description

Category Description HP Mini

110

Product name HP Mini 110 Netbook PC √

Compaq Mini CQ10 Netbook PC √

HP Mini 1103 √

Processor Intel® Atom™ N455 single-core, 1.66-GHz processor, 512-KB

level 2 cache, 667-MHz front-side bus (FSB)

Intel Atom N475 single-core, 1.83-GHz processor, 512-KB level 2 cache, 667-MHz FSB

Intel Atom N550 dual-core, 1.50-GHz processor, 2x512-KB

level 2 cache, 667-MHz FSB

Chipset Intel NM10 Express √√√

Graphics Intel Graphics Media Accelerator 3150 Unified Memory

Architecture (UMA) graphics subsystem

Broadcom High Definition (HD) Enhanced Video Accelerator

hardware decoder (on-board) (select models only) and support for DVD playback from external drive or Flash streaming and playback of locally-stored downloaded media files

128-MB buffer memory (64Mx16 DDR3 x1 piece, 1.5V/800MHz DRAM)

√√√

√√

√√√

√√

Compaq Mini CQ10

HP Mini 1103

Display The display assembly includes 1 webcam, 1 microphone, and

2 wireless local-area network (WLAN) antenna transceivers/ cables; wireless wide-area network (WWAN) (select models only).

Wide-aspect 16:9 ratio panels, typical brightness: 200 nits

25.7-cm (10.1-in) 1024x600 WSVGA AntiGlare

√√√

Category Description HP Mini

110

Compaq Mini CQ10

HP Mini 1103

Memory One customer-accessible/upgradable memory module slot

PC3-1333, 667-MHz, DDR3

NOTE: Memory always runs at 667 MHz because of chipset

limitations.

Supports the following configurations:

1-GB total system memory

●

NOTE: Supported on all operating systems.

2-GB total system memory

●

NOTE: Supported only on computers with Windows® 7

Premium, Windows 7 Professional, Windows 7 Starter with Notebook Certificate of Authenticity (COA) for China, and Windows 7 Starter with Notebook COA Emerging Markets.

Hard drives

Supports the following 9.5-mm (0.37-in) × 6.35-cm (2.5-inch), parallel SATA hard drives:

320-GB, 7200- and 5400-rpm

●

NOTE: Supported only on computers with Windows 7

Starter with Notebook COA Emerging Markets, Windows 7 Basic with Notebook COA for China, Windows 7 Premium, and Windows 7 Professional.

√√√

250-GB, 7200-rpm

●

160-GB, 7200-rpm

●

NOTE: Supported on all operating systems

Optical drive Supports external USB optical drives only √√√

Audio/Visual HD audio

Integrated 1.5-W speakers (2)

Fixed integrated, digital microphone

Fixed integrated VGA webcam, 640×480 resolution, F/2.8 lens, up to 30 frames per second

Modem Supports external USB modems only √√√

Ethernet Integrated Realtek RTL8105EL 10/100 network interface card

(NIC)

√√√

2 Chapter 1 Product description

Category Description HP Mini

110

Compaq Mini CQ10

HP Mini 1103

Wireless Integrated WLAN by way of:

Broadcom 94313 802.11b/g/n 1x1 WiFi Adapter

●

Broadcom 4313 802.11b/g/n 1x1 WiFi and 2070

●

Bluetooth™ 2.1+Enhanced Data Rate (EDR) Combo Adapter (Bluetooth 3.0 and high-speed ready)

Ralink RT3090BC4 802.11b/g/n 1x1 WiFi and Bluetooth

●

2.1+EDR Combo Adapter (Bluetooth 3.0 and high-speed ready)

Atheros AR9285 802.11.b/g/n 1x1 WiFi Adapter

●

2 WLAN antennas built into display assembly

Subscriber identity module (SIM) security

WWAN by way of:

Qualcomm Gobi 2000 3G module (select models only)

●

HP lc 2000 Mobile Broadband Module √√√

●

HP lc 2010 Mobile Broadband Module (select models only) √√

●

HP hs2320 HSPA Mobile Broadband Module (HP Mini

●

1103 models only)

√√√

√

2 WWAN antennas built into display assembly (select models

only)

GPS by way of Broadcom GPS Mini Card (select models only)

External media cards

Internal media cards

Digital Media Slot with push-push technology, supporting:

Memory Stick (MS)

●

Memory Stick Pro (MSP)

●

MultiMediaCard (MMC)

●

Secure Digital (SD) Memory Card

●

Secure Digital High Capacity (SDHC) Memory Card

●

Secure Digital Extended Capacity (SDxC) Memory Card

●

NOTE: SDxC supported for capacity; not speed

Two Mini Card slots:

Full-size Mini Card slot with support for WWAN, GPS

●

(select models only)

Half-size Mini Card slot with support for WLAN or WLAN

●

+Bluetooth combo

√√√

Category Description HP Mini

110

Compaq Mini CQ10

HP Mini 1103

Ports Audio-in/out combo

RJ-45 (Ethernet; includes link and activity lights)

USB 2.0 (3)

VGA, supporting up to 1600x900 external resolution @ 60 Hz, hot plug/unplug, and auto detection for correct output to wideaspect vs. standard-aspect video

3-pin AC power

Keyboard/ pointing device

Power requirements

93% full size keyboard

No NUM lock

Standard TouchPad with dedicated left and right buttons

Vertical and horizontal scroll function support

40-W UMA AC adapter (non-Smart) with localized cable plug support

AC adapter connector on cable

1.0-m (3.3-ft) power cord

3-cell Lithium-ion (Li-ion) battery (2.55-Ahr, 28-Wh)

√√√

6-cell Li-ion high-capacity battery (2.55-Ahr, 55-Wh)

Security Kensington lock slot √√√

Operating system

Linux √

FreeDOS √√√

Windows 7 Starter

Windows 7 Professional (select countries)

Support for HP QuickWeb

USB Key Recovery support (for Service, refurbish centers, and repair centers)

√√

4 Chapter 1 Product description

Category Description HP Mini

110

Compaq Mini CQ10

HP Mini 1103

Serviceability End-user replaceable parts:

AC adapter

Battery (system)

Hard drive

Memory module

WLAN module or WLAN+Bluetooth module

WWAN module (select models only)

GPS module (select models only)

Keyboard √

√√√

2 External component identification

Identifying the hardware

Components included with the computer may vary by country or region and by model. The illustrations in this chapter identify the standard features on most computer models.

To see a list of hardware installed in the computer, follow these steps:

1. Select Start > My Computer.

2. In the left pane of the System Tasks window, select View system information.

3. Select Hardware tab > Device Manager.

You can also add hardware or modify computer configurations using Device Manager.

6 Chapter 2 External component identification

Top components

TouchPad

Component Description

(1) TouchPad zone Moves the pointer and selects or activates items on the

screen.

(2) Left TouchPad button* Functions like the left button on an external mouse.

(3) Right TouchPad button* Functions like the right button on an external mouse.

*This table describes factory settings. To view or change pointing device preferences, select Start > Devices and Printers. Then, right-click the icon representing your device, and select Mouse settings.

Top components

Lights

Component Description

(1) Caps lock light

(2)

(3)

Mute light

Wireless light

White: Caps lock is on.

●

Off: Caps lock is off.

●

Amber: Computer sound is off.

●

Off: Computer sound is on.

●

White: An integrated wireless device, such as

●

a wireless local area network (WLAN) device and/or a Bluetooth® device, is on.

NOTE: Wireless devices are enabled at the

factory.

Amber: All wireless devices are off.

●

8 Chapter 2 External component identification

Keys

Component Description

(1) esc key Displays system information when pressed in

combination with the fn key.

(2) fn key Displays information about system hardware

(3)

(4)

(5) Action keys Execute frequently used system functions.

Windows® logo key Displays the Windows Start menu.

Windows applications key Displays a shortcut menu for items beneath the

Front components

Component Description

Speakers (2) Produce sound.

components and the system BIOS version number when pressed in combination with the esc key.

pointer.

Front components

Right-side components

Component Description

(1) Digital Media Slot Supports the following optional digital card formats:

Memory Stick

●

Memory Stick Pro

●

MultiMediaCard

●

Secure Digital (SD) Card

●

Secure Digital High Capacity (SDHC) Memory

●

Card

(2)

(3) Power switch

Power light

Secure Digital Extended Capacity (SDxC)

●

Memory Card

White: The computer is on.

●

Blinking white: The computer is in the Sleep

●

state.

Off: The computer is off or in Hibernation.

●

When the computer is off, slide the switch to turn

●

on the computer.

When the computer is on, briefly slide the switch

●

to initiate Hibernation.

When the computer is in the Sleep state, briefly

●

slide the switch to exit Sleep.

When the computer is in Hibernation, briefly slide

●

the switch to exit Hibernation.

If the computer has stopped responding and Windows shutdown procedures are ineffective, slide and hold the power switch for at least 5 seconds to turn off the computer.

To learn more about your power settings, select Start

> Control Panel > System and Security > Power Options.

(4)

USB ports (2) Connect optional USB devices.

10 Chapter 2 External component identification

Component Description

(5)

(6)

Security cable slot Attaches an optional security cable to the computer.

RJ-45 (network) jack and cover Connects a network cable.

Left-side components

Component Description

(1)

Power connector Connects an AC adapter.

NOTE: The security cable is designed to act as a

deterrent, but it may not prevent the computer from being mishandled or stolen.

(2) Battery light

(3)

(4) Vent Enables airflow to cool internal components.

(5)

External monitor port Connects an external VGA monitor or projector.

Drive light

Off: The computer is running on battery power.

●

Blinking white: The battery has reached a low

●

battery level, a critical battery level, or there is a battery error. When the battery reaches a critical battery level, the battery light begins blinking rapidly.

Amber: A battery is charging.

●

White: The computer is connected to external

●

power and the battery is fully charged.

NOTE: The computer fan starts up automatically to

cool internal components and prevent overheating. It is normal for the internal fan to cycle on and off during routine operation.

On: The hard drive is being accessed.

●

Off: The hard drive is idle.

●

Left-side components

Component Description

(6)

(7)

USB port Connects an optional USB device.

Audio-out (headphone) jack/Audio-in (microphone) jack

Produces sound when connected to optional powered stereo speakers, headphones, earbuds, a headset, or television audio. Also connects an optional headset microphone.

WARNING! To reduce the risk of personal injury,

adjust the volume before putting on headphones, earbuds, or a headset. For additional safety information, refer to the Regulatory, Safety and Environmental Notices.

NOTE: When a device is connected to the jack,

the computer speakers are disabled.

NOTE: The audio component must have a 4-

conductor connector.

12 Chapter 2 External component identification

Display components

Component Description

(1) Internal display switch Initiates Sleep if the display is closed while the power is on.

NOTE: The display switch is not visible from the outside of

the computer.

(2) Internal microphone Records sound.

(3) Webcam Records video and captures still photographs.

NOTE: To record videos, you need to install additional

webcam software.

(4) Webcam light On: The webcam is in use.

Display components

Bottom components

Component Description

(1)

(2) Battery bay Holds the battery.

(3)

Battery locking latch Locks the battery into the battery bay.

NOTE: The SIM slot is located under the battery.

Battery release latch Releases the battery from the battery bay.

14 Chapter 2 External component identification

Wireless antennas

Component Description

(1) WLAN antennas (2) (select models only)* Send and receive wireless signals to communicate with wireless

local-area networks (WLANs).

(2) WWAN antennas (2) (select models only)* Send and receive wireless signals to communicate with wireless

wide-area networks (WWANs).

*The antennas are not visible from the outside of the computer. For optimal transmission, keep the areas immediately around the antennas free from obstructions.

To see wireless regulatory notices, refer to the section of the Regulatory, Safety and Environmental Notices that applies to your country or region. These notices are located in Help and Support.

Wireless antennas

Additional hardware components

Component Description

(1) Power cord* Connects an AC adapter to an AC outlet.

(2) AC adapter Converts AC power to DC power.

(3) Battery* Powers the computer when the computer is not plugged into

external power.

*Batteries and power cords vary in appearance by region and country.

16 Chapter 2 External component identification

3 Illustrated parts catalog

Service tag

When ordering parts or requesting information, provide the computer serial number and model description provided on the service tag.

Component

(1) Product name

(2) Serial number (s/n)

(3) Part number/Product number (p/n)

(4) Warranty period

(5) Model description

Service tag

Computer major components

18 Chapter 3 Illustrated parts catalog

Item Description Spare part number

(1) Display assembly, 25.7-cm (10.1-in) (includes display panel cable, 2 WLAN transceivers and cables, 2 WWAN

transceivers and cables (select models only), and webcam/microphone module and cable):

WSVGA, anti-glare, LED display assembly in black for use only on Compaq models 634493-001

WSVGA, anti-glare, LED display assembly in black 633496-001

WSVGA, anti-glare, LED display assembly in red 633498-001

WSVGA, anti-glare, LED display assembly in blue 633499-001

WSVGA, anti-glare, LED display assembly in white 633497-001

(2) Keyboard (includes cable)

For use in the Asia/Pacific region, Australia, the People's Republic of China, Hong Kong,

India, Indonesia, Singapore, and the United States

For use in Belgium 633476-A41

For use in Brazil 633476-201

For use in the Czech Republic 633476-221

For use in Denmark, Finland, and Norway 633476-DH1

For use in Europe, the Netherlands, Poland, and Saudi Arabia 633476-B31

For use in France 633476-051

For use in French Canada 633476-121

For use in Germany 633476-041

For use in Greece 633476-DJ1

For use in Hungary 633476-211

For use in Israel 633476-BB1

For use in Italy 633476-061

For use in Japan 633476-291

For use in Latin America and Chile 633476-161

633476-001

For use in Portugal 633476-131

For use in Russia 633476-251

For use in Saudi Arabia 633476-171

For use in Slovenia 633476-BA1

For use in South Korea 633476-AD1

For use in Spain 633476-071

For use in Switzerland 633476-BG1

For use in Taiwan 633476-AB1

For use in Thailand 633476-281

Computer major components

Item Description Spare part number

For use in Turkey 633476-141

For use in the United Kingdom and Singapore 622343-031

Top cover assembly, includes: 633488-001

(3a) Top cover (including TouchPad)

(3b) Speakers (include cable)

Hard Drive Hardware Kit includes: 633491-001

(4a) Hard drive bracket

(4b) Hard drive screws

(4c) Hard drive Mylar cover

(5) Hard Drive Cable Kit (not illustrated; includes hard drive bracket, screws, and Mylar) 628532-001

(6) Hard drive (includes bracket and screws)

320-GB, 7200-rpm 627731-001

250-GB, 7200-rpm 635225-001

160-GB, 7200-rpm 635760-001

(7) System board (includes processor and replacement thermal material):

For use in models without high-definition video:

Intel Atom N455 1.66-GHz processor, 512-KB level 2 cache, 667-MHz front-side bus

(FSB) for use in models without a WWAN module

Intel Atom N455 1.66-GHz processor, 512-KB level 2 cache, 667-MHz FSB for use in

models with a WWAN module

Intel Atom N475 1.83-GHz processor, 512-KB level 2 cache, 667-MHz FSB for use in

models without a WWAN module

Intel Atom N475 1.83-GHz processor, 512-KB level 2 cache, 667-MHz FSB for use in

models with a WWAN module

For use in models with high-definition video:

Intel Atom N455 1.66-GHz processor, 512-KB level 2 cache, 667-MHz FSB for use in

models without a WWAN module

Intel Atom N455 1.66-GHz processor, 512-KB level 2 cache, 667-MHz FSB for use in

models with a WWAN module

Intel Atom N475 1.83-GHz processor, 512-KB level 2 cache, 667-MHz FSB for use in

models without a WWAN module

Intel Atom N475 1.83-GHz processor, 512-KB level 2 cache, 667-MHz FSB for use in

models with a WWAN module

633486-001

633494-001

633487-001

633495-001

636336-001

636338-001

636337-001

636339-001

System board with Intel Atom N550 1.5-GHz processor, 1-MB level 2 cache, 667-MHz

FSB, dual-core

(8) Fan/heat sink assembly (includes replacement thermal material) 622330-001

20 Chapter 3 Illustrated parts catalog

638148-001

Item Description Spare part number

(9) Memory module (667-MHz, DDR3):

1-GB 621563-001

2-GB 621567-001

(10) Power connector cable 622329-001

(11) WWAN module (select models only)

HP lc 2010 Mobile Broadband Module (HP Mini 110/Compaq Mini CQ10 models only) 612600-001

HP lc 2000 Mobile Broadband Module (HP Mini 110/Compaq Mini CQ10 models only) 612599-001

Qualcomm Gobi 2000 3G module 531993-001

HP hs2320 HSPA Mobile Broadband Module (HP Mini 1103 models only) 574248-001

(12) RTC battery 622351-001

(13) WLAN module

Atheros AR9285G 802.11b/g/n 1x1 WiFi Adapter 605560-005

Broadcom 4313/2070 802.11b/g/n (1x1) WiFi Mini Card 593836-001

Broadcom 4313/2070 802.11b/g/n (1x1) and Bluetooth high-speed Half Mini Card 600370-001

Ralink RT3090BC4 802.11b/g/n 1x1 WiFi and Bluetooth 2.1+EDR Combo Adapter

(Bluetooth 3.0+high-speed ready)

(14) Base enclosure (includes 4 rubber feet and power connector bracket) 633481-001

(15) Battery

6-cell Li-ion high-capacity (55-WH 2.5-Ahr) 630193-001

3-cell Li-ion (28-WH 2.55-Ahr) 630191-001

(16) Service access cover

Black (for use in all countries and regions except Brazil) 633484-001

Black (for use only in Brazil) 633485-001

Power connector bracket 634873-001

Rubber Kit (not illustrated; includes 4 rubber feet and LCD rubber bumpers) 636763-001

602992-001

Computer major components

Display components

Item Description Spare part number

Display Hinge Cover Kit, includes: 633483-001

(1a) Left and right hinge covers

(1b) Left and right hinge caps

(1c) Left and right hinge cap wall

(2) Display Hinge Kit (includes right and left hinges) 633482-001

(3) Display bezel

For use on Compaq-branded models 633489-001

For use on HP-branded models 633493-001

22 Chapter 3 Illustrated parts catalog

Item Description Spare part number

(4) Webcam module 631703-001

(5) Display panel (for use in HP Mini 110/Compaq Mini CQ10 models) 624218-001

(6) Display/webcam cable 633490-001

(7) Antenna Kit (includes WLAN and WWAN antennas) 631698-001

(8) Display enclosure

For use in black Compaq models 633492-001

For use in black HP-branded models 633477-001

For use in white HP-branded models 633478-001

For use in red HP-branded models 633479-001

For use in blue HP-branded models 633480-001

Display EMI shield (not illustrated) 636762-001

Mass storage device

Description Spare part number

Hard drive

320-GB, 7200-rpm 627731-001

250-GB, 7200-rpm 635225-001

160-GB, 7200-rpm 635760-001

Hard Drive Hardware Kit (not illustrated; includes hard drive bracket, screws, and Mylar) 633491-001

Mass storage device

Miscellaneous parts

Description Spare part number

Power cord:

For use in Argentina 490371-D01

For use in the Asia/Pacific region, French Canada, Latin America, Saudi Arabia, and the United States

For use in the Asia/Pacific region, Hong Kong, Saudi Arabia, Singapore, and the United Kingdom 490371-031

For use in Australia 490371-011

For use in Brazil 490371-202

For use in Denmark 490371-081

For use in the Czech Republic, France, Greece, Hungary, Indonesia, the Netherlands, Poland, Portugal, Spain, Turkey, Russia, and Saudi Arabia

For use in India 490371-D61

For use in Israel 490371-BB1

For use in Italy and Chile 490371-061

For use in Japan 490371-291

For use in the People's Republic of China 490371-AA1

For use in South Africa 490371-AR1

For use in South Korea 490371-AD1

For use in Switzerland 490371-111

490371-001

490371-021

For use in Taiwan 490371-AB1

For use in Thailand 490371-201

Screw Kit 633500-001

AC adapter (40-W , non-smart RC/V 2W) 624502-001

HP wireless optical mouse 597588-001

24 Chapter 3 Illustrated parts catalog

Sequential part number listing

Spare part number Description

490371-001 Power cord for use in the Asia/Pacific region, French Canada, Latin America, Saudi Arabia, and

the United States

490371-011 Power cord for use in Australia

490371-021 Power cord for use in the Czech Republic, France, Greece, Hungary, Indonesia, the Netherlands,

Poland, Portugal, Spain, Turkey, Russia, and Saudi Arabia

490371-031 Power cord for use in the Asia/Pacific region, Hong Kong, Saudi Arabia, Singapore, and the United

Kingdom

490371-061 Power cord for use in Italy

490371-081 Power cord for use in Denmark

490371-111 Power cord for use in Switzerland

490371-201 Power cord for use in Thailand

490371-202 Power cord for use in Brazil

490371-291 Power cord for use in Japan

490371-AA1 Power cord for use in the People's Republic of China

490371-AB1 Power cord for use in Taiwan

490371-AD1 Power cord for use in South Korea

490371-AR1 Power cord for use in South Africa

490371-BB1 Power cord for use in Israel

490371-D01 Power cord for use in Argentina

490371-D61 Power cord for use in India

531993-001 Qualcomm Gobi 2000 3G WWAN module (select models only)

574248-001 HP hs2320 HSPA Mobile Broadband Module (HP Mini 1103 models only)

593836-001 Broadcom 4313/2070 802.11b/g/n (1x1) WiFi Mini Card

597588-001 HP wireless optical mouse

600370-001 Broadcom 4313/2070 802.11b/g/n (1x1) and Bluetooth high-speed Half Mini Card

602992-001 Ralink RT3090BC4 802.11b/g/n 1x1 WiFi and Bluetooth 2.1+EDR Combo Adapter (Bluetooth

3.0+high-speed ready)

605560-005 Atheros AR9285G 802.11b/g/n 1x1 WiFi Adapter

612599-001 HP lc 2000 Mobile Broadband Module (HP Mini 110/Compaq Mini CQ10 models only)

612600-001 HP lc 2010 Mobile Broadband Module (HP Mini 110/Compaq Mini CQ10 models only)

621563-001 1-GB memory module (667-MHz, DDR3):

621567-001 2-GB memory module (667-MHz, DDR3):

Sequential part number listing

Spare part number Description

622329-001 Power connector cable

622330-001 Fan/heat sink assembly (includes replacement thermal material)

622351-001 RTC battery

624218-001 Display panel for use in HP Mini 110/Compaq Mini CQ10 models

624502-001 40-W AC adapter, non-Smart RC/V 2W

627731-001 320-GB, 7200-rpm hard drive (includes bracket and screws)

628532-001 Hard Drive Cable Kit

630191-001 3-cell Li-ion battery (28-WH 2.55-Ahr)

630193-001 6-cell Li-ion high-capacity battery (55-WH 2.5-Ahr)

631698-001 Antenna Kit (includes WLAN and WWAN antennas)

631703-001 Webcam module

633476-001 Keyboard for use in the Asia/Pacific region, Australia, the People's Republic of China, Hong Kong,

India, Indonesia, Singapore, and the United States (includes cable)

633476-031 Keyboard for use in Singapore and the United Kingdom (includes cable)

633476-041 Keyboard for use in Germany (includes cable)

633476-051 Keyboard for use in France (includes cable)

633476-061 Keyboard for use in Italy (includes cable)

633476-071 Keyboard for use in Spain (includes cable)

633476-121 Keyboard for use in French Canada (includes cable)

633476-131 Keyboard for use in Portugal (includes cable)

633476-141 Keyboard for use in Turkey (includes cable)

633476-161 Keyboard for use in Chile and Latin America (includes cable)

633476-171 Keyboard for use in Saudi Arabia (includes cable)

633476-201 Keyboard for use in Brazil (includes cable)

633476-211 Keyboard for use in Hungary (includes cable)

633476-221 Keyboard for use in the Czech Republic (includes cable)

633476-251 Keyboard for use in Russia (includes cable)

633476-281 Keyboard for use in Thailand (includes cable)

633476-291 Keyboard for use in Japan (includes cable)

633476-A41 Keyboard for use in Belgium (includes cable)

633476-AB1 Keyboard for use in Taiwan (includes cable)

633476-AD1 Keyboard for use in South Korea (includes cable)

633476-B31 Keyboard for use in the Europe, the Netherlands, Poland, and Saudi Arabia (includes cable)

26 Chapter 3 Illustrated parts catalog

Spare part number Description

633476-BA1 Keyboard for use in Slovenia (includes cable)

633476-BB1 Keyboard for use in Israel (includes cable)

633476-BG1 Keyboard for use in Switzerland (includes cable)

633476-DH1 Keyboard for use in Denmark, Finland, and Norway (includes cable)

633476-DJ1 Keyboard for use in Greece (includes cable)

633477-001 Display enclosure for use in black HP-branded models

633478-001 Display enclosure for use in white HP-branded models

633479-001 Display enclosure for use in red HP-branded models

633480-001 Display enclosure for use in blue HP-branded models

633481-001 Base enclosure (includes 4 rubber feet and power connector bracket)

633482-001 Display Hinge Kit (includes right and left hinges)

633483-001 Display hinge covers (includes left and right hinge covers, caps, and walls)

633484-001 Service access cover, black (for use in all countries and regions except Brazil)

633485-001 Service access cover, black (for use only in Brazil)

633486-001 System board with Intel Atom N455 1.66-GHz processor, 512-KB level 2 cache, 667-MHz FSB, 6.5

W, single-core for use in models without high-definition video and without a WWAN module

633487-001 System board with Intel Atom N475 1.83-GHz processor, 512-KB level 2 cache, 667-MHz FSB,

6.5W for use in models without high-definition video and without a WWAN module

633488-001 Top cover (includes TouchPad and speaker)

633489-001 Display bezel for use in Compaq-branded models

633490-001 Display/webcam cable

633491-001 Hard Drive Hardware Kit (includes hard drive bracket, screws, and Mylar)

633492-001 Display enclosure for use in black Compaq-branded models

633493-001 Display bezel for use in HP-branded models

633494-001 System board with Intel Atom N455 1.66-GHz processor, 512-KB level 2 cache, 667-MHz FSB, 6.5

W, single-core for use in models without high-definition video and with a WWAN module

633495-001 Intel Atom N475 1.83-GHz processor, 512-KB level 2 cache, 667-MHz FSB, 6.5W for use in

models without high-definition video and with WWAN

633496-001 25.7-cm (10.1-in) WSVGA, anti-glare, LED display assembly in black (includes display panel

cable, 2 WLAN transceivers and cables, 2 WWAN transceivers and cables (select models only), and webcam/microphone module and cable)

633497-001 25.7-cm (10.1-in) WSVGA, anti-glare, LED display assembly in white (includes display panel

cable, 2 WLAN transceivers and cables, 2 WWAN transceivers and cables (select models only), and webcam/microphone module and cable)

633498-001 25.7-cm (10.1-in) WSVGA, anti-glare, LED display assembly in red (includes display panel cable,

2 WLAN transceivers and cables, 2 WWAN transceivers and cables (select models only), and webcam/microphone module and cable)

Sequential part number listing

Spare part number Description

633499-001 25.7-cm (10.1-in) WSVGA, anti-glare, LED display assembly in blue (includes display panel cable,

2 WLAN transceivers and cables, 2 WWAN transceivers and cables (select models only), and webcam/microphone module and cable)

633500-001 Screw Kit

634493-001 25.7-cm (10.1-in) WSVGA, anti-glare, LED display assembly in black for use only on Compaq

models (includes display panel cable, 2 WLAN transceivers and cables, 2 WWAN transceivers and cables (select models only), and webcam/microphone module and cable)

634873-001 Power connector bracket

635225-001 250-GB, 7200-rpm hard drive (includes bracket and screws)

635760-001 160-GB, 7200-rpm hard drive (includes bracket and screws)

636336-001 System board with Intel Atom N455 1.66-GHz processor, 512-KB level 2 cache, 667-MHz FSB, 6.5

W, single-core, for use in models without high-definition video and without a WWAN module

636337-001 System board with Intel Atom N475 1.83-GHz processor, 512-KB level 2 cache, 667-MHz FSB,

6.5W, single-core for use in models with high-definition video and without and WLAN module

636338-001 System board with Intel Atom N455 1.66-GHz processor, 512-KB level 2 cache, 667-MHz FSB, 6.5

W, single-core for use in models with high-definition video and with a WWAN module

636339-001 System board with Intel Atom N475 1.83-GHz processor, 512-KB level 2 cache, 667-MHz FSB, 6.5

W with WLAN

636762-001 Display EMI shield (not illustrated)

636763-001 Rubber Kit (includes 4 rubber feet and LCD rubber bumpers)

638148-001 System board with Intel Atom N550 1.5-GHz processor, 1-MB level 2 cache, 667-MHz FSB, 8.5 W,

dual-core

28 Chapter 3 Illustrated parts catalog

4 Removal and replacement procedures

Preliminary replacement requirements

Tools required

You will need the following tools to complete the removal and replacement procedures:

Flat-bladed screwdriver

●

Magnetic screwdriver

●

Phillips P0 and P1 screwdrivers

●

Service considerations

The following sections include some of the considerations that you must keep in mind during disassembly and assembly procedures.

NOTE: As you remove each subassembly from the computer, place the subassembly (and all

accompanying screws) away from the work area to prevent damage.

Plastic parts

CAUTION: Using excessive force during disassembly and reassembly can damage plastic parts.

Use care when handling the plastic parts. Apply pressure only at the points designated in the maintenance instructions.

Preliminary replacement requirements

Cables and connectors

CAUTION: When servicing the device, be sure that cables are placed in their proper locations

during the reassembly process. Improper cable placement can damage the device.

Cables must be handled with extreme care to avoid damage. Apply only the tension required to unseat or seat the cables during removal and insertion. Handle cables by the connector whenever possible. In all cases, avoid bending, twisting, or tearing cables. Be sure that cables are routed in such a way that they cannot be caught or snagged by parts being removed or replaced. Handle flex cables with extreme care; these cables tear easily.

Drive handling

CAUTION: Drives are fragile components that must be handled with care. To prevent damage to

the device, damage to a drive, or loss of information, observe these precautions:

Before removing or inserting a hard drive, shut down the device. If you are unsure whether the device is off or in Hibernation, turn the device on, and then shut it down through the operating system.

Before handling a drive, be sure that you are discharged of static electricity. While handling a drive, avoid touching the connector.

Handle drives on surfaces covered with at least one inch of shock-proof foam.

Avoid dropping drives from any height onto any surface.

After removing a hard drive, an optical drive, or a diskette drive, place it in a static-proof bag.

Avoid exposing a hard drive to products that have magnetic fields, such as monitors or speakers.

Avoid exposing a drive to temperature extremes or liquids.

If a drive must be mailed, place the drive in a bubble pack mailer or other suitable form of protective packaging and label the package “FRAGILE.”

30 Chapter 4 Removal and replacement procedures

Grounding guidelines

Electrostatic discharge damage

Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure determine the degree of sensitivity. Networks built into many integrated circuits provide some protection, but in many cases, ESD contains enough power to alter device parameters or melt silicon junctions.

A discharge of static electricity from a finger or other conductor can destroy static-sensitive devices or microcircuitry. Even if the spark is neither felt nor heard, damage may have occurred.

An electronic device exposed to ESD may not be affected at all and can work perfectly throughout a normal cycle. Or the device may function normally for a while, then degrade in the internal layers, reducing its life expectancy.

CAUTION: To prevent damage to the device when you are removing or installing internal

components, observe these precautions:

Keep components in their electrostatic-safe containers until you are ready to install them.

Use nonmagnetic tools.

Before touching an electronic component, discharge static electricity by using the guidelines described in this section.

Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.

If you remove a component, place it in an electrostatic-safe container.

The following table shows how humidity affects the electrostatic voltage levels generated by different activities.

CAUTION: A product can be degraded by as little as 700 V.

Typical electrostatic voltage levels

Relative humidity

Event 10% 40% 55%

Walking across carpet 35,000 V 15,000 V 7,500 V

Walking across vinyl floor 12,000 V 5,000 V 3,000 V

Motions of bench worker 6,000 V 800 V 400 V

Removing DIPS from plastic tube 2,000 V 700 V 400 V

Removing DIPS from vinyl tray 11,500 V 4,000 V 2,000 V

Removing DIPS from Styrofoam 14,500 V 5,000 V 3,500 V

Removing bubble pack from PCB 26,500 V 20,000 V 7,000 V

Packing PCBs in foam-lined box 21,000 V 11,000 V 5,000 V

Preliminary replacement requirements

Packaging and transporting guidelines

Follow these grounding guidelines when packaging and transporting equipment:

To avoid hand contact, transport products in static-safe tubes, bags, or boxes.

●

Protect ESD-sensitive parts and assemblies with conductive or approved containers or

●

packaging.

Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.

●

Place items on a grounded surface before removing items from their containers.

●

Always be properly grounded when touching a component or assembly.

●

Store reusable ESD-sensitive parts from assemblies in protective packaging or nonconductive

●

foam.

Use transporters and conveyors made of antistatic belts and roller bushings. Be sure that

●

mechanized equipment used for moving materials is wired to ground and that proper materials are selected to avoid static charging. When grounding is not possible, use an ionizer to dissipate electric charges.

Workstation guidelines

Follow these grounding workstation guidelines:

Cover the workstation with approved static-shielding material.

●

Use a wrist strap connected to a properly grounded work surface and use properly grounded

●

tools and equipment.

Use conductive field service tools, such as cutters, screwdrivers, and vacuums.

●

When fixtures must directly contact dissipative surfaces, use fixtures made only of static-safe

●

materials.

Keep the work area free of nonconductive materials, such as ordinary plastic assembly aids and

●

Styrofoam.

Handle ESD-sensitive components, parts, and assemblies by the case or PCM laminate. Handle

●

these items only at static-free workstations.

Avoid contact with pins, leads, or circuitry.

●

Turn off power and input signals before inserting or removing connectors or test equipment.

●

32 Chapter 4 Removal and replacement procedures

Equipment guidelines

Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation.

When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible

●

straps with a minimum of one megohm ±10% resistance in the ground cords. To provide proper ground, wear a strap snugly against the skin at all times. On grounded mats with banana-plug connectors, use alligator clips to connect a wrist strap.

When standing, use foot straps and a grounded floor mat. Foot straps (heel, toe, or boot straps)

●

can be used at standing workstations and are compatible with most types of shoes or boots. On conductive floors or dissipative floor mats, use foot straps on both feet with a minimum of one megohm resistance between the operator and ground. To be effective, the conductive strips must be worn in contact with the skin.

The following grounding equipment is recommended to prevent electrostatic damage:

Antistatic tape

●

Antistatic smocks, aprons, and sleeve protectors

●

Conductive bins and other assembly or soldering aids

●

Nonconductive foam

●

Conductive tabletop workstations with ground cords of one megohm resistance

●

Static-dissipative tables or floor mats with hard ties to the ground

●

Field service kits

●

Static awareness labels

●

Material-handling packages

●

Nonconductive plastic bags, tubes, or boxes

●

Metal tote boxes

●

Electrostatic voltage levels and protective materials

●

The following table lists the shielding protection provided by antistatic bags and floor mats.

Material Use Voltage protection level

Antistatic plastic Bags 1,500 V

Carbon-loaded plastic Floor mats 7,500 V

Metallized laminate Floor mats 5,000 V

Preliminary replacement requirements

Component replacement procedures

This chapter provides removal and replacement procedures.

There are as many as 33 screws, in 5 different sizes, that must be removed, replaced, or loosened when servicing the computer. Make special note of each screw size and location during removal and replacement.

Computer feet

The computer feet are adhesive-backed rubber pads. The feet are included in the Rubber Feet Kit, spare part number 636763-001. There are 4 rubber feet that attach to the base enclosure in the locations shown in the following illustration.

34 Chapter 4 Removal and replacement procedures

Battery

Description Spare part number

6-cell Li-ion high-capacity (55-WH 2.55-Ahr) 630193-001

3-cell Li-ion (28-WH 2.55-Ahr) 630191-001

Remove the battery:

CAUTION: Removing a battery that is the sole power source for the computer can cause loss of

information. To prevent loss of information, save your work and initiate Hibernation or shut down the computer through Windows before removing the battery.

1. Save your work and shut down the computer.

2. Disconnect all external devices connected to the computer.

3. Unplug the power cord from the AC outlet.

4. With the display closed, position the computer upside down on a flat surface with the battery bay

toward you.

5. Slide the battery locking latch (1) inward to unlock the battery.

NOTE: You can identify when the battery locking latch is unlocked by the red icon that appears

inside the latch.

6. Slide and hold the battery release latch (2) while removing the battery (3) from the battery bay.

To insert the battery:

1. Insert the battery (1) into the battery bay until the battery release latch (2) clicks.

Component replacement procedures

2. Slide the battery locking latch (3) to the right to lock the battery into the battery bay.

36 Chapter 4 Removal and replacement procedures

SIM

NOTE: This section applies only to models with WWAN capability.

NOTE: If there is a SIM inserted in the SIM slot, it must be removed before disassembling the

computer. Be sure that the SIM is reinserted in the SIM slot after reassembling the computer.

Before removing the SIM, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

Remove the SIM:

1. Press in on the SIM (1) to release it from the SIM slot.

2. Remove the SIM (2) from the SIM slot.

Battery on page 35).

Install the SIM by inserting it into the SIM slot until you hear a click.

Component replacement procedures

Service access cover

Description Spare part number

Service access cover, black (for use in all countries and regions except Brazil) 633484-001

Service access cover, black (for use only in Brazil) 633485-001

Before removing the service access cover, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

Battery on page 35).

Remove the service access cover:

1. Slide the service access cover release lever (1) to the right.

2. Lift up the edge (2) of the service access cover until the tabs on the opposite side of the cover

are clear of the slots in the base enclosure.

3. Remove the cover (3).

Install the service access cover:

1. Align the tabs (1) on the service access cover with the slots in the base enclosure.

38 Chapter 4 Removal and replacement procedures

2. Insert the tabs into the slots (2), and swing the cover (3) down.

3. Press down firmly on the cover until it clicks into place.

Component replacement procedures

Hard drive

Description Spare part number

Hard drive:

320-GB, 7200-rpm 627731-001

250-GB, 7200-rpm 635225-001

160-GB, 7200-rpm 635760-001

Hard Drive Hardware Kit (includes hard drive bracket, screws, and Mylar cover) 633491-001

Hard Drive Cable Kit 628532-001

Before removing the hard drive, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

the computer on, and then shut it down through the operating system.

and then unplugging the AC adapter from the computer.

4. Remove the following components:

a. Battery (see

b. Service access cover (see

Battery on page 35).

Service access cover on page 38).

Remove the hard drive:

1. Lift the Mylar (1) that covers the hard drive connector on the system board.

2. Disconnect the hard drive cable (2) from the system board.

4. Remove the 3 Phillips 2.0×4.0 screws (3) that secure the hard drive to the computer.

5. Lift the Mylar (4) that covers the hard drive to allow removal of the drive.

40 Chapter 4 Removal and replacement procedures

6. Use the Mylar tab (5) to remove the hard drive from the computer.

7. If it is necessary to replace the hard drive bracket, follow these steps:

a. Disconnect the cable adapter from the hard drive.

b. Remove the 4 Phillips 3.0×3.0 screws (1) that secure the hard drive bracket to the drive.

Component replacement procedures

c. Remove the hard drive bracket (2).

d. Remove the Mylar from the drive (3).

Reverse this procedure to reassemble and install the hard drive.

42 Chapter 4 Removal and replacement procedures

WWAN and GPS modules (select models only)

NOTE: The WWAN module and the GPS module are very similar. Either can populate the WWAN

slot.

Description Spare part number

HP lc 2010 Mobile Broadband Module (HP Mini 110/Compaq Mini CQ10 models only) 612600-001

HP lc 2000 Mobile Broadband Module (HP Mini 110/Compaq Mini CQ10 models only) 612599-001

Qualcomm Gobi 2000 3G WWAN module (select models only) 531993-001

HP hs2320 HSPA Mobile Broadband Module (HP Mini 1103 models only) 574248-001

CAUTION: The WWAN module and the WLAN module are not interchangeable.

CAUTION: To prevent an unresponsive system, replace the wireless module only with a wireless

module authorized for use in the computer by the governmental agency that regulates wireless devices in your country or region. If you replace the module and then receive a warning message, remove the module to restore device functionality, and then contact technical support.

Before removing the WWAN or GPS module, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the following components:

a. Battery (see

b. Service access cover (see

Battery on page 35).

Service access cover on page 38).

Remove the WWAN or GPS module:

1. Disconnect the antenna cable or cables (1) from the WWAN or GPS module.

NOTE: The antenna cable with the red label is connected to the WWAN module “Main”

terminal. The antenna cable with the blue label is connected to the WWAN or GPS module “Aux” terminal.

NOTE: The GPS module does not use the Main cable, therefore the Main cable is not

connected. When you work with the GPS module, it is important to keep the plastic tubing that covers the Main cable in place.

2. Remove the 2 Phillips 2.0×3.0 screws (2) that secure the WWAN or GPS module to the system

board. (The module tilts up.)

Component replacement procedures

3. Remove the WWAN or GPS module (3) by pulling the module away from the slot at an angle.

NOTE: WWAN and GPS modules are designed with a notch (4) to prevent incorrect insertion

of the module into the slot.

Reverse this procedure to install the WWAN or GPS module.

44 Chapter 4 Removal and replacement procedures

WLAN module

Description Spare part number

Atheros AR9285G 802.11b/g/n 1x1 WiFi Adapter 605560-005

Broadcom 4313/2070 802.11b/g/n (1x1) and Bluetooth high-speed Half Mini Card 600370-001

Broadcom 4313/2070 802.11b/g/n (1x1) WiFi Mini Card 593836-001

Ralink RT3090BC4 802.11b/g/n 1x1 WiFi and Bluetooth 2.1+EDR Combo Adapter (Bluetooth

3.0+high-speed ready)

602992-001

CAUTION: The WLAN module and the WWAN module are not interchangeable.

CAUTION: To prevent an unresponsive system, replace the wireless module only with a wireless

module authorized for use in the computer by the governmental agency that regulates wireless devices in your country or region. If you replace the module and then receive a warning message, remove the module to restore computer functionality, and then contact technical support through Help and Support.

Before removing the WLAN module, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the device by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

4. Remove the following components:

a. Battery (see

Battery on page 35).

b. Service access cover (see

Service access cover on page 38).

Remove the WLAN module:

1. Disconnect the WLAN antenna cables (1) from the terminals on the WLAN module.

NOTE: The WLAN antenna cable with the black label is connected to the WLAN module

“Main” terminal. The WLAN antenna cable with the white label is connected to the WLAN module “Aux” terminal.

2. Remove the 2 Phillips 2.0×3.0 screws (2) that secure the WLAN module to the system board.

(The WLAN module tilts up.)

Component replacement procedures

3. Remove the WLAN module (3) by pulling the module away from the slot at an angle.

NOTE: WLAN modules are designed with a notch (4) to prevent incorrect insertion of the

WLAN module into the WLAN module slot.

Reverse this procedure to install the WLAN module.

46 Chapter 4 Removal and replacement procedures

Memory module

Description Spare part number

1-GB memory module (667-MHz, DDR3) 621563-001

2-GB memory module (667-MHz, DDR3) 621567-001

Before removing the memory module, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the following components:

a. Battery (see

b. Service access cover (see

Battery on page 35).

Service access cover on page 38).

Remove the memory module:

1. Pull away the retention clips (1) on each side of the memory module to release the memory

module. (The memory module tilts up.)

CAUTION: To prevent damage to the memory module, hold it by the edges only. Do not touch

the components on the memory module.

Component replacement procedures

2. Grasp the edge of the memory module (2), and then pull it out of the memory module slot.

NOTE: Memory modules are designed with a notch (3) to prevent incorrect insertion into the

memory module slot.

Reverse this procedure to install the memory module.

RTC battery

Description Spare part number

RTC battery 622351-001

Before removing the real-time clock (RTC) battery, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the following components:

a. Battery (see

b. Service access cover (see

Battery on page 35).

Service access cover on page 38).

Remove the RTC battery:

1. Disconnect the RTC battery cable (1) from the system board.

48 Chapter 4 Removal and replacement procedures

2. Remove the RTC battery (2) from the computer.

NOTE: The RTC battery is attached with double-sided tape.

Reverse this procedure to install the RTC battery. When installing the RTC battery, be sure the plus sign (+) faces up.

Component replacement procedures

Keyboard

NOTE: The keyboard spare part kit includes a keyboard cable.

For use in: Spare part number For use in: Spare part number

Asia/Pacific region, Australia, the People's Republic of China, Hong Kong, India, Indonesia, Singapore, and the United States

Belgium 633476-A41 Latin America and Chile 633476-161

Brazil 633476-201 Portugal 633476-131

The Czech Republic 633476-221 Russia 633476-251

Denmark, Finland, and Norway 633476-DH1 Saudi Arabia 633476-171

Europe, the Netherlands, Poland, and Saudi Arabia

France 633476-051 South Korea 633476-AD1

French Canada 633476-121 Spain 633476-071

Germany 633476-041 Switzerland 633476-BG1

Greece 633476-DJ1 Taiwan 633476-AB1

Hungary 633476-211 Thailand 633476-281

Israel 633476-BB1 Turkey 633476-141

Italy 633476-061 The United Kingdom and Singapore 633476-031

633476-001 Japan 633476-291

633476-B31 Slovenia 633476-BA1

Before removing the keyboard, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the following components:

a. Battery (see

b. Service access cover (see

Battery on page 35).

Service access cover on page 38).

50 Chapter 4 Removal and replacement procedures

Remove the keyboard:

1. Remove the 3 Phillips 2.0×5.0 screws that secure the keyboard to the computer.

2. Turn the computer right-side up, with the front toward you.

3. Open the computer as far as possible.

4. Lift the rear edge of the keyboard until it rests at an angle.

Component replacement procedures

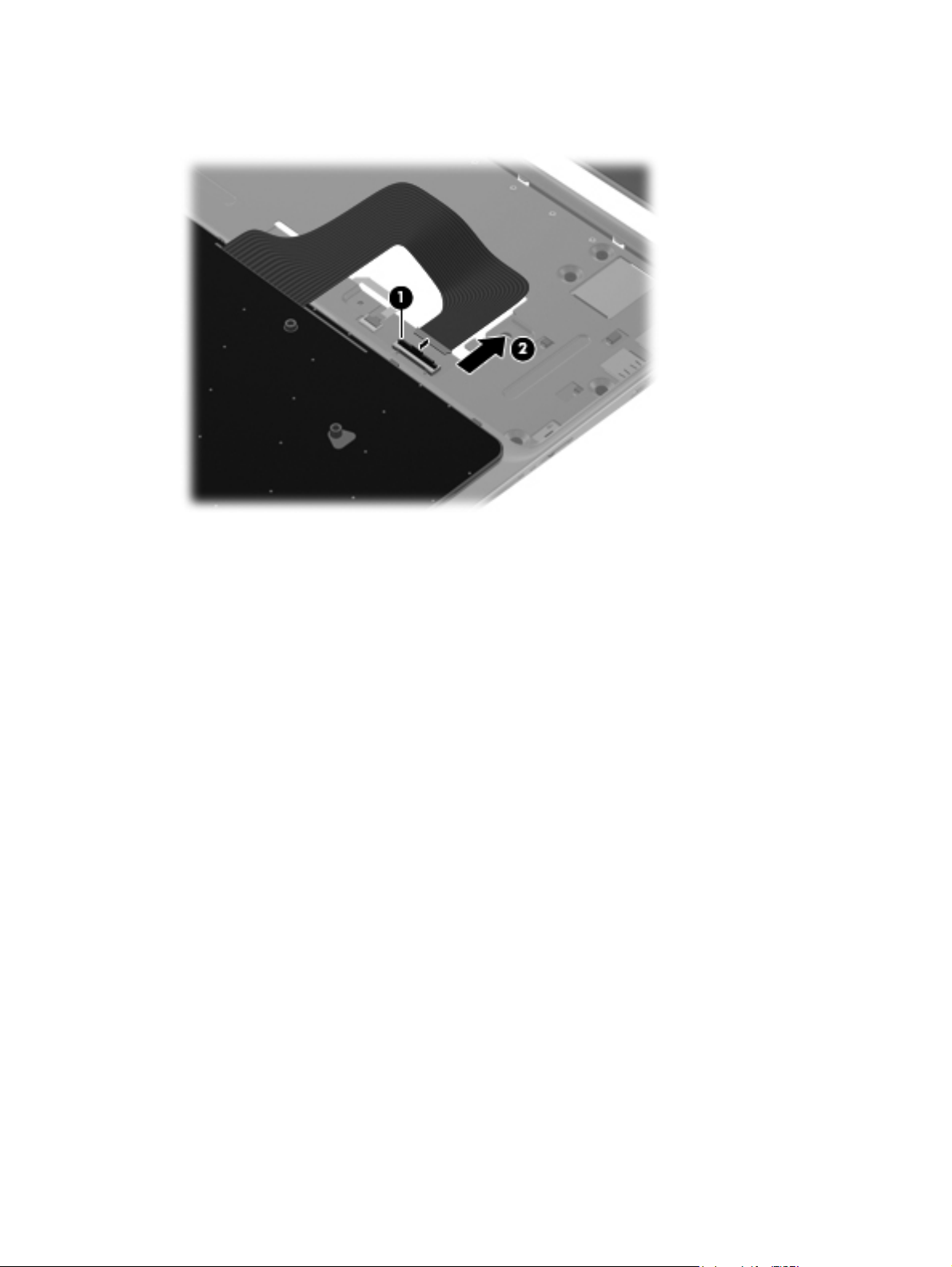

5. Release the zero insertion force (ZIF) connector (1) to which the keyboard cable is attached, and

then disconnect the keyboard cable (2)

6. Remove the keyboard.

Reverse this procedure to install the keyboard.

52 Chapter 4 Removal and replacement procedures

Top cover

NOTE: The top cover includes the speakers, TouchPad and TouchPad cable.

Description Spare part number

Top cover (includes TouchPad, TouchPad cable, and speaker) 633488-001

Before removing the top cover, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

4. Remove the following components:

the computer on, and then shut it down through the operating system.

and then unplugging the AC adapter from the computer.

a. Battery (see

b. Service access cover (see

c. Keyboard (see

Battery on page 35).

Service access cover on page 38).

Keyboard on page 50).

Remove the top cover.

1. Open the computer as far as possible.

2. Remove the 2 Phillips 2.0×2.5 screws (1) that secure the interior hinge covers to the display

hinges.

NOTE: The screws used for these hinge covers require a Phillips 00 screwdriver.

Component replacement procedures

3. Remove the interior hinge covers (2).

4. Turn the computer upside down, with the front toward you.

5. Remove the rear rubber feet, and then remove the 2 Phillips 2.5×5.0 screws (1) under the feet.

6. Remove the 4 Phillips 2.0×5.0 screws (2) that secure the top cover to the base enclosure.

7. Turn the computer right-side up, with the front toward you.

8. Open the computer as far as possible.

9. Disconnect the speaker cable (1) from the system board.

10. Release the ZIF connector (2) to which the TouchPad cable is connected, and then disconnect

the TouchPad cable (3) from the system board.

54 Chapter 4 Removal and replacement procedures

11. Release the ZIF connector (4) to which the TouchPad button cable is connected, and then

disconnect the TouchPad button cable (5) from the system board.

12. Remove the 8 Phillips 2.0×4.0 screws that secure the top cover to the base enclosure.

Component replacement procedures

13. Release the top cover by lifting the front edge until it disengages from the base enclosure.

Reverse this procedure to install the top cover.

Display assembly

Description Spare part number

25.7-cm (10.1-in) display assembly (includes display panel cable, 2 WLAN transceivers and cables, 2 WWAN transceivers

and cables (select models only), and webcam/microphone module and cable):

WSVGA, anti-glare, LED display assembly in black for use only on Compaq-branded models 634493-001

●

WSVGA, anti-glare, LED display assembly in black for use only on HP-branded models 633496-001

●

WSVGA, anti-glare, LED display assembly in red 633498-001

●

WSVGA, anti-glare, LED display assembly in blue 633499-001

●

WSVGA, anti-glare, LED display assembly in white 633497-001

●

Before removing the display assembly, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the following components:

a. Battery (see

b. Service access cover (see

c. Keyboard (see

d. Top cover (see

Battery on page 35).

Service access cover on page 38).

Keyboard on page 50).

Top cover on page 53).

5. Disconnect the WWAN antenna cables from the WWAN module (see

(select models only) on page 43).

6. Disconnect the WLAN antenna cables from the WLAN module (see

56 Chapter 4 Removal and replacement procedures

WWAN and GPS modules

WLAN module on page 45).

Remove the display assembly:

1. Close the computer.

2. Turn the computer upside down, with the front toward you.

3. Release the WLAN antenna cables (1) from the clips (2) built into the base enclosure.

4. Turn the computer right-side up, with the front toward you.

5. Open the computer as far as possible.

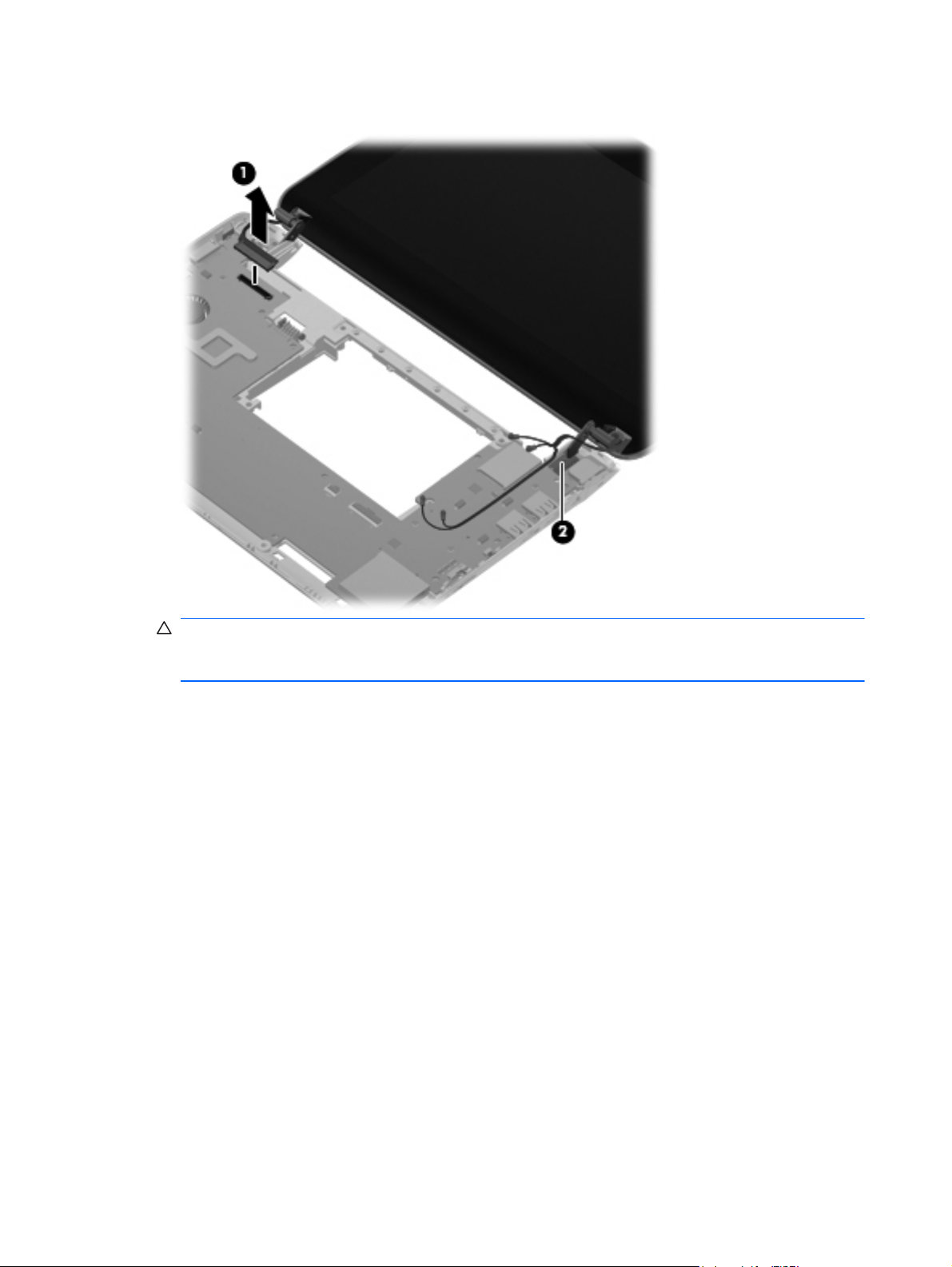

6. Disconnect the display panel cable (1) from the system board.

Component replacement procedures

7. Release the wireless antenna cables (2) from the clip built into the base enclosure.

CAUTION: Support the display assembly when removing the following screws. Failure to

support the display assembly can result in damage to the display assembly and other device components.

8. Remove the 2 Phillips 2.5×5.0 screws (1) that secure the display assembly to the base

enclosure.

58 Chapter 4 Removal and replacement procedures

9. Remove the display assembly (2).

Remove the display assembly hinges:

1. Remove the hinge covers from the hinges. The display hinge covers are available using spare

part number 633483-001.

2. Remove the 2 Phillips 2.0×5.0 screws (1) that secure the black plastic covers to the display

assembly, and then lift the covers from the display (2).

3. Remove the 2 Phillips 2.0×4.0 screws (3) that secure the hinges to the display assembly.

Component replacement procedures

4. Remove the display hinges (4). The display hinges are available using spare part number

633482-001

5. If you need to remove the display bezel, loosen the top of the bezel (1), loosen the left and right

sides of the bezel (2), loosen the bottom of the bezel (3), and then lift the bezel from the display (4). The display bezel is available using spare part number 633489-001 for Compaq-branded models and 633493-001 for HP-branded models.

60 Chapter 4 Removal and replacement procedures

6. If you need to remove the webcam module, unplug the cable from the webcam module (1),

remove the silver Phillips 2.0x3.0 screw (2), and then lift the module from the display (3). The webcam module is available using spare part number 631703-001.

7. If you need to remove the display panel from the display enclosure, remove the 4 Phillips

2.0×4.0 screws (1) that secure the panel to the enclosure, lift the top of the display panel (2), and then rotate it up and out of the display enclosure. The display panel is available using spare part number 624218-001.

Component replacement procedures

8. If you need to remove the display/webcam cable assembly, disconnect the display cable (1) from

the connector (2) on the back of the display panel. The display/webcam cable is available using spare part number 633490-001.

9. Lift the display/webcam cable (1) from its routing path (2) in the display enclosure.

62 Chapter 4 Removal and replacement procedures

10. If you need to remove the antenna cables, lift the cables (1) from the routing path (2) in the

display enclosure. The antenna cables are available using spare part number 631698-001.

11. If you need to replace the display enclosure, use the following spare part numbers:

633492-001 for black Compaq-branded models

●

633477-001 for black HP-branded models

●

633478-001 for white HP-branded models

●

633479-001 for red HP-branded models

●

633480-001 for blue HP-branded models

●

Reverse this procedure to reassemble and install the display assembly.

Component replacement procedures

Fan/heat sink assembly

Description Spare part number

Fan/heat sink assembly (includes replacement thermal material) 622330-001

NOTE: To properly ventilate the computer, allow at least a 7.6-cm (3-in) clearance on the left side of

the computer. The computer uses an electric fan for ventilation. The fan is controlled by a temperature sensor and is designed to turn on automatically when high temperature conditions exist. These conditions are affected by high external temperatures, system power consumption, power management/battery conservation configurations, battery fast charging, and software requirements. Exhaust air is displaced through the ventilation grill located on the left side of the computer.

Before removing the fan/heat sink assembly, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the following components:

a. Battery (see

b. Service access cover (see

Battery on page 35).

Service access cover on page 38).

Remove the fan/heat sink assembly:

1. Turn the computer upside down.

2. Disconnect the fan cable (1) from the system board.

3. Remove the Phillips 2.0×3.0 screw (2), and then loosen the 2 Phillips 2.0x4.0 captive screws (3)

that secure the fan/heat sink assembly to the system board.

64 Chapter 4 Removal and replacement procedures

4. Remove the fan/heat sink assembly (4).

NOTE: Due to the adhesive quality of the thermal material located between the fan/heat sink

assembly and system board components, it may be necessary to move the fan/heat sink assembly from side to side to detach it from the system board.

NOTE: The thermal material must be thoroughly cleaned from the surfaces of the fan/heat sink

assembly and the system board each time the fan/heat sink assembly is removed: Thermal paste is used on the processor (1) and the fan/heat sink assembly section (2) that services it.

Reverse this procedure to install the fan/heat sink assembly.

Component replacement procedures

System board

NOTE: The system board spare part kit includes replacement thermal material.

Description Spare part number

System boards for use in models without high-definition video:

Intel Atom N455 1.66-GHz processor for use in models without WWAN 633486-001

Intel Atom N455 1.66-GHz processor for use in models with WWAN 633494-001

Intel Atom N475 1.83-GHz processor for use in models without WWAN 633487-001

Intel Atom N475 1.83-GHz processor for use in models with WWAN 633495-001

System boards for use in models with high-definition video:

Intel Atom N455 1.66-GHz processor for use in models without WWAN 636336-001

Intel Atom N455 1.66-GHz processor for use in models with WWAN 636338-001

Intel Atom N475 1.83-GHz processor for use in models without WLAN 636337-001

Intel Atom N475 1.83-GHz processor for use in models with WLAN 636339-001

System board with Intel Atom N550 1.5-GHz processor, 1-MB level 2 cache, 667-MHz FSB, dualcore

638148-001

Before removing the system board, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the following components:

a. Battery (see

b. Service access cover (see

c. Hard drive (see

d. Keyboard (see

e. Display assembly (see

Battery on page 35).

Service access cover on page 38).

Hard drive on page 40).

Keyboard on page 50).

Display assembly on page 56).

5. Disconnect the WWAN antenna cables from the WWAN module (see

(select models only) on page 43).

6. Disconnect the WLAN antenna cables from the WLAN module (see

66 Chapter 4 Removal and replacement procedures

WWAN and GPS modules

WLAN module on page 45).

When replacing the system board, be sure that the following components are removed from the defective system board and installed on the replacement system board:

SIM (see

●

WWAN module (see

●

WLAN module (see

●

Memory module (see

●

RTC battery (see

●

Fan/heat sink assembly (see

●

SIM on page 37)

WWAN and GPS modules (select models only) on page 43)

WLAN module on page 45)

Memory module on page 47)

RTC battery on page 48)

Fan/heat sink assembly on page 64)

Remove the system board:

1. Disconnect the power connector cable from the system board.

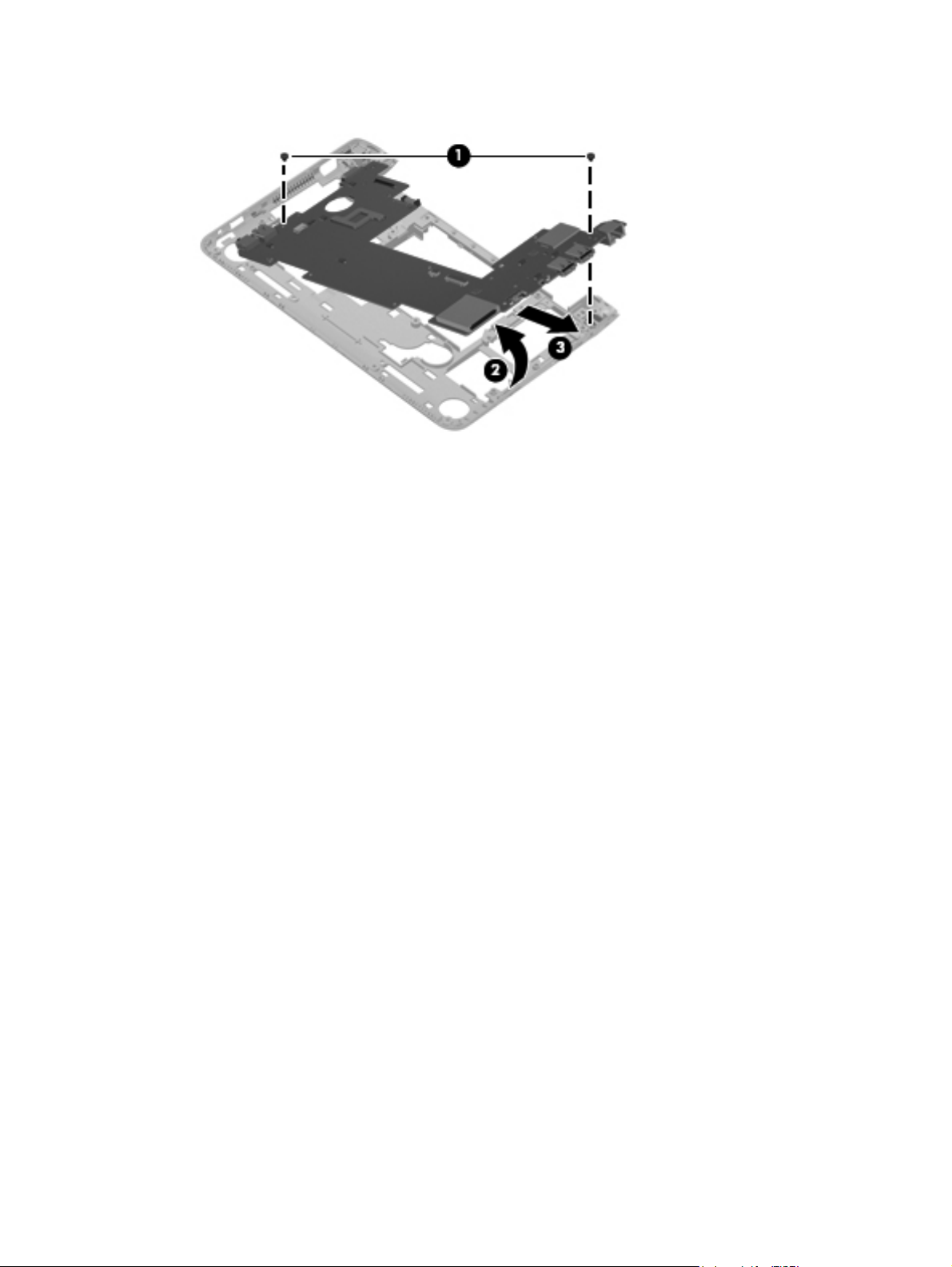

2. Remove the 2 Phillips 2.0×4.0 screws (1) that secure the system board to the base enclosure.

3. Lift the right side of the system board (2) until it rests at an angle.

Component replacement procedures

4. Remove the system board (3) by sliding it up and away from the base enclosure.

Reverse the procedure to install the system board.

68 Chapter 4 Removal and replacement procedures

Power connector cable

Description Spare part number

Power connector cable 622329-001

Power connector bracket 634873-001

Before removing the power connector cable, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the following components:

a. Battery (see

Battery on page 35).

b. Service access cover (see

c. Hard drive (see

d. Keyboard (see

e. Top cover (see

f. Display assembly (see

g. System board (see

Hard drive on page 40).

Keyboard on page 50).

Top cover on page 53).

Display assembly on page 56).

System board on page 66).

Remove the power connector cable:

Service access cover on page 38).

Component replacement procedures

Remove the power connector cable by grasping the connector and removing it from the base



enclosure.

Reverse this procedure to install the power connector cable.

70 Chapter 4 Removal and replacement procedures

5 Setup Utility

Starting Setup Utility

Setup Utility is a ROM-based information and customization utility that can be used even when your Windows operating system is not working.

The utility reports information about the computer and provides settings for startup, security, and other preferences.

To start Setup Utility:

Open Setup Utility by turning on or restarting the computer, and then pressing f10 while the “F10



= BIOS Setup Options” message is displayed in the lower-left corner of the screen.

Using Setup Utility

Changing the language of Setup Utility

The following procedure explains how to change the language of Setup Utility. If Setup Utility is not already running, begin at step 1. If Setup Utility is already running, begin at step 2.

1. Open Setup Utility by turning on or restarting the computer, and then pressing f10 while the “F10

= BIOS Setup Options” message is displayed in the lower-left corner of the screen.

2. Use the arrow keys to select System Configuration > Language, and then press enter.

3. Use the arrow keys to select a language, and then press enter.

4. When a confirmation prompt with your language selected is displayed, press enter.

5. To save your change and exit Setup Utility, use the arrow keys to select Exit > Exit Saving

Changes, and then press enter.

Your change goes into effect immediately.

Starting Setup Utility

Navigating and selecting in Setup Utility

Because Setup Utility is not Windows based, it does not support the TouchPad. Navigation and selection are by keystroke.

To choose a menu or a menu item, use the arrow keys.

●

To choose an item in a list or to toggle a field, for example an Enable/Disable field, use either the

●

arrow keys or f5 or f6.

To select an item, press enter.

●

To close a text box or return to the menu display, press esc.

●

To display additional navigation and selection information while Setup Utility is open, press f1.

●

Displaying system information

The following procedure explains how to display system information in Setup Utility. If Setup Utility is not open, begin at step 1. If Setup Utility is open, begin at step 2.

1. Open Setup Utility by turning on or restarting the computer, and then pressing f10 while the “F10

= BIOS Setup Options” message is displayed in the lower-left corner of the screen.

2. Select the Main menu. System information such as the system time and date, and identification

information about the computer is displayed.

3. To exit Setup Utility without changing any settings, use the arrow keys to select Exit > Exit

Discarding Changes, and then press enter.

Restoring default settings in Setup Utility

The following procedure explains how to restore the Setup Utility default settings. If Setup Utility is not already running, begin at step 1. If Setup Utility is already running, begin at step 2.

1. Open Setup Utility by turning on or restarting the computer, and then pressing f10 while the “F10

= BIOS Setup Options” message is displayed in the lower-left corner of the screen.

2. Use the arrow keys to select Exit > Load Setup Defaults, and then press enter.

3. When the Setup Confirmation is displayed, press enter.

4. To save your change and exit Setup Utility, use the arrow keys to select Exit > Exit Saving

Changes, and then press enter.

The Setup Utility default settings go into effect when the computer restarts.

NOTE: Your password, security, and language settings are not changed when you restore the

factory default settings.

72 Chapter 5 Setup Utility

Exiting Setup Utility

You can exit Setup Utility with or without saving changes.

To exit Setup Utility and save your changes from the current session:

●

If the Setup Utility menus are not visible, press esc to return to the menu display. Then use the arrow keys to select Exit > Exit Saving Changes, and then press enter.

To exit Setup Utility without saving your changes from the current session:

●

If the Setup Utility menus are not visible, press esc to return to the menu display. Then use the arrow keys to select Exit > Exit Discarding Changes, and then press enter.

After either choice, the computer restarts in Windows.

Setup Utility menus

The menu tables in this section provide an overview of the Setup Utility options.

NOTE: Some of the Setup Utility menu items listed in this chapter may not be supported by your

computer.

Main menu

Select To do this

System information

Security menu

Select To do this

Administrator password Enter, change, or delete an administrator password.

Power-On Password Enter, change, or delete a power-on password.

System Configuration menu

Select To do this

Language Support Change the Setup Utility language.

View and change the system time and date.

●

View identification information about the computer.

●

View specification information about the processor, memory size,

●

and system BIOS.

Setup Utility menus

Select To do this

Processor C4 State Enable/disable the processor C4 sleep state.

Boot Options Set the following boot options:

f10 and f12 Delay (sec.)―Set the delay for the f10 and f12

●

functions of Setup Utility in intervals of 5 seconds each (0, 5, 10, 15, 20).

HP QuickWeb―Enable/disable the HP QuickWeb menu in Setup

●

Utility.

Internal Network Adapter boot―Enable/disable boot from Internal

●

Network Adapter.

Boot Device Priority―Set the boot device priority for:

●

Internal hard drive (select models only)

◦

USB floppy

◦

USB CD/DVD ROM drive

◦

USB flash drive

◦

USB Hard drive

◦

USB Card reader

◦

Diagnostics menu

Select To do this

Hard Disk Self Test (select models only) Run a comprehensive self-test on the hard drive.

Memory Test Run a diagnostic test on the system memory.

Network adapter

◦

NOTE: Only the devices attached to the system appear in

the boot order menu.

74 Chapter 5 Setup Utility

6 Specifications

Device specifications

Metric U.S.

Dimensions

Depth 19 cm 7.5 in

Width 27 cm 11 in

Height 2.3-3.2 cm 0.91-0.93 in

Weight

25.7-cm (10.1-in) LCD, equipped with a 3-cell battery, hard

drive, 1-GB memory, WLAN module, and 2 wireless antennas

25.7-cm (10.1-in). LCD, equipped with a 6-cell battery, hard drive, 1-GB memory, WLAN module, and 2 wireless antennas

Input power

Operating voltage 19.5 V dc @ 2.05A – 40 W

Operating current 2.05 A

Temperature

Operating 5°C to 35°C 41°F to 95°F

Nonoperating -20°C to 65°C -4°F to 149°F

Relative humidity (noncondensing)

Operating 10% to 90%

Nonoperating 0% to 95%

Maximum altitude (unpressurized)

Operating -15 m to 3,048 m -50 ft to 10,000 ft

1.14 kg 2.52 lb

1.31 kg 2.88 lb

Nonoperating -15 m to 12,192 m -50 ft to 40,000 ft

NOTE: Applicable product safety standards specify thermal limits for plastic surfaces. The device operates well within this

range of temperatures.

Device specifications

25.7-cm (10.1-in) WSVGA AntiGlare display specifications

Metric U.S.

Dimensions

Height 23.5 cm 9.3 in

Width 14.3 cm 5.6 in

Diagonal 25.7 cm 10.1 in

Number of colors 262,144

Contrast ratio 500:1 (typical)

Brightness 200 nits (typical)

Pixel resolution

Pitch 0.2175 × 0.2088 mm

Format 1024 × 600

Configuration RGB vertical stripe

Backlight LED

Character display 80 × 25

Total power consumption (varies by display) 3.46 W

Viewing angle +/-45° horizontal, +15/-35° vertical (typical)

76 Chapter 6 Specifications

Hard drive specifications

320-GB* 250-GB* 160-GB*

Dimensions

Height 9.5 mm 9.5 mm 9.5 mm

Length 100.2 mm 100.2 mm 100.2 mm

Width 70 mm 70 mm 70 mm

Weight 105-115 g 105-115 g 105-115 g

Interface type SATA SATA SATA

I/O data transfer rate (maximum) 100 Gbits/sec 100 Gbits/sec 100 Gbits/sec

Security ATA security ATA security ATA security

Seek times (typical read, including setting)

Single track 1.5 ms 1.5 ms 1.5 ms

Average (read/write) 11.0/12.0 ms 11.0/12.0 ms 11.0/12.0 ms

Maximum 21.0 ms 21.0 ms 21.0 ms

Logical blocks 625,142,448 488,397,168 312,581,808

Disc rotational speed 7200 rpm 7200 rpm 7200 rpm

Operating temperature 0°C to 60°C (32°F to

140°F)

*1 GB = 1 billion bytes when referring to hard drive storage capacity. Actual accessible capacity is less. Actual drive specifications may differ slightly.

NOTE: Certain restrictions and exclusions apply. Contact technical support for details.

0°C to 60°C (32°F to

140°F)

0°C to 60°C (32°F to 140°F)

Hard drive specifications

7 Backup and recovery

Recovery discs

●

Performing a system recovery

●

Backing up your information

●

Recovery after a system failure is as good as your most recent backup. HP recommends that you create recovery discs immediately after software setup. As you add new software and data files, you should continue to back up your system on a regular basis to maintain a reasonably current backup.

Tools provided by the operating system and HP Recovery Manager software are designed to help you with the following tasks for safeguarding your information and restoring it in case of a computer failure:

Creating a set of recovery discs (Recovery Manager software feature)

●

Backing up your information

●

Creating system restore points

●

Recovering a program or driver

●

Performing a full system recovery (from the partition or recovery discs)

●

NOTE: Recovery discs have been included if your computer does not have a partition. Use

these discs to recover your operating system and software. To check for the presence of a recovery partition, click Start, right-click Computer, click Manage, and then click Disk

Management. If the partition is present, an HP Recovery drive is listed in the window.

Recovery discs

HP recommends that you create recovery discs to be sure that you can restore your computer to its original factory state if the hard drive fails, or if for any reason you cannot recover using the recovery partition tools. Create these discs after setting up the computer for the first time.

Handle these discs carefully and keep them in a safe place. The software allows the creation of only one set of recovery discs.

78 Chapter 7 Backup and recovery

NOTE: If your computer does not include an integrated optical drive, you can use an optional

external optical drive (purchased separately) to create recovery discs, or you can purchase recovery discs for your computer from the HP Web site. If you use an external optical drive, it must be connected directly to a USB port on the computer, not to a USB port on an external device, such as a USB hub.

Guidelines:

Purchase high-quality DVD-R, DVD+R, BD-R (writable Blu-ray), or CD-R discs. DVDs and BDs

●

have a much higher storage capacity than CDs. If you use CDs, up to 20 discs may be required, whereas only a few DVDs or BDs are required.

NOTE: Read-write discs, such as CD-RW, DVD±RW, double-layer DVD±RW, and BD-RE

(rewritable Blu-ray) discs, are not compatible with the Recovery Manager software.

The computer must be connected to AC power during this process.

●

Only one set of recovery discs can be created per computer.

●

Number each disc before inserting it into the optical drive.

●

If necessary, you can exit the program before you have finished creating the recovery discs. The

●

next time you open Recovery Manager, you will be prompted to continue the disc creation process.

To create a set of recovery discs:

1. Select Start > All Programs > Recovery Manager > Recovery Disc Creation.

2. Follow the on-screen instructions.

Performing a system recovery

Recovery Manager software allows you to repair or restore the computer to its original factory state. Recovery Manager works from recovery discs or from a dedicated recovery partition (select models only) on the hard drive.

Note the following when performing a system recovery:

You can recover only files that you have previously backed up. HP recommends that you use

●

HP Recovery Manager to create a set of recovery discs (entire drive backup) as soon as you set up the computer.

Windows has its own built-in repair features, such as System Restore. If you have not already

●

tried these features, try them before using Recovery Manager.

Recovery Manager recovers only software that was preinstalled at the factory. Software not

●

provided with this computer must be downloaded from the manufacturer's Web site or reinstalled from the disc provided by the manufacturer.

Performing a system recovery

Recovering using the dedicated recovery partition (select models only)

On some models, you can perform a recovery from the partition on the hard drive, accessed by clicking Start or pressing the f11 key. This type of recovery restores the computer to its factory condition without using recovery discs.

To restore the computer from the partition, follow these steps:

1. Access Recovery Manager in either of the following ways:

Select Start > All Programs > Recovery Manager > Recovery Manager.

●

– or –

Turn on or restart the computer, and then press esc while the “Press the ESC key for

●

Startup Menu” message is displayed at the bottom of the screen. Then, press f11 while the “F11 (HP Recovery)” message is displayed on the screen.

2. Click System Recovery in the Recovery Manager window.

3. Follow the on-screen instructions.

80 Chapter 7 Backup and recovery

Recovering using the recovery discs

1. If possible, back up all personal files.

2. Insert the first recovery disc into the optical drive on your computer or an optional external

optical drive, and then restart the computer.

3. Follow the on-screen instructions.

Backing up your information

You should back up your computer files on a regular schedule to maintain a current backup. You can back up your information to an optional external hard drive, a network drive, or discs. Back up your system at the following times:

At regularly scheduled times

●

NOTE: Set reminders to back up your information periodically.

Before the computer is repaired or restored

●

Before you add or modify hardware or software

●

Guidelines:

Create system restore points using the Windows System Restore feature, and periodically copy

●

them to an optical disc or an external hard drive. For more information on using system restore points, refer to

Store personal files in the Documents library and back up this folder periodically.

●

Save customized settings in a window, toolbar, or menu bar by taking a screen shot of your

●

settings. The screen shot can be a time-saver if you have to reset your preferences.

Using system restore points on page 82.

Using Windows Backup and Restore

Windows Backup and Restore allows you to back up individual files or back up the entire computer image.

Guidelines:

Be sure that the computer is connected to AC power before you start the backup process.

●

Allow enough time to complete the backup process. Depending on file sizes, it may take over an

●

hour.

To create a backup:

1. Select Start > Control Panel > System and Security > Backup and Restore.

2. Follow the on-screen instructions to schedule and create a backup.

NOTE: Windows includes the User Account Control feature to improve the security of the computer.

You may be prompted for your permission or password for tasks such as installing software, running utilities, or changing Windows settings. Refer to Help and Support for more information.

Backing up your information

Using system restore points

A system restore point allows you to save and name a snapshot of your hard drive at a specific point in time. You can then recover back to that point if you want to reverse subsequent changes.

NOTE: Recovering to an earlier restore point does not affect data files saved or e-mails created

since the last restore point.

You also can create additional restore points to provide increased protection for your files and settings.

When to create restore points

Before you add or extensively modify software or hardware

●

Periodically, whenever the computer is functioning optimally

●

NOTE: If you revert to a restore point and then change your mind, you can reverse the restoration.

Create a system restore point

1. Select Start > Control Panel > System and Security > System.

2. In the left pane, click System Protection.

3. Click the System Protection tab.

4. Follow the on-screen instructions.

Restore to a previous date and time

To revert to a restore point (created at a previous date and time), when the computer was functioning optimally, follow these steps:

1. Select Start > Control Panel > System and Security > System.

2. In the left pane, click System protection.

3. Click the System Protection tab.

4. Click System Restore.

5. Follow the on-screen instructions.

82 Chapter 7 Backup and recovery

8 Power cord set requirements

The wide-range input feature of the computer permits it to operate from any line voltage from 100 to 120 volts AC, or from 220 to 240 volts AC

The 3-conductor power cord set included with the computer meets the requirements for use in the country or region where the equipment is purchased.

Power cord sets for use in other countries and regions must meet the requirements of the country or region where the computer is used.

Requirements for all countries

The following requirements are applicable to all countries and regions:

The length of the power cord set must be at least 1.5 m (5.0 ft) and no more than 2.0 m (6.5 ft).

●

All power cord sets must be approved by an acceptable accredited agency responsible for

●

evaluation in the country or region where the power cord set will be used.

The power cord sets must have a minimum current capacity of 10 amps and a nominal voltage

●

rating of 125 or 250 V AC, as required by the power system of each country or region.

The appliance coupler must meet the mechanical configuration of an EN 60 320/IEC 320

●

Standard Sheet C13 connector for mating with the appliance inlet on the back of the computer.

Requirements for all countries

Requirements for specific countries and regions

Country/region Accredited agency Applicable note number

Australia EANSW 1

Austria OVE 1

Belgium CEBC 1

Canada CSA 2

Denmark DEMKO 1

Finland FIMKO 1

France UTE 1

Germany VDE 1

Italy IMQ 1

Japan METI 3

The Netherlands KEMA 1

Norway NEMKO 1

The People's Republic of China COC 5

South Korea EK 4

Sweden SEMKO 1

Switzlerland SEV 1

Taiwan BSMI 4

The United Kingdom BSI 1

The United States UL 2

1. The flexible cord must be Type HO5VV-F, 3-conductor, 1.0-mm² conductor size. Power cord set fittings (appliance

coupler and wall plug) must bear the certification mark of the agency responsible for evaluation in the country or region where it will be used.

2. The flexible cord must be Type SPT-3 or equivalent, No. 18 AWG, 3-conductor. The wall plug must be a two-pole

grounding type with a NEMA 5-15P (15 A, 125 V) or NEMA 6-15P (15 A, 250 V) configuration.

3. The appliance coupler, flexible cord, and wall plug must bear a “T” mark and registration number in accordance with the

Japanese Dentori Law. The flexible cord must be Type VCT or VCTF, 3-conductor, 1.00-mm² conductor size. The wall plug must be a two-pole grounding type with a Japanese Industrial Standard C8303 (7 A, 125 V) configuration.

4. The flexible cord must be Type RVV, 3-conductor, 0.75-mm² conductor size. Power cord set fittings (appliance coupler

and wall plug) must bear the certification mark of the agency responsible for evaluation in the country or region where it will be used.

5. The flexible cord must be Type VCTF, 3-conductor, 0.75-mm² conductor size. Power cord set fittings (appliance coupler

and wall plug) must bear the certification mark of the agency responsible for evaluation in the country or region where it will be used.

84 Chapter 8 Power cord set requirements

9 Recycling

Battery

When a battery has reached the end of its useful life, do not dispose of the battery in general household waste. Follow the local laws and regulations in your area for computer battery disposal.

Display

WARNING! The backlight contains mercury. Caution must be exercised when removing and

handling the backlight to avoid damaging this component and causing exposure to the mercury.

CAUTION: The procedures in this chapter can result in damage to display components. The only

components intended for recycling purposes are the liquid crystal display (LCD) panel and the backlight. When you remove these components, handle them carefully.

NOTE: Materials Disposal. This HP product contains mercury in the backlight in the display

assembly that might require special handling at end-of-life. Disposal of mercury may be regulated because of environmental considerations. For disposal or recycling information, contact your local authorities, or see the Electronic Industries Alliance (EIA) Web site at

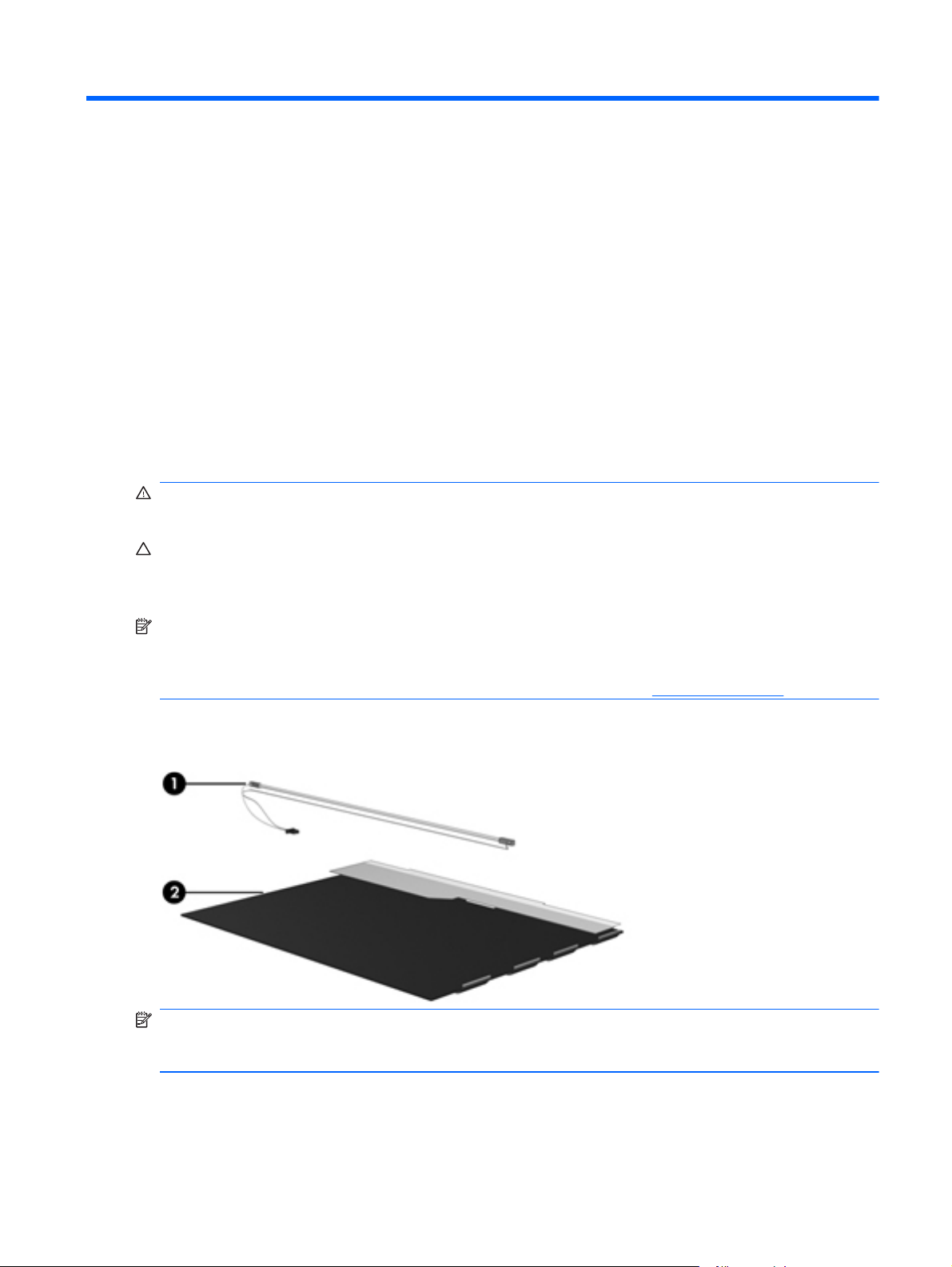

This section provides disassembly instructions for the display assembly. The display assembly must be disassembled to gain access to the backlight (1) and the liquid crystal display (LCD) panel (2).

NOTE: The procedures provided in this chapter are general disassembly instructions. Specific

details, such as screw sizes, quantities, and locations, and component shapes and sizes, can vary from one computer model to another.

http://www.eiai.org.

Battery

Perform the following steps:

1. Remove all screw covers (1) and screws (2) that secure the display bezel to the display

assembly.

2. Lift up and out on the left and right inside edges (1) and the top and bottom inside edges (2) of

the display bezel until the bezel disengages from the display assembly.

3. Remove the display bezel (3).

86 Chapter 9 Recycling

4. Disconnect all display panel cables (1) from the display inverter and remove the inverter 2.

5. Remove all screws (1) that secure the display panel assembly to the display enclosure.

6. Remove the display panel assembly (2) from the display enclosure.

7. Turn the display panel assembly upside down.

8. Remove all screws that secure the display panel frame to the display panel.

9. Use a sharp-edged tool to cut the tape (1) that secures the sides of the display panel to the

display panel frame.

Display

10. Remove the display panel frame (2) from the display panel.

11. Remove the screws (1) that secure the backlight cover to the display panel.

12. Lift the top edge of the backlight cover (2) and swing it outward.

13. Remove the backlight cover.

14. Turn the display panel right-side up.

15. Remove the backlight cables (1) from the clip (2) in the display panel.

16. Turn the display panel upside down.

88 Chapter 9 Recycling

17. Remove the backlight frame from the display panel.

WARNING! The backlight contains mercury. Exercise caution when removing and handling the

backlight to avoid damaging this component and causing exposure to the mercury.

18. Remove the backlight from the backlight frame.

19. Disconnect the display cable (1) from the LCD panel.

20. Remove the screws (2) that secure the LCD panel to the display rear panel.

21. Release the LCD panel (3) from the display rear panel.

Display

22. Release the tape (4) that secures the LCD panel to the display rear panel.

23. Remove the LCD panel.

24. Recycle the LCD panel and backlight.

90 Chapter 9 Recycling

Index

AC adapter

identifying 16

spare part number 24, 26 action keys 9 administrator password 73 Antenna Kit

spare part number 23, 26, 63 antennas 15 applications key, Windows 9 audio, product description 2 audio-in (microphone) jack 12 audio-out (headphone) jack 12

backing up

customized window, toolbar,

and menu bar settings 81

personal files 81 base enclosure, spare part

numbers 21, 27

battery

identifying 16

replacing 35

spare part numbers 21, 26 battery bay, identifying 14 battery light 11 battery locking latch,

identifying 14 battery release latch 14 bay, battery 14 bezel, spare part

numbers 22, 27, 60 boot options 74 boot order 74

cables, service considerations 30 caps lock light, identifying 8

changing Setup Utility

language 71 chipset, product description 1 components

additional hardware 16 bottom 14 computer, major 18 display 13 front 9 left-side 11 right-side 10 TouchPad 7

computer feet

locations 34

spare part number 34 connector, power 11 connectors, service

considerations 30

cord, power 16

device specifications 75 devices, mass storage 23 Diagnostics menu 74 Digital Media Slot, identifying 10 diskette drive, precautions 30 display

product description 1

removal 56

spare part numbers 19, 56

specifications 76 display assembly

removal 56

spare part

numbers 19, 27, 28, 56

display bezel

removing 60

spare part numbers 22, 27, 60 display components 22

display EMI shield, spare part

number 23, 28

display enclosure

removing 63 spare part numbers 23, 27, 63

display hinge covers

removing 59 spare part numbers 22, 27, 59

Display Hinge Kit, spare part

number 22, 27

display panel

removing 61 spare part numbers 23, 26, 61

display/webcam cable

removing 62

spare part number 23, 27, 62 displaying system information 72 drives

boot order 74

preventing damage 30

earbuds 12 electrostatic discharge 31 esc key, identifying 9 Ethernet, product description 2 exiting Setup Utility 73 external media cards, product

description 3

external monitor port,

identifying 11

f11 80 fan/heat sink assembly

removal 64

spare part numbers 20, 26, 64 feet

locations 34

spare part number 34

Index

fn key 9 full system recovery 78

GPS module

removal 43

spare part number 21 graphics, product description 1 grounding

equipment and methods 33

guidelines 31

hard drive

precautions 30

product description 2

removal 40

spare part

numbers 20, 23, 26, 28, 40

specifications 77 hard drive bracket, removal 41 Hard Drive Cable Kit, spare part

number 20, 26, 40

Hard Drive Hardware Kit, spare

part number 20, 23, 40 hard drive self test 74 hardware, identifying 6 headphone (audio-out) jack 12 headphones 12

integrated webcam light,

identifying 13 internal display switch,

identifying 13 internal media cards, product

description 3 internal microphone,

identifying 13

jacks

audio-in (microphone) 12 audio-out (headphone) 12 RJ-45 (network) 11

keyboard

product description 4

removal 50 spare part

numbers 19, 26, 27, 50

keys

action 9 esc 9 fn 9 Windows applications 9 Windows logo 9

language support 73 latch, battery release 14 lights

battery 11 caps lock 8 power 10 webcam 13

Main menu 73 mass storage devices, hard

drive 23

memory module

product description 2 removal 47

spare part numbers 21, 25, 47 memory test 74 microphone (audio-in) jack 12 miscellaneous parts 24 model name 1 modem, product description 2

navigating in Setup Utility 72 network jack, identifying 11

operating system, product

description 4

optical drive

product description 2

packing guidelines 32 part numbers, sequential

listing 25 parts, miscellaneous 24 passwords 73 plastic parts 29

pointing device, product

description 4

ports

product description 4 USB 10, 12

power connector bracket, spare

part number 21, 28, 69

power connector cable

removal 69

spare part numbers 21, 26, 69 power connector, identifying 11 power cord

requirements for all

countries 83

requirements for specific

countries and regions 84 set requirements 83 spare part numbers 24, 25

power cord, identifying 16 power light, identifying 10 power requirements, product

description 4 power-on password 73 Processor C4 State 74 processor, product description 1 product description

audio 2 chipset 1 display 1 Ethernet 2 external media cards 3 graphics 1 hard drive 2 internal media cards 3 keyboard 4 memory module 2 modem 2 operating system 4 optical drive 2 pointing device 4 ports 4 power requirements 4 processors 1 product name 1 security 4 serviceability 5 video 2 wireless 3

product name 1

92 Index

Hp Mini 1103, Mini 110 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

1 Product description

2 External component identification

Identifying the hardware

Top components

TouchPad

Lights

Keys

Front components

Right-side components

Left-side components

Display components

Bottom components

Wireless antennas

Additional hardware components

3 Illustrated parts catalog

Service tag

Computer major components

Display components

Mass storage device

Miscellaneous parts

Sequential part number listing

4 Removal and replacement procedures

Preliminary replacement requirements

Tools required

Service considerations

Plastic parts

Cables and connectors

Drive handling

Grounding guidelines

Electrostatic discharge damage

Packaging and transporting guidelines

Workstation guidelines

Equipment guidelines

Component replacement procedures

Computer feet

Battery

Service access cover

Hard drive

WWAN and GPS modules (select models only)

WLAN module

Memory module

RTC battery

Keyboard

Top cover

Display assembly

Fan/heat sink assembly

System board

Power connector cable

5 Setup Utility

Starting Setup Utility

Using Setup Utility

Changing the language of Setup Utility

Navigating and selecting in Setup Utility

Displaying system information

Restoring default settings in Setup Utility

Exiting Setup Utility

Setup Utility menus

Main menu

Security menu

System Configuration menu

Diagnostics menu

6 Specifications

Device specifications

Hard drive specifications

7 Backup and recovery

Recovery discs

Performing a system recovery

Recovering using the dedicated recovery partition (select models only)

Recovering using the recovery discs

Backing up your information

Using Windows Backup and Restore

Using system restore points

When to create restore points

Create a system restore point

Restore to a previous date and time

8 Power cord set requirements
