HP Mini 1101, Mini 110, Mini 110 by Studio Tord Boontje, Compaq Mini 110 Maintenance and Service Guide

HP Mini 1101, HP Mini 110, HP Mini 110 by Studio Tord Boontje, and Compaq Mini 110

Maintenance and Service Guide

Bluetooth is a trademark owned by its proprietor and used by Hewlett-Packard Company under license. Intel and Atom are trademarks of Intel Corporation in the U.S. and other countries. Microsoft, Windows, and Windows Vista are U.S. registered trademarks of Microsoft Corporation. SD Logo is a trademark of its proprietor.

The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Second Edition: October 2009

First Edition: May 2009

Document Part Number: 537033-001 Revision A

Revision history

Revision Publication date Description

A October 2009

Chapter 1 — Updated to

●

incorporate Windows 7 and the HP Mini 110 by Studio Tord Boontje

Chapter 3 — New and updated

●

spare parts and descriptions

Chapter 4 — New and updated

●

spare parts and descriptions

Chapter 6 — Updated to

●

incorporate revisions to hard drive specifications and the addition of WSVGA display specifications

Chapter 8 — Updated to

●

incorporate Windows 7 backup and recovery procedures

iii

iv Revision history

Safety warning notice

WARNING! To reduce the possibility of heat-related injuries or of overheating the device, do not place

the device directly on your lap or obstruct the device air vents. Use the device only on a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to contact the skin or a soft surface, such as pillows or rugs or clothing, during operation. The device and the AC adapter comply with the user-accessible surface temperature limits defined by the International Standard for Safety of Information Technology Equipment (IEC 60950).

vi Safety warning notice

Table of contents

1 Product description

2 External component identification

Top components ................................................................................................................................... 5

TouchPad ............................................................................................................................ 5

Light ..................................................................................................................................... 6

Keys ..................................................................................................................................... 7

Front components ................................................................................................................................ 9

Right-side components ....................................................................................................................... 11

Left-side components ......................................................................................................................... 12

Display components ........................................................................................................................... 13

Bottom components ........................................................................................................................... 14

Wireless antennas .............................................................................................................................. 15

3 Illustrated parts catalog

Service tag ......................................................................................................................................... 16

Device major components .................................................................................................................. 17

Display assembly components ........................................................................................................... 25

Mass storage devices ......................................................................................................................... 27

Miscellaneous parts ............................................................................................................................ 28

Sequential part number listing ............................................................................................................ 29

4 Removal and replacement procedures

Preliminary replacement requirements ............................................................................................... 37

Tools required .................................................................................................................... 37

Service considerations ....................................................................................................... 37

Plastic parts ....................................................................................................... 37

Cables and connectors ..................................................................................... 37

Drive handling ................................................................................................... 38

Grounding guidelines ......................................................................................................... 39

Electrostatic discharge damage ........................................................................ 39

Packaging and transporting guidelines ............................................. 40

Workstation guidelines ..................................................................... 40

vii

Equipment guidelines ....................................................................... 41

Component replacement procedures ................................................................................................. 42

Service tag ......................................................................................................................... 42

Device feet ......................................................................................................................... 43

Battery ............................................................................................................................... 44

SIM .................................................................................................................................... 45

Memory module ................................................................................................................. 46

Keyboard ........................................................................................................................... 48

RTC battery ....................................................................................................................... 53

Mass storage devices ........................................................................................................ 54

Hard drive .......................................................................................................... 55

Solid-state drive ................................................................................................ 55

Top cover ........................................................................................................................... 57

WLAN module .................................................................................................................... 60

WWAN module .................................................................................................................. 62

USB/audio board ............................................................................................................... 64

Power/battery pass-through board .................................................................................... 66

Fan ..................................................................................................................................... 68

Heat sink assembly ............................................................................................................ 70

System board ..................................................................................................................... 72

Display assembly ............................................................................................................... 75

5 Setup Utility

Starting the Setup Utility ..................................................................................................................... 83

Using the Setup Utility ........................................................................................................................ 83

Setup Utility menus ............................................................................................................................ 85

6 Specifications

Device specifications .......................................................................................................................... 87

10.1-inch, AntiGlare display specifications ......................................................................................... 88

10.1-inch, WSVGA, AntiGlare display specifications ......................................................................... 89

Hard drive specifications .................................................................................................................... 90

Solid-state drive specifications ........................................................................................................... 91

System DMA specifications ................................................................................................................ 92

Changing the language of the Setup Utility ....................................................................... 83

Navigating and selecting in the Setup Utility ...................................................................... 83

Displaying system information ........................................................................................... 84

Restoring default settings in the Setup Utility .................................................................... 84

Exiting the Setup Utility ...................................................................................................... 84

Main menu ......................................................................................................................... 85

Security menu .................................................................................................................... 85

System Configuration menu .............................................................................................. 85

Diagnostics menu .............................................................................................................. 86

viii

System interrupt specifications ........................................................................................................... 93

System I/O address specifications ..................................................................................................... 94

System memory map specifications ................................................................................................... 96

7 Screw listing

Phillips PM1.5×1.0 screw ................................................................................................................... 97

Phillips PM2.0×3.0 screw ................................................................................................................... 99

Phillips PM2.0×3.0 captive screw ..................................................................................................... 101

Phillips PM2.0×4.0 screw ................................................................................................................. 102

Phillips PM2.0×5.0 screw ................................................................................................................. 103

Phillips PM2.5×5.0 screw ................................................................................................................. 104

Phillips PM2.5×7.0 screw ................................................................................................................. 106

Phillips PM2.5×10.0 captive screw ................................................................................................... 107

Phillips PM3.0×4.0 screw ................................................................................................................. 108

8 Backup and recovery

Mobile Mi backup and recovery ........................................................................................................ 110

Backing up your information ............................................................................................ 110

Restoring your information ............................................................................................... 110

Windows 7 backup and recovery ..................................................................................................... 114

Backing up and recovering using Roxio BackOnTrack .................................................... 114

Using Windows Backup and Restore .............................................................................. 117

Backing up and recovering using HP Recovery Manager ............................................... 118

When to back up ............................................................................................. 110

Using System Restore .................................................................................... 111

Using HP Mi Restore Image Creator ............................................................... 111

Restoring using a Windows computer ............................................ 111

Restoring using a Linux computer .................................................. 112

Creating a copy of the hard drive .................................................................... 114

Performing a recovery ..................................................................................... 115

Using the Disaster Recovery utility ................................................................. 115

Downloading and extracting the Disaster Recovery utility .............. 115

Restoring your hard drive image .................................................... 116

Using the Instant Restore utility ...................................................................... 116

Using the Instant Restore utility when the operating system is

functioning ...................................................................................... 116

Using the Instant Restore utility when the operating system is not

functioning ...................................................................................... 117

Using system restore points ............................................................................ 117

When to create restore points ......................................................................... 117

Creating a system restore point ...................................................................... 117

Restoring to a previous date and time ............................................................ 118

Backing up your information ............................................................................ 118

Performing a recovery ..................................................................................................... 120

Windows Vista backup and recovery ............................................................................................... 122

Backing up your information ............................................................................................ 122

Performing a recovery ..................................................................................................... 123

Windows XP backup and recovery ................................................................................................... 126

Backing up your information ............................................................................................ 126

Performing a recovery ..................................................................................................... 127

9 Connector pin assignments

Audio-in (microphone) ...................................................................................................................... 128

Audio-out (headphone) ..................................................................................................................... 129

External monitor ............................................................................................................................... 130

RJ-45 (network) ................................................................................................................................ 131

Universal Serial Bus ......................................................................................................................... 132

Creating a set of recovery discs ...................................................................... 119

Recovering using the recovery discs .............................................................. 120

Recovering using the partition on the hard drive (select models only) ............ 120

Using the Windows recovery tools .................................................................. 124

Using f11 ......................................................................................................... 125

Using a Windows Vista operating system DVD (purchased separately) ........ 125

Recovering your information ........................................................................... 127

Recovering the operating system and programs ............................................ 127

10 Power cord set requirements

Requirements for all countries and regions ...................................................................................... 133

Requirements for specific countries and regions ............................................................................. 134

11 Recycling

Battery .............................................................................................................................................. 135

Display .............................................................................................................................................. 135

Index ................................................................................................................................................................. 141

1 Product description

Category Description HP Mini

1101

Product name HP Mini 1101 √

HP Mini 110 √

HP Mini 110 by Studio Tord

Boontje

Compaq Mini 110 √

Processor Intel® Atom™ N280 1.66-GHz

processor, 512-KB Level 2 cache, 533-MHz front-side bus (FSB)

Intel Atom N270 1.6-GHz

processor, 512-KB Level 2 cache, 533-MHz front-side bus (FSB)

Chipset Northbridge: 945GSE; 533-MHz

bus speed

Southbridge: ICH7M √ √ √ √

Graphics Intel® Graphics Media

Accelerator 950

√

√ √ √ √

HP Mini 110 HP Mini 110 by

Studio Tord Boontje

Compaq Mini 110

Universal Memory Architecture

(UMA) graphics subsystem

Panels All display assemblies include

1 webcam, 1 microphone, 1 speaker box, and 2 wireless local-area network (WLAN) antenna transceivers/cables; wireless wide-area network (WWAN) is optional for HP Mini 110 and Compaq Mini 110 models

Wide aspect 16:9 ratio panels √ √ √ √

10.1-inch high-definition AntiGlare (1366 × 768) LED

10.1-inch standard-definition AntiGlare (1024 × 576) LED

√ √ √

√ √ √ √

√√ √

Category Description HP Mini

1101

HP Mini 110 HP Mini 110 by

Studio Tord Boontje

Compaq Mini 110

10.1-inch WSVGA (1024 × 600) LED

Memory One customer-accessible/

upgradable memory module slot

Supports up to 2 GB of system

memory

PC2-4200, 533-MHz, DDR2 √ √ √ √

Supports the following

configurations:

Mass storage devices

32-GB √ √ √ √

Hard drive Supports all 9.5-mm, 6.35-cm

320-GB, 5400-RPM

1024-MB total system

●

memory (1024 × 1)

2048-MB total system

●

memory (2048 × 1)

Solid-state drive (SSD) based on multi-level cell (MLC) technology

(2.50-inch) parallel SATA hard drives (optional)

√ √ √ √

√ √ √

NOTE: Not supported by

computers with Windows® XP Home SP3, ultra low-cost personal computer (ULCPC) edition installed.

250-GB, 5400-RPM

NOTE: Not supported by

computers with Windows XP Home SP3, ultra low-cost personal computer (ULCPC) edition installed.

160-GB, 7200-RPM √ √ √

160-GB, 5400-RPM √ √ √ √

Optical drive Supports external USB optical

drives only

Diskette drive Supports external USB diskette

drives only

Audio/Visual high-definition (HD) audio √ √ √ √

Integrated speakers (2) √ √ √ √

Fixed integrated microphone √ √ √ √

Fixed integrated VGA webcam,

640 × 480 resolution, up to 30 frames per second

√ √ √ √

√√ √ √

2 Chapter 1 Product description

Category Description HP Mini

1101

HP Mini 110 HP Mini 110 by

Studio Tord Boontje

Compaq Mini 110

Modem Supports external USB modems

only

Ethernet Integrated 10/100 network

interface card (NIC)

Wireless 2 WLAN antennas built into

display assembly

Integrated WLAN by way of

802.11b/g/n and 802.11b/g WLAN modules

Integrated WWAN by way of

HP un2400 Mobile Broadband Module (optional)

NOTE: Not available in HP Mini

110 models with Mobile Mi installed.

External media cards

Digital Media Slot (consumer models) or Media Card Reader (commercial models) with pushpush technology supporting:

Memory Stick (MS)

●

Memory Stick Pro (MSP)

●

MultiMediaCard (MMC)

●

√ √ √ √

Secure Digital (SDHC)

●

Memory Card

xD-Picture Card (XD)

●

Internal media cards

Ports Audio-in/out (microphone/stereo

RJ-45 (Ethernet, includes link

USB (3) √ √ √ √

3-pin AC power √ √ √ √

Keyboard/ pointing device

TouchPad, with 2 TouchPad

Two Mini Card slots:

Full-size Mini Card slot

●

Half-size Mini Card slot

●

headphone)

and activity lights)

92% keyboard √ √ √ √

buttons and 2-way scrolling (taps enabled by default)

√ √ √ √

√√ √ √

Category Description HP Mini

1101

HP Mini 110 HP Mini 110 by

Studio Tord Boontje

Compaq Mini 110

Power requirements

AC adapter connector on cable √ √ √ √

6-cell lithium-polymer (Li-Pol)

3-cell lithium-polymer (Li-Pol)

Security Supports HP Kensington

Operating system

Windows 7 Basic 32 √ √ √

Windows 7 Starter 32 √ √ √

Windows XP Home SP3, ultra

Windows Vista® Business 32

30-W UMA AC adapter (nonSmart) with localized cable plug support

battery (2.55-Ah, 55-Wh), 6-hour target life

battery (2.55-Ah, 28-Wh), 3-hour target life

Security Lock

Preinstalled:

low-cost personal computer (ULCPC) edition

(with XP Pro image)

√ √ √ √

√

HP Mobile Mi √

Serviceability End-user replaceable parts:

AC adapter √ √ √ √

Battery (system) √ √ √ √

Hard drive √ √ √ √

Keyboard √ √ √ √

Memory module √ √ √ √

Solid-state drive √√ √ √

4 Chapter 1 Product description

2 External component identification

Components included with the device may vary by region and model. The illustrations in this chapter identify the standard features on most device models.

Top components

TouchPad

Component Description

(1) Left TouchPad button Functions like the left button on an external mouse.

(2) TouchPad Moves the pointer and selects or activates items on the

screen.

(3) TouchPad scroll zone Scrolls up or down.

(4) Right TouchPad button Functions like the right button on an external mouse.

Top components 5

Light

Component Description

Caps lock light On: Caps lock is on.

6 Chapter 2 External component identification

Keys

NOTE: Refer to the illustration that most closely matches your computer.

Component Description

(1) Function keys Execute frequently used system functions when

pressed in combination with the fn key.

(2) fn key Executes frequently used system functions when

pressed in combination with a function key.

(3) Windows® logo key Displays the Windows Start menu.

(4) Windows applications key Displays a shortcut menu for items beneath the

pointer.

Top components 7

Component Description

(1) Function keys Execute frequently used system functions when pressed in

combination with the fn key.

(2) fn key Executes frequently used system functions when pressed in

combination with a function key.

(3) Home key Returns to the Home Screen.

(4) Program Switcher key Displays the Start New Program button from anywhere on the

device.

8 Chapter 2 External component identification

Front components

Component Description

(1) Power light

(2) Power switch

(3) Drive light Blinking: The hard drive or flash drive is being

On: The device is on.

●

Blinking: The device is in the Sleep state

●

(Windows Vista) or Standby (Windows XP or Mobile Mi).

Off: The device is off or in Hibernation.

●

When the device is off, slide the switch to turn

●

on the device.

When the device is on, briefly slide the switch to

●

initiate Hibernation.

When the device is in the Sleep state (Windows

●

Vista) or Standby (Windows XP or Mobile Mi), briefly slide the switch to exit the Sleep state (Windows Vista) or Standby (Windows XP or Mobile Mi).

When the device is in Hibernation, briefly slide

●

the switch to exit Hibernation.

If the device has stopped responding and operating system shutdown procedures are ineffective, slide and hold the power switch for at least 5 seconds to turn off the device.

accessed.

(4) Battery light

On: A battery is charging.

●

Blinking: A battery that is the available only

●

power source has reached a low battery level. When the battery reaches a critical battery level, the battery light begins blinking rapidly.

Off: If the device is plugged into an external

●

power source, the light turns off when all batteries in the device are fully charged. If the device is not plugged into an external power source, the light stays off until the battery reaches a low battery level.

Front components 9

Component Description

(5) Wireless light

(6) Wireless switch Turns the wireless feature on or off, but does not

Blue: An integrated wireless device, such as a

●

wireless local area network (WLAN) device, is on.

Amber: All wireless devices are off.

●

establish a wireless connection.

NOTE: A wireless network must be set up in order

to establish a wireless connection.

10 Chapter 2 External component identification

Right-side components

Component Description

(1) USB ports (2) Connect optional USB devices.

(2) Digital Media Slot (consumer models) or Media Card

Reader (commercial models)

(3) External monitor port Connects an optional external display, such as a

(4) RJ-45 (network) jack Connects a network cable.

Supports the following optional digital card formats:

Memory Stick (MS)

●

Memory Stick Pro (MSP)

●

MultiMediaCard (MMC)

●

Secure Digital (SD) Memory Card

●

xD-Picture Card

●

monitor or projector, to the device.

Right-side components 11

Left-side components

Component Description

(1) Security cable slot Attaches an optional security cable to the device.

(2) Power connector Connects an AC adapter.

(3) AC adapter light Indicates AC power connection.

(4) Vent Enables airflow to cool internal components.

NOTE: The security cable is designed to act as a

deterrent, but it may not prevent the device from being mishandled or stolen.

NOTE: The device fan starts up automatically to

cool internal components and prevent overheating. It is normal for the internal fan to cycle on and off during routine operation.

(5) USB port Connects an optional USB device.

(6) Audio-out (headphone) jack/Audio-in (microphone)

jack

Produces sound when connected to optional powered stereo speakers, headphones, earbuds, a headset, or television audio. Also connects an optional headset microphone.

WARNING! To reduce the risk of personal injury,

adjust the volume before putting on headphones, earbuds, or a headset. For additional safety information, refer to the Regulatory, Safety and

Environmental Notices.

NOTE: When an audio component is connected to

the jack, the device speakers are disabled.

The audio component cable must have a 4-conductor connector.

12 Chapter 2 External component identification

Display components

Component Description

(1) Speakers (2) Produce sound.

(2) Internal display switch Turns off the display if the display is closed while the

power is on.

NOTE: The display switch is not visible from the

outside of the device.

(3) Webcam Captures still photographs and videos.

NOTE: To capture videos, you need to install additional

webcam software.

(4) Webcam light On: The webcam is in use.

(5) Internal microphone Records sound.

Display components 13

Bottom components

Component Description

(1) Battery bay Holds the battery.

(2) Battery release latches (2) Release the battery from the battery bay.

(3) Vent Enables airflow to cool internal components.

NOTE: The device fan starts up automatically to cool

internal components and prevent overheating. It is normal for the internal fan to cycle on and off during routine operation.

(4) Memory module compartment Contains the memory module slot.

14 Chapter 2 External component identification

Wireless antennas

Component Description

(1) WWAN antennas (2) (select models only)* Send and receive wireless signals to communicate with wireless

wide-area networks (WWANs).

NOTE: This option is not available on computers with Mobile Mi

installed.

(2) WLAN antennas (2)* Send and receive wireless signals to communicate with wireless

local area networks (WLANs).

*The antennas are not visible from the outside of the device. For optimal transmission, keep the areas immediately around the antennas free from obstructions.

To see wireless regulatory notices, refer to the section of the Regulatory, Safety and Environmental Notices that applies to your country or region.

Wireless antennas 15

3 Illustrated parts catalog

Service tag

When ordering parts or requesting information, provide the computer serial number and model description provided on the service tag:

(1) Product name: This is the product name affixed to the front of the device.

(2) Serial number (s/n): This is an alphanumeric identifier that is unique to each product.

(3) Part number/Product number (p/n): This number provides specific information about the product's

hardware components. The part number helps a service technician to determine what components and parts are needed.

(4) Model description: This is the alphanumeric identifier used to locate documents, drivers, and support for the device.

(5) Warranty period: This number describes the duration of the warranty period for the device.

16 Chapter 3 Illustrated parts catalog

Device major components

Item Description Spare part number

(1) Display assembly (includes 1 webcam, 1 microphone, 1 speaker box, and 2 WLAN antenna

transceivers/cables; WWAN on select models only)

See Display assembly components on page 25 for a comprehensive list of display assembly spare parts.

For use with black HP models only

10.1-inch, high-definition, AntiGlare display assembly (includes WWAN)

●

10.1-inch, high-definition, AntiGlare display assembly 572406-001

●

572407-001

Device major components 17

Item Description Spare part number

For use with pink HP models only

For use with white HP models only

For use with blue HP models only

For use with HP Mini 110 by Studio Tord Boontje models only

10.1-inch, standard-definition, AntiGlare display assembly (includes WWAN)

●

10.1-inch, standard-definition, AntiGlare display assembly

●

10.1-inch, WSVGA, AntiGlare display assembly (includes WWAN)

●

10.1-inch, high-definition, AntiGlare display assembly (includes WWAN)

●

10.1-inch, standard-definition, AntiGlare display assembly (includes WWAN)

●

10.1-inch, WSVGA, AntiGlare display assembly (includes WWAN)

●

10.1-inch, high-definition, AntiGlare display assembly (includes WWAN)

●

10.1-inch, standard-definition, AntiGlare display assembly (includes WWAN)

●

10.1-inch, WSVGA, AntiGlare display assembly (includes WWAN)

●

10.1-inch, high-definition, AntiGlare display assembly (includes WWAN)

●

10.1-inch, WSVGA, AntiGlare display assembly (includes WWAN)

●

10.1-inch, high-definition, AntiGlare display assembly (includes WWAN)

●

571414-001

537646-001

579604-001

572413-001

571416-001

579608-001

572411-001

571415-001

579606-001

591647-001

591648-001

579612-001

For use with Compaq models only

(2) Keyboard

10.1-inch, standard-definition, AntiGlare display assembly (includes WWAN)

●

10.1-inch, WSVGA, AntiGlare display assembly (includes WWAN)

●

10.1-inch, high-definition, AntiGlare display assembly

●

10.1-inch, standard-definition, AntiGlare display assembly (includes WWAN)

●

10.1-inch, standard-definition, AntiGlare display assembly

●

10.1-inch, WSVGA, AntiGlare display assembly (includes WWAN)

●

For use only on black and blue models with Windows operating system installed

For use only in Brazil

●

For use only in the Czech Republic

●

For use only in Europe

●

For use only in Finland, Norway, and Sweden

●

For use only in France

●

For use only in French Canada

●

For use only in Germany

●

579610-001

579614-001

572414-001

571417-001

537643-001

579626-001

535689-201

535689-221

535689-A41

535689-DH1

535689-051

535689-121

535689-041

For use only in Greece

●

For use only in Hungary 535689-211

●

18 Chapter 3 Illustrated parts catalog

535689-151

Item Description Spare part number

For use with international models

●

For use only in Israel

●

For use only in Italy

●

For use only in Japan

●

For use only in Latin America

●

For use only in Portugal

●

For use only in Russia

●

For use only in Saudi Arabia

●

For use only in South Korea

●

For use only in Spain

●

For use only in Switzerland

●

For use only in Taiwan

●

For use only in Thailand

●

For use only in Turkey

●

For use only in the United Kingdom

●

For use only in the United States

●

535689-B31

535689-BB1

535689-061

535689-291

535689-161

535689-131

535689-251

535689-171

535689-AD1

535689-071

535689-111

535689-AB1

535689-281

535689-141

535689-031

535689-001

For use only on models with Mobile Mi installed

For use on pink models only

For use only in Brazil

●

For use only in French Canada

●

For use only in Japan

●

For use only in Latin America

●

For use only in South Korea

●

For use only in Taiwan

●

For use only in Thailand

●

For use only in the United States

●

For use only in Bosnia, Croatia, Montenegro, Serbia, and Slovenia

●

For use only in Brazil

●

For use only in the Czech Republic

●

For use only in Europe

●

For use only in Finland, Norway, and Sweden

●

For use only in France

●

535690-201

535690-121

535690-291

535690-161

535690-AD1

535690-AB1

535690-281

535690-001

537954-BA1

537954-201

537954-221

537954-A41

537954-DH1

537954-051

For use only in French Canada

●

For use only in Germany 537954-041

●

537954-121

Device major components 19

Item Description Spare part number

For use only in Greece

●

For use only in Hungary

●

For use with international models

●

For use only in Israel

●

For use only in Italy

●

For use only in Japan

●

For use only in Latin America

●

For use only in Portugal

●

For use only in Russia

●

For use only in Saudi Arabia

●

For use only in South Korea

●

For use only in Spain

●

For use only in Switzerland

●

For use only in Taiwan

●

For use only in Thailand

●

For use only in Turkey

●

537954-DJ1

537954-211

537954-B31

537954-BB1

537954-061

537954-291

537954-161

537954-131

537954-251

537954-171

537954-AD1

537954-071

537954-BG1

537954-AB1

537954-281

537954-141

For use with white HP models only

For use only in the United Kingdom

●

For use in the United States only

●

For use only in Bosnia, Croatia, Montenegro, Serbia, and Slovenia

●

For use only in Brazil

●

For use only in the Czech Republic

●

For use only in Europe

●

For use only in Finland, Norway, and Sweden

●

For use only in France

●

For use only in French Canada

●

For use only in Germany

●

For use only in Greece

●

For use only in Hungary

●

For use with international models

●

For use only in Israel

●

For use only in Italy

●

537954-031

537954-001

537953-BA1

537953-201

537953-221

537953-A41

537953-DH1

537953-051

537953-121

537953-041

537953-DJ1

537953-211

537953-B31

537953-BB1

537953-061

For use only in Japan

●

For use only in Latin America 537953-161

●

20 Chapter 3 Illustrated parts catalog

537953-291

Item Description Spare part number

For use only with white HP and HP Mini 110 by Studio Tord Boontje models in the United

(3) Top cover (includes TouchPad)

For use only in Portugal

●

For use only in Russia

●

For use only in Saudi Arabia

●

For use only in South Korea

●

For use only in Spain

●

For use only in Switzerland

●

For use only in Taiwan

●

For use only in Thailand

●

For use only in Turkey

●

For use only in the United Kingdom

●

States

For use with black and blue models only

●

For use with pink HP models only

●

For use with white HP models only

●

For use with HP Mini 110 by Studio Tord Boontje models only

●

537953-131

537953-251

537953-171

537953-AD1

537953-071

537953-BG1

537953-AB1

537953-281

537953-141

537953-031

537953-001

537622-001

537625-001

537624-001

579615-001

Mass storage devices

NOTE: Each hard drive spare part kit and solid-state drive spare part kit includes a bracket and screws.

(4a)

(4b) Solid-state drive

(5)

(6) Fan 537613-001

(7) USB/audio board (includes cable)

For use on the following model numbers only: HP: 110-1000 — 110-1099 and Compaq:

For use on the following model numbers only: HP: 110-1100 — 110-1199 and Compaq:

(8) Power/battery pass-through board

For use on the following model numbers only: HP: 110-1000 — 110-1099 and Compaq:

For use on the following model numbers only: HP: 110-1100 — 110-1199 and Compaq:

Hard drive (select models only)

See

Mass storage devices on page 27 for a comprehensive list of hard drive spare parts.

Mass storage devices on page 27 for a comprehensive list of solid–state drive spare parts.

See

Heat sink assembly (includes replacement thermal material) 537619-001

110c-1000 — 110-1099

110c-1100 — 110-1199

110c-1000 — 110-1099

110c-1100 — 110-1199

537614-001

581325-001

537615-001

581326-001

Plastics/actuator Kit 537612-001

Device major components 21

Item Description Spare part number

(9a) Power switch and wireless switch actuators

(9b) Memory module compartment cover

(9c) Bezel for Digital Media Slot (consumer models) or Media Card Reader (commercial models)

Wireless modules

(10)

WLAN/Bluetooth combination module 575920-001

Broadcom 4312 802.11/b/g/n WLAN module

WLAN module

For use in Canada, the Cayman Islands, Guam, Puerto Rico, the U.S. Virgin Islands,

●

and the United States

For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda,

●

Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equatorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, the People's Republic of China, Peru, the Philippines, Poland, Portugal, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia, St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

518436-001

518436-002

Broadcom 4312 802.11/b/g WLAN module

For use in Canada, the Cayman Islands, Guam, Puerto Rico, the U.S. Virgin Islands,

●

and the United States

22 Chapter 3 Illustrated parts catalog

504593-003

Item Description Spare part number

(11) WWAN module

For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda,

●

NOTE: Not available for computers with Mobile Mi installed.

504593-004

HP un2400 Mobile Broadband Module (select models only) 483377-002

HP un2400 Mobile Broadband Module for use only with Verizon Wireless (select models only) 483377-003

WWAN module for use only in the People's Republic of China 571888-001

HP un2400 Mobile Broadband Module for use only in the People's Republic of China 574246-001

WWAN minicard module 531993-001

WWAN module for use only with Telefonica 592625-161

WWAN module for use only with Am Movil 592624-161

WWAN module for use only with AT&T 591612-001

(12) RTC battery 537616-001

(13) System board (includes processor and replacement thermal material)

Includes Intel Atom N280 1.66-GHz processor, 512-KB Level 2 cache, 533-MHz front-side bus

(FSB)

For use on the following model numbers only: HP: 110-1000 — 110-1099 and Compaq: 110c-1000 — 110-1099

Includes Intel Atom N270 1.6-GHz processor, 512-KB Level 2 cache, 533-MHz front-side bus

(FSB)

For use on the following model numbers only: HP: 110-1000 — 110-1099 and Compaq: 110c-1000 — 110-1099

571370-001

537662-001

Device major components 23

Item Description Spare part number

Includes Intel Atom N280 1.66-GHz processor, 512-KB Level 2 cache, 533-MHz front-side bus

(FSB)

For use on the following model numbers only: HP: 110-1100 — 110-1199 and Compaq: 110c-1100 — 110-1199

Includes Intel Atom N270 1.6-GHz processor, 512-KB Level 2 cache, 533-MHz front-side bus

(FSB)

For use on the following model numbers only: HP: 110-1100 — 110-1199 and Compaq: 110c-1100 — 110-1199

(14) Memory module (PC2-5300, 533-MHz, DDR2)

512-MB (for use in HP Mini 110 and Compaq Mini 110 models only) 537663-001

1024-MB 537664-001

2048-MB 537665-001

(15) Base enclosure (includes 4 rubber feet)

For use with black and blue models only 537611-001

For use with pink, white, and HP Mini 110 by Studio Tord Boontje models only 591650-001

(16) Battery

6-cell lithium-polymer (Li-Pol) battery (2.55-Ah, 55-Wh) 537627-001

3-cell lithium-polymer (Li-Pol) battery (2.55-Ah, 28-Wh) 537626-001

579569-001

579568-001

24 Chapter 3 Illustrated parts catalog

Display assembly components

Item Description Spare part number

(1) Hinge covers 537617-001

(2) Display bezel

For use with HP Mini 1101 and HP Mini 110 only 537650-001

For use with HP Mini 110 by Studio Tord Boontje models only 581324-001

For use with Compaq Mini 110 only 537644-001

(3) Display Hinge Kit

(Includes left and right display panel hinges)

(4) Speaker assembly (includes left and right cables) 537621-001

(5) Display panel

10.1-inch high-definition AntiGlare 572405-001

10.1-inch standard-definition AntiGlare 537656-001

10.1-inch WSVGA AntiGlare 579570-001

(6) Webcam module 537660-001

Display Cable Kit (not illustrated, includes display/webcam cable and WLAN antennas)

(7a) Display panel cable

537658-001

Display assembly components 25

Item Description Spare part number

(7b) WLAN antennas

(8) Microphone assembly 581323-001

(9) WWAN antennas (not available on computers with Mobile Mi installed.) 537655-001

(10) Display enclosure (includes logo)

For use with black HP models only 537651-001

For use with pink HP models only 537654-001

For use with white HP models only 537653-001

For use with blue HP models only 591649-001

For use with HP Mini 110 by Studio Tord Boontje models only 579576-001

For use with Compaq models only 537645-001

Display Screw Kit (not illustrated) 538510-001

For use with high-definition and standard-definition display panels only

●

For use with WSVGA display panels only

●

537657-001

579571-001

26 Chapter 3 Illustrated parts catalog

Mass storage devices

NOTE: Each hard drive spare part kit and solid-state drive spare part kit includes a cable and bracket.

Item Description Spare part number

(1) Hard drive (select models only)

320-GB, 5400-RPM 591398-001

250-GB, 5400-RPM 537635-001

160-GB, 7200-RPM 590669-001

160-GB, 5400-RPM 537634-001

Hard Drive Hardware Kit (not illustrated) 537641-001

(2) Solid-state drive

64-GB 537640-001

32-GB 537639-001

16-GB 537638-001

8-GB 537637-001

Solid–state Drive Hardware Kit (not illustrated) 537642-001

Mass storage devices 27

Miscellaneous parts

Description Spare part number

30-W UMA AC adapter 496813-001

Bluetooth® adapter 574670-001

High-definition video decoder 578237-001

Power cords

For use in Argentina

For use in Australia 490371-011

For use in Brazil 490371-201

For use in Denmark 490371-081

For use in Europe 490371-021

For use in India 490371-D61

For use in Israel 490371-BB1

For use in Italy 490371-061

For use in Japan 490371-291

For use in North America 490371-001

For use in the People's Republic of China 490371-AA1

For use in Singapore and the United Kingdom 490371-031

For use in South Africa 490371-AR1

For use in South Korea 490371-AD1

For use in Switzerland 490371-111

For use in Taiwan 490371-AB1

490371-D01

Rubber Kit (contains 4 device feet)

For use with black and blue models only 537618-001

For use with pink, white, and HP Mini 110 by Studio Tord Boontje models only 537618-002

Screw Kit 537620-001

28 Chapter 3 Illustrated parts catalog

Sequential part number listing

Spare part number

483377-002 HP un2400 Mobile Broadband Module (select models only)

483377-003 HP un2400 Mobile Broadband Module for use with Verizon Wireless only (select models only)

490371-001 Power cord for use in North America

490371-011 Power cord for use in Australia

490371-021 Power cord for use in Europe

490371-031 Power cord for use in Singapore and the United Kingdom

490371-061 Power cord for use in Italy

490371-081 Power cord for use in Denmark

490371-111 Power cord for use in Switzerland

490371-201 Power cord for use in Brazil

490371-291 Power cord for use in Japan

490371-AA1 Power cord for use in the People's Republic of China

490371-AB1 Power cord for use in Taiwan

490371-AD1 Power cord for use in South Korea

490371-AR1 Power cord for use in South Africa

Description

490371-BB1 Power cord for use in Israel

490371-D01 Power cord for use in Argentina

490371-D61 Power cord for use in India

496813-001 30-W UMA AC adapter

504593-003 Broadcom 4312 802.11/b/g WLAN module for use in Canada, the Cayman Islands, Guam, Puerto Rico, the

504593-004 Broadcom 4312 802.11/b/g WLAN module for use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua

U.S. Virgin Islands, and the United States

and Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equatorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, the People's Republic of China, Peru, the Philippines, Poland, Portugal, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia, St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

Sequential part number listing 29

Spare part number

518436-001 Broadcom 4312 802.11/b/g/n WLAN module for use in Canada, the Cayman Islands, Guam, Puerto Rico, the

518436-002 Broadcom 4312 802.11/b/g/n WLAN module for use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua

531993-001 WWAN minicard module

Description

U.S. Virgin Islands, and the United States

and Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, the People's Republic of China, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equatorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, Peru, the Philippines, Poland, Portugal, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia, St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

535689-001 Keyboard for use only in the United States on black and blue models with Windows operating system installed

535689-031 Keyboard for use only in the United Kingdom on black and blue models with Windows operating system

535689-041 Keyboard for use only in Germany on black and blue models with Windows operating system installed

535689-051 Keyboard for use only in France on black and blue models with Windows operating system installed

535689-061 Keyboard for use only in Italy on black and blue models with Windows operating system installed

535689-071 Keyboard for use only in Spain on black and blue models with Windows operating system installed

535689-121 Keyboard for use only in French Canada on black and blue models with Windows operating system installed

535689-131 Keyboard for use only in Portugal on black and blue models with Windows operating system installed

535689-141 Keyboard for use only in Turkey on black and blue models with Windows operating system installed

535689–151 Keyboard for use only in Greece on black and blue models with Windows operating system installed

535689-161 Keyboard for use only in Latin America on black and blue models with Windows operating system installed

535689-171 Keyboard for use only in Saudi Arabia on black and blue models with Windows operating system installed

535689-201 Keyboard for use only in Brazil on black and blue models with Windows operating system installed

535689-211 Keyboard for use only in Hungary on black and blue models with Windows operating system installed

535689-221 Keyboard for use only in the Czech Republic on black and blue models with Windows operating system

installed

535689-251 Keyboard for use only in Russia on black and blue models with Windows operating system installed

535689-281 Keyboard for use only in Thailand on black and blue models with Windows operating system installed

535689-291 Keyboard for use only in Japan on black and blue models with Windows operating system installed

30 Chapter 3 Illustrated parts catalog

Spare part number

535689-A41 Keyboard for use only in Europe on black and blue models with Windows operating system installed

535689-AB1 Keyboard for use only in Taiwan on black and blue models with Windows operating system installed

535689-AD1 Keyboard for use only in South Korea on black and blue models with Windows operating system installed

535689-B31 Keyboard for use only with international models on black and blue models with Windows operating system

535689-BB1 Keyboard for use only in Israel on black and blue models with Windows operating system installed

535689-DH1 Keyboard for use only in Finland, Norway and Sweden on black and blue models with Windows operating

535690-001 Keyboard for use only in the United States on models with Mobile Mi installed

535690-121 Keyboard for use only in French Canada on models with Mobile Mi installed

535690-161 Keyboard for use only in Latin America on models with Mobile Mi installed

535690-201 Keyboard for use only in Brazil on models with Mobile Mi installed

535690-281 Keyboard for use only in Thailand on models with Mobile Mi installed

535690-291 Keyboard for use only in Japan on models with Mobile Mi installed

535690-AB1 Keyboard for use only in Taiwan on models with Mobile Mi installed

Description

installed

system installed

535690-AD1 Keyboard for use only in South Korea on models with Mobile Mi installed

537611-001 Base enclosure for use on black and blue models only (includes 4 rubber feet)

537612-001 Plastics/actuator Kit (includes power switch and wireless switch actuators, memory module compartment

cover, and bezel for Digital Media Slot (consumer models) or Media Card Reader (commercial models))

537613-001 Fan

537614-001 USB/audio board (includes cable) for use on the following model numbers only: HP: 110-1000 — 110-1099

and Compaq: 110c-1000 — 110-1099

537615-001 Power/battery pass-through board for use on the following model numbers only: HP: 110-1000 — 110-1099

and Compaq: 110c-1000 — 110-1099

537616-001 RTC battery

537617-001 Display assembly hinge covers

537618-001 Rubber Kit for use with black and blue models only (contains 4 device feet)

537618-002 Rubber Kit for use with pink, white, and HP Mini 110 by Studio Tord Boontje models only (contains 4 device

feet)

537619-001 Heat sink assembly (includes replacement thermal material)

537620-001 Screw Kit

537621-001 Speaker assembly (includes left and right cables)

537622-001 Top cover for use on black and blue models only (includes TouchPad)

537624-001 Top cover for use on white HP models only (includes TouchPad)

537625-001 Top cover for use on pink HP models only (includes TouchPad)

537626-001 3-cell lithium-polymer (Li-Pol) battery (2.55-Ah, 28-Wh)

Sequential part number listing 31

Spare part number

537627-001 6-cell lithium-polymer (Li-Pol) battery (2.55-Ah, 55-Wh)

537634-001 160-GB hard drive, 5400-RPM

537635-001 250-GB hard drive, 5400-RPM

537637-001 8-GB solid-state drive

537638-001 16-GB solid-state drive

537639-001 32-GB solid-state drive

537640-001 64-GB solid-state drive

537641-001 Hard Drive Hardware Kit

537642-001 Solid-state Drive Hardware Kit

537643-001 10.1-inch, standard-definition, AntiGlare display assembly for use with Compaq models only (includes 1

537644-001 Display bezel for use with Compaq models only

537645-001 Display enclosure (includes logo) for use with Compaq models only

537646-001 10.1-inch, standard-definition, AntiGlare display assembly for use with black HP models only (includes 1

Description

webcam, 1 microphone, 1 speaker box, and 2 WLAN antenna transceivers/cables)

537650-001 Display bezel for use with HP Mini 1101 and HP Mini 110 only

537651-001 Display enclosure (includes logo) for use with black HP models only

537653-001 Display enclosure (includes logo) for use with white HP models only

537654-001 Display enclosure (includes logo) for use with pink HP models only

537655-001 WWAN antennas (not available on computers with Mobile Mi installed)

537656-001 10.1-inch standard-definition AntiGlare display panel

537657-001 Display Cable Kit for use with high-definition and standard-definition display panels only (includes display

panel/webcam cable and WLAN antennas)

537658-001 Display Hinge Kit (includes left and right display panel hinges)

537660-001 Webcam module

537662-001 System board (includes Intel Atom N270 1.6-GHz processor, 512-KB Level 2 cache, 533-MHz front-side bus

(FSB), and thermal replacement material for use on the following model numbers only: HP: 110-1000 — 110-1099 and Compaq: 110c-1000 — 110-1099)

537663-001 512-MB memory module (PC2-5300, 533-MHz, DDR2, for use in HP Mini 110 and Compaq: Mini 110 models

only)

537664-001 1024-MB memory module (PC2-5300, 533-MHz, DDR2)

537665-001 2048-MB memory module (PC2-5300, 533-MHz, DDR2)

537953-001 Keyboard for use with white HP and HP Mini 110 by Studio Tord Boontje models only in the United States

537953-031 Keyboard for use with white HP models only in the United Kingdom

537953-041 Keyboard for use with white HP models only in Germany

537953-051 Keyboard for use with white HP models only in France

32 Chapter 3 Illustrated parts catalog

Spare part number

537953-061 Keyboard for use with white HP models only in Italy

537953-071 Keyboard for use with white HP models only in Spain

537953-121 Keyboard for use with white HP models only in French Canada

537953-131 Keyboard for use with white HP models only in Portugal

537953-141 Keyboard for use with white HP models only in Turkey

537953-161 Keyboard for use with white HP models only in Latin America

537953-171 Keyboard for use with white HP models only in Saudi Arabia

537953-201 Keyboard for use with white HP models only in Brazil

537953-211 Keyboard for use with white HP models only in Hungary

537953-221 Keyboard for use with white HP models only in the Czech Republic

537953-251 Keyboard for use with white HP models only in Russia

537953-281 Keyboard for use with white HP models only in Thailand

537953-291 Keyboard for use with white HP models only in Japan

537953-A41 Keyboard for use with white HP models only in Europe

537953-AB1 Keyboard for use with white HP models only in Taiwan

Description

537953-AD1 Keyboard for use with white HP models only in South Korea

537953-B31 Keyboard for use with white HP models with international models

537953-BA1 Keyboard for use with white HP models only in Bosnia, Croatia, Montenegro, Serbia, and Slovenia

537953-BB1 Keyboard for use with white HP models only in Israel

537953-BG1 Keyboard for use with white HP models only in Switzerland

537953-DH1 Keyboard for use with white HP models only in Finland, Norway, and Sweden

537953-DJ1 Keyboard for use with white HP models only in Greece

537954-001 Keyboard for use with pink HP models only in the United States

537954-031 Keyboard for use with pink HP models only in the United Kingdom

537954-041 Keyboard for use with pink HP models only in Germany

537954-051 Keyboard for use with pink HP models only in France

537954-061 Keyboard for use with pink HP models only in Italy

537954-071 Keyboard for use with pink HP models only in Spain

537954-121 Keyboard for use with pink HP models only in French Canada

537954-131 Keyboard for use with pink HP models only in Portugal

537954-141 Keyboard for use with pink HP models only in Turkey

537954-161 Keyboard for use with pink HP models only in Latin America

537954-171 Keyboard for use with pink HP models only in Saudi Arabia

Sequential part number listing 33

Spare part number

537954-201 Keyboard for use with pink HP models only in Brazil

537954-211 Keyboard for use with pink HP models only in Hungary

537954-221 Keyboard for use with pink HP models only in the Czech Republic

537954-251 Keyboard for use with pink HP models only in Russia

537954-281 Keyboard for use with pink HP models only in Thailand

537954-291 Keyboard for use with pink HP models only in Japan

537954-A41 Keyboard for use with pink HP models only in Europe

537954-AB1 Keyboard for use with pink HP models only in Taiwan

537954-AD1 Keyboard for use with pink HP models only in South Korea

537954-B31 Keyboard for use with pink HP models with international models

537954-BA1 Keyboard for use with pink HP models only in Bosnia, Croatia, Montenegro, Serbia, and Slovenia

537954-BB1 Keyboard for use with pink HP models only in Israel

537954-BG1 Keyboard for use with pink HP models only in Switzerland

537954-DH1 Keyboard for use with pink HP models only in Finland, Norway, and Sweden

537954-DJ1 Keyboard for use with pink HP models only in Greece

Description

538510-001 Display Screw Kit

571370-001 System board (includes Intel Atom N280 1.66-GHz processor, 512-KB Level 2 cache, 533-MHz front-side bus

(FSB), and replacement thermal material) for use on the following model numbers only: HP: 110-1000 — 110-1099 and Compaq: 110c-1000 — 110-1099

571414-001 10.1-inch, standard-definition, AntiGlare display assembly (includes WWAN) for use with black HP models

only (includes 1 webcam, 1 microphone, 1 speaker box, and 2 WLAN antenna transceivers/cables)

571415-001 10.1-inch, standard-definition, AntiGlare display assembly (includes WWAN) for use with white HP models

only (includes 1 webcam, 1 microphone, 1 speaker box, and 2 WLAN antenna transceivers/cables)

571416-001 10.1-inch, standard-definition, AntiGlare display assembly (includes WWAN) for use with pink HP models only

(includes 1 webcam, 1 microphone, 1 speaker box, and 2 WLAN antenna transceivers/cables)

571417-001 10.1-inch, standard-definition, AntiGlare display assembly (includes WWAN) for use with Compaq models only

(includes 1 webcam, 1 microphone, 1 speaker box, and 2 WLAN antenna transceivers/cables)

571888-001 WWAN module for use only in the People's Republic of China

572405-001 10.1-inch high-definition AntiGlare display panel

572406-001 10.1-inch, high-definition, AntiGlare display assembly for use with black HP models only (includes 1 webcam,

1 microphone, 1 speaker box, and 2 WLAN antenna transceivers/cables)

572407-001 10.1-inch, high-definition, AntiGlare display assembly (includes WWAN) for use with black HP models only

(includes 1 webcam, 1 microphone, 1 speaker box, and 2 WLAN antenna transceivers/cables)

572411-001 10.1-inch, high-definition, AntiGlare display assembly (includes WWAN) for use with white HP models only

(includes 1 webcam, 1 microphone, 1 speaker box, and 2 WLAN antenna transceivers/cables)

572413-001 10.1-inch, high-definition, AntiGlare display assembly (includes WWAN) for use with pink HP models only

(includes 1 webcam, 1 microphone, 1 speaker box, and 2 WLAN antenna transceivers/cables)

572414-001 10.1-inch, high-definition, AntiGlare display assembly for use with Compaq models only (includes 1 webcam,

1 microphone, 1 speaker box, and 2 WLAN antenna transceivers/cables)

34 Chapter 3 Illustrated parts catalog

Spare part number

574246-001 HP un2400 Mobile Broadband Module for use only in the People's Republic of China

574670-001 Bluetooth adapter

575920-001 WLAN/Bluetooth combination module

578237-001 High-definition video decoder

Description

579568-001 System board (includes Intel Atom N270 1.6-GHz processor, 512-KB Level 2 cache, 533-MHz front-side bus

579569-001 System board (includes Intel Atom N280 1.66-GHz processor, 512-KB Level 2 cache, 533-MHz front-side bus

579570-001 10.1-inch WSVGA AntiGlare display panel

579571-001 Display Cable Kit for use with WSVGA panels only (includes display panel/webcam cable and WLAN antennas)

579576-001 Display enclosure (includes logo) for use with HP Mini 110 by Studio Tord Boontje models only

579604-001 10.1-inch, WSVGA, AntiGlare display assembly (includes WWAN) for use with black HP models only (includes

579606-001 10.1-inch, WSVGA, AntiGlare display assembly (includes WWAN) for use with white HP models only (includes

579608-001 10.1-inch, WSVGA, AntiGlare display assembly (includes WWAN) for use with pink HP models only (includes

579610-001 10.1-inch, standard-definition, AntiGlare display assembly (includes WWAN) for use with HP Mini 110 by

579612-001 10.1-inch, high-definition, AntiGlare display assembly (includes WWAN) for use with HP Mini 110 by Studio

(FSB), and thermal replacement material) for use on the following model numbers only: HP: 110-1100 — 110-1199 and Compaq: 110c-1100 — 110-1199

(FSB), and replacement thermal material) for use on the following model numbers only: HP: 110-1100 — 110-1199 and Compaq: 110c-1100 — 110-1199

1 webcam, 1 microphone, 1 speaker box, and 2 WLAN antenna transceivers/cables)

Studio Tord Boontje models only (includes 1 webcam, 1 microphone, 1 speaker box, and 2 WLAN antenna transceivers/cables)

Tord Boontje models only (includes 1 webcam, 1 microphone, 1 speaker box, and 2 WLAN antenna transceivers/cables)

579614-001 10.1-inch, WSVGA, AntiGlare display assembly (includes WWAN) for use with HP Mini 110 by Studio Tord

Boontje models only (includes 1 webcam, 1 microphone, 1 speaker box, and 2 WLAN antenna transceivers/ cables)

579615-001 Top cover for use with HP Mini 110 by Studio Tord Boontje models only (includes TouchPad)

579626-001 10.1-inch, WSVGA, AntiGlare display assembly (includes WWAN) for use with Compaq models only (includes

1 webcam, 1 microphone, 1 speaker box, and 2 WLAN antenna transceivers/cables)

581323-001 Microphone assembly

581324-001 Display bezel for use with HP Mini 110 by Studio Tord Boontje models only

581325-001 USB/audio board (includes cable) for use on the following model numbers only: HP: 110-1100 — 110-1199

and Compaq: 110c-1100 — 110-1199

581326-001 Power/battery pass-through board for use on the following model numbers only: HP: 110-1100 — 110-1199

and Compaq: 110c-1100 — 110-1199

590669-001 160-GB, hard drive, 7200-RPM

591398-001 320-GB hard drive, 5400-RPM

591612-001 WWAN module for use only with AT&T

Sequential part number listing 35

Spare part number

591647-001 10.1-inch, high-definition, AntiGlare display assembly (includes WWAN) for use with blue HP models only

591648-001 10.1-inch, WSVGA, AntiGlare display assembly (includes WWAN) for use with blue HP models only (includes

591649-001 Display enclosure (includes logo) for use with blue HP models only

591650-001 Base enclosure for use on pink, white, and HP Mini 110 by Studio Tord Boontje models only (includes 4 rubber

592624-161 WWAN module for use only with Am Movil

592625-161 WWAN module for use only with Telefonica

Description

(includes 1 webcam, 1 microphone, 1 speaker box, and 2 WLAN antenna transceivers/cables)

1 webcam, 1 microphone, 1 speaker box, and 2 WLAN antenna transceivers/cables)

feet)

36 Chapter 3 Illustrated parts catalog

4 Removal and replacement procedures

Preliminary replacement requirements

Tools required

You will need the following tools to complete the removal and replacement procedures:

Flat-bladed screwdriver

●

Magnetic screwdriver

●

Phillips P0 and P1 screwdrivers

●

Service considerations

The following sections include some of the considerations that you must keep in mind during disassembly and assembly procedures.

NOTE: As you remove each subassembly from the device, place the subassembly (and all

accompanying screws) away from the work area to prevent damage.

Plastic parts

CAUTION: Using excessive force during disassembly and reassembly can damage plastic parts. Use

care when handling the plastic parts. Apply pressure only at the points designated in the maintenance instructions.

Cables and connectors

CAUTION: When servicing the device, be sure that cables are placed in their proper locations during

the reassembly process. Improper cable placement can damage the device.

Cables must be handled with extreme care to avoid damage. Apply only the tension required to unseat or seat the cables during removal and insertion. Handle cables by the connector whenever possible. In all cases, avoid bending, twisting, or tearing cables. Be sure that cables are routed in such a way that they cannot be caught or snagged by parts being removed or replaced. Handle flex cables with extreme care; these cables tear easily.

Preliminary replacement requirements 37

Drive handling

CAUTION: Drives are fragile components that must be handled with care. To prevent damage to the

device, damage to a drive, or loss of information, observe these precautions:

Before removing or inserting a hard drive, shut down the device. If you are unsure whether the device is off or in Hibernation, turn the device on, and then shut it down through the operating system.

Before handling a drive, be sure that you are discharged of static electricity. While handling a drive, avoid touching the connector.

Handle drives on surfaces covered with at least one inch of shock-proof foam.

Avoid dropping drives from any height onto any surface.

After removing a hard drive, an optical drive, or a diskette drive, place it in a static-proof bag.

Avoid exposing a hard drive to products that have magnetic fields, such as monitors or speakers.

Avoid exposing a drive to temperature extremes or liquids.

If a drive must be mailed, place the drive in a bubble pack mailer or other suitable form of protective packaging and label the package “FRAGILE.”

38 Chapter 4 Removal and replacement procedures

Grounding guidelines

Electrostatic discharge damage

Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure determine the degree of sensitivity. Networks built into many integrated circuits provide some protection, but in many cases, ESD contains enough power to alter device parameters or melt silicon junctions.

A discharge of static electricity from a finger or other conductor can destroy static-sensitive devices or microcircuitry. Even if the spark is neither felt nor heard, damage may have occurred.

An electronic device exposed to ESD may not be affected at all and can work perfectly throughout a normal cycle. Or the device may function normally for a while, then degrade in the internal layers, reducing its life expectancy.

CAUTION: To prevent damage to the device when you are removing or installing internal components,

observe these precautions:

Keep components in their electrostatic-safe containers until you are ready to install them.

Use nonmagnetic tools.

Before touching an electronic component, discharge static electricity by using the guidelines described in this section.

Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.

If you remove a component, place it in an electrostatic-safe container.

The following table shows how humidity affects the electrostatic voltage levels generated by different activities.

CAUTION: A product can be degraded by as little as 700 V.

Typical electrostatic voltage levels

Relative humidity

Event 10% 40% 55%

Walking across carpet 35,000 V 15,000 V 7,500 V

Walking across vinyl floor 12,000 V 5,000 V 3,000 V

Motions of bench worker 6,000 V 800 V 400 V

Removing DIPS from plastic tube 2,000 V 700 V 400 V

Removing DIPS from vinyl tray 11,500 V 4,000 V 2,000 V

Removing DIPS from Styrofoam 14,500 V 5,000 V 3,500 V

Removing bubble pack from PCB 26,500 V 20,000 V 7,000 V

Packing PCBs in foam-lined box 21,000 V 11,000 V 5,000 V

Preliminary replacement requirements 39

Packaging and transporting guidelines

Follow these grounding guidelines when packaging and transporting equipment:

To avoid hand contact, transport products in static-safe tubes, bags, or boxes.

●

Protect ESD-sensitive parts and assemblies with conductive or approved containers or packaging.

●

Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.

●

Place items on a grounded surface before removing items from their containers.

●

Always be properly grounded when touching a component or assembly.

●

Store reusable ESD-sensitive parts from assemblies in protective packaging or nonconductive

●

foam.

Use transporters and conveyors made of antistatic belts and roller bushings. Be sure that

●

mechanized equipment used for moving materials is wired to ground and that proper materials are selected to avoid static charging. When grounding is not possible, use an ionizer to dissipate electric charges.

Workstation guidelines

Follow these grounding workstation guidelines:

Cover the workstation with approved static-shielding material.

●

Use a wrist strap connected to a properly grounded work surface and use properly grounded tools

●

and equipment.

Use conductive field service tools, such as cutters, screwdrivers, and vacuums.

●

When fixtures must directly contact dissipative surfaces, use fixtures made only of static-safe

●

materials.

Keep the work area free of nonconductive materials, such as ordinary plastic assembly aids and

●

Styrofoam.

Handle ESD-sensitive components, parts, and assemblies by the case or PCM laminate. Handle

●

these items only at static-free workstations.

Avoid contact with pins, leads, or circuitry.

●

Turn off power and input signals before inserting or removing connectors or test equipment.

●

40 Chapter 4 Removal and replacement procedures

Equipment guidelines

Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation.

When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible straps

●

with a minimum of one megohm ±10% resistance in the ground cords. To provide proper ground, wear a strap snugly against the skin at all times. On grounded mats with banana-plug connectors, use alligator clips to connect a wrist strap.

When standing, use foot straps and a grounded floor mat. Foot straps (heel, toe, or boot straps)

●

can be used at standing workstations and are compatible with most types of shoes or boots. On conductive floors or dissipative floor mats, use foot straps on both feet with a minimum of one megohm resistance between the operator and ground. To be effective, the conductive strips must be worn in contact with the skin.

The following grounding equipment is recommended to prevent electrostatic damage:

Antistatic tape

●

Antistatic smocks, aprons, and sleeve protectors

●

Conductive bins and other assembly or soldering aids

●

Nonconductive foam

●

Conductive tabletop workstations with ground cords of one megohm resistance

●

Static-dissipative tables or floor mats with hard ties to the ground

●

Field service kits

●

Static awareness labels

●

Material-handling packages

●

Nonconductive plastic bags, tubes, or boxes

●

Metal tote boxes

●

Electrostatic voltage levels and protective materials

●

The following table lists the shielding protection provided by antistatic bags and floor mats.

Material Use Voltage protection level

Antistatic plastic Bags 1,500 V

Carbon-loaded plastic Floor mats 7,500 V

Metallized laminate Floor mats 5,000 V

Preliminary replacement requirements 41

Component replacement procedures

This chapter provides removal and replacement procedures.

There are as many as 65 screws, in 9 different sizes, that must be removed, replaced, or loosened when servicing the device. Make special note of each screw size and location during removal and replacement.

Service tag

When ordering parts or requesting information, provide the computer serial number and model description provided on the service tag:

(1) Product name: This is the product name affixed to the front of the device.

(2) Serial number (s/n): This is an alphanumeric identifier that is unique to each product.

(3) Part number/Product number (p/n): This number provides specific information about the product's

hardware components. The part number helps a service technician to determine what components and parts are needed.

(4) Model description: This is the alphanumeric identifier used to locate documents, drivers, and support for the device.

(5) Warranty period: This number describes the duration of the warranty period for the device.

42 Chapter 4 Removal and replacement procedures

Device feet

The device feet are adhesive-backed rubber pads, tethered to the base enclosure.

Description Spare part number

Rubber Kit 537618-001

Component replacement procedures 43

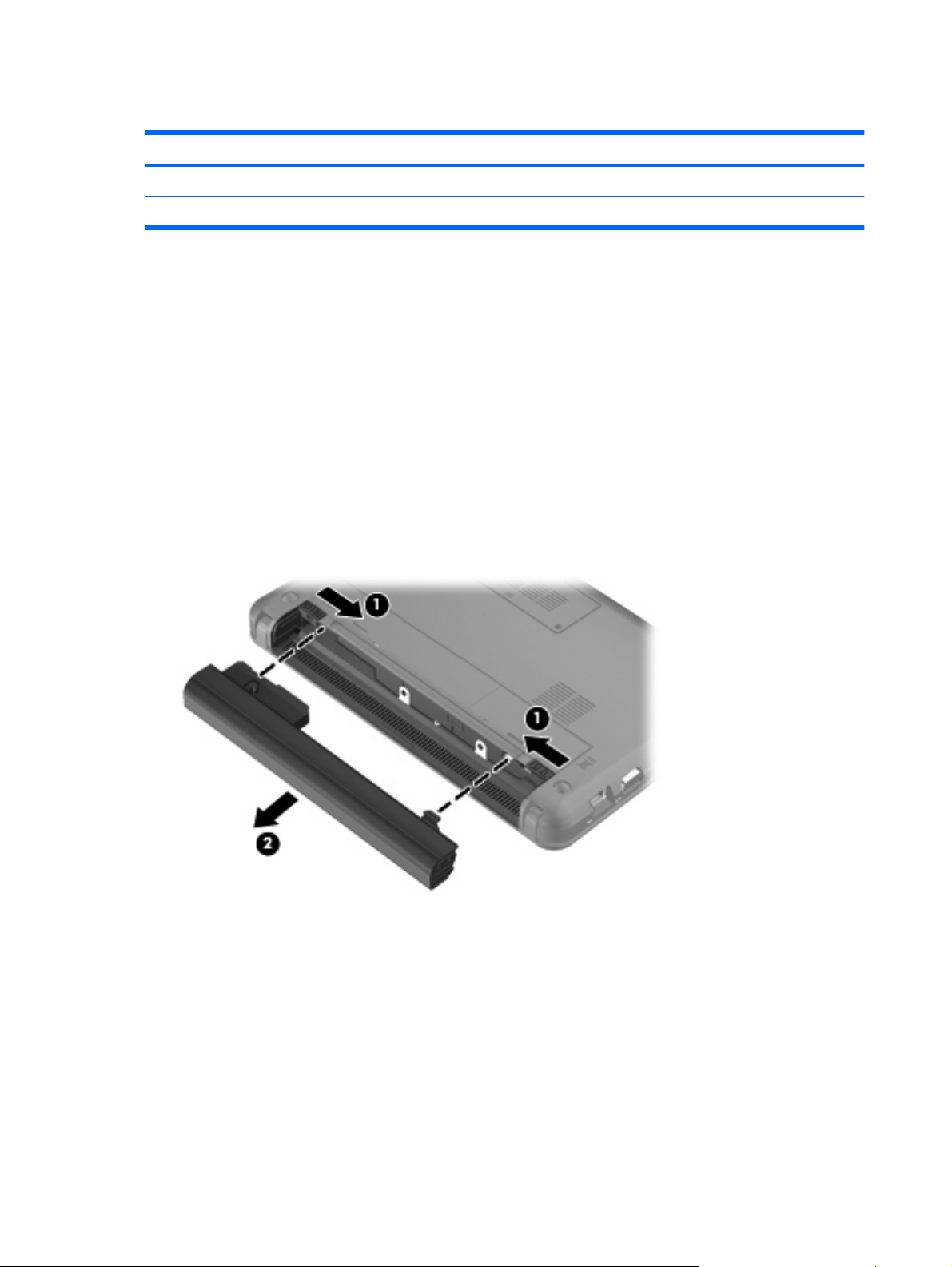

Battery

Description Spare part number

6-cell lithium-polymer (Li-Pol) battery (2.55-Ah, 55-Wh) 537627-001

3-cell lithium-polymer (Li-Pol) battery (2.55-Ah, 28-Wh) 537626-001

Before disassembling the device, follow these steps:

1. Shut down the device. If you are unsure whether the device is off or in Hibernation, turn the device

on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the device.

3. Disconnect the power from the device by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the device.

Remove the battery:

1. Turn the device upside-down on a flat surface, with the battery bay toward you.

2. Slide the battery release latches (1) to release the battery.

3. Remove the battery (2).

Reverse this procedure to install a battery.

44 Chapter 4 Removal and replacement procedures

SIM

NOTE: This section applies only to device models with WWAN capability.

NOTE: If there is a SIM inserted in the SIM slot, it must be removed before disassembling the

computer. Be sure that the SIM is reinserted in the SIM slot after reassembling the computer.

Before removing the SIM, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

4. Remove the battery (see

Remove the SIM:

1. Press in on the SIM (1). (The module is partially ejected from the SIM slot.)

2. Remove the SIM (2) from the SIM slot.

Battery on page 44).

Reverse this procedure to insert the SIM.

Component replacement procedures 45

Memory module

Description Spare part number

Memory module (PC2-5300, 533-MHz, DDR2)

512-MB (for use in HP Mini 110 and Compaq Mini 110 only) 537663-001

1024-MB 537664-001

2048-MB 537665-001

Before removing the memory module, follow these steps:

1. Shut down the device. If you are unsure whether the device is off or in Hibernation, turn the device

on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the device.

3. Disconnect the power from the device by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the device.

4. Remove the battery (see

5. If your device has WWAN capability, remove the SIM (see

Battery on page 44).

SIM on page 45).

Remove the memory module:

1. Loosen the 2 Phillips 2.0×3.0 captive screws (1) that secure the memory module compartment

cover to the computer.

2. Swing the cover up and away from the inside of the computer (2), and then remove the cover (3).

3. Spread the retaining tabs (1) on each side of the memory module slot to release the memory

module. (The edge of the module opposite the slot rises away from the device.)

46 Chapter 4 Removal and replacement procedures

4. Remove the memory module (2) by pulling the module away from the slot at an angle.

NOTE: Memory modules are designed with a notch (3) to prevent incorrect insertion into the

memory module slot.

Reverse this procedure to install a memory module.

Component replacement procedures 47

Keyboard

Description Spare part number

For use only on black and blue models with Windows operating system installed

For use only in Brazil

●

For use only in the Czech Republic

●

For use only in Europe

●

For use only in Finland, Norway, and Sweden

●

For use only in France

●

For use only in French Canada

●

For use only in Germany

●

For use only in Greece

●

For use only in Hungary

●

For use with international models

●

For use only in Israel

●

For use only in Italy

●

For use only in Japan

●

For use only in Latin America

●

For use only in Portugal

●

For use only in Russia

●

535689-201

535689-221

535689-A41

535689-DH1

535689-051

535689-121

535689-041

535689-151

535689-211

535689-B31

535689-BB1

535689-061

535689-291

535689-161

535689-131

535689-251

For use only in Saudi Arabia

●

For use only in South Korea

●

For use only in Spain

●

For use only in Switzerland

●

For use only in Taiwan

●

For use only in Thailand

●

For use only in Turkey

●

For use only in the United Kingdom

●

For use only in the United States

●

For use only on models with Mobile Mi installed

For use only in Brazil

●

For use only in French Canada

●

For use only in Japan

●

For use only in Latin America

●

For use only in South Korea

●

For use only in Taiwan 535690-AB1

●

535689-171

535689-AD1

535689-071

535689-111

535689-AB1

535689-281

535689-141

535689-031

535689-001

535690-201

535690-121

535690-291

535690-161

535690-AD1

48 Chapter 4 Removal and replacement procedures

Description Spare part number

For use only in Thailand

●

For use only in the United States

●

For use on pink models only

For use only in Bosnia, Croatia, Montenegro, Serbia, and Slovenia

●

For use only in Brazil

●

For use only in the Czech Republic

●

For use only in Europe

●

For use only in Finland, Norway, and Sweden

●

For use only in France

●

For use only in French Canada

●

For use only in Germany

●

For use only in Greece

●

For use only in Hungary

●

For use with international models

●

For use only in Israel

●

For use only in Italy

●

535690-281

535690-001

537954-BA1

537954-201

537954-221

537954-A41

537954-DH1

537954-051

537954-121

537954-041

537954-DJ1

537954-211

537954-B31

537954-BB1

537954-061

For use only in Japan

●

For use only in Latin America

●

For use only in Portugal

●

For use only in Russia

●

For use only in Saudi Arabia

●

For use only in South Korea

●

For use only in Spain

●

For use only in Switzerland

●

For use only in Taiwan

●

For use only in Thailand

●

For use only in Turkey

●

For use only in the United Kingdom

●

For use only in the United States

●

For use with white HP models only

For use only in Bosnia, Croatia, Montenegro, Serbia, and Slovenia

●

For use only in Brazil

●

537954-291

537954-161

537954-131

537954-251

537954-171

537954-AD1

537954-071

537954-BG1

537954-AB1

537954-281

537954-141

537954-031

537954-001

537953-BA1

537953-201

For use only in the Czech Republic

●

For use only in Europe 537953-A41

●

Component replacement procedures 49

537953-221

Description Spare part number

For use only in Finland, Norway, and Sweden

●

For use only in France

●

For use only in French Canada

●

For use only in Germany

●

For use only in Greece

●

For use only in Hungary

●

For use with international models

●

For use only in Israel

●

For use only in Italy

●

For use only in Japan

●

For use only in Latin America

●

For use only in Portugal

●

For use only in Russia

●

For use only in Saudi Arabia

●

For use only in South Korea

●

For use only in Spain

●

537953-DH1

537953-051

537953-121

537953-041

537953-DJ1

537953-211

537953-B31

537953-BB1

537953-061

537953-291

537953-161

537953-131

537953-251

537953-171

537953-AD1

537953-071

For use only in Switzerland

●

For use only in Taiwan

●

For use only in Thailand

●

For use only in Turkey

●

For use only in the United Kingdom

●

For use with white HP and HP Mini 110 by Studio Tord Boontje models only in the United States 537953-001

537953-BG1

537953-AB1

537953-281

537953-141

537953-031

Before removing the keyboard, follow these steps:

1. Shut down the device. If you are unsure whether the device is off or in Hibernation, turn the device

on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the device.

3. Disconnect the power from the device by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the device.

4. Remove the battery (see

5. If your device has WWAN capability, remove the SIM (see

Battery on page 44).

SIM on page 45).

50 Chapter 4 Removal and replacement procedures

Remove the keyboard:

1. Remove the 3 Phillips SP2.0×3.0 screws that secure the keyboard to the device.

2. Turn the device right-side up, and then open the display as far as possible.

3. Turn the device upside down, and locate the keyboard release access on the bottom of the

computer, inside the battery bay.

4. Insert a flexible tool into the opening, and then press inward to release the keyboard.

5. Turn the device right-side up, and then lift up on the top and left edges (1) of the keyboard until the

keyboard releases completely.

Component replacement procedures 51

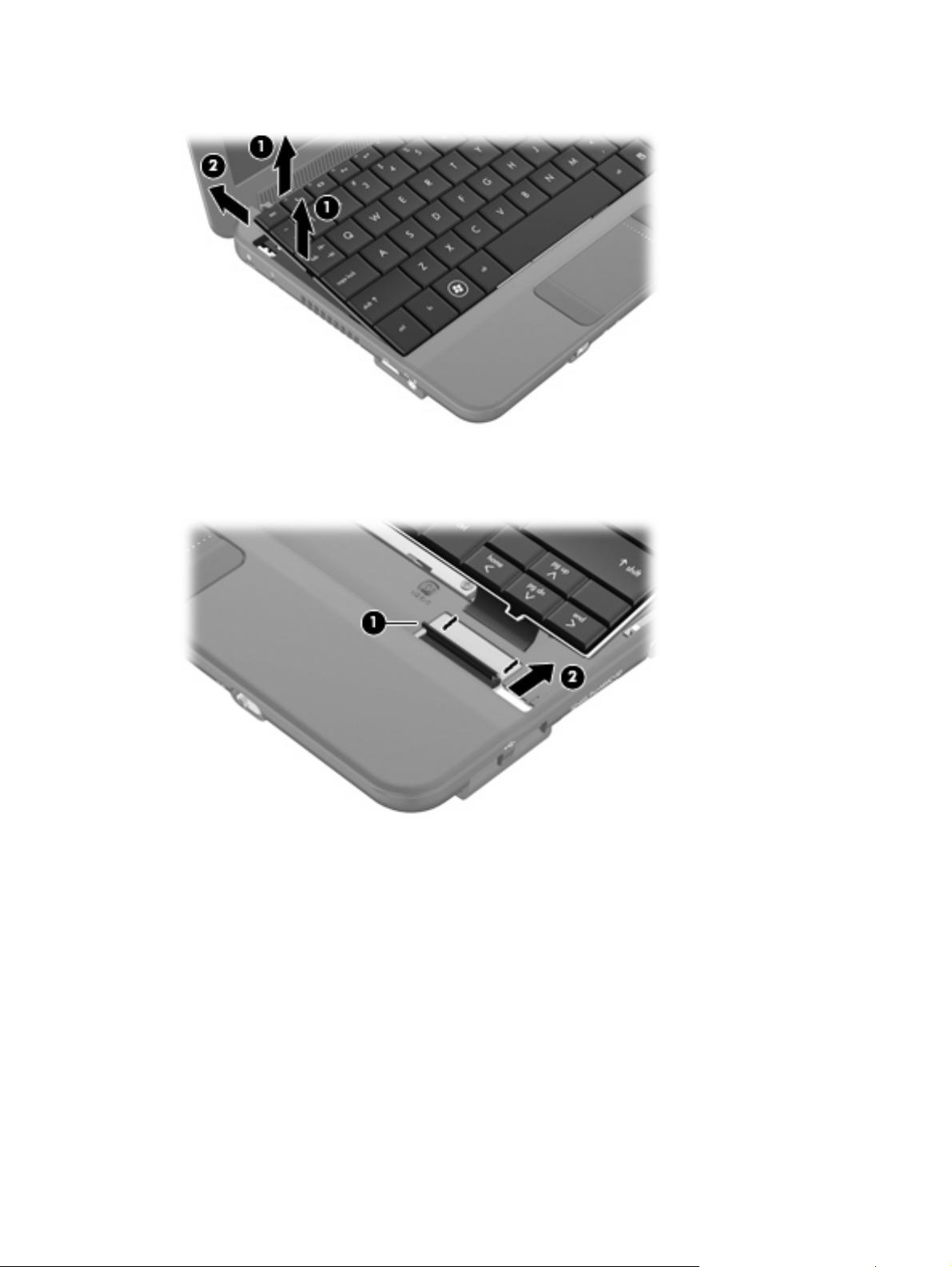

6. Slide the keyboard back until its top edge rests on the display assembly (2).

7. Release the zero insertion force (ZIF) connector (1) to which the keyboard cable is attached.

8. Disconnect the cable (2), and then remove the keyboard.

9. Remove the keyboard.

Reverse this procedure to install the keyboard.

52 Chapter 4 Removal and replacement procedures

RTC battery

Description Spare part number

RTC battery 537616-001

Before removing the real-time clock (RTC) battery, follow these steps:

1. Shut down the device. If you are unsure whether the device is off or in Hibernation, turn the device

on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the device.

3. Disconnect the power from the device by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the device.

4. Remove the battery (see

5. If your device has WWAN capability, remove the SIM (see

6. Remove the Keyboard (see

Battery on page 44).

SIM on page 45).

Keyboard on page 48).

Remove the RTC battery:

1. Disconnect the RTC battery cable (1) from the system board.

2. Detach the RTC battery (2) from the system board.

NOTE: The RTC battery is attached to the system board with double-sided tape.

Reverse this procedure to install the RTC battery.

Component replacement procedures 53

Mass storage devices

NOTE: Each hard drive spare part kit and solid-state drive spare part kit includes a cable and bracket.

Description Spare part number

Hard drive (select models only)

320-GB, 5400-RPM 591398-001

250-GB, 5400-RPM 537635-001

160-GB, 7200-RPM 590669-001

160-GB, 5400-RPM 537634-001

Hard Drive Hardware Kit 537641-001

Solid-state drive

64-GB 537640-001

32-GB 537639-001

16-GB 537638-001

8-GB 537637-001

Solid–state Drive Hardware Kit 537642-001

Before removing the hard drive or solid-state drive, follow these steps:

1. Shut down the device. If you are unsure whether the device is off or in Hibernation, turn the device

on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the device.

3. Disconnect the power from the device by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the device.

4. Remove the battery (see

5. If your device has WWAN capability, remove the SIM (see

6. Remove the keyboard (see

Battery on page 44).

SIM on page 45).

Keyboard on page 48).

To remove the mass storage assembly:

1. Loosen the Phillips SP2.5×10.0 captive screw (1), and remove the two Phillips PM2.0×5.0

screws (2) that secure the assembly to the device.

54 Chapter 4 Removal and replacement procedures

2. Use the Mylar tab to slide the assembly to the left (3) to disconnect it, and remove the

Continue with one of the following sections for hard drive or solid-state drive replacement.

Hard drive

1. Remove the 4 Phillips SP3.0×4.0 screws (1) that secure the hard drive bracket to the hard drive.

assembly (4).

2. Using the Mylar tab, lift the bracket (2) away from the hard drive.

Reverse this procedure to install a hard drive.

Solid-state drive

To remove the solid-state drive:

1. Remove the 4 Phillips SP2.0×3.0 screws (1) that secure the solid-state drive bracket to the solid-

state drive.

Component replacement procedures 55

2. Lift the solid-state drive (2) to remove it.

Reverse this procedure to install a solid-state drive.

56 Chapter 4 Removal and replacement procedures

Top cover

Description Spare part number

Top cover (includes TouchPad)

For use with black and blue models only

●

For use with pink HP models only

●

For use with white HP models only

●

For use with HP Mini 110 by Studio Tord Boontje models only 579615-001

●

537622-001

537625-001

537624-001

Before removing the top cover, follow these steps:

1. Shut down the device. If you are unsure whether the device is off or in Hibernation, turn the device

on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the device.

3. Disconnect the power from the device by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the device.

4. Remove the battery (see

5. If your device has WWAN capability, remove the SIM (see

6. Remove the memory module (see

7. Remove the keyboard (see

8. Remove the hard drive or solid-state drive assembly (see

Battery on page 44).

SIM on page 45).

Memory module on page 46).

Keyboard on page 48).

Mass storage devices on page 54).

Remove the top cover.

1. Turn the device upside down, with the front toward you.

2. Use a thin, flat tool to release the 4 tethered rubber feet.

3. Remove the four Phillips PM2.5×7.0 screws (1), and the Phillips SP2.0×5.0 screw (2) that secure

the top cover to the base enclosure.

Component replacement procedures 57

4. Turn the device right-side up, with the front toward you.

5. Open the device as far as possible.

6. Remove the 8 Phillips PM2.5×7.0 screws that secure the top cover to the base enclosure.

7. Lift the inside edge of the top cover (1) and swing it up. Then slide the top cover back slightly to

rest against the display assembly (2) at an angle.

8. Release the ZIF connector (1) to which the TouchPad button board cable is connected.

58 Chapter 4 Removal and replacement procedures

9. Disconnect the TouchPad button board cable (2) from the system board, and then remove the top

cover.

Reverse this procedure to install the top cover.

Component replacement procedures 59

WLAN module

Description Spare part number

WLAN/Bluetooth combination module 575920-001

Broadcom 4312 802.11/b/g/n WLAN module

For use in Canada, the Cayman Islands, Guam, Puerto Rico, the U.S. Virgin Islands, and the United States

For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equatorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, the People's Republic of China, Peru, the Philippines, Poland, Portugal, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia, St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

Broadcom 4312 802.11/b/g WLAN module

For use in Canada, the Cayman Islands, Guam, Puerto Rico, the U.S. Virgin Islands, and the United States

518436-001

518436-002

504593-003

60 Chapter 4 Removal and replacement procedures

504593-004

CAUTION: The WWAN module and the WLAN module are not interchangeable.

To prevent an unresponsive system, replace the wireless module only with a wireless module authorized for use in the device by the governmental agency that regulates wireless devices in your country or region. If you replace the module and then receive a warning message, remove the module to restore device functionality, and then contact technical support through Help and Support.

Before removing the WLAN module, follow these steps:

1. Shut down the device. If you are unsure whether the device is off or in Hibernation, turn the device

on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the device.

3. Disconnect the power from the device by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the device.

4. Remove the battery (see

5. If your device has WWAN capability, remove the SIM (see

Battery on page 44).

SIM on page 45).

6. Remove the following components:

a. Keyboard (see

b. Hard drive or solid-state drive (see

c. Top cover (see

Keyboard on page 48)

Mass storage devices on page 54)

Top cover on page 57)

Remove the WLAN module:

1. Remove the 2 Phillips PM2.0×4.0 screws (1) that secure the WLAN module to the system board.

(The edge of the module opposite the slot rises away from the device.)

2. Disconnect the wireless antenna cables (2) from the terminals on the WLAN module.

3. Remove the WLAN module (3) by pulling the module away from the slot at an angle.

Reverse this procedure to install the WLAN module.

Component replacement procedures 61

WWAN module

NOTE: Not available for computers with Mobile Mi installed.

Description Spare part number

HP un2400 Mobile Broadband Module (select models only) 483377-002

HP un2400 Mobile Broadband Module for use only with Verizon Wireless (select models only) 483377-003

WWAN module for use only in the People's Republic of China 571888-001

HP un2400 Mobile Broadband Module for use only in the People's Republic of China 574246-001

WWAN minicard module 531993-001

WWAN module for use only with Telefonica 592625-161

WWAN module for use only with Am Movil 592624-161

WWAN module for use only with AT&T 591612-001

CAUTION: The WWAN module and the WLAN module are not interchangeable.

Before removing the WWAN module, follow these steps:

1. Shut down the device. If you are unsure whether the device is off or in Hibernation, turn the device

on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the device.

3. Disconnect the power from the device by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the device.

4. Remove the battery (see

5. Remove the SIM (see

Battery on page 44).

SIM on page 45).

6. Remove the following components:

a. Keyboard (see

b. Hard drive or solid-state drive (see

c. Top cover (see

Keyboard on page 48)

Mass storage devices on page 54)

Top cover on page 57)

Remove the WWAN module:

1. Remove the 2 Phillips PM2.0×4.0 screws (1) that secure the WWAN connector module (3) to the

system board. (The edge of the module opposite the slot rises away from the device.)

2. Disconnect the wireless antenna cables (2) from the terminals on the WWAN module.

NOTE: The red WWAN antenna cable is connected to the WWAN module “Main” terminal. The

blue WWAN antenna cable is connected to the WWAN module “Aux” terminal.

62 Chapter 4 Removal and replacement procedures

3. Remove the WWAN module (3) by pulling the module away from the slot at an angle.

Reverse this procedure to install the WWAN module.

Component replacement procedures 63

USB/audio board

Description Spare part number

USB/audio board (includes cable)

For use on the following model numbers only: HP: 110-1000 — 110-1099 and Compaq: 110c-1000 — 110-1099

For use on the following model numbers only: HP: 110-1100 — 110-1199 and Compaq: 110c-1100 — 110-1199

537614-001

581325-001

Before removing the USB/audio board, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC Adapter from the computer.

4. Remove the battery (see

5. If your device has WWAN capability, remove the SIM (see

Battery on page 44).

SIM on page 45).

6. Remove the following components:

a. Keyboard (see

b. Hard drive or solid-state drive (see

Keyboard on page 48).

Mass storage devices on page 54).

c. Top cover (see

Top cover on page 57).

Remove the USB board:

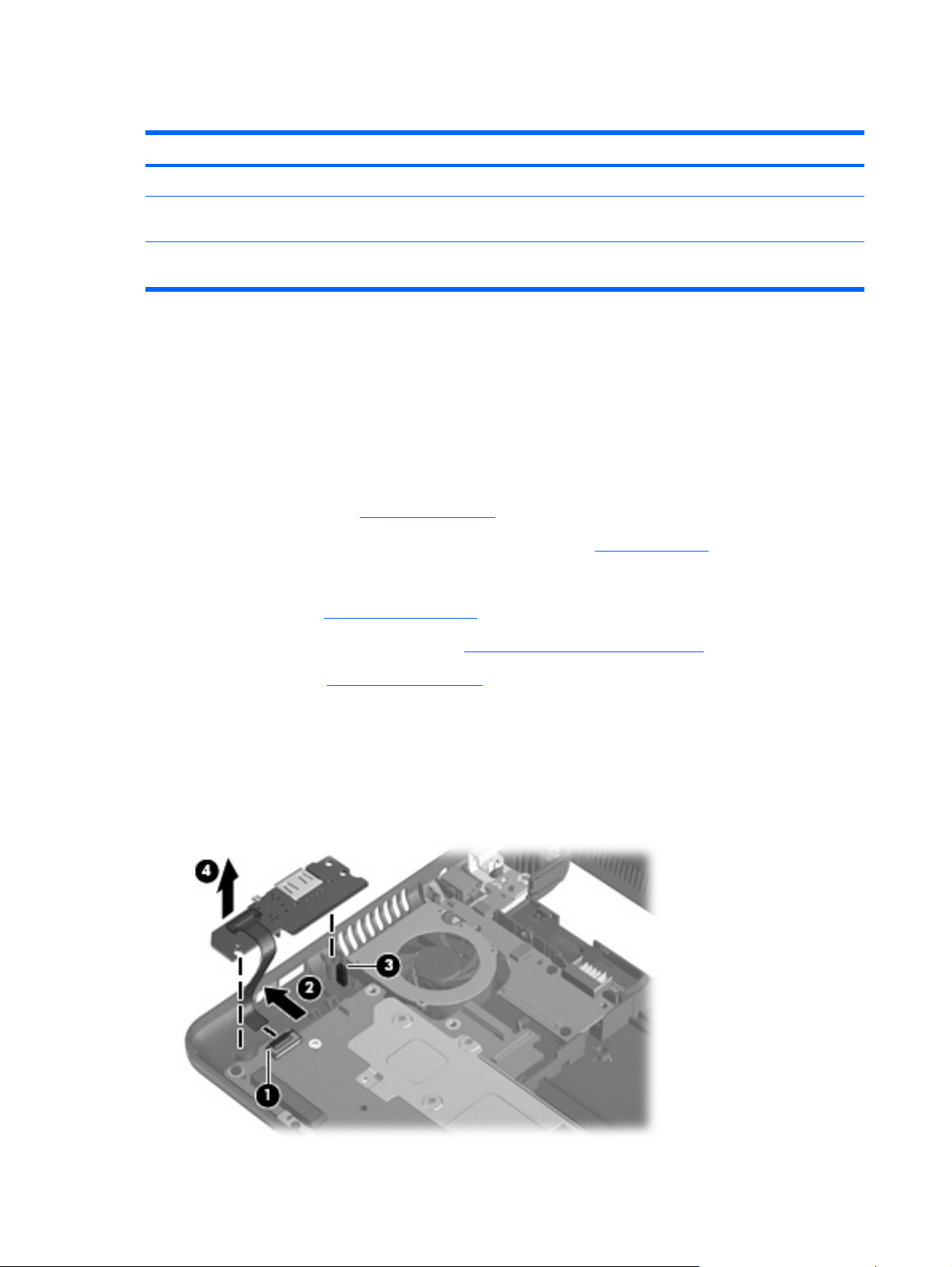

1. Release the ZIF connector (1) to which the USB/audio board cable is connected, and disconnect

the cable (2).

2. Release the USB/audio board from the clip attached to the base enclosure (3), and remove the

USB/audio board (4).

64 Chapter 4 Removal and replacement procedures

Reverse this procedure to install the USB/audio board.

Component replacement procedures 65

Power/battery pass-through board

Description Spare part number

Power/battery pass-through board

For use on the following model numbers only: HP: 110-1000 — 110-1099 and Compaq: 110c-1000 — 110-1099

For use on the following model numbers only: HP: 110-1100 — 110-1199 and Compaq: 110c-1100 — 110-1199

537615-001

581326-001

Before removing the power/battery pass-through board, follow these steps:

1. Shut down the device. If you are unsure whether the device is off or in Hibernation, turn the device

on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the device.

3. Disconnect the power from the device by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the device.

4. Remove the battery (see

5. If your device has WWAN capability, remove the SIM (see

Battery on page 44).

SIM on page 45).

6. Remove the following components:

a. Keyboard (see

b. Hard drive or solid-state drive (see

Keyboard on page 48)

Mass storage devices on page 54)

c. Top cover (see

Top cover on page 57)

Remove the power/battery pass-through board:

1. Disconnect the power cable (1).

2. Remove the 2 Phillips BP2.5×5.0 screws (2) that secure the power/battery pass-through board to

the base enclosure.

66 Chapter 4 Removal and replacement procedures

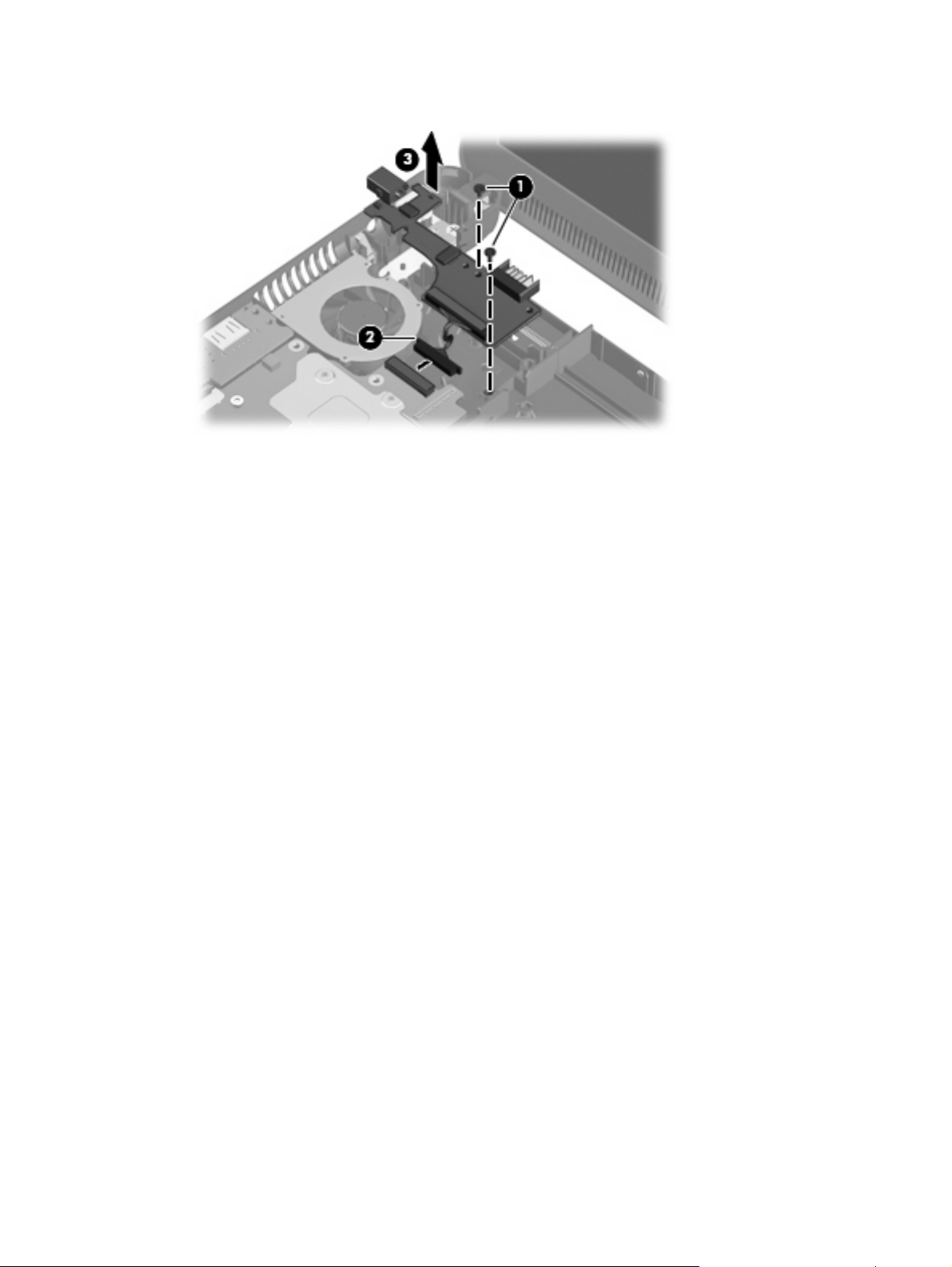

3. Remove the power/battery pass-through board (3).

Reverse this procedure to install the power/battery pass-through board.

Component replacement procedures 67

Fan

Description Spare part number

Fan 537613-001

NOTE: To properly ventilate the device, allow at least a 7.6-cm (3-inch) clearance on the left side of

the device. The device uses an electric fan for ventilation. The fan is controlled by a temperature sensor and is designed to turn on automatically when high temperature conditions exist. These conditions are affected by high external temperatures, system power consumption, power management/battery conservation configurations, battery fast charging, and software requirements. Exhaust air is displaced through the ventilation grill located on the left side of the device.

Before removing the fan, follow these steps:

1. Shut down the device. If you are unsure whether the device is off or in Hibernation, turn the device

on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the device.

3. Disconnect the power from the device by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the device.

4. Remove the battery (see

5. If your device has WWAN capability, remove the SIM (see

Battery on page 44).

SIM on page 45).

6. Remove the following components:

a. Keyboard (see

b. Hard drive or solid-state drive (see

c. Top cover (see

Keyboard on page 48)

Mass storage devices on page 54)

Top cover on page 57)

Remove the fan:

1. Disconnect the fan cable (1).

2. Remove the 2 Phillips PM2.5×5.0 screws (2) that secure the fan to the base enclosure.

68 Chapter 4 Removal and replacement procedures

3. Remove the fan (3).

Reverse this procedure to install the fan.

Component replacement procedures 69

Heat sink assembly

Description Spare part number

Heat sink assembly (includes replacement thermal material) 537619-001

Before removing the heat sink assembly, follow these steps:

1. Shut down the device. If you are unsure whether the device is off or in Hibernation, turn the device

on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the device.

3. Disconnect the power from the device by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the device.

4. Remove the battery (see

5. If your device has WWAN capability, remove the SIM (see

Battery on page 44).

SIM on page 45).

6. Remove the following components:

a. Keyboard (see

b. Hard drive or solid-state drive (see

c. Top cover (see

d. WLAN module (see

e. Fan (see

Keyboard on page 48)

Mass storage devices on page 54)

Top cover on page 57)

WLAN module on page 60)

Fan on page 68)

Remove the heat sink assembly:

1. Remove the 4 Phillips SP1.5×1.05 screws (1) that secure the heat sink assembly to the system

board.

NOTE: The screws are numbered 1 through 4. Follow this order when removing the screws.

70 Chapter 4 Removal and replacement procedures

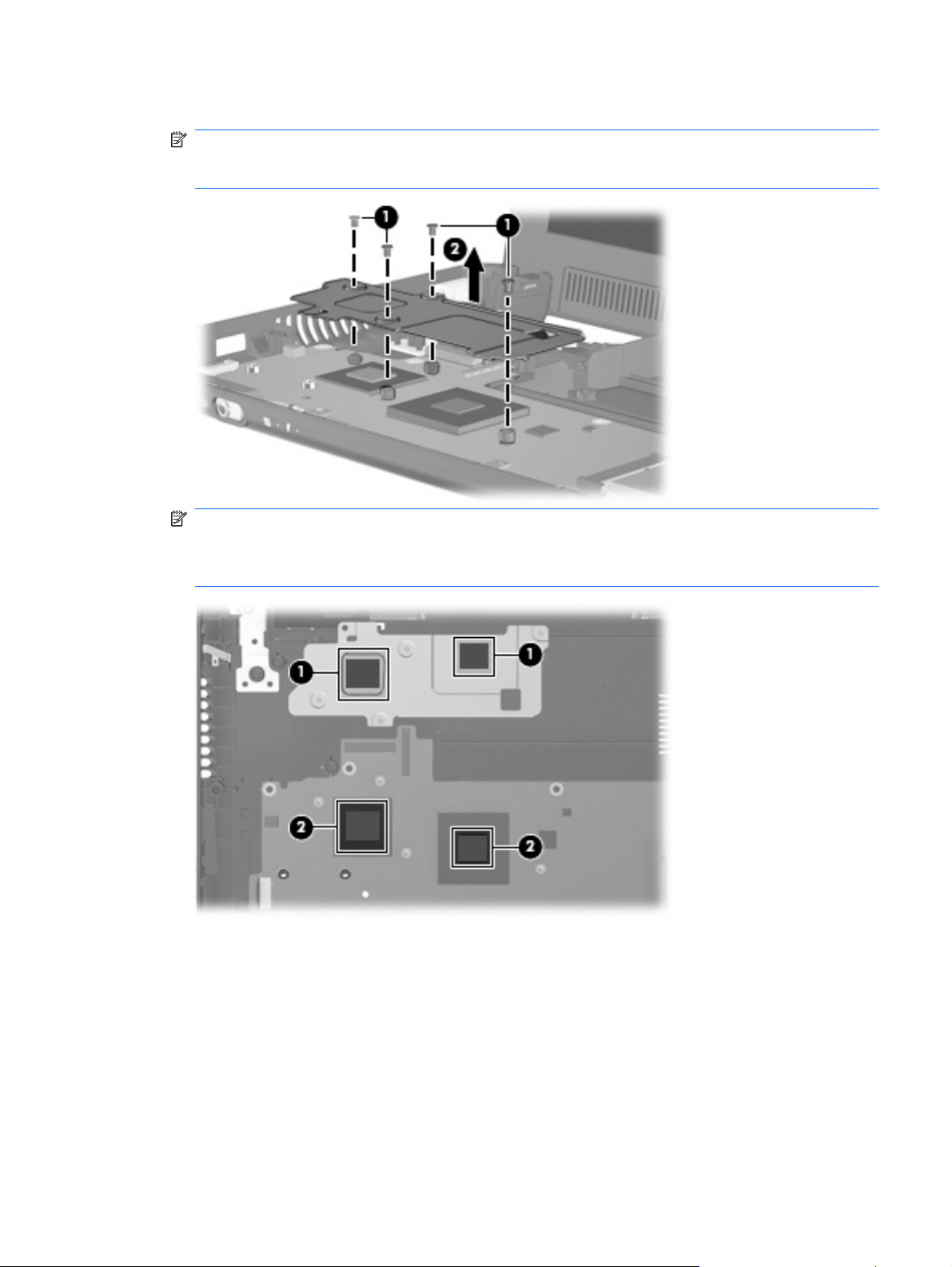

2. Remove the heat sink assembly (2).

NOTE: Due to the adhesive quality of the thermal material located between the heat sink

assembly and system board components, it may be necessary to move the heat sink assembly from side to side to detach the assembly.

NOTE: The thermal material must be thoroughly cleaned from the surfaces of the heat sink

assembly and the system board each time the heat sink assembly is removed. Thermal paste is used on the processor (1), and thermal tape is used on the Northbridge chip (2). Replacement thermal material is included with all heat sink assembly and system board spare part kits.

Reverse this procedure to install the heat sink assembly.

Component replacement procedures 71

System board

Description Spare part number

System board (includes processor and replacement thermal material)

Includes Intel Atom N280 1.66-GHz processor, 512-KB Level 2 cache, 533-MHz front-side bus (FSB)

For use on the following model numbers only: HP: 110-1000 — 110-1099 and Compaq: 110c-1000 — 110-1099

Includes Intel Atom N270 1.6-GHz processor, 512-KB Level 2 cache, 533-MHz front-side bus (FSB)

For use on the following model numbers only: HP: 110-1000 — 110-1099 and Compaq: 110c-1000 — 110-1099

Includes Intel Atom N280 1.66-GHz processor, 512-KB Level 2 cache, 533-MHz front-side bus (FSB)

For use on the following model numbers only: HP: 110-1100 — 110-1199 and Compaq: 110c-1100 — 110-1199

Includes Intel Atom N270 1.6-GHz processor, 512-KB Level 2 cache, 533-MHz front-side bus (FSB)

For use on the following model numbers only: HP: 110-1100 — 110-1199 and Compaq: 110c-1100 — 110-1199

571370-001

537662-001

579569-001

579568-001

Before removing the system board, follow these steps:

1. Shut down the device. If you are unsure whether the device is off or in Hibernation, turn the device

on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the device.

3. Disconnect the power from the device by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the device.

4. Remove the battery (see

5. If your device has WWAN capability, remove the SIM (see

Battery on page 44).

SIM on page 45).

6. Remove the following components:

a. Keyboard (see

b. Hard drive or solid-state drive (see

c. Top cover (see

Keyboard on page 48)

Mass storage devices on page 54)

Top cover on page 57)

When replacing the system board, be sure that the following components are removed from the defective system board and installed on the replacement system board:

WLAN module (see

●

WWAN module, if included (see

●

RTC battery (see

●

Heat sink assembly (see

●

WLAN module on page 60)

WWAN module on page 62)

RTC battery on page 53)

Heat sink assembly on page 70)

72 Chapter 4 Removal and replacement procedures

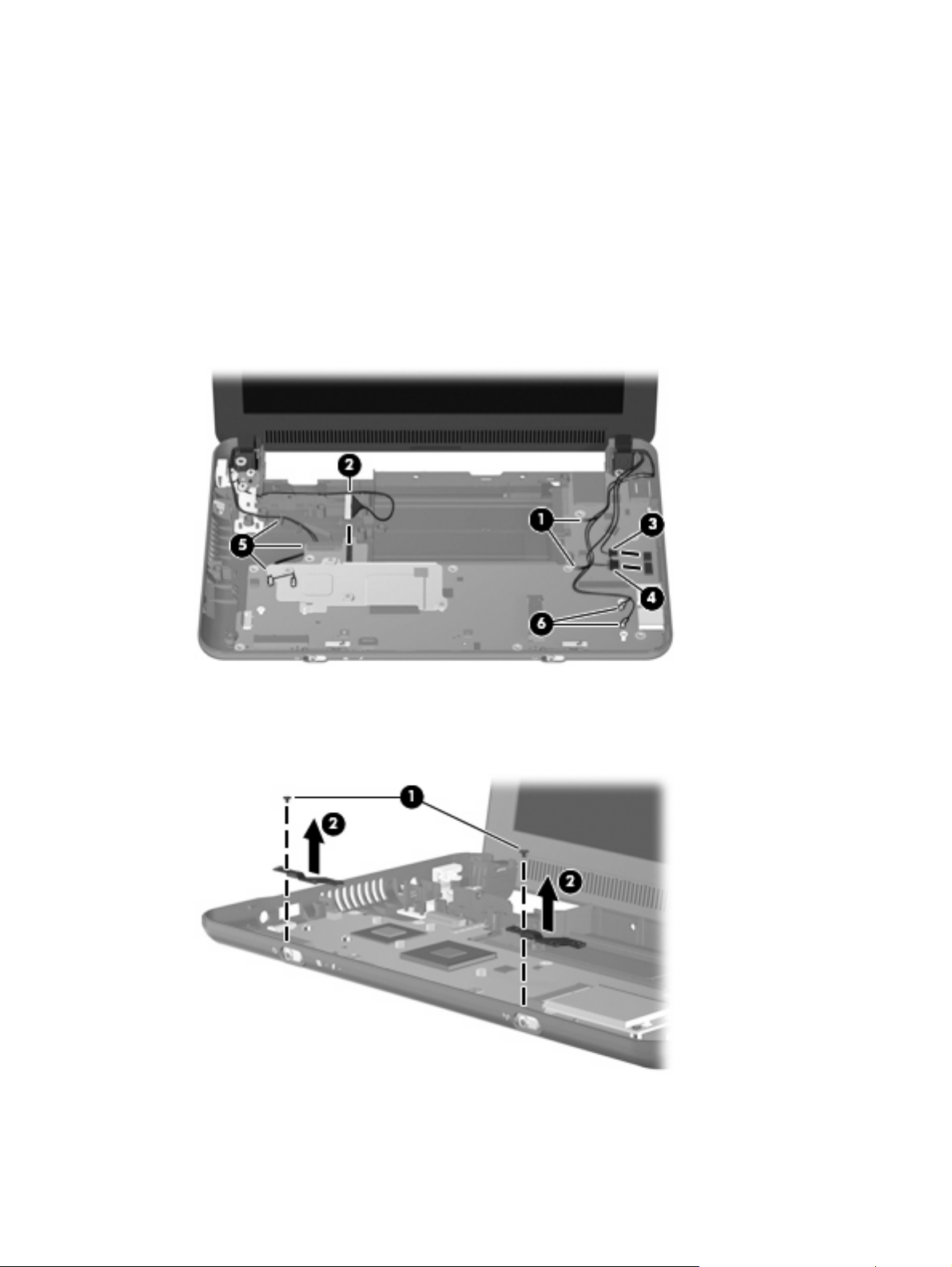

Remove the system board:

1. Release the tape securing the WWAN antennas (1).

2. Disconnect the following cables from the system board:

(2) Display panel cable

(3) Microphone cable

(4) Speaker cable

(5) WLAN cables

(6) WWAN cables (select models only)

3. Remove the 2 Phillips PM1.5×2.0 screws (1) that secure the actuators for the power switch and

wireless on/off switch to the system board.

4. Remove the actuators (2).

Component replacement procedures 73

5. Remove the 3 Phillips PM2.5×5.0 screws that secure the system board to the base enclosure.

6. Grasp the system board at the midpoint of the left side (1), and lift it up.

7. Pull the system board (2) out to the left at an angle to remove it.

8. Remove the system board.

Reverse the procedure to install the system board.

74 Chapter 4 Removal and replacement procedures

Display assembly

NOTE: Each display assembly spare part kit includes 1 webcam, 1 microphone, 1 speaker box, and

2 WLAN antenna transceivers/cables; WWAN on select models only.

Description Spare part number

For use with black HP models only

10.1-inch, high-definition, AntiGlare display assembly (includes WWAN)

●

10.1-inch, high-definition, AntiGlare display assembly

●

10.1-inch, standard-definition, AntiGlare display assembly (includes WWAN)

●

10.1-inch, standard-definition, AntiGlare display assembly

●

10.1-inch, WSVGA, AntiGlare display assembly (includes WWAN)

●

For use with pink HP models only

10.1-inch, high-definition, AntiGlare display assembly (includes WWAN)

●

10.1-inch, standard-definition, AntiGlare display assembly (includes WWAN)

●

10.1-inch, WSVGA, AntiGlare display assembly (includes WWAN)

●

For use with white HP models only

10.1-inch, high-definition, AntiGlare display assembly (includes WWAN)

●

10.1-inch, standard-definition, AntiGlare display assembly (includes WWAN)

●

10.1-inch, WSVGA, AntiGlare display assembly (includes WWAN)

●

For use with blue HP models only

10.1-inch, high-definition, AntiGlare display assembly (includes WWAN)

●

10.1-inch, WSVGA, AntiGlare display assembly (includes WWAN)

●

572407-001

572406-001

571414-001

537646-001

579604-001

572413-001

571416-001

579608-001

572411-001

571415-001

579606-001

591647-001

591648-001

For use with HP Mini 110 by Studio Tord Boontje models only

10.1-inch, high-definition, AntiGlare display assembly (includes WWAN)

●

10.1-inch, standard-definition, AntiGlare display assembly (includes WWAN)

●

10.1-inch, WSVGA, AntiGlare display assembly (includes WWAN)

●

For use with Compaq models only

10.1-inch, high-definition, AntiGlare display assembly

●

10.1-inch, standard-definition, AntiGlare display assembly (includes WWAN)

●

10.1-inch, standard-definition, AntiGlare display assembly

●

10.1-inch, WSVGA, AntiGlare display assembly (includes WWAN)

●

Hinge covers 537617-001

Display bezel

For use with HP Mini 1101 and HP Mini 110 only 537650-001

For use with HP Mini 110 by Studio Tord Boontje models only 581324-001

For use with Compaq Mini 110 only 537644-001

579612-001

579610-001

579614-001

572414-001

571417-001

537643-001

579626-001

Component replacement procedures 75

Description Spare part number

Display Hinge Kit

(Includes left and right display panel hinges)

Speaker assembly (includes left and right cables) 537621-001

Display panel

10.1-inch high-definition AntiGlare 572405-001

10.1-inch standard-definition AntiGlare 537656-001

10.1-inch WSVGA AntiGlare 579570-001

Webcam module 537660-001

Display Cable Kit (includes display/webcam cable and WLAN antennas)

For use with high-definition and standard-definition display panels only

●

For use with WSVGA display panels only

●

Microphone assembly 581323-001

WWAN antennas 537655-001

Display enclosure (includes logo)

For use with black HP models only 537651-001

For use with pink HP models only 537654-001

537658-001

537657-001

579571-001

For use with white HP models only 537653-001

For use with blue HP models only 591649-001

For use with HP Mini 110 by Studio Tord Boontje models only 579576-001

For use with Compaq models only 537645-001

Display Screw Kit (not illustrated) 538510-001

Before removing the display assembly, follow these steps:

1. Shut down the device. If you are unsure whether the device is off or in Hibernation, turn the device

on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the device.

3. Disconnect the power from the device by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the device.

4. Remove the battery (see

Battery on page 44).

76 Chapter 4 Removal and replacement procedures

5. If your device has WWAN capability, remove the SIM (see SIM on page 45).

6. Remove the following components:

a. Keyboard (see

b. Hard drive or solid-state drive (see

c. Top cover (see

Remove the display assembly:

1. Release the tape securing the WWAN antennas (1).

2. Disconnect the following cables from the system board:

(2) Display panel cable

(3) Microphone cable

(4) Speaker cable

(5) WLAN cables

(6) WWAN cables (select models only)

Keyboard on page 48)

Mass storage devices on page 54)

Top cover on page 57)

CAUTION: Support the display assembly when removing the following screws. Failure to support

the display assembly can result in damage to the display assembly and other device components.

3. Remove the 4 Phillips PM2.5×5.0 screws (1) that secure the display assembly to the device.

NOTE: One screw on the left hinge (2) also secures the display panel cable ground strap.

Component replacement procedures 77

4. Remove the display assembly (3).

5. If it is necessary to replace the display bezel, perform the following steps:

a. Remove the display hinge covers (1).

b. Flex the inside edges of the top and bottom (2), and then the left and right sides (3) of the

display bezel until the bezel disengages from the display enclosure.

c. Remove the display bezel (4).

78 Chapter 4 Removal and replacement procedures

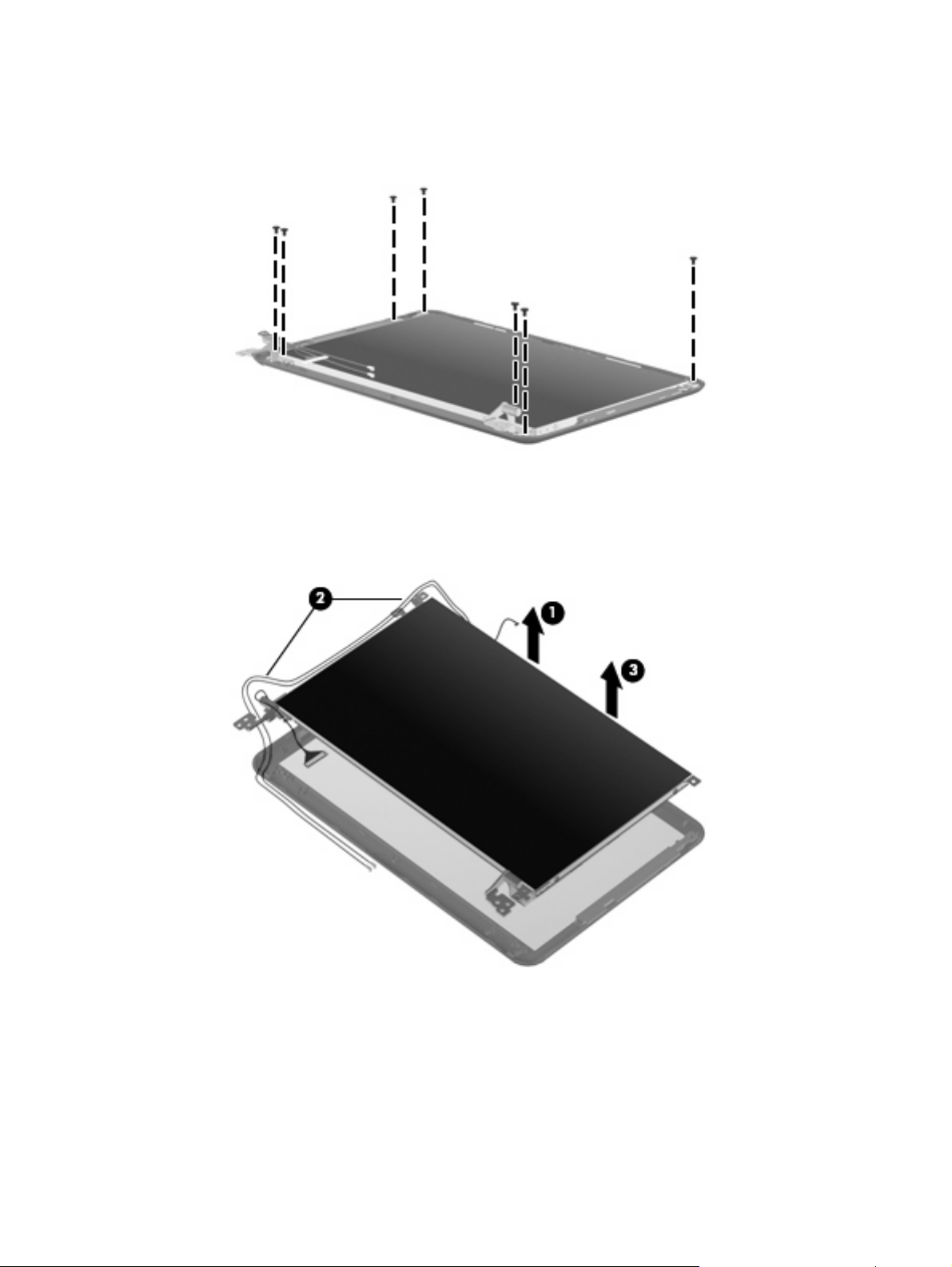

6. If it is necessary to replace the display panel, perform the following steps:

a. Remove the 7 Phillips PM2.0×3.0 screws that secure the display panel to the display

enclosure.

b. Lift the display panel up from the display enclosure (1).

c. Disconnect the webcam cable (2) from the system board (2)

d. Remove the display panel (3) from the display enclosure.

7. If it is necessary to replace the speaker assembly, perform the following steps:

a. Remove the three Phillips PM2.0×3.0 screws (1) that secure the speaker assembly to the

display enclosure.

Component replacement procedures 79

b. Remove the speaker assembly (2).

8. If it is necessary to replace the display hinges, perform the following steps:

a. Remove the 2 Phillips PM2.0×3.0 screws (1) that secure each hinge to the display enclosure.

b. Remove the hinges (2).

9. If it is necessary to replace the display panel cable, perform the following steps:

a. Peel back the Mylar protection on the back of the display panel (1).

80 Chapter 4 Removal and replacement procedures

b. Disconnect the display panel cable (2).

10. If it is necessary to replace the webcam module, perform the following steps:

a. Disconnect the webcam cable (1) from the webcam.

b. Remove the webcam (2).

11. If it is necessary to replace the microphone receiver, perform the following steps:

a. Release the microphone receiver from the clip (1) that secures it to the display enclosure.

Component replacement procedures 81

b. Pull the receiver through the tabs (2), and remove the microphone receiver (3).

12. If it is necessary to replace the wireless antenna transceivers and cables, detach the cables from

the adhesive (1) that secures them to the display enclosure, and then remove the cables (2).

Reverse this procedure to reassemble and install the display assembly.

82 Chapter 4 Removal and replacement procedures

5 Setup Utility

Starting the Setup Utility

The Setup Utility is a ROM-based information and customization utility that can be used even when your operating system is not working.

The utility reports information about the device and provides settings for startup, security, and other preferences.

To start the Setup Utility:

Open the Setup Utility by turning on or restarting the device, and then pressing f10 while the “F10



= BIOS Setup Options” message is displayed in the lower-left corner of the screen.

Using the Setup Utility

Changing the language of the Setup Utility

The following procedure explains how to change the language of the Setup Utility. If the Setup Utility is not already running, begin at step 1. If the Setup Utility is already running, begin at step 2.

1. Open the Setup Utility by turning on or restarting the device, and then pressing f10 while the “F10

= BIOS Setup Options” message is displayed in the lower-left corner of the screen.

2. Use the arrow keys to select System Configuration > Language, and then press enter.

3. Use the arrow keys to select a language, and then press enter.

4. When a confirmation prompt with your language selected is displayed, press enter.

5. To save your change and exit the Setup Utility, use the arrow keys to select Exit > Exit Saving

Changes, and then press enter.

Your change goes into effect immediately.

Navigating and selecting in the Setup Utility

Because the Setup Utility is not operating system–based, it does not support the TouchPad. Navigation and selection are by keystroke.

To choose a menu or a menu item, use the arrow keys.

●

To choose an item in a list or to toggle a field, for example an Enable/Disable field, use either the

●

arrow keys or f5 or f6.

Starting the Setup Utility 83

To select an item, press enter.

●

To close a text box or return to the menu display, press esc.

●

To display additional navigation and selection information while the Setup Utility is open, press

●

f1.

Displaying system information

The following procedure explains how to display system information in the Setup Utility. If the Setup Utility is not open, begin at step 1. If the Setup Utility is open, begin at step 2.

1. Open the Setup Utility by turning on or restarting the device, and then pressing f10 while the “F10

= BIOS Setup Options” message is displayed in the lower-left corner of the screen.

2. Select the Main menu. System information such as the system time and date, and identification

information about the device is displayed.

3. To exit the Setup Utility without changing any settings, use the arrow keys to select Exit > Exit

Discarding Changes, and then press enter.

Restoring default settings in the Setup Utility

The following procedure explains how to restore the Setup Utility default settings. If the Setup Utility is not already running, begin at step 1. If the Setup Utility is already running, begin at step 2.

1. Open the Setup Utility by turning on or restarting the device, and then pressing f10 while the “F10

= BIOS Setup Options” message is displayed in the lower-left corner of the screen.

2. Use the arrow keys to select Exit > Load Setup Defaults, and then press enter.

3. When the Setup Confirmation is displayed, press enter.

4. To save your change and exit the Setup Utility, use the arrow keys to select Exit > Exit Saving

Changes, and then press enter.

The Setup Utility default settings go into effect when the device restarts.

NOTE: Your password, security, and language settings are not changed when you restore the factory

default settings.

Exiting the Setup Utility

You can exit the Setup Utility with or without saving changes.

To exit the Setup Utility and save your changes from the current session:

●

If the Setup Utility menus are not visible, press esc to return to the menu display. Then use the arrow keys to select Exit > Exit Saving Changes, and then press enter.

To exit the Setup Utility without saving your changes from the current session:

●

If the Setup Utility menus are not visible, press esc to return to the menu display. Then use the arrow keys to select Exit > Exit Discarding Changes, and then press enter.

After either choice, the device restarts and loads the operating system.

84 Chapter 5 Setup Utility

Setup Utility menus

The menu tables in this section provide an overview of Setup Utility options.

NOTE: Some of the Setup Utility menu items listed in this chapter may not be supported by your device.

Main menu

Select To do this

System information

Security menu

Select To do this

Administrator password Enter, change, or delete an administrator password.

Power-On Password Enter, change, or delete a power-on password.

System Configuration menu

Select To do this

Language Support Change the Setup Utility language.

Processor C4 State Enable/disable the processor C4 sleep state.

Boot Options Set the following boot options:

View and change the system time and date.

●

View identification information about the device.

●

View specification information about the processor, memory size,

●

and system BIOS.

f10 and f12 Delay (sec.)―Set the delay for the f10 and f12 functions

●

of the Setup Utility in intervals of 5 seconds each (0, 5, 10, 15, 20).

Internal Network Adapter boot―Enable/disable boot from Internal

●

Network Adapter.

Boot Order―Set the boot order for:

●

Internal hard drive (select models only)

◦

USB Floppy

◦

USB CD/DVD ROM Drive

◦

USB flash drive

◦

USB Hard drive

◦

USB Card Reader

◦

Network adapter

◦

NOTE: Only the devices attached to the system will appear

in the boot order menu.

Setup Utility menus 85

Diagnostics menu

Select To do this

Hard Disk Self Test (select models only) Run a comprehensive self-test on the hard drive.

Memory Test Run a diagnostic test on the system memory.

86 Chapter 5 Setup Utility

6 Specifications

Device specifications

Metric U.S.

Dimensions

Depth

Width 26.17 cm 10.30 in

Height 2.52 cm 0.99 in

Weight

10.1-in. LCD, equipped with a 3-cell battery, hard drive, 1-GB memory, WLAN module, and 2 wireless antennas

10.1-in. LCD, equipped with a 3-cell battery,solid-state drive, 1-GB memory, WLAN module, and 2 wireless antennas

Input power

Operating voltage

Operating current 1.58 A

Temperature

Operating

Nonoperating -20°C to 65°C -4°F to 149°F

Relative humidity (noncondensing)

16.67 cm 6.56 in

1.11 kg 2.45 lb

1.09 kg 2.40 lb

19 V dc @ 1.58 A – 30 W

5°C to 35°C 41°F to 95°F

Operating

Nonoperating 0% to 95%

Maximum altitude (unpressurized)

Operating

Nonoperating -15 m to 12,192 m -50 ft to 40,000 ft

NOTE: Applicable product safety standards specify thermal limits for plastic surfaces. The device operates well within this

range of temperatures.

10% to 90%

-15 m to 3,048 m -50 ft to 10,000 ft

Device specifications 87

10.1-inch, AntiGlare display specifications

Metric U.S.

Dimensions

Height

Width 14.30 cm 5.62 in

Diagonal 25.55 cm 10.05 in

Number of colors 262,144

Contrast ratio 400:1 (typical)

Brightness 200 nits (typical)

Pixel resolution

Pitch

Format Standard–definition: 1024 × 576

Configuration RGB vertical stripe

Backlight Edge lit

Character display 80 × 25

Total power consumption 3.2 W

Viewing angle +/-45° horizontal, +15/-35° vertical (typical)

23.45 cm 9.23 in

0.2175 × 0.2175 mm

High-definition: 1366 × 768

88 Chapter 6 Specifications

10.1-inch, WSVGA, AntiGlare display specifications

Metric U.S.

Dimensions

Height

Width 22.27 cm 8.77 in

Diagonal 25.55 cm 10.06 in

Number of colors 262,144

Contrast ratio 400:1 (typical)

Brightness 200 nits (typical)

Pixel resolution

Pitch

Format 1024 × 600

Configuration RGB vertical stripe

Backlight Edge lit

Character display 80 × 25

Total power consumption 3.0 W

Viewing angle +/-40° horizontal, +20/-40° vertical (typical)

12.53 cm 4.93 in

0.2175 × 0.2175 mm

10.1-inch, WSVGA, AntiGlare display specifications 89

Hard drive specifications

160-GB to 320-GB*

Dimensions

Height

Width 70 mm

Weight 101 g

Interface type PATA

Transfer rate 100 MB/sec

Security ATA security

Seek times (typical read, including setting)

Single track

Average 13 ms

Maximum 24 ms

Logical blocks 117,210,240

Disc rotational speed 5400 rpm

Operating temperature

* 1 GB = 1 billion bytes when referring to hard drive storage capacity. Actual accessible capacity is less. Actual drive specifications may differ slightly.

NOTE: Certain restrictions and exclusions apply. Contact technical support for details.

9.5 mm

3 ms

7200 rpm

90 Chapter 6 Specifications

HP Mini 1101, Mini 110, Mini 110 by Studio Tord Boontje, Compaq Mini 110 Maintenance and Service Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

1 Product description

2 External component identification

Top components

TouchPad

Light

Keys

Front components

Right-side components

Left-side components

Display components

Bottom components

Wireless antennas

3 Illustrated parts catalog

Service tag

Device major components

Display assembly components

Mass storage devices

Miscellaneous parts

Sequential part number listing

4 Removal and replacement procedures

Preliminary replacement requirements

Tools required

Service considerations

Plastic parts

Cables and connectors

Drive handling

Grounding guidelines

Electrostatic discharge damage

Packaging and transporting guidelines

Workstation guidelines

Equipment guidelines

Component replacement procedures

Service tag

Device feet

Battery

Memory module

Keyboard

RTC battery

Mass storage devices

Hard drive

Solid-state drive

Top cover

WLAN module

WWAN module

USB/audio board

Power/battery pass-through board

Heat sink assembly

System board

Display assembly

5 Setup Utility

Starting the Setup Utility

Using the Setup Utility

Changing the language of the Setup Utility

Navigating and selecting in the Setup Utility

Displaying system information

Restoring default settings in the Setup Utility

Exiting the Setup Utility

Setup Utility menus

Main menu

Security menu

System Configuration menu

Diagnostics menu

6 Specifications

Device specifications

10.1-inch, AntiGlare display specifications

10.1-inch, WSVGA, AntiGlare display specifications

Hard drive specifications
