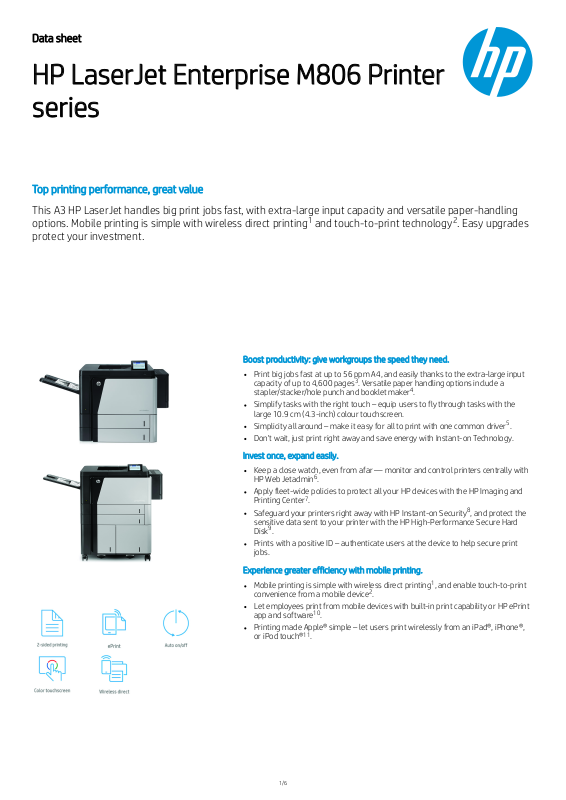

Data sheet

HP LaserJet Enterprise M806 Printer series

Top printing performance, great value

This A3 HP LaserJet handles big print jobs fast, with extra-large input capacity and versatile paper-handling options. Mobile printing is simple with wireless direct printing and touch-to-print technology . Easy upgrades protect your investment.

Boost productivity: give workgroups the speed they need.

Print big jobs fast at up to 56 ppm A4, and easily thanks to the extra-large input capacity of up to 4,600 pages . Versatile paper handling options include a stapler/stacker/hole punch and booklet maker .

Simplify tasks with the right touch – equip users to fly through tasks with the large 10.9 cm (4.3-inch) colour touchscreen.

Simplicity all around – make it easy for all to print with one common driver . Don't wait, just print right away and save energy with Instant-on Technology.

Invest once, expand easily.

Keep a close watch, even from afar — monitor and control printers centrally with HP Web Jetadmin .

Apply fleet-wide policies to protect all your HP devices with the HP Imaging and Printing Center .

Safeguard your printers right away with HP Instant-on Security , and protect the sensitive data sent to your printer with the HP High-Performance Secure Hard Disk .

Prints with a positive ID – authenticate users at the device to help secure print jobs.

Experience greater efficiency with mobile printing.

Mobile printing is simple with wireless direct printing , and enable touch-to-print convenience from a mobile device .

Let employees print from mobile devices with built-in print capability or HP ePrint app and software .

Printing made Apple® simple – let users print wirelessly from an iPad®, iPhone®, or iPod touch® .

1/6

1 2

Page 2

Data sheet | HP LaserJet Enterprise M806 Printer series

Product walkaround

HP LaserJet Enterprise M806x+ Printer

1. Intuitive 10.9 cm (4.3 in) colortouchscreen control panel

2. 500-page output bin

3. Hardware integration pocket (HIP) for solution integration

4. 100-sheet face-up straight-through output bin

5. Easy front-door access to HP all-in-one toner cartridge

6. Built-in automatic two-sided printing

7. Two 500-sheet input trays support media up to A3 (11 x 17 in)

8. 3,500-sheet high-capacity input tray supports A4/letter media

9. Easy-access USB port to print files directly

10. 100-sheet multipurpose tray handles media up to 220 g/m² (53 lb bond)

11. Right-side doors provide access for clearing jams

12. 800 MHz processor, 1 GB standard memory

13. HP High-Performance Secure Hard Disk

14. Access port for optional Kensington-style lock

15. USB port (for connecting third-party devices)

16. Hi-Speed USB 2.0 printing port

17. HP Jetdirect Gigabit Ethernet print server

18. Foreign interface harness (for connecting third-party devices)

Series at a glance

Model HP LaserJet Enterprise M806dn Printer HP LaserJet Enterprise M806x+ Printer

Product number CZ244A CZ245A

100-sheet multipurpose tray Yes

Two 500-sheet A3 input trays Yes

3,500-sheet A4/letter HCI Optional Yes

Booklet maker (CZ285A)* Optional

Two-bin stapler/stacker (CZ994A)* Optional

Two-bin stapler/stacker/hole punch (CZ996A)*

Optional

Touch-to-print and wireless direct mobile printing

Optional

HP High-Performance Secure Hard Disk

Not available Yes

2/6

Page 3

Data sheet | HP LaserJet Enterprise M806 Printer series

Accessories, Supplies and Support

Supplies C2H57A HP LaserJet 220V Maintenance/Fuser Kit (200,000 pages)

CF325X HP 25X High Yield Black Original LaserJet Toner Cartridge (34,500 pages)

Accessories C3F79A HP LaserJet 3500-sheet High-capacity Input Tray

C8091A HP Staple Cartridge Refill

CC383A HP 2-pack 2000-staple Cartridge

CZ285A HP LaserJet Booklet Maker/Finisher CZ994A HP LaserJet Stapler/Stacker

CZ995A HP LaserJet Stapler/Stacker with 2/3 hole punch

J8029A HP Jetdirect 2800w NFC/Wireless Direct Accessory

Service and Support U8C59E HP 3 year Next Business Day with Defective Media Retention LaserJet M806 Hardware Support

U8C60E HP 4 year Next Business Day with Defective Media Retention LaserJet M806 Hardware Support U8C61E HP 5 year Next Business Day with Defective Media Retention LaserJet M806 Hardware Support U8C75PE HP 1 year Post Warranty Next Business Day with Defective Media Retention LaserJet M806 Hardware Support U8C72PE HP 2 year Post Warranty Next Business Day LaserJet Enterprise M806 Hardware Support

Technical specifications

Model HP LaserJet Enterprise M806dn Printer HP LaserJet Enterprise M806x+ Printer

Product number CZ244A CZ245A

Functions Print

Control panel

10.9 cm (4.3") colour LCD with resistive touchscreen; Rotating (adjustable angle) display; Illuminated capacitive Home button (for quick return to the Home menu); Easy access USB; Hardware Integration Pocket

Print technology Laser

Print speed

Black (A4, normal) Up to 56 ppm; Black (A4, duplex): Up to 56 ipm; Black (A3, normal): Up to 28 ppm;

First page out Black (A4, ready): As fast as 8.5 sec;

Print resolution

Black (best): Up to 1200 x 1200 dpi; Technology: HP FastRes 1200 (1200 dpi quality), 600 x 600 dpi with HP Resolution Enhancement technology;

Monthly duty cycle Up to 300,000 pages A4; Recommended monthly page volume: 10,000 to 50,000

Printer smart software features HP ePrint, Apple AirPrint™, Mopria-certified, HP Auto On/Auto Off Technology, FutureSmart Firmware, Hardware Integration Pocket, Easy Access USB

Standard print languages HP PCL 6, HP PCL 5, HP postscript level 3 emulation, native PDF printing (v 1.4)

Fonts and typefaces

105 internal TrueType fonts scalable in HP PCL; 92 internal scalable fonts in HP Postscript Level 3 emulation (Euro symbol built-in); 1 internal Unicode Fonts (Andale Mono WorldType); 2 Internal Windows Vista 8 Fonts (Calibri, Cambria); additional font solutions available via third-party flash memory cards; HP LaserJet Fonts and IPDS Emulation available at hp.com/go/laserjetfonts

Print area Print margins Top: 2.0 mm, Bottom: 2.0 mm, Left: 2.0 mm, Right: 2.0 mm;

Duplex printing Automatic (standard)

3/6

Page 4

Data sheet | HP LaserJet Enterprise M806 Printer series

Model HP LaserJet Enterprise M806dn Printer HP LaserJet Enterprise M806x+ Printer

Product number CZ244A CZ245A

Processor speed 800 MHz

Connectivity

Standard

2 Hi-Speed USB 2.0 Host; 1 Hi-Speed USB 2.0 Device; 1 Gigabit Ethernet 10/100/1000T network; 1 Foreign Interface; 1 Hardware Integration Pocket; 2 Internal USB Host

Optional

HP Jetdirect 2800w NFC & Wireless Direct Accessory, HP Jetdirect 2700w USB Wireless Print Server, HP Jetdirect ew2500 802.11g Wireless Print Server. For more information on HP networking solutions visit hp.com/go/jetdirect

Wireless Optional, enabled with purchase of a hardware accessory

Mobile printing capability HP ePrint; Apple AirPrint™; Mopria™-certified; Mobile Apps

Supported network protocols

IPv4/IPv6: Apple Bonjour (AirPrint) compatible, SNMPv1/v2c/v3, HTTP, HTTPS, FTP, TFTP, Port 9100, LPD, IPP, Secure-IPP, WS Discovery, WS Print, IPsec/Firewall; IPv6: DHCPv6, MLDv1, ICMPv6; IPv4: Auto-IP, SLP, Telnet, IGMPv2, BOOTP/DHCP, WINS, IP Direct Mode Management security: SNMPv3, SSL/TLS (HTTPS), IPsec/Firewall; Port authentication (802.1x EAP-PEAP, EAP-TLS)

Network capabilities Standard (built-in Ethernet)

Hard disk Standard, 8 GB Solid State Drive (SSD) 320 GB

Memory Standard: 1 GB; Maximum : 1.5 GB

Media handling

Number of paper trays Standard: 3 ; Maximum: 5 Standard: 5 ; Maximum: 5

Media types Paper (bond, colour, letterhead, plain, preprinted, prepunched, recycled, rough), labels, cardstock, transparencies

Media size

Custom (metric): Tray 1: 98 x 191 to 312 x 470 mm; Tray 2/3: 148 x 210 to 297 x 431.8 mm; Optional High-capacity Input, Tray 4/5: 210 to 297 mm ; Supported (metric): Tray 1: A3, A4, A5, RA3, B4, B5, postcards (JIS double), envelopes (DL, C5, B5); Tray 2/3: A3, A4, A5, B4, B5; Optional High-capacity Input, Tray 4/5: A4 only

Custom (metric): Tray 1: 98 x 191 to 312 x 470 mm; Tray 2/3: 148 x 210 to 297 x 431.8 mm; High-capacity Input, Tray 4/5: 210 to 297 mm ; Supported (metric): Tray 1: A3, A4, A5, RA3, B4, B5, postcards (JIS double), envelopes (DL, C5, B5); Tray 2/3: A3, A4, A5, B4, B5; Highcapacity Input, Tray 4/5: A4 only

Media handling

Standard input: Two 500-sheet input trays, 100-sheet multipurpose tray Standard output: 500 sheet face-down tray, 100 sheet face-up tray Optional input: Optional 3500-sheet High-capacity tray

Standard input: Two 500-sheet input trays, 100-sheet multipurpose tray, 3500-sheet High-capacity Input Tray Standard output: 500 sheet face-down tray, 100 sheet face-up tray

Media weight

Tray 1: 60 to 220 g/m²; Tray 2/3, 60 to 199 g/m²; Optional High-capacity Input, Tray 4/5: 60 to 199 g/m²;

Tray 1: 60 to 220 g/m²; Tray 2/3, 60 to 199 g/m²; High-capacity Input, Tray 4/5: 60 to 199 g/m²;

Input capacity

Tray 1: Sheets: 100; Envelopes: 100; Labels: 100 Tray 2: Sheets: 500 Tray 3: Sheets: 500; Labels: small quantities; Optional High-capacity Input tray, Tray 4: 1,500 sheets (A4 only); Tray 5: 2,000 sheets (A4 only) Maximum: Up to 4,600 (A4) and 2,600 (A3) sheets

Tray 1: Sheets: 100; Envelopes: 100; Labels: 100 Tray 2: Sheets: 500 Tray 3: Sheets: 500; Labels: small quantities; High-capacity Input tray, Tray 4: 1,500 sheets (A4 only); Tray 5: 2,000 sheets (A4 only) Maximum: Up to 4,600 (A4) and 2,600 (A3) sheets

Output capacity

Standard: Up to 600 sheets Transparencies: Up to 100 sheets Maximum: Up to 3,000 sheets (with optional stapler/stacker, stapler/stacker with hole punch, or stapler/stacker with booklet maker)

4/6

Page 5

Data sheet | HP LaserJet Enterprise M806 Printer series

Model HP LaserJet Enterprise M806dn Printer HP LaserJet Enterprise M806x+ Printer

Product number CZ244A CZ245A

Compatible operating systems

Windows 10 (32-bit/64-bit), Windows 8 (32-bit/64-bit), Windows 7 (32-bit/64-bit), Windows Vista (32-bit/64-bit), Windows Server 2012 (64-bit), Windows Server 2008 (32-bit/64-bit), Windows Server 2008 R2 (64-bit), Windows Server 2003 (SP1 or higher) (32-bit/64-bit); Mac OS X version

10.6.8, 10.7.5 Lion, 10.8 Mountain Lion; For the latest operating system support see: AirPrint™ (htttp://support.apple.com/kb/ht4356), Android (htttp://www.android.com), Citrix and Windows Terminal Services (htttp://www.hp.com/go/upd), HP ePrint Software Driver (htttp://www.hp.com/go/eprintsoftware), Linux (htttp://www.hplip.net), Novell (htttp://www.novell.com/iprint), SAP device types (htttp://www.hp.com/go/sap/drivers), SAP Print (htttp://www.hp.com/go/sap/print), UNIX (htttp://www.hp.com/go/unix), UNIX JetDirect (htttp://www.hp.com/go/jetdirectunix_software)

Compatible network operating systems

Windows 10 (32-bit/64-bit), Windows 8.1 (32-bit/64-bit); Windows 8 Basic (32-bit/64-bit); Windows 8 Pro (32-bit/64-bit); Windows 8 Enterprise (32-bit/64-bit); Windows 8 Enterprise N (32-bit/64-bit); Windows 8 Enterprise RT (32-bit only); Windows 7 (32-bit/64-bit) (Including Starter Edition); Windows Vista (32-bit) (Including Starter Edition); Windows Vista (64-bit); Windows Server 2012 R2; Windows Server 2012 (no Software Installer support); Windows Server Win7/2008 R2 (SP1); Windows Server 2008 (Standard Edition); Windows Server 2008 (Enterprise Edition); Windows Server 2008 (32-bit/64-bit) (SP1); Windows Server 2008 (32-bit/64-bit) (SP2); Windows Server 2008 R2 (32-bit/64-bit) (Standard Edition, Enterprise Edition); Windows Server 2008 Server Terminal Services; Windows Server 2008 Server Terminal Services with Citrix XenApp; Windows Server 2003 (Standard Edition); Windows Server 2003 (Enterprise Edition); Windows Server 2003 (32-bit/64-bit) (SP1); Windows Server 2003 (32-bit/64-bit) (SP2); Windows Server 2003 R2 (32-bit/64-bit) (Standard Edition, Enterprise Edition); Windows Server 2003 Server Terminal Services; Windows Server 2003 Server Terminal Services with Citrix Presentation Server 4.0; Windows Server 2003 Server Terminal Services with Citrix Presentation Server 4.5; Novell NetWare 6; Novell NetWare 6.5 (SP8 minimum for full Windows Vista, Windows 7); Novell iPrint Client v5.4 for Windows Vista and Windows 7, (x86 and x64); Novell iPrint Support Only; Novell Open Enterprise Server 2 (Linux); Novell Open Enterprise Server 6.5; Other Citrix (Print): Citrix XenApps 6.0, Xen Server 5.6, Xen Desktop 5.5; Other Cluster Support; Mac 10.5; Mac 10.6.8; Mac 10.7.5; Mac 10.8.x; Mac 10.9.x; For Linux OS versions, refer to the HP Linux web site: http://hplipopensource.com/hplip-web/index.html; Unix HPUX 11i; IBM AIX 3.2.5 or higher; MPE-iX; Citrix MetaFrame Server; Red Hat Linux 7.x or higher; Solaris 2.5 or higher (SPARC systems only); SuSe Linux 8.x or higher (for Microsoft IPv6 compatibility use Windows 2003, and Windows Vista)

Minimum system requirements

Windows: Windows 10, Windows 8, Windows 7 SP1+, Windows Vista, Windows Server 2012 (64-bit), Windows Server 2008, Windows Server 2008 R2 (64 bit), Windows Server 2003 (SP1+): 200 MB available hard disk space, CD-ROM/DVD drive or Internet connection, dedicated USB 1.1/2.0 or network connection (for OS compatible hardware system requirements see http://www.microsoft.com); Mac: Mac OS X v10.6.8, OS X 10.7.5 Lion, OS X 10.8 Mountain Lion; 1 GB of available hard-disk space; CD-ROM or DVD drive, or Internet connection; Dedicated universal serial bus (USB 1.1 or 2.0) or network connection (operating system compatible hardware system requirements see http://apple.com)

Software included HP PCL 6 Discrete Printer Driver, Mac SW Link to Web (Mac Installer), Windows Installer

Security management

Identity Management: Kerberos authentication, LDAP authentication, 1000 user PIN codes, optional HP and 3rd party advanced authentication solutions (e.g., badge readers); Network: IPSec/firewall with Certificate, Pre-Shared Key, and Kerberos authentication, Supports WJA-10 IPsec configuration Plug-in, WPA2-Enterprise, 802.1X authentication (EAP-PEAP, EAP-TLS), SNMPv3, HTTPS, Certificates, Access Control List; Data: Storage Encryption, Secure Erase, SSL/TLS, Encrypted Credentials; Device: Security lock slot, USB port disablement, Hardware Integration Pocket for security solutions; Security Management: Compatible with HP Imaging & Printing Security Center

Printer management HP Web Jetadmin; HP Utility (Mac)

Dimensions and weight

Printer dimensions (W x D x H) Minimum 1095 x 648 x 635 mm; Maximum: 1390 x 648 x 655 mm; Minimum 1095 x 715 x 1040 mm; Maximum: 1390 x 715 x 1065 mm;

Package dimensions (W x D x H) 856 x 760 x 978 mm 856 x 790 x 1368 mm

Printer weight 76.1 kg 108.4 kg

Package weight 88.84 kg 130.67 kg

Operating environment Temperature: 10 to 32.5ºC; Humidity: 10 to 80% RH

Storage Temperature: 0 to 40ºC; Humidity: 10 to 90% RH

Acoustics Acoustic power emissions: 7.2 B(A); Acoustic pressure emissions: 55 dB(A)

Power

Requirements: Input Voltage: 220 to 240 VAC, 50/60 Hz, 5.5 A; Consumption: 1000 watts (printing), 38 watts (ready), 6.5 watts (sleep), 2.2 watts (Auto On/Auto Off), 0.3 watts (off); Typical Electricity Consumption (TEC): 4.59 kWh/Week (110/220 V); 3.8 kWh/Week (Blue Angel); Power supply type: Built-in power supply;

Certifications

CISPR 22:2008/EN 55022:2010 (Class A); EN 61000-3-2:2006 +A1:2009 +A2:2009; EN 61000-3-3:2008; EN 55024:2010; EMC Directive 2004/108/EC with CE Marking (Europe); Other EMC approvals as required by individual countries ENERGY STAR® qualified; EPEAT® Silver; CECP Blue Angel compliant No; Please refer to the ECI document

What's in the box

HP LaserJet M806dn Printer; HP Black LaserJet Toner Cartridge (34,500 pages); Hardware install guide; Support flyer; Warranty card; Printer documentation and driver on CD-ROM; Power cord

HP LaserJet Enterprise M806x+ Printer; HP Black LaserJet Toner Cartridge (34,500 pages); Hardware install guide; Support flyer; Warranty card; Printer documentation and driver on CD-ROM; Power cord

Warranty

One-year, next-business day, onsite warranty. Warranty and support options vary by product, country and local legal requirements. Go to http://www.hp.com/support to learn about HP award winning service and support options in your region.

5/6

Page 6

Data sheet | HP LaserJet Enterprise M806 Printer series

Footnotes

Wireless direct printing may be added as an option to the HP LaserJet Enterprise M806dn and M806x+ CZ245A. Mobile device may require an app or driver. Wireless performance is dependent on physical environment

and distance from the printer. For details, see hp.com/go/wirelessprinting.

Touch-to-print capability may be added as an option to the HP LaserJet Enterprise M806dn and M806x+ CZ245A. Mobile device must support near field communications-enabled printing. Maximum paper capacity of 4,600 sheets is standard in the HP LaserJet Enterprise M806x+ CZ245A and available in the HP LaserJet Enterprise M806dn model with the optional 3,500-sheet high-capacity input tray. 2 bin stapler/stacker, 2 bin stapler/stacker/hole punch and booklet maker are optional accessories. Please purchase separately. The HP Universal Print Driver is free and available for download at hp.com/go/upd. HP Web Jetadmin is free and available for download at hp.com/go/webjetadmin. HP Imaging and Printing Security Center must be purchased separately. HP Instant-on Security is part of HP Imaging and Printing Security Center, which must be purchased separately. HP High-Performance Secure Hard Drive is not available on the HP LaserJet Enterprise M806dn and can't be purchased separately.

Local printing requires mobile device and printer to be on the same network or have a direct wireless connection to printer. Wireless performance is dependent upon physical environment and distance from access point. Wireless operations are compatible with 2.4 GHz operations only. Remote printing requires an Internet connection to an HP Web-connected printer. App or software and HP ePrint account registration may also be required. Wireless broadband use requires separately purchased service contract for mobile devices. Check with service provider for coverage and availability in your area. See hp.com/go/mobileprinting for more details.

Supports OS X® Lion, OS X Mountain Lion, and the following devices running iOS 4.2 or later: iPad® (all models), iPhone® (3GS or later), and iPod touch® (third generation or later). Works with HP's AirPrint-enabled printers and requires the printer be connected to the same network as your OS X or iOS device. Wireless performance is dependent on physical environment and distance from the access point. OS X, iPad, iPhone, and iPod touch are trademarks of Apple® Inc., registered in the United States and other countries. AirPrint™ and the AirPrint logo are trademarks of Apple Inc.

The product could differ from the images shown. © Copyright 2018 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
