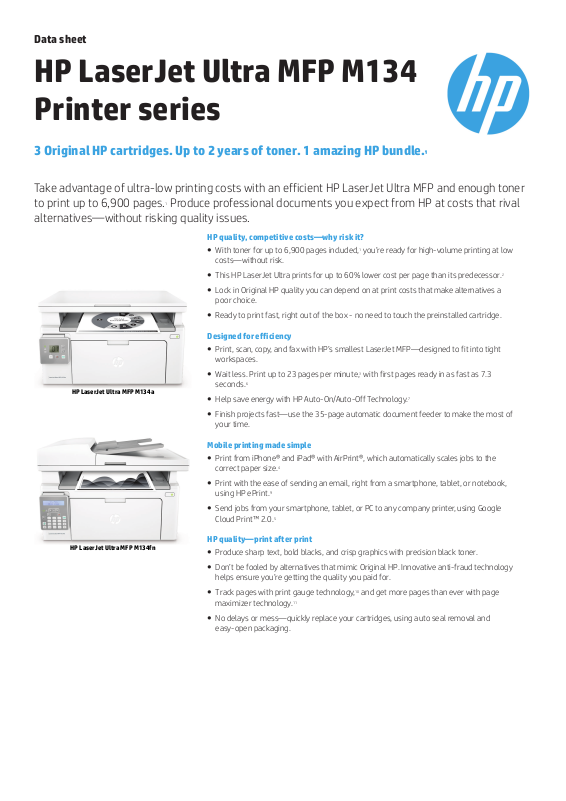

HP m134 Datasheet

Page 1

Data sheet

HP LaserJet Ultra MFP M134 Printer series

3 Original HP cartridges. Up to 2 years of toner. 1 amazing HP bundle.

Take advantage of ultra-low printing costs with an efficient HP LaserJet Ultra MFP and enough toner to print up to 6,900 pages.1Produce professional documents you expect from HP at costs that rival alternatives—without risking quality issues.

HP quality, competitive costs—why risk it?

●

With toner for up to 6,900 pages included,1you’re ready for high-volume printing at low costs—without risk.

HP LaserJet Ultra MFP M134a

●

This HP LaserJet Ultra prints for up to 60% lower cost per page than its predecessor.

●

Lock in Original HP quality you can depend on at print costs that make alternatives a poor choice.

●

Ready to print fast, right out of the box - no need to touch the preinstalled cartridge.

Designed for efficiency

●

Print, scan, copy, and fax with HP’s smallest LaserJet MFP—designed to fit into tight workspaces.

●

Wait less. Print up to 23 pages per minute,3with first pages ready in as fast as 7.3 seconds.

●

Help save energy with HP Auto-On/Auto-Off Technology.

●

Finish projects fast—use the 35-page automatic document feeder to make the most of your time.

HP LaserJet Ultra MFP M134fn

Mobile printing made simple

●

Print from iPhone® and iPad® with AirPrint®, which automatically scales jobs to the correct paper size.

●

Print with the ease of sending an email, right from a smartphone, tablet, or notebook, using HP ePrint.

●

Send jobs from your smartphone, tablet, or PC to any company printer, using Google Cloud Print™ 2.0.

HP quality—print after print

●

Produce sharp text, bold blacks, and crisp graphics with precision black toner.

●

Don’t be fooled by alternatives that mimic Original HP. Innovative anti-fraud technology helps ensure you’re getting the quality you paid for.

●

Track pages with print gauge technology,10and get more pages than ever with page maximizer technology.

●

No delays or mess—quickly replace your cartridges, using auto seal removal and easy-open packaging.

Page 2

Data sheet | HP LaserJet Ultra MFP M134 Printer series

Product walkaround

HP LaserJet Ultra MFP M134fn

1. 35-sheet ADF

2. Flatbed scanner handles up to 216 by 297 mm paper

3. 100-sheet output bin

4. 2-line LCD control panel

5. Top cover access to toner cartridges

6. Fax port,1 Ethernet port,1 device USB port, 600 MHz processor, access port for optional lock

7. 150-sheet multipurpose tray (shown open)

Series at a glance

Model HP LaserJet Ultra MFP M134a HP LaserJet Ultra MFP M134fn

Product number G3Q66A G3Q67A

35-sheet ADF Not available Yes

Display ICON LCD 2-line LCD

Fax capabilities Not available Yes

Ethernet networking Not available Yes

Page 3

Data sheet | HP LaserJet Ultra MFP M134 Printer series

HP Services

Downtime can have serious consequences, so HP provides support beyond the standard warranty. You benefit from reduced risk, maximized uptime, predictable service delivery and no unbudgeted repair costs.

Choose from:

Optimized Care (optimum performance and stability):

4 hour Onsite Support, Maintenance Kit Replacement Service, Installation with Network Configu ation Service

Standard Care (high level of uptime):

Next Business Day Onsite Support, Maintenance Kit Replacement Service, Installation with Network Configuration Service

Basic Care (minimum recommended support):

Next Business Day Onsite Support

4 hr Onsite Support:

Onsite support within four hours after a service call received within the coverage window

Next Business Day Onsite Support:

Onsite service the next business day after the service call is received

Maintenance Kit Replacement Service:

Onsite replacement of your printer´s maintenance kit including parts, materials, and labor

Installation with Network Configuration Service:

Assembly, network configu ation, and basic administrator familiarization For more information about HP Care Pack, HP Contractual, or HP Managed Print Services, visit hp.com/go/printservices

Top Features

Don’t risk quality on cheap toner: Avoid frustrating reprints with enough precision black toner included for up to 6,900 consistent, professional pages.1This HP LaserJet Ultra MFP delivers up to 60% lower cost per page than its predecessor.

Help save energy. This efficient HP LaserJet Ultra multifunction laser printer quickly prints, scans, copies, and faxes while helping to keep energy costs low, so you save resources.

Mobile printing is easier than ever with HP. Print with minimal steps from a broad range of mobile devices—smartphones, tablets, and notebooks.

Count on consistent results with Original HP toner cartridges designed to work flawlessly with this HP LaserJet Ultra MFP. Precision black toner is specially formulated to help this HP multifunction laser printer work its best.

Product

G3Q66A HP LaserJet Ultra MFP M134a G3Q67A HP LaserJet Ultra MFP M134fn

Replacement cartridges

CF233A HP 33A Black Original LaserJet Toner Cartridge (2,300 pages) CF234A HP 34A Original LaserJet Imaging Drum (9,200 pages)

HP Care Packs

UH757E UH773E UH769E UH764E

Protect your investment with HP Care Pack. Let HP certified engineers resolve your technical issues. For more details on HP Care Pack, go to hp.com/go/cpc

Paper

Contact HP via phone: Asia: 65 6253 8500

Solutions

HP Web Jetadmin: hp.com/go/wja HP Universal Print Driver: hp.com/go/upd HP Imaging and Printing Security Center: hp.com/go/ipsc

HP 3 year Care Pack w/Next Day Exchange for LaserJet Printers HP 3 year Care Pack w/Onsite Exchange for LaserJet Printers HP 3 year Care Pack w/Pickup and Return Support for LaserJet Printers HP 3 year Care Pack w/Return to Depot Support for LaserJet Printers

Page 4

Data sheet | HP LaserJet Ultra MFP M134 Printer series

HP LaserJet Ultra MFP M134 Printer series

Model

Product number

Functions

Duplex printoptions

Print speed

First pageout

Print technology

Print resolution

Print resolutiontechnology

Print cartridgesnumber

Standard printlanguages

Printer management

Scan

Scan type technology

Scan speed

Scan size

Scan inputmode

Scan fileformat

Copy

Copy smartsoftware features

Copy speed

Copy resolution

Max no of copies

Copier resize

Copier settings

Fax

Fax memory

Fax resolution

Fax features

Connectivity

Standard connectivity

Mobile printcapability

Network ready

Wireless capability

Memory

Processor speed

Duty cycle(monthly)

Paper handling

Input

Output

Media type

Media weight

Media sizescustom

Dimensions (Wx D x H)

Weight

What´s inthe box

Warranty features

Systems

Compatible operatingsystems

Minimum systemrequirements

Control panel

Power

Software included

Acoustics

Environmental ranges

Safety approvalsand requirements

HP LaserJetUltra MFP M134a HP LaserJetUltra MFP M134fn

G3Q66A G3Q67A

Print, copy, scan Print, copy, scan, fax

Manual duplex

Black (normal,A4): Up to 22 ppm;Black (normal letter):Up to 23 ppm

Black (A4,ready): As fast as7.3 sec; Black (A4,sleep): As fast as8.1 sec

Laser

Black (best):Up to 600 x 600dpi, HP FastRes1200 (1200 dpi quality); Black(normal): Up to 600x 400 dpi, HP FastRes 600 (600 dpi quality)

HP FastRes600, HP FastRes 1200

3 Black

PCLmS, URF, PWG

HP Printer Assistant (UDC); HP Device Toolbox; HP Utility (Mac)

Type: Flatbed; Technology: CIS

Normal, A4: Not supported Normal, A4: Upto 12 ppm

Flatbed: 215.9 x297 mm

Scanning via HPLaserJet Software Scan orTWAIN-compliant or WIA-compliant software

JPG, RAW (BMP), PNG, TIFF, PDF

Not supported ID Copy

Black (normal,A4): Up to 22 cpm;Black (normal, letter):Up to 23 cpm

Black (textand graphics): 600 x400 dpi

Up to 99copies

25 to 400%

Number of Copies; Lighter/Darker; Optimize;Paper; Multi-Page Copy;Draft Mode

No Fax memory(A4): Up to 1,000pages; Fax memory (letter): Up to 1,000pages

No Up to 300x 300 dpi (halftoneenabled)

Not suppported Auto faxreduction supported: Yes;Auto-redialing: Yes; Fax delayed sending: Yes; Distinctive ring

1 Hi-SpeedUSB 2.0 (device) 1Hi-Speed USB 2.0 (device); 1 Ethernet 10/100Base-TX; 1 phone line (in);1 phone line (out)

No Apple AirPrint™;HP ePrint; Google CloudPrint 2.0; Mopria-certified

No Standard (built-in Ethernet)

Standard: 128MB; Maximum: 128 MB Standard: 256MB; Maximum: 256 MB

600 MHz

Up to 20,000pages; Recommended monthlypage volume9: 250 to2,500

150-sheet input tray

100-sheet output tray

Paper (laser, plain, photo,rough, vellum), envelopes, labels, cardstock, postcards

60 to 163g/m²

76 x 127to 216 x 356mm

398 x 288x 231.1 mm 415.1 x 288 x 279.5mm

6.8 kg 7.6 kg

HP LaserJet Ultra MFP M134a; HP Black LaserJet Toner Cartridges ~6,900 pages; HP LaserJetImaging Drum ~9,200 pages; Power cord; USB cable(AP); Getting started guide;Set up poster; Supportflyer; Warranty documents (CN, Indo, AU, Mex, BR,AG); Printer documentation and software on CD-ROM; Erratadeclaration (some countries)

One-year limitedwarranty

Windows® 10, 8.1,8, 7: 32-bit or64-bit, 2 GB availablehard disk space, CD-ROM/DVDdrive or Internet connection,USB port, Internet Explorer;Windows Vista®: (32-bit only),2 GB available hard disk space, CD-ROM/DVD drive or Internet connection, USB port, InternetExplorer 8; Windows®XP SP3 or higher (32-bitonly): any Intel® Pentium®II, Celeron® or 233MHz compatible processor, 850 MBavailable hard disk space, CD-ROM/DVD drive or Internet connection, USB port, InternetExplorer 8; Apple®OS X EI Capitan (v10.11)OS X Yosemite(v10.10) OS X Mavericks(v10.9), OS XMountain Lion(v10.8); 1 GB HD; Internetrequired; USB; Linux (Formore information, seehttp://hplipopensource.com/hplip-web/index.html)

PC: Microsoft® Windows® 10, 8.1, 8, 7:32-bit or 64-bit, 2 GBavailable hard diskspace, CD-ROM/DVD drive orInternet connection, USB port,Microsoft® Internet Explorer; WindowsVista®: (32-bit only), 2GB available hard disk space,CD-ROM/DVD drive or Internetconnection, USB port, Microsoft®Internet Explorer 8; Windows®XP SP3 or higher (32-bitonly): any Intel® Pentium® II, Celeron® or233 MHz compatible processor, 850MB available harddisk space, CD-ROM/DVD drive or Internet connection, USBport, Microsoft® Internet Explorer 8 Mac: Apple®OSX EI Capitan (v10.11) OSX Yosemite (v10.10)OS X Mavericks (v10.9);1 GB HD; Internet required; USB

ICON LCD:Dual digit numeric LCDdisplay; Buttons (Up,Down, Cancel, Start Copy, Copy Setup); 3LED indicator lights (Ready, Attention, Toner); Copy setting icons(Copies,Darker/Lighter, Reduce/Enlarge)

Power supply type: Internal; Power supply required: 110-volt input voltage: 110 to 127 VAC (+/- 10%), 60 Hz/50 Hz, 4.8 A; 220-volt input voltage: 220 to 240 VAC (+/- 10%), 60 Hz/50 Hz, 2.8 A; Power consumption2: 255 watts (active printing), 4.2 watts (ready),1.0 watts (sleep), 0.7 watts (Auto Off/Wake on USB, enabled at shipment); Typical Electricity Consumption number: BA: 0.627 kWh/Week; ES:

0.573 kWh/Week

For WindowsOS: HP Software Installer, HP Software Uninstaller (excludeWin8+), HP PCLmS Printer Driver, HP DeviceExperience (DXP), HPWeb Services Assist (HPConnected), Device Setup &Software, Online user manuals, HP PrinterAssistant, HP Scan Driver, HP ScanApplication, HP Fax Driver(4:1 bundle only),HP Fax Application (4:1bundle only), HP ProductImprovement Study; ForMac OS: Welcome Screen, (Directs users to HP.com or OS App Source forLaserJet Software)

Accoustic Power Emissions: 6.5 B(A)(printing at 23 ppm); Acoustic Power Emissions(ready): 2.6 B(A); AcousticPressure Emissions Bystander (active, printing): 51dB(A); Acoustic PressureEmissions Bystander (ready): 16dB(A)

Operating Temperature Range: 15 to32.5ºC; Recommended OperatingTemperature: 17.5 to25ºC; Non-operating Humidity Range:10 to 90% RH;Operating Humidity Range: 10to 80% RH; Recommended Operating HumidityRange: 30 to 70%RH

IEC 60950-1:2005 +A1:2009+A2:2013/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013;IEC 60825-1:2007 / EN 60825-1:2007(Class 1 Laser/LEDProduct); IEC 62479:2010 / EN62479:2010; GB4943-2011

detection supported:Yes; Fax forwarding supported: Yes;Junk barrier supported: Yes; Maximum speed dialingnumbers: Up to 120 numbers(119 group dials); PCinterface supported: Yes; Fax polling supported: Yes(poll to receiveonly)

HP LaserJet Ultra MFP M134fn; HP Black LaserJet Toner Cartridges ~6,900 pages; HP LaserJetImaging Drum ~9,200 pages;Power cord; Phonecord; USB cable (AP);Getting started guide; Setup poster; Support flyer; Warrantydocuments (CN, Indo, AU, Mex, BR, AG); Printerdocumentation and software onCD-ROM; Errata declaration(some countries )

2-line LCDwith Alphanumeric keypad: 2-lineLCD text display;Buttons(OK, Back, Forward/Backward,Cancel, Number of Copy, Darker/Lighter, Copy Menu, Start Copy, Main Setup, Redial, Alphanumeric Keypad, Start Fax);2 light-emittingdiode (LED) indicator lights(Ready, Attention).

Page 5

Footnotes

Declared yields based onISO/IEC 19798 and continuous printing. Actual yields vary considerably based on images printed and other factors. Learn more at http://www.hp.com/go/learnaboutsupplies.

Cost per page (CPP)comparison between HP LaserJet Ultra and predecessor HP printers and MFPs based on published specifications of the manufacturers’ highest capacity cartridges and long-life consumables. CPP based on page yield andmanufacturer’s suggested retail price (MSRP) fortheconsumables. Actual prices may vary. ISO yield based oncontinuous printing in default mode. For more information, see http://www.hp.com/go/learnaboutsupplies

Printing speed measured using ISO/IEC 24734 and excludes first set of test documents. Exactspeed varies depending on the system configuration, software application, driver, and document complexity. Learn more at http://www.hp.com/go/printerclaims.

Mobile device must haveAirPrint® 1.5. Wireless operations are compatiblewith 2.4 GHz operations only. Learn more at http://www.hp.com/go/mobileprinting.

Requires Google Cloud Print™ registration and Google account. Learnmore at http://www.hp.com/go/mobileprinting

Measured using ISO/IEC17629.Exact speed varies depending on the system configuration, software application, driver, and document complexity. Learn more at http://www.hp.com/go/printerclaims.

HP Auto-On/Auto-Off Technology capabilities are subject to printerand settings.

App or software and HP ePrintaccount registration may be required. Some features require purchase of an optional accessory. Learn more at http://www.hp.com/go/mobileprinting

Printer requires ePrint account registration. App or software may be required. Learn more at http://www.hp.com/go/mobileprinting

As compared with cartridge gaugesfor HP predecessor products.

Based on ISO/IEC 19752 cartridge yields for HP 33A Black Original LaserJet TonerCartridges compared with HP 83A Black Original LaserJet Toner Cartridges. Learn more at http://www.hp.com/go/learnaboutsupplies.

Product Walkaround disclaimers

35-sheet ADF, 2-line LCD control panel, fax capabilities,and Ethernet networking only available with the M134fn model.

Technical specification disclaimers

Qty: 3, HP Original Black LaserJet Toner Cartridges (~6,900 yield total), HP 34A Original LaserJetImaging Drum (~9200 yield). Actual yields vary considerably basedonimages printed and other factors. For details

see http://www.hp.com/go/learnaboutsupplies.

Power requirements are based on the country/region where the printer issold. Do not convert operating voltages. This will damage the printer and void the product warranty. Powerconsumption values typically

based on measurement of 115Vdevice.

Power requirements are based on the country/region where the printer issold. Do not convert operating voltages. This will damage the printer and void the product warranty.

Based on the BA TEC method with thefollowing possible exceptions: 1 minute orless sleep delay setting, Wi-Fi disabled.

Declared yield valuein accordance with ISO/IEC 19752 and continuous printing.Actual yields vary considerably based on images printed andother factors. For details see

http://www.hp.com/go/learnaboutsupplies.

Declared yield valuein accordance with ISO/IEC 19752 and continuous printing.Actual yields vary considerably based on images printed andother factors. For details see

http://www.hp.com/go/learnaboutsupplies.

HP SureSupply alerts you when your print cartridge is running low and helps youpurchase online or locally through HP or a participatingretailer. Only available with Original HP supplies; Internet access required. To

learn more, visit http://www.hp.com/go/SureSupply.

Duty cycle is defined as the maximum numberof pages per month of imaged output. This value provides a comparison of product robustness in relation to other HP LaserJet or HP Color LaserJet devices,and

enables appropriate deployment of printers and MFPs to satisfy the demands ofconnected individuals or groups.

HP recommends that the number ofprinted pages per month be within the stated range foroptimum device performance, based on factors including suppliesreplacement intervals and device life over an

extended warranty period.

Measured using ISO/IEC24734,excludes first set of test documents. For moreinformation see http://www.hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application, driver, and document complexity.

Measured using ISO 24734 Feature Test, A5 Landscape Feed. Speed mayvary based on content, PC, media orientation, and media type.

Measured using ISO/IEC17629.For more information see http://www.hp.com/go/printerclaims. Exact speed varies depending onthesystem configuration, software application, driver, and document complexity.

First Copy Out and Copy Speed measured using ISO/IEC 29183, excludes firstset of test documents. For more information see http://www.hp.com/go/printerclaims. Exactspeed varies depending on the system configuration, software application,driver, and document complexity.

Based on standard ITU-T test image #1 at standard resolution.More complicated pages or higher resolution will increase the transmission time.

HP recommends that the number ofscanned pages per month be within the stated range for optimumdevice performance

Not supporting Windows® XP (64-bit) and WindowsVista® (64-bit); Not all "Compatible Operating Systems"are supported with INBOX software; Full solutionsoftware available only for Windows 7 and newer; Legacy Windows Operation Systems (XP, Vista, and equivalent servers) drivers only; For Windows Server 2003 32-bit and 2008 32-bitand 64-bit, 2008 R2 64-bit, 2012 64-bit, 2012 R2 64-bit only drivers (print/scan/fax) areinstalled; Windows RT OS for Tablets (32- & 64-bit) uses a simplified HP print driver builtinto the RT OS; Linux systems use in-OS HPLIP software

To learn more, visit hp.com

© Copyright 2018 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Published in APJ 4AA6-6308EEAP November 2018
