HP K109a User Manual

HP Deskjet Ink Advantage Printer series - K109

1 How Do I?..................................................................................................................................3

2Get to know the HP Printer

Printer parts................................................................................................................................5

Control panel features................................................................................................................6

3Print

Print documents..........................................................................................................................7

Print photos.................................................................................................................................8

Print envelopes.........................................................................................................................10

Print on specialty media...........................................................................................................11

Print a Web page......................................................................................................................17

5 Work with cartridges

Check the estimated ink levels.................................................................................................25

Order ink supplies.....................................................................................................................26

Automatically clean print cartridges..........................................................................................27

Replace the cartridges..............................................................................................................27

Use ink-backup mode...............................................................................................................29

Cartridge warranty information.................................................................................................30

6 Solve a problem

HP support................................................................................................................................31

Setup troubleshooting...............................................................................................................32

Print troubleshooting.................................................................................................................36

Errors........................................................................................................................................42

8 Technical information

Notice........................................................................................................................................47

Specifications...........................................................................................................................47

Environmental product stewardship program...........................................................................48

Regulatory notices....................................................................................................................51

Index..............................................................................................................................................55

Contents

1How Do I?

Learn how to use your HP Printer

Load media

• Replace the cartridges

•

How Do I?

How Do I? 3

How Do I?

Chapter 1

4 How Do I?

2 Get to know the HP Printer

• Printer parts Control panel features

•

Printer parts

1 Control panel

2 Paper-width guide

3 Paper tray

4 Paper tray extender (also referred to as the tray extender)

5 Paper stop

6 Cartridges

7 Front access door

8 Rear USB port

9 Power connection: Use only with the power adapter supplied by HP.

10 Rear access door

Printer parts 5

Get to know the HP Printer

Chapter 2

Control panel features

1 On: Turns the product on or off. When the product is off, a minimal amount of power is still

used. To completely remove power, turn off the product, then unplug the power cord.

2 Resume: Instructs the HP Printer to continue after a problem is solved.

3 Cancel: Stops the current operation.

4 Ink status lights: Lights are on when the ink is low, and flash when the print cartridge needs

to be serviced.

Get to know the HP Printer

6 Get to know the HP Printer

3Print

Choose a print job to continue.

Print documents

Print photos

Print envelopes

Print on specialty media

Print a Web page

Related topics

Load media

• Recommended papers for printing

•

Print documents

Most print settings are automatically handled by the software application. You need to change the settings manually only when you change print quality, print on specific types of paper or transparency film, or use special features.

To print from a software application

1. Make sure you have paper loaded in the input tray.

2. On the File menu in your software application, click Print.

3. Make sure the product is the selected printer.

4. If you need to change settings, click the button that opens the Properties dialog box.

Depending on your software application, this button might be called Properties, Options, Printer Setup, Printer, or Preferences.

NOTE: When printing a photo, you must select options for the specific photo

paper and photo enhancement.

Print

Print documents 7

Chapter 3

5. Select the appropriate options for your print job by using the features available in the

Advanced, Printing Shortcuts, Features, and Color tabs.

TIP: You can easily select the appropriate options for your print job by choosing

one of the predefined print tasks on the Printing Shortcuts tab. Click a type of print task in the Printing Shortcuts list. The default settings for that type of print task are set and summarized on the Printing Shortcuts tab. If necessary, you can adjust the settings here and save your custom settings as a new printing shortcut. To save a custom printing shortcut, select the shortcut and click Save

As. To delete a shortcut, select the shortcut and click Delete.

6. Click OK to close the Properties dialog box.

7. Click Print or OK to begin printing.

Related topics

Print photos

To print a photo on photo paper

1. Remove all paper from the input tray, and then load the photo paper print side down.

2. On the File menu in your software application, click Print.

3. Make sure the product is the selected printer.

4. Click the button that opens the Properties dialog box.

Depending on your software application, this button might be called Properties, Options, Printer Setup, Printer, or Preferences.

5. Click the Features tab.

6. In the Basic Options area, select the appropriate photo paper type from the Paper

Type drop-down list.

8Print

7. In the Resizing Options area, click the appropriate paper size from the Size list.

If the paper size and paper type are not compatible, the product software displays an alert and allows you to select a different type or size.

8. In the Basic Options area, select a high print quality, such as Best, from the Print

Quality drop-down list.

NOTE: For maximum dpi resolution, go to the Advanced tab, and then select

Enabled from the Maximum dpi drop-down list. For more information, see

using the maximum dpi.

9. Click OK to return to the Properties dialog box.

10. (Optional) If you want to print the photo in black and white, click the Color tab and

select the Print in grayscale check box. From the drop-down list, select one of the following options:

• High Quality: uses all the available colors to print your photo in grayscale. This

creates smooth and natural shades of gray.

• Black Ink Only: uses black ink to print your photo in grayscale. The gray shading

is created by varying patterns of black dots, which might result in a grainy image.

11. Click OK, and then click Print or OK in the Print dialog box.

NOTE: Do not leave unused photo paper in the input tray. The paper might start to

curl, which could reduce the quality of your printout. Photo paper should be flat before printing.

To print a borderless image

1. Remove all paper from the paper tray.

2. Place the photo paper print side down on the right side of the paper tray.

3. On the File menu in your software application, click Print.

4. Make sure the product is the selected printer.

5. Click the button that opens the Properties dialog box.

Depending on your software application, this button might be called Properties, Options, Printer Setup, Printer, or Preferences.

6. Click the Features tab.

7. In the Size list, click the size of photo paper loaded in the paper tray.

If a borderless image can be printed on the specified size, the Borderless printing check box is enabled.

Print photos 9

Chapter 3

8. In the Paper Type drop-down list, click More, and then select the appropriate paper

type.

NOTE: You cannot print a borderless image if the paper type is set to Plain

paper or to a type of paper other than a photo paper.

9. Select the Borderless printing check box if it is not already checked.

If the borderless paper size and paper type are not compatible, the product software displays an alert and allows you to select a different type or size.

10. Click OK, and then click Print or OK in the Print dialog box.

NOTE: Do not leave unused photo paper in the paper tray. The paper might start

to curl, which could reduce the quality of your printout. Photo paper should be flat before printing.

Related topics

Load media

• Print using the maximum dpi

• View the print resolution

• Create custom printing shortcuts

• Set the default print settings

• Stop the current job

•

Print envelopes

You can load one or more envelopes into the input tray of the HP Printer. Do not use shiny or embossed envelopes or envelopes that have clasps or windows.

NOTE: For specific details on how to format text for printing on envelopes, consult

the help files in your word processing software. For best results, consider using a label for the return address on envelopes.

To print envelopes

1. Slide the paper guide all the way to the left.

2. Place the envelopes in the right side of the tray. The side to be printed on should face

down. The flap should be on the left side.

3. Push the envelopes into the printer until they stop.

4. Slide the paper guide firmly against the edge of the envelopes.

10 Print

5. Open the Printer Properties dialog box.

6. Click the Features tab, and then select the following print settings:

• Paper Type: Plain paper

• Size: An appropriate envelope size

7. Select any other print settings that you want, and then click OK.

Related topics

Load media

• View the print resolution

• Create custom printing shortcuts

• Set the default print settings

• Stop the current job

•

Print on specialty media

Print transparencies

1. Slide the paper guide all the way to the left.

2. Place the transparencies in the right side of the tray. The side to be printed should

face down and the adhesive strip should face up and toward the printer.

3. Carefully push the transparencies into the printer until they stop, so that the adhesive

strips do not catch on one another.

4. Slide the paper guide firmly against the edge of the transparencies.

5. Open the Printer Properties dialog box.

6. Click the Printing Shortcuts tab.

7. In the Printing Shortcuts list, click Presentation Printing, and then specify the

following print settings:

• Paper Type: Click More, and then select an appropriate transparency film.

• Paper Size: An appropriate paper size

8. Select any other print settings that you want, and then click OK.

Print postcards

1. Slide the paper guide all the way to the left.

2. Place the cards in the right side of the tray. The side to be printed on should face

down and the short edge should point toward the printer.

Print on specialty media 11

Chapter 3

3. Push the cards into the printer until they stop.

4. Slide the paper guide firmly against the edge of the cards.

5. Open the Printer Properties dialog box.

6. Click the Features tab, and then specify the following print settings:

• Paper Type: Click More, click Specialty Papers, and then select an appropriate card type.

• Print Quality: Normal or Best

• Size: An appropriate card size

7. Select any other print settings that you want, and then click OK.

Print labels

1. Slide the paper guide all the way to the left.

2. Fan the edges of the label sheets to separate them, and then align the edges.

3. Place the label sheets in the right side of the tray. The label side should face down.

4. Push the sheets into the printer until they stop.

5. Slide the paper guide firmly against the edge of the sheets.

12 Print

6. Open the Printer Properties dialog box.

7. Click the Printing Shortcuts tab.

8. In the Printing Shortcuts list, click General Everyday Printing, and then specify

the following print settings:

• Paper Type: Plain Paper

• Paper Size: An appropriate paper size

9. Click OK.

Print brochures

1. Slide the paper guide all the way to the left.

2. Place the paper in the right side of the tray. The side to be printed on should face

down.

3. Push the paper into the printer until it stops.

4. Slide the paper guide firmly against the edge of the paper.

5. Open the Printer Properties dialog box.

6. Click the Features tab.

7. Specify the following print settings:

• Print Quality: Best

• Paper Type: Click More, and then select an appropriate HP inkjet paper.

• Orientation: Portrait or Landscape

• Size: An appropriate paper size

• Two-sided printing: Manual

8. Click OK to print.

Print greeting cards

1. Slide the paper guide all the way to the left.

2. Fan the edges of the greeting cards to separate them, and then align the edges.

3. Place the greeting cards in the right side of the tray. The side to be printed on should

face down.

4. Push the cards into the printer until they stop.

5. Slide the paper guide firmly against the edge of the cards.

6. Open the Printer Properties dialog box.

Print on specialty media 13

Chapter 3

7. Click the Features tab, and then specify the following print settings:

• Print Quality: Normal

• Paper Type: Click More, and then select an appropriate card type.

• Size: An appropriate card size

8. Select any other print settings that you want, and then click OK.

Print booklets

1. Slide the paper guide all the way to the left.

2. Place plain paper in the right side of the tray. The side to be printed on should face

down.

3. Push the paper into the printer until it stops.

4. Slide the paper guide firmly against the edge of the paper.

5. Open the Printer Properties dialog box.

6. Click the Printing Shortcuts tab.

7. In the Printing Shortcuts list, click Booklet Printing.

8. In the Print On Both Sides drop-down list, select one of the following binding options:

• Left Edge Booklet

• Right Edge Booklet

9. Select any other print settings that you want, and then click OK.

10. When prompted, reload the printed pages in the paper tray as shown below.

11. Click Continue to finish printing the booklet.

14 Print

Print posters

1. Slide the paper guide all the way to the left.

2. Place plain paper in the right side of the tray. The side to be printed on should face

down.

3. Push the paper into the printer until it stops.

4. Slide the paper guide firmly against the edge of the paper.

5. Open the Printer Properties dialog box.

6. Click the Features tab, and then specify the following print settings:

• Paper Type: Plain Paper

• Orientation: Portrait or Landscape

• Size: An appropriate paper size

7. Click the Advanced tab, and then click Printer Features.

8. In the Poster Printing drop-down list, select the number of sheets for the poster.

9. Click the Select Tiles button.

10. Check that the number of tiles that are selected matches the number of sheets for

the poster, and then click OK.

11. Select any other print settings that you want, and then click OK.

Print on specialty media 15

Chapter 3

Print iron-on transfers

1. Slide the paper guide all the way to the left.

2. Place the iron-on transfer paper in the right side of the tray. The side to be printed on

should face down.

3. Push the paper into the printer until it stops.

4. Slide the paper guide firmly against the edge of the paper.

16 Print

5. Open the Printer Properties dialog box.

6. Click the Features tab, and then specify the following print settings:

• Print Quality: Normal or Best

• Paper Type: Click More, click Specialty Papers, and then click Other specialty paper.

• Size: An appropriate paper size

7. Click the Advanced tab.

8. Click Printer Features, and then set Mirror Image to On.

NOTE: Some iron-on transfer software programs do not require you to print a

mirror image.

9. Select any other print settings that you want, and then click OK.

Related topics

•

Recommended papers for printing Load media

• View the print resolution

• Create custom printing shortcuts

•

• Set the default print settings Stop the current job

•

Print a Web page

You can print a Web page from your Web browser on the HP Printer.

If you use Internet Explorer (6.0 or higher) or Firefox (2.0 or higher) for Web browsing, you can use HP Smart Web Printing to ensure simple, predictable web printing with control over what you want and how you want it printed. You can access HP Smart Web

Printing from the toolbar in Internet Explorer. For more information about HP Smart Web Printing, see the help file provided with it.

To print a Web page

1. Make sure you have paper loaded in the input tray.

2. On the File menu in your Web browser, click Print.

TIP: For best results, select HP Smart Web Printing on the File menu. A check

mark appears when it is selected.

The Print dialog box appears.

3. Make sure the product is the selected printer.

4. If your Web browser supports it, select the items on the Web page that you want to

include in the printout. For example, in Internet Explorer, click the Options tab to select options such as As

laid out on screen, Only the selected frame, and Print all linked documents.

5. Click Print or OK to print the Web page.

TIP: To print Web pages correctly, you might need to set your print orientation to

Landscape.

Related topics

View the print resolution

The printer software displays the print resolution in dots per inch (dpi). The dpi varies according to the paper type and print quality that you select in the printer software.

To view the print resolution

1. Make sure you have paper loaded in the input tray.

2. On the File menu in your software application, click Print.

3. Make sure the product is the selected printer.

4. Click the button that opens the Properties dialog box.

Depending on your software application, this button might be called Properties, Options, Printer Setup, Printer, or Preferences.

5. Click the Features tab.

6. In the Print Quality drop-down list, select the appropriate print quality setting for your

18 Print

project.

7. In the Paper Type drop-down list, select the type of paper that you have loaded.

8. Click the Resolution button to view the print resolution dpi.

Create custom printing shortcuts

Use printing shortcuts to print with print settings that you use often. The printer software has several specially designed printing shortcuts that are available in the Printing Shortcuts list.

NOTE: When you select a printing shortcut the appropriate printing options are

automatically displayed. You can leave them as is, change them, or create your own shortcuts for commonly used tasks.

Use the Printing Shortcuts tab for the following print tasks:

• General Everyday Printing: Print documents quickly.

• Photo Printing–Borderless: Print to the top, bottom, and side edges of 10 x 15 cm

(4 x 6 inch) and 13 x 18 cm (5 x 7 inch) HP Photo Papers.

• Paper-saving Printing: Print two-sided documents with mutliple pages on same

sheet to reduce paper usage.

• Photo Printing–With White Borders: Print a photo with a white border around the

edges.

• Fast/Economical Printing: Produce draft-quality printouts quickly.

• Presentation Printing: Print high-quality documents, including letters and

transparencies.

To create a printing shortcut

1. On the File menu in your software application, click Print.

2. Make sure the product is the selected printer.

3. Click the button that opens the Properties dialog box.

Depending on your software application, this button might be called Properties, Options, Printer Setup, Printer, or Preferences.

4. Click the Printing Shortcuts tab.

5. In the Printing Shortcuts list, click a printing shortcut.

The print settings for the selected printing shortcut are displayed.

6. Change the print settings to those you want in the new printing shortcut.

7. Click Save as and type a name for the new printing shortcut, and then click Save.

The printing shortcut is added to the list.

To delete a printing shortcut

1. On the File menu in your software application, click Print.

2. Make sure the product is the selected printer.

3. Click the button that opens the Properties dialog box.

Depending on your software application, this button might be called Properties, Options, Printer Setup, Printer, or Preferences.

4. Click the Printing Shortcuts tab.

Create custom printing shortcuts 19

Chapter 3

5. In the Printing Shortcuts list, click the printing shortcut that you want to delete.

6. Click Delete.

The printing shortcut is removed from the list.

NOTE: Only the shortcuts that you have created can be deleted. The original HP

shortcuts cannot be deleted.

Set the default print settings

If there are settings that you frequently use for printing, you might want to make them the default print settings so they are already set when you open the Print dialog box from within your software application.

To change the default print settings

1. In the HP Solution Center, click Settings, point to Print Settings, and then click

Printer Settings.

2. Make changes to the print settings, and click OK.

20 Print

4 Paper basics

You can load many different types and sizes of paper in the HP Printer, including letter or A4 paper, photo paper, transparencies, and envelopes.

This section contains the following topics:

Load media

Check the estimated ink levels

You can easily check the ink supply level to determine how soon you might need to replace a cartridge. The ink supply level shows an estimate of the amount of ink remaining in the cartridges.

NOTE: If you have installed a refilled or remanufactured cartridge, or a cartridge that

has been used in another printer, the ink level indicator might be inaccurate or unavailable.

NOTE: Ink level warnings and indicators provide estimates for planning purposes

only. When you receive a low-ink warning message, consider having a replacement cartridge available to avoid possible printing delays. You do not have to replace the cartridges until the print quality is unacceptable.

NOTE: Ink from the cartridges is used in the printing process in a number of different

ways, including in the initialization process, which prepares the product and cartridges for printing, and in printhead servicing, which keeps print nozzles clear and ink flowing smoothly. In addition, some residual ink is left in the cartridge after it is used. For more information, see

www.hp.com/go/inkusage.

Work with cartridges

To check the ink levels from the HP Photosmart Software

1. In the HP Solution Center, click Settings, point to Print Settings, and then click

Printer Toolbox.

NOTE: You can also open the Printer Toolbox from the Print Properties dialog

box. In the Print Properties dialog box, click the Features tab, and then click the Printer Services button.

The Printer Toolbox appears.

2. Click the Estimated Ink Level tab.

The estimated ink levels for the ink cartridges appear.

Related topics

Order ink supplies

Check the estimated ink levels 25

Chapter 5

Order ink supplies

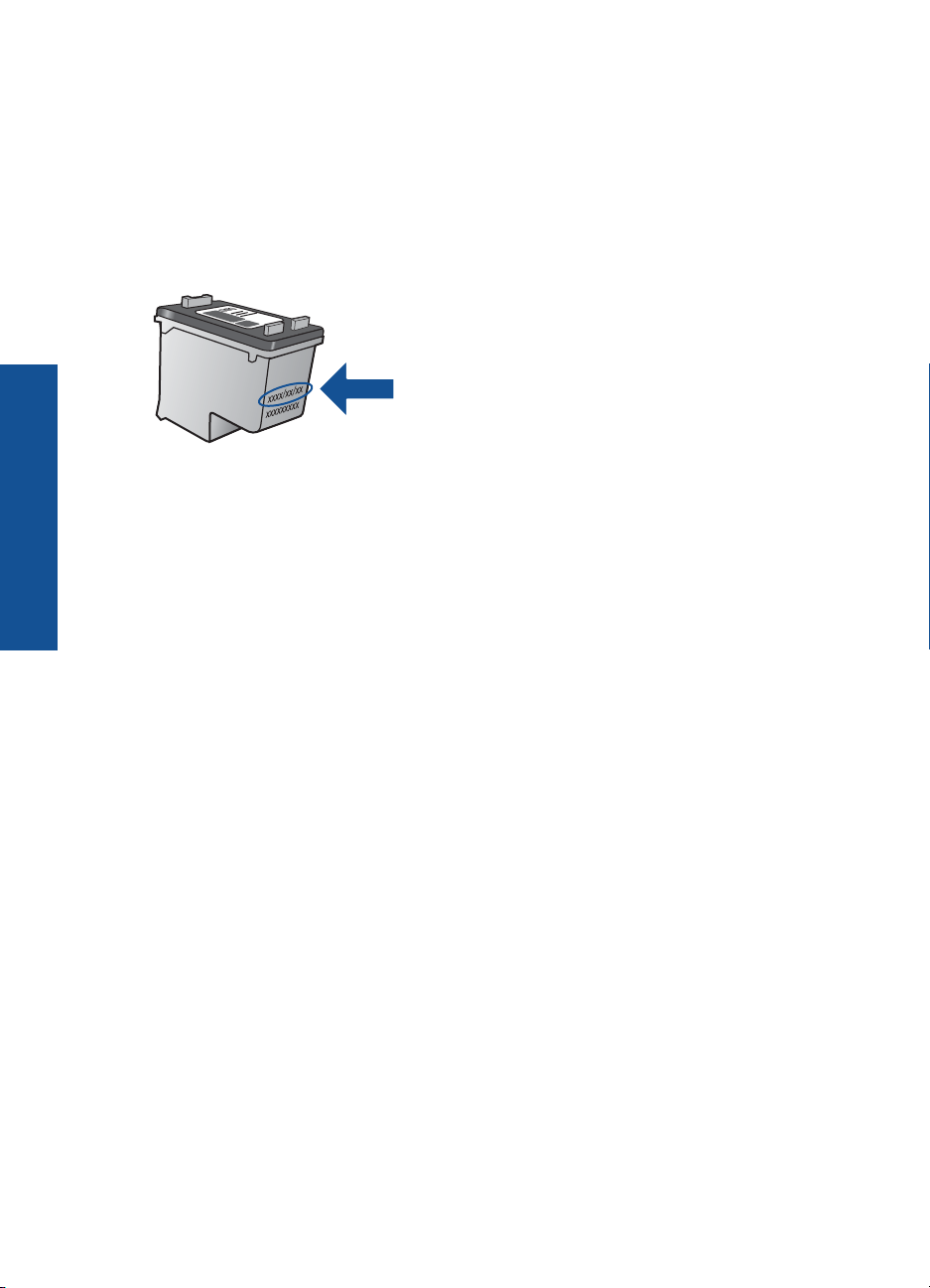

For a list of cartridge numbers, use the software that came with the HP Printer to find out the reorder number.

Find the cartridge number

1. In the HP Solution Center, click Settings, point to Print Settings, and then click

Printer Toolbox.

NOTE: You can also open the Printer Toolbox from the Print Properties dialog

box. In the Print Properties dialog box, click the Features tab, and then click the Printer Services button.

The Printer Toolbox appears.

2. Click the Estimated Ink Level tab.

The estimated ink levels for the print cartridges appear. Use the menu at the bottom to select Cartridge details.

Work with cartridges

To order genuine HP supplies for the HP Printer, go to prompted, choose your country/region, follow the prompts to select your product, and then click one of the shopping links on the page.

NOTE: Ordering cartridges online is not supported in all countries/regions. If it is not

available in your country/region, you may still view supplies information and print a list for reference when shopping at a local HP reseller.

www.hp.com/buy/supplies. If

To order ink cartridges from your desktop

▲ To learn which HP supplies work with your printer, order supplies online, or create a

printable shopping list, open HP Solution Center and select the online shopping feature.

Cartridge information and links to online shopping also appear on ink alert messages. In addition, you can find cartridge information and order online by visiting

www.hp.com/buy/supplies.

NOTE: Ordering cartridges online is not supported in all countries/regions. If it

is not available in your country/region, you may still view supplies information and print a list for reference when shopping at a local HP reseller.

Related topics

Choose the right cartridges

HP recommends that you use original HP cartridges. Original HP cartridges are designed and tested with HP printers to help you easily produce great results, time after time.

Related topics

Order ink supplies

26 Work with cartridges

Automatically clean print cartridges

If your printed pages are faded or if they contain ink streaks, the print cartridges might be low on ink or might need to be cleaned. For more information, see

ink levels.

If the print cartridges are not low on ink, clean the print cartridges automatically.

CAUTION: Clean print cartridges only when necessary. Unnecessary cleaning

wastes ink and shortens the life of the cartridge.

To clean the print cartridges

1. In the HP Solution Center, click Settings. In the Print Settings area, click Printer

Toolbox.

2. Click Clean the Print Cartridges.

3. Click Clean, and then follow the onscreen instructions.

Replace the cartridges

To replace the cartridges

1. Check that power is on.

2. Remove cartridge.

a. Open cartridge door.

Check the estimated

Work with cartridges

Replace the cartridges 27

Work with cartridges

Chapter 5

Wait for print carriage to move to center of the product.

b. Press down to release cartridge, then remove it from slot.

3. Insert new cartridge.

a. Remove cartridge from packaging.

b. Remove plastic tape using pink pull tab.

28 Work with cartridges

c. Line up colored shaped icons, then slide cartridge into slot until it clicks into place.

d. Close cartridge door.

Related topics

Choose the right cartridges

• Order ink supplies

•

Work with cartridges

Use ink-backup mode

Use the ink-backup mode to operate the HP Printer with only one print cartridge. The inkbackup mode is initiated when a print cartridge is removed from the print cartridge carriage. During ink-backup mode, the product can only print jobs from the computer.

NOTE: When the HP Printer operates in ink-backup mode, a message is displayed

on screen. If the message is displayed and two print cartridges are installed in the product, verify that the protective piece of plastic tape has been removed from each print cartridge. When plastic tape covers the print cartridge contacts, the product cannot detect that the print cartridge is installed.

Exit ink-backup mode

Install two print cartridges in the HP Printer to exit ink-backup mode.

Related topics

Replace the cartridges

Use ink-backup mode 29

Chapter 5

Cartridge warranty information

The HP cartridge warranty is applicable when the product is used in its designated HP printing device. This warranty does not cover HP ink products that have been refilled, remanufactured, refurbished, misused, or tampered with.

During the warranty period the product is covered as long as the HP ink is not depleted and the end of warranty date has not been reached. The end of warranty date, in YYYY/ MM/DD format, may be found on the product as indicated:

Work with cartridges

For a copy of the HP Limited Warranty Statement, see the printed documentation that came with the product.

30 Work with cartridges

6 Solve a problem

This section contains the following topics:

HP support

• Setup troubleshooting

• Print troubleshooting

• Errors

•

HP support

• Support process HP support by phone

• Additional warranty options

•

Support process

If you have a problem, follow these steps:

1. Check the documentation that came with the product.

2. Visit the HP online support Web site at

available to all HP customers. It is the fastest source for up-to-date product information and expert assistance and includes the following features:

• Fast access to qualified online support specialists

• Software and driver updates for the product

• Valuable product and troubleshooting information for common problems

• Proactive product updates, support alerts, and HP newsgrams that are available

when you register the product

3. Call HP support. Support options and availability vary by product, country/region, and

language.

www.hp.com/support. HP online support is

HP support by phone

Phone support options and availability vary by product, country/region, and language.

This section contains the following topics:

•

Phone support period Placing a call

• Support phone numbers

• After the phone support period

•

Phone support period

One year of phone support is available in North America, Asia Pacific, and Latin America (including Mexico). To determine the duration of phone support in Europe, the Middle East, and Africa, go to

Solve a problem

www.hp.com/support. Standard phone company charges apply.

HP support 31

Chapter 6

Placing a call

Call HP support while you are in front of the computer and the product. Be prepared to provide the following information:

• Product name (HP Deskjet Ink Advantage Printer series - K109)

• Serial number (located on the back or bottom of the product)

• Messages that appear when the situation occurs

• Answers to these questions:

◦ Has this situation happened before? ◦ Can you re-create it? ◦ Did you add any new hardware or software to your computer at about the time

that this situation began?

◦ Did anything else occur prior to this situation (such as a thunderstorm, product

was moved, etc.)?

Support phone numbers

For the most current HP list of telephone support numbers and call costs information, see

www.hp.com/support.

After the phone support period

After the phone support period, help is available from HP at an additional cost. Help may also be available at the HP online support Web site: HP dealer or call the support phone number for your country/region to learn more about support options.

Additional warranty options

Solve a problem

Extended service plans are available for the HP Printer at additional costs. Go to

www.hp.com/support, select your country/region and language, then explore the services

and warranty area for information about the extended service plans.

Setup troubleshooting

This section contains setup troubleshooting information for the product.

Many issues are caused when the product is connected to the computer using a USB cable before the HP Photosmart software is installed on the computer. If you connected the product to your computer before the software installation screen prompts you to do so, you must follow these steps:

Troubleshooting common setup issues

1. Disconnect the USB cable from the computer.

2. Uninstall the software (if you have already installed it).

For more information, see

www.hp.com/support. Contact your

Uninstall and reinstall the software.

32 Solve a problem

3. Restart your computer.

4. Turn off the product, wait one minute, then restart it.

5. Reinstall the HP Photosmart software.

CAUTION: Do not connect the USB cable to the computer until prompted by the

software installation screen.

This section contains the following topics:

•

The product will not turn on After setting up the product, it does not print

• The registration screen does not appear

• Uninstall and reinstall the software

•

The product will not turn on

Try the following solutions to resolve the issue. Solutions are listed in order, with the most likely solution first. If the first solution does not solve the problem, continue trying the remaining solutions until the issue is resolved.

•

Solution 1: Make sure the power cord is connected Solution 2: Press the On button more slowly

•

Solution 1: Make sure the power cord is connected

Solution:

• Make sure the power cord is firmly connected to both the product and the power

adapter. Plug the power cord into a power outlet, surge protector, or power strip.

1 Power connection

2 Power cord and adapter

• If you are using a power strip, make sure the power strip is on. Or, try plugging

the product directly into a power outlet.

Setup troubleshooting 33

Solve a problem

Chapter 6

• Test the power outlet to make sure it is working. Plug in an appliance that you

know works, and see if the appliance has power. If not, then there might be a problem with the power outlet.

• If you plugged the product into a switched outlet, make sure the outlet is switched

on. If it is switched to on but still does not work, then there might be a problem with the power outlet.

Cause: The product was not properly connected to a power supply.

If this did not solve the issue, try the next solution.

Solution 2: Press the On button more slowly

Solution: The product might not respond if you press the On button too quickly.

Press the On button once. It might take a few minutes for the product to turn on. If you press the On button again during this time, you might turn the product off.

CAUTION: If the product still does not turn on, it might have a mechanical failure.

Unplug the product from the power outlet.

Contact HP support for service.

Go to:

www.hp.com/support. If prompted, choose your country/region, and then

click Contact HP for information on calling for technical support.

Cause: You pressed the On button too quickly.

After setting up the product, it does not print

•

Step 1: Press the On button to turn on the product

Solve a problem

34 Solve a problem

Step 2: Set your product as the default printer

• Step 3: Check the connection between the product and computer

•

Step 1: Press the On button to turn on the product

Solution: Look at the On button located on the product. If it is not lit, the product is

turned off. Make sure the power cord is firmly connected to the product and plugged into a power outlet. Press the On button to turn on the product.

Cause: The product might not have been turned on.

If this did not solve the issue, try the next solution.

Step 2: Set your product as the default printer

Solution: Use the system tools on your computer to change your product to be the

default printer.

Cause: You sent the print job to the default printer, but this product was not the default printer.

If this did not solve the issue, try the next solution.

Step 3: Check the connection between the product and computer

Solution: Check the connection between the product and computer.

Cause: The product and computer were not communicating with each other.

If this did not solve the issue, try the next solution.

The registration screen does not appear

Solution: You can access the registration (Sign up now) screen from the Windows taskbar by clicking Start, pointing to Programs or All Programs, HP, Deskjet K109 series, and then clicking Product Registration.

Cause: The registration screen did not launch automatically.

Uninstall and reinstall the software

If your installation is incomplete, or if you connected the USB cable to the computer before prompted by the software installation screen, you might need to uninstall and then reinstall the software. Do not simply delete the HP Printer application files from your computer. Make sure to remove them properly using the uninstall utility provided when you installed the software that came with the HP Printer.

To uninstall and reinstall the software

1. On the Windows taskbar, click Start, Settings, Control Panel (or just Control

Panel).

2. Double-click Add/Remove Programs (or click Uninstall a program).

3. Select HP Photosmart All-In-One Driver Software, and then click Change/

Remove.

Follow the onscreen instructions.

4. Disconnect the product from your computer.

5. Restart your computer.

NOTE: It is important that you disconnect the product before restarting your

computer. Do not connect the product to your computer until after you have reinstalled the software.

Setup troubleshooting 35

Solve a problem

Chapter 6

6. Insert the product CD-ROM into your computer’s CD-ROM drive and then start the

Setup program.

NOTE: If the Setup program does not appear, locate the setup.exe file on the

CD-ROM drive and double-click it.

NOTE: If you no longer have the installation CD, you can download the software

from

www.hp.com/support.

7. Follow the onscreen instructions and the instructions provided in the printed

documentation that came with the product.

When the software installation is complete, the HP Digital Imaging Monitor icon appears in the Windows system tray.

Solve a problem

Print troubleshooting

•

Check cartridges Check paper

• Check product

• Check printer settings

• Reset the product

• Contact HP support

•

36 Solve a problem

Check cartridges

Try the following solutions.

•

Step 1: Make sure you are using genuine HP ink cartridges Step 2: Check the ink levels

• Step 3: Clean the print cartridge contacts

•

Step 1: Make sure you are using genuine HP ink cartridges

Solution: Check to see if your ink cartridges are genuine HP ink cartridges.

HP recommends that you use genuine HP ink cartridges. Genuine HP ink cartridges are designed and tested with HP printers to help you easily produce great results, time after time.

NOTE: HP cannot guarantee the quality or reliability of non-HP supplies. Product

service or repairs required as a result of using a non-HP supply will not be covered under warranty.

If you believe you purchased genuine HP ink cartridges, go to:

www.hp.com/go/anticounterfeit

Cause: Non-HP ink cartridges were being used.

If this did not solve the issue, try the next solution.

Step 2: Check the ink levels

Solution: Check the estimated ink levels in the cartridges.

NOTE: Ink level warnings and indicators provide estimates for planning

purposes only. When you receive a low-ink warning message, consider having a replacement cartridge available to avoid possible printing delays. You do not need to replace the cartridges until print quality becomes unacceptable.

For more information, see:

Check the estimated ink levels

Cause: The ink cartridges might have insufficient ink.

If this did not solve the issue, try the next solution.

Step 3: Clean the print cartridge contacts

Solution: Clean the print cartridge contacts.

Print troubleshooting 37

Solve a problem

Chapter 6

Make sure you have the following materials available:

• Dry foam rubber swabs, lint-free cloth, or any soft material that will not come apart

or leave fibers.

TIP: Coffee filters are lint-free and work well for cleaning print cartridges.

• Distilled, filtered, or bottled water (tap water might contain contaminants that can

damage the print cartridges).

CAUTION: Do not use platen cleaners or alcohol to clean the print cartridge

contacts. These can damage the print cartridge or the product.

To clean the print cartridge contacts

1. Turn on the product and open the print cartridge door.

The print carriage moves to the center of the product.

2. Wait until the print carriage is idle and silent, and then unplug the power cord from

the back of the product.

3. Lightly press down on the print cartridge to release it, and then pull it towards you

out of the slot.

NOTE: Do not remove both print cartridges at the same time. Remove and

clean each print cartridge one at a time. Do not leave a print cartridge outside the HP Printer for more than 30 minutes.

4. Inspect the print cartridge contacts for ink and debris buildup.

5. Dip a clean foam rubber swab or lint-free cloth into distilled water, and squeeze

any excess water from it.

6. Hold the print cartridge by its sides.

7. Clean only the copper-colored contacts. Allow the print cartridges to dry for

approximately ten minutes.

Solve a problem

38 Solve a problem

1 Copper-colored contacts

2 Ink nozzles (do not clean)

Check paper

Try the following solutions.

•

8. Hold the print cartridge with the HP logo on top, and insert the print cartridge back

into the slot. Make sure you push the print cartridge in firmly until it snaps into place.

9. Repeat if necessary for the other print cartridge.

10. Gently close the print cartridge door and plug the power cord into the back of the

product.

Cause: The print cartridge contacts needed to be cleaned.

If this did not solve the issue, try the next solution.

Step 1: Make sure only one type of paper is loaded Step 2: Load the stack of paper correctly

Step 1: Make sure only one type of paper is loaded

Solution: Load only one type of paper at a time.

Cause: More than one type of paper was loaded in the paper tray.

If this did not solve the issue, try the next solution.

Step 2: Load the stack of paper correctly

Solution: Remove the stack of paper from the paper tray, reload the paper, and

then slide the paper-width guide inward until it stops at the edge of the paper.

For more information, see:

Load media

Cause: The paper-width guide was not positioned correctly.

Print troubleshooting 39

Solve a problem

Chapter 6

Check product

Try the following solutions.

•

Solution 1: Align the print cartridges Solution 2: Automatically clean the print cartridges.

•

Solution 1: Align the print cartridges

Solution: Aligning the print cartridges can help ensure high-quality output.

To align the print cartridges from the HP Photosmart Software

1. Load letter or A4 unused plain white paper into the paper tray.

2. In the HP Solution Center, click Settings.

3. In the Print Settings area, click Printer Toolbox.

4. Click the Device Services tab.

5. Click Align the Print Cartridges.

6. Click Align, and then follow the onscreen instructions.

Cause: The printer needed to be aligned.

If this did not solve the issue, try the next solution.

NOTE: You can also open the Printer Toolbox from the Print Properties

dialog box. In the Print Properties dialog box, click the Features tab, and then click Printer Services.

The Printer Toolbox appears.

The HP Printer prints a test page, aligns the print cartridges, and calibrates the printer. Recycle or discard the test page.

Solution 2: Automatically clean the print cartridges.

Solve a problem

Solution: Clean the print cartridges.

For more information, see

Cause: The print cartridge nozzles needed to be cleaned.

If this did not solve the issue, try the next solution.

Check printer settings

Try the following solutions.

•

Step 1: Check the print settings Step 2: Verify the paper size setting

• Step 3: Check the printer margins

•

40 Solve a problem

Automatically clean print cartridges

Step 1: Check the print settings

Solution: Check the print settings.

• Check the print settings to see if the color settings are incorrect.

For example, check to see if the document is set to print in grayscale. Or, check to see if advanced color settings such as saturation, brightness, or color tone, are set to modify the appearance of colors.

• Check the print quality setting and make sure it matches the type of paper loaded

in the product. You might need to choose a lower print quality setting, if colors are running into

each other. Or, choose a higher setting if you are printing a high-quality photo, and then make sure photo paper such as HP Advanced Photo Paper, is loaded in the paper tray.

NOTE: On some computer screens, colors might appear differently than they do

when printed on paper. In this case, there is nothing wrong with the product, print settings, or ink cartridges. No further troubleshooting is required.

Cause: The print settings were set incorrectly.

If this did not solve the issue, try the next solution.

Step 2: Verify the paper size setting

Solution: Verify that you have selected the proper paper size setting for your

project. Make sure that you have loaded the correct paper size in the paper tray.

Cause: The paper size setting might not have been set correctly for the project you were printing.

If this did not solve the issue, try the next solution.

Step 3: Check the printer margins

Solution: Check the printer margins.

Make sure the margin settings for the document do not exceed the printable area of the product.

To check your margin settings

1. Preview your print job before sending it to the product.

In most software applications, click the File menu, and then click Print Preview.

2. Check the margins.

The product uses the margins you have set in your software application, as long as they are greater than the minimum margins the product supports. For more information about setting margins in your software application, see the documentation that came with the software.

3. Cancel the print job if the margins are not satisfactory, and then adjust the margins

in your software application.

Cause: The margins were not set correctly in your software application.

Print troubleshooting 41

Solve a problem

Chapter 6

Errors

If this did not solve the issue, try the next solution.

Reset the product

Solution: Turn off the product, and then unplug the power cord. Plug the power cord back in, and then press the On button to turn on the product.

Cause: The product experienced an error.

If this did not solve the issue, try the next solution.

Contact HP support

Solution: Contact HP support for service.

Go to:

www.hp.com/support.

If prompted, choose your country/region, and then click Contact HP for information on calling for technical support.

Cause: The ink cartridges were not intended for use in this product.

This section contains the following categories of messages about your product:

•

Flashing lights

The lights on the product flash in special sequences to inform you about various error conditions. Refer to the following table for information on solving your error condition based on which lights are on or flashing on the product.

Solve a problem

On light Resume

Off Off Off The product is

Fast blinking

42 Solve a problem

light

Off Off The product is

Check Print Cartridge lights

Description Solution

turned off.

processing a job.

Press the On button to turn the product on.

Wait for the product to finish.

(continued)

On light Resume

light

Check Print Cartridge lights

Description Solution

On Off Both

On Blinking Off The product is out

Fast blinking

On Off Fast

On Off Both fast

Fast blinking

Off Off The front access

Fast blinking

blinking.

blinking

Both fast blinking

The print cartridge (s) may be defective.

of paper.

The product has a paper jam.

door or the print cartridge access door is open.

The print cartridges are missing or not seated correctly.

The print cartridge might be defective.

The tape was not removed from one or both print cartridges.

The print cartridge is not intended for use in this product.

The print carriage is stalled.

The product has a fatal error.

1. Remove black

print cartridge.

2. Close door.

3. If the cartridge

LEDs are still blinking, replace the tri-color print cartridge. If the cartridge LEDs are not blinking, replace the black print cartridge.

Load paper and press Resume.

Clear the paper jam, and then press Resume.

Close the front access door or the print cartridge access door.

Install or remove and reinsert print cartridges.

Remove the print cartridge, remove tape, and reinsert the print cartridge.

The print cartridge might not be supported for use in the product. For more information about compatible print cartridges, see

Order ink supplies

Open the front access door, and check that the carriage is not blocked.

1. Turn off the

product.

2. Unplug the

power cord.

Solve a problem

Errors 43

Chapter 6

Solve a problem

(continued)

On light Resume

light

On Off On Print cartridges are

On Off Tri-color

Check Print Cartridge lights

print cartridge light On

Black print cartridge light Off

print cartridge light Off

Black print cartridge light On

Description Solution

getting low on ink.

The tri-color print cartridge is getting low on ink.

The tri-color print cartridge has been removed.

The black print cartridge is getting low on ink.

The black print cartridge has been removed.

3. Wait a minute,

then plug the power cord back in.

4. Turn on the

product.

If the problem persists, contact HP Support.

Replace one or both print cartridges when print quality is no longer acceptable.

Replace the tri-color print cartridge when print quality is no longer acceptable.

Replace the tri-color print cartridge, or print in ink-backup mode with the black print cartridge. For more information, see

Use ink-backup

mode.

Replace the black print cartridge when print quality is no longer acceptable.

Replace the black print cartridge, or print in ink-backup mode with the tricolor print cartridge. For more information, see

ink-backup mode.

Use

44 Solve a problem

7 Stop the current job

To stop a print job from the HP Printer

▲ Press Cancel on the control panel. If the print job does not stop, press Cancel again.

It can take a few moments for printing to be cancelled.

Stop the current job 45

Stop the current job

Chapter 7

Stop the current job

46 Stop the current job

8 Technical information

The technical specifications and international regulatory information for the HP Printer are provided in this section.

For additional specifications, see the printed documentation that came with the HP Printer.

This section contains the following topics:

• Notice

Specifications

•

Environmental product stewardship program

•

Regulatory notices

•

Notice

Hewlett-Packard Company notices

The information contained in this document is subject to change without notice. All rights reserved. Reproduction, adaptation, or translation of this material is prohibited without prior written permission

of Hewlett-Packard, except as allowed under copyright laws. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

© 2009 Hewlett-Packard Development Company, L.P. Windows, Windows 2000, and Windows XP are U.S. registered trademarks of Microsoft Corporation. Windows Vista is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other

countries. Intel and Pentium are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and

other countries.

Specifications

Technical specifications for the HP Printer are provided in this section. For complete product specifications, see the Product Data Sheet at

System requirements

Software and system requirements are located in the Readme file.

For information about future operating system releases and support, visit the HP online support Web site at

www.hp.com/support.

Environmental specifications

• Recommended operating temperature range: 15 ºC to 32 ºC (59 ºF to 90 ºF)

• Allowable operating temperature range: 5 ºC to 40 ºC (41 ºF to 104 ºF)

• Humidity: 15% to 80% RH non-condensing; 28 ºC maximum dewpoint

• Non-operating (Storage) temperature range: –40 ºC to 60 ºC (–40 ºF to 140 ºF)

• In the presence of high electromagnetic fields, it is possible the output from the HP Printer may

be slightly distorted

• HP recommends using a USB cable less than or equal to 3 m (10 feet) in length to minimize

injected noise due to potential high electromagnetic fields

Paper tray capacity

Plain paper sheets: Up to 80

Paper size

For a complete list of supported media sizes, see the printer software.

Paper weights

Letter Paper: 75 to 90 g/m² (20 to 24 lb)

www.hp.com/support.

Technical information

Specifications 47

Chapter 8

Legal Paper: 75 to 90 g/m² (20 to 24 lb)

Envelopes: 75 to 90 g/m² (20 to 24 lb)

Cards: Up to 200 g/m² (110-lb index maximum)

Photo Paper: Up to 280 g/m² (75-lb index maximum)

Technical information

Print resolution

To find out about the printer resolution, see the printer software. For more information, see

print resolution.

Cartridge yield

Visit

www.hp.com/go/learnaboutsupplies for more information on estimated cartridge yields.

Acoustic information

If you have Internet access, you can get acoustic information from the HP Web site. Go to:

www.hp.com/support.

Environmental product stewardship program

Hewlett-Packard is committed to providing quality products in an environmentally sound manner. Design for recycling has been incorporated into this product. The number of materials has been kept to a minimum while ensuring proper functionality and reliability. Dissimilar materials have been designed to separate easily. Fasteners and other connections are easy to locate, access, and remove using common tools. High priority parts have been designed to access quickly for efficient disassembly and repair.

For more information, visit HP’s Commitment to the Environment Web site at:

www.hp.com/hpinfo/globalcitizenship/environment/index.html

This section contains the following topics:

Eco-Tips

•

Paper use

Plastics

•

Material safety data sheets

•

Recycling program

HP inkjet supplies recycling program

•

Power consumption

•

Disposal of waste equipment by users in private households in the European Union

Chemical Substances

•

Toxic and hazardous substance table

View the

Eco-Tips

HP is committed to helping customers reduce their environmental footprint. HP has provided the Eco-Tips below to help you focus on ways to assess and reduce the impact of your printing choices. In addition to specific features in this product, please visit the HP Eco Solutions web site for more information on HP’s environmental initiatives.

48 Technical information

www.hp.com/hpinfo/globalcitizenship/environment/

Your product's Eco features

• Smart Web printing: The HP Smart Web Printing interface includes a Clip Book and Edit

Clips window where you can store, organize, or print clips you have gathered from the Web. For more information, see

• Energy Savings information: To determine the ENERGY STAR® qualification status for this

product, see

• Recycled Materials: For more information regarding recycling of HP products, please visit: www.hp.com/hpinfo/globalcitizenship/environment/recycle/

Power consumption.

Print a Web page.

Paper use

This product is suited for the use of recycled paper according to DIN 19309 and EN 12281:2002.

Plastics

Plastic parts over 25 grams are marked according to international standards that enhance the ability to identify plastics for recycling purposes at the end of product life.

Material safety data sheets

Material safety data sheets (MSDS) can be obtained from the HP Web site at:

www.hp.com/go/msds

Recycling program

HP offers an increasing number of product return and recycling programs in many countries/regions, and partners with some of the largest electronic recycling centers throughout the world. HP conserves resources by reselling some of its most popular products. For more information regarding recycling of HP products, please visit:

www.hp.com/hpinfo/globalcitizenship/environment/recycle/

Technical information

HP inkjet supplies recycling program

HP is committed to protecting the environment. The HP Inkjet Supplies Recycling Program is available in many countries/regions, and lets you recycle used print cartridges and ink cartridges free of charge. For more information, go to the following Web site:

www.hp.com/hpinfo/globalcitizenship/environment/recycle/

Power consumption

Power usage drops significantly while in Sleep mode, which saves natural resources and saves money without affecting the high performance of this product. To determine the ENERGY STAR® qualification status for this product see the Product Data Sheet or Specifications Sheet. Qualified products are also listed at

www.hp.com/go/energystar.

Environmental product stewardship program 49

Chapter 8

Disposal of waste equipment by users in private households in the European Union

Technical information

Disposal of Waste Equipment by Users in Private Households in the European Union

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where

EnglishFrançaisDeutschItalianoEspañolČeskyDanskNederlandsEestiSuomiΕλληνικάMagyarLatviskiLietuviškaiPolskiPortu guêsSlovenčinaSlovenščinaSvenskaБългарскиRomână

you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Évacuation des équipements usagés par les utilisateurs dans les foyers privés au sein de l'Union européenne

La présence de ce symbole sur le produit ou sur son emballage indique que vous ne pouvez pas vous débarrasser de ce produit de la même façon que vos déchets courants. Au contraire, vous êtes responsable de l'évacuation de vos équipements usagés et, à cet effet, vous êtes tenu de les remettre à un point de collecte agréé pour le recyclage des équipements électriques et électroniques usagés. Le tri, l'évacuation et le recyclage séparés de vos équipements usagés permettent de préserver les ressources naturelles et de s'assurer que ces équipements sont recyclés dans le respect de la santé humaine et de l'environnement. Pour plus d'informations sur les lieux de collecte des équipements usagés, veuillez contacter votre mairie, votre service de traitement des déchets ménagers ou le magasin où vous avez acheté le produit.

Entsorgung von Elektrogeräten durch Benutzer in privaten Haushalten in der EU

Dieses Symbol auf dem Produkt oder dessen Verpackung gibt an, dass das Produkt nicht zusammen mit dem Restmüll entsorgt werden darf. Es obliegt daher Ihrer Verantwortung, das Gerät an einer entsprechenden Stelle für die Entsorgung oder Wiederverwertung von Elektrogeräten aller Art abzugeben (z.B. ein Wertstoffhof). Die separate Sammlung und das Recyceln Ihrer alten Elektrogeräte zum Zeitpunkt ihrer Entsorgung trägt zum Schutz der Umwelt bei und gewährleistet, dass sie auf eine Art und Weise recycelt werden, die keine Gefährdung für die Gesundheit des Menschen und der Umwelt darstellt. Weitere Informationen darüber, wo Sie alte Elektrogeräte zum Recyceln abgeben können, erhalten Sie bei den örtlichen Behörden, Wertstoffhöfen oder dort, wo Sie das Gerät erworben haben.

Smaltimento di apparecchiature da rottamare da parte di privati nell'Unione Europea

Questo simbolo che appare sul prodotto o sulla confezione indica che il prodotto non deve essere smaltito assieme agli altri rifiuti domestici. Gli utenti devono provvedere allo smaltimento delle apparecchiature da rottamare portandole al luogo di raccolta indicato per il riciclaggio delle apparecchiature elettriche ed elettroniche. La raccolta e il riciclaggio separati delle apparecchiature da rottamare in fase di smaltimento favoriscono la conservazione delle risorse naturali e garantiscono che tali apparecchiature vengano rottamate nel rispetto dell'ambiente e della tutela della salute. Per ulteriori informazioni sui punti di raccolta delle apparecchiature da rottamare, contattare il proprio comune di residenza, il servizio di smaltimento dei rifiuti locale o il negozio presso il quale è stato acquistato il prodotto.

Eliminación de residuos de aparatos eléctricos y electrónicos por parte de usuarios domésticos en la Unión Europea

Este símbolo en el producto o en el embalaje indica que no se puede desechar el producto junto con los residuos domésticos. Por el contrario, si debe eliminar este tipo de residuo, es responsabilidad del usuario entregarlo en un punto de recogida designado de reciclado de aparatos electrónicos y eléctricos. El reciclaje y la recogida por separado de estos residuos en el momento de la eliminación ayudará a preservar recursos naturales y a garantizar que el reciclaje proteja la salud y el medio ambiente. Si desea información adicional sobre los lugares donde puede dejar estos residuos para su reciclado, póngase en contacto con las autoridades locales de su ciudad, con el servicio de gestión de residuos domésticos o con la tienda donde adquirió el producto.

Likvidace vysloužilého zařízení uživateli v domácnosti v zemích EU

Tato značka na produktu nebo na jeho obalu označuje, že tento produkt nesmí být likvidován prostým vyhozením do běžného domovního odpadu. Odpovídáte za to, že vysloužilé zařízení bude předáno k likvidaci do stanovených sběrných míst určených k recyklaci vysloužilých elektrických a elektronických zařízení. Likvidace vysloužilého zařízení samostatným sběrem a recyklací napomáhá zachování přírodních zdrojů a zajišťuje, že recyklace proběhne způsobem chránícím lidské zdraví a životní prostředí. Další informace o tom, kam můžete vysloužilé zařízení předat k recyklaci, můžete získat od úřadů místní samosprávy, od společnosti provádějící svoz a likvidaci domovního odpadu nebo v obchodě, kde jste produkt zakoupili.

Bortskaffelse af affaldsudstyr for brugere i private husholdninger i EU

Dette symbol på produktet eller på dets emballage indikerer, at produktet ikke må bortskaffes sammen med andet husholdningsaffald. I stedet er det dit ansvar at bortskaffe affaldsudstyr ved at aflevere det på dertil beregnede indsamlingssteder med henblik på genbrug af elektrisk og elektronisk affaldsudstyr. Den separate indsamling og genbrug af dit affaldsudstyr på tidspunktet for bortskaffelse er med til at bevare naturlige ressourcer og sikre, at genbrug finder sted på en måde, der beskytter menneskers helbred samt miljøet. Hvis du vil vide mere om, hvor du kan aflevere dit affaldsudstyr til genbrug, kan du kontakte kommunen, det lokale renovationsvæsen eller den forretning, hvor du købte produktet.

Afvoer van afgedankte apparatuur door gebruikers in particuliere huishoudens in de Europese Unie

Dit symbool op het product of de verpakking geeft aan dat dit product niet mag worden afgevoerd met het huishoudelijk afval. Het is uw verantwoordelijkheid uw afgedankte apparatuur af te leveren op een aangewezen inzamelpunt voor de verwerking van afgedankte elektrische en elektronische apparatuur. De gescheiden inzameling en verwerking van uw afgedankte apparatuur draagt bij tot het sparen van natuurlijke bronnen en tot het hergebruik van materiaal op een wijze die de volksgezondheid en het milieu beschermt. Voor meer informatie over waar u uw afgedankte apparatuur kunt inleveren voor recycling kunt u contact opnemen met het gemeentehuis in uw woonplaats, de reinigingsdienst of de winkel waar u het product hebt aangeschaft.

Eramajapidamistes kasutuselt kõrvaldatavate seadmete käitlemine Euroopa Liidus

Kui tootel või toote pakendil on see sümbol, ei tohi seda toodet visata olmejäätmete hulka. Teie kohus on viia tarbetuks muutunud seade selleks ettenähtud elektri- ja elektroonikaseadmete utiliseerimiskohta. Utiliseeritavate seadmete eraldi kogumine ja käitlemine aitab säästa loodusvarasid ning tagada, et käitlemine toimub inimeste tervisele ja keskkonnale ohutult. Lisateavet selle kohta, kuhu saate utiliseeritava seadme käitlemiseks viia, saate küsida kohalikust omavalitsusest, olmejäätmete utiliseerimispunktist või kauplusest, kust te seadme ostsite.

Hävitettävien laitteiden käsittely kotitalouksissa Euroopan unionin alueella

Tämä tuotteessa tai sen pakkauksessa oleva merkintä osoittaa, että tuotetta ei saa hävittää talousjätteiden mukana. Käyttäjän velvollisuus on huolehtia siitä, että hävitettävä laite toimitetaan sähkö- ja elektroniikkalaiteromun keräyspisteeseen. Hävitettävien laitteiden erillinen keräys ja kierrätys säästää luonnonvaroja. Näin toimimalla varmistetaan myös, että kierrätys tapahtuu tavalla, joka suojelee ihmisten terveyttä ja ympäristöä. Saat tarvittaessa lisätietoja jätteiden kierrätyspaikoista paikallisilta viranomaisilta, jäteyhtiöiltä tai tuotteen jälleenmyyjältä.

Απόρριψη άχρηστων συσκευών στην Ευρωπαϊκή Ένωση

Το παρόν σύμβολο στον εξοπλισμό ή στη συσκευασία του υποδεικνύει ότι το προϊόν αυτό δεν πρέπει να πεταχτεί μαζί με άλλα οικιακά απορρίμματα. Αντίθετα, ευθύνη σας είναι να απορρίψετε τις άχρηστες συσκευές σε μια καθορισμένη μονάδα συλλογής απορριμμάτων για την ανακύκλωση άχρηστου ηλεκτρικού και ηλεκτρονικού εξοπλισμού. Η χωριστή συλλογή και ανακύκλωση των άχρηστων συσκευών θα συμβάλει στη διατήρηση των φυσικών πόρων και στη διασφάλιση ότι θα ανακυκλωθούν με τέτοιον τρόπο, ώστε να προστατεύεται η υγεία των ανθρώπων και το περιβάλλον. Για περισσότερες πληροφορίες σχετικά με το πού μπορείτε να απορρίψετε τις άχρηστες συσκευές για ανακύκλωση, επικοινωνήστε με τις κατά τόπους αρμόδιες αρχές ή με το κατάστημα από το οποίο αγοράσατε το προϊόν.

A hulladékanyagok kezelése a magánháztartásokban az Európai Unióban

Ez a szimbólum, amely a terméken vagy annak csomagolásán van feltüntetve, azt jelzi, hogy a termék nem kezelhető együtt az egyéb háztartási hulladékkal. Az Ön feladata, hogy a készülék hulladékanyagait eljuttassa olyan kijelölt gyűjtőhelyre, amely az elektromos hulladékanyagok és az elektronikus berendezések újrahasznosításával foglalkozik. A hulladékanyagok elkülönített gyűjtése és újrahasznosítása hozzájárul a természeti erőforrások megőrzéséhez, egyúttal azt is biztosítja, hogy a hulladék újrahasznosítása az egészségre és a környezetre nem ártalmas módon történik. Ha tájékoztatást szeretne kapni azokról a helyekről, ahol leadhatja újrahasznosításra a hulladékanyagokat, forduljon a helyi önkormányzathoz, a háztartási hulladék begyűjtésével foglalkozó vállalathoz vagy a termék forgalmazójához.

Lietotāju atbrīvošanās no nederīgām ierīcēm Eiropas Savienības privātajās mājsaimniecībās

Šis simbols uz ierīces vai tās iepakojuma norāda, ka šo ierīci nedrīkst izmest kopā ar pārējiem mājsaimniecības atkritumiem. Jūs esat atbildīgs par atbrīvošanos no nederīgās ierīces, to nododot norādītajā savākšanas vietā, lai tiktu veikta nederīgā elektriskā un elektroniskā aprīkojuma otrreizējā pārstrāde. Speciāla nederīgās ierīces savākšana un otrreizējā pārstrāde palīdz taupīt dabas resursus un nodrošina tādu otrreizējo pārstrādi, kas sargā cilvēku veselību un apkārtējo vidi. Lai iegūtu papildu informāciju par to, kur otrreizējai pārstrādei var nogādāt nederīgo ierīci, lūdzu, sazinieties ar vietējo pašvaldību, mājsaimniecības atkritumu savākšanas dienestu vai veikalu, kurā iegādājāties šo ierīci.

Europos Sąjungos vartotojų ir privačių namų ūkių atliekamos įrangos išmetimas

Šis simbolis ant produkto arba jo pakuotės nurodo, kad produktas negali būti išmestas kartu su kitomis namų ūkio atliekomis. Jūs privalote išmesti savo atliekamą įrangą atiduodami ją į atliekamos elektronikos ir elektros įrangos perdirbimo punktus. Jei atliekama įranga bus atskirai surenkama ir perdirbama, bus išsaugomi natūralūs ištekliai ir užtikrinama, kad įranga yra perdirbta žmogaus sveikatą ir gamtą tausojančiu būdu. Dėl informacijos apie tai, kur galite išmesti atliekamą perdirbti skirtą įrangą kreipkitės į atitinkamą vietos tarnybą, namų ūkio atliekų išvežimo tarnybą arba į parduotuvę, kurioje pirkote produktą.

Utylizacja zużytego sprzętu przez użytkowników domowych w Unii Europejskiej

Symbol ten umieszczony na produkcie lub opakowaniu oznacza, że tego produktu nie należy wyrzucać razem z innymi odpadami domowymi. Użytkownik jest odpowiedzialny za dostarczenie zużytego sprzętu do wyznaczonego punktu gromadzenia zużytych urządzeń elektrycznych i elektronicznych. Gromadzenie osobno i recykling tego typu odpadów przyczynia się do ochrony zasobów naturalnych i jest bezpieczny dla zdrowia i środowiska naturalnego. Dalsze informacje na temat sposobu utylizacji zużytych urządzeń można uzyskać u odpowiednich władz lokalnych, w przedsiębiorstwie zajmującym się usuwaniem odpadów lub w miejscu zakupu produktu.

Descarte de equipamentos por usuários em residências da União Européia

Este símbolo no produto ou na embalagem indica que o produto não pode ser descartado junto com o lixo doméstico. No entanto, é sua responsabilidade levar os equipamentos a serem descartados a um ponto de coleta designado para a reciclagem de equipamentos eletro-eletrônicos. A coleta separada e a reciclagem dos equipamentos no momento do descarte ajudam na conservação dos recursos naturais e garantem que os equipamentos serão reciclados de forma a proteger a saúde das pessoas e o meio ambiente. Para obter mais informações sobre onde descartar equipamentos para reciclagem, entre em contato com o escritório local de sua cidade, o serviço de limpeza pública de seu bairro ou a loja em que adquiriu o produto.

Postup používateľov v krajinách Európskej únie pri vyhadzovaní zariadenia v domácom používaní do odpadu

Tento symbol na produkte alebo na jeho obale znamená, že nesmie by vyhodený s iným komunálnym odpadom. Namiesto toho máte povinnos odovzda toto zariadenie na zbernom mieste, kde sa zabezpečuje recyklácia elektrických a elektronických zariadení. Separovaný zber a recyklácia zariadenia určeného na odpad pomôže chráni prírodné zdroje a zabezpečí taký spôsob recyklácie, ktorý bude chráni ľudské zdravie a životné prostredie. Ďalšie informácie o separovanom zbere a recyklácii získate na miestnom obecnom úrade, vo firme zabezpečujúcej zber vášho komunálneho odpadu alebo v predajni, kde ste produkt kúpili.

Ravnanje z odpadno opremo v gospodinjstvih znotraj Evropske unije

Ta znak na izdelku ali embalaži izdelka pomeni, da izdelka ne smete odlagati skupaj z drugimi gospodinjskimi odpadki. Odpadno opremo ste dolžni oddati na določenem zbirnem mestu za recikliranje odpadne električne in elektronske opreme. Z ločenim zbiranjem in recikliranjem odpadne opreme ob odlaganju boste pomagali ohraniti naravne vire in zagotovili, da bo odpadna oprema reciklirana tako, da se varuje zdravje ljudi in okolje. Več informacij o mestih, kjer lahko oddate odpadno opremo za recikliranje, lahko dobite na občini, v komunalnem podjetju ali trgovini, kjer ste izdelek kupili.

Kassering av förbrukningsmaterial, för hem- och privatanvändare i EU

Produkter eller produktförpackningar med den här symbolen får inte kasseras med vanligt hushållsavfall. I stället har du ansvar för att produkten lämnas till en behörig återvinningsstation för hantering av el- och elektronikprodukter. Genom att lämna kasserade produkter till återvinning hjälper du till att bevara våra gemensamma naturresurser. Dessutom skyddas både människor och miljön när produkter återvinns på rätt sätt. Kommunala myndigheter, sophanteringsföretag eller butiken där varan köptes kan ge mer information om var du lämnar kasserade produkter för återvinning.

Изхвърляне на оборудване за отпадъци от потребители в частни домакинства в Европейския съюз

Този символ върху продукта или опаковката му показва, чепродуктът не трябва да се изхвърля заедно с домакинските отпадъци. Вие имате отговорността да изхвърлите оборудването за отпадъци, като го предадете на определен пункт за рециклиране на електрическо или механично оборудване за отпадъци. Отделното събиране и рециклиране на оборудването за отпадъци при изхвърлянето му помага за запазването на природни ресурси и гарантира рециклиране, извършено така, чеда не застрашава човешкото здраве и околната среда. За повече информация къде можете да оставите оборудването за отпадъци за рециклиране се свържете със съответния офис в града ви, фирмата за събиране на отпадъци или смагазина, от който сте закупили продукта

Înlăturarea echipamentelor uzate de către utilizatorii casnici din Uniunea Europeană

Acest simbol de pe produs sau de pe ambalajul produsului indică faptul că acest produs nu trebuie aruncat alături de celelalte deşeuri casnice. În loc să procedaţi astfel, aveţi responsabilitatea să vă debarasaţi de echipamentul uzat predându-l la un centru de colectare desemnat pentru reciclarea deşeuri Colectarea şi reciclarea separată aechipamentului uzat atunci când doriţi să îl aruncaţi ajută la conservarea resurselor naturale şi asigură reciclarea echipamentului într-o manieră care protejează sănătatea umană şi mediul. Pentru informaţii suplimentare despre locul în care se poate preda echipamentul uzat pentru reciclare, luaţi legătura cu primăria locală, cu serviciul de salubritate sau cu vânzătorul de la care aţi achiziţionat produsul.

lor electrice şi aechipamentelor electronice.

Chemical Substances

HP is committed to providing our customers with information about the chemical substances in our products as needed to comply with legal requirements such as REACH (Regulation EC No

50 Technical information

1907/2006 of the European Parliament and the Council). A chemical information report for this product can be found at:

Toxic and hazardous substance table

Regulatory notices

The HP Printer meets product requirements from regulatory agencies in your country/region.

This section contains the following topics:

•

Regulatory model identification number

•

FCC statement

•

Notice to users in Korea

•

VCCI (Class B) compliance statement for users in Japan

•

Notice to users in Japan about the power cord

•

HP Deskjet Ink Advantage Printer series - K109 declaration of conformity

www.hp.com/go/reach.

Technical information

Regulatory model identification number

For regulatory identification purposes, your product is assigned a Regulatory Model Number. The Regulatory Model Number for your product is SNPRB-0921-02. This regulatory number should not be confused with the marketing name (HP Deskjet Ink Advantage Printer series - K109, etc.) or product numbers (CH358, etc.).

Regulatory notices 51

Technical information

Chapter 8

FCC statement

The United States Federal Communications Commission (in 47 CFR 15.105) has specified that the following notice be brought to the attention of users of this product.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help. For further information, contact:

Manager of Corporate Product Regulations Hewlett-Packard Company 3000 Hanover Street Palo Alto, Ca 94304

(650) 857-1501 Modifications (part 15.21) The FCC requires the user to be notified that any changes or modifications made to this

device that are not expressly approved by HP may void the user's authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Notice to users in Korea

VCCI (Class B) compliance statement for users in Japan

52 Technical information

Notice to users in Japan about the power cord

HP Deskjet Ink Advantage Printer series - K109 declaration of conformity

DECLARATION OF CONFORMITY

Supplier’s Name: Supplier’s Address:

declares, that the product

Product Name: Regulatory Model Number:1) Product Options:

conforms to the following Product Specifications and Regulations:

SAFETY:

EMC:

IEC 60950-1:2001 / EN60950-1:2001 +A11:2004 EN 60825-1 1994+A1:2002+A2: 2001

CISPR 22:2005 / EN55022:2006 Class B CISPR 24:1997 +A1:2001 +A2:2002 / EN 55024:1998 +A1:2001 + A2:2003 Class B

IEC 61000-3-2: 2000 +A1:2001 +A2:2004 / EN 61000-3-2: 2000 +A2:2005 IEC 61000-3-3:1994 +A1: 2001 / EN 61000-3-3:1995 +A1: 2001 FCC CFR 47, Part 15 Class B

according to ISO/IEC 17050-1 and EN 17050-1

Hewlett-Packard Company

DoC#: SNPRB-0921-02-A

60, Alexandra Terrace, # 07-01 The Comtech, Singapore 118502

HP Deskjet Ink Advantage Printer SNPRB-0921-02 All

/ ICES-003, Issue 4 Class B

Technical information

Supplementary Information:

1. For regulatory purposes, these products are assigned a Regulatory model number. This number should not be confused with the product name or the product number(s).

2. The product herewith complies with the requirements of the Low Voltage Directive 2006/95/EC, the EMC Directive 2004/108/EC, and carries the CE-Marking accordingly. In addition, it complies with the WEEE Directive 2002/96/EC and ROHS Directive 2002/95/EC.

3. This Device complies with Part 15 of the FCC Rules. Operation is subject to the following two Conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

4. The product was tested in a typical configuration.

Singapore 22 September 2008

Local contact for regulatory topics only:

EMEA: Hewlett-Packard GmbH, HQ-TRE, Herrenberger Strasse 140, 71034 Boeblingen, Germany www.hp.com/go/certification

USA : Hewlett-Packard, 3000 Hanover St., Palo Alto 94304, U.S.A. 650-857-1501

Regulatory notices 53

Technical information

Chapter 8

54 Technical information

Index

after the support period 32

connection problems

HP All-in-One will not turn

on 33

customer support

warranty 32

environment

Environmental product

stewardship program 48

environmental

specifications 47

error messages 42

ink-backup mode 29

paper

recommended types 21 phone support 31 phone support period

period for support 31 print

troubleshooting 36 printing

with one print cartridge 29 problems

error messages 42

print 36

software installation

reinstall 35

uninstall 35 support process 31 system requirements 47

technical information

environmental

specifications 47

system requirements 47 troubleshoot

setup 32 troubleshooting

error messages 42

print 36

uninstall software 35

warranty 32

Index

recycle

ink cartridges 49

regulatory notices

regulatory model

identification number 51

reinstall software 35

Index

HP K109a User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

How Do I?

Printer parts

Get to know the HP Printer

Control panel features

Print documents

Print

Print photos

Print envelopes

Print on specialty media

Print a Web page

Check the estimated ink levels

Work with cartridges

Order ink supplies

Automatically clean print cartridges

Replace the cartridges

Use ink-backup mode

Exit ink-backup mode

Cartridge warranty information

HP support

Support process

HP support by phone

Phone support period

Solve a problem

Placing a call

Support phone numbers

After the phone support period

Additional warranty options

Setup troubleshooting

The product will not turn on

After setting up the product, it does not print

Uninstall and reinstall the software

Print troubleshooting

Check cartridges

Check paper

Check product

Check printer settings

Errors

Flashing lights

Specifications

Notice

Technical information

Environmental product stewardship program

Eco-Tips

Paper use

Plastics

Material safety data sheets

Recycling program

HP inkjet supplies recycling program

Power consumption

Disposal of waste equipment by users in private households in the European Union

Chemical Substances

Toxic and hazardous substance table

Regulatory notices

Regulatory model identification number

FCC statement

Notice to users in Korea

VCCI (Class B) compliance statement for users in Japan

Notice to users in Japan about the power cord

HP Deskjet Ink Advantage Printer series - K109 declaration of conformity

Index
