HPE FlexFabric 5940 Switch Series
Installation Guide
Part number: 5200-2842b Document version: 6W105-20171215
Page 2
© Copyright 2017 Hewlett Packard Enterprise Development LP
Confidential computer software. Valid license from Hewlett Packard Enterprise required for possession, use, or copying. Consistent with FAR 12.211 and 12.212, Commercial Computer Software, Computer Software Documentation, and Technical Data for Commercial Items are licensed to the U.S. Government under vendor’s standard commercial license.
Links to third-party websites take you outside the Hewlett Packard Enterprise website. Hewlett Packard Enterprise has no control over and is not responsible for information outside the Hewlett Packard Enterprise website.
Acknowledgments
Intel®, Itanium®, Pentium®, Intel Inside®, and the Intel Inside logo are trademarks of Intel Corporation in the United States and other countries.
Microsoft® and Windows® are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
Adobe® and Acrobat® are trademarks of Adobe Systems Incorporated.
Java and Oracle are registered trademarks of Oracle and/or its affiliates.
UNIX® is a registered trademark of The Open Group.
Page 3

Contents

Preparing for installation ···································································· 1
Safety recommendations ············································································································· 2 Examining the installation site ······································································································· 2
Temperature/humidity ·········································································································· 2 Cleanliness ························································································································ 3 EMI ·································································································································· 3
Laser safety ······················································································································· 4 Installation tools ························································································································· 4 Installation accessories ··············································································································· 4
Installing the switch ·········································································· 7
Installing the switch in a 19-inch rack ····························································································· 8
Installation accessories ········································································································· 8
Rack-mounting procedures at a glance ·················································································· 10
Attaching the mounting brackets, chassis rails, and grounding cable to the chassis ························· 11
Attaching the slide rails to the rack ························································································ 16
Mounting the switch in the rack ···························································································· 17 Grounding the switch ················································································································ 21
Grounding the switch with a grounding strip ············································································ 21
Grounding the switch by using the AC power cord ···································································· 22 Installing/removing a fan tray ······································································································ 23
Installing a fan tray ············································································································ 23
Removing a fan tray ··········································································································· 25 Installing/removing a power supply ······························································································ 26
Installing a power supply ····································································································· 26
Removing a power supply ··································································································· 27 Connecting the power cord ········································································································ 29
Connecting an AC power cord ······························································································ 29
Connecting a DC power cord ······························································································· 29 Installing/removing an interface module ························································································ 30
Installing an interface module ······························································································· 30
Removing an interface module ····························································································· 32 Verifying the installation ············································································································· 32
Accessing the switch for the first time ················································· 33
Setting up the configuration environment ······················································································ 33 Connecting the console cable ····································································································· 33
Serial console cable ··········································································································· 33
USB mini console cable ······································································································ 34
Connection procedure ········································································································ 34 Setting terminal parameters ······································································································· 36 Powering on the switch ············································································································· 36
Setting up an IRF fabric ··································································· 38
IRF fabric setup flowchart ·········································································································· 38 Planning IRF fabric setup ··········································································································· 39
Planning IRF fabric size and the installation site ······································································· 39
Identifying the master switch and planning IRF member IDs ······················································· 39
Planning IRF topology and connections·················································································· 40
Identifying physical IRF ports on the member switches ······························································ 41
Planning the cabling scheme ······························································································· 41 Configuring basic IRF settings ···································································································· 42 Connecting the physical IRF ports ······························································································· 42 Accessing the IRF fabric to verify the configuration ········································································· 43
Maintenance and troubleshooting ······················································ 44
Power supply failure ················································································································· 44
i
Page 4
Fan tray failure ························································································································ 44 Configuration terminal problems ·································································································· 45
No display on the configuration terminal ················································································· 45
Garbled display on the configuration terminal ·········································································· 45
Appendix A Chassis views and technical specifications ·························· 46
Chassis views ························································································································· 46
HPE 5940 32QSFP+ ·········································································································· 46
HPE 5940 48SFP+ 6QSFP+ ································································································ 47
HPE 5940 48XGT 6QSFP+ ································································································· 48
HPE 5940 48SFP+ 6QSFP28 ······························································································ 49
HPE 5940 48XGT 6QSFP28 ································································································ 50
HPE FlexFabric 5940 2-slot ································································································· 51
HPE FlexFabric 5940 4-slot ································································································· 52 Technical specifications ············································································································· 54
Appendix B FRUs and compatibility matrixes ······································· 58
Power supplies ························································································································ 59 Fan trays ································································································································ 60 Interface modules ···················································································································· 61
Appendix C Ports and LEDs ····························································· 64
Ports ····································································································································· 64
Console port ····················································································································· 64
Management Ethernet port ·································································································· 64
USB port ························································································································· 65
SFP+ port ························································································································ 66
QSFP+ port ······················································································································ 68
QSFP28 port ···················································································································· 71
1/10GBASE-T autosensing Ethernet port ················································································ 74 LEDs ····································································································································· 74
System status LED ············································································································ 74
SFP+ port LED ················································································································· 74
QSFP+ port LED ··············································································································· 75
QSFP28 port LED ············································································································· 75
Management Ethernet port LEDs ·························································································· 76
1/10GBASE-T autosensing Ethernet port LEDs ······································································· 76
Fan tray alarm LEDs ·········································································································· 77
Appendix D Cooling system ······························································ 78
Document conventions and icons ······················································ 79
Conventions ··························································································································· 79 Network topology icons ············································································································· 80
Support and other resources ···························································· 81
Accessing Hewlett Packard Enterprise Support ·············································································· 81 Accessing updates ··················································································································· 81
Websites ························································································································· 82
Customer self repair ··········································································································· 82
Remote support ················································································································ 82
Documentation feedback ···································································································· 83
Index ··························································································· 84
ii
Page 5

Preparing for installation

Table 1 describes HPE FlexFabric 5940 Switch Series models, power supplies, and fan trays.
Table 1 HPE FlexFabric 5940 Switch Series models, power supplies, and fan trays
Product code HPE description Alias
HPE FlexFabric 5940 switches
JH390A HPE FlexFabric 5940 48SFP+ 6QSFP28 Switch HPE 5940 48SFP+ 6QSFP28
JH391A HPE FlexFabric 5940 48XGT 6QSFP28 Switch HPE 5940 48XGT 6QSFP28
JH394A HPE FlexFabric 5940 48XGT 6QSFP+ Switch HPE 5940 48XGT 6QSFP+
JH395A HPE FlexFabric 5940 48SFP+ 6QSFP+ Switch HPE 5940 48SFP+ 6QSFP+
JH396A HPE FlexFabric 5940 32QSFP+ Switch HPE 5940 32QSFP+
JH397A HPE FlexFabric 5940 2-slot Switch HPE 5940 2-slot
JH398A HPE FlexFabric 5940 4-slot Switch HPE 5940 4-slot
Power supplies
JC680A HPE 58x0AF 650W AC Power Supply 650W AC
JH336A
JG900A HPE A58x0AF 300W AC Power Supply 300W AC
JG901A HPE A58x0AF 300W DC Power Supply 300W DC
Fan trays
JC682A
JC683A
JG552A
JG553A
JH185A
JH186A
HPE FlexFabric Switch 650W 48V Hot Plug NEBS-compliant DC Power Supply
HPE 58x0AF Back (Power Side) to Front (Port Side) Airflow Fan Tray
HPE 58x0AF Front (Port Side) to Back (Power Side) Airflow Fan Tray
HPE X711 Front (Port Side) to Back (Power Side) Airflow High Volume Fan Tray
HPE X712 Back (Power Side) to Front (Port Side) Airflow High Volume Fan Tray
HPE 5930 4-slot Back (Power Side) to Front (Port Side) Airflow Fan Tray
HPE 5930 4-slot Front (Port Side) to Back (Power Side) Airflow Fan Tray
650W DC
LSWM1FANSC
LSWM1FANSCB
LSWM1HFANSCB
LSWM1HFANSC
LSWM1BFANSC
LSWM1BFANSCB
For regulatory identification purposes, the HPE FlexFabric 5940 Switches are assigned Regulatory Model Numbers (RMNs). The RMNs for these products are listed below.
Product code RMN Description
JH390A BJNGA-AD0068 HPE FlexFabric 5940 48SFP+ 6QSFP28 Switch
JH391A BJNGA-AD0069 HPE FlexFabric 5940 48XGT 6QSFP28 Switch
JH394A BJNGA-AD0061 HPE FlexFabric 5940 48XGT 6QSFP+ Switch
JH395A BJNGA-AD0060
HPE FlexFabric 5940 48SFP+ 6QSFP+ Switch
1
Page 6
Product code RMN Description
JH396A BJNGA-AD0022 HPE FlexFabric 5940 32QSFP+ Switch
JH397A BJNGA-AD0049 HPE FlexFabric 5940 2-slot Switch
JH398A BJNGA-AD0050 HPE FlexFabric 5940 4-slot Switch

Safety recommendations

To avoid any equipment damage or bodily injury caused by incorrect use, read the following safety recommendations before installation. Note that the recommendations do not cover every possible hazardous condition.
• Before cleaning the switch, remove all power cords from the switch. Do not clean the switch
with wet cloth or liquid.
• Do not place the switch near water or in a damp environment. Prevent water or moisture from
entering the switch chassis.
• Do not place the switch on an unstable case or desk. The switch might be severely damaged in
case of a fall.
• Ensure good ventilation of the equipment room and keep the air inlet and outlet vents of the
switch free of obstruction.
• Connect the yellow-green protection grounding cable before power-on.
• Make sure the operating voltage is in the required range.
• To avoid electrical shocks, do not open the chassis while the switch is operating or when the
switch is just powered off.
• When replacing FRUs, including power supplies, interface modules, and fan trays, wear an
ESD wrist strap to avoid damaging the units.

Examining the installation site

The HPE FlexFabric 5940 switches must be used indoors.
Mount your switch in a rack and verify the following items:
• Adequate clearance is reserved at the air inlet and outlet vents for ventilation.
• The rack has a good ventilation system.
• Identify the hot aisle and cold aisle at the installation site, and make sure ambient air flows into
the switch from the cold aisle and exhausts to the hot aisle.
• Identify the airflow designs of neighboring devices, and prevent hot air flowing out of the bottom
device from entering the top device.
• The rack is sturdy enough to support the switch and its accessories.
• The rack is reliably grounded.
To ensure correct operation and long service life of your switch, install it in an environment that meets the requirements described in the following subsections.

Temperature/humidity

Maintain appropriate temperature and humidity in the equipment room.
• Lasting high relative humidity can cause poor insulation, electricity leakage, mechanical
property change of materials, and metal corrosion.
2
Page 7
• Lasting low relative humidity can cause washer contraction and ESD and cause problems
including loose screws and circuit failure.
• High temperature can accelerate the aging of insulation materials and significantly lower the
reliability and lifespan of the switch.
For the temperature and humidity requirements of different switch models, see "Appendix A Chassis
views and technical sp

Cleanliness

Dust buildup on the chassis might result in electrostatic adsorption, which causes poor contact of metal components and contact points, especially when indoor relative humidity is low. In the worst case, electrostatic adsorption can cause communication failure.
Table 2 Dust concentration limit in the equipment room
Substance Concentration limit (particles/m³)
ecifications."
EMI
Dust
NOTE: Dust diameter ≥ 5 μm
≤ 3 x 104 (no visible dust on the tabletop over three days)
The equipment room must also meet strict limits on salts, acids, and sulfides to eliminate corrosion and premature aging of components, as shown in Tab l e 3 .
Table 3
Harmful gas limits in the equipment room
Gas Maximum concentration (mg/m3)
SO
2
H2S 0.006
NH3 0.05
Cl2 0.01
0.2
All electromagnetic interference (EMI) sources, from outside or inside of the switch and application system, adversely affect the switch in the following ways:
• A conduction pattern of capacitance coupling.
• Inductance coupling.
• Electromagnetic wave radiation.
• Common impedance (including the grounding system) coupling.
To prevent EMI, use the following guidelines:
• If AC power is used, use a single-phase three-wire power receptacle with protection earth (PE)
to filter interference from the power grid.
• Keep the switch far away from radio transmitting stations, radar stations, and high-frequency
devices.
• Use electromagnetic shielding, for example, shielded interface cables, when necessary.
• To prevent signal ports from getting damaged by overvoltage or overcurrent caused by lightning
strikes, route interface cables only indoors.
3
Page 8

Laser safety

WARNING!
Do not stare into any fiber port when the switch has power. The laser light emitted from the optical fiber might hurt your eyes.
The HPE FlexFabric 5940 switches are Class 1 laser devices.

Installation tools

No installation tools are provided with the switch. Prepare the following tools yourself:
• Phillips screwdriver.
• ESD wrist strap.
• Marker.

Installation accessories

Table 4 Installation accessories
Product code
5066-0850
5190-0719
Description Quantity Applicable models
1 U mounting bracket kit (including one pair of mounting brackets and eight M4 countersunk screws)
Mounting brackets for the HPE 5940 2-slot switch
Mounting brackets for the HPE 5940 4-slot switch
1 kit
1 kit HPE 5940 2-slot
All HPE FlexFabric 5940 switches
5190-0720
1 kit HPE 5940 4-slot
4
Page 9
Product code
5185-8681
5185-8684
5185-8713
5184-6723
5185-9579
Description Quantity Applicable models
1U short slide rail kit (including one pair of slide rails and four M4 countersunk screws)
2U short slide rail kit (including one pair of slide rails and four M4 countersunk screws)
1 U long slide rail kit (including one pair of slide rails and four M4 countersunk screws)
Grounding cable
Grounding screw
Interface module filler module
1 kit
1 kit
1 kit
1
2
• HPE 5940 32QSFP+
• HPE 5940 48XGT
6QSFP28
• HPE 5940 48XGT 6QSFP+
• HPE 5940 4-slot
• HPE 5940 48SFP+
6QSFP28
• HPE 5940 48SFP+ 6QSFP+
All HPE FlexFabric 5940 switches
All HPE FlexFabric 5940 switches
5003-2403
5190-1773
5185-8688 5400-0249
Power supply filler panel
DC power cord
The power cord color code scheme is for illustration only. The cable delivered for your country or region might use a different color scheme.
5
1
1
1 650W DC power supply
• HPE 5940 2-slot
• HPE 5940 4-slot
All HPE FlexFabric 5940 switches
Page 10
Product code
5185-8748
5185-8627
5187-9022
Description Quantity Applicable models
Removable cable tie
Console cable
QSFP+ dust plug
1 All power supplies
1
As required HPE 5940 32QSFP+
All HPE FlexFabric 5940 switches
6
Page 11

Installing the switch

CAUTION:
Keep the tamper-proof seal on a mounting screw on the chassis cover intact, and if you want to open the chassis, contact Hewlett Packard Enterprise for permission. Otherwise, Hewlett Packard Enterprise shall not be liable for any consequence caused thereby.

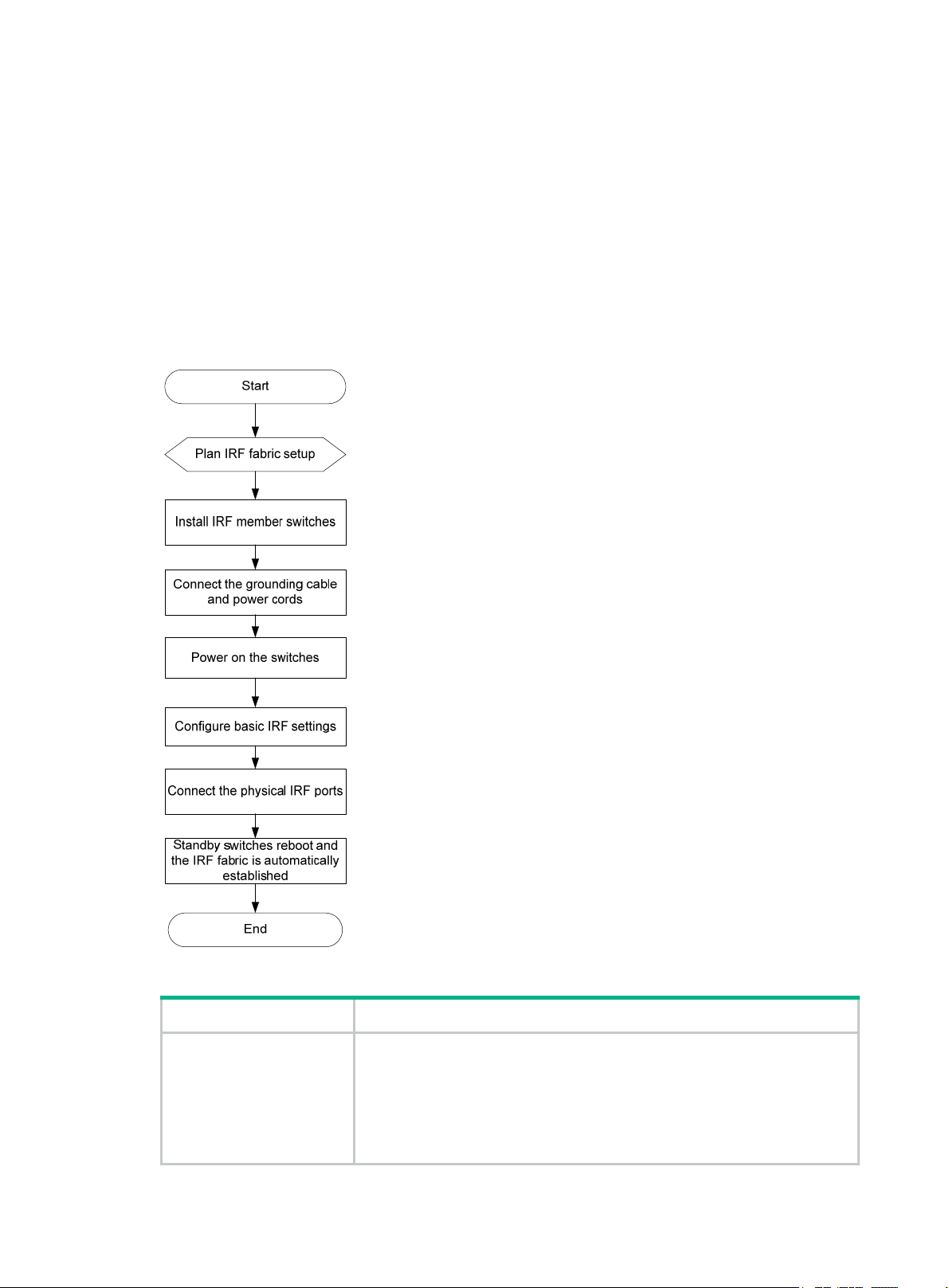

Figure 1 Hardware installation flow
7
Page 12

Installing the switch in a 19-inch rack

IMPORTANT:
To install an HPE FlexFabric 5940 switch (except HPE 5940 48SFP+ 6QSFP+ and HPE 5940 48SFP+ 6QSFP28 switches) in a 19-inch rack, make sure the rack depth is a minimum of 1000 mm (39.37 in) so that the rack door can be closed easily.

Installation accessories

Table 5 Installation accessories
Switch model
• HPE 5940 32QSFP+
• HPE 5940 48XGT 6QSFP+
• HPE 5940 48XGT
6QSFP28
• HPE 5940 48SFP+ 6QSFP+
• HPE 5940 48SFP+ 6QSFP28
HPE 5940 2-slot
HPE 5940 4-slot

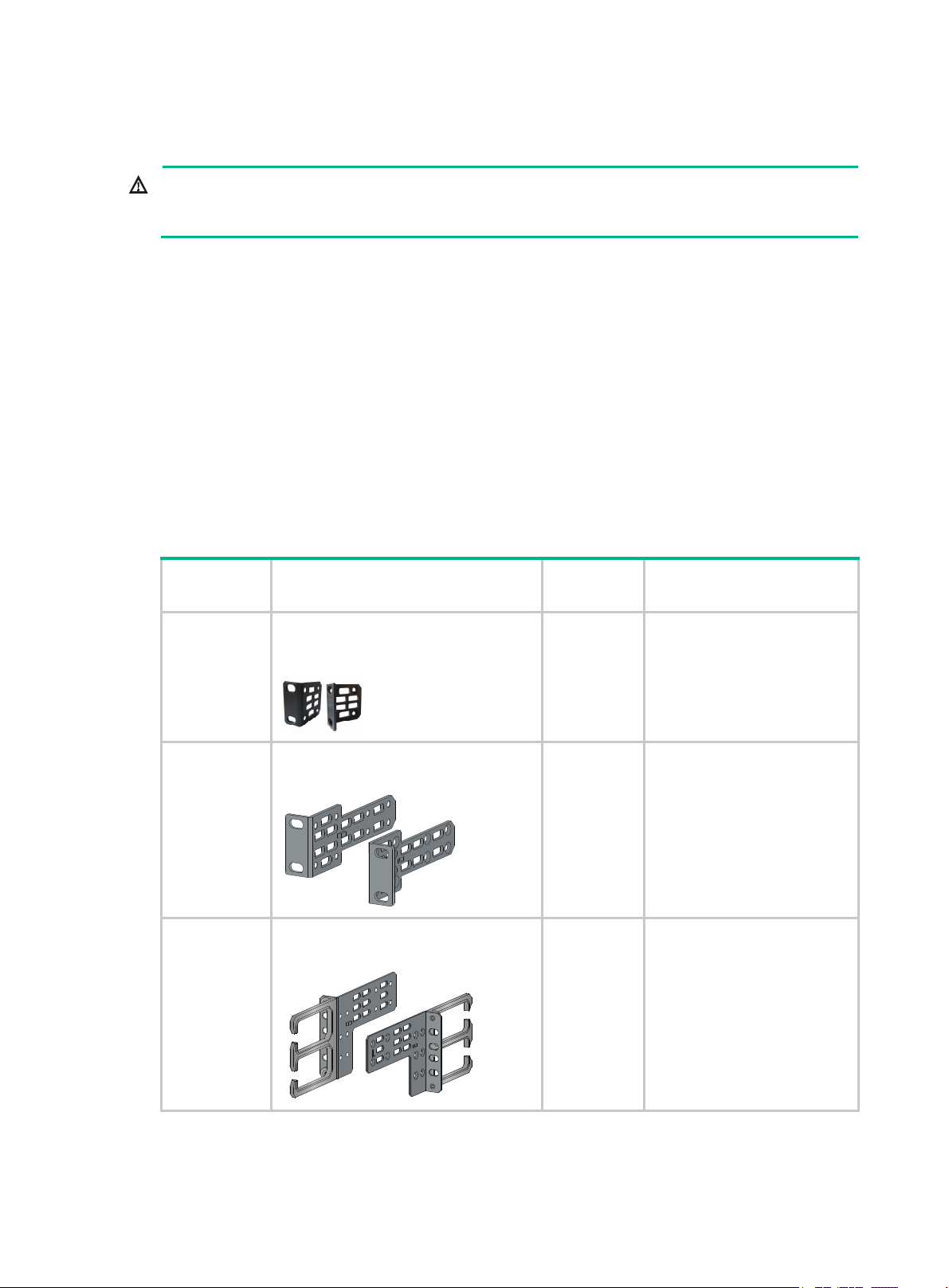

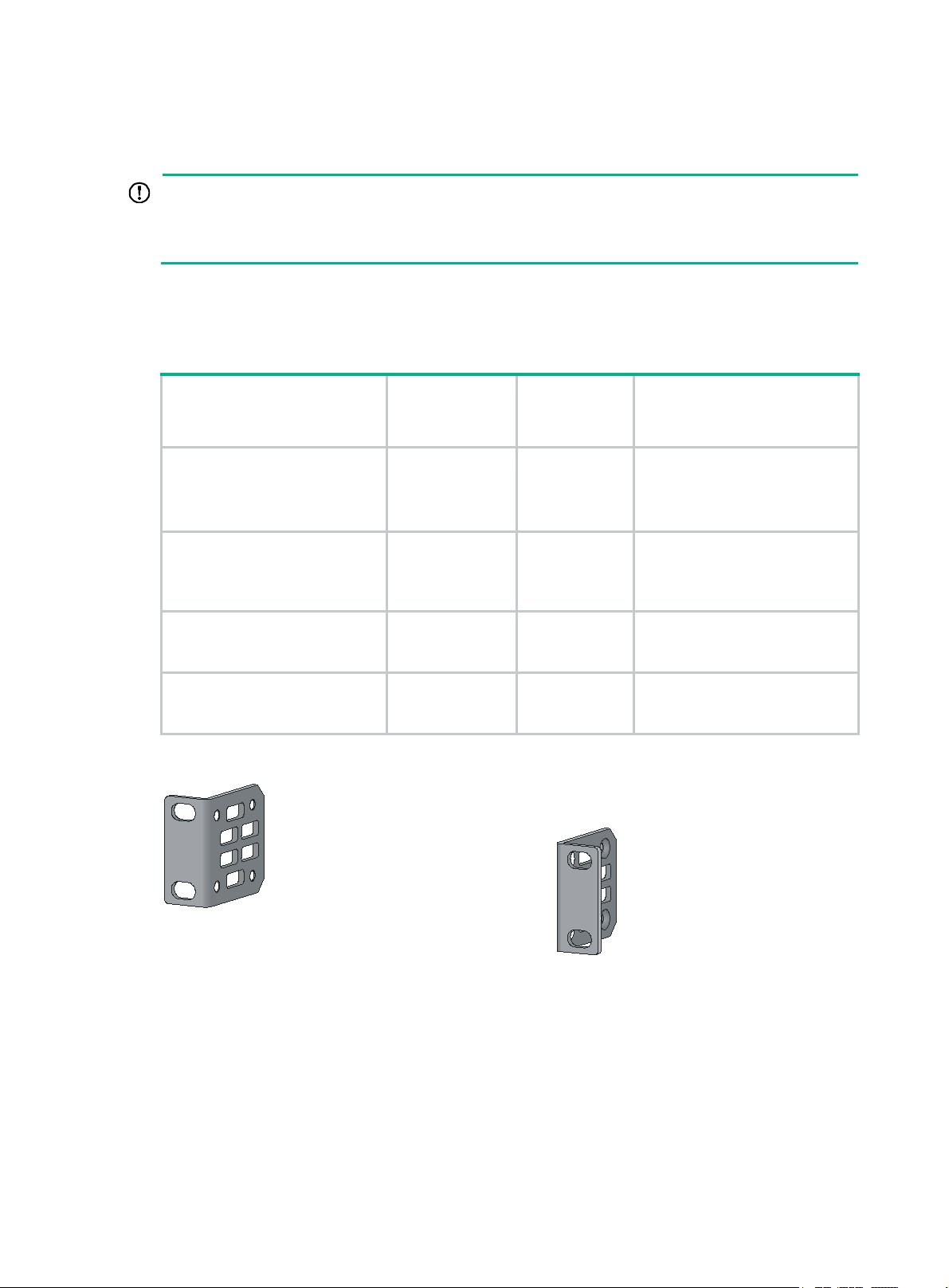

Figure 2 Mounting brackets
Mounting brackets (provided)
1U high, one pair. See Figure 2.
1U high, one pair. See Figure 2.
1U high, one pair. See Figure 3.
2U high, one pair. See Figure 4.
Cable management brackets
N/A
N/A
N/A
One pair (provided). See Figure 4.
Rack mounting rail kit (provided)
1U high, incl chassis rails and one pair of slide rails. See Figure 5.
1U high, incl chassis rails and one pair of long slide rails. See Figure 7.
1U hi chassis rails and one pair of slide rails. See Figure 5.
2U high, incl chassis rails and one pair of slide rails. See Figure 6.
uding one pair of
uding one pair of
gh, incl
uding one pair of
uding one pair of
8
Page 13
Figure 3 Mounting brackets for the HPE 5940 2-slot switch
Figure 4 Mounting brackets for the HPE 5940 4-slot Switch
1 2
(1) Cable management bracket (2) Mounting bracket

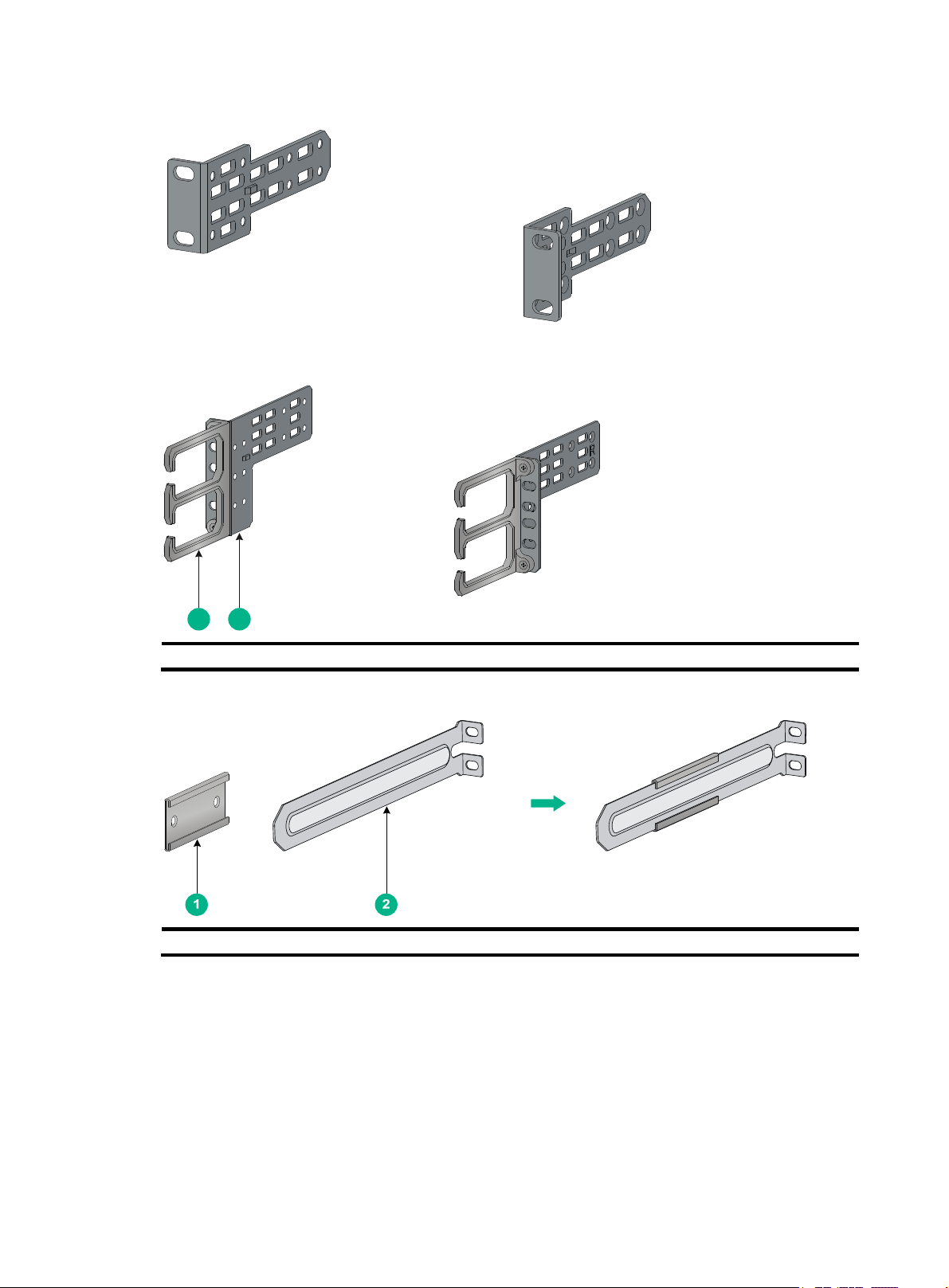

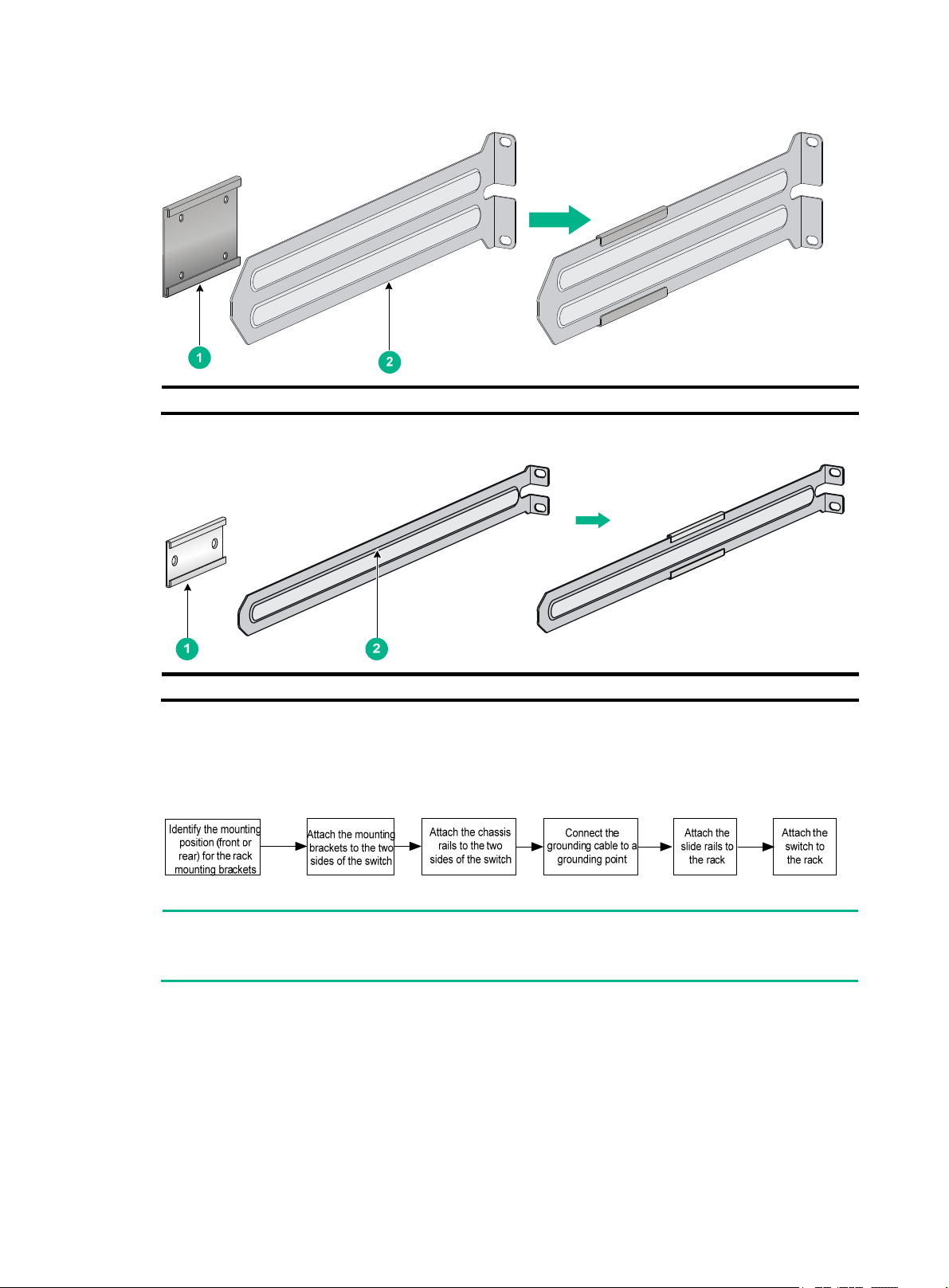

Figure 5 1U chassis rail and short slide rail
(1) Chassis rail (2) Slide rail
9
Page 14
Figure 6 2U chassis rail and short slide rail
(1) Chassis rail (2) Slide rail
Figure 7 1U chassis rail and long slide rail
(1) Chassis rail (2) Long slide rail

Rack-mounting procedures at a glance

Figure 8 Rack-mounting procedure
NOTE:
If a rack shelf is available, you can put the switch on the rack shelf, slide the switch to an appropriate location, and attach the switch to the rack with the mounting brackets.
• Follow these guidelines when you install the switch in a 19-inch rack:
• The distance between the front and rear posts of the rack must meet the requirements
described in Table 6.
o
• T
secure the switch to the rack, you must install not only mounting brackets, but also chassis
rails and slide rails.
10
Page 15
Table 6 Distance requirements between the front and rear rack posts
Switch model
HPE 5940 32QSFP+
HPE 5940 48SFP+ 6QSFP+
HPE 5940 48XGT 6QSFP+
HPE 5940 48SFP+ 6QSFP28
HPE 5940 48XGT 6QSFP28
Installation method
Using mounting brackets and short slide rails (provided)
Using mounting brackets and long slide rails (provided)
Using mounting brackets and short slide rails (optional)
Using mounting brackets and short slide rails (provided)
Using mounting brackets and long slide rails (provided)
Using mounting brackets and short slide rails (optional)
Using mounting brackets and short slide rails (provided)
Minimum distance between the front and rear rack posts
405 mm (15.94 in) 834 mm (32.83 in)
621 mm (24.45 in) 854 mm (33.62 in)
401 mm (15.79 in) 634 mm (24.96 in)
405 mm (15.94 in) 834 mm (32.83 in)
621 mm (24.45 in) 854 mm (33.62 in)
401 mm (15.79 in) 634 mm (24.96 in)
405 mm (15.94 in) 834 mm (32.83 in)
Maximum distance between the front and rear rack posts
HPE 5940 2-slot
HPE 5940 4-slot
Using mounting brackets and slide rails (provided)
Using mounting brackets and slide rails (provided)
520 mm (20.47 in) 769 mm (30.28 in)
518 mm (20.39 in) 858 mm (33.78 in)

Attaching the mounting brackets, chassis rails, and grounding cable to the chassis

The switch has one mounting position near the network ports and one mounting position near the power supplies for mounting brackets.
The HPE 5940 48SFP+ 6QSFP28, HPE 5940 48XGT 6QSFP28, HPE 5940 48XGT 6QSFP+, HPE 5940 48SFP+ 6QSFP+,HPE 5940 4-slot, and HPE 5940 32QSFP+ switches provide three grounding points: primary grounding point (with a grounding sign), auxiliary grounding point 1, and auxiliary grounding point 2. The HPE 5940 2-slot switch provides two grounding points: primary grounding point (with a grounding sign) and auxiliary grounding point 1.
The mounting brackets and chassis rails installation procedures are the same for All HPE FlexFabric 5940 switches.
11
Page 16

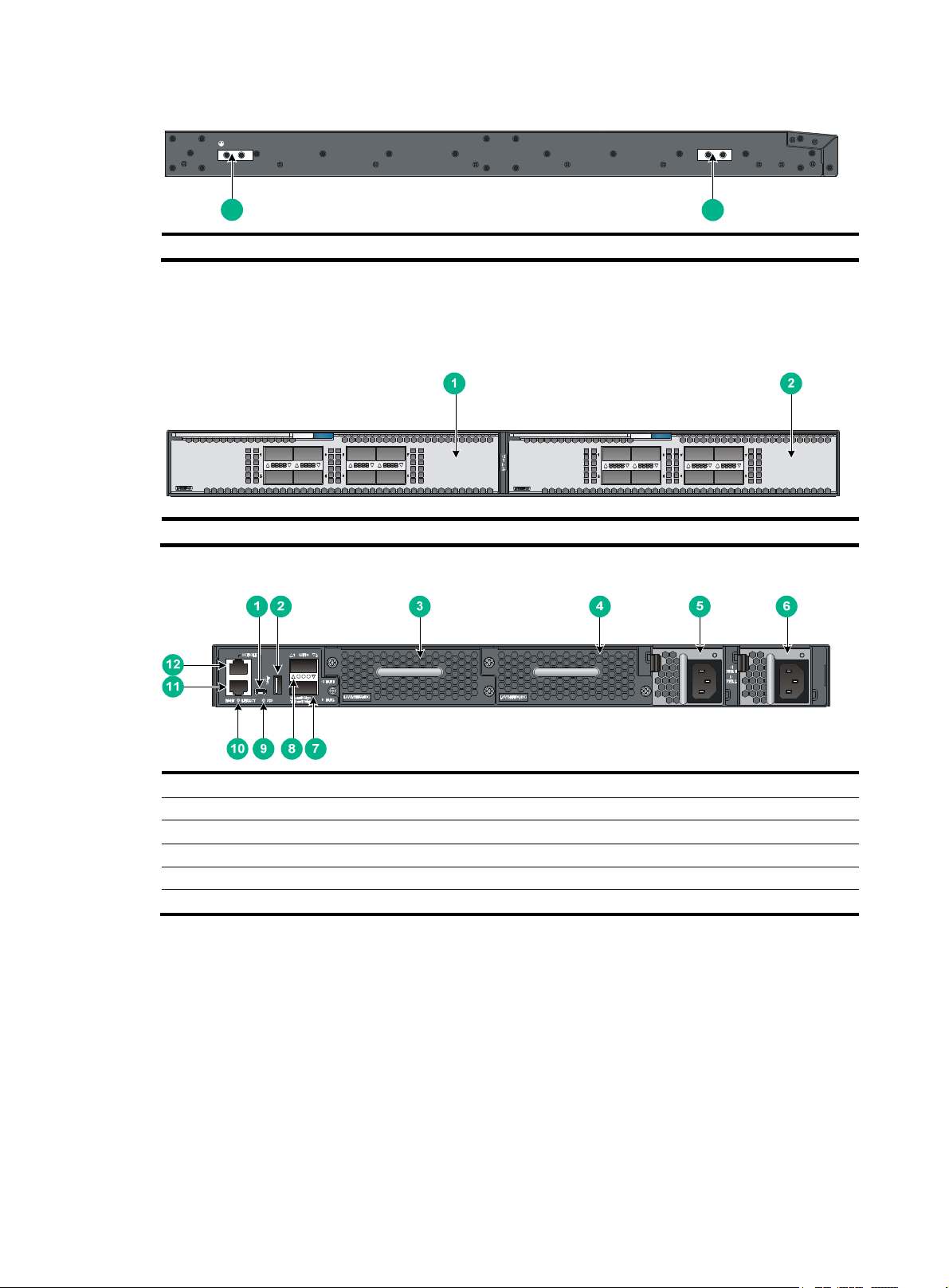

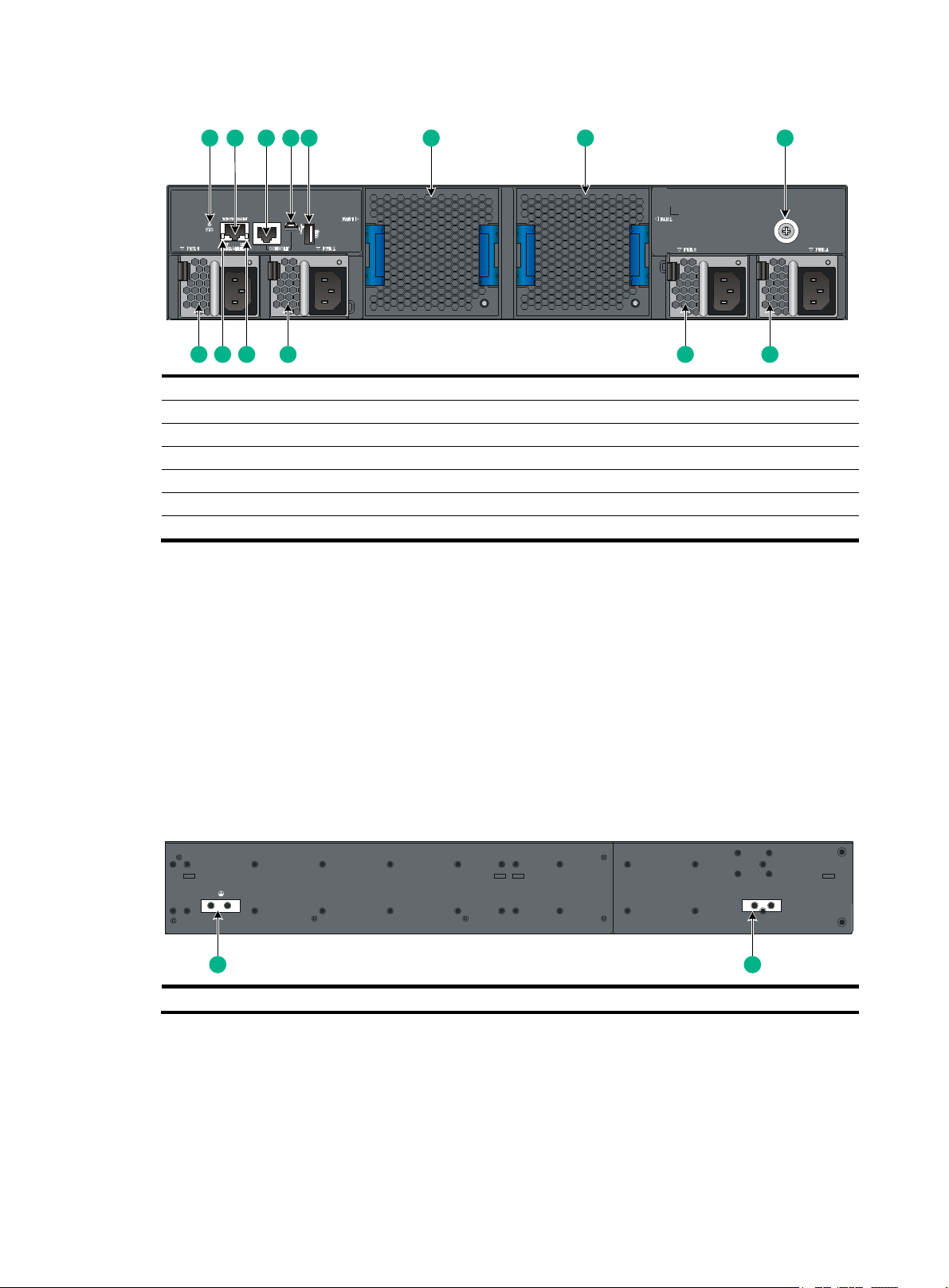

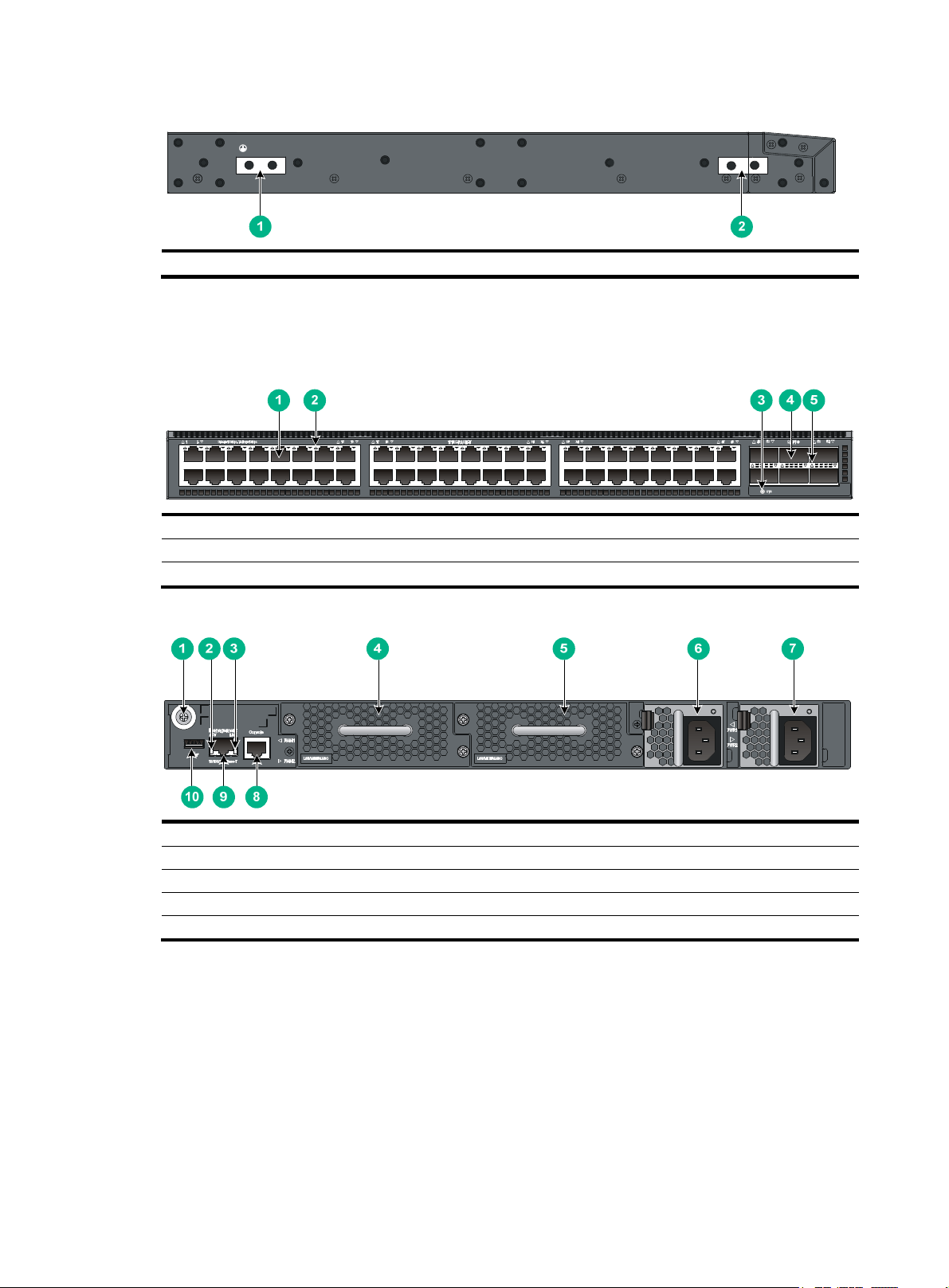

Figure 9 Mounting and grounding positions on the HPE 5940 32QSFP+ switch
(1) Auxiliary grounding point 2 (2) Power supply-side mounting position
(3) Primary grounding point (4) Auxiliary grounding point 1
(5) Network port-side mounting position
Figure 10 Mounting and grounding positions on the HPE 5940 48SFP+ 6QSFP+ switch
(1) Auxiliary grounding point 2 (2) Power supply-side mounting position
(3) Primary grounding point (4) Auxiliary grounding point 1
(5) Network port-side mounting position
12
Page 17
Figure 11 Mounting and grounding positions on the 5940 2-slot switch
(1) Power supply-side mounting position (2) Primary grounding point
(3) Auxiliary grounding point 1 (4) Network port-side mounting position
Attaching the mounting brackets and chassis rails to the chassis
1. Align the mounting brackets with the screw holes in the chassis. Use M4 screws (provided) to
attach the mounting brackets to the chassis.
{ To install the mounting brackets at the power supply-side mounting position, see Figure
12, Figure 14, and Figure 16.
{ To install the mounting brackets at the network port-side mounting position, see Figure
13, Figure 15, and Figure 17.
2. Align t
3. Us
he chassis rails with the rail mounting holes in the chassis:
{ If the mounting brackets are in the power supply-side mounting position, align the chassis
rails with the screw holes at the front of the side panels (see Figure 12, Figure 14, and Figure 16).
{ If the mounting brackets are in the network port-side mounting position, align the chassis
rails with the screw holes at the rear of the side panels (see Figure 13, Figure 15, and Figure
17).
e M4 screws (provided) to attach the chassis rails to the chassis.
NOTE:
• Secure the mounting brackets and chassis rails to both sides of the chassis in the same way.
• To install the mounting brackets at the network port-side mounting position on the HPE 5940
2-slot and HPE 5940 4-slot switches, use the four screw holes nearest to the network port side. To install the mounting brackets at the power supply-side mounting position on the HPE 5940 2-slot and HPE 5940 4-slot switches, use the four screw holes nearest to the power module side.
13
Page 18
Figure 12 Attaching the mounting brackets and chassis rails to the HPE 5940 32QSFP+ switch (power supply-side mounting position for the mounting brackets)
Figure 13 Attaching the mounting brackets and chassis rails to the HPE 5940 32QSFP+ switch (network port-side mounting position for the mounting brackets)
Figure 14 Attaching the mounting brackets and chassis rails to the HPE 5940 2-slot s witch (power supply-side mounting position for the mounting brackets)
14
Page 19
Figure 15 Attaching the mounting brackets and chassis rails to the HPE 5940 2-slot s witch (network port-side mounting position for the mounting brackets)
Figure 16 Attaching the mounting brackets and chassis rails to the HPE 5940 4-slot s witch (power supply-side mounting position for the mounting brackets)
Figure 17 Attaching the mounting brackets and chassis rails to the HPE 5940 4-slot s witch (network port-side mounting position for the mounting brackets)
15
Page 20
Connecting the grounding cable to the chassis
CAUTION:
Select grounding points as required. The primary grounding point and auxiliary grounding point 1 are located on the left side panel. If you use one of these grounding points, you must connect the grounding cable to the grounding point before you mount the switch in the rack.
As a best practice, use the primary grounding point or auxiliary grounding point 1 because the grounding cable and grounding screw that come with the switch are suitable only for these two grounding points.
To use auxiliary grounding point 2, prepare a grounding cable yourself.
This section uses the primary grounding point on the HPE 5940 32QSFP+ switch as an example.
To connect the grounding cable to a grounding point:
1. Choose a grounding point.
2. Unpack the grounding cable and grounding screws.
You can use the cable and screws shipped with the switch only for connecting to the primary grounding point or auxiliary grounding point 1.
3. Align the two-hole grounding lug at one end of the cable with the grounding holes of the
grounding point, insert the grounding screws into the holes, and tighten the screws with a screwdriver, as shown in Figure 18.
Figure 18
Attaching the grounding cable to the primary grounding point on the HPE 5940
32QSFP+ switch

Attaching the slide rails to the rack

The procedures are the same for attaching 1U and 2U slide rails to the rack. This section uses the 1U slide rails as an example.
To attach the slide rails to the rack:
1. Identify the rack attachment position for the slide rails.
2. Install cage nuts (user-supplied) in the mounting holes in the rack posts.
3. Align the screw holes in one slide rail with the cage nuts in the rack post on one side, and use
screws (user-supplied) to attach the slide rail to the rack, as shown in Figure 19.
4. Repeat the prece
Keep the two slide rails at the same height so the slide rails can attach into the chassis rails.
ding steps to attach the other slide rail to the rack post on the other side.
16
Page 21
Figure 19 Installing the 1U slide rails

Mounting the switch in the rack

This task requires two people.
To mount the switch in the rack:
1. Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded.
2. Verify that the mounting brackets and chassis rails have been securely attached to the switch
chassis.
3. Verify that the slide rails have been correctly attached to the rear rack posts.
4. Install cage nuts (user-supplied) to the front rack posts and make sure they are at the same
level as the slide rails.
5. One person performs the following operations: a. Supporting the bottom of the switch, aligns the chassis rails with the slide rails on the rack
posts.
b. Pushes the switch slowly to slide the chassis rails along the slide rails until the mounting
brackets are flush with the rack posts.
6. Another person uses screws (user-supplied) to attach the mounting brackets to the rack.
To secure the switch in the rack, make sure the front ends of the slide rails reach out of the chassis rails.
The rack-mounting procedures are the same for the HPE 5940 48SFP+ 6QSFP28, HPE 5940 48XGT 6QSFP28, HPE 5940 48XGT 6QSFP+, HPE 5940 48SFP+ 6QSFP+, and HPE 5940 32QSFP+ switches. The following figures use the HPE 5940 48XGT 6QSFP+ switch as an example.
17
Page 22

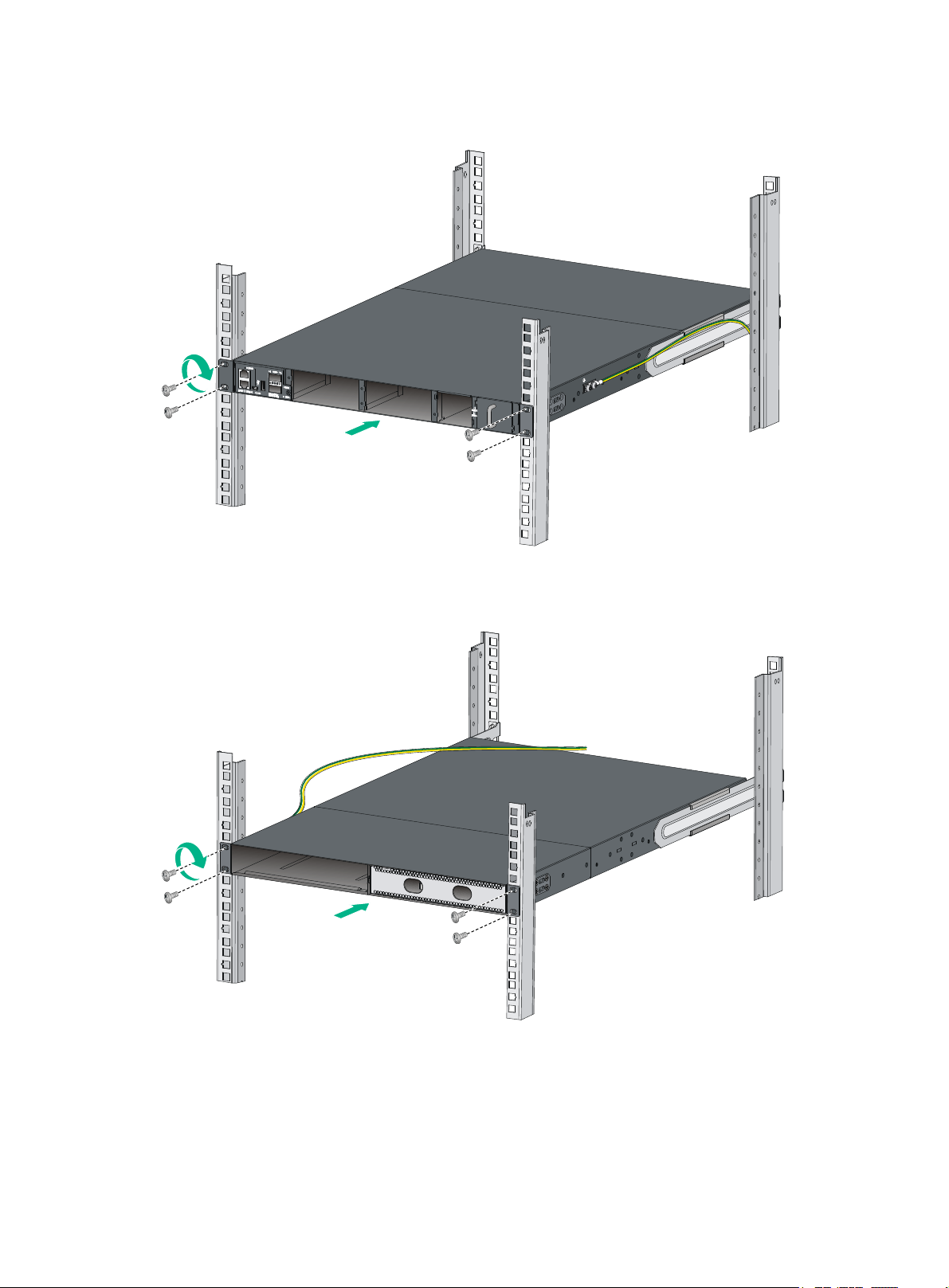

Figure 20 Mounting the HPE 5940 48XGT 6QSFP+, switch in the rack (power supply-side mounting position for the mounting brackets)
Figure 21 Mounting the HPE 5940 48XGT 6QSFP+, switch in the rack (network port-side mounting position for the mounting brackets)
18
Page 23
Figure 22 Mounting the HPE 5940 2-slot switch in the rack (power module-side mounting position for the mounting brackets)
Figure 23 Mounting the HPE 5940 2-slot switch in the rack (network port-side mounting position for the mounting brackets)
19
Page 24

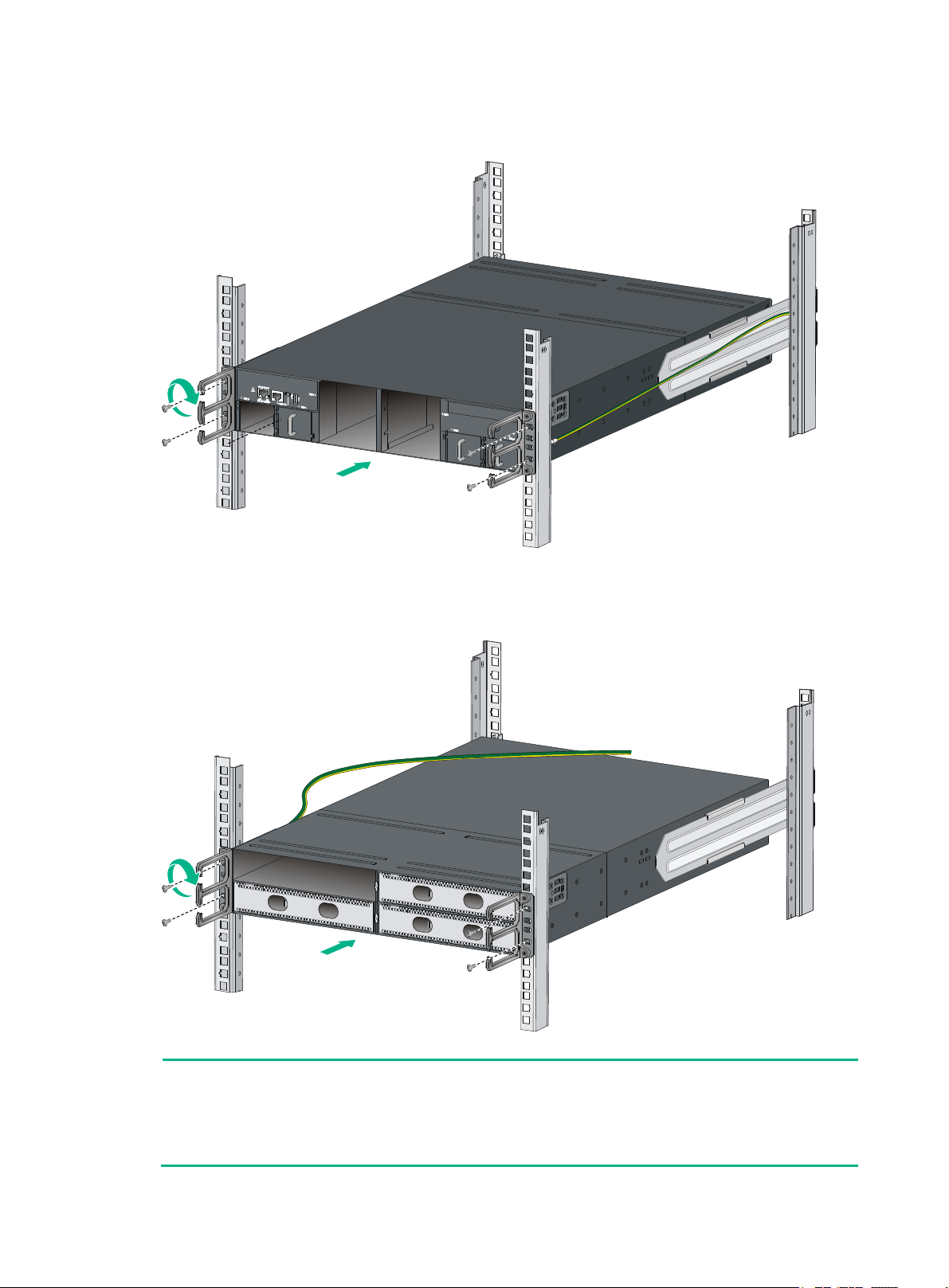

Figure 24 Mounting the HPE 5940 4-slot switch in the rack (power module-side mounting position for the mounting brackets)
Figure 25 Mounting the HPE 5940 4-slot switch in the rack (network port-side mounting position for the mounting brackets)
NOTE:
To rack-mount the HPE 5940 4-slot switch by using 2U high mounting brackets and slide rails, use two screws and two cage nuts to attach each mounting bracket to the rack. Determine the screw installation positions based on the distances between the square holes on the rack posts. The screw
d Fig
installation positions in Figure 24 an
ure 25 are for illustration only.
20
Page 25

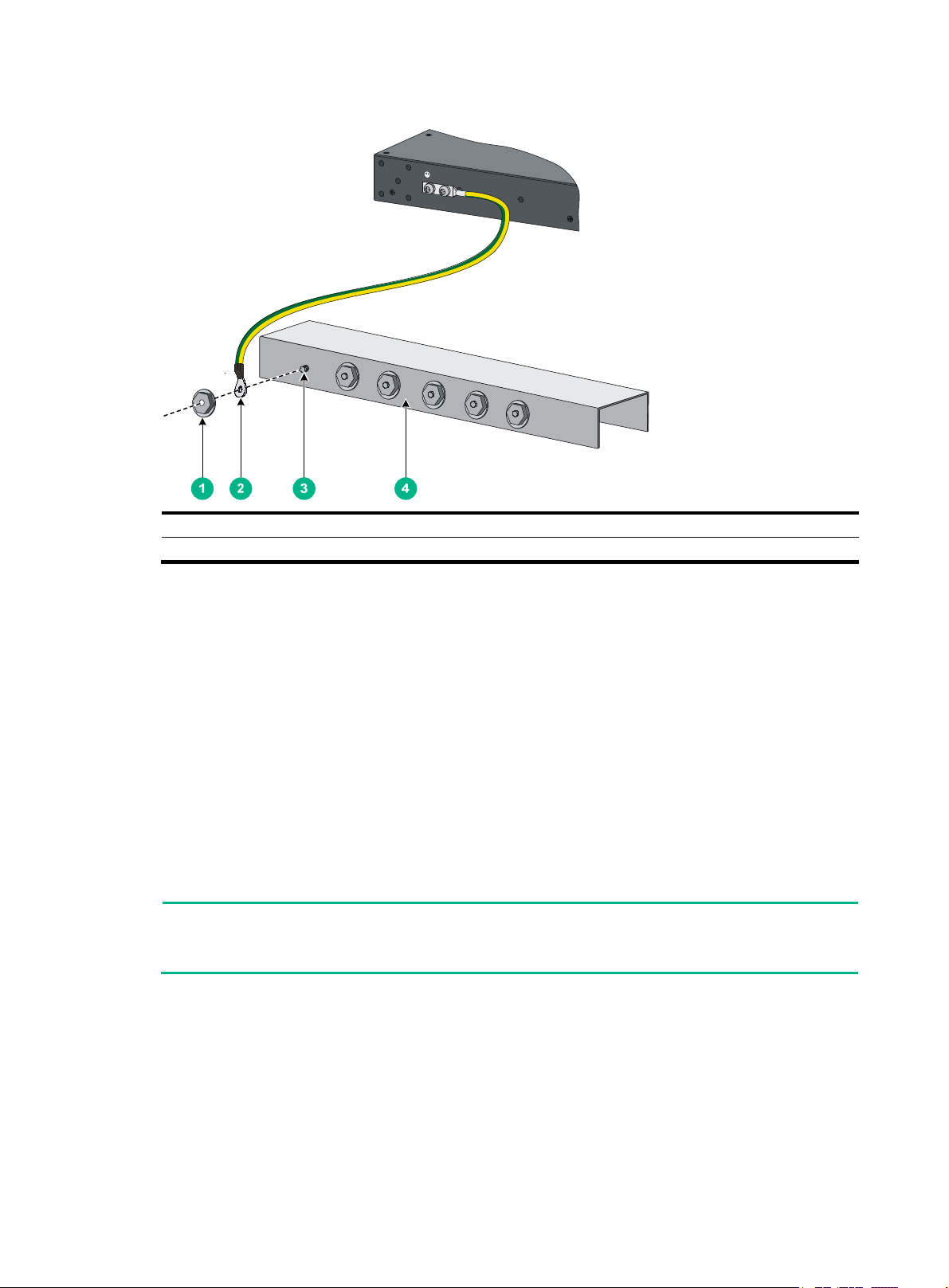

Grounding the switch

WARNING!
Correctly connecting the switch grounding cable is crucial to lightning protection and EMI protection.
The power input end of the switch has a noise filter, whose central ground is directly connected to the chassis to form the chassis ground (commonly known as PGND). You must securely connect this chassis ground to the earth so the faradism and leakage electricity can be safely released to the earth to minimize EMI susceptibility of the switch.
You can ground a switch by using a grounding strip at the installation site or the AC power cord connected to the switch.
NOTE:
The power and grounding terminals in this section are for illustration only.

Grounding the switch with a grounding strip

WARNING!
Connect the grounding cable to the grounding system in the equipment room. Do not connect it to a fire main or lightning rod.
If a grounding strip is available at the installation site, connect the grounding cable to the grounding strip.
To connect the grounding cable:
1. Attach the two-hole grounding lug at one end of the grounding cable to a grounding point on the
switch chassis. For more information, see "Connecting the grounding cable to the chassis."
2. Remove the hex nut of a groun
ding post on the grounding strip.
3. Attach the ring terminal at the other end of the grounding cable to the grounding post on the
grounding strip, and secure the ring terminal to the grounding post with the hex nut.
21
Page 26
Figure 26 Connecting the grounding cable to a grounding strip
(1) Hex nut (2) Ring terminal
(3) Grounding post (4) Grounding strip
As a best practice, use the primary grounding point or auxiliary grounding point 1 on the switch, because the grounding cable and grounding screw provided with the switch are applicable only to these two grounding points.
To use auxiliary grounding point 2, prepare a grounding cable yourself. The connection method is the same as connecting to the other two grounding points.

Grounding the switch by using the AC power cord

If the installation site has no grounding strips, you can ground an AC-powered switch through the protective earth (PE) wire of the power cord, but must make sure:
• The power cord has a PE terminal.
• The ground contact in the power outlet is securely connected to the ground in the power
distribution room or on the AC transformer side.
• The power cord is securely connected to the power outlet.
NOTE:
If the ground contact in the power outlet is not connected to the ground, report the problem and reconstruct the grounding system.
22
Page 27
Figure 27 Grounding through the PE wire of the AC power cord
(1) Three-wire AC power cable (2) Chassis rear panel
NOTE:
To guarantee the grounding effect, use the grounding cable provided with the switch to connect to the grounding strip in the equipment room as long as possible.

Installing/removing a fan tray

Follow these guidelines when you install or remove a fan tray:
• Do not power on the switch when the switch has no fan trays installed.
• You must install two fan trays of the same model for the switch.
• Do not keep operating the system with one failed fan tray.
• Make sure all slots have a module or filler panel installed when the switch is operating.
• When two fan trays fail during switch operation:
{ For an HPE 5940 32QSFP+ or HPE 5940 2-slot switch, finish replacing the fan trays within
2 minutes.
{ For an HPE 5940 48SFP+ 6QSFP+, HPE 5940 48XGT 6QSFP+, HPE 5940 48SFP+
6QSFP28, HPE 5940 48XGT 6QSFP28, or HPE 5940 4-slot switch, finish replacing the fan trays within 1 minute.

Installing a fan tray

CAUTION:
To prevent damage to the fan tray or the connectors on the backplane, insert the fan tray gently. If you encounter a hard resistance while inserting the fan tray, pull out the fan tray and insert it again.
23
Page 28
Select appropriate fan trays as needed. For the optional fan trays and their specifications, see "Fan
trays."
Installing an LSWM1FANSC/LSWM1FANSCB/LSWM1HFANSC/LSWM1HFANSCB fan tray
1. Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded.
2. Unpack the fan tray and verify that the fan tray model is correct.
3. Grasp the handle of the fan tray with one hand and support the fan tray bottom with the other,
and slide the fan tray along the guide rails into the slot until the fan tray seats in the slot and has a firm contact with the backplane (see callout 1 in Figure 28).
4. Fasten the captive screw on the fan tray
with a Philips screwdriver until the fan tra
attached in the chassis (see callout 2 in Figure 28).
If the captive scre
w cannot be tightly fastened, verify the installation of the fan tray.

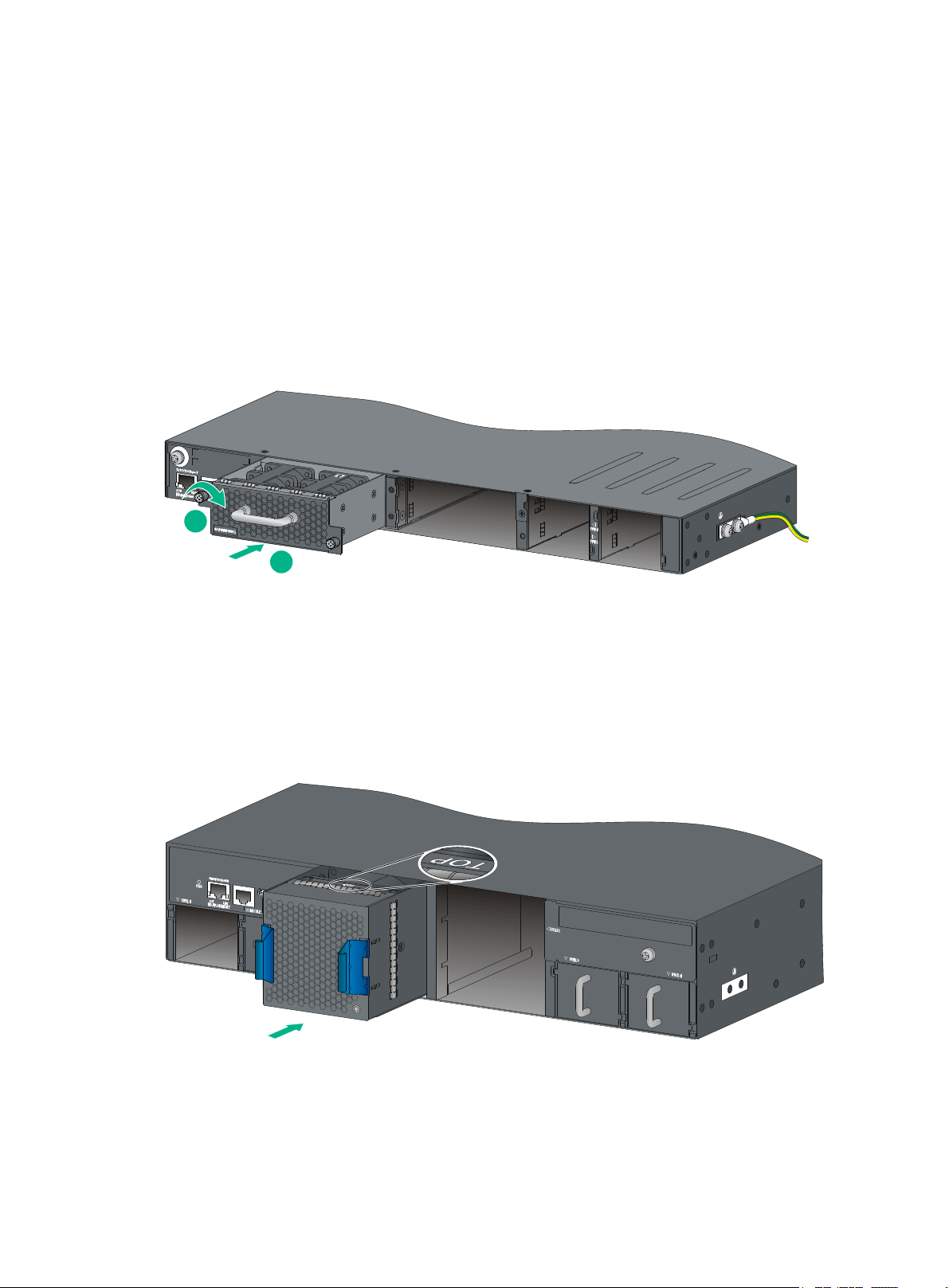

Figure 28 Installing an LSWM1HFANSC fan tray for an HPE 5940 32QSFP+ switch
2
y is securely
1
Installing an LSWM1BFANSC/LSWM1BFANSCB fan tray
1. Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded.
2. Unpack the fan tray and verify that the fan tray model is correct.
3. Orient the fan tray with the "TOP" mark on the top. Grasp the handle of the fan tray with one
hand and support the fan tray bottom with the other, and slide the fan tray along the guide rails into the slot until the fan tray is fully seated in the slot and has a firm contact with the backplane.
Figure 29 Installing an LSWM1BFANSC/LSWM1BFANSCB fan tray
24
Page 29

Removing a fan tray

WARNING!
• Ensure electricity safety and never touch the rotating fans when you hot-swap a fan tray.
• To prevent an unbalanced fan from causing loud noise, do not touch the fans, even if they are not
rotating.
CAUTION:
• Do not touch any bare wires and terminals on a fan tray.
• Do not place a fan tray in a moist location or let liquid flow into it.
• Contact Hewlett Packard Enterprise Support if the circuits or components on a fan tray are faulty.
Do not remove any fan tray components.
Removing an LSWM1FANSC/LSWM1FANSCB/LSWM1HFANSC/LSWM1HFANSCB fan tray
1. Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded.
2. Loosen the captive screw of the fan tray with a Philips screwdriver until it is fully disengaged
from the switch chassis.
3. Grasp the handle of the fan tray with one hand and pull the fan tray part way out of the slot.
Support the fan tray bottom with the other hand, and pull the fan tray slowly along the guide rails out of the slot.
4. Place the removed fan tray in an antistatic bag.
Removing an LSWM1BFANSC/LSWM1BFANSCB fan tray
1. Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded.
2. Grasp the fan tray handle with one hand to pull the fan tray part way out. Support the fan tray
bottom with the other and pull out the fan tray slowly along the guide rails.
3. Place the removed fan tray in an antistatic bag.
Figure 30 Removing an LSWE1BFANSC/LSWE1BFANSCB fan tray
25
Page 30
f

Installing/removing a power supply

WARNING!
• In power redundancy mode, you can replace a power supply without powering off the switch but must strictly follow the installation and procedures in Figure 31 and injury or damage to the switch.
• Provide a separate circuit breaker for each power supply.
The switch comes with the power supply slots empty and filler panels for the power supply slots as accessories.
For more information about the power supplies available for the switches, see "Power supplies".
Figure 32 to avoid any bodily
Figure 31
Installation procedure
Figure 32 Removal procedure

Installing a power supply

CAUTION:
• Follow the forward inertia of the power supply when inserting it into the chassis, and make sure the power supply has firm contact with the connectors on the backplane.
• To prevent damage to the connectors inside the switch chassis, insert the power supply gently. I you encounter a hard resistance while inserting the power supply, pull out the power supply and insert it again.
The power supply installation procedures are the same for all HPE FlexFabric 5940 switches. This section uses the HPE 5940 32QSFP+ switch as an example.
To install a power supply:
1. Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded.
2. Remove the filler panel from the target power module slot, if any, as shown in Figure 33.
26
Page 31
Figure 33 Removing the filler panel from a power module slot
3. Unpack the power supply and verify that the power supply model is correct.
4. Correctly orient the power supply with the power supply slot (see Figure 34), gras
p the handle of the power supply with one hand and support its bottom with the other, and slide the power supply slowly along the guide rails into the slot.
The slot is foolproof. If you cannot insert the power supply into the slot, re-orient the power supply rather than use excessive force to push it in.
Figure 34 Installing a power supply

Removing a power supply

CAUTION:
• When an HPE 5940 48SFP+ 6QSFP28, HPE 5940 48XGT 6QSFP28, HPE 5940 48XGT 6QSFP+, HPE 5940 48SFP+ 6QSFP+, HPE 5940 32QSFP+, or HPE 5940 2-slot switch has two power supplies in 1+1 redundancy mode, removing one power supply does not affect the operation of the switch. When the switch has only one power supply installed, removing the power supply powers off the switch.
• When an HPE 5940 4-slot switch has four power modules in 2+2 redundancy mode, removing one or two power modules does not affect the operation of the switch. When the switch has only two power module installed, removing a power module might power off the switch or cause power insufficiency.
• The power cord color code scheme in Figure 35 is for illustration on or region might use a different color scheme. When you connect the power cord, always identify the polarity symbol on its wires.
The power supply removing procedures are the same for all HPE FlexFabric 5940 switches. This section uses the HPE 5940 32QSFP+ switch as an example:
To remove a power supply:
1. Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded.
2. Squeeze the tabs on the power cord connector with your thumb and forefinger, and pull the
connector out to remove the power cord, as shown in Figure 35.
ly. The cable delivered for your country
27
Page 32
3. Hold the handle on the power supply with one hand, pivot the latch on the power supply to the
right with your thumb, and pull the power supply part way out of the slot, as shown in Figure 36.
4. Supporting th
e power supply bottom with one hand, slowly pull the power supply out with the
other hand.
5. Put away the removed power supply in an antistatic bag for future use. Figure 35 Removing the DC power cord

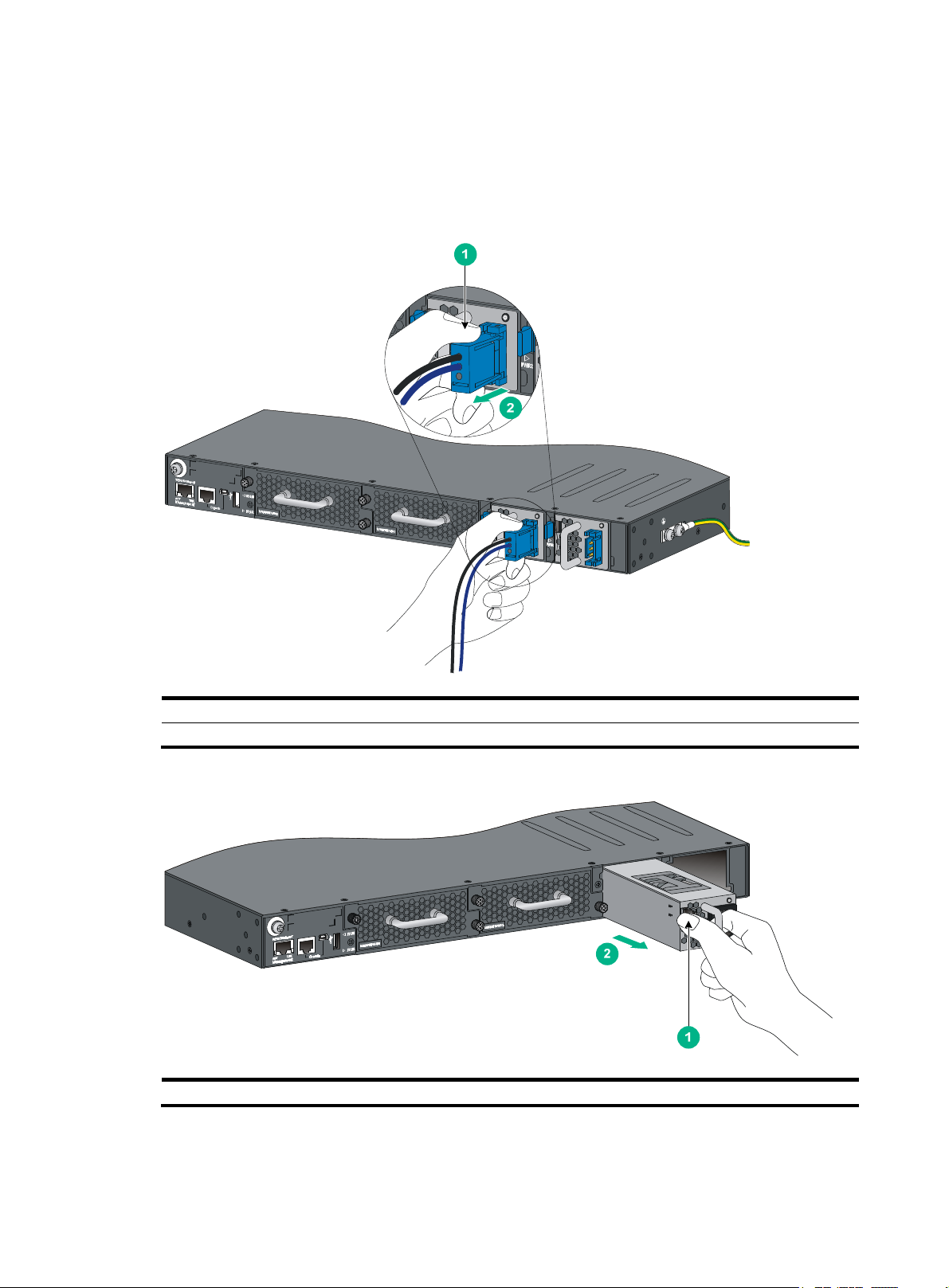

(1) Press the tabs on the power cord connector with your thumb and forefinger
(2) Pull the power cord connector out
Figure 36 Removing the power supply
(1) Pivot the latch to the right with your thumb (2) Pull the power supply out
28
Page 33

Connecting the power cord

WARNING!
Provide a circuit breaker for each power input. When you connect a power cord, make sure the circuit breaker is switched off.

Connecting an AC power cord

1. Insert the female connector of the AC power cord supplied with the power supply into the power receptacle on the power supply.
2. Use a cable tie to secure the power cord to the handle of the power supply, as shown in Figure
37.
3. Conn
Figure 37 Connecting the 300W AC or 650W AC power supply
ect the other end of the power cord to an AC power outlet.

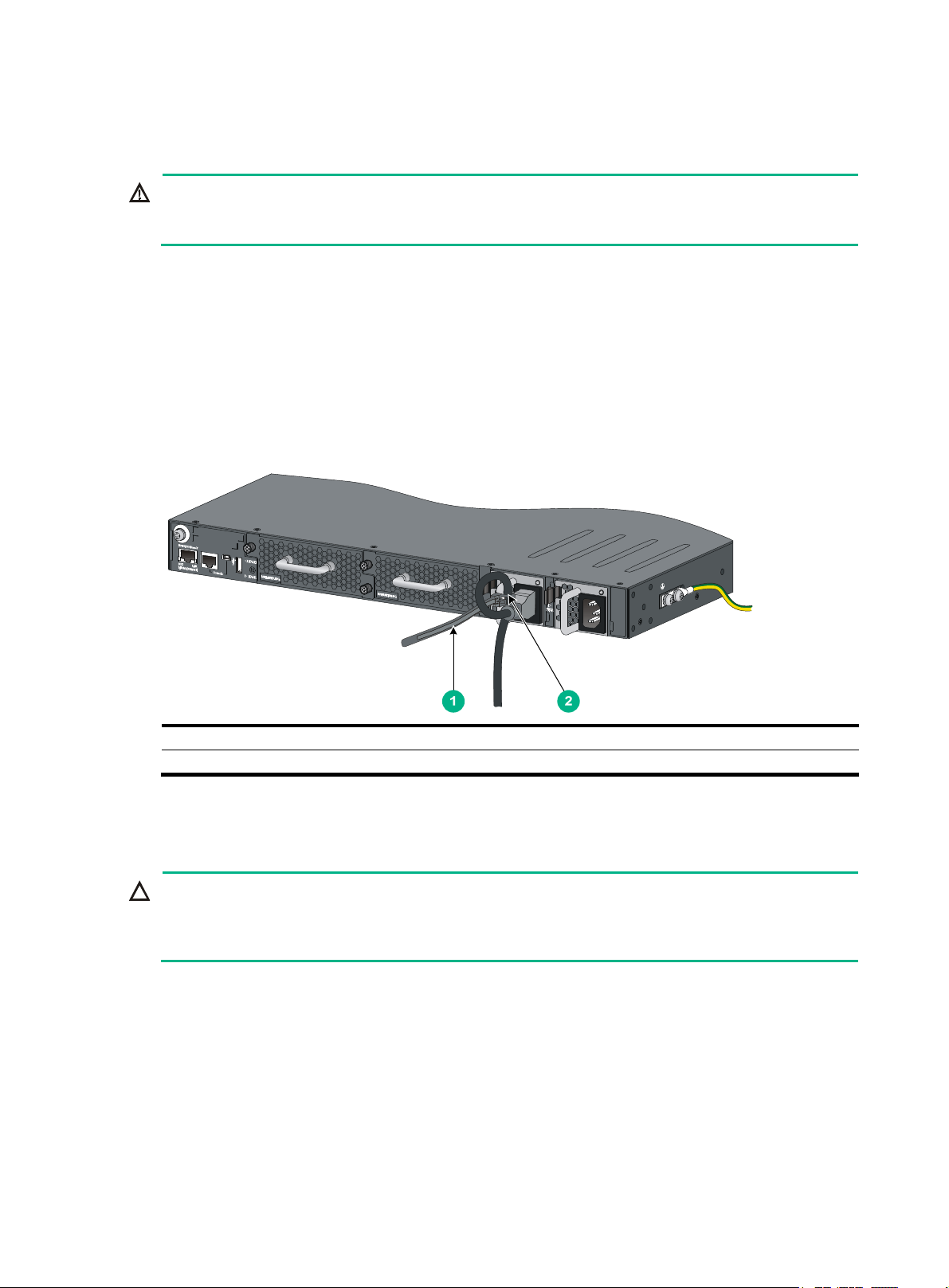

(1) Cable tie
(2) Tighten the cable tie to secure the power cord to the handle of the power supply

Connecting a DC power cord

CAUTION:
The power cord color code scheme in Figure 38 is for illustration onl country or region might use a different color scheme. When you connect the power cord, always identify the polarity symbol on its wires.
To connect a DC power cord:
1. Unpack the DC power cord, identify the plug for connecting to the power supply, orient the plug
with the power receptacle on the power supply, and insert the plug into the receptacle (see Figure 38).
The re
ceptacle is foolproof. If you cannot insert the plug into the receptacle, re-orient the plug
rather than use excessive force to push it in.
2. Use a cable tie to secure the power cord to the handle of the power supply, as shown in Figure
37.
y. The cable delivered for your
29
Page 34
3. Connect the other ends of the wires to the DC power source wiring terminals, with the negative wire (– or L–) to the negative terminal (–) and the positive wire (+ or M/N) to the positive terminal (+).
Figure 38 Connecting the 300W DC or 650W DC power supply

Installing/removing an interface module

CAUTION:
When you install or remove an interface module, follow these guidelines:
• Never touch the components on the interface module surface.
• Do not use excessive force.
The HPE 5940 2-slot switch provides two interface module slots. The HPE 5940 4-slot switch provides four interface module slots. For the available interface modules, see "Appendix B FRUs
and compatibility matrixes."
The interfa LSWM18QC interface module as an example.
ce module installation and removal procedures are the same. This section uses the

Installing an interface module

1. Wear an ESD wrist strap and make sure the wrist strap makes good skin contact and is reliably
grounded.
2. (Optional.) If the target interface module slot has a filler panel installed, remove the filler
panel. Figure 39 uses the
To remove a filler panel from an interface module slot:
a. Use your thumb and forefinger to hold the filler panel through the two holes. b. Push right the metal tab in the left hole and pull out the filler panel along the guide rails.
HPE 5940 2
-slot switch as an example.
30
Page 35

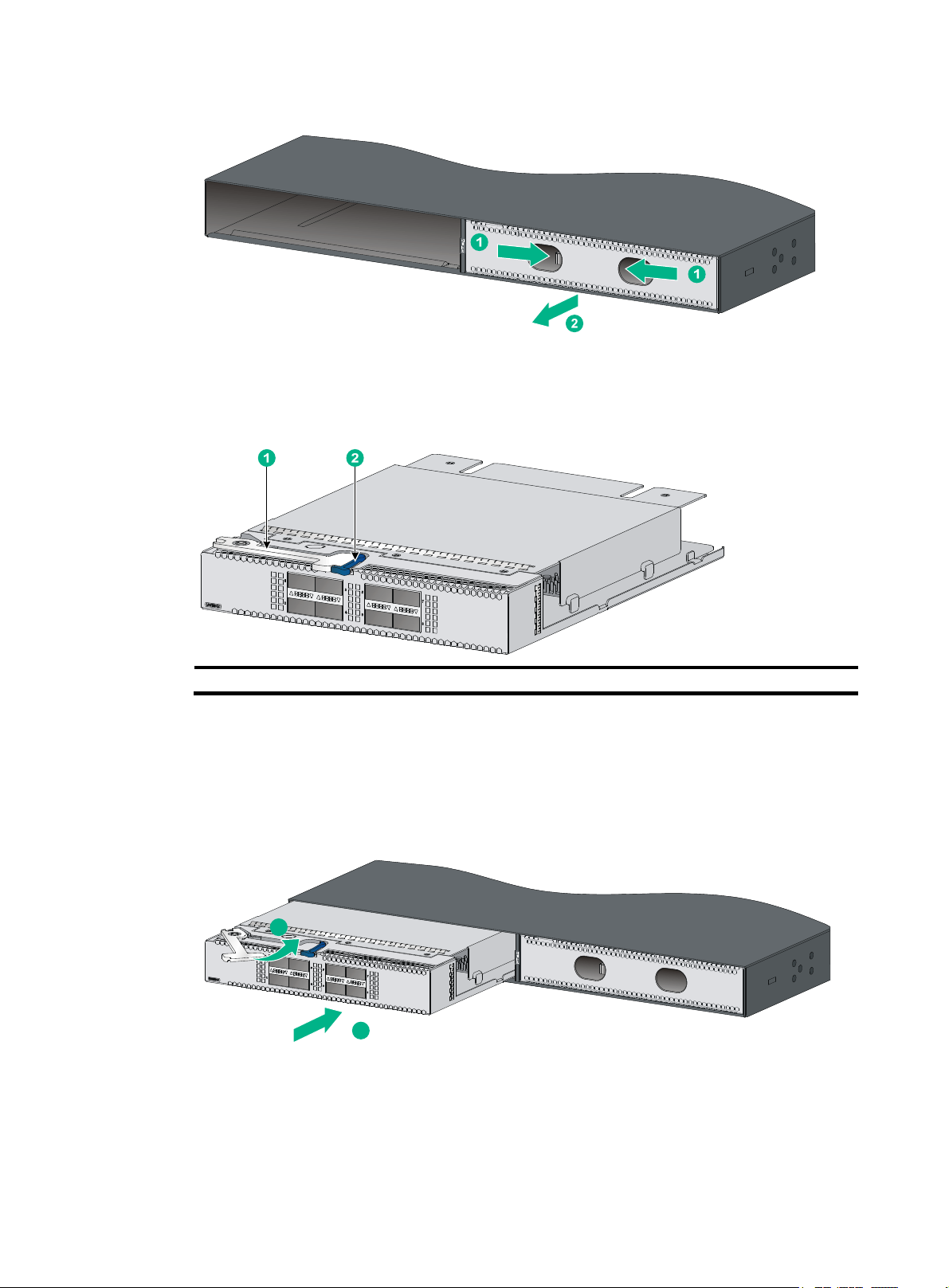

Figure 39 Removing the filler panel
Keep the removed filler panel secure for future use.
3. Unpack the interface module. Figure 40 LSWM18QC interface module
(1) Ejector lever (2) Latch
4. Press the latch on the interface module to release the ejector lever.
5. Insert the interface module slowly into the slot along the guide rails, as shown by callout 1
in Figure 41.
6. Rotate inward the ejecto
r lever in place.
ejecto
r lever as shown by callout 2 in Figure 41 until the latch locks the
Figure 41 Installing an LSWM18QC interface module
2
1
31
Page 36

Removing an interface module

CAUTION:
• Before you remove an interface module, remove the cables from it to avoid cable damage.
• If you are not to install a new interface module after removing the original one, install the filler
panel in the slot to prevent dust and ensure good ventilation in the device.
To remove an interface module:
1. Prepare an anti-static bag.
2. Wear an ESD wrist strap and make sure the wrist strap makes good skin contact and is reliably
grounded.
3. Press the latch to release the ejector lever.
4. Rotate outward the ejector lever as shown by callout 1 in Figure 42.
odul
5. Pull out the interface m
in Figure 42.
6. Place the removed interfa
Figure 42 Removing an LSWM18QC interface module
e slowly out of the interface module slot, as shown by callout 2
ce module in the anti-static bag.

Verifying the installation

After you complete the installation, verify that:
• There is enough space for heat dissipation around the switch, and the rack is stable.
• The grounding cable is securely connected.
• The correct power source is used.
• The power cords are correctly connected.
• All the interface cables are cabled indoors. If any cable is routed outdoors, verify that the socket
strip with lightning protection and lightning arresters for network ports have been correctly connected.
32
Page 37

Accessing the switch for the first time

Setting up the configuration environment

The switch supports the following ways to connect the configuration terminal:
• Through the console port by using the serial console cable
The switch comes with the serial console cable. This way is preferred.
• Through the Mini USB console port by using the user-supplied USB mini console cable
Do not use the two ways together on the same switch.
The example uses a console cable to connect a console terminal (PC) to the serial console port on the switch.
Figure 43 Connecting the serial console port to a terminal

Connecting the console cable

Serial console cable

A serial console cable is an 8-core cable, with a crimped RJ-45 connector at one end for connecting to the serial console port of the switch, and a DB-9 female connector at the other end for connecting to the serial port on the console terminal.
Figure 44 Serial console cable
A side
Pos.9
A
Pos.1
Main label
8
1
B side
B
33
Page 38
Table 7 Serial console cable pinout
RJ-45 Signal DB-9 Signal
1 RTS 8 CTS
2 DTR 6 DSR
3 TXD 2 RXD
4 SG 5 SG
5 SG 5 SG
6 RXD 3 TXD
7 DSR 4 DTR
8 CTS 7 RTS

USB mini console cable

A USB mini console cable has a USB mini-Type B connector at one end to connect to the Mini USB console port of the switch, and a standard USB Type A connector at the other end to connect to the USB port on the configuration terminal.

Connection procedure

To connect a terminal (for example, a PC) to the switch by using the serial console cable:
1. Plug the DB-9 female connector of the serial console cable to the serial port of the PC.
2. Connect the RJ-45 connector to the serial console port of the switch.
NOTE:
• Identify the mark on the console port and make sure you are connecting to the correct port.
• The serial ports on PCs do not support hot swapping. If the switch has been powered on, connect
the serial console cable to the PC before connecting to the switch, and when you disconnect the cable, first disconnect from the switch.
To connect to the configuration terminal through the USB mini console cable:
1. Connect the standard USB Type A connector to the USB port of the configuration terminal.
2. Connect the USB mini Type B connector to the Mini USB console port of the switch.
3. Click the following link, or copy it to the address bar on the browser to log in to download page
of the USB console driver, and download the driver.
4. Select a driver program according to the operating system you use:
{ XR21V1410_XR21B1411_Windows_Ver1840_x86_Installer.EXE—32-bit operating
system.
{ XR21V1410_XR21B1411_Windows_Ver1840_x64_Installer.EXE—64-bit operating
system.
5. Click Next on the installation wizard.
34
Page 39

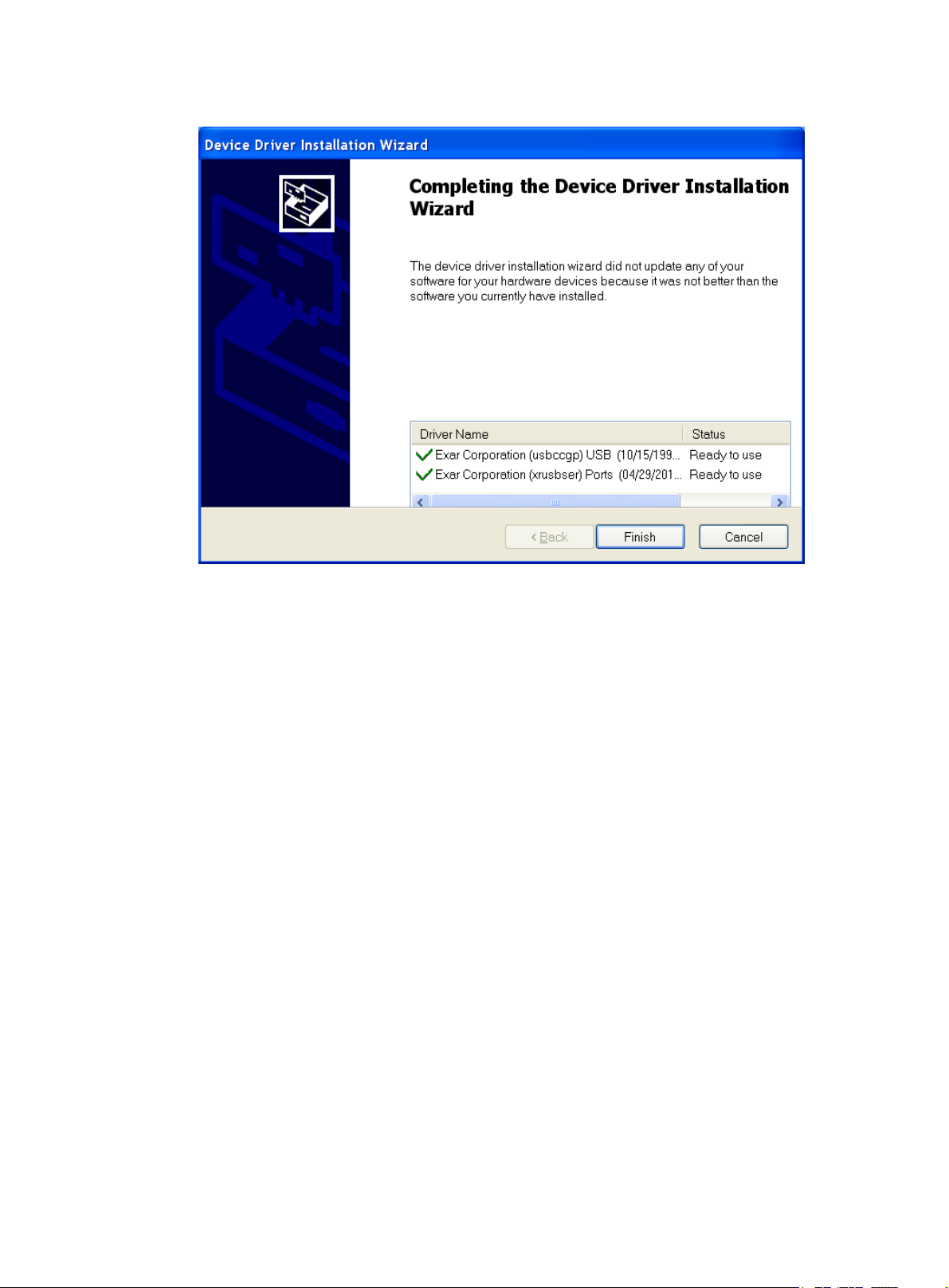

Figure 45 Device Driver Installation Wizard
6. Click Continue Anyway if the following dialog box appears. Figure 46 Software Installation
7. Click Finish.
35
Page 40
Figure 47 Completing the device driver installation wizard

Setting terminal parameters

To configure and manage the switch through the console port, you must run a terminal emulator program, TeraTermPro or PuTTY, on your configuration terminal. You can use the emulator program to connect a network device, a Telnet site, or an SSH site. For more information about the terminal emulator programs, see the user guides for these programs
The following are the required terminal settings:
• Bits per second—9600
• Data bits—8
• Stop bits—1
• Parity—None
• Flow control—None

Powering on the switch

Before powering on the switch, verify that the following conditions are met:
• The power cord is correctly connected.
• The input power voltage meets the requirement of the switch.
• The console cable is correctly connected.
• The configuration terminal (a PC, for example) has started, and its serial port settings are
consistent with the console port settings on the switch.
36
Page 41
Power on the switch. During the startup process, you can access Boot ROM menus to perform tasks such as software upgrade and file management. The Boot ROM interface and menu options differ with software versions. For more information about Boot ROM menu options, see the software-matching release notes for the device.
After the startup completes, you can access the CLI to configure the switch.
For more information about the configuration commands and CLI, see HPE FlexFabric 5940 Switch Series Configuration Guides and HPE FlexFabric 5940 Switch Series Command References.
37
Page 42

Setting up an IRF fabric

You can use IRF technology to connect and virtualize HPE FlexFabric 5940 switches into a large virtual switch called an "IRF fabric" for flattened network topology, and high availability, scalability, and manageability.
To set up IRF links between two switches, use the 10-GE, 40-GE, or 100-GE ports.

IRF fabric setup flowchart

Figure 48 IRF fabric setup flowchart
To set up an IRF fabric:
Step Description
Plan the installation site and IRF fabric setup parameters:
• Planning IRF fabric size and the installation site
1. Plan IRF fabric setup.
• Identifying the master switch and pl
• Planning IRF topology and connections
• Identifying physical IRF ports on the member switches
• Planning the cabling scheme
38
anning IRF member IDs
Page 43
r
Step Description
2. Install IRF member
switches.
3. Connect ground wires
and power cords.
4. Power on the
switches.
5. Configure basic IRF
settings.
6. Connect the physical
IRF ports.
See "Installing the switch in a 19-inch rack".
See "Grounding the switch" and "
N/A
See HPE FlexFabric 5940 Switch Series IRF Configuration Guide.
Connect the physical IRF ports on switches. Use SFP+, QSFP+, or QSFP28 transceiver modules and fibers for long-distance connection. Use twisted pair cables or SFP+, QSFP+, or QSFP28 cables for short-distance connection.
All switches except the master switch automatically reboot, and the IRF fabric is established.
Connecting the power cord."

Planning IRF fabric setup

This section describes issues that an IRF fabric setup plan must cover.

Planning IRF fabric size and the installation site

Choose switch models and identify the number of required IRF member switches, depending on the user density and upstream bandwidth requirements. The switching capacity of an IRF fabric equals the total switching capacities of all member switches.
Plan the installation site depending on your network solution as follows:
• Place all IRF member switches in one rack for centralized high-density access.
• Distribute the IRF member switches in different racks to implement the top-of-rack (ToR) access
solution for a data center.
As your business grows, you can plug HPE FlexFabric 5940 switches into the IRF fabric to increase
the switching capacity without any topology change or replacement.

Identifying the master switch and planning IRF member IDs

Determine which switch you want to use as the master for managing all member switches in the IRF fabric. An IRF fabric has only one master switch. You configure and manage all member switches in the IRF fabric at the command line interface of the master switch.
NOTE:
IRF member switches will automatically elect a master. You can affect the election result by assigning a high member priority to the intended master switch. For more information about maste
election, see HPE FlexFabric 5940 Switch Series IRF Configuration Guide.
Prepare an IRF member ID assignment scheme. An IRF fabric uses member IDs to uniquely identify and manage its members, and you must assign each IRF member switch a unique member ID.
39
Page 44

Planning IRF topology and connections

You can create an IRF fabric in daisy chain topology, or more reliably, ring topology. In ring topology, the failure of one IRF link does not cause the IRF fabric to split as in daisy chain topology. Rather, the IRF fabric changes to a daisy chain topology without interrupting network services.
You connect the IRF member switches through IRF ports, the logical interfaces for the connections between IRF member switches. Each IRF member switch has two IRF ports: IRF-port 1 and IRF-port
2. To use an IRF port, you must bind at least one physical port to it.
When connecting two neighboring IRF member switches, you must connect the physical ports of IRF-port 1 on one switch to the physical ports of IRF-port 2 on the other switch.
The IRF port connections in the two figures are for illustration only, and more connection methods are available.

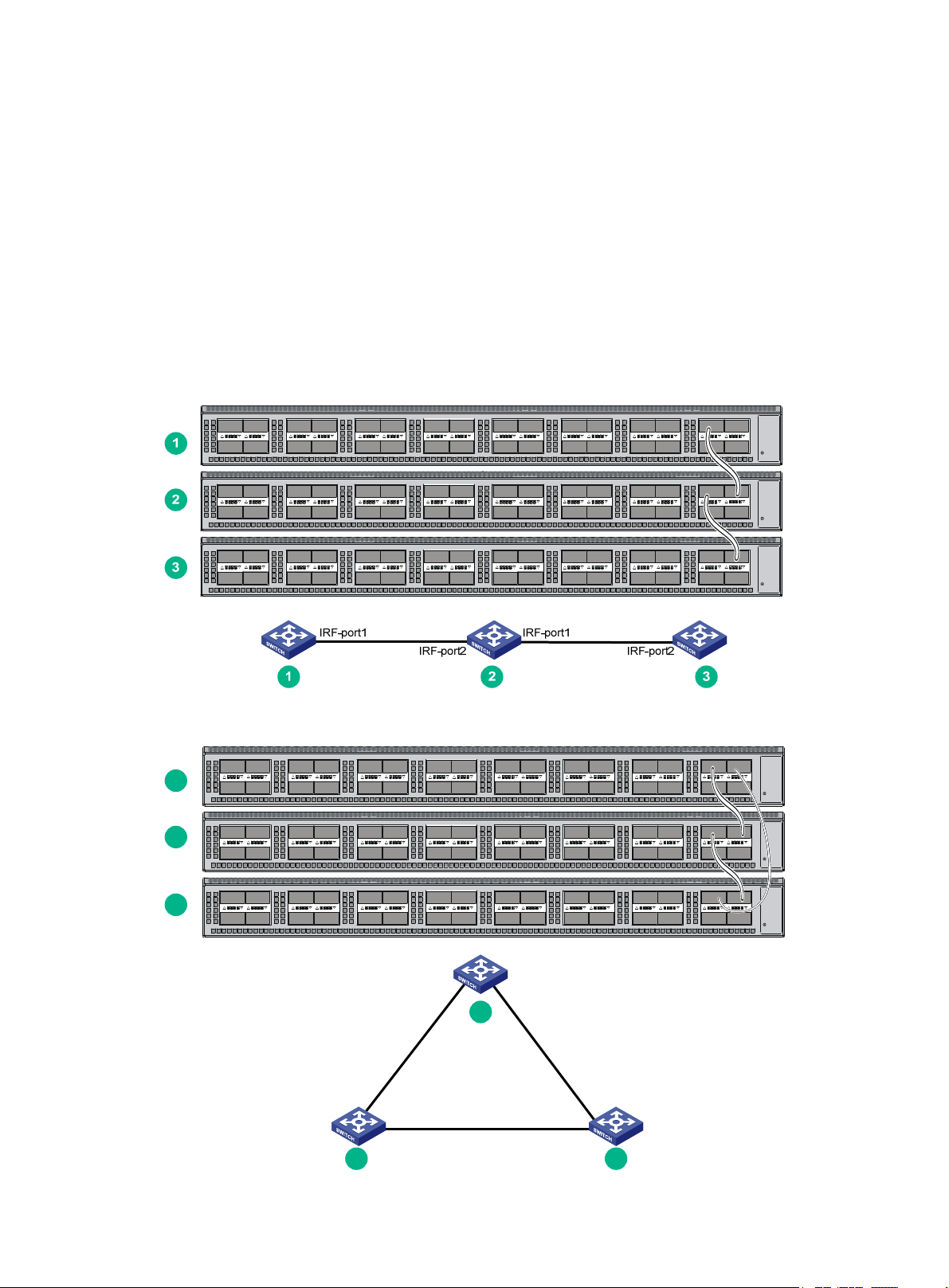

Figure 49 IRF fabric in daisy chain topology
Figure 50 IRF fabric in ring topology
1
2
3
IRF-port1
IRF-port2
IRF-port1
2 3
IRF-port2
1
IRF-port1
IRF-port2
40
Page 45
You can provide the following IRF physical connections between HPE FlexFabric 5940 switches:
• 10-GE IRF physical connection by connecting 10GBase-T Ethernet ports or SFP+ ports.
• 40-GE IRF physical connection by connecting QSFP+ ports.
• 100-GE IRF physical connection by connecting QSFP28 ports.
• IRF physical connection by using a 40G QSFP+ to 4 x 10G SFP+ cable to connect a QSFP+
port and four SFP+ ports.
You can bind several ports to an IRF port for increased bandwidth and availability.

Identifying physical IRF ports on the member switches

Identify the 10GBase-T Ethernet ports, SFP+ ports, QSFP+, and QSFP28 ports to be used for IRF connections on the member switches according to your topology and connection scheme.
All the 10GBase-T Ethernet ports, SFP+ ports, QSFP+ ports, and QSFP28 ports on the HPE FlexFabric 5940 switch can be used for IRF connections, except for QSFP28 ports on the
LSWM18CQMSEC interface module (JH957A).

Planning the cabling scheme

You can use twisted pair cables, SFP+/QSFP+/QSFP28 cables, or SFP+/QSFP+/QSFP28 transceiver modules and optical fibers to connect the switches for IRF connections. If the IRF member switches are far away from one another, choose the SFP+/QSFP+/QSFP28 transceiver modules and optical fibers. If the IRF member switches are all in one equipment room, choose twisted pair cables or SFP+/QSFP/QSFP28 cables. For more information about available transceiver modules and cables, see "Appendix C Ports and LEDs."
subsections describe several IRF connection schemes recommended by Hewlett
The followin Packard Enterprise. All these schemes use a ring topology.
g
Connecting the IRF member switches in one rack
Figure 51 shows an example for connecting four IRF member switches in a rack by using QSFP+
cables and QSFP+ transceiver modules and optical fibers. The switches in the ring topology
s
(see Figure 52) are in the same order a
Figure 51 Connecting the switches in one rack
connected in the rack.
41
Page 46
Figure 52 IRF fabric topology
Connecting the IRF member switches in a ToR solution
You can install IRF member switches in different racks side by side to deploy a top of rack (ToR) solution.
Figure 53
cables and QSFP+ transceiver modules and optical fibers. The topology is the same as Figure 52.
Figure 53
shows an example for connecting four top of rack I
ToR cabling

Configuring basic IRF settings

After you install the IRF member switches, power on the switches, and log in to each IRF member
switch (see HPE FlexFabric 5940 Switch Series Fundamentals Configuration Guide) to configure
their member IDs, member priorities, and IRF port bindings.
Follow these guidelines when you configure the switches:
• Assign the master switch higher member priority than any other switch.
• Bind physical ports to IRF port 1 on one switch and to IRF port 2 on the other switch. You
perform IRF port binding before or after connecting IRF physical ports depending on the software release.
• Execute the display irf configuration command to verify the basic IRF settings.
RF member switches by using QSFP+
For more information about configuring basic IRF settings, see HPE FlexFabric 5940 Switch Series IRF Configuration Guide.

Connecting the physical IRF ports

CAUTION:
Wear an ESD wrist strap when you connect cables or transceiver modules and optical fibers. For more information, see the installation guide for the transceiver modules.
42
Page 47
r
Use cables or transceiver modules and optical fibers to connect the IRF member switches as planned.

Accessing the IRF fabric to verify the configuration

To verify the basic functionality of the IRF fabric after you finish configuring basic IRF settings and connecting IRF ports:
1. Log in to the IRF fabric through the console port of any member switch.
2. Create a Layer 3 interface, assign it an IP address, and make sure the IRF fabric and the
remote network management station can reach each other.
3. Use Telnet or SNMP to access the IRF fabric from the network management station. (See HPE FlexFabric 5940 Switch Series Fundamentals Configuration Guide.)
4. Verify that you can manage all member switches as if they were one node.
5. Display the running status of the IRF fabric by using the commands in Table 8.
Displaying and maintaining IRF configuration and running status
Table 8
Task Command
Display information about the IRF fabric.
Display all members' IRF configurations.
Display IRF fabric topology information.
NOTE:
display irf display irf configuration display irf topology
To avoid IP address collision and network problems, configure at least one multi-active detection (MAD) mechanism to detect the presence of multiple identical IRF fabrics and handle collisions. Fo
more information about MAD detection, see HPE FlexFabric 5940 Switch Series IRF Configuration Guide.
43
Page 48

Maintenance and troubleshooting

Power supply failure

Symptom

The LEDs on a power supply are not green.
You can use the LEDs on the power supply to identify a power supply failure. For more information
about the LEDs on a power supply, see HPE 300W AC & 300W DC Power supplies User Manual and HPE 650W AC & 650W DC Power supplies User Manual.
The LEDs on the power supply are steady green (active) or flashing green (standby) while the power supply system is correctly operating.

Solution

To resolve the issue:
1. Verify that the power cord is correctly connected.
2. Verify that the power source meets the requirement.
3. Verify that the operating temperature of the switch is in the normal range and the power supply
has good ventilation.
4. If the issue persists, contact Hewlett Packard Enterprise Support.
To replace a power supply, see "Installing/removing a power supply."

Fan tray failure

Symptom

The system status LED on the switch is steady red and the system outputs an alarm message that indicates a fan tray failure.

Solution

See "Installing/removing a fan tray" to replace the failed fan tray. If the issue persists, contact Hewlett Packard Enterprise Support.
Follow these guidelines when you install or remove a fan tray:
• Do not power on the switch when the switch has no fan trays installed.
• You must install two fan trays of the same model for the switch.
• When a fan tray fails during the switch operation and the ambient temperature is not higher than
27°C (80.6°F), replace the fan tray within 24 hours and keep the failed fan tray in position before replacement. If the ambient temperature is higher than 27°C (80.6°F), replace the fan tray immediately.
• Make sure all slots have a module or filler panel installed when the switch is operating.
• When two fan trays fail during the switch operation:
{ For an HPE 5940 32QSFP+ switch, finish replacing the fan trays within 2 minutes on an.
{ For an HPE 5940 48SFP+ 6QSFP+, HPE 5940 48XGT 6QSFP+, HPE 5940 48SFP+
6QSFP28, or HPE 5940 48XGT 6QSFP28 switch, finish replacing the fan trays within 1 minute.
44
Page 49

Configuration terminal problems

If the configuration environment setup is correct, the configuration terminal displays booting information when the switch is powered on. If the setup is incorrect, the configuration terminal displays nothing or garbled text.

No display on the configuration terminal

Symptom
No display is on the configuration terminal when the switch is powered on.
Solution
To resolve the issue:
1. Verify that the power system is operating correctly.
2. Verify that the console cable has been connected correctly and no fault occurs on the console
cable.
3. Verify that the following settings are configured for the terminal:
{ Baud rate—9600. { Data bits—8. { Stop bits—1. { Parity—None. { Flow control—None.
4. If the issue persists, contact Hewlett Packard Enterprise Support.

Garbled display on the configuration terminal

Symptom
The configuration terminal displays garbled text.
Solution
To resolve the issue:
1. Verify that the following settings are configured for the terminal:
{ Baud rate—9600. { Data bits—8. { Stop bits—1. { Parity—None. { Flow control—None.
2. If the issue persists, contact Hewlett Packard Enterprise Support.
45
Page 50

Appendix A Chassis views and technical specifications

Chassis views

HPE 5940 32QSFP+

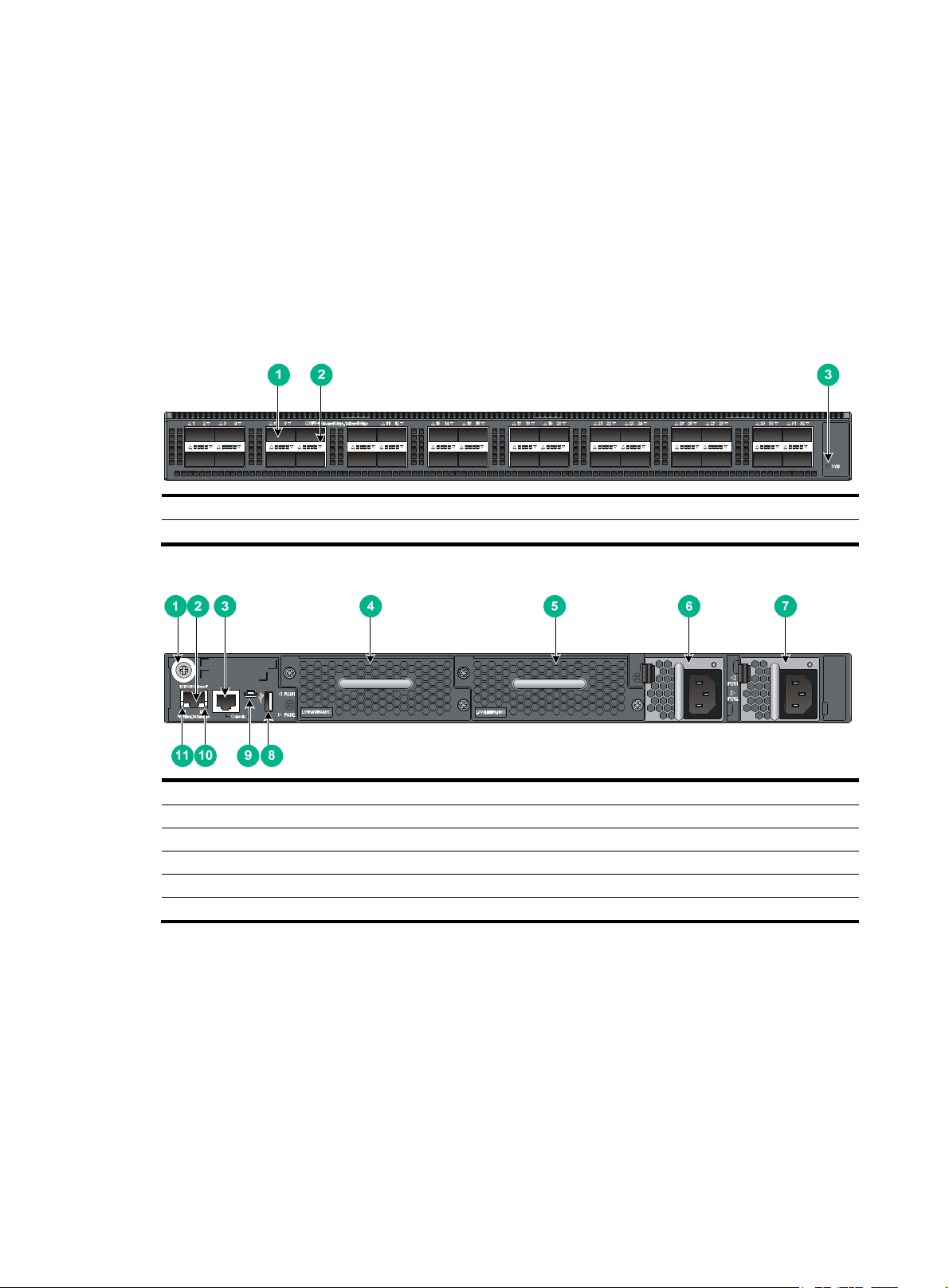

Figure 54 Front panel
(1) QSFP+ port (2) QSFP+ port LED
(3) System status LED (SYS)
Figure 55 Rear panel
(1) Grounding screw (auxiliary grounding point 2) (2) Management Ethernet port
(3) Serial console port (4) Fan tray 1
(5) Fan tray 2 (6) Power supply 1
(7) Power supply 2 (8) USB port
(9) Mini USB console port (10) LINK LED for the management Ethernet port
(11) ACT LED for the management Ethernet port
The HPE 5940 32QSFP+ switch comes with the two power supply slots empty and a power supply filler panel as an accessory. You can install one or two power supplies for the switch as needed. In Figure 55, informatio
The HPE 594 trays of the same model for the switch. In Figure 55, two LSWM1HF the fan tray slots. For more information about installing and removing fan trays, see "Installing/removing a fan tray."
two 650W AC power supplies are installed in the power supply slots. For more
n about installing and removing power supplies, see "Installing/removing a power supply."
0 32QSFP+ switch comes with the two fan tray slots empty. You must install two fan
ANSC fan trays are installed in
46
Page 51
Figure 56 Left side panel
1 2
(1) Primary grounding point (2) Auxiliary grounding point 1

HPE 5940 48SFP+ 6QSFP+

Figure 57 Front panel
(1) SFP+ port (2) SFP+ port LED
(3) QSFP+ port (4) QSFP+ port LED
(5) System status LED (SYS)
Figure 58 Rear panel
(1) Grounding screw (auxiliary grounding point 2) (2) ACT LED for the management Ethernet port
(3) LINK LED for the management Ethernet port (4) Fan tray 1
(5) Fan tray 2 (6) Power supply 1
(7) Power supply 2 (8) Console port
(9) Management Ethernet port (10) USB port
The HPE 5940 48SFP+ 6QSFP+ switch comes with the two power supply slots empty and a power supply filler panel as an accessory. You can install one or two power supplies for the switch as
W
needed. In Figure 58, two 300
AC power supplies are installed in the power supply slots. For more
information about installing and removing power supplies, see "Installing/removing a power supply."
The HPE 5940 48SFP+ 6Q fan trays of the same model for the switch. In Figure 58, two LSWM1HF
SFP+ switch comes with the two fan tray slots empty. You must install two
ANSC fan trays are installed in the fan tray slots. For more information about installing and removing fan trays, see "Installing/removing a fan tray."
47
Page 52
Figure 59 Left side panel
(1) Primary grounding point (2) Auxiliary grounding point 1

HPE 5940 48XGT 6QSFP+

Figure 60 Front panel
(1) 1/10GBASE-T autosensing Ethernet port (2) 1/10GBASE-T autosensing Ethernet port LED
(3) System status LED (SYS) (4) QSFP+ port
(5) QSFP+ port LED
Figure 61 Rear panel
(1) Grounding screw (auxiliary grounding point 2) (2) ACT LED for the management Ethernet port
(3) LINK LED for the management Ethernet port (4) Fan tray 1
(5) Fan tray 2 (6) Power supply 1
(7) Power supply 2 (8) Console port
(9) Management Ethernet port (10) USB port
The HPE 5940 48XGT 6QSFP+ switch comes with the two power supply slots empty and a power supply filler panel as an accessory. You can install one or two power supplies for the switch as
W
needed. In Figure 61, two 650
AC power supplies are installed in the power supply slots. For more
information about installing and removing power supplies, see "Installing/removing a power supply."
The HPE 5940 48XGT fan trays of the same model for the switch. In Figure 61, two LSWM1HF
6QSFP+ switch comes with the two fan tray slots empty. You must install two
ANSC fan trays are installed in the fan tray slots. For more information about installing and removing fan trays, see "Installing/removing a fan tray."
48
Page 53
Figure 62 Left side panel
(1) Primary grounding point (2) Auxiliary grounding point 1

HPE 5940 48SFP+ 6QSFP28

Figure 63 Front panel
(1) SFP+ port (2) SFP+ port LED
(3) QSFP28 port (4) QSFP28 port LED
Figure 64 Rear panel
(1) Fiber management Ethernet port (2) Console port
(3) Mini USB console port (4) USB port
(5) Fan tray 1 (6) Fan tray 2
(7) Power supply 1 (8) Power supply 2
(9) System status LED (SYS) (10) LINK/ACT LED for the copper management Ethernet port
(11) Copper management Ethernet port (12) LINK/ACT LED for the fiber management Ethernet port
The HPE 5940 48SFP+ 6QSFP28 switch comes with the two power supply slots empty and a power supply filler panel as an accessory. You can install one or two power supplies for the switch as
W
needed. In Figure 64, two 300
AC power supplies are installed in the power supply slots. For more
information about installing and removing power supplies, see "Installing/removing a power supply."
The HPE 5940 48SFP+ 6Q two fan trays of the same model for the switch. In Figure 64, two LSWM1H
SFP28 switch comes with the two fan tray slots empty. You must install
FANSC fan trays are installed in the fan tray slots. For more information about installing and removing fan trays, see "Installing/removing a fan tray."
49
Page 54
Figure 65 Left side panel
(1) Primary grounding point (2) Auxiliary grounding point 1

HPE 5940 48XGT 6QSFP28

Figure 66 Front panel
(1) 1/10GBase-T autosensing Ethernet port (2) 1/10GBase-T autosensing Ethernet port LED
(3) QSFP28 port (4) QSFP28 port LED
Figure 67 Rear panel
(1) Fiber management Ethernet port (2) Console port
(3) Mini USB console port (4) USB port
(5) Fan tray 1 (6) Fan tray slot 2
(7) Power supply 1 (8) Power supply 2
(9) System status LED (SYS) (10) LINK/ACT LED for the copper management Ethernet port
(11) Copper management Ethernet port (12) LINK/ACT LED for the fiber management Ethernet port
The HPE 5940 48XGT 6QSFP28 switch comes with the two power supply slots empty and a power supply filler panel as an accessory. You can install one or two power supplies for the switch as
W
needed. In Figure 67, two 650
AC power supplies are installed in the power supply slots. For more
information about installing and removing power supplies, see "Installing/removing a power supply."
The HPE 594 fan trays of the same model for the switch. In Figure 67, two LSWM1HF
0 48XGT 6QSFP28 switch comes with the two fan tray slots empty. You must install two
ANSC fan trays are installed in the fan tray slots. For more information about installing and removing fan trays, see "Installing/removing a fan tray."
50
Page 55
Figure 68 Left side panel
1
(1) Primary grounding point (2) Auxiliary grounding point 1

HPE FlexFabric 5940 2-slot

Figure 69 Front panel
(1) Interface module 1 (2) Interface module 2
Figure 70 Rear panel
2
(1) Mini USB console port (2) USB port
(3) Fan tray 1 (4) Fan tray 2
(5) Power supply 1 (6) Power supply 2
(7) QSFP+ port (8) QSFP+ port LED
(9) System status LED (SYS) (10) LINK/ACT LED for the management Ethernet port
(11) Management Ethernet port (12) Serial console port
The HPE 5940 2-slot switch comes with interface module slot 1 empty and interface module 2 installed with a filler panel. You can install one or two interface modules for the switch as needed.
WM18
In Figure 69, two LS
QC interface modules are installed in the interface module slots. For more information about installing and removing interface modules, see "Installing/removing an interface
module".
The HPE 594
0 2-slot switch comes with the two power supply slots empty and a filler panel for the power supply slot as an accessory. You can install one or two power supplies for the switch as needed. In Figure 70, two 650W
AC power supplies are installed in the power supply slots. For more
information about installing and removing power supplies, see "Installing/removing a power supply."
51
Page 56
The HPE 5940 2-slot switch comes with the two fan tray slots empty. You must install two fan trays of the same model for the switch. In Figure 70, two LSWM1HFA
NSC fan trays are installed in the fan tray slots. For more information about installing and removing fan trays, see "Installing/removing a
fan tray."
Figure 71
(1) Primary grounding point (2) Auxiliary grounding point 1
Left side panel

HPE FlexFabric 5940 4-slot

Figure 72 Front panel
(1) Interface module 1 (2) Interface module 2
(3) Interface module 4 (4) Interface module 3
52
Page 57
Figure 73 Rear panel
41 2 3 5 6 7 8
91011121314
(1) System status LED (SYS) (2) Management Ethernet port
(3) Serial console port (4) USB mini console port
(5) USB port (6) Fan tray 1
(7) Fan tray 2 (8) Grounding screw (auxiliary grounding point 2)
(9) Power supply 4 (10) Power supply 3
(11) Power supply 2 (12) LINK LED for the management Ethernet port
(13) ACT LED for the management Ethernet port (14) Power supply slot 1
The HPE 5940 4-slot switch comes with a filler panel in each interface module slot except slot 1. You can install one to four interface modules for the switch as needed. In Figure 72, the LSWM18
QC interface modules are installed in the interface module slots. For more information about installing and removing interface modules, see "Installing/removing an interface module."
The HPE 594
0 4-slot switch comes with the four power supply slots empty and two filler panels as accessories. You can install two to four power supplies for the switch as needed. In Figure 73, four 650W AC power suppli installing and removing power supplies, see "Installing/removing a power supply."
The HPE 594
0 4-slot switch comes with the two fan tray slots empty. You must install two fan trays of
the same model for the switch. In Figure 73, two LSWM1BFA
es are installed in the power supply slots. For more information about
NSC fan trays are installed in the fan tray slots. For more information about installing and removing fan trays, see "Installing/removing a
fan tray."
Figure 74
(1) Primary grounding point (2) Auxiliary grounding point 1
Left side panel
1 2
53
Page 58

Technical specifications

Table 9 Technical specifications (1)
Item HPE 5940 32QSFP+
Dimensions (H × W × D)
Weight ≤ 13 kg (28.66 lb) ≤ 10 kg (22.05 lb) ≤ 13 kg (28.66 lb)
Console ports
Management Ethernet ports
USB ports 1 1 1
1/10GBASE-T autosensing Ethernet ports
SFP+ ports N/A 48 N/A
QSFP+ ports 32 6 6
Fan tray slots 2 2 2
Power supply slots
AC-input voltage
DC-input voltage
Minimum power consumption
Maximum power consumption
43.6 × 440 × 660 mm (1.72 × 17.32 × 25.98 in)
• 1 × mini USB console port
• 1 × serial console port
1 1 1
N/A N/A 48
2 2 2
• Rated voltage: 100 VAC to 240 VAC @ 50 or 60 Hz
• Max voltage: 90 VAC to 264 VAC @ 47 to 63 Hz
• Rated voltage: –40 VDC to –60 VDC
• Max voltage: –40 VDC to –72 VDC
• Single AC input: 132 W
• Dual AC inputs: 145 W
• Single DC input: 128 W
• Dual DC inputs: 142 W
• Single AC input: 291 W
• Dual AC inputs: 301 W
• Single DC input: 291 W
• Dual DC inputs: 299 W
HPE 5940 48SFP+ 6QSFP+
43.6 × 440 × 460 mm (1.72 × 17.32 × 18.11 in)
1 × serial console port 1 × serial console port
• Single AC input: 75 W
• Dual AC inputs: 81 W
• Single DC input: 72 W
• Dual DC inputs: 80 W
• Single AC input: 145 W
• Dual AC inputs: 150 W
• Single DC input: 141 W
• Dual DC inputs: 145 W
HPE 5940 48XGT 6QSFP+
43.6 × 440 × 660 mm (1.72 × 17.32 × 25.98 in)
• Single AC input: 135 W
• Dual AC inputs: 150 W
• Single DC input: 132 W
• Dual DC inputs: 142 W
• Single AC input: 260 W
• Dual AC inputs: 270 W
• Single DC input: 251 W
• Dual DC inputs: 265 W
Chassis leakage current compliance
Melting current of power supply fuse
UL60950-1, EN60950-1, IEC60950-1, GB4943
• 300W AC: 6.3 A @ 250 VAC
• 650W AC: 10 A @ 250 VAC
• 300W DC: 25 A @ 250 VDC
• 650W DC: 30 A @ 250 VDC
54
Page 59
Item HPE 5940 32QSFP+
Operating temperature
Operating humidity
Fire resistance compliance
0°C to 45°C (32°F to 113°F)
10% to 90%, noncondensing
UL60950-1, EN60950-1, IEC60950-1, GB4943
HPE 5940 48SFP+ 6QSFP+
• 0°C to 45°C (32°F to 113°F) when the switch uses two LSWM1HFANSC or LSWM1HFANSCB fan trays
• 0°C to 40°C (32°F to 104°F) when the switch uses two LSWM1FANSC or LSWM1FANSCB fan trays
HPE 5940 48XGT 6QSFP+
0°C to 45°C (32°F to 113°F)
Table 10 Technical specifications (2)
Item HPE 5940 48SFP+ 6QSFP28 HPE 5940 48XGT 6QSFP28
Dimensions (H × W × D)
43.6 × 440 × 460 mm (1.72 ×
17.32 × 18.11 in)
43.6 × 440 × 660 mm (1.72 × 17.32 ×
25.98 in)
Weight ≤ 10 kg (22.05 lb) ≤ 13 kg (28.66 lb)
Console ports
Management Ethernet ports
USB ports 1 1
1/10GBASE-T autosensing Ethernet ports
SFP+ ports 48 N/A
QSFP+ ports N/A N/A
QSFP28 ports 6 6
Fan tray slots 2 2
Power supply slots 2 2
AC-input voltage
DC-input voltage
Minimum power consumption
• 1 × mini USB console port
• 1 × serial console port
• 1 × 10M/100M/1000M
Base-T copper port
• 1 × SFP port
N/A 48
• Rated voltage: 100 VAC to 240 VAC @ 50 or 60 Hz
• Max voltage: 90 VAC to 264 VAC @ 47 to 63 Hz
• Rated voltage: –40 VDC to –60 VDC
• Max voltage: –40 VDC to –72 VDC
• Single AC input: 89 W
• Dual AC inputs: 95 W
• Single DC input: 91 W
• Dual DC inputs: 99 W
• 1 × mini USB console port
• 1 × serial console port
• 1 × 10M/100M/1000M Base-T copper
port
• 1 × SFP port
• Single AC input: 142 W
• Dual AC inputs: 157 W
• Single DC input: 135 W
• Dual DC inputs: 150 W
55
Page 60
Item HPE 5940 48SFP+ 6QSFP28 HPE 5940 48XGT 6QSFP28
• Single AC input: 186 W
Maximum power consumption
Chassis leakage current compliance
Melting current of power supply fuse
Operating temperature 0°C to 45°C (32°F to 113°F) 0°C to 45°C (32°F to 113°F)
Operating humidity 10% to 90%, noncondensing
Fire resistance compliance
• Dual AC inputs: 196 W
• Single DC input: 187 W
• Dual DC inputs: 192 W
UL60950-1, EN60950-1, IEC60950-1, GB4943
• 300W AC: 6.3 A @ 250 VAC
• 650W AC: 10 A @ 250 VAC
• 300W DC: 25 A @ 250 VDC
• 650W DC: 30 A @ 250 VDC
UL60950-1, EN60950-1, IEC60950-1, GB4943
• Single AC input: 310 W
• Dual AC inputs: 320 W
• Single DC input: 294 W
• Dual DC inputs: 301 W
Table 11 Technical specifications (3)
Item HPE 5940 2-slot HPE 5940 4-slot
Dimensions (H × W × D)
Weight ≤ 16 kg (35.27 lb) ≤ 27 kg (59.52 lb)
Console port
44.2 × 440 × 660 mm (1.74 × 17.32 ×
25.98 in)
• 1 ×mini USB console port
• 1 × serial console port
88.1 × 440 × 660 mm (3.47 × 17.32 ×
25.98 in)
• 1 ×mini USB console port
• 1 × serial console port
Management Ethernet port
USB port 1 1
QSFP+ port 2 N/A
Interface module slot 2 4
Fan tray slot 2 2
Power supply slot 2 4
AC-input voltage
DC-input voltage
Minimum power consumption
1 1
• Rated voltage: 100 VAC to 240 VAC @ 50 or 60 Hz
• Max voltage: 90 VAC to 264 VAC @ 47 to 63 Hz
• Rated voltage: –40 VDC to –60 VDC
• Max voltage: –40 VDC to –72 VDC
• Dual AC inputs: 135 W
• Single AC input: 95 W
• Dual AC inputs: 110 W
• Single DC input: 91 W
• Dual DC inputs: 105 W
• Triple AC inputs: 150 W
• Quadruple AC inputs: 165 W
• Dual DC inputs: 131 W
• Triple DC inputs: 145 W
• Quadruple DC inputs: 155 W
56
Page 61
Item HPE 5940 2-slot HPE 5940 4-slot
• Dual AC inputs: 827 W
• Triple AC inputs: 837 W
• Quadruple AC inputs: 856 W
• Dual DC inputs: 823 W
• Triple DC inputs: 825 W
• Quadruple DC inputs: 828 W
Maximum power consumption
• Single AC input: 438 W
• Dual AC inputs: 450 W
• Single DC input: 443 W
• Dual DC inputs: 445 W
Chassis leakage current compliance
Melting current of power supply fuse
Operating temperature 0°C to 45°C (32°F to 113°F)
Operating humidity 10% to 90%, noncondensing
Fire resistance compliance
UL60950-1, EN60950-1, IEC60950-1, GB4943
• 10 A @ 250 VAC
• 30 A @ 250 VDC
UL60950-1, EN60950-1, IEC60950-1, GB4943
57
Page 62

Appendix B FRUs and compatibility matrixes

Table 12 Compatibility matrix between the FRUs and HPE FlexFabric 5940 switches
FRUs
Power supplies
650W AC Yes Yes Yes Yes Yes Yes Yes
650W DC Yes Yes Yes Yes Yes Yes Yes
300W AC No Yes No Yes No No No
300W DC No Yes No Yes No No No
Fan trays
LSWM1FANS C
LSWM1FANS CB
LSWM1HFAN SC
LSWM1HFAN SCB
LSWM1BFAN SC
HPE 5940 32QSFP+
No Yes No Yes No No No
No Yes No Yes No No No
Yes Yes Yes Yes Yes Yes No
Yes Yes Yes Yes Yes Yes No
No No No No No No Yes
HPE 5940 48SFP+ 6QSFP+
HPE 5940 48XGT 6QSFP+
HPE 5940 48SFP+ 6QSFP28
HPE 5940 48XGT 6QSFP28
HPE 2-slot
HPE 4-slot
LSWM1BFAN SCB
Interface modules
LSWM18QC No No No No No Yes Yes
LSWM18CQ MSEC
LSWM124XG T2Q
LSWM124XG 2Q
LSWM124XG 2QL
LSWM12H2Q No No No No No Yes Yes
No No No No No No Yes
No No No No No Yes Yes
No No No No No Yes Yes
No No No No No Yes Yes
No No No No No Yes Yes
58
Page 63
IMPORTANT:
• The HPE 5940 48SFP+ 6QSFP28, HPE 5940 48XGT 6QSFP28, HPE 5940 48XGT 6QSFP+, HPE 5940 48SFP+ 6QSFP+, HPE 5940 32QSFP+, and HPE 5940 2-slot switches can operate correctly with only one power supply. You can install two power supplies on the switch for 1+1 redundancy.
• The HPE 5940 4-slot switch can operate correctly with two power supplies. You can install four power supplies on the switches for 2+2 redundancy.
• You must install two fan trays of the same model for the switch.
• If an HPE 5940 48SFP+ 6QSFP+ or HPE 5940 48SFP+ 6QSFP28 switch uses 650 W power
supplies, you can install two LSWM1HFANSC, LSWM1HFANSCB, LSWM1FANSC, or LSWM1FANSCB fan trays to ensure heat dissipation. If an HPE 5940 48SFP+ 6QSFP+ switch uses 300 W power supplies, you must install two LSWM1FANSC or LSWM1FANSCB fan trays to ensure heat dissipation.

Power supplies

CAUTION:
When the switch has power supplies in redundancy, you can replace a power supply without powering off the switch. Make sure the power supply to be replaced is powered off before you replace it.
Table 13 Power supply specifications
Power supply Specifications Remarks
• Rated input voltage: 100 VAC to 240 VAC @ 50 Hz or 60 Hz
650W AC
650W DC
300W AC
300W DC
• Max input voltage: 90 VAC to 264 VAC @ 47 Hz to 63 Hz
• Max output power: 650 W
• Rated input voltage: –40 VDC to –60 VDC
• Max input voltage: –40 VDC to –72 VDC
• Max output power: 650 W
• Rated input voltage: 100 VAC to 240 VAC @ 50 Hz or 60 Hz
• Max input voltage: 90 VAC to 264 VAC @ 47 Hz to 63 Hz
• Max output power: 315 W
• Rated input voltage: –48 VDC to –60 VDC
• Max input voltage: –36 VDC to –72 VDC
• Max output power: 315 W
For more information about the
power supplies, see HPE A58x0AF
650W AC (JC680A) & 650W DC (JC681A) Power Supplies User Guide or HPE FlexFabric Switch 650W 48V Hot Plug NEBS Compliant DC Power Supply (JH336A) User Guide.
For more information about the
power supplies, see HPE A58x0AF
300W AC (JG900A) & 300W DC (JG901A) Power Supplies User Guide.
59
Page 64

Fan trays

Table 14 Fan tray specifications
Item Specifications LSWM1HFANSC
Fans Two 40 × 40 × 56 mm (1.57 × 1.57 × 2.2 in) fans Fan speed 21000 R.P.M Max airflow 70 CFM Airflow direction From the power supply side to the port side Input voltage 12 V
Maximum power consumption
Documentation reference
60 W
HPE LSWM1HFANSC and LSWM1HFANSCB Fan Assemblies Installation
LSWM1HFANSCB
Fans Two 40 × 40 × 56 mm (1.57 × 1.57 × 2.2 in) fans Fan speed 21000 R.P.M Max airflow 70 CFM Airflow direction From the port side to the power supply side Input voltage 12 V
Maximum power consumption
Documentation reference
60 W
HPE LSWM1HFANSC and LSWM1HFANSCB Fan Assemblies Installation
LSWM1FANSC
Fans Two 40 × 40 × 28 mm (1.57 × 1.57 × 1.10 in) fans Fan speed 18500 R.P.M Max airflow 45 CFM
Airflow direction From the power supply side to the port side
Input voltage 12 V
Maximum power consumption
Documentation reference
19.5 W
HPE LSWM1FANSC & LSWM1FANSCB Fan Trays User Guide
LSWM1FANSCB
Fans Two 40 × 40 × 28 mm (1.57 × 1.57 × 1.10 in) fans Fan speed 18500 R.P.M Max airflow 45 CFM
Airflow direction From the port side to the power supply side
60
Page 65
Item Specifications
Input voltage 12 V
Maximum power consumption
Documentation reference
19.5 W
HPE LSWM1FANSC & LSWM1FANSCB Fan Trays User Guide
LSWM1BFANSC
Fans One 80 × 80 × 76 mm (3.14 × 3.14 × 2.99 in) fan
Fan speed 20000 R.P.M
Max airflow 120 CFM
Airflow direction From the power supply side to the port side
Input voltage 12 V
Maximum power consumption
Documentation reference
57 W
HPE LSWM1BFANSC & LSWM1BFANSCB Fan Trays User Guide
LSWM1BFANSCB
Fans One 80 × 80 × 76 mm (3.14 × 3.14 × 2.99 in) fan
Fan speed 20000 R.P.M
Max airflow 120 CFM
Airflow direction From the port side to the power supply side
Input voltage 12 V
Maximum power consumption
Documentation reference
57 W
HPE LSWM1BFANSC & LSWM1BFANSCB Fan Trays User Guide

Interface modules

An HPE 5940 2-slot switch provides two interface module slots. An HPE 5940 4-slot switch provides four interface module slots. Select interface modules for the switch as required.
61
Page 66
Table 15 Interface modules available for the HPE 5940 2-slot/HPE 5940 4-slot switches
Product code
JH183A
JH957A
JH182A
JH181A
JH180A
JH184A
JH409A
HPE description
HPE 5930 8-port QSFP+ Module
HPE FlexFabric 5950 8-port QSFP28 MACsec Module
HPE 5930 24-port 10GBase-T and 2-port QSFP+ with MacSec Module
HPE 5930 24-port SFP+ and 2-port QSFP+ with MacSec Module
HPE 5930 24-port SFP+ and 2-port QSFP+ Module
HPE 5930 24-port Converged Port and 2-port QSFP+ Module
HPE 5940 2-port QSFP+ and 2-port QSFP28 Module
Alias
LSWM18QC 8 × QSFP+ ports
LSWM18CQMSEC 8 × QSFP28 ports
LSWM124XGT2Q
LSWM124XG2Q
LSWM124XG2QL
LSWM124XG2QFC
LSWM12H2Q
Interface number and type
• 24 × 10-GE copper ports
• 2 × QSFP+ ports
• 24 × SFP+ ports
• 2 × QSFP+ ports
• 2 × QSFP+ ports
• 2 × QSFP28 ports
Transceiver modules available for the ports
• For the transceiver modules and cables available for the SFP+ ports, see "
• SFP+ port".
• For the
transceiver modules and cables available for the QSFP+ ports, see "QSFP+ port".
• For the transceiver modules and cables available for the QSFP28 ports, see "QSFP28 port".
62
Page 67
IMPORTANT:
• On an HPE 5940 4-slot switch (JH398A), the 40-GE QSFP+ ports on the LSWM124XGT2Q (JH182A), LSWM124XG2Q (JH181A), LSWM124XG2QL (JH180A), and LSWM124XG2QFC (JH184A) interface modules cannot be split into four 10-GE SFP+ ports. The two highest-numbered 40-GE QSFP+ ports (ports 7 and 8) on an LSWM18QC (JH183A) interface module cannot be split into four 10-GE SFP+ ports.
• The LSWM12H2Q interface module (JH409A) can only be installed in the two interface module slots on an HPE 5940 2-slot switch (JH397A) and in interface module slots 1 and 2 on an HPE 5940 4-slot switch (JH398A). On an HPE 5940 2-slot switch, an interface module slot supports hot swapping of LSWM12H2Q interface modules only if it starts up with an LSWM12H2Q interface module installed. On an HPE 5940 4-slot switch, both interface module slots 1 and 2 support hot swapping of LSWM12H2Q interface modules if one of them starts up with an LSWM12H2Q interface module installed. If both the slots start up empty, neither of them supports hot swapping of LSWM12H2Q interface modules.
• You can install the LSWM12H2Q and non-LSWM12H2Q interface modules on the same HPE 5940 2-slot switch. If an interface module slot starts up with an LSWM12H2Q interface module installed, you can hot-swap only LSWM12H2Q interface modules in the slot. If an interface module slot starts up empty or with a non-LSWM12H2Q interface module installed, you can hot-swap only non-LSWM12H2Q interface modules in the slot. If you change the interface module type in a slot, you need to reboot the switch for the interface module to operate correctly.
• You must install the same type of interface modules either LSWM12H2Q or non-LSWM12H2Q in interface module slots 1 and slot 2 on the same HPE 5940 4-slot switch. If one or both of the interface module slots start up with an LSWM12H2Q interface card installed, you can hot-swap only LSWM12H2Q interface modules in the two slots. If both interface module slots start up empty, or one or both of the interface module slots start up with a non-LSWM12H2Q interface module installed, you can hot-swap only non-LSWM12H2Q interface modules in the two slots.
• An LSWM18CQMSEC interface module can only be installed on an HPE 5940 2-slot switch (JH397A) or an HPE 5940 4-slot switch (JH398A). It supports QSFP+ transceiver modules and cables but does not support QSFP28 modules or cables.
For more information about the interface modules, see the user manuals for the interface modules.
63
Page 68

Appendix C Ports and LEDs

Ports

Console port

The HPE 5940 48SFP+ 6QSFP+ and HPE 5940 48XGT 6QSFP+ switches each have one console port.
Table 16 Console port specifications
Item Specification
Connector type RJ-45
Compliant standard
Transmission baud rate
Services
The HPE 5940 32QSFP+, HPE 5940 48XGT 6QSFP28, and HPE 5940 48SFP+ 6QSFP28 switches have two console ports: serial console port and Mini USB console port.
Table 17 Console port specifications
Item Console port Mini USB console port
Connector type RJ-45 USB mini-Type B
Compliant standard
Transmission baud rate
Services
EIA/TIA-232
9600 bps (default) to 115200 bps
• Provides connection to an ASCII terminal.
• Provides connection to the serial port of a local or remote (through a pair of
modems) PC running terminal emulation program.
EIA/TIA-232 USB 2.0
9600 bps (default) to 115200 bps
• Provides connection to an ASCII terminal.
• Provides connection to the serial port of a local or remote (through a pair of modems) PC running terminal emulation program.
• Provides connection to an ASCII terminal.
• Provides connection to the USB port of a local PC running terminal emulation program.

Management Ethernet port

The HPE 5940 32QSFP+, HPE 5940 48XGT 6QSFP+, HPE 5940 48SFP+ 6QSFP+, and HPE 5940 2-slot and HPE 5940 4-slot switches each provide a copper management Ethernet port. The HPE 5940 48SFP+ 6QSFP28 and HPE 5940 48XGT 6QSFP28 switches each provide a copper and a fiber management Ethernet port. You can connect this port to a PC or management station for loading and debugging software or remote management.
64
Page 69
Table 18 Copper management Ethernet port specifications
Item Specification
Connector type RJ-45
Connector quantity 1
Port transmission rate 10/100/1000 Mbps, half/full duplex
Transmission medium and max transmission distance
Functions and services Switch software and Boot ROM upgrade, network management
100 m (328.08 ft) over category-5 twisted pair cable
Table 19 Fiber management Ethernet port specifications
Item Specification
Connector type LC
Connector quantity 1
Port transmission rate 100/1000 Mbps, full duplex
Transmission medium and max transmission distance
Functions and services Software upgrade and network management
See Table 20 a
nd T
able 21.
Table 20 FE SFP transceiver modules
Product code
JD102B
HPE description
HPE X115 100M SFP LC FX Transceiver
Central wavelength
Connector
(nm)
1310 LC
Fiber type and diameter (µm)
Multi-mode, 50/125
Multi-mode,
62.5/125
Max transmission distance
2 km (1.24 miles)
JD120B
JD090A

USB port

The switch has one OHC-compliant USB2.0 port that can upload and download data at a rate up to 480 Mbps. You can use this USB port to access the file system on the Flash of the switch, for example, to upload or download application and configuration files.
NOTE:
USB devices from different manufacturers vary in compatibilities and drivers. Hewlett Packard Enterprise does not guarantee the correct operation of all USB devices on the switch. If a USB device fails to operate on the switch, replace it with one from another manufacturer.
HPE X110 100M SFP LC LX Transceiver
HPE X110 100M SFP LC LH40 Transceiver
1310 LC
65
15 km (9.32 miles)
Single-mode, 9/125
40 km (24.86 miles)
Page 70

SFP+ port

The HPE 5940 48SFP+ 6QSFP+ switch provides SFP+ ports. The LSWM124XG2Q (JH181A), LSWM124XG2QL (JH180A), and LSWM124XG2QFC (JH184A) interface modules available for the HPE 5940 2-slot and HPE 5940 4-slot switches also provide SFP+ ports. You can install Gigabit SFP transceiver modules in Table 21, 10 cables in Table 23 , and 10-Giga
Table 21 Gigabit SFP transceiver modules available for the SFP+ ports
-Giga
bit SFP+ transceiver modules in Table 22, 10-Gigabit SFP+
bit SFP+ fiber cables in Table 24 in the SFP+ ports as needed.
Product code
JD089B
JD118B
JD119B
HPE description
HPE X120 1G SFP RJ45 T Transceiver
HPE X120 1G SFP LC SX Transceiver
HPE X120 1G SFP LC LX Transceiver
Central wavelength
Connector
(nm)
N/A RJ-45
850 LC
1310 LC
Cable/Fiber type and diameter (µm)
Category-5 twisted pair
Multi-mode, 50/125
Multi-mode,
62.5/125
Single-mode, 9/125
Multi-mode, 50/125
Multi-mode,
62.5/125
Modal bandwidth (MHz × km)
N/A
500
400
200
160
N/A
500 or 400
500
Max transmissi on distance
100 m (328.08 ft)
550 m (1804.46 ft)
500 m (1640.42 ft)
275 m (902.23 ft)
220 m (721.78 ft)
10 km (6.21 miles)
550 m (1804.46 ft)
550 m (1804.46 ft)
JD061A
JD062A
JD063B
HPE X125 1G SFP LC LH40 1310nm Transceiver
HPE X120 1G SFP LC LH40 1550nm Transceiver
HPE X125 1G SFP LC LH80 Transceiver
1310 LC
1550 LC
1550 LC
66
Single-mode, 9/125
Single-mode, 9/125
Single-mode, 9/125
N/A
N/A
N/A
40 km (24.86 miles)
40 km (24.86 miles)
80 km (49.71 miles)
Page 71
Table 22 10-Gigabit SFP+ transceiver modules available for the SFP+ ports
Product code
JD092B
JD094B
JG879A
HPE description
HPE X130 10G SFP+ LC SR Transceiver
HPE X130 10G SFP+ LC LR Transceiver
HPE X190 8G/4G/2G SFP+ LC Short Wave Transceiver
Central wavelength
Connector
(nm)
850 LC
1310 LC
850 LC
Fiber type and diameter (µm)
Multi-mode, 50/125
Multi-mode,
62.5/125
Single-mode, 9/125
Multi-mode,
62.5/125
Multi-mode, 50/125
Modal bandwidth (MHz × km)
2000
500
400
200
160
N/A
200
500
2000
Max transmiss ion distance
300 m (984.25 ft)
82 m (269.03 ft)
66 m (216.54 ft)
33 m (108.27 ft)
26 m (85.30 ft)
10 km (6.21 miles)
150 m (492.13 ft)
380 m (1246.72 ft)
500 m (1640.42 ft)
HPE X190
JG880A
8G/4G/2G SFP+ LC Long Wave Transceiver
1310 LC
Single-mode, 9/125
N/A
10 km (6.21 miles)
Table 23 SFP+ cables available for the SFP+ ports
Product code
JD095C HPE X240 10G SFP+ SFP+ 0.65m DA Cable 0.65 m (2.13 ft) 10.31 Gbps
JD096C HPE X240 10G SFP+ SFP+ 1.2m DA Cable 1.2 m (3.94 ft) 10.31 Gbps
JD097C HPE X240 10G SFP+ SFP+ 3m DA Cable 3 m (9.84 ft) 10.31 Gbps
JG081C HPE X240 10G SFP+ SFP+ 5m DA Cable 5 m (16.40 ft) 10.31 Gbps
HPE description
Max transmission distance
Data rate
Table 24 SFP+ fiber cables available for the SFP+ ports
Product code
JL290A
JL291A
HPE description
HPE X2A0 10G SFP+ to SFP+ 7m Active Optical Cable
HPE X2A0 10G SFP+ to SFP+ 10m Active Optical Cable
Max transmission distance
7 m (22.97 ft)
10 m (32.81 ft)
Data rate
10.31 Gbps
67
Page 72
f
Product code
JL292A
HPE description
HPE X2A0 10G SFP+ to SFP+ 20m Active Optical Cable
Figure 75 SFP+ cable
1 2
(1) Connector (2) Pull latch
Figure 76 SFP+ fiber cable
Max transmission distance
20 m (65.62 ft)
Data rate
NOTE:
As a best practice, use HPE SFP transceiver modules, SFP+ transceiver modules, or SFP+ cables for the SFP+ ports on the switch. The HPE SFP transceiver modules, SFP+ transceiver modules, and SFP+ cables for the SFP+ ports are subject to change over time. For the most up-to-date list o SFP transceiver modules, SFP+ transceiver modules, and SFP+ cables available for the SFP+ ports, contact Hewlett Packard Enterprise Support or marketing staff.
For more information about HPE SFP transceiver modules, SFP+ transceiver modules, and SFP+
cables, see HPE Comware-Based Devices Transceiver Modules User Guide.

QSFP+ port

The HPE 5940 32QSFP+, HPE 5940 48XGT 6QSFP+, and HPE 5940 48SFP+ 6QSFP+ switches provide fixed QSFP+ ports. The interface modules available for the HPE 5940 2-slot and HPE 5940 4-slot switches also provide QSFP+ ports. You can install QSFP+ transceiver modules in Table 25, QSFP+ cabl
28 in the QSFP+ ports as needed.
e
s in Table 26, QSFP+ to 4 × SFP+ cable
68
s in Table 27 , and QSFP+ fiber cables in Table
Page 73
Table 25 40G QSFP+ transceiver modules available for the QSFP+ ports
Product code
JG325B
JG709A
JL251A
JG661A
HPE description
HPE X140 40G QSFP+ MPO SR4 Transceiver
HPE X140 40G QSFP+ MPO MM 850nm CSR4 300m Transceiver
HPE X140 40G QSFP+ LC BiDi 100m MM Transceiver
HPE X140 40G QSFP+ LC LR4 SM 10km 1310nm Transceiver
Central wavelength
Connector
(nm)
850 MPO
850 MPO
850 LC
Four lanes:
• 1271.
• 1291.
• 1311.
• 1331.
LC
Fiber type and diameter (µm)
Multi-mode, 50/125
Multi-mode, 50/125
Multi-mode, 50/125
Single-mode, 9/125
Modal bandwidth (MHz × km)
2000
4700
2000
4700
2000
4700
N/A
Max transmission distance
100 m (328.08 ft)
150 m (492.12 ft)
300 m (984.25 ft)
400 m (1312.33 ft)
100 m (328.08 ft)
150 m (492.12 ft)
10 km (6.21 miles)
Four lanes:
• 1271.
• 1291.
• 1311.
• 1331.
LC
Single-mode, 9/125
N/A
2 km (1.24 miles)
JL286A
HPE X140 40G QSFP+ LC LR4L 2km SM Transceiver
Table 26 40G QSFP+ cables available for the QSFP+ ports
Product Code
JG326A HPE X240 40G QSFP+ QSFP+ 1m Direct Attach Copper Cable 1 m (3.28 ft)
JG327A HPE X240 40G QSFP+ QSFP+ 3m Direct Attach Copper Cable 3 m (9.84 ft)
JG328A HPE X240 40G QSFP+ QSFP+ 5m Direct Attach Copper Cable 5 m (16.40 ft)
HPE description Cable length
Table 27 40G QSFP+ to SFP+ cables available for the QSFP+ ports
Product Code
JG329A
JG330A
HPE description Cable length
HPE X240 40G QSFP+ to 4x10G SFP+ 1m Direct Attach Copper Splitter Cable
HPE X240 40G QSFP+ to 4x10G SFP+ 3m Direct Attach Copper Splitter Cable
1 m (3.28 ft)
3 m (9.84 ft)
JG331A
HPE X240 40G QSFP+ to 4x10G SFP+ 5m Direct Attach Copper Splitter Cable
69
5 m (16.40 ft)
Page 74

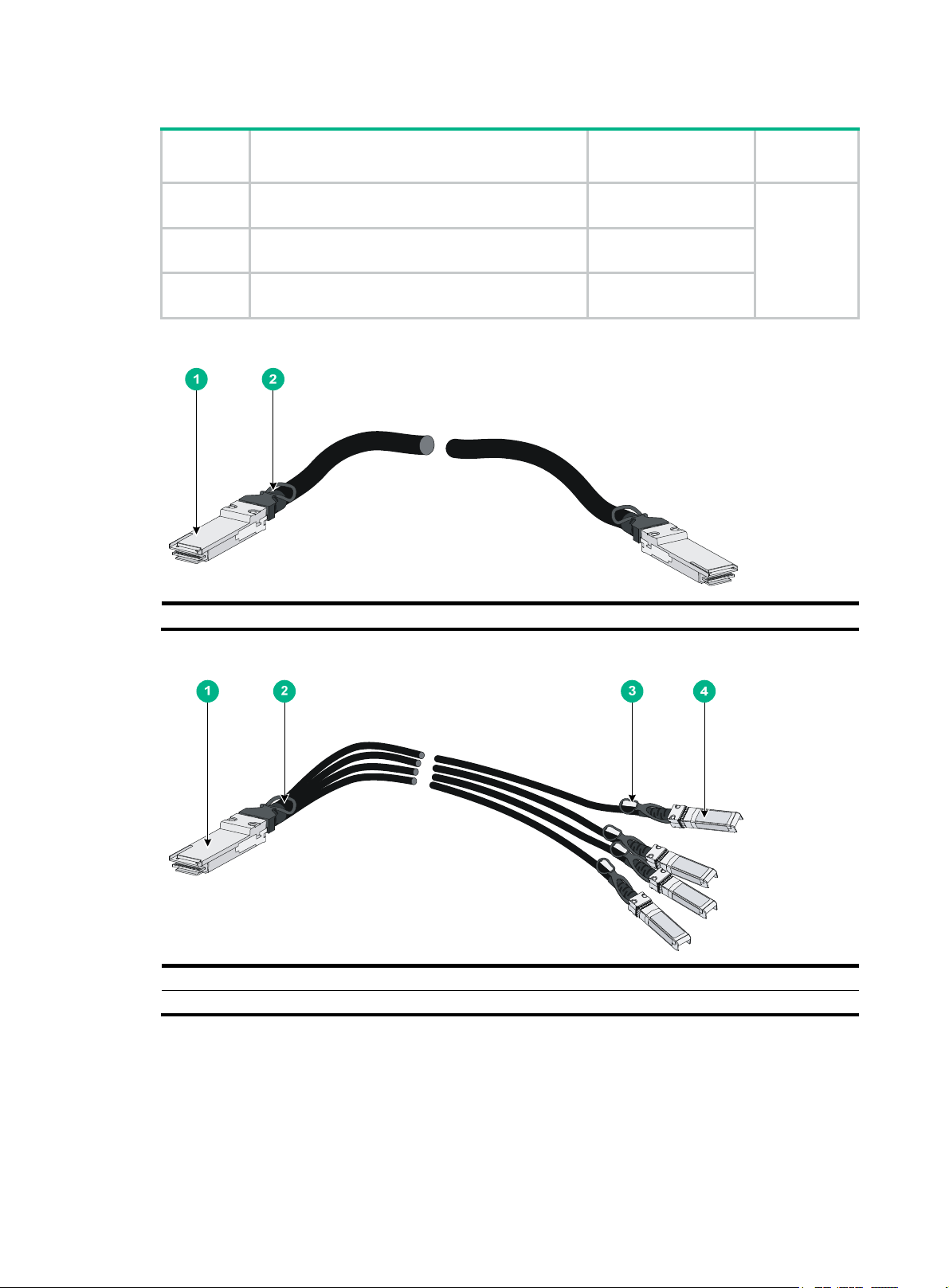

Table 28 QSFP+ fiber cables available for the QSFP+ ports
Product code
JL287A
JL288A
JL289A
HPE description
HPE X2A0 40G QSFP+ to QSFP+ 7m Active Optical Cable
HPE X2A0 40G QSFP+ to QSFP+ 10m Active Optical Cable
HPE X2A0 40G QSFP+ to QSFP+ 20m Active Optical Cable
Figure 77 QSFP+ cable
Max transmission distance
7 m (22.97 ft)
10 m (32.81 ft)
20 m (65.62 ft)
Data rate
40 Gbps
(1) Connector (2) Pull latch
Figure 78 QSFP+ to 4 x SFP+ cable
(1) QSFP+ module (2) QSFP+ side pull latch
(3) SFP+ side pull latch (4) SFP+ module
70
Page 75
r

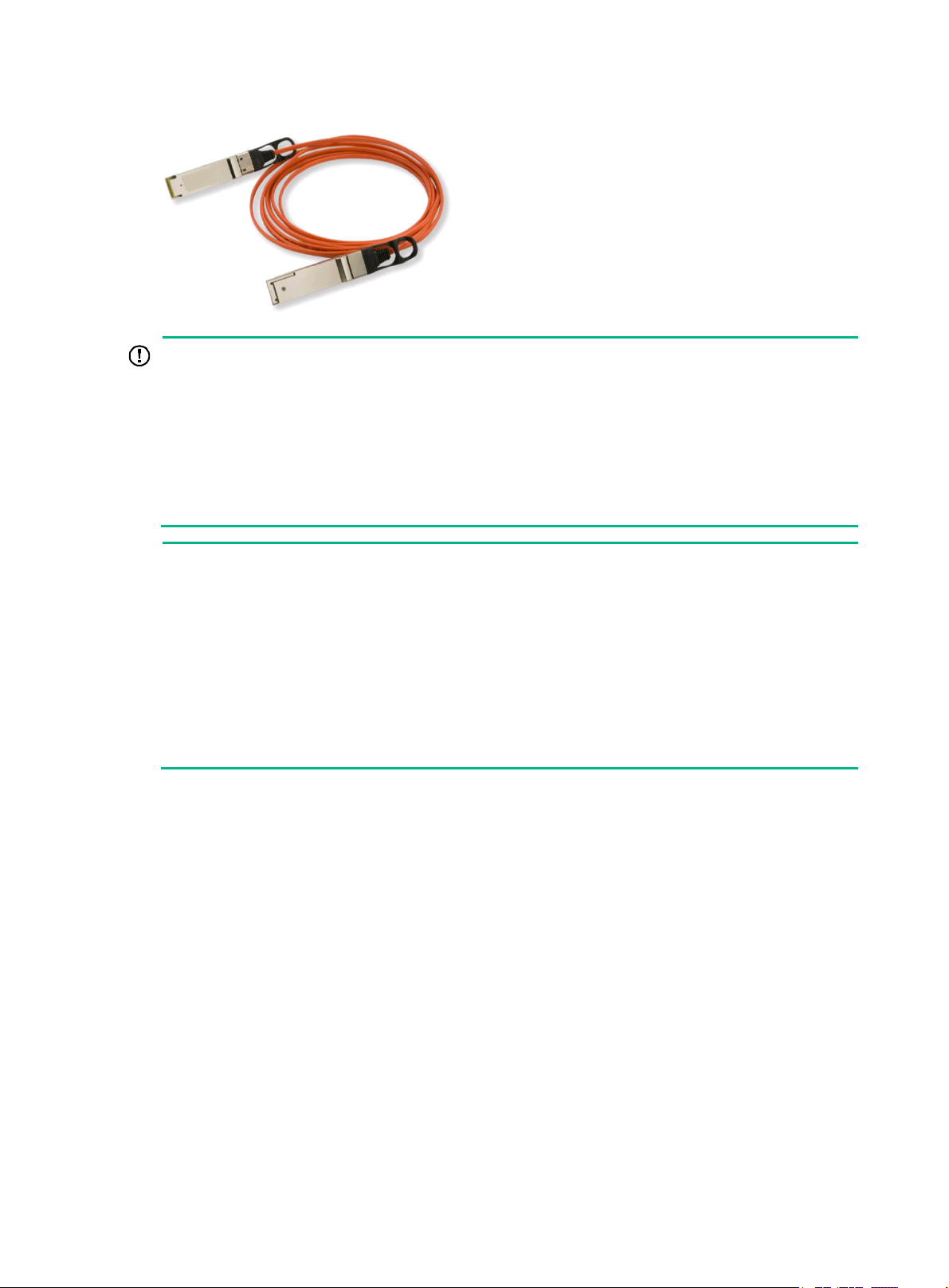

Figure 79 QSFP+ fiber cable
IMPORTANT:
• 40-GE QSFP+ ports FortyGigE 1/0/1 through FortyGigE 1/0/4 and FortyGigE 1/0/29 through FortyGigE 1/0/32 on an HPE FlexFabric 5940 32QSFP+ switch (JH396A) cannot be split into 10-GE SFP+ ports.
• On an HPE 5940 4-slot switch (JH398A), the 40-GE QSFP+ ports on the LSWM124XGT2Q (JH182A), LSWM124XG2Q (JH181A), LSWM124XG2QL (JH180A), and LSWM124XG2QFC (JH184A) interface modules cannot be split into four 10-GE SFP+ ports. The two highest-numbered 40-GE QSFP+ ports (ports 7 and 8) on an LSWM18QC (JH183A) interface module cannot be split into four 10-GE SFP+ ports.
NOTE:
• As a best practice, use HPE QSFP+ transceiver modules, QSFP+ cables, or QSFP+ to 4 x SFP+ cables for the QSFP+ ports on the switch. The HPE QSFP+ transceiver modules, QSFP+ cables, and QSFP+ to 4 x SFP+ cables available for the QSFP+ ports are subject to change over time. For the most recent list of QSFP+ transceiver modules, QSFP+ cables, and QSFP+ to 4 x SFP+ cables available for the QSFP+ ports, contact Hewlett Packard Enterprise Support or marketing staff.
• You can use a QSFP-40G-SR4-MM850 or QSFP-40G-CSR4-MM850 transceiver module to connect a QSFP+ port to four SFP+ ports. The QSFP+ transceiver module and SFP+ transceive modules to be connected must be the same in specifications, including central wavelength and fiber type.
For more information about HPE QSFP+ transceiver modules, QSFP+ cables, and QSFP+ to 4 x
SFP+ cables, see HPE Comware-Based Devices Transceiver Modules User Guide.

QSFP28 port

The HPE 5940 48SFP+ 6QSFP28 and HPE 5940 48XGT 6QSFP28 switches provide QSFP28 ports. The LSWM12H2Q interface module (JH409A) available for the HPE 5940 2-slot switch (JH397A) and HPE 5940 4-slot switch (JH398A) also provides QSFP28 ports.
The QSFP28 fiber ports on an LSWM12H2Q interface module support QSFP+ modules in Table 25, QSFP+ cables in Table 30, and QSFP28 fiber cables in T
in Table 26 and Table 28, QSFP28 module
able 31. They do not support QSFP+ to SFP+ cables.
s in Table 29, QSFP28 copper cables
The QSFP28 fiber ports on an LSWM18CQMSEC interface module support only QSFP+ modules in Table 25, QSFP+ cables
in Table 26 and Table 28, and QSFP+ to SFP+ cables in Table 27.
71
Page 76
Table 29 QSFP28 transceiver modules available for the QSFP28 ports
Fiber type and diameter (µm)
Multi-mode , 50/125
Multi-mode , 9/125
Single-mo de, 9/125
Multi-mode , 9/125
Product code
JL274A
JH420A
JL275A
JH673A
HPE description
HPE X150 100G QSFP28 MPO SR4 100m MM Transceiver
HPE X150 100G QSFP28 MPO PSM4 500m SM Transceiver
HPE X150 100G QSFP28 LC LR4 10km SM Transceiver
HPE X150 100G QSFP28 CWDM4 2km SM Transceiver
Central wavelength
Connector
(nm)
850 MPO
1295 to 1325 MPO
Four lanes:
• 1295
• 1300
• 1304
• 1309
Four lanes:
• 1264.5 to
1277.5
• 1284.5 to
1297.5
• 1304.5 to
1317.5
• 1324.5 to
1337.5
LC
LC
Table 30 QSFP28 copper cables available for the QSFP28 ports
Modal bandwidth (MHz × km)
2000
4700
N/A
N/A
N/A
Max transmissi on distance
70 m (229.66 ft)
100 m (328.08 ft)
500 m (1640.42 ft)
10 km (6.21 miles)
2 km (1.24 miles)
Product Code
JL271A HPE X240 100G QSFP28 to QSFP28 1m Direct Attach Copper Cable 1 m (3.28 ft)
JL272A HPE X240 100G QSFP28 to QSFP28 3m Direct Attach Copper Cable 3 m (9.84 ft)
JL273A HPE X240 100G QSFP28 to QSFP28 5m Direct Attach Copper Cable 5 m (16.40 ft)
HPE description Cable length
Table 31 QSFP28 fiber cables available for the QSFP28 ports
Product code
JL276A
JL277A
JL278A
HPE description
HPE X2A0 100G QSFP28 to QSFP28 7m Active Optical Cable
HPE X2A0 100G QSFP28 to QSFP28 10m Active Optical Cable
HPE X2A0 100G QSFP28 to QSFP28 20m Active Optical Cable
72
Max transmission distance
7 m (22.97 ft)
10 m (32.81 ft)
20 m (65.62 ft)
Data rate
100 Gbps
Page 77
Figure 80 QSFP28 module with an MPO connector
Figure 81 QSFP28 module with an LC connector
Figure 82 QSFP28 copper cables
Figure 83 QSFP28 fiber cable
IMPORTANT:
Only the QSFP28 ports on an LSWM18CQMSEC interface module can be split into four 10GE ports. The other QSFP28 ports on the switch do not support port splitting.
NOTE:
As a best practice, use HPE QSFP+/QSFP28 transceiver modules and cables for the QSFP28 ports. The available HPE QSFP+/QSFP28 transceiver modules and cables are subject to change over time. For the most recent list of available HPE QSFP+/QSFP28 transceiver modules and cables, contact Hewlett Packard Enterprise Support or marketing staff.
73
Page 78

1/10GBASE-T autosensing Ethernet port

The HPE 5940 48XGT 6QSFP+ switch provides 1/10GBASE-T autosensing Ethernet ports.
Table 32 1/10GBASE-T autosensing Ethernet port specifications
Item Specification
Connector type RJ-45
Port transmission rate 1/10 Gbps, full duplex, MDI/MDI-X autosensing
Transmission medium and max transmission distance
Compatible standards
To avoid interference between cables, layer cables as follows:
• Use category-6A or above cables and connectors.
• Do not bundle cables in their first 20 m (65.62 ft).
• Separate power cords and twisted pair cables at and around the distribution frame.
• For ports adjacent to one another on the device, the peer ports on the distribution frame are
preferably not adjacent, for example:
{ If the device connects to one distribution frame, connect port 1 on the device to port 1 on the
distribution frame, port 2 on the device to port 3 on the distribution frame, and port 3 on the device to port 5 on the distribution frame.
{ If the device connects to two distribution frames, connect port 1 on the device to port 1 on
distribution frame 1, port 2 on the device to port 1 on distribution frame 2, and port 3 on the device to port 2 on distribution frame 1.
• 55 m (180.45 ft) over category-6 unshielded twisted pair cable
• 100 m (328.08 ft) over category-6 shielded twisted pair cable
• 100 m (328.08 ft) over category-6A or above twisted pair cable
• IEEE 802.3ab
• IEEE 802.3an

LEDs

System status LED

The system status LED shows the operating status of the switch.
Table 33 System status LED description
LED mark Status Description
Steady green The switch is operating correctly.
Flashing green The switch is performing power-on self test (POST).
SYS

SFP+ port LED

Each SFP+ port has a status LED to show its operating status and activities.
Steady red The system has failed to pass POST or has problems such as fan failure.
Flashing red Some ports have failed to pass POST.
Off The switch is powered off or has failed to start up.
74
Page 79
Table 34 SFP+ port LED description
LED status Description
Steady green
Flashing green The port is sending or receiving data at 10 Gbps.
Steady yellow
Flashing yellow The port is sending or receiving data at 1 Gbps.
Off No transceiver module or cable has been installed or no link is present on the port.

QSFP+ port LED

Each QSFP+ port has a status LED to show its operating status and activities.
Table 35 QSFP+ port LED description
LED status Description
Steady green
Flashing green The port is sending or receiving data at 40 Gbps.
Steady yellow
A transceiver module or cable has been correctly installed. The port has a link and is operating at 10 Gbps.
A transceiver module or cable has been correctly installed. The port has a link and is operating at 1 Gbps.
A transceiver module or cable has been correctly installed. The port has a link and is operating at 40 Gbps.
A transceiver module or cable has been correctly installed. The port has a link and is operating at 10 Gbps.
Flashing yellow The port is sending or receiving data at 10 Gbps.
Off

QSFP28 port LED

For the description of the QSFP28 port LED on an LSWM18CQMSEC interface module, see Table
35. For the LED description of the other QSFP28 ports, see Table 36.
Each QSFP28
Table 36 QSFP28 port LED description
LED status Description
Steady green
Flashing green The port is sending or receiving data at 100 Gbps.
Steady yellow
Flashing yellow (3 Hz) The port is sending or receiving data at 10/40 Gbps.
Off
port has a status LED to show its operating status and activities.
No transceiver module or cable has been installed or no link is present on the port.
A transceiver module or cable has been correctly installed. The port has a link and is operating at 100 Gbps.
A transceiver module or cable has been correctly installed. The port has a link and is operating at 10/40 Gbps.
No transceiver module or cable has been installed or no link is present on the port.
75
Page 80

Management Ethernet port LEDs

The HPE 5940 32QSFP+, HPE 5940 48XGT 6QSFP+, HPE 5940 48SFP+ 6QSFP+, and HPE FlexFabric 5940 4-slot switches each provide one LINK LED and one ACT LED for the management Ethernet port.
Table 37 Description for the management Ethernet port LED
LED mark Status Description
LINK
ACT
Off The management Ethernet port is not connected.
Steady green The management Ethernet port is operating at 10/100/1000 Mbps.
Off The management Ethernet port is not receiving or sending data.
Flashing yellow The management Ethernet port is sending or receiving data.
The HPE 5940 48SFP+ 6QSFP28, HPE 5940 48XGT 6QSFP28, and HPE 5940 2-slot switches provide a LINK/ACT LED for each management Ethernet port.
Table 38 Description for the copper management Ethernet port LED
LED mark Status Description
The copper management Ethernet port is operating at 10/100/1000 Mbps and a link is present.
LINK/ACT
Steady green
Flashing green The copper management Ethernet port is receiving or sending data.
Off The copper management Ethernet port is not connected.
Table 39 Description for the fiber management Ethernet port LED
LED mark Status Description
Off The fiber management Ethernet port is not connected.
Steady green The fiber management Ethernet port is operating at 1000 Mbps.
The fiber management Ethernet port is receiving or sending data at 1000 Mbps.
The fiber management Ethernet port is receiving or sending data at 100 Mbps.
LINK/ACT
Flashing green
Steady yellow The fiber management Ethernet port is operating at 100 Mbps.
Flashing yellow

1/10GBASE-T autosensing Ethernet port LEDs

Table 40 1/10GBASE-T autosensing Ethernet port LED description
Status Description
Steady green The port has a link and is operating at 10 Gbps.
Flashing green The port is sending or receiving data at 10 Gbps.
Steady yellow The port has a link and is operating at 1 Gbps.
Flashing yellow The port is sending or receiving data at 1 Gbps.
Off No link is present on the port.
76
Page 81

Fan tray alarm LEDs

The LSWM1BFANSC and LSWM1BFANSCB fan trays provide an Alarm LED.
Table 41 LSWM1BFANSC and LSWM1BFANSCB fan tray alarm LED description
Status Description
On The fan tray is faulty.
Off The fan tray is operating correctly.
77
Page 82

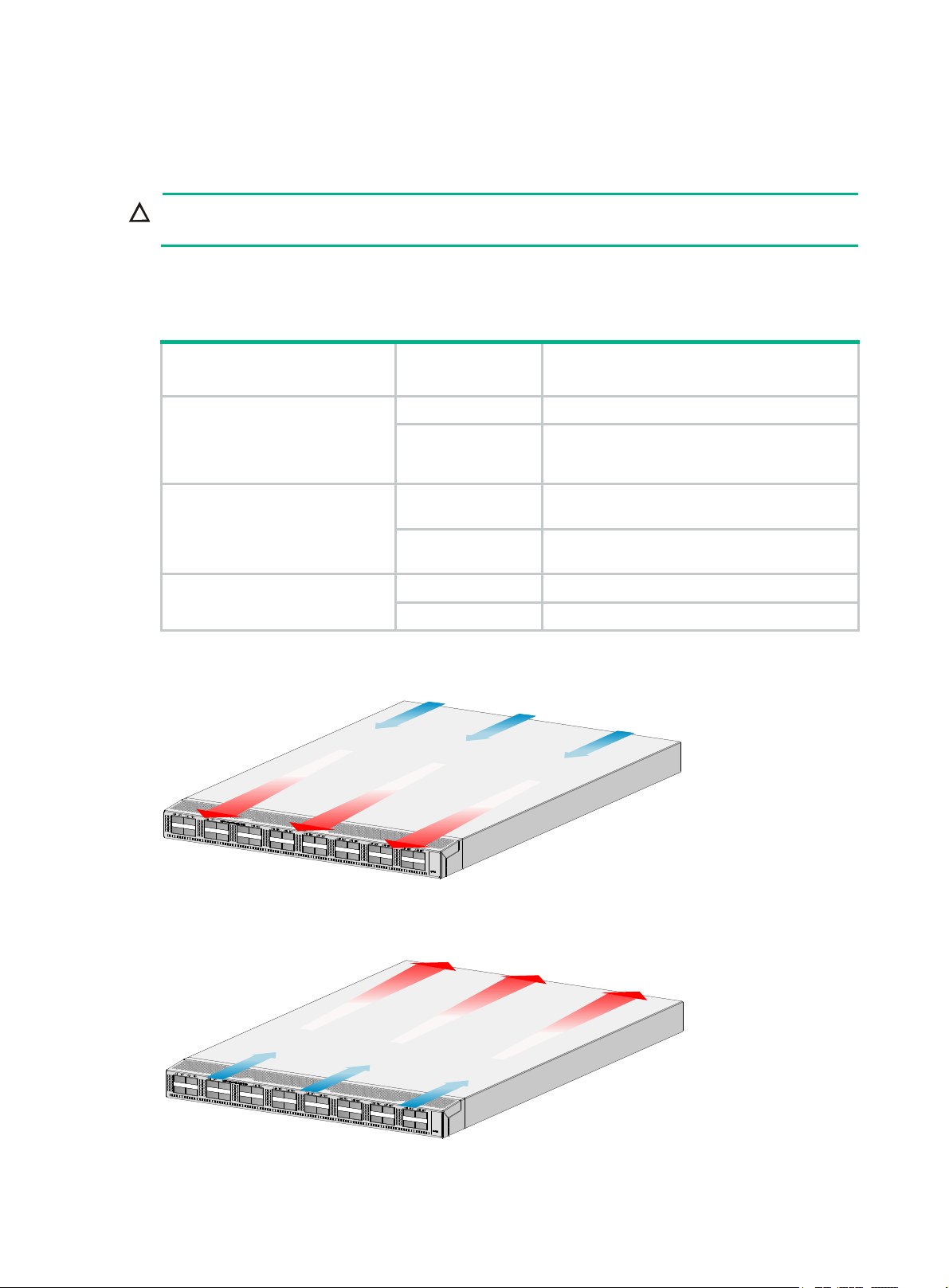

Appendix D Cooling system

CAUTION:
To guarantee heat dissipation, you must install two fan trays of the same model for the switch.
To dissipate heat timely and ensure system stability, the switch uses the front-rear air aisle cooling system. Consider the site ventilation design when you plan the installation site for the switch.
Table 42 Cooling system for the switch
Switch model
• HPE 5940 32QSFP+
• HPE 5940 48SFP+ 6QSFP+
• HPE 5940 48XGT 6QSFP+
• HPE 5940 2-slot
• HPE 5940 48SFP+
6QSFP28
• HPE 5940 48XGT 6QSFP28
HPE 5940 4-slot
Available fan trays
LSWM1HFANSC From the power supply side to the port side
LSWM1HFANSCB From the port side to the power supply side
LSWM1FANSC or LSWM1HFANSC
LSWM1FANSCB or LSWM1HFANSCB
LSWM1BFANSC From the power supply side to the port side
LSWM1BFANSCB From the port side to the power supply side
Airflow direction
From the power supply side to the port side
From the port side to the power supply side
Figure 84 Airflow from the power supply side to the port side through the HPE 5940 32QSFP+ chassis (with LSWM1HFANSC fan trays)
Figure 85 Airflow from the port side to the power supply side through the HPE 5940 32QSFP+ chassis (with LSWM1HFANSCB fan trays)
78
Page 83

Document conventions and icons

Conventions

This section describes the conventions used in the documentation.

Port numbering in examples

The port numbers in this document are for illustration only and might be unavailable on your device.

Command conventions

Convention Description
Boldface Bold
Italic
[ ] Square brackets enclose syntax choices (keywords or arguments) that are optional.
{ x | y | ... }
[ x | y | ... ]
{ x | y | ... } *
[ x | y | ... ] *
&<1-n>
# A line that starts with a pound (#) sign is comments.

GUI conventions

Convention Description
Boldface
text represents commands and keywords that you enter literally as shown.
Italic text represents arguments that you replace with actual values.
Braces enclose a set of required syntax choices separated by vertical bars, from which you select one.
Square brackets enclose a set of optional syntax choices separated by vertical bars, from which you select one or none.
Asterisk marked braces enclose a set of required syntax choices separated by vertical bars, from which you select at least one.
Asterisk marked square brackets enclose optional syntax choices separated by vertical bars, from which you select one choice, multiple choices, or none.
The argument or keyword and argument combination before the ampersand (&) sign can be entered 1 to n times.
Window names, button names, field names, and menu items are in Boldface. For example, the
New User
window appears; click OK.

Symbols

>
Multi-level menus are separated by angle brackets. For example,
Folder
.
Convention Description
WARNING!
CAUTION:
IMPORTANT:
An alert that calls attention to important information that if not understood or followed can result in personal injury.
An alert that calls attention to important information that if not understood or followed can result in data loss, data corruption, or damage to hardware or software.
An alert that calls attention to essential information.
79
File
Create
>
>
Page 84
Convention Description
NOTE:
TIP:
An alert that contains additional or supplementary information.
An alert that provides helpful information.

Network topology icons

Convention Description
Represents a generic network device, such as a router, switch, or firewall.
Represents a routing-capable device, such as a router or Layer 3 switch.
Represents a generic switch, such as a Layer 2 or Layer 3 switch, or a router that supports Layer 2 forwarding and other Layer 2 features.
Represents an access controller, a unified wired-WLAN module, or the access controller engine on a unified wired-WLAN switch.
Represents an access point.
T
T
T
T
Represents a wireless terminator unit.
Represents a wireless terminator.
Represents a mesh access point.
Represents omnidirectional signals.
Represents directional signals.
Represents a security product, such as a firewall, UTM, multiservice security gateway, or load balancing device.
Represents a security card, such as a firewall, load balancing, NetStream, SSL VPN, IPS, or ACG card.
80
Page 85

Support and other resources

Accessing Hewlett Packard Enterprise Support

• For live assistance, go to the Contact Hewlett Packard Enterprise Worldwide website:
http://www.hpe.com/assistance
• To access documentation and support services, go to the Hewlett Packard Enterprise Support
Center website:
http://www.hpe.com/support/hpesc
Information to collect
• Technical support registration number (if applicable)
• Product name, model or version, and serial number
• Operating system name and version
• Firmware version
• Error messages
• Product-specific reports and logs
• Add-on products or components
• Third-party products or components

Accessing updates

• Some software products provide a mechanism for accessing software updates through the
product interface. Review your product documentation to identify the recommended software update method.
• To download product updates, go to either of the following:
{ Hewlett Packard Enterprise Support Center Get connected with updates page:
http://www.hpe.com/support/e-updates
{ Software Depot website:
http://www.hpe.com/support/softwaredepot
• To view and update your entitlements, and to link your contracts, Care Packs, and warranties with your profile, go to the Hewlett Packard Enterprise Support Center More Information on Access to Support Materials page:
http://www.hpe.com/support/AccessToSupportMaterials
IMPORTANT:
Access to some updates might require product entitlement when accessed through the Hewlett Packard Enterprise Support Center. You must have an HP Passport set up with relevant entitlements.
81
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
