1

HPE FlexNetwork NJ5000 5G PoE+
Walljack Switch(JH237A)

Quick Start Guide

The information in this document is subject to change without notice.
© Copyright 2016 Hewlett Packard Enterprise Development LP
Part number: 5998-7330R
Version:6PW102-20161009
Hewlett Packard Enterprise 3000 Hanover Street Palo Alto, CA 94304

5998-7330R

2

This quick start guide shows you how to install and get started with the HPE
FlexNetwork NJ5000 5G PoE+ Walljack Switch (RMN HNGZA-HA0025, the
Regulatory Model Number) JH237A, hereafter referred to as the switch.

▌Overview

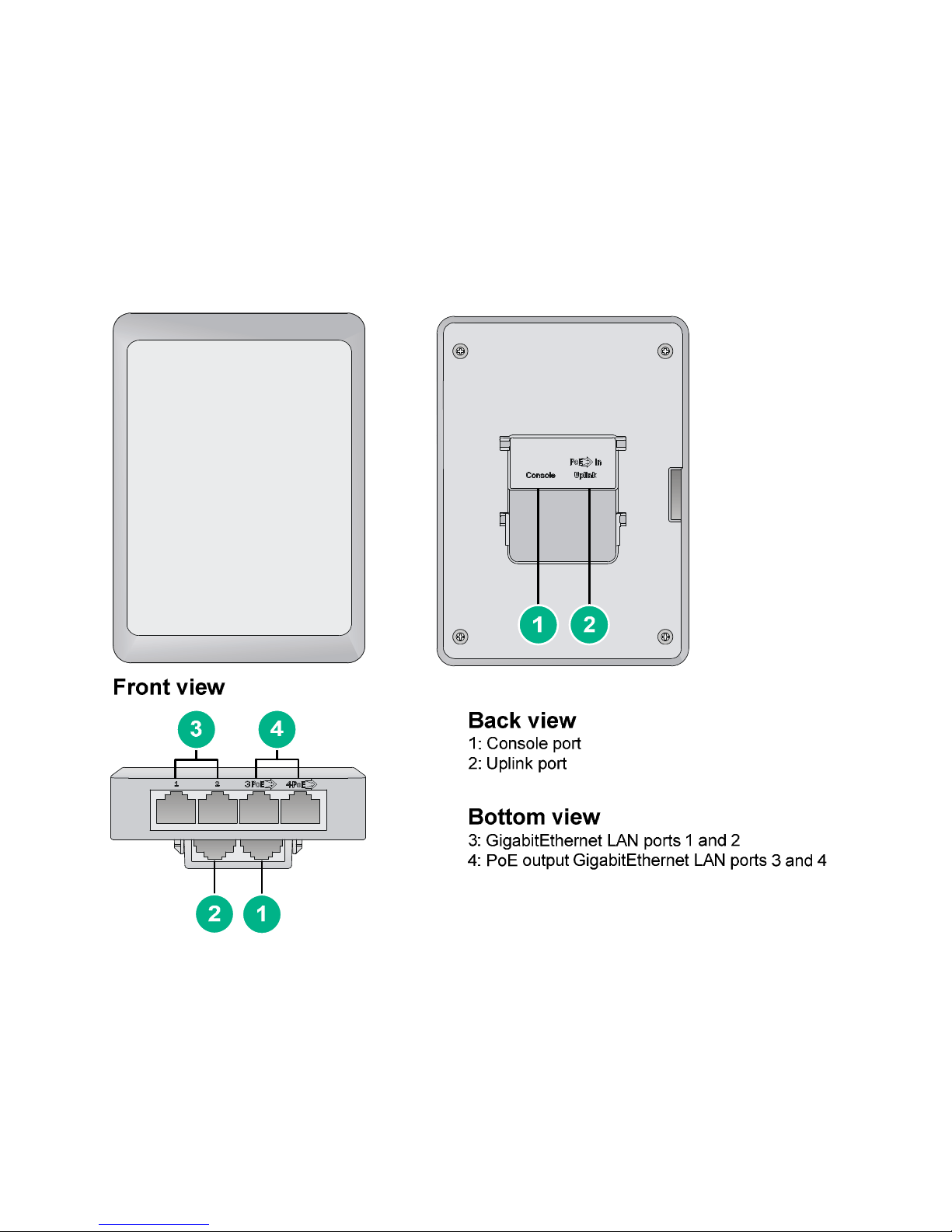

Figure 1 shows the front, back, and bottom views of the switch.

Figure 1 Switch views

Package contents

The product package includes the following items:

• HPE NJ5000 5G PoE+ switch.

• A mounting bracket.

• An Ethernet network cable.

3

• A pair of mounting screws (3.5 × 25) for sides (for EU) and a pair of mounting

screws (3.5 × 12) for top and bottom (for US).

• Two secure screws: one Phillips head screw and one security-head Torx-10

screw.

• Documentation.

Ports

• Four Gigabit Ethernet LAN ports (bottom of unit)—Auto-sensing 1000BASE-T

Ethernet ports with RJ-45 connectors. Two ports can provide IEEE 802.3af or

802.3at power over Ethernet (PoE) to supply power to PoE Powered Devices
(PDs).

• One Gigabit Ethernet uplink port (back of unit)—Auto-sensing 1000BASE-T

Ethernet port with an RJ-45 connector.

• One console port (back of unit).

Reset button

The reset button is accessible through a hole on the side panel of the switch.

To reboot the switch:

1. Insert a pin or paper clip into the reset button hole.

2. Press and hold the button for 1 to 5 seconds.

3. Release the button.

To change the operation mode for the switch:

1. Insert a pin or paper clip into the reset button hole.

2. Press and hold the button for 7 to 12 seconds until the management mode LED

flashes (10 times per second).

3. Release the button. The management mode LED enters the target mode. If the

LED is on, the switch operates in managed mode. If the LED is off, the switch
operates in unmanaged mode.

To reset the switch to factory defaults:

1. Insert a pin or paper clip into the reset button hole.

2. Press and hold the button for more than 15 seconds until the status LEDs (Power

and Uplink) flash.

3. Release the button.

LEDs

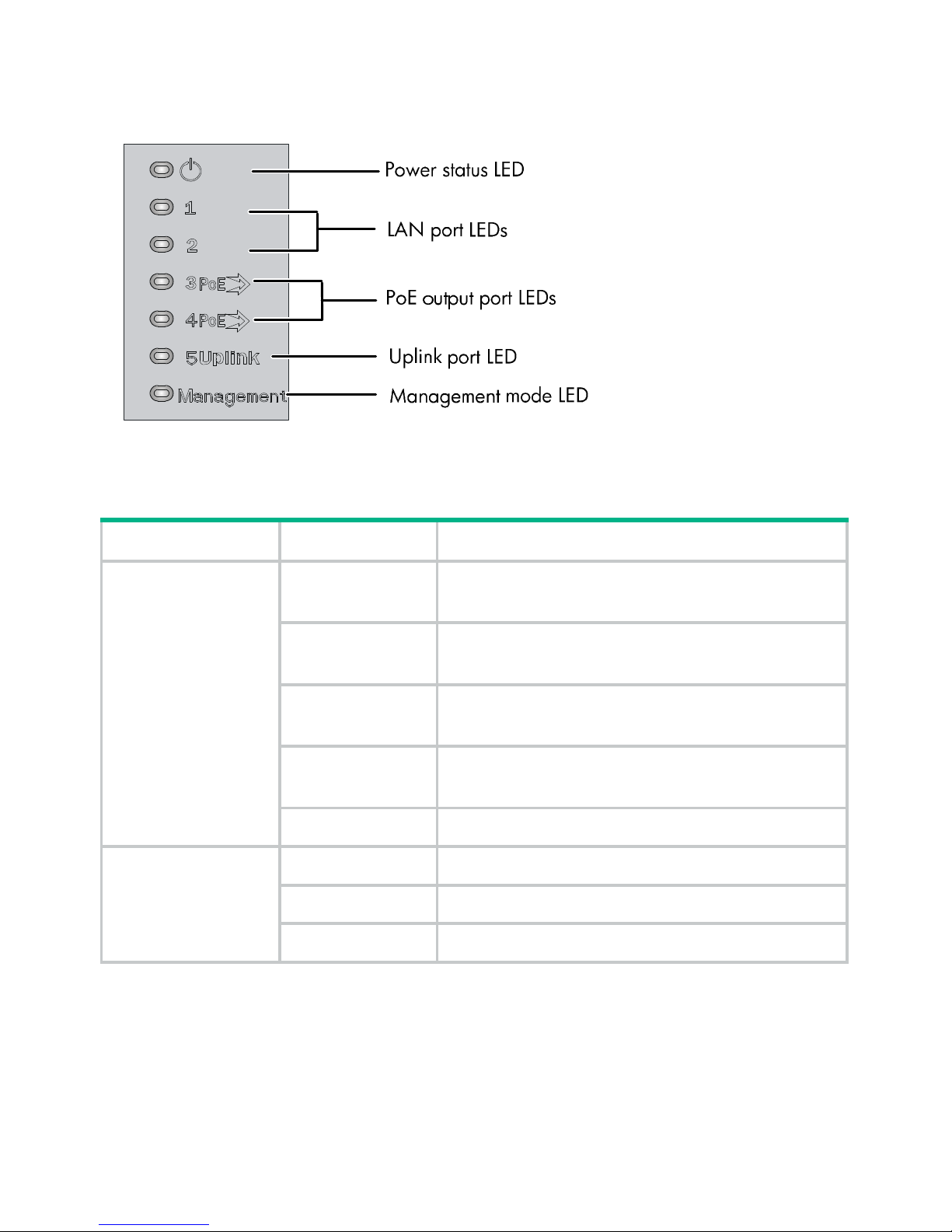

Figure 2 shows the status LEDs on the switch.

4

Figure 2 LED view

Table 1 LED status descriptions

LED Status Description

Power status LED

Steady green

The switch is powered by 802.3at PoE+ and
the power supply is operating correctly.

Flashing green

The switch is powered on and is performing
a self-test.

Slow flashing
green

The switch is powered by 802.3af PoE and
the power supply is operating correctly.

Off

The switch is not powered on or the power
supply is faulty.

Steady red A failure has occurred.

LAN port LED

Steady green A link is present.

Flashing green The port is receiving or sending data.

Off No link is present.

5

LED Status Description

PoE output port
LED

Steady green A link is present (no PoE).

Steady amber A link is present (PoE).

Flashing green

The port is sending or receiving data (no
PoE).

Flashing amber The port is sending or receiving data (PoE).

Slow flashing
amber

The PoE power supply is faulty.

Off No link is present.

Uplink port LED

Steady green A link is present.

Flashing green The port is sending or receiving data.

Off No Link is present.

Management
mode LED

On The switch is operating in managed mode.

Off

The switch is operating in unmanaged
mode.

▌Installing the switch

The switch is designed to be mounted on a standard NEMA-WD6 (US) or BS 4662
(International) in-wall electrical outlet box.

You can also install the switch by using the optional HPE unified wired-WLAN
walljack table/flush wall mount kit (JL022A). This kit, which is purchased separately,
lets you install the switch on a horizontal surface or wall.

Restrictions and guidelines

This equipment must be installed in compliance with local and national building
codes, regulatory restrictions, and FCC rules. For the safety of people and equipment,
only professional network personnel should install the device.

To avoid possible bodily injury or equipment damage, read the following safety
recommendations before you install the switch. The recommendations do not cover
every possible hazardous condition.

• Install with six inches or more of clearance around the device.

• Keep the device clean and dust-free.

• Make sure the ground is dry and flat and anti-slip measures are in place.

• Do not place the device in a moist area and avoid liquid surrounding the device.

6

• Keep the device and installation tools away from walkways.

Installing the sw itch over an electrical outlet box

1. Place the mounting bracket, with the UP arrow pointing up, on the electrical outlet

box, and then use two of the supplied mounting screws to secure the bracket to
the box.

The two long mounting screws are for an EU electrical outlet box. The two short
mounting screws are for a US electrical outlet box.

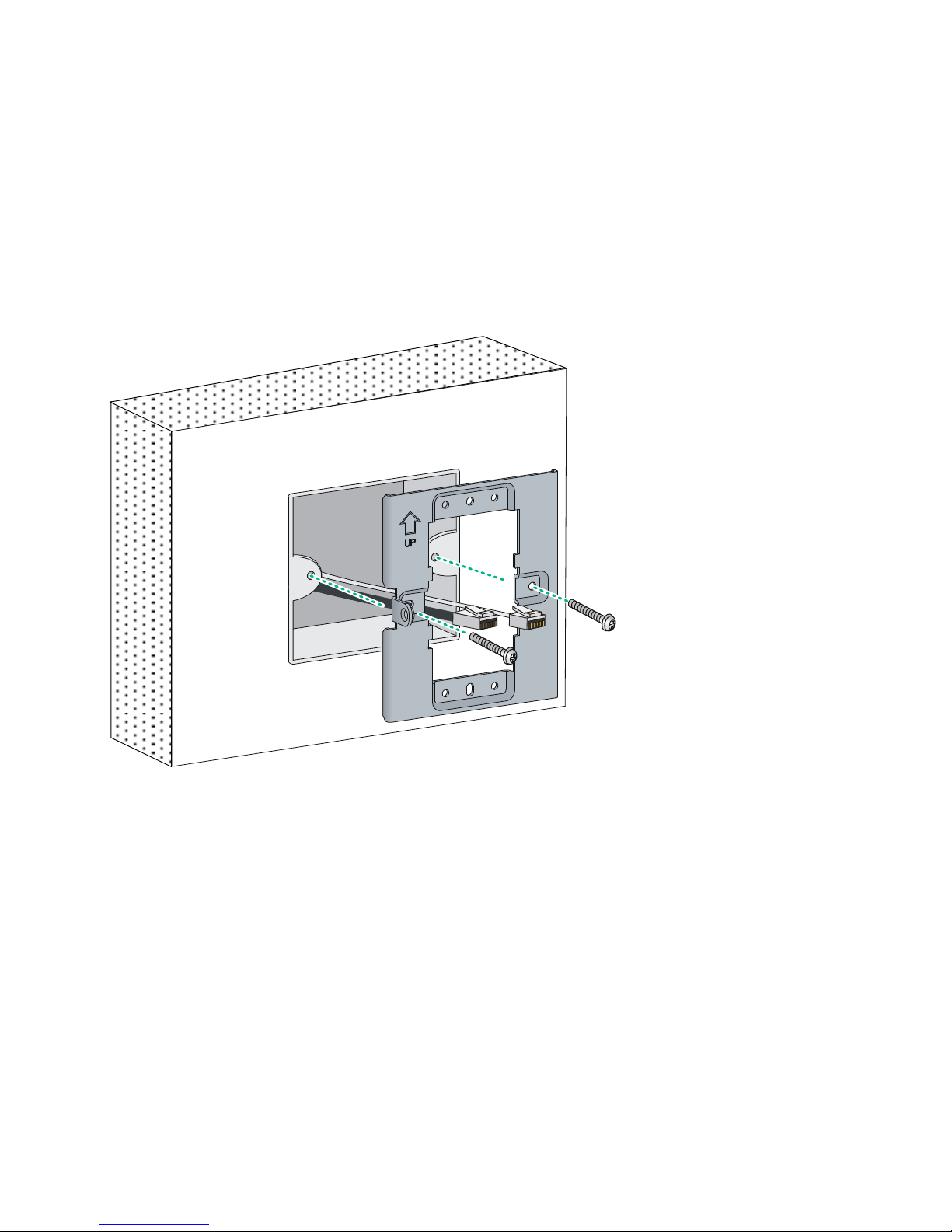

Figure 3 Securing the mounting bracket to an electrical outlet box (EU)

7

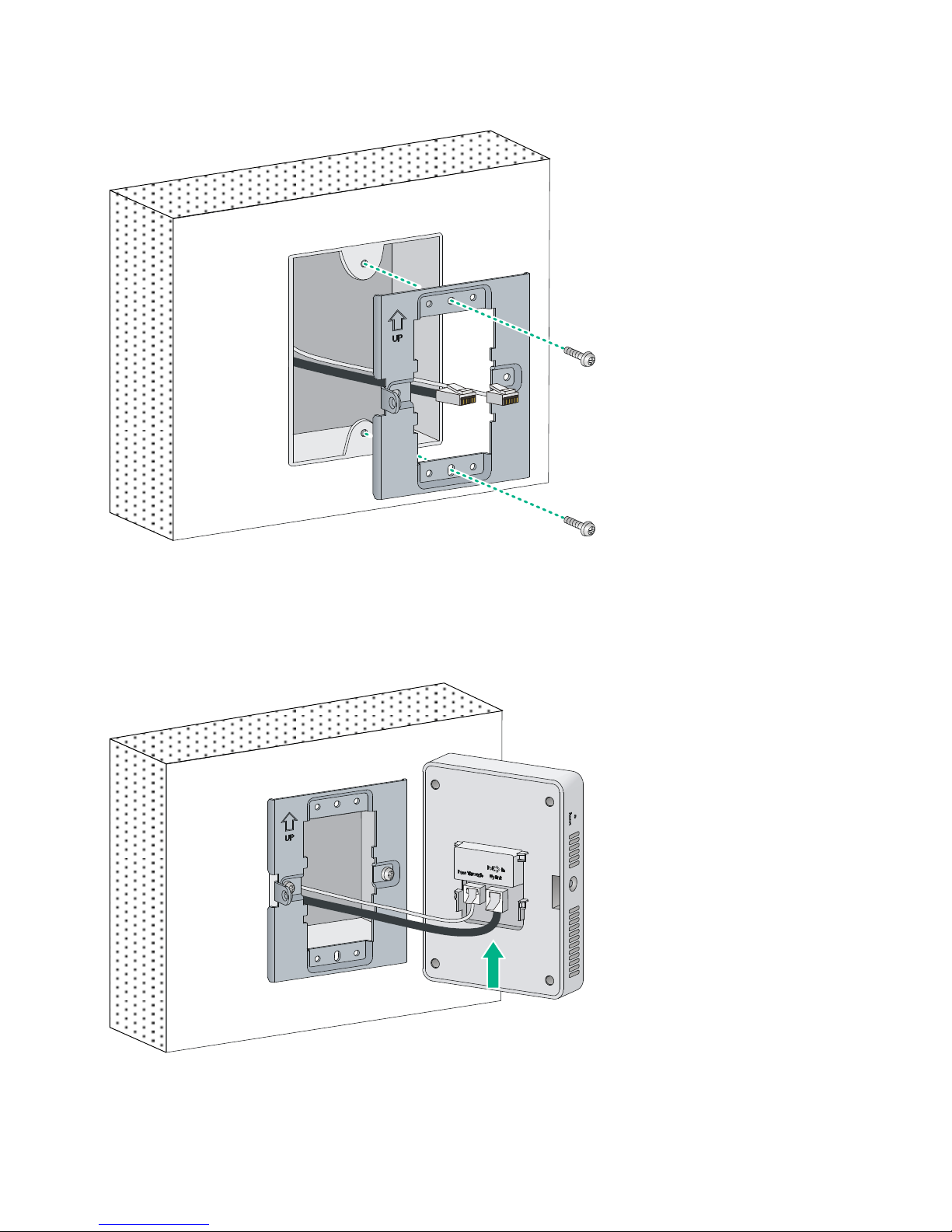

Figure 4 Securing the mounting bracket to an electrical outlet box (US)

2. Connect the network cable from the electrical outlet box to the RJ-45 uplink port

on the back of the switch.

Figure 5 Connecting the network cable

8

3. Align the installation hole in the rear of the switch with the standout on the

mounting bracket.

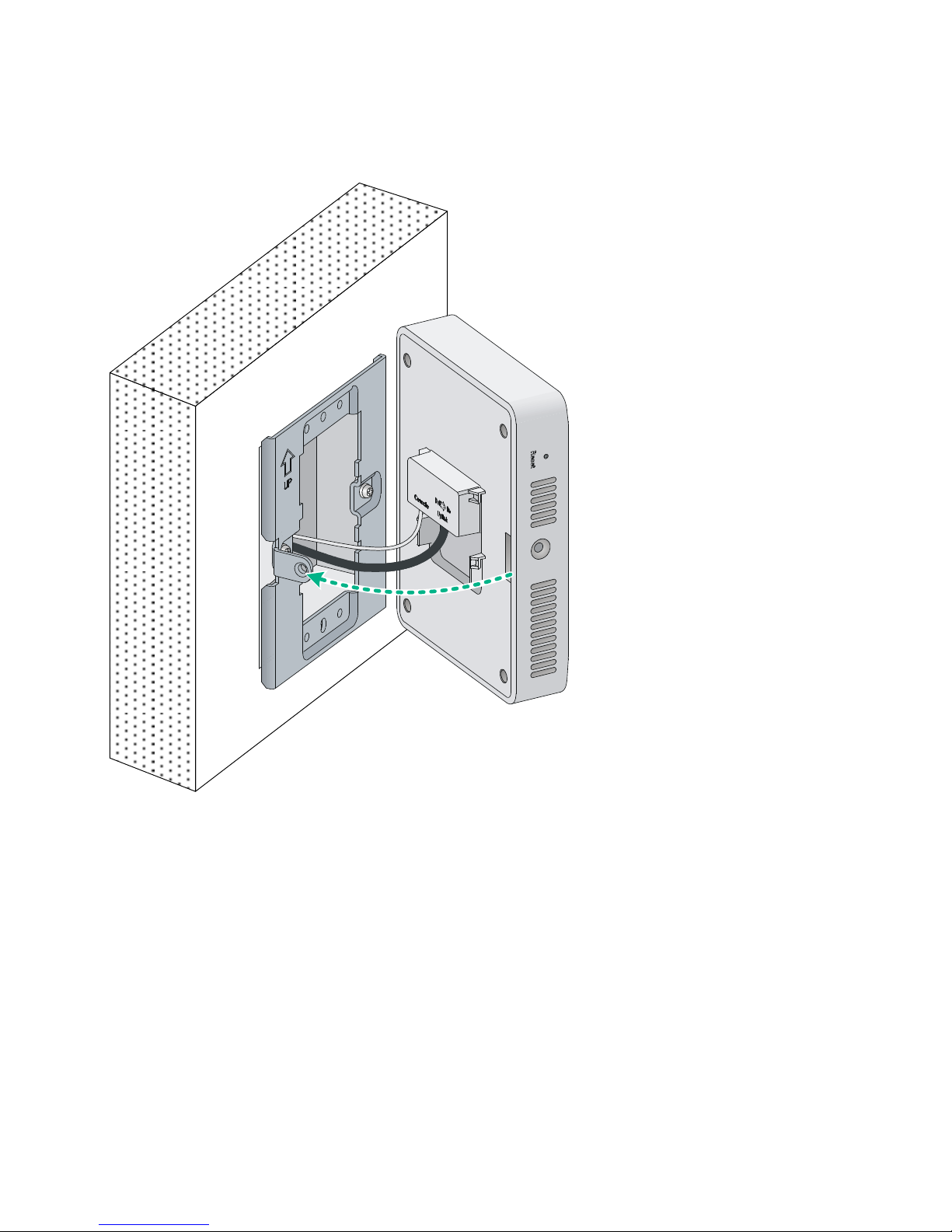

Figure 6 Aligning the installation hole

4. Push the switch onto the mounting bracket, and then slide it down until it is fully

engaged. Then secure the switch to the bracket by using the Phillips-head screw
or security-head security Torx-10 screw. Do not release the switch until you
confirm that it is secured in place.

9

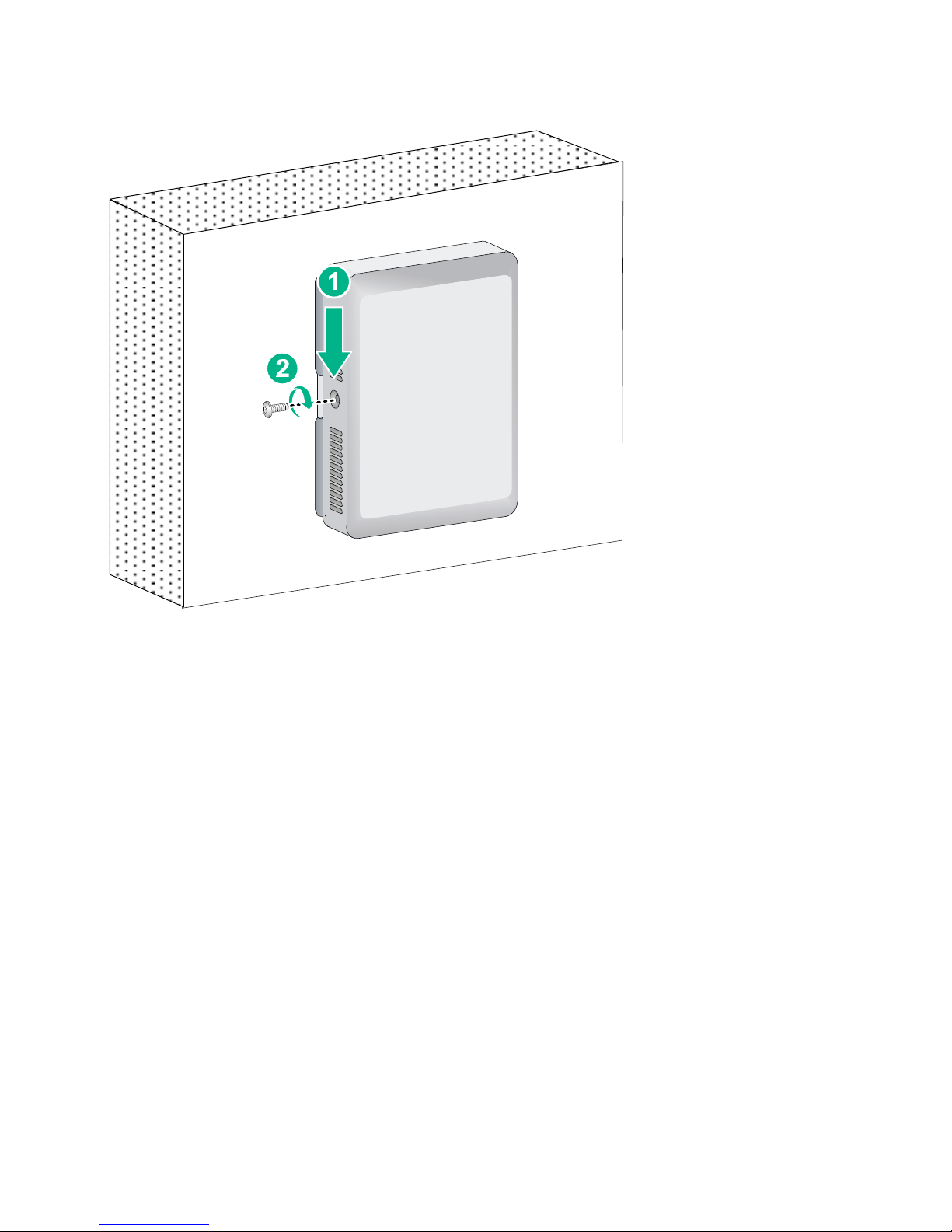

Figure 7 Securing the switch

Other mounting options using opti onal Mou nti ng Kit

Additional mounting configurations are possible by using the JL022A HPE Unified
Wired-WLAN Walljack Table/Flush Wall Mount Kit. Please contact your Hewlett
Packard Enterprise sales representative to purchase this part. Detailed mounting
instructions are provided with the kit.

10

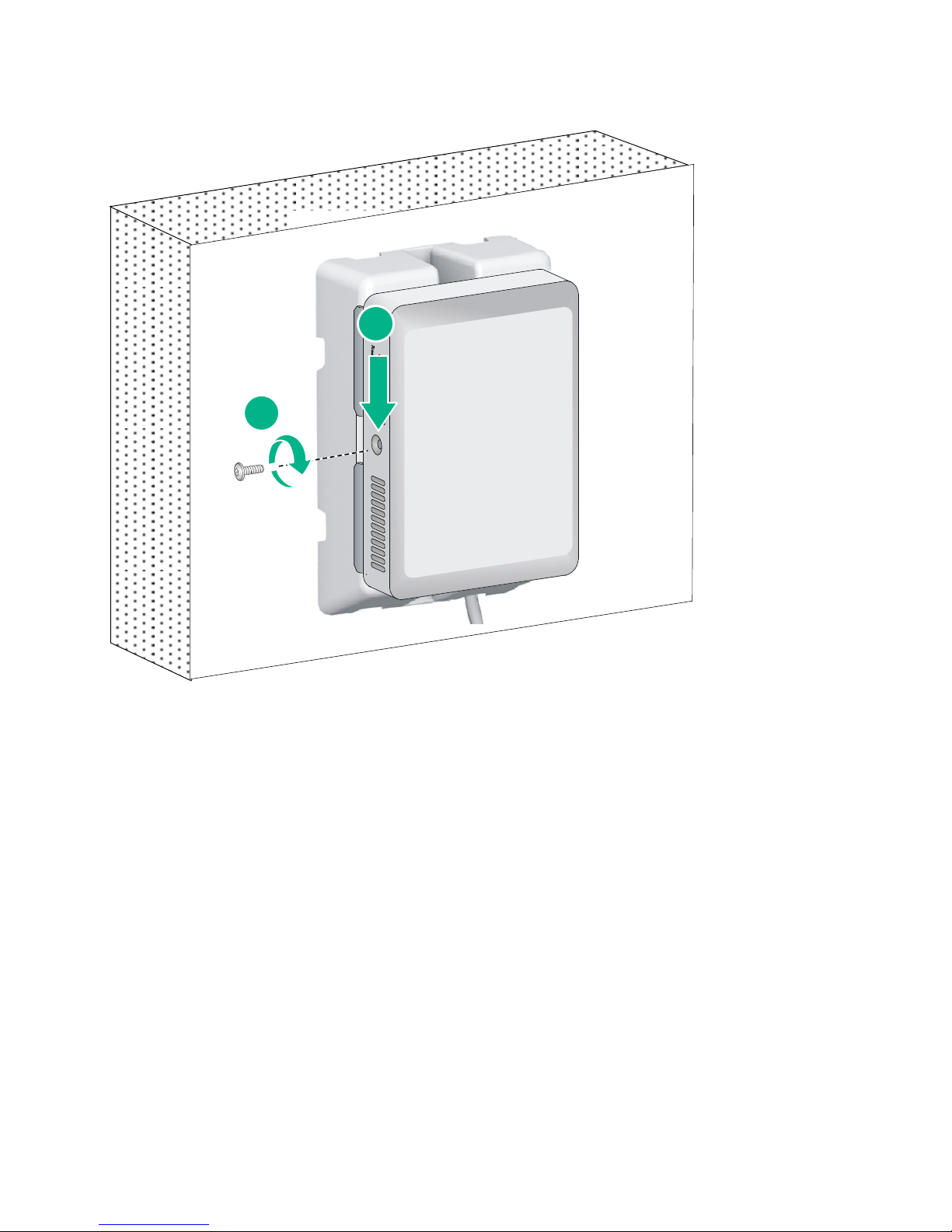

Figure 8 Securing the switch

Using the kit, one can attach the switch to a wall without an electrical junction box.
The optional mounting kit is installed first. Then the mounting bracket attaches to the
mounting kit. Finally, the unit attaches to the mounting bracket as previously
described.

Note: Before installing the switch on a wall, make sure the surface of the wall can
support a minimum weight of 0.9 kg (2 lbs) and the weight of the extra cables.

Using the kit, one can install the switch unit on a desktop. The optional mounting kit is
installed first on a flat surface. Then the mounting bracket attaches to the mounting
kit. Finally, the unit attaches to the mounting bracket as previously described.

▌Powering the Switch

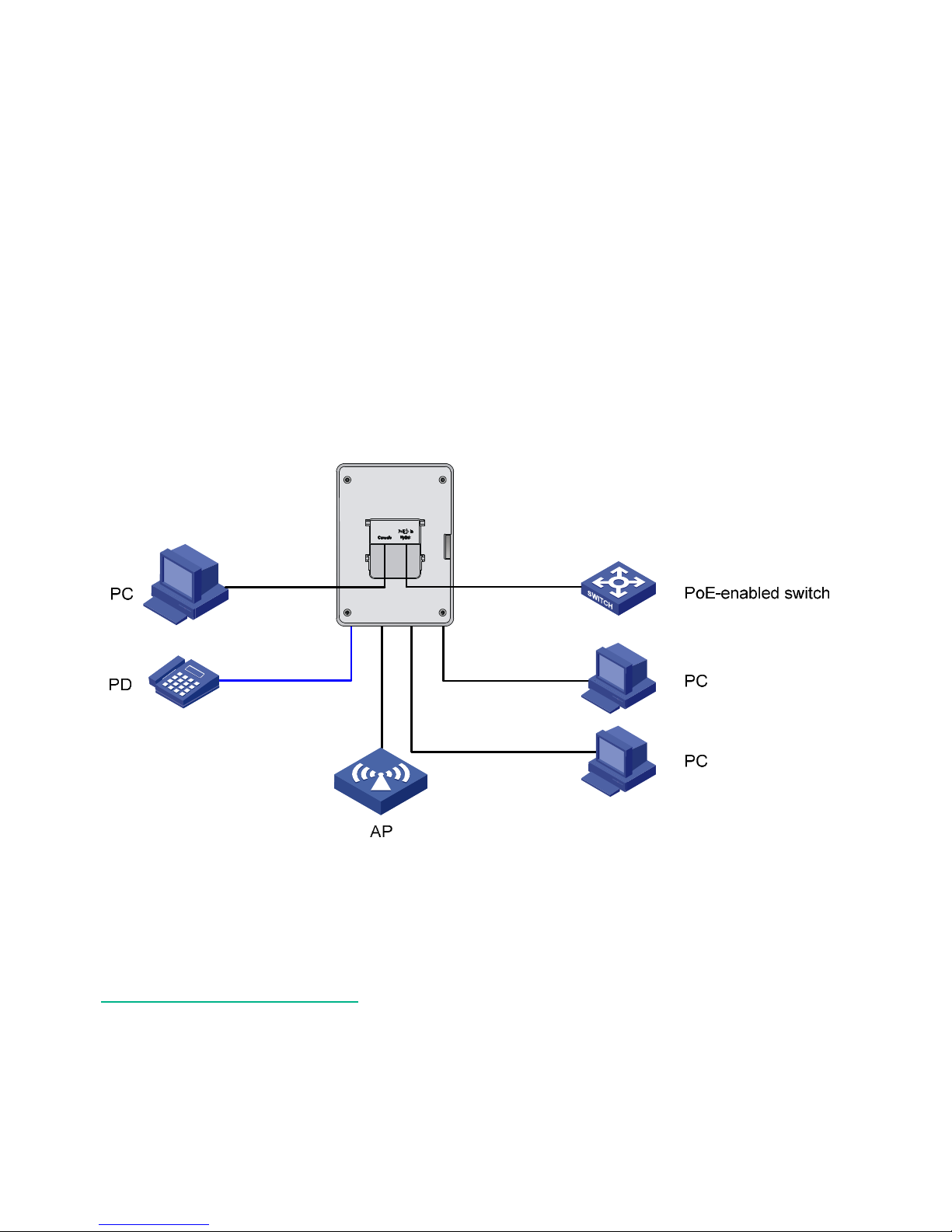

The switch can be powered by a PoE-enabled switch or by a compatible PoE Power
Injector.

1

2

11

Note: A PoE Power Injector may be convenient for providing local power when
initially configuring the device before installation. These HPE power injectors are
recommended for use with the switch: J9867A HPE Single-Port 802.3at Gigabit PoE
In-Line Power Supply and J9407B HPE 1-port Power Injector (802.3af PoE power).

▌Accessing the switch for the first time

The switch device has a Web-based interface, and also has a Command Line
Interface (CLI) accessible through the console port or via Telnet.

The Web-based interface is accessible from a Web browser using the device’s
assigned IP address.

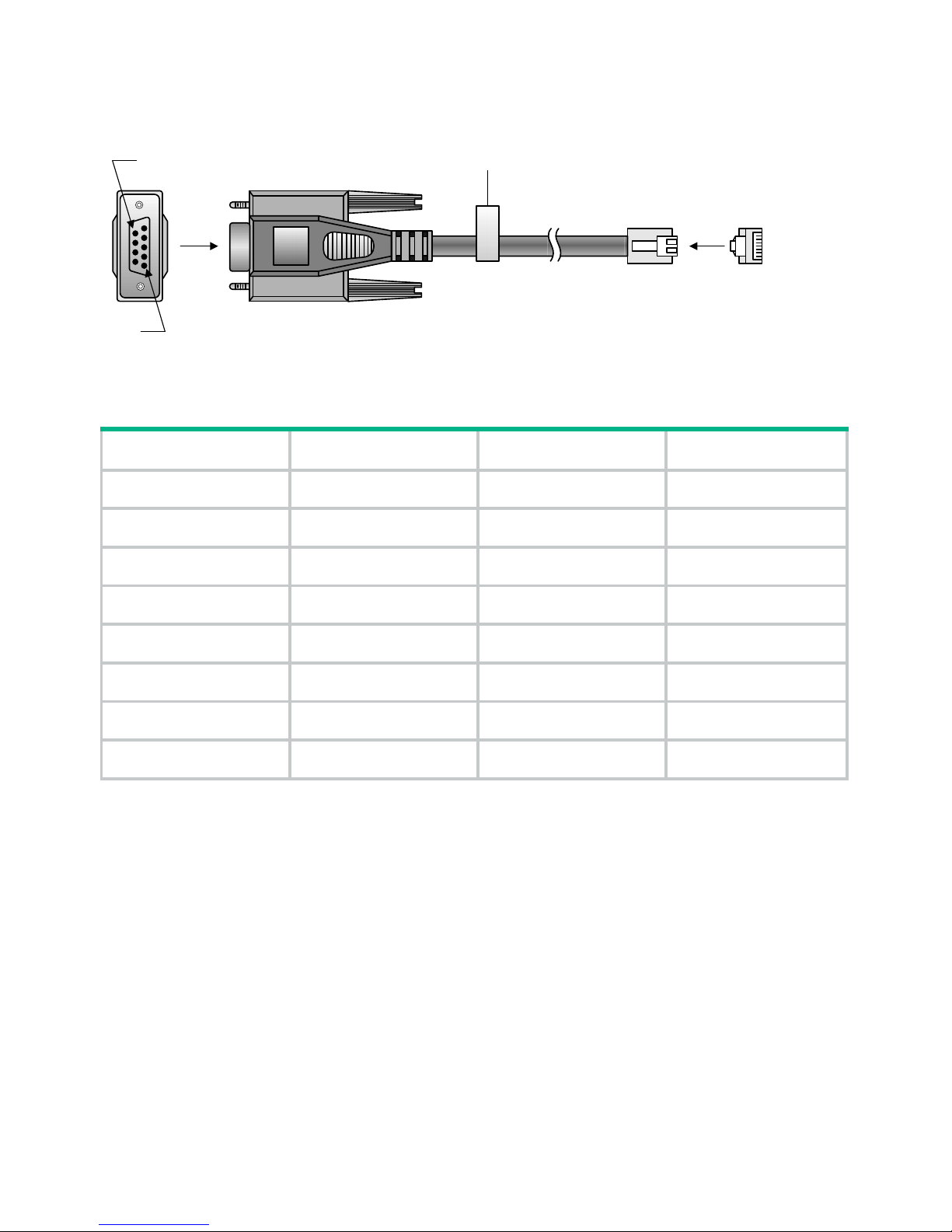

Access to the CLI via the console port requires a console cable (purchased
separately) and requires that the unit not be fully installed as the console port is on
the back of the switch.

To Telnet to the device and use the CLI also requires knowledge of the device’s
assigned IP address.

Here are three common scenarios for initial switch configuration:

• Install device on a network with a DHCP Server and configure the device from its

Web interface or Telnet CLI.

• Install device on a network without a DHCP Server and configure the device from

its Web interface or Telnet CLI.

• Configure the device from its console port.

Installing device on a network with a DHCP Server and configuring
the device from its Web interface or Telnet CLI

NOTE:

For security purposes, Hewlett Packard Enterprise recommends that you
change the login information and assign access permissions immediately after
the first successful login.

Power the switch and attach it to a network with a DHCP Server.

By default, HTTP and HTTPS are enabled.

By default, the switch is configured to get its IP address from a DHCP server.

You will need to determine the assigned IP address. Here are common methods:

• Go to the DHCP Server and identify the new switch and its assigned address.

Note: Sometimes the DHCP Server is a service of a specific device, such as a
network router or switch with this capability.

• Use the HPE Network Discovery Tool downloadable from Hewlett Packard

Enterprise website. This free utility will scan your network and identify the switch
and its assigned IP address.

12

To log in to the Web interface:

1. Use an Ethernet cable to connect the PC or the configuration terminal to an

Ethernet port on the device.

2. Assign the login host an IP address in the same subnet as the device.

3. Open the browser, and then enter login information:
a. In the address bar, enter the IP address of the device.

− HTTP access—http://ip-address

− HTTPS access—https://ip-address

The ip-address argument represents the IP address of the device.

b. On the login page, enter the default username (admin) and leave blank the

password line. You do not need to enter a password at the first login.

c. Click Login.

For more information about how to Telnet CLI, see HPE FlexNetwork NJ5 000 5G
PoE+ Walljack Switch Getting Started Guide.

Install the device on a network without a DHCP Server and
configure the device from its Web inte rface or Telnet CLI

1. Use an Ethernet cable to connect the PC or the configuration terminal to an

Ethernet port on the device.

2. Identify the IP address and mask of the device.

If the device is not connected to the network, or no DHCP server exists on the
network, the device uses the default IP address and mask. The default mask is

255.255.0.0. The default IP address is 169.254.xxx.xxx, where xxx.xxx depends

on the last two bytes of the MAC address. Find the MAC address label on the
device and use the following rules to determine the last two bytes for the IP
address:

Last two bytes of the MAC address Last two bytes for the IP address

All 0s 0.1

All Fs 255.1

Not all 0s or all Fs

Decimal values of the last two bytes
of the MAC address

For example:

13

MAC address IP address

08004E080000 169.254.0.1

08004E08FFFF 169.254.255.1

08004E082A3F

169.254.42.63 (The decimal value of 2A is 42.
The value of 3F is 63.)

3. Assign the login host an IP address in the same subnet as the device.

4. To access the device from a Web browser, open the browser, and then enter

login information:

a. In the address bar, enter the IP address of the device.

− HTTP access—http://ip-address

− HTTPS access—https://ip-address

The ip-address argument represents the IP address of the device.

b. On the login page, enter the default username (admin) and leave blank the

password line.
You do not need to enter a password at the first login.

c. Click Login.

Default login settings

Use setti

ngs in Table 2 for th

e first login.

Table 2 Default login settings

Item Setting

Device IP (VLAN-interface 1)

See Accessing the switch for the first time.

IP address mask

Username

admin

Password None

For more information about how to configure the device, see HPE FlexNetwork

NJ5000 5G PoE+ Walljack Switch Getting Started Guide and HPE FlexNetwork
NJ5000 5G PoE+ Walljack Switch User Guide.

Configure the device from a console port

You can use a compatible console cable (RJ-45 to DB-9 console cable) to connect a
console terminal, for example, a PC, to the console port on the switch.

14

Figure 9 Console cable

Table 3 Console cable pinouts

RJ-45 Signal DB-9 Signal

1 RTS 8 CTS

2 DTR 6 DSR

3 TXD 2 RXD

4 SG 5 SG

5 SG 5 SG

6 RXD 3 TXD

7 DSR 4 DTR

8 CTS 7 RTS

Note: Console cable is not provided with the switch. The console cable 5184-6719 is
shipped with many HPE products, such as HPE 1620, HPE 19XX, HPE 5120SI, HPE
5130EI switches. The part can also be purchased separately on HPE parts store
PartSurfer.

The following example shows the procedure to connect a PC to the switch:

1. Connect the DB-9 female connector of the console cable to the serial port of the

PC.

2. Connect the RJ-45 connector to the console port.

Setting terminal parameters

Start a terminal application such as HyperTerminal on the computer. Configure the
utility with the following parameters:

Main label

1

8

B side

B

Pos.9

Pos.1

A side

A

15

• Bits per second—38400.

• Data bits—8.

• Parity—None.

• Stop bits—1.

• Flow control—None.

• Emulation—VT100.

Use a console cable to log in to the device through the console port. To identify the

address, log in to the device through the console port, and then execute the display
ip interface brief command. The following is the sample output:

<HPE> display ip interface brief
*down: administratively down
(s): spoofing
Interface Physical Protocol IP Address Description
Vlan1 up up 169.254.54.32 Vlan-interface1
<HPE>

▌Setting the operation mode

The switch can operate in managed mode (the default) or unmanaged mode.

You can change the switch operation mode by using one of the following methods:

• Use the reset button to change the operation mode.
a. Insert a pin or paper clip into the reset button hole.
b. Press and hold the button for 7 to 12 seconds until the management mode

LED flashes (10 times per second).

c. Release the button. The management mode LED enters the target mode. If

the LED is on, the switch operates in managed mode. If the LED is off, the
switch operates in unmanaged mode. After the operation mode is changed,
the switch starts saving configuration files. During the saving process, the
Power LED flashes once per second and the reset button is unavailable for
other operations. After the saving process is completed, the Power LED
stops flashing.

NOTE:

To prevent damages to the flash memory, only the first 10 mode change
operations after the reboot can cause configuration saving.

• Connect to the console port of the switch and execute the following commands at

the CLI:

16

<HPE> system-view
[HPE] manage-mode on /* Managed mode */
[HPE] undo manage-mode on /* Unmanaged mode */

When the switch operates in unmanaged mode, you cannot configure the switch.

When the switch operates in managed mode, you can configure the switch at the CLI
or the Web interface. Hewlett Packard Enterprise recommends that you use the Web
interface.

For more information about switch configuration, see HPE FlexNetwork NJ5000 5G
PoE+ Walljack Switch User Guide.

Setting up configuration environment

After the installation is complete, connect devices to the switch as shown in Figure

10.

Figure 10 Connecting devices to the switch

▌Documentation

To access documentation and support services, go to the Hewlett Packard Enterprise
Support Center website:

www.hpe.com/support/hpesc
