HP JG732A Product Data Sheet

Data sheet

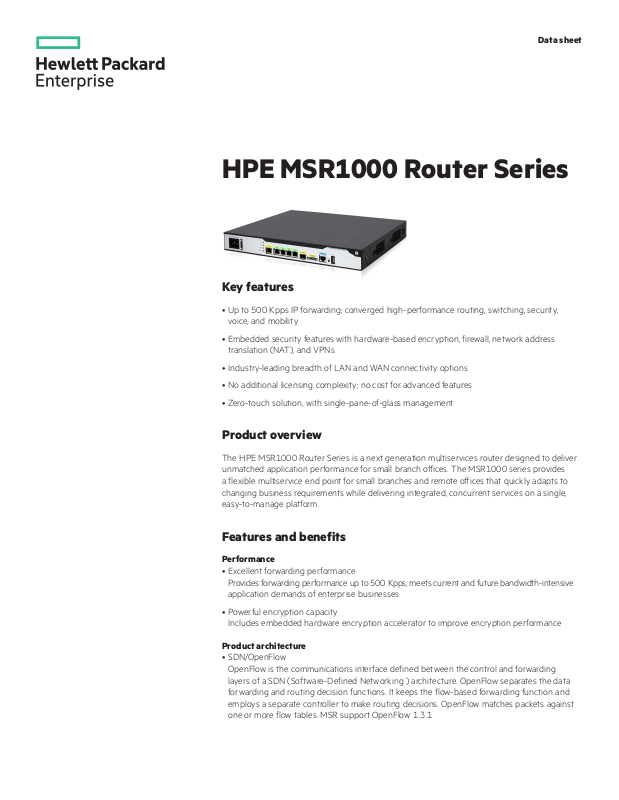

HPE MSR1000 Router Series

Key features

• Up to 500 Kpps IP forwarding; converged high-performance routing, switching, security,
voice, and mobility

• Embedded security features with hardware-based encryption, firewall, network address
translation (NAT), and VPNs

• Industry-leading breadth of LAN and WAN connectivity options

• No additional licensing complexity; no cost for advanced features

• Zero-touch solution, with single-pane-of-glass management

Product overview

The HPE MSR1000 Router Series is a next generation multiservices router designed to deliver
unmatched application performance for small branch oices. The MSR1000 series provides
a flexible multiservice end point for small branches and remote oices that quickly adapts to
changing business requirements while delivering integrated, concurrent services on a single,
easy-to-manage platform.

Features and benefits

Performance

• Excellent forwarding performance
Provides forwarding performance up to 500 Kpps; meets current and future bandwidth-intensive
application demands of enterprise businesses

• Powerful encryption capacity
Includes embedded hardware encryption accelerator to improve encryption performance

Product architecture

• SDN/OpenFlow
OpenFlow is the communications interface defined between the control and forwarding
layers of a SDN (Software-Defined Networking ) architecture. OpenFlow separates the data
forwarding and routing decision functions. It keeps the flow-based forwarding function and
employs a separate controller to make routing decisions. OpenFlow matches packets against
one or more flow tables. MSR support OpenFlow 131

Data sheet

Page 2

• Ideal multiservice platform
Provides WAN router, Ethernet switch, wireless LAN, 3G or 4G WAN, firewall, VPN, and SIP
or voice gateway all in one box

• High-density voice interfaces
Provide flexible analog voice interface options for easy integration within a wide range
of deployments

• USB interface
Uses USB memory disk to download and upload configuration files; supports an external
USB 3G modem for a 3G WAN uplink

• Advanced hardware architecture
Delivers Gigabit Ethernet switching and a PCIe bus

Connectivity

• VXLAN (Virtual eXtensible LAN)
VXLAN (Virtual eXtensible LAN, scalable virtual local area network) is an IP-based network,
using the “MAC in UDP” package of Layer VPN technology. VXLAN can be based on an existing
ISP or enterprise IP networks for decentralized physical site provides Layer 2 communication,
and can provide service isolation for dierent tenants

• Virtual Private LAN Service (VPLS)
Virtual Private LAN Service (VPLS) delivers a point-to-multipoint L2VPN service over
an MPLS or IP backbone. The backbone is transparent to the customer sites, which can
communicate with each other as if they were on the same LAN. The following protocols
support on MSRs, RFC4447, RFC4761 and RFC4762, BFD detection in VPLS, Support
hierarchical HOPE(H-VPLS), MAC address recovery in H-VPLS to speed up convergence

• NEMO (Network Mobility)
Network mobility (NEMO) enables a node to retain the same IP address and maintain
application connectivity when the node travels across networks. It allows location-independent
routing of IP datagrams on the Internet

• Packet storm protection
Protects against broadcast, multicast, or unicast storms with user-defined thresholds

• Loopback
Supports internal loopback testing for maintenance purposes and an increase in availability;
loopback detection protects against incorrect cabling or network configurations and can be
enabled on a per-port or per-VLAN basis for added flexibility

• 3G/4G access support
Provides 3G/4G LTE wireless access for primary or backup connectivity via a 3G/4G LTE SIC
modules certified on various cellular networks; optional carrier 3G/4G USB modems available

• Flexible port selection
Provides a combination of fiber and copper interface modules, 100/1000BASE-X auto-speed
selection, and 10/100/1000BASE-T auto-speed detection plus auto duplex and MDI/MDI-X

• Multiple WAN interfaces
Provide a traditional link with E1, T1, ADSL, ADSL2, ADSL2+, G.SHDSL, Serial, and ISDN
backup; provide high-density Ethernet access with Fast Ethernet/Gigabit Ethernet, mobility
access with IEEE 80211b/g/n Wi-Fi, and 3G/4G LTE options

• High-density port connectivity
Integrates four or eight Giga LAN switching ports (All switching ports can be configured
as routed ports.), two or three SIC slots, and up to 30 module options

Data sheet

Page 3

Layer 2 switching

• Spanning Tree Protocol (STP)
Supports standard IEEE 8021D STP, IEEE 8021w Rapid Spanning Tree Protocol (RSTP)
for faster convergence, and IEEE 8021s Multiple Spanning Tree Protocol (MSTP)

• Internet Group Management Protocol (IGMP) and Multicast Listener Discovery (MLD)
protocol snooping
Control and manage the flooding of multicast packets in a Layer 2 network

• Port mirroring
Duplicates port traic (ingress and egress) to a local or remote monitoring port

• VLANs
Support IEEE 8021Q-based VLANs

• sFlow
Allows traic sampling

• Define port as switched or routed
Supports command switch to easily change switched ports to routed (maximum eight GE ports)

Layer 3 routing

• Static IPv4 routing
Provides simple manually configured IPv4 routing

• Routing Information Protocol (RIP)
Uses a distance vector algorithm with User Datagram Protocol (UDP) packets for route
determination; supports RIPv1 and RIPv2 routing; includes loop protection

• Open Shortest Path First (OSPF)
Delivers faster convergence; uses this link-state routing Interior Gateway Protocol (IGP), which
supports ECMP, NSSA, and MD5 authentication for increased security and graceful restart for
faster failure recovery

• Border Gateway Protocol 4 (BGP-4)
Delivers an implementation of the Exterior Gateway Protocol (EGP) utilizing path vectors; uses
TCP for enhanced reliability for the route discovery process; reduces bandwidth consumption
by advertising only incremental updates; supports extensive policies for increased flexibility;
scales to very large networks

• Intermediate system to intermediate system (IS-IS)
Uses a path vector Interior Gateway Protocol (IGP), which is defined by the ISO organization
for IS-IS routing and extended by IETF RFC 1195 to operate in both TCP/IP and the OSI
reference model (Integrated IS-IS)

• Static IPv6 routing
Provides simple manually configured IPv6 routing

• Dual IP stack
Maintains separate stacks for IPv4 and IPv6 to ease the transition from an IPv4-only network
to an IPv6-only network design

• Routing Information Protocol next generation (RIPng)
Extends RIPv2 to support IPv6 addressing

• OSPFv3
Provides OSPF support for IPv6

• BGP+
Extends BGP-4 to support Multiprotocol BGP (MP-BGP), including support for IPv6 addressing

• IS-IS for IPv6
Extends IS-IS to support IPv6 addressing

Data sheet

Page 4

• IPv6 tunneling
Allows IPv6 packets to traverse IPv4-only networks by encapsulating the IPv6 packet into
a standard IPv4 packet; supports manually configured, 6 to 4, and Intra-Site Automatic
Tunnel Addressing Protocol (ISATAP) tunnels; is an important element for the transition
from IPv4 to IPv6

• Multiprotocol Label Switching (MPLS)
Uses BGP to advertise routes across Label Switched Paths (LSPs), but uses simple labels
to forward packets from any Layer 2 or Layer 3 protocol, which reduces complexity and
increases performance; supports graceful restart for reduced failure impact; supports LSP
tunneling and multilevel stacks

• Multiprotocol Label Switching (MPLS) Layer 3 VPN
Allows Layer 3 VPNs across a provider network; uses Multiprotocol BGP (MP-BGP) to establish
private routes for increased security; supports RFC 2547 multiple autonomous system VPNs for
added flexibility; supports IPv6 MPLS VPN

• Multiprotocol Label Switching (MPLS) Layer 2 VPN
Establishes simple Layer 2 point-to-point VPNs across a provider network using only MPLS
Label Distribution Protocol (LDP); requires no routing and therefore decreases complexity,
increases performance, and allows VPNs of non-routable protocols; uses no routing information
for increased security; supports Circuit Cross Connect (CCC), Static Virtual Circuits (SVCs),
Martini draft, and Kompella draft technologies

• Policy routing
Allows custom filters for increased performance and security; supports access control lists (ACLs),
IP prefix, AS paths, community lists, and aggregate policies

Layer 3 services

• N AT-P T
Network Address Translation – Protocol Translation (NAT-PT) enables communication
between IPv4 and IPv6 nodes by translating between IPv4 and IPv6 packets. It performs
IP address translation, and according to dierent protocols, performs semantic translation
for packets. This technology is only suitable for communication between a pure IPv4 node
and a pure IPv6 node

• WAN Optimization
MSR performs optimization using TFO and a combination of DRE, Lempel-Ziv (LZ)
compression to provide the bandwidth optimization for file service and web applications.
The policy engine module determines which traic can be optimized and which optimization
action should be taken. A pair of WAN optimization equipment can discover each other
automatically and complete the negotiation to establish a TCP optimization session

• Address Resolution Protocol (ARP)
Determines the MAC address of another IP host in the same subnet; supports static ARPs;
gratuitous ARP allows detection of duplicate IP addresses; proxy ARP allows normal ARP
operation between subnets or when subnets are separated by a Layer 2 network

• User Datagram Protocol (UDP) helper
Redirects UDP broadcasts to specific IP subnets to prevent server spoofing

• Dynamic Host Configuration Protocol (DHCP)
Simplifies the management of large IP networks and supports client and server; DHCP Relay
enables DHCP operation across subnets

Quality of service (QoS)

• Traic policing
Supports Committed Access Rate (CAR) and line rate

• Congestion management
Supports FIFO, PQ, CQ, WFQ, CBQ, and RTPQ

Data sheet

Page 5

• Weighted random early detection (WRED)/Random early detection (RED)
Delivers congestion avoidance capabilities through the use of queue management algorithms

• Other QoS technologies
Support traic shaping, FR QoS, MPLS QoS, and MP QoS/LFI

Security

• IPS
Built-in Intrusion Prevention System (IPS) detects and protects the branch oice from security
threats. Optional HPE integration filters for client-side, branch protection from exploits and
vulnerabilities

• Zone based firewall
Zone-Based Policy Firewall changes the firewall configuration from the older interface-based
model to a more flexible, more easily understood zone-based model. Interfaces are assigned
to zones, and inspection policy is applied to traic moving between the zones. Inter-zone
policies oer considerable flexibility and granularity, so dierent inspection policies can be
applied to multiple host groups connected to the same router interface

• Enhanced stateful firewall
Application layer protocol inspection, Transport layer protocol inspection, ICMP error message
check, and TCP SYN check. Support more L4 and L7 protocols like TCP, UDP, UDP-Lite,
ICMPv4/ICMPv6, SCTP, DCCP, RAWIP, HTTP, FTP, SMTP, DNS, SIP, H.323, SCCP

• Auto Discover VPN (ADVPN)
Collects, maintains, and distributes dynamic public addresses through the VPN Address
Management (VAM) protocol, making VPN establishment available between enterprise
branches that use dynamic addresses to access the public network; compared to traditional
VPN technologies, ADVPN technology is more flexible and has richer features, such as NAT
traversal of ADVPN packets, AAA identity authentication, IPSec protection of data packets,
and multiple VPN domains

• Access control list (ACL)
Supports powerful ACLs for both IPv4 and IPv6; ACLs are used for filtering traic to prevent
unauthorized users from accessing the network, or for controlling network traic to save
resources; rules can either deny or permit traic to be forwarded; rules can be based on
a Layer 2 header or a Layer 3 protocol header; rules can be set to operate on specific dates
or times

• Terminal Access Controller Access-Control System (TACACS+)
Delivers an authentication tool using TCP with encryption of the full authentication request,
providing additional security

• Network login
Standard IEEE 8021x allows authentication of multiple users per port

• RADIUS
Eases security access administration by using a password authentication server

• Network address translation (NAT)
Supports one-to-one NAT, many-to-many NAT, and NAT control, enabling NAT-PT to
support multiple connections; supports blacklist in NAT/NAT-PT, and a limit on the number
of connections, session logs, and multi-instances

• Secure shell (SSHv2)
Uses external servers to securely login to a remote device or securely login to MSR from
a remote location; with authentication and encryption, it protects against IP spoofing and
plain text password interception; increases the security of Secure File Transfer Protocol
(SFTP) transfers

Data sheet

Page 6

• Unicast Reverse Path Forwarding (URPF)
Allows normal packets to be forwarded correctly, but discards the attaching packet due to lack
of reverse path route or incorrect inbound interface; prevents source spoofing and distributed
attacks

• IPSec VPN
Supports DES, Triple DES (3DES), and Advanced Encryption Standard (AES) 128/192/256
encryption, and MD5 and SHA-1 authentication

• Attack detection and protection
Responding to network attacks and threats by MSR Comware, support max connection
limitation, single-packet attacks protection, scanning attack protection, flood attack protection,
TCP and ICMP Attack Protection and so on

Convergence

• Internet Group Management Protocol (IGMP)
Utilizes Any-Source Multicast (ASM) or Source-Specific Multicast (SSM) to manage IPv4
multicast networks; supports IGMPv1, v2, and v3

• Protocol Independent Multicast (PIM)
Defines modes of Internet IPv4 and IPv6 multicasting to allow one-to-many and many-to-many
transmission of information; supports PIM Dense Mode (DM), Sparse Mode (SM), and Source-Specific
Multicast (SSM)

• Multicast Source Discovery Protocol (MSDP)
Allows multiple PIM-SM domains to interoperate; is used for interdomain multicast applications

• Multicast Border Gateway Protocol (MBGP)
Allows multicast traic to be forwarded across BGP networks and kept separate from unicast traic

Integration

• Embedded NetStream
Improves traic distribution using powerful scheduling algorithms, including Layer 4 to 7 services;
monitors the health status of servers and firewalls

• Embedded VPN and stateful firewall
Provide enhanced stateful packet inspection and filtering; deliver advanced VPN services with
Triple DES (3DES) and Advanced Encryption Standard (AES) encryption at high performance
and low latency, and application prioritization and enhancement

Resiliency and high availability

• Backup center
Acts as a part of the management and backup function to provide backup for device interfaces;
delivers reliability by switching traic over to a backup interface when the primary one fails

• Virtual Router Redundancy Protocol (VRRP)
Allows groups of two routers to dynamically back each other up to create highly available
routed environments; supports VRRP load balancing

Management

• Ease of deployment
Zero-touch deployment, supports TR-069, USB disk auto deployment and 3G SMS auto
deployment

• Industry-standard CLI with a hierarchical structure
Reduces training time and expenses, and increases productivity in multivendor installations

• Management security
Restricts access to critical configuration commands; oers multiple privilege levels with
password protection; ACLs provide Telnet and SNMP access; local and remote syslog
capabilities allow logging of all access

Data sheet

Page 7

• SNMPv1, v2, and v3
Provide complete support of SNMP; provide full support of industry-standard Management
Information Base (MIB) plus private extensions; SNMPv3 supports increased security using
encryption

• Remote monitoring (RMON)
Uses standard SNMP to monitor essential network functions; supports events, alarm, history,
and statistics group plus a private alarm extension group

• FTP, TFTP, and SFTP support
Oers dierent mechanisms for configuration updates; FTP allows bidirectional transfers over
a TCP/IP network; trivial FTP (TFTP) is a simpler method using User Datagram Protocol (UDP);
Secure File Transfer Protocol (SFTP) runs over an SSH tunnel to provide additional security

• Debug and sampler utility
Supports ping and traceroute for both IPv4 and IPv6

• Network Time Protocol (NTP)
Synchronizes timekeeping among distributed time servers and clients; keeps timekeeping
consistent among all clock-dependent devices within the network so that the devices can
provide diverse applications based on the consistent time

• Information center
Provides a central repository for system and network information; aggregates all logs, traps,
and debugging information generated by the system and maintains them in order of severity;
outputs the network information to multiple channels based on user-defined rules

• Management interface control
Provides management access through modem port and terminal interface; provides access
through terminal interface, Telnet, or SSH

• Network Quality Analyzer (NQA)
Analyzes network performance and service quality by sending test packets, and provides
network performance and service quality parameters such as jitter, TCP, or FTP connection
delays; allows network manager to determine overall network performance and diagnose and
locate network congestion points

Additional information

• OPEX savings
Simplifies and streamlines deployment, management, and training through the use of
a common operating system, thereby cutting costs as well as reducing the risk of human
errors associated with having to manage multiple operating systems across dierent
platforms and network layers

• High reliability
Provides a state-of-the-art unified code base

• Faster time to market
Allows new and custom features to be brought rapidly to market through engineering
eiciencies, delivering better initial and ongoing stability

• Green initiative support
Provides support for RoHS and WEEE regulations

Warranty and support

• 1-year Warranty
See hpe.com/networking/warrantysummary for warranty and support information
included with your product purchase.

• Software releases
To find software for your product, refer to hpe.com/networking/support; for details on the software
releases available with your product purchase, refer to hpe.com/networking/warrantysummary

Data sheet

HPE MSR1000 Router Series

Page 8

Specifications HPE MSR1002-4 AC Router

I/O ports and slots 2 SIC slots, or 1 DSIC slot

Additional ports and slots 1 USB 20

AP characteristics

Radios (via optional modules) 3G, 4G LTE 3G, 4G LTE 3G, 4G LTE

Physical characteristics

Dimensions

Weight

Memory and processor RISC @ 667 MHz, 1 GB DDR3 SDRAM,

Mounting and enclosure Desktop or can be mounted in a EIA

(JG875A)

1 RJ-45 autosensing 10/100/1000 WAN
port
1 SFP fixed Gigabit Ethernet SFP port
4 RJ-45 autosensing 10/100/1000 LAN
ports
1 Serial port

1 RJ-45 console port to access limited
CLI port

1417(w) x 1181(d) x 174(h) in
(36 x 30 x 442 cm) (1U height)
683 lb (310 kg)

256 MB flash

standard 19-inch telco rack when used
with the rack-mount kit in the package.

HPE MSR1003-8 AC Router
(JG732A) Comware V5 based

3 SIC slots, or 1 DSIC slot, and 1 SIC slot
2 RJ-45 autosensing 10/100/1000 WAN
ports
8 RJ-45 autosensing 10/100/1000 LAN
ports

1 USB 20
1 RJ-45 console port to access limited
CLI port

1417(w) x 1181(d) x 174(h)in
(36 x 30 x 442 cm)
694 lb (315 kg)

RISC @ 667 MHz, 512 MB DDR3 SDRAM,
256 MB flash

Desktop or can be mounted in a EIA
standard 19-inch telco rack when used
with the rack-mount kit in the package.

HPE MSR1003-8S AC Router (JH060A)
Comware V7 based

3 SIC slots, or 1 DSIC slot, and 1 SIC slot
2 RJ-45 autosensing 10/100/1000 WAN
ports
8 RJ-45 autosensing 10/100/1000 LAN
ports

1 USB 20
1 RJ-45 console port to access limited
CLI port

1417(w) x 1181(d) x 174(h) in
(36 x 30 x 442 cm)
694 lb (315 kg)

RISC @ 667 MHz, 1 GB DDR3 SDRAM,
256 MB flash

Desktop or can be mounted in a EIA
standard 19-inch telco rack when used
with the rack-mount kit in the package.

Performance

Throughput
Routing table size

Forwarding table size

Environment

Operating temperature
Operating relative humidity
Nonoperating/Storage temperature
Nonoperating/Storage relative humidity
Altitude

Electrical characteristics

Frequency
Maximum heat dissipation
AC voltage

Maximum power rating

Up to 500 Kpps (64-byte packets)
200000 entries (IPv4), 200000 entries
(I P v6)
200000 entries (IPv4), 200000 entries
(I P v6)

32°F to 113°F (0°C to 45°C)
5% to 95%, noncondensing

-40°F to 158°F (-40°C to 70°C)
5% to 95%, noncondensing
Up to 16404 ft (5 km)

50/60 Hz
92 BTU/hr (9706 kJ/hr)
100—240 VAC, rated
(depending on power supply chosen)
30 W

Notes

Maximum power rating and maximum heat
dissipation are the worst-case theoretical
maximum numbers provided for planning
the infrastructure with fully loaded PoE
(if equipped), 100% traic, all ports plugged
in, and all modules populated.

Up to 500 Kpps (64-byte packets)
30000 entries (IPv4), 30000 entries
(I P v6)
30000 entries (IPv4), 30000 entries
(I P v6)

32°F to 113°F (0°C to 45°C)
5% to 95%, noncondensing

-40°F to 158°F (-40°C to 70°C)
5% to 95%, noncondensing
Up to 16404 ft (5 km)

50/60 Hz
65 BTU/hr (6858 kJ/hr)
100—240 VAC, rated
(depending on power supply chosen)
30 W

Maximum power rating and maximum heat
dissipation are the worst-case theoretical
maximum numbers provided for planning
the infrastructure with fully loaded PoE
(if equipped), 100% traic, all ports plugged
in, and all modules populated.

Up to 500 Kpps (64-byte packets)
200000 entries (IPv4), 200000 entries
(I P v6)
200000 entries (IPv4), 200000 entries
(I P v6)

32°F to 113°F (0°C to 45°C)
5% to 95%, noncondensing

-40°F to 158°F (-40°C to 70°C)
5% to 95%, noncondensing
Up to 16404 ft (5 km)

50/60 Hz
65 BTU/hr (6858 kJ/hr)
100—240 VAC, rated
(depending on power supply chosen)
30 W

Maximum power rating and maximum heat
dissipation are the worst-case theoretical
maximum numbers provided for planning
the infrastructure with fully loaded PoE
(if equipped), 100% traic, all ports plugged
in, and all modules populated.

Data sheet

Page 9

Specifications HPE MSR1002-4 AC Router

Reliability

Availability 137 5 137 5 137 5

Safety UL 60950-1; IEC 60950-1; EN 60950-1;

Emissions VCCI Class A; EN 55022 Class A;

Telecom FCC part 68; CS- 03 FCC part 68; CS- 03 FCC part 68; CS- 03

Management IMC—Intelligent Management Center;

Services

(JG875A)

CAN/CSA-C222 No. 60950-1;
FDA 21 CFR Subchapter J; AS/
NZS 60950-1; GB 49431

CISPR 22 Class A; EN 55024;
ICES-003 Class A; EN 300386;
CISPR 24; AS/NZS CISPR 22 Class A;
EN 6100 0-3-2; EN 6100 0-3-3;
FCC (CFR 47, Part 15) Class A

command-line interface; Web browser;
out-of-band management (serial RS-232C);
out-of-band management (DB-9 serial
port console); SNMP Manager; Telnet;
RMON1; FTP; IEEE 8023 Ethernet MIB

Refer to the Hewlet t Packard Enterprise
website at hpe.com/networking/services
for details on the service-level descriptions
and product numbers. For details about
services, and response times in your area,
please contact your local Hewlett Packard
Enterprise sales oice.

HPE MSR1003-8 AC Router
(JG732A) Comware V5 based

UL 60950-1; IEC 60950-1; EN 60950-1;
CAN/CSA-C222 No. 60950-1;
FDA 21 CFR Subchapter J; AS/
NZS 60950-1; GB 49431

VCCI Class A; EN 55022 Class A;
CISPR 22 Class A; EN 55024;
ICES-003 Class A; EN 300386;
CISPR 24; AS/NZS CISPR 22 Class A;
EN 6100 0-3-2; EN 6100 0-3-3;
FCC (CFR 47, Part 15) Class A

IMC—Intelligent Management Center;
command-line interface; Web browser;
out-of-band management (serial RS-232C);
out-of-band management (DB-9 serial
port console); SNMP Manager; Telnet;
RMON1; FTP; IEEE 8023 Ethernet MIB

Refer to the Hewlet t Packard Enterprise
website at hpe.com/networking/services
for details on the service-level descriptions
and product numbers. For details about
services, and response times in your area,
please contact your local Hewlett Packard
Enterprise sales oice.

HPE MSR1003-8S AC Router (JH060A)
Comware V7 based

UL 60950-1; IEC 60950-1; EN 60950­1; CAN/CSA-C222 No. 60950-1;
FDA 21 CFR Subchapter J; AS/
NZS 60950-1; GB 49431

VCCI Class A; EN 55022 Class A;
CISPR 22 Class A; EN 55024;
ICES-003 Class A; EN 300386;
CISPR 24; AS/NZS CISPR 22 Class A;
EN 6100 0-3-2; EN 6100 0-3-3;
FCC (CFR 47, Part 15) Class A

IMC—Intelligent Management Center;
command-line interface; Web browser;
out-of-band management (serial RS-232C);
out-of-band management (DB-9 serial port
console); SNMP Manager; Telnet; RMON1;
FTP; IEEE 8023 Ethernet MIB

Refer to the Hewlet t Packard Enterprise
website at hpe.com/networking/services
for details on the service-level descriptions
and product numbers. For details about
services, and response times in your area,
please contact your local Hewlett Packard
Enterprise sales oice.

Standards and Protocols

(applies to JG875A and JH060A models)

BGP RFC 1163 Border Gateway Protocol (BGP)

RFC 1267 Border Gateway Protocol 3
(BGP-3)
RFC 1657 Definitions of Managed Objects
for BGPv4
RFC 1771 BGPv4
RFC 1772 Application of the BGP
RFC 1773 Experience with the BGP-4
Protocol
RFC 1774 BGP-4 Protocol Analysis
RFC 1965 BGP-4 confederations
RFC 1997 BGP Communities Attribute
RFC 2439 BGP Route Flap Damping
RFC 2547 BGP/MPLS VPNs
RFC 2796 BGP Route Reflection

Denial of service protection CPU DoS Protection Rate Limiting by ACLs

RFC 2842 Capability Advertisement with
BGP-4
RFC 2858 BGP-4 Multi-Protocol
Extensions
RFC 2918 Route Refresh Capability
RFC 3065 Autonomous System
Confederations for BGP
RFC 3107 Support BGP carry Label for
MPLS
RFC 3392 Capabilities Advertisement
with BGP-4
RFC 4271 A Border Gateway Proto col 4
(B GP- 4)
RFC 4273 Definitions of Managed Objects
for BGP-4
RFC 4274 BGP-4 Protocol Analysis

RFC 4275 BGP-4 MIB Implementation
Survey
RFC 4276 BGP-4 Implementation Report
RFC 4277 Experience with the BGP-4
Protocol
RFC 4360 BGP Extended Communities
Attribute
RFC 4456 BGP Route Reflection: An
Alternative to Full Mesh Internal BGP (IBGP)
RFC 4724 Graceful Restar t Mechanism
for BGP
RFC 4760 Multiprotocol Extensions for
BGP-4
RFC1998 An Application of the BGP
Community Attribute in Multi-home Routing

Data sheet

Standards and Protocols

(applies to JG875A and JH060A models)

Page 10

Device management RFC 1155 Structure and Mgmt Information

(SMIv1)
RFC 1157 SNMPv1/v2c
RFC 1305 NTPv3
RFC 1591 DNS (client)
RFC 1902 (SNMPv2)

General protocols RFC 768 UDP

RFC 760 DoD standard Internet Protocol
RFC 764 Telnet Protocol specification
RFC 777 Internet Control Message
Protocol
RFC 783 TFTP Protocol (revision 2)
RFC 791 IP
RFC 792 ICMP
RFC 793 TCP
RFC 813 Window and Acknowledgement
Strategy in TCP
RFC 815 IP datagram reassembly
algorithms
RFC 826 ARP
RFC 854 Telnet Protocol Specification
RFC 855 Telnet Option Specifications
RFC 856 Telnet Binary Transmission
RFC 857 Telnet Echo Option
RFC 858 Telnet Suppress Go Ahead
Option
RFC 862 Echo Service (TCP Echo)
RFC 879 TCP maximum segment size
and related topics
RFC 882 Domain names: Concepts and
facilities
RFC 883 Domain names: Implementation
specification
RFC 894 A Standard for the Transmission
of IP Datagrams over Ethernet Networks
RFC 896 Congestion Control in IP/TCP
Internetworks
RFC 906 Bootstrap loading using TFTP
(Trivial File Transfer Protocol)
RFC 917 Internet Subnets
RFC 919 Broadcasting Internet Datagrams

RFC 1908 (SNMP v1/2 Coexistence)
RFC 1945 Hypertext Transfer Protocol—
HT TP/10
RFC 2271 Framework
RFC 2573 (SNMPv3 Applications)
RFC 2576 (Coexistence between SNMP
V1, V2, V3)

RFC 922 Broadcasting Internet
Datagrams in the Presence of Subnets
(I P_B R OAD )
RFC 925 Multi-LAN Address Resolution
RFC 926 Protocol for providing the
connectionless mode network services
RFC 950 Internet Standard Subnetting
Procedure
RFC 951 BOOTP
RFC 958 Network Time Protocol (NTP)
RFC 959 File Transfer Protocol (FTP)
RFC 973 Domain system changes and
observations
RFC 988 Host extensions for IP
multicasting
RFC 1027 Proxy ARP
RFC 1034 Domain names—concepts and
facilities
RFC 1035 Domain names—
implementation and specification
RFC 1048 BOOTP (Bootstrap Protocol)
vendor information extensions
RFC 1054 Host extensions for IP
multicasting
RFC 1058 RIPv1
RFC 1059 Network Time Protocol
(version 1) specification and
implementation
RFC 1060 Assigned numbers
RFC 1063 IP MTU (Maximum
Transmission Unit) discovery options
RFC 1071 Computing the Internet
checksum
RFC 1072 TCP extensions for long-delay
paths
RFC 1079 Telnet terminal speed option
RFC 1084 BOOTP (Bootstrap Protocol)
vendor information extensions

RFC 2578 -2580 SMIv2
RFC 2579 (SMIv2 Text Conventions)
RFC 2580 (SMIv2 Conformance)
RFC 3416 (SNMP Protocol Operations v2)
RFC 3417 (SNMP Transport Mappings)

RFC 1091 Telnet Terminal-Type Option
RFC 1093 NSFNET routing architecture
RFC 1101 DNS encoding of net work
names and other types
RFC 1119 Network Time Protocol
(version 2) specification and
implementation
RFC 1122 Requirements for Internet
Hosts—Communication Layers
RFC 1141 Incremental updating of the
Internet checksum
RFC 1142 OSI IS-IS Intra-domain Routing
Protocol
RFC 1164 Application of the Border
Gateway Protocol in the Internet
RFC 1166 Internet address used by
Internet Protocol (IP)
RFC 1171 Point-to-Point Protocol for the
transmission of multi-protocol datagrams
over Point-to-Point links
RFC 1172 Point-to-Point Protocol (PPP)
initial configuration options
RFC 1185 TCP Extension for High-Speed
Paths
RFC 1191 Path MTU discovery
RFC 1195 OSI ISIS for IP and Dual
Environments
RFC 1213 Management Information
Base for Network Management of TCP/
IP-based internets
RFC 1253 (OSPF v2)
RFC 1265 BGP Protocol Analysis
RFC 1266 Experience with the BGP
Protocol
RFC 1268 Application of the Border
Gateway Protocol in the Internet
RFC 1271 Remote Network Monitoring
Management Information Base

Data sheet

Standards and Protocols

(applies to JG875A and JH060A models)

Page 11

General protocols RFC 1284 Definitions of Managed

Objects for the Ethernet-like Inter face
Types
RFC 1286 Definitions of Managed
Objects for Bridges
RFC 1294 Multiprotocol Interconnect over
Frame Relay
RFC 1305 NTPv3 (IPv4 only)
RFC 1321 The MD5 Message-Digest
Algorithm
RFC 1323 TCP Extensions for High
Performance
RFC 1331 The Point-to-Point Protocol
(PPP) for the Transmission of Multi-protocol
Datagrams over Point-to-Point Links
RFC 1332 The PPP Internet Protocol
Control Protocol (IPCP)
RFC 1333 PPP Link Quality Monitoring
RFC 1334 PPP Authentication Protocols
RFC 1349 Type of Service
RFC 1350 TFTP Protocol (revision 2)
RFC 1364 BGP OSPF Interaction
RFC 1370 Applicability Statement for OSPF
RFC 1377 The PPP OSI Network Layer
Control Protocol (OSINLCP)
RFC 1393 Traceroute Using an IP Option
RFC 1395 BOOTP (Bootstrap Protocol)
Vendor Information Extensions
RFC 1398 Definitions of Managed
Objects for the Ethernet-Like Inter face
Types
RFC 1403 BGP OSPF Interaction
RFC 1444 Conformance Statements
for version 2 of the Simple Network
Management Protocol (SNMPv2)
RFC 1449 Transport Mappings for
version 2 of the Simple Network
Management Protocol (SNMPv2)
RFC 1471 The Definitions of Managed
Objects for the Link Control Protocol of
the Point-to-Point Protocol
RFC 1473 The Definitions of Managed
Objects for the IP Network Control
Protocol of the Point-to-Point Protocol
RFC 1483 Multiprotocol Encapsulation
over ATM Adaptation Layer 5
RFC 1490 Multiprotocol Interconnect
over Frame Relay
RFC 1497 BOOTP (Bootstrap Protocol)
Vendor Information Extensions
RFC 1519 CIDR
RFC 1531 Dynamic Host Configuration
Protocol
RFC 1532 Clarifications and Extensions
for the Bootstrap Protocol
RFC 1533 DHCP Options and BOOTP
Vendor Extensions
RFC 1534 Interoperation Between DHCP
and BOOTP
RFC 1541 Dynamic Host Configuration
Protocol
RFC 1542 BOOTP Extensions
RFC 1542 Clarifications and Extensions
for the Bootstrap Protocol

RFC 1548 The Point-to-Point Protocol
(PPP)
RFC 1549 PPP in HDLC Framing
RFC 1570 PPP LCP (Point-to-Point
Protocol Link Control Protocol)
Extensions
RFC 1577 Classical IP and ARP over ATM
RFC 1597 Address Allocation for Private
Internets
RFC 1618 PPP over ISDN
RFC 1619 PPP over SONET/SDH
(Synchronous Optical Network/
Synchronous Digital Hierarchy)
RFC 1624 Incremental Internet Checksum
RFC 1631 NAT
RFC 1650 Definitions of Managed
Objects for the Ethernet-like Inter face
Types using SMIv2
RFC 1661 The Point-to-Point Protocol
(PPP)
RFC 1662 PPP in HDLC-like Framing
RFC 1700 ASSIGNED NUMBERS
RFC 1701 Generic Routing Encapsulation
RFC 1702 Generic Routing Encapsulation
over IPv4 networks
RFC 1717 The PPP Multilink Protocol
(MP)
RFC 1721 RIP-2 Analysis
RFC 1722 RIP-2 Applicability
RFC 1723 RIP v2
RFC 1724 RIP Version 2 MIB Extension
RFC 1757 Remote Network Monitoring
Management Information Base
RFC 1777 Lightweight Directory Access
Protocol
RFC 1812 IPv4 Routing
RFC 1825 Security Architecture for the
Internet Protocol
RFC 1826 IP Authentication Header
RFC 1827 IP Encapsulating Securit y
Payload (ESP)
RFC 1829 The ESP DES-CBC Transform
RFC 1877 PPP Internet Protocol Control
Protocol Extensions for Name Server
Addresses
RFC 1884 IP Version 6 Addressing
Architecture
RFC 1885 Internet Control Message
Protocol (ICMPv6) for the Internet
Protocol Version 6 (IPv6) Specification
RFC 1886 DNS Extensions to support
IP version 6 RFC 1889 RTP (Real-Time
Protocol): A Transport Protocol for
Real-Time Applications. Audio-Video
Transport Working Group
RFC 1933 Transition Mechanisms for
IPv6 Hosts and Routers
RFC 1945 Hypertext Transfer Protocol—
HT TP/10
RFC 1962 The PPP Compression Control
Protocol (CCP)
RFC 1966 BGP Route Reflection An
alternative to full mesh IBGP

RFC 1970 Neighbor Discovery for IP Version 6
(I P v6)
RFC 1971 IPv6 Stateless Address
Autoconfiguration
RFC 1972 A Method for the Transmission
of IPv6 Packets over Ethernet Networks
RFC 1981 Path MTU Discovery for IP
version 6 RFC 1982 Serial Number
Arithmetic
RFC 1989 PPP Link Quality Monitoring
RFC 1990 The PPP Multilink Protocol (MP)
RFC 1994 PPP Challenge Handshake
Authentication Protocol (CHAP)
RFC 2001 TCP Slow Start, Congestion
Avoidance, Fast Retransmit, and Fast
Recovery Algorithms
RFC 2002 IP Mobility Support
RFC 2003 IP Encapsulation within IP
RFC 2011 SNMPv2 Management
Information Base for the Internet Protocol
using SMIv2
RFC 2012 SNMPv2 Management
Information Base for the Transmission
Control Protocol using SMIv2
RFC 2013 SNMPv2 Management
Information Base for the User Datagram
Protocol using SMIv2
RFC 2018 TCP Selective
Acknowledgement Options
RFC 2021 Remote Network Monitoring
Management Information Base
Version 2 using SMIv2
RFC 2073 An IPv6 Provider-Based
Unicast Address Format
RFC 2082 RIP-2 MD5 Authentication
RFC 2091 Triggered Extensions to RIP
to Support Demand Circuits
RFC 2104 HMAC: Keyed-Hashing for
Message Authentication
RFC 2131 DHCP
RFC 2132 DHCP Options and BOOTP
Vendor Extensions
RFC 2136 Dynamic Updates in the
Domain Name System (DNS UPDATE)
RFC 2138 Remote Authentication Dial In
User Service (RADIUS)
RFC 2205 Resource ReSerVation
Protocol (RSVP)—Version 1 Functional
Specification
RFC 2209 Resource ReSerVation Protocol
(RSVP)—Version 1 Message Processing
Rules
RFC 2210 Use of RSVP (Resource
Reservation Protocol) in Integrated Services
RFC 2225 Classical IP and ARP over ATM
RFC 2236 IGMP Snooping
RFC 2246 The TLS Protocol Version 10
RFC 2251 Lightweight Directory Access
Protocol (v3)
RFC 2252 Lightweight Directory Access
Protocol (v3): Attribute Syntax Definitions
RFC 2283 MBGP
RFC 2292 Advanced Sockets API for IPv6

Data sheet

Standards and Protocols

(applies to JG875A and JH060A models)

Page 12

General protocols RFC 2309 Recommendations on queue

management and congestion avoidance
in the Internet
RFC 2327 SDP: Session Description
Protocol
RFC 2338 VRRP
RFC 2344 Reverse Tunneling for Mobile IP
RFC 2358 Definitions of Managed Objects
for the Ethernet-like Inter face Types
RFC 2364 PPP Over AAL5
RFC 2365 Administratively Scoped IP
Multicast
RFC 2373 IP Version 6 Addressing
Architecture
RFC 2374 An IPv6 Aggregatable Global
Unicast Address Format
RFC 2375 IPv6 Multicast Address
Assignments
RFC 2385 Protection of BGP Sessions via
the TCP MD5 Signature Option
RFC 2427 Multiprotocol Interconnect
over Frame Relay
RFC 2428 FTP Extensions for IPv6 and
NATs
RFC 2433 Microsoft PPP CHAP
(Challenge Handshake Authentication
Protocol) Extensions
RFC 2451 The ESP CBC-Mode Cipher
Algorithms
RFC 2452 IP Version 6 Management
Information Base for the Transmission
Control Protocol
RFC 2453 RIPv2
RFC 2454 IP Version 6 Management
Information Base for the User Datagram
Protocol
RFC 2461 Neighbor Discovery for IP
Version 6 (IPv6)
RFC 2462 IPv6 Stateless Address
Autoconfiguration
RFC 2463 Internet Control Message
Protocol (ICMPv6) for the Internet
Protocol Version 6 (IPv6) Specification
RFC 2464 Transmission of IP v6 Packets
over Ethernet Networks
RFC 2465 Management Information Base
for IP Version 6: Textual Conventions and
General Group
RFC 2466 Management Information Base
for IP Version 6: ICMPv6 Group
RFC 2472 IP Version 6 over PPP
RFC 2474 Definition of the Dierentiated
Services Field (DS Field) in the IPv4 and
IPv6 Headers
RFC 2507 IP Header Compression
RFC 2508 Compressing IP/UDP/RTP
Headers for Low-Speed Serial Links
RFC 2509 IP Header Compression over
PPP
RFC 2510 Internet X.509 Public Key
Infrastructure Certificate Management
Protocols
RFC 2516 A Method for Transmitting
PPP Over Ethernet (PPPoE)

RFC 2519 A Framework for Inter-Domain
Route Aggregation
RFC 2529 Transmission of IPv6 over
IPv4 Domains without Explicit Tunnels
RFC 2543 SIP: Session Initiation Protocol
RFC 2548 (MS-RAS-Vendor only)
RFC 2553 Basic Socket Interface Extensions
for IP v6
RFC 2570 Introduction to Version 3 of the
Internet-standard Network Management
Framework
RFC 2581 TCP Congestion Control
RFC 2597 Assured Forwarding PHB Group
RFC 2598 An Expedited Forwarding PHB
RFC 2615 PPP over SONET/SDH
(Synchronous Optical Network/
Synchronous Digital Hierarchy)
RFC 2616 HTTP Compatibility v11
RFC 2617 HTTP Authentication: Basic
and Digest Access Authentication
RFC 2618 RADIUS Authentication Client
MIB
RFC 2620 RADIUS Accounting Client MIB
RFC 2644 Changing the Default for
Directed Broadcasts in Routers
RFC 2661 L2TP
RFC 2663 NAT Terminology and
Considerations
RFC 2665 Definitions of Managed
Objects for the Ethernet-like Inter face
Types
RFC 2668 Definitions of Managed
Objects for IEEE 8023 Medium
Attachment Units (MAUs)
RFC 2675 IPv6 Jumbograms
RFC 2684 Multiprotocol Encapsulation
over ATM Adaptation Layer 5
RFC 2685 Virtual Private Net works
Identifier
RFC 2686 The Multi-Class Extension to
Multi-Link PPP
RFC 2694 DNS extensions to Network
Address Translators (DNS_ALG)
RFC 2698 A Two Rate Three Color Marker
RFC 2702 Requirements for Traic
Engineering Over MPLS
RFC 2711 IPv6 Router Alert Option
RFC 2716 PPP EAP TLS Authentication
Protocol
RFC 2747 RSVP Cryptographic
Authentication
RFC 2763 Dynamic Name-to-System ID
mapping
RFC 2784 Generic Routing Encapsulation
(GRE)
RFC 2787 Definitions of Managed Objects
for the Virtual Router Redundancy
Protocol
RFC 2827 Network Ingress Filtering:
Defeating Denial of Service Attacks Which
Employ IP Source Address Spoofing
RFC 2833 RTP Payload for DTMF Digits,
Telephony Tones and Telephony Signals
RFC 2865 Remote Authentication Dial In
User Service (RADIUS)

RFC 2866 RADIUS Accounting
RFC 2868 RADIUS Attributes for Tunnel
Protocol Support
RFC 2869 RADIUS Extensions
RFC 2884 Performance Evaluation of
Explicit Congestion Notification (ECN) in
IP Networks.
RFC 2894 Router Renumbering for IPv6
RFC 2917 A Core MPLS IP VPN
Architecture
RFC 2925 Definitions of Managed
Objects for Remote Ping, Traceroute, and
Lookup Operations
RFC 2961 RSVP Refresh Overhead
Reduction Extensions
RFC 2963 A Rate Adaptive Shaper for
Dierentiated Services
RFC 2965 HTTP State Management
Mechanism
RFC 2966 Domain-wide Prefix
Distribution with Two-Level IS-IS
RFC 2973 IS-IS Mesh Groups
RFC 2976 The SIP INFO Method
RFC 2993 Architectural Implications of NAT
RFC 3011 The IPv4 Subnet Selection
Option for DHCP
RFC 3022 Traditional IP Network Address
Translator (Traditional NAT)
RFC 3024 Reverse Tunneling for Mobile
IP, revised
RFC 3025 Mobile IP Vendor/
Organization-Specific Extensions
RFC 3027 Protocol Complications with
the IP Network Address Translator
RFC 3031 Multiprotocol Label Switching
Architecture
RFC 3032 MPLS Label Stack Encoding
RFC 3036 LDP Specification
RFC 3037 LDP (Label Distribution
Protocol) Applicability
RFC 3041 Privacy Extensions for
Stateless Address Autoconfiguration in
IPv6
RFC 3046 DHCP Relay Agent Information
Option
RFC 3063 MPLS Loop Prevention
Mechanism
RFC 3097 RSVP (Resource Reservation
Protocol) Cryptographic Authentication—
Updated Message Type Value
RFC 3115 Mobile IP Vendor/
Organization-Specific Extensions
RFC 3137 OSPF Stub Router
Advertisement
RFC 3168 The Addition of Explicit
Congestion Notification (ECN) to IP
RFC 3176 InMon Corporation’s sFlow:
A Method for Monitoring Traic in
Switched and Routed Networks
RFC 3209 RSVP-TE: Extensions to RSVP
for LSP Tunnels
RFC 3210 Applicability Statement for
Extensions to RSVP for LSP-Tunnels

Data sheet

Standards and Protocols

(applies to JG875A and JH060A models)

Page 13

General protocols RFC 3215 LDP State Machine

RFC 3220 IP Mobility Support for IPv4
RFC 3246 Expedited Forwarding PHB
RFC 3261 SIP: Session Initiation Protocol
RFC 3262 Reliability of Provisional
Responses in Session Initiation Protocol (SIP)
RFC 3263 Session Initiation Protocol
(SIP): Locating SIP Servers
RFC 3265 Session Initiation Protocol
(SIP)-Specific Event Notification
RFC 3268 Advanced Encryption Standard
(AES) Ciphersuites for Transport Layer
Security (TLS)
RFC 3270 Multi-Protocol Label Switching
(MPLS) Support of Dierentiated Services
RFC 3273 Remote Network Monitoring
Management Information Base for High
Capacity Networks
RFC 3277 IS-IS Transient Blackhole
Avoid ance
RFC 3279 Algorithms and Identifiers
for the Internet X.509 Public Key
Infrastructure Certificate and Certificate
Revocation List (CRL) Profile
RFC 3280 Internet X.509 Public Key
Infras tructure Cer tificate and Certificate
Revocation List (CRL) Profile
RFC 3306 Unicast-Prefix-based
IPv6 Multicast Addresses
RFC 3307 Allocation Guidelines for
IPv6 Multicast Addresses
RFC 3311 The Session Initiation Protocol
(SIP) UPDATE Method
RFC 3319 Dynamic Host Conf iguration
Protocol (DHCPv6) Options for Session
Initiation Protocol (SIP) Servers
RFC 3323 A Privacy Mechanism for the
Session Initiation Protocol (SIP)
RFC 3325 Private Extensions to the
Session Initiation Protocol (SIP) for
Asserted Identity within Trusted Networks
RFC 3326 The Reason Header Field for
the Session Initiation Protocol (SIP)
RFC 3344 IP Mobility Support for IPv4
RFC 3345 Border Gateway Protocol
(BGP) Persistent Route Oscillation
Condition
RFC 3359 Reserved Type, Length and
Value (TLV) Codepoints in Intermediate
System to Intermediate System
RFC 3373 Three-Way Handshake for
Intermediate System to Intermediate
System (IS-IS) Point-to-Point Adjacencies
RFC 3392 Support BGP capabilities
advertisement
RFC 3410 Introduction to Version 3 of the
Internet-standard Network Management
Framework
RFC 3442 The Classless Static Route
Option for Dynamic Host Configuration
Protocol (DHCP) version 4
RFC 3443 Time To Live (TTL) Processing
in Multi-Protocol Label Switching (MPLS)
Networks

RFC 3446 Anycast Rendevous Point (RP)
mechanism using Protocol Independent
Multicast (PIM) and Multicast Source
Discovery Protocol (MSDP)
RFC 3478 Graceful Restart Mechanism
for Label Distribution Protocol
RFC 3479 Fault Tolerance for the Label
Distribution Protocol (LDP)
RFC 3484 Default Address Selection for
Internet Protocol version 6 (IPv6)
RFC 3493 Basic Socket Interface Extensions
for IP v6
RFC 3495 Dynamic Host Configuration
Protocol (DHCP) Option for CableLabs
Client Configuration
RFC 3509 OSPF ABR Behavior
RFC 3513 Internet Protocol Version 6
(IPv6) Addressing Architecture
RFC 3515 The Session Initiation Protocol
(SIP) Refer Method
RFC 3526 More Modular Exponential
(MOD P) Diie-Hellman groups for Internet
Key Exchange (IKE)
RFC 3527 Link Selection sub-option for
the Relay Agent Information Option for
DHCP v4
RFC 3542 Advanced Sockets Application
Program Interface (API) for IPv6
RFC 3547 The Group Domain of
Interpretation
RFC 3564 Requirements for Support
of Dierentiated Services-aware MPLS
Traic Engineering
RFC 3567 Intermediate System to
Intermediate System (IS-IS) Cryptographic
Authentication
RFC 3569 An Overview of Source-Specific
Multicast (SSM)
RFC 3584 Coexistence between
Version 1 and Version 2 of the
Internet-standard Network Management
Framework
RFC 3587 IPv6 Global Unicast Address
Format
RFC 3590 Source Address Selection for
the Multicast Listener Discovery (MLD)
Protocol
RFC 3596 DNS Extensions to Support IP
Version 6
RFC 3602 The AES-CBC Cipher
Algorithm and Its Use with IPSec
RFC 3612 Applicability Statement
for Re start Mechanisms for the Label
Distribution Protocol (LDP)
RFC 3618 Multicast Source Discovery
Protocol (MSDP)
RFC 3621 Power Ethernet MIB
RFC 3623 Graceful OSPF Restart
RFC 3630 Traic Engineering (TE)
Extensions to OSPF Version 2
RFC 3636 Definitions of Managed
Objects for IEEE 8023 Medium
Attachment Units (MAUs)
RFC 3646 DNS Configuration options for
Dynamic Host Configuration Protocol for
IPv6 (DHCPv6)

RFC 3662 A Lower Eort Per-Domain
Behavior (PDB) for Dierentiated Services
RFC 3704 Unicast Reverse Path Forwarding
(URPF)
RFC 3706 A Traic-Based Method of
Detecting Dead Internet Key Exchange
(IKE) Peers
RFC 3711 The Secure Real-time
Transport Protocol (SRTP)
RFC 3719 Recommendations for
Interoperable Networks using
Intermediate System to Intermediate
System (IS-IS)
RFC 3736 Stateless Dynamic Host
Configuration Protocol (DHCP) Service
for IP v6
RFC 3737 IANA Guidelines for the
Registry of Remote Monitoring (RMON)
MIB (Management Information Base)
modules
RFC 3768 Virtual Router Redundancy
Protocol (VRRP)
RFC 3782 The NewReno Modification to
TCP’s Fast Recovery Algorithm
RFC 3784 Intermediate System to
Intermediate System (IS-IS) Ex tensions
for Traic Engineering (TE)
RFC 3786 Extending the Number of IS-IS
LSP Fragments Beyond the 256 Limit
RFC 3787 Recommendations for
Interoperable IP Networks using
Intermediate System to Intermediate
System (IS-IS)
RFC 3809 Generic Requirements for
Provider Provisioned Virtual Private
Networks (VPNs)
RFC 3810 Multicast Listener Discovery
Version 2 (MLDv2) for IPv6
RFC 3811 Definitions of Textual
Conventions (TCs) for Multiprotocol
Label Switching (MPLS) Management
RFC 3812 Multiprotocol Label Switching
(MPLS) Traic Engineering (TE)
Management Information Base (MIB)
RFC 3814 Multiprotocol Label Switching
(MPLS) Forwarding Equivalence
Class To Next Hop Label For warding
Entry (FEC-To-NHLFE) Management
Information Base (MIB)
RFC 3815 Definitions of Managed
Objects for the Multiprotocol Label
Switching (MPLS), Label Distribution
Protocol (LDP)
RFC 3826 The Advanced Encryption
Standard (AES) Cipher Algorithm in the
SNMP User-based Security Model
RFC 3847 Restart signaling for IS-IS
RFC 3879 Deprecating Site Local
Addresses
RFC 3898 Network Information Service
(NIS) Configuration Options for Dynamic
Host Configuration Protocol for IP v6
(D H CPv6)

Data sheet

Standards and Protocols

(applies to JG875A and JH060A models)

Page 14

General protocols RFC 3906 Calculating Interior Gateway

Protocol (IGP) Routes Over Traic
Engineering Tunnels
RFC 3916 Requirements for Pseudo -Wire
Emulation Edge-to-Edge (PWE3)
RFC 3917 Requirements for IP Flow
Information Export (IPFIX)
RFC 3942 Reclassifying Dynamic Host
Configuration Protocol version 4 (DHCPv4)
Options
RFC 3948 UDP Encapsulation of IPsec
ESP Packets
RFC 3954 Cisco Systems NetFlow Services
Export Version 9
RFC 3973 Protocol Independent
Multicast—Dense Mode (PIM-DM):
Protocol Specification (Revised)
RFC 3985 Pseudo Wire Emulation
Edge-to-Edge (PWE3) Architecture
RFC 4022 Management Information Base
for the Transmission Control Protocol ( TCP)
RFC 4023 Encapsulating MPLS in IP or
Generic Routing Encapsulation (GRE)
RFC 4026 Provider Provisioned VPN
terminology
RFC 4061 Benchmarking Basic OSPF
Single Router Control Plane Convergence
RFC 4062 OSPF Benchmarking
Terminology and Concepts
RFC 4063 Considerations When Using
Basic OSPF Convergence Benchmarks
RFC 4075 Simple Network Time Protocol
(SNTP) Configuration Option for DHCPv6
RFC 4090 Fast Reroute Extensions to
RSVP-TE for LSP Tunnels
RFC 4105 Requirements for Inter-Area
MPLS Traic Engineering
RFC 4109 Algorithms for Internet Key
Exchange version 1 (IKEv1)
RFC 4113 Management Information Base
for the User Datagram Protocol (UDP)
RFC 4124 Protocol Extensions for
Support of Diserv-aware MPLS Traic
Engineering
RFC 4125 Maximum Allocation Bandwidth
Constraints Model for Diserv-aware
MPLS Traic Engineering
RFC 4127 Russian Dolls Bandwidth
Constraints Model for Diserv-aware
MPLS Traic Engineering
RFC 4133 Entity MIB (Version 3)
RFC 4182 Removing a Restriction on the
use of MPLS Explicit NULL
RFC 4213 Basic Transition Mechanisms
for IPv6 Hosts and Routers
RFC 4214 Intra-Site Automatic Tunnel
Addressing Protocol (ISATAP)
RFC 4221 Multiprotocol Label Switching
(MPLS) Management Overview
RFC 4222 Prioritized Treatment of
Specific OSPF Version 2 Packets and
Congestion Avoidance

RFC 4242 Information Refresh Time
Option for Dynamic Host Configuration
Protocol for IPv6 (DHCP v6)
RFC 4244 An Extension to the Session
Initiation Protocol (SIP) for Request
History Information
RFC 4250 The Secure Shell (SSH)
Protocol Assigned Numbers
RFC 4251 The Secure Shell (SSH)
Protocol Architecture
RFC 4252 The Secure Shell (SSH)
Authentication Protocol
RFC 4253 The Secure Shell (SSH)
Transport Layer Protocol
RFC 4254 The Secure Shell (SSH)
Connection Protocol
RFC 4272 BGP Security Vulnerabilities
Analysis
RFC 4291 IP Version 6 Addressing
Architecture
RFC 4292 IP Forwarding Table MIB
RFC 4293 Management Information Base
for the Internet Protocol (IP)
RFC 4294 IPv6 Node Requirements
RFC 4305 Cryptographic Algorithm
Implementation Requirements for
Encapsulating Security Payload (ESP)
and Authentication Header (AH)
RFC 4306 Internet Key Exchange (IKEv2)
Protocol
RFC 4308 Cryptographic Suites for IPsec
RFC 4361 Node-specific Client Identifiers
for Dynamic Host Configuration Protocol
Version Four (DHCPv4)
RFC 4364 BGP/MPLS IP Virtual Private
Networks (VPNs)
RFC 4365 Applicability Statement for BGP/
MPLS IP Virtual Private Networks (VPNs)
RFC 4377 Operations and Management
(OAM) Requirements for Multi-Protocol
Label Switched (MPLS) Networks
RFC 4381 Analyses of the Security of
BGP/MPLS IP VPNs
RFC 4382 MPLS/BGP Layer 3 Virtual
Private Network (VPN) Management
Information Base
RFC 4384 BGP Communities for Data
Collection
RFC 4385 Pseudowire Emulation
Edge-to-Edge (PWE3) Control Word for
Use over an MPLS PSN
RFC 4419 Diie-Hellman Group
Exchange for the Secure Shell (SSH)
Transport Layer Protocol
RFC 4443 Internet Control Message
Protocol (ICMPv6) for the Internet
Protocol Version 6 (IPv6) Specification
RFC 4444 Management Information Base
for Intermediate System to Intermediate
System (IS-IS)
RFC 4446 IANA Allocations for Pseudowire
Edge to Edge Emulation (PWE3)

RFC 4447 Pseudowire Setup and
Maintenance Using the Label Distribution
Protocol (LDP)
RFC 4448 Encapsulation Methods
for Transport of Ethernet over MPLS
Networks
RFC 4451 BGP MULTI_EXIT_DISC (MED)
Considerations
RFC 4486 Subcodes for BGP Cease
Notification Message
RFC 4502 Remote Network Monitoring
Management Information Base Version 2
RFC 4541 Considerations for Internet
Group Management Protocol (IGMP)
and Multicast Listener Discovery (MLD)
Snooping Switches
RFC 4552 Authentication/Confidentiality
for OSPF v3
RFC 4553 Structure-Agnostic Time
Division Multiplexing (TDM) over Packet
(S AToP)
RFC 4561 Definition of a Record Route
Object (RRO) Node-Id sub- Objects
RFC 4562 MAC-Forced Forwarding: A
Method for Subscriber Separation on an
Ethernet Access Network
RFC 4568 Session Description Protocol
(SDP) Security Descriptions for Media
Streams
RFC 4576 Using a Link State
Advertisement (LSA) Options Bit to
Prevent Looping in BGP/MPLS IP Virtual
Private Networks (VPNs)
RFC 4577 OSPF as the Provider/
Customer Edge Protocol for BGP/MPLS IP
Virtual Private Networks (VPNs)
RFC 4594 Configuration Guidelines for
DiServ Service Classes
RFC 4601 Protocol Independent
Multicast—Sparse Mode (PIM-SM):
Protocol Specification (Revised)
RFC 4604 Using Internet Group
Management Protocol Version 3 (IGMPv3)
and Multicast Listener Discovery Protocol
Version 2 (MLDv2) for Source-Specific
Multicast
RFC 4605 Internet Group Management
Protocol (IGMP)/Multicast Listener
Discovery (MLD)-Based Multicast
Forwarding (“IGMP/MLD Proxying”)
RFC 4607 Source-Specific Multicast for
IP RFC 4608 Source-Specific Protocol
Independent Multicast in 232/8
RFC 4610 Anycast-RP Using Protocol
Independent Multicast (PIM)
RFC 4618 Encapsulation Methods for
Transport of PPP/High-Level Data Link
Control (HDLC) over MPLS Networks
RFC 4619 Encapsulation Methods for
Transport of Frame Relay over Multiprotocol
Label Switching (MPLS) Networks
RFC 4632 Classless Inter-domain Routing
(CIDR): The Internet Address Assignment
and Aggregation Plan

Data sheet

Standards and Protocols

(applies to JG875A and JH060A models)

Page 15

General protocols RFC 4649 Dynamic Host Configuration

Protocol for IPv6 (DHCP v6) Relay Agent
Remote-ID Option
RFC 4659 BGP-MPLS IP Virtual Private
Network (VPN) Extension for IPv6 VPN
RFC 4664 Framework for Layer 2 Virtual
Private Networks (L2VPNs)
RFC 4665 Service Requirements for
Layer 2 Provider-Provisioned Virtual
Private Networks
RFC 4717 Encapsulation Methods for
Transport of Asynchronous Transfer
Mode (ATM) over MPLS Networks
RFC 4741 NETCONF Configuration Protocol
RFC 4742 Using the NETCONF
Configuration Protocol over Secure SHell
(SSH)
RFC 4743 Using NETCONF over the
Simple Object Access Protocol (SOAP)
RFC 4750 OSPF Version 2 Management
Information Base
RFC 4761 Virtual Private LAN Service
(VPLS) Using BGP for Auto-Discovery
and Signaling
RFC 4765 Ser vice Requirements for
Layer 2 Provider Provisioned Virtual
Private Networks
RFC 4781 Graceful Restart Mechanism
for BGP with MPLS
RFC 4787 Network Address Translation
(NAT) Behavioral Requirements for
Unicast UDP
RFC 4797 Use of Provider Edge to
Provider Edge (PE-PE) Generic Routing
Encapsulation (GRE) or IP in BGP/MPLS
IP Virtual Private Networks
RFC 4798 Connecting IPv6 Islands over
IPv4 MPLS Using IPv6 Provider Edge
Routers (6PE)
RFC 4811 OSPF Out-of-Band Link State
Database (LSDB) Resynchronization
RFC 4812 OSPF Restart Signaling
RFC 4813 OSPF Link-Local Signaling
RFC 4816 Pseudowire Emulation
Edge-to-Edge (PWE3) Asynchronous
Transfer Mode (ATM) Transparent Cell
Transport Service
RFC 4818 RADIUS Delegated-IPv6-Prefix
Attribute
RFC 4835 Cryptographic Algorithm
Implementation Requirements for
Encapsulating Security Payload (ESP) a nd
Authentication Header (AH)
RFC 4861 Neighbor Discovery for IP
version 6 (IPv6)
RFC 4862 IPv6 Stateless Address
Autoconfiguration
RFC 4878 Definitions and Managed
Objects for Operations, Administration,
and Maintenance (OAM) Functions on
RFC 4893 BGP Support for Four-octet AS
Number Space
RFC 4940 IANA Considerations for OSPF

RFC 4941 Privacy Extensions for Stateless
Address Autoconfiguration in IPv6
RFC 5004 Avoid BGP Best Path
Transitions from One External to Another
RFC 5007 DHCPv6 Leasequery
RFC 5015 Bidirectional Protocol
Independent Multicast (BIDIR-PIM)
RFC 5036 LDP Specification
RFC 5060 Protocol Independent Multicast MIB
RFC 5065 Autonomous System
Confederations for BGP
RFC 5072 IP Version 6 over PPP
RFC 5082 The Generalized TTL Security
Mechanism (GTSM)
RFC 5085 Pseudowire Virtual Circuit
Connectivity Verification (VCCV): A
Control Channel for Pseudowires
RFC 5086 Structure-Aware Time Division
Multiplexed (TDM) Circuit Emulation
Service over Packet Switched Network
(CES oPSN)
RFC 5095 Deprecation of Type 0 Routing
Headers in IP v6
RFC 5120 M-ISIS: Multi Topology (MT)
Routing in Intermediate System to
Intermediate Systems (IS-ISs)
RFC 5130 A Policy Control Mechanism in
IS-IS Using Administrative Tags
RFC 5132 IP Multicast MIB
RFC 5187 OSPFv3 Graceful Restart
RFC 5214 Intra-Site Automatic Tunnel
Addressing Protocol (ISATAP)
RFC 5240 Protocol Independent
Multicast (PIM) Bootstrap Router MIB
RFC 5254 Requirements for
Multi-Segment Pseudowire Emulation
Edge-to-Edge (PWE3)
RFC 5277 NETCONF Event Notifications
RFC 5280 Internet X.509 Public Key
Infrastructure Certificate and Certificate
Revocation List (CRL) Profile
RFC 5281 Extensible Authentication
Protocol Tunneled Transport Layer
Security Authenticated Protocol
Version 0 (EAP-TTLSv0)
RFC 5286 Basic Specification for IP Fast
Reroute: Loop-Free Alternates
RFC 5287 Control Protocol Extensions for
the Setup of Time-Division Multiplexing
(TDM) Pseudowires in MPLS Networks
RFC 5301 Dynamic Hostname Exchange
Mechanism for IS-IS
RFC 5302 Domain-Wide Prefix Distribution
with Two-Level IS-IS
RFC 5303 Three-Way Handshake for
IS-IS Point-to-Point Adjacencies
RFC 5304 Intermediate System to
Intermediate System (IS-IS) Cryptographic
Authentication
RFC 5305 IS-IS Extensions for Traic
Engineering
RFC 5306 Restart Signaling for IS-IS
RFC 5308 Routing IPv6 with IS-IS

RFC 5309 Point-to-Point Operation over
LAN in Link State Routing Protocols
RFC 5310 IS-IS Generic Cryptographic
Authentication
RFC 5359 Session Initiation Protocol
Service Examples
RFC 5381 Experience of Implementing
NETCONF over SOAP
RFC 5382 The IP Network Address Translator
(N AT)
RFC 5398 Autonomous System (AS)
Number Reser vation for Documentation Use
RFC 5415 Control And Provisioning
of Wireless Access Points (CAPWAP)
Protocol Specification
RFC 5416 Control and Provisioning
of Wireless Access Points (CAPWAP)
Protocol Binding for IEEE 80211
RFC 5443 LDP IGP Synchronization
RFC 5492 Capabilities Advertisement with
BGP-4
RFC 5496 The Reverse Path Forwarding
(RPF) Vector TLV
RFC 5508 NAT Behavioral Requirements
for ICMP
RFC 5539 NETCONF over Transport
Layer Securit y (TLS)
RFC 5601 Pseudowire (PW )
Management Information Base (MIB)
RFC 5602 Pseudowire (PW ) over MPLS
PSN Management Information Base (MIB)
RFC 5613 OSPF Link-Local Signaling
RFC 5659 An Architecture for
Multi-Segment Pseudowire Emulation
Edge-to-Edge
RFC 5681 TCP Congestion Control
RFC 5798 Virtual Router Redundancy
Protocol (VRRP) Version 3 for IP v4 and IPv6
RFC 5833 Control and Provisioning
of Wireless Access Points (CAPWAP)
Protocol Base MIB
RFC 5834 Control and Provisioning
of Wireless Access Points (CAPWAP)
Protocol Binding MIB for IEEE 80211
RFC 5880 Bidirectional Forwarding
Detection
RFC 5881 BFD for IPv4 and IPv6
(Single Hop)
RFC 5881 Bidirectional Forwarding
Detection (BFD) for IPv4 and IPv6
(Single Hop)
RFC 5882 Generic Application of BFD
RFC 5883 BFD for Multihop Paths
RFC 5905 Network Time Protocol
Version 4: Protocol and Algorithms
Specification
RFC 5969 IPv6 Rapid Deployment on
IPv4 Infrastructures (6RD)—Protocol
Specification
RFC 6037 Cisco Systems’ Solution for
Multicast in MPLS/BGP IP VPNs
RFC 6085 Address Mapping of
IPv6 Multicast Packets on Ethernet

IP multicast RFC 1112 IGMP

RFC 2362 PIM Sparse Mode
RFC 2710 Multicast Listener Discovery
(MLD) for IPv6

RFC 2934 Protocol Independent Multicast
MIB for IPv4
RFC 3376 IGMPv3
RFC 3376 IGMPv3 (host joins only)

RFC 5059 Bootstrap Router (BSR)
Mechanism for Protocol Independent
Multicast (PIM)

Data sheet

Standards and Protocols

(applies to JG875A and JH060A models)

Page 16

IPv6

MIBs

Network management

RFC 2080 RIPng for IPv6
RFC 2460 IPv6 Specification
RFC 2473 Generic Packet Tunneling in IPv6
RFC 2475 IPv6 DiSer v Architecture
RFC 2529 Transmission of IPv6 Packets over
IPv4

RFC 1213 MIB II
RFC 1493 Bridge MIB
RFC 1724 RIPv2 MIB
RFC 1850 OSPFv2 MIB
RFC 1907 SNMPv2 MIB
RFC 2011 SNMPv2 MIB for IP
RFC 2012 SNMPv2 MIB for TCP

IEEE 8021D (STP)
RFC 1098 Simple Network Management
Protocol (SNMP)
RFC 1158 Management Information Base
for network management of TCP/IP-based
internets: MIB-II
RFC 1212 Concise MIB definitions
RFC 1215 Convention for defining traps
for use with the SNMP
RFC 1389 RIPv2 MIB Extension
RFC 1448 Protocol Operations for
version 2 of the Simple Network
Management Protocol (SNMPv2)
RFC 1450 Management Information Base
(MIB) for version 2 of the Simple Network
Management Protocol (SNMPv2)
RFC 1902 Structure of Management
Information for Version 2 of the Simple
Network Management Protocol (SNMPv2)
RFC 1903 SNMPv2 Tex tual Conventions
RFC 1904 SNMPv2 Conformance

RFC 2545 Use of MP-BGP-4 for IPv6
RFC 2553 Basic Socket Interface Extensions
for IP v6
RFC 2740 OSPFv3 for IPv6
RFC 2893 Transition Mechanisms for
IPv6 Hosts and Routers

RFC 2013 SNMPv2 MIB for UDP
RFC 2096 IP Forwarding Table MIB
RFC 2233 Interfaces MIB
RFC 2273 SNMP-NOTIFICATION-MIB
RFC 2571 SNMP Framework MIB
RFC 2572 SNMP-MPD MIB

RFC 1905 SNMPv2 Protocol Operations
RFC 1906 SNMPv2 Transport Mappings
RFC 1908 Coexistence between
Version 1 and Version 2 of the
Internet-standard Network Management
Framework
RFC 1918 Private Internet Address
Allocation
RFC 2037 Entity MIB using SMIv2
RFC 2261 An Architecture for Describing
SNMP Management Frameworks
RFC 2262 Message Processing and
Dispatching for the Simple Network
Management Protocol (SNMP)
RFC 2263 SNMPv3 Applications
RFC 2264 User-based Securit y Model
(USM) for version 3 of the Simple
Network Management Protocol (SNMPv3)
RFC 2265 View-based Access Control
Model (VACM) for the Simple Network
Management Protocol (SNMP)
RFC 2272 SNMPv3 Management Protocol
RFC 2273 SNMPv3 Applications

RFC 3056 Connection of IPv6 Domains
via IPv4 Clouds
RFC 3162 RADIUS and IPv6
RFC 3315 DHCPv6 (client and relay)
RFC 5340 OSPF for IPv6

RFC 2573 SNMP-Notification MIB
RFC 2574 SNMP USM MIB
RFC 26748021p and IEEE 8021Q Bridge
MIB
RFC 2737 Entity MIB (Version 2)
RFC 2863 The Interfaces Group MIB
RFC 3813 MPLS LSR MIB

RFC 2274 USM for SNMPv3
RFC 2275 VACM for SNMPv3
RFC 2575 SNMPv3 View-based Access
Control Model (VACM)
RFC 3164 BSD syslog Protocol
RFC 3411 An Architecture for Describing
Simple Network Management Protocol
(SNMP) Management Frameworks
RFC 3412 Message Processing and
Dispatching for the Simple Network
Management Protocol (SNMP)
RFC 3413 Simple Network Management
Protocol (SNMP) Applications
RFC 3414 SNMPv3 User-based Security
Model (USM)
RFC 3415 View-based Access Control
Model (VACM) for the Simple Network
Management Protocol (SNMP)
RFC 3418 Management Information Base
(MIB) for the Simple Network Management
Protocol (SNMP)

OSPF

QoS/CoS

Security

VPN

RFC 1245 OSPF protocol analysis
RFC 1246 Experience with OSPF
RFC 1583 OSPFv2
RFC 1587 OSPF NSSA

IEEE 8021P (CoS)
RFC 2474 DS Field in the IPv4 and
IPv6 Headers
RFC 2475 DiServ Architecture
RFC 2597 DiServ Assured Forwarding (AF)

IEEE 8021X Port Based Network Access
Control
RFC 2082 RIP-2 MD5 Authentication
RFC 2104 Keyed-Hashing for Message
Authentication
RFC 2138 RADIUS Authentication
RFC 2139 RADIUS Accounting

RFC 1828 IP Authentication using Keyed
MD5
RFC 1853 IP in IP Tunneling
RFC 2401 Security Architecture for the
Internet Protocol
RFC 2402 IP Authentication Header
RFC 2403 The Use of
HMAC-MD5-96 within ESP and AH
RFC 2404 The Use of
HMAC-SHA-1-96 within ESP and AH

RFC 1765 OSPF Database Over flow
RFC 1850 OSPFv2 Management
Information Base (MIB), traps

RFC 2598 DiServ Expedited Forwarding
(EF)
RFC 2697 A Single Rate Three Color Marker
RFC 3168 The Addition of Explicit
Congestion Notification (ECN) to IP

RFC 2408 Internet Securit y Association
and Key Management Protocol (ISAKMP)
RFC 2409 The Internet Key Exchange (IKE)
RFC 2412 The OAKLEY Key Determination
Protocol
RFC 2459 Internet X.509 Public Key
Infrastructure Certificate and CRL Profile

RFC 2405 The ESP DES-CBC Cipher
Algorithm With Explicit IV
RFC 2406 IP Encapsulating Security
Payload (ESP)
RFC 2407 The Internet IP Security Domain
of Interpretation for ISAKMP
RFC 2410 The NULL Encryption Algorithm
and Its Use With IPSec
RFC 2411 IP Security Document Roadmap

RFC 2328 OSPFv2
RFC 2370 OSPF Opaque LSA Option
RFC 3101 OSPF NSSA

RFC 3247 Supplemental Information for the
New Definition of the EF PHB (Expedited
Forwarding Per-Hop Behavior)
RFC 3260 New Terminology and
Clarifications for DiServ

RFC 2818 HTTP Over TLS
RFC 2865 RADIUS Authentication
RFC 2866 RADIUS Accounting
RFC 3579 RADIUS Support For
Extensible Authentication Protocol (EAP)
RFC 3580 IEEE 8021X Remote
Authentication Dial In User Ser vice
(RADIUS) Usage Guidelines

RFC 3948—UDP Encapsulation of IPSec
ESP Packets
RFC 4301—Security Architecture for the
Internet Protocol
RFC 4302—IP Authentication Header (AH)
RFC 4303—IP Encapsulating Security
Payload (ESP)
RFC 4305—Cryptographic Algorithm
Implementation Requirements for ESP and AH

Data sheet

Standards and Protocols

(applies to JG732A model)

Page 17

BGP RFC 1163 Border Gateway Protocol (BGP)

RFC 1267 Border Gateway Protocol 3
(BGP-3)
RFC 1657 Definitions of Managed Objects
for BGPv4
RFC 1771 BGPv4

Denial of service protection CPU DoS Protection Rate Limiting by ACLs

Device management RFC 1305 NTPv3 RFC 1945 Hypertext Transfer Protocol—

General protocols IEEE 8021D MAC Bridges

IEEE 8021p Priority
IEEE 8021Q VLANs
IEEE 8021s Multiple Spanning Trees
IEEE 8021w Rapid Reconfiguration of
Spanning Tree
RFC 768 UDP
RFC 783 TFTP Protocol (revision 2)
RFC 791 IP
RFC 792 ICMP
RFC 793 TCP
RFC 826 ARP
RFC 854 TELNET
RFC 855 Telnet Option Specification
RFC 856 TELNET
RFC 858 Telnet Suppress Go Ahead Option
RFC 894 IP over Ethernet
RFC 925 Multi-LAN Address Resolution
RFC 950 Internet Standard Subnetting
Procedure
RFC 959 File Transfer Protocol (FTP)
RFC 1006 ISO transport services on top
of the TCP: Version 3
RFC 1027 Proxy ARP
RFC 1034 Domain Concepts and Facilities
RFC 1035 Domain Implementation and
Specification
RFC 1042 IP Datagrams
RFC 1058 RIPv1
RFC 1071 Computing the Internet
Checksum
RFC 1091 Telnet Terminal-Type Option
RFC 1122 Host Requirements
RFC 1141 Incremental updating of the
Internet checksum
RFC 1142 OSI IS-IS Intra-domain Routing
Protocol
RFC 1144 Compressing TCP/IP headers
for low-speed serial links
RFC 1195 OSI ISIS for IP and Dual
Environments
RFC 1256 ICMP Router Discovery
Protocol (IRDP)
RFC 1293 Inverse Address Resolution
Protocol
RFC 1315 Management Information Base
for Frame Relay DTEs
RFC 1332 The PPP Internet Protocol
Control Protocol (IPCP)
RFC 1333 PPP Link Quality Monitoring
RFC 1334 PPP Authentication Protocols
(PAP)
RFC 1349 Type of Service
RFC 1350 TFTP Protocol (revision 2)
RFC 1377 The PPP OSI Network Layer
Control Protocol (OSINLCP)

RFC 1772 Application of the BGP
RFC 1773 Experience with the BGP-4
Protocol
RFC 1774 BGP-4 Protocol Analysis
RFC 1997 BGP Communities Attribute

HT TP/10

RFC 1695 Definitions of Managed Objects
for ATM Management Version 80 using
SMIv2
RFC 1701 Generic Routing Encapsulation
RFC 1702 Generic Routing Encapsulation
over IPv4 networks
RFC 1721 RIP-2 Analysis
RFC 1722 RIP-2 Applicability
RFC 1723 RIP v2
RFC 1795 Data Link Switching:
Switch-to-Switch Protocol AIW DLSw
RIG: DLSw Closed Pages, DLSw Standard
Version 1
RFC 1812 IPv4 Routing
RFC 1829 The ESP DES-CBC Transform
RFC 1877 PPP Internet Protocol Control
Protocol Extensions for Name Server
Addresses
RFC 1944 Benchmarking Methodology for
Network Interconnect Devices
RFC 1973 PPP in Frame Relay
RFC 1974 PPP Stac LZS Compression
Protocol
RFC 1990 The PPP Multilink Protocol (MP)
RFC 1994 PPP Challenge Handshake
Authentication Protocol (CHAP)
RFC 2091 Trigger RIP
RFC 2131 DHCP
RFC 2132 DHCP Options and BOOTP
Vendor Extensions
RFC 2166 APPN Implementer’s
Workshop Closed Pages Document DLSw
v20 Enhancements
RFC 2205 Resource ReSerVation
Protocol (RSVP)—Version 1 Functional
Specification
RFC 2280 Routing Policy Specification
Language (RPSL)
RFC 2284 EAP over LAN
RFC 2338 VRRP
RFC 2364 PPP Over AAL5
RFC 2374 An Aggregatable Global
Unicast Address Format
RFC 2451 The ESP CBC-Mode Cipher
Algorithms
RFC 2453 RIPv2
RFC 2510 Internet X.509 Public Key
Infrastructure Certificate Management
Protocols
RFC 2511 Internet X.509 Certificate
Request Message Format
RFC 2516 A Method for Transmitting
PPP Over Ethernet (PPPoE)
RFC 2644 Directed Broadcast Control
RFC 2661 L2TP
RFC 2663 NAT Terminology and
Considerations

RFC 1998 An Application of the BGP
Community Attribute in Multi-home Routing
RFC 2385 BGP Session Protection via
TCP MD5
RFC 2439 BGP Route Flap Damping

RFC 2452 MIB for TCP6
RFC 2454 MIB for UDP6

RFC 3022 Traditional IP Network Address
Translator (Traditional NAT)
RFC 3027 Protocol Complications with
the IP Network Address Translator
RFC 3031 Multiprotocol Label Switching
Architecture
RFC 3032 MPLS Label Stack Encoding
RFC 3036 LDP Specification
RFC 3046 DHCP Relay Agent Information
Option
RFC 3063 MPLS Loop Prevention
Mechanism
RFC 3065 Support AS confederation
RFC 3137 OSPF Stub Router
Advertisement
RFC 3209 RSVP-TE Extensions to RSVP
for LSP Tunnels
RFC 3210 Applicability Statement for
Extensions to RSVP for LSP-Tunnels
RFC 3212 Constraint-Based LSP setup
using LDP (CR-LDP)
RFC 3214 LSP Modification Using
CR-LDP
RFC 3215 LDP State Machine
RFC 3268 Advanced Encryption Standard
(AES) Ciphersuites for Transport Layer
Security (TLS)
RFC 3277 IS-IS Transient Blackhole
Avoid ance
RFC 3279 Algorithms and Identifiers
for the Internet X.509 Public Key
Infrastructure Certificate and Certificate
Revocation List (CRL) Profile
RFC 3280 Internet X.509 Public Key
Infrastructure Certificate and Certificate
Revocation List (CRL) Profile
RFC 3392 Support BGP capabilities
advertisement
RFC 3479 Fault Tolerance for the Label
Distribution Protocol (LDP)
RFC 3564 Requirements for Support
of Dierentiated Services-aware MPLS
Traic Engineering
RFC 3602 The AES-CBC Cipher Algorithm
and Its Use with IPSec
RFC 3706 A Traic-B ased Method of Detecting
Dead Internet Key Exchange (IKE) Peers
RFC 3784 ISIS TE support
RFC 3786 Extending the Number of IS-IS
LSP Fragments Beyond the 256 Limit
RFC 3811 Definitions of Textual
Conventions (TCs) for Multiprotocol
Label Switching (MPLS) Management
RFC 3812 Multiprotocol Label Switching
(MPLS) Traic Engineering (TE)
Management Information Base (MIB)

Data sheet

Standards and Protocols

(applies to JG732A model)

Page 18

General protocols RFC 1381 SNMP MIB Extension for

X.25 L APB
RFC 1471 The Definitions of Managed
Objects for the Link Control Protocol of
the Point-to-Point Protocol
RFC 1472 The Definitions of Managed
Objects for the Security Protocols of the
Point-to-Point Protocol
RFC 1490 Multiprotocol Interconnect
over Frame Relay
RFC 1519 CIDR
RFC 1534 DHCP/BOOTP Interoperation
RFC 1542 Clarifications and Extensions
for the Bootstrap Protocol
RFC 1552 The PPP Internetworking
Packet Exchange Control Protocol (IPXCP)
RFC 1577 Classical IP and ARP over ATM
RFC 1613 Cisco Systems X.25 over TCP
(XOT)
RFC 1624 Incremental Internet Checksum
RFC 1631 NAT
RFC 1638 PPP Bridging Control Protocol
(BCP)
RFC 1661 The Point-to-Point Protocol
(PPP)
RFC 1662 PPP in HDLC-like Framing

IP multicast RFC 1112 IGMP

RFC 2236 IGMPv2
RFC 2283 Multiprotocol Extensions for
BGP-4

RFC 2684 Multiprotocol Encapsulation
over ATM Adaptation Layer 5
RFC 2694 DNS extensions to Network
Address Translators (DNS_ALG)
RFC 2702 Requirements for Traic
Engineering Over MPLS
RFC 2747 RSVP Cryptographic
Authentication
RFC 2763 Dynamic Name-to-System ID
mapping support
RFC 2765 Stateless IP/ICMP Translation
Algorithm (SIIT)
RFC 2766 Network Address Translation—
Protocol Translation (NAT-PT)
RFC 2784 Generic Routing Encapsulation
(GRE)
RFC 2787 Definitions of Managed Objects
for VRRP
RFC 2961 RSVP Refresh Overhead
Reduction Extensions
RFC 2966 Domain-wide Prefix Distribution
with Two-Level IS-IS
RFC 2973 IS-IS Mesh Groups
RFC 2993 Architectural Implications of NAT

RFC 2362 PIM Sparse Mode
RFC 2365 Administratively Scoped IP
Multicast
RFC 2710 Multicast Listener Discovery
(MLD) for IPv6

RFC 3847 Restart signaling for IS-IS
FRF.12 PVC User-to-Network Interface
(UNI) Implementation Agreement—
July 2000
FRF.111 Voice over Frame Relay
Implementation Agreement—May 1997—
Annex J added March 1999
FRF.12 Frame Relay Fragmentation
Implementation Agreement—December 1997
FRF.161 Multilink Frame Relay UNI/NNI
Implementation Agreement—May 2002
FRF.22 Frame Relay Network-to-Network
Interface (NNI) Implementation
Agreement—March 2002
FRF.20 Frame Relay IP Header
Compression Implementation
Agreement—June 2001
FRF.32 Frame Relay Multiprotocol
Encapsulation Implementation
Agreement—April 2000
FRF.7 Frame Relay PVC Multicast Service
and Protocol Description—October 1994
FRF.9 Data Compression Over Frame
Relay Implementation Agreement—
January 1996

RFC 2934 Protocol Independent
Multicast MIB for IPv4
RFC 3376 IGMPv3

IPv6 RFC 1981 IPv6 Path MTU Discovery

RFC 2080 RIPng for IPv6
RFC 2292 Advanced Sockets API for IPv6
RFC 2373 IPv6 Addressing Architecture
RFC 2460 IPv6 Specification
RFC 2461 IPv6 Neighbor Discovery
RFC 2462 IPv6 Stateless Address
Auto-configuration

MIBs RFC 1213 MIB II

RFC 1229 Interface MIB Extensions
RFC 1286 Bridge MIB
RFC 1493 Bridge MIB
RFC 1573 SNMP MIB II
RFC 1724 RIPv2 MIB
RFC 1757 Remote Network Monitoring MIB

Network management IEEE 8021D (STP)

RFC 1155 Structure of Management
Information
RFC 1157 SNMPv1
RFC 1905 SNMPv2 Protocol Operations

OSPF RFC 1245 OSPF protocol analysis

RFC 1246 Experience with OSPF
RFC 1587 OSPF NSSA

QoS/CoS IEEE 8021P (CoS)

RFC 2474 DS Field in the IPv4 and
IPv6 Headers

RFC 2463 ICMPv6
RFC 2464 Transmission of IP v6 over
Ethernet Networks
RFC 2472 IP Version 6 over PPP
RFC 2473 Generic Packet Tunneling in IPv6
RFC 2475 IPv6 DiSer v Architecture
RFC 2529 Transmission of IPv6 Packets
over IPv4
RFC 2545 Use of MP-BGP-4 for IPv6

RFC 1850 OSPFv2 MIB
RFC 2011 SNMPv2 MIB for IP
RFC 2012 SNMPv2 MIB for TCP
RFC 2013 SNMPv2 MIB for UDP
RFC 2233 Interfaces MIB
RFC 2454 IPV6-UDP-MIB
RFC 2465 IPv6 MIB

RFC 2272 SNMPv3 Management Protocol
RFC 2273 SNMPv3 Applications
RFC 2274 USM for SNMPv3
RFC 2275 VACM for SNMPv3

RFC 1765 OSPF Database Over flow
RFC 1850 OSPFv2 Management
Information Base (MIB), traps

RFC 2475 DiServ Architecture
RFC 2597 DiServ Assured Forwarding
(AF)

RFC 2553 Basic Socket Interface
Extensions for IPv6
RFC 2740 OSPFv3 for IPv6
RFC 2893 Transition Mechanisms for
IPv6 Hosts and Routers
RFC 3056 Connection of IPv6 Domains
via IPv4 Clouds
RFC 3513 IPv6 Addressing Architecture
RFC 3596 DNS Extension for IPv6

RFC 2466 ICMPv6 MIB
RFC 2618 RADIUS Client MIB
RFC 2620 RADIUS Accounting MIB
RFC 26748021p and IEEE 8021Q Bridge
MIB
RFC 2737 Entity MIB (Version 2)
RFC 2863 The Interfaces Group MIB
RFC 2933 IGMP MIB
RFC 3813 MPLS LSR MIB

RFC 2575 SNMPv3 View-based Access
Control Model (VACM)
RFC 3164 BSD syslog Protocol

RFC 2328 OSPFv2
RFC 2370 OSPF Opaque LSA Option
RFC 3101 OSPF NSSA

RFC 2598 DiServ Expedited Forwarding
(EF)
RFC 3168 The Addition of Explicit
Congestion Notification (ECN) to IP

Data sheet

Standards and Protocols

(applies to JG732A model)

Page 19

Security IEEE 8021X Port Based Network Access

Control
RFC 1321 The MD5 Message-Digest
Algorithm
RFC 2082 RIP-2 MD5 Authentication
RFC 2104 Keyed-Hashing for Message
Authentication

VPN RFC 2403—HMAC-MD5-96

RFC 2404—HMAC-SHA1-96
RFC 2405—DES-CBC Cipher algorithm
RFC 2547 BGP/MPLS VPNs

IPSec RFC 1828 IP Authentication using Keyed

MD5
RFC 2401 IP Security Architecture
RFC 2402 IP Authentication Header
RFC 2406 IP Encapsulating Security
Payload

IKEv1 RFC 2865—Remote Authentication Dial

RFC 2138 RADIUS Authentication
RFC 2209 RSVP-Message Processing
RFC 2246 Transport Layer Security (TLS)
RFC 2716 PPP EAP TLS Authentication
Protocol

RFC 2796 BGP Route Reflection—An
Alternative to Full Mesh IBGP
RFC 2842 Capabilities Advertisement
with BGP-4
RFC 2858 Multiprotocol Extensions for
BGP-4

RFC 2407—Domain of interpretation
RFC 2410—The NULL Encryption
Algorithm and its use with IPSec
RFC 2411 IP Security Document
Roadmap

In User Service (RADIUS)

HPE MSR1000 Router Series accessories

Transceivers HPE X110100M SFP LC FX Transceiver (JD102B)

HPE X110100M SFP LC LX Transceiver (JD120B)
HPE X110100M SFP LC LH40 Transceiver (JD090A)
HPE X110100M SFP LC LH80 Transceiver (JD091A)
HPE X1201G SFP LC SX Transceiver (JD118B)
HPE X1201G SFP LC LX Transceiver (JD119B)
HPE X1251G SFP LC LH401310nm Transceiver (JD061A)
HPE X1201G SFP LC LH401550nm Transceiver (JD062A)
HPE X1251G SFP LC LH70 Transceiver (JD063B)
HPE X1201G SFP LC LH100 Transceiver (JD103A)
HPE X1201G SFP LC BX 10-U Transceiver (JD098B)
HPE X1201G SFP LC BX 10-D Transceiver (JD099B)

RFC 2865 RADIUS Authentication
RFC 2866 RADIUS Accounting
RFC 3567 Intermediate System (IS) to IS
Cryptographic Authentication

RFC 2918 Route Refresh Capabilit y for
BGP-4
RFC 3107 Carrying Label Information in
BGP-4

RFC 2412—OAKLEY
RFC 2865—Remote Authentication Dial
In User Service (RADIUS)

RFC 3748—Extensible Authentication
Protocol (EAP)

Cables HPE X200 V.24 DTE 3m Serial Port Cable (JD519A)

Mounting Kit HPE 3100/4210-16/-8 PoE Rack Mount Kit (JD323A)

HPE X200 V.24 DCE 3m Serial Port Cable (JD521A)
HPE X200 V.35 DTE 3m Serial Port Cable (JD523A)
HPE X200 V.35 DCE 3m Serial Port Cable (JD525A)
HPE X260 RS4493m DTE Serial Port Cable (JF825A)
HPE X260 RS4493m DCE Serial Port Cable (JF826A)
HPE X260 RS5303m DTE Serial Port Cable (JF827A)
HPE X260 RS5303m DCE Serial Port Cable (JF828A)
HPE X260 Auxiliary Router Cable (JD508A)
HPE X260 E1 RJ453m Router Cable (JD509A)
HPE X260 E1 (2) BNC 75 ohm 3m Router Cable (JD175A)
HPE X260 E1 BNC 20m Router Cable (JD514A)
HPE X260 E1 RJ45 BNC 75-120 ohm Conversion Router Cable (JD511A)
HPE X2602E1 BNC 3m Router Cable (JD643A)
HPE X260 T1 Router Cable (JD518A)
HPE X260 SIC-8AS RJ45028m Router Cable (JD642A)
HPE X260 E1 RJ4520m Router Cable (JD517A)
HPE X260 mini D-28 to 4-RJ4503m Router Cable (JG263A)

Data sheet

HPE MSR1000 Router Series accessories (continued)

Router Modules HPE MSR 9-port 10/100Base-T Switch DSIC Module (JD574B)

License HPE IPS Activation for MSR1000 E-LTU (JH226AAE)

HPE MSR 4-por t 10/100Base-T Switch SIC Module (JD573B)
HPE MSR 4-por t Gig-T Switch SIC Module (JG739A)
HPE MSR 1-port GbE Combo SIC Module (JG738A)
HPE MSR 1-port 10/100Base-T SIC Module (JD545B)
HPE MSR 1-port 100Base-X SIC Module (JF280A)
HPE MSR 2-port FXO SIC Module (JD558A)
HPE MSR 2-port FXS SIC Module (JD560A)
HPE MSR 2-port FXS/1-port FXO SIC Module (JD632A)
HPE MSR 1-port 8-wire G.SHDSL (RJ45) DSIC Module (JG191A)
HPE MSR 1-port E1/Fractional E1 (75ohm) SIC Module (JD634B)
HPE MSR 2-port E1/Fractional E1 (75ohm) SIC Module (JF842A)
HPE MSR 1-port T1/Fractional T1 SIC Module (JD538A)
HPE MSR 1-port Enhanced Serial SIC Module (JD557A)
HPE MSR 2-port Enhanced Sync/Async Serial SIC Module (JG736A)
HPE MSR 4-por t Enhanced Sync/Async Serial SIC Module (JG737A)
HPE MSR 1-port ISDN-S/T SIC Module (JD571A)
HPE MSR 16-port Async Serial SIC Module (JG186A)
HPE MSR 8-por t Async Serial SIC Module (JF281A)
HPE MSR 1-port E1/CE1/PRI SIC Module (JG604A)
HPE MSR 4-por t FXS/1-port FXO DSIC Module (JG189A)
HPE Flex Network MSR 4G LTE SIC Module for LTE 700/1700/2100 MHz CDMA UMTS/HSPA+/HSPA/EDGE/GPRS/GSM (JG742B)
HPE MSR 4G LTE SIC Module for ATT/LTE 700/1700/2100 MHz and UMTS/HSPA+/HSPA/EDGE/GRPS/GSM (JG743A)
HPE MSR 4G LTE SIC Module for Global/LTE 800/900/1800/2100/2600MHz UMTS/HSPA+/HSPA/EDGE/GRPS/GSM (JG744B)
HPE MSR HSPA+/WCDMA SIC Module (JG929A)
HPE MSR 1-port E1/T1 Voice SIC Module (JH240A)

HPE DV Essential IPS Filter Service for MSR10001yr E-LTU (JH230AAE)

Learn more at

hpe.com/networking

Sign up for updates

© Copyright 2014–2016 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without
notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements
accompanying such products and services. Nothing herein should be construed as constituting an additional warranty.
Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

Microsoft is a registered trademark of Microsoft Corporation in the United States and/or other countries. sFlow is a registered trademark
of InMon Corp.

4AA5-0754ENW, September 2016, Rev. 5
