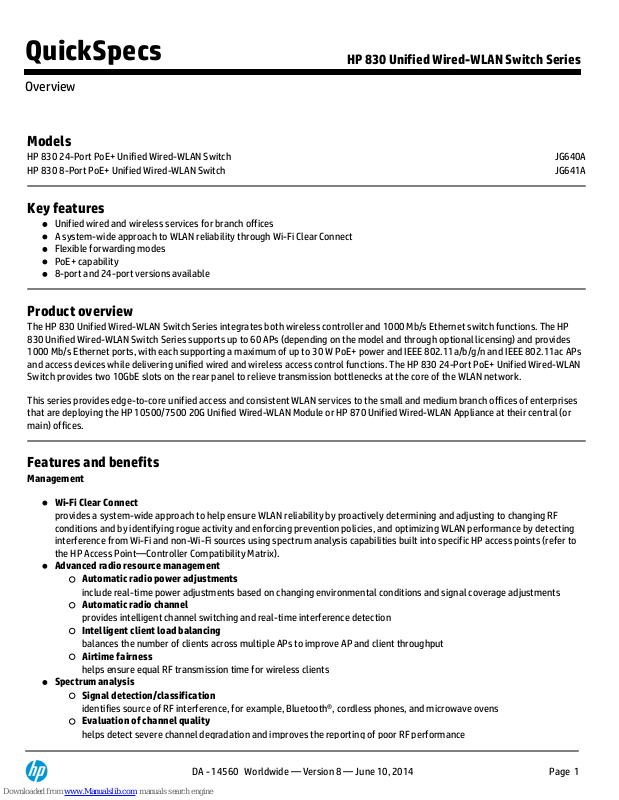

HP JG640A, 830, JG641A Quickspecs

Models

HP 830 24-Port PoE+ Unified Wired-WLAN Switch

JG640A

HP 830 8-Port PoE+ Unified Wired-WLAN Switch

JG641A

Key features

Unified wired and wireless services for branch offices
A system-wide approach to WLAN reliability through Wi-Fi Clear Connect
Flexible forwarding modes
PoE+ capability
8-port and 24-port versions available

Product overview

The HP 830 Unified Wired-WLAN Switch Series integrates both wireless controller and 1000 Mb/s Ethernet switch functions. The HP
830 Unified Wired-WLAN Switch Series supports up to 60 APs (depending on the model and through optional licensing) and provides
1000 Mb/s Ethernet ports, with each supporting a maximum of up to 30 W PoE+ power and IEEE 802.11a/b/g/n and IEEE 802.11ac APs
and access devices while delivering unified wired and wireless access control functions. The HP 830 24-Port PoE+ Unified Wired-WLAN
Switch provides two 10GbE slots on the rear panel to relieve transmission bottlenecks at the core of the WLAN network.

This series provides edge-to-core unified access and consistent WLAN services to the small and medium branch offices of enterprises
that are deploying the HP 10500/7500 20G Unified Wired-WLAN Module or HP 870 Unified Wired-WLAN Appliance at their central (or
main) offices.

Features and benefits

Management

Wi-Fi Clear Connect

provides a system-wide approach to help ensure WLAN reliability by proactively determining and adjusting to changing RF
conditions and by identifying rogue activity and enforcing prevention policies, and optimizing WLAN performance by detecting
interference from Wi-Fi and non-Wi-Fi sources using spectrum analysis capabilities built into specific HP access points (refer to
the HP Access Point—Controller Compatibility Matrix).

Advanced radio resource management

Automatic radio power adjustments

include real-time power adjustments based on changing environmental conditions and signal coverage adjustments

Automatic radio channel

provides intelligent channel switching and real-time interference detection

Intelligent client load balancing

balances the number of clients across multiple APs to improve AP and client throughput

Airtime fairness

helps ensure equal RF transmission time for wireless clients

Spectrum analysis

Signal detection/classification

identifies source of RF interference, for example, Bluetooth®, cordless phones, and microwave ovens

Evaluation of channel quality

helps detect severe channel degradation and improves the reporting of poor RF performance

QuickSpecs

HP 830 Unified Wired-WLAN Switch Series

Overview

DA - 14560 Worldwide — Version 8 — June 10, 2014

Page 1

Band Navigation

enables automatic redirection of 5 GHz-capable clients to the less-congested 5 GHz spectrum

Enterprise network management

is provided by HP Intelligent Management Center (IMC) platform software and the HP IMC Wireless Services Manager Software
Module, which effectively integrate traditionally disparate management tools into one easy-to-use interface

Secure controller management

manages the controller securely from a single location with IMC or any other SNMP management station; controller supports
SNMPv3 as well as SSHv2 and SSL for secure CLI and Web management; console port is available as a pass-through to the switch
console function

Support for environments using Bonjour services

Gateway: Allows discovery of Bonjour services located in a different layer-3 network
HP Zerocast: Eliminates Bonjour multicast traffic from the WLAN enabling scalable deployment of Apple devices with no
performance impact on the Wi-Fi network
Access control: Enables filters to be applied inbound and outbound (on the AP) to SSIDs, groups of or specific APs. User
based filtering can block Bonjour traffic until the user is authenticated

VLAN pooling

enables wireless clients to be dynamically assigned to different VLANs so administrators can assign different subnets to
different clients in the same SSID. A VLAN pool can bind to multiple SSIDs.

Unified network visibility

provides visibility between a wired and wireless network using IEEE 802.1AB Link Layer Discovery Protocol (LLDP) and sFlow

AP Plug and Play (PnP)

provides zero-configuration capability. An AP without a predefined configuration file can connect to the WLAN controller and the
WLAN Controller will provision it with the correct wireless configuration.

Policy based forwarding

simplifies the deployment of centralized or local forwarding. The policy-based mode allows user to classify data traffic based on
ACL and choose local or centralized forwarding policy can be applied on a SSID or a specific user or a group of users.

AP grouping

enables an admin to easily apply AP-based or radio-based configurations to all the AP that are in the same group.

Staged Firmware Upgrades

enables an admin to selectively upgrade APs, typically a group of APs, to minimize the impact of upgrading large deployments of
APs to a new version of firmware.

Custom antenna settings

allow the admin to select a custom antenna gain.

Quality of Service

(QoS)

End-to-end QoS

supports the DiffServ standard and IPv6 QoS; the QoS DiffServ model includes traffic classification and traffic policing, and fully
implements six groups of services—EF, AF1 through AF4, and BE.

IEEE 802.1p prioritization

delivers data to devices based on the priority and type of traffic

Class of Service (CoS)

sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source
port, and DiffServ

Security

Web-based authentication

provides a browser-based environment to authenticate clients that do not support the IEEE 802.1X supplicant

IEEE 802.1X and RADIUS network logins

QuickSpecs

HP 830 Unified Wired-WLAN Switch Series

Overview

DA - 14560 Worldwide — Version 8 — June 10, 2014

Page 2

supports port-based and SSID-based IEEE 802.1X authentication and accounting

WEP, WPA2, or WPA encryption

can be deployed at the AP to lock out unauthorized wireless access by authenticating users prior to granting network access;
robust Advanced Encryption Standard (AES) or Temporal Key Integrity Protocol (TKIP) encryption secures the data integrity of
wireless traffic

Integrated Wireless Intrusion Detection System (WIDS) support

provides support for hybrid and dedicated modes; detects flood, spoofing, and weak IV attacks; displays statistics (events) and
history; supports configuration of detection policies

Integrated Wireless Intrusion Prevention System (WIPS)

automatically identifies and classifies all APs and stations; enables packet-trigger containment via knowledge-based heuristics;
protects against honeypot attacks and enforces STA security; detects Denial Of Service (DoS) attacks via pre-defined DoS
attacks, and provides a Signature mechanism which allows admins to define custom rules; enables Virtual Service Domains to
deploy security policies by department or location for example.

Media access control (MAC) authentication

provides simple authentication based on a user's MAC address; supports local or RADIUS-based authentication

Secure user isolation

virtual AP services enable network administrators to provide specific services for different user groups, allowing effective
resource sharing, and simplifying network maintenance and management

Secure access by location

AP location-based user access control helps ensure that wireless users can access and authenticate only to preselected APs,
enabling system administrators to control the locations where a wireless user can access the network

Endpoint Admission Defense

integrated wired and wireless Endpoint Admission Defense (EAD) helps ensure that only wireless clients who comply with
mandated enterprise security policies can access the network, reducing threat levels caused by infected wireless clients and
improving the overall security of the wireless network

Public Key Infrastructure (PKI)

is used to control access

Authentication, authorization, and accounting (AAA)

uses an embedded authentication server or external AAA server for local users

Intelligent Application Aware Feature (WIAA)

provides a user role based or SSID based firewall embedded in WLAN Controller via ACL-based packet filter firewall and ASPF
firewall. Protect clients from outside attacks Restrict specific users from accessing specific network resources.

Source Address Validation Improvement (SAVI)

records the wireless client's IP address and MAC address and at the next data traffic forwarding stage, SAVI will validate the
client's IP address to prevent attacker spoofing other client's IP address.

Connectivity

IEEE 802.3at Power over Ethernet (PoE+)

provides 30 W of support per port for PoE+-capable devices such as IP phones, wireless access points, and security cameras, as
well as any IEEE 802.3af-compliant end device; eliminates the cost of additional electrical cabling that would be needed in IP
phone and WLAN deployments; the HP 830 8-Port PoE+ Unified Wired-WLAN Switch supports up to 5 ports at 30 W; the 24-port
model can support up to 24 ports at up to 30 W depending on the power source

Loopback

supports internal loopback testing for maintenance purposes and an increase in availability; loopback detection protects against
incorrect cabling or network configurations and can be enabled on a per-port or per-VLAN basis for added flexibility

IPv6

IPv6 host

enables controllers to be managed and deployed at the IPv6 network's edge

Dual stack (IPv4 and IPv6)

QuickSpecs

HP 830 Unified Wired-WLAN Switch Series

Overview

DA - 14560 Worldwide — Version 8 — June 10, 2014

Page 3

transitions customers from IPv4 to IPv6, supporting connectivity for both protocols

MLD snooping

directs IPv6 multicast traffic to the appropriate interface, preventing traffic flooding

IPv6 ACL/QoS

supports ACL and QoS for IPv6 network traffic

NAT support

NAT traversal

helps ensure that communication between a branch office AP and HP 830 is supported when the branch uses NAT.

Integrated NAT support

replaces the private source IP address with a public address; enables multiple internal addresses to be mapped to the
same public IP address; permits only certain internal IP addresses to be NAT'ed, and provides an Application Layer
Gateway that supports specific application protocols without requiring the NAT platform to be modified.

IEEE 802.3ad Link Aggregation Control Protocol (LACP)

supports a total of 12 (24-port) or 4 trunk groups (8-port) with each group supporting 8 active ports. Ports must be of the
same type (that is, all 100/1000 ports or 10GbE ports).

Performance

Flexible forwarding modes

supports both distributed and centralized forwarding mode; in a wireless network using centralized forwarding, all wireless
traffic is sent to the HP 830 Unified Wired-WLAN Switch for processing; if the distributed mode is configured, authenticated
clients can continue to access local resources in the event that connectivity to the HP 830 Unified Wired-WLAN Switch is lost

Fast roaming

supports Layer 3 roaming and fast roaming, satisfying the most demanding voice service requirements

Flexible forwarding modes

enable distributed and centralized traffic forwarding

centralized forwarding, wireless traffic is sent to the HP 830 for processing. With distributed mode wireless traffic is
dropped off locally. In the event that connectivity to the HP 830 is lost, authenticated clients can continue to access local
resources.

support local drop off or centralization of data traffic

after an HTML authentication using the built-in portal server or IMC portal authentication.

Resiliency and high availability

High reliability

supports N+1 and N+N backup

Layer 2 switching

VLAN support and tagging

supports IEEE 802.1Q with 4,094 simultaneous VLAN IDs

Spanning Tree Protocol (STP)

supports standard IEEE 802.1D STP, IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) for faster convergence, and IEEE 802.1s
Multiple Spanning Tree Protocol (MSTP)

Port mirroring

duplicates port traffic (ingress and egress) to a local or remote monitoring port

Jumbo packet support

supports frame sizes up to 9K byte (switch) and up to 4K byte (controller) to improve the performance of large data transfers

Layer 3 routing

QuickSpecs

HP 830 Unified Wired-WLAN Switch Series

Overview

DA - 14560 Worldwide — Version 8 — June 10, 2014

Page 4

Routing Information Protocol (RIP)

provides RIPv1 and RIPv2 rout

Static IP routing

provides manually configured routing for both IPv4 and IPv6 networks

Scalability

Pay as you grow

12 AP license upgrades allow you to increase support for additional access points without the need to buy additional costly
hardware.

Comprehensive portfolio

Access point support

Refer to the HP Access Point—Controller Compatibility Matrix
(http://h20195.www2.hp.com/V2/GetDocument.aspx?docname=4AA5-0345ENW&cc=us&lc=en).

Warranty and support

Lifetime Warranty 2.0

advance hardware replacement for as long as you own the product with next-business-day delivery (available in most countries)†

Electronic and telephone support (for Lifetime Warranty 2.0)

limited 24x7 telephone support is available from HP for the first 3 years; limited electronic and business hours telephone
support is available from HP for the entire warranty period; to reach our support centers, refer to

www.hp.com/networking/contact-support

; for details on the duration of support provided with your product purchase, refer

to

www.hp.com/networking/warrantysummary

Software releases

includes all offered software releases for as long as you own the product; to find software for your product, refer to

www.hp.com/networking/support

; for details on the software releases available with your product purchase, refer to

www.hp.com/networking/warrantysummary

†HP warranty includes repair or replacement of hardware for as long as you own the product, with next business day advance
replacement (available in most countries). The disk drive included with HP AllianceOne Advanced Services and Services zl Modules, HP
Threat Management Services zl Module, HP AllianceOne Extended zl Module with Riverbed Steelhead, HP MSM765zl Mobility Controller
and HP Survivable Branch Communication zl Module powered by Microsoft® Lync has a five-year hardware warranty. For details, refer
to the Software license and hardware warranty statements at

www.hp.com/networking/warranty

.

QuickSpecs

HP 830 Unified Wired-WLAN Switch Series

Overview

DA - 14560 Worldwide — Version 8 — June 10, 2014

Page 5

Build To Order:

BTO is a standalone unit with no integration. BTO products ship standalone are not part of a CTO or Rack-

Shippable solution.

Standard Switch Enclosures

HP 830 8P PoE+ Unifd Wired-WLAN Swch

JG641A

8 RJ-45 dual-personality 10/100/1000 ports
2 SFP 1000 Mbps ports (Min 0 / Max 2)
1 RJ-45 serial console port

See Configuration

Note:1, 2, 3

PDU CABLE NA/MEX/TW/JP

JG641A#B2B

C15 PDU Jumper Cord (NA/MEX/TW/JP)

PDU CABLE ROW

JG641A#B2C

C15 PDU Jumper Cord (ROW)

220 NA

JG641A#B2E

NEMA L6-20P Cord

HP 830 24P PoE+ Unifd Wired-WLAN Swch

JG640A

24 RJ-45 auto-negotiating 10/100/1000 ports
4 SFP dual-personality ports; Duplex: full only (Min 0 / Max 4)
2 extended module slots
1 RJ-45 serial console port

See Configuration

Note:1, 2, 3

PDU CABLE NA/MEX/TW/JP

JG640A#B2B

C15 PDU Jumper Cord (NA/MEX/TW/JP)

PDU CABLE ROW

JG640A#B2C

C15 PDU Jumper Cord (ROW)

220 NA

JG640A#B2E

NEMA L6-20P Cord

HP 850 Unified Wired-WLAN Appliance

JG722A

8 SFP dual-personality ports/8 RJ-45 autosensing 100/1000 ports (min=0 \ max=8 SFP Transceivers)
2 SFP+ 10GbE ports(min=0 \ max=2 SFP+ Transceivers)
1 RJ-45 serial console port
1 RJ-45 out-of-band management port
JG745A HP X351 150W AC Power Supply Included
1 U Height

See Configuration

Note:2, 3, 6, 7

PDU Cable NA/MEX/TW/JP

JG722A#B2B

C15 PDU Jumper Cord (NA/MEX/TW/JP)

QuickSpecs

HP 830 Unified Wired-WLAN Switch Series

Configuration

DA - 14560 Worldwide — Version 8 — June 10, 2014

Page 6

PDU Cable ROW

JG722A#B2C

C15 PDU Jumper Cord (ROW)

High Volt Switch/Router to Wall Power Cord

JG722A#B2E

NEMA L6-20P Cord (NA/MEX/JP/TW)

HP 870 Unified Wired-WLAN Appliance

JG723A

12 RJ-45 autosensing 100/1000 ports
12 SFP 100/1000 Mb/s ports (min=0 \ max=12 SFP Transceivers)
4 SFP+ 10GbE ports (min=0 \ max=4 SFP+ Transceivers)
1 RJ-45 serial console port
1 RJ-45 out-of-band management port
1 - JG527A HP X351 300W AC Power Supply Included
2 U Height

See Configuration

Note:2, 3, 6, 7

PDU Cable NA/MEX/TW/JP

JG723A#B2B

C15 PDU Jumper Cord (NA/MEX/TW/JP)

PDU Cable ROW

JG723A#B2C

C15 PDU Jumper Cord (ROW)

High Volt Switch/Router to Wall Power Cord

JG723A#B2E

NEMA L6-20P Cord (NA/MEX/JP/TW)

PDU CABLE NA/MEX/TW/JP

JG647A#B2B

C15 PDU Jumper Cord (NA/MEX/TW/JP)

220 NA

JG647A#B2E

NEMA L6-20P Cord

PDU CABLE NA/MEX/TW/JP

JG646A#B2B

C15 PDU Jumper Cord (NA/MEX/TW/JP)

220 NA

JG646A#B2E

NEMA L6-20P Cord

Configuration Rules:

Note 1

The following Transceivers install into this Switch:
HP X125 1G SFP LC LH40 1310nm Transceiver

JD061A

HP X120 1G SFP LC LH40 1550nm Transceiver

JD062A

HP X125 1G SFP LC LH70 Transceiver

JD063B

HP X120 1G SFP LC SX Transceiver

JD118B

HP X120 1G SFP LC LX Transceiver

JD119B

QuickSpecs

HP 830 Unified Wired-WLAN Switch Series

Configuration

DA - 14560 Worldwide — Version 8 — June 10, 2014

Page 7

Note 2

Localization required on orders without #B2B, #B2C or #B2E options.

Note 3

If #B2E is selected Then replace Localized option with #B2E for power supply and with #B2E for switch . (Offered
only in NA, Mexico,, Taiwan, and Japan)

Note 6

The following Transceivers install into this Switch:
JD092B - HP X130 10G SFP+ LC SR Transceiver
JD093B - HP X130 10G SFP+ LC LRM Transceiver
JD094B - HP X130 10G SFP+ LC LR Transceiver
JG234A - HP X130 10G SFP+ LC ER 40km Transceiver

Note 7

The following Transceivers install into this Switch:
JD102B - HP X115 100M SFP LC FX Transceiver
JD120B - HP X110 100M SFP LC LX Transceiver
JD090A - HP X110 100M SFP LC LH40 Transceiver
JD118B - HP X120 1G SFP LC SX Transceiver
JD119B - HP X120 1G SFP LC LX Transceiver
JD061A - HP X125 1G SFP LC LH40 1310nm XCVR
JD062A - HP X120 1G SFP LC LH40 1550nm XCVR
JD063B - HP X125 1G SFP LC LH70 Transceiver

Remarks:

The TAA skus in the 800 Unified Wired-WLAN Switches are US available only.

Box Level CTO Models

CTO Solution Sku

HP 830 CTO Unifd Wrd-WLAN Swch Solution

JG662A

SSP trigger sku

CTO Switch Chassis

HP 830 8P PoE+ Unifd Wired-WLAN Swch

JG641A

8 RJ-45 dual-personality 10/100/1000 ports
2 SFP 1000 Mbps ports (Min 0 / Max 2)
1 RJ-45 serial console port

See Configuration

Note:1, 2, 3, 4

PDU CABLE NA/MEX/TW/JP

JG641A#B2B

C15 PDU Jumper Cord (NA/MEX/TW/JP)

PDU CABLE ROW

JG641A#B2C

C15 PDU Jumper Cord (ROW)

220 NA

JG641A#B2E

NEMA L6-20P Cord

QuickSpecs

HP 830 Unified Wired-WLAN Switch Series

Configuration

DA - 14560 Worldwide — Version 8 — June 10, 2014

Page 8

HP 830 24P PoE+ Unifd Wired-WLAN Swch

JG640A

24 RJ-45 auto-negotiating 10/100/1000 ports
4 SFP dual-personality ports; Duplex: full only (Min 0 / Max 4)
2 extended module slots
1 RJ-45 serial console port

See Configuration

Note:1, 2, 3, 4

PDU CABLE NA/MEX/TW/JP

JG640A#B2B

C15 PDU Jumper Cord (NA/MEX/TW/JP)

PDU CABLE ROW

JG640A#B2C

C15 PDU Jumper Cord (ROW)

220 NA

JG640A#B2E

NEMA L6-20P Cord

HP 850 Unified Wired-WLAN Appliance

JG722A

8 SFP dual-personality ports/8 RJ-45 autosensing 100/1000 ports (min=0 \ max=8 SFP Transceivers)
2 SFP+ 10GbE ports(min=0 \ max=2 SFP+ Transceivers)
1 RJ-45 serial console port
1 RJ-45 out-of-band management port
1- JG745A HP X351 150W AC Power Supply Included
1 U Height

See Configuration

Note: 2, 3, 4, 7, 8

PDU Cable NA/MEX/TW/JP

JG722A#B2B

C15 PDU Jumper Cord (NA/MEX/TW/JP)

PDU Cable ROW

JG722A#B2C

C15 PDU Jumper Cord (ROW)

High Volt Switch/Router to Wall Power Cord

JG722A#B2E

NEMA L6-20P Cord (NA/MEX/JP/TW)

HP 870 Unified Wired-WLAN Appliance

JG723A

12 RJ-45 autosensing 100/1000 ports
12 SFP 100/1000 Mb/s ports (min=0 \ max=12 SFP Transceivers)
4 SFP+ 10GbE ports (min=0 \ max=4 SFP+ Transceivers)
1 RJ-45 serial console port
1 RJ-45 out-of-band management port
1 - JG527A HP X351 300W AC Power Supply Included
2 U Height

See Configuration

Note: 2, 3, 4, 7, 8

PDU Cable NA/MEX/TW/JP

JG723A#B2B

C15 PDU Jumper Cord (NA/MEX/TW/JP)

PDU Cable ROW

JG723A#B2C

C15 PDU Jumper Cord (ROW)

QuickSpecs

HP 830 Unified Wired-WLAN Switch Series

Configuration

DA - 14560 Worldwide — Version 8 — June 10, 2014

Page 9

High Volt Switch/Router to Wall Power Cord

JG723A#B2E

NEMA L6-20P Cord (NA/MEX/JP/TW)

PDU CABLE NA/MEX/TW/JP

JG647A#B2B

C15 PDU Jumper Cord (NA/MEX/TW/JP)

220 NA

JG647A#B2E

NEMA L6-20P Cord

PDU CABLE NA/MEX/TW/JP

JG646A#B2B

C15 PDU Jumper Cord (NA/MEX/TW/JP)

220 NA

JG646A#B2E

NEMA L6-20P Cord

Configuration Rules:

Note 1

The following Transceivers install into this Controller: (Use #0D1 if switch is CTO0
HP X125 1G SFP LC LH40 1310nm Transceiver

JD061A

HP X120 1G SFP LC LH40 1550nm Transceiver

JD062A

HP X125 1G SFP LC LH70 Transceiver

JD063B

HP X120 1G SFP LC SX Transceiver

JD118B

HP X120 1G SFP LC LX Transceiver

JD119B

Note 2

If the Switch Chassis is to be Factory Integrated (CTO), Then the #0D1 is required on the Switch Chassis and
integrated to the JG662A - HP 800 CTO Enablement. (Min 1/Max 1 Switch per SSP)

Note 3

Localization required on orders without #B2B, #B2C, or #B2E options.

Note 4

If #B2E is selected Then replace Localized option with #B2E for power supply and with #B2E for switch . (Offered
only in NA, Mexico,, Taiwan, and Japan)

Note 7

The following Transceivers install into this Switch:
JD092B - HP X130 10G SFP+ LC SR Transceiver
JD093B - HP X130 10G SFP+ LC LRM Transceiver
JD094B - HP X130 10G SFP+ LC LR Transceiver
JG234A - HP X130 10G SFP+ LC ER 40km Transceiver

Note 8

The following Transceivers install into this Switch:
JD102B - HP X115 100M SFP LC FX Transceiver
JD120B - HP X110 100M SFP LC LX Transceiver
JD090A - HP X110 100M SFP LC LH40 Transceiver
JD118B - HP X120 1G SFP LC SX Transceiver
JD119B - HP X120 1G SFP LC LX Transceiver
JD061A - HP X125 1G SFP LC LH40 1310nm XCVR
JD062A - HP X120 1G SFP LC LH40 1550nm XCVR

QuickSpecs

HP 830 Unified Wired-WLAN Switch Series

Configuration

DA - 14560 Worldwide — Version 8 — June 10, 2014

Page 10

JD063B - HP X125 1G SFP LC LH70 Transceiver

Remarks:

The TAA skus in the 800 Unified Wired-WLAN Switches are US available only.

Modules

Ethernet Modules

(Switch JG640A and JG646A) System (std 0 // max 2) User Selection (min 0 // max 2) per enclosure

HP 830 Unified Wired-WLAN Switch Uplink Module

JG643A

min=0 \ max=1 XFP Transceivers

See Configuration

Note:1

Configuration Rules:

Note 1

The following Transceivers install into this Module: (Use #0D1 if switch is CTO)
HP X130 10G XFP LC LR Single Mode 10km 1310nm Transceiver

JD108B

HP X130 10G XFP LC SR Transceiver

JD117B

HP X135 10G XFP LC ER Transceiver

JD121A

Transceivers

SFP Transceivers

HP X115 100M SFP LC FX Transceiver

JD102B

HP X110 100M SFP LC LX Transceiver

JD120B

HP X110 100M SFP LC LH40 Transceiver

JD090A

HP X120 1G SFP LC SX Transceiver

JD118B

HP X120 1G SFP LC LX Transceiver

JD119B

HP X125 1G SFP LC LH40 1310nm XCVR

JD061A

HP X120 1G SFP LC LH40 1550nm XCVR

JD062A

SFP+ Transceivers

HP X130 10G SFP+ LC ER 40km Transceiver

JG234A

HP X130 10G SFP+ LC SR Transceiver

JD092B

HP X130 10G SFP+ LC LRM Transceiver

JD093B

HP X130 10G SFP+ LC LR Transceiver

JD094B

XFP Transceivers

HP X130 10G XFP LC LR Transceiver

JD108B

HP X130 10G XFP LC SR Transceiver

JD117B

HP X135 10G XFP LC ER Transceiver

JD121A

QuickSpecs

HP 830 Unified Wired-WLAN Switch Series

Configuration

DA - 14560 Worldwide — Version 8 — June 10, 2014

Page 11

Internal Power Supplies

For AC PSUs JG527A or JG745A (JG722A, JG724A, JG723A, JG725A only) System (std 1// max 2) User Selection (min
0 // max 1)

For DC PSUs JG528A or JD366A (JG722A, JG724A, JG723A, JG725A only) System (std 0// max 2) User Selection (min
0 // max 2)

HP X351 300W AC Power Supply

JG527A

See Configuration

Note:1, 2, 4

PDU Cable NA/MX/TW/JP

JG527A#B2B

C15 PDU Jumper Cord (NA/MX/TW/JP)

PDU Cable ROW

JG527A#B2C

C15 PDU Jumper Cord (ROW)

High Volt Switch/Router to Wall Power Cord

JG527A#B2E

NEMA L6-20P Cord (NA/MEX/JP/TW)

HP X351 300W DC Power Supply

JG528A#B01

See Configuration

Note:4

HP X351 150W AC Power Supply

JG745A

See Configuration

Note:1, 2, 3

PDU Cable NA/MX/TW/JP

JG745A

C15 PDU Jumper Cord (NA/MX/TW/JP)

PDU Cable ROW

JG745A

C15 PDU Jumper Cord (ROW)

High Volt Switch/Router to Wall Power Cord

JG745A

NEMA L6-20P Cord (NA/MEX/JP/TW)

Configuration Rules:

Note 1

The following Transceivers install into this Module: (Use #0D1 if switch is CTO)

Note 2

If #B2E is selected Then replace Localized option with #B2E for power supply and with #B2E for Switch . (Offered
only in NA, Mexico, Taiwan, and Japan)

QuickSpecs

HP 830 Unified Wired-WLAN Switch Series

Configuration

DA - 14560 Worldwide — Version 8 — June 10, 2014

Page 12

Note 3

Only supported on the HP 850 Unified Wired-WLAN Appliances (JG724A and JG722A).

Note 4

Only supported on the HP 870 Unified Wired-WLAN Appliances (JG723A and JG725A).

Remarks

DC Power supply JG528A cannot be used in conjunction with the AC Power Supply (JG745A) that ships with JG723A
or JG725A.
If you select DC Power supply JG528A, you must remove the existing AC Power supply, JG745A, that is included
with switches JG723A or JG725A. If you require redundant power using the DC Power supply JG528A, then you must
select 2 of them per chassis.

Drop down under power supply should offer the following options and results:
Switch/Router/Power Supply to PDU Power Cord - #B2B in North America, Mexico, Taiwan, and Japan or #B2C ROW.
(Watson Default B2B or B2C for Rack Level CTO)
Switch/Router/Power Supply to Wall Power Cord - Localized Option (Watson Default for BTO and Box Level CTO)
High Volt Switch/Router/Power Supply to Wall Power Cord - #B2E Option. (Offered only in North America, Mexico,
Taiwan, and Japan)

Switch Options

External Power Supplies

HP RPS1600 Redundant Power System

JG136A

Height = 1U
includes 1 x c13, 1600w and Power Supply port

See Configuration

Note:2, 3

HP RPS1600 1600W AC Power Supply

JG137A

Installs into JG136A only

See Configuration

Note:1, 3

Configuration Rules:

Note 1

If this power supply is selected, The JG136A - HP A-RPS1600 Redundant Power System must be on order or onsite.

Note 2

Localization required.

Note 3

Only supported on the JG640A switch. Switch only supports 1 JG136A and 1 JG137A Power supply systems.

Licenses

(Switch JG641A and JG647A) System (std 0 // max 1) User Selection (min 0 // max 1) per enclosure

(Switch JG640A and JG646A) System (std 0 // max 3) User Selection (min 0 // max 3) per enclosure

HP 830 Unifd Wrd-WLAN Swch 12 AP E-LTU

JG648AAE

REMARK: This SKU is optional to increase the AP by a count of 12 per E-LTU

(Switch JG723A, JG725A) System (std 0 // max 48) User Selection (min 0 // max 48) per enclosure

QuickSpecs

HP 830 Unified Wired-WLAN Switch Series

Configuration

DA - 14560 Worldwide — Version 8 — June 10, 2014

Page 13

(Switch JG724A, JG722A) System (std 0 // max 16) User Selection (min 0 // max 16) per enclosure

HP Unified Wired-WLAN 128 AP E-LTU

JG649AAE

REMARK: This license is for use with the Primary Controllers.

HP Unified Wired-WLAN 128 AP Redundant E-LTU

JG902AAE

REMARK: This license is for use with the Redundant Controllers.

Remarks

JG649AAE is optional to increase the AP by a count of 128 per E-LTU
Each HP 870 Enclosure supports a total of 1536 AP's using any combination of JG774AAE or JG649AAE.
Each HP 850 Enclosure supports a total of 512 AP's using any combination of JG774AAE or JG649AAE.
JG902AAE - Redundant access point licenses are intended for use only on a redundant controller module in a 1+1 or

N+1 configuration or when extra access point capacity is required for failover in an N+N configuration.

Opacity Shield Kit

HP 870 Unifd Wrd-WLAN Opcty Shld Kit

JG772A

NOTE:

Only supported on the HP 870 Unified Wired-WLAN Appliances (JG723A and JG725A).

HP 850 Unifd Wrd-WLAN Opcty Shld Kit

JG773A

NOTE:

Only supported on the HP 850 Unified Wired-WLAN Appliances (JG724A and JG722A).

HP 830 24P PoE+ Wrd-WLAN Opcty Shld kit

JG657A

NOTE:

Only supported on the HP 830 24P PoE+ Unified Wired-WLAN Switches (JG640A and JG646A).

HP 830 8P PoE+ Wired-WLAN Opcty Shld Kit

JG658A

NOTE:

Only supported on the HP 830 8P PoE+ Unified Wired-WLAN Switches (JG641A and JG647A).

QuickSpecs

HP 830 Unified Wired-WLAN Switch Series

Configuration

DA - 14560 Worldwide — Version 8 — June 10, 2014

Page 14

HP 830 24-Port PoE+ Unified Wired-WLAN Switch

(JG640A)

I/O ports and slots

24 RJ-45 auto-negotiating 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX,
IEEE 802.3ab Type 1000BASE-T); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full;
1000BASE-T: full only

4 SFP dual-personality ports; Duplex: full only; (4 10/100/1000BASE-T and 1000BASE-X Gigabit Ethernet
combination)

2 extended module slots

Additional ports and slots

1 RJ-45 serial console port

Physical characteristics

Dimensions

17.32(w) x 16.89(d) x 1.72(h) in (44 x 42.9 x 4.36 cm) (1U height)

Weight

15.87 lb (7.2 kg)

Memory and processor

Processor

Dual core @ 750 MHz, 1 GB flash, 512 MB DDR2 SDRAM

Mounting

EIA standard 19-inch telco rack or equipment cabinet (hardware included)

Performance

Switch fabric speed

88 Gb/s

MAC address table size

8000 entries

Environment

Operating temperature

32°F to 113°F (0°C to 45°C)

Operating relative
humidity

5% to 95%, noncondensing

Nonoperating/Storage
temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage
relative humidity

5% to 95%, noncondensing

Electrical characteristics

Frequency

50/60 Hz

Maximum heat
dissipation

307 BTU/hr (323.89 kJ/hr)

AC Voltage

100-240 VAC

Maximum power rating

90 W

Idle power

53 W

PoE power

370 W

Notes

Idle power is the actual power consumption of the device with no ports
connected. PoE power is the power supplied by the internal power supply. It is
dependent on the type and quantity of power supplies and may be
supplemented with the use of an external power supply (EPS).
Internal power supply delivers PoE+ to a maximum of 11 ports. PoE+ can be
delivered to all 24 ports with the use of an optional redundant power system.

Safety

UL 60950-1; CAN/CSA 22.2 No. 60950-1; IEC 60950-1; EN 60950-1; FDA 21 CFR Subchapter J

Emissions

EN 55022 Class A; CISPR 22 Class A; ICES-003 Class A; AS/NZS CISPR 22 Class A; EN
61000-3-2; EN 61000-3-3; VCCI-3 CLASS A; VCCI-4 CLASS A; ETSI EN 300 386; FCC Part 15 (CFR 47) CLASS A

Immunity

EN

EN 55024, CISPR24 & ETSI EN 300 386

Management

IMC - Intelligent Management Center; command-line interface; Web browser; SNMP
Manager; Telnet; HTTPS; RMON1; FTP; IEEE 802.3 Ethernet MIB; Ethernet Interface MIB

Features

Default supported APs: 24
Maximum supported APs: 60 (via the optional purchase of the 12-Access Point E-LTU)

QuickSpecs

HP 830 Unified Wired-WLAN Switch Series

Technical Specifications

DA - 14560 Worldwide — Version 8 — June 10, 2014

Page 15

Maximum supported users: 1000
Maximum supported users via local portal authentication: 1000
Maximum supported users via local authentication: 1000
Maximum supported configured SSIDs: 64
Maximum supported ACLs: 2000
Supported MSM APs are automatically discovered, Comware firmware is loaded, and
the APs can be fully managed.
Centralized wireless throughput is up to 2 GbE.

Services

Refer to the HP website at

www.hp.com/networking/services

for details on the service-level
descriptions and product numbers. For details about services and response times in your area, please
contact your local HP sales office.

HP 830 8-Port PoE+ Unified Wired-WLAN Switch (JG641A)

I/O ports and slots

8 RJ-45 auto-negotiating 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE

802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3af PoE, IEEE

802.3at); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full;
1000BASE-T: full only

2 SFP dual-personality 1000 Mb/s ports

Additional ports and slots

1 RJ-45 serial console port

Physical characteristics

Dimensions

17.32(w) x 10.63(d) x 1.72(h) in (44 x 27 x 4.36 cm) (1U height)

Weight

8.82 lb (4 kg)

Memory and processor

Processor

Dual core @ 750 MHz, 1 GB compact flash, 512 MB DDR2 SDRAM

Mounting

EIA standard 19-inch telco rack or equipment cabinet (hardware included)

Performance

Switch fabric speed

20 Gb/s

MAC address table size

8000 entries

Environment

Operating temperature

32°F to 113°F (0°C to 45°C)

Operating relative
humidity

5% to 95%, noncondensing

Nonoperating/Storage
temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage
relative humidity

5% to 95%, noncondensing

Electrical characteristics

Frequency

50/60 Hz

Maximum heat
dissipation

130 BTU/hr (137.15 kJ/hr)

AC Voltage

100-240 VAC

Maximum power rating

38 W

Idle power

28 W

PoE power

180 W

QuickSpecs

HP 830 Unified Wired-WLAN Switch Series

Technical Specifications

DA - 14560 Worldwide — Version 8 — June 10, 2014

Page 16

Notes

Idle power is the actual power consumption of the device with no ports
connected. PoE power is the power supplied by the internal power supply. It is
dependent on the type and quantity of power supplies and may be
supplemented with the use of an external power supply (EPS).
Internal power supply delivers PoE+ to a maximum of five ports.

Safety

UL 60950-1; CAN/CSA 22.2 No. 60950-1; IEC 60950-1; EN 60950-1; FDA 21 CFR Subchapter J

Emissions

EN 55022 Class A; CISPR 22 Class A; ICES-003 Class A; AS/NZS CISPR 22 Class A; EN
61000-3-2; EN 61000-3-3; VCCI-3 CLASS A; VCCI-4 CLASS A; ETSI EN 300 386; FCC Part 15 (CFR 47) CLASS A

Immunity

EN

EN 55024, CISPR24 & ETSI EN 300 386

Management

IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet;
HTTPS; RMON1; FTP; IEEE 802.3 Ethernet MIB; Ethernet Interface MIB

Features

Default supported APs: 12
Maximum supported APs: 24 (via the optional purchase of the 12-Access Point E-LTU)
Maximum supported users: 1000
Maximum supported users via local portal authentication: 1000
Maximum supported users via local authentication: 1000
Maximum supported configured SSIDs: 64
Maximum supported ACLs: 2000
Supported MSM APs are automatically discovered, Comware firmware is loaded, and the APs can be fully
managed.
Centralized wireless throughput is up to 2 GbE.

Services

Refer to the HP website at

www.hp.com/networking/services

for details on the service-level
descriptions and product numbers. For details about services and response times in your area, please
contact your local HP sales office.

Standards and protocols
(applies to all products in series)
General protocols

RFC 768 UDP
RFC 791 IP
RFC 792 ICMP
RFC 793 TCP
RFC 826 ARP
RFC 854 TELNET
RFC 855 Telnet Option Specification
RFC 858 Telnet Suppress Go Ahead Option
RFC 894 IP over Ethernet
RFC 950 Internet Standard Subnetting
Procedure
RFC 959 File Transfer Protocol (FTP)
RFC 1122 Host Requirements
RFC 1141 Incremental updating of the
Internet checksum
RFC 1144 Compressing TCP/IP headers for
low-speed serial links
RFC 1256 ICMP Router Discovery Protocol
(IRDP)
RFC 1305 NTPv3 (IPv4 only)

RFC 2461 IPv6 Neighbor Discovery
RFC 2462 IPv6 Stateless Address Auto­configuration
RFC 2463 ICMPv6
RFC 2464 Transmission of IPv6 over
Ethernet Networks
RFC 2466, Management Information Base
for IP Version 6 - ICMPv6
RFC 2526 Reserved IPv6 Subnet Anycast
Addresses
RFC 2553 Basic Socket Interface Extensions
for IPv6
RFC 2563 ICMPv6
RFC 2925 Definitions of Managed Objects
for Remote Ping, Traceroute, and Lookup
Operations (Ping only)
RFC 3315 DHCPv6 (client and relay)
RFC 3363 DNS support
RFC 3484 Default Address Selection for IPv6
RFC 3493 Basic Socket Interface Extensions
for IPv6
RFC 3513 IPv6 Addressing Architecture
RFC 3542 Advanced Sockets API for IPv6

Network management

IEEE 802.11k-2008 (beacon measurement
functionality used as part of radio resource
management)
RFC 1155 Structure of Management
Information
RFC 1905 SNMPv2 Protocol Operations
RFC 2573 SNMPv3 Applications
RFC 2574 SNMPv3 User-based Security
Model (USM)
RFC 2575 VACM for SNMP
SNMPv1/v2c

QoS/CoS

RFC 2474 DS Field in the IPv4 and IPv6
Headers
RFC 2475 DiffServ Architecture
RFC 3168 The Addition of Explicit
Congestion Notification (ECN) to IP

Security

IEEE 802.11w Protected Management
Frames

QuickSpecs

HP 830 Unified Wired-WLAN Switch Series

Technical Specifications

DA - 14560 Worldwide — Version 8 — June 10, 2014

Page 17

RFC 1321 The MD5 Message-Digest
Algorithm
RFC 1334 PPP Authentication Protocols
(PAP)
RFC 1350 TFTP Protocol (revision 2)
RFC 1812 IPv4 Routing
RFC 1944 Benchmarking Methodology for
Network Interconnect Devices
RFC 1994 PPP Challenge Handshake
Authentication Protocol (CHAP)
RFC 2104 HMAC: Keyed-Hashing for
Message Authentication
RFC 2246 The TLS Protocol Version 1.0
RFC 2284 EAP over LAN
RFC 2644 Directed Broadcast Control
RFC 2864 The Inverted Stack Table
Extension to the Interfaces Group MIB
RFC 2866 RADIUS Accounting
RFC 2869 RADIUS Extensions
RFC 3164 Syslog
RFC 3268 Advanced Encryption Standard
(AES) Ciphersuites for Transport Layer
Security (TLS)
RFC 3619 Ethernet Automatic Protection
Switching (EAPS)
RFC 3636 Definitions of Managed Objects for
IEEE 802.3 Medium Attachment Units
(MAUs)

IP multicast

RFC 1112 IGMP
RFC 2236 IGMPv2
RFC 2934 Protocol Independent Multicast
MIB for IPv4
RFC 4541 Considerations for Internet Group
Management Protocol (IGMP) and Multicast
Listener
Discovery (MLD) Snooping Switches

IPv6

RFC 1350 TFTP
RFC 1881 IPv6 Address Allocation
Management
RFC 1887 IPv6 Unicast Address Allocation
Architecture
RFC 1981 IPv6 Path MTU Discovery
RFC 2292 Advanced Sockets API for IPv6
RFC 2373 IPv6 Addressing Architecture
RFC 2375 IPv6 Multicast Address
Assignments
RFC 2460 IPv6 Specification

RFC 3587 IPv6 Global Unicast Address
Format
RFC 3596 DNS Extension for IPv6
RFC 4193, Unique Local IPv6 Unicast
Addresses
RFC 4443 ICMPv6
RFC 4541 IGMP & MLD Snooping Switch
RFC 4861 IPv6 Neighbor Discovery
RFC 4862 IPv6 Stateless Address Auto­configuration
RFC 5095 Deprecation of Type 0 Routing
Headers in IPv6

MIBs

RFC 1213 MIB II
RFC 1229 Interface MIB Extensions
RFC 1643 Ethernet MIB
RFC 1757 Remote Network Monitoring MIB
RFC 2011 SNMPv2 MIB for IP
RFC 2012 SNMPv2 MIB for TCP
RFC 2013 SNMPv2 MIB for UDP
RFC 2571 SNMP Framework MIB
RFC 2572 SNMP-MPD MIB
RFC 2613 SMON MIB
RFC 2665 Ethernet-Like-MIB
RFC 2674 Definitions of Managed Objects
for Bridges with Traffic Classes, Multicast
Filtering, and Virtual Extensions
RFC 2863 The Interfaces Group MIB
RFC 2932IP (Multicast Routing MIB)
RFC 2933 IGMP MIB

Mobility

IEEE 802.11a High Speed Physical Layer in
the 5 GHz Band
IEEE 802.11ac WLAN Enhancements for
Very High Throughput
IEEE 802.11b Higher-Speed Physical Layer
Extension in the 2.4 GHz Band
IEEE 802.11d Global Harmonization
IEEE 802.11e QoS enhancements
IEEE 802.11g Further Higher Data Rate
Extension in the 2.4 GHz Band
IEEE 802.11h Dynamic Frequency Selection
IEEE 802.11i Medium Access Control (MAC)
Security Enhancements
IEEE 802.11n WLAN Enhancements for
Higher Throughput
IEEE 802.11s D1.06 Draft
Note: Some of the above standards are now
included in IEEE 802.11-2012

IEEE 802.1X Port Based Network Access
Control
RFC 1851 ESP Triple DES Transform
RFC 2246 Transport Layer Security (TLS)
RFC 2401 Security Architecture for the
Internet Protocol
RFC 2408 Internet Security Association and
Key Management Protocol (ISAKMP)
RFC 2409 The Internet Key Exchange (IKE)
RFC 2548 Microsoft Vendor-specific RADIUS
Attributes
RFC 2716 PPP EAP TLS Authentication
Protocol
RFC 2865 RADIUS Authentication
RFC 2867 RADIUS Accounting Modifications
for Tunnel Protocol Support
RFC 3394 Advanced Encryption Standard
(AES) Key Wrap Algorithm
RFC 3576 Dynamic Authorization Extensions
to RADIUS (Disconnect Message and
Session-time renewal)
RFC 3579 RADIUS Support For Extensible
Authentication Protocol (EAP)
RFC 3580 IEEE 802.1X RADIUS Guidelines
Access Control Lists (ACLs)
Guest VLAN for 802.1x
Secure Sockets Layer (SSL)
SSHv2 Secure Shell
Web Authentication
WPA (Wi-Fi Protected Access)/WPA2

IKEv1

RFC 3748 - Extensible Authentication
Protocol (EAP)

VPN

RFC 2403 The Use of HMAC-MD5-96 within
ESP and AH
RFC 2404 The Use of HMAC-SHA-1-96 within
ESP and AH
RFC 2405 The ESP DES-CBC Cipher
Algorithm With Explicit IV
RFC 2407 The Internet IP Security Domain of
Interpretation for ISAKMP
RFC 2451 The ESP CBC-Mode Cipher
Algorithms

IPSec

RFC 1829 The ESP DES-CBC Transform
RFC 3602 The AES-CBC Cipher Algorithm and
Its Use with IPSec

QuickSpecs

HP 830 Unified Wired-WLAN Switch Series

Technical Specifications

DA - 14560 Worldwide — Version 8 — June 10, 2014

Page 18

PKI

RFC 3280 Internet X.509 Public Key
Infrastructure Certificate and Certificate
Revocation List (CRL) Profile

QuickSpecs

HP 830 Unified Wired-WLAN Switch Series

Technical Specifications

DA - 14560 Worldwide — Version 8 — June 10, 2014

Page 19

HP 830 Unified Wired-WLAN Switch Series accessories

HP 830 24-Port PoE+ Unified Wired-WLAN Switch (JG640A)

HP 830 Unified Wired-WLAN Switch Uplink Module

JG643A

HP X130 10G XFP LC SR Transceiver

JD117B

HP X135 10G XFP LC ER Transceiver

JD121A

HP X125 1G SFP LC LH40 1310nm Transceiver

JD061A

HP X120 1G SFP LC LH40 1550nm Transceiver

JD062A

HP X125 1G SFP LC LH70 Transceiver

JD063B

HP X120 1G SFP LC SX Transceiver

JD118B

HP X120 1G SFP LC LX Transceiver

JD119B

HP RPS1600 1600W AC Power Supply

JG137A

HP 830 Unified Wired-WLAN Switch 12-Access Point E-LTU

JG648AAE

HP 830 8-Port PoE+ Unified Wired-WLAN Switch (JG641A)

HP X120 1G SFP LC LH40 1550nm Transceiver

JD062A

HP X125 1G SFP LC LH70 Transceiver

JD063B

HP X120 1G SFP LC SX Transceiver

JD118B

HP X120 1G SFP LC LX Transceiver

JD119B

HP X125 1G SFP LC LH40 1310nm Transceiver

JD061A

HP 830 Unified Wired-WLAN Switch 12-Access Point E-LTU

JG648AAE

To learn more, visit:

www.hp.com/networking

© Copyright 2014 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.

Microsoft is a U.S. registered trademark of Microsoft Corporation.

QuickSpecs

HP 830 Unified Wired-WLAN Switch Series

Accessories

DA - 14560 Worldwide — Version 8 — June 10, 2014

Page 20
