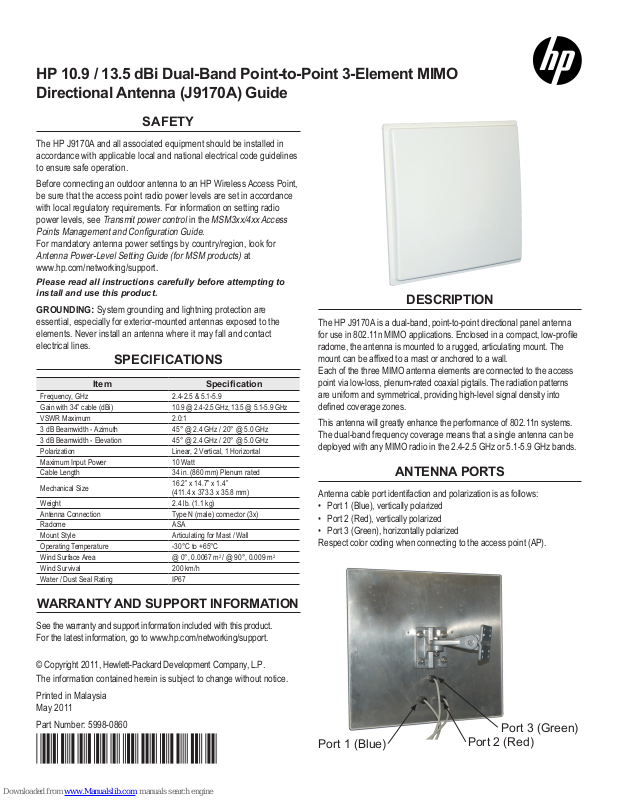

HP 10.9 / 13.5 dBi Dual-Band Point-to-Point 3-Element MIMO
Directional Antenna (J9170A) Guide
SAFETY
The HP J9170A and all associated equipment should be installed in
accordance with applicable local and national electrical code guidelines
to ensure safe operation.
Before connecting an outdoor antenna to an HP Wireless Access Point,
be sure that the access point radio power levels are set in accordance
with local regulatory requirements. For information on setting radio
power levels, see
Points Management and Conguration Guide
For mandatory antenna power settings by country/region, look for
Antenna Power-Level Setting Guide (for MSM products)
www.hp.com/networking/support.
Please read all instructions carefully before attempting to
install and use this product.
GROUNDING
essential, especially for exterior-mounted antennas exposed to the
elements. Never install an antenna where it may fall and contact
electrical lines.
Frequency, GHz 2.4-2.5 & 5.1-5.9
Gain with 34” cable (dBi)
VSWR Maximum 2.0:1
3 dB Beamwidth - Azimuth 45° @ 2.4 GHz / 20° @ 5.0 GHz
3 dB Beamwidth - Elevation 45° @ 2.4 GHz / 20° @ 5.0 GHz
Polarization Linear, 2 Vertical, 1 Horizontal
Maximum Input Power 10 Watt
Cable Length 34 in. (860 mm) Plenum rated
Mechanical Size
Weight 2.4 lb. (1.1 kg)
Antenna Connection Type N (male) connector (3x)
Radome ASA
Mount Style Articulating for Mast / Wall
Operating Temperature -30°C to +65°C
Wind Surface Area @ 0°, 0.0067 m
Wind Survival 200 km/h
Water / Dust Seal Rating IP67
Transmit power control
in the
MSM3xx/4xx Access
.
at
: System grounding and lightning protection are
SPECIFICATIONS
Item Specication
10.9 @ 2.4-2.5 GHz, 13.5 @ 5.1-5.9 GHz
16.2” x 14.7” x 1.4”
(411.4 x 373.3 x 35.8 mm)
2
/ @ 90°, 0.009 m
New coming
DESCRIPTION
The HP J9170A is a dual-band, point-to-point directional panel antenna
for use in 802.11n MIMO applications. Enclosed in a compact, low-prole
radome, the antenna is mounted to a rugged, articulating mount. The
mount can be afxed to a mast or anchored to a wall.
Each of the three MIMO antenna elements are connected to the access
point via low-loss, plenum-rated coaxial pigtails. The radiation patterns
are uniform and symmetrical, providing high-level signal density into
dened coverage zones.
This antenna will greatly enhance the performance of 802.11n systems.
The dual-band frequency coverage means that a single antenna can be
deployed with any MIMO radio in the 2.4-2.5 GHz or 5.1-5.9 GHz bands.

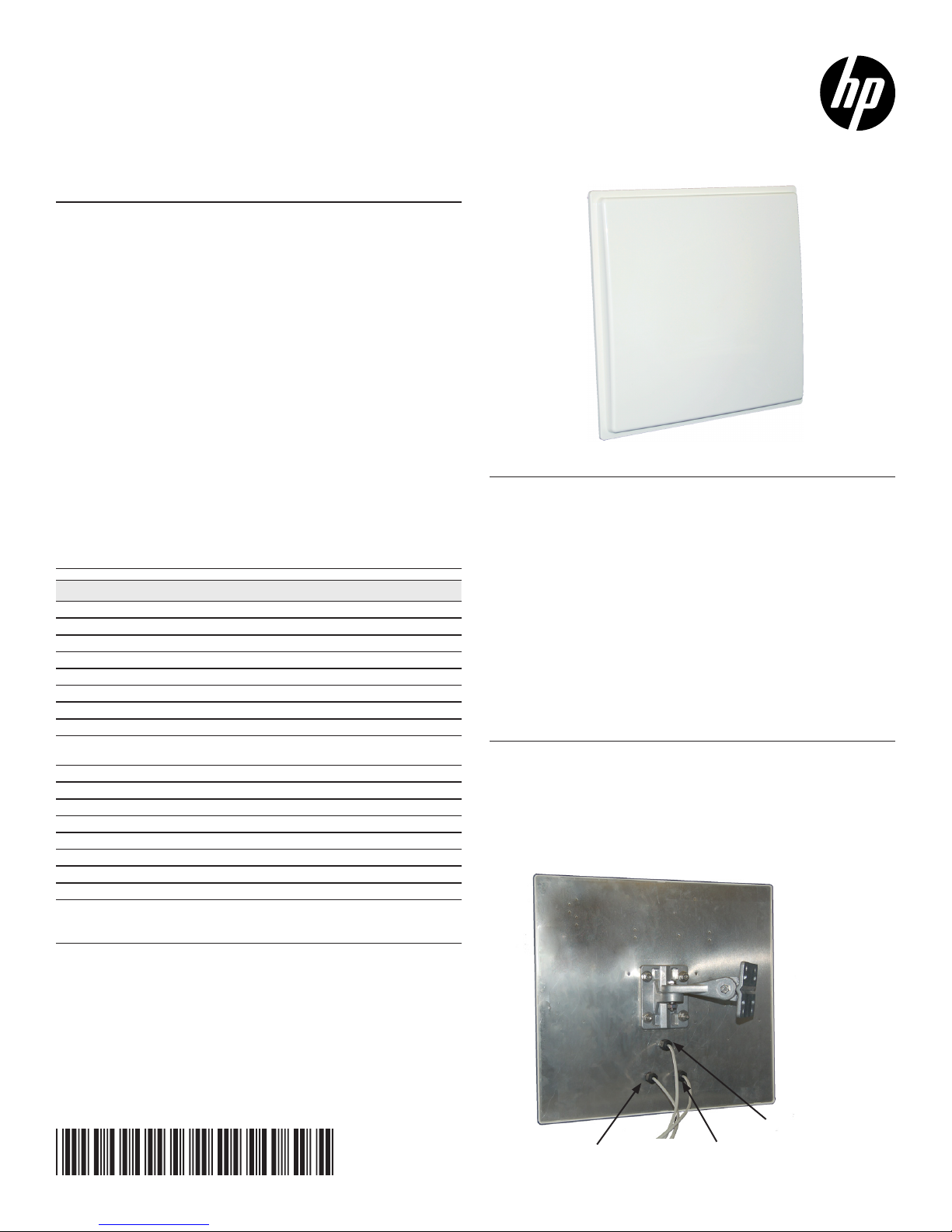

ANTENNA PORTS
Antenna cable port identifaction and polarization is as follows:
• Port 1 (Blue), vertically polarized
• Port 2 (Red), vertically polarized
• Port 3 (Green), horizontally polarized
Respect color coding when connecting to the access point (AP).
2
WARRANTY AND SUPPORT INFORMATION
See the warranty and support information included with this product.
For the latest information, go to www.hp.com/networking/support.
© Copyright 2011, Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Printed in Malaysia
May 2011
Part Number: 5998-0860
Port 1 (Blue)
Port 3 (Green)
Port 2 (Red)
Page 2
ANTENNA LOCATION
This is an outdoor antenna, but it may also be used indoors. For best
results, mount the J9170A facing towards the center of the coverage
area. A line-of-sight path between the antenna and active area works
best. Avoid mounting next to a column or vertical support that could
create a shadow zone and reduce coverage.

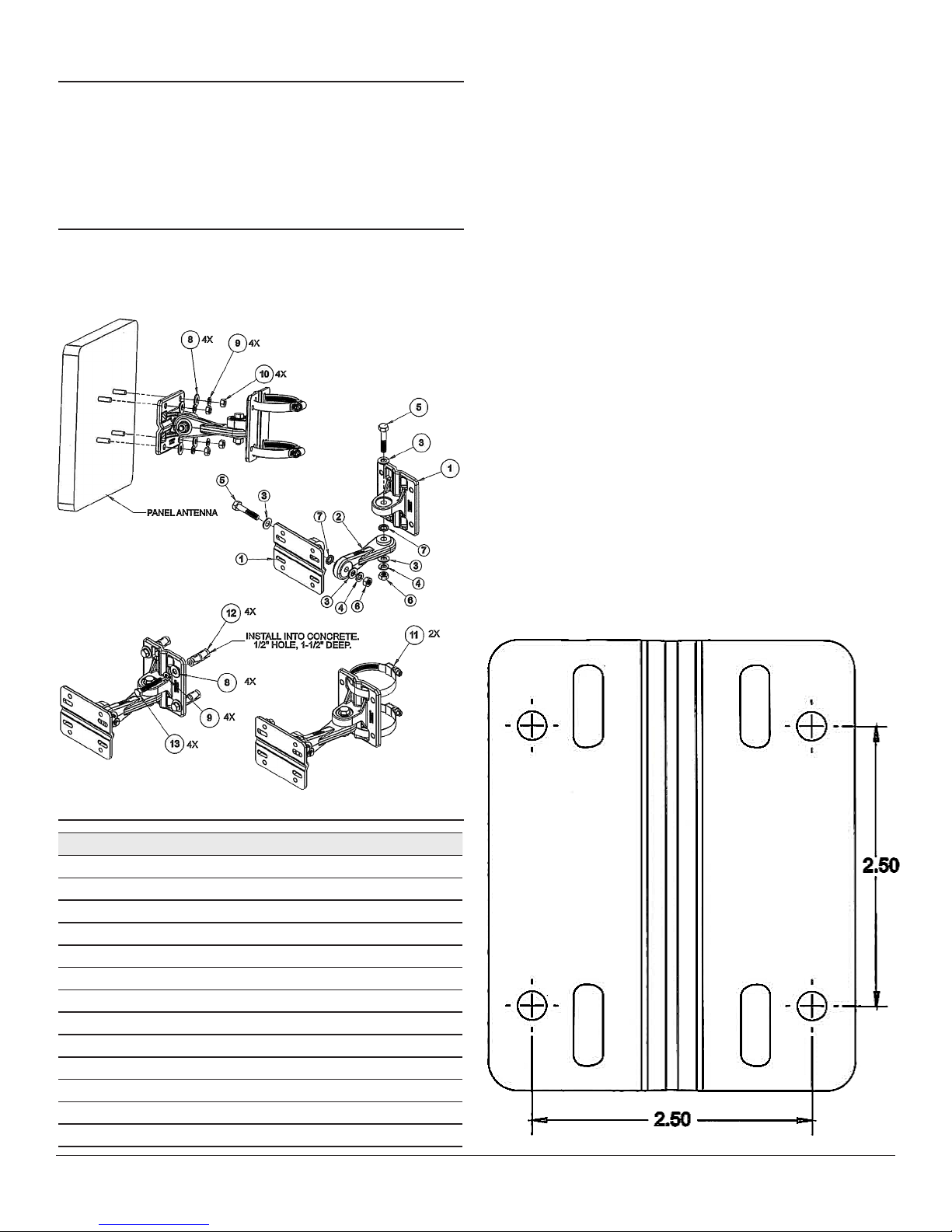

ASSEMBLY AND MOUNTING
The J9170A is shipped with a heavy duty articulating mounting kit (HP
5070-6360) that provides wide-range articulation in both the azimuth and
elevation planes. The kit allows mounting on a mast (up to 2 inches or 5.1
cm), or on a wall using wall anchors.
ANTENNA
INSTALLATION
BRACKET
ASSEMBLY
Assemble and mount the antenna as follows.
(See Figure 1 for wall mount and Figure 2 for pole/mast mount.)
1. Attach the antenna mount (1) to the exposed studs on the back of the
antenna using 4 SS 1/4”-20 hex nuts (10), 4 1/4”-20 SS at washers (8)
and 4 1/4”-20 SS lock washers (9)
2. Secure one side of the articulating arm (2) with 1 SS [M8] washer
external serrated (7), to the antenna mount (1) using 1 Bolt size SS
5/16”x 1-5/8”(5), 1 SS 5-16” split lock wash (4), 2 SS at washer 5-16”
(3) and 1 hex nut 5-16” (6) assemble as shown.
3. For mounting on a wall:
a. Using the other supplied antenna mount bracket (1) as a template
to mark holes locations, for drilling see wall diagram gure 3 for
holes size.
b. Install 4 wall expansion anchors (12).
c. Install to wall the antenna mount bracket using four SS HEX
1/4”-20 screws (13), 4 SS 1/4”-20 at washers (8), 4 1/4”-20 lock
washer (9). Or, for mounting on a pole or mast, attach the two hose
clamps (11) to antenna mount bracket (1) and encircle the pole with
each clamp and tighten.
4. Attach the pre-assembled antenna with both (1) and (2) to the other
bracket (previously mounted) using 1 SS washer external serrated (7),
using 1 Bolt size SS 5/16” 1-5/8” (5), 1 SS 5-16”split lock washer (4), 2
SS at washer 5-16” (3) and 1 hex nut (6) 5-16” assemble as shown.
Use the screw (5) to attach the free end of the articulating arm to the
mount and then secure it in place with SS hex nut (6).
5. Loosen the pivot screws (1-5/8” bolt screw (5)) as needed to position
the antenna for desired azimuth and elevation. When the antenna is
fully adjusted, tighten all hardware securely.
WALL MOUNT
CONFIGURATION
Figure 1
Figure 2
MAST MOUNT
CONFIGURATION
MOUNTING HARDWARE
Item Description Qty
1 Bracket, Flange 2
2 Bracket, Linkage 1
3 5/16 Flat Washer 4
4 5/16 Lock Washer 2
5 5/16 x 1-5/8 Hex Head Bolt 2
6 5/16 Nut 2
7 Double Serrated Lock Washer 2
8 1/4 Flat Washer 8
9 1/4 Lock Washer 8
10 1/4 Nut 4
11 Clamp 2
12 Expansion Anchor 4
13 1/4 x 1-3/4 Hex Head Bolt 4
Figure 3
2 HP 10.9/13.5 dBi Dual-Band Point-to-Point 3-Element MIMO Directional Antenna (J9170A) Guide
Page 3

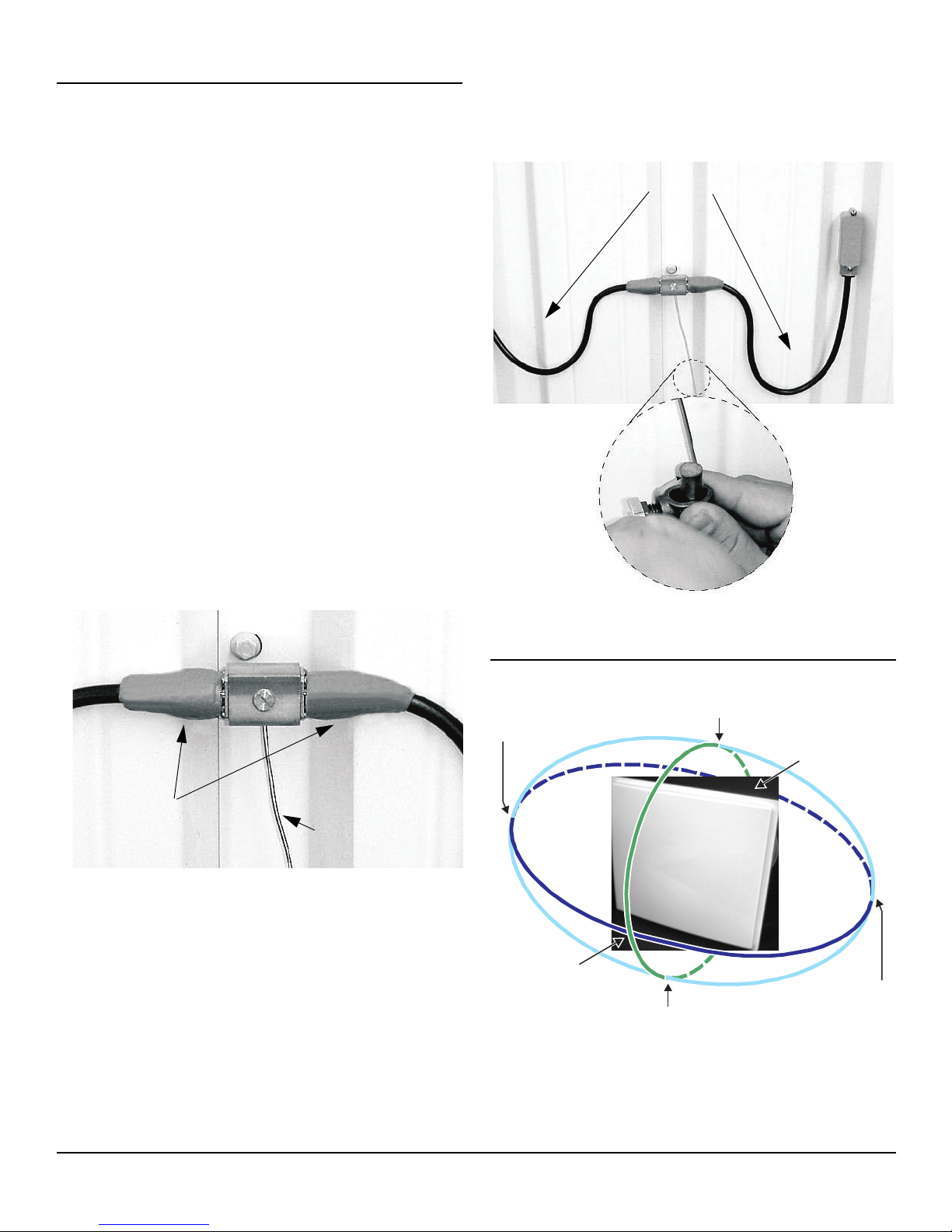

LIGHTNING ARRESTER
WARNING: PROFESSIONAL INSTALLATION REQUIRED: Prior to
installing or using this device, consult with a professional installer
trained in RF installation and knowledgeable in local regulations
including building and wiring codes, safety, channel, power, indoor/
outdoor restrictions, and license requirements for the intended
country. It is the responsibility of the end user to ensure that
installation and use comply with local safety and radio regulations.
Warning: Surge protection and grounding: When connecting an
outdoor antenna, make sure that proper lightning surge protection
and grounding precautions are taken in accordance with local
electrical codes. Failure to do so may result in personal injury, fire,
equipment damage, or a voided warranty. The HP hardware warranty
does not cover damage caused by static discharge or lightning strike.
For outdoor applications, it is strongly recommended that you install a
lightning arrester (HP J8996A or equivalent) for each port of the
antenna. Lightning arresters must be purchased separately.
For best results, install the lightning arrester in close proximity to a
low-resistance ground at a point where the coaxial cable enters the
building
weatherproof coaxial connectors with a suitable mastic or rubberized
tape to prevent water incursion. See Photo 2.
To connect the lightning arrester to the ground, use a very short and
direct run of # 10 solid copper wire, or equivalent. Ensure that the
other end of the grounding wire connects to a true earth ground
according to the NFPA 70 National Electrical Code and/or all pertinent
local codes.
or attaches to an AP. For exterior installations, use
Be sure to install the lightning arrester in an accessible location that
permits periodic inspection and replacement (as needed).
Provide drip loops in cables to prevent water from entering the
building. See Photo 3.
Drip Loops
Photo 3
Sealant Tape
or Rubberized Protectant
Photo 2
# 10 Ground Lead
ANTENNA PATTERN PLOTS
The plots on the following pages are oriented as follows:
E Plane 90°
H Plane 90°
H Plane 0°
E Plane 0°
Plot Orientation Diagram
E Plane 270°
H Plane 180°
E Plane 180°
H Plane 270°
3 HP 10.9/13.5 dBi Dual-Band Point-to-Point 3-Element MIMO Directional Antenna (J9170A) Guide
Page 4
2.45 GHz (Port 1 Vertical Polarization)
H Plane
340
330
320
310
300
290
280
0
350
5.47 GHz (Port 1 Vertical Polarization)
E Plane
10
20
30
40
50
60
70
80
280
H Plane
340
330
320
310
300
290
0
350
E Plane
10
20
30
40
50
60
70
80
270
260
250
240
230
220
210
200
190
180
2.45 GHz (Port 2 Vertical Polarization)
H Plane
340
330
320
310
300
290
280
270
260
250
240
230
220
210
200
0
350
190
180
-20 -10 0
150
160
170
E Plane
10
20
30
-20 -10 0
150
160
170
90
dB
100
110
120
130
140
270
260
250
240
230
220
210
200
190
-20 -10 0
170
180
140
150
160
90
dB
100
110
120
130
5.47 GHz (Port 2 Vertical Polarization)
H Plane
340
330
40
50
60
70
80
90
dB
100
110
120
130
140
280
270
260
320
310
300
290
250
240
230
220
210
200
0
350
-20 -10 0
190
180
E Plane
10
20
30
40
50
60
70
80
90
dB
100
110
120
130
140
150
160
170
2.45 GHz (Port 3 Horizontal Polarization)
H Plane
340
330
320
310
300
290
280
270
260
250
240
230
220
210
200
0
350
190
10
-20 -10 0
170
180
20
160
4 HP 10.9/13.5 dBi Dual-Band Point-to-Point 3-Element MIMO Directional Antenna (J9170A) Guide
E Plane
30
150
5.47 GHz (Port 3 Horizontal Polarization)
H Plane
340
330
40
50
60
70
80
90
dB
100
110
120
130
140
280
270
260
320
310
300
290
250
240
230
220
210
200
0
350
-20 -10 0
190
180
E Plane
10
20
30
40
50
60
70
80
90
dB
100
110
120
130
140
150
160
170
Page 5
180
5.725 GHz (Port 1 Vertical Polarization)
180
H Plane
340
330
320
310
300
290
280
0
350
E Plane
10
20
30
40
50
60
70
80
270
260
250
240
230
220
210
200
190
-20 -10 0
5.725 GHz (Port 2 Vertical Polarization)
H Plane
340
330
320
310
300
290
280
270
260
250
240
230
220
210
200
0
350
-20 -10 0
190
180
90
dB
100
110
120
130
140
150
160
170
E Plane
10
20
30
40
50
60
70
80
90
dB
100
110
120
130
140
150
160
170
5.725 GHz (Port 3 Horizontal Polarization)
H Plane
340
330
320
310
300
290
280
270
260
250
240
230
220
210
200
0
350
190
10
20
-20 -10 0
160
170
5 HP 10.9/13.5 dBi Dual-Band Point-to-Point 3-Element MIMO Directional Antenna (J9170A) Guide
E Plane
30
150
40
50
60
70
80
90
dB
100
110
120
130
140
Loading...
