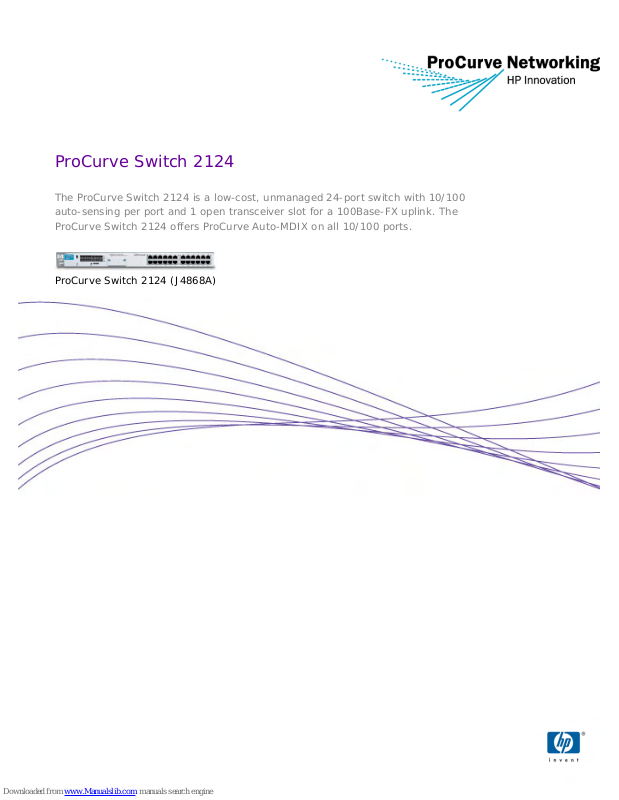

ProCurve Switch 2124

The ProCurve Switch 2124 is a low-cost, unmanaged 24-port switch with 10/100
auto-sensing per port and 1 open transceiver slot for a 100Base-FX uplink. The
ProCurve Switch 2124 offers ProCurve Auto-MDIX on all 10/100 ports.

ProCurve Switch 2124 (J4868A)

ProCurve Switch 2124

Features and benefits

Connectivity

• 24 auto-sensing 10/100 ports: provide

high-performance switching

• ProCurve Auto-MDIX: automatically adjusts

for straight-through or crossover cables on all
10/100 ports

• Full scalability: optional 100Base-FX

fiber-optic (full-duplex bandwidth)
transceiver enables low-cost uplink
connectivity into a wiring closet up to 2 km
away

Performance

• Low-cost/High-performance: combines

affordability, scalability, and ease of use

Ease of use

• Unmanaged: provides plug-and-play

simplicity

• Use on desktop or rack-mounted: quiet

operation enables flexible use

• 1U form factor: the industry's most

frequently requested size

Industry-leading warranty

• Lifetime warranty: for as long as you own

the product, with next-business-day advance
replacement (available in most countries)

Services

•

3-year, 4-hour onsite, 13x5 coverage for
hardware (H5484E)

•

3-year, 4-hour onsite, 24x7 coverage for
hardware (U6300E)

•

Installation with minimum configuration,
system-based pricing (U4826E)

•

Installation with HP-provided configuration,
system-based pricing (U4830E)

2

ProCurve Switch 2124

Specifications

Ports

24 10/100 ports (IEEE 802.3
Type 10Base-T, IEEE 802.3u
Type 100Base-TX)
1 open transceiver slots

Physical characteristics

Dimensions

8.0(d) x 17.4(w) x 1.8(h) in.
(20.32 x 44.2 x 4.57 cm) (1U
height)
Weight

8.25 lb. (3.74 kg)

Memory and processor

Packet buffer size: 768 KB

Mounting

Mounts in a standard 19 in.
rack (hardware included)

Performance

Latency:

- <8.5 µs (LIFO)
Switching capacity: 2.6 Gbps
Routing table size: 4,096
entries

Environment

Operating

- Temperature: 32°F to 131°F

(0°C to 55°C)

- Relative humidity: 15% to

95% @ 104°F (40°C),
non-condensing

Non-operating/Storage

- Temperature: -40°F to

158°F (-40°C to 70°C)

- Relative humidity: 90% to
90% @ 149°F (65°C),
non-condensing

Shock: HP759, HP760 (similar
to EN 60068 IEC 68)
Acoustic: DIN 27779 per ISO
7779 42 dB

Electrical characteristics

Max heat dissipation: 341
BTU/hr
Voltage: 100-240 VAC
Current: 1.0 A
Power consumption: 100 W
Frequency: 50/60 Hz

Safety

cUL (CSA 950); EN 60950/IEC
60950; NOM-019-SCFI-1994;
UL 1950 3rd edition

Emissions

FCC Class A;
EN55022/CISPR-22 Class A;
VCCI Class A

Immunity

Generic: EN55024, CISPR 24
EN: EN55024, CISPR 24
ESD: IEC 61000-4-2; 4 kV CD,
8 kV AD
Radiated: IEC 61000-4-3;
3V/m
EFT/Burst: IEC 61000-4-4; 1.0
kV (power line), 0.5 kV (signal
line)
Surge: IEC 61000-4-5; 1 kV/2
kV AC
Conducted: IEC 61000-4-6; 3V

Power frequency magnetic
field: IEC 61000-4-8; 1A/m, 50
or 60 Hz
Voltage dips and interruptions:
IEC 61000-4-11; >95%
reduction, 0.5 period, 30%
reduction, 25 periods
Harmonics: EN61000-3-2,
IEC61000-3-2
Flicker: EN61000-3-3,
IEC61000-3-3

Standards and protocols

IEEE 802.3x Flow Control

3

ProCurve Switch 2124

Accessories

ProCurve 100-FX SC Transceiver (J4853A)

with one 100Base-FX port

Ports

1 100Base-FX ports (IEEE 802.3u Type
100Base-FX)
Connector: SC
Duplex: half or full

Physical characteristics

Dimensions: 3.8 (d) x 2.05 (w) x 0.95 (h) in.
(9.65 x 5.21 x 2.41 cm)

Weight: 0.09 lb. (0.04 kg)

Cabling

62.5/125 µm or 50/125 µm (core/cladding)
diameter, graded-index, low metal content,
multimode fiber optic, complying with ITU-T
G.651 and ISO/IEC 793-2 Type A1b or A1a,
respectively

Maximum distance

2 km (full duplex) or 412 m (half duplex)

Notes

Full duplex only when installed in unmanaged
switches and ProCurve Switch 2500 series

4
