Notebook PC User Guide
© Copyright 2010 Hewlett-Packard
Development Company, L.P.
Bluetooth is a trademark owned by its
proprietor and used by Hewlett-Packard
Company under license. Microsoft and
Windows are U.S. registered trademarks of
Microsoft Corporation. SD Logo is a
trademark of its proprietor.
The information contained herein is subject
to change without notice. The only
warranties for HP products and services are
set forth in the express warranty statements
accompanying such products and services.
Nothing herein should be construed as
constituting an additional warranty. HP shall
not be liable for technical or editorial errors
or omissions contained herein.
Second Edition: April 2010
Document Part Number: 593731-002
Product notice
This user guide describes features that are
common to most models. Some features
may not be available on your computer.
Safety warning notice
WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not
place the computer directly on your lap or obstruct the computer air vents. Use the computer only on a
hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft
surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to contact
the skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer and the
AC adapter comply with the user-accessible surface temperature limits defined by the International
Standard for Safety of Information Technology Equipment (IEC 60950).
iii
iv Safety warning notice
Table of contents
1 Features
Identifying hardware ............................................................................................................................. 1
Components ......................................................................................................................................... 2
Top components .................................................................................................................. 2
TouchPad ............................................................................................................ 2
Lights ................................................................................................................... 3
Button and speakers ........................................................................................... 4
Keys .................................................................................................................... 5
Right-side components ........................................................................................................ 6
Left-side components .......................................................................................................... 7
Bottom components ............................................................................................................. 8
Display components ............................................................................................................ 9
Wireless antennas ............................................................................................................... 9
Additional hardware components ...................................................................................... 11
Labels ................................................................................................................................................. 12
2 Wireless, local area network, and modem
Using wireless devices ....................................................................................................................... 13
Identifying wireless and network status icons .................................................................... 14
Using the wireless controls ................................................................................................ 14
Using the wireless action key ............................................................................................ 14
Using HP Wireless Assistant ............................................................................................. 15
Using operating system controls ........................................................................................ 15
Using a WLAN .................................................................................................................................... 16
Setting up a WLAN ............................................................................................................ 16
Protecting your WLAN ....................................................................................................... 17
Connecting to a WLAN ...................................................................................................... 18
Roaming to another network .............................................................................................. 18
Using Bluetooth wireless devices (select models only) ...................................................................... 19
Bluetooth and Internet Connection Sharing (ICS) ............................................................. 19
Troubleshooting wireless connection problems ................................................................................. 20
Cannot connect to a WLAN ............................................................................................... 20
Cannot connect to a preferred network ............................................................................. 21
Network icon is not displayed ............................................................................................ 21
v
Current network security codes are unavailable ................................................................ 21
WLAN connection is very weak ......................................................................................... 22
Cannot connect to the wireless router ............................................................................... 22
Using the modem (select models only) .............................................................................................. 23
Connecting a modem cable ............................................................................................... 23
Connecting a country-specific modem cable adapter ........................................................ 24
Selecting a location setting ................................................................................................ 24
Viewing the current location selection ............................................................... 24
Adding new locations when traveling ................................................................ 25
Solving travel connection problems .................................................................. 26
Connecting to a local area network .................................................................................................... 27
3 Pointing devices and keyboard
Using the TouchPad ........................................................................................................................... 28
Turning the TouchPad on and off ....................................................................................................... 29
Using TouchPad gestures .................................................................................................................. 29
Scrolling .............................................................................................................................................. 30
Pinching .............................................................................................................................................. 30
Rotating ............................................................................................................................................. 31
Setting pointing device preferences ................................................................................................... 31
Using the keyboard ............................................................................................................................ 32
Cleaning the TouchPad and keyboard ............................................................................................... 34
4 Multimedia
Multimedia features ............................................................................................................................ 35
Multimedia software ........................................................................................................................... 39
Audio .................................................................................................................................................. 40
Video .................................................................................................................................................. 41
Optical drive ....................................................................................................................................... 43
Webcam (select models only) ............................................................................................................ 44
Identifying your multimedia components ........................................................................... 36
Adjusting the volume ......................................................................................................... 37
Using the media activity functions ..................................................................................... 38

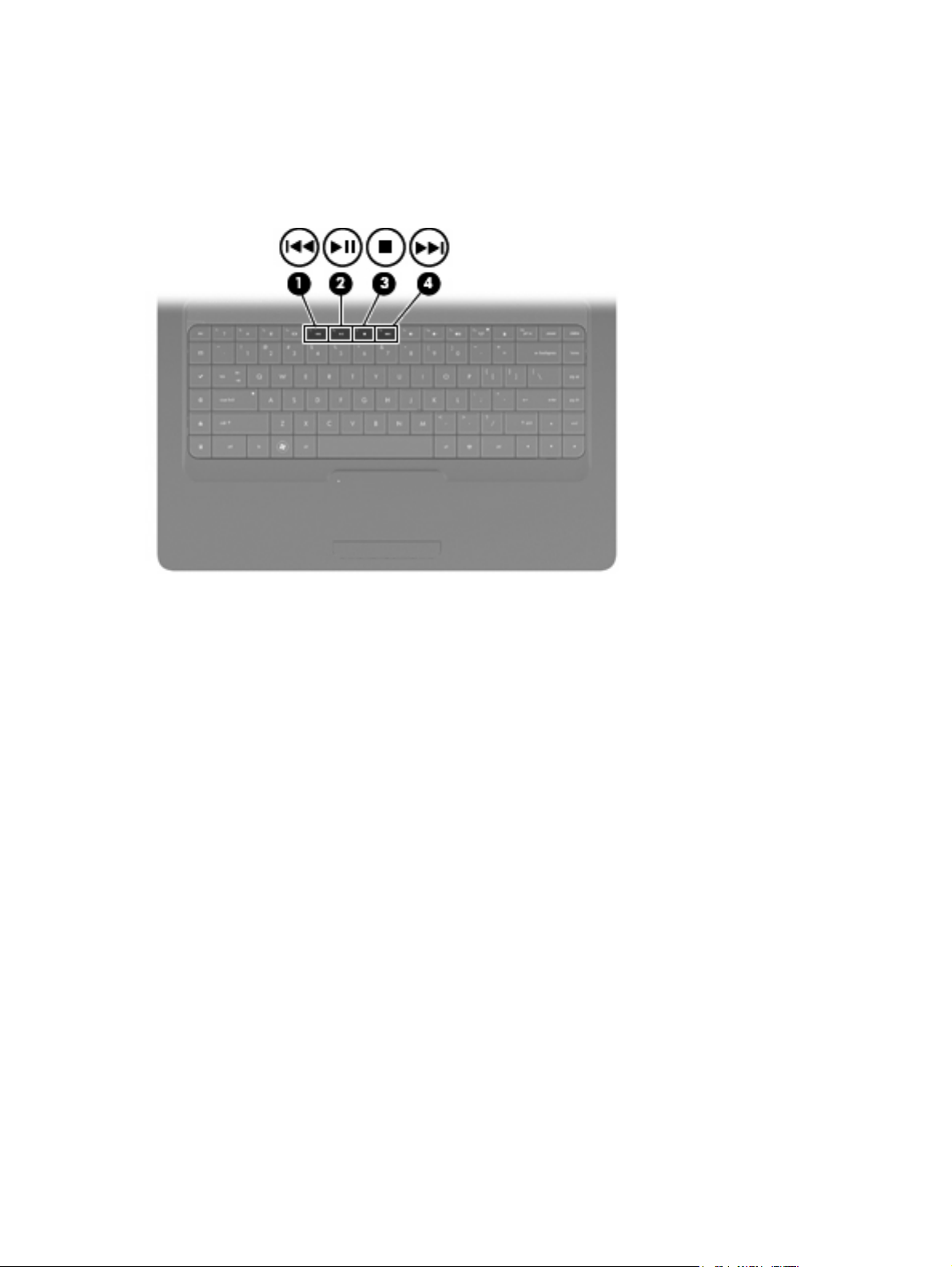

Using the media activity action keys ................................................................. 38
Using CyberLink PowerDVD software ............................................................................... 39
Using other preinstalled multimedia software .................................................................... 39
Installing multimedia software from a disc ......................................................................... 39
Connecting external audio devices .................................................................................... 40
Checking your audio functions ........................................................................................... 40
Connecting an HDMI device (select models only) ............................................................. 42
Configuring audio for HDMI (select models only) .............................................. 43
Webcam tips ...................................................................................................................... 44
Adjusting webcam properties ............................................................................................. 44
vi
5 Power management
Setting power options ......................................................................................................................... 46
Using power-saving states ................................................................................................. 46
Using the battery meter ..................................................................................................... 48
Using power plans ............................................................................................................. 48
Setting password protection on wakeup ............................................................................ 49
Using external AC power .................................................................................................................... 50
Connecting the AC adapter ............................................................................................... 51
Testing an AC adapter ....................................................................................................... 52
Using battery power ........................................................................................................................... 53
Finding battery information in Help and Support ............................................................... 53
Using Battery Check .......................................................................................................... 53
Displaying the remaining battery charge ........................................................................... 54

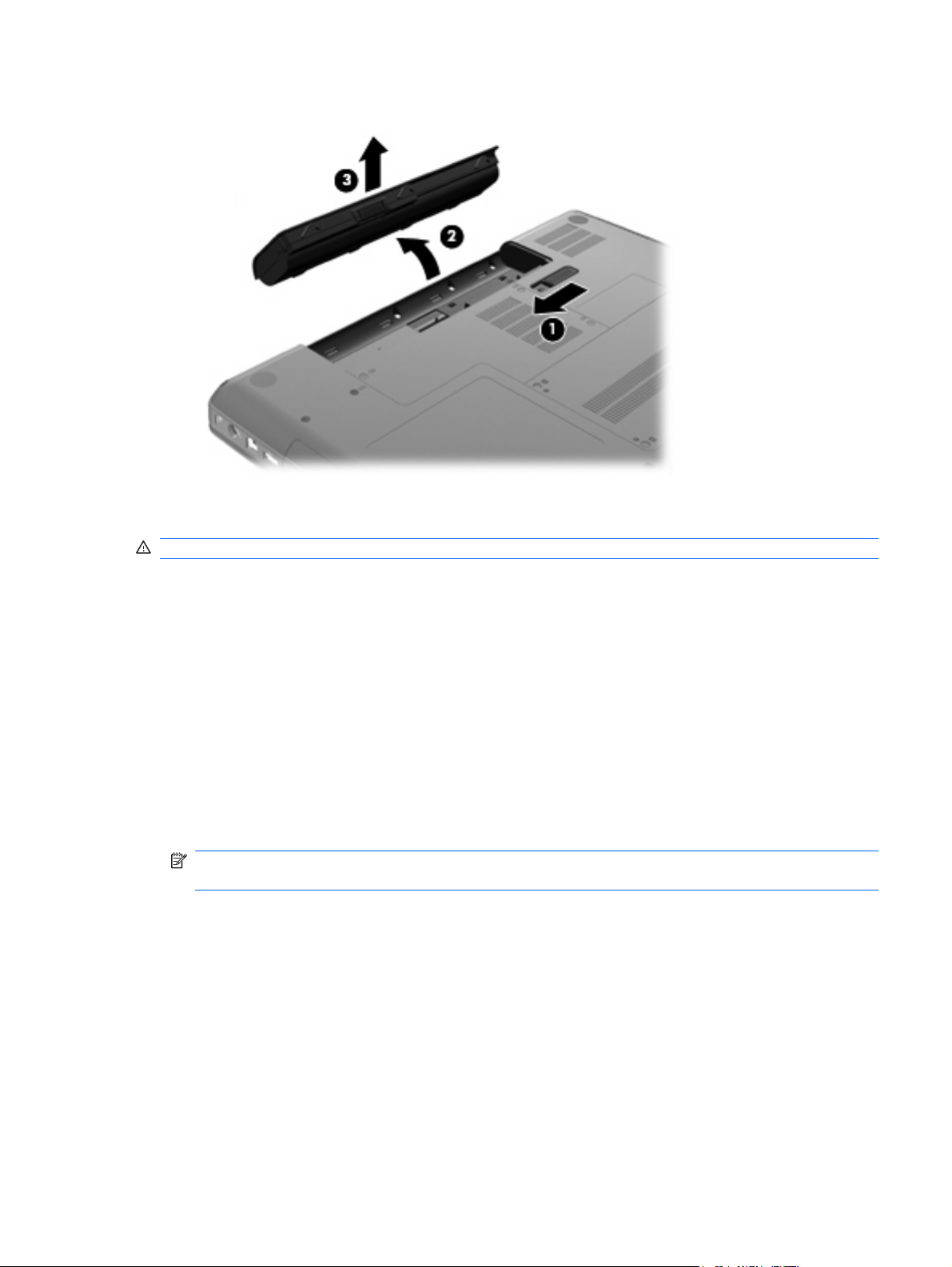

Inserting or removing the battery ....................................................................................... 54
Charging a battery ............................................................................................................. 55
Maximizing battery discharge time .................................................................................... 56
Managing low battery levels .............................................................................................. 56
Calibrating a battery ........................................................................................................... 57
Conserving battery power .................................................................................................. 60
Storing a battery ................................................................................................................ 60
Disposing of a used battery ............................................................................................... 61
Replacing the battery ......................................................................................................... 61
Switching between graphics modes (select models only) .................................................................. 62
Shutting down the computer ............................................................................................................... 63
Initiating and exiting Sleep ................................................................................ 47
Initiating and exiting Hibernation ....................................................................... 47
Viewing the current power plan ......................................................................... 48
Selecting a different power plan ........................................................................ 48
Customizing power plans .................................................................................. 48
Identifying low battery levels ............................................................................. 56
Resolving a low battery level ............................................................................. 56
Resolving a low battery level when external power is available ....... 56
Resolving a low battery level when a charged battery is
available ........................................................................................... 56
Resolving a low battery level when no power source is
available ........................................................................................... 57
Resolving a low battery level when the computer cannot exit
Hibernation ....................................................................................... 57
Step 1: Fully charge the battery ........................................................................ 57
Step 2: Disable Hibernation and Sleep ............................................................. 57
Step 3: Discharge the battery ............................................................................ 59
Step 4: Fully recharge the battery ..................................................................... 59
Step 5: Reenable Hibernation and Sleep .......................................................... 60
vii
6 Drives
Handling drives ................................................................................................................................... 64
Optical drive ....................................................................................................................................... 65
Identifying the installed optical drive .................................................................................. 65
Using optical discs ............................................................................................................. 66
Selecting the right disc (CDs, DVDs, and BDs) ................................................................. 67
CD-R discs ........................................................................................................ 67
CD-RW discs ..................................................................................................... 67
DVD±R discs ..................................................................................................... 67
DVD±RW discs ................................................................................................. 67
LightScribe DVD+R discs .................................................................................. 68
Blu-ray Disc (BD) .............................................................................................. 68
Playing a CD, DVD, or BD ................................................................................................. 68
Configuring AutoPlay ......................................................................................................... 70
Changing DVD region settings .......................................................................................... 70
Observing the copyright warning ....................................................................................... 71
Copying a CD, DVD, or BD ................................................................................................ 71
Creating or “burning” a CD or DVD .................................................................................... 72
Removing a CD, DVD, or BD ............................................................................................. 73
Troubleshooting drive and device driver problems ............................................................................. 73
The optical disc tray does not open for removal of a CD, DVD, or BD .............................. 73
A disc does not play automatically ..................................................................................... 74
A DVD movie stops, skips, or plays erratically .................................................................. 74
A DVD movie is not visible on an external display ............................................................. 75
The process of burning a disc does not begin, or it stops before completion .................... 75
A DVD playing in Windows Media Player produces no sound or display .......................... 75
A device driver must be reinstalled .................................................................................... 75
Obtaining the latest HP device drivers .............................................................. 76
Obtaining the latest Windows device drivers .................................................... 77
Using external drives .......................................................................................................................... 78
Improving hard drive performance ..................................................................................................... 79
Using Disk Defragmenter ................................................................................................... 79
Using Disk Cleanup ........................................................................................................... 79
Replacing the hard drive .................................................................................................................... 80
7 External devices and external media cards
Using a USB device ........................................................................................................................... 84
Connecting a USB device .................................................................................................. 84
Removing a USB device .................................................................................................... 85
Using Digital Media Slot cards ........................................................................................................... 86
Inserting a digital card ........................................................................................................ 86
Removing a digital card ..................................................................................................... 87
viii
8 Adding or replacing a memory module
9 Security
Protecting the computer ..................................................................................................................... 91
Using passwords ................................................................................................................................ 92
Setting passwords in Windows .......................................................................................... 92
Setting passwords in Setup Utility ..................................................................................... 92
Administrator password ..................................................................................... 93
Managing an administrator password ............................................... 93
Entering an administrator password ................................................. 93
Power-on password .......................................................................................... 94
Managing a power-on password ...................................................... 94
Entering a power-on password ......................................................... 94
Using antivirus software ..................................................................................................................... 95
Using firewall software ....................................................................................................................... 95
Installing critical security updates ....................................................................................................... 96
Installing an optional security cable .................................................................................................... 96
Appendix A Setup Utility (BIOS)
Starting Setup Utility ........................................................................................................................... 97
Using Setup Utility .............................................................................................................................. 98
Changing the language of Setup Utility ............................................................................. 98
Navigating and selecting in Setup Utility ............................................................................ 98
Displaying system information ........................................................................................... 99
Restoring default settings in Setup Utility .......................................................................... 99
Exiting Setup Utility .......................................................................................................... 100
Setup Utility menus .......................................................................................................................... 100
Main menu ....................................................................................................................... 100
Security menu .................................................................................................................. 100
System Configuration menu ............................................................................................ 101
Diagnostics menu ............................................................................................................ 101
Appendix B Software updates
Updating the BIOS ........................................................................................................................... 103
Determining the BIOS version ......................................................................................... 103
Downloading a BIOS update ........................................................................................... 104
Updating programs and drivers ........................................................................................................ 105
Appendix C Backup and recovery
Creating recovery discs .................................................................................................................... 107
Backing up your information ............................................................................................................. 108
Using Windows Backup and Restore .............................................................................. 109
Using system restore points ............................................................................................ 110
ix
When to create restore points ......................................................................... 110
Create a system restore point ......................................................................... 110
Restore to a previous date and time ............................................................... 110
Performing a recovery ...................................................................................................................... 111
Recovering from the recovery discs ................................................................................ 111
Recovering from the dedicated recovery partition (select models only) .......................... 111
Index ................................................................................................................................................................. 112
x
1 Features
Identifying hardware
To see a list of hardware installed in the computer:
Select Start > Control Panel > System and Security. Then in the System area, click Device
▲
Manager.
You can also add hardware or modify device configurations using Device Manager.
NOTE: Windows® includes the User Account Control feature to improve the security of your computer.
You may be prompted for your permission or password for tasks such as installing software, running
utilities, or changing Windows settings. Refer to Help and Support for more information.
Identifying hardware 1
Components
Top components
TouchPad
Component Description
(1) TouchPad light
(2) TouchPad* Moves the pointer and selects or activates items on the screen.
(3) Left TouchPad button* Press the left side of the TouchPad button to execute functions
(4) Right TouchPad button* Press the right side of the TouchPad button to execute functions
*This table describes factory settings. To view and change pointing device preferences, select Start > Devices and Printers,
right-click the device representing your computer, and then select Mouse settings.
Off: TouchPad is on.
●
Amber: TouchPad is off.
●
performed by the left button on an external mouse.
performed by the right button on an external mouse.
There is an unmarked scroll zone inside the right edge of the TouchPad. To scroll up and down using
the TouchPad vertical scroll zone, slide your finger up or down inside the right edge of the TouchPad.
For more information about TouchPad features, refer to
Using TouchPad gestures on page 29.
2 Chapter 1 Features
Lights
NOTE: Your computer may look slightly different from the illustration in this section.
Component Description
(1) TouchPad light
(2) Caps lock light On: Caps lock is on.
(3) Power light
(4) Wireless light
Off: TouchPad is enabled.
●
Amber: TouchPad is disabled.
●
On: The computer is on.
●
Blinking: The computer is in the Sleep state.
●
Off: The computer is off or in Hibernation.
●
White: An integrated wireless device, such as a wireless local
●
area network (WLAN) device and/or a Bluetooth® device, is
on.
Amber: All wireless devices are off.
●
Components 3
Button and speakers
NOTE: Your computer may look slightly different from the illustration in this section.
Component Description
(1) Speaker grill Two integrated speakers produce sound.
(2) Power button*
*This table describes factory settings. For information about changing factory settings, press f1 to open Help and Support.
When the computer is off, press the button to turn on the
●
computer.
When the computer is on, press the button briefly to initiate
●
Sleep.
When the computer is in the Sleep state, press the button
●
briefly to exit Sleep.
When the computer is in Hibernation, press the button briefly
●
to exit Hibernation.
If the computer has stopped responding and Windows shutdown
procedures are ineffective, press and hold the power button for at
least 5 seconds to turn off the computer.
To learn more about your power settings, select Start > Control
Panel > System and Security > Power Options.
4 Chapter 1 Features
Keys
NOTE: Your computer may look slightly different from the illustration in this section.
Component Description
(1) esc key Displays system information when pressed in combination with the
(2) Send e-mail key Opens a new e-mail in your default e-mail client.
(3) Media application key Launches CyberLink PowerDVD.
(4) Web browser key Launches your default web browser.
(5) Print key Sends the currently-active document to the default printer.
(6) Calculator key Launches the calculator application.
(7) fn key Displays system information when pressed in conjunction with the
(8) Windows logo key Displays the Windows Start menu.
(9) Windows applications key Displays a shortcut menu for items where the cursor is positioned.
(10) Action keys Executes frequently-used system actions.
fn key.
esc key.
Refer to Using the keyboard on page 32 for information about using action keys.
Components 5
Right-side components
NOTE: Your computer may look slightly different from the illustration in this section.
Component Description
(1) Optical drive light Blinking: The optical drive is being accessed.
(2) USB port Connects an optional USB device.
(3) RJ-11 (modem) jack (select models only, labeled
on select models only)
(4) AC adapter light
(5) Power connector Connects an AC adapter.
(6) Security cable slot Attaches an optional security cable to the computer.
Connects a modem cable.
Blinking white: The computer is in sleep mode.
●
On white: The computer is connected to external power.
●
Amber: The computer is charging.
●
Off: The computer is not connected to external power.
●
NOTE: The security cable is designed to act as a deterrent, but
it may not prevent the computer from being mishandled or stolen.
6 Chapter 1 Features
Left-side components
NOTE: Your computer may look slightly different from the illustration in this section.
Component Description
(1) External monitor port (labeled on select models
only)
(2) Vent Enables airflow to cool internal components.
(3) HDMI port (select models only) Connects an optional video or audio device, such as a high-
(4) RJ-45 (network) jack Connects a network cable.
(5) USB ports Connects an optional USB device.
(6) Audio-in (microphone) jack Connects an optional computer headset microphone, stereo array
(7) Audio-out (headphone) jack Produces sound when connected to optional powered stereo
(8) Digital media slot (select models only) Supports the following optional digital card formats:
Connects an external VGA monitor or projector.
NOTE: The computer fan starts up automatically to cool internal
components and prevent overheating. It is normal for the internal
fan to cycle on and off during routine operation.
definition television, or any compatible digital or audio component.
microphone, or monaural microphone.
speakers, headphones, earbuds, a headset, or television audio.
Memory Stick (MS)
●
Memory Stick Pro (MSP)
●
MultiMediaCard (MMC)
●
Secure Digital (SD) Memory Card
●
xD-Picture Card (XD)
●
(9) Drive light On: The hard drive is in use.
Components 7
Bottom components
Component Description
(1) Battery bay Holds the battery.
(2) Vents (4) Enables airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool internal
components and prevent overheating. It is normal for the internal
fan to cycle on and off during routine operation.
(3) Battery release latch Releases the battery from the battery bay.
(4) Memory module compartment Contains the two memory module slots.
(5) Hard drive bay Holds the hard drive.
8 Chapter 1 Features
Display components
Component Description
(1) Internal microphone (select models only) Records sound.
(2) Webcam (select models only) Records audio and video and captures still photographs.
(3) Webcam light (select models only) On: The webcam is in use.
Wireless antennas
Your computer model has two antennas that send and receive signals from one or more wireless
devices. These antennas are not visible from the outside of the computer.
Components 9
NOTE: For optimal transmission, keep the areas immediately around the antennas (shown in the
previous illustration) free from obstructions.
To see wireless regulatory notices, refer to the section of the Regulatory, Safety and Environmental
Notices that applies to your country or region. These notices are located in Help and Support.
10 Chapter 1 Features
Additional hardware components
Component Description
(1) Power cord* Connects an AC adapter to an AC outlet.
(2) AC adapter Converts AC power to DC power.
(3) Battery* Powers the computer when the computer is not plugged into
external power.
*Batteries and power cords vary in appearance by region and country.
Components 11
Labels
The labels affixed to the computer provide information you may need when you troubleshoot system
problems or travel internationally with the computer.
NOTE: Make sure to have this information available when you contact technical support.
●
Service tag—Provides the computer serial number, product number, warranty information, and
model number. This label is affixed to the bottom of your computer.
Microsoft
●
Product Key to update or troubleshoot the operating system. This certificate is affixed to the bottom
of the computer.
Regulatory label—Provides regulatory information about the computer. The regulatory label is
●
affixed inside the battery bay.
Modem approval label (select models only)—Provides regulatory information about the modem
●
and lists the agency approval markings required by some of the countries or regions in which the
modem has been approved for use. You may need this information when traveling internationally.
The modem approval label is affixed inside the hard drive bay.
Wireless certification label(s)—Provide information about optional wireless devices and the
●
approval markings of some of the countries or regions in which the devices have been approved
for use. An optional device may be a wireless local area network (WLAN) device or an optional
Bluetooth® device. If your computer model includes one or more wireless devices, one or more
certification labels are included with your computer. You may need this information when traveling
internationally. Wireless certification labels are affixed inside the Memory Module compartment.
®
Certificate of Authenticity—Contains the Windows Product Key. You may need the
12 Chapter 1 Features
2 Wireless, local area network, and
modem
Using wireless devices
Wireless technology transfers data across radio waves instead of wires. Your computer may be
equipped with one or more of the following wireless devices:
Wireless local area network (WLAN) device—Connects the computer to wireless local area
●
networks (commonly referred to as Wi-Fi networks, wireless LANs, or WLANs) in corporate offices,
your home, and public places such as airports, restaurants, coffee shops, hotels, and universities.
In a WLAN, each mobile wireless device communicates with a wireless router or a wireless access
point.
Bluetooth® device (select models only)—Creates a personal area network (PAN) to connect to
●
other Bluetooth-enabled devices such as computers, phones, printers, headsets, speakers, and
cameras. In a PAN, each device communicates directly with other devices, and devices must be
relatively close together, typically within 10 meters (approximately 33 feet) of each other.
Computers with WLAN devices support one or more of the following IEEE industry standards:
802.11b, the first popular standard, supports data rates of up to 11 Mbps and operates at a
●
frequency of 2.4 GHz.
802.11g supports data rates of up to 54 Mbps and operates at a frequency of 2.4 GHz. An 802.11g
●
WLAN device is backward compatible with 802.11b devices, so they can operate on the same
network.
802.11a supports data rates of up to 54 Mbps and operates at a frequency of 5 GHz.
●
NOTE: 802.11a is not compatible with 802.11b and 802.11g.
802.11n supports data rates of up to 450 Mbps and may operate at 2.4 GHz or 5 GHz, making it
●
backward compatible with 802.11a, b, and g.
For more information on wireless technology, refer to the information and Web site links provided in
Help and Support.
Using wireless devices 13
Identifying wireless and network status icons
Icon Name Description
Wireless (connected) Identifies the location of the wireless light and the wireless action
key (f12) on the computer. Also identifies the HP Wireless Assistant
software on the computer and indicates that one or more of the
wireless devices are on.
Wireless (disconnected) Identifies the HP Wireless Assistant software on the computer and
indicates that all of the wireless devices are off.
Wired network (connected) Indicates that one or more network drivers are installed, and one or
more network devices are connected to a wired network.
Wired network (disabled/
disconnected)
Network (connected) Indicates that one or more network drivers are installed, and one or
Network (disconnected) Indicates that one or more network drivers are installed and wireless
Network (disabled/
disconnected)
Using the wireless controls
You can control the wireless devices in your computer using these features:
The wireless action key (f12)
●
HP Wireless Assistant software
●
Operating system controls
●
Indicates that one or more network drivers are installed, but no
network devices are connected (or all network devices are disabled
in Windows Control Panel).
more network devices are connected to a wireless network.
connections are available, but no network devices are connected to
a wireless network.
Indicates that one or more network drivers are installed, but no
wireless connections are available (or all wireless network devices
are turned off by the wireless action key [f12] or HP Wireless
Assistant).
Using the wireless action key
The computer has a wireless action key (f12), one or more wireless devices, and a wireless light. All of
the wireless devices on your computer are enabled at the factory, so the wireless light is on (white) when
you turn on the computer.
The wireless light indicates the overall power state of your wireless devices, not the status of individual
devices. If the wireless light is white, at least one wireless device is on. If the wireless light is amber, all
wireless devices are off.
Because the wireless devices are enabled at the factory, you can use the wireless action key (f12) to
turn on or turn off all of the wireless devices simultaneously. Individual wireless devices can be controlled
through HP Wireless Assistant.
14 Chapter 2 Wireless, local area network, and modem
Using HP Wireless Assistant
A wireless device can be turned on or off using HP Wireless Assistant. If a wireless device is disabled
in Setup Utility, it must be reenabled in Setup Utility before it can be turned on or off using Wireless
Assistant.
NOTE: Enabling or turning on a wireless device does not automatically connect the computer to a
network or a Bluetooth-enabled device.
To view the state of the wireless devices, click the Show hidden icons icon, the arrow at the left of the
notification area, and then position the mouse pointer over the wireless icon.
If the wireless icon is not displayed in the notification area, complete the following steps to change
Wireless Assistant properties:
1. Select Start > Control Panel > Hardware and Sound > Windows Mobility Center.
2. Click the wireless icon in the Wireless Assistant tile, which is located in the bottom row of Windows
Mobility Center. Wireless Assistant opens.
3. Click Properties.
4. Select the check box next to HP Wireless Assistant icon in notification area.
5. Click Apply.
6. Click Close.
For more information, refer to the Wireless Assistant software Help:
1. Open Wireless Assistant by clicking the wireless icon in Windows Mobility Center.
2. Click the Help button.
Using operating system controls
Some operating systems also offer a way to manage integrated wireless devices and the wireless
connection. For example, Windows provides the Network and Sharing Center that allows you to set up
a connection or network, connect to a network, manage wireless networks, and diagnose and repair
network problems.
To access the Network and Sharing Center, select Start > Control Panel > Network and Internet >
Network and Sharing Center.
For more information, select Start > Help and Support.
Using wireless devices 15
Using a WLAN
With a WLAN device, you can access a wireless local area network (WLAN), which is composed of other
computers and accessories that are linked by a wireless router or a wireless access point.
NOTE: The terms wireless router and wireless access point are often used interchangeably.
A large-scale WLAN, such as a corporate or public WLAN, typically uses wireless access points
●
that can accommodate a large number of computers and accessories and can separate critical
network functions.
A home or small office WLAN typically uses a wireless router, which allows several wireless and
●
wired computers to share an Internet connection, a printer, and files without requiring additional
pieces of hardware or software.
To use the WLAN device in your computer, you must connect to a WLAN infrastructure (provided through
a service provider or a public or corporate network).
Setting up a WLAN
To set up a WLAN and connect to the Internet, you need the following equipment:
A broadband modem (either DSL or cable) (1) and high-speed Internet service purchased from an
●
Internet service provider (ISP)
A wireless router (purchased separately) (2)
●
The wireless computer (3)
●
The illustration below shows an example of a wireless network installation that is connected to the
Internet.
As your network grows, additional wireless and wired computers can be connected to the network to
access the Internet.
For help in setting up your WLAN, refer to the information provided by your router manufacturer or your
ISP.
16 Chapter 2 Wireless, local area network, and modem
Protecting your WLAN
Because the WLAN standard was designed with only limited security capabilities—basically to foil casual
eavesdropping rather than more powerful forms of attack—it is essential to understand that WLANs are
vulnerable to well-known and well-documented security weaknesses.
WLANs in public areas, or “hotspots,” like coffee shops and airports may not provide any security. New
technologies are being developed by wireless manufacturers and hotspot service providers that make
the public environment more secure and anonymous. If you are concerned about the security of your
computer in a hotspot, limit your network activities to noncritical e-mail and basic Internet surfing.
When you set up a WLAN or access an existing WLAN, always enable security features to protect your
network from unauthorized access. The common security levels are Wi-Fi Protected Access (WPA)Personal and Wired Equivalent Privacy (WEP). Because wireless radio signals travel outside the
network, other WLAN devices can pick up unprotected signals and either connect to your network
(uninvited) or capture information being sent across it. However, you can take precautions to protect
your WLAN:
Use a wireless transmitter with built-in security
●
Many wireless base stations, gateways, or routers provide built-in security features such as
wireless security protocols and firewalls. With the correct wireless transmitter, you can protect your
network from the most common wireless security risks.
Work behind a firewall
●
A firewall is a barrier that checks both data and requests for data that are sent to your network,
and discards any suspicious items. Firewalls are available in many varieties, both software and
hardware. Some networks use a combination of both types.
Use wireless encryption
●
A variety of sophisticated encryption protocols are available for your WLAN:
Wired Equivalent Privacy (WEP) is a wireless security protocol that encodes or encrypts all
◦
network data before it is transmitted using a WEP key. Usually, you can allow the network to
assign the WEP key. Alternatively, you can set up your own key, generate a different key, or
choose other advanced options. Without the correct key, others will not be able to use the
WLAN.
WPA (Wi-Fi Protected Access), like WEP, uses security settings to encrypt and decrypt data
◦
that is transmitted over the network. However, instead of using one static security key for
encryptions as WEP does, WPA uses “temporal key integrity protocol” (TKIP) to dynamically
generate a new key for every packet. It also generates different sets of keys for each computer
on the network.
Using a WLAN 17
Connecting to a WLAN
To connect to the WLAN, follow these steps:
1. Be sure that the WLAN device is on (the wireless light is white). If the wireless light is amber, press
the wireless action key (f12).
2. Click the network icon in the notification area, at the far right of the taskbar.
3. Select your WLAN from the list.
4. Click Connect.
If the network is a security-enabled WLAN, you are prompted to enter a network security key, which
is a security code. Enter the code, and then click OK to complete the connection.
NOTE: If no WLANs are listed, you are out of range of a wireless router or access point.
NOTE: If you do not see the network you want to connect to, click Open Network and Sharing
Center, and then click Set up a new connection or network. A list of options is displayed. You
can choose to manually search for and connect to a network or to create a new network connection.
After the connection is made, place the mouse pointer over the network icon in the notification area, at
the far right of the taskbar, to verify the name and status of the connection.
NOTE: The functional range (how far your wireless signals travel) depends on WLAN implementation,
router manufacturer, and interference from other electronic devices or structural barriers such as walls
and floors.
More information about using a WLAN is available through the following resources:
Information from your ISP and the user guides included with your wireless router and other WLAN
●
equipment
Information and Web site links provided in Help and Support
●
For a list of public WLANs near you, contact your ISP or search the web. Web sites that list public WLANs
include Cisco Internet Mobile Office Wireless Locations, Hotspotlist, and Geektools. Check with each
public WLAN location for cost and connection requirements.
Roaming to another network
When you move your computer within range of another WLAN, Windows attempts to connect to that
network. If the attempt is successful, your computer is automatically connected to the new network. If
Windows does not recognize the new network, follow the same procedure you used initially to connect
to your WLAN.
18 Chapter 2 Wireless, local area network, and modem
Using Bluetooth wireless devices (select models only)
A Bluetooth device provides short-range wireless communications that replace the physical cable
connections that traditionally link electronic devices such as the following:
Computers (desktop, notebook, PDA)
●
Phones (cellular, cordless, smart phone)
●
Imaging devices (printer, camera)
●
Audio devices (headset, speakers)
●
Bluetooth devices provide peer-to-peer capability that allows you to set up a personal area network
(PAN) of Bluetooth devices. For information on configuring and using Bluetooth devices, refer to the
Bluetooth software Help.
Bluetooth and Internet Connection Sharing (ICS)
HP does not recommend setting up one computer with Bluetooth as a host and using it as a gateway
through which other computers may connect to the Internet. When two or more computers are connected
using Bluetooth, and Internet Connection Sharing (ICS) is enabled on one of the computers, the other
computers may not be able to connect to the Internet using the Bluetooth network.
The strength of Bluetooth is in synchronizing information transfers between your computer and wireless
devices including cellular phones, printers, cameras, and PDAs. The inability to consistently connect
two or more computers to share the Internet through Bluetooth is a limitation of Bluetooth and the
Windows operating system.
Using Bluetooth wireless devices (select models only) 19
Troubleshooting wireless connection problems
Some possible causes for wireless connection problems include the following:
Network configuration (SSID or security) has been changed.
●
Wireless device is not installed correctly or has been disabled.
●
Wireless device or router hardware has failed.
●
Wireless device encountered interference from other devices.
●
NOTE: Wireless networking devices are included with select computer models only. If wireless
networking is not listed in the feature list on the side of the original computer package, you may add
wireless networking capability to the computer by purchasing a wireless networking device.
Before working your way through the sequence of possible solutions to your network connection
problem, be sure that device drivers are installed for all wireless devices.
Use the procedures in this chapter to diagnose and repair a computer that does not connect to the
network you want to use.
Cannot connect to a WLAN
If you have a problem connecting to a WLAN, confirm that the integrated WLAN device is properly
installed on your computer:
NOTE: Windows includes the User Account Control feature to improve the security of your computer.
You may be prompted for your permission or password for tasks such as installing software, running
utilities, or changing Windows settings. Refer to Help and Support for more information.
1. Select Start > Control Panel > System and Security.
2. In the System area, click Device Manager.
3. Click the arrow next to Network adapters to expand the list and show all adapters.
4. Identify the WLAN device from the Network adapters list. The listing for a WLAN device may include
the term wireless, wireless LAN, WLAN, Wi-Fi, or 802.11.
If no WLAN device is listed, either your computer does not have an integrated WLAN device, or
the driver for the WLAN device is not properly installed.
For more information on troubleshooting WLANs, refer to the Web site links provided in Help and
Support.
20 Chapter 2 Wireless, local area network, and modem
Cannot connect to a preferred network
Windows can automatically repair a corrupted WLAN connection:
If there is a network icon in the notification area, at the far right of the taskbar, right-click the icon,
●
and then click Troubleshoot problems.
Windows resets your network device and attempts to reconnect to one of the preferred networks.
If there is no network icon in the notification area, follow these steps:
●
1. Select Start > Control Panel > Network and Internet > Network and Sharing Center.
2. Click Troubleshoot problems, and then select the network you wish to repair.
Network icon is not displayed
If the network icon is not displayed in the notification area after you configure the WLAN, the software
driver is either missing or corrupted. A Windows “Device not Found” error message may also be
displayed. The driver must be reinstalled.
If the WLAN device you are using was purchased separately, consult the manufacturer's Web site for
the latest software.
To get the latest version of the WLAN device software for your computer, follow these steps:
1. Open your web browser, and then go to
2. Select your country or region.
3. Click the option for software and driver downloads, and then enter your computer model number
in the search box.
4. Press enter, and then follow the on-screen instructions.
NOTE: If the WLAN device you are using was purchased separately, consult the manufacturer's Web
site for the latest software.
http://www.hp.com/support.
Current network security codes are unavailable
If you are prompted for a network key or a name (SSID) when connecting to a WLAN, the network is
protected by security. You must have the current codes to make a connection on a secure network. The
SSID and network key are alphanumeric codes that you enter into your computer to identify your
computer to the network.
For a network connected to your personal wireless router, review the router user guide for
●
instructions on setting up the same codes on both the router and the WLAN device.
For a private network, such as a network in an office or at a public Internet chat room, contact the
●
network administrator to obtain the codes, and then enter the codes when prompted to do so.
Some networks change the SSID or network keys used in their routers or access points on a regular
basis to improve security. You must change the corresponding code in your computer accordingly.
Troubleshooting wireless connection problems 21
If you are provided with new wireless network keys and SSID for a network, and if you have previously
connected to that network, follow the steps below to connect to the network:
1. Select Start > Control Panel > Network and Internet > Network and Sharing Center.
2. In the left panel, click Manage wireless networks.
A list showing the available WLANs is displayed. If you are in a hotspot where several WLANs are
active, several will be displayed.
3. Select the network in the list, right-click the network, and then click Properties.
NOTE: If the network you want is not listed, check with the network administrator to be sure that
the router or access point is operating.
4. Click the Security tab and enter the correct wireless encryption data into the Network security
key box.
5. Click OK to save these settings.
WLAN connection is very weak
If the connection is very weak, or if your computer cannot make a connection to a WLAN, minimize
interference from other devices, as follows:
Move your computer closer to the wireless router or access point.
●
Temporarily disconnect devices such as a microwave, cordless phone, or cellular phone to be sure
●
that other wireless devices are not interfering.
If the connection does not improve, try forcing the device to reestablish all connection values:
1. Select Start > Control Panel > Network and Internet > Network and Sharing Center.
2. In the left panel, click Manage wireless networks.
A list showing the available WLANs is displayed. If you are in a hotspot where several WLANs are
active, several will be displayed.
3. Click a network, and then click Remove.
Cannot connect to the wireless router
If you are trying to connect to the wireless router and are unsuccessful, reset the wireless router by
removing power from the router for 10 to 15 seconds.
If the computer still cannot make a connection to a WLAN, restart the wireless router. For details, refer
to the router manufacturer's instructions.
22 Chapter 2 Wireless, local area network, and modem
Using the modem (select models only)
The modem must be connected to an analog telephone line using a 6-pin, RJ-11 modem cable (included
with select models only). In some countries, a country-specific modem cable adapter (included with
select models only) is also required. Jacks for digital PBX systems may resemble analog telephone
jacks, but they are not compatible with the modem.
WARNING! Connecting the internal analog modem to a digital line can permanently damage the
modem. Immediately disconnect the modem cable if you accidentally connect it to a digital line.
If the modem cable contains noise suppression circuitry (1), which prevents interference from TV and
radio reception, orient the circuitry end (2) of the cable toward the computer.
Connecting a modem cable
WARNING! To reduce the risk of electric shock, fire, or damage to the equipment, do not plug a modem
cable (included with select models only) or telephone cable into the RJ-45 (network) jack.
To connect a modem cable:
1. Plug the modem cable into the modem jack (1) on the computer.
2. Plug the modem cable into the RJ-11 telephone wall jack (2).
Using the modem (select models only) 23
Connecting a country-specific modem cable adapter
Telephone jacks vary by country. To use the modem and the modem cable (included with select models
only) outside the country in which you purchased the computer, you must obtain a country-specific
modem cable adapter (included with select models only).
To connect the modem to an analog telephone line that does not have an RJ-11 telephone jack, follow
these steps:
1. Plug the modem cable into the modem jack (1) on the computer.
2. Plug the modem cable into the country-specific modem cable adapter (2).
3. Plug the country-specific modem cable adapter (3) into the telephone wall jack.
Selecting a location setting
Viewing the current location selection
To view the current location setting for the modem, follow these steps:
1. Select Start > Control Panel.
2. Click Clock, Language, and Region.
3. Click Region and Language.
4. Click the Location tab to display your location.
24 Chapter 2 Wireless, local area network, and modem
Adding new locations when traveling
By default, the only location setting available to the modem is a location setting for the country in which
you purchased the computer. As you travel to different countries, set the internal modem to a location
setting that meets the operating standards of the country in which you are using the modem.
As you add new location settings, they are saved by the computer so that you can switch among settings
at any time. You can add multiple location settings for any country.
CAUTION: To prevent losing your home country settings, do not delete your current modem country
settings. To enable modem use in other countries while preserving your home country configuration,
add a new configuration for each location in which you will use the modem.
CAUTION: To prevent configuring the modem in a way that violates the telecommunications
regulations and laws of the country you are visiting, select the country in which the computer is located.
The modem may not function properly if the correct country selection is not made.
To add a location setting for the modem, follow these steps:
1. Select Start > Devices and Printers.
2. Right-click the device that represents your computer, and then click Modem settings.
NOTE: You must set up an initial (current) location area code before you can view the Dialing
Rules tab. If you do not have a location set up, you will be prompted to enter the location when you
click Modem settings.
3. Click the Dialing Rules tab.
4. Click New. The New Location window is displayed.
5. In the Location name box, enter a name such as “home” or “work” for the new location setting.
6. Select a country or region from the Country/region drop-down list. (If you select a country or region
that is not supported by the modem, the Country/region selection for USA or UK is displayed by
default.)
7. Enter the area code, a carrier code (if necessary), and the number to access an outside line (if
necessary).
8. Next to Dial using, click Tone or Pulse.
9. Click OK to save your new location setting. The Phone and Modem window is displayed.
10. Do one of the following:
To set your new location setting as the current location, click OK.
●
To select another location setting as the current location setting, select your preference from
●
the settings in the Location list, and then click OK.
NOTE: You can use the preceding procedure to add location settings for places within your own
country as well as in other countries. For example, you could add a setting named “Work” that
includes dialing rules for accessing an outside line.
Using the modem (select models only) 25
Solving travel connection problems
If you experience modem connection problems when using the computer outside of the country in which
you purchased it, try the following suggestions.
Check the telephone line type.
●
The modem requires an analog, not a digital, telephone line. A line described as a PBX line is
usually a digital line. A telephone line described as a data line, fax machine line, modem line, or
standard telephone line is usually an analog line.
Check for pulse or tone dialing.
●
An analog telephone line supports one of two dialing modes: pulse dialing or tone dialing. These
dialing mode options are selected in the Phone and Modem settings. The dialing mode option
selected must match the dialing mode supported by the telephone line in your location.
To determine the dialing mode supported by a telephone line, dial a few digits on the telephone,
and then listen for clicks (pulses) or tones. Clicks indicate that the telephone line supports pulse
dialing. Tones indicate that the telephone line supports tone dialing.
To change the dialing mode in your current modem location setting, follow these steps:
1. Select Start > Devices and Printers.
2. Right-click the device that represents your computer, and then click Modem settings.
3. Click the Dialing Rules tab.
4. Select your modem location setting.
5. Click Edit.
6. Click either Tone or Pulse.
7. Click OK twice.
Check the telephone number you are dialing and the response of the remote modem.
●
Dial a telephone number, make sure there is a response from the remote modem, and then hang
up.
Set the modem to ignore dial tones.
●
If the modem receives a dial tone it does not recognize, it does not dial and displays a “No Dial
Tone” error message.
To set the modem to ignore all dial tones before dialing, follow these steps:
1. Select Start > Devices and Printers.
2. Right-click the device that represents your computer, and then click Modem settings.
3. Click the Modems tab.
4. Click the listing for the modem.
5. Click Properties.
6. Click Modem.
26 Chapter 2 Wireless, local area network, and modem
7. Clear the check box for Wait for dial tone before dialing.
8. Click OK twice.
Connecting to a local area network
Connecting to a local area network (LAN) requires an 8-pin, RJ-45 network cable (purchased
separately). If the network cable contains noise suppression circuitry (1), which prevents interference
from TV and radio reception, orient the circuitry end of the cable (2) toward the computer.
To connect the network cable:
1. Plug the network cable into the network jack (1) on the computer.
2. Plug the other end of the cable into a network wall jack (2).
WARNING! To reduce the risk of electric shock, fire, or damage to the equipment, do not plug a
modem or telephone cable into the RJ-45 (network) jack.
Connecting to a local area network 27
3 Pointing devices and keyboard
Using the TouchPad
The following illustration and table describe the computer TouchPad.
Component Description
(1) TouchPad off indicator When lit, indicates that the TouchPad is turned off.
(2) TouchPad zone Moves the pointer and selects or activates items on the screen.
(3) Left TouchPad button Functions like the left button on an external mouse.
(4) Right TouchPad button Functions like the right button on an external mouse.
28 Chapter 3 Pointing devices and keyboard
Turning the TouchPad on and off
When the TouchPad zone is active, the light is off. To turn the TouchPad on and off, quickly double-tap
the TouchPad off indicator.
To move the pointer, slide your finger across the TouchPad surface in the direction you want the pointer
to go. use the left and right TouchPad buttons like the corresponding buttons on an external mouse. To
scroll up and down using the TouchPad scroll zone, slide your finger vertically along the right edge of
the TouchPad.
NOTE: If you are using the TouchPad to move the pointer, you must lift your finger off the TouchPad
before moving it to the scroll zone. Simply sliding your finger from the TouchPad to the scroll zone will
not activate the scrolling function.
Using TouchPad gestures
The TouchPad supports a variety of TouchPad gestures. To activate the TouchPad gestures, place two
fingers on the TouchPad as described in the following sections.
To enable or disable gestures, double-click the Synaptics icon in the notification area, at the far right
of the taskbar, and then check or uncheck Disable gestures. To enable or disable a specific gesture,
select Control Panel > Hardware and Sound > Mouse > Device settings > Settings, and then check
or clear the check box next to the gesture you want to enable or disable.
Turning the TouchPad on and off 29
Scrolling
Scrolling is useful for moving up or down on a page or image. To scroll, place two fingers on the
TouchPad and drag them across the TouchPad in an up, down, left, or right motion.
NOTE: Scrolling speed is controlled by finger speed.
Pinching
Pinching allows you to zoom in or out on items such as PDFs, images, and photos.
To pinch:
Zoom in by holding two fingers together on the TouchPad, and then pull the fingers apart to increase
●
an object's size.
Zoom out by holding two fingers apart on the TouchPad, and then pull the fingers together to
●
decrease an object's size.
30 Chapter 3 Pointing devices and keyboard
Rotating
Rotating allows you to rotate items such as photos and pages. To rotate, anchor your thumb on the
TouchPad, and then move your forefinger in a semicircular motion around your thumb.
Setting pointing device preferences
Use Mouse Properties in Windows to customize settings for pointing devices, such as button
configuration, click speed, and pointer options.
To access Mouse Properties, select Start > Devices and Printers. Then, right-click the device
representing your computer, and select Mouse settings.
Rotating 31
Using the keyboard
The icons on the f1 through f12 keys represent the action key functions.
NOTE: Depending on the program you are using, pressing fn and one of the action keys opens a
specific shortcut menu within that program.
The action key feature is enabled at the factory. If you disable this feature in the Setup Utility, you will
need to press fn and an action key to activate the assigned function (refer to
on page 97).
Setup Utility (BIOS)
Function Action key or hotkey
fn+esc Press fn+esc (1) and (2) to display information about system hardware components and the system
BIOS (basic input-output system) version number.
Press f1 to open Help and Support, which provides information about your Windows operating system
and computer, answers to questions, tutorials, and updates to your computer. Help and Support also
provides checkups for computer functionality, automated and interactive troubleshooting, repair
solutions, system recovery procedures, and links to support.
Press and hold f2 to decrease the screen brightness level incrementally.
Press and hold f3 to increase the screen brightness level incrementally.
Press f4 to switch the screen image among display devices connected to the computer. For example,
if a monitor is connected to the computer, pressing this key alternates the screen image from the
computer display to the monitor display to simultaneous display on both the computer and the monitor.
Most external monitors receive video information from the computer using the external VGA video
standard. The f4 key can also alternate images among other devices that are receiving video
information from the computer.
Press f5 to play the previous track of a CD or the previous section of a DVD or a BD
Press f6 to play, pause, or resume a track of an audio CD or a section of a DVD or a BD.
32 Chapter 3 Pointing devices and keyboard
Function Action key or hotkey
Press f7 to stop the audio playback of a CD, a DVD, or a BD.
Press f8 to play the next track of an audio CD or the next section of a DVD or BD.
Press and hold f9 to decrease speaker volume incrementally.
Press and hold f10 to increase speaker volume incrementally.
Press f11 to mute or restore speaker sound.
Press f12 to turn the wireless feature on or off.
NOTE: This key does not establish a wireless connection. To establish a wireless connection, a
wireless network must also be set up.
Refer to (2) through (6) in Keys on page 5 for information on using the application quick-launch keys.
Using the keyboard 33
Cleaning the TouchPad and keyboard
Dirt and grease on the TouchPad can cause the pointer to jump around on the screen. To avoid this,
clean the TouchPad with a damp cloth, and wash your hands frequently when using the computer.
WARNING! To reduce the risk of electric shock or damage to internal components, do not use a
vacuum cleaner attachment to clean the keyboard. A vacuum cleaner can deposit household debris on
the keyboard surface.
Clean the keyboard regularly to prevent keys from sticking and to remove dust, lint, and particles that
can become trapped beneath the keys. A can of compressed air with a straw extension can be used to
blow air around and under the keys to loosen and remove debris.
34 Chapter 3 Pointing devices and keyboard
4Multimedia
Multimedia features
Your computer includes multimedia features that allow you to listen to music, watch movies, and view
pictures. Your computer may include the following multimedia components:
Optical drive for playing audio and video discs
●
Integrated speakers for listening to music
●
Integrated microphone for recording your own audio
●
Integrated webcam that allows you to record audio and video
●
Preinstalled multimedia software that allows you to play and manage your music, movies, and
●
pictures
Multimedia action keys which provide fast access to multimedia tasks
●
NOTE: Your computer may not include all of the components listed.
Multimedia features 35
Identifying your multimedia components
NOTE: Your computer may look slightly different from the illustration in this section.
Component Description
(1) Internal microphone Records sound.
(2) Webcam (select models only) Records audio and video and captures still photographs.
(3) Webcam light (select models only) White: The webcam is in use.
(4) Volume down action key (f9) Decreases speaker sound.
(5) Volume up action key (f10) Increases speaker sound.
(6) Volume mute action key (f11) Mutes and restores speaker sound.
(7) Audio-out (headphone) jack Produces sound when connected to optional powered stereo
speakers, headphones, earbuds, a headset, or television audio.
WARNING! To reduce the risk of personal injury, adjust the
volume before putting on headphones, earbuds, or a headset. For
additional safety information, refer to the Regulatory, Safety and
Environmental Notices.
NOTE: When a device is connected to the headphone jack, the
computer speakers are disabled.
36 Chapter 4 Multimedia
Component Description
(8) Audio-in (microphone) jack Connects an optional computer headset microphone, stereo array
(9) Speaker grill Two integrated speakers produce sound.
Adjusting the volume
You can adjust the volume using the following controls:
Action keys:
●
Press f11 to mute or restore speaker sound.
◦
Press and hold f9 to decrease speaker sound incrementally.
◦
Press and hold f10 to increase speaker sound incrementally.
◦
Windows volume control:
●
a. Click the Speakers icon in the notification area, at the far right of the taskbar.
b. Increase or decrease the volume by moving the slider up or down. Click the Mute Speakers
icon to mute the volume.
microphone, or monaural microphone.
– or –
a. Right-click the Speakers icon in the notification area, and then click Open Volume Mixer.
b. In the Speakers column, you can increase or decrease the volume by moving the slider up or
down. You can also mute the volume by clicking the Mute Speakers icon.
If the Speakers icon is not displayed in the notification area, follow these steps to add it:
a. Right-click the Show hidden icons icon (the arrow at the left side of the notification area).
b. Click Customize notification icons.
c. Under Behaviors, select Show icon and notifications for the Volume icon.
d. Click OK.
Program volume control:
●
Volume can also be adjusted within some programs.
Multimedia features 37
Using the media activity functions
The media activity action keys control the play of an audio CD, DVD, or BD (Blu-ray Disc) in the optical
drive.
Using the media activity action keys
When an audio CD, DVD, or BD is not playing, press f6 (2) to play the disc.
When an audio CD, DVD, or BD is playing, use the following action keys:
To pause or resume playing the disc, press f6 (2).
●
To stop the disc, press f7 (3).
●
To play the previous track of an audio CD or the previous section of a DVD or BD, press f5 (1).
●
To play the next track of an audio CD or the next section of a DVD or BD, press f8 (4).
●
38 Chapter 4 Multimedia
Multimedia software
Your computer includes preinstalled multimedia software that allows you to play music, watch movies,
and view pictures. The following sections provide details about CyberLink PowerDVD and other
preinstalled multimedia software.
Using CyberLink PowerDVD software
CyberLink PowerDVD turns your computer into a mobile entertainment center. With CyberLink
PowerDVD, you can enjoy music and DVD movies.
To start CyberLink PowerDVD, select Start > All Programs > CyberLink PowerDVD.
For information on using CyberLink PowerDVD, refer to the software Help.
Using other preinstalled multimedia software
To locate other preinstalled multimedia software:
Select Start > All Programs, and then open the multimedia program you want to use. For example,
▲
if you want to use Windows Media Player to play an audio CD, click Windows Media Player.
NOTE: Some programs may be located in subfolders.
Installing multimedia software from a disc
To install any multimedia software from a CD or DVD, follow these steps:
1. Insert the disc into the optical drive.
2. When the installation wizard opens, follow the on-screen instructions.
3. Restart the computer if you are prompted to do so.
NOTE: For details about using software included with the computer, refer to the software
manufacturer’s instructions, which may be provided on disc, in the software help, or on the
manufacturer's Web site.
Multimedia software 39
Audio
Your computer enables you to use a variety of audio features:
Play music using your computer speakers and/or connected external speakers.
●
Record sound using the internal microphone or connect an external microphone.
●
Download music from the Internet.
●
Create multimedia presentations using audio and images.
●
Transmit sound and images with instant messaging programs.
●
Stream radio programs (select models only) or receive FM radio signals.
●
Create or “burn” audio CDs.
●
Connecting external audio devices
WARNING! To reduce the risk of personal injury, adjust the volume before putting on headphones,
earbuds, or a headset. For additional safety information, refer to the Regulatory, Safety and
Environmental Notices.
To connect external devices such as external speakers, headphone, or a microphone, refer to the
information provided with the device. For best results, remember the following tips:
Be sure that the device cable is securely connected to the correct jack on your computer. Cable
●
connectors are normally color-coded to match the corresponding jacks on the computer.
Be sure that you install any drivers required by the external device.
●
NOTE: A driver is a required program that acts like a translator between the device and the
programs that use the device.
Checking your audio functions
To check the system sound on your computer, follow these steps:
1. Select Start > Control Panel.
2. Click Hardware and Sound.
3. Click Sound.
4. When the Sound window opens, click the Sounds tab. Under Program Events, select any sound
event, such as a beep or alarm, and then click the Test button.
You should hear sound through the speakers or through connected headphones.
To check the record functions of the computer, follow these steps:
1. Select Start > All Programs > Accessories > Sound Recorder.
2. Click Start Recording and speak into the microphone. Save the file to your desktop.
3. Open Windows Media Player or CyberLink PowerDVD, and then play back the sound.
40 Chapter 4 Multimedia
Video
NOTE: For best results when recording, speak directly into the microphone and record sound in a
setting free of background noise.
To confirm or change the audio settings on your computer, select Start > Control Panel > Hardware
and Sound > Sound.
Your computer enables you to use a variety of video features:
Watch movies.
●
Play games over the Internet.
●
Edit pictures and video to create presentations.
●
Connect external video devices.
●
Video 41
Connecting an HDMI device (select models only)
Select computer models include an HDMI (High Definition Multimedia Interface) port. The HDMI port
connects the computer to an optional video or audio device, such as a high-definition television, or any
compatible digital or audio component.
The computer can support one HDMI device connected to the HDMI port, while simultaneously
supporting an image on the computer display or any other supported external display.
NOTE: To transmit video signals through the HDMI port, you need an HDMI cable (purchased
separately), available from most electronic retailers.
To connect a video or audio device to the HDMI port:
1. Connect one end of the HDMI cable to the HDMI port on the computer.
2. Connect the other end of the cable to the video device, according to the device manufacturer’s
instructions.
3. Press f4 on the computer to switch the image between the display devices connected to the
computer.
42 Chapter 4 Multimedia
Configuring audio for HDMI (select models only)
To configure HDMI audio, first connect an audio or video device, such as a high-definition TV, to the
HDMI port on your computer. Then configure the default audio playback device as follows:
1. Right-click the Speakers icon in the notification area, at the far right of the taskbar, and then click
Playback devices.
2. On the Playback tab, click either Digital Output or Digital Output Device (HDMI).
3. Click Set Default, and then click OK.
To return audio to the computer speakers, follow these steps:
1. Right-click the Speakers icon in the notification area, at the far right of the taskbar, and then click
Playback devices.
2. On the Playback tab, click Speakers.
3. Click Set Default, and then click OK.
Optical drive
An optical drive, such as a DVD-ROM drive, plays optical discs (CDs and DVDs). These discs store
information, such as music, photos, and movies. DVDs have a higher storage capacity than CDs.
Your optical drive can read standard CD and DVD discs. If your optical drive is a Blu-ray Disc ROM
Drive, it can also read Blu-ray discs.
For information about using the optical drive, refer to
Optical drive on page 65.
Optical drive 43
Webcam (select models only)
Your computer may include an integrated webcam, located at the top of the display. The webcam is an
input device that allows you to capture and share video. Preinstalled CyberLink YouCam software
provides new features that expand the webcam experience.
To use the webcam and CyberLink YouCam software, select Start > All Programs > CyberLink
YouCam > CyberLink YouCam.
NOTE: The first time you access the YouCam software, you may experience a brief delay as the
software loads.
Using YouCam as your webcam software enables you to experiment with the following features:
Video—Record and play back webcam video. You can also e-mail or upload video to YouTube,
●
using the icon on the software interface.
Streaming video—When you open your instant message program, YouCam displays a floating
●
toolbar that lets you add graphic effects.
Special effects—Add frames, filters, and emoticons to your snapshots and video.
●
Snapshots—Take single frame or “burst” webcam shots in rapid succession.
●
Connect—E-mail photos and video using the icon on the software interface.
●
NOTE: For details about using webcam software, refer to the software manufacturer's instructions,
which may be provided with the software, on disc, or on the manufacturer's Web site.
Webcam tips
For optimum performance, observe the following guidelines while using the webcam:
Be sure that you have the latest version of an instant message program before starting a video
●
conversation.
The webcam may not work properly across some network firewalls.
●
NOTE: If you are having trouble viewing or sending multimedia files to someone on another LAN
or outside your network firewall, temporarily disable the firewall, perform the task you want to
perform, and then reenable the firewall. To permanently resolve the problem, reconfigure the
firewall as necessary, and adjust the policies and settings of other intrusion detection systems.
WARNING! Security is temporarily compromised while the firewall is disabled.
Adjusting webcam properties
You can adjust webcam properties using the Properties dialog box, which is accessible from various
programs that use the integrated camera, usually from a configuration, settings, or properties menu:
Brightness—Controls the amount of light that is incorporated into the image. A higher brightness
●
setting creates a brighter image; a lower brightness setting creates a darker image.
Contrast—Controls the difference between lighter and darker areas on the image. A higher
●
contrast setting intensifies the image; a lower contrast setting maintains more of the original
information’s dynamic range but leads to a flatter image.
44 Chapter 4 Multimedia
Hue—Controls the aspect of color that distinguishes it from another color (what makes a color red,
●
green, or blue). Hue is distinct from saturation, which measures the intensity of the hue.
Saturation—Controls the strength of color in the final image. A higher saturation setting creates a
●
bolder image; a lower saturation setting creates a more subtle image.
Sharpness—Controls the definition of edges in an image. A higher sharpness setting creates a
●
more defined image; a lower sharpness setting creates a softer image.
Gamma—Controls the contrast affecting the mid-level grays or midtones of an image. Adjusting
●
the gamma of an image allows you to change the brightness values of the middle range of gray
tones without dramatically altering the shadows and highlights. A lower gamma setting makes
grays look black, and makes dark colors even darker.
Backlight Comp—Compensates in cases where a subject with a large amount of background light
●
would otherwise be obscured by streaking or silhouetting.
For information about using the webcam, select Start > Help and Support.
Webcam (select models only) 45
5 Power management
Setting power options
Using power-saving states
The computer has two power-saving states enabled at the factory: Sleep and Hibernation.
When Sleep is initiated, the power lights blink and the screen clears. Your work is saved to memory,
letting you exit Sleep faster than exiting Hibernation. If the computer is in the Sleep state for an extended
period or if the battery reaches a critical battery level while in the Sleep state, the computer initiates
Hibernation.
When Hibernation is initiated, your work is saved to a hibernation file on the hard drive and the computer
turns off.
CAUTION: To prevent possible audio and video degradation, loss of audio or video playback
functionality, or loss of information, do not initiate Sleep or Hibernation while reading from or writing to
a disc or an external media card.
NOTE: You cannot initiate any type of networking connection or perform any computer functions while
the computer is in the Sleep state or in Hibernation.
46 Chapter 5 Power management
Initiating and exiting Sleep
The system is set at the factory to initiate Sleep after 15 minutes of inactivity when running on battery
power and 30 minutes of inactivity when running on external power.
Power settings and timeouts can be changed using Power Options in Windows® Control Panel.
With the computer on, you can initiate Sleep in any of the following ways:
Briefly press the power button.
●
Close the display.
●
Click Start, click the arrow next to the Shut down button, and then click Sleep.
●
You can exit Sleep in any of the following ways:
Briefly press the power button.
●
If the display is closed, open the display.
●
Press a key on the keyboard or a button on the remote control.
●
Activate the TouchPad.
●
When the computer exits Sleep, the power lights turn on and your work returns to the screen where you
stopped working.
NOTE: If you have set a password to be required on wakeup, you must enter your Windows password
before your work will return to the screen.
Initiating and exiting Hibernation
The system is set at the factory to initiate Hibernation after 1,080 minutes (18 hours) of inactivity when
running on both battery power and external power, or when the battery reaches a critical battery level.
Power settings and timeouts can be changed using Power Options in Windows Control Panel.
To initiate Hibernation:
Click Start, click the arrow next to the Shut down button, and then click Hibernate.
▲
To exit Hibernation:
Briefly press the power button.
▲
The power lights turn on and your work returns to the screen where you stopped working.
NOTE: If you have set a password to be required on wakeup, you must enter your Windows password
before your work will return to the screen.
Setting power options 47
Using the battery meter
The battery meter is located in the notification area, at the far right of the taskbar. The battery meter
allows you to quickly access power settings, view remaining battery charge, and select a different power
plan.
To display the percentage of remaining battery charge and the current power plan, move the pointer
●
over the battery meter icon.
To access Power Options or to change the power plan, click the battery meter icon and select an
●
item from the list.
Different battery meter icons indicate whether the computer is running on battery or external power. The
icon also displays a message if the battery has reached a low battery level, critical battery level, or
reserve battery level.
To hide or display the battery meter icon:
1. Right-click the Show hidden icons icon (the arrow at the left side of the notification area).
2. Click Customize notification icons.
3. Under Behaviors, select Show icons and notifications for the Power icon.
4. Click OK.
Using power plans
A power plan is a collection of system settings that manages how the computer uses power. Power
plans can help you conserve power or maximize performance.
You can change power plan settings or create your own power plan.
Viewing the current power plan
Click the battery meter icon in the notification area, at the far right of the taskbar.
▲
– or –
Select Start > Control Panel > System and Security > Power Options.
Selecting a different power plan
Click the battery meter icon in the notification area, and then select a power plan from the list.
▲
– or –
Select Start > Control Panel > System and Security > Power Options, and then select a power
plan from the list.
Customizing power plans
1. Click the battery meter icon in the notification area, and then click More power options.
– or –
Select Start > Control Panel > System and Security > Power Options.
2. Select a power plan, and then click Change plan settings.
48 Chapter 5 Power management
3. Change the settings as needed.
4. To change additional settings, click Change advanced power settings, and then make your
changes.
Setting password protection on wakeup
To set the computer to prompt for a password when the computer exits Sleep or Hibernation, follow
these steps:
1. Select Start > Control Panel > System and Security > Power Options.
2. In the left pane, click Require a password on wakeup.
3. Click Change Settings that are currently unavailable.
4. Click Require a password (recommended).
5. Click Save changes.
Setting power options 49
Using external AC power
External AC power is supplied through one of the following devices:
WARNING! To reduce potential safety issues, use only the AC adapter provided with the computer,
a replacement AC adapter provided by HP, or a compatible AC adapter purchased from HP.
Approved AC adapter
●
Optional expansion product
●
Connect the computer to external AC power under any of the following conditions:
WARNING! Do not charge the computer battery while you are onboard aircraft.
When you are charging or calibrating a battery
●
When you are installing or modifying system software
●
When you are writing information to a CD or DVD
●
When you connect the computer to external AC power, the following events occur:
The battery begins to charge.
●
If the computer is turned on, the battery meter icon in the notification area changes appearance.
●
When you disconnect external AC power, the following events occur:
The computer switches to battery power.
●
The display brightness is automatically decreased to save battery life. To increase display
●
brightness, press f3 or reconnect the AC adapter.
50 Chapter 5 Power management
Connecting the AC adapter
WARNING! To reduce the risk of electric shock or damage to the equipment:
Plug the power cord into an AC outlet that is easily accessible at all times.
Disconnect power from the computer by unplugging the power cord from the AC outlet (not by
unplugging the power cord from the computer).
If provided with a 3-pin attachment plug on the power cord, plug the cord into a grounded (earthed) 3pin outlet. Do not disable the power cord grounding pin, for example, by attaching a 2-pin adapter. The
grounding pin is an important safety feature.
To connect the computer to external AC power:
1. Plug the AC adapter into the power connector (1) on the computer.
2. Plug the power cord into the AC adapter (2).
3. Plug the other end of the power cord into an AC outlet (3).
Using external AC power 51
Testing an AC adapter
Test the AC adapter if the computer exhibits any of the following symptoms when it is connected to AC
power:
The computer does not turn on.
●
The display does not turn on.
●
The power light is off.
●
To test the AC adapter:
1. Remove the battery from the computer.
a. Shut down the computer and close the display.
b. Turn the computer upside down on a flat surface.
c. Slide the battery release latch (1) to release the battery.
d. Pivot the battery (2) upward and remove the battery from the computer (3).
2. Connect the AC adapter to the computer, and then plug it into an AC outlet.
3. Turn on the computer.
If the power light turns on, the AC adapter is functioning properly.
●
If the power light remains off, the AC adapter is not functioning and should be replaced.
●
Contact technical support for information on obtaining a replacement AC power adapter.
52 Chapter 5 Power management
Using battery power
When a charged battery is in the computer and the computer is not plugged into external power, the
computer runs on battery power. When a charged battery is in the computer and the computer is plugged
into external AC power, the computer runs on AC power.
If the computer contains a charged battery and is running on external AC power supplied through the
AC adapter, the computer switches to battery power if the AC adapter is disconnected from the
computer.
NOTE: The display brightness is decreased to save battery life when you disconnect AC power. To
increase display brightness, press f3 or reconnect the AC adapter.
You can keep a battery in the computer or in storage, depending on how you work. Keeping the battery
in the computer whenever the computer is plugged into AC power charges the battery and also protects
your work in case of a power outage. However, a battery in the computer slowly discharges when the
computer is off and unplugged from external power.
WARNING! To reduce potential safety issues, use only the battery provided with the computer, a
replacement battery provided by HP, or a compatible battery purchased from HP.
Computer battery life varies, depending on power management settings, programs running on the
computer, display brightness, external devices connected to the computer, and other factors.
Finding battery information in Help and Support
The battery information section of the Help and Support Learning Center provides the following tools
and information:
Battery Check tool to test battery performance
●
Information on calibration, power management, and proper care and storage to maximize battery
●
life
Information on battery types, specifications, life cycles, and capacity
●
To access battery information:
Select Start > Help and Support > Learning Center > HP Power and Battery Learning
▲
Center.
Using Battery Check
Battery Check, a part of the Total Care Advisor, provides information on the status of the battery installed
in the computer.
To run Battery Check:
1. Connect the AC adapter to the computer.
NOTE: The computer must be connected to external power for Battery Check to function properly.
2. Select Start > Help and Support > Troubleshooting tools > Battery Check.
Battery Check examines the battery and its cells to see if they are functioning properly, and then reports
the results of the examination.
Using battery power 53
Displaying the remaining battery charge
Move the pointer over the battery meter icon in the notification area, at the far right of the taskbar.
▲
Inserting or removing the battery
CAUTION: Removing a battery that is the sole power source can cause loss of information. To prevent
loss of information, initiate Hibernation or shut down the computer through Windows before removing
the battery.
To insert the battery:
1. Close the display.
2. Turn the computer upside down on a flat surface.
3. Insert the battery into the battery bay (1) , and then rotate it downward until it is seated (2).
The battery release latch (3) automatically locks the battery into place.
To remove the battery:
1. Turn off the computer and close the display.
2. Turn the computer upside down on a flat surface.
3. Slide the battery release latch (1) to release the battery.
54 Chapter 5 Power management
4. Pivot the battery (2) upward, and then remove the battery from the computer (3).
Charging a battery
WARNING! Do not charge the computer battery while you are onboard aircraft.
The battery charges whenever the computer is plugged into external power through an AC adapter, an
optional power adapter, or an optional expansion product.
The battery charges whether the computer is off or in use, but it charges faster when the computer is
off.
Charging may take longer if a battery is new, has been unused for two weeks or more, or is much warmer
or cooler than room temperature.
To prolong battery life and optimize the accuracy of battery charge displays, follow these
recommendations:
If you are charging a new battery, charge it fully before turning on the computer.
●
Charge the battery until the AC adapter light turns off.
●
NOTE: If the computer is on while the battery is charging, the battery meter in the notification
area may show 100 percent charge before the battery is fully charged.
Allow the battery to discharge below 5 percent of a full charge through normal use before charging
●
it.
If the battery has been unused for one month or more, calibrate the battery instead of simply
●
charging it.
The AC adapter light displays charge status:
On: The battery is charging.
●
Blinking: The battery has reached a low battery level or critical battery level and is not charging.
●
Off: The battery is fully charged, in use, or not installed.
●
Using battery power 55
Maximizing battery discharge time
Battery discharge time varies depending on the features you use while on battery power. Maximum
discharge time gradually shortens, as the battery storage capacity naturally degrades.
Tips for maximizing battery discharge time:
Lower the brightness on the display.
●
Check the Power saver setting in Power Options.
●
Remove the battery from the computer when it is not being used or charged.
●
Store the battery in a cool, dry location.
●
Managing low battery levels
The information in this section describes the alerts and system responses set at the factory. Some lowbattery alerts and system responses can be changed using Power Options in Windows Control Panel.
Preferences set using Power Options do not affect lights.
Identifying low battery levels
When a battery that is the sole power source for the computer reaches a low battery level, the AC adapter
light blinks.
If a low battery level is not resolved, the computer enters a critical battery level, and the AC adapter light
continues to blink.
The computer takes the following actions for a critical battery level:
If Hibernation is enabled and the computer is on or in the Sleep state, the computer initiates
●
Hibernation.
If Hibernation is disabled and the computer is on or in the Sleep state, the computer remains briefly
●
in the Sleep state, and then shuts down and loses any unsaved information.
Resolving a low battery level
CAUTION: To reduce the risk of losing information when the computer reaches a critical battery level
and has initiated Hibernation, do not restore power until the power lights turn off.
Resolving a low battery level when external power is available
Connect one of the following devices:
▲
AC adapter
●
Optional expansion product or docking device
●
Optional power adapter
●
Resolving a low battery level when a charged battery is available
1. Turn off the computer or initiate Hibernation.
2. Remove the discharged battery, and then insert a charged battery.
3. Turn on the computer.
56 Chapter 5 Power management
Resolving a low battery level when no power source is available
Initiate Hibernation.
▲
– or –
Save your work and shut down the computer.
Resolving a low battery level when the computer cannot exit Hibernation
When the computer lacks sufficient power to exit Hibernation, follow these steps:
1. Insert a charged battery or plug the computer into external power.
2. Exit Hibernation by pressing the power button.
Calibrating a battery
Calibrate a battery under the following conditions:
When battery charge displays seem inaccurate
●
When you observe a significant change in battery run time
●
Even if a battery is heavily used, it should not need to be calibrated more than once a month. It is also
not necessary to calibrate a new battery.
Step 1: Fully charge the battery
WARNING! Do not charge the computer battery while you are onboard aircraft.
NOTE: The battery charges whether the computer is off or in use, but it charges faster when the
computer is off.
To fully charge the battery:
1. Insert the battery into the computer.
2. Connect the computer to an AC adapter, optional power adapter, or optional expansion product,
and then plug the adapter or device into external power.
The AC adapter light on the computer turns on.
3. Leave the computer plugged into external power until the battery is fully charged.
The AC adapter light on the computer turns off once the battery is fully charged.
Step 2: Disable Hibernation and Sleep
1. Click the battery meter icon in the notification area, and then click More power options.
– or –
Select Start > Control Panel > System and Security > Power Options.
2. Under the current power plan, click Change plan settings.
3. Record the Turn off the display settings listed in the On battery column so that you can reset them
after the calibration.
Using battery power 57
4. Change the Turn off the display settings to Never.
5. Click Change advanced power settings.
6. Click the plus sign next to Sleep, and then click the plus sign next to Hibernate after.
7. Record the On battery setting under Hibernate after so that you can reset it after the calibration.
8. Change the On battery setting to Never.
9. Click OK.
10. Click Save changes.
58 Chapter 5 Power management
Step 3: Discharge the battery
The computer must remain on while the battery is being discharged. The battery can discharge whether
or not you are using the computer, but the battery will discharge faster while you are using it.
If you plan to leave the computer unattended during the discharge, save your information before
●
beginning the discharge procedure.
If you use the computer occasionally during the discharge procedure and have set energy-saving
●
timeouts, expect the following performance from the system during the discharge process:
The monitor will not turn off automatically.
◦
Hard drive speed will not decrease automatically when the computer is idle.
◦
System-initiated Hibernation will not occur.
◦
To discharge a battery:
1. Unplug the computer from its external power source, but do not turn off the computer.
2. Run the computer on battery power until the battery is discharged. The AC adapter light begins to
blink when the battery has discharged to a low battery level. When the battery is discharged, the
AC adapter light turns off and the computer shuts down.
Step 4: Fully recharge the battery
To recharge the battery:
1. Plug the computer into external power and maintain external power until the battery is fully
recharged. When the battery is recharged, the AC adapter light on the computer turns off.
You can use the computer while the battery is recharging, but the battery will charge faster if the
computer is off.
2. If the computer is off, turn it on when the battery is fully charged and the AC adapter light has turned
off.
Using battery power 59
Step 5: Reenable Hibernation and Sleep
CAUTION: Failure to reenable Hibernation after calibration may result in a full battery discharge and
information loss if the computer reaches a critical battery level.
1. Click the battery meter icon in the notification area, and then click More power options.
– or –
Select Start > Control Panel > System and Security > Power Options.
2. Under the current power plan, click Change plan settings.
3. Reenter the settings that you recorded for the items in the On battery column.
4. Click Change advanced power settings.
5. Click the plus sign next to Sleep, and then click the plus sign next to Hibernate after.
6. Reenter the setting that you recorded for On battery.
7. Click OK.
8. Click Save changes.
Conserving battery power
Select the power saver power plan through Power Options under System and Security in
●
Windows Control Panel.
Turn off wireless and local area network (LAN) connections and exit modem applications when you
●
are not using them.
Disconnect external devices that are not plugged into an external power source when you are not
●
using them.
Stop, disable, or remove any external media cards that you are not using.
●
Use the f2 and f3 action keys to adjust screen brightness as needed.
●
If you leave your work, initiate Sleep or Hibernation, or shut down the computer.
●
Storing a battery
CAUTION: To prevent damage to a battery, do not expose it to high temperatures for extended periods
of time.
If a computer will be unused and unplugged from external power for more than two weeks, remove the
battery and store it separately.
To prolong the charge of a stored battery, place it in a cool, dry place.
NOTE: A stored battery should be checked every six months. If the capacity is less than 50 percent,
recharge the battery before returning it to storage.
Calibrate a battery before using it if it has been stored for one month or more.
60 Chapter 5 Power management
Disposing of a used battery
WARNING! To reduce the risk of fire or burns, do not disassemble, crush, or puncture; do not short
external contacts; do not dispose of in fire or water.
For additional information, refer to the Regulatory, Safety and Environmental Notices included with this
computer.
Replacing the battery
Computer battery life varies, depending on power management settings, programs running on the
computer, display brightness, external devices connected to the computer, and other factors.
Battery Check notifies you to replace the battery when an internal cell is not charging properly, or when
the battery storage capacity has reached a weak condition. A message refers you to the HP Web site
for more information about ordering a replacement battery. If the battery is possibly covered by an HP
warranty, instructions include a warranty ID.
NOTE: To ensure that you always have battery power when you need it, HP recommends purchasing
a new battery when the storage capacity indicator turns green-yellow.
Using battery power 61
Switching between graphics modes (select models only)
Select computers are equipped with switchable graphics and have two modes for processing graphics.
When you switch from AC power to battery power, the computer can switch from using the highperformance mode to using the power-saving mode to conserve battery life. Similarly, when you switch
from battery power to AC power, the computer can switch back to the high-performance mode.
NOTE: In some instances, in order to optimize performance of the computer, the system does not
allow you to switch modes, or it may prompt you to switch. It may also be necessary to close all programs
before switching.
NOTE: HDMI is available on select models only. Your model may support HDMI in high-performance
mode only, or in both high-performance mode and power-saving mode. If your model supports HDMI
in high-performance mode only, the system will remind you to switch to high-performance mode when
using HDMI.
When you switch between AC and battery power, you are notified that the computer is about to switch
graphics modes. If you prefer, you can choose to continue using the same graphics mode. While the
computer switches modes, the screen goes blank for a few seconds. When the switch is complete, a
notification appears in the notification area, and the screen image reappears.
NOTE: When select computer models are in slate mode, the screen orientation is reset when you
switch between graphics modes.
To determine which graphics mode you are using:
Right-click on a blank area of the computer desktop, and then click Configure Switchable
▲
Graphics or Configure ATI PowerXpress
TM
.
62 Chapter 5 Power management
Shutting down the computer
CAUTION: Unsaved information will be lost when the computer is shut down.
The Shut down command closes all open programs, including the operating system, and then turns off
the display and computer.
Shut down the computer under any of the following conditions:
When you need to replace the battery or access components inside the computer
●
When you are connecting an external hardware device that does not connect to a USB port
●
When the computer will be unused and disconnected from external power for an extended period
●
Although you can shut down the computer with the power button, the recommended procedure is to use
the Windows Shut down command.
To shut down the computer:
NOTE: If the computer is in the Sleep state or in Hibernation, you must first exit Sleep or Hibernation
before shutdown is possible.
1. Save your work and close all open programs.
2. Click Start.
3. Click Shut down.
If the computer is unresponsive and you are unable to use the preceding shutdown procedures, try the
following emergency procedures in the sequence provided:
Press ctrl+alt+delete, and then click the Power button.
●
Press and hold the power button for at least 5 seconds.
●
Disconnect the computer from external power, and then remove the battery.
●
Shutting down the computer 63
6Drives
Handling drives
Drives are fragile computer components that must be handled with care. Refer to the following cautions
before handling drives. Additional cautions are included with the procedures to which they apply.
CAUTION: To reduce the risk of damage to the computer, damage to a drive, or loss of information,
observe these precautions:
Before you move a computer that is connected to an external hard drive, initiate Sleep and allow the
screen to clear, or properly disconnect the external hard drive.
Before handling a drive, discharge static electricity by touching the unpainted metal surface of the drive.
Do not touch the connector pins on a removable drive or on the computer.
Handle a drive carefully; do not drop a drive or place items on it.
Before removing or inserting a drive, shut down the computer. If you are unsure whether the computer
is off, in the Sleep state, or in Hibernation, turn the computer on, and then shut it down through the
operating system.
Do not use excessive force when inserting a drive into a drive bay.
An external hard drive must be connected to a USB port on the computer, not to a USB port on an
external device such as a hub.
Do not enter information using the keyboard or move the computer while the optical drive is writing to
a disc. The write process is sensitive to vibration.
When the battery is the only source of power, be sure that the battery is sufficiently charged before
writing to media.
Avoid exposing a drive to temperature or humidity extremes.
Avoid exposing a drive to liquids. Do not spray the drive with cleaning products.
Remove media from a drive before removing the drive from the drive bay, or traveling with, shipping, or
storing a drive.
If a drive must be mailed, place the drive in a bubble-pack mailer or other suitable protective packaging
and label the package “FRAGILE.”
Avoid exposing a drive to magnetic fields. Security devices with magnetic fields include airport walkthrough devices and security wands. The airport security devices that check carry-on luggage, such as
conveyor belts, use X-rays instead of magnetism and will not damage a drive.
64 Chapter 6 Drives
Optical drive
Your computer includes an optical drive that expands the functionality of the computer. Identify what
kind of device is installed in your computer to see its capabilities. The optical drive allows you to read
data discs, play music, and watch movies. If your computer includes a Blu-ray Disc ROM Drive, you can
also watch high-definition video from disc.
Identifying the installed optical drive
Select Start > Computer.
▲
You will see a list of all the devices installed in your computer, including your optical drive. You may
have one of the following types of drives:
DVD±RW/R and CD-RW Combo Drive with Double-Layer (DL) support
●
LightScribe DVD±RW/R and CD-RW Combo Drive with Double-Layer (DL) support
●
Blu-ray Disc ROM Drive with SuperMulti DVD±R/RW Double-Layer (DL) support
●
LightScribe Blu-ray Disc ROM Drive with SuperMulti DVD±R/RW Double-Layer (DL) support
●
NOTE: Some of the drives listed above may not be supported by your computer.
Optical drive 65
Using optical discs
An optical drive, such as a DVD-ROM drive, supports optical discs (CDs and DVDs). These discs store
information, such as music, photos, and movies. DVDs have a higher storage capacity than CDs.
Your optical drive can read standard CD and DVD discs. If your optical drive is a Blu-ray Disc ROM
Drive, it can also read Blu-ray discs.
NOTE: Some of the optical drives listed may not be supported by your computer. The listed drives are
not necessarily all of the supported optical drives.
Some optical drives can also write to optical discs as described in the following table.
Optical drive type Write to CD-RW Write to DVD±RW/R Write to DVD+RW DL Write label to
LightScribe CD or
DVD±RW/R
DVD±RW and CD-RW
SuperMulti DL Combo
Drive
DVD±RW and CD-RW
SuperMulti DL Combo
Drive with LightScribe
Blu-ray ROM
DVD±R/RW
SuperMulti DL Drive
Blu-ray ROM with
LightScribe
DVD±R/RW
SuperMulti DL Drive
Yes Yes Yes No
Yes Yes Yes Yes
Yes Yes Yes No
Yes Yes Yes Yes
CAUTION: To prevent possible audio and video degradation, loss of information, or loss of audio or
video playback functionality, do not initiate Sleep or Hibernation while reading or writing to a CD or DVD.
66 Chapter 6 Drives
Selecting the right disc (CDs, DVDs, and BDs)
An optical drive supports optical discs (CDs, DVDs, and BDs). CDs, used to store digital data, are also
used for commercial audio recordings and are convenient for your personal storage needs. DVDs and
BDs are used primarily for movies, software, and data backup purposes. DVDs and BDs are the same
form factor as CDs but have a much higher storage capacity.
NOTE: The optical drive on your computer may not support all the types of optical discs discussed in
this section.
CD-R discs
CD-R (write-once) discs are widely used for creating a permanent copy of data that can be shared as
needed. Typical uses include the following:
Distributing large presentations
●
Sharing scanned and digital photos, video clips, and written data
●
Making your own music CDs
●
Keeping permanent archives of computer files and scanned home records
●
Offloading files from your hard drive to free up disk space
●
After data is recorded, it cannot be erased or written over.
CD-RW discs
Use CD-RW discs (a rewritable version of a CD) to store large projects that are updated frequently.
Typical uses include the following:
Developing and maintaining large documents and project files
●
Transporting work files
●
Making weekly backups of hard drive files
●
Updating photos, video, audio, and data continuously
●
DVD±R discs
Use blank DVD±R discs to permanently store large amounts of information. After data is recorded, it
cannot be erased or written over.
DVD±RW discs
Use DVD±RW discs if you want to be able to erase or write over data that you saved earlier. This type
of disc is ideal for testing audio or video recordings before you burn them to a CD or DVD that cannot
be changed.
Optical drive 67
LightScribe DVD+R discs
Use LightScribe DVD+R discs for sharing and storing data, home videos, and photos. These discs are
read-compatible with most DVD-ROM drives and DVD video players. With a LightScribe-enabled drive
and LightScribe software, you can write data to the disc and add a designer label to the outside of the
disc.
Blu-ray Disc (BD)
BD is a high-density optical disc format for the storage of digital information, including high-definition
video. A single-layer BD can store 25 GB, over five times the size of the 4.7-GB single-layer DVD. A
dual-layer BD can store 50 GB, almost 6 times the size of the 8.5-GB dual-layer DVD.
Typical uses include the following:
Storage of large amounts of data
●
High-definition video playback and storage
●
Video games
●
NOTE: Because Blu-ray is a new format containing new technologies, certain disc, digital connection,
compatibility, and/or performance issues may arise, and do not constitute defects in the product.
Flawless playback on all systems is not guaranteed.
Playing a CD, DVD, or BD
1. Turn on the computer.
2. Press the release button (1) on the drive bezel to release the disc tray.
3. Pull out the tray (2).
4. Hold the disc by the edges to avoid touching the flat surfaces and position the disc label-side up
over the tray spindle.
NOTE: If the tray is not fully accessible, tilt the disc carefully to position it over the spindle.
68 Chapter 6 Drives
5. Gently press the disc (3) down onto the tray spindle until the disc snaps into place.
6. Close the disc tray.
If you have not yet configured AutoPlay, as described in the following section, an AutoPlay dialog box
opens. It prompts you to select how you want to use the media content.
NOTE: For best results, be sure that your AC adapter is plugged into an external power source while
playing a BD.
Optical drive 69
Configuring AutoPlay
1. Select Start > Default Programs > Change AutoPlay settings.
2. Confirm that the Use AutoPlay for all media and devices check box is selected.
3. Click Choose a default, and then select one of the available options for each media type listed.
NOTE: Choose CyberLink PowerDVD to play DVDs.
4. Click Save.
NOTE: For more information about AutoPlay, refer to Help and Support.
Changing DVD region settings
Most DVDs that contain copyrighted files also contain region codes. The region codes help protect
copyrights internationally.
You can play a DVD containing a region code only if the region code on the DVD matches the region
setting on your DVD drive.
CAUTION: The region settings on your DVD drive can be changed only 5 times.
The region setting you select the fifth time becomes the permanent region setting on the DVD drive.
The number of region changes remaining is displayed on the DVD Region tab.
To change settings through the operating system:
1. Select Start > Control Panel > System and Security. Then in the System area, click Device
Manager.
NOTE: Windows includes the User Account Control feature to improve the security of your
computer. You may be prompted for your permission or password for tasks such as installing
software, running utilities, or changing Windows settings. Refer to Help and Support for more
information.
2. Click the arrow next to DVD/CD-ROM drives to expand the list to show all of the installed drives.
3. Right-click the DVD drive for which you want to change region settings, and then click
Properties.
4. Click the DVD Region tab, and change settings.
5. Click OK.
70 Chapter 6 Drives
Observing the copyright warning
It is a criminal offense, under applicable copyright laws, to make unauthorized copies of copyrightprotected material, including computer programs, films, broadcasts, and sound recordings. Do not use
this computer for such purposes.
CAUTION: To prevent loss of information or damage to a disc, observe the following guidelines:
Before writing to a disc, connect the computer to a reliable external power source. Do not write to a disc
while the computer is running on battery power.
Before writing to a disc, close all open programs except the disc software you are using.
Do not copy directly from a source disc to a destination disc or from a network drive to a destination
disc. Save the information to your hard drive, and then burn from your hard drive to the destination disc.
Do not use the computer keyboard or move the computer while the computer is writing to a disc. The
write process is sensitive to vibration.
NOTE: For details about using software included with the computer, refer to the software
manufacturer’s instructions, which may be provided on disc, in the software help, or on the
manufacturer's Web site.
Copying a CD, DVD, or BD
1. Select Start > All Programs > CyberLink DVD Suites > Power2Go.
2. Insert the disc you want to copy into the optical drive.
3. Click Copy at the bottom right of the screen.
Power2Go reads the source disc and copies the data to a temporary folder on your hard drive.
4. When prompted, remove the source disc from the optical drive and insert a blank disc into the drive.
After the information is copied, the disc you created ejects automatically.
Optical drive 71
Creating or “burning” a CD or DVD
NOTE: Observe the copyright warning. It is a criminal offense, under applicable copyright laws, to
make unauthorized copies of copyright-protected material, including computer programs, films,
broadcasts, and sound recordings. Do not use this computer for such purposes.
If your computer includes a CD-RW, DVD-RW, or DVD±RW optical drive, you can use software such
as Windows Media Player or CyberLink Power2Go to burn data, video, and audio files, including MP3
and WAV music files.
Observe the following guidelines when burning a CD or DVD:
Before burning a disc, save and close any open files and close all programs.
●
A CD-R or DVD-R is usually best for burning audio files because after the information is copied, it
●
cannot be changed.
NOTE: You cannot create an audio DVD with CyberLink Power2Go.
Because some home and car stereos will not play CD-RWs, use CD-Rs to burn music CDs.
●
A CD-RW or DVD-RW is generally best for burning data files or for testing audio or video recordings
●
before you burn them to a CD or DVD that cannot be changed.
DVD players used in home systems usually do not support all DVD formats. Refer to the user guide
●
that came with your DVD player for a list of supported formats.
An MP3 file uses less space than other music file formats, and the process for creating an MP3
●
disc is the same as the process for creating a data file. MP3 files can be played only on MP3 players
or on computers with MP3 software installed.
To burn a CD or DVD, follow these steps:
1. Download or copy the source files into a folder on your hard drive.
2. Insert a blank CD or DVD into the optical drive.
3. Select Start > All Programs, and then select the name of the software you want to use.
NOTE: Some programs may be located in subfolders.
4. Select the kind of disc you want to create—data, audio, or video.
5. Right-click Start, click Open Windows Explorer, and then navigate to the folder where the source
files are stored.
6. Open the folder, and then drag the files to the drive that contains the blank disc.
7. Initiate the burning process as directed by the program you have selected.
For specific instructions, refer to the software manufacturer's instructions, which may be provided with
the software, on disc, or on the manufacturer's Web site.
72 Chapter 6 Drives
Removing a CD, DVD, or BD
1. Press the release button (1) on the drive bezel to release the disc tray, and then gently pull out the
tray (2) until it stops.
2. Remove the disc (3) from the tray by gently pressing down on the spindle while lifting the outer
edges of the disc. Hold the disc by the edges and avoid touching the flat surfaces.
NOTE: If the tray is not fully accessible, tilt the disc carefully as you remove it.
3. Close the disc tray, and then place the disc in a protective case.
Troubleshooting drive and device driver problems
The following sections describe several common issues and their solutions.
The optical disc tray does not open for removal of a CD, DVD, or BD
1. Insert the end of a paper clip (1) into the release access in the front bezel of the drive.
2. Press in gently on the paper clip until the disc tray is released, and then pull out the tray (2) until it
stops.
Troubleshooting drive and device driver problems 73
3. Remove the disc (3) from the tray by gently pressing down on the spindle while lifting the outer
edges of the disc. Hold the disc by the edges and avoid touching the flat surfaces.
NOTE: If the tray is not fully accessible, tilt the disc carefully as you remove it.
4. Close the disc tray, and then place the disc in a protective case.
A disc does not play automatically
1. Click Start > Default Programs > Change AutoPlay Settings.
2. Confirm that the Use AutoPlay for all media and devices check box is selected.
3. Click Save.
A CD, DVD, or BD should now start automatically when it is inserted into the optical drive.
A DVD movie stops, skips, or plays erratically
Clean the disc.
●
Conserve system resources by trying the following suggestions:
●
Log off the Internet.
◦
Change the color properties of the desktop:
◦
1. Right-click on a blank area of the computer desktop, and then select Screen resolution.
2. Select Advanced Settings > Monitor tab.
3. Select High Color (16 bit), if this setting is not already selected.
74 Chapter 6 Drives
4. Click OK.
Disconnect external devices, such as a printer, scanner, camera, or handheld device.
◦
A DVD movie is not visible on an external display
1. If both the computer display and an external display are turned on, press f4 one or more times to
switch between the two displays.
2. Configure the monitor settings to make the external display primary:
a. Right-click on a blank area of the computer desktop, and then select Screen resolution.
b. Specify a primary display and a secondary display.
NOTE: When using both displays, the DVD image will not appear on any display designated as
the secondary display.
To get information about a multimedia question not covered in this guide, go to Start > Help and
Support.
The process of burning a disc does not begin, or it stops before completion
Be sure that all other programs are closed.
●
Turn off Sleep and Hibernation.
●
Be sure that you are using the right kind of disc for your drive (see
●
DVDs, and BDs) on page 67).
Be sure that the disc is inserted properly.
●
Select a slower write speed and try again.
●
If you are copying a disc, save the information on the source disc to your hard drive before trying
●
to burn the contents to a new disc, and then burn from your hard drive.
Reinstall the disc-burning device driver located in the DVD/CD-ROM drives category in Device
●
Manager.
Selecting the right disc (CDs,
A DVD playing in Windows Media Player produces no sound or display
Use CyberLink PowerDVD to play a DVD. CyberLink PowerDVD is installed on the computer and is also
available from the HP Web site at
http://www.hp.com.
A device driver must be reinstalled
1. Remove any discs from the optical drive.
2. Select Start > Control Panel > System and Security. Then in the System area, click Device
Manager.
3. In the Device Manager window, click the arrow next to the type of driver you want to uninstall, and
then reinstall (for example, DVD/CD-ROMs, Modems, and so on).
4. Right-click the device listing, and then click Uninstall. When prompted, confirm that you want to
delete the device, but do not restart the computer. Repeat for any other drivers you want to delete.
Troubleshooting drive and device driver problems 75
5. In the Device Manager window, click Action, and then click Scan for hardware changes.
Windows scans your system for installed hardware and installs default drivers for any devices
requiring drivers.
NOTE: If you are prompted to restart the computer, save all open files, and then continue with
the restart.
6. Reopen Device Manager, if necessary, and then verify that the drivers are once again listed.
7. Try to use your device.
If uninstalling and reinstalling the device drivers does not correct the problem, you may need to update
your drivers using the procedures in the following sections.
Obtaining the latest HP device drivers
1. Open your Internet browser, go to http://www.hp.com/support, and then select your country or
region.
2. Click the option for software and driver downloads, enter your computer model number in the
search box, and then press enter.
– or –
If you want a specific SoftPaq, enter the SoftPaq number in the Search box, press enter, and follow
the instructions provided. Proceed to step 6.
3. Click your specific product from the models listed.
4. Click the Windows 7 operating system.
5. When the list of drivers is displayed, click an updated driver to open a window containing additional
information.
6. Click Install now to install the updated driver.
NOTE: In some locations you may be able to download the driver and install it later. To do this,
click Download only to save the file to your computer. When prompted, click Save, and then select
a storage location on your hard drive. After the file is downloaded, navigate to the folder where the
file was stored, and then double-click the file to install.
7. If prompted to do so, restart your computer after the installation is complete, and then verify the
operation of the device.
76 Chapter 6 Drives
Obtaining the latest Windows device drivers
You can obtain the latest Windows device drivers by using Windows Update. This feature can be set to
automatically check for and install updates for the Windows operating system and other Microsoft
products.
To use Windows Update:
1. Click Start > All Programs > Windows Update.
NOTE: If you have not previously set up Windows Update, you will be prompted to enter settings
before you can check for updates.
2. Click Check for updates.
3. Follow the on-screen instructions.
Troubleshooting drive and device driver problems 77
Using external drives
Removable external drives expand your options for storing and accessing information. A USB drive can
be added by connecting the drive to a USB port on the computer or on an optional expansion
product.
USB drives include the following types:
1.44 MB disk drive
●
Hard drive module (a hard drive with an adapter attached)
●
DVD-ROM Drive
●
DVD/CD-RW Combo Drive
●
DVD±RW and CD-RW Combo Drive
●
NOTE: For more information about required software and drivers, or to learn which computer port to
use, refer to the manufacturer's instructions.
To connect an external drive to the computer:
CAUTION: To reduce the risk of damage to the equipment when connecting a powered drive, be sure
that the AC power cord is unplugged.
1. Connect the drive to the computer.
2. If you are connecting a powered drive, plug the drive power cord into a grounded AC outlet.
To disconnect a powered drive, disconnect it from the computer, and then unplug the AC power cord.
78 Chapter 6 Drives
Improving hard drive performance
Using Disk Defragmenter
As you use the computer, files on the hard drive become fragmented. Disk Defragmenter consolidates
the fragmented files and folders on the hard drive so that the system can run more efficiently.
After you start Disk Defragmenter, it works without supervision. Depending on the size of your hard drive
and the number of fragmented files, Disk Defragmenter may take more than an hour to complete. You
may want to set it to run during the night or another time when you do not need access to your computer.
HP recommends defragmenting your hard drive at least once a month. You may set Disk Defragmenter
to run on a monthly schedule, but you can defragment your computer manually at any time.
To run Disk Defragmenter:
1. Select Start > All Programs > Accessories > System Tools > Disk Defragmenter.
2. Click Defragment disk.
NOTE: Windows® includes the User Account Control feature to improve the security of your
computer. You may be prompted for your permission or password for tasks such as installing
software, running utilities, or changing Windows settings. Refer to Help and Support for more
information.
For additional information, refer to the Disk Defragmenter software Help.
Using Disk Cleanup
Disk Cleanup searches the hard drive for unnecessary files that you can safely delete to free up disk
space and help the computer to run more efficiently.
To run Disk Cleanup:
1. Select Start > All Programs > Accessories > System Tools > Disk Cleanup.
2. Follow the on-screen instructions.
Improving hard drive performance 79
Replacing the hard drive
CAUTION: To prevent information loss or an unresponsive system:
Shut down the computer before removing the hard drive from the hard drive bay. Do not remove the
hard drive while the computer is on, in the Sleep state, or in Hibernation.
If you are not sure whether the computer is off or in Hibernation, turn the computer on by pressing the
power button. Then shut down the computer through the operating system.
To remove the hard drive:
1. Save your work.
2. Shut down the computer and close the display.
3. Disconnect all external devices connected to the computer.
4. Unplug the power cord from the AC outlet.
5. Turn the computer upside down on a flat surface.
6. Remove the battery from the computer.
7. With the hard drive bay toward you, loosen the hard drive cover screws.
8. Lift the hard drive cover away from the computer (1).
80 Chapter 6 Drives
9. Remove the hard drive screws.
10. Pull the hard drive tab up (3), disconnect the hard drive cable from the motherboard (4), and then
lift the hard drive away from the computer.
Replacing the hard drive 81
To install a hard drive:
1. Connect the hard drive cable to the motherboard (4), insert the hard drive into the hard drive bay
(1), and then press down on the hard drive tab (2) to ensure that the drive is firmly seated.
2. Replace the hard drive screws.
3. Align the tabs (1) on the hard drive cover with the notches on the computer.
4. Close the cover (2).
82 Chapter 6 Drives
5. Tighten the hard drive cover screws (3).
6. Replace the battery.
7. Turn the computer right-side up.
8. Reconnect power to the computer.
9. Reconnect any external devices.
Replacing the hard drive 83
7 External devices and external media
cards
Using a USB device
A USB port connects an optional external device, such as a USB keyboard, mouse, drive, printer,
scanner, or hub, to the computer or to an optional expansion product.
Some USB devices may require additional support software, which is usually included with the device.
For more information about device-specific software, refer to the manufacturer's instructions.
The computer has a USB port which support USB 1.0, USB 1.1, and USB 2.0 devices. To add more
USB ports, connect an optional hub or expansion product.
Connecting a USB device
CAUTION: To prevent damage to a USB connector, use minimal force to connect a USB device.
To connect a USB device to the computer, connect the USB cable for the device to the USB
▲
port.
You will hear a sound when the device has been detected.
NOTE: The first time you connect a USB device, the "Installing device driver software" message is
displayed in the notification area, at the far right of the taskbar.
84 Chapter 7 External devices and external media cards
Removing a USB device
CAUTION: To prevent loss of information or an unresponsive system, use the following procedure to
safely remove a USB device.
CAUTION: To prevent damage to a USB connector, do not pull on the cable to remove the USB device.
To remove a USB device:
1. Click the Safely Remove Hardware and Eject Media icon in the notification area, at the far right
of the taskbar.
NOTE: To display the Safely Remove Hardware and Eject Media icon, click the Show hidden
icons icon (the arrow at the left of the notification area).
2. Click the name of the device in the list.
NOTE: You are prompted that it is safe to remove the device.
3. Remove the device.
Using a USB device 85
Using Digital Media Slot cards
Optional digital cards provide secure data storage and convenient data sharing. These cards are often
used with digital media–equipped cameras and PDAs as well as with other computers.
The Digital Media Slot supports the following digital card formats:
Memory Stick (MS)
●
Memory Stick Pro (MSP)
●
MultiMediaCard (MMC)
●
Secure Digital (SD) Memory Card
●
xD-Picture Card (XD)
●
Inserting a digital card
CAUTION: To avoid damaging the digital card or the computer, do not insert any type of adapter into
the Digital Media Slot.
CAUTION: To prevent damage to the digital card connectors, use minimal force to insert a digital card.
1. Hold the digital card label side up, with the connectors facing the computer.
2. Insert the card into the Digital Media Slot, and then push in on the card until it is firmly seated.
You will hear a sound when the device has been detected, and a menu of options may be displayed.
86 Chapter 7 External devices and external media cards
Removing a digital card
CAUTION: To prevent loss of data or an unresponsive system, use the following procedure to safely
remove the digital card.
Save your information and close all programs associated with the digital card.
NOTE: To stop a data transfer, click Cancel in the operating system Copying window.
To remove a digital card:
1. Click the Safely Remove Hardware and Eject Media icon in the notification area, at the far right
of the taskbar.
NOTE: To display the Safely Remove Hardware and Eject Media icon, click the Show hidden
icons icon (the arrow at the left side of the notification area).
2. Click the name of the digital card in the list.
NOTE: You are prompted that it is safe to remove the hardware device.
3. Press in on the digital card (1), and then remove the card from the slot (2).
Using Digital Media Slot cards 87
8 Adding or replacing a memory module
The computer has one memory module compartment, which is located on the bottom of the computer.
The memory capacity of the computer can be upgraded by adding a memory module to the vacant
expansion memory module slot or by upgrading the existing memory module in the primary memory
module slot.
WARNING! To reduce the risk of electric shock and damage to the equipment, unplug the power cord
and remove all batteries before installing a memory module.
CAUTION: Electrostatic discharge (ESD) can damage electronic components. Before beginning any
procedure, ensure that you are discharged of static electricity by touching a grounded metal object.
NOTE: To use a dual-channel configuration when adding a second memory module, be sure that both
memory modules are the same size.
To add or replace a memory module:
1. Save your work.
2. Shut down the computer and close the display.
If you are not sure whether the computer is off or in Hibernation, turn the computer on by pressing
the power button. Then shut down the computer through the operating system.
3. Disconnect all external devices connected to the computer.
4. Unplug the power cord from the AC outlet.
5. Turn the computer upside down on a flat surface.
6. Remove the battery from the computer.
7. Loosen the memory module compartment screws (1).
88 Chapter 8 Adding or replacing a memory module
8. Lift the memory module compartment cover (2) away from the computer.
9. If you are replacing a memory module, remove the existing memory module:
a. Pull away the retention clips (1) on each side of the memory module.
The memory module tilts up.
CAUTION: To prevent damage to the memory module, hold the memory module by the
edges only. Do not touch the components on the memory module.
b. Grasp the edge of the memory module (2), and gently pull the module out of the memory
module slot.
c. To protect a memory module after removal, place it in an electrostatic-safe container.
10. Insert a new memory module:
89
CAUTION: To prevent damage to the memory module, hold the memory module by the edges
only. Do not touch the components on the memory module, and do not bend the memory module.
a. Align the notched edge (1) of the memory module with the tab in the memory module slot.
b. With the memory module at a 45-degree angle from the surface of the memory module
compartment, press the module (2) into the memory module slot until it is seated.
c. Gently press the memory module (3) down, applying pressure to both the left and right edges
of the memory module, until the retention clips snap into place.
11. Align the tab (1) on the memory module compartment cover with the notch on the computer.
12. Close the cover (2).
13. Tighten the memory module compartment screws (3).
14. Replace the battery.
15. Turn the computer right-side up, and then reconnect external power and external devices.
16. Turn on the computer.
90 Chapter 8 Adding or replacing a memory module
