HP g60, cq60 Service Manual

Compaq Presario CQ60 Notebook PC HP G60 Notebook PC

Maintenance and Service Guide

Document Part Number: 488764-002

November 2008

This guide is a troubleshooting reference used for maintaining and servicing the computer. It provides comprehensive information on identifying computer features, components, and spare parts; and performing computer disassembly procedures.

AMD Athlon, AMD Sempron, and AMD Turion are trademarks of Advanced Micro Devices, Inc.. Bluetooth is a trademark owned by its proprietor and used by Hewlett-Packard Company under license. Intel, Celeron, Core, and Pentium are trademarks of Intel Corporation in the U.S. and other countries. Microsoft, Windows, and Windows Vista are U.S. registered trademarks of Microsoft Corporation. SD Logo is a trademark of its proprietor.

The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Second Edition: November 2008 First Edition: October 2008 Document Part Number: 488764-002

Safety warning notice

WARNING: To reduce the possibility of heat-related injuries or of overheating the computer, do not place the computer directly

on your lap or obstruct the computer air vents. Use the computer only on a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to contact the skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer and the AC adapter comply with the user-accessible surface temperature limits defined by the International Standard for Safety of Information Technology Equipment (IEC 60950).

1 Product description

2 External component identification

Top components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–1

Display components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–1

Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–2

Buttons and speakers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–3

Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–4

TouchPad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–5

Front components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–6

Rear components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–6

Left-side components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–7

Right-side components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–7

Bottom components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–8

3 Illustrated parts catalog

Serial number location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–1

Computer major components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–2

Display assembly components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–9

Plastics Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–11

Mass storage devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–12

Miscellaneous parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–13

Sequential part number listing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–14

4 Removal and replacement procedures

Preliminary replacement requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1

Tools required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1

Service considerations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1

Grounding guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–2

Unknown user password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–4

Component replacement procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–5

Serial number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–5

Computer feet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–6

Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–7

Optical drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–8

Hard drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–10

RTC battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–12

Memory module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–13

WLAN module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–15

Keyboard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–17

Keyboard cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–20

Contents iv

Power button board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–22

Display assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–23

Top cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–30

TouchPad on/off button board and board bracket. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–32

Audio board. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–34

Bluetooth module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–35

Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–36

USB board. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–37

System board. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–38

Fan/heat sink assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–41

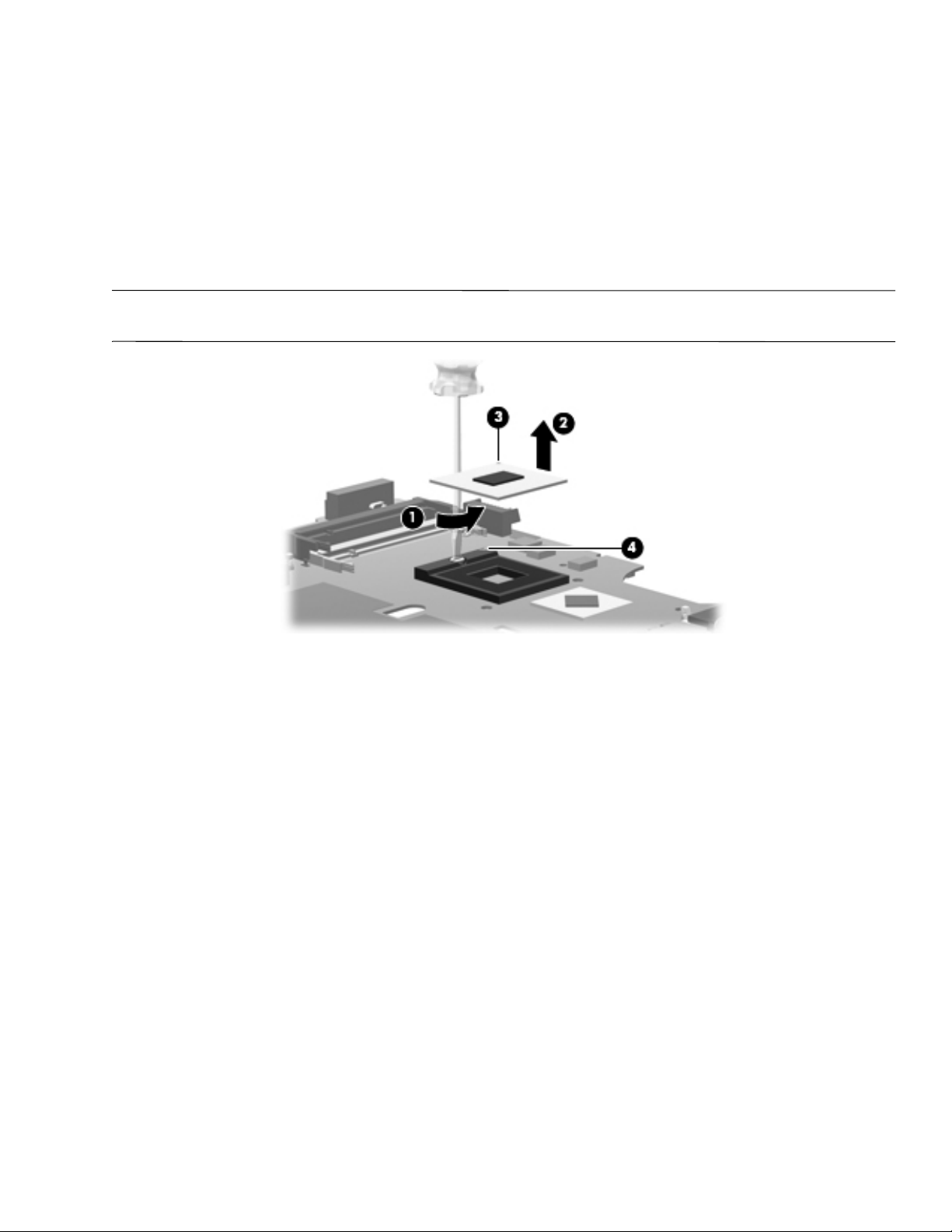

Processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–44

Power connector cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–46

5 Setup Utility

Starting the Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–1

Changing the language of the Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–1

Navigating and selecting in the Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–2

Displaying system information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–2

Restoring default settings in the Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–2

Exiting the Setup Utility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–3

Setup Utility menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–3

Main menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–3

Security menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–3

System Configuration menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–4

Diagnostics menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–4

6 Specifications

Computer specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–1

16 and 15.6-inch WXGA display specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–2

Hard drive specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–2

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive specifications. . . . . . . . . . . . . . . . . . . . 6–3

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe specifications. . . . . . 6–4

Blu-ray ROM DVD±RW SuperMulti DL Drive specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–4

System DMA specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–5

System interrupt specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–5

System I/O address specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–6

System memory map specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–7

7 Screw listing

Phillips PM2.5×6.0 screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–1

Phillips PM2.5x5.0 screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–3

Phillips PM2.5x6.0 captive screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–4

Phillips PM3.0x4.0 screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–5

Phillips PM2.0x4.0 screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–6

Phillips PM2.5x9.0 screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–10

Phillips PM2.5x7.0 screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–12

Phillips PM2.0x6.0 screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–13

Phillips PM2.0×3.0 screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–14

Phillips PM2.0x10.0 captive screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–15

Phillips PM2.5x11.0 captive screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–16

Contents v

8 Backup and recovery

Creating recovery discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–1

When to back up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–2

Backup suggestions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–2

Using system restore points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–2

Performing a recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–3

Recovering from the recovery discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–4

Recovering from the dedicated recovery partition (select models only) . . . . . . . . . . . . . . . . . . . . . . . 8–4

9 Connector pin assignments

Audio-in (microphone). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9–1

Audio-out (headphone) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9–1

External monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9–2

HDMI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9–3

RJ-11 (modem). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9–4

RJ-45 (network) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9–4

Universal Serial Bus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9–5

10Power cord set requirements

Requirements for all countries and regions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–1

Requirements for specific countries and regions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–2

11Recycling

Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–1

Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–1

Index

Contents vi

Product description

Category Description Presario

CQ60

Intel UMA

Product name Compaq Presario CQ60

Notebook PC

HP G60 Notebook PC X X X

Processors Intel® Core™2 Duo processors

(6-MB L2 cache, 1066-MHz front side bus (FSB)):

■ T9400 2.53-GHz processor X X X X

■ T9600 2.8-GHz processor X X X X

Intel Core2 Duo processors (3-MB L2 cache, 1066-MHz FSB):

■ P8600 2.4-GHz processor X X X X

■ P8400 2.26-GHz processor X X X X

■ P7350 2.0-GHz processor X X X X

Intel Core2 Duo processors (2-MB L2 cache, 800-MHz FSB):

■ T5900 2.2-GHz processor X X X X

■ T5800 2.0-GHz processor X X X X

XX X

Presario

CQ60

Intel

Discrete

HP G60

Intel UMA

HP G60

Intel

Discrete

Presario

CQ60

AMD UMA

HP G60

AMD UMA

Intel Pentium® Dual-Core processors (1-MB L2 cache, 667-MHz FSB):

■ T3400 2.16-GHz processor X X X X

■ T3200 2.0-GHz processor X X X X

Intel Celeron®-M processors (1-MB L2 cache, 667-MHz FSB):

■ 585 2.16-GHz processor X X

■ 575 2.0-GHz processor X X

Intel Celeron-T processors (1-MB L2 cache, 667-MHz FSB):

■ T1700 1.86-GHz processor X X

■ T1600 1.66-GHz processor X X

AMD Turion™ Ultra Dual-Core (2-MB L2 cache):

■ ZM-80 2.1-GHz processor X X

■ ZM-82 2.2-GHZ processor X X

(Continued)

Product description 1–1

Category Description Presario

CQ60

Intel UMA

Presario

CQ60

Intel

Discrete

HP G60

Intel UMA

HP G60

Intel

Discrete

Presario

CQ60

AMD UMA

HP G60

AMD UMA

Processors

(cont)

Chipset Intel GM45 X X

Graphics Intel Graphics Media Accelerator

AMD Turion Dual-Core (1-MB L2 cache)

■ RM-70 20-GHz processor X X

■ RM-72 2.1-GHz processor X X

AMD Athlon™ X2 Dual-Core (1-MB L2 cache)

■ QL-60 1.9-GHz processor X X

■ QL-62 2.0-GHz processor X X

AMD Sempron™ Single-Core (512-KB L2 cache)

■ SI-42 2.1-GHz processor X X

■ SI-40 2.0-GHz processor X X

Intel GL40 X X

Intel PM45 X X

NVIDIA MCP77MV = GeForce 8200M G

4500MHD (Shared)

Unified Memory Architecture (UMA) graphics subsystem integrated with shared system memory (dynamically allocated):

■ up to 96 MB of total available graphics subsystem memory when computer system memory equals or is greater than 512 MB

■ up to 270 MB of total available graphics subsystem memory when computer system memory equals or is greater than 1024 MB

■ up to 781 MB of total available graphics subsystem memory when computer system memory equals or is greater than 2048 MB

■ up to 1294 MB of total available graphics subsystem memory when computer system memory equals or is greater than 3 GB

■ up to 128 MB of total available graphics subsystem memory when computer system memory equals or is greater than 512 MB

XX XX

(Continued)

Product description 1–2

Category Description Presario

CQ60

Intel UMA

Presario

CQ60

Intel

Discrete

HP G60

Intel UMA

HP G60

Intel

Discrete

Presario

CQ60

AMD UMA

HP G60

AMD UMA

Graphics

(cont.)

Panel 16-inch single-channel low-voltage

Memory 2 customer-accessible/upgradable

■ up to 319 MB of total available graphics subsystem memory when computer system memory equals or is greater than 1024 MB

■ up to 895 MB of total available graphics subsystem memory when computer system memory equals or is greater than 2048 MB

■ up to 1407 MB of total available graphics subsystem memory when computer system memory equals or is greater than 3072 MB

NVIDIA GeForce 9200M GE with 256 MB of dedicated video memory

differential signaling HD BrightView display panel (1366 x 768)

15.6-inch single-channel low-voltage

differential signaling HD BrightView display panel (1366 x 768)

16:10 Wide Aspect Ratio X X X X X X

memory module slots

XXXXXX

Supports dual-channel memory X X X X X X

Supports up to 4 GB of system memory

Supports the following configurations:

■ 3072-MB total system memory (2048 + 1024)

■ 2048-MB total system memory (2048 × 1, 1024 × 2, dual-channel)

■ 1536-MB total system memory (1024 + 512)

■ 1024-MB total system memory (1024 × 1, 512 × 2, dual-channel)

■ 512-MB total system memory (512 × 1, only on computer models equipped with FreeDOS, RedFlag Linux, and Windows Vista® Basic)

■ 4096-MB total system memory (2048 x 2)

XXXXXX

XXX X

XXXXXX

(Continued)

Product description 1–3

Category Description Presario

CQ60

Intel UMA

Presario

CQ60

Intel

Discrete

HP G60

Intel UMA

HP G60

Intel

Discrete

Presario

CQ60

AMD UMA

HP G60

AMD UMA

Hard drives Supports all 9.5-mm, 6.35-cm

(2.50-in) SATA hard drives

Customer accessible X X X X X X

Single hard drive configurations:

120-GB, 5400-rpm X X X X X X

160-GB, 5400-rpm X X X X X X

200-GB, 5400-rpm X X X X

250-GB, 5400-rpm X X X X X X

320-GB, 5400-rpm X X X X X X

Optical drives 12.7-mm tray load - SATA - Fixed X X X X X X

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe

Blu-ray ROM DVD±RW SuperMulti DL Drive (not supported with Intel GM45 Chipset and 512-MB memory)

Webcam VGA camera, 640 x 480 resolution,

22.5 frames per second, fixed angle

with activity light

XXXXXX

Microphone Intregated single analog microphone X X X X X X

Audio High-definition audio supports

Microsoft premium requirements

Modem 56K V.92 1.5-inch data/fax modem X X X X X X

Computer models not equipped with a modem will have a cover on the RJ-11 jack opening

Supports all worldwide certification requirements

Ethernet Integrated 10/100 network interface

card (NIC)

Realtek 8102E X X X X

Wireless Integrated WLAN options by way

of wireless module:

2 wireless antennae built into display assembly

Support for no-WLAN option X X X X X X

XXXXXX

(Continued)

Product description 1–4

Category Description Presario

CQ60

Intel UMA

Presario

CQ60

Intel

Discrete

HP G60

Intel UMA

HP G60

Intel

Discrete

Presario

CQ60

AMD UMA

HP G60

AMD UMA

Wireless

(cont.)

External media cards

Ports Audio-in (stereo microphone) X X X X X X

Support for the following WLAN formats:

■ Atheros AR9280 802.11a/b/g/n X X X X X X

■ Atheros AR2425 802.11b/g X X X X X X

■ Broadcom BCM4312 802.11b/g X X X X X X

■ Intel Wi-Fi Link 5100 802.11a/b/g X X X X X X

■ Intel Wi-Fi Link 5100

802.11a/b/g/n

Digital Media Slot supporting SD, MMC, MS, MSPro, xD cards. With adapter (not included), supports mini versions of SD, MMC, MS Duo.

Audio-out (stereo headphone) X X X X X X

High-definition Multimedia Interface (HDMI) version 1.3 supporting 1080p with High-bandwidth Digital Content Protection (HDCP) key

RJ-11 (modem) X X X X X X

RJ-45 (Ethernet, includes link and activity lights)

USB (3) X X X X

XXXXXX

USB (2) XX

VGA (Dsub 15-pin) supporting 1920 × 1200 external resolution at 75 Hz, 1600 × 1200 external resolution at 75 Hz (hot plug/unplug with autodetect)

Multi-pin AC power X X X X X X

Docking None XXXXXX

Keyboard/ TouchPad

Power requirements

Security Security cable slot X X X X X X

Full-size keyboard, 40.64-cm (16.00-in) with numeric keypad

TouchPad with 2 TouchPad buttons X X X X X X

Supports 2-way scroll with legend X X X X X X

Taps enabled as default X X X X X X

Full-size keyboard (silver), 40.64-cm (16.00-in) with numeric keypad

65-W AC adapter with localized cable plug support

90-W AC adapter with localized cable plug support

6-cell, 2.20-Ah, 47-Wh battery X X X X X X

XXXXXX

XX XX

(Continued)

Product description 1–5

Category Description Presario

CQ60

Intel UMA

Presario

CQ60

Intel

Discrete

HP G60

Intel UMA

HP G60

Intel

Discrete

Presario

CQ60

AMD UMA

HP G60

AMD UMA

Operating system

Serviceability End-user replaceable parts:

Preinstalled:

Windows Vista Business 32 X X X X X X

Windows Vista Premium 32 X X X X X X

Windows Vista Home Basic 32 X X X X X X

FreeDOS XXXXXX

RedFlag Linux X X X X

AC adapter X X X X X X

Battery (system) X X X X X X

Hard drive XXXXXX

Memory module X X X X X X

Optical drive X X X X X X

WLAN module XXXXXX

Product description 1–6

Top components

Display components

External component identification

Item Component Description

Internal display switch Turns off the display and initiates Sleep if the display is closed

Wireless antennae (2) (select models only) Send and receive signals from one or more wireless

Integrated webcam light (select models only) On: The integrated webcam is in use.

Integrated webcam (select models only) Records audio and video and captures still photographs.

Internal microphone Records sound.

To see wireless regulatory notices, refer to the section of the Regulatory, Safety and Environmental Notices that applies to your country or region. These notices are located in Help and Support.

External component identification 2–1

while the power is on.

devices.

The antennae are not visible from the outside of the

✎

computer. For optimal transmission, keep the areas immediately around the antennae free from obstructions.

Lights

Item Component Description

Powe r lights* (2) ■ On: The computer is on.

■ Blinking: The computer is in the Sleep state.

■ Off: The computer is off or in Hibernation.

Battery light ■ On: A battery is charging.

■ Blinking: A battery that is the only available power source has reached a low battery level. When the battery reaches a critical battery level, the battery light begins blinking rapidly.

■ Off: If the computer is plugged into an external power source, the light is turned off when all batteries in the computer are fully charged. If the computer is not plugged into an external power source, the light stays off until the battery reaches a low battery level.

Drive light Blinking: The hard drive or optical drive is being accessed.

TouchPad light White: TouchPad is enabled.

Caps lock light On: Caps lock is on.

Wireless light ■ Blue: An integrated wireless device, such as a wireless local

Num lock light On: Num lock is on or the integrated numeric keypad is enabled.

*The 2 power lights display the same information. The light on the power button is visible only when the computer is open. The power light on the front of the computer is visible whether the computer is open or closed.

area network (WLAN) device and/or a Bluetooth® device, is turned on.

■ Amber: All wireless devices are turned off.

External component identification 2–2

Buttons and speakers

Item Component Description

Speakers (2) Produce sound.

Powe r button* ■ When the computer is off, press the button to turn on the

Wireless button Turns the wireless feature on or off, but does not create a wireless

*This table describes factory settings. For information about changing factory settings, refer to the user guides located in Help and Support.

computer.

■ When the computer is on, press the button briefly to initiate Sleep.

■ When the computer is in the Sleep state, press the button briefly to exit Sleep.

■ When the computer is in Hibernation, press the button briefly to exit Hibernation.

If the computer has stopped responding and Windows® shutdown procedures are ineffective, press and hold the power button for at least 5 seconds to turn off the computer.

To learn more about your power settings, select Start > Control Panel > System and Maintenance > Power Options.

connection.

A wireless network must be set up in order to establish a

✎

wireless connection.

External component identification 2–3

Keys

Item Component Description

esc key Displays system information about your computer when pressed

in combination with the fn key.

fn key Executes frequently used system functions when pressed in

Windows logo key Displays the Windows Start menu.

Windows applications key Displays a shortcut menu for items beneath the pointer.

Integrated numeric keypad Can be used like the keys on an external numeric keypad.

Volume keys Adjust system volume when pressed in combination with the

Function keys Execute frequently used system functions when pressed in

combination with a function key or the esc key.

fn key.

combination with the fn key.

External component identification 2–4

TouchPad

Item Component Function

TouchPad light ■ White: TouchPad is enabled.

■ Amber: TouchPad is disabled.

TouchPad* Moves the pointer and selects or activates items on the screen.

Left TouchPad button* Functions like the left button on an external mouse.

TouchPad on/off button Enables/disables the TouchPad.

TouchPad vertical scroll zone Scrolls up or down.

Right TouchPad button* Functions like the right button on an external mouse.

*This table describes factory settings. To view and change TouchPad preferences, select Start > Control Panel > Hardware and Sound > Mouse.

External component identification 2–5

Front components

Item Component Description

Powe r light ■ On: The computer is on.

Battery light ■ On: A battery is charging.

■ Blinking: The computer is in the Sleep state.

■ Off: The computer is off or in Hibernation.

■ Blinking: A battery that is the only available power source has

reached a low battery level. When the battery reaches a critical battery level, the battery light begins blinking rapidly.

Drive light Blinking: The hard drive or optical drive is being accessed.

Audio-in (microphone) jack Connects an optional computer headset microphone, stereo array

Audio-out (headphone) jack Produces sound when connected to optional powered stereo

Rear components

Component Function

Vents (2) Enable airflow to cool internal components.

microphone, or monaural microphone.

speakers, headphones, ear buds, a headset, or television audio.

The computer fan starts up automatically to cool

✎

internal components and prevent overheating. It is normal for the internal fan to cycle on and off during routine operation.

External component identification 2–6

Left-side components

Item Component Function

Power connector Connects an AC adapter.

AC adapter light

External monitor port Connects an external VGA monitor or projector.

RJ-45 (network) jack Connects a network cable.

HDMI port (select models only) Connects an optional video or audio device, such as a high-definition

USB port Connects an optional USB device.

Digital Media Slot (select models only) Supports the following optional digital card formats:

■ On: The computer is connected to external power.

■ Off: The computer is not connected to external power.

television, or any compatible digital or audio component.

■ Memory Stick (MS)

■ Memory Stick Pro (MSP)

■ MultiMediaCard (MMC)

■ Secure Digital (SD) Memory Card

■ xD-Picture Card (XD)

■ xD-Picture Card (XD) Type H

■ xD-Picture Card (XD) Type M

Digital Media Slot light (select models only) On: The Digital Media Slot is in use.

Right-side components

Item Component Function

Optical drive Reads optical discs and, on select models, also writes to optical discs.

Optical drive light Blinking: The optical drive is being accessed.

USB ports (2) Connect optional USB devices.

RJ-11 (modem) jack (select models only) Connects a modem cable.

Security cable slot Attaches an optional security cable to the computer.

The security cable is designed to act as a deterrent, but it may

✎

not prevent the computer from being mishandled or stolen.

External component identification 2–7

Bottom components

Item Component Function

Battery bay Holds the battery.

Battery release latch Releases the battery from the battery bay.

WLAN module compartment Holds the WLAN module.

To prevent an unresponsive system, replace the wireless

module with only a wireless module authorized for use in the computer by the governmental agency that regulates wireless devices in your country or region. If you replace the module and then receive a warning message, remove the module to restore computer functionality, and then contact technical support through Help and Support.

Vents (4) Enable airflow to cool internal components.

The computer fan starts up automatically to cool internal

✎

components and prevent overheating. It is normal for the internal fan to cycle on and off during routine operation.

Memory module compartment Contains the memory module slots.

Hard drive bay Holds the hard drive.

External component identification 2–8

Serial number location

The service tag, affixed to the bottom of the computer, provides information that may be needed when troubleshooting system problems. The service tag provides the following information:

When ordering parts or requesting information, provide the computer serial number and model number located on the bottom of the computer.

Illustrated parts catalog

Item Component Description

1 Product name This is the product name affixed to the front of the computer.

2 Serial number (s/n) This is an alphanumeric identifier that is unique to each product.

3 Part number/Product number (p/n) This number provides specific information about the product’s

hardware components. The part number helps a service technician to determine what components and parts are needed.

4 Model description This is the number used to locate documents, drivers, and

support for the computer.

5 Warranty period This number describes the duration of the warranty period for the

computer. When ordering parts or requesting information, provide the computer serial number and model description provided on the service tag.

Illustrated parts catalog 3–1

Computer major components

Illustrated parts catalog 3–2

Item Description Spare Part Number

(1) 16-inch WXGA BrightView display assembly

16-inch WXGA BrightView display assembly for HP G60 computer models (includes webcam module and cable, 2 WLAN antenna transceivers and cables, microphone and cable, and logo)

496762-001

16-inch WXGA BrightView display assembly for HP G60 computer models (includes microphone and cable and logo)

16-inch WXGA BrightView silver display assembly for HP G60 computer models (includes webcam module and cable, 2 WLAN antenna transceivers and cables, microphone and cable, and logo)

16-inch WXGA BrightView silver display assembly for HP G60 computer models (includes microphone and cable and logo)

16-inch WXGA BrightView display assembly for Presario CQ60 computer models (includes microphone and cable and logo)

16-inch WXGA BrightView display assembly for Presario CQ60 computer models (includes webcam module and cable, 2 WLAN antenna transceivers and cables, microphone and cable, and logo)

15.6-inch WXGA BrightView display assembly

15.6-inch WXGA BrightView display assembly for Presario CQ60 computer models (includes microphone and cable, and logo)

15.6-inch WXGA BrightView display assembly for Presario CQ60 computer models (includes webcam module and cable, 2 WLAN antenna transceivers and cables, microphone and cable, and logo)

15.6-inch WXGA BrightView display assembly for HP G60 computer models (includes microphone and cable, and logo)

15.6-inch WXGA BrightView display assembly for HP G60 computer models (includes webcam module and cable, 2 WLAN antenna transceivers and cables, microphone and cable, and logo)

15.6-inch WXGA BrightView silver display assembly for HP G60 computer models (includes microphone and cable, and logo)

496761-001

502950-001

502949-001

496765-001

496766-001

496767-001

496768-001

496763-001

496764-001

502951-001

15.6-inch WXGA BrightView silver display assembly for HP G60 computer models (includes webcam module and cable, 2 WLAN antenna transceivers and cables, microphone and cable, and logo)

(2) Keyboard (includes keyboard cable)

For use in Belgium 496771-181

For use in Canada 496771-121

For use in Canada (silver) 502958-121

For use in the Czech Republic 496771-221

For use in France 496771-051

For use in Germany 496771-041

For use in Greece 496771-151

For use in Israel 496771-BB1

For use in Italy 496771-061

For international use 496771-B31

For use in Latin America 496771-161

For us in Japan 49671-AA1

For used in Norway 496771-091

502952-001

(Continued)

Illustrated parts catalog 3–3

Item Description Spare Part Number

For use in Portugal 496771-131

For use in Russia 496771-251

For use in Saudi Arabia 496771-171

For use in South Korea 496771-AD1

For use in Spain 496771-071

For use in Switzerland 496771-111

For use in Thailand 496771-281

For use in Turkey 496771-141

For use in Taiwan 496771-AB1

For use in the United Kingdom 496771-031

For use in the United States 496771-001

For use in the United States (silver) 502958-001

(3) Keyboard cover 506848-001

(4) Power button board (includes power button board cable) 496830-001

(5) Top cover (includes TouchPad board) 506849-001

(6) TouchPad on/off button board (includes cables) 496832-001

(7) Fan/heat sink assembly for use with UMA systems (includes replacement thermal material) 489126-001

Fan/heat sink assembly for use with Discrete systems (includes replacement thermal material)

489154

(8) TouchPad board bracket 489119-001

Plastics Kit (see Plastics Kit on page 3-9 for more Plastics Kit spare part information) 486621-001

(9a) Hard drive cover

(9b) Memory module compartment cover

(9c) WLAN module compartment cover

(10) USB board (does not include USB board cable) 486633-001

USB board cable (not illustrated, includes num lock LED) 496837-001

(11) System board

UMA system board, GM45 (includes built-in modem, Digital Media Slot, HDMI port, and replacement thermal material)

UMA system board, GM45 (includes built-in modem, Digital Media Slot, and replacement thermal material)

UMA system board, GL40 (includes built-in modem, Digital Media Slot, and replacement thermal material)

UMA system board, GL40 (includes built-in modem, Digital Media Slot, HDMI port, and replacement thermal material)

UMA system board, GL40 (for Presario CQ60 computer models only; includes built-in modem and replacement thermal material)

Discrete system board, PM45 (includes built-in modem, Digital Media Slot, HDMI port, and replacement thermal material)

485218-001

494281-001

494282-001

485219-001

501266-001

488338-001

Discrete system board, PM45 (includes built-in modem, Digital Media Slot, and replacement thermal material)

494283-001

(Continued)

Illustrated parts catalog 3–4

Item Description Spare Part Number

UMA system board, NVIDIA (includes built-in modem, Digital Media Slot, HDMI port, and replacement thermal material)

UMA system board, NVIDIA (for Presario CQ60 use only; includes built-in modem, Digital Media Slot, and replacement thermal material)

UMA system board, NVIDIA (for Presario CQ60 use only; includes built-in modem, HDMI port, and replacement thermal material)

UMA system board, NVIDIA (for Presario CQ60 use only; includes built-in modem and replacement thermal material)

(12) Speakers (include left and right speakers and cables) 496829-001

(13) Audio board (includes audio board cable) 486634-001

(14) Processor (includes replacement thermal material)

Intel Core2 Duo processor (6-MB L2 cache, 1066-MHz FSB):

■ T9400 2.53-GHz processor 490113-001

Intel Core2 Duo processors (3-MB L2 cache, 1066-MHz FSB):

■ P8600 2.4-GHz processor 490112-001

■ P8400 2.26-GHz processor 490111-001

■ P7350 2.0-GHz processor 501520-003

Intel Core2 Duo processors (2-MB L2 cache, 800-MHz FSB):

■ T5900 2.2-GHz processor 501522-003

■ T5800 2.0-GHz processor 501521-003

498460-001

498462-001

498463-001

498464-001

Intel Pentium Dual-Core processors (1-MB L2 cache, 667-MHz FSB):

■ T3400 2.16-GHz processor 501523-003

■ T3200 2.0-GHz processor 490115-001

Intel Celeron-M processors (1-MB L2 cache, 667-MHz FSB):

■ 585 2.16-GHz processor 490117-001

■ 575 2.0-GHz processor 490116-001

Intel Celeron-T processors (1-MB L2 cache, 667-MHz FSB):

■ T1700 1.86-GHz processor 501525-003

■ T1600 1.66-GHz processor 501524-003

AMD Turion Ultra Dual-Core (2-MB L2 cache):

■ ZM-80 2.1-GHz processor 498465-001

■ ZM-82 2.2-GHZ processor 498466-001

AMD Turion Dual-Core (1-MB L2 cache):

■ RM-70 20-GHz processor 498467-001

■ RM-72 2.1-GHz processor 498468-001

AMD Athlon X2 Dual-Core (1-MB L2 cache):

■ QL-60 1.9-GHz processor 498469-001

■ QL-62 2.0-GHz processor 498470-001

AMD Sempron Single-Core (512-KB L2 cache):

■ SI-42 2.1-GHz processor 498471-001

■ SI-40 2.0-GHz processor 498472-001

(Continued)

Illustrated parts catalog 3–5

Item Description Spare Part Number

(15) Power connector cable 496835-0001

(16) Optical extension board 506951-001

(17) Bluetooth® module (does not include Bluetooth cable) 483113-001

Bluetooth cable (not illustrated) 496836-001

(18) Base enclosure (includes rubber feet)

For use only with computer models equipped with a built-in modem, Digital Media Slot, and an HDMI port (includes card reader, not illustrated)

For use only with computer models equipped with a built-in modem and Digital Media Slot, without an HDMI port

For use only with computer models equipped with a built-in modem, without Digital Media Slot and HDMI port

For use only with computer models equipped with a built-in modem, HDMI port, without Digital Media Slot

Rubber Feet Kit (not illustrated, includes 6 rubber feet) 486623-001

(19) Battery, 6-cell, 2.20-Ah, 47-Wh 485041-001

(20) Hard drive (includes hard drive bracket and connector)

320-GB, 5400-rpm 504072-001

250-GB, 5400-rpm 498478-001

200-GB, 5400-rpm 505971-001

160-GB, 5400-rpm 498477-001

120-GB, 5400-rpm 498476-001

Hard Drive Hardware Kit (not illustrated, includes connector, bracket, and screws) 504059-001

(21) RTC battery 501587-001

(22) Memory modules

PC2-6400, 667-MHz, DDR2

496825-001

492826-001

496827-001

504740-001

2-GB 485033-005

1-GB 485032-005

512-MB 485031-005

PC2-5300, 667-MHz, DDR2

2-GB 498475-001

1-GB 498474-001

512-MB 498473-001

(Continued)

Illustrated parts catalog 3–6

Item Description Spare Part Number

(23) WLAN module

Atheros AR9280 802.11a/g/n WLAN modules:

■ For use in Canada, the Cayman Islands, Guam, Puerto Rico, the U.S. Virgin Islands, and the United States

482260-001

■ For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, the People's Republic of China, Peru, the Philippines, Poland, Portugal, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia and Montenegro, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia, St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

Atheros AR2425 802.11b/g WLAN modules:

482260-002

■ For use in Canada, the Cayman Islands, Guam, Puerto Rico, the U.S. Virgin Islands, and the United States

■ For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cambodia, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, Colombia, Comoros, Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Indonesia, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Japan, Jordan, Kazakhstan, Kenya, Kiribati, Kuwait, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, the People's Republic of China, Peru, the Philippines, Poland, Portugal, Qatar, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia and Montenegro, Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia, St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Syria, Taiwan, Tajikistan, Tanzania, Thailand, Tog o , To n ga, Tr i ni d a d an d To b ago, Tu n i sia , Tu r ke y, Tur k m e nis t a n, Tu v a l u , U g a n da , Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

459339-001

459339-002

(Continued)

Illustrated parts catalog 3–7

Item Description Spare Part Number

Broadcom BCM4312 802.11b/g WLAN modules:

■ For use in Canada, the Cayman Islands, Guam, Puerto Rico, the U.S. Virgin Islands, and the United States

459263-001

(24) Optical drive (includes optical drive bezel and bracket)

459263-002

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive 498479-001

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe 498480-001

Blu-ray ROM DVD±RW SuperMulti DL Drive 498481-001

Illustrated parts catalog 3–8

Display assembly components

Item Description Spare Part Number

(1) Display bezel

For use only with 16-inch HP G60 display bezels (includes microphone) 497097-001

For use only with 16-inch HP G60 display bezels (includes microphone and webcam) 497098-001

For use only with 16-inch silver HP G60 display bezels (includes microphone) 502954-001

For use only with 16-inch silver HP G60 display bezels (includes microphone and webcam) 502955-001

For use only with 15.6-inch HP G60 display bezels (includes microphone) 497101-001

For use only with 15.6-inch HP G60 display bezels (includes microphone and webcam) 497102-001

For use only with 15.6-inch silver HP G60 display bezels (includes microphone) 502956-001

For use only with 15.6-inch silver HP G60 display bezels (includes microphone and webcam) 502957-001

For use only with 16-inch CQ60 display bezels (includes microphone) 497095-001

For use only with 16-inch CQ60 display bezels (includes microphone and webcam) 497096-001

For use only with 15.6-inch CQ60 display bezels (includes microphone) 497099-001

For use only with 15.6-inch CQ60 display bezels (includes microphone and webcam) 497100-001

(2) Display Hinge Kit (includes left and right display hinges) 486558-001

(3) Webcam module (does not include webcam module cable) 488385-001

Webcam Cable Kit (not illustrated) 496842-001

(4) Display inverter 486556-001

(5) Display panel brackets (include left and right brackets)

For use with16-inch display panels 496843-001

For use with15.6-inch display panels 496844-001

(Continued)

Illustrated parts catalog 3–9

Item Description Spare Part Number

(6) WXGA BrightView display panel (include display panel and backlight cables)

For use only with 16-inch display 496769-001

For use only with 15.6-inch display 496770-001

Display panel cable kit with webcam cable (not illustrated) 496841-001

(7) Wireless Antenna Kit (includes wireless antenna transceivers and cable)

Wireless antenna cable (shown attached to transceivers) 486562-001

(8) Microphone and caps lock cable (includes receiver and cable) 496840-001

(9) Display enclosure (includes logo)

For use only with HP G60 computer models 497094-001

For use only with silver HP G60 computer models 502953-001

For use only with Presario CQ60 computer models 497093-001

Display Rubber Kit (not illustrated, includes display bezel rubber screw covers) 486584-001

Display Screw Kit (not illustrated) 489113-001

Illustrated parts catalog 3–10

+ 104 hidden pages
